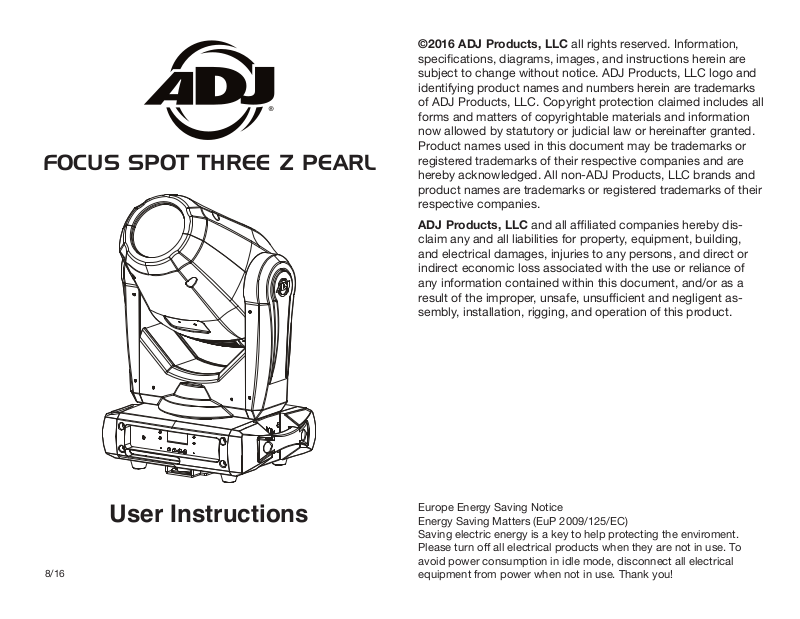

Focus spot three Z pearl
©2016 ADJ Products, LLC all rights reserved. Information,
specications, diagrams, images, and instructions herein are
subject to change without notice. ADJ Products, LLC logo and
identifying product names and numbers herein are trademarks
of ADJ Products, LLC. Copyright protection claimed includes all
forms and matters of copyrightable materials and information
now allowed by statutory or judicial law or hereinafter granted.
Product names used in this document may be trademarks or
registered trademarks of their respective companies and are
hereby acknowledged. All non-ADJ Products, LLC brands and
product names are trademarks or registered trademarks of their
respective companies.
ADJ Products, LLC and all aliated companies hereby disclaim any and all liabilities for property, equipment, building,
and electrical damages, injuries to any persons, and direct or
indirect economic loss associated with the use or reliance of
any information contained within this document, and/or as a
result of the improper, unsafe, unsucient and negligent assembly, installation, rigging, and operation of this product.
8/16
User Instructions
Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.
Please turn o all electrical products when they are not in use. To
avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
Focus Spot Three Z Pearl General Instructions Focus Spot Three Z Pearl General Information
Unpacking: Thank you for purchasing the Focus Spot Three Z Pearl
by ADJ Products, LLC. Every Focus Spot Three Z Pearl has been
thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have
occurred during shipping. If the carton appears to be damaged, carefully inspect your xture for any damage and be sure all equipment
necessary to operate the unit has arrived intact. In the event damage
has been found or parts are missing, please contact our toll free customer support number for further instructions. Please do not return
this unit to your dealer without contacting customer support rst.
Introduction: The Focus Spot Three Z Pearl is a DMX intelligent,
moving head, mini LED was. The Focus Spot Three Z Pearl can operate as a stand alone fixture or in a Master/Slave set up. The Focus
Spot Three Z Pearl has three operating modes; a sound active, show
mode, DMX controlled. This fixture is suitable for theaters, studios,
retail stores, and other similar locations. For best results use fog or
special effects smoke to enhance the beams projections.
Customer Support: ADJ Products, LLC provides a toll free cus-
tomer support line, to provide help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.adj.com for any comments or
suggestions. Service Hours are Monday through Friday 8:00 a.m. to
4:30 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Warning! This may cause severe eye damage. Avoid looking directly
into the light source at all times!
To optimize the performance of this product, please read these
operating instructions carefully to familiarize yourself with the basic
operations of this unit. These instructions contain important safety
information regarding the use and maintenance of this unit. Please
keep this manual with the unit, for future reference.
Focus Spot Three Z Pearl Features
• DMX-512 Protocol Compatible (2 DMX Channel Modes: 18 Chan-
nels & 21 Channels)
• 3 Operating Modes - Sound Active, Show Mode, & DMX Control
• 5 Dimmer Curves (Standard, Stage, TV, Architectural, & Theatre)
• Internal Microphone
• Digital Display for Address and Function Setting
• 4 Preprogrammed Shows
• UC IR and Airstream IR Compatiable (Not Included)
Focus Spot Three Z Pearl Warranty Registration
The Focus Spot Three Z Pearl carries a 2 year (730 days) limited
warranty. Please fill out the enclosed warranty card to validate your
purchase and warranty. You may also register your product online
at www. adjproducts.com. All returned service items whether under
warranty or not, must be freight pre-paid and accompany a return
authorization (R.A.) number. If the unit is under warranty you must
provide a copy of your proof of purchase invoice. Please contact ADJ
Products, LLC customer support for a R.A. number.
Focus Spot Three Z Pearl Handling Precautions
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures
warranty. In the unlikely event your unit may require service please
contact ADJ Products, LLC.
During operation the housing may become extremely hot. Avoid
touching the unit with bare hands while in use.
ADJ Products, LLC will not accept any liability for any resulting damages caused by the non-observance of this manual or any unauthor-
ized modication to this unit.
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 3ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 2
Focus Spot Three Z Pearl Safety Precautions
Focus Spot Three Z Pearl Mounting
For Your Own Personal Safety, Please Read and Understand This
Manual Completely Before You Attempt To Install Or Operate
This Unit!
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required volt age for your unit.
• Do not attempt to operate this unit if the power cord has been
frayed or broken.
• Do not attempt to remove or break o the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Never operate this unit when it’s cover is removed.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out doors voids all warranties.
• Always mount this unit in safe and stable matter.
• Power-supply cords should be routed so that they are not likely to
be walked on or pinched by items placed upon or against them,
paying particular attention to cords at plugs, convenience recep tacles, and the point where they exit from the appliance.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 36 for cleaning details.
• Heat -This fixture should be situated away from heat sources such
as radiators, heat registers, stoves, or other appliances (including
amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. Objects have fallen, or liquid has been spilled into the appliance.
B. The appliance has been exposed to rain or water.
C. The appliance does not appear to operate normally or exhibits
a marked change in performance.
When installing the unit, the trussing or area of installation must be
able to hold 10 times the weight without any deformation. When
installing the unit must be secured with a secondary safety attachment, e.g. and appropriate safety cable. Never stand directly below
the unit when mounting, removing, or servicing the unit.
Overhead mounting requires extensive experience, including calculating working load limits, installation material being used, and perodic
safety inspection of all installation material and unit. If you lack these
qualications, do not attempt the installation yourself.
The installaiton should be checked by a skilled person once a year.
The Focus Spot Three Z Pearl is fully operational in three dierent
mounting positions, hanging upside-down from a ceiling, mounted
sideways on trussing, or set on a at level surface. Be sure this xture
is kept at least 0.5m away from any ammable materials (decoration
etc.). Always use and install the supplied safety cable as a safety
measure to prevent accidental damage and/or injury in the event the
clamp fails (see next page).
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 5ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 4
Focus Spot Three Z Pearl Mounting Focus Spot Three Z Pearl CAD Drawing
NOTICE: The suitable enviromental temperature for this light-
ing xture is between -25˚ C to 45˚ C. Do not place this lighting
xture in an enviroment where the temperatures are under or
above the temperatures stated above. This will allow the xture
to run at its best and help prolong the xture life.
489mm/19.25”
284mm/11.1’
183mm/7.20”
Screw one clamp via a M12 screw and nut to the included
bracket. Attach the bracket using the omega locks to the
bottom of the Focus Spot Three Z Pearl. Attach and pull the
safety-cable through one of the safety holes located on the
bottom base and over the trussing system or a safe xation
spot. Insert the end in the carabine and tighten the safety
screw.
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 6 ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 7
Focus Spot Three Z Pearl Base Layout
1. LED:
DMX On DMXinputpresent
Focus Spot Three Z Pearl DMX Set Up
Power Supply: The ADJ Focus Spot Three Z Pearl contains a auto-
matic voltage switch, which will auto sense the voltage when it is
plugged into the power source. With this switch there is no need to
worry about the correct power voltage, this unit can be plugged in
anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fixture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).
MASTER On MasterMode
SLAVE ON SlaveMode
SOUND Flashing Soundactivation
2. Display:Toshowthevariousmenusandtheselectedfunction;
3. Button:
MENU Toselecttheprogramming functions
UP Togoforwardintheselectedfunctions
DOWN Togobackwardintheselectedfunctions
ENTER Toconrmtheselectedfunctions
4. IRreceiver: ToreceivetheIRsignal;
5. Fuse(T5Amp): Protectstheunitfromover‐voltageorshortcircuit;
6. PowerIn/out: powercableconnectorsforpowerinput/output;
DMX Linking: DMX is a language allowing all makes and models
of dierent manufactures to be linked together and operate from a
single controller, as long as all xtures and the controller are DMX
compliant. To ensure proper DMX data transmission, when using
several DMX fixtures try to use the shortest cable path possible. The
order in which fixtures are connected in a DMX line does not influence
the DMX addressing. For example; a fixture assigned a DMX address
of 1 may be placed anywhere in a DMX line, at the beginning, at the
end, or anywhere in the middle. Therefore, the first fixture controlled
by the controller could be the last fixture in the chain. When a fixture
is assigned a DMX address of 1, the DMX controller knows to send
DATA assigned to address 1 to that unit, no matter where it is located
in the DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation): The Focus Spot Three Z Pearl can be controlled via DMX-
512 protocol. The Focus Spot Three Z Pearl has
2 DMX channel modes; 18 channel mode & 21
channel mode. The DMX address is set electronically using the controls on the front panel of the
unit. Your unit and your DMX controller require a
approved DMX-512 110 Ohm Data cable for data
input and data output (Figure 1). We recommend
Accu-Cable DMX cables. If you are making your
own cables, be sure to use standard 110-120 Ohm
Figure 1
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 9ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 8
Focus Spot Three Z Pearl DMX Set Up
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
POWER
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
Focus Spot Three Z Pearl DMX Set Up
shielded cable (This cable may be purchased at almost all professional
sound and lighting stores). Your cables should be made with a male
and female XLR connector on either end of the cable. Also remember
that DMX cable must be daisy chained and cannot be split.
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not connect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
COMMON
1
DMX512 IN
3
3-PIN XLR
2
Figure 2
XLR Pin Conguration
Pin 1 = Ground
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
XLR Male Socket
1 Ground
Figure 3
DMX512 OT
3-PIN XLR
2 Cold
3 Hot
1
3
2
XLR Female Socket
2 Cold
DMX +
DMX -
1 Ground
3 Hot
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting standard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
3-Pin XLR to 5-Pin XLR Conversion
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Ground/Shield
Data Compliment (- signal)
Data True (+ signal)
Not Used
Not Used
Pin 1
Pin 2
Pin 3
Pin 1
Pin 2
Pin 3
Pin 4 - Do Not Use
Pin 5 - Do Not Use
Special Note: Line Termination.
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
When longer runs of cable are
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
Termination reduces signal errors and
1
avoids signal transmission problems
3
and interference. It is always advisable
2
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 10
Figure 4
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 11
Focus Spot Three Z Pearl 18 Channel Mode
Channel Value Function
Focus Spot Three Z Pearl 18 Channel Mode
Channel Value Function
1 0 - 255 PAN MOVEMENT 0° - 630°
2 0 - 255 TILT MOVEMENT 0° - 270°
3 COLOR
0 - 7 WHITE
8 - 14 RED
15 - 21 ORANGE
22 - 28 YELLOW
29 - 35 GREEN
36 - 42 BLUE
43 - 49 PURPLE
50 - 56 LIGHT BLUE
57 - 63 PINK
64 - 127 COLOR MIXING
128 - 189 COUNTER CLOCKWISE ROTATION
FAST - SLOW
190 - 193 STOP
194 - 255 CLOCKWISE ROTATION SLOW - FAST
4 GOBOS (STATIC)
0 - 7 OPEN
8 - 15 GOBO 1
16 - 23 GOBO 2
24 - 31 GOBO 3
32 - 39 GOBO 4
40 - 47 GOBO 5
48 - 55 GOBO 6
56 - 63 GOBO 7
64 - 72 GOBO 1 SHAKE
73 - 81 GOBO 2 SHAKE
82 - 90 GOBO 3 SHAKE
91 - 99 GOBO 4 SHAKE
100 - 108 GOBO 5 SHAKE
109 - 117 GOBO 6 SHAKE
118 - 127 GOBO 7 SHAKE
128 - 189 COUNTER CLOCKWISE ROTATION
FAST - SLOW
190 - 193 STOP
194 - 255 CLOCKWISE ROTATION SLOW - FAST
5 GOBOS (ROTATING)
0 - 9 OPEN
10 - 18 GOBO 1
19 - 27 GOBO 2
28 - 36 GOBO 3
37 - 45 GOBO 4
46 - 54 GOBO 5
55 - 63 GOBO 6
64 - 73 OPEN
74 - 82 GOBO 1 SHAKE
83 - 91 GOBO 2 SHAKE
92 - 100 GOBO 3 SHAKE
101 - 109 GOBO 4 SHAKE
110 - 118 GOBO 5 SHAKE
119 - 127 GOBO 6 SHAKE
128 - 189 COUNTER CLOCKWISE ROTATION
FAST - SLOW
190 - 193 STOP
194 - 255 CLOCKWISE ROTATION SLOW - FAST
6 GOBO WHEEL 2 GOBO ROTATION
0 - 127 INDEXING
128 - 189 CLOCKWISE ROTATION FAST - SLOW
190 - 193 NO ROTATION
194 - 255 COUNTER-CLOCKWISE ROTATION
SLOW - FAST
7 PRISM
0 STOP
1 - 126 6 FACET PRISM
127 NO EFFECT
128 - 255 LINEAR PRISM
8 PRISM ROTATION
0 - 3 STOP
4 - 127 COUNTER CLOCKWISE ROTATION
FAST - SLOW
128 - 131 STOP
132 - 255 CLOCKWISE ROTATION SLOW - FAST
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 12 ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 13
Focus Spot Three Z Pearl 18 Channel Mode
Focus Spot Three Z Pearl 18 Channel Mode
Channel Value Function
9 STROBE/SHUTTER
0 - 7 OFF
8 - 15 OPEN
16 - 131 STROBING SLOW - FAST
132 - 139 OPEN
140 - 181 SLOW OPEN - FAST CLOSE
182 - 189 OPEN
190 - 231 FAST OPEN - SLOW CLOSE
232 - 239 OPEN
240 - 247 RANDOM STROBE SLOW - FAST
248 - 255 OPEN
10 0 - 255 MASTER DIMMER 0% - 100%
11 0 - 255 FOCUS 0% - 100%
12 AUTO FOCUS
0 - 7 NOTHING
8 - 63 5M FOR AUTO FOCUS
64 - 127 10M FOR AUTO FOCUS
128 - 255 15M FOR AUTO FOCUS
13 0 - 255 ZOOM 18° - 12°
14 SHOWS
0 OFF
1 - 21 SHOW 1
22 - 41 SHOW 2
42 - 61 SHOW 3
62 - 81 SHOW 4
91 - 255 RANDOM SHOW WITH SOUND ACTIVITY
15 0 - 255 SHOW SPEED FAST - SLOW
16 DIMMER MODES
0 - 20 STANDARD
22 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT TO UNIT
17 0 - 255 PAN/TILT SPEED FAST - SLOW
Channel Value Function
18 FUNCTION
0 - 69 NOTHING
70 - 79 ENABLE BLACKOUT WITH PAN/TILT
80 - 89 DISABLE BLACKOUT WITH PAN/TILT
90 - 99 ENABLE BLACKOUT W/ COLOR CHANGE
100 - 109 DISABLE BLACKOUT W/ COLOR CHANGE
110 - 119 ENABLE BLACKOUT W/ GOBO CHANGE
120 - 129 DISABLE BLACKOUT W/ GOBO CHANGE
130 - 139 PAN/TILT MOTOR RESET
140 - 149 COLOR WHEEL MOTOR RESET
150 - 159 GOBO WHEEL MOTOR RESET
160 - 169 EFFECTS RESET (PRISM/FOCUS/ZOOM)
170 - 199 NOTHING
200 - 209 RESET ALL
210 - 255 NOTHING
Gobo Wheel 1
Gobo 1 Gobo 7Gobo 6Gobo 5Gobo 4Gobo 3Gobo 2
Gobo Wheel 2
17 .0 0 mm
20.90 mm
20 .0 0 mm
23 .8 0 mm
Gobo 1
20 .0 0 mm
23 .8 0 mm
23 .8 0 mm
20 .0 0 mm
23 .8 0 mm
20 .0 0 mm
Gobo 3Gobo 2
23 .8 0 mm
20 .0 0 mm
Gobo 5Gobo 4
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 15ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 14
Gobo 6
Focus Spot Three Z Pearl 21 Channel Mode
Channel Value Function
Focus Spot Three Z Pearl 21 Channel Mode
Channel Value Function
1 0 - 255 PAN MOVEMENT 0° - 630°
2 0 - 255 PAN FINE 0% - 100%
3 0 - 255 TILT MOVEMENT 0° - 270°
4 0 - 255 TILT FINE 0% - 100%
5 COLOR
0 - 7 WHITE
8 - 14 RED
15 - 21 ORANGE
22 - 28 YELLOW
29 - 35 GREEN
36 - 42 BLUE
43 - 49 PURPLE
50 - 56 LIGHT BLUE
57 - 63 PINK
64 - 127 COLOR MIXING
128 - 189 COUNTER CLOCKWISE FAST - SLOW
190 - 193 STOP
194 - 255 CLOCKWISE ROTATION SLOW - FAST
6 GOBOS (STATIC)
0 - 7 OPEN
8 - 15 GOBO 1
16 - 23 GOBO 2
24 - 31 GOBO 3
32 - 39 GOBO 4
40 - 47 GOBO 5
48 - 55 GOBO 6
56 - 63 GOBO 7
64 - 72 GOBO 1 SHAKE
73 - 81 GOBO 2 SHAKE
82 - 90 GOBO 3 SHAKE
91 - 99 GOBO 4 SHAKE
100 - 108 GOBO 5 SHAKE
109 - 117 GOBO 6 SHAKE
118 - 127 GOBO 7 SHAKE
128 - 189 COUNTER CLOCKWISE FAST - SLOW
190 - 193 STOP
194 - 255 CLOCKWISE ROTATION SLOW - FAST
7 GOBOS (ROTATING)
0 - 9 OPEN
10 - 18 GOBO 1
19 - 27 GOBO 2
28 - 36 GOBO 3
37 - 45 GOBO 4
46 - 54 GOBO 5
55 - 63 GOBO 6
64 - 73 OPEN
74 - 82 GOBO 1 SHAKE
83 - 91 GOBO 2 SHAKE
92 - 100 GOBO 3 SHAKE
101 - 109 GOBO 4 SHAKE
110 - 118 GOBO 5 SHAKE
119 - 127 GOBO 6 SHAKE
128 - 189 COUNTER CLOCKWISE ROTATION
FAST - SLOW
190 - 193 STOP
194 - 255 CLOCKWISE ROTATION SLOW - FAST
8 GOBO WHEEL 2 GOBO ROTATION
0 - 127 INDEXING
128 - 189 CLOCKWISE ROTATION FAST - SLOW
190 - 193 NO ROTATION
194 - 255 COUNTER-CLOCKWISE ROTATION
SLOW - FAST
9 PRISM
0 STOP
1 - 126 6 FACET PRISM
127 NO EFFECT
128 - 255 LINEAR PRISM
10 PRISM ROTATION
0 - 3 STOP
4 - 127 COUNTER CLOCKWISE ROTATION
FAST - SLOW
128 - 131 STOP
132 - 255 CLOCKWISE ROTATION SLOW - FAST
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 16 ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 17
Focus Spot Three Z Pearl 21 Channel Mode
Focus Spot Three Z Pearl 21 Channel Mode
Channel Value Function
11 STROBE/SHUTTER
0 - 7 OFF
8 - 15 OPEN
16 - 131 STROBING SLOW - FAST
132 - 139 OPEN
140 - 181 SLOW OPEN - FAST CLOSE
182 - 189 OPEN
190 - 231 FAST OPEN - SLOW CLOSE
232 - 239 OPEN
240 - 247 RANDOM STROBE SLOW - FAST
248 - 255 OPEN
12 0 - 255 MASTER DIMMER 0% - 100%
13 0 - 255 MASTER DIMMER FINE 0% - 100%
14 0 - 255 FOCUS 0% - 100%
15 AUTO FOCUS
0 - 7 NOTHING
8 - 63 5M FOR AUTO FOCUS
64 - 127 10M FOR AUTO FOCUS
128 - 255 15M FOR AUTO FOCUS
16 0 - 255 ZOOM 18° - 12°
17 SHOWS
0 OFF
1 - 21 SHOW 1
22 - 41 SHOW 2
42 - 61 SHOW 3
62 - 81 SHOW 4
91 - 255 RANDOM SHOW WITH SOUND ACTIVITY
18 0 - 255 SHOW SPEED FAST - SLOW
19 DIMMER MODES
0 - 20 STANDARD
22 - 40 STAGE
41 - 60 TV
61 - 80 ARCHITECTURAL
81 - 100 THEATRE
101 - 255 DEFAULT TO UNIT
20 0 - 255 PAN/TILT SPEED FAST - SLOW
Channel Value Function
21 FUNCTION
0 - 69 NOTHING
70 - 79 ENABLE BLACKOUT WITH PAN/TILT
80 - 89 DISABLE BLACKOUT WITH PAN/TILT
90 - 99 ENABLE BLACKOUT W/ COLOR CHANGE
100 - 109 DISABLE BLACKOUT W/ COLOR CHANGE
110 - 119 ENABLE BLACKOUT W/ GOBO CHANGE
120 - 129 DISABLE BLACKOUT W/ GOBO CHANGE
130 - 139 PAN/TILT MOTOR RESET
140 - 149 COLOR WHEEL MOTOR RESET
150 - 159 GOBO WHEEL MOTOR RESET
160 - 169 EFFECTS RESET (PRISM/FOCUS/ZOOM)
170 - 199 NOTHING
200 - 209 RESET ALL
210 - 255 NOTHING
Gobo Wheel 1
Gobo 1 Gobo 7Gobo 6Gobo 5Gobo 4Gobo 3Gobo 2
Gobo Wheel 2
17 .0 0 mm
20.90 mm
20 .0 0 mm
23 .8 0 mm
Gobo 1
20 .0 0 mm
23 .8 0 mm
23 .8 0 mm
20 .0 0 mm
23 .8 0 mm
20 .0 0 mm
Gobo 3Gobo 2
23 .8 0 mm
20 .0 0 mm
Gobo 5Gobo 4
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 18 ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 19
Gobo 6
Focus Spot Three Z Pearl System Menu Focus Spot Three Z Pearl System Menu
System Menu: When making adjustments press ENTER to
conrm your setup then press and hold the MENU button
for at least 3 seconds. To exit without making any adjust-
ments press the MENU button. The display will lock after 30
seconds, press the MENU button for 3 seconds to unlock.
DMX Address - Set the DMX Address -
1. Press the MENU button until “DMX Addresss” is displayed,
press ENTER.
2. “X” will now be displayed, “X” represents the displayed
address. Press the UP or DOWN buttons to nd your desired
address.
3. Press ENTER to conrm, and then press and hold the MENU
button for at least three seconds to assign.
Channel Mode - This will let you select your desired
DMX Channel mode.
1. Press the MENU button until “Channel Mode” is displayed,
press ENTER.
2. “X Chan” will now be displayed, “X” represents the displayed
DMX channel mode. Press the UP or DOWN buttons to nd your
desired Channel mode.
3. Press ENTER to conrm.
Slave Mode - This will let you set unit as a master or
slave in a master/slave conguration.
1. Press the MENU button until “Slave Mode” is displayed,
press ENTER. Either “Master”, “Slave 1” or “Slave 2” will be
displayed.
2. Press the UP or DOWN buttons until your desired setting is
displayed, then press ENTER to conm.
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 20 ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 21
Focus Spot Three Z Pearl System Menu Focus Spot Three Z Pearl System Menu
NOTE: In a Master/Slave conguration you can make one
xture the Master and then set the next xture to “Slave 2”, the
xtures will now have contrast movement to each other.
Show Mode - Show modes 1 - 4 (Factory Shows).
1. Press the MENU button until “Show Mode” is displayed, press
ENTER.
2. “Show X” will now be displayed, “X” representing a number
between 1-4. Press the UP or DOWN buttons to nd your desired
show and press ENTER to conrm. After pressing ENTER, press
and hold the MENU button for at least 3 seconds to activate.
Sound State - In this mode the unit will run in sound
active mode.
1. Press the MENU button until “Sound State” is displayed, press
ENTER.
2. Either “On” or “O” will now be displayed. Use the UP or
DOWN buttons to toggle between “On” and “O”.
DMX Last State - This mode can be used as a precau-
tion mode, that in case the DMX signal is lost, the operating
mode chosen in the setup is the running mode the xture
will go into when the DMX signal is lost. You can also set
this as the operating mode you would like the unit to return
to when power is applied.
1. Press the MENU button until “DMX State” is displayed, press
ENTER.
2. Either “Master/Slave”, “Blackout”, or “Last State” will be displayed. Choose an operating mode you would like the unit to
start up in when power is applied or the DMX signal is lost.
• Master/Slave - If the DMX signal is lost or power is applied, the
unit will automatically go into Master Slave mode.
• Blackout - If the DMX signal is lost or power is applied, the unit
will automatically go into stand by mode.
• Last State - If the DMX signal is lost the xture will stay in the
last DMX set up. If power is applied and this mode is set, the unit
will automatically go into the last DMX set up.
3. Press ENTER to conrm your selection, the press and hold the
MENU button to activate.
Sound Sense - In this mode you can adjust the sound
sensitivity of the sound active mode.
1. Press the MENU button until “Sound Sense” is displayed,
press ENTER.
2. Press the UP or DOWN buttons to adjust the sensitivity level.
The sensitivity level can be adjusted between 0 (the lowest) and
100 (most sensitive).
3. Press ENTER to set you desired level.
3. Press ENTER to conrm your desired set up.
Dimmer Curve - In this mode you can select the dimmer
curve.
1. Press the MENU button until “Dimmer Curve” is displayed,
press ENTER.
2. The current dimmer curve setting will be displayed.
3. Press the UP or DOWN buttons to nd your desired dimmer
curve and press ENTER to conrm. See the Dimmer Curve Chart
on page 22 for the settings.
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 23ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 22
Focus Spot Three Z Pearl System Menu Focus Spot Three Z Pearl System Menu
Pan Invert - Pan Inversion
1. Press the MENU button until “Pan Invert” is displayed, press
ENTER. Either “Yes” or “No” will be displayed.
2. To activate the Pan inversion press the UP or DOWN buttons
until “Yes” is displayed, press ENTER to conm. To deactivate
Pan inversion, select “No” and press Enter.
Tilt Invert - Tilt Inversion
1. Press the MENU button until “Tilt Invert” is displayed, press
ENTER. Either “Yes” or “No” will be displayed.
2. To activate the Tilt inversion press the UP or DOWN buttons
until “Yes” is displayed, press ENTER to conm. To deactivate
Tilt inversion, select “No” and press Enter.
Back Light - With this function you can make the back-
light automatically turn off after one minute.
1. Press the MENU button until “Back Light” is displayed, press
ENTER.
2. Either “On” or “O” will now be displayed. Press the UP or
DOWN buttons to select “On” to keep the backlight on at all
times, or “O” to allow the backlight to turn o after 1 minute.
Press any button to turn the backlight on again.
3. Once you nd a function you wish to test, press the ENTER
button, the displayed value will begin to ash. You can now
adjust the values by pressing the UP and DOWN buttons. Once
you have nished testing press the ENTER button.
4. To exit the manual test mode, press the MENU button.
Auto Test - This function will run a self test program.
1. Press the MENU button until “Auto Test” is displayed, press
ENTER.
2. The xture will now run a self test. Press the MENU button to
exit.
Function Delay - With this function you can set a delay
for the reset functions in DMX mode.
1. Press the MENU button until “Function Delay” is displayed,
press ENTER.
2. Either “No Delay” or time between 1s - 3s will be displayed.
This number represents the delay setting. Use the UP and DOWN
buttons to adjust the blackout delay.
Example: If the delay is set to 3 seconds, and you go to reset the
pan/tilt motors, it will take 3 seconds for the reset to begin.
3. Press ENTER to conrm.
Manual Test - This function will let you manually test
the individual features.
1. Press the MENU button until “Manual Test” is displayed,
press ENTER.
2. Use the UP or DOWN buttons to nd the functions that you
wish to test.
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 24 ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 25
Zoom Mode - With this function you can adjust the
zoom.
1. Press the MENU button until “Zoom Mode” is displayed, press
ENTER.
2. The current zoom setting will be displayed.
3. Press the UP or DOWN buttons to adjust the zoom between
5M, 10M, or 15M. Press ENTER to conrm your setting.
Focus Spot Three Z Pearl System Menu
Focus Spot Three Z Pearl System Menu
Fixture Temp. - With this function you can display the
running temperature of the unit.
1. Press the MENU button until “Fixture Temp.” is displayed,
press ENTER.
2. The current running temperature of the xture will now be
displayed. Press MENU to exit.
Fixture Time - With this function you can display the
running time of the unit.
1. Press the MENU button until “Fixture Time” is displayed,
press ENTER.
2. The running time of the xture will now be displayed. Press
MENU to exit.
Firmware Version - This will display the rmware/soft-
ware version
1. Press the MENU button until “Firmware Version” is displayed.
Press the ENTER button and the rmware/software vesion will
be displayed.
Reset - Use this function to reset the motors.
1. Press the MENU button until “Reset” is displayed, press
ENTER.
2. The xture will now reset.
2. Press the MENU button to leave this function.
PRO Defaults - This function will restore all factory
settings.
1. Press the MENU button until “PRO defaults” is displayed,
press ENTER. Either “Yes” or “No” will be displayed.
2. To restore factory settings press the UP or DOWN buttons
until “Yes” is displayed, press ENTER to conm. If you do not
wish restore the settings, select “No” and press Enter.
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 26 ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 27
Focus Spot Three Z Pearl Home Adjustment Menu
To enter the Oset Menu, press the MENU button to unlock the
display, then press the ENTER button for at least 5 seconds. In this
submenu you are able to adjust the home position of the pan, tilt,
gobo wheels, color wheel, prisms, focus, and zoom .
Pan Oset - Adjustment of the pan home position.
1. Press the ENTER button for at least 5 seconds, then press the UP
or DOWN buttons so that “Pan Offset” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Tilt Oset - Adjustment of the tilt home position.
1. Press the ENTER button for at least 5 seconds, then press the UP
or DOWN buttons so that “Tilt Offset” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Focus Spot Three Z Pearl Home Adjustment Menu
Gobo 1 Oset - Setting adjustment for the 1st gobo
wheel.
1. Press the ENTER button for at least 5 seconds, then press the
UP or DOWN buttons so that “Gobo 1 Offset” is displayed, press
ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Gobo 2 Oset - Setting adjustment for the 2nd gobo
wheel.
1. Press the ENTER button for at least 5 seconds, then press the
UP or DOWN buttons so that “Gobo 2 Offset” is displayed, press
ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Color Oset - Setting adjustment for the color wheel.
1. Press the ENTER button for at least 5 seconds, then press the UP
or DOWN buttons so that “Color” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Prism 1 Oset - Setting adjustment for the 1st prism.
1. Press the ENTER button for at least 5 seconds, then press the
UP or DOWN buttons so that “Prism 1 Offset” is displayed, press
ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 28
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 29
Focus Spot Three Z Pearl Home Adjustment Menu
Focus Spot Three Z Pearl Operation
Prism 2 Oset - Setting adjustment for the 2nd prism.
1. Press the ENTER button for at least 5 seconds, then press the
UP or DOWN buttons so that “Prism 1 Offset” is displayed, press
ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Rprism Oset - Setting adjustment for the rotating
prism.
1. Press the ENTER button for at least 3 seconds, then press the
UP or DOWN buttons so that “Rprsim Offset” is displayed, press
ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Focus Oset - Setting adjustment for the focus.
1. Press the ENTER button for at least 3 seconds, then press the UP
or DOWN buttons so that “Focus Offset” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Zoom Oset - Setting adjustment for the zoom.
1. Press the ENTER button for at least 3 seconds, then press the UP
or DOWN buttons so that “Zoom Offset” is displayed, press ENTER.
2. Use the UP and DOWN buttons to make your adjustments, and
then press ENTER to conrm. Press the MENU button for one second
to exit.
Universal DMX Control: This function allows you to use a univer-
sal DMX-512 controller to control the chases and patterns, dimmer
and strobe. A DMX controller allows you to create unique programs
tailored to your individual needs.
1. The Focus Spot Three Z Pearl has 2 DMX channel modes; 18
channel mode, and 21 channel mode. See pages 12-19 for
detailed description of the DMX values and traits.
2. To control your fixture in DMX mode, follow the set-up procedures
on pages 9-11 as well as the set-up specifications that are includ ed with your DMX controller.
3. Use the controller’s faders to control the various DMX fixture traits.
4. This will allow you to create your own programs.
5. Follow the instructions on page 21 to select your desired DMX
channel mode and to set the DMX address.
6. For longer cable runs (more than a 100 feet) use a terminator on
the last fixture.
7. For help operating in DMX mode consult the manual included
with your DMX controller.
Sound Active Mode: This mode allows either single unit or several
units linked together, to run to the beat of the music.
1. Press the MENU button until “Sound State” is displayed, and
press ENTER. Press the UP or DOWN buttons so that “ON” is dis played and press ENTER.
2. Press the MENU button until “Sound Sense” is displayed, and
press ENTER. Use the UP and DOWN buttons to adjust the sound
sensitivity. Press ENTER when you have found your desired sensi-
tivity level.
Show Mode: This mode allows either a single unit or several units
linked together, to run one of four shows that you choose.
1. Press the MENU button until “Show Mode” is displayed, and
press ENTER.
2. Press the UP or DOWN buttons to nd your desired show, and
press ENTER.
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 30
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 31
Focus Spot Three Z Pearl Remote Operation Focus Spot Three Z Pearl Master-Slave Set Up
Master-Slave Operation This function will allow you to link up to 16
units together and operate without a controller. The units will be sound
activated. In Master-Slave operation one unit will act as the controlling
unit and the others will react to the controlling units programs. Any unit
can act as a Master or as a Slave.
1. Using approved DMX data cables, daisy chain your units togeth-
er via the XLR connector on the rear of the units. Remember the
Male XLR connector is the input and the Female XLR connector
is the output. The rst unit in the chain (master) will use the female
XLR connector only - The last unit in the chain will use the male
XLR connector only. For longer cable runs we suggest a termina tor at the last fixture.
2. On the Master unit press the MENU button until “Slave Mode” is
displayed, and press ENTER. Use the UP and DOWN buttons to
scroll to the “Master” setting and press ENTER.
3. After setting the Master unit to the master setting find and set
your desired operating mode.
4. On the slave units press the MENU button until “Slave Mode” is
displayed, and press ENTER. Choose either “Slave 1” or “Slave
2” and press ENTER.
5. The slave units will now follow the Master unit.
The UC IR (sold separately) infrared remote gives you control of
various functions (See below). To control the fixture you must aim the
remote at the front of the fixture and be no more than 30 feet away.
The Airstream IR (sold separately) remote transmitter plugs into
the headphone jack of your iOS phone or tablet. To control your IR
fixture you must raise the volume to the maximum on your iOS phone
or tablet and aim the transmitter at the fixture sensor and be no more
than 15 feet away. After you have purchased the Airstream IR transmitters, the app is a free download from the app store for your iOS
phone or tablet. The app comes with 3 pages of control depending
on the fixture you are using. Please see below for IR functions. This
unit works with App page 1.
STAND BY - Pressing this button will blackout the fixture.
FULL ON - Hold this button down to fully light up the unit. When you
let the button go, the unit will return to its previous state.
FADE/GOBO - Press this button once to access gobo wheel 1, press
the button again to access gobo wheel 2. Use the number buttons to
find your desired gobo.
“DIMMER +” and “DIMMER -” - Use these buttons to adjust the output intensity in Color mode.
STROBE - This button will activate the strobe effect. Press and hold
Focus Spot Three Z Pearl Power Cord Daisy Chain
With this feature you can connect the xtures to one another
using the PowerCon input and output sockets. The quantity that
can be connected is 3 xtures maximum @ 120V and 6 xtures
maximum @ 230V. After you have reached the maximum amount
of xtures you will need to use a new power outlet. They must be
the same xtures. DO NOT mix xtures.
this button to activate strobing and release the button to stop strob-
ing.
COLOR - Press this button to enter to access the color wheel. Use
the number buttons to select your desired color. Adjust the output
intensity using the “DIMMER +” and “DIMMER -” buttons.
1-9 - In color mode and gobo mode, these buttons will allow you to
select a desired color or gobo. In show mode buttons 1-4 will let you
select your desired show.
SOUND ON & OFF - These buttons activate and deactivate the
sound active mode.
SHOW - This activates the show mode. Use buttons 1-4 to select
your desired show.
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 32 ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 33
Focus Spot Three Z Pearl Changing the Gobo
The gobo’s in the second gobo wheel are the only gobo’s that
are interchangable in this unit. Please be very careful when
replacing the gobo.
Caution! Never open the unit when in use. Always disconnect
the main power before attempting to change the gobos.
1. To change a gobo, look inside the unit from the front lens and
notice the prisms. Rotate the moving head so that prisms
are facing down. The top shell facing you is the shell you
need to remove.
Focus Spot Three Z Pearl Photometric Chart
2. Uscrew the 4 screws that secure the shell to the unit. Gently
lift the shell o of the unit.
3. When you remove the shell you will be able to access the
gobo wheel. Turn the wheel with your hand until you come
across the gobo you would like to change.
4. Gently and carefully remove the fixture ring. You will notice
that small dab of high temperature silicon holds the fixture
ring. After the fixture ring is removed, carefully remove the
gobo.
5. Change the gobo and replace the fixture ring.
6. Reassemble the unit.
Focus Spot Three Z Pearl Dimmer Curve Chart
Ramp Effect
Standard
Stage
TV
Architectural
Theatre
(Fade Time) (Fade Time)
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 34 ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 35
Focus Spot Three Z Pearl Fuse Replacement
Locate and remove the unit’s PowerCon cord. Once the cord has been
removed the fuse holder is located next to the power socket. Use a
philips-head screw driver unscrew the fuse holder. Remove the bad
fuse and replace with a new one.
Focus Spot Three Z Pearl Cleaning
Due to fog residue, smoke, and dust cleaning the internal and external optical lenses and mirror should be carried out periodically to
optimize light output. Cleaning frequency depends on the environment in which the fixture operates (I.e. smoke, fog residue, dust,
dew). In heavy club use we recommend cleaning on a monthly basis.
Periodic cleaning will ensure longevity, and crisp output.
1. Use normal glass cleaner and a soft cloth to wipe down the out-
side casing.
2. Use a brush to wipe down the cooling vents and fan grill.
3. Clean the external optics with glass cleaner and a soft cloth every
20 days.
4. Clean the internal optics with glass cleaner and a soft cloth every
30-60 days.
5. Always be sure to dry all parts completely before plugging the unit
back in.
Focus Spot Three Z Pearl Trouble Shooting
Trouble Shooting: Listed below are a few common problems that
you may encounter, with solutions.
No light output from the unit;
1. Be sure the external fuse has not blown. The fuse is located on
the rear panel of the unit.
2. Be sure the fuse holder is completely and properly seated.
Unit does not respond to sound;
1. Low frequencies (bass) should cause the unit to react to sound.
Tapping on the microphone, quiet or high pitched sounds may
not activate the unit.
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 36 ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 37
Focus Spot Three Z Pearl Warranty
MANUFACTURER’S LIMITED WARRANTY
A. ADJ Products, LLC hereby warrants, to the original purchaser, ADJ Products, LLC products
to be free of manufacturing defects in material and workmanship for a prescribed period from
the date of purchase (see specific warranty period on reverse). This warranty shall be valid only if the
product is purchased within the United States of America, including possessions and
territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable
evidence, at the time service is sought.
B. For warranty service you must obtain a Return Authorization number (RA#)
before sending back the product–please contact ADJ Products, LLC Service Department
at 800-322-6337. Send the product only to the ADJ Products, LLC factory. All
shipping charges must be pre-paid. If the requested repairs or service (including
parts replacement) are within the terms of this warranty, ADJ Products, LLC will pay return
shipping charges only to a designated point within the United States. If the entire instrument is
sent, it must be shipped in it’s original package. No accessories should be shipped with the product. If
any accessories are shipped with the product, ADJ Products, LLC shall have no liability whatsoever for
loss of or damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is modified in any
manner which ADJ Products, LLC concludes, after inspection, affects the reliability of the product; if the
product has been repaired or serviced by anyone other than the ADJ Products, LLC factory unless prior
written authorization was issued to purchaser by ADJ Products, LLC; if the product is damaged because
not properly maintained as set forth in the instruction manual.
D. This is not a service contract, and this warranty does not include maintnance, cleaning or periodic check
up. During the period specified above, ADJ Products, LLC will replace defective parts at its expense
with new or refurbished parts, and will absorb all expenses for warranty service and repair labor by
reason of defects in material or workmanship. The sole responsibility of ADJ Products, LLC under this
warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole
discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August
15, 2012, and bear indentifying marks to that effect.
E. ADJ Products, LLC reserves the right to make changes in design and/or improvements upon its products
without any obligation to include these changes in any products theretofore manufactured.
No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with
products described above. Except to the extent prohibited by applicable law, all implied warranties made
by ADJ Products, LLC in connection with this product, including warranties of merchantability or fitness,
are limited in duration to the warranty period set forth above. And no warranties, whether expressed or
implied, including warranties of merchantability or fitness, shall apply to this product after said period
has expired. The consumer’s and/or Dealer’s sole remedy shall be such repair or replacement as is
expressly provided above; and under no circumstances shall ADJ Products, LLC be liable for any loss or
damage, direct or consequential, arising out of the use of, or inability to use, this product.
This warranty is the only written warranty applicable to ADJ Products, LLC Products and
supersedes all prior warranties and written descriptions of warranty terms and conditions heretofore
published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
•LightingProducts=1-year(365days)LimitedWarranty(Such as: Special Effect Lighting, Intelligent
Lighting, UV lighting, Strobes, Fog Machines, Bubble Machines, Mirror Balls, Par Cans, Trussing,
Lighting Stands etc. excluding LED and lamps)
•LaserProducts=1Year(365Days)LimitedWarranty(excluding laser diodes which have a 6 month
limited warranty)
•L.E.D.Products=2-year(730days)LimitedWarranty(excluding motors, PCB boards, and power
supplies, which have a 1-year (365 day Limited Warranty) batteries which have a 180 day limited war-
ranty). Only the L.E.D.s carry a 2-year warranty (excludingStarTecSerieswhichacarriesa1Year
LimitedWarranty)Note:2YearWarrantyonlyappliestopurchaseswithintheUnitedStates.
•ADJDMXControllers=2Year(730Days)LimitedWarranty(excluding faders and tact switches)
Focus Spot Three Z Pearl Specifications
Model: Focus Spot Three Z Pearl
Voltage: 100 - 240V, 50/60Hz
LED: 1 x 100W Cold White LED
Power Consumption: 230W
Dimensions: 7.25”(L) x 11.25”(W) x 19.75”(H)
183mm x 284mm x 489mm
Weight: 26 Lbs. / 12 kgs.
Beam Angle: 12-18 Degrees
Fuse: 5 Amp
Power Cord Daisy Chain: 3 Fixtures Max. (120V)
6 Fixtures Max. (230V)
Duty Cycle: None
DMX: 2 DMX Channel Modes: 18 Channel
Mode & 21 Channel Mode
Sound Active: Ye s
Working Position: Any Safe, Secure Position
Warranty: 2 Year (730 days)
Please Note: Specications and improvements in the design
of this unit and this manual are subject to change without any
prior written notice.
Auto Sensing Voltage: This xture contains a automatic volt-
age switch, which will auto sense the voltage when it is plugged
into the power source.
ADJ Products, LLC - www.adj.com - Focus Spot Three Z Pearl Instruction Manual Page 38
ADJ Products, LLC
6122 S. Eastern Ave. Los Angeles, CA 90040 USA
Tel: 323-582-2650 / Fax: 323-725-6100
Web: www.adj.com / E-mail: info@americandj.com
A.D.J. Supply Europe B.V.
Junostraat 2
6468 EW Kerkrade
The Netherlands
service@adjgroup.eu / www.adj.eu
Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99
Loading...
