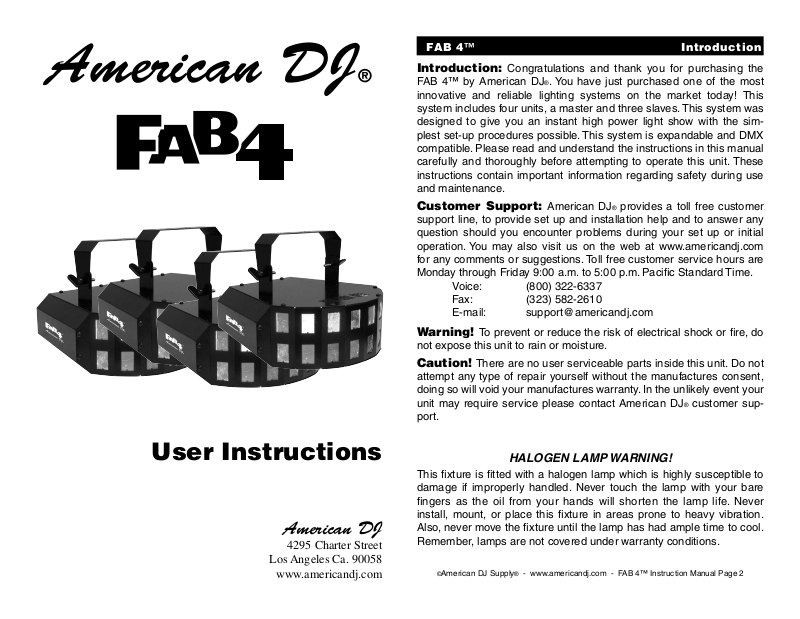

FAB 4™ Introduction
American DJ®
Introduction: Congratulations and thank you for purchasing the
FAB 4™ by American DJ®. You have just purchased one of the most
innovative and reliable lighting systems on the market today! This
system includes four units, a master and three slaves. This system was
designed to give you an instant high power light show with the simplest set-up procedures possible. This system is expandable and DMX
compatible. Please read and understand the instructions in this manual
carefully and thoroughly before attempting to operate this unit. These
instructions contain important information regarding safety during use
and maintenance.
Customer Support: American DJ® provides a toll free customer
support line, to provide set up and installation help and to answer any
question should you encounter problems during your set up or initial
operation. You may also visit us on the web at www.americandj.com
for any comments or suggestions. Toll free customer service hours are
Monday through Friday 9:00 a.m. to 5:00 p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2610
E-mail: [email protected]
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
User Instructions
American DJ
4295 Charter Street
Los Angeles Ca. 90058
www.americandj.com
Caution! There are no user serviceable parts inside this unit. Do not
attempt any type of repair yourself without the manufactures consent,
doing so will void your manufactures warranty. In the unlikely event your
unit may require service please contact American DJ® customer support.
HALOGEN LAMP WARNING!
This xture is tted with a halogen lamp which is highly susceptible to
damage if improperly handled. Never touch the lamp with your bare
ngers as the oil from your hands will shorten the lamp life. Never
install, mount, or place this xture in areas prone to heavy vibration.
Also, never move the xture until the lamp has had ample time to cool.
Remember, lamps are not covered under warranty conditions.
©American DJ Supply® - www.americandj.com - FAB 4™ Instruction Manual Page 2
Page 2
FAB 4™ Contents
Introduction...................................................................................2
Unpacking....................................................................................3
Features.......................................................................................3
Safety Precautions.......................................................................4
Set-Up....................................................................................5
DMX Addressing......................................................................6
Controls & Functions................................................................7
Operation..............................................................................8
Lamp Replacement..............................................................11
Cleaning...............................................................................12
Dip Switch Charts...............................................................12
DMX Traits...........................................................................13
Warranty.................................................................................14
FAB 4™ Unpacking
Every FAB 4™ has been thoroughly tested and has been shipped
in perfect operating condition. Carefully check the shipping carton for
damage that may have occurred during shipping. If the carton appears
to be damaged, carefully inspect your xture for any damage and be
sure all equipment necessary to operate the unit has arrived intact. In
case damage has been found or parts are missing, please contact our
toll free customer support number for further instructions, please do not
return the unit to your dealer.
FAB 4™ Features
• 64 Vibrant Colored Beams.
• Linkable.
• Audio Sensitivity Knob.
• Uses One DMX Channels.
• Sound-Active.
• DMX-512 Protocol Compatible.
• Master/Slave Built-In Programs.
• Fan Cooled.
©American DJ Supply® www.americandj.com FAB 4™ Instruction Manual Page 3
FAB 4™ Safety Precautions
• Do not spill water or other liquids into or on to your unit.
• Be sure that the local power outlet match that of the required voltage
for your unit.
• Do not attempt to operate this unit if the power cord has been frayed
or broken. Please route your power cord out of the way of foot trafc.
• Do not attempt to remove or break off the ground prong from
the electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short.
• Disconnect from main power before making any type of connection.
• Do not remove the top cover under any conditions. There are no
user serviceable parts inside.
• Never plug this unit in to a dimmer pack
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged in any way.
• Never operate this unit when it’s cover is removed.
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture
• This unit is intended for indoor use only, use of this product outdoors
voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power Cord Protection - Power supply cords should be routed
so that they are not likely to be walked on or pinched by items
placed upon or against them, paying particular attention to cords at
plugs, convenience receptacles, and the point where they exit from
the appliance.
• Cleaning -The xture should be cleaned only as recommended by
the manufacturer.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances (includ ing ampliers) that produce heat.
• The xture should be serviced by qualied service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the appliance.
C. The appliance has been exposed to rain or water.
D. The appliance does not appear to operate normally or exhibits a
marked change in performance.
©American DJ Supply® www.americandj.com FAB 4™ Instruction Manual Page 4
Page 3
POWER
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
1
2
3
Termination reduces signal errors and
avo ids sign al trans mission problems
and interference. It is al ways advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) o f the last fixture.
DMX512 IN
3-PIN XLR
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avo ids sign al trans mission problems
and interference. It is al ways advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) o f the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
FAB 4™ Set Up
FAB 4™ Set Up
Power Supply: Before plugging your unit in, be sure the source volt-
age in your area matches the required voltage for your American DJ®
FAB 4.™ The American DJ® FAB 4™ is available in a 115v and 220v
version. Due to variations in line voltage from venue to venue, be sure
to plug your “Master” unit into a wall outlet with a matching power supply
before attempting to operate.
Data Cable (DMX Cable) Requirements (For DMX Operation
Only and Master-Slave): The FAB 4 can be controlled via DMX-512
protocol. The American DJ® FAB 4™ is a single channel DMX unit. The
DMX address is set on the front panel of the FAB 4. Your unit and your
DMX controller require a standard 3-pin XLR connector for data input and data output (Figure 1).
If you are making your own cables, be sure to
use standard two conductor shielded cable (This
cable may be purchased at almost all pro sound
and lighting stores). Your cables should be made
with a male and female XLR connector on either
end of the cable. Also remember that DMX cable
must be daisy chained and can not be split.
Notice: Be sure to follow gure three when making your own cables.
Do not use the ground lug on the XLR connector. Do not connect the
cable’s shield conductor to the ground lug or allow the shield conductor
to come in contact with the XLR’s outer casing. Grounding the shield
could cause a short circuit and erratic behavior.
Special Note: Line Termination.
When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 90-120 ohm 1/4 watt resistor which is connected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last unit
in your daisy chain to terminate the line. Using a cable terminator will
decrease the possibilities of erratic behavior.
Figure 4
FAB 4™ DMX Addressing
DMX is short for Digital Multiplex. This is a universal binary language
used as a form of communication between intelligent fixtures. Each dip
switch represents a binary value.
DMX CHANNEL
1282 8 32
1 98765432
XLR Male Socket
1 Ground
Figure 2
2 Cold
3 Hot
XLR Female Socket
2 Cold
1 Ground
3 Hot
Figure 1
XLR Pin Conguration
Pin 1 = Shield
Pin 2 = Data Compliment (negative)
Pin 3 = Data True (positive)
Dip Switch 1 address equals 1
Dip Switch 2 address equals 2
Dip Switch 3 address equals 4
Dip Switch 4 address equals 8
Dip Switch 5 address equals 16
Dip Switch 6 address equals 32
ON
Dip Switch 7 address equals 64
Dip Switch 8 address equals 128
Dip Switch 9 address equals 256
Dip Switch 10 has no DMX value This switch activates sound-active mode.
A DMX value (address) is set by combining the different dipswitches
that will add up to the value you wish to achieve, for example:
Setting DMX address for 21. Set DMX address for 201.
Flip switches 1, 3, & 5 to the Flip switches 1, 4, 7, & 8 to the
“ON” position “ON” position
1 =1 1 = 1
3 = 4 4 = 8
Figure 3
5 = 16 7 = 64
Dipswitches # ValueValueDipswitches #
= 21 8 = 128
= 201
©American DJ Supply® - www.americandj.com - FAB 4™ Instruction Manual Page 5 ©American DJ Supply® - www.americandj.com - FAB 4™ Instruction Manual Page 6
SP
10
256651641
Page 4
FAB 4™ Controls and Functions
ON
1 2 3 4 5 6 7 8 9 10
ON
1 2 3 4 5 6 7 8 9 10
1 32
4 10
65
987

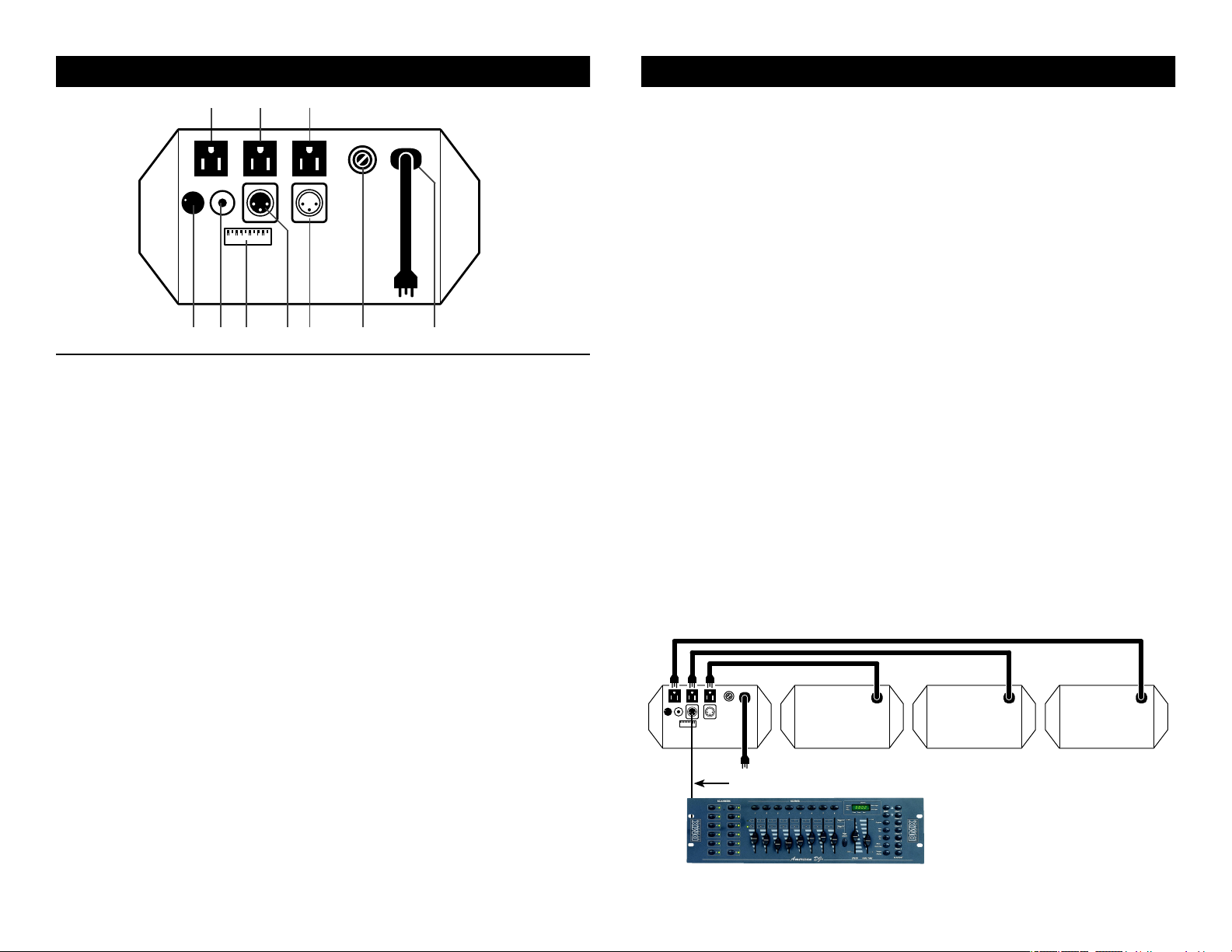

1. Channel 1 Output - This outlet will control the operation of any
slave unit as channel one.
2. Channel 2 Output - This outlet will control the operation of any
slave unit as channel two.
3. Channel 3 Output - This outlet will control the operation of any
slave unit as channel three.
4. Audio Sensitivity Knob - Turning the sensitivity knob in the clock wise direction will increase the sensitivity to sound. Turning the
knob in the counter clockwise direction will decrease the xture’s
sensitivity to sound.
5. Microphone - This mic receives external low frequencies to trigger
the unit.
6. Dip Switches - These switches are used to set the DMX address.
Each switch corresponds to a specic value based on binary code.
See page 6 for a detailed explanation of DMX binary code.
7. XLR Input Jack - This jack is used to accept an incoming DMX
signal.
8. XLR Output Jack - This jack is used to send the incoming DMX
signal to another DMX xture.
9. Fuse Holder - This housing stores the 5 amp GMA protective
fuse. Always replace with the exact same type fuse, unless other wise instructed to do so by an authorized American DJ service tech nician.
10. Power Cord - Connect only to a matching power outlet. Never use
this xture if the ground prong has been removed or broken off.
©American DJ Supply® - www.americandj.com - FAB 4™ Instruction Manual Page 7 ©American DJ Supply® - www.americandj.com - FAB 4™ Instruction Manual Page 8
FAB 4™ Operation
Universal DMX Control: The FAB 4™ not only synchronizes
your 4 lights together to create an intense light show, it also incorporates DMX technology to call up individual programs when using any
type of universal DMX Controller such as the American DJ® DMX
Operator™ or Show Designer.™ The use of a DMX controller will allow
you to create your own programs tailored to your own needs. In DMX
mode you can also have the units run in sound active mode. The
“master” unit comes with four sound-active, built-in programs. You can
run any of the four programs or set the “master” to run through all four.
See page 14 for the various DMX traits including program settings.
1. The FAB 4™ uses a single DMX channel, please see page 14 for
detailed description of the DMX traits.
2. To run your fixture in DMX mode, plug in the fixture via the
XLR connections to any universal DMX controller. Follow the
set-up specifications that come with the controller.
3. Use your controller to control the various fixture traits.
4. This will allow you to create your own programs.
5. When using a DMX controller and setting up for DMX operation
follow follow the standard DMX Binary Code for a one channel
unit. See page 6.
6. For help running in DMX operation consult the manual that comes
with your DMX controller.
7. For longer cable runs we suggest using a terminator on the last
fixture.
DMX Controller Operation
To DMX Controller Output
Page 5
FAB 4™ Operation
ON
1 2 3 4 5 6 7 8 9 10
ON
1 2 3 4 5 6 7 8 9 10ON1 2 3 4 5 6 7 8 9 10
4-Unit Sound Active Operation: This function allows a system
to run to the beat of the music without any type of controller. Only use
this function when running a single system, or when running several
systems as individuals.
1. Mount your units in a safe and secure manner.
2. Connect the “slave” units to the “master” unit as detailed in the illus tration below.
3. To activate the Sound-Active mode, set dip switches #9 and #10,
on the rear of the “master” unit to the ON position (See the “4-Unit
Operation” on chart on page 13).
4. The unit will now react to the bass sound of music via the internal
microphone.
5. Adjust the audio sensitivity knob on the rear of the unit to make the
unit more or less sensitive to sound. Turning the sensitivity knob in
the clockwise direction will increase the sensitivity to sound. Turn ing the knob in the counter clockwise direction will decrease the
xture’s sensitivity to sound.

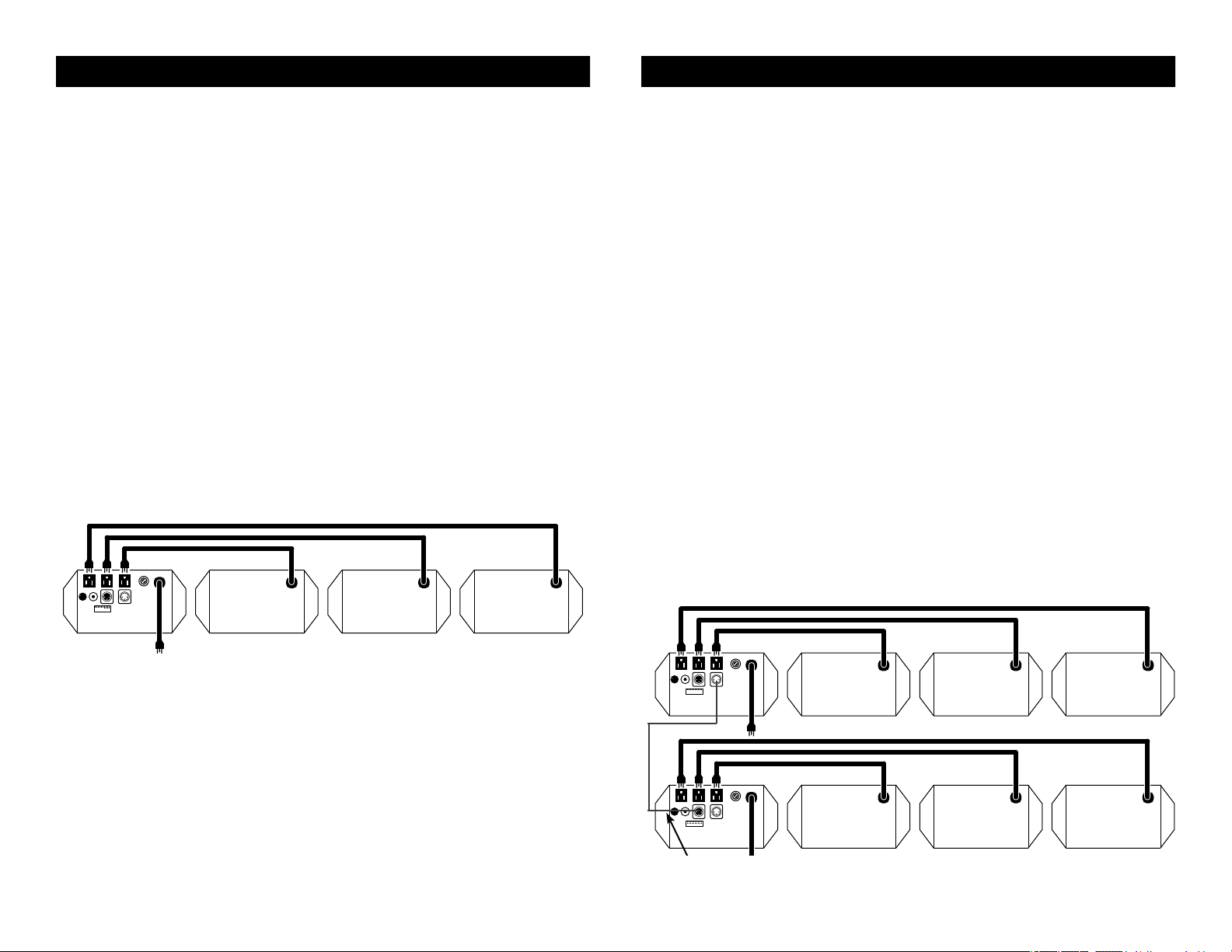

Four Unit Set-Up:
FAB 4™ Operation
8-Unit Master-Slave Operation (Sound Active): For a
more dramatic effect, link two FAB 4™ systems together. This function
will allow you to link two systems together and operate them in soundactive mode without the need for any type of controller. In Master-Slave
operation the “slave” unit will react to the programs and sound sensitivity settings of the “master” unit.
1. Mount your units in a safe and secure manner.
2. Using standard XLR microphone cables, daisy chain your units
together via the XLR connector on the rear of the units. Remember
the Male XLR connector is the input and the Female XLR connector
is the output. The “master” will use the female XLR connector only,
the slave will use the male XLR connector only. See the illustration
below. For longer cable runs use a terminator at the slave fixture.
3. Follow the chart on page 13 for proper unit dip switch settings.
4. The unit will now react to the bass sound of music via the internal
microphone.
5. Adjust the audio sensitivity knob on the rear of the unit to make the
unit more or less sensitive to sound. Turning the sensitivity knob in
the clockwise direction will increase the sensitivity to sound. Turn ing the knob in the counter clockwise direction will decrease the
xture’s sensitivity to sound.
Linking Systems: Your FAB 4™ system comes with built-in pro-
grams for a four unit or eight unit system. Follow the step on page 10
for proper linking and set-up procedures for an 8-unit system.
©American DJ Supply® - www.americandj.com - FAB 4™ Instruction Manual Page 9 ©American DJ Supply® - www.americandj.com - FAB 4™ Instruction Manual Page 10
Note: Stand-Alone and Master-Slave operation require sound to
activate! The units will blackout when no sound is present to conserve bulb life when there is no sound present.
DMX Cable Line
Page 6

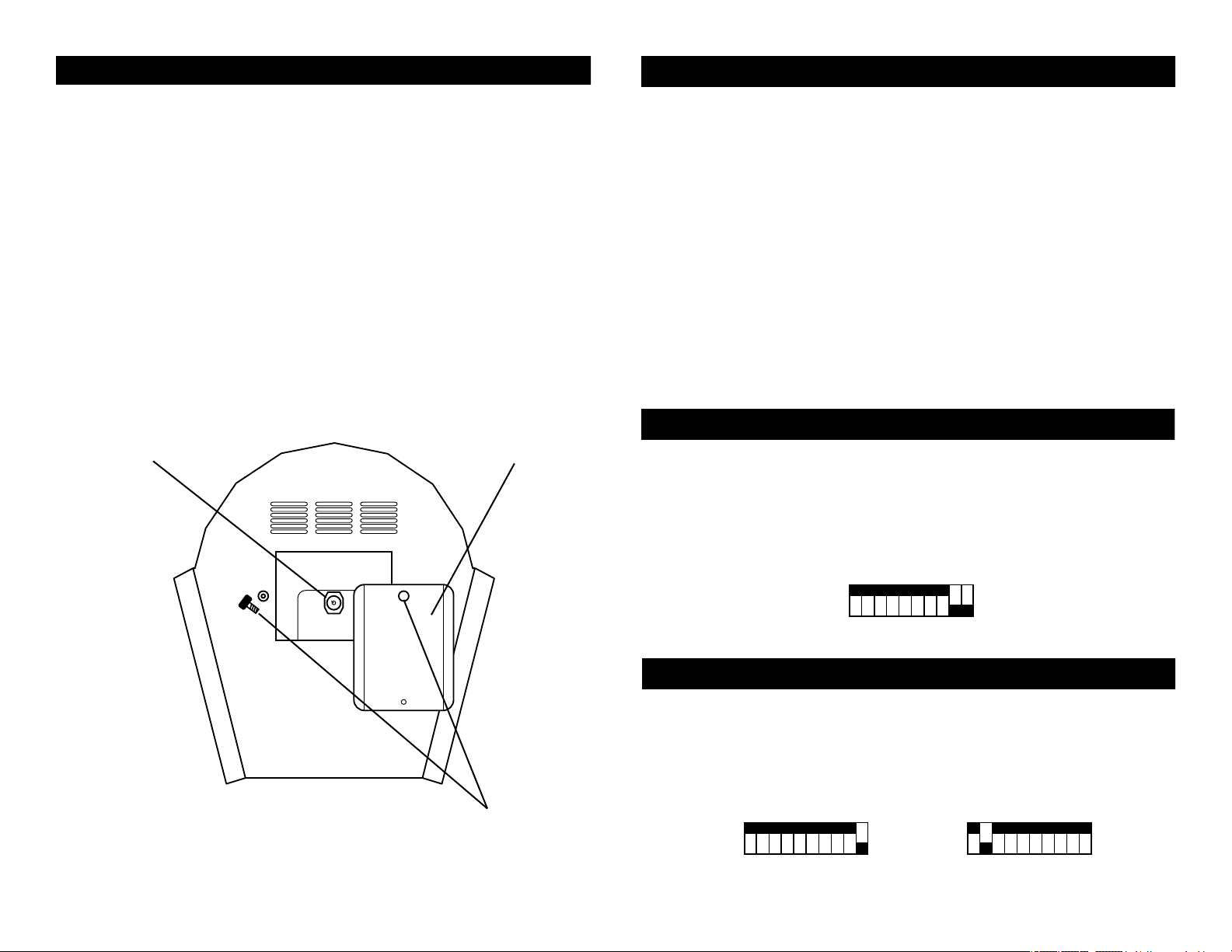

FAB 4™ Lamp Replacement
FAB 4™ Cleaning
Lamp Replacement: Caution! Never open the unit when in use.
Always disconnect the main power and allow the unit ample time to
cool before attempting to replace the lamp. Remember always replace
with the same type lamp and fuse.
1. Be sure to follow the proper procedures when handling halogen
lamps.
2. Lamp replacement has been made simple by incorporating the
use of a removable lamp cover retained by two thumb screw.
3. Remove the thumb screws on the bottom of the unit that holds the
lamp cover in place.
4. Carefully remove the protective lamp cover.
5. Remove and replace the lamp.
6. Reassemble in reverse order.
Lamp & Socket Assembly
Lamp Shield
Due to fog residue, smoke, and dust, cleaning the internal and external
optical lenses must be carried out periodically to optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the outside
casing.
2. Use a brush to wipe down the cooling vents.
3. Clean the external portion of the optics with glass cleaner and a
soft cloth every 20 days. Situation may very. If used heavily in clubs
with lots of fog, cleaning may be required more often.
4. Clean the internal portion of the optics with glass cleaner and a
soft cloth every 30-60 days.
5. Always be sure to dry all parts completely before plugging the
unit in.
Cleaning frequency depends on the environment in which the fixture
operates (i.e. smoke, fog residue, dust, dew).
FAB 4™ 4-Unit Single System Operation
This chart list the DMX dip switch setting for single system operation.
When using this fixture as a stand alone unit or when using multiple
FAB 4™ systems as stand alone units, be sure all the fixtures match
the illustrated dip switch setting (9 and 10 to the on position - all
others off).
Retaining thumb screws
©American DJ Supply® - www.americandj.com - FAB 4™ Instruction Manual Page 11
Sound Active
ON
1 98765432
10
FAB 4™ Dual System Operation
This chart list the DMX dip switch setting for Master/Slave configuration. Use this configuration when you will be using two systems in a
Master/Slave configuration. Head 1 (master) will control all functions
of the slave system.
Master - Head 1 Slave - Head 2
ON
1 98765432
©American DJ Supply® - www.americandj.com - FAB 4™ Instruction Manual Page 12
10
ON
1 98765432
10
Page 7
FAB 4™ DMX Dip Switch Chart
This chart below details the DMX traits of the FAB 4 “Master” unit.
The different trait options can only be initiated with an universal DMX
controller. Note: The different program and “ON” options require the
FAB 4 system to connect normally.
255
238-254
221-237
204-220
187-203
170-186
153-169
136-152
119-135
102-118
85-101
PROGRAMS 1~4
PROGRAM 4 ON
PROGRAM 3 ON
PROGRAM 2 ON
PROGRAM 1 ON
HEADS 3 & 4 ON
HEADS 2 & 4 ON
HEADS 2 & 3 ON
HEADS 1 & 4 ON
HEADS 1 & 3 ON
HEADS 1 & 2 ON
Use your controller’s slider to adjust
the DMX value to reach your desired
setting
FAB 4™ Warranty
1-YEAR LIMITED WARRANTY
A. American DJ® hereby warrants, to the original purchaser, American DJ® products to be
free of manufacturing defects in material and workmanship for a period of 1 Year (365 days)
from the date of purchase. This warranty shall be valid only if the product is purchased within
the United States of America, including possessions and territories. It is the owner’s responsibility to establish the date and place of purchase by acceptable evidence, at the time service is sought.
B. For warranty service, send the product only to the American DJ® factory. All shipping
charges must be pre-paid. If the requested repairs or service (including parts replacement)
are within the terms of this warranty, American DJ® will pay return shipping charges only to a
designated point within the United States. If the entire instrument is sent, it must be shipped
in its original package. No accessories should be shipped with the product. If any accessories
are shipped with the product, American DJ® shall have no liability whatsoever for loss of or
damage to any such accessories, nor for the safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product
is modied in any manner which American DJ® concludes, after inspection, affects the reliability of the product; if the product has been repaired or serviced by anyone other than the
American DJ® factory unless prior written authorization was issued to purchaser by American DJ®; if the product is damaged because not properly maintained as set forth in the
instruction manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning
or periodic check-up. During the period specied above, American DJ® will replace defective
parts at its expense, and will absorb all expenses for warranty service and repair labor by
reason of defects in material or workmanship. The sole responsibility of American DJ® under
this warranty shall be limited to the repair of the product, or replacement thereof, including
parts, at the sole discretion of American DJ®. All products covered by this warranty were
manufactured after January 1, 1990, and bear identifying marks to that effect.
E. American DJ® reserves the right to make changes in design and/or improvements upon
its products without any obligation to include these changes in any products theretofore
manufactured.
68-84
51-87
34-50
17-33
HEAD 4 ON
HEAD 3 ON
HEAD 2 ON
HEAD 1 ON
BLACKOUT00-16
F. No warranty, whether expressed or implied, is given or made with respect to any accessory supplied with products described above. Except to the extent prohibited by applicable
law, all implied warranties made by American DJ® in connection with this product, including
warranties of merchantability or tness, are limited in duration to the warranty period set forth
above. And no warranties, whether expressed or implied, including warranties of merchantability or tness, shall apply to this product after said period has expired. The consumer’s and
or Dealer’s sole remedy shall be such repair or replacement as is expressly provided above;
and under no circumstances shall American DJ® be liable for any loss or damage, direct or
consequential, arising out of the use of, or inability to use, this product.
G. This warranty is the only written warranty applicable to American DJ® Products and
supersedes all prior warranties and written descriptions of warranty terms and conditions
heretofore published.
©American DJ Supply® - www.americandj.com - FAB 4™ Instruction Manual Page 14©American DJ Supply® - www.americandj.com - FAB 4™ Instruction Manual Page 13
Page 8
MODEL: FAB 4™
SPECIFICATIONS:
VOLTAGE: 120V / 220V
LAMP (PER UNIT): LL-200 120v/200w or
LL-200/2 220v/200w
DIMENSIONS: 12"L x 12.25"W x 9.5"H
(with yoke extended)
WEIGHT: 10 LBS / 7.5 KGS. (system)
FUSE: 5 AMP GMA
WORKING POSITION: ANY SAFE POSITION
COOLING: AIR COOLED
DUTY CYCLE: 30 MIN. ON, 10 MIN. OFF
GOBOS: NONE
LENSES: 16 - COLORED
COLORS: MULTIPLE - 64 BEAMS
DMX CHANNELS: 1
POWER CONSUMPTION: TYPICAL 2 AMPS
Please Note: Specications and improvements in the design of
this unit and this manual are subject to change without any prior
written notice.
©American DJ Supply® - www.americandj.com - FAB 4™ Instruction Manual Page 15
©American DJ Supply
American DJ World Headquarters:
4295 Charter Street Los Angeles, CA. 90058-2520 USA
Tel: 323-582-2650 Fax: 323-582-2610
Web: www.americandj.com E-mail: [email protected]
Loading...
