User Instructions
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 2
Unpacking: Thank you for purchasing the Diversa Ray by Ameri-
can DJ®. Every Diversa Ray has been thoroughly tested and has been
shipped in perfect operating condition. Carefully check the shipping
carton for damage that may have occurred during shipping. If the
carton appears to be damaged, carefully inspect your xture for any
damage and be sure all equipment necessary to operate the unit has
arrived intact. In the event damage has been found or parts are miss-
ing, please contact our toll free customer support number for further
instructions. Please do not return this unit to your dealer without con-
tacting customer support rst.
Introduction: The American DJ® Diversa Ray features 3 distinct laser
effects in one unit. It produces a “Galaxian style” effect with 100’s of
red and green beams, a “Liquid Sky” effect, and a multi-beam prism
effect. The Diversa Ray has three operating modes; sound active,
show mode, or controlled via DMX. The Diversa Ray can operate as a
stand alone fixture or in a Master/Slave configuration. For best results
use fog or special effects smoke to enhance the beams projections.
Customer Support: American DJ® provides a toll free customer
support line, to provide set up help and to answer any question should
you encounter problems during your set up or initial operation. You
may also visit us on the web at www.americandj.com for any com-
ments or suggestions. For service related issue please contact Ameri-
can DJ®. Service Hours are Monday through Friday 8:00 a.m. to 4:30
p.m. Pacic Standard Time.
Voice: (800) 322-6337
Fax: (323) 582-2941
E-mail: support@americandj.com
To purchase parts online visit http://parts.americandj.com
Warning! To prevent or reduce the risk of electrical shock or re, do
not expose this unit to rain or moisture.
Caution! There are no user serviceable parts inside this unit. Do not
attempt any repairs yourself, doing so will void your manufactures war-
ranty. In the unlikely event your unit may require service please contact
American DJ customer support.
PLEASE recycle the shipping carton whenever possible.
3/12
Diversa Ray General Introduction
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 4©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 3
Please carefully read and understand the instructions in this manual
thoroughly before attempting to operate this unit. These instructions
contain important safety information regarding the use and mainte-
nance of this unit. Please keep this manual with the unit, for future
reference.
CAUTION IMPORTANT! When installing this projector, make sure
that it is mounted in a manner that prevents the audience from
looking directly into the beam, and the beam from striking the
audience.
Diversa Ray General Instructions Diversa Ray Safety Precautions
Safety Issues: This unit may “pop” the breaker if the maximum allotted
load of 2 amps is reached.
• To reduce the risk of electrical shock or re, do not expose this unit
rain or moisture.
• Do not spill water or other liquids into or on to your unit.
• Do not attempt to remove or break o the ground prong from the
electrical cord. This prong is used to reduce the risk of electrical
shock and re in case of an internal short. Do not attempt to oper-
ate this unit if the power cord has been frayed or broken.
• Disconnect from main power before making any type of connection.
• Do not remove the cover under any conditions. There are no user
serviceable parts inside.
• Always be sure to mount this unit in an area that will allow proper
ventilation. Allow about 6” (15cm) between this device and a wall.
• Do not attempt to operate this unit, if it becomes damaged.
• This unit is intended for indoor use only, use of this product out-
doors voids all warranties.
• During long periods of non-use, disconnect the unit’s main power.
• Always mount this unit in safe and stable matter.
• Power cords should be routed so they are not likely to be walked
on, pinched by items placed upon or against them.
• Cleaning -The fixture should be cleaned only as recommended by
the manufacturer. See page 21 for cleaning details.
• Heat -The appliance should be situated away from heat sources
such as radiators, heat registers, stoves, or other appliances
(including amplifiers) that produce heat.
• The fixture should be serviced by qualified service personnel when:
A. The power-supply cord or the plug has been damaged.
B. Objects have fallen, or liquid has been spilled into the unit.
C. The unit has been exposed to rain or water.
D. The unit does not appear to operate normally or exhibits a
marked change in performance.
• 30mW Green Laser Diode & 80W Red Laser Diode
• 9 DMX Channels
• 3 Operating Modes - Sound Active, Show Mode & DMX Control
• Fan Cooled
• Digital Display for Address and Function Setting
• UC3 Controller (Not Included)
Diversa Ray Features
Diversa Ray Warranty Registration
The Diversa Ray carries a 90 day limited warranty. Please fill out the
enclosed warranty card to validate your purchase. All returned ser-
vice items whether under warranty or not, must be freight pre-paid
and accompany a return authorization (R.A.) number. If the unit is
under warranty you must provide a copy of your proof of purchase
invoice. Please contact American DJ® customer support for a R.A.
number.
DANGER
VISIBLE LASER RADIATION
-AVOID DIRECT EYE EXPOSURE
LASER DIODE
WAVELENGTH : 635~650 nm
Max Output : <4.9mW
Class IIIa Laser Product
!
!
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 5
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 6
Diversa Ray Laser Warnings and Safety
NON-INTERLOCKED HOUSING WARNING
The Diversa Ray contains high power laser devices internally. Do not
open the laser housing, due to the potential exposure to unsafe levels
of laser radiation. The laser power levels, if the unit is opened, can
cause instant blindness, skin burns and res.
STOP AND READ ALL LASER SAFETY DATA
OPERATION INSTRUCTIONS AND LASER SAFETY
The light source emitted from this product can potentially cause eye
injury if not set up and used properly. The light source emitted from a
laser is very dierent from any other light sources with which you may
be aware of. Laser light is thousands of times more concentrated
than any light from any other kind of light source. This concentration
of light can cause instant eye injuries, primarily by burning the retina
(the back of your eyeball contatining cells that are sensitive to light).
Even if you cannot feel “heat” from a laser beam, it can still poten-
tially injure or blind you or your audience. Even very small amounts
of laser beam light are potentially hazardous even at long distances.
Laser eye injuries can be sustained faster than you can blink.
Do not think that because this laser splits the laser beam into hun-
dreds of beams and that the laser beam is scanned out in high
speed, that an individual laser beam is safe for eye exposure. This
laser uses dozens of milliwatts of laser power (Class 3B levels inter-
nally) before it splits into multiple beams (Class 3R levels). Many of
the individual beams are potentially hazardous to the eyes.
Do not that because the laser light is moving, it is safe. This is not
true. Nor, do the laser beams always move. Since eye injuries can
occur instantly, it is critical to prevent even the smallest possibility of
any direct eye exposure. In the laser safety regulation, it is not legal
to aim Class 3R lasers in areas which people can get exposed. This
is true even if it is aimed below people’s faces, such as on a dance
oor.
Do not operate the laser without rst reading and understanding
all safety and technical data in this manual.
Always set up and install all laser eects so that all laser light is at
least 3 meters (9.8 feet) above the oor on which people can stand.
After setting up, and before public use, test laser to ensure proper
function. Do not use if any defect is detected. Do not use if laser
emits only one or two laser beams rather than dozens/hundreds, as
this could indicate damage to the diraction grating optic, and could
allow emission of higher laser levels above Class 3R.
Do not point lasers at people or animals. Never look into the laser
aperture or laser beams.
Do not point lasers in areas in which people can potentially get
exposed, such as uncontrolled balconies, etc.
Do not point lasers at highly reective surfaces, such as windows,
mirrors and shiny metal. Even laser reections can be hazardous.
Never point a laser at aircraft, this is a federal oense.
Never point un-terminated laser beams into the sky.
Do not expose the output optic (aperture) to cleaning chemicals.
Do not use laser if the laser appears to be emitting only one or two
beams.
Do not use the laser if the housing is damaged, the housing is open,
or if the optics appear damaged in any way.
Never open the laser housing. The high laser power levels inside of
the protective housing can start res, burn skin and will cause instant
eye injury.
Never leave this device running unattended.
The operation of a class 3R laser show is only allowed if the show
is controlled by a skilled and well- trained operator, familiar with the
data included in this manual.
The legal requirements for using laser entertainment products vary
from country to country. The user is responsible for the legal require-
ments at the location/country of use.
Always use proper lighting safety cables when hanging lights and
eects overhead.
Diversa Ray Laser Warnings and Safety
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 8©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 7
Diversa Ray Laser Warninig Labels Diversa Ray Set Up
Power Supply: The American DJ® Diversa Ray contains a automatic
voltage switch, which will auto sense the voltage when it is plugged
into the power source. With this switch there is no need to worry about
the correct power voltage, this unit can be plugged in anywhere.
DMX-512: DMX is short for Digital Multiplex. This is a universal pro-
tocol used by most lighting and controller manufactures as a form of
communication between intelligent fixtures and controllers. A DMX
controller sends DMX data instructions from the controller to the fix-
ture. DMX data is sent as serial data that travels from fixture to fixture
via the DATA “IN” and DATA “OUT” XLR terminals located on all DMX
fixtures (most controllers only have a DATA “OUT” terminal).
DMX Linking: DMX is a language allowing all makes and models of
dierent manufactures to be linked together and operate from a sin-
gle controller, as long as all xtures and the controller are DMX com-
pliant. To ensure proper DMX data transmission, when using several
DMX fixtures try to use the shortest cable path possible. The order
in which fixtures are connected in a DMX line does not influence the
DMX addressing. For example; a fixture assigned a DMX address of 1
may be placed anywhere in a DMX line, at the beginning, at the end,
or anywhere in the middle. Therefore, the first fixture controlled by the
controller could be the last fixture in the chain. When a fixture is as-
signed a DMX address of 1, the DMX controller knows to send DATA
assigned to address 1 to that unit, no matter where it is located in the
DMX chain.
Data Cable (DMX Cable) Requirements (For DMX and Master/Slave
Operation): The Diversa Ray can be controlled via DMX-512 protocol.
The Diversa Ray is a nine channel DMX unit. The DMX address is set
electronically using the controls on the rear panel of the unit. Your unit
and your DMX controller require a approved DMX-
512 110 Ohm Data cable for data input and data
output (Figure 1). We recommend Accu-Cable DMX
cables. If you are making your own cables, be sure
to use standard 110-120 Ohm shielded cable (This
cable may be purchased at almost all professional
sound and lighting stores). Your cables should be
made with a male and female XLR connector on
either end of the cable. Also remember that DMX
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 9 ©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 10
Diversa Ray Set Up Diversa Ray Set Up
cable must be daisy chained and cannot be split.
Notice: Be sure to follow gures two and three when making your own
cables. Do not use the ground lug on the XLR connector. Do not con-
nect the cable’s shield conductor to the ground lug or allow the shield
conductor to come in contact with the XLR’s outer casing. Grounding
the shield could cause a short circuit and erratic behavior.
DMX512 IN
3-PIN XLR
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
DMX512
DMX+,DMX-,COMMON
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
1
2
3
1
2
3
DMX +
DMX -
COMMON
DMX512 OUT
3-PIN XLR
Figure 2
Figure 3
1 Ground
1 Ground
XLR Male Socket
XLR Pin Conguration
3 Hot
2 Cold
2 Cold
3 Hot
XLR Female Socket
Pin 3 = Data True (positive)
Pin 2 = Data Compliment (negative)
Pin 1 = Ground
Special Note: Line Termination.
When longer runs of cable are
used, you may need to use a terminator on the last unit to avoid erratic
behavior. A terminator is a 110-120 ohm 1/4 watt resistor which is con-
nected between pins 2 and 3 of a male XLR connector (DATA + and
DATA -). This unit is inserted in the female XLR connector of the last
unit in your daisy chain to terminate the line. Using a cable terminator
(ADJ part number Z-DMX/T) will decrease the possibilities of erratic
behavior.
POWER
SOUND
REMOTE
CONTROL
INPUT
POWER
INPUT OUTPUT
1
2
3
Termination reduces signal errors and
avoids signal transmission problems
and interference. It is always advisable
to connect a DMX terminal, (Resistance
120 Ohm 1/4 W) between PIN 2 (DMX-)
and PIN 3 (DMX +) of the last fixture.
Figure 4
5-Pin XLR DMX Connectors.
Some manufactures use 5-pin DMX-
512 data cables for DATA transmission in place of 3-pin. 5-pin DMX
xtures may be implemented in a 3-pin DMX line. When inserting stan-
dard 5-pin data cables in to a 3-pin line a cable adaptor must be used,
these adaptors are readily available at most electric stores. The chart
below details a proper cable conversion.
Conductor 5-Pin XLR Male (In)3-Pin XLR Female (Out)
Pin 1
Pin 3
Pin 2
Not Used
Not Used
Data True (+ signal)
Data Compliment (- signal)
Ground/Shield
3-Pin XLR to 5-Pin XLR Conversion
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 12©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 11
ADDR - DMX Address Setting.
1. Tap the either the MENU, UP, or DOWN buttons until “ADDR”
is displayed, press ENTER.
2. The current address will now be displayed and ashing.
Press the UP or DOWN buttons to nd your desired address.
Press ENTER to set your desired DMX address.
SLND - This will let you set unit as a master or slave in a
master/slave conguration.
1. Tap the MENU button until “SLND” is displayed, press
ENTER. Either “SL 1” or “SL 2” will be displayed.
2. Tap the UP or DOWN buttons until your desired setting is
displayed, press ENTER to conm.
SHND: SH 0 - SH 23 - Show modes 0-23. Show Mode
can run with or without sound active mode activated.
1. Press the MENU button until “SHND” is displayed, press ENTER.
2. “SH X” will now be displayed, “X” representing a number between
0-23. Shows 1-23 are preprogrammed shows, while Show 0 is random
show mode. Press the UP or DOWN buttons to nd your desired show.
3. Press ENTER to conrm, and then press and hold the MENU button
for at least 3 seconds to activate. To exit without making any adjust-
ments press the MENU button. When show mode is activated, you can
change the show without have to go through steps 1 & 2.
SOUN - Sound Active mode.
1. Tap the MENU button until “SOUN” is displayed, press
ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or
DOWN buttons to select “ON” to activate sound active mode, or
Diversa Ray System Menu Diversa Ray System Menu
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 14©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 13
“OFF” to deactivate sound active mode.
3. Press ENTER to conrm.
SOSE - Sound sensitivity control.
1. Press the MENU button until “SOSE” is displayed, press ENTER.
2. The display will show a number between 0-100. Press the UP or
DOWN buttons to adjust the sound sensitivity. 0 being the least sen-
sitive and 100 the most sensitive.
3. Press the ENTER button to conrm. To exit without making any
adjustments press the MENU button.
BLND - Blackout or Stand by mode.
1. Tap the MENU button until “BLND” is displayed, press
ENTER. Either Yes or No will be displayed.
2. To activate Blackout tap the UP or DOWN buttons until “Yes”
is displayed, press ENTER to conm. The xture will now be in
Blackout mode. To deactivate Blackout mode, select “No” and
press Enter.
LED - With this function you can have the LED display
turn off after 10 seconds.
1. Tap the MENU button until “LED” is displayed, press ENTER.
2. The display will show either “ON” or “OFF”. Press the UP or
DOWN buttons to select “ON” to keep the LED display on at
all times, or “OFF” to switch to have the LED display switch o
after 10 seconds. To make the display reappear, press and hold
the MENU button for at least 5 secs.
3. Press ENTER to conrm.
DISP - This function will reverse the display 180º.
1. Tap the MENU button until “DISP” is displayed, press ENTER.
2. Press ENTER to “ip” the display. Press ENTER to “ip” it
again. Press ENTER to conrm.
TEST - This function will allow you to test the pan & tilt
functions.
1. Press the MENU button until “TEST” is displayed, press ENTER.
2. Either “PAN”, “TILT” or “P T” will be displayed. Use the UP or DOWN
buttons to scroll to the function you would like to test and press
ENTER. The function will now run a self test. Press the MENU button
to exit.
FHRS - With this function you can display the running time
of the xture.
1. Tap the MENU button until “FHRS” is displayed, press
ENTER.
2. The display shows the running time of the unit. Press MENU
to exit.
VER - With this function you can display the version soft-
ware of the unit.
1. Tap the MENU button until “VER” is displayed, press ENTER.
2. The display will now display the version of software. Press
MENU to exit.
RSET - Use this function to reset the unit.
1. Tap the MENU button until “RSET” is displayed, press ENTER.
2. The xture will now reset,
Diversa Ray System Menu Diversa Ray System Menu
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 15 ©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 16
CAUTION IMPORTANT! When installing this projector, make sure
that it is mounted in a manner that prevents the audience from
looking directly into the beam, and the beam from striking the
audience.
Operating Modes: The Diversa Ray can operate in three dif-
ferent modes. In each mode you can run the fixture as a stand
alone fixture or in a master/slave confiugration. This next sec-
tion will detail the differences in the operating modes.
• Sound Active mode -
The fixture will react to sound, chasing through the built-in programs.
• Show mode -
The fixture will run one of four shows that you choose.
• DMX control mode -
This function will allow you to control each individual fixtures traits
with a standard DMX-512 controller such as the Elation® Show
Designer.
™
Master-Slave Operation This function will allow you to link up to 16
units together and operate without a controller. The units will be sound
activated. In Master-Slave operation one unit will act as the controlling
unit and the others will react to the controlling units programs. Any unit
can act as a Master or as a Slave.
1. Using approved DMX data cables, daisy chain your units togeth-
er via the XLR connector on the rear of the units. Remember the
Male XLR connector is the input and the Female XLR connector
is the output. The rst unit in the chain (master) will use the female
XLR connector only - The last unit in the chain will use the male
XLR connector only. For longer cable runs we suggest a termina-
tor at the last fixture.
2. On the Master unit find your desired show and set that show by
pressing the ENTER button.
3. On the slave units tap the MENU button until “SLND” is dis-
played, and Press ENTER. Choose either “SL 1” or “SL 2” and
press ENTER. Please see page 12 for more info.
4. The slave units will now follow the Master unit.
Universal DMX Control: This function allows you to use a Elation®
universal DMX-512 controller to control the chases and patterns,
Diversa Ray Operation Diversa Ray System Menu

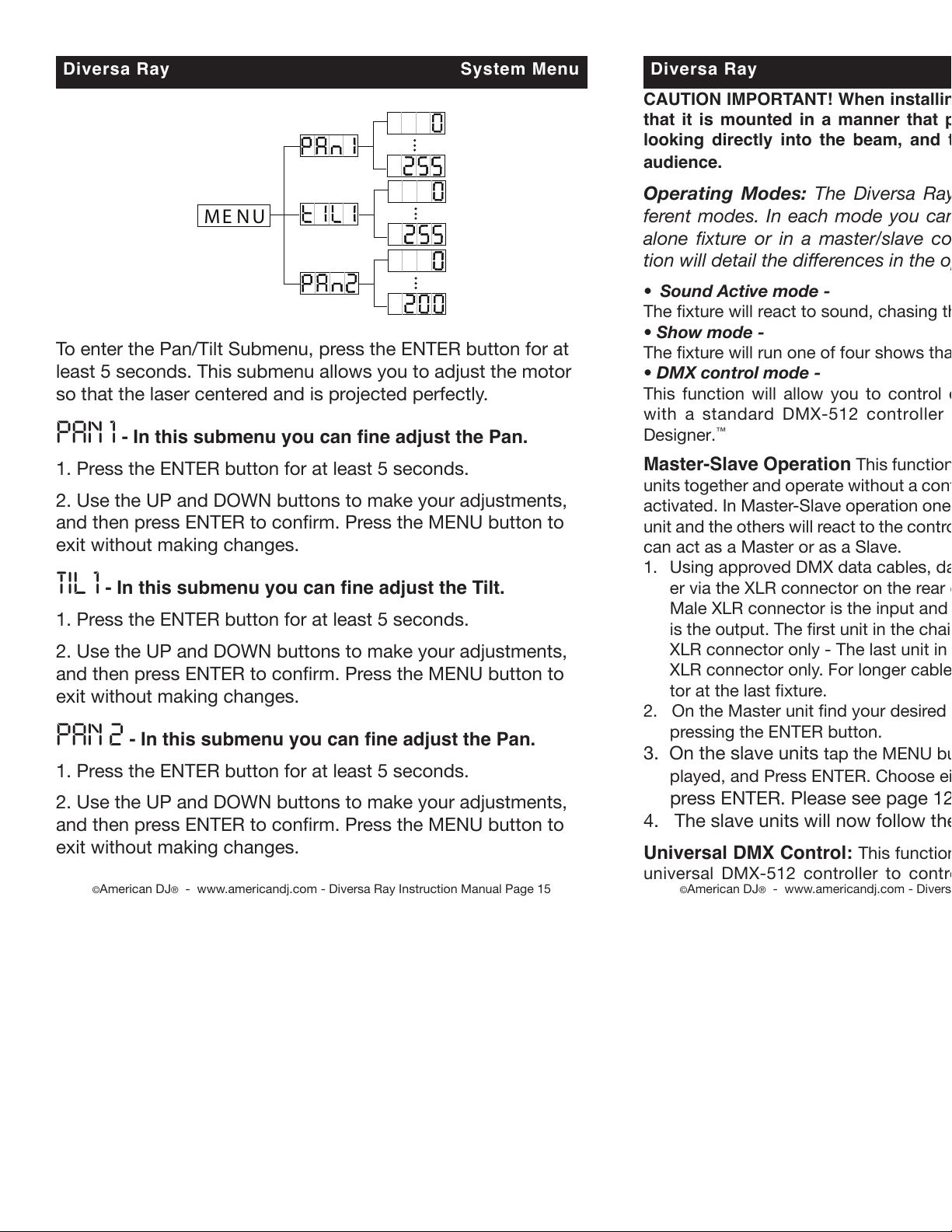

To enter the Pan/Tilt Submenu, press the ENTER button for at
least 5 seconds. This submenu allows you to adjust the motor
so that the laser centered and is projected perfectly.
PAN 1 - In this submenu you can ne adjust the Pan.
1. Press the ENTER button for at least 5 seconds.
2. Use the UP and DOWN buttons to make your adjustments,
and then press ENTER to conrm. Press the MENU button to
exit without making changes.
TIL 1 - In this submenu you can ne adjust the Tilt.
1. Press the ENTER button for at least 5 seconds.
2. Use the UP and DOWN buttons to make your adjustments,
and then press ENTER to conrm. Press the MENU button to
exit without making changes.
PAN 2 - In this submenu you can ne adjust the Pan.
1. Press the ENTER button for at least 5 seconds.
2. Use the UP and DOWN buttons to make your adjustments,
and then press ENTER to conrm. Press the MENU button to
exit without making changes.
ME NU
dimmer and strobe. A DMX controller allows you to create unique
programs tailored to your individual needs.
1. The Diversa Ray is a nine channel DMX fixture. See pages 18-19
for detailed description of the DMX values and traits.
2. To control your fixture in DMX mode, follow the set-up procedures
on pages 8-10 as well as the set-up specifications that are includ-
ed with your DMX controller.
3. Use the controller’s faders to control the various DMX fixture traits.
4. This will allow you to create your own programs.
5. Follow the instruction on page 12 to set the DMX address.
6. For longer cable runs (more than a 100 feet) use a terminator on
the last fixture.
7. For help operating in DMX mode consult the manual included
with your DMX controller.
Sound Active Mode: This mode allows either single unit or several
units linked together, to run to the beat of the music.
1. Press the MENU button until “SOUN” is displayed, and press
ENTER. Press the UP or DOWN buttons so that “ON” is displayed
and press ENTER. The unit is now sound active.
See page 13 for sound sensitivity adjustment.
2. The optional UC3 Controller (not included) may be used to con-
trol different functions including blackout.
Show Mode: In this mode you can choose 1 of 23 shows to run.
1. Tap the MENU button until “SHND” is displayed, and press
ENTER.
2. Tap the UP or DOWN buttons until you nd your desired show,
and press ENTER then press and hold MENU for 3 seconds to
con rm. See page 12 for more info.
3. The optional UC3 Controller (not included) may be used to con-
trol different functions including blackout.
Diversa Ray Operation
Diversa Ray UC3 Control
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 17
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 18
Diversa Ray DMX Traits
Channel Value Function
1 RED LASER
0 - 7 BLACKOUT
8 - 255 ON
2 GREEN LASER
0 - 7 OFF
8 - 15 ON
16 - 131 LASER DASH EFFECT
132 - 247 DOT ON LINE EFFECT
248 - 255 ON
3 PATTERNS
0 - 11 PATTERN 1
12 - 23 PATTERN 2
24 - 34 PATTERN 3
35 - 46 PATTERN 4
47 - 58 PATTERN 5
59 - 69 PATTERN 6
70 - 81 PATTERN 7
82 - 93 PATTERN 8
94 - 104 PATTERN 9
105 - 116 PATTERN 10
117 - 127 PATTERN 11
128 - 139 PATTERN 12
140 - 151 PATTERN 13
152 - 162 PATTERN 14
163 - 174 PATTERN 15
175 - 186 PATTERN 16
187 - 197 PATTERN 17
198 - 209 PATTERN 18
210 - 221 PATTERN 19
222 - 232 PATTERN 20
233 - 244 PATTERN 21
245 - 255 PATTERN 22
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 19 ©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 20
This emergency feature lets you instantly blackout the unit. To acti-
vate the emergency feature you must rst insert the included key into
keyhole and turn it to the “On” position. Connect the emergency shut
o box and knob to jack located underneath the keyhole.
If an emergency situation arises and the unit needs to be blacked out,
push the knob.
To return to normal working order, rotate the knob clockwise and turn
the key to the “O” position and then back to the “On” position.
Diversa Ray Emergency Blackout Diversa Ray DMX Traits
Channel Value Function
4 GREEN LASER MOVEMENT
0 - 9 NO MOVEMENT
10 - 120 LEFT TO RIGHT FAST - SLOW
121 - 134 NO MOVEMENT
135 - 245 UP & DOWN SLOW - FAST
246 - 255 NO MOVEMENT
5 RED LASER ROTATION
0 - 9 NO ROTATION
10 - 120 COUNTER CLOCKWISE ROTATION
FAST - SLOW
121 - 134 NO ROTATION
135 - 245 CLOCKWISE ROTATION
SLOW - FAST
246 - 255 NO ROTATION
6 RED LASER ZOOM
0 - 127 ZOOMING MAX - MIN.
128 - 255 ZOOMING MIN. - MAX SLOW - FAST
7 PRISM
0 - 127 PRISM OFF
128 - 255 PRISM ON
8 PRISM ROTATION
0 - 9 NO ROTATION
10 - 119 COUNTER CLOCKWISE ROTATION
SLOW - FAST
120 - 137 NO ROTATION
138 - 245 CLOCKWISE ROTATION
FAST - SLOW
246 - 255 NO ROTATION
9 RASTER
0 - 127 RASTER OFF
128 - 255 RASTER ON
Fixture Cleaning: Due to fog residue, smoke, and dust cleaning
the internal and external lenses should be carried out periodically to
optimize light output.
1. Use normal glass cleaner and a soft cloth to wipe down the out-
side casing.
2. Clean the external optics with glass cleaner and a soft cloth every
20 days.
3. Always be sure to dry all parts completely before plugging the
unit back in.
Cleaning frequency depends on the environment in which the fixture
operates (I.e. smoke, fog residue, dust, dew). In heavy use we recom-
mend cleaning on a monthly basis. Periodic cleaning will ensure lon-
gevity, and crisp beam output.
Diversa Ray Cleaning
Diversa Ray Trouble Shooting
Trouble Shooting: Listed below are a few common problems that
you may encounter, with solutions.
No light output from the unit;
1. Be sure the external fuse has not blown. The fuse is located on
the rear panel of the unit.
2. Be sure the fuse holder is completely and properly seated.
Unit does not respond to sound;
1. Low frequencies (bass) should cause the unit to react to sound.
Tapping on the microphone, quiet or high pitched sounds may
not activate the unit.
Diversa Ray Fuse Replacement
Locate and remove the unit’s power cord. Once the cord has been
removed located the fuse holder located inside the power socket.
Insert a flat-head screw driver into the power socket and gently pry
out the fuse holder. Remove the bad fuse and replace with a new one.
The fuse holder has a built-in socket for a spare fuse be sure not to
confuse the spare fuse with active fuse.
Diversa Ray Warranty
MANUFACTURER’S LIMITED WARRANTY
A. American DJ, Inc. hereby warrants, to the original purchaser, American DJ and American
Audio products to be free of manufacturing defects in material and workmanship for a prescribed
period from the date of purchase (see specic warranty period on reverse). This warranty shall be
valid only if the product is purchased within the United States of America, including possessions
and territories. It is the owner’s responsibility to establish the date and place of purchase by ac-
ceptable evidence, at the time service is sought.
B. For warranty service you must obtain a Return Authorization number (RA#) before
sending back the product. Contact American DJ, Inc. Service Department at 800-322-6337. Send
the product only to the American DJ, Inc. factory. All shipping charges must be pre-paid. If the
requested repairs or service (including parts replacement) are within the terms of this warranty,
American DJ, Inc. will pay return shipping charges only to a designated point within the United
States. If the entire instrument is sent, it must be shipped in it’s original package. No accessories
should be shipped with the product. If any accessories are shipped with the product, American DJ,
Inc. shall have no liability whatsoever for loss of or damage to any such accessories, nor for the
safe return thereof.
C. This warranty is void if the serial number has been altered or removed; if the product is
modied in any manner which American DJ, Inc. concludes, after inspection, aects the reliability
of the product; if the product has been repaired or serviced by anyone other than the American DJ,
Inc. factory unless prior written authorization was issued to purchaser by American DJ, Inc.; if the
product is damaged because not properly maintained as set forth in the instruction manual.
D. This is not a service contract, and this warranty does not include maintenance, cleaning
or periodic check-up. During the period specied above, American DJ, Inc. will replace defec-
tive parts at its expense with new or refurbished parts, and will absorb all expenses for warranty
service and repair labor by reason of defects in material or workmanship. The sole responsibility
of American DJ, Inc. under this warranty shall be limited to the repair of the product, or replace-
ment thereof, including parts, at the sole discretion of American DJ. All products covered by this
warranty were manufactured after January 1, 1990, and bear identifying marks to that eect.
E. American DJ, Inc. reserves the right to make changes in design and/or improvements
upon its products without any obligation to include these changes in any products theretofore
manufactured. No warranty, whether expressed or implied, is given or made with respect to any
accessory supplied with products described above. Except to the extent prohibited by applicable
law, all implied warranties made by American DJ, Inc. in connection with this product, including
warranties of merchantability or tness, are limited in duration to the warranty period set forth
above. And no warranties, whether expressed or implied, including warranties of merchantability
or tness, shall apply to this product after said period has expired. The consumer’s and/or Dealer’s
sole remedy shall be such repair or replacement as is expressly provided above; and under no
circumstances shall American DJ, Inc. be liable for any loss or damage, direct or consequential,
arising out of the use of, or inability to use, this product.
This warranty is the only written warranty applicable to American DJ and American Audio
Products and supersedes all prior warranties and written descriptions of warranty terms and
conditions heretofore published.
MANUFACTURER’S LIMITED WARRANTY PERIODS:
• All American Audio Products = 1-year (365 day) Limited Warranty (except V-Plus Series Ampli-
ers)
• All American Audio V-Plus Series Ampliers = 3-year (1095 day) Limited Warranty
• American DJ Lighting and American DJ Branded Products = 1-year (365 day) Limited Warranty
(Such as: Special Eect Lighting, Intelligent Lighting, UV lighting, Strobes, Fog Machines, Bubble
Machines, Mirror Balls, Par Cans, Trussing, Lighting Stands etc. excluding Laser Products, lamps,
and Star Tec Series)
• American DJ Laser Products and Star Tec Products = 90-Day Limited Warranty
• American DJ L.E.D. Products = 3-year (1095 day) Limited Warranty (excluding motors which
have a 1-year (365 day Limited Warranty)
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 22©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 21
Model: Diversa Ray
Voltage: 100V ~ 240V 50~60Hz
Lasers: 30mW Green Diode /80mW Red Diode
Power Consumption: 32W
Dimensions: 12.5”(L) x 8.5”(W) x 7.5”(H)
316mm x 213mm x 193mm
Colors: Green & Red
Weight: 9 Lbs. / 4 kgs.
Fuse: 1 Amp
Duty Cycle: None
DMX: 9 DMX Channels
Sound Active: Ye s
Working Position: Any Safe, Secure Position
Warranty: 90 Days
Please Note: Specications and improvements in the design
of this unit and this manual are subject to change without any
prior written notice.
Diversa Ray Specifications
©American DJ Supply
American DJ World Headquarters:
6122 S. Eastern Ave. Los Angeles, CA 90040 USA
Tel: 323-582-2650 / Fax: 323-582-2610
Web: www.americandj.com / E-mail: info@americandj.com
service@adjgroup.eu / www.americandj.eu
Tel: +31 45 546 85 00 / Fax: +31 45 546 85 99
Auto Sensing Voltage: This xture contains a automatic volt-
age switch, which will auto sense the voltage when it is plugged
into the power source.
©American DJ® - www.americandj.com - Diversa Ray Instruction Manual Page 23
http://acctec
h.ru/cat/laze
r/
Loading...
