Adj CPX 15A User Manual [ru]

11/13

CPX Speakers

Professional Powered Two-Way

Loudspeakers

CPX Speakers Contents

CUSTOMER SUPPORT..........................................................................................................................2

UNPACKING.............................................................................................................................2

HANDLING PRECAUTIONS...................................................................................................................3

FEATURES...........................................................................................................................................4

PRODUCT REGISTRATION....................................................................................................................5

CONTROLS & FEATURES......................................................................................................................6

MOUNTING.................................................................................................................10

AVAILABLE ACCESSORIES.................................................................................................................11

WARRANTY.......................................................................................................................................12

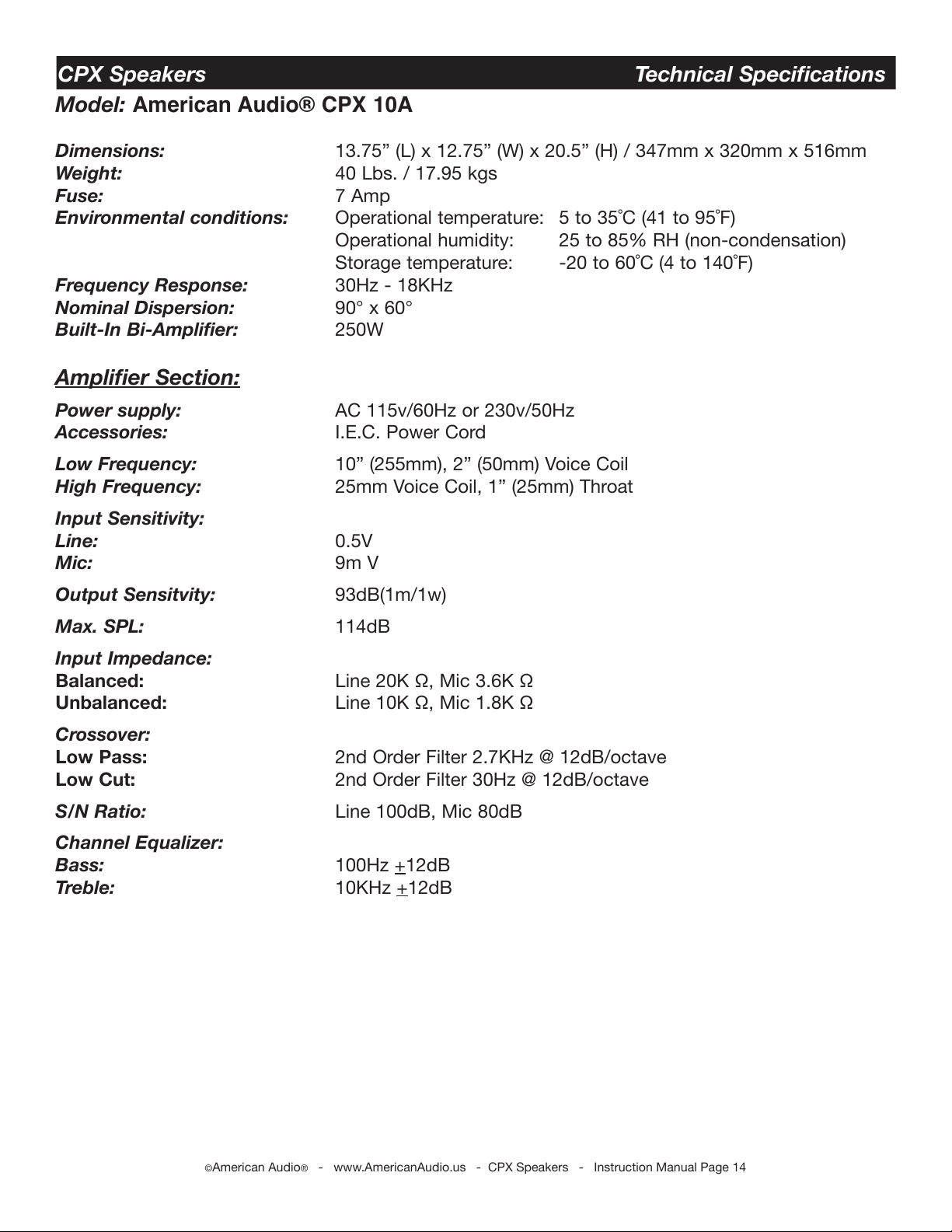

SPECIFICATIONS.................................................................................................................................13

DO NOT REMOVE THE HANDLES!. REMOVING THE HANDLES WILL CAUSE THE INSIDE
SCREWS TO FALL INTO THE SPEAKER POSSIBLY DAMAGING THE SPEAKER!

CPX Speakers Introduction

Introduction: Congratulations and thank you for purchasing the American Audio® CPX Speakers pro-

fessional sound reinforcement loudspeaker. This loudspeaker is a representation of American Audio’s
continuing commitment to produce the best and highest quality audio products possible at an aord-
able price. The CPX Speakers is a self powered, two-way active loudspeaker encased in a light weight
ASB Nylon Fiber cabinet. This speaker has been designed to be used as both a portable and a perma-
nently installed unit. The speaker includes a poll mount slot and rubber feet on the bottom of the unit
for portable applications and also includes rigging points on the top, bottom, and rear of the unit for
permanent and ight installations. Please read and understand this manual completely before attempt-
ing to operate your new speaker system. This booklet contains important information concerning the
proper and safe operation of your new speaker.

Customer Support: American Audio® provides a toll free customer support line, to provide set up help
and answer any question should you encounter problems during your initial set up or operation. You
may also visit us on the web at www.americandj.com for any comments or suggestions. Service Hours

are Monday through Friday 9:00 a.m. to 4:30 p.m. Pacic Standard Time.

Voice: [phone]
Fax: [phone]
E-mail: [e-mail]

Caution! There are no user serviceable parts inside this speaker. Do not attempt any repairs, without
being instructed to do so by an authorized American Audio technician. Doing so will void your manufac-
tures warranty. In the unlikely event your speaker may require service, please contact American Audio®.

PX Speakers Unpacking

C

Every CPX Speakers has been thoroughly tested and has been shipped in perfect operating condi-
tion. Carefully check the shipping carton for damage that may have occurred during shipping. If the
carton appears to be damaged carefully inspect your units for any damage and be sure all accessories
necessary to operate the system have arrived intact. In the event damage has been found or parts are
missing, please contact our toll free customer support number for further instructions. Please do not

return the speaker to your dealer without rst contacting customer support.

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 2

CPX Speakers Handling Precautions

ELECTRICAL PRECAUTIONS

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated "dangerous voltage" within the
product's enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.

CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE THE COVER (OR BACK).
THERE ARE N O USER SERVICEABLE PARTS
INSIDE REFER SERVICE TO YOUR AUTHORIZED
AMERICAN AUDIO

®

SERVICE TECHNICIAN.

The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

READ INSTRUCTIONS — All the safety and operating

instructions should be read before the product is
operated.

RETAIN INSTRUCTIONS — The safety and operating

instructions should be retained for future reference.

HEED WARNINGS — All warnings on the product and

in the operating instructions should be adhered to.

FOLLOW INSTRUCTIONS — All operating and use

instructions should be followed.

CLEANING — The product should be cleaned only with

a polishing cloth or a soft dry cloth. Never clean with
furniture wax, benzine, insecticides or other volatile
liquids since they may corrode the cabinet.

ATTACHMENTS — Do not use a ttachments not

recommended by the product manufacturer as they
may cause hazards.

WATER AND MOISTURE — Do not use this product

near water — for example, near a bathtub, wash
bowl, kitchen sink, or laundry tub; in a wet basement;
or near a swimming pool; and the like.

ACCESSORIES — Do not place this product on an

unstable cart, stand, tripod, bracket, or table. The
product may fall, causing serious injury to a child or
adult, and serious damage to the product. Use only
with a cart, stand, tripod, bracket, or table
recommended by the manufacturer, or sold with
the product. Any mounting of the product should
follow the manufacturer’s instructions, and should
use a mounting accessory recommended by the
manufacturer.

CART — A product and cart combination should be

moved with care. Quick stops, excessive force, and
uneven surfaces may cause the product and cart
combination to overturn.

VENTILATION — Slots and openings in the cabinet are

provided for ventilation and to ensure reliable
operation of the product and to protect it from
overheating, and these openings must not be
blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug,
or other similar surface. This product should not be
placed in a built-in installation such as a bookcase or
rack unless proper ventilation is provided or the
manufacturer’s instructions have been adhered to.

POWER SOURCES — This product should be operated

only from the type of power source indicated on the
marking label. If you are not sure of the type of
power supply to your home, consult your product
dealer or local power company.

LOCATION – The appliance should be installed in a

stable location.

NONUSE PERIODS – The power cord of the appliance

be unplugged from the outlet when left un-

should
used for a long period of time.

GROUNDING OR POLARIZATION

• If this product is equipped with a polarized alternating
current line plug (a plug having one blade wider than
the other), it will fit into the outlet only one way. This
is a safety feature. If you are unable to insert the plug
fully into the outlet, try reversing the plug. If the plug
should still fail to fit, contact your electrician to
replace your obsolete outlet. Do not defeat the
safety purpose of the polarized plug.

• If this product i s equipped with a three-wire
grounding type plug, a plug having a third (grounding)
pin, it will only fit into a grounding type power outlet.
This is a safety feature. If you are unable to insert the
plug into the outlet, contact your electrician to
replace your obsolete outlet. Do not defeat the
safety purpose of the grounding type plug.

POWER-CORD PROTECTION - Power-supply cords

should be routed so that they are not likely to be
walked on or pinched by items placed upon or
against them, paying particular attention to cords at
plugs, convenience receptacles, and the point where
they exit from the product.

OUTDOOR ANTENNA GROUNDING — If an outside

antenna or cable system is connected to the product,
be sure the antenna or cable system is grounded so
as to provide some protection against voltage surges
and built-up static charges. Article 810 of the National
Electrical Code, ANSI/NFPA 70, provides information
with regard to proper grounding of the mast and
supporting structure, grounding of the lead-in wire
to an antenna discharge unit, size of grounding
conductors, location of antenna-discharge unit,
connection t o grounding electrodes, and
requirements for the grounding electrode. See Figure
A.

LIGHTNING — For added protection for this product

during a lightning storm, or when it is left unattended
and unused for long periods of time, unplug it from
the wall outlet and disconnect the antenna or cable
system. This will prevent damage to the product
due to lightning and power-line surges.

POWER LINES — An outside antenna system should

not be located in the vicinity of overhead power lines
or other electric light or power circuits, or where it
can fall into such power lines or circuits. When
installing an outside antenna system, extreme care
should be taken to keep from touching such power
lines or circuits as contact with them might be fatal.

OVERLOADING — Do not overload wall outlets,

extension cords, or
as this can result in a risk of fire or electric shock.

integral convenience receptacles

ELECTRIC
SERVICE
EQUIPMENT

Fig. A

OBJECT AND LIQUID ENTRY - Never push objects of

any kind into this product through openings as they
may touch dangerous voltage points or short-out
parts that could result in a fire or electric shock.
Never spill liquid of any kind on the product.

SERVICING — Do not attempt to service this product

yourself as opening or removing covers may expose
you to dangerous voltage or other hazards. Refer all
servicing to qualified service personnel.

DAMAGE REQUIRING SERVICE - Unplug this product

from the wall outlet and refer servicing to qualified
service personnel under the following conditions:

•When the power-supply cord or plug is damaged.

• If liquid has been spilled, or objects have fallen into

the product.

• If the product has been exposed to rain or water.

• If the product does not operate normally by following

the operating instructions. Adjust only those controls
that are covered by the operating instructions as an
improper adjustment of other controls may result in
damage and will often require extensive work by a
qualified technician to restore the product to its
normal operation.

• If the product has been dropped or damaged in any
way.

•When the product exhibits a distinct change in
performance — this indicates a need for service.

REPLACEMENT PARTS -- When replacement parts

are required, be sure the service technician has used
replacement parts specified by the manufacturer or
have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electric
shock, or other hazards.

SAFETY CHECK - Upon completion of any service or

repairs to this product, ask the service technician to
perform safety checks to determine that the product
is in proper operating condition.

WALL OR CEILING MOUNTING — The product should

not be mounted to a wall or ceiling.

HEAT — The product should be situated away from heat

sources such as radiators, heat registers, stoves, or
other products (including amplifiers) that produce
heat.

ANTENNA
LEAD IN
WIRE

GROUND
CLAMP

ANTENNA
DISCHARGE UNIT
(NEC SECTION 810-20)

GROUNDING CONDUCTORS
(NEC SECTION 810-21)

GROUND CLAMPS

POWER SERVICE GROUNDING
ELECTRODE SYSTEM
(NEC ART 250, PART H)

NEC — NATIONAL ELECTRICAL CODE

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 3

CPX Speakers Safety Precautions

CPX Speakers loudspeaker can easily reproduce sound pressure levels (SPL) sucient enough to

cause sever and permanent hearing damage. A great degree of care should be taken to protect your
ears to prolong exposure to SPL in excess of 85dB.

• For adult use only - Keep out of the reach of children.

• Be sure all power is turned o before making speaker connections

• When using the speaker make sure the grille is always attached.

• Always use a power cord that meets the manufactures exact power specications

• Disconnect from main power before making any type of connection

• To reduce the risk of electrical shock or re, do not expose this unit rain or moisture

• This speaker is intended for indoor use only, use of this product outdoors voids all warranties.

• Always mount this speaker in safe and stable matter.

• Power Cord Protection - Power supply cords should be routed so that they are not likely to be

walked on or pinched by items placed upon or against them, paying particular attention to cords
at plugs, convenience receptacles, and the point where they exit from the speaker.

• Heat -The speaker should be situated away from heat sources such as radiators, heat registers,

stoves, or other mixers (including amplifiers) that produce heat

• Be sure to save the packing carton in the event the unit needs to be returned for service

• Read all documentation before attempting to operate your new mixer. Please save all your docu-

mentation for future reference

• Do not spill water or other liquids in to or on to your speaker

• Be sure that the local power outlet matches that of the required voltage for your speaker.

• Do not attempt to operate this speaker if the power cord has been frayed or broken. Please route
your power cord out of the way of foot trac

• Always have the gain controls set to their lowest level during initial power-up to prevent

speaker damage

• Servicing - The user should not attempt to service the speaker beyond that described in this

manual. All other servicing should be referred to qualified service personnel. The speaker should
only be serviced by qualified personal when;
A. Objects have fallen, or liquid has been spilled into the speaker
B. The speaker has been exposed to rain or water
C. The speaker does not appear to operate normally or exhibits a change in performance
D. The terminal/cross-over plate has been damaged

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 4

CPX Speakers Main Features

CPX 8A:

• 8-Inch Woofer

• 200W Built-In Bi-Amplier

• XLR Mic Input

• XLR & RCA Line Inputs

• XLR & TRS Line Outputs

• Treble & Bass EQ +/-12dB

• Built-In Pole Mount Socket

• Built-in Heavy Duty Carrying Handles

• Attached heavy Duty Rubber Feet

CPX 12A:

• 12-Inch Woofer

• 500W Built-In Bi-Amplier

• XLR Mic Input

• XLR & RCA Line Inputs

• XLR & TRS Line Outputs

• Treble & Bass EQ +/-12dB

• Built-In Pole Mount Socket

• Built-in Heavy Duty Carrying Handles

• Attached heavy Duty Rubber Feet

CPX 10A:

• 10-Inch Woofer

• 250W Built-In Bi-Amplier

• XLR Mic Input

• XLR & RCA Line Inputs

• XLR & TRS Line Outputs

• Treble & Bass EQ +/-12dB

• Built-In Pole Mount Socket

• Built-in Heavy Duty Carrying Handles

• Attached heavy Duty Rubber Feet

CPX 15A:

• 15-Inch Woofer

• 500W Built-In Bi-Amplier

• XLR Mic Input

• XLR & RCA Line Inputs

• XLR & TRS Line Outputs

• Treble & Bass EQ +/-12dB

• Built-In Pole Mount Socket

• Built-in Heavy Duty Carrying Handles

• Attached heavy Duty Rubber Feet

CPX Speakers Registration

The CPX Speakers carry a one year (365 days) limited warranty. Please fill out the enclosed war-
ranty card to validate your purchase. All returned service items whether under warranty or not, must
be freight pre-paid and accompany a return authorization (R.A.) number. The R.A. number must be
clearly written on the outside of the return package. A brief description of the problem as well as the
R.A. number must also be written down on a piece of paper and included in the shipping container.
If the unit is under warranty, you must provide a copy of your proof of purchase invoice. You may
obtain a R.A. number by contacting customer support at [phone]. All packages returned to
the service department not displaying a R.A. number on the outside of the shipping package will be
returned to the shipper unopened.

The serial and model number for this unit is located on the rear panel Please write down the num-
bers here and retain them for future reference.

Model No.________________________________ Date Purchased___________________________

Serial No.________________________________ Dealer Name______________________________

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 5

CPX Speakers Controls and Features

Rear of CPX Speakers

11

10

1 2

43

5

6

9

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 6

7

8

CPX Speakers Controls and Features

Rear Panel:

1. LINE LEVEL INPUT VOLUME – This knob is used to regulate the output signal of the line level

source connected to the Line Level Input Jack (5).

2. OUTPUT VOLUME - This knob is used to regulate the output volume. Turning the knob in a clock-

wise direction will increase the volume level.

3. TREBLE CONTROL – This knob is used to adjust the amount treble applied to the output signal.

The maximum amount of treble gain is +12dB and the maximum amount of treble decrease is

-12dB. Turning the knob in a counter-clockwise direction will decrease the amount of treble applied
to a channel signal, turning the knob in a clockwise direction will increase the amount of treble
applied to a channel signal.

4. BASS CONTROL – This knob is used to adjust the amount bass applied to the output signal. The

maximum amount of bass gain is +12dB and the maximum amount of bass decrease is -12dB.

Turning the knob in a counter-clockwise direction will decrease the amount of bass applied to a
channel signal, turning the knob in a clockwise direction will increase the amount of bass applied to
a channel signal.

5. BALANCED XLR/RCA COMBO LINE INPUT – This connection is designed to accept a balanced
line input signal from a mixer or other line level device with a balanced output jack. Use a balanced
cable when the signal cable length exceeds 15 feet, this will reduce excessive signal loss. Be sure
to connect only line level input devices such as mixers and tape machines to this jack.

6. XLR PARALLEL OUTPUT JACK – This jack is used to send the incoming line level signal from
either of the Line Level Inputs Jacks to another CPX Speakers or other line level input jack such as
a mixer or power amp.

7. VOLTAGE SELECTOR SWITCH – Because power supplies vary from location to location we have
incorporated a selectable voltage switch. This switch can select a voltage input of 115v~60Hz or
230v~50Hz. Always disconnect the power plug before changing the voltage.

8. MAIN POWER SWITCH – This is the main power ON/OFF button. Before main power is

applied, be sure you have made all connections to the speaker. Remember to avoid damaging

pops to the speakers, the mixer is turned on rst and turned o last.

9. MAIN POWER INLET – This connector is used to supply main power to the unit via the included
detachable power cord. The power connection uses an I.E.C. type connector, use only the sup-
plied polarized AC power cord. Use only a power cord that matches this type of connection. Be
sure to only connect this unit to a power outlet that matches the printed power label on the unit.

Never use a power when the ground prong has been removed or broken o. The ground prong is

used to reduce the risk of electrical shock in case of an electrical short. This cord is designed to

t in one direction only. Do not attempt to force a cord if it does not t, be sure the cord is being

inserted properly.

FUSE HOLDER – This housing stores a 7Amp protective fuse. Always replace with the exact

same type fuse, unless otherwise instructed, by an authorized American Audio® service techni-
cian. Replacing with any other type of fuse than that of the recommended fuse will void your unit
warranty.

10. MIC XLR/1/4” INPUT – This jack will accept a XLR or 1/4” plug. The volume output level for this
microphone will be controlled by the MIC Volume knob (11).

11. MIC LEVEL - This knob is used to regulate the microphone output volume. Turning the knob in a
clockwise direction will increase the volume level.

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 7

CPX Speakers Typical Speaker Set-Up

Typical Speakers Output Set-Up

XLR Balanced Cables

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 8

CPX Speakers Looping Speakers

CPX Speakers Looping

From Mixer

To Next CPX Speakers (If Applicable)

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 9

CPX Speakers Mounting Options

Pole Mounting – The CPX Speakers also include a pole mount option.

The pole mount socket located on the bottom of the speaker may be
used to secure the speaker to a speaker tri-pod, such as the American
Audio® SPS-1B as illustrated on the left. Always be sure to follow the
guidelines listed below when pole mounting your speaker;

• Always be sure the stand is designed to support the weight of

the speaker

• In outdoor situations that are prone to windy conditions and

strong wind gust, be sure to use sandbags as additional tri-pod
support, this will greatly reduce the risk of tipping

• Do not stack speakers on top of each other when mounting on

a tri-pod. Only one speaker should be mounted to a tri-pod at one
time.

• Always position the tri-pod legs away from foot traffic

• Extend the tri-pod legs to their fully extended position to avoid

accidental tipping

• Observe and follow all safety guidelines and regulations specified

by the tri-pod’s manufacturer

• Be sure the tri-pod is situated on a flat, level, and stable surface

• Always tighten all tri-pod locks.

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 10

CPX Speakers Available Accessories

Speaker Rigging Hardware – The CPX Speakers may be permanently installed or mounted

using any of the available third party wall brackets and ceiling mounts available. Always be sure to
follow all safety instructions and guidelines included with the mounting hardware for safe and proper
installation. American Audio® carries an assortment of rigging hardware specially designed to work
with the CPX Speakers. Please contact your dealer for more information and availability.

SPS-1B - Speaker Stands - American Audio® carries the SPS-1B speak-
er stand, which can be used to raise the speakers during use The SPS-1B
is a sturdy aluminum tri-pod and includes a mounting socket bracket for
added security. The SPS-1B can raise the speaker to a maximum height
of six feet and has a maximum weight capacity of 80 pounds. SPS-1B;
weight = 6lbs, pipe diameter - 1 3/8”

Speaker Rigging Hardware - American Audio® car-
ries an assortment of rigging hardware specially de-
signed to work with the CPX Speakers. Warning:
Mounting and/or suspension of loudspeakers requires
experienced professionals. Improperly installed loud-
speakers can result in property damage, personal
injury and/or liability to the installing contractor. Al-
ways ensure that the hardware can bare more than
the speaker load.

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 11

CPX Speakers Warranty

1-YEAR LIMITED WARRANTY

A. American Audio® hereby warrants, to the original purchaser, American Audio® products to be
free of manufacturing defects in material and workmanship for a period of 1 Year (365 days) from
the date of purchase. This warranty shall be valid only if the product is purchased within the
United States of America, including possessions and territories. It is the owner’s responsibility to
establish the date and place of purchase by acceptable evidence, at the time service is sought.

B. For warranty service, send the product only to the American Audio® factory. All shipping charges
must be pre-paid. If the requested repairs or service (including parts replacement) are within the
terms of this warranty, American Audio® will pay return shipping charges only to a designated
point within the United States. If the entire instrument is sent, it must be shipped in its original
package. No accessories should be shipped with the product. If any accessories are shipped
with the product, American Audio® shall have no liability whatsoever for loss of or damage to
any such accessories, nor for the safe return thereof.

C. This warranty is void if the serial number has been altered or removed; if the product is modied

in any manner which American Audio® concludes, after inspection, aects the reliability of the
product; if the product has been repaired or serviced by anyone other than the American Audio®
factory unless prior written authorization was issued to purchaser by American Audio®; if the
product is damaged because not properly maintained as set forth in the instruction manual.

D. This is not a service contract, and this warranty does not include maintenance, cleaning or peri-

odic check-up. During the period specied above, American Audio® will replace defective parts

at its expense, and will absorb all expenses for warranty service and repair labor by reason of
defects in material or workmanship. The sole responsibility of American Audio® under this war-
ranty shall be limited to the repair of the product, or replacement thereof, including parts, at the
sole discretion of American Audio®. All products covered by this warranty were manufactured

after January 1, 1990, and bear identifying marks to that eect.

E. American Audio® reserves the right to make changes in design and/or improvements upon its
products without any obligation to include these changes in any products theretofore manufac-
tured.

F. No warranty, whether expressed or implied, is given or made with respect to any accessory sup-
plied with products described above. Except to the extent prohibited by applicable law, all
implied warranties made by American Audio® in connection with this product, including warran-

ties of merchantability or tness, are limited in duration to the warranty period set forth above.

And no warranties, whether expressed or implied, including warranties of merchantability or

tness, shall apply to this product after said period has expired. The consumer’s and or Dealer’s

sole remedy shall be such repair or replacement as is expressly provided above; and under no
circumstances shall American Audio® be liable for any loss or damage, direct or consequential,
arising out of the use of, or inability to use, this product.

G. This warranty is the only written warranty applicable to American Audio® Products and super-
sedes all prior warranties and written descriptions of warranty terms and conditions heretofore
published.

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 12

CPX Speakers Technical Specifications

Model: American Audio® CPX 8A

Dimensions: 11.75” (L) x 10.5” (W) x 18” (H) / 295mm x 265mm x 452mm
Weight: 31 Lbs. / 14 kgs
Fuse: 7 Amp
Environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F)

Operational humidity: 25 to 85% RH (non-condensation)

Storage temperature: -20 to 60˚C (4 to 140˚F)

Frequency Response: 30Hz - 18KHz
Nominal Dispersion: 90° x 60°
Built-In Bi-Amplifier: 200W

Amplifier Section:

Power supply: AC 115v/60Hz or 230v/50Hz
Accessories: I.E.C. Power Cord

Low Frequency: 8” (210mm), 2” (50mm) Voice Coil
High Frequency: 25mm Voice Coil, 1” (25mm) Throat

Input Sensitivity:
Line: 0.5V
Mic: 9m V

Output Sensitvity: 93dB(1m/1w)

Max. SPL: 112dB

Input Impedance:

Balanced: Line 20K Ω, Mic 3.6K Ω
Unbalanced: Line 10K Ω, Mic 1.8K Ω

Crossover:

Low Pass: 2nd Order Filter 2.7KHz @ 12dB/octave
Low Cut: 2nd Order Filter 30Hz @ 12dB/octave

S/N Ratio: Line 100dB, Mic 80dB

Channel Equalizer:
Bass: 100Hz +12dB
Treble: 10KHz +12dB

Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 13

CPX Speakers Technical Specifications

Model: American Audio® CPX 10A

Dimensions: 13.75” (L) x 12.75” (W) x 20.5” (H) / 347mm x 320mm x 516mm
Weight: 40 Lbs. / 17.95 kgs
Fuse: 7 Amp
Environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F)

Operational humidity: 25 to 85% RH (non-condensation)

Storage temperature: -20 to 60˚C (4 to 140˚F)

Frequency Response: 30Hz - 18KHz
Nominal Dispersion: 90° x 60°
Built-In Bi-Amplifier: 250W

Amplifier Section:

Power supply: AC 115v/60Hz or 230v/50Hz
Accessories: I.E.C. Power Cord

Low Frequency: 10” (255mm), 2” (50mm) Voice Coil
High Frequency: 25mm Voice Coil, 1” (25mm) Throat

Input Sensitivity:
Line: 0.5V
Mic: 9m V

Output Sensitvity: 93dB(1m/1w)

Max. SPL: 114dB

Input Impedance:

Balanced: Line 20K Ω, Mic 3.6K Ω
Unbalanced: Line 10K Ω, Mic 1.8K Ω

Crossover:

Low Pass: 2nd Order Filter 2.7KHz @ 12dB/octave
Low Cut: 2nd Order Filter 30Hz @ 12dB/octave

S/N Ratio: Line 100dB, Mic 80dB

Channel Equalizer:
Bass: 100Hz +12dB
Treble: 10KHz +12dB

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 14

CPX Speakers Technical Specifications

Model: American Audio® CPX 12A

Dimensions: 15” (L) x 14.25” (W) x 23” (H) / 378mm x 360mm x 580mm
Weight: 48 Lbs. / 21.4 kgs
Fuse: 7 Amp
Environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F)

Operational humidity: 25 to 85% RH (non-condensation)

Storage temperature: -20 to 60˚C (4 to 140˚F)

Frequency Response: 30Hz - 18KHz
Nominal Dispersion: 90° x 60°
Built-In Bi-Amplifier: 500W

Amplifier Section:

Power supply: AC 115v/60Hz or 230v/50Hz
Accessories: I.E.C. Power Cord

Low Frequency: 12” (312mm), 2.5” (65mm) Voice Coil
High Frequency: 34mm Voice Coil, 1” (25mm) Throat

Input Sensitivity:
Line: 0.5V
Mic: 9m V

Output Sensitvity: 95dB(1m/1w)

Max. SPL: 116dB

Input Impedance:

Balanced: Line 20K Ω, Mic 3.6K Ω
Unbalanced: Line 10K Ω, Mic 1.8K Ω

Crossover:

Low Pass: 2nd Order Filter 2.7KHz @ 12dB/octave
Low Cut: 2nd Order Filter 30Hz @ 12dB/octave

S/N Ratio: Line 100dB, Mic 80dB

Channel Equalizer:
Bass: 100Hz +12dB
Treble: 10KHz +12dB

©American Audio® - www.AmericanAudio.us - CPX Speakers - Instruction Manual Page 15

CPX Speakers Technical Specifications

Model: American Audio® CPX 15A

Dimensions: 18” (L) x 15.5” (W) x 27” (H) / 456mm x 390mm x 680mm
Weight: 62 Lbs. / 28 kgs
Fuse: 7 Amp
Environmental conditions: Operational temperature: 5 to 35˚C (41 to 95˚F)

Operational humidity: 25 to 85% RH (non-condensation)

Storage temperature: -20 to 60˚C (4 to 140˚F)

Frequency Response: 30Hz - 18KHz
Nominal Dispersion: 90° x 60°
Built-In Bi-Amplifier: 500W

Amplifier Section:

Power supply: AC 115v/60Hz or 230v/50Hz
Accessories: I.E.C. Power Cord

Low Frequency: 15” (390mm), 2.5” (75mm) Voice Coil
High Frequency: 44mm Voice Coil, 1” (25mm) Throat

Input Sensitivity:
Line: 0.5V
Mic: 9m V

Output Sensitvity: 97dB(1m/1w)

Max. SPL: 118dB

Input Impedance:

Balanced: Line 20K Ω, Mic 3.6K Ω
Unbalanced: Line 10K Ω, Mic 1.8K Ω

Crossover:

Low Pass: 2nd Order Filter 2.7KHz @ 12dB/octave
Low Cut: 2nd Order Filter 30Hz @ 12dB/octave

S/N Ratio: Line 100dB, Mic 80dB

Channel Equalizer:
Bass: 100Hz +12dB
Treble: 10KHz +12dB

NOTES:

The specifications are subject to change to any improvement by negotiations in advance.
The parts are subject to change to any improvement within the range of the specifications.

Europe Energy Saving Notice
Energy Saving Matters (EuP 2009/125/EC)
Saving electric energy is a key to help protecting the enviroment.

Please turn o all electrical products when they are not in use. To

avoid power consumption in idle mode, disconnect all electrical
equipment from power when not in use. Thank you!
