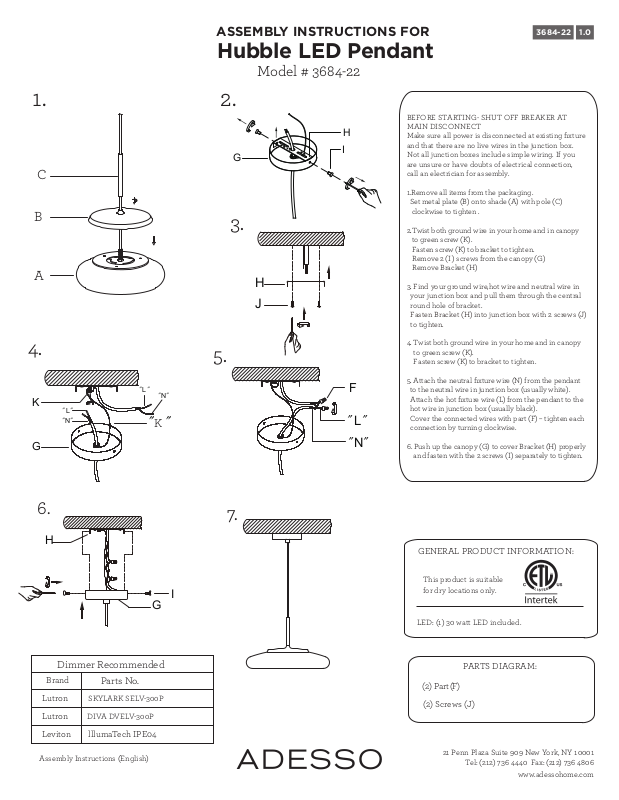

ASSEMBLY INSTRUCTIONS FOR
Hubble LED Pendant
Model # 3684-22
1.03684-22
1.
B
A
4.
K
G
C
2.
BEFORE STARTING- SHUT OFF BREAKER AT
H
I
G
3.
H
J
5.
"L"
"N"
"L
"
"
N
"
K
F
"
L"
"N"
MAIN DISCONNECT
Make sure all power is disconnected at existing fixture
and that there are no live wires in the junction box.
Not all junction boxes include simple wiring. If you
are unsure or have doubts of electrical connection,
call an electrician for assembly.
1.Remove all items from the packaging.
Set metal plate (B) onto shade (A) with pole (C)
clockwise to tighten .
2.Twist both ground wire in your home and in canopy
to green screw (K).
Fasten screw (K) to bracket to tighten.
Remove 2 (I ) screws from the canopy (G)
Remove Bracket (H)
3. Find your ground wire,hot wire and neutral wire in
your junction box and pull them through the central
round hole of bracket.
Fasten Bracket (H) into junction box with 2 screws (J)
to tighten.
4. Twist both ground wire in your home and in canopy
to green screw (K).
Fasten screw (K) to bracket to tighten.
5. Attach the neutral fixture wire (N) from the pendant
to the neutral wire in junction box (usually white).
Attach the hot fixture wire (L) from the pendant to the
hot wire in junction box (usually black).
Cover the connected wires with part (F) – tighten each
connection by turning clockwise.
6. Push up the canopy (G) to cover Bracket (H) properly
and fasten with the 2 screws (I) separately to tighten.
6.
H
Dimmer Recommended
Brand
Lutron SKYLARK SELV-300P
Lutron
Leviton
Assembly Instructions (English)
Parts No.
DIVA DVELV-300P
lllumaTech IPE04
G
7.
GENERAL PRODUCT INFORMATION:
This product is suitable
I
for dry locations only.
LED: (1) 30 watt LED included.
PARTS DIAGRAM:
(2) Part (F)
(2) Screws (J)
21 Penn Plaza Suite 909 New York, NY 10001
Tel: (212) 736 4440 Fax: (212) 736 4806
www.adessohome.com
