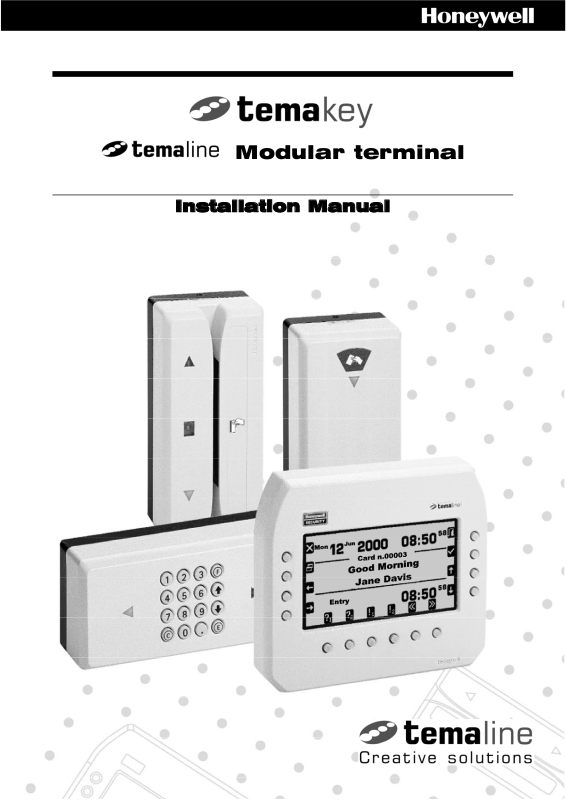

Modular terminal
Installation Manual
TABLE OF CONTENTS Page 3
TABLE OF CONTENTS
Canadian Compliance Statement ......................................................... 6
Cabling: Recommendations ................................................................. 8
LONWORKS Data Cables......................................................................... 11
Horizontal Assembly – Single Module ................................................ 13
Horizontal Assembly – Triple Module ................................................. 14
Combined Assembly - Single and Triple Modules ............................. 15
Fastening the Cables .......................................................................... 17
Vertical Assembly ................................................................................ 18
Channeling the Cables from the Bottom of the Box ........................... 19
Reader ................................................................................................. 20
Keyboards ........................................................................................... 20
Display................................................................................................. 20
Terminals ............................................................................................. 21
Terminals with Keyboards................................................................... 21
Interactive Terminals ........................................................................... 22
Interactive Terminals with Keyboards ................................................. 22
Page 4 Installation Manual
Installation Manual Page 5
FCC NOTICE
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, these is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by tuning the equipment off and on, the user is encouraged to try to correct the interference by one or more the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
Caution: any modification or change not expressely approved by the party
responsible for compliance could void the user’s authority to operate the equipment.
Canadian Compliance Statement
This Class B Digital apparatus meets all the requirements of the Canadian Interference-Causing Equipment Regulations. Cet appareil numerique de la classe B respecte les exigences du Reglement
sur le material broilleur du Canada.
Page 6 FCC NOTICE
PRELIMINARY OPERATIONS
Mounting Instructions
The cables are attached to an encased box. Make sure that you place the box at a height of 120cm from the floor (see Figure 1).
tube
cables
floor
Figure 1: Space requirements for mounting
m c
0 2 1
Mounting Instructions Page 7
Arranging the Cable Tubes and Junction Boxes
All the cables consist of 4 wires that must be connected in parallel from one node to the next. It is possible to link nodes in free topology, i.e. by means of a star or bus configuration.
Cabling: Recommendations
Figure 2 provides an example of a typical free topology installation.
rver
e
aS
em
T
Figure 2: Example of a free topology installation
TemaPower
Page 8 Arranging the Cable Tubes and Junction Boxes
If you want to mount the tubes on the surface of the walls, it is advisable to place the junction boxes under each terminal (see example in Figure 3).
Figure 3: Location of the junction boxes
Arranging the Cable Tubes and Junction Boxes Page 9
Electrical Connections
A
The RTU is powered at low voltage (12VDC 120mA) by a battery-operated power supply module (RTU-Qxx). When determining the correct size for power cables, refer to the table below.
Type of cable Lengt h (m) in relat ion t o effect ive load
WG mm2 ohm/Km 100 [mA] 2 00 [mA] 500 [mA] 1 [A] 2 [A] 5 [A]
12 3,3 5,7 1754 877 351 175 88 35 14 2 8,8 1136 568 227 114 57 23 16 1,3 14 714 357 143 71 36 14 18 0,9 21 476 238 95 48 24 10 20 0,6 34 294 147 59 29 15 6 22 0,35 52 192 96 38 19 10 4 24 0,2 85 118 59 24 12 6 2
Page 10 Electrical Connections
LONWORKS Data Cables
• The LONWORKS
• In a free topology configuration, the sum total of the sections must not
exceed 500m
• In a bus configuration, the sum total of the sections must not exceed
2700m
• In a free topology configuration, activate the 50ohm terminator by placing
the appropriate jumper on the FTT10A plug-in of the CTU-PLG06 board inside the TemaServer
• In a bus configuration, place two terminators (with resistance values of
100ohm 1% ½W) at each end of the bus
1
data cable must be twisted pair
• Check that the length of the L
norms indicated in Table 1.
Type of cable Length [m] in relation to cable capacity
AWG mm2 Ohm/Km 50nF/Km 100nF/Km 200nF/Km 500nF/Km 1uF/Km
12 3,3 5,7 2676 1892 1338 846 598 14 2 8,8 2153 1523 1077 681 482 16 1,3 14 1707 1207 854 540 382 18 0,9 21 1394 986 697 441 312 20 0,6 34 1096 775 548 346 245 22 0,35 52 886 626 443 280 198 24 0,2 85 693 490 346 219 155
Table 1: Length/capacity of LONWORKS data cables (m)
ONWORKS
data cable corresponds to the
1
LONWORKS® is a trademark of Echelon Corporation
LONWORKS( Data Cables Page 11
• The FTT10A Echelon v1.2 User Guide recommends the cables indicated
in Table 2.
Manufacturer and model
Belden 85102 16 2700 500 Belden 8471 16 2700 400 Level IV (twisted pair, typically solid and unshielded) JY (St) 2x2x0.8 (4­wire helical twist, solid shielded)
AWG Connection to bus -
maximum total length [m]
22 1400 400
20 900 320
Connection in free topology –maximum node-node length max. [m]
Table 2: Recommended LONWORKS cables
Page 12 LONWORKS( Data Cables
Mounting the Unit on the Wall
Horizontal Assembly – Single Module
To assemble the unit in a horizontal position, follow these steps:
1. Drill two holes in the wall (to accommodate the 2 plastic dowels), so that
the frame will cover the hole through which the cables pass.
2. Insert the cables in the cable clamp without pulling out the screws.
3. Use the dowels to fasten the frame to the wall. Make sure that the lamellar
connector is in the UP position.
4. Adjust the length of the cables so that they protrude by ~10cm from the
wall, and fasten them to the cable crimp.
5. Fasten the cable crimp to the contacts in the direction shown in Figure 4.
6. Place the remainder of the cable inside the frame and lock the cable
clamp.
Figure 4: Wall position – horizontal position (single module)
Mounting the Unit on the Wall Page 13
Horizontal Assembly – Triple Module
To assemble the unit in a horizontal position, follow these steps:
1. Drill two holes in the wall (to accommodate the 2 plastic dowels), so that
the frame will cover the hole through which the cables pass.
2. Insert the cables in the cable clamp without pulling out the screws.
3. Use the dowels to fasten the frame to the wall. Make sure that the lamellar
connector is in the UP position.
4. Adjust the length of the cables so that they protrude by ~10cm from the
wall, and fasten them to the cable crimp.
5. Fasten the cable crimp to the contacts in the direction shown in Figure 5.
6. Place the remainder of the cable inside the frame and lock the cable
clamp.
NET1 NET2
GND +12V
Figure 5: Wall position – horizontal position (triple module)
Page 14 Mounting the Unit on the Wall
Combined Assembly - Single and Triple Modules
A combined wall assembly of single and triple modules allows you to create units consisting of 2, 4 and 5 units. This procedure consists of the following steps:
1. Drill the necessary holes in the wall (2 plastic dowels for each module), so
that the lower plate will cover the hole through which the cables pass.
2. Insert the cables in the cable clamp without pulling out the screws.
3. Link the frames together by inserting the two enclosed attachment clips at
the rear of the frames (see Figure 6 and Figure 7).
4. Use the dowels to fasten the frame to the wall. Make sure that the lamellar
connector is in the UP position.
5. Adjust the length of the cables so that they protrude by ~10cm from the
wall, and fasten them to the cable crimp.
6. Intertwine the terminators of the cables from the wall and the extension
cable terminators, and fasten them to the cable crimps.
7. Fasten the cable crimp to the contacts in the direction shown in Figure 6
and Figure 7.
8. Place the remainder of the cable inside the frame and lock the cable
clamp.
NET1 NET2
At t achment clip
GND +12V
NET1 NET2
GND +12V
At t achment clip
Figure 6: Combined assembly of two single module wall units
Mounting the Unit on the Wall Page 15
NET1 NET2
At t achment clip
GND +12V
NET1 NET2
GND +12V
At t achment clip
Figure 7: Combined assembly of single and triple module wall units
Page 16 Mounting the Unit on the Wall
Fastening the Cables
Fasten the cable clamps to the cable bar so that the cables are arranged towards the inside of the frame (see Figure 8).
CONNECTIONS
Å NET1 (green)
Å NET2 (yellow)
Å GND (black)
Å +12V (red)
Figure 8: Fastening the cables
Mounting the Unit on the Wall Page 17
Vertical Assembly
To assemble the unit in a vertical position, follow these steps:
1. Drill two holes in the wall (to accommodate the 2 plastic dowels), so that
the frame will cover the hole through which the cables pass.
2. Insert the cables in the cable clamp without pulling out the screws.
3. Use the dowels to fasten the frame to the wall. Make sure that the lamellar
connector is in the UP position.
4. Adjust the length of the cables so that they protrude by ~10cm from the
wall, and fasten them to the cable crimp.
5. Fasten the cable crimp to the contacts in the direction shown in Figure 9.
6. Place the remainder of the cable inside the frame and lock the cable
clamp.
GND
NET1
+12V
NET2
GND
NET1
+12V
NET2
GND
NET1
+12V
NET2
Figure 9: Wall position – vertical assembly
Page 18 Mounting the Unit on the Wall
Channeling the Cables from the Bottom of the Box
As an alternative, you can channel the cables so that they exit from the bottom of the frame. This alternative procedure consists of the following steps:
1. Drill a hole in the wall so that the hole from which the cables exit is in the
center of the lower plate.
2. Break off the lower removable tab from the upper support.
3. Break off the upper and lower tab from the lower support.
4. Insert both the cables from the wall and the remainder of the cable in the
cable clamp (be careful not to pull out the screws).
5. Use the dowels to attach the frame to the wall.
6. Adjust the length of the cables so that they protrude by ~10cm from the
wall.
7. Roll up the terminators of the cables from the wall and the extension
cables, and fasten them to the cable crimps (see Figure 10).
8. Fasten the cable crimp to the contacts in the direction shown in Figure 10.
9. Place the remainder of the cables inside the frame and lock the cable
clamps.
Figure 10: Channeling the cables from the bottom of the box
Mounting the Unit on the Wall Page 19
INSTALLATION
Combining the Modules
Each TemaKey consists of one or more RTU modules that must be positioned and connected to their respective wall attachment frames (RTU­Sxx) as indicated in the table below.
Reader
Code Grouping Horizontal Vertical Notes
TK-S07
1 x RTU-B07 1 x RTU-S01
TK-S012
1 x RTU-B12 1 x RTU-S01
Weight=0.45Kg Power=0.8W Current=60mA
Weight=0.45Kg Power=1.0W Current=90mA
Keyboards
Code Grouping Horizontal Vertical Notes
TK-S31
1 x RTU-T01 1 x RTU-S01
Weight=0.4Kg Power=0.4W Current=30mA
Display
Code Grouping Horizontal Vertical Notes
TK_S21
1 x RTU-C01 1 x RTU-S01
TK-S22
Page 20 Combining the Modules
NO
Weight=0.45Kg Power=1.9W Current=140mA
1 x RTU-C02 2 x RTU-S01
NO
Weight=0.95Kg Power=5.2W Current=380mA
Terminals
Code Grouping Horizontal Vertical Notes
TK-D07
1 x RTU-C01 1 x RTU-B07 2 x RTU-S01
TK-D012
1 x RTU-C01 1 x RTU-B12 2 x RTU-S01
NO
NO
Weight=0.9Kg Power=2.7W Current=200mA
Weight=0.9Kg Power=2.9W Current=200mA
Terminals with Keyboards
Code Grouping Horizontal Vertical Notes
TK_D37
1 x RTU-T01 1 x RTU-B07 2 x RTU-S01
Weight=0.85Kg Power=1.2W Current=90mA
TK-T07
1 x RTU-C01 1 x RTU-T01 1 x RTU-B07 1 x RTU-S03
TK_T012
1 x RTU-C01 1 x RTU-T01 1 x RTU-B12 1 x RTU-S03
NO
NO
Weight=1.15Kg Power=3.1W Current=230mA
Peso=1.0Kg Potenza=3.3W Corrente=260mA
Combining the Modules Page 21
Interactive Terminals
Code Grouping Horizontal Vertical Notes
TK-D27
1 x RTU-C02 1 x RTU-B07 1 x RTU-S03
NO
Weight=1.25Kg Power=6W Current=440mA
NO
Weight=1.25Kg Power=6,2W Current=460mA
TK-D212
1 x RTU-C02 1 x RTU-B12 1 x RTU-S03
Interactive Terminals with Keyboards
Code Grouping Horizontal Vertical Notes
TK_T27
1 x RTU-C02 1 x RTU-T01 1 x RTU-B07 1 x RTU-S03 1 x RTU-S01
NO
Weight=1.65Kg Power=6.4W Current=470mA
NO
Weight=1.65Kg Power=6.6W Current=490mA
TK_T212
1 x RTU-C02 1 x RTU-T01 1 x RTU-B12 1 x RTU-S03 1 x RTU-S01
Page 22 Combining the Modules
Attaching the Modules to the Wall
All tEmaline modules are equipped with a simple attachment mechanism; the module clicks into position without the need for tools. To attach the module to the frame, follow these steps:
1. Check that the fitting at the back of the RTU modules is positioned
correctly.
2. Attach each RTU module to the wall-mout frame as illustrated in Figure 11.
Figure 11: Attaching the module to the wall-mount frame
Attaching the Modules to the Wall Page 23
Applying the Entry/Exit Labels
Apply the two entry/exit labels to the magnetic reader according to the pre­configured transit direction. Make sure that you place the labels in the appropriate hollows (see details in Figure 12 and Figure 13).
OUT
IN
Å EXIT ENTRY Æ
Figure 12: Entry/exit labels
IN
OUT
Å ENTRY EXIT Æ
Figure 13: Entry/exit labels
Page 24 Applying the Entry/Exit Labels
Identification via Bar Code
The components enclosed in the packaging include a bar code label. The person responsible for installing the terminal must apply this label to the corresponding identification form, and indicate the location of the terminal in the appropriate box (see example in Table 3).
Description of location
Office entrance area, first floor - staircase E
Description of TemaServer
Panel 2 entrance area, first floor – staircase E
RTU
RTU
RTU
RTU
C01
T01
B07
-
Table 3: Example of completed identification form
Identification via Bar Code Page 25
TECHNICAL DATA
Summary of Modular Devices
This section contains technical data regarding the modular devices:
• RTU-B07 (Reader module for HID proxy cards)
• RTU-B12 (Reader module for Mifare proxy cards)
• RTU-C01 (Alphanumeric LCD module)
• RTU-C02 (Graphic LCD module)
• RTU-T01 (Numeric keyboard module)
Page 26 Summary of Modular Devices
RTU-B07 (Proxy Reader for HID Cards)
Code 1520145
Parameter Value
DC power supply 12VDC±15% 60mA
Weight 0.30 Kg
Dimensions 72 x 160 x 52 mm
IP Protection Rating IP55
Operating temperature 0-50 °C
Proxy receiver For HID cards
Double-antenna receiver (bidirectional)
LONWORKS® connection Unshielded twisted pair cable
(transceiver FTT10A, 78Kbps
Signaling 2 LED tricolor (green/red/yellow)
Regulations compliance
1 buzzer
Directive EMC 89/336/EEC, 92/31/EEC,
Directive Low Voltage 72/23/EEC, 93/68/EEC:
EN60950, EN55024, EN55022, EN 300 330
FCC ID:
HS9-RTU-B07
Ser vice LED
Service Pin
RTU-B07 (Proxy Reader for HID Cards) Page 27
RTU-B12 (Proxy Reader for MIFARE Cards)
Code 1500119
Parameter Value
DC power supply 12VDC±15% 90mA
Weight 0.30 Kg
Dimensions 72 x 160 x 52 mm
IP Protection Rating IP55
Operating temperature 0-50 °C
Proxy receiver / Trasmitter
13.56MHz RX/TX
for MIFARE (ISO14443-2A) cards
LONWORKS® connection Unshielded twisted pair cable
(transceiver FTT10A, 78Kbps
Signaling 2 LED tricolor (green/red/yellow)
1 buzzer
Regulations compliance
Directive EMC 89/336/EEC, 92/31/EEC,
Directive Low Voltage 72/23/EEC, 93/68/EEC:
EN60950, EN55024, EN55022, EN 300 330
FCC ID:
HS9-RTU-B12
Ser vice LED
Service Pin
Page 28 RTU-B12 (Proxy Reader for MIFARE Cards)
RTU-C01 (Alphanumeric LCD Module)
Code 1500105
Parameter Value
DC power supply 12VDC±15% 140mA (nominal)
70mA (backlight off)
Weight 0.30 Kg
Dimensions 72 x 160 x 52 mm
IP Protection Rating IP55
Operating temperature 0-50 °C
Display Alphanumeric LCD with backlight
2 rows of 16 characters format
Keyboard 4 keys with symbols
LONWORKS® connection Unshielded twisted pair cable
(transceiver FTT10A, 78Kbps
Signaling 1 LED yellow
1 buzzer
Regulations compliance
Directive EMC 89/336/EEC, 92/31/EEC,
Directive Low Voltage 72/23/EEC, 93/68/EEC:
EN60950, EN55024, EN55022
Ser vice LED
Service Pin
RTU-C01 (Alphanumeric LCD Module) Page 29
RTU-C02 (Graphic LCD Module)
Code 1500101
Parameter Value
DC power supply 12VDC±15% 380mA (nominal),
140mA (backlight off)
Weight 0.65 Kg
Dimensions 166 x 190 x 52 mm
IP Protection Rating IP55
Operating temperature 0-50 °C
Display Graphic LCD with backlight
240 x 128 pixels format
Keyboard 14 function keys
LONWORKS® connection Unshielded twisted pair cable
(transceiver FTT10A, 78Kbps
Signaling 1 LED yellow
1 buzzer
Regulations compliance
Directive EMC 89/336/EEC, 92/31/EEC,
Directive Low Voltage 72/23/EEC, 93/68/EEC:
EN60950, EN55024, EN55022
Service LED
Service Pin
Page 30 RTU-C02 (Graphic LCD Module)
RTU-T01 (Numeric Keyboard Module)
Code 1500104
Parameter Value
DC power supply 12VDC±15%
30mA (nominal), 50mA (max)
Weight 0.25 Kg
Dimensions 72 x 160 x 52 mm
IP Protection Rating IP55
Operating temperature 0-50 °C
Keyboard 16 keys with symbols
LONWORKS® connection Unshielded twisted pair cable
(transceiver FTT10A, 78Kbps
Signaling 2 LED bicolor (red/green/yellow)
1 buzzer
Regulations compliance
Ser vice LED
Directive EMC 89/336/EEC, 92/31/EEC,
Directive Low Voltage 72/23/EEC, 93/68/EEC:
EN60950, EN55024, EN55022
Service Pin
RTU-T01 (Numeric Keyboard Module) Page 31
Optional Parts
Unlocking tool code 3900695AB
Page 32 Optional Parts
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
