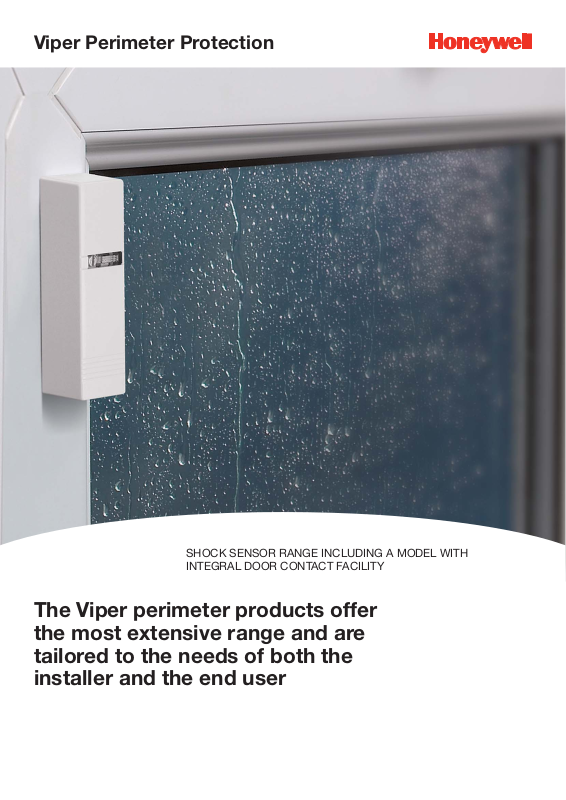

Viper Perimeter Protection

SHOCK SENSOR RANGE INCLUDING A MODEL WITH
INTEGRAL DOOR CONTACT FACILITY

The Viper perimeter products offer
the most extensive range and are
tailored to the needs of both the
installer and the end user

Viper features

Integral lens

L

First to alarm option (Viper GLX only)

L

Integral door contact (Viper GLX with contacts only)

L

Non gravity dependent

L

Walk test facility

L

Remote reset

L

White or brown option

L

10 year guarantee

L

Patented “commando boot” base

Tamper

protection

Calibrated
sensitivity
control

Piezo beam

detection

Dual stage

sensitivity

LED enable
option

Double
Knock
option

Immediate indication of attack at
point of attempted entry

The intruder will be detected as soon

as they attempt entry – you will be able

to pinpoint the exact location of attack.

This is indicated by a flashing LED on the

activated detector.

Detection before entry is gained

The potential intruder can be alerted to

their detection prior to gaining entry. This

may cause the intruder to flee and so

preventing the opportunity for a crime to

take place.

Minimal damage

Due to early detection and alert, the

damage caused should be limited in

scope and cost.

When it comes to Perimeter Protection, Viper is the brand that has

become the generic term, accepted by all as the market leader

– with over 2,000,000 units having being fitted worldwide. The latest

offerings are based on extremely successful predecessors and have

a number of user requested upgrade features incorporated. These

include removable electronics and dual stage sensitivity settings,

enabling a much more accurate set up even in the most testing

circumstances.

24 hour protection

The alarm system can be left permanently

SET, protecting the perimeter at all times.

Occupants and pets

Throughout the night your freedom of

movement and that of your animals will

not be hampered, as might be the case

with purely internal PIR detection.

The Viper range of perimeter products are the most extensive that you will find from any one manufacturer and are tailored to the need

of the installer / end user. The range includes a Calibration Tool that allows for regular and repeated accurate sensitivity set up, the V

Box, a purpose designed heavy duty enclosure for wall mounted Viper detectors in high security areas and a cleverly designed shock

sensor with integral door contact facility.

SPECIFICATION

Operating Voltage

Current Consumption

Temperature Range

Removable Electronics

Colour

Double Knock Select

LED Enable

Installation

Dimensions

Door Contact Dimensions

Coverage

GL GLX GLX plus Contacts

12v DC nominal (9.5 to 15v) 12v DC nominal (9.5 to 15v) 12v DC nominal (9.5 to 15v)

9mA @ 12v DC 9mA @ 12v DC 9mA @ 12v DC

-10ºC to +50ºC -10

Yes Yes Yes

White or Brown White or Brown White or Brown

By link By switch By switch

By link By switch By switch

On any plane via 2 supplied fixing screws

85mm x 25mm x 23mm

– – 85 x 25 x 10mm

Nominally 2.5metres radius (dependent on location and material)

Sensitivity individually adjustable to suit local environmental conditionsw

o

C to +50oC -10oC to +50oC

SPECIFICATION

SPECIFICATION

CALIBRATION TOOL

Pre-set at 6kg per cm square

constant level of shock to door or

window frames

Must never be used directly on

glass

Provides consistent level of shock

to test and calibrate the sensitivity

levels desired

UNIVERSAL V BOX

Used for mounting Viper Products,

on brickwork and other walling

materials

Increases vibration path into Unit

Increases vibration path into Unit

Connected with metal conduit,

through which cables may pass.

Fixings provided.

LIST NUMBER DESCRIPTION LIST NUMBER DESCRIPTION

PC.09000.20

PC.09000.50

PC.09003.20

PC.09003.50

Viper GLX White

Viper GLX Brown

Viper GL White

Viper GL Brown

PC.09004.20

PC.09004.50

PC.06138.00

PC.07840.00

Viper GLX + Contacts White

Viper GLX + Contacts Brown

Viper Calibration Tool

Universal V Box
