Addonics Technologies SCCHDSASA128, SCCHDSAU64, SCCHDIU128, SCCHDSAU128, SCCHDIU64 User Manual
...
Addonics
T E C H N O L O G I E S
Saturn Cipher Combo
Hard Drive (SCCHD)
For Following Models:
SCCHDSAU64, SCCHDSAU128
SCCHDSASA64, SCCHDSASA128
SCCHDIU64, SCCHDIU128
SCCHDISA64, SCCHDISA128
Users Guide
Revision 1.0
FCC Warning Statement
This equipment has been tested and found to comply with the limits for a
class B digital device pursuant to Part 15 of the FCC rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates uses and can radiate radio
frequency energy. If not installed an d used in accordance with the
instructions, it may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If the equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment on
and off, the user is encouraged to try and correct the interference by one or
more of the following suggestions.
• Reorient or relocate the receiving antenna
• Increase the distance between the equipment and the receiver
• Connect the equipment to a different power outlet other than the
one where receiver is connected
• Consult a certified television or radio technician
Addonics Technologies Saturn Cipher Combo Hard Drive User Guide
1
Contents
FCC Warning................................................................................... 1
Contents............................................................................................ 2
Chapter 1 Saturn Cipher Combo Hard Drive package content ........3-4
For SATA hard drive .......................................................3
For IDE hard drive...........................................................4
Chapter 2 Saturn Cipher key............................................................. 5
Chapter 3 Keeping track of the hard drive ........................................6
Chapter 4 Saturn Cipher Drive enclosure.......................................7-8
Drive enclosure for SATA har d drive ...............................7
Drive enclosure for IDE hard drive...................................8
Chapter 5 Installing hard drive into the drive enclosure....................9
Chapter 6 Attaching USIB interface cable ...................................... 10
Chapter 7 Saturn IDE Drive Cradle ...............................................11
Chapter 8 Drive Cradle Installation and using the
Saturn Combo Hard Drive............................................... 12
Chapter 9 USB Interface Cable Installation .................................... 13
USB 2.0 USIB interface cable ........................................ 13
eSATA Interface Cable .................................................. 14
Technical Support & Contact Information.................................... …15
Addonics Technologies Saturn Cipher Combo Hard Drive User Guide
2
Chapter 1 Saturn Cipher Combo Hard Drive
Package Content
For SATA hard drive
Models Contents
SCCHDSAU64 Saturn Cipher SATA drive enclosure 64-bit (SCSAUSCS64)
Saturn IDE drive cradle (AASIDEBY)
Saturn Cipher key 64-bit, 2 pieces (AAENKEY64-2)
eSATA USIB interface cable (AASAC-605E)
110/220V AC/DC 12/5V power adapter (AAPAC12V-US)
Driver CD, this user guide
SCCHDSAU128 Saturn Cipher SATA drive enclosure 128-bit (SCSAUSCS128)
Saturn IDE drive cradle (AASIDEBY)
Saturn Cipher key 128-bit, 2 pieces (AAENKEY128-2)
eSATA USIB interface cable (AASAC-605E)
110/220V AC/DC 12/5V power adapter (AAPAC12V-US)
Driver CD, this user guide
SCCHDSASA64 Saturn Cipher SATA drive enclosure 64-bit (SCSAUSCS64)
Saturn IDE drive cradle (AASIDEBY)
Saturn Cipher key 64-bit, 2 pieces (AAENKEY64-2)
eSATA USIB interface cable (AASAC-605E)
110/220V AC/DC 12/5V power adapter (AAPAC12V-US)
This user guide
SCCHDSASA128 Saturn Cipher SATA drive enclosure 128-bit (SCSAUSCS128)
Saturn IDE drive cradle (AASIDEBY)
Saturn Cipher key 128-bit, 2 pieces (AAENKEY128-2)
eSATA USIB interface cable (AASAC-605E)
110/220V AC/DC 12/5V power adapter (AAPAC12V-US)
This user guide
Addonics Technologies Saturn Cipher Combo Hard Drive User Guide
3
Saturn Cipher Combo Hard Drive
Package Content
For IDE hard drive
Models Contents
SCCHDIU64 Saturn Cipher IDE drive enclosure 64-bit (SCIUSCS64)
Saturn IDE drive cradle (AASIDEBY)
Saturn Cipher key 64-bit, 2 pieces (AAENKEY64-2)

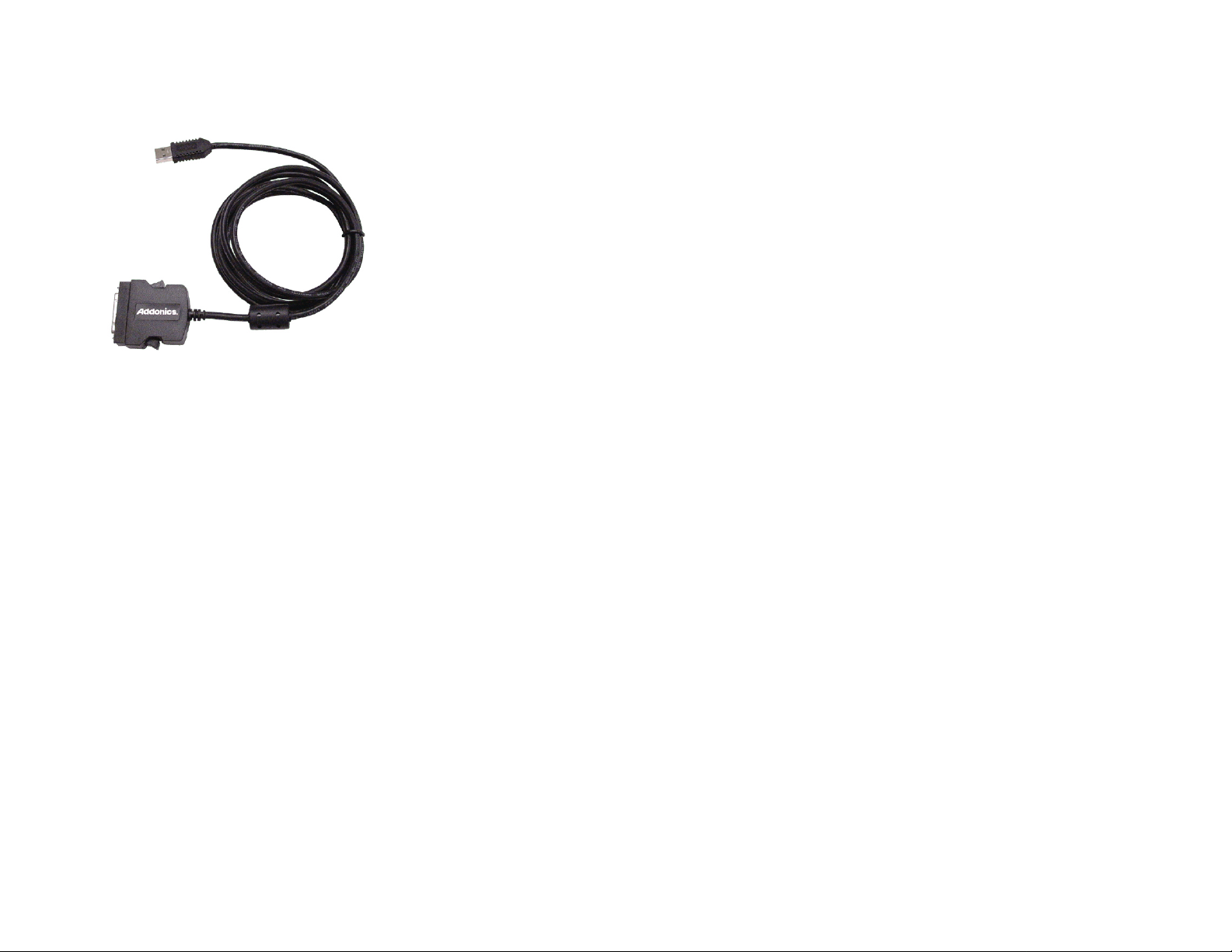

USB 2.0 USIB interface cable (AAUSBC-309)
110/220V AC/DC 12/5V power adapter (AAPAC12V-US)
Driver CD, this user guide
SCCHDIU128 Saturn Ciph er IDE drive enclosure 128-bit (SCIUSCS128)
Saturn IDE drive cradle (AASIDEBY)
Saturn Cipher key 128-bit, 2 pieces (AAENKEY128-2)
USB 2.0 USIB interface cable (AAUSBC-309)
110/220V AC/DC 12/5V power adapter (AAPAC12V-US)
Driver CD, this user guide
SCCHDISA64 Saturn Ciph er IDE drive enclosure 64-bit (SCIUSCS64)
Saturn IDE drive cradle (AASIDEBY)
Saturn Cipher key 64-bit, 2 pieces (AAENKEY64-2)
eSATA USIB interface cable (AASAC-605E)
110/220V AC/DC 12/5V power adapter (AAPAC12V-US)
This user guide
SCCHDISA128 Saturn Cipher IDE drive enclosure 128-bit (SCIUSCS128)
Saturn IDE drive cradle (AASIDEBY)
Saturn Cipher key 128-bit, 2 pieces (AAENKEY128-2)
eSATA USIB interface cable (AASAC-605E)
110/220V AC/DC 12/5V power adapter (AAPAC12V-US)
This user guide
Addonics Technologies Saturn Cipher Combo Hard Drive User Guide
4
