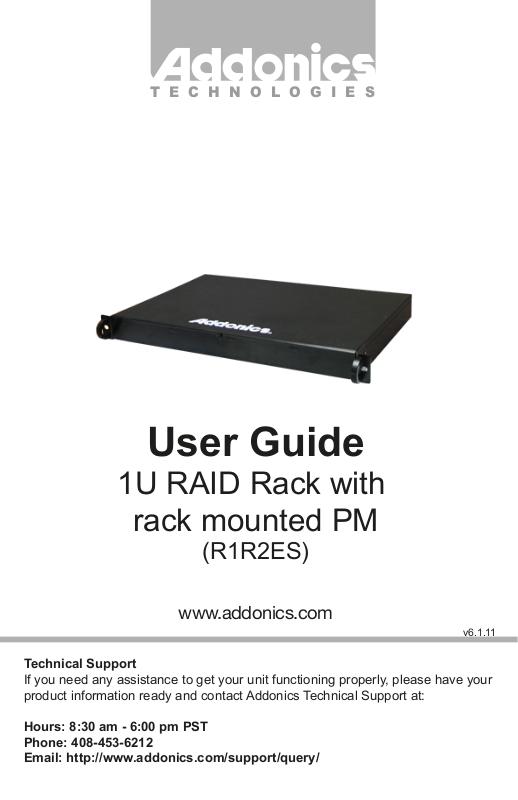

T E C H N O L O G I E S
User Guide
1U RAID Rack with
rack mounted PM
(R1R2ES)
www.addonics.com
v6.1.11
Technical Support
If you need any assistance to get your unit functioning properly, please have your
product information ready and contact Addonics Technical Support at:
Hours: 8:30 am - 6:00 pm PST
Phone: 408-453-6212
Email: http://www.addonics.com/support/query/
Power Button
Unpacking and Overview
Drive
Eject
Levers
Drive
Activity
LED
Power
Switch
AC Input
AC Input
Switch
Host
eS ATA
Drive
eS ATA
Power Cord
100 cm eSATA cable (2)
(US Version Shown)
WARNING: Please remember to
set the power supply to your local
outlet voltage prior to plugging in
the power cord. Failure to do so
may damage the power supply.
www.addonics.com Technical Support (M-F 8:30am - 6:0 0pm PST) Phone: 408-453-6212 Email: www.addonics.com/support/query/
Port Multiplier Compatibility
When configured as a set of individual drives and connected to a SATA or an
eSATA host adapter, the Port Multiplier will only work with a Port Multiplier aware
host. Identify your host controller and check with its hardware manufacturer if
you are unsure. Addonics offers several Port Multiplier aware host adapters.
Installation
1. Use the provided key to unlock the front door if needed and open it.
2. Insert a drive into each bay as desired, SATA connectors first, label side up as
shown, then press the drive firmly into place.
3. Connect the Host eSATA cable to a computer. If desired, connect an external
eSATA drive to the Drive eSATA connector.
4. Make sure the AC input switch is set correctly, then connect the power cord to
an AC outlet.
5. Set the AC power switch on the rear to ON, then press the power button
behind the front door to turn on the unit.
To remove a drive, pull the Eject Lever until the drive disengages from the
internal connector then pull the drive out.
Hot Swapping drives
The R1R2ES unit supports hot swapping (inserting or removing drives while the
drives are running and connected to a computer). The eSATA controller on the
computer must also support hot swapping - be sure to confirm this before
attempting to insert or remove drives while the system is running. Also be sure to
practice the appropriate safe
removal procedure before
proceeding. Failure to practice
safe removal procedures will
result in loss or corruption of data.
www.addonics.com Technical Support (M-F 8:30am - 6:0 0pm PST) Phone: 408-453-6212 Email: www.addonics.com/support/query/
