Addonics Technologies MSXUDDEU User Manual

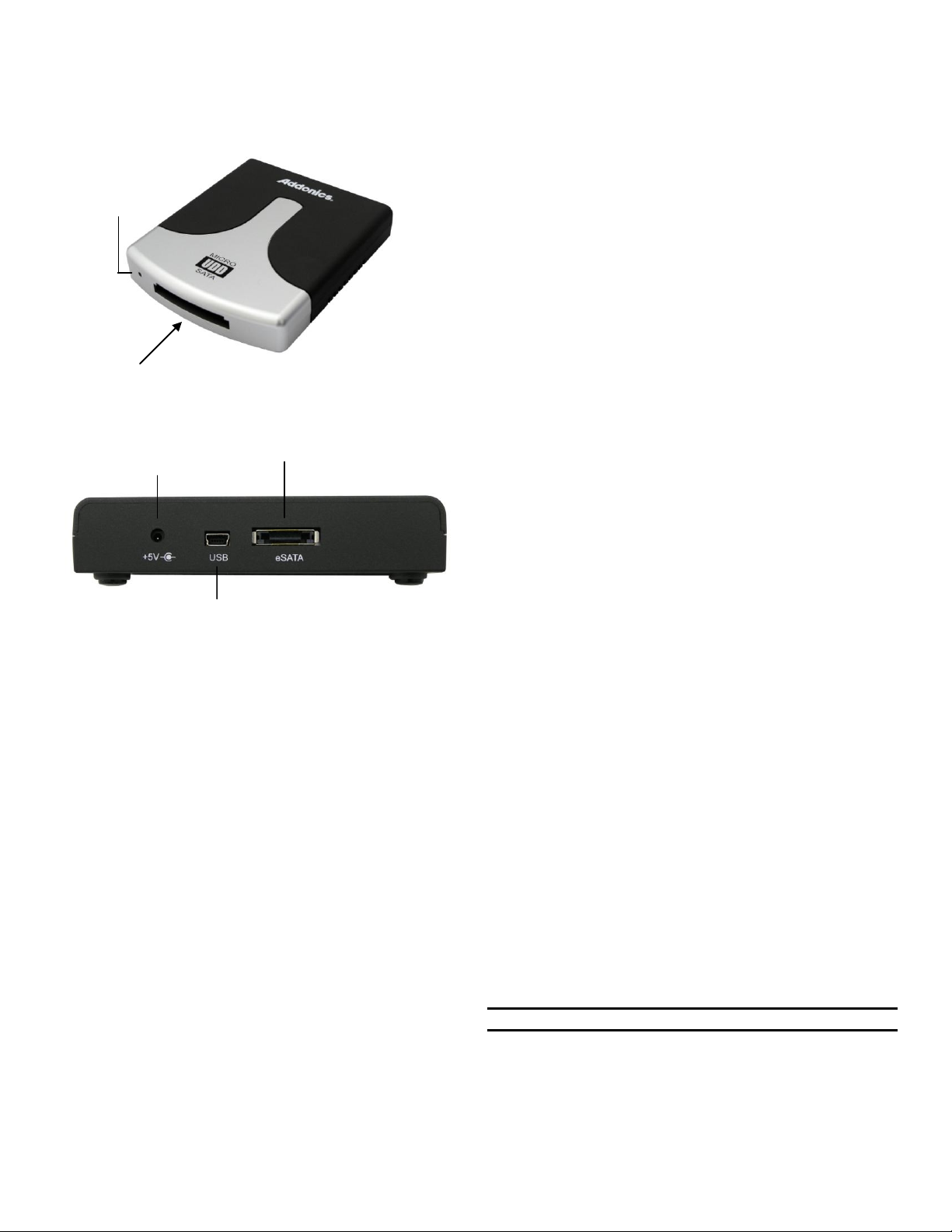

eSATA port

5V power connector
center negative

Mini USB port

Power & drive
activity LED

Micro SATA slot

I. Connecting cables

Note: When both eSATA and mini USB connections are used,
mini USB takes precedence over eSATA.

a. Mini USB connection

Connect the USB cable provided to the mini USB port
on the pocket micro SATA UDD and the other end to the
USB port on the system.

b. eSATA connection

1. Connect the eSATA cable provided to the eSATA port
on the pocket micro SATA UDD and the other end to
the eSATA port on the system.

2. Connect the 5V power adapter center negative
provided to the power connector on the pocket micro
SATA UDD.

II. LED information

When power is provided to the Internal Micro SATA UDD, the
power LED will light up. The drive activity LED will blink when
files are accessed and transferred on the drive.

ADDONICS TECHNOLOGIES

Model: MSXUDDEU
