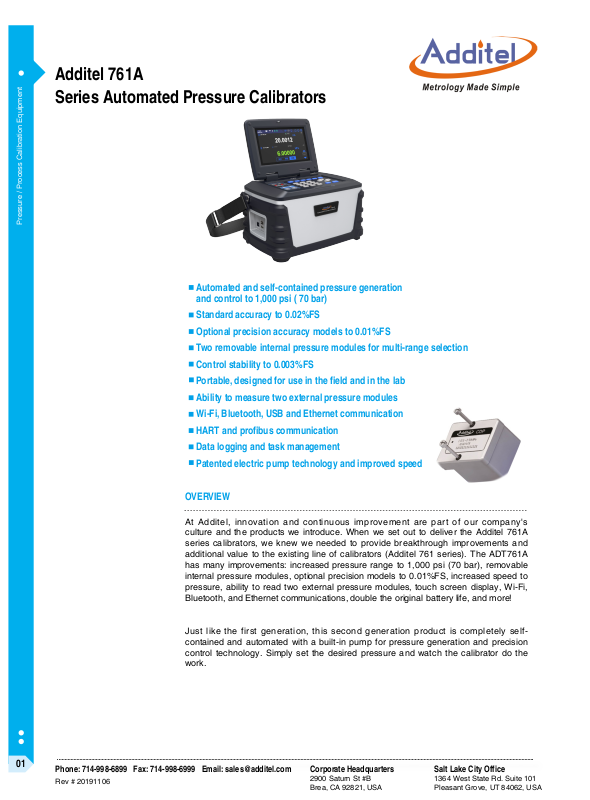

Additel ADT 761A Specifications

Additel 761A
Series Automated Pressure Calibrators

Pressure / Process Calibration Equipment

Automated and self-contained pressure generation
and control to 1,000 psi ( 70 bar)

Standard accuracy to 0.02%FS

Optional precision accuracy models to 0.01%FS

Two removable internal pressure modules for multi-range selection

Control stability to 0.003%FS

Portable, designed for use in the field and in the lab

Ability to measure two external pressure modules

Wi-Fi, Bluetooth, USB and Ethernet communication

HART and profibus communication

Data logging and task management

Patented electric pump technology and improved speed

01

OVERVIEW

At Additel, innovation and continuous improvement are part of our company's
culture and the products we introduce. When we set out to deliver the Additel 761A
series calibrators, we knew we needed to provide breakthrough improvements and
additional value to the existing line of calibrators (Additel 761 series). The ADT761A
has many improvements: increased pressure range to 1,000 psi (70 bar), removable
internal pressure modules, optional precision models to 0.01%FS, increased speed to
pressure, ability to read two external pressure modules, touch screen display, Wi-Fi,
Bluetooth, and Ethernet communications, double the original battery life, and more!

Just like the first generation, this second generation product is completely self­contained and automated with a built-in pump for pressure generation and precision
control technology. Simply set the desired pressure and watch the calibrator do the
work.

Phone: [phone] Fax: [phone] Email: [e-mail]

Rev # 20191106

Corporate Headquarters

2900 Saturn St #B
Brea, CA 92821, USA

Salt Lake City Office

1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA

ADT761A-LLP

The Additel 761A-LLP is designed for low pressure calibration and comes
with a ±30 inH2O (±75 mbar) high range module and a low range module of
your choice ranging from ±20 inH2O to as low as ±0.25 inH2O (±50 to ±0.62
mbar). This unit has an accuracy of 0.05%FS with control stability better
than 0.005%FS. All measurements can be made in differential or gauge
pressures.

Pressure / Process Calibration Equipment

ADT761A-D

The Additel 761A-D also provides differential and gauge measurement which covers the range of -13.5 to 35 psi
(-0.95 to 2.5 bar). This unit comes with a CP35 module (-13.5 to 35 psi) and one low range module of your choice

rangeing as low as ±10 inH2O (25 mbar). Each ADT761A-D can be precongured with the modules that t your

need to give you the best precision at the pressures you perform calibrations.

ADT761A-500

The Additel 761A-500 will generate and control from vacuum pressures up
to 500 psig (35 bar.g). Both gauge and absolute pressures can be realized
due to a built-in barometer. Each unit comes with a CP500 module (-13 to

500 psig) for the high range and the low range can be precongured based

on the variety of modules available down to 10 psig (0.7 bar.g).

ADT761A-1K

The Additel 761A-1K will generate and control from vacuum pressures up to 1,000 psig (70 bar.g). This unit can
typically achieve 1,000 psi in less than 45 seconds. Like the ADT761A-500, both gauge and absolute pressures
can be realized due to a built-in barometer. Each unit comes with a CP1K module (-13 to 1,000 psig) for the high

range and the low range can be precongured based on the variety of modules available down to 30 psig (2 bar.g).

02

ADT761A-APXR Precision Accuracy Options

The Additel 761A series includes a precision accuracy option which
provides an accuracy of 0.01%FS. This calibrator option includes a single
non-removable sensor and can measure absolute and gauge pressures.

Model congurations are available from 15 to 1,000 psig (1 to 70 bar.g).

ADT761A-BP

The Additel 761A-BP is designed for calibration of barometer sensors. With
a range of 100 to 1200 hPa and an accuracy of 0.01%FS, this unit is ideal

for calibration on the bench or in the eld.

Phone: [phone] Fax: [phone] Email: [e-mail]

Rev # 20191106

Corporate Headquarters

2900 Saturn St #B
Brea, CA 92821, USA

Salt Lake City Office

1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA

Pressure Specifications

Model
Specification

Max Pressure Range 30 inH2O (75 mbar) 35 psi (2.5 bar) 500 psig (35 bar.g) 1,000 pisg (70 bar.g)

Min Pressure Range -30 inH2O (-75 mbar) -13.5 psi (-0.95 bar) -13 psi (-0.9 bar) -13 psi (-0.9 bar)

1)

(

Accuracy

Stability 0.005%FS or 0.05 Pa 0.005%FS 0.005%FS 0.005%FS 0.003%FS 0.02 hPa

Pressure Type Differential, Gauge Differential, Gauge Gauge, Absolute Gauge, Absolute Gauge, Absolute Absolute

Pressure / Process Calibration Equipment

Over Range Indication 120%

Resolution 6 digits

Measurement Units

Barometric Accuracy N/A N/A 55 Pa 55 Pa 55 Pa N/A

[1] One year accuracy (including 1 year stability). FS specication applies to the span of the module range.
[2] Specication based on gauge measurement. An additional 50 pa uncertainty will need to be included when measuring in absolute mode. Applicable only

for use with the ADT761A-500 and ADT761A-1K

* Additel 761A calibrators support 160A series intelligent digital pressure modules that are available for gauge, vacuum and absolute pressure from -15 psi to

60,000 psi (-1 bar to 4200 bar). For detailed specications refer to the 160A series pressure modules data sheet.

761A-LLP 761A-D 761A-500 761A-1K 761A-APXR 761A-BP

0.05%FS 0.02%FS 0.02%FS

Pa, hPa, kPa, mPa, bar, mbar, psi, mmHg@0°C, cmHg@0°C, mHg@0°C, inHg@0°C, inH2O@4°C, mmH2O@4°C, cmH2O@4°C,
mH2O@4°C, mmH2O@20°C, cmH2O@20°C, mH2O@20°C, inH2O@20°C, kg/m2, mtorr, torr, lb/ft2, tsi, custom

Dependent on APXR

sensor

Dependent on APXR

sensor

(2)

0.02%FS

(2)

0.01%FS 0.01%FS

1,200 hPa

100 hPa

Electrical Specifications

Model
Specification

mA Measure

V Measure

Loop Power Source 24 V N/A ±0.24 V 50 mA (Max Loading)

mA Source

Power Source 16 to 30 V 1 V ±0.5 V(24 V: ±0.24 V) 70 mA (Max Loading)

V Source 0 to 16 V 250 μV 0.008%RD+0.002%FS

Pressure Switch

Temperature Compensation 5°C to 35°C

Mechanical Switch, NPN Switch,

Range Resolution Accuracy Note

Auto-ranging

±25 or ±50 mA

±300 mV 1 μV 0.008%RD+0.002%FS Impedance >1GΩ

Auto-ranging

±5, ±12 or ±30 V

0 to 2.5 mA or

2.5 to 25 mA

Mechanical Switch, Live

PNP Switch

0.1 μA 0.008%RD+0.004%FS Impedance <10Ω

±5V:20 μV
±12V:100 μV
±30V:100 μV

0-2.5 mA: 0.05μA

0-25 mA:0.5μA

N/A N/A

0.008%RD+0.002%FS Impedance >1MΩ

0-2.5 mA: 0.008%RD+0.1 μA

0-25 mA: 0.008%RD+1.0 μA

Response time<10 ms.

If the switch is live, voltage range

20 mA @ 1KΩ

will be (3-30) V

03

Temperature Coefficient Outside of 5°C to 35°C: <±0.0005%RD+0.0001%FS/°C

Misuse Protection Up to 30 V on any two sockets

Phone: [phone] Fax: [phone] Email: [e-mail]

Rev # 20191106

Corporate Headquarters

2900 Saturn St #B
Brea, CA 92821, USA

Salt Lake City Office

1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA

Internal Module Specification and Compatibility

Model
Range

ADT155-DP025 ±0.25 ±0.62 G 0.2

ADT155-DP050 ±0.5 ±1.25 G 0.1

ADT155-DP1 ±1 ±2.5 G 0.05

ADT155-DP2 ±2 ±5 G 0.05

ADT155-DP5 ±5 ±10 G 0.05

Pressure / Process Calibration Equipment

ADT155-DP10 ±10 ±25 G 0.05

inH2O

[6]

mbar

6]

Media

Accuracy

(1)

(%FS)

(2)

(3)

(4)

(4)

(4)

(4)

Burst Pressure 761A-LLP 761A-D 761A-500 761A-1K

100x

100x

100x

100x

50x

20x

•

•

•

•

•

• •

ADT155-DP20 ±20 ±50 G 0.05 20x

ADT155-DP30 ±30 ±75 G 0.05 20x

ADT155-DP50 ±50 ±160 G 0.05 3x

ADT155-DP100 ±100 ±250 G 0.02 3x

ADT155-DP150 ±150 ±350 G 0.02 3x

ADT155-DP300 ±300 ±700 G 0.02 3x

ADT155-DP400 -380 to 400 -950 to 1K G 0.02 3x

ADT155-DP800 -380 to 800 -950 to 2K G 0.02 3x

ADT155-DP1K -380 to 1K -950 to 2.5K G 0.02 3x

Gauge Pressure psig bar.g

ADT155-CP10 ±10 ±0.7 G 0.02

ADT155-CP15 -13.5 to 15 -0.95 to 1 G 0.02

ADT155-CP30 -13.5 to 30 -0.95 to 2 G 0.02

ADT155-CP35 -13.5 to 35 -0.95 to 2.5 G 0.02

ADT155-CP50 -13.5 to 50 -0.95 to 3.5 G 0.02

ADT155-CP100 -13.5 to 100 -0.95 to 7 G 0.02

ADT155-CP150 -13.5 to 150 -0.95 to 10 G 0.02

ADT155-CP200 -13.5 to 200 -0.95 to 14 G 0.02

ADT155-CP300 -13.5 to 300 -0.95 to 20 G 0.02

ADT155-CP500 -13.5 to 500 -0.95 to 35 G 0.02

ADT155-CP600 -13.5 to 600 -0.95 to 40 G 0.02

ADT155-CP1K -13 to 1K -0.90 to 70 G 0.02

(5)

(5)

(5)

(5)

(5)

(5)

(5)

(5)

(5)

(5)

(5)

(5)

3x

3x

3x

3x

3x

3x

3x

3x

3x

3x

3x

3x

• •

• •

•

•

•

•

•

•

•

• •

• •

• • •

• • •

• •

• •

• •

• •

• •

• •

•

•

04

[1] FS specication applies to the span of the module range. Accuracy includes one-year stability, except for DP025 to DP10 modules.

[2] Accuracy is a 6 months spec, 1-year long-term drift is 0.2%FS.
[3] Accuracy is a 6 months spec, 1-year long-term drift is 0.1%FS.
[4] Accuracy is a 6 months spec, 1-year long-term drift is 0.05%FS.

[5] Specication based on gauge measurement. An additional 50 Pa uncertainty will need to be included when measuring in absolute mode.

[6] The low module pressure range may be outside the pressure range of the calibrator
Applicable only for use with the ADT761A-500 and ADT761A-1K

Phone: [phone] Fax: [phone] Email: [e-mail]

Rev # 20191106

Corporate Headquarters

2900 Saturn St #B
Brea, CA 92821, USA

Salt Lake City Office

1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA

General Specifications

Specification Description

User Interface Color touch screen and/or keypad operation

Channels

Enclosure IP Rating IP31

Battery

Power

Display 7” TFT touch screen 800 x 480 color

Pressure / Process Calibration Equipment

Communications USB, LAN, Bluetooth, Wi-Fi

Weight <17.52 lb (7.95 KG)

Size 11.77 x 7.60 x 7.56 in (299 x 193 x 192 mm)

Certification

Data Storage 6 GB

Data Logging Up to 1,000,000 readings (data and time stamped)

Task documentation Up to 1000 tasks can be stored with data

Automation Functions Switch test, auto step, leak test

User Interface
Localization

Pump life >1,000,000 cycles

Environmental
Specifications

Vibration and Shock

Compliance CE

Software Compatibility

Warranty 1 year

Four total: one electrical, high or low internal

pressure module, two external pressure modules

Rechargeable Li-Ion battery, typically 16 hours of

operation, recharges in less than 5 hours.
Rechargeable Li-Ion battery, external power 110/220

V power adapter 27 V

ISO17025 accredited certificate of calibration with

NIST-traceable data

English, German, French, Italian, Spanish,
Portuguese, Chinese, Japanese, and Russian

Operating temperature: 32 °F to 122 °F( 0°C to 50°C)

Compensated temperature: 32 °F to 122 °F( 0°C to
50°C)

Storage temperature: -20°C to 60°C ( -4 °F to 120 °F)

Humidity: <90%, non-condensing

Vibration: 4g (20 to 2,000 Hz)
Shock: 8g, 1 meter drop test

ACal, Additel Land and Additel Link for access via
mobile application

Pressure gauge / transmitter / switch calibration

Task Menu

High Pressure Automated Calibration

05

Pressure Range

Type Model Pressure Range

-75 to 75 mbar

(-30 to 30 inH2O)

-0.95 to 2.5 bar

(-13.5 to 35 psi)

-0.9 to 35 bar

(-13 to 500 psi)

-0.9 to 70 bar

(-13 to 1000 psi)

Low/Differential
Pressure

Standard Accuracy
Gauge/Absolute
Pressure

ADT761A-LLP-DPX

ADT761A-D-DPXX-X

ADT761A-500-CPXX-X

ADT761A-1K-CPXX-X

Phone: [phone] Fax: [phone] Email: [e-mail]

Rev # 20191106

DP30: -75 to 75 mbar

(-30 to 30 inH2O)

CP35: -0.95 to 2.5 bar

CP500: -0.9 to 35 bar

CP1K: -0.9 to 70 bar

(-13 to 1000 psi)

High-Range Pressure Module Low-Range Pressure Module

Range Accuracy Range Accuracy

(-13.5 to 35 psi)

(-13 to 500 psi)

Corporate Headquarters

2900 Saturn St #B
Brea, CA 92821, USA

0.05%FS

0.02%FS

0.02%FS

0.02%FS

User selectable from

DP20 to DP025

User selectable from

DP10 to CP30

User selectable from

CP10 to CP300

User selectable from

CP30 to CP600

Salt Lake City Office

1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA

See Internal Module

See Internal Module

See Internal Module

See Internal Module

Table

Table

Table

Table

Pressure Range

Type Model Pressure Range

High-Range Pressure Module Low-Range Pressure Module

Range Accuracy Range Accuracy

ADT761A-AP30R-X

ADT761A-AP50R-X

Precision Accuracy

Pressure / Process Calibration Equipment

Gauge/Absolute
Pressure

ADT761A-AP100R-X

ADT761A-AP300R-X

ADT761A-AP500R-X

ADT761A-AP1KR-X

ORDERING INFORMATION

Model Number

ADT761A LLP

Pressure range:

See pressure range
table.

Module Range:

See internal module
table

Accessories (included)

1220211365, 1710400011

( Only for ADT761A-LLP & ADT761A-D)

ADT106A-X

External Pressure Manifold

(Excl ADT761A-LLP)

9818

110V/220V external

Power adapter

9723

Chargeable Li-ion battery

9240

DP gauge holder, rubber
(Only for ADT761A-LLP)

9060
(Pressure module
connection cable)

ADT100-761A-X

Hose Test Kit, 5 feet flexible hose

(excl ADT761A-LLP)

DP1

1 pc + 1 pc

-0.95 to 1 bar

(-13.5 to 15 psi)

-0.95 to 2.5 bar

(-13.5 to 35 psi)

-0.95 to 7 bar

(-13.5 to 100 psi)

-0.9 to 21 bar

(-13 to 300 psi)

-0.9 to 35 bar

(-13 to 500 psi)

-0.9 to 70 bar

(-13 to 1000 psi)

N

Pressure port type on External
Pressure Manifold:

N - 1/4NPT female
N2 - 1/2NPT female
B - 1/4BSP female
B2 - 1/2BSP female
M - M20X1.5 female

2 sets

1 pc

1 pc

1 pc

1 pc

1 pc

adapter

AP30R: -0.95 to 1 bar

(-13.5 to 15 psi)

AP50R: -0.95 to 2.5 bar

(-13.5 to 35 psi)

AP100R: -0.95 to 7 bar

(-13.5 to 100 psi)

AP300R: -0.9 to 21 bar

(-13 to 300 psi)

AP500R: -0.9 to 35 bar

(-13 to 500 psi)

AP1KR: -0.9 to 70 bar

(-13 to 1000 psi)

Accessories (included)

Test Leads for calibrator

Carrying case for 761A

calibrator and accessory

(Only for ADT761A-LLP/D)

ISO17025 accredited

calibration certificate

(Only for ADT761A-500/1K/

Optional Accessories

0.01%FS Single sensor only

0.01%FS Single sensor only

0.01%FS Single sensor only

0.01%FS Single sensor only

0.01%FS Single sensor only

0.01%FS Single sensor only

9022

9907

O-rings 20 pcs

Manual 1 pc

Pressure Hoses

ADT100-761Hose

APXR)

USB Cable 1 pc

Silicone Tube

ADT160A

9060

9530

ADT100-761Hose ADT761 hose, 5 feet

ADT106A-X

ADT100-761A-X

See ADT160A data sheet
for more info; connection
cable sold separately

Pressure module
connection cable

Additel/ACal Automated
Calibration Software

External Pressure Model
(Excl ADT761A-LLP)

Hose Test Kit, 5 feet exible

hose

2 sets

(4 pcs)

1 pc

2 pcs

(1 pc. blue

1 pc.yellow)

1 pc

1 pc

2 pcs

(1 Meter each)

(1 pc for ADT761A-BP)

06

Phone: [phone] Fax: [phone] Email: [e-mail]

Rev # 20191106

Corporate Headquarters

2900 Saturn St #B
Brea, CA 92821, USA

Salt Lake City Office

1364 West State Rd. Suite 101
Pleasant Grove, UT 84062, USA
