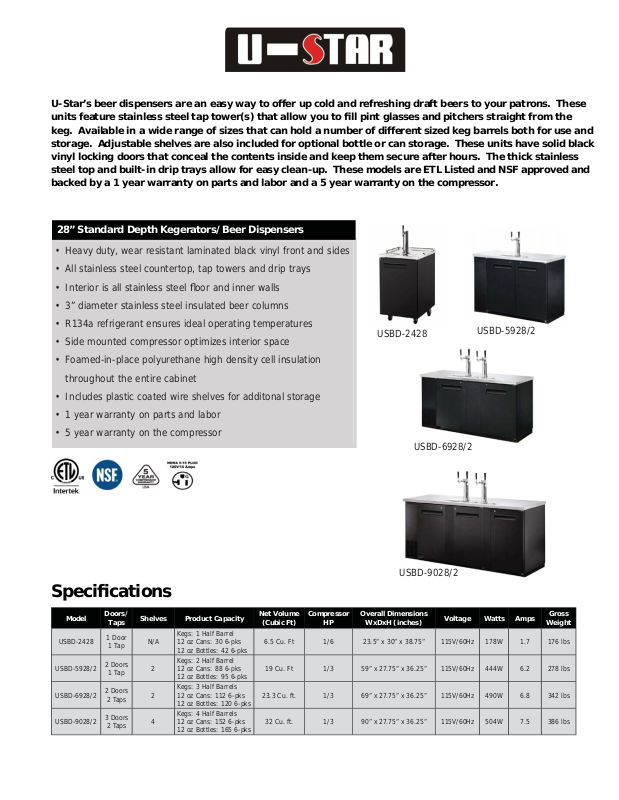

U-Star’s beer dispensers are an easy way to offer up cold and refreshing draft beers to your patrons. These
units feature stainless steel tap tower(s) that allow you to fi ll pint glasses and pitchers straight from the
keg. Available in a wide range of sizes that can hold a number of different sized keg barrels both for use and
storage. Adjustable shelves are also included for optional bottle or can storage. These units have solid black
vinyl locking doors that conceal the contents inside and keep them secure after hours. The thick stainless
steel top and built-in drip trays allow for easy clean-up. These models are ETL Listed and NSF approved and
backed by a 1 year warranty on parts and labor and a 5 year warranty on the compressor.
28” Standard Depth Kegerators/Beer Dispensers
• Heavy duty, wear resistant laminated black vinyl front and sides
• All stainless steel countertop, tap towers and drip trays
• Interior is all stainless steel fl oor and inner walls
• 3” diameter stainless steel insulated beer columns
• R134a refrigerant ensures ideal operating temperatures
• Side mounted compressor optimizes interior space
• Foamed-in-place polyurethane high density cell insulation
throughout the entire cabinet
• Includes plastic coated wire shelves for additonal storage
• 1 year warranty on parts and labor
• 5 year warranty on the compressor
Specifi cations
Model
USBD-2428
USBD-5928/2
USBD-6928/2
USBD-9028/2
Doors/
Taps
1 Door
1 Tap
2 Doors
1 Tap
2 Doors
2 Taps
3 Doors
2 Taps
Shelves Product Capacity
Kegs: 1 Half Barrel
N/A
12 oz Cans: 30 6-pks
12 oz Bottles: 42 6-pks
Kegs: 2 Half Barrel
2
12 oz Cans: 88 6-pks
12 oz Bottles: 95 6-pks
Kegs: 3 Half Barrels
2
12 oz Cans: 112 6-pks
12 oz Bottles: 120 6-pks
Kegs: 4 Half Barrels
4
12 oz Cans: 152 6-pks
12 oz Bottles: 165 6-pks
Net Volume
(Cubic Ft)
6.5 Cu. Ft 1/6 23.5” x 30” x 38.75” 115V/60Hz 178W 1.7 176 lbs
19 Cu. Ft 1/3 59” x 27.75” x 36.25” 115V/60Hz 444W 6.2 278 lbs
23.3 Cu. ft. 1/3 69” x 27.75” x 36.25” 115V/60Hz 490W 6.8 342 lbs
32 Cu. ft. 1/3 90” x 27.75” x 36.25” 115V/60Hz 504W 7.5 386 lbs
Compressor HPOverall Dimensions
USBD-2428
USBD-6928/2
USBD-9028/2
WxDxH (inches)
USBD-5928/2
Voltage Watts Amps
Gross
Weight
Plan Views
23.5”
Commercial Refrigeration
Kegerators/Beer Dispensers
28” Depth
USBD-5928/2
USBD-2428
36.25”
38.75”
59”
30”
27.75”
USBD-6928/2
69”
Features
Cooling System
• Refrigeration units use environmentally
friendly R134A refrigerant
• Balanced refrigeration system helps to
maintain a temperature range of 33°- 38°F
• Condensing unit is located behind front
grill and slides out for easy cleaning
Electrical Control
• 115V/60 connection for all models
• 7’ power cord with NEMA 5-15 plug
from the back of the unit
36.25”
27.75”
Cabinet Construction
• Exterior is constructed of a durable black
vinyl front and sides with an aluminum
back. Countertop is all stainless steel.
• Interior is constructed of all stainless
steel fl oor and walls
• 3” diameter stainless steel insulated beer
columns that has cold air directed into
them to reduce foaming
• The cabinet is insulated throughout
with a foamed-in-place high density cell
polyurethane insulation
Doors
• Laminated black vinyl exterior with
heavy gauge steel liner
• 12” long recessed handles
• Postive seal doors
• Door locks come standard on all
models
USBD-9028/2
36.25”
90”
27.75”
Shelving
• Heavy duty PVC coated wire
shelves are adjustable
• Aluminum shelf support system
that are adjustable for every 1/2”
Model Features
• Interior LED lighting for greater
visability throughout the cabinet
• NSF-7 Approved for the storage of
packaged or bottled products
