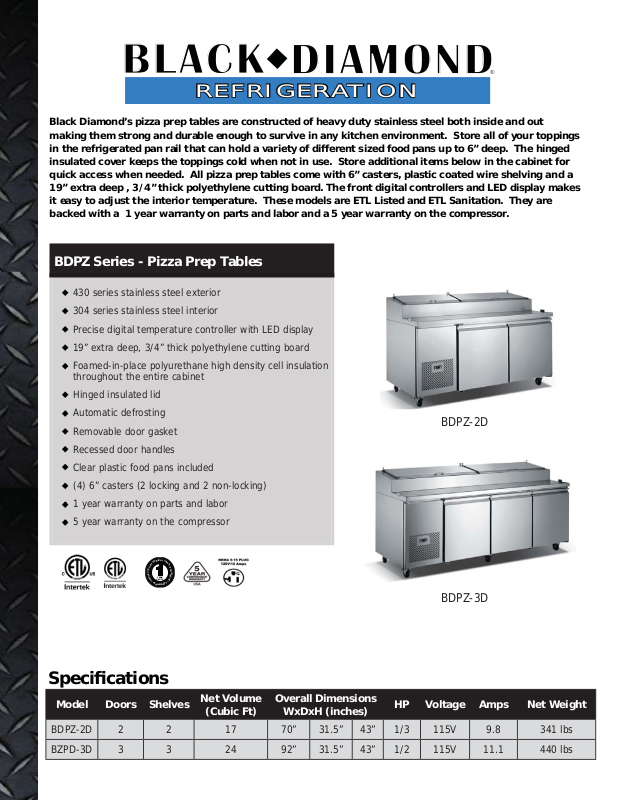

Black Diamond’s pizza prep tables are constructed of heavy duty stainless steel both inside and out
making them strong and durable enough to survive in any kitchen environment. Store all of your toppings
in the refrigerated pan rail that can hold a variety of different sized food pans up to 6” deep. The hinged
insulated cover keeps the toppings cold when not in use. Store additional items below in the cabinet for
quick access when needed. All pizza prep tables come with 6” casters, plastic coated wire shelving and a
19” extra deep , 3/4” thick polyethylene cutting board. The front digital controllers and LED display makes
it easy to adjust the interior temperature. These models are ETL Listed and ETL Sanitation. They are
backed with a 1 year warranty on parts and labor and a 5 year warranty on the compressor.
BDPZ Series - Pizza Prep Tables
• 430 series stainless steel exterior
• 304 series stainless steel interior
• Precise digital temperature controller with LED display
• 19” extra deep, 3/4” thick polyethylene cutting board
• Foamed-in-place polyurethane high density cell insulation
throughout the entire cabinet
• Hinged insulated lid
• Automatic defrosting
• Removable door gasket
• Recessed door handles
• Clear plastic food pans included
• (4) 6” casters (2 locking and 2 non-locking)
• 1 year warranty on parts and labor
• 5 year warranty on the compressor
A
R
L
I
C
M
R
D
A
A
F
Y
T
B
E
D
Q
E
U
T
I
P
C
M
E
T
E
N
O
YEAR
T
R
LIMITED
P
W
Y
T
A
R
N
R
A
BDPZ-2D
BDPZ-3D
Specifi cations
Model Doors Shelves
BDPZ-2D 2 2 17 70” 31.5” 43” 1/3 115V 9.8 341 lbs
BZPD-3D 3 3 24 92” 31.5” 43” 1/2 115V 11.1 440 lbs
Net Volume
(Cubic Ft)
Overall Dimensions
WxDxH (inches)
HP Voltage Amps Net Weight
REFRIGERATION
REFRIGERATION
Plan Views
®
Commercial Refrigeration
Pizza Prep Tables
BDPZ-2D, BDPZ-3D
BDPZ-2D
Features
Refrigeration System
• Refrigeration units use environmentally
friendly R134A refrigerant
• Maintain a temperature range of 32°-41°F
• Rugged built axial evaporator fans run effi ciently with low velocity and high volume
air fl ow
Electrical Control
• Electric LED temperature controller
provides a digital display of cabinet
temperatures and allows for easy temperature adjustments when necessary
• Temperature controller initiates
automatic defrost schedule for worry
free use
• 7 foot power cord with NEMA 5-15
plug
BDPZ-3D
Cabinet Construction
• Exterior is constructed of 430 stainless
steel including the doors
• Interior is constructed of 304 stainless
steel
• The cabinet is insulated throughout
with a foamed-in-place high density
cell polyurethane insulation
Door(s)
• Stainless steel exterior with matching
aluminum liner on the inside
• Positive self-closing doors with
microswitch that shuts the evaporator
fans off when the door is open
• Recessed handles run thru the entire
door for ease of opening and gives
them a clean and sleek look
• Removable door gasket for easy
cleaning
Shelving
• Adjustable plastic coated steel
shelves that have a load capacity
of up to 90 lbs per shelf
• Specially designed stainless steel
racking system allows for easy
shelf height adjustment and gives
the user the ability to slide out the
shelf to better reach the food inside
Model Features
• 19” extra deep, 3/4” thick polyethylene cutting board that runs the
full length of the unit
• Insulated hinged lid to keep food
cold while not in use
• 6” casters come standard on all
stainless steel models 2 locking
and 2 non-locking.
• 3/4” thick poly cutting board
• Clear plastic food pans included
All Black Diamond’s Refrigerators and Freezers are backed by a one year parts and labor warranty and a
fi ve year warranty on the compressor. For more information about the warranty policy on these products,
please see the NSA pages in the back of this book.
