FL2000 Series Fiber Optic Panel
Introduction
The FL2000 system is a flexible and modular series of
fiber products for today‘s and tomorrow‘s evolving
communications and data networks.
This product family is a complete line of modular panels
developed for rack and wall mounting. The system is
fully adaptable to small distribution frames, telephone
closet (TC) applications, or active equipment racks.
FL2000 panels are designed for both 19- and 23-inch EIA
rack or cabinet environments. FL2000 products provide
termination, splicing and storage capabilities for in-building
cables, outside plant cables and fiber optic terminal (FOT)
equipment.
FL2000’s modular design offers maximum flexibility to
satisfy current needs and future growth requirements. A
Fiber Optic Panels
full line of options and accessories ensures compatibility
with existing optical equipment. FL2000 panels
accommodate value-added module (VAM) plug-ins, adding
flexibilty and functionality to the optical transport system.
Splitters, wavelength division multiplexers (WDMs) and
other optical components can easily be incorporated.
All FL2000 panels accommodate 6pak adapters. 6paks
are available in all connector styles and can be ordered
as needed. ADC’s removable angled retainers allow easy
access for single fiber maintenance.
Single Fiber Access
Swing-out Bulkhead
(Allows Full Access)
Rack Mount
Termination Panel
(Empty)
Rack Mount
Termination/Splice Panel
(Empty)
Rack Mount Panel Solutions
10/07 • 103743AE
FL2000 panels feature superior vertical cable protection
and management. Rack mount panels are hinged on one
side, allowing full access to the rear of the front bulkhead
plate and the interior of the panel. They come equipped
with mounting brackets to provide five-inch recess
mounting. Mounting brackets are available for virtually
any mounting application. Rack mount panels can be wall
mounted as well. The FL2000 splice wheel allows easy
storage of pigtail and buffer tube lengths and superior
bend radius protection. The FL2000 splice deck is available
to complete existing installations.
Rack Mount
Termination Panel
(With IFC)
www.adc.com • +1-952-938-8080 • 1-800-366-3891
38
FL2000 Series Fiber Optic Panel
Description
Termination, termination/splice, storage, splice-only
Recommended
Applications
Multi-purpose modular solution ideal for cabinet, rack, wall mount or medium
size frame applications. Ideal for small to medium fiber counts.
Number of fibers,
future growth
potential
12 to 96 (up to 192 with LC connectors)
Flexibility/
ability to grow
Ideal for growth
Interconnect
Yes
Cross-connect
Yes
Accommodates
on-frame splicing
Yes. Built-in
Accommodates
off-frame splicing
Yes. IFC cable and assembly available
Rear access
Not required
All-front-access
Yes
Customer premises
application
Ideal
Cabinet mount
Yes
Wall mount
Yes
Mix equipment with
fiber product?
Ideal
Use as dedicated
fiber frame
Up to 400-fibers only. (See ODF catalog #103742AE)
19" mounting
Yes
23" mounting
Yes
Optimum jumper
storage location
Can be configured with storage
Vertical cable guide
Ships with every panel
VAM capabilites
Yes
Introduction
Product Overview
Fiber Optic Panels
10/07 • 103743AE
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Rack Mount Panel Solutions
39
FL2000 Series Fiber Optic Panel
FL2 -
Catalog Number
0-
Number
of Ports
Loaded
Number of
Splice Decks/Wheels
A
C
D
19" standard
19" flush mount
23" centered
Mounting Style
3
1
LC connectors and adapters double the capacity of the panel
by terminating two fibers at each adapter.
2
6-fiber softwall bundle except with LC connectors, which uses 12-fiber.
3
Mounting kit shipped unattached if other than standard mounting style.
1 clamp (standard)
2 clamps
0
2
Number of Cable Clamps
05Latch
K1 lock
Latch Type
A
P
R
C
Adapter-only
Singlemode or multimode 62.5/125 µm
stranded softwall bundle
Singlemode or multimode 62.5/125 µm
12-fiber ribbon
Multimode 50/125 µm
stranded softwall bundle
Pigtail or Adapter Type
2
1
2
4
7
9
12-position 3.5" (2 RU)
24-position 5.25" (3 RU)
48-position 8.75" (5 RU)
72-position 14" (8 RU)
96-position 17.5" (10 RU)
Panel Capacity Panel Height
C
SC
LC
1
SC ultra polish
SC angled polish
FC ultra polish
LC
ultra polish
1
LC angled polish
1
Multimode
9
6
Singlemode
7
J
2
8
B
Connector and Adapter Type
0
M
W
1
2
3
None or N/A
Mechanical
(mass fusion)-wheel
Heat shrink fusion
(single fiber fusion)-wheel
Bare fusion
Heat shrink fusion
(single fiber fusion)-deck
Mechanical
(mass fusion)-deck
Splice Type
258 mm
(10.1")
126 mm
(5")
498 mm
(19.6")
133 mm
(5.25")
Fiber Termination/Splice Panel with Adapters or Pigtails
Features
• Termination and splice panel • Uses ADC’s splice deck or splice wheel
• VCG ships with each panel • Uses FL2000 6paks with angled retainers
Fiber Optic Panels
72-Position Termination/Splice Panel
(Shown Empty)
Rack Mount Panel Solutions
10/07 • 103743AE
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
24-Position Termination/Splice Panel
40
FL2000 Series Fiber Optic Panel
Empty Termination/Splice Chassis
Features
• Mounting
- 19-inch EIA racks or cabinets, standard
five-inch recess
- Wall mounting option available
- Other mounting kits available
• Hinged on left front side for complete access
to interior of termination section
• Ability to quickly and easily configure, utiliz-
ing the 6pak assemblies (ordered separately)
• Complete line of accessories including locks
for security
• Uses ADC splice wheels or splice decks
• Ships with vertical cable guide (VCG)
Fiber Chassis Data
• Fiber capacity*: 12, 24, 48, 72 & 96
• Termination
• Splice
• Pigtail storage
24-Position Termination/Splice Chassis
48-Position Termination/Splice Chassis
Fiber Optic Panels
Description
Empty termination/splice chassis;
includes vertical cable guide (VCG)
12-position
24-position
48-position
72-position
96-position
10/07 • 103743AE
Splice wheel
Heat shrink (single fiber fusion)
Mechanical (mass fusion)
Heat shrink (single fiber fusion)-24 fiber
Bare fusion (24-fiber)
Splice deck
Heat shrink (single fiber fusion)
Mechanical (mass fusion)
Bare fusion
*Panels can double capacity with LC adapters.
O r d e r i n g I n f o r m a t i o n
Panel Height
3.5" (2 RU)
5.25" (3 RU)
8.75" (5 RU)
14" (8 RU)
17.5" (10 RU)
96-Position Termination/Splice Chassis
Catalog Number
FL2-12TS350
FL2-24TS525
FL2-48TS875
FL2-72TS140
FL2-96TS175
FST-DRS12-HS
FST-DRS12-MT
FST-DRS24-HS
FST-DRS24-FT
FL2-RSPLCE-HS
FL2-RSPLCE-MT
FL2-RSPLCE-FT
Rack Mount Panel Solutions
www.adc.com • +1-952-938-8080 • 1-800-366-3891
41
SC
LC
1
FC ultra polish
SC ultra polish
SC angled polish
LC
ultra polish
1
LC angled polish
1
SMSinglemode
Multimode
Panel Type
1
2
4
7
9
12-position 1.75" (1 RU)
24-position 3.5" (2 RU)
48-position 5.25" (3 RU)
72-position 8.75" (5 RU)
96-position 10.5" (6 RU)
Panel Capacity Panel Height
Multimode
9
6
Singlemode
2
7
J
8
B
Connector and Adapter Type
8 m (25')
16 m (50')
23 m (75')
31 m (100')
39 m (125')
46 m (150')
61 m (200')
77 m (250')
92 m (300')
122 m (400')
153 m (500')
008
016
023
031
039
046
061
077
092
122
153
1
2
4
7
9
A
12
24
48
72
96
144 (LC connectors only with
72-position panel)
Cable Size
Multimode
C
Y
Singlemode
A
M
L
IFC stranded 62.5/125 µm riser
IFC stranded 50/125 µm riser
IFC stranded riser
IFC ribbon riser
OSP armored ribbon (24-fibers and up)
Cable Type
Cable Length
A
C
D
19" standard
19" flush mount
23" centered
Mounting Style
2
UDUp
Down
Cable Exit Direction
FL2 - __ __ __ __ __ __ __ __ - __ __ __
Catalog Number
0
0
1
LC connectors and adapters double the capacity of the
panel by terminating two fibers at each adapter.
2
Mounting kit shipped unattached, if other than standard
mounting style.
05Latch
K1 Lock
Latch Type
FL2000 Series Fiber Optic Panel
Fiber Termination Panels with Multifiber Cable (Preterminated)
Features
• Panels with preterminated multifiber cable
(IFC or OSP) ship as a single unit with cable
clamp installed
• Customizable panels come equipped with
customer specified number of adapters, retainers,
connectors, cable type and cable length
• Panels with multifiber cable attached save costly
installation time
Termination Panels
(With Multifiber Cable)
Rack Mount Panel Solutions
Fiber Optic Panels
10/07 • 103743AE
Other configurations are available upon request. Please contact ADC Technical Assistance center.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
42
FL2000 Series Fiber Optic Panel
1
2
4
7
9
12-position 1.75" (1 RU)
24-position 3.5" (2 RU)
48-position 5.25" (3 RU)
72-position 8.75" (5 RU)
96-position 10.5" (6 RU)
Panel Capacity Panel Height
1
LC connectors and adapters double the capacity
of the panel by terminating two fibers at
each adapter.
2
6-fiber softwall bundle except with LC connectors,
which uses 12-fiber.
3
Mounting kit shipped unattached, if other than
standard mounting style.
FL2 -
Catalog Number
000-
05Latch
K1 lock
Latch Type
Number
of Ports
Loaded
A
C
D
19" standard
19" flush mount
23" centered
Mounting Style
3
0
SC
LC
1
SC ultra polish
SC angled polish
FC ultra polish
LC ultra polish
1
LC angled polish
1
Multimode
9
6
Singlemode
7
J
2
8
B
Connector and Adapter Type
R
A
P
R
C
Adapter-only
Singlemode or multimode 62.5/125 µm
stranded softwall bundle
Singlemode or multimode 62.5/125 µm
12-fiber ribbon
Multimode 50/125 µm
stranded softwall bundle
Pigtail or Adapter Ty pe
2
126 mm
(5")
257 mm
(10.1")
498 mm
(19.6")
133 mm
(5.25")
Fiber Termination Panels with Adapters or Pigtails
Features
• Termination-only panel
• VCG ships with each panel
• Uses FL2000 6paks with angled retainers
Fiber Optic Panels
10/07 • 103743AE
72-Position Termination Panel
48-Position Termination Panel
Rack Mount Panel Solutions
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
43
FL2000 Series Fiber Optic Panel
Empty Termination Chassis
Features
• Mounting
- 19-inch EIA racks or cabinets, standard
five-inch recess
- Wall mounting option available
- Other mounting kits available
• Hinged on left front side; allows full access to
rear of front plate and interior of panel
• FL2000 6pak adapter plug-ins ordered separately
• Equipped with removable metal doors with
Plexiglass
• Designation labels included with each panel
• Complete line of accessories including locks
for security
• Ships with vertical cable guide (VCG)
®1
windows
Fiber Chassis Data
• Fiber capacity*: 12, 24, 48, 72 and 96
• Termination
• Pigtail storage
24-Position Termination Chassis
72-Position Termination Chassis
Rack Mount Panel Solutions
10/07 • 103743AE
*Panels can double capacity with LC adapters.
1
Plexiglass is a registered trademark of Atoglas Division
of Atofina Chemicals, Inc.
Fiber Optic Panels
Description
Empty termination chassis
12-position
24-position
48-position
72-position
96-position
O r d e r i n g I n f o r m a t i o n
Panel Height
1.75" (1 RU)
3.5" (2 RU)
5.25" (3 RU)
8.75" (4 RU)
10.5" (5 RU)
96-Position Termination Chassis
Catalog Number
FL2-12RPNL
FL2-24RPNL
FL2-48RPNL
FL2-72RPNL
FL2-96RPNL
www.adc.com • +1-952-938-8080 • 1-800-366-3891
44
FL2000 Series Fiber Optic Panel
498 mm
(19.6")
133 mm
(5.25")
126 mm
(5")
126 mm
(5")
258 mm
(10.1")
89 mm
(3.5")
498 mm
(19.6")
Slack Storage Solutions
Storage Deck Chassis
Mounts with FL2000 termination panels to provide
jumper storage. May be wall, rack or cabinet mounted.
Storage Deck
Storage Capacity (1 patch cord per deck)
1.7 mm patch cord 35 m (115') per deck
3.0 mm patch cord 20 m (66') per deck
Storage Capacity (2 to 4 patch cords per deck)
1.7 mm patch cord 39 m (128') per deck
3.0 mm patch cord 29 m (95') per deck
O r d e r i n g I n f o r m a t i o n
Description
Catalog Number
Storage Deck Chassis
Storage deck chassis
(storage decks ordered separately)
2 storage deck capacity;
89 mm x 483 mm x 258 mm
(3.5" x 19" x 10.2")
6 storage deck capacity;
Fiber Optic Panels
222 mm x 483 mm x 258 mm
(8.75" x 19" x 10.2")
Storage deck
Horizontal Interbay Management Panel
Manages and stores fiber within the frame.
10/07 • 103743AE
Storage Capacity
Stores up to 137 m (550') using oval storage method
FL2-2RSTORE
FL2-6RSTORE
FL2-TR2000
Storage Deck Chassis
(Front View)
FL2-2RSTORE
Storage Deck
(Top View)
FL-TR2000
Rack Mount Panel Solutions
O r d e r i n g I n f o r m a t i o n
Description
Horizontal interbay
management panel
www.adc.com • +1-952-938-8080 • 1-800-366-3891
Catalog Number
FL2-HZSTORE
Horizontal Interbay Management Panel
FL2-HZSTORE
45
Splice Chip(s)
(Heat Shrink
Shown)
Splice
Deck
Top
Side
Bottom
Side
Clear
Covers
FL2000 Series Fiber Optic Panel
89 mm
(3.5")
258 mm
(10.1")
126 mm
(5")
498 mm
(19.6")
Chassis Solutions
Splice Chassis
Features
• Offers a combination of splicing protection
and associated fiber/pigtail storage
• Splice chassis can be mounted in conjunction
with any FL2000 termination panel or as a
stand-alone splice panel
• Occupies same footprint and offers same
mounting options as FL2000 termination
panels
• Accepts the ADC splice wheel for efficient
management of fiber cable and splice protection
• Accepts the ADC splice deck
Splice Chassis
Rack Mount Panel Solutions
• Ships with vertical cable guide (VCG)
Fiber Chassis Data
• Fiber capacity: 48, 96 & 144
• Splice
• Pigtail storage
Splice Deck
Fiber Optic Panels
10/07 • 103743AE
www.adc.com • +1-952-938-8080 • 1-800-366-3891
O r d e r i n g I n f o r m a t i o n
Description
Splice chassis for use with splice wheel
(Only accepts splice wheel)
48-fiber capacity
96-fiber capacity
144-fiber capacity
Splice wheel
Heat shrink (single fiber fusion)
Bare fusion
Mechanical (mass fusion)
Splice chassis for use with splice deck
(Also accepts splice wheel)
48-fiber capacity
96-fiber capacity
144-fiber capacity
Splice deck
Heat shrink (single fiber fusion)
Bare fusion
Mechanical (mass fusion)
Cable clamp kit (kit of 1)
Outer diameter 5 mm to 20 mm (0.2" to 0.8")
For mounting kits and additional
accessories, see pages 48-56.
Panel Height
3.5" (2 RU)
7" (4 RU)
8.75" (5 RU)
3.5" (2 RU)
7" (4 RU)
8.75" (5 RU)
Catalog Number
FL2-48SPNL2
FL2-96SPNL2
FL2-144SPNL2
FST-DRS12-HS
FST-DRS12-FT
FST-DRS12-MT
FL2-48SPNL
FL2-96SPNL
FL2-144SPNL
FL2-RSPLCE-HS
FL2-RSPLCE-FT
FL2-RSPLCE-MT
FL2-ACC007
Splice Wheel
46
FL2000 Series Fiber Optic Panel

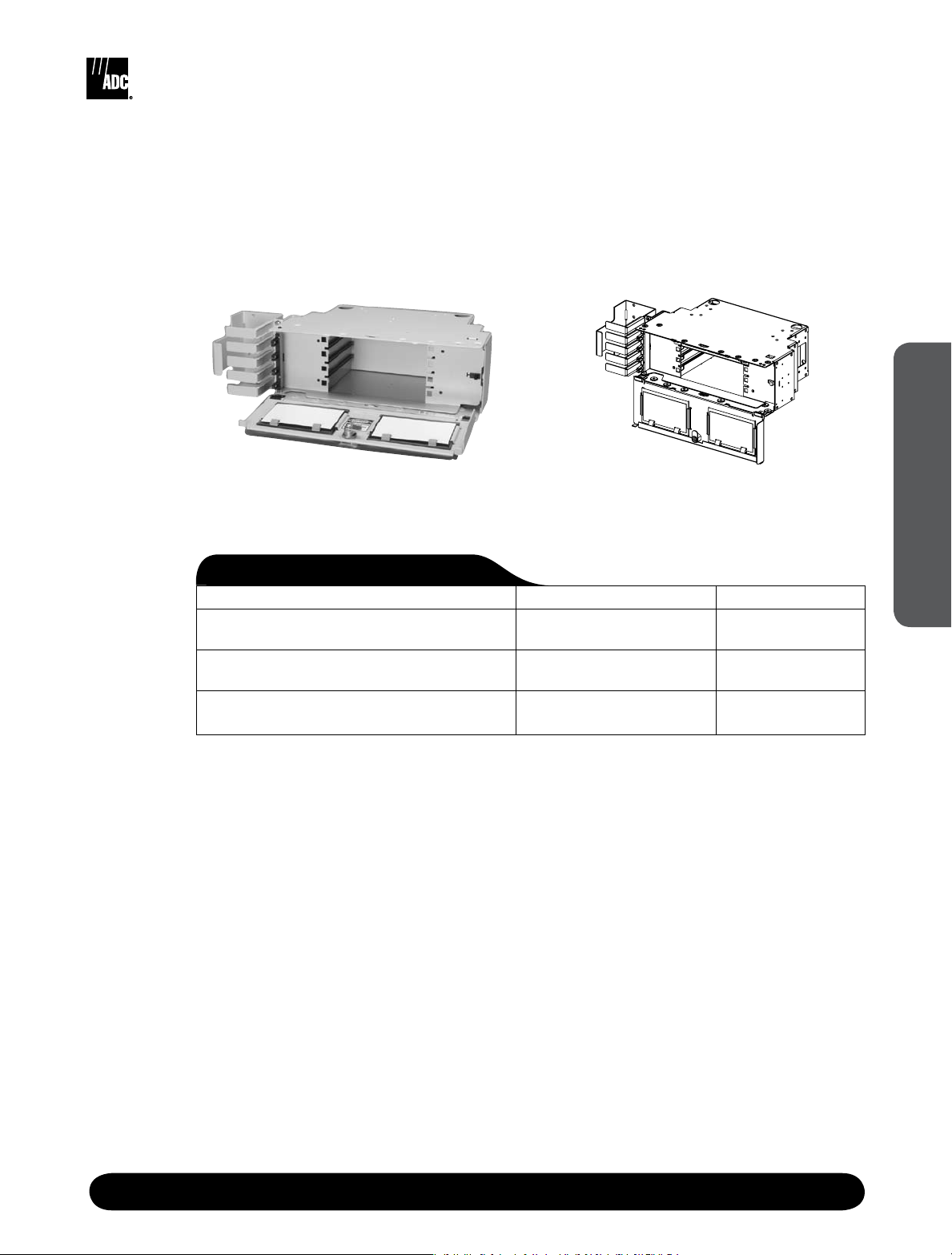

Value-Added Module (VAM) Chassis
The FL2000 VAM chassis is designed to accommodate ADC VAM plug-in modules in FL2000
installations. The chassis protects and manages optical components and is purchased empty, then
loaded with various plug-in modules or blank plates, all of which can be mixed and matched. The
chassis can be mounted in 5-inch recess, 19- or 23-inch rack mount, frame and cabinet environments.
Vertical cable guides match the vertical cable management features of existing FL2000 system. The
chassis accommodates 4, 6 or 9 plug-in modules.
Description Dimensions (HxWxD) Catalog Number
10.5" FL2000 VAM chassis, unloaded;
Fiber Optic Panels
accommodates 9 single plug-in modules
7" FL2000 VAM chassis, unloaded;
accommodates 6 single plug-in modules
5.25" FL2000 VAM chassis, unloaded;
accommodates 4 single plug-in modules
Note: The FL2000 VAM system is designed to accept only front access modules; i.e., all input
and output adapters, pigtails and/or bare fibers must be located on the front of the plug-in modules.
Value-Added Module (VAM) System
ADC offers an expansive line of monitor, splitter, WDM and CWDM VAM plug-in modules designed
to meet all application needs. Please reference the Value-Added Module (VAM) System Catalog
#101663AE for details at www.adc.com or contact ADC Customer Service.
10/07 • 103743AE
VAM Chassis
(Shown Unloaded)
Ordering Information
FL2-4VAM525
267 mm x 483 mm x 258 mm
(10.5" x 19" x 10.1")
152 mm x 483 mm x 258 mm
(7" x 19" x 10.1")
133 mm x 483 mm x 258 mm
(5.25" x 19" x 10.1")
FL2-9VAM105
FL2-6VAM700
FL2-4VAM525
Rack Mount Panel Solutions
www.adc.com • +1-952-938-8080 • 1-800-366-3891
47
(15.9")
404 mm
(17.5")
445 mm
13 mm
(5")
13 mm
(5")
49 mm
(1.9")
(6.7")
169 mm
478 mm
(18.8")
Rear Guard Box
(optional with some racks)
Rack shown
as reference
FL2000 Series Fiber Optic Panel
(17.5")
445 mm
(15.9")
404 mm
(17.5")
445 mm
127 mm
(5")
127 mm
(5")
(21.9")
556 mm
(19.6")
483 mm
(18.3")
465 mm
13 mm
(5")
13 mm
(5")
49 mm
(1.9")
(6.7")
169 mm
478 mm
(18.8")
Rear Guard Box
(optional with some racks)
Rack shown
for reference
Rack shown
as reference
Panel Accessories – 19-Inch Rack Mount Installation Kits
Standard Mount Kit
Features
• Panels shipped with
- Left-side “L” bracket
- Left-side 2.5" wide vertical cable guide
(VCG)
• Other mounting options are available
upon request. Please contact ADC Technical
Assistance Center.
Standard Mount Kit
O r d e r i n g I n f o r m a t i o n
Rack Mount Panel Solutions
Description
Standard mount kit
Kit includes: VCG with integrated mounting holes
Fiber Optic Panels
Flush Mount Kit
Panel Height
1.75" (1 RU)
3.5" (2 RU)
5.25" (3 RU)
7" (4 RU)
8.75" (5 RU)
10.5" (6 RU)
14" (8 RU)
17.5" (10 RU)
Flush Mount Kit
Catalog Number
FL2-VCGKIT0175
FL2-VCGKIT0350
FL2-VCGKIT0525
FL2-VCGKIT0700
FL2-VCGKIT0875
FL2-VCGKIT1050
FL2-VCGKIT1400
FL2-VCGKIT1750
10/07 • 103743AE
www.adc.com • +1-952-938-8080 • 1-800-366-3891
O r d e r i n g I n f o r m a t i o n
Description
Flush mount kit; allows 1", 2" or 4" recess mounting
Kit includes: VCG and mounting flanges
Panel Height
1.75" (1 RU)
3.5" (2 RU)
5.25" (3 RU)
7" (4 RU)
8.75" (5 RU)
10.5" (6 RU)
14" (8 RU)
17.5" (10 RU)
Catalog Number
FL2-FLMT0175
FL2-FLMT0350
FL2-FLMT0525
FL2-FLMT0700
FL2-FLMT0875
FL2-FLMT1050
FL2-FLMT1400
FL2-FLMT1750
48
127 mm
(2.9")
126 mm
258 mm
(10.1")
445 mm
(17.5")
(5")
74 mm
556 mm
(21.9")
(5")
127 mm
(5")
(19")
483 mm
465 mm
(18.3")
Rack Shown
For Reference
New VCG with integrated mounting holes
FL2000 Series Fiber Optic Panel
Panel Accessories – 19-Inch Rack Mount Installation Kits
Maximum Mount Kit
Allows entire panel to be contained within frame footprint.
Maximum Mount Kit
Description
Maximum mount kit
Fiber Optic Panels
Kit includes: VCG with integrated
mounting holes
10/07 • 103743AE
O r d e r i n g I n f o r m a t i o n
Panel Height
1.75" (1 RU)
3.5" (2 RU)
5.25" (3 RU)
7" (4 RU)
8.75" (5 RU)
10.5" (6 RU)
14" (8 RU)
17.5" (10 RU)
Catalog Number
FL2-19MAX0175
FL2-19MAX0350
FL2-19MAX0525
FL2-19MAX0700
FL2-19MAX0875
FL2-19MAX1050
FL2-19MAX1400
FL2-19MAX1750
Rack Mount Panel Solutions
www.adc.com • +1-952-938-8080 • 1-800-366-3891
49
FL2000 Series Fiber Optic Panel
657 mm
(25.8")
546 mm
(21.5")
567 mm
(22.3")
127 mm
(5")
127 mm
(5")
Rear Guard Box
(optional with
some racks)
Rack shown
for reference
Panel Accessories – 23-Inch Rack Mount Installation Kits
Wide VCG Mount Kit
Allows for increased fiber capacity within the VCG.
Wide VCG Mount Kit
Rack Mount Panel Solutions
Description
Wide VCG mount kit
Fiber Optic Panels
Kit includes: VCG with integrated
mounting holes
10/07 • 103743AE
O r d e r i n g I n f o r m a t i o n
Panel Height
1.75" (1 RU)
3.5" (2 RU)
5.25" (3 RU)
7" (4 RU)
8.75" (5 RU)
10.5" (6 RU)
14" (8 RU)
17.5" (10 RU)
Catalog Number
FL2-23VCG0175
FL2-23VCG0350
FL2-23VCG0525
FL2-23VCG0700
FL2-23VCG0875
FL2-23VCG1050
FL2-23VCG1400
FL2-23VCG1750
www.adc.com • +1-952-938-8080 • 1-800-366-3891
50
657 mm
(25.8")
567 mm
(22.3")
546 mm
(21.5")
127 mm
(5")
127 mm
(5")
Rear Guard Box
(optional with
some racks)
Rack shown
for reference
Extender Bracket
Extender Bracket
465 mm
(18.3")
FL2000 Series Fiber Optic Panel
Panel Accessories – 23-Inch Rack Mount Installation Kits
Centered Mount Kit
Allows for standard mounting in a 23-inch rack.
Centered Mount Kit
Description
Centered mount kit
Fiber Optic Panels
(with extender brackets)
This kit can be used with flush mount
brackets (see page 47) to achieve 23"
flush mounting, as well as 1", 2" or 4"
recess mounting
10/07 • 103743AE
O r d e r i n g I n f o r m a t i o n
Panel Height
1.75" (1 RU)
3.5" (2 RU)
5.25" (3 RU)
7" (4 RU)
8.75" (5 RU)
10.5" (6 RU)
14" (8 RU)
17.5" (10 RU)
Catalog Number
FL2-EB0175P
FL2-EB0350P
FL2-EB0525P
FL2-EB0700P
FL2-EB0875P
FL2-EB1050P
FL2-EB1400P
FL2-EB1750P
Rack Mount Panel Solutions
www.adc.com • +1-952-938-8080 • 1-800-366-3891
51
FL2000 Series Fiber Optic Panel
Panel Accessories
6pak Adapter — Adapters and Pigtails
Features
• Can be purchased and installed as
growth necessitates
• Available with preterminated three- or
five-meter pigtails
• Pigtails consist of a single outer jacket
containing six color-coded 900 µm fibers
• One end of pigtail terminated with chosen
connector style and installed into the
6pak adapters
• Saves installation time
Stranded Multimode Pigtails and Adapters
(Shown with SC Adapters and Pigtails)
6pak Adapter
Rack Mount Panel Solutions
10/07 • 103743AE
Fiber Optic Panels
Connector and Adapter Type
9 SC
A FC
6 LC
Fiber Type
B Multimode 62.5/125 µm
C Multimode 50/125 µm
1
LC 6paks are loaded with 12-fiber pigtails
Stranded Singlemode Pigtails and Adapters
Connector and Adapter Type
7 SC ultra polish
J SC angled polish
2 FC ultra polish
8 LC ultra polish
B LC angled polish
1
LC 6paks are loaded with 12-fiber pigtails
Catalog Number
FL2 - 6P __ __ C 6 __ __ __
Pigtail Length
03W 3 m pigtail
1
Catalog Number
FL2 - 6P __ S C 6 __ __ __
1
1
05R 5 m pigtail
Pigtail Length
03W 3 m pigtail
05R 5 m pigtail
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
52
FL2000 Series Fiber Optic Panel
Panel Accessories
6pak Adapter - Adapters only
Features
• Completely interchangeable between FL2000
panel, FL1000 rack and wall box products
• Can be ordered with all standard types of
adapters and connectors
• Feature ADC‘s removable angled retainers
which provide superior fiber management
• No tools required to install into FL2000 and
FL1000 products
• Can be ordered with adapters only or
for quick and easy installation, with
preterminated three- or five-meter pigtails
(Shown with Singlemode Simplex Adapters)
6pak Adapter
Description
Multimode
SC
FC
Fiber Optic Panels
LC*
Singlemode
SC ultra polish
SC angled polish
FC ultra polish
LC ultra polish*
LC angled polish*
6pak blank plug-in
* LC 6pak adapter accommodates 12 LC connectors.
10/07 • 103743AE
O r d e r i n g I n f o r m a t i o n
Catalog Number
FL2-6PMMSC
FL2-6PMMFC
FL2-6PMMLC
FL2-6PSMSC
FL2-6PSMASC
FL2-6PSMFC
FL2-6PSMLC
FL2-6PSMALC
FL2-6PBLNK
(Shown with Multimode Simplex Adapters)
6pak Adapter
6pak Adapter Blank
Rack Mount Panel Solutions
Other configurations are available upon request. Please contact ADC Technical Assistance Center.
www.adc.com • +1-952-938-8080 • 1-800-366-3891
53
FL2000 Series Fiber Optic Panel
Splice Chip(s)
(Heat Shrink
Shown)
Splice
Deck
Top
Side
Bottom
Side
Clear
Covers
Panel Accessories
Splice Wheel and Splice Deck
Splice Wheel
Splice Wheel
Rack Mount Panel Solutions
10/07 • 103743AE
Fiber Optic Panels
Description
Splice wheel
Heat shrink (single fiber fusion)
Bare fusion
Mechanical (mass fusion)
Splice deck
Heat shrink (single fiber fusion)
Bare fusion
Mechanical (mass fusion)
*For use with ribbon fiber
Splice Deck
O r d e r i n g I n f o r m a t i o n
Catalog Number
FST-DRS12-HS
FST-DRS12-FT
FST-DRS12-MT*
FL2-RSPLCE-HS
FL2-RSPLCE-FT
FL2-RSPLCE-MT*
www.adc.com • +1-952-938-8080 • 1-800-366-3891
54
305 mm
(12")
64 mm
(2.5")
2.14 m
(7')
Clamp
Bracket
Rubber
Grommets
Clamp
Yokes (2)
Plate
Nuts (2)
Cover
FL2000 Series Fiber Optic Panel
Panel Accessories
Miscellaneous
Interbay Management Panel
E-501-L139
Locks
Blank VCG
FL2-BLNKFULL0875
O r d e r i n g I n f o r m a t i o n
Cable Clamp Kit
Bonding/Grounding Kit
Fiber Optic Panels
10/07 • 103743AE
End Guard
UEGP-7PW
356 mm (14")
Lower Cable Trough
FL2-ACC011
Description
Lock
Key lock #1; includes lock and key #1
Key lock #2; includes lock and key #2
End guard (H x W x D)
2.14 m x 64 mm x 305 mm (7' x 2.5" x 12");
right or left side
Interbay management panel
2.14 m x 127 mm (7' x 5") mounts to
a standard (19" or 23" rack)
Lower cable trough (H x W x D)
356 mm x 483 mm x 127 mm (14" x 19" x 5")
178 mm x 483 mm x 127 mm (7" x 19" x 5")
Bonding grounding kit: kit of 1
Cable clamp kit: kit of 1
Outer diameter 5 mm to 20 mm (0.2" to 0.8")
Cable clamp kit for use with 12-fiber
termination or termination/splice panels
Blank VCG to add cable management to frame
not fully loaded
3.5"
8.75"
10.5"
Blank VCG with blank panel for aesthetics
3.5"
5.25"
7"
8.75"
10.5"
Catalog Number
IPA-K1
IPA-K2
UEGP-7PW
E-501-L139
FL2-ACC011
FL2-ACC012
FL2-ACC006
FL2-ACC007
FL2-ACC033
FL2-BLNKVCG0350
FL2-BLNKVCG0875
FL2-BLNKVCG1050
FL2-BLNKFULL0350
FL2-BLNKFULL0525
FL2-BLNKFULL0700
FL2-BLNKFULL0875
FL2-BLNKFULL1050
Rack Mount Panel Solutions
178 mm (7")
Lower Cable Trough
FL2-ACC012
www.adc.com • +1-952-938-8080 • 1-800-366-3891
55
FL2000 Series Fiber Optic Panel
Panel Accessories
Ordering Information for Patch Cords and Attenuators
ADC offers a comprehensive line of cable assembly and accessory products including patch cords, IFC
assemblies, attenuators, FasTerm
network. Please refer to the Fiber Cable Assemblies Catalog #102880AE at www.adc.com for more
detailed information. For your convenience, ordering information for patch cords and attenuators can
also be found on pages 80-85.
®
connectors and adapters to meet the demanding needs of today’s
Rack Mount Panel Solutions
10/07 • 103743AE
Fiber Optic Panels
www.adc.com • +1-952-938-8080 • 1-800-366-3891
56
Loading...
