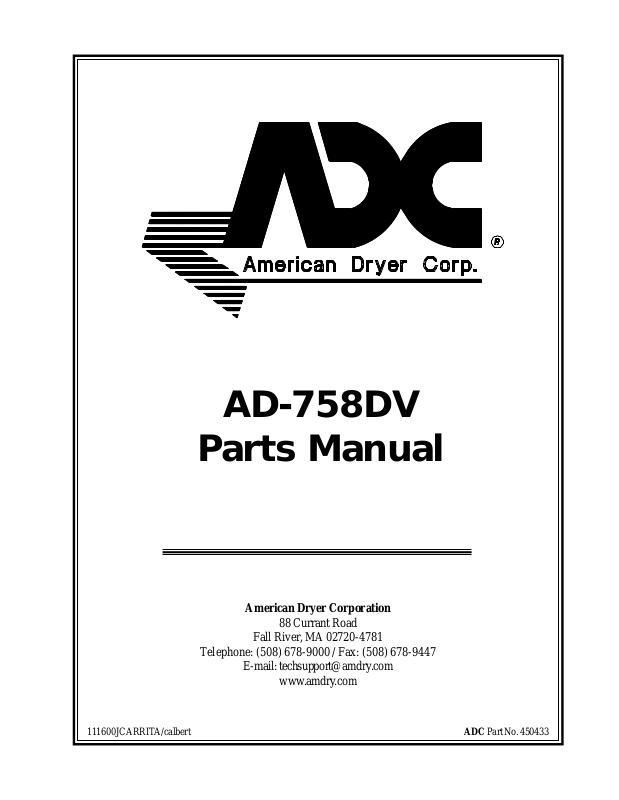

ADC AD-758DV User Manual

AD-758DV

Parts Manual

American Dryer Corporation

88 Currant Road

Fall River, MA 02720-4781

T elephone: [phone] / Fax: [phone]

E-mail: techsupport@amdry .com

www .amdry .com

11 1600JCARRITA/calbert ADC Part No. 450433

Retain This Manual In A Safe Place For Future Reference

American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is

properly maintained, it will provide many years of safe, efficient, and trouble-free operation.

ONLY qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.

The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.

FOR YOUR SAFETY

Do not store or use gasoline or
other flammable vapors and
liquids in the vicinity of this or
any other appliance.

W e have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models.

POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.

Important

For your convenience, log the following information:

DA TE OF PURCHASE ____________________________ MODEL NO. __________________________________________

RESELLER’S NAME _______________________________________________________________________________________

Serial Number(s) ________________________________________________________________________________________

________________________________________________________________________________________

AD-758DV

________________________________________________________________________________________

Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the factory ,
you can F AX your order to ADC at [phone] or telephone your order directly to the ADC Parts Department at (508)
678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so that
your order is processed accurately and promptly.

The illustrations on the following pages may not depict your particular dryer exactly. The illustrations are a composite of the
various dryer models. Be sure to check the descriptions of the parts thoroughly before ordering.

“IMPORT ANT NOTE TO PURCHASER”

Information must be obtained from your local gas supplier on the instructions
to be followed if the user smells gas. These instructions must be posted in a
prominent location near the dryer.

Table of Contents

OPL Control Door Assembly

For Models Mfd. as of July 1, 2002.................................................................................................... 2

Coin Control Door Assembly

For Models Mfd. as of July 1, 2002.................................................................................................... 3

Control Door Assembly

For Models Mfd. prior to July 1, 2002................................................................................................ 4

Phase 5 OPL Microprocessor Control Panel Assembly ........................................................................... 5

Phase 5 Coin Microprocessor Control Panel Assembly ....................................................................... 6, 7

Dual Timer “T ap T ouch” Controls............................................................................................................ 8

Coin and OPL Control Box Assembly ..................................................................................................... 9

Coin V ault Assembly ............................................................................................................................. 10

Front Panel Assembly ........................................................................................................................... 11

Main Door “Steel” Assembly .......................................................................................................... 12, 13

Main Door Switch Assembly ................................................................................................................. 14

Basket (Tumbler)/Support Assemblies ................................................................................................... 15

Lint Drawer/Lint Drawer Switch Assembly............................................................................................ 16

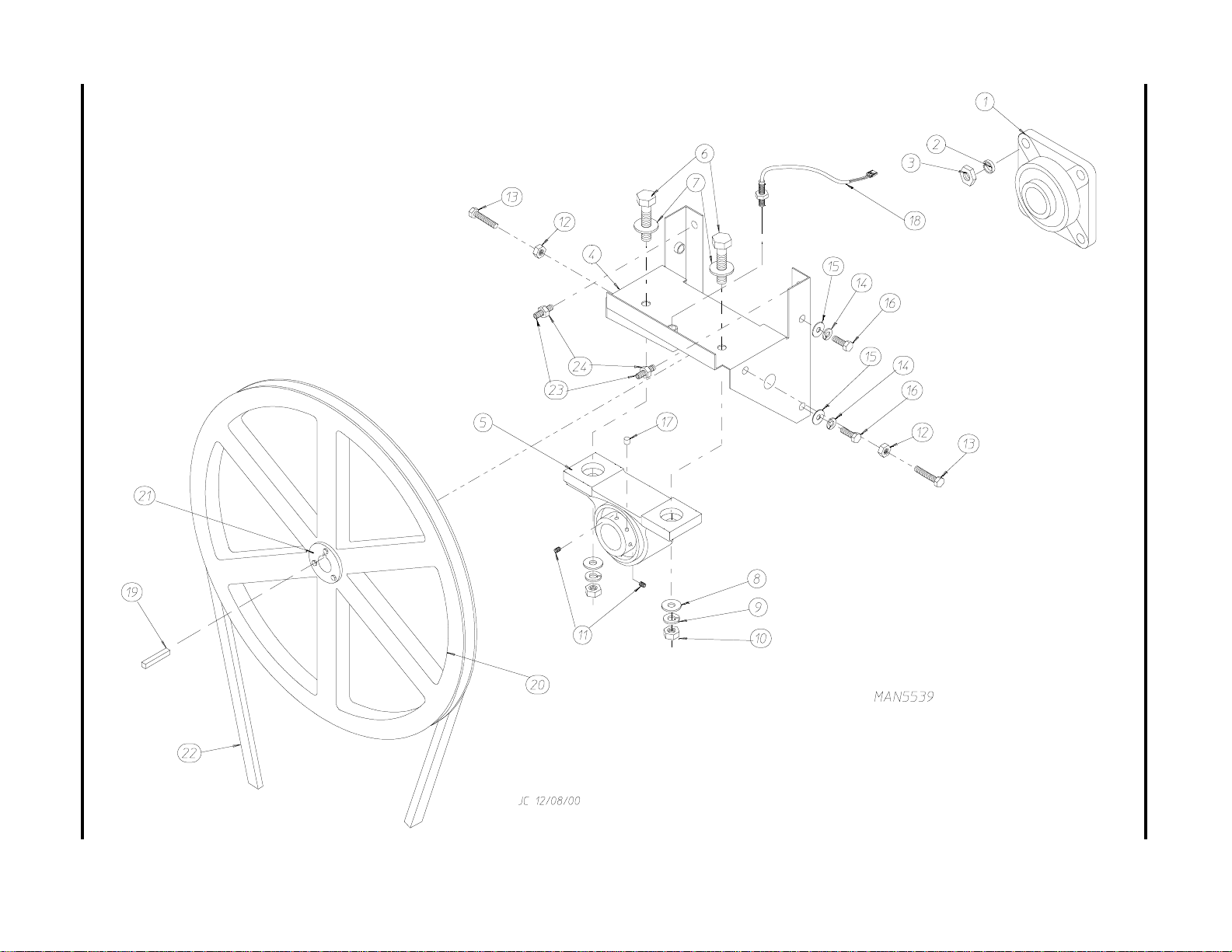

Idler Bearing Assembly ......................................................................................................................... 17

Basket (Tumbler) Bearing Assembly ................................................................................................ 18, 19

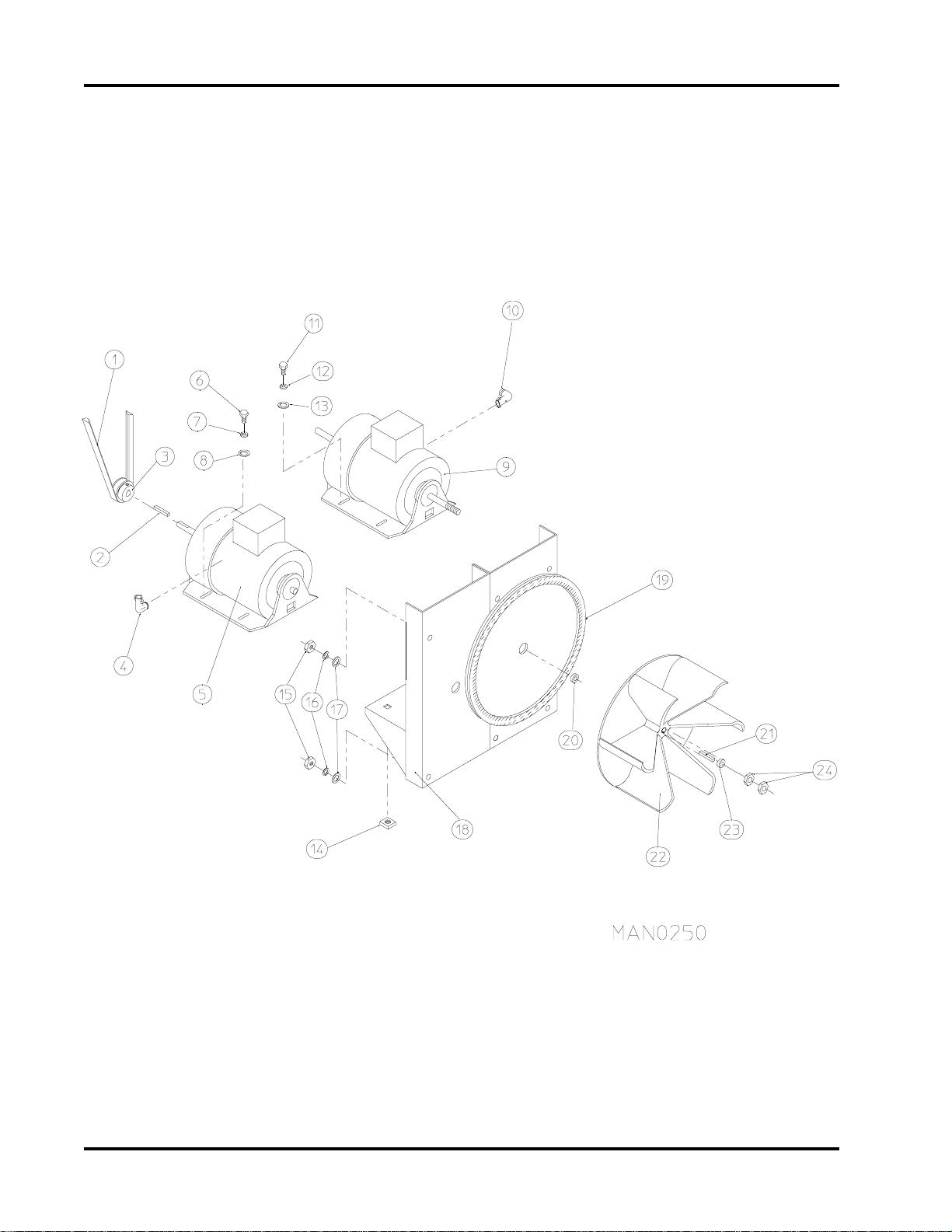

Non-Reversing Motor Mount Assembly .......................................................................................... 20, 21

Reversing T .E.F .C. Motor Mount Assembly .................................................................................... 22, 23

Sensor Bracket Assemblies............................................................................................................. 24, 25

Direct Spark Ignition (DSI) Burner Assembly .................................................................................. 26, 27

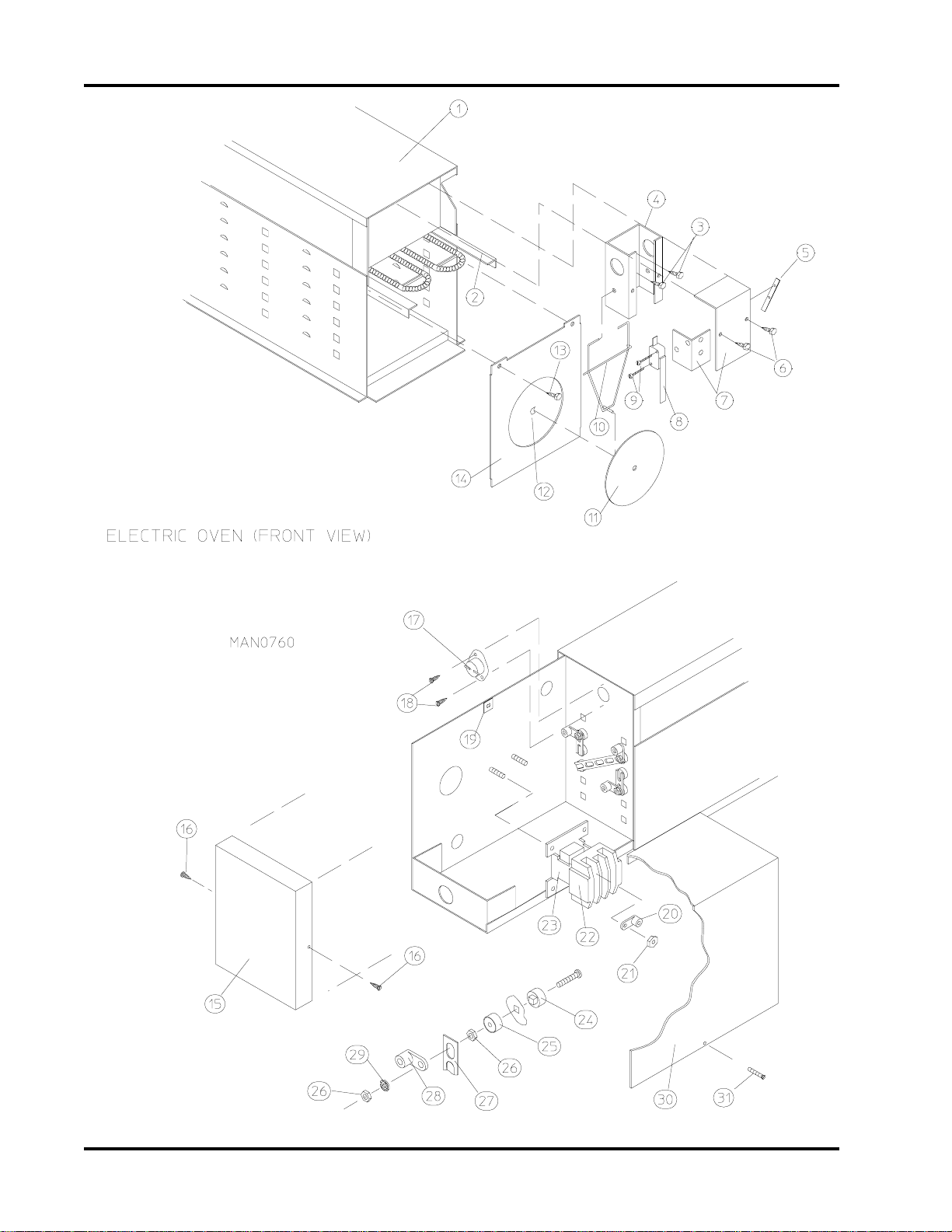

Electric Oven Assembly .................................................................................................................. 28, 29

Air-Operated Steam Damper Assembly .......................................................................................... 30, 31

Single-Phase (1ø) Motor, Electric Relay Panel Assembly ....................................................................... 32

3-Phase (3ø) Motor, Electric Relay Panel Assembly .............................................................................. 33

460-480 VAC 3-Phase (3ø) Motor , Electric Relay Panel Assembly ....................................................... 34

Reversing Electric Relay Panel Assembly............................................................................................... 35

460-480 VAC Reversing Electric Relay Panel Assembly........................................................................ 36

Sail Switch Assembly............................................................................................................................ 37

Outer T op/Back Guard Assemblies ....................................................................................................... 38

Electric Oven Component Application Chart ......................................................................................... 39

Microprocessor Coin Acceptors Listing ................................................................................................ 40

Additional Parts Available ..................................................................................................................... 41

2

OPL Contr ol Door Assembly

For Models Mfd. as of July 1, 2002

Illus. No. Part No. Qty. Description

1 881053 1 ADC Logo with Tape

870011 1 Double Sided Tape Kit

2 883616 1 White Control Door Assembly

(includes illus. nos. 2 and 3)

883618 1 Ivory Control Door Assembly

(includes illus. nos. 2 and 3)

883617 1 Coral Blue Control Door Assembly

(includes illus. nos. 2 and 3)
3 117604 3 Neoprene Sponge Tape (sold by the foot)
4 150317 2 #10-16 x 3/4” TORX + BTN Type 1
5 102603 1 Control Door Rod Support Catch
6 102601 1 Control Door Rod Retainer Clip
7 102502 1 Control Door Support Rod
8 150321 2 #10-32 x 1/2” Phillips Machine Screw
9 154011 2 #10-32 Multi-Thread U-Nut

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Coin Control Door Assembly

For Models Mfd. as of July 1, 2002

3

Illus. No. Part No. Qty. Description

1 160015 1 High Security Lock Assembly

160104 1 Key ONLY

2 160016 1 Lock Cam ONLY
3 881053 1 ADC Logo with Tape
4 883621 1 White Control Door Assembly with Black T rim

(includes illus. nos. 4 through 7)

883619 1 Ivory Control Door with Black Trim

(includes illus. nos. 4 through 7)

883620 1 Coral Blue Control Door with Black Trim

(includes illus. nos. 4 through 7)
5 883485 1 Black Trim S trip with Lock Hole
6 117604 6 Neoprene Sponge Tape (sold by the foot)
7 152014 4 1/4-20 with 3/4” Free Spin Wash Nut
8 150317 2 #10-16 x 3/4” TORX + BTN Type 1
9 102603 1 Control Door Rod Support Catch
10 102601 1 Control Door Rod Retainer Clip
11 102502 1 Control Door Support Rod

T elephone: [phone] Fax: [phone]

4

Control Door Assembly

For Models Mfd. prior to July 1, 2002

Illus. No. Part No. Qty. Description

1 160015 1 High Security MK-100 Lock Assembly with Key

(for coin models Only)

160017 1 Special Dummy Lock ONL Y

(for non-coin models Only)

160104 1 MK-100 Key ONLY

2 160052 1 Lock Cam ONLY
3 881053 1 ADC Logo with Tape

870011 1 Double Sided Tape Kit

4 882751 1 White High Security Control Door Assembly Less Lock

(includes illus. nos. 4 and 5)

882752 1 Almond “B” High Security Control Door Assembly Less Lock

(includes illus. nos. 4 and 5)

882749 1 Coral Blue High Security Control Door Assembly Less Lock

(includes illus. nos. 4 and 5)

882761 1 Bisque High Security Control Door Assembly Less Lock

(includes illus. nos. 4 and 5)
5 117603 4 Noise Suppressor Tape (sold by the foot)
6 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
7 102603 1 Control Door Rod Support Catch
8 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
9 102502 1 Control Door Support Rod
10 102601 1 Control Door Rod Retainer Clip

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Phase 5 OPL Micr opr ocessor Contr ol Panel Assembly

5

Illus. No. Part No. Qty. Description

1 112535 1 OPL English Keyboard Label Assembly

112276 1 OPL Stick-On Labels (English Only)...Not Illustrated
112275 1 3-Language OPL Stick-On Labels...Not Illustrated

(Spanish, Italian, and Hebrew)

112277 1 3-Language OPL Stick-On Labels...Not Illustrated

(English, Spanish, and Hebrew)

112278 1 5-Language OPL Stick-On Labels...Not Illustrated

(Italian, Dutch, French, German, and Chinese)

2 801255 1 Phase 5 Microprocessor Control Panel ONLY

801256 1 Phase 5 Microprocessor Control Panel ONLY with Battery Bracket
801206 1 Phase 5 OPL Non-Reversing Microprocessor Control Panel Assembly

Complete
(includes illus. nos. 1 through 6)

801207 1 Phase 5 OPL Reversing Microprocessor Control Panel Assembly

Complete
(includes illus. nos. 1 through 6)

3 137222 1 Phase 5 OPL Non-Reversing Microprocessor Controller (computer) ONLY

137231 1 Phase 5 OPL Reversing Microprocessor Controller (computer) ONLY

824998 1 Phase 5 Battery Clip
4 153010 2 #6 S tar Washer
5 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
6 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
7 136048 1 1/8-Amp (Slo-Blo) Fuse

IMPORTANT: Check label on computer chip to verify correct part number for controller (computer).

T elephone: [phone] Fax: [phone]

6

Phase 5 Coin Micropr ocessor Contr ol Panel Assembly

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Phase 5 Coin Micropr ocessor Contr ol Panel Assembly

Illus. No. Part No. Qty. Description

1 112526 1 Coin Keyboard Label Assembly
2 883537 1 Phase 5 Coin Control Panel Assembly

(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. as of June 25, 2002)

883538 1 Phase 5 Coin Control Panel Assembly with Battery Option

(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. as of June 25, 2002)

883582 1 Phase 5 Coin Control Panel Assembly with Battery Option

(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. prior to June 25, 2002)

883581 1 Phase 5 Coin Control Panel Assembly

(includes illus. nos. 1, 2, and 4 through 6)
(for models mfd. prior to June 25, 2002)

883539 1 Coin Control Panel ONLY

(for models mfd. as of June 25, 2002)

883540 1 Coin Control Panel ONLY with Battery Bracket

(for models mfd. as of June 25, 2002)

883580 1 Coin Control Panel ONLY

(for models mfd. prior to June 25, 2002)

883579 1 Coin Control Panel ONLY with Battery Bracket

(for models mfd. prior to June 25, 2002)
3 150309 1 #10-16 x 1/2” Hex Head TEK Crimptite Screw
4 137213 1 Phase 5 Coin Controller ONLY

824998 1 Phase 5 Battery Clip
5 153010 2 #6 S tar Washer
6 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
7 --------- 1 Microprocessor Coin Acceptor

(refer to Microprocessor Coin Acceptors Listing on

8 -------- 1 Optic Switch ONLY

(refer to Microprocessor Coin Acceptors Listing on page 40)

9 137023 1 Optic Switch Connector ONLY
10 137021 3 Microprocessor Socket ONLY

880772 1 Single Coin Optical Switch Harness

122800 1 Microprocessor (female) Pin Extraction Tool
11 136048 1 1/8-Amp (Slo-Blo) Fuse

7

page 40)

IMPORTANT: Check label on computer chip to verify correct part number of controller (computer).

T elephone: [phone] Fax: [phone]

8

Dual Timer “Tap Touch” Controls

Illus. No. Part No. Qty. Description

1 124030 1 15 Minute Timer - 24 VAC
2 124025 1 60 Minute Timer - 24 VAC
3 824175 1 Red Pilot Light - 24 VAC
4 122301 1 “Tap Touch” Switch
5 131932 3 Relay SPST 24v
6 120730 1 30-Position T erminal Block
7 151000 6 #6-32 Pal Nut
8 882903 1 Dual T imer Panel Complete

(includes illus. nos. 1 through 15)

850392 - Dual Timer Panel ONLY
9 153010 2 #6 S tar Washer
10 152000 3 #6-32 Hex Nut
1 1 150207 2 #10-24 x 1/2” Phillips Pan Head Machine Screw
12 150110 4 #8-32 x 1/4” Phillips Round Head Machine Screw
13 112563 1 Dual Timer Panel Overlay
14 124104 1 Pure Touch Knob with Red Pointer
15 124105 1 Pure Touch Knob with Blue Pointer

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

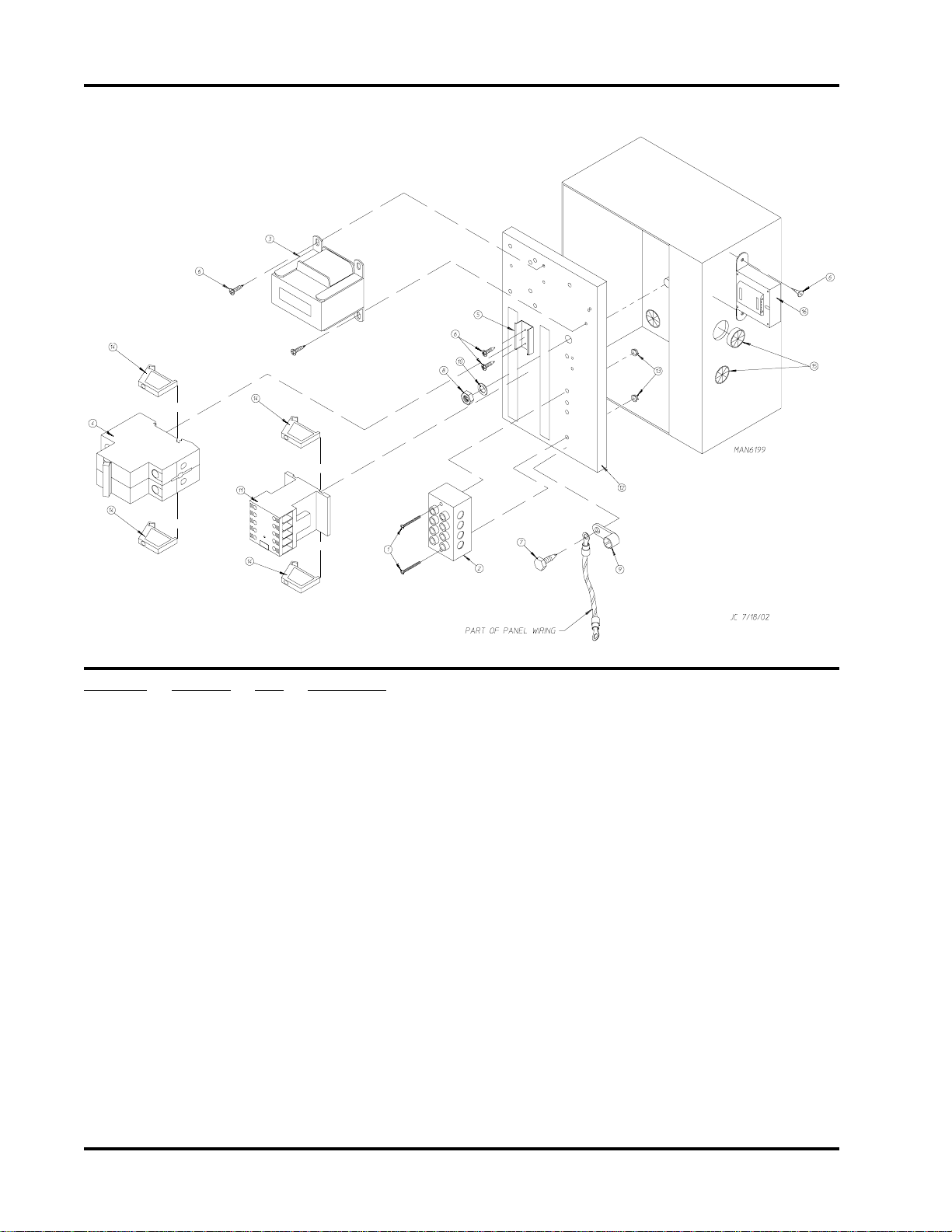

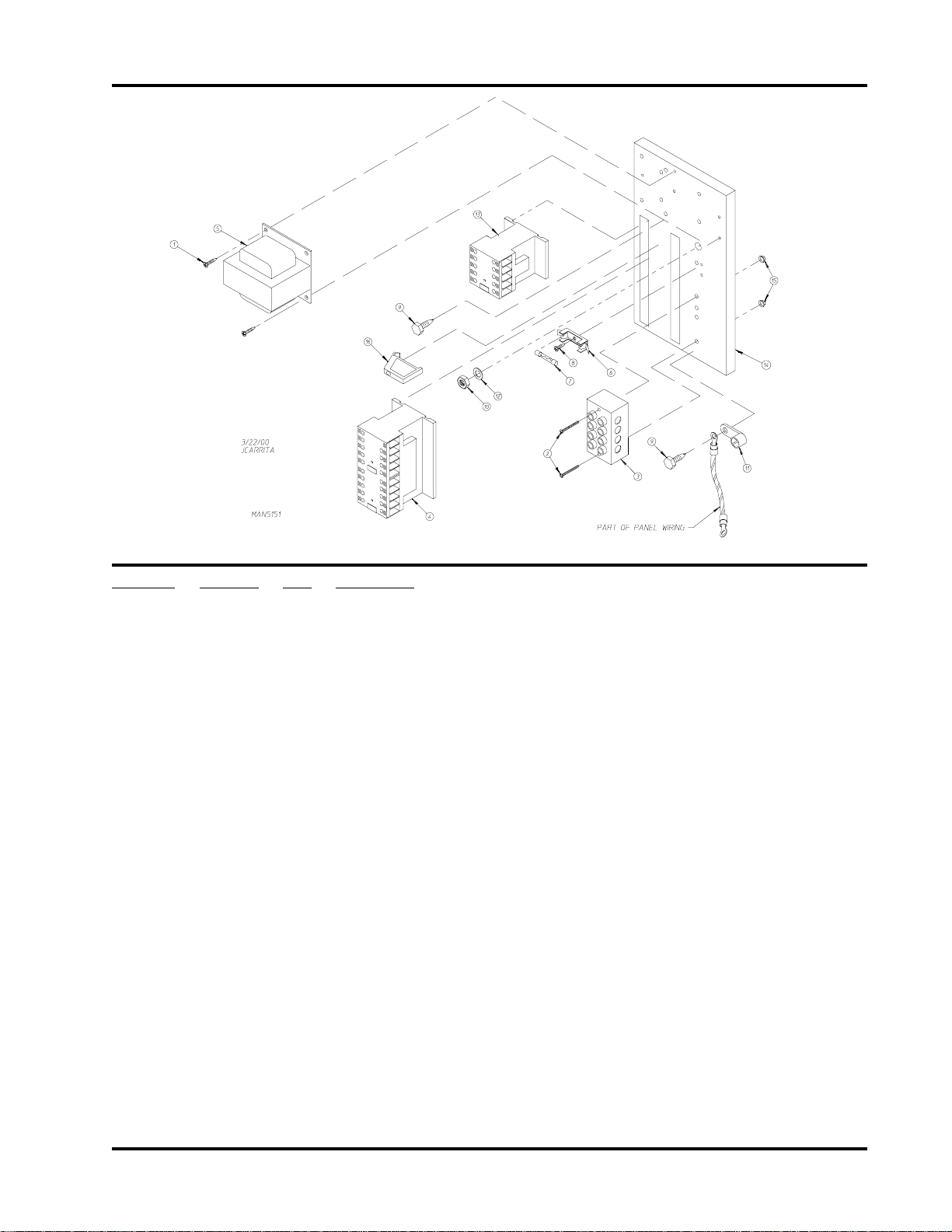

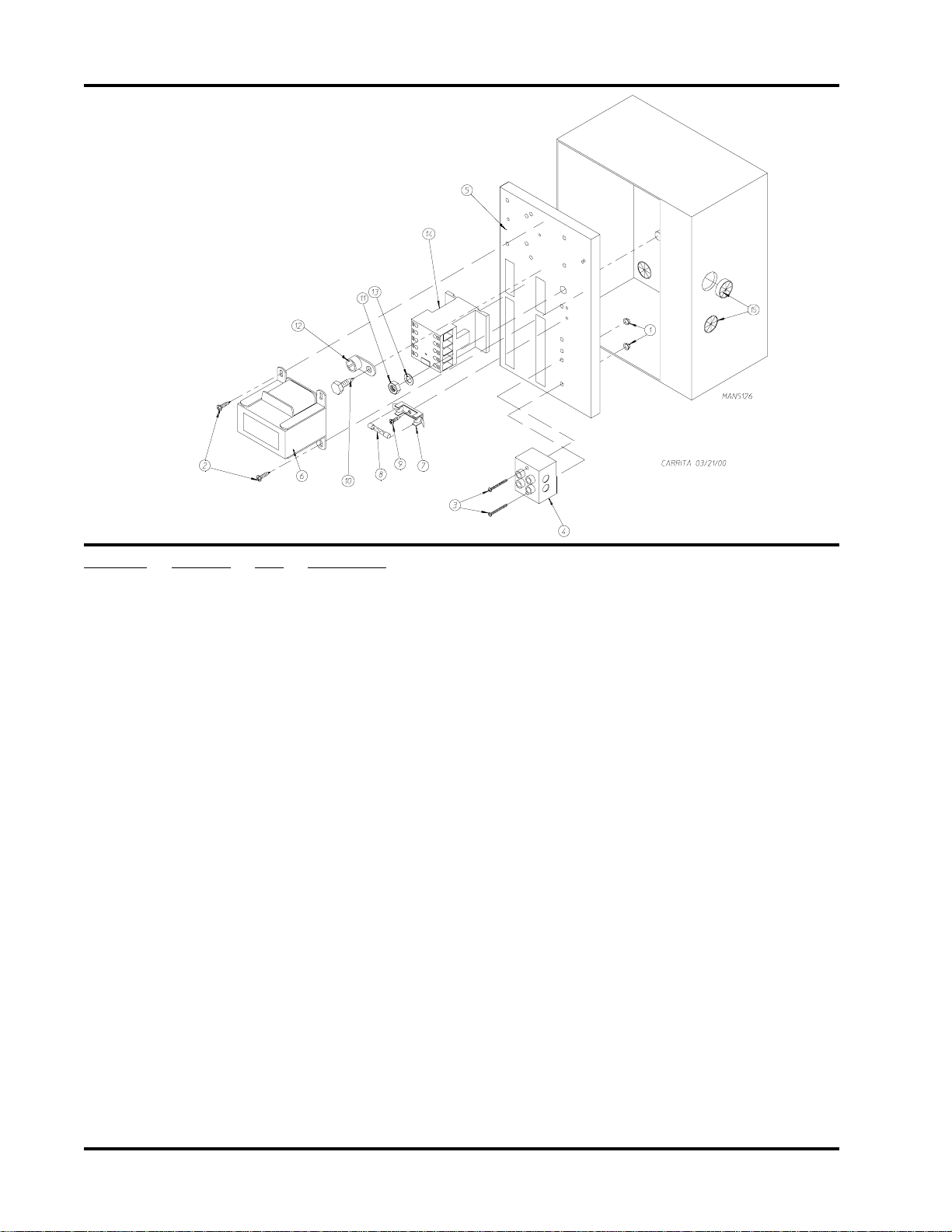

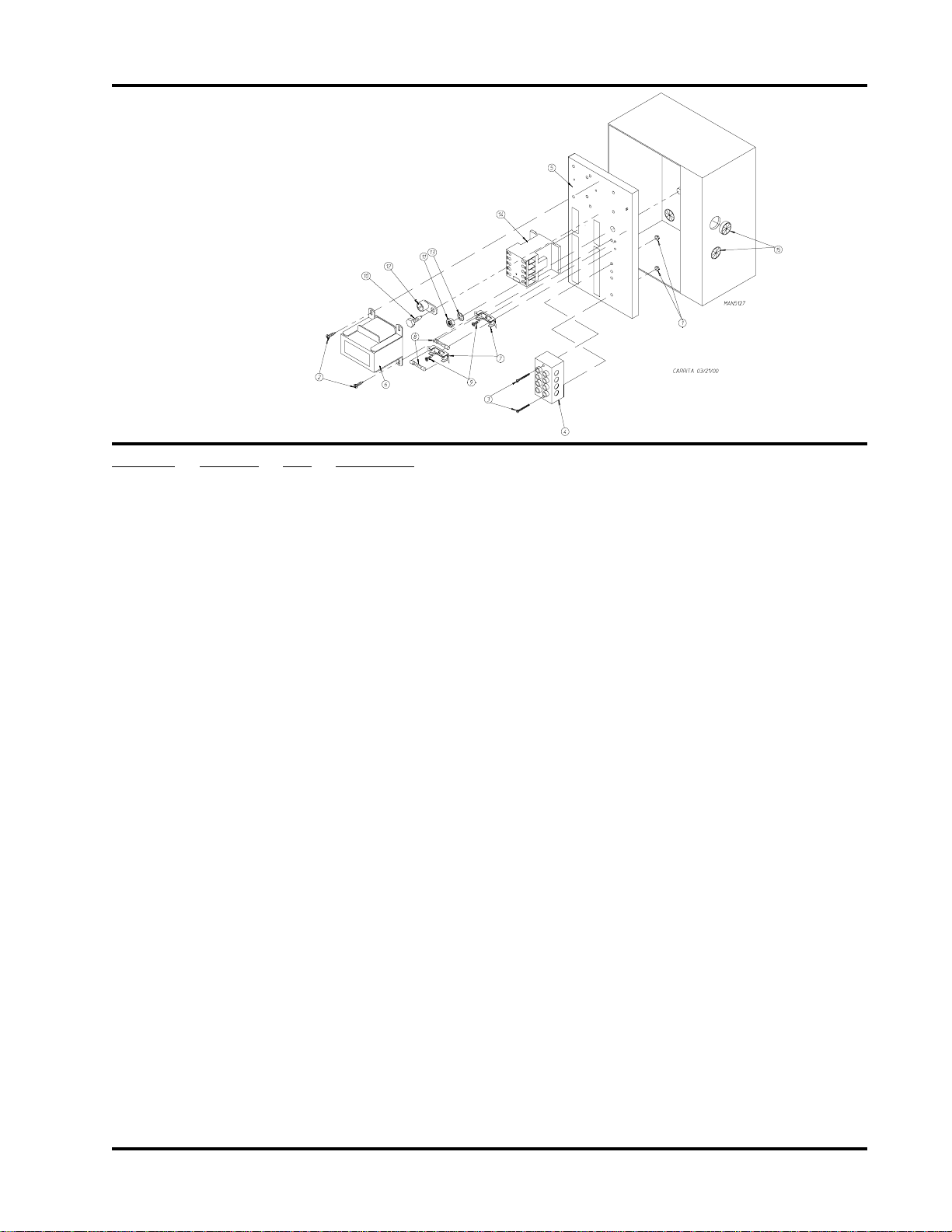

Coin and OPL Contr ol Box Assembly

9

Illus. No. Part No. Qty. Description

1 132002 1 Transformer

(for mechanical steam damper models - 208 VAC and higher Only)
2 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
3 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
4 131931 1 Steam Valve Relay - 24 VAC

(for mechanical steam damper models Only)
5 137035 1 Capacitor

(for mechanical steam damper models Only)
6 323583 1 Capacitor Bracket

(for mechanical steam damper models Only)
7 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
8 122641 1 15-Pin Microprocessor Controller (computer) Connector
9 122706 * Socket T erminal ONLY

--- 122801 1 Pin/Socket Extraction Tool
10 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
11 132198 1 Reversing T imer 24v (for reversing dual timer models Only)

* As required.

T elephone: [phone] Fax: [phone]

10

Coin Vault Assembly

Illus. No. Part No. Qty. Description

1 802112 1 Microprocessor Coin V ault Assembly Complete

(includes illus. nos. 1 through 6)

802117 1 Microprocessor Coin Vault ONLY
2 160028 1 Cam for 1/4 Turn Lock ONLY
3 875061 1 1/4 Turn Lock with Key and Cam

160105* 1 1/4 Turn Mer-Pel Key ONLY
4 802020 1 1/4 T urn Coin Box Assembly

(includes illus. nos. 2 through 5)
802019 1 1/4 T urn Coin Box ONLY without Faceplate
125915 1 High Security (Greenwald) Coin Box ONLY with Key

5 802018 1 1/4 T urn Coin Box Faceplate ONLY
6 152014 4 1/4-20 with 3/4” Free Spin Wash Nut
7 102502 1 Control Door Support Rod
8 102601 1 Control Door Rod Retainer Clip
9 102603 1 Control Door Rod Support Catch

* Specify key number when ordering.

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Front Panel Assembly

11

Illus. No. Part No. Qty. Description

1 882905 1 White Front Panel Assembly

(includes illus. nos. 1, 5, and 6)

882901 1 Coral Blue Front Panel Assembly

(includes illus. nos. 1, 5, and 6)

882902 1 Ivory Front Panel Assembly

(includes illus. nos. 1, 5, and 6)

2 150313 11 #10-16 x 1/2” TORX Plus BTN Type 1

150318 1 25 IP TORX Plus Bit 1/4 Hex (for removal of TORX head screw)

3 -------- 1 Main Door Hinge

(refer to Main Door “Steel” Assembly on page 12 and page 13)

4 -------- 1 Lint Drawer Switch

(refer to Lint Drawer/Lint Drawer Switch Assembly on page 16)

5 881987 1 Friction Door Latch

(includes illus. nos. 5 and 6)

6 154215 2 5/32” Pop Rivet

T elephone: [phone] Fax: [phone]

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

12

Main Door “Steel” Assembly

Main Door “Steel” Assembly

Illus. No. Part No. Qty. Description

1 8 8 115 0 1 Black Main Door Assembly Complete

(includes illus. nos. 1, 2, and 8 through 15)

2 102354 1 Door Gasket

170731 1 Black Glass Adhesive (10.3 oz. cartridge)

3 8 8 115 2 1 Black Top Hinge Block Assembly

(includes illus. nos. 3 and 4)
4 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
5 153031 1 1/4” Nylon Washer
6 8 81151 1 Black Bottom Hinge Block Assembly

(includes illus. nos. 5 through 7)
7 150445 2 1/4-20 x 3/4” Black Cap Head Setscrew
8 150683 3 1/4-20 x 5/8” Black Carriage Bolt
9 152014 3 1/4-20 with 3/4” Free Spin Wash Nut
10 151010 1 #10-32 Black Hex Acorn Nut
11 150120 1 Door Latch Screw
12 150683 3 1/4-20 x 5/8” Black Carriage Bolt
13 152014 3 1/4-20 with 3/4” Free Spin Wash Nut
14 881210 1 Black Main Door Handle ONLY
15 102211 1 20-7/16” Door Glass

(for models mfd. prior to February 8, 2001 and as of March 13, 2001)

102218 1 20-7/16” Door Glass with Notch and Four (4) Holes

(for models mfd. between February 8, 2001 and March 13, 2001)

170731 1 Black Glass Adhesive (10.3 oz. cartridge)

16 151013 4 #10-32 Black Nylon Acorn Nut

(for models mfd. between February 8, 2001 and March 13, 2001)

13

T elephone: [phone] Fax: [phone]

14

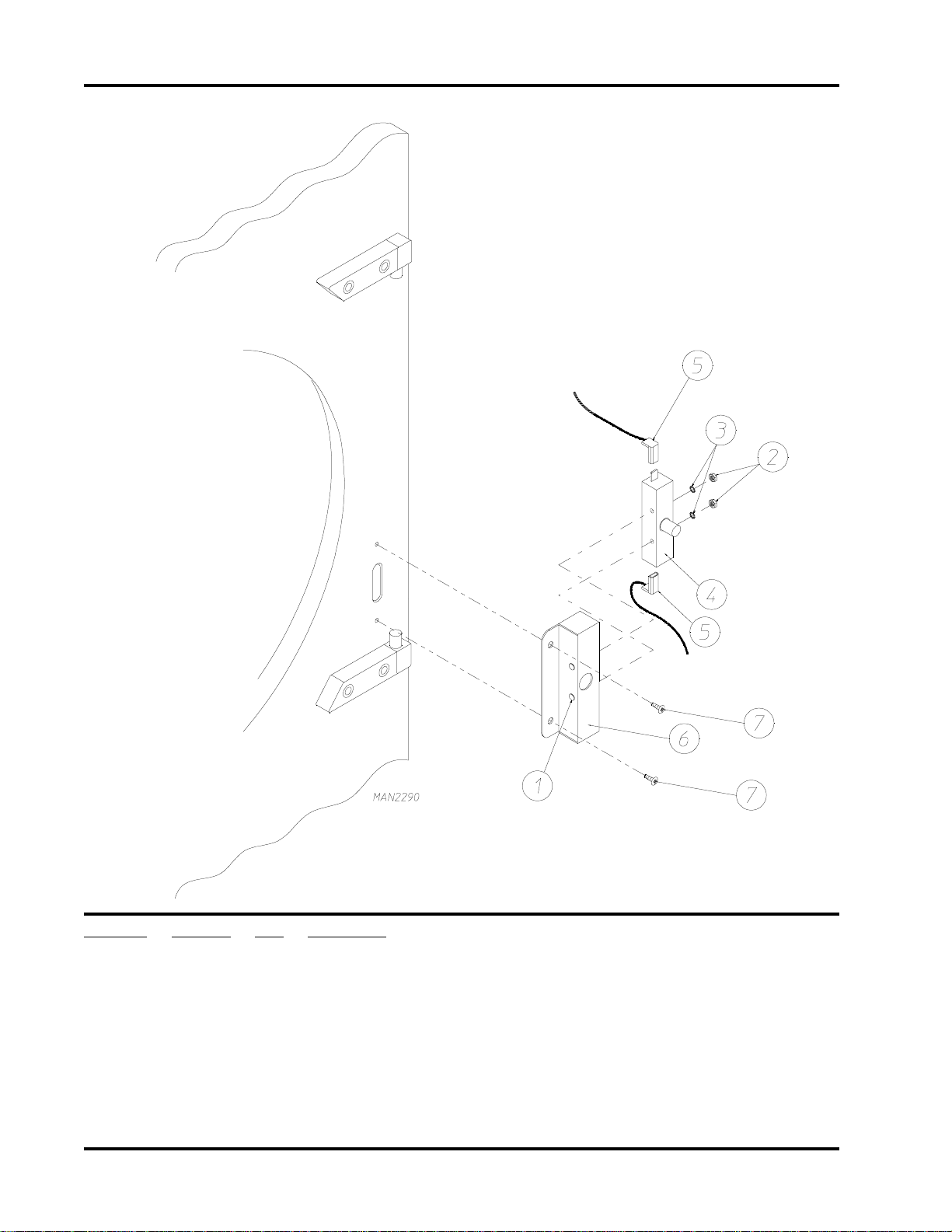

Main Door Switch Assembly

Illus. No. Part No. Qty. Description

1 150006 2 #6-32 x 7/8” Phillips Pan Head Machine Screw
2 152013 2 #6-32 Hex Nut
3 153010 2 #6 S tar Washer
4 137005 1 Door Switch
5 122636 2 Flag T erminal
6 881211 1 Black Main Door Switch Housing ONLY

88 115 3 1 Black Main Door Switch Housing Complete

(includes illus. nos. 1 through 4 and 6)

7 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

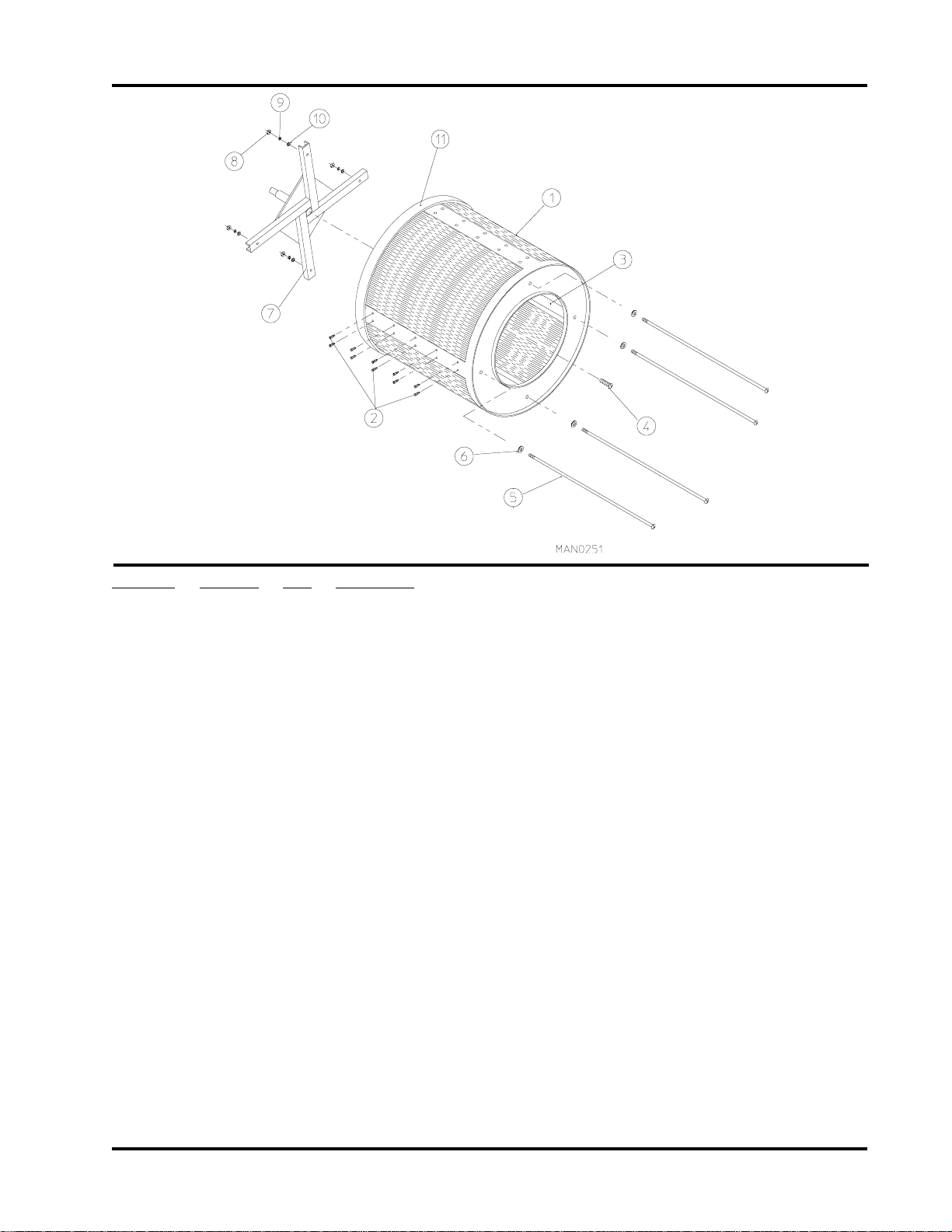

Basket (T umbler)/Support Assemblies

15

Illus. No. Part No. Qty. Description

1* 800708 1 Basket (tumbler) ONLY without Felt Collar

800857 1 Stainless Steel Basket (tumbler) ONLY without Felt Collar
800816 1 Basket (tumbler) and Support Assembly Complete

(includes illus. nos. 1 through 10)

800873 1 Stainless Steel Basket (tumbler) and Support Assembly Complete

(includes illus. nos. 1 through 10)
2 150413 40 #10-16 x 1/2” TORX Head Crimptite Screw

150429 1 TORX Hand Driver

(for removal of TORX head screw)
3 301308 4 Basket (tumbler) Rib ONLY

301408 4 Stainless Steel Basket (tumbler) Rib ONLY
4 150500 1 5/16-18 x 3/4” Socket Button Head Screw
5 100905 4 3/8-16 x 37” T ie Rod
6 153004 4 3/8” Flat Washer
7 800613 1 Basket (tumbler) Support ONLY

100724 1 1/4” x 1/4” x 1-1/4” Basket (tumbler) Support Key

(for models mfd. as of July 1, 2001)

100713 1 1/4” x 1/4” x 7/8” Basket (tumbler) Support Key

(for models mfd. prior to July 1, 2001)
8 152005 4 3/8-16 Hex Nut
9 153005 4 3/8” Lock Washer
10 153004 4 3/8” Flat Washer
1 1 116000 1 Felt Collar ONLY

--- 401010 1 #847 Adhesive for Felt Collar

* Felt collar is not included and must be ordered separately.

T elephone: [phone] Fax: [phone]

16

Lint Drawer/Lint Drawer Switch Assembly

Illus. No. Part No. Qty. Description

1 882871 1 Lint Drawer Assembly (white)

(includes illus. nos. 1 and 2)

882920 1 Lint Drawer Assembly (coral blue)

(includes illus. nos. 1 and 2)

882919 1 Lint Drawer Assembly (ivory)

(includes illus. nos. 1 and 2)
2 117605 5 Gasket (sold by the foot)
3 122116 1 Lint Drawer Switch
4 122605 2 4-Pin Socket Connector ONLY
5 122701 4 Socket T erminal ONLY

122801 1 Pin/Socket Extraction T ool

6 818087 1 Lint Drawer Switch Box Assembly

(includes illus. nos. 4 and 6)

304136 1 Lint Drawer Switch Box Cover
7 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
8 122700 4 Pin T erminal ONLY
9 122604 2 4-Pin Connector ONLY

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

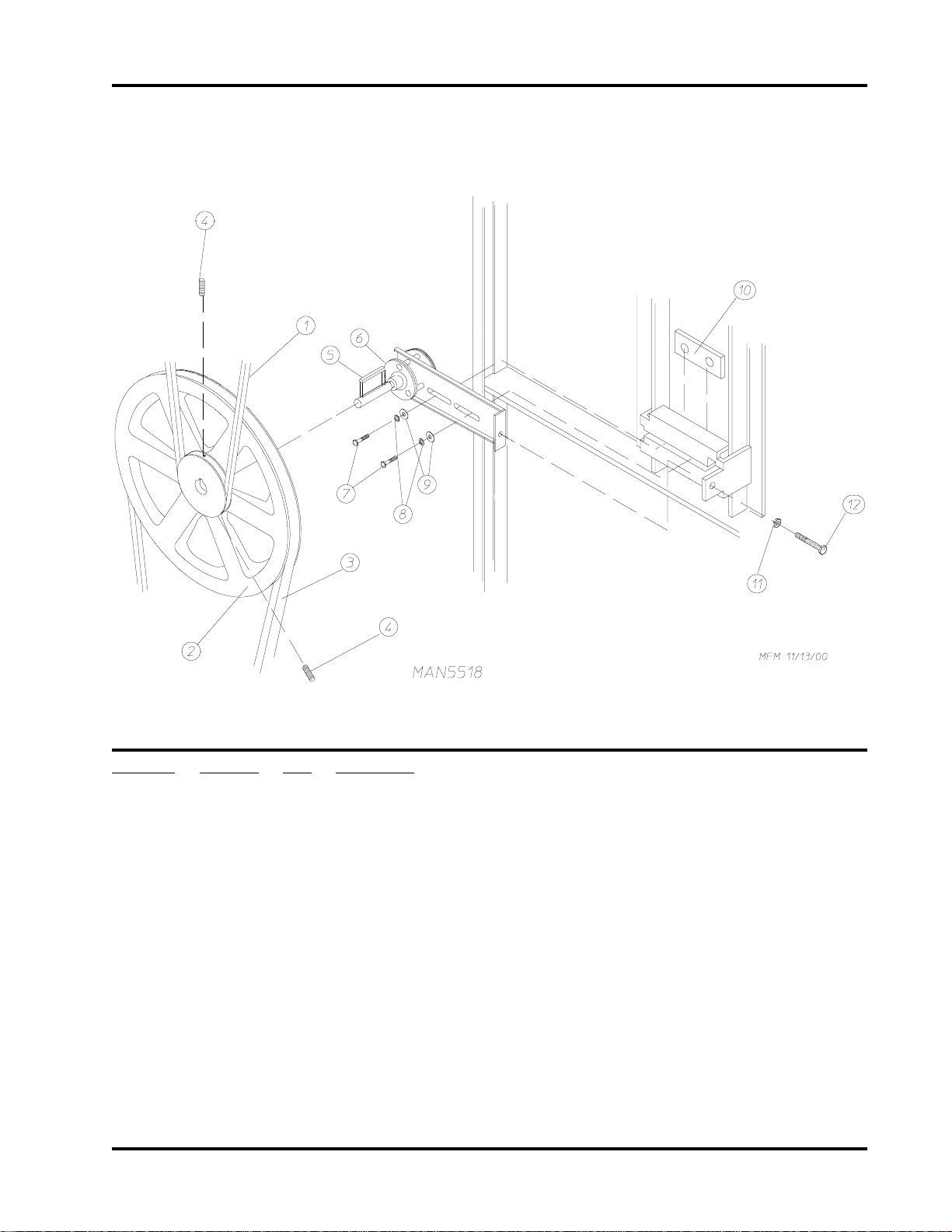

Idler Bearing Assembly

17

Illus. No. Part No. Qty. Description

1 100108 1 5L-680 V-Belt (basket [tumbler] to idler)

For Both Reversing and Non-Reversing Models
2 1 0 1 1 4 0 1 14” x 3” Compound Pulley
3 100194 1 4L-720 V-Belt (idler to motor)

For Non-Reversing Models ONLY

100109 1 4L-650 V-Belt (idler to motor)

For Reversing Models ONLY
4 154301 2 5/16-18 x 1” Allen Setscrew
5 100705 1 3/16” x 3/16” x 1-3/8” Key
6 882576 1 Idler Bearing Assembly Complete

(includes illus. nos. 5 through 12)
7 150617 2 3/8-16 x 1” Hex Head Machine Bolt
8 153005 2 3/8” Lock Washer
9 153004 2 3/8” Flat Washer
10 801009 1 Idler Square Washer
11 152004 1 5/16-18 Hex Nut
12 150509 1 5/16-18 x 3” Hex Head Machine Bolt

T elephone: [phone] Fax: [phone]

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

18

Basket (T umbler) Bearing Assembly

Basket (T umbler) Bearing Assembly

Illus. No. Part No. Qty. Description

1 880220 1 1-3/4” Flange Bearing
2 153025 4 9/16” Lock Washer
3 152050 4 9/16-12 Hex Nut
4 883258 1 Pillow Block Bearing Assembly Complete

(includes illus. nos. 4 through 17, 23 and 24)

882545 1 Pillow Block Bearing Assembly Complete with Rotational Sensor

(includes illus. nos. 4 through 18, 23 and 24)

882542 1 Pillow Block Bearing Platform ONL Y
882543 1 Pillow Block Bearing Platform ONL Y (for models with optional rotation

sensor)
5 880202 1 1-3/8” Pillow Block Bearing

880779 1 1-3/8” Pillow Block Bearing (for models with optional rotation sensor)
6 150601 2 3/8-16 x 2” Hex Bolt
7 153004 2 3/8” Flat Washer
8 153004 2 3/8” Flat Washer
9 153005 2 3/8” Lock Washer
10 152005 2 3/8-16 Hex Nut
11 154326 2 5/16-24 x 3/8” Setscrew
12 152004 2 5/16-18 Hex Nut
13 150621 2 5/16-18 x 1-1/2” Tap Bolt
14 153002 4 5/16” Lock Washer
15 153004 6 3/8” Flat Washer
16 150501 4 5/16-18 x 3/4” T ap Bolt
17 102120 1 Sintered 8 Magnet (for models with optional rotation sensor)
18 824807 1 Rotational Sensor Assembly (for models with optional rotation sensor)
19 100735 1 Shaft Key (for reversing models Only)
20 101100 1 18” Pulley (for non-reversing models Only)

10 111 8 1 18-3/4” Pulley (for reversing models Only)
21 10 111 0 1 1” Taper Lock Bushing (for reversing models Only)
22 100108 1 5L-680 V-Belt (basket [tumbler] to idler)

For Both Reversing and Non-Reversing Models
23 150610 2 5/16-18 x 1-1/2 Allen Setscrew
24 152004 2 5/16-18 Hex Nut

19

T elephone: [phone] Fax: [phone]

20

Non-Reversing Motor Mount Assembly

Illus. No. Part No. Qty. Description

1 100194 1 4L-720 V-Belt (idler to motor)
2 100701 1 3/16” x 3/16” x 1” Key
3 1 011 33 1 5/8” x 2-1/4” Motor Pulley (60 Hz Only)

10 1130 1 5/8” x 2-1/2” Motor Pulley (50 Hz Only)
4 150501 4 5/16-18 x 3/4” T ap Bolt
5 153002 4 5/16” Lock Washer
6 153001 4 5/16” Flat Washer
7 100073 1 1 hp 115/208-230v 60 Hz 1ø (for 60 Hz models mfd. as of

August 29, 2002)
181050 1 1 hp 200-240v 50 Hz 1ø (for 50 Hz models mfd. as of August 2, 2002)
100069 1 3/4 hp 120/208/230v 1ø 60 Hz Totally Enclosed, Fan-Cooled (T.E.F.C.)

Motor with Plug (56Z frame) for Models Mfd. prior to August 29, 2002
100068 1 3/4 hp 240v 50 Hz 1ø Motor with Plug

(for 50 Hz models mfd. prior to August 2, 2002)

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Non-Reversing Motor Mount Assembly (continued...)

Illus. No. Part No. Qty. Description

8 122701 8 Socket T erminal ONLY

122801 1 Pin/Socket Extraction T ool
9 137030 1 8-Pin Housing Connector
10 152004 4 5/16-18 Hex Nut
11 153002 4 5/16” Lock Washer
12 153001 4 5/16” Flat Washer
13 117604 4 Neoprene Sponge Tape (sold by the foot)
14 154000 4 5/16-18 Tinnerman Nut
15 850018 1 Non-Reversing Motor Mount ONLY (56Z frame)

803945 1 1 hp 120/230v 1ø 60 Hz T otally Enclosed, Fan-Cooled (T.E.F.C.)

Motor Mount Assembly with Plug Complete
(includes illus. nos. 2 through 7 and 13 through 20)

801824 1 1 hp 230v 1ø 50 Hz Non-Reversing Motor Mount Assembly Complete

(includes illus. nos. 2 through 7 and 13 through 20)

804028* 1 1 hp 208/460v 60 Hz 3ø Motor Mount Assembly

(includes illus. nos. 2 through 6 and 13 through 22)

804033* 1 1 hp 380-416v 50 Hz 3ø Motor Mount Assembly

(includes illus. nos. 2 through 6 and 13 through 22)
16 153051 1 3/4” S.A.E. Flat Washer
17 882670 1 16” Impellor (3/4” bore) for 1ø 60 Hz Models Mfd. as of August 29, 2002

and 50 Hz models mfd. as of August 2, 2002

802100 1 16” Impellor (1/2” bore) for 3ø 60 Hz Models Mfd. as of August 29, 2002

and 50 Hz Models Mfd. as of August 2, 2002

100604 1 12” Impellor (1/2” bore) for 60 Hz Models Mfd. prior to August 29, 2002

and 50 Hz Models Mfd. prior to August 2, 2002
18 100702 1 3/16” x 3/16” x 1-7/8” Key
19 153050 2 1/2” S.A.E. Flat Washer
20 152006 2 1/2-20 Left Hand Jam Nut
21 120200 1 3/8” x 90° Connector
22 18 1115 1 1 hp 208/460v 60 Hz 380v 50 Hz 3ø Motor

21

* Specify voltage when ordering.

T elephone: [phone] Fax: [phone]

22

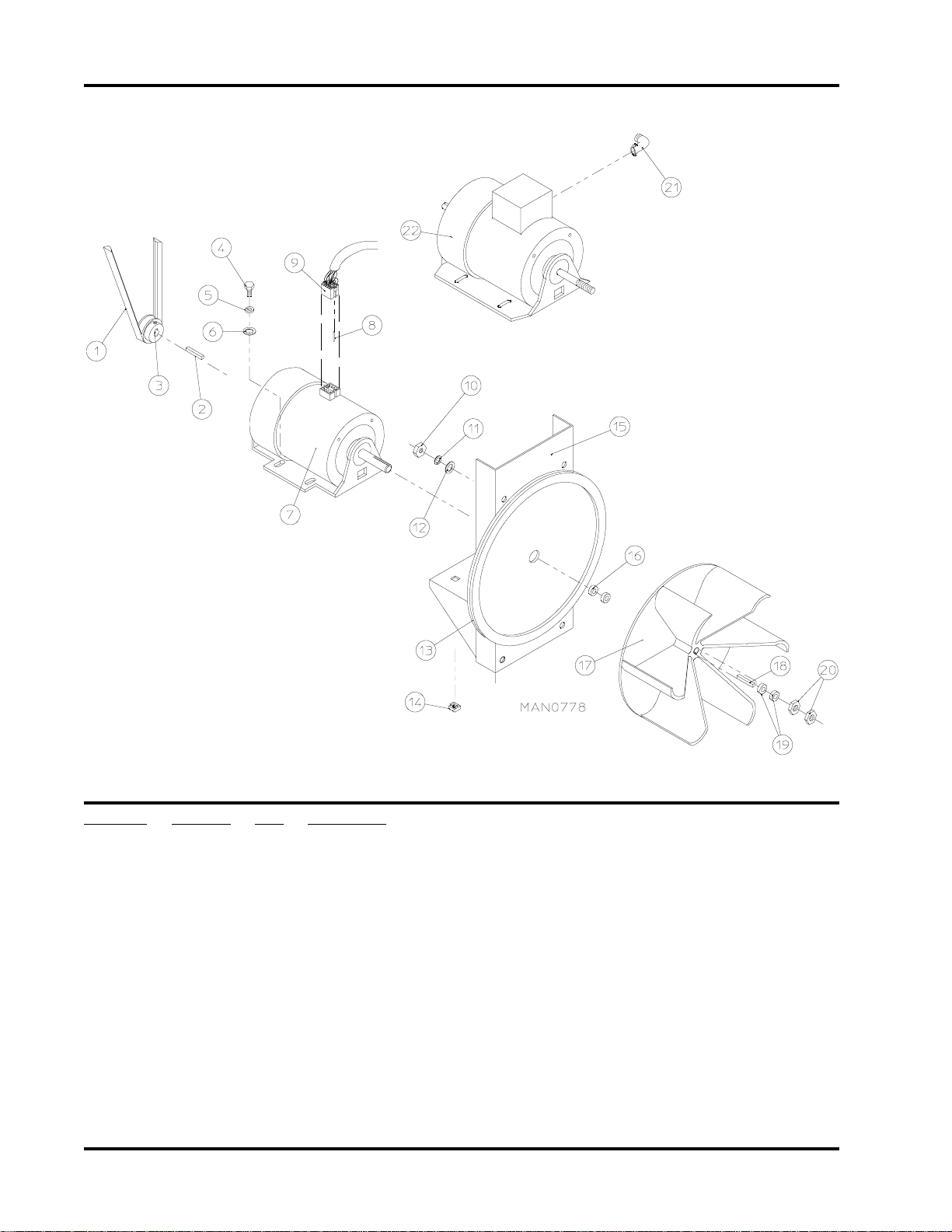

Reversing T .E.F.C. Motor Mount Assembly

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Reversing T .E.F.C. Motor Mount Assembly

Illus. No. Part No. Qty. Description

1 100109 1 4L-650 V-Belt (to idler assembly)
2 100701 1 3/ 16” x 3/16” x 1” Key
3 1 011 30 1 5/8” x 2-1/2” Motor Pulley (50 Hz Only)

10 1133 1 5/8” x 2-1/4” Motor Pulley (60 Hz Only)

4 120200 1 3/8” x 90° Connector
5 181003 1 1/2 hp 208/230/380/460v 3ø 50/60 Hz T otally Enclosed, Fan-Cooled

(T.E.F.C.) Motor (56Z frame)
6 150501 4 5/16-18 x 3/4” T ap Bolt
7 153002 4 5/16” Lock Washer
8 153001 4 5/16” Flat Washer
9* 100007 1 1/2 hp 220/230/380/460v 3ø 50/60 Hz T otally Enclosed, Fan-Cooled

(T.E.F.C.) Motor with 3/4” Shaft (56Z frame)
10 120200 1 3/8” x 90° Connector
11 150501 4 5/16-18 x 3/4” Tap Bolt
12 153002 4 5/16” Lock Washer
13 153001 4 5/16” Flat Washer
14 154000 8 5/16-18 Tinnerman Nut
15 152004 7 5/16-18 Hex Nut
16 153002 7 5/16” Lock Washer
17 153001 7 5/16” Flat Washer
18 850021 1 Reversing Motor Mount ONLY (56Z frame)

804036** 1 60 Hz Reversing Totally Enclosed, Fan-Cooled (T.E.F .C.) Motor Mount

Assembly Complete

(includes illus. nos. 2 through 14 and 18 through 24)

804034** 1 50 Hz Reversing Totally Enclosed, Fan-Cooled (T.E.F .C.) Motor Mount

Assembly Complete

(includes illus. nos. 2 through 14 and 18 through 24)
19 117604 4 Neoprene Sponge Tape (sold by the foot)
20 153051 1 3/4” S.A.E. Flat Washer
21 100714 1 3/16” x 3/16” x 1-7/8” Key
22 802100 1 16” Impellor (1/2” bore) for 60 Hz Models Mfd. as of August 29, 2002 and

50 Hz Models Mfd. as of August 2, 2002

100604 1 12-1/2” Impellor (1/2” bore) for 60 Hz Models Mfd. prior to August 29, 2002

and 50 Hz Models Mfd. prior to August 2, 2002
23 153050 *** 1/2” S.A.E. Flat Washer
24 152006 2 1/2-20 Left Hand Jam Nut

23

* Check part number on motor data label to verify correct motor.
** Specify voltage when ordering.
*** As required.

T elephone: [phone] Fax: [phone]

24

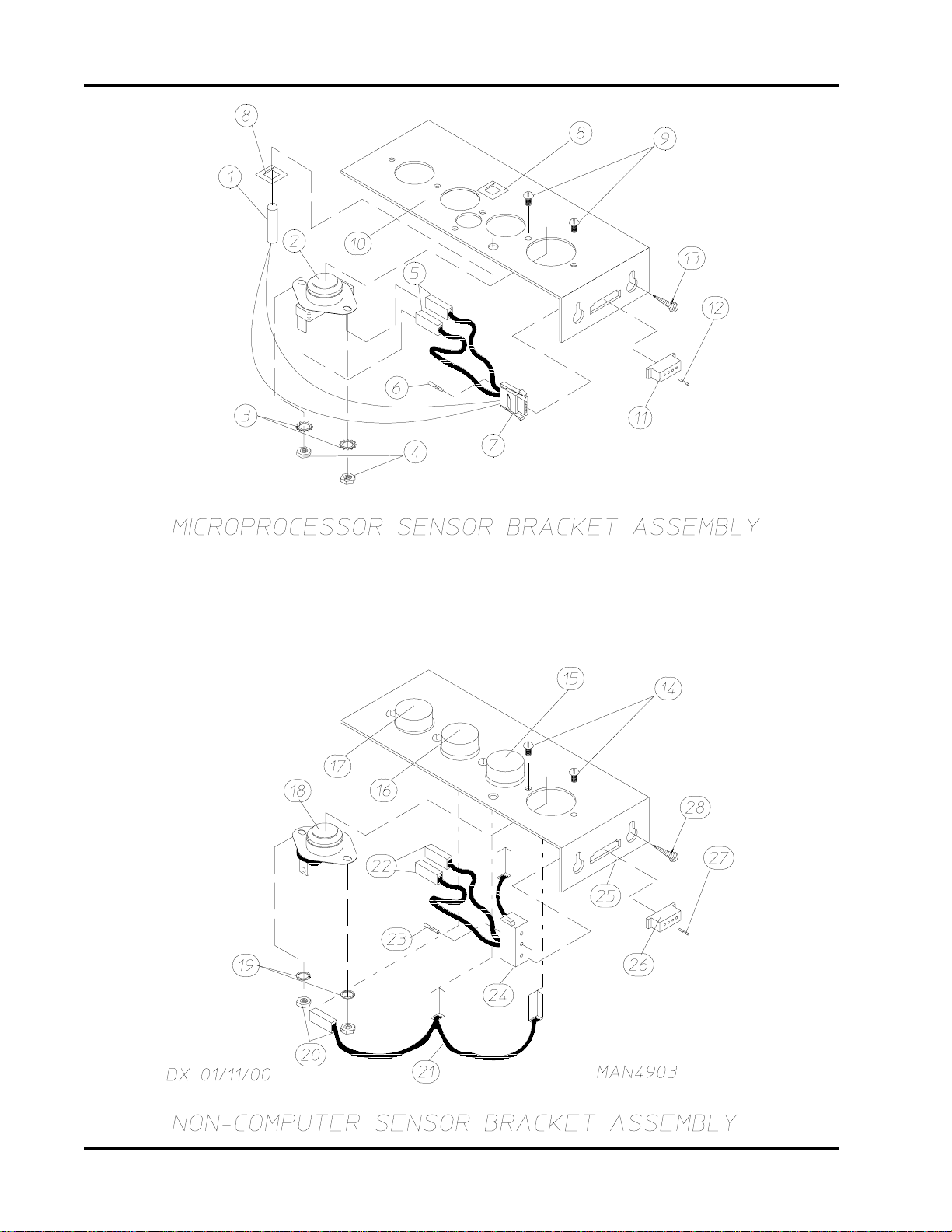

Sensor Bracket Assemblies

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Sensor Bracket Assemblies

Illus. No. Part No. Qty. Description

1 880251 1 1/4” Temperature Sensor Probe Assembly

(includes illus. nos. 1 and 5 through 8)
2 130103 1 225° Automatic Reset Thermostat
3 153010 2 #6 S tar Washer
4 152000 2 #6-32 Hex Nut
5 121028 2 Insulated Female T erminal
6 122701 4 Socket T erminal ONLY

112801 1 Pin/Socket Extraction Tool
7 122605 1 4-Pin Socket Connector ONLY
8 154007 2 1/4” Tinnerman Push On Fastener
9 150005 2 #6-32 x 1/4” Phillips Round Head Machine Screw
10 824051 1 Microprocessor Sensor Bracket Assembly Complete

(includes illus. nos. 1 through 10)

322062 1 Universal Sensor Bracket ONLY
11 122604 1 4-Pin Connector ONLY
12 122700 4 Pin T erminal ONLY
13 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
14 150005 5 #6-32 x 1/4” Phillips Round Head Machine Screw
15 130111 1 130° Large Thermostat
16 130100 1 150° Large Thermostat
17 130103 1 225° Automatic Reset Thermostat
18 130101 1 180° Large Thermostat
19 153010 5 #6 S tar Washer
20 152000 5 #6-32 Hex Nut
21 882535 1 Sensor Jumper ONLY
22 121028 4 Insulated Female T erminal
23 122701 4 Socket T erminal ONLY
24 122605 1 4-Pin Socket Connector ONLY

882534 1 Sensor Bracket Harness Assembly

(includes illus. nos. 22 through 24)

25 882536 1 Noncomputer Sensor Bracket Assembly Complete - Includes Thermostats

(includes illus. nos. 14 through 25)

322062 1 Universal Sensor Bracket ONLY
26 122604 1 4-Pin Connector ONLY
27 122700 4 Pin T erminal ONLY

122801 1 Pin/Socket Extraction T ool
28 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw

25

T elephone: [phone] Fax: [phone]

26

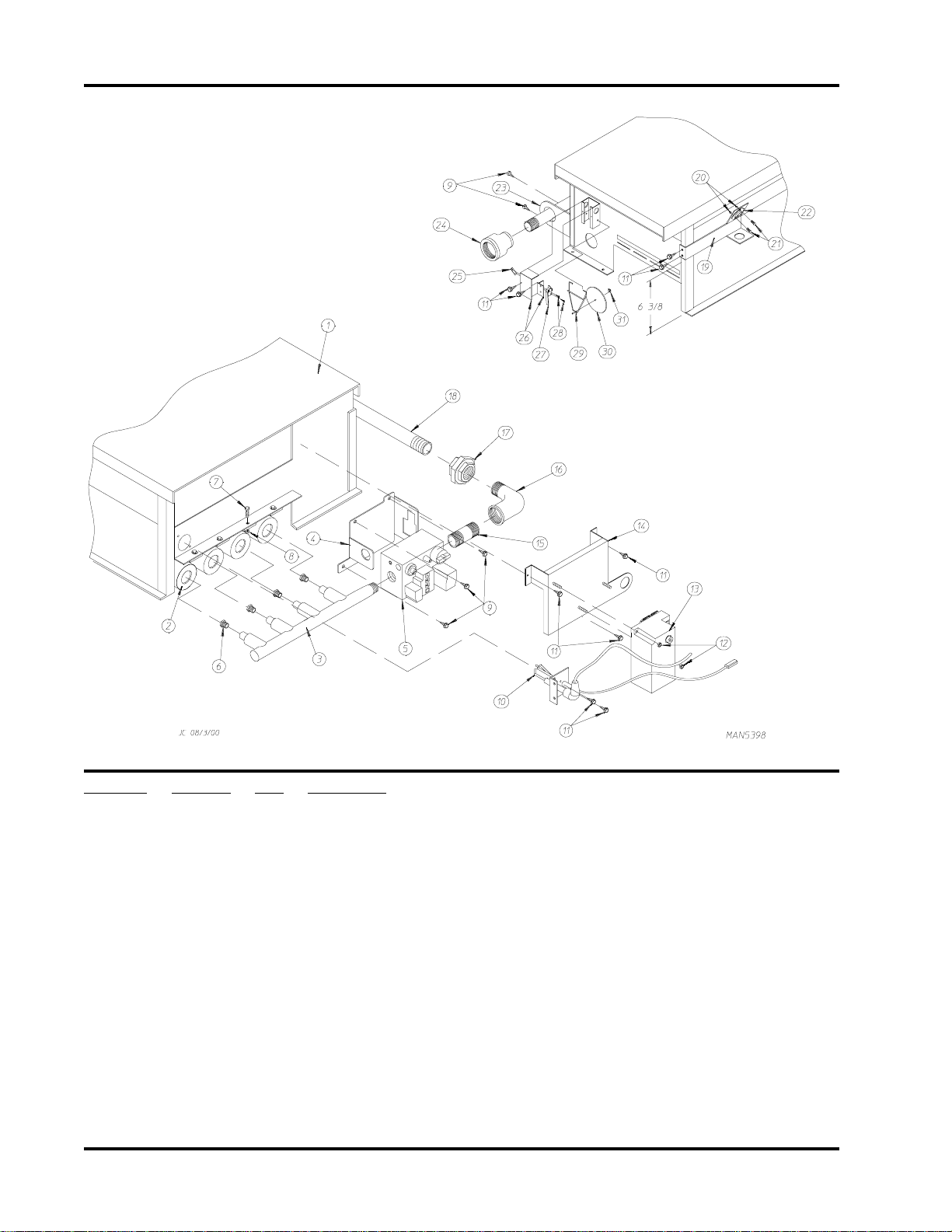

Direct Spark Ignition (DSI) Burner Assembly

Illus. No. Part No. Qty. Description

1* 882898 1 Natural Gas Burner Assembly Complete

(includes illus. nos. 1 through 31)
For Models Mfd. with Natural Gas ONLY

882899 1 Liquid Propane (L.P.) Gas Burner Assembly Complete

(includes illus. nos. 1 through 31)
For Models Mfd. with Liquid Propane (L.P.) Gas ONLY

814832 1 Burner Box ONLY
2 141105 4 Large Burner Tube
3 141210 1 3/4” Direct Spark Ignition (DSI) Manifold (4-port)
4 318714 1 Bracket for Horizontal Facing Gas Valve
5 128927 1 1/2” 24 VAC Redundant (natural gas) Gas Valve

880960 1 1/2” 24 VAC Direct Spark Ignition (DSI) Liquid Propane (L.P.)

Gas Valve Assembly

882230 1 AD-758DV Liquid Propane (L.P.) Conversion Kit
6* 140819 4 #30 Burner Orifice (natural gas) ONLY

140803 4 #49 Burner Orifice (liquid propane [L.P.] gas) ONLY

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Direct Spark Ignition (DSI) Burner Assembly (continued)

Illus. No. Part No. Qty. Description

7 150103 4 #8-32 x 1/2” Pan Head Machine Screw
8 151001 4 #8-32 Pal Nut
9 150300 5 #10-16 x 1/2” Hex Washer TEK Screw
10 809309 1 Ignitor Probe Assembly with 19” Leads
11 150309 9 #10-16 x 1/2” Hex Head TEK Crimptite Screw
12 152013 2 #6-32 Hex Nut
13 128935 1 Direct Spark Ignition (DSI) Module with Three (3) T ries
14 817027 1 Johnson Controls Direct Spark Ignition (DSI) Module Mounting Bracket
15 142707 4 1/2” x 1-1/2” Long Black Nipple
16 142506 1 1/2” Street Elbow
17 142600 1 1/2” Black Union
18 142809 1 1/2” x 29-1/8” Nipple
19 319704 1 Hi-Limit Mounting Bracket
20 151000 2 #6-32 Pal Nut
21 150001 2 #6-32 x 1/2” Phillips Round Head Machine Screw
22 130201 1 330º Hi-Limit Manual Reset
23 318700 1 Pipe Bracket (bent)
24 143000 1 3/4” to 1/2” Reducing Coupling
25 154004 1 Twin Speed Nut
26 802799 1 Sail Switch Box Cover and Bracket ONLY

(refer to Sail Switch Assembly on

27 122200 1 Sail Switch ONLY
28 150303 2 #4 x 3/4” Pan Head “A” Machine Screw
29 105500 1 Sail Switch Actuator Rod
30 319202 1 Sail Switch Damper (flat)
31 154002 1 1/8” Push On Fastener
** 882772 1 Steam to Gas Interface Plate...Not Illustrated

page 37)

27

* Consult factory for elevations over 2,000 feet.
** Needed when converting from steam to gas heat.

T elephone: [phone] Fax: [phone]

28

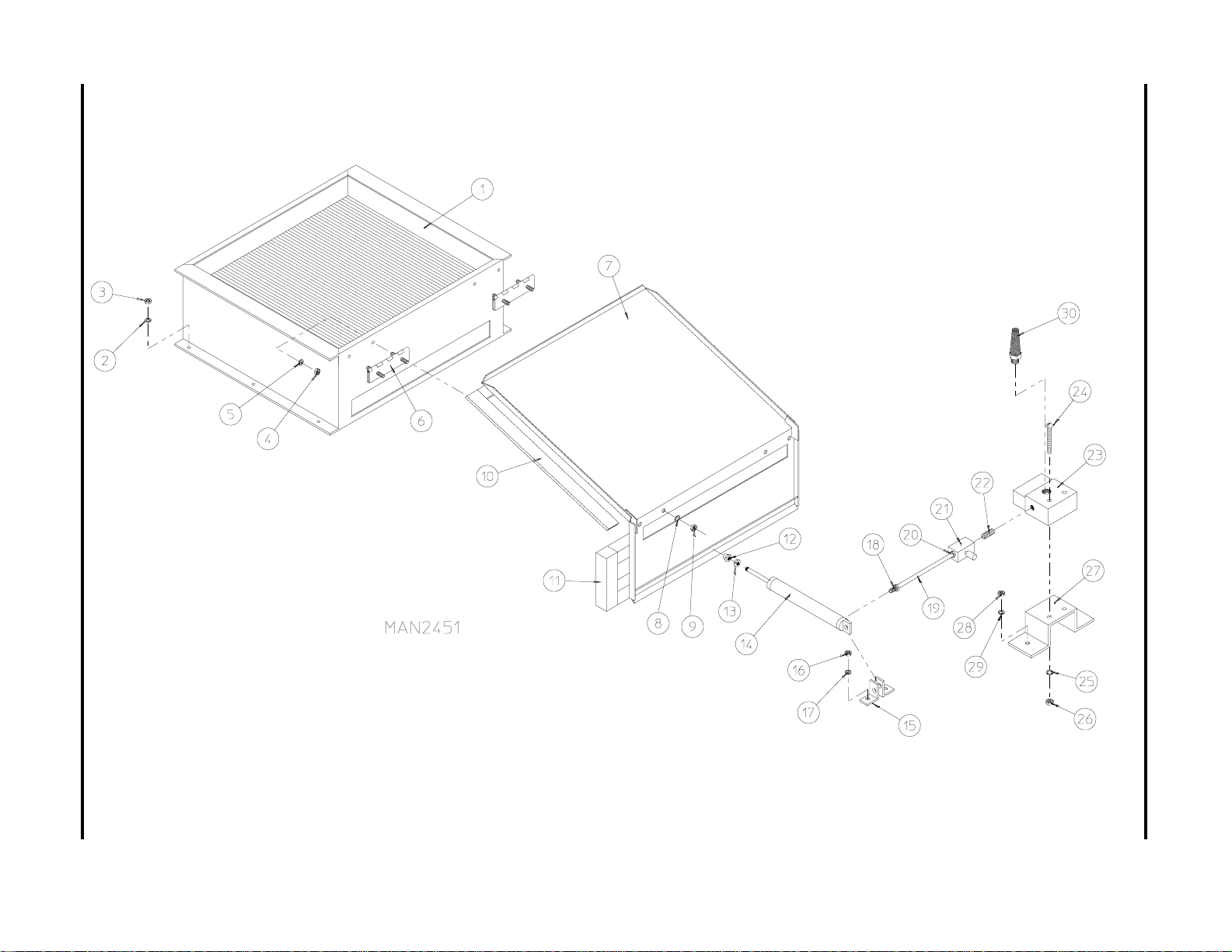

Electric Oven Assembly

ELECTRIC OVEN (REAR VIEW)

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Electric Oven Assembly

Illus. No. Part No. Qty. Description

1 803005 1 Large Electric Oven Box ONLY

--------* 1 Electric Oven Assembly Complete
2 --------* - Electric Element
3 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
4 802800 1 Sail Switch Box with Bracket and Cover ONLY

802801 1 Sail Switch Box Assembly Complete

(includes illus. nos. 4 through 12)
5 154004 1 Twin Speed Nut
6 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
7 802799 1 Sail Switch Box Cover and Bracket ONLY

(refer to Sail Switch Assembly on
8 122200 1 Sail Switch ONLY
9 150303 2 #4 x 3/4” Pan Head “A” Machine Screw
10 105500 1 Sail Switch Actuator Rod
11 319202 1 Sail Switch Damper (flat)
12 154002 1 1/8” Push On Fastener
13 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
14 803100 1 Electric Oven Front Cover ONLY
15 320611 1 Large Relay Box Cover ONLY
16 150402 2 #10-24 x 5/8” Slotted Truss Head Machine Screw
17 130400 1 290º Hi-Limit
18 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
19 154001 2 #10-24 Speed Nut
20 121012 1 Terminal Lug for 1 10-8 W ire
21 152014 3 1/4-20 with 3/4” Free Spin Wash Nut
22 --------* 1 Oven Relay
23 --------* 1 Oven Relay Replacement Coil
24 120081 - Internal Ceramic Insulator (2 per element)
25 120080 - External Ceramic Insulator (2 per element)
26 152008 - #10-32 Hex Nut (4 per element)
27 121011* - Bus Bar (sold by the foot)
28 --------* - Terminal Lug
29 153009 - #10 Star Washer (2 per element)
30 320607 1 Large Electric Oven Right Side Cover ONLY
31 150402 2 #10-24 x 5/8” Slotted Truss Head Machine Screw

page 37)

29

* Refer to Electric Oven Component Application Chart on page 39.

T elephone: [phone] Fax: [phone]

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

30

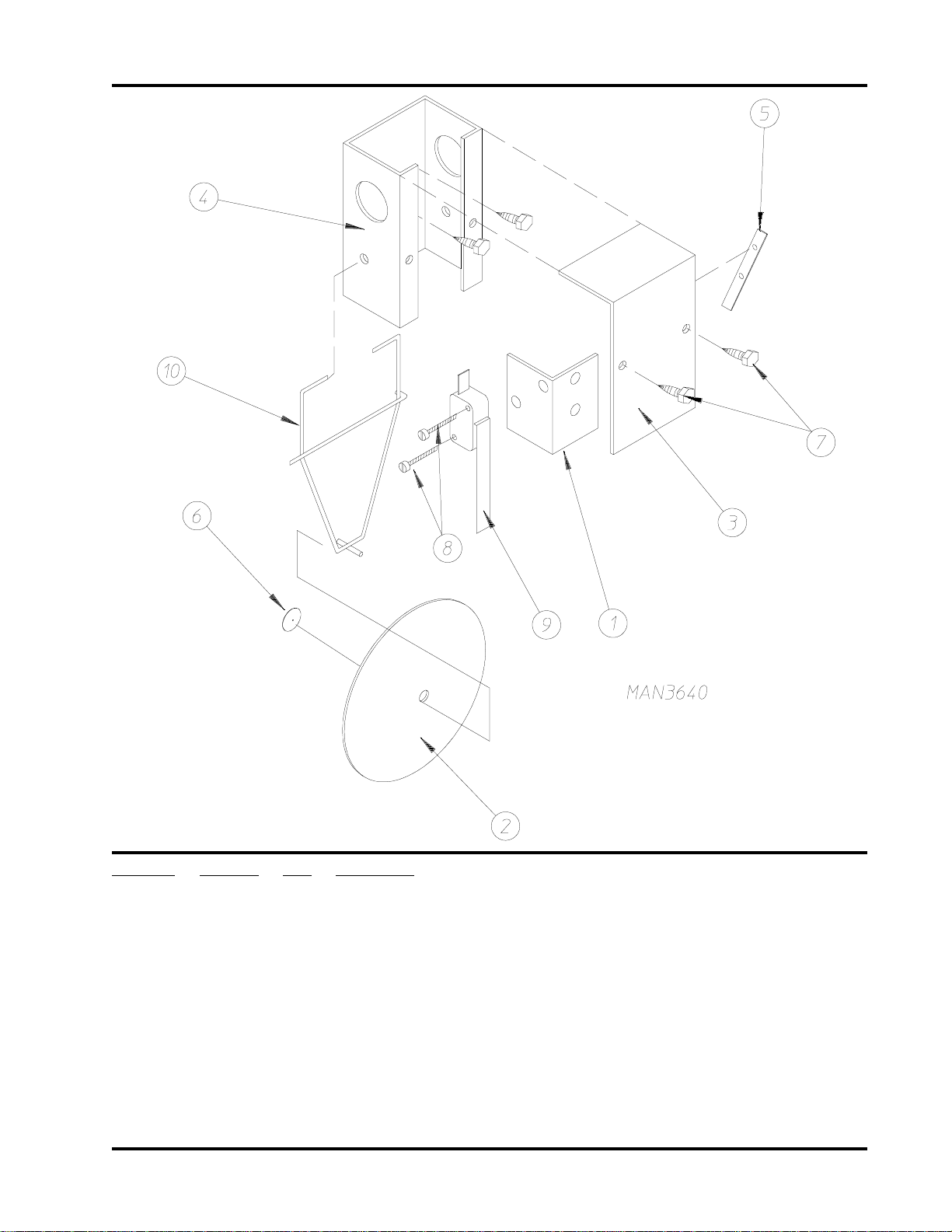

Air-Operated S team Damper Assembly

Air-Operated S team Damper Assembly

Illus. No. Part No. Qty. Description

1 165009 1 Steam Coil Assembly
2 153002 6 5/16” Lock Washer
3 152004 6 5/16-18 Hex Nut
4 152002 4 1/4-20 Hex Nut
5 153007 4 1/4” Lock Washer
6 820321 2 Steam Damper Hinge Assembly
7 803415 1 Steam Damper Assembly

(includes illus. nos. 7, 10, and 11)
8 153007 4 1/4” Lock Washer
9 152002 4 1/4-20 Hex Nut
10 115995 108 Steam Damper Gasket (sold by the inch)
11 102350 1 Steam Damper Foam (68-1/2” length)
12 151007 1 7/16-20 Stainless Steel Acorn Nut
13 152007 1 7/16-20 Hex Nut
14 100497 1 1-1/4” Bore x 3” Stroke Piston
15 100492 1 Piston Support Bracket
16 152002 4 1/4-20 Hex Nut
17 153007 4 1/4” Lock Washer
18 100472 1 1/4” x 1/8” Connector
19 143110 1 1/4” Tubing (sold by the foot)
20 100472 1 1/4” x 1/8” Connector
21 100496 1 1/8” Needle Valve
22 143238 1 1/8” Close Nipple
23 100498 1 3-Way Micro Valve - 24 VAC
24 150002 2 #6-32 x 1” Phillips Round Head Machine Screw
25 153010 2 #6 S tar Washer
26 152000 2 #6-32 Hex Nut
27 330987 1 Micro Valve Support Bracket
28 152002 2 1/4-20 Hex Nut
29 153007 2 1/4” Lock Washer
30 100520 1 1/8” N.P.T. Silencer (muffler)

31

T elephone: [phone] Fax: [phone]

32

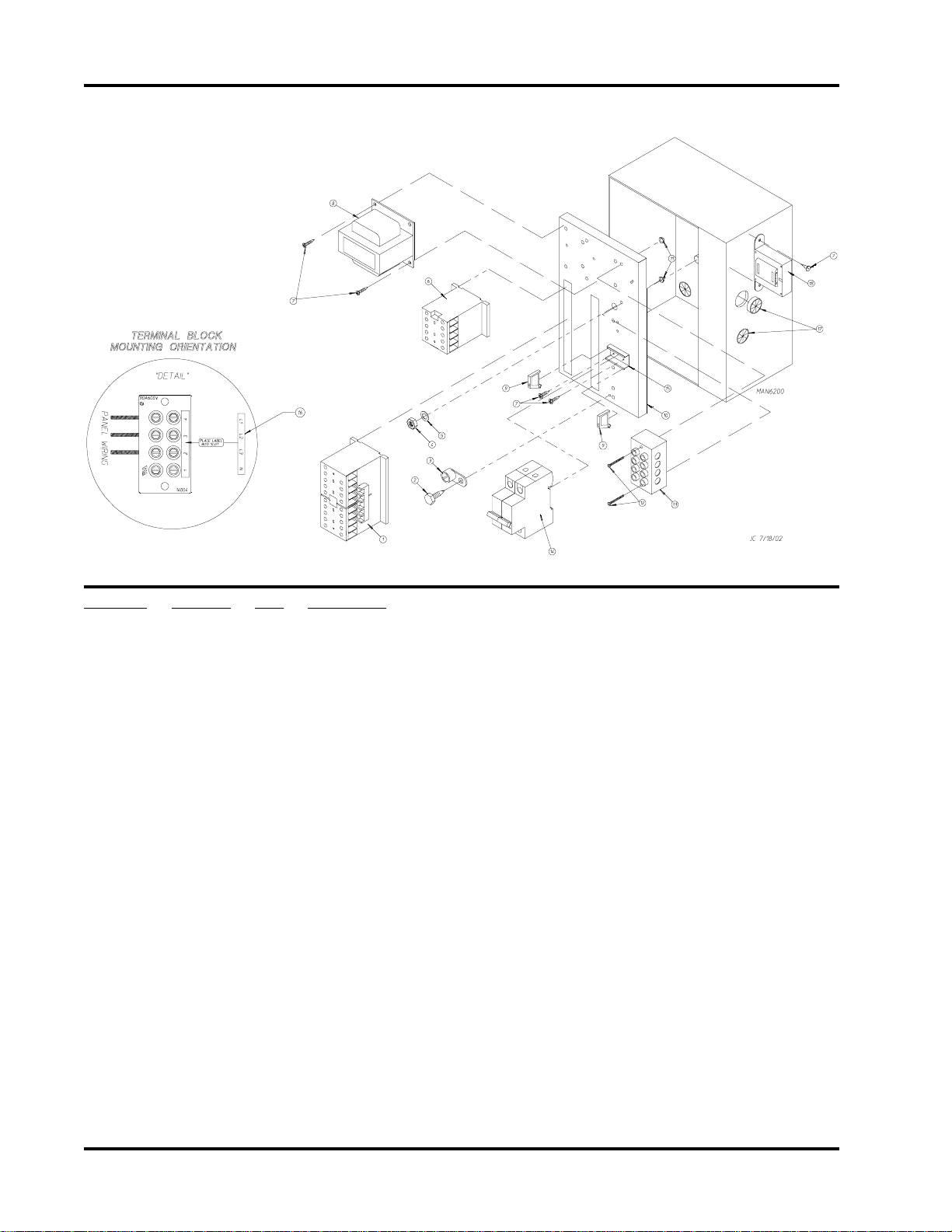

Single-Phase (1ø) Motor, Electric Relay Panel Assembly

Illus. No. Part No. Qty. Description

1 151000 2 #6-32 Pal Nut
2 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
3 150008 2 #6-32 x 1-1/4” Phillips Pan Head Machine Screw
4 120716 1 2-Position T erminal Block
5 322817 1 Mounting Plate ONLY

882662 1 Rear Electric Panel Assembly Complete - 120 Volt

(includes illus. nos. 1 through 14)

882663 1 Rear Electric Panel Assembly Complete - 208-240 Volt

(for gas and steam heated models Only)
(includes illus. nos. 1 through 14)

818395 1 Rear Electric Panel Assembly Complete - 208-240 Volt

(for electric heated models Only)
(includes illus. nos. 1 through 14)

6 882652 1 Transformer Assembly - 120 Volt

882653 1 Transformer Assembly - 208-240 Volt

(for gas and steam heated models Only)

818396 1 Transformer Assembly - 208-240 Volt (for electric heated models Only)
7 136008 1 or 2 Fuse Holder ONLY
8 136049 1 3/4-Amp (Slo-Blo) Fuse ONLY - 120 Volt

136057 2 1/2-Amp (Slo-Blo) Fuse ONLY - 208-240 Volt
9 150301 1 #8-18 x 7/16” Phillips Pan Head TEK Screw
10 150297 1 #10 x 1/2” Hex Washer TEK Screw (green)
1 1 152004 1 5/16-18 Hex Nut
12 121010 1 L-70 Ground Lug
13 153002 1 5/16” Lock Washer
14 132459 1 3-Pole Contactor
15 121300 3 Open/Closed Bushing

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

3-Phase (3ø) Motor, Electric Relay Panel Assembly

Illus. No. Part No. Qty. Description

1 151000 2 #6-32 Pal Nut
2 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
3 150008 2 #6-32 x 1-1/4” Phillips Pan Head Machine Screw
4 120701 1 4-Position T erminal Block (for models mfd. with 3ø motors)

120716 1 2-Position T erminal Block (for models mfd. with 1ø motors)

5 322817 1 Mounting Plate ONLY

882664 1 Rear Electric Panel Assembly Complete - 208-240 Volt

For Gas and Steam Models ONLY
(includes illus. nos. 1 through 14)

818400 1 Rear Electric Panel Assembly - 208-240 Volt

For Electric Heated Models ONLY
(includes illus. nos. 1 through 14)

882665 1 Rear Electric Panel Assembly Complete - 380-416 Volt

For Gas and Steam Models ONLY
(includes illus. nos. 1 through 14)

818395 1 Rear Electric Panel Assembly Complete - 208-240 Volt

For Electric Heated Models ONLY
For Models Mfd. with Single-Phase (1ø) Motor ONLY
(includes illus. nos. 1 through 14)

882667 1 Rear Electric Panel Assembly Complete - 380-416 Volt

For Electric Heated Models ONLY
For Models Mfd. with Single-Phase (1ø) Motor ONLY
(includes illus. nos. 1 through 14)

6 882653 1 Transformer Assembly - 208-240 Volt for Gas and Steam Models ONLY

818396 1 Transformer Assembly - 208-240 Volt for Electric Heated Models ONLY

882654 1 Transformer Assembly - 380-416 V olt
7 136008 2 Fuse Holder ONLY
8 136057 2 1/2-Amp (Slo-Blo) Fuse ONLY
9 150301 2 #8-18 x 7/16” Phillips Pan Head TEK Screw
10 150297 1 #10 x 1/2” Hex Washer TEK Screw (green)
11 152004 1 5/16-18 Hex Nut
12 121010 1 L-70 Ground Lug
13 153002 1 5/16” Lock Washer
14 132459 1 3-Pole Contactor
15 121300 3 Open/Closed Bushing

33

T elephone: [phone] Fax: [phone]

34

460-480 V AC 3-Phase (3ø) Motor, Electric Relay Panel Assembly

Illus. No. Part No. Qty. Description

1 150009 2 #6-32 x 1-1/2” Phillips Pan Head Machine Screw
2 120701 1 4-Position T erminal Block
3 830208 1 Transformer Assembly (460 VAC) for Micro Models ONLY

824161 1 Transformer Assembly (460 VAC) for Non-Micro Models ONLY
4 135501 1 1-Amp Double-Pole Circuit Breaker (460 VAC Only)
5 120768 2 35 x 15mm Din Rail
6 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
7 150297 2 #10 x 1/2” Ground Screw
8 152004 1 5/16-18 Hex Nut
9 121010 1 L-70 Ground Lug
10 153002 1 5/16” Lock Washer
11 132459 1 24 VAC 3-Pole Contactor
12 322817 1 Mounting Plate ONLY

883332 1 Rear Panel Assembly Complete (460 VAC) for Micro Models ONLY

(includes illus. nos. 1 through 14)

830262 1 Rear Panel Assembly Complete (460 VAC) for Non-Micro Models ONLY

(includes illus. nos. 1 through 14)
13 151000 2 #6-32 Pal Nut
14 120765 4 End Stop
15 121300 2 Open/Closed Bushing
16 141403 1 Control Voltage Transformer (24V) for Micro Models ONLY

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Reversing Electric Relay Panel Assembly

35

Illus. No. Part No. Qty. Description

1 150300 2 #10-16 x 1/2” Hex Washer TEK Screw
2 150008 2 #6-32 x 1-1/4” Phillips Pan Head Machine Screw
3 120701 1 4-Position T erminal Block
4 132458 1 3-Pole Reversing Contactor
5 882653 1 Transformer Assembly - 208-240 Volt for Gas and Steam Models ONLY

825428 1 Transformer Assembly - 208-240 Volt for Electric Heated Models ONLY

882654 1 Transformer Assembly - 380-416 Volt
6 136008 1 Fuse Holder ONLY
7 136057 1 1/2-Amp (Slo-Blo) Fuse ONLY - 208-240 Volt
8 150301 1 #8-18 x 7/16” Phillips Pan Head TEK Screw
9 150297 1 #10 x 1/2” Hex Washer TEK Screw (green)
10 152004 1 5/16-18 Hex Nut
11 121010 1 L-70 Ground Lug
12 153002 1 5/16” Lock Washer
13 132459 1 3-Pole Contactor
14 322812 1 Rear Electric Mounting Plate ONLY

882673 1 Rear Electric Panel Assembly Complete - 208-240 Volt

For Gas and Steam Models ONLY
(includes illus. nos. 1 through 16)

883335 1 Rear Electric Panel Assembly Complete - 208-240 Volt

For Electric Heated Models ONLY
(includes illus. nos. 1 through 16)

882676 1 Rear Electric Panel Assembly Complete - 380-416 Volt

(includes illus. nos. 1 through 16)
15 151000 2 #6-32 Pal Nut
16 120765 1 Standard End Bracket

T elephone: [phone] Fax: [phone]

36

460-480 V AC Reversing Electric Relay Panel Assembly

Illus. No. Part No. Qty. Description

1 132458 1 24 VAC Reversing Contactor
2 150297 1 #10 x 1/2” Hex Head TEK Screw (green)
3 121010 1 L-70 Ground Lug
4 152004 1 5/16-18 Hex Nut
5 153002 1 5/16” Lock Washer
6 132459 1 24 VAC 3-Pole Blower Contactor
7 150300 4 #10-16 x 1/2” Hex Washer TEK Screw
8 830208 1 Transformer Assembly (460 VAC) for Micro Models ONLY

824161 1 Transformer Assembly (460 VAC) for Non-Micro Models ONLY
9 120765 2 End Stop
10 322817 1 Mounting Plate ONLY

883327 1 460 VAC Reversing Rear Electric Panel Assembly Complete

For Micro Models ONLY
(includes illus. nos. 1 through 16)

824133 1 460 VAC Reversing Rear Electric Panel Assembly Complete

For Non-Micro Models ONLY

(includes illus. nos. 1 through 16)
1 1 151000 2 #6-32 Pal Nut
12 150009 2 #6-32 x 1-1/2” Phillips Pan Head Machine Screw
13 120701 1 4-Position T erminal Block
14 135501 1 1-Amp Double-Pole Circuit Breaker
15 120768 2 35 x 15mm Din Rail (sold by the inch)
16 112068 1 3-Phase (3ø) Power Input Label
17 121300 1 Open/Closed Bushing
18 141403 1 Control Voltage Transformer (24V) for Micro Models ONLY

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

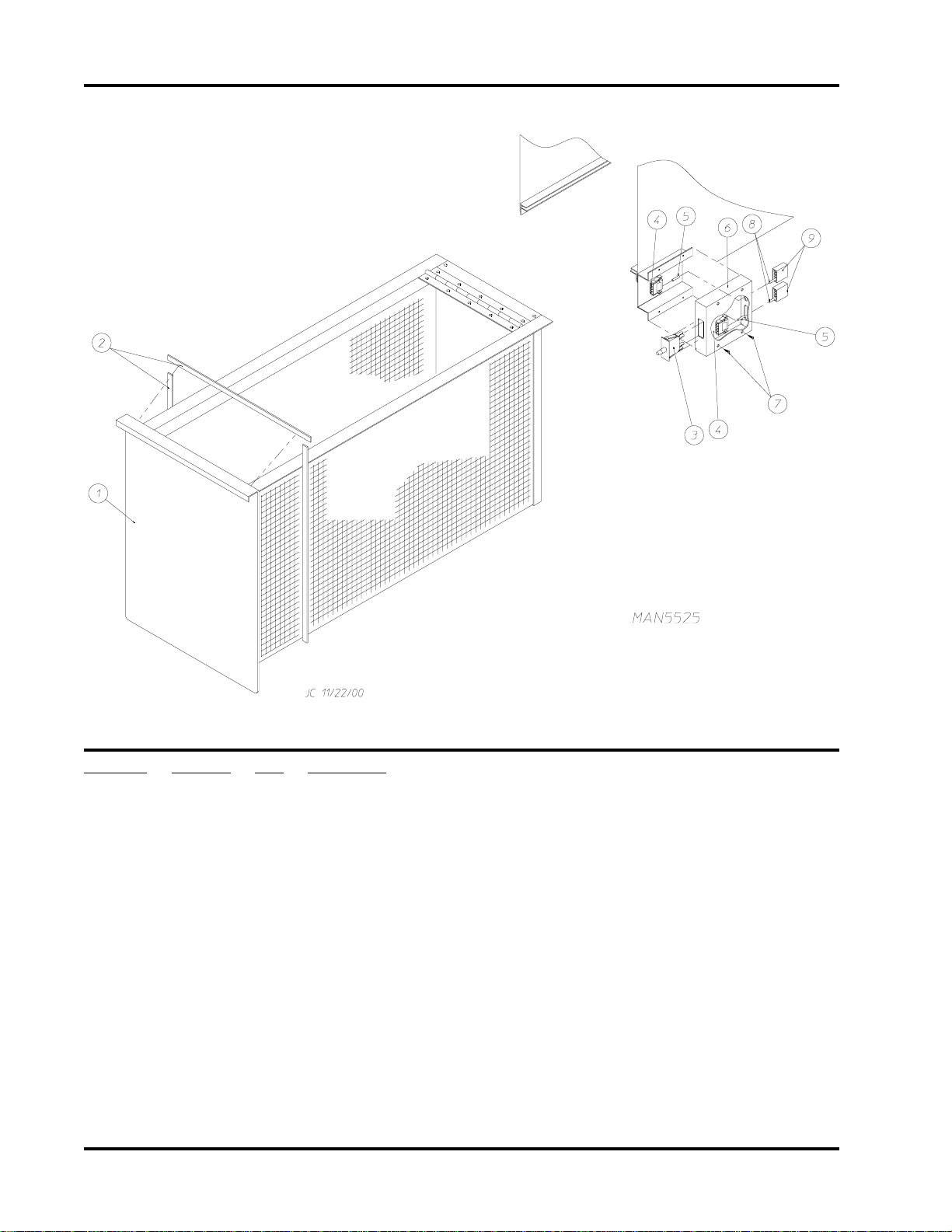

Sail Switch Assembly

37

Illus. No. Part No. Qty. Description

1 319203 1 Sail Switch Mounting Bracket
2 319202 1 Sail Switch Damper (flat)
3 319201 1 Sail Switch Box Cover
4 802800 1 Sail Switch Box
5 154004 1 Twin Speed Nut
6 154002 1 1/8” Push On Fastener
7 150309 2 #10-16 x 1/2” Hex Head TEK Crimptite Screw
8 150303 2 #4 x 3/4” Pan Head “A” Machine Screw
9 122200 1 Sail Switch ONLY

881706 1 Sail Switch Box Assembly Complete

(includes illus. nos. 1 through 10)

10 105500 1 Sail Switch Actuator Rod

T elephone: [phone] Fax: [phone]

38

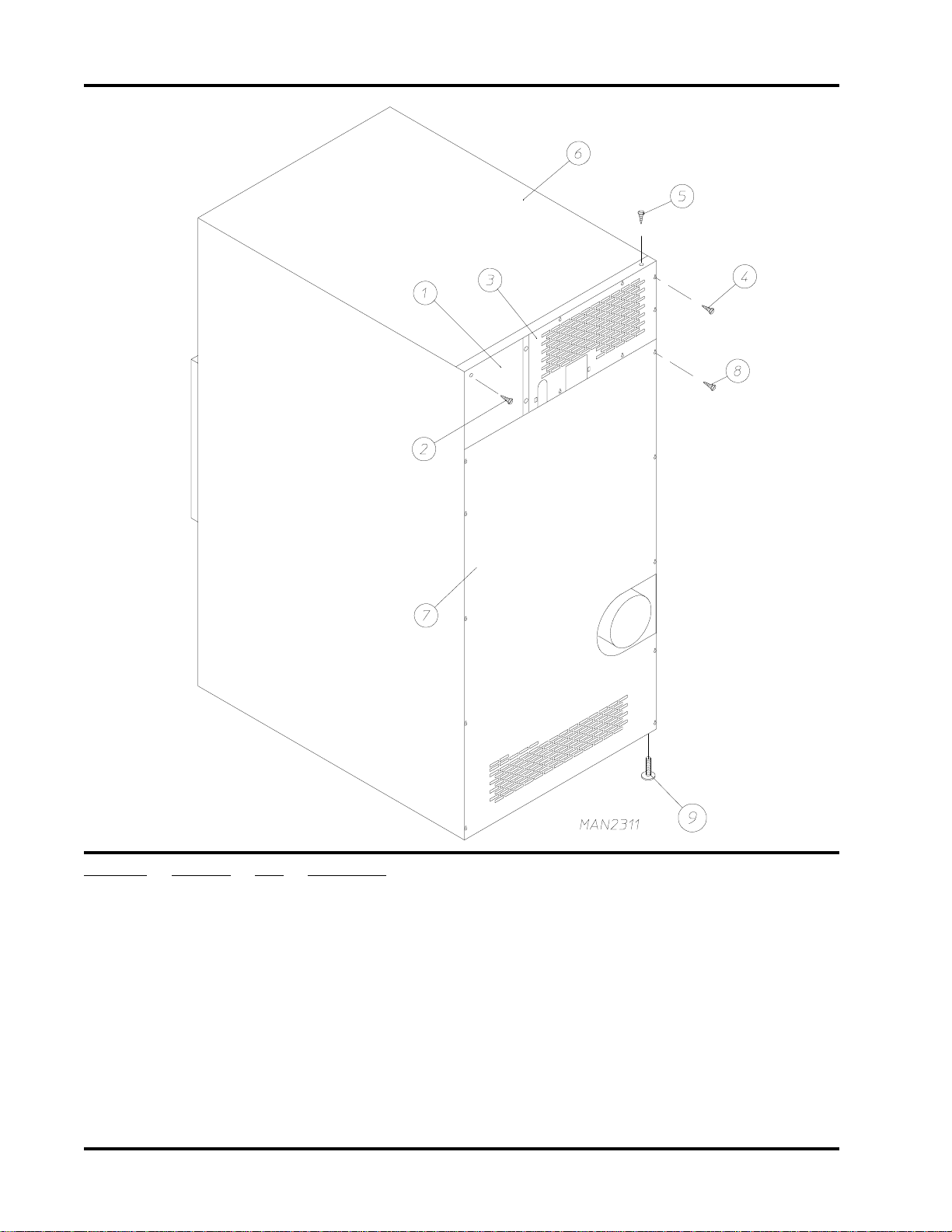

Outer Top/Back Guard Assemblies

Illus. No. Part No. Qty. Description

1 322809 1 Back Electrical Box Cover
2 150301 4 #8-18 x 7/16” Phillips Pan Head TEK Screw
3* 323738 1 Top Back Guard (for gas models Only)

314510 1 Top Back Guard (for electric models Only)
4 150301 7 #8-18 x 7/16” Phillips Pan Head TEK Screw
5 150300 10 #10-16 x 1/2” Hex Washer TEK Screw
6* 312527 1 Outer Top
7 314518 1 Bottom Back Guard
8 150301 13 #8-18 x 7/16” Phillips Pan Head TEK Screw
9 103500 4 Leveling Leg

* There is no outer top or top back guard on steam models.

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

T elephone: [phone] Fax: [phone]

Electric Oven Component Application Chart

wKtloVesahPeriW

03802ø34ro38194286521002114#6652881010121139APD853131

03042ø33 9520486531002114#6652884010121137APD673131

03614ø34ro34605386531002118#1752881010121134APD753131

03084/064ø34ro32614286531002118#2752881010121134APD753131

52083ø34ro31936286531002118#1752881010121134APD753131

42802ø34ro36194286401002114#6652881010121137APD673131

42042ø33 1933886411002116#8652881010121136APD963131

42084/064ø34ro32933886411002118#2752881010121233APD253131

*ylbmessAnevO

.oNtraP

.ytQeziS.oNtraP.ytQeziS.oNtraP.ytQ.oNtraP.oN.taC.oNtraP

stnemelEeriWnevOguLlanimreT

raBsuB

110121N/P

yaleRnevO

* When ordering oven assembly complete, specify 3 wire or 4 wire when applicable, as well as if dryer has microprocessor or non-microprocessor
controls.

39

40

NOTE: Coin acceptors listed include optical switch.

Replacement optic switch for Hanke acceptors is Part No. 881143.
Replacement optic switch for Greenwald acceptors is Part No. 137056.

Micropr ocessor Coin Acceptors Listing

Single Coin*

ADC Part No. Nation Description

883363 United States 25¢ Hanke Optic Coin Acceptor with Four (4) Studs

(for models mfd. as of June 25, 2002)

882689 United States 25¢ Hanke Optic Coin Acceptor

(for models mfd. between June 15, 2000 and June 25, 2002)

125100 U.S. and Canada 25¢ Greenwald Optic Coin Acceptor

(for models mfd. prior to June 15, 2000)
125107 Australia 20¢ Greenwald Australian Optic Coin Acceptor
881768 Australia $1 Hanke Australian Optic Coin Acceptor
881604 Japan 100 Yen Hanke Optic Coin Acceptor
125103 --- 0.882 Token Greenwald Optic Coin Acceptor
125121 --- 0.800 Token Greenwald Optic Coin Acceptor
125133 Hong Kong $1 Greenwald Hong Kong Optic Coin Acceptor

Dual Coin*

883367 United States 10¢ / 25¢ Hanke Dual Optic Coin Acceptor
881842 Canada 25¢ / $1 Hanke Dual Optic Coin Acceptor
881542 United Kingdom 1£ / 20 Pence Hanke Dual Optic Coin Acceptor
881846 France 2 / 5 Franc Hanke Dual Optic Coin Acceptor
881541 Netherlands 25¢ / 1 Guilder Hanke Dual Optic Coin Acceptor

* Consult factory for coin acceptors not listed.

American Dryer Corporation 88 Currant Road / Fall River, MA 02720-4781

Additional Parts Available

Part No. Description

112280 “Clean Lint Screen” Label
114001 “CAUTION - Exhaust/Lint Screen” Label
112533 “Phase 5 Coin Program Location Summary” Label
112534 “Phase 5 OPL Program Location Summary” Label
114006 “WARNING - Fire Hazards” Label
114094 “MOP HEAD WARNING” Label
117505 Aluminum Duct T ape (sold by the foot)
120100 3/8” Straight (BX) Connector
120300 3/8” x 45° (BX) Connector
120400 3/8” Red Jacket (BX) Insulator
120500 3/8” Jiffy Clip (BX) Retainer Clip
120600 3/8” Greenfield (BX)
120800 1/4” In-Line Connector
120802 Red Butt Connector
120902 #74B Wire Nut
120903 Closed End Connector
121014 1/4” Insulated (female) Terminal
121499 5-1/2” Wire T ie
121500 8” Harness Tie
121503 Harness T ie Mounting Clip
122804 Manometer (hydro gauge) for Measuring Gas Pressure
404502 White Brush-In-Cap Bottle Touch-Up Paint
404515 Coral Blue Brush-In-Cap Bottle Touch-Up Paint
404516 Ivory Brush-In-Cap Bottle Touch-Up Paint
882458 Basket (tumbler) Puller Assembly

41

T elephone: [phone] Fax: [phone]

ADC 450433 5-04/15/04-1
