ADC AD-60 User Manual

PHASE 7.3.2

COIN

USER’S MANUAL

American Dryer Corporation

88 Currant Road

Fall River, MA 02720-4781

T elephone: [phone] / Fax: [phone]

E-mail: techsupport@amdry .com

www.amdry.com

ADC Part No. 113192-5

Retain This Manual In A Safe Place

For Future Reference

Please read this manual carefully to thoroughly familiarize yourself with the Phase 7 coin microprocessor
controller (computer) system features, operational instructions, and programming characteristics. This manual
contains important information on how to employ ALL the features of your new ADC dryer in the safest and
most economical way .

American Dryer Corporation products embody advanced concepts in engineering, design, and safety .
If this product is properly maintained, it will provide many years of safe, efficient, and trouble-free
operation.

W e have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the
right to make changes from time to time, without notice or obligation, in prices, specifications, colors, and
material, and to change or discontinue models.

!

▲ WARNING

Proposition 65

Use of this product could expose you to substances from fuel combustion

that contain chemicals known to the State of Califor nia to cause cancer,

birth defects and other reproductive harm.

In the St ate of Massachusetts, the following installation instructions apply:

■ Installations and repairs must be performed by a qualified or licensed contractor ,
plumber, or gasfitter qualified or licensed by the S tate of Massachusetts.

■ If using a ball valve, it shall be a T -handle type.

■ A flexible gas connector, when used, must not exceed 3 feet.

“IMPORT ANT NOTE TO PURCHASER”

Information must be obtained from your local gas supplier on the instructions to be followed if the user
smells gas. These instructions must be posted in a prominent location near the dryer .

WARNING

Power must be disabled prior to changing Sensor Activated Fire Extinguishing (S.A.F .E.) system
temperature probe!! The S.A.F .E. system will be activated if probe is removed while dryer is powered
on.

NOTE

If power to the dryer is off, the S.A.F .E. system is disabled.

Table of Contents

SECTION I

INTRODUCTION.......................................................................................................3

SECTION II

FEATURES..................................................................................................................4

A. Dependable Phase 7 Coin Microprocessor Controller (Computer) Solid State Integrated Circuitry ......................4

B . Sensor Activated Fire Extinguishing (S.A.F.E.) System .......................................................................................... 4

C. Program Changes are Easily Made at the Keyboard (Touch Pad)..........................................................................4

D . Temperature Selections ...........................................................................................................................................4

E . Cool Down ..............................................................................................................................................................4

F . L.C.D. .......................................................................................................................................................................4

G. Wrinkle Guard Program ...........................................................................................................................................4

H. Diagnostics .............................................................................................................................................................4

I. Audio Alert Signal...................................................................................................................................................4

J. Temperature Conversion Status..............................................................................................................................4

K . High T emperature Protection .................................................................................................................................. 4

L. RPM.........................................................................................................................................................................4

M. Clean Lint ................................................................................................................................................................ 4

N . Language Selection.................................................................................................................................................5

O . Model Selection ......................................................................................................................................................5

P. Keyboard (Touch Pad) Symbols .............................................................................................................................5

Q . Currency Symbol.....................................................................................................................................................5

R . Dry Mode ................................................................................................................................................................5

S. Vending Safeguard ..................................................................................................................................................5

T . Credit Retention ......................................................................................................................................................5

U . T ime for Amount to Start.........................................................................................................................................5

V. Time for T op Off......................................................................................................................................................5

W . Ready Prompt .......................................................................................................................................................... 5

X . Scrolling Rate ..........................................................................................................................................................5

SECTION III

OPERATING INSTRUCTIONS...............................................................................6

A. Coin Mode ..............................................................................................................................................................6

B. Free Mode ...............................................................................................................................................................6

C. Hot Keys .................................................................................................................................................................7

D . Scrolling Rate ..........................................................................................................................................................8

E. Pause Mode ............................................................................................................................................................8

F. RPM.........................................................................................................................................................................9

G. Clearing Credit/Clearing Cycle ................................................................................................................................9

H . Accessing Coin V ault.............................................................................................................................................. 9

I. Clearing Fault Records and Credit ..........................................................................................................................9

J. Wrinkle Guard........................................................................................................................................................ 10

K. S.A.F.E. System ..................................................................................................................................................... 10

SECTION IV

L.C.D. OPERATING MESSAGES......................................................................... 11

A. Coin Mode ............................................................................................................................................................ 11

B. Free Mode ............................................................................................................................................................. 12

C. Messages Common to Coin and Free Modes ....................................................................................................... 12

SECTION V

PROGRAM SELECTIONS (PL #01-PL #07) .......................................................1 4

PL #01 – Control Settings ............................................................................................................................................ 14

PL #02 – Machine Settings .......................................................................................................................................... 15

PL #03 – HI Key , PL #04 – MED Key , PL #05 – LO Key Settings................................................................................ 16

PL #06 – Vending Parameters ....................................................................................................................................... 18

PL #07 – Fault Recording ............................................................................................................................................. 23

SECTION VI

PROGRAMMING INSTRUCTIONS ....................................................................2 4

A. Introduction to Programming ................................................................................................................................ 24

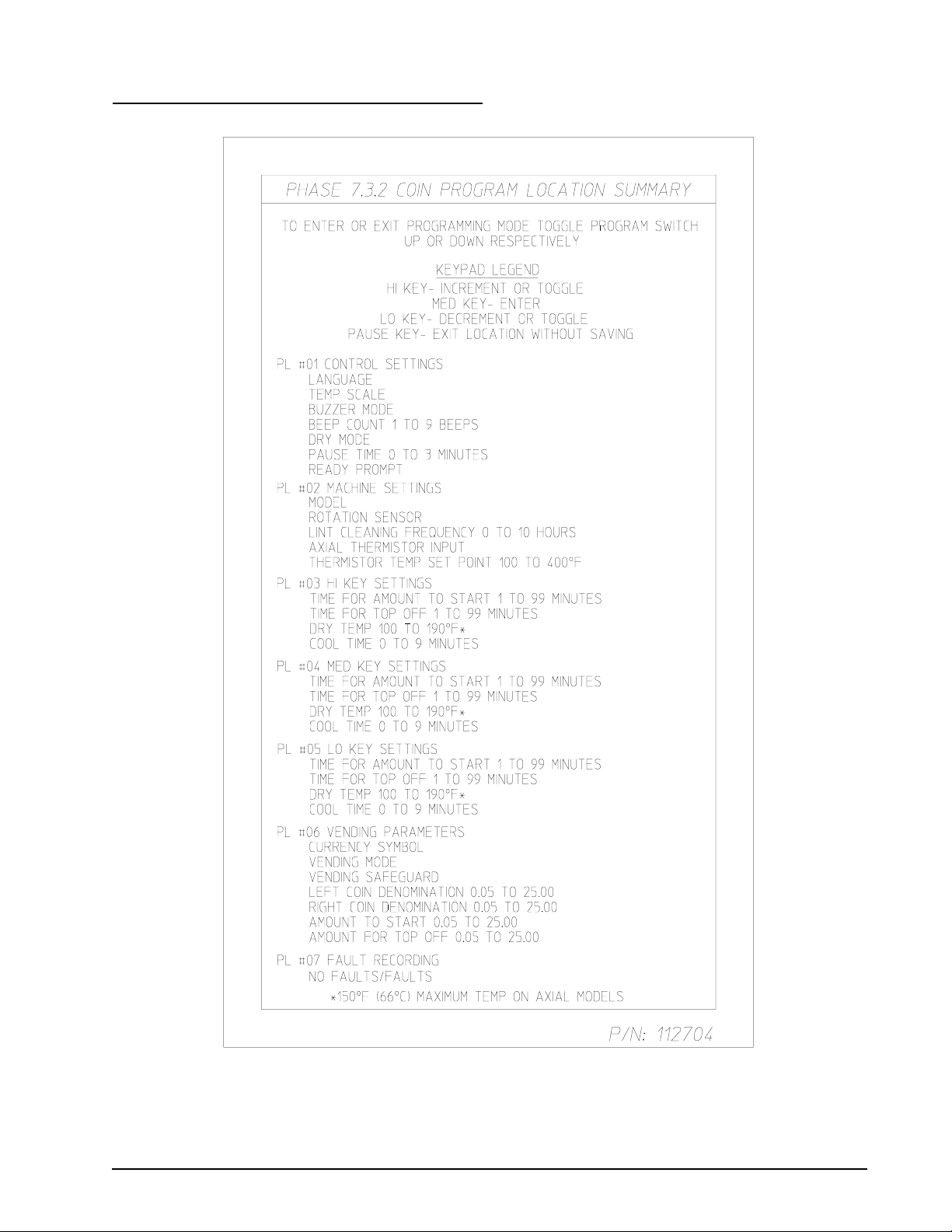

B . Program Location Summary................................................................................................................................... 25

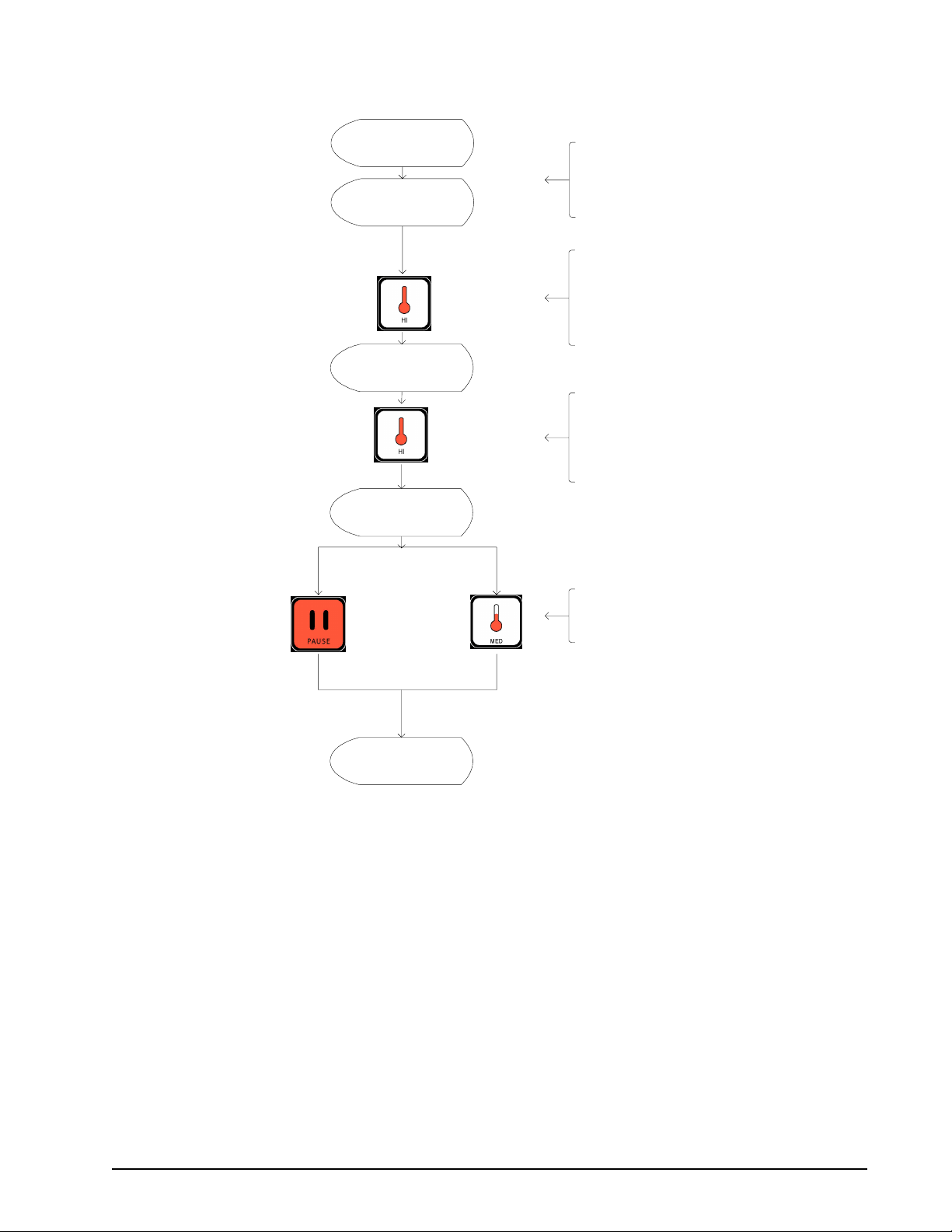

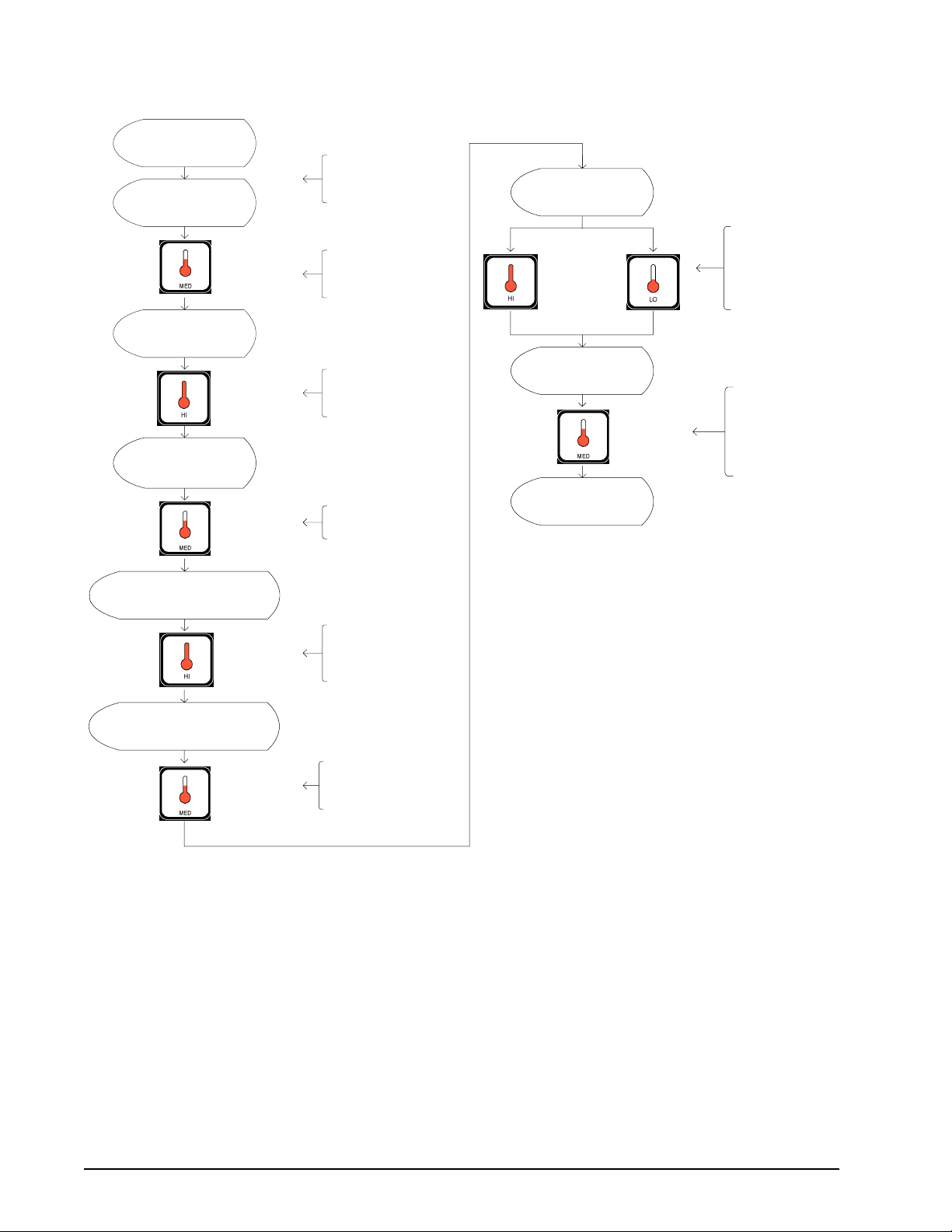

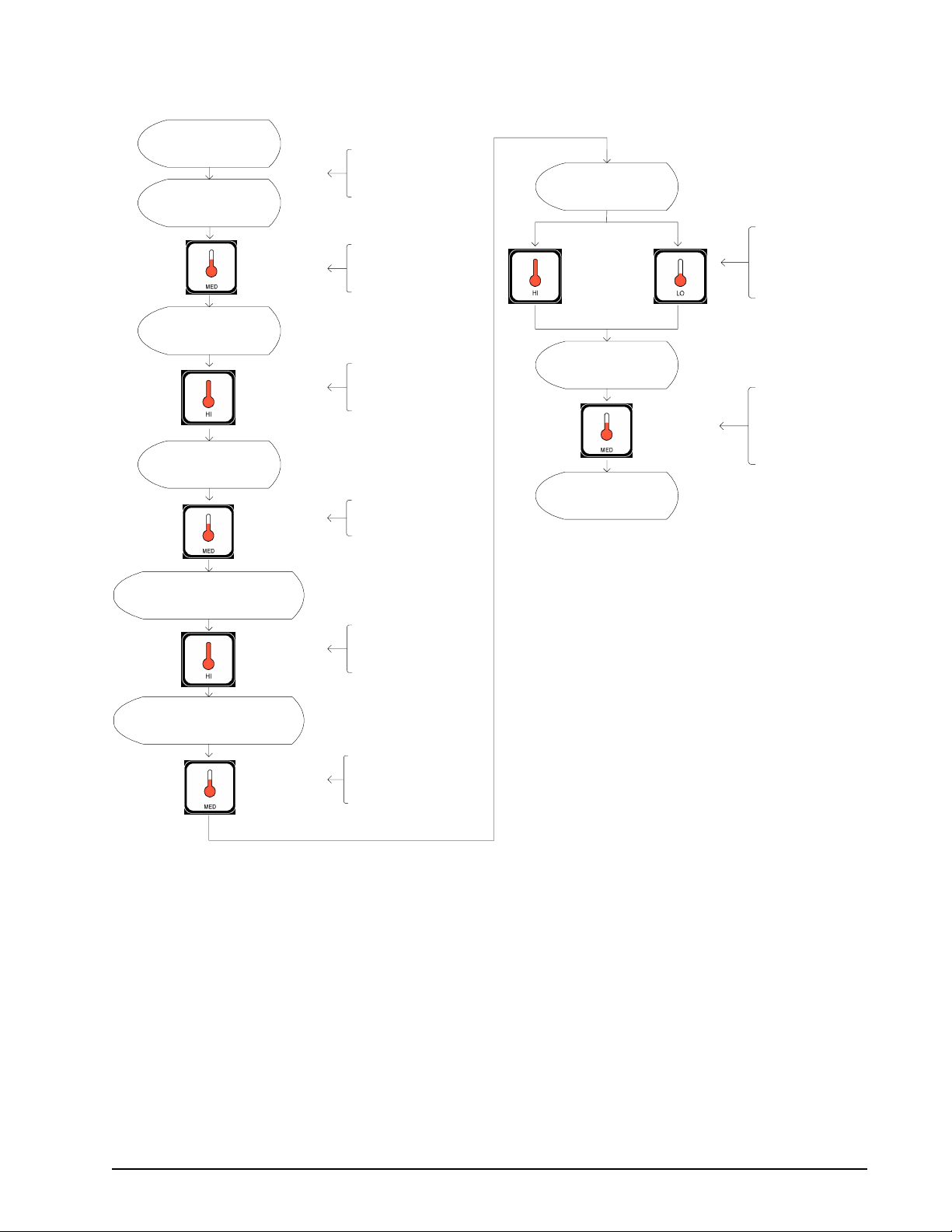

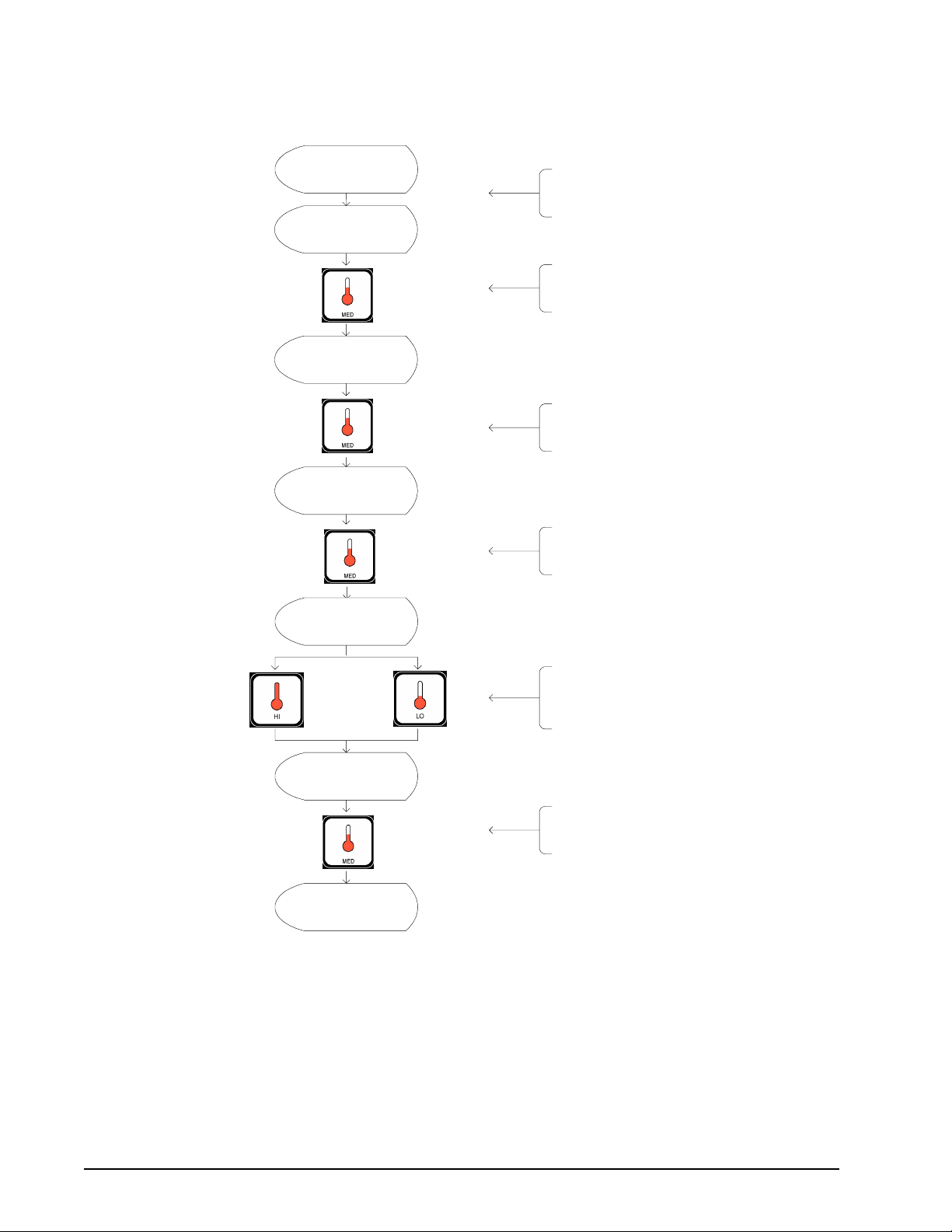

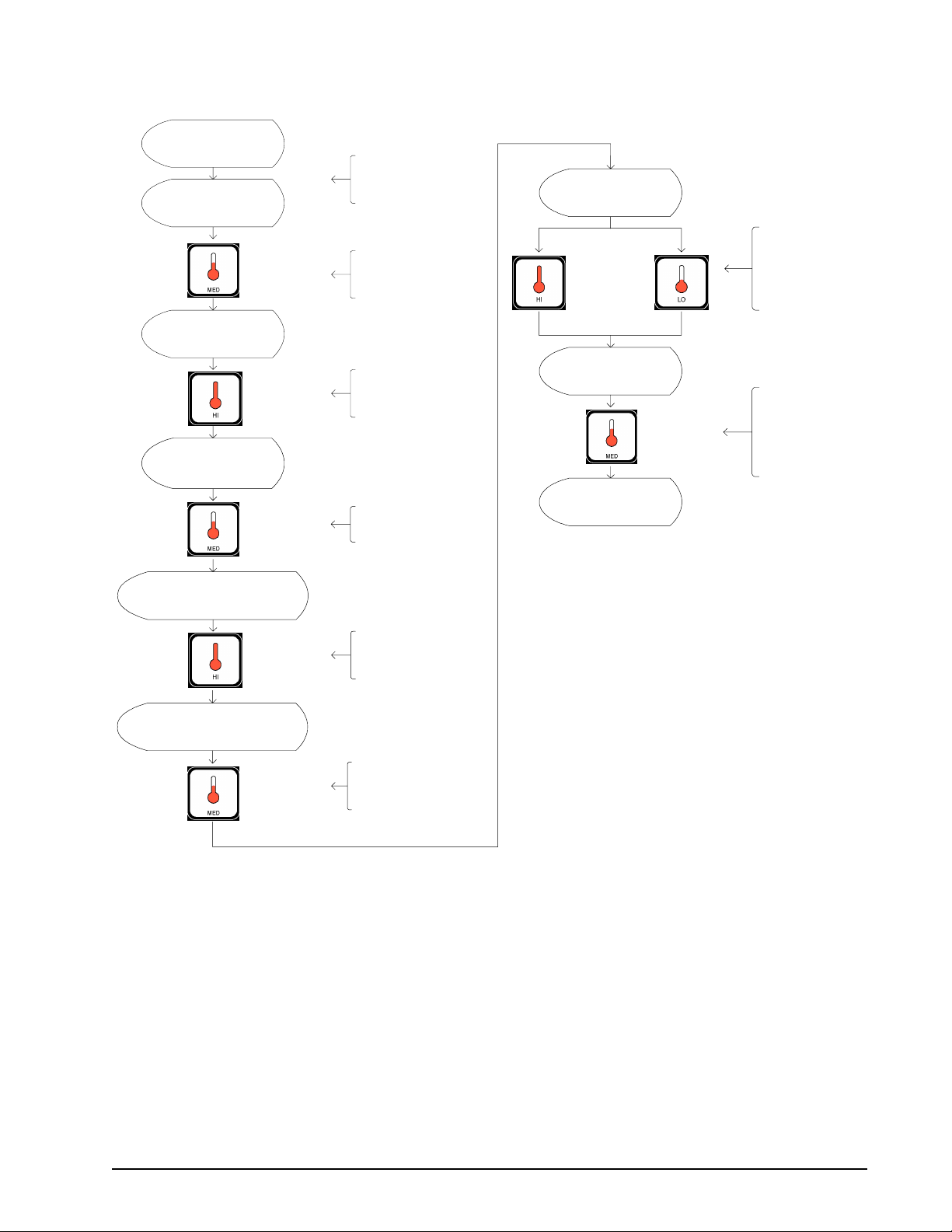

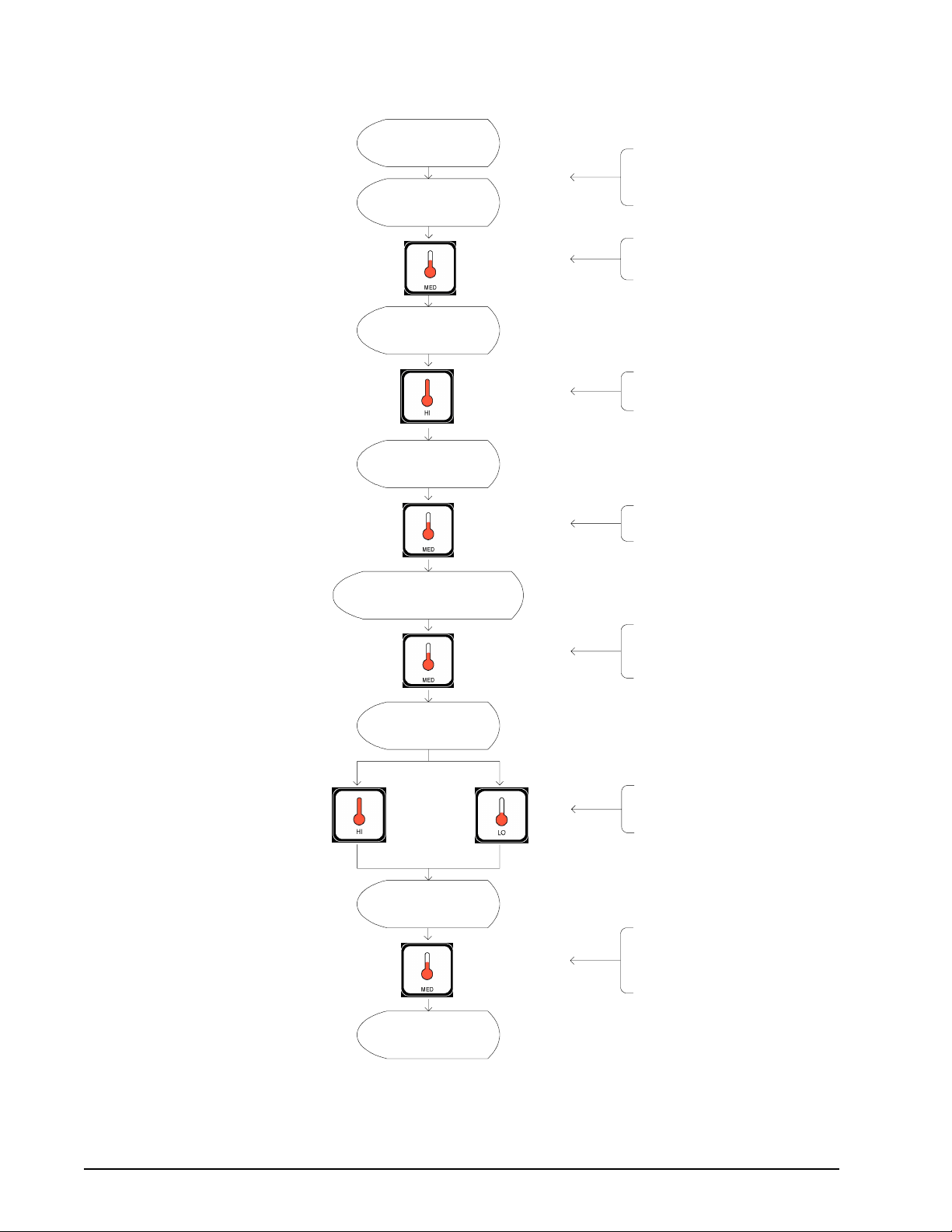

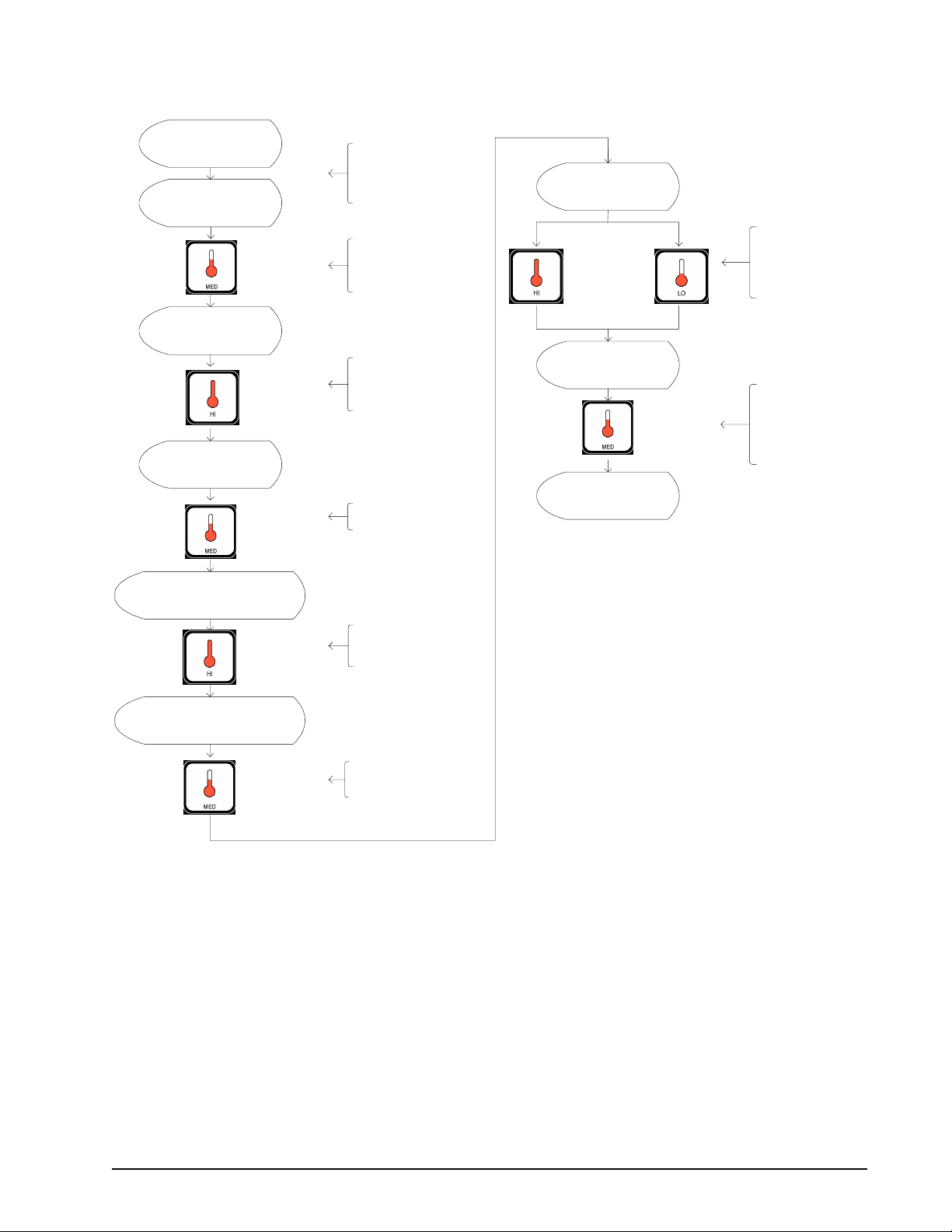

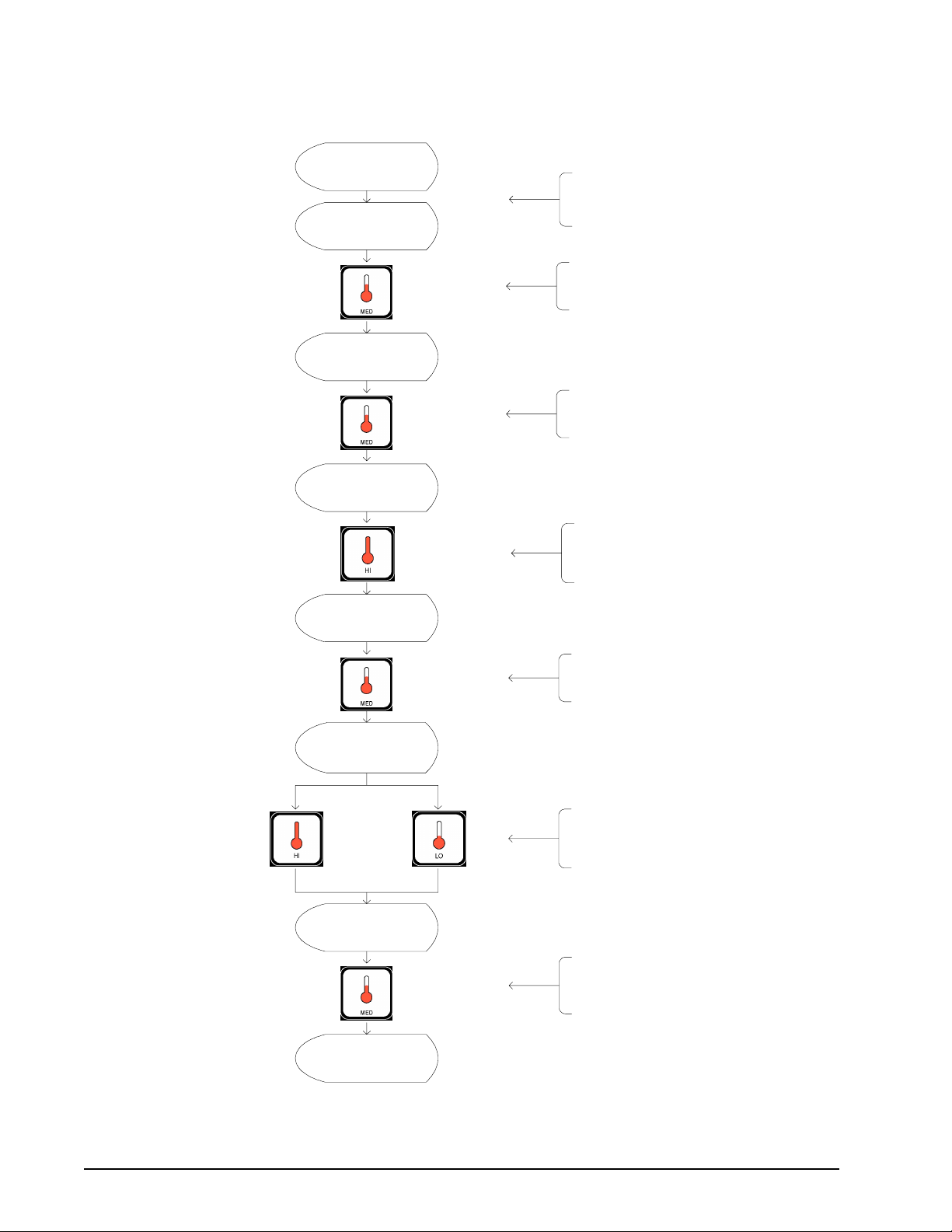

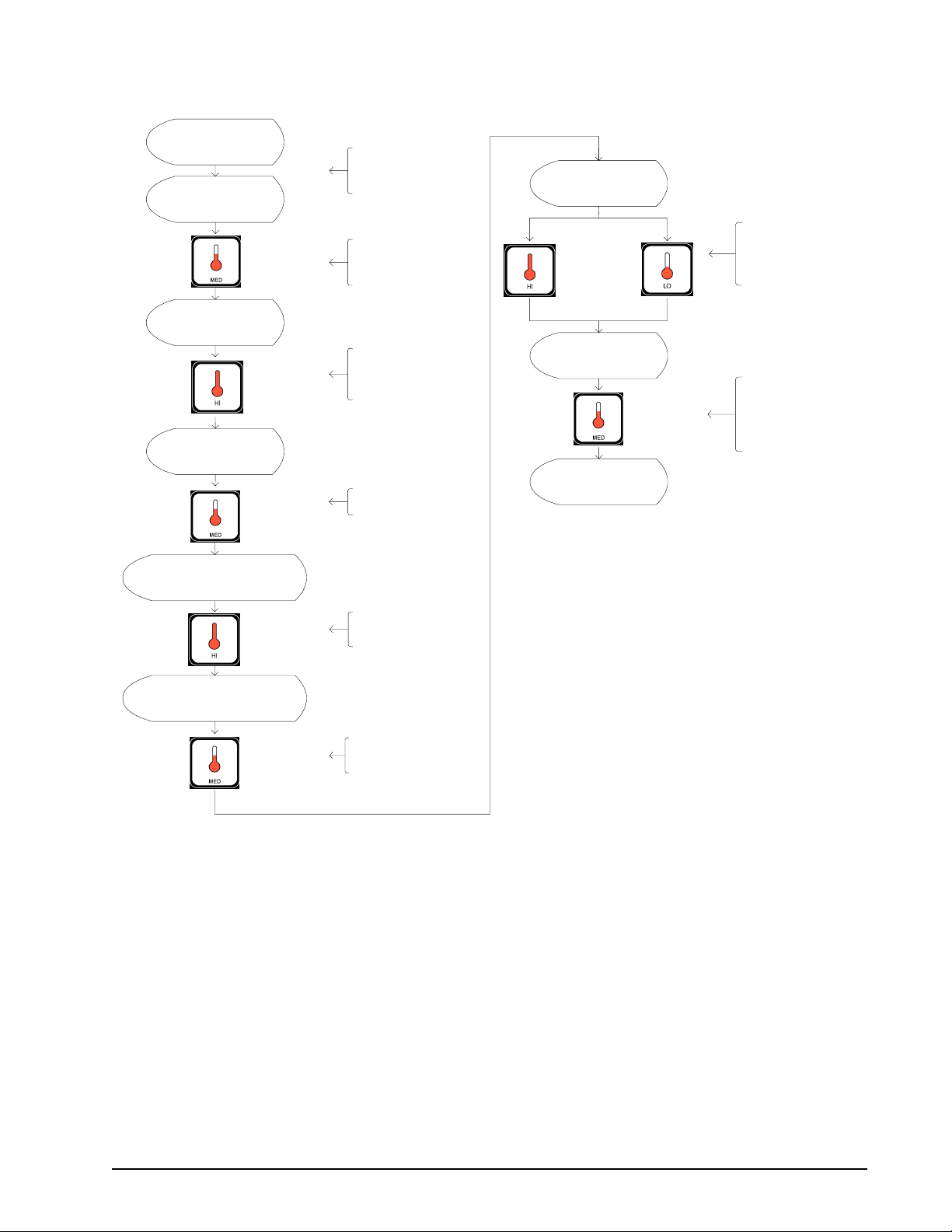

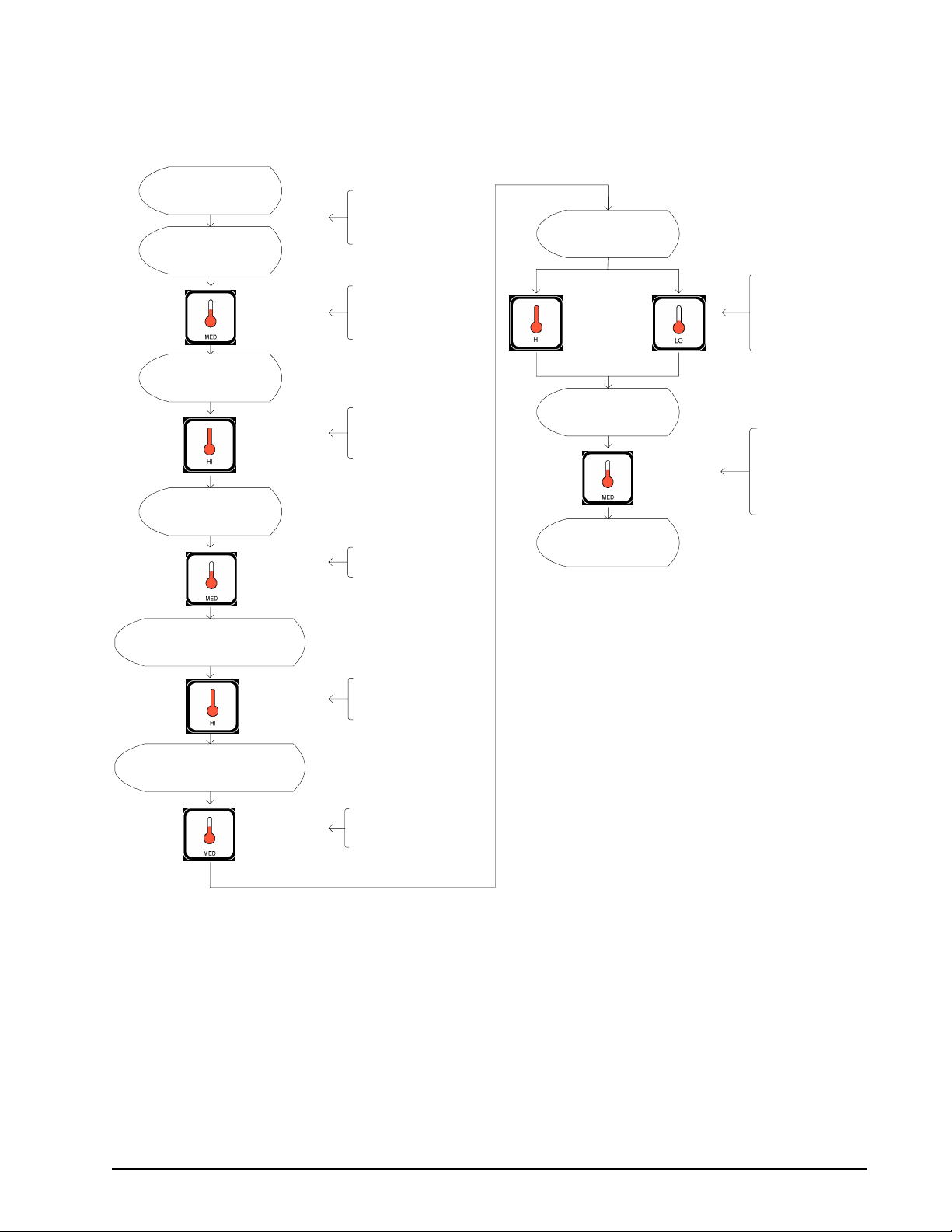

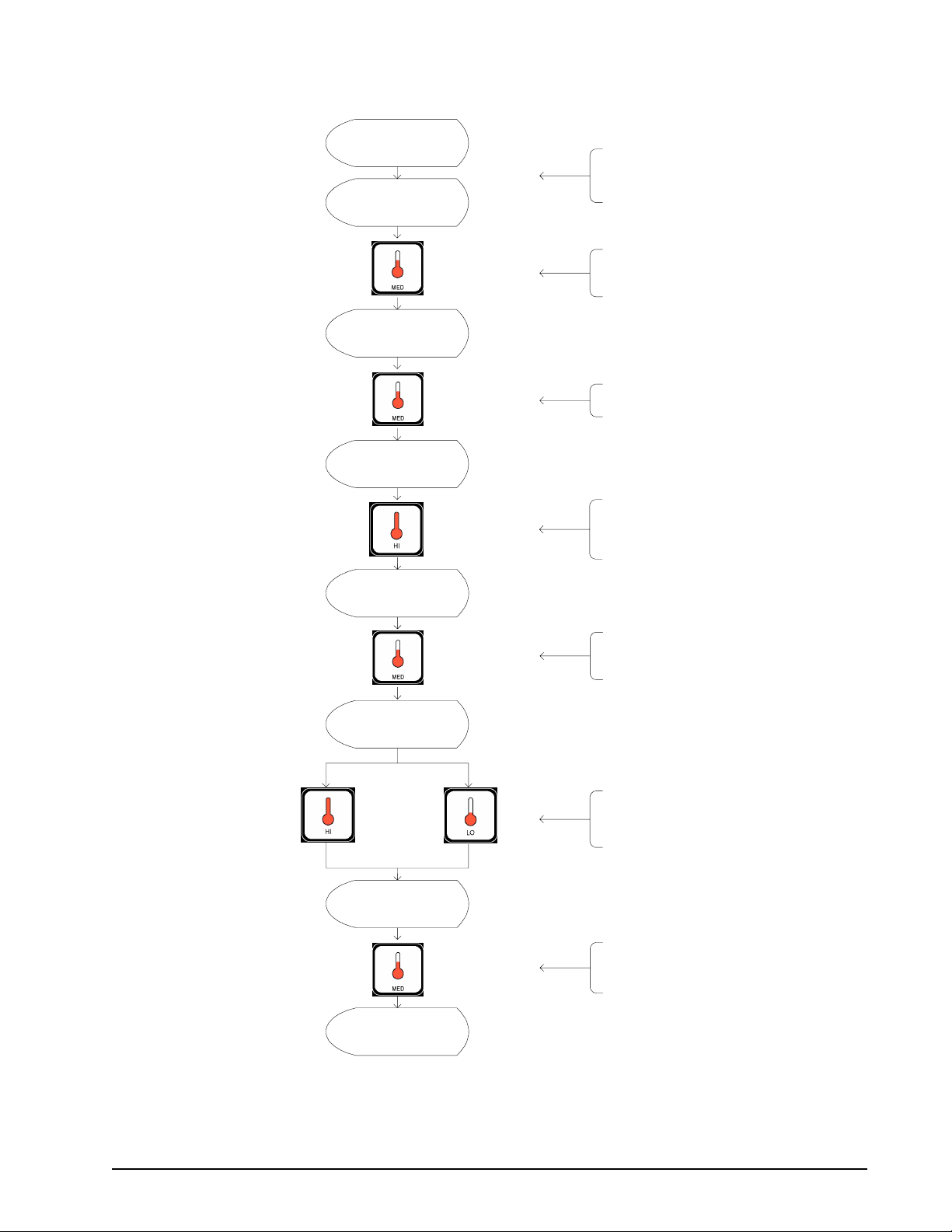

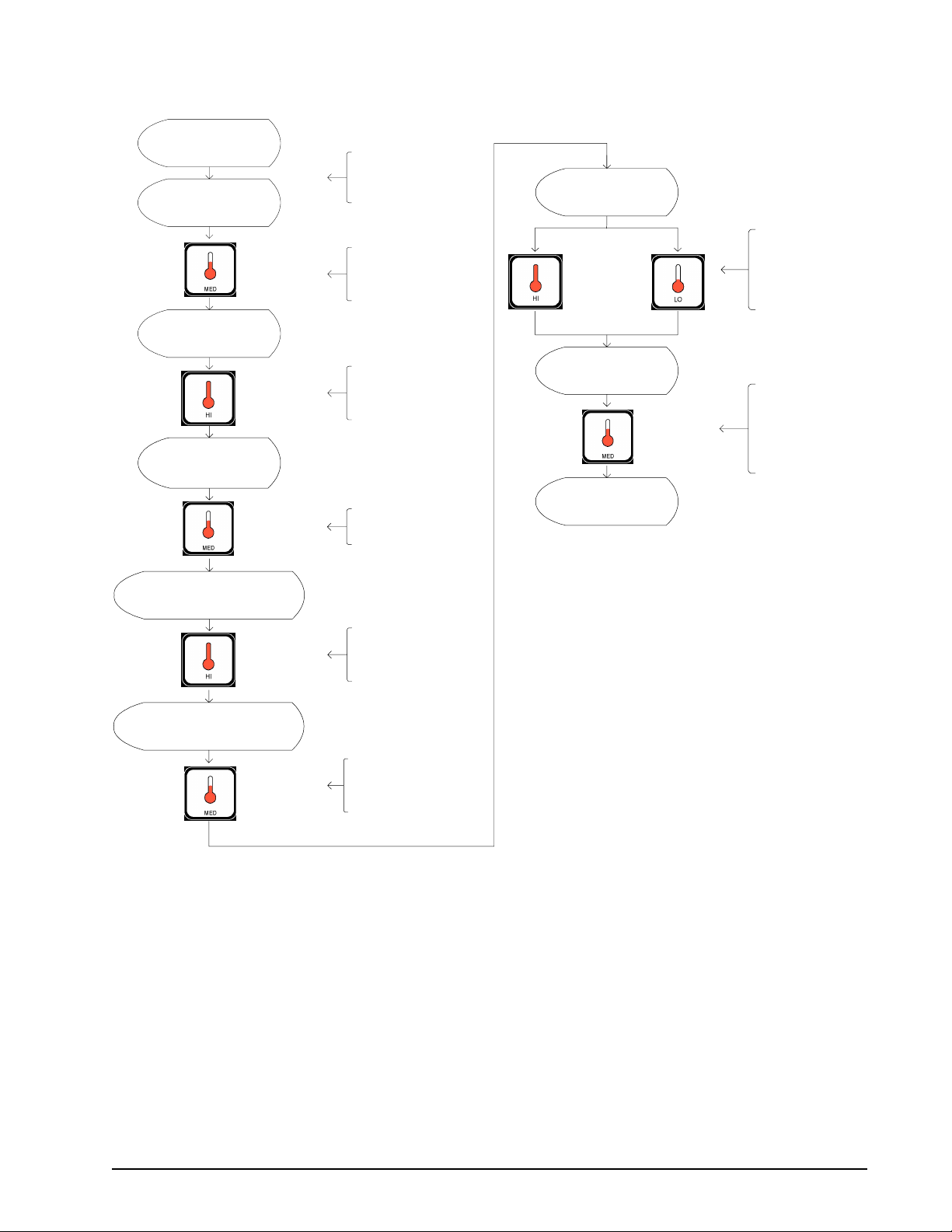

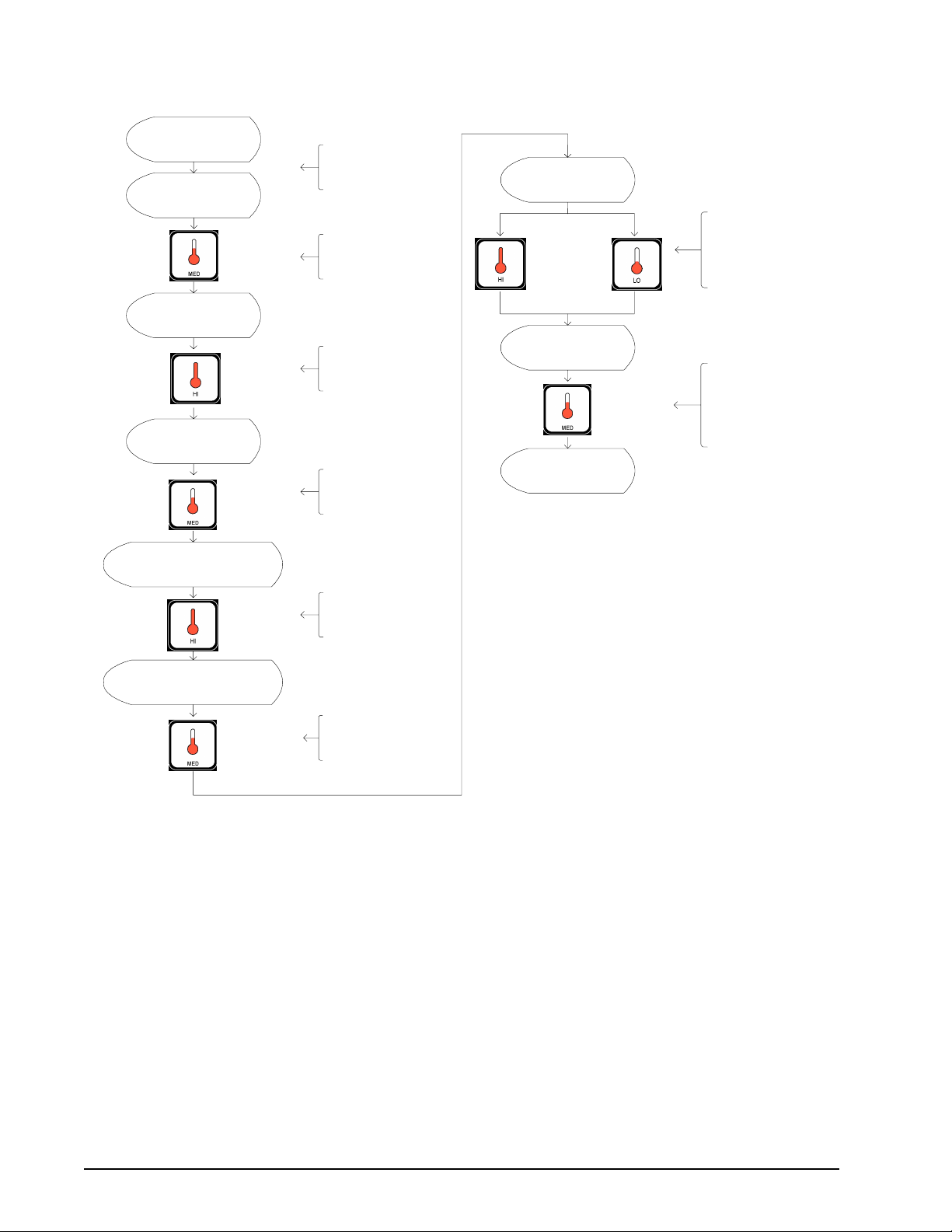

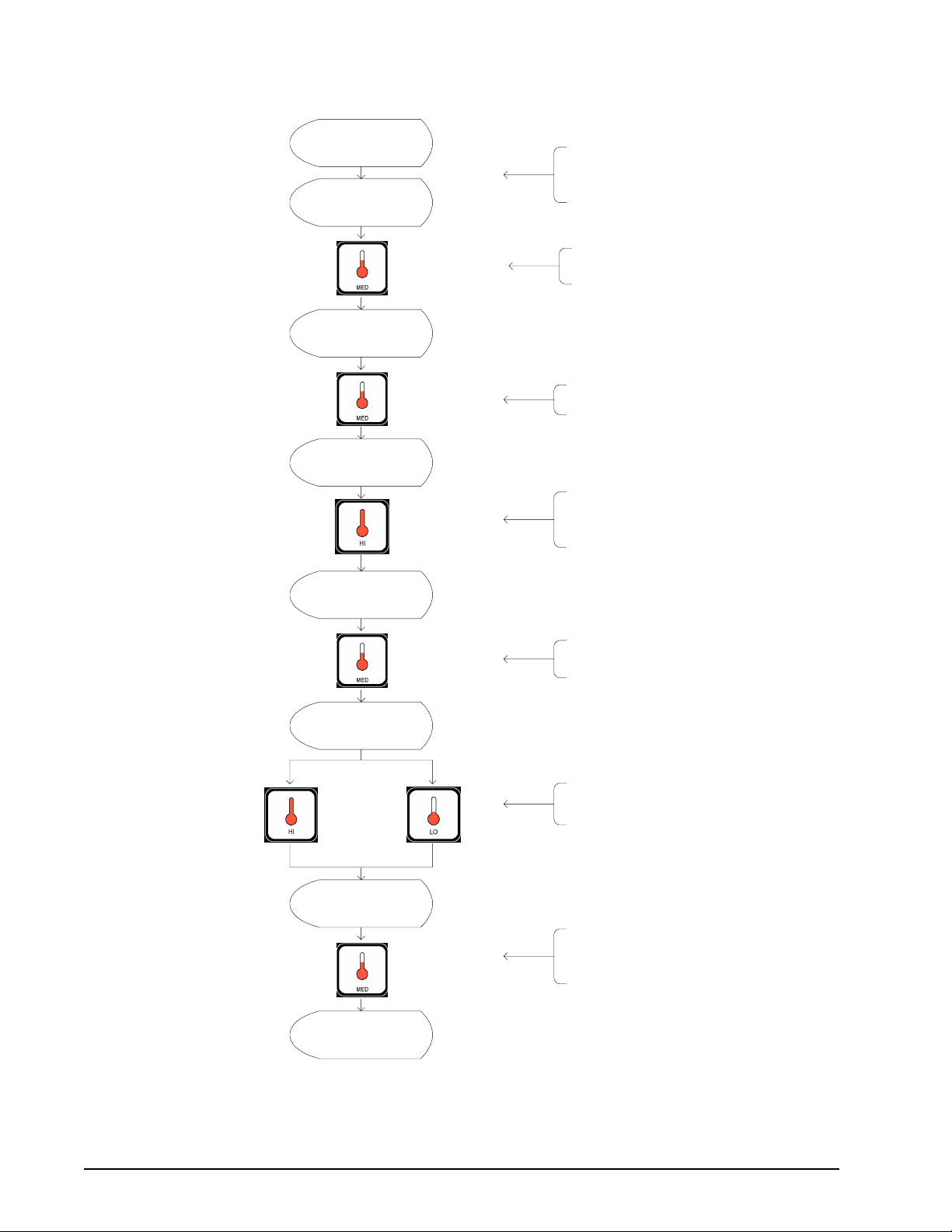

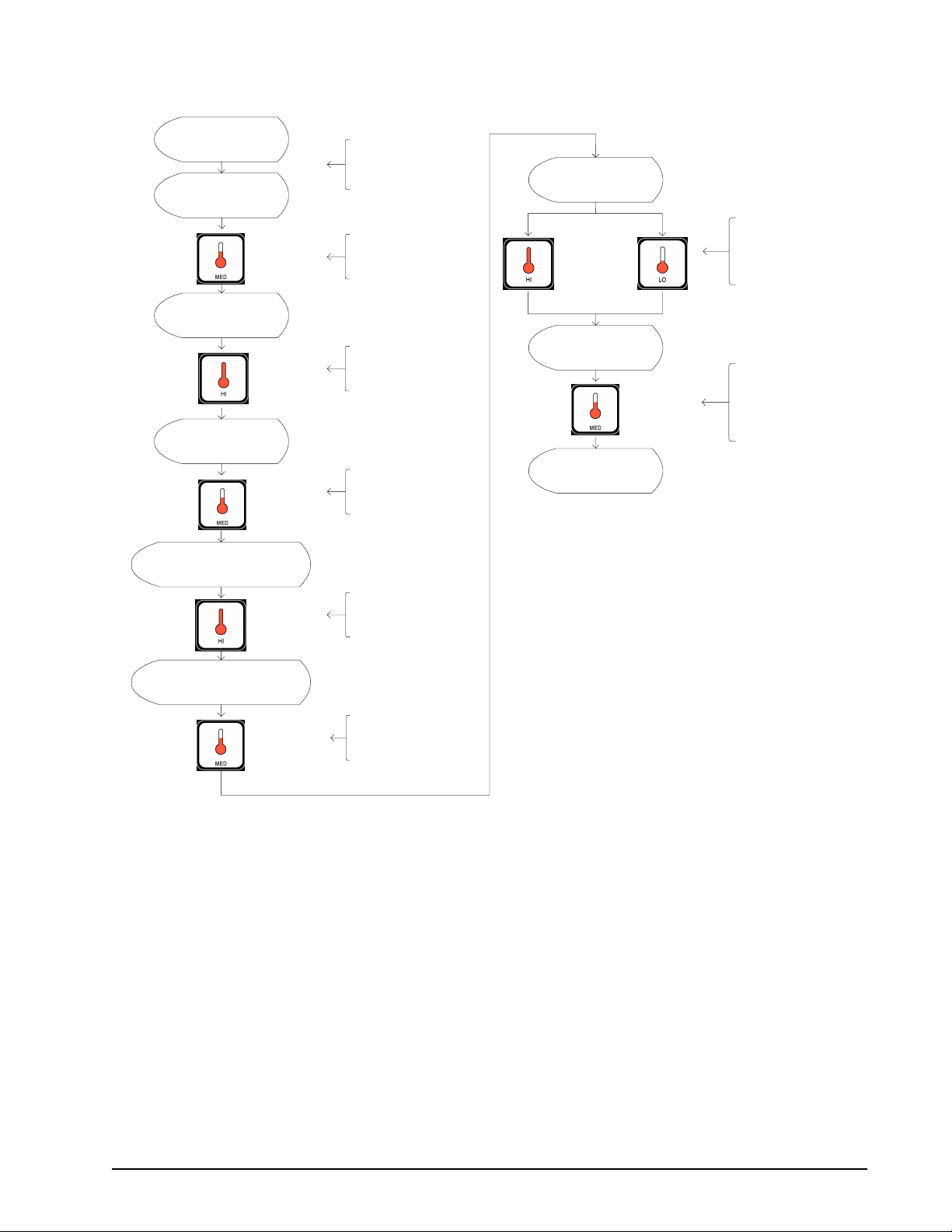

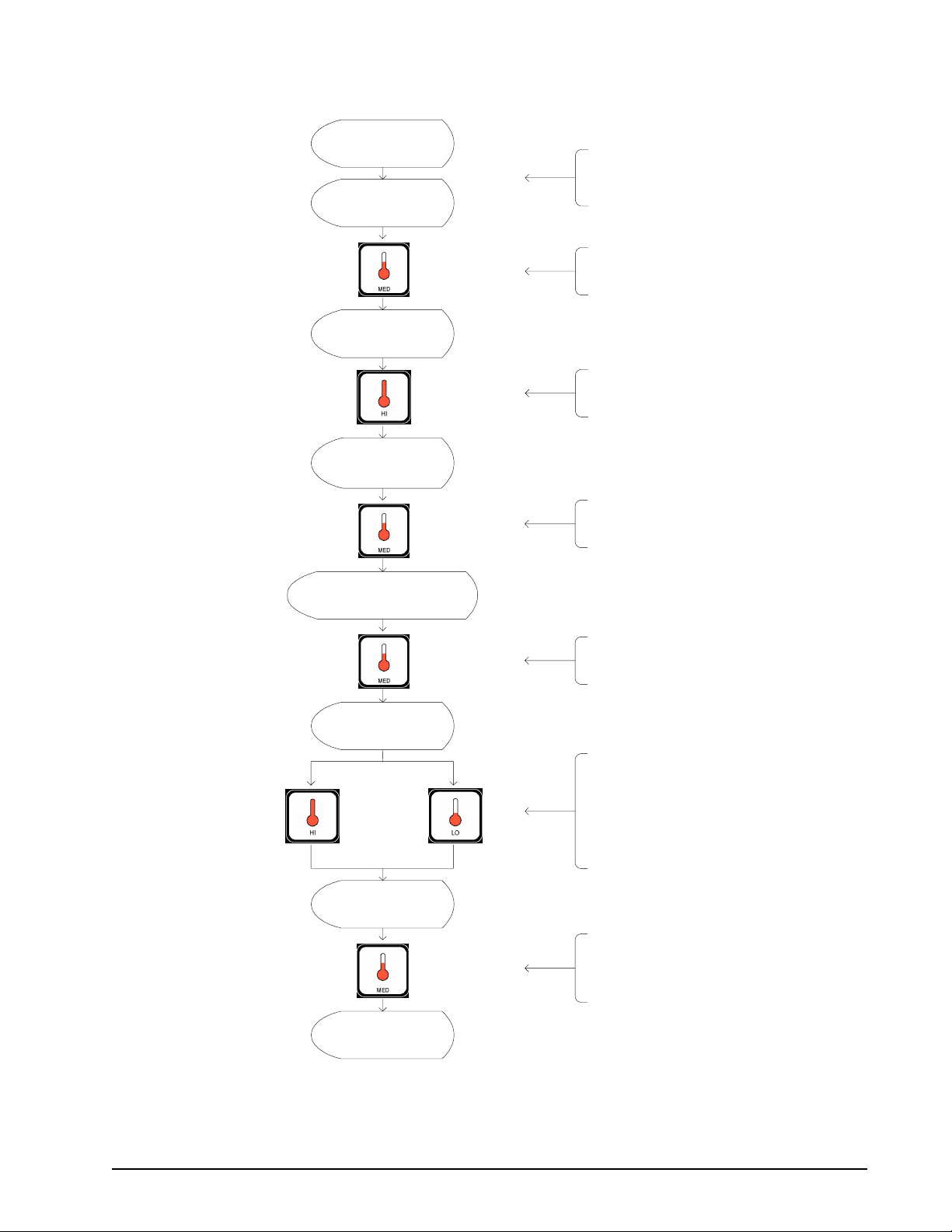

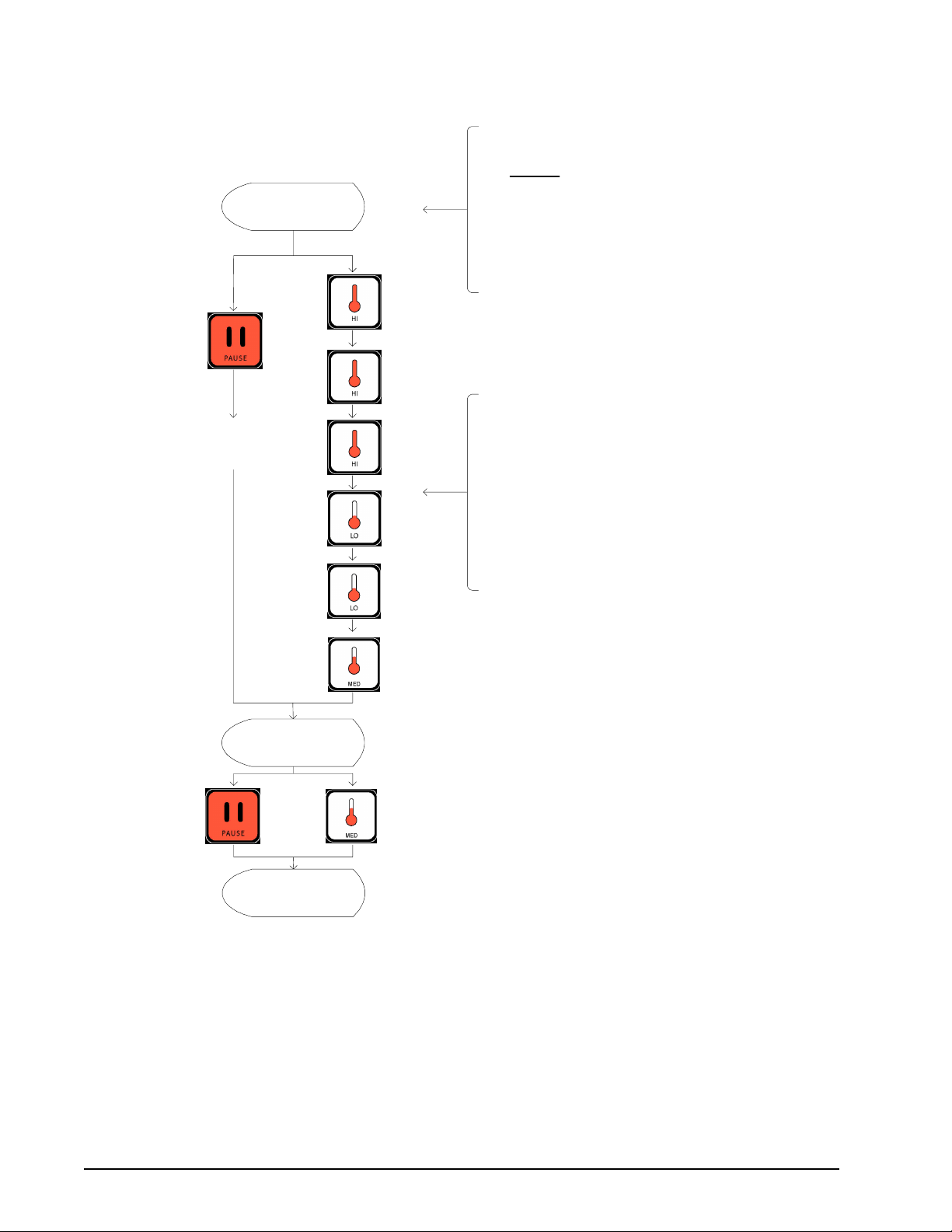

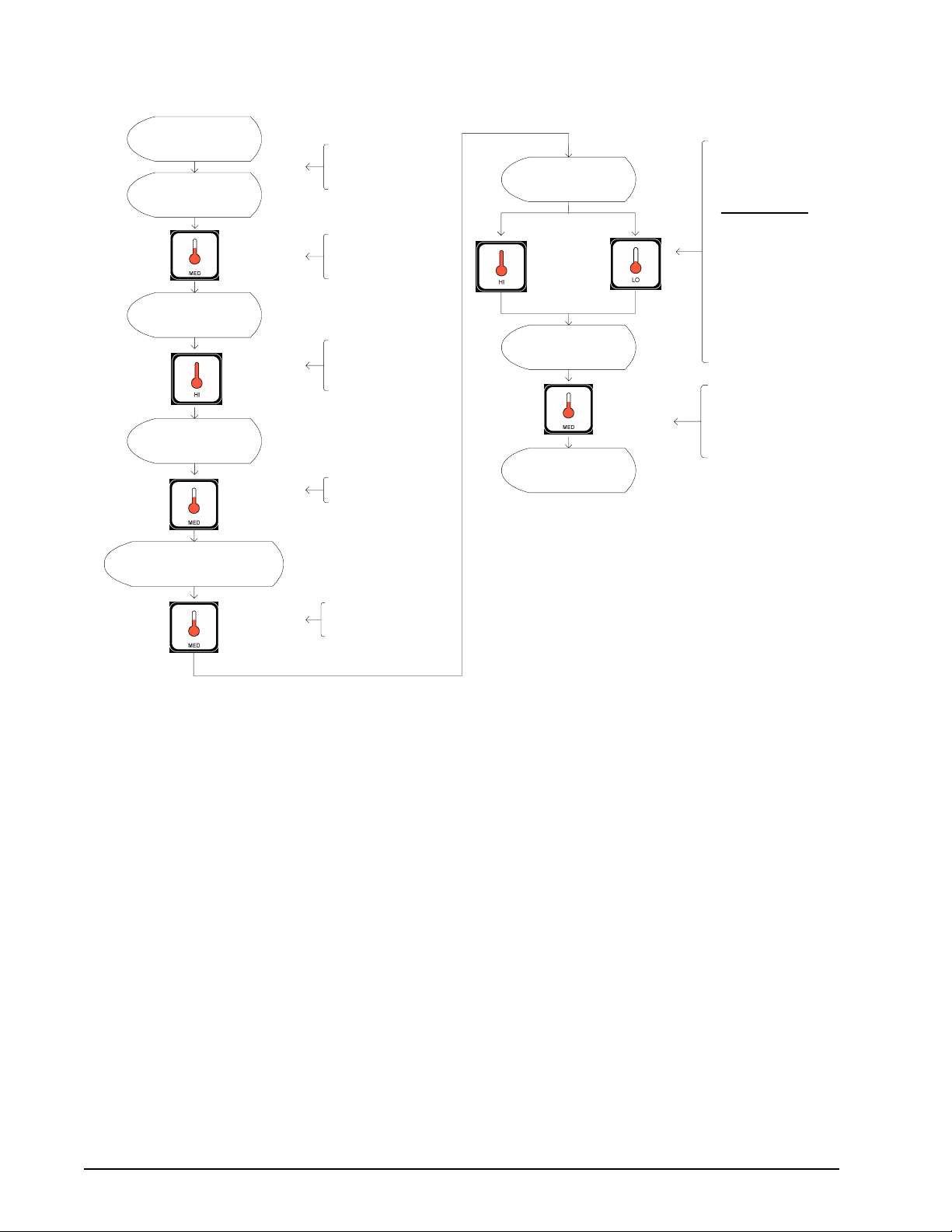

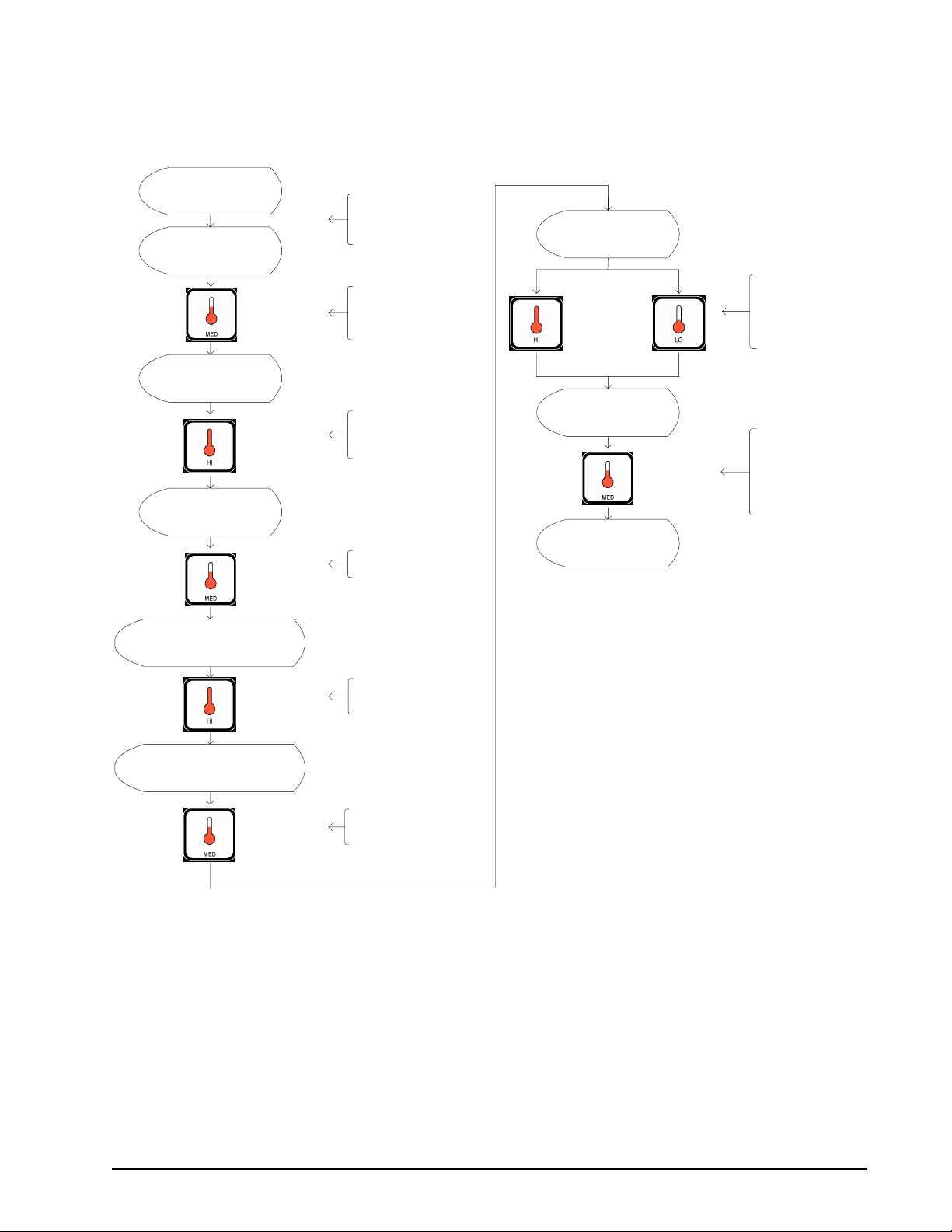

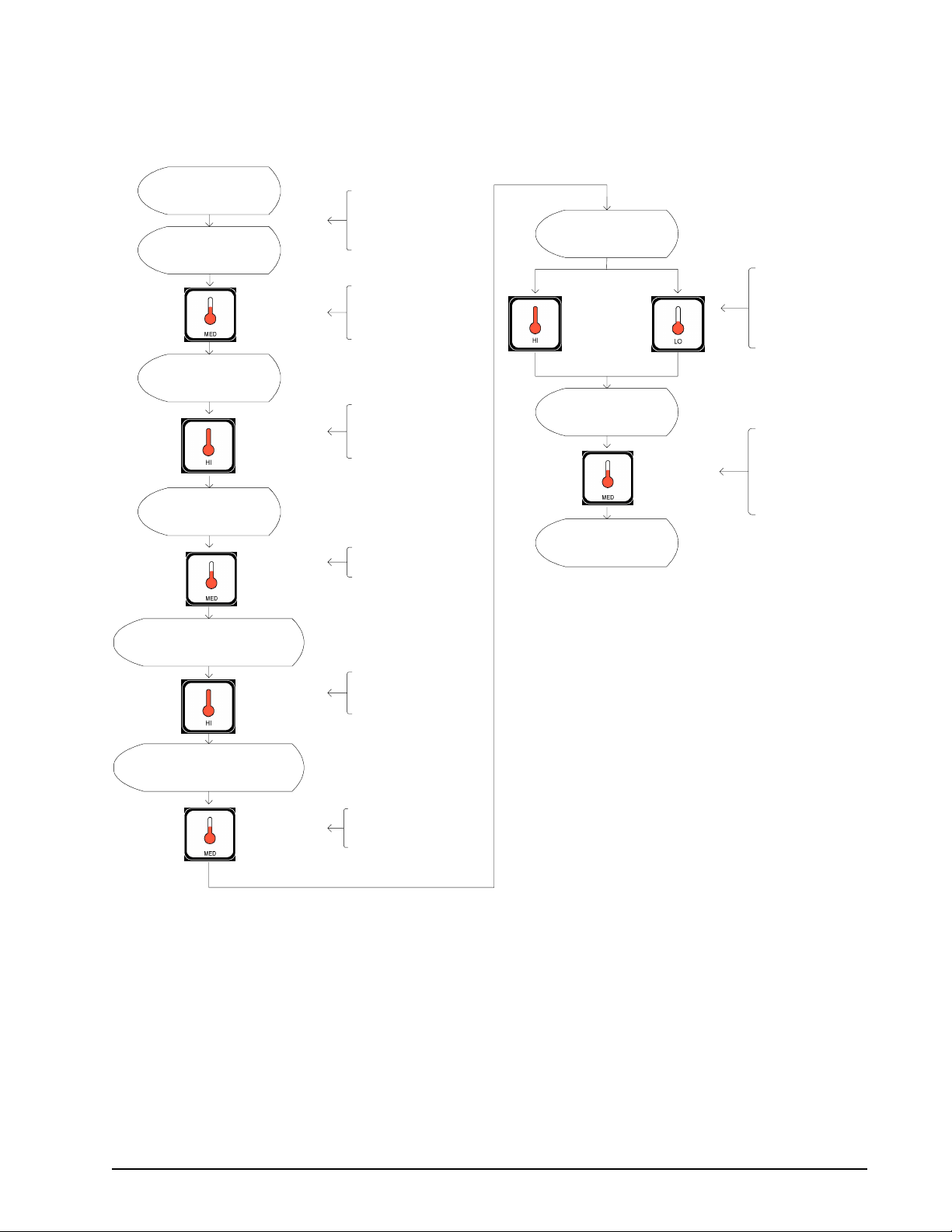

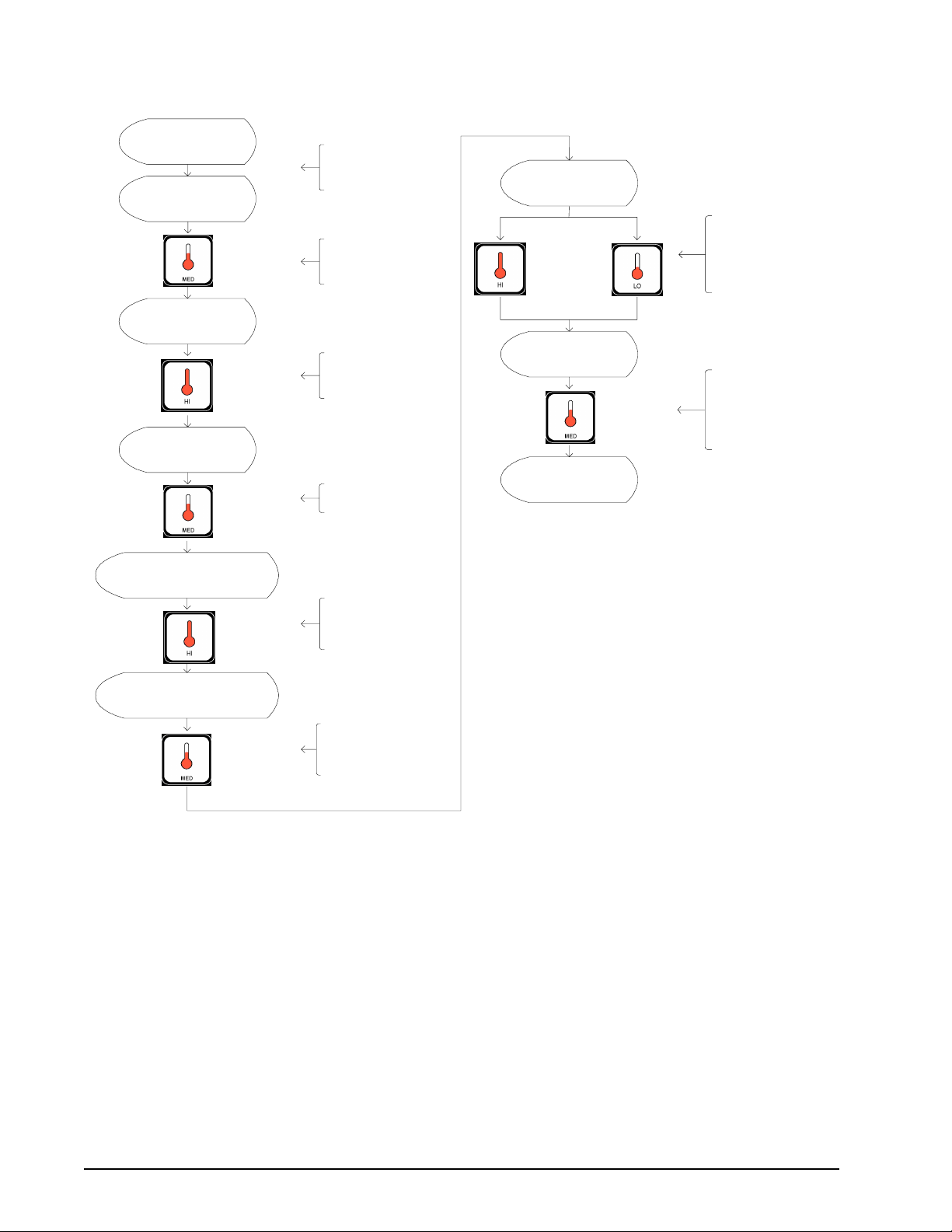

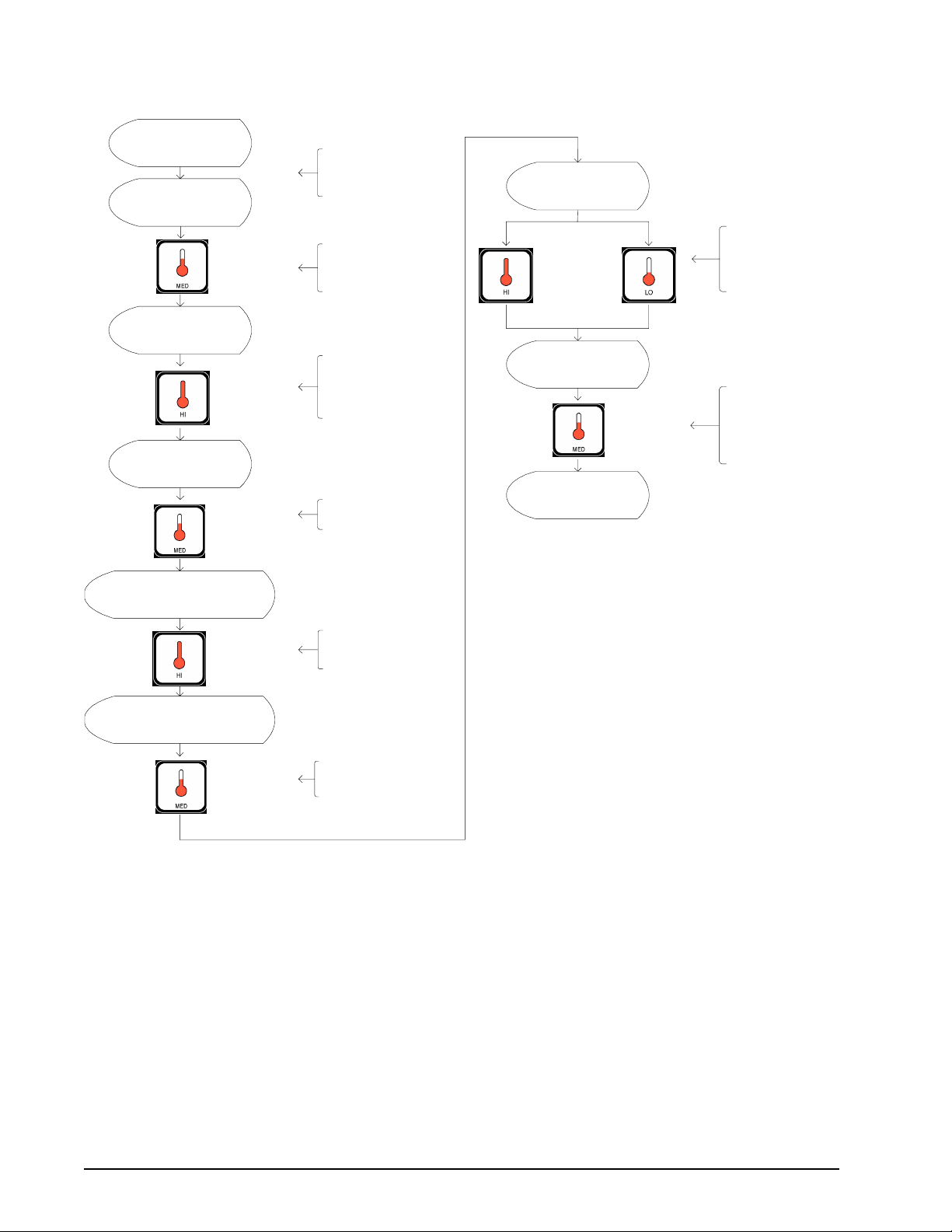

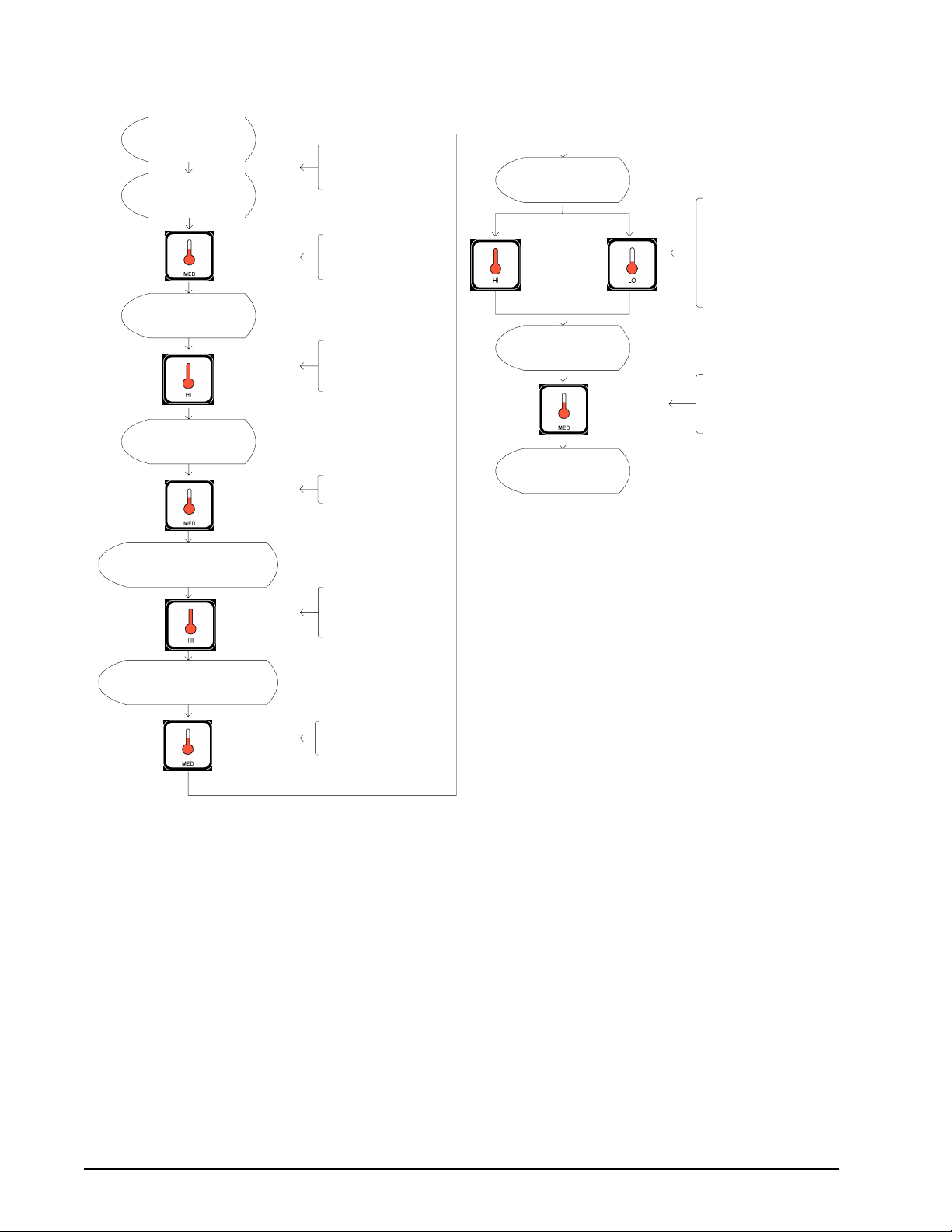

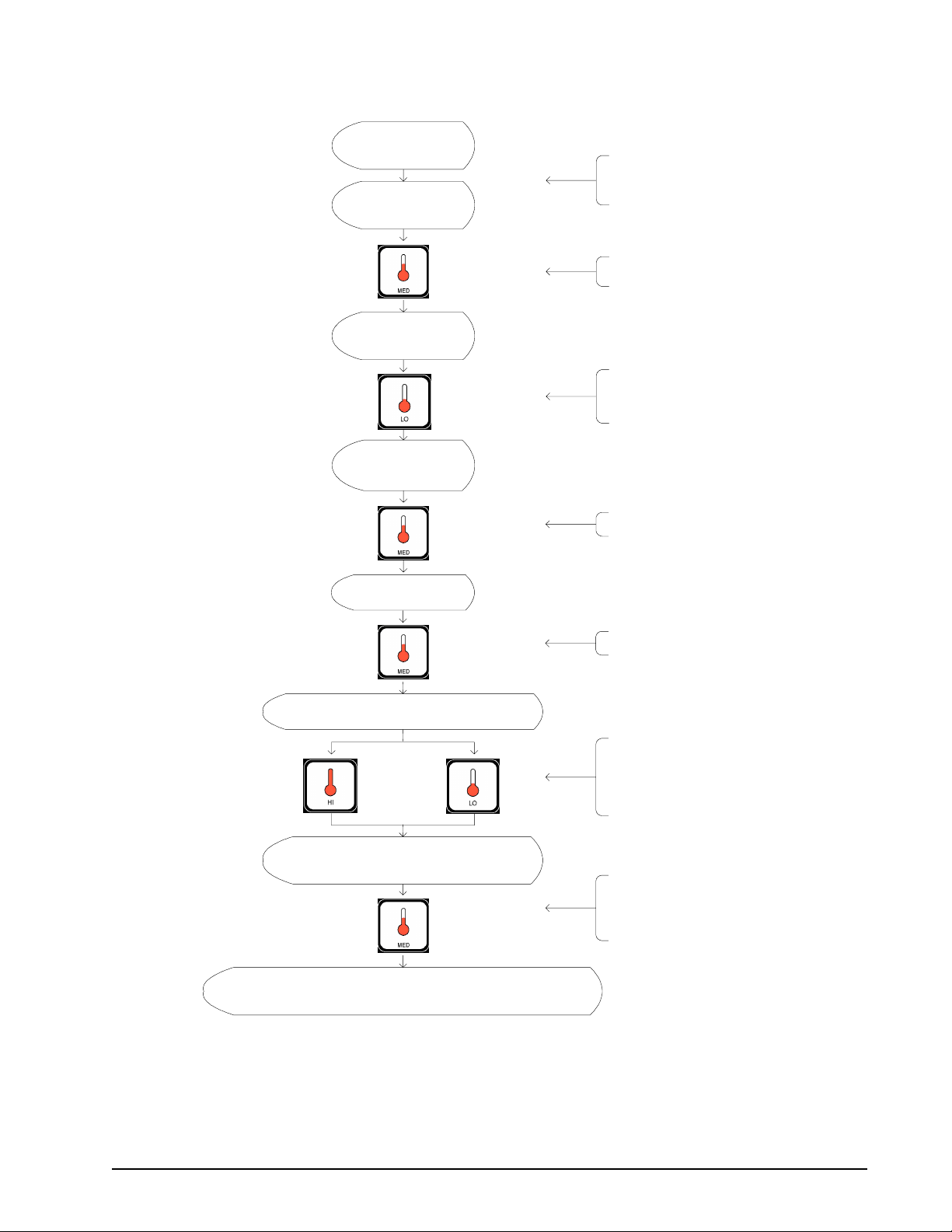

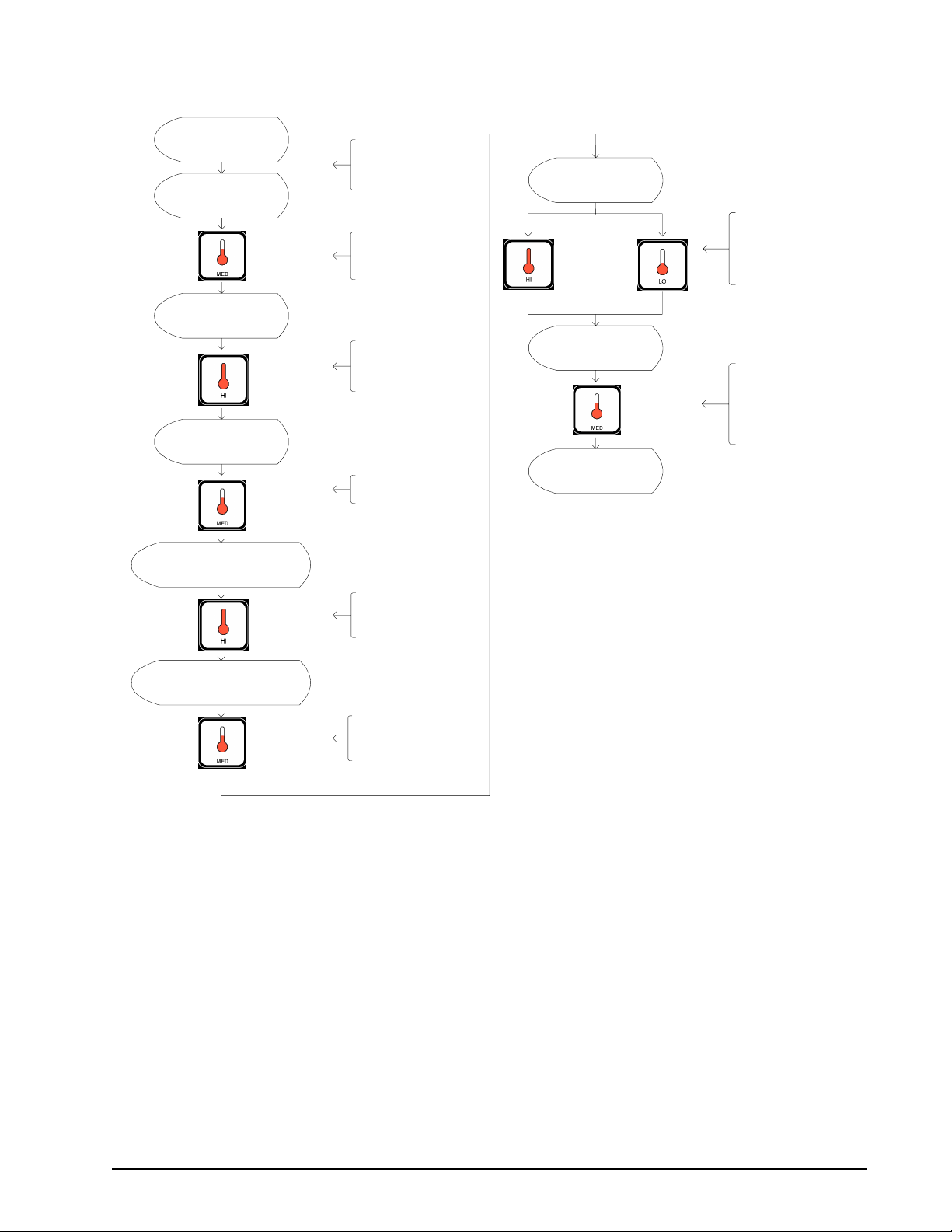

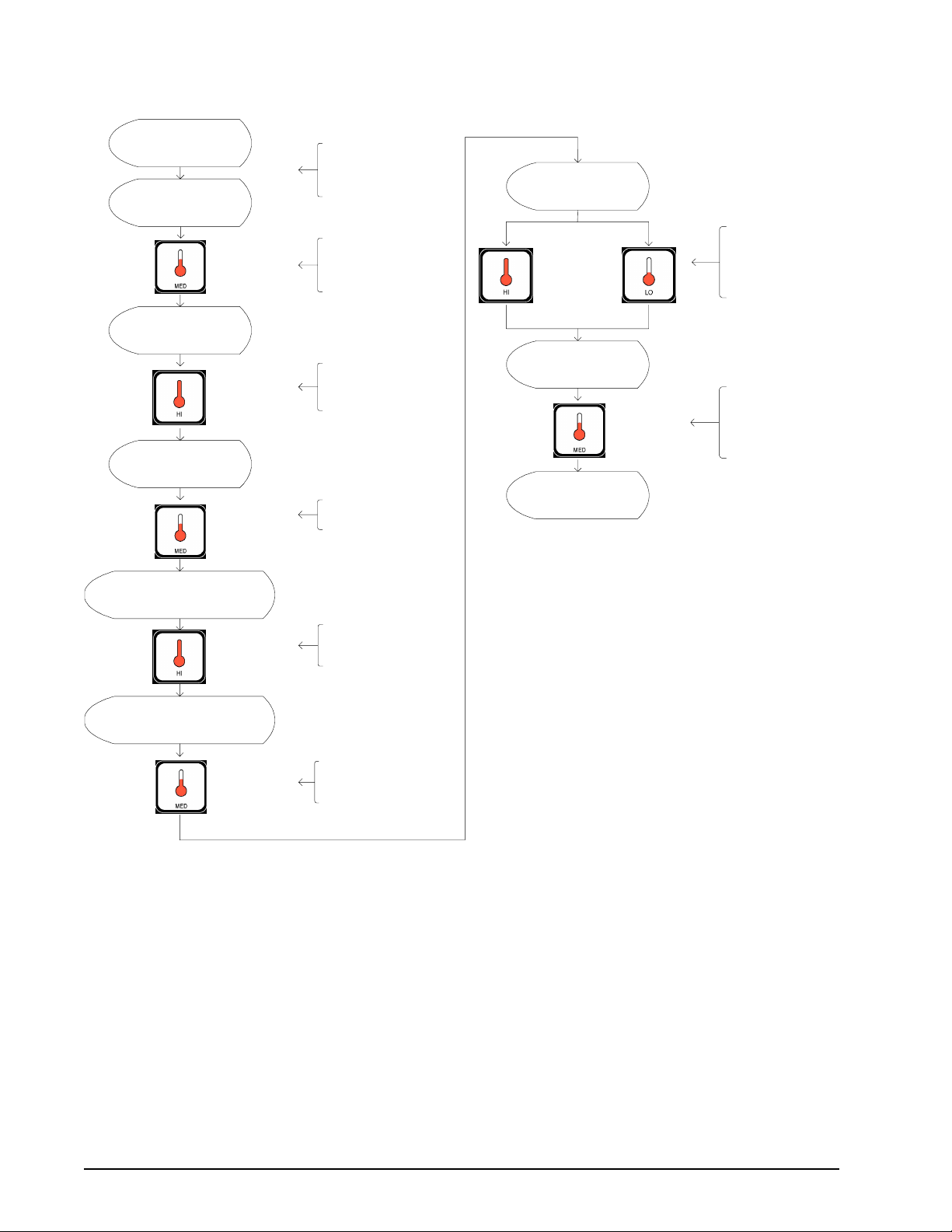

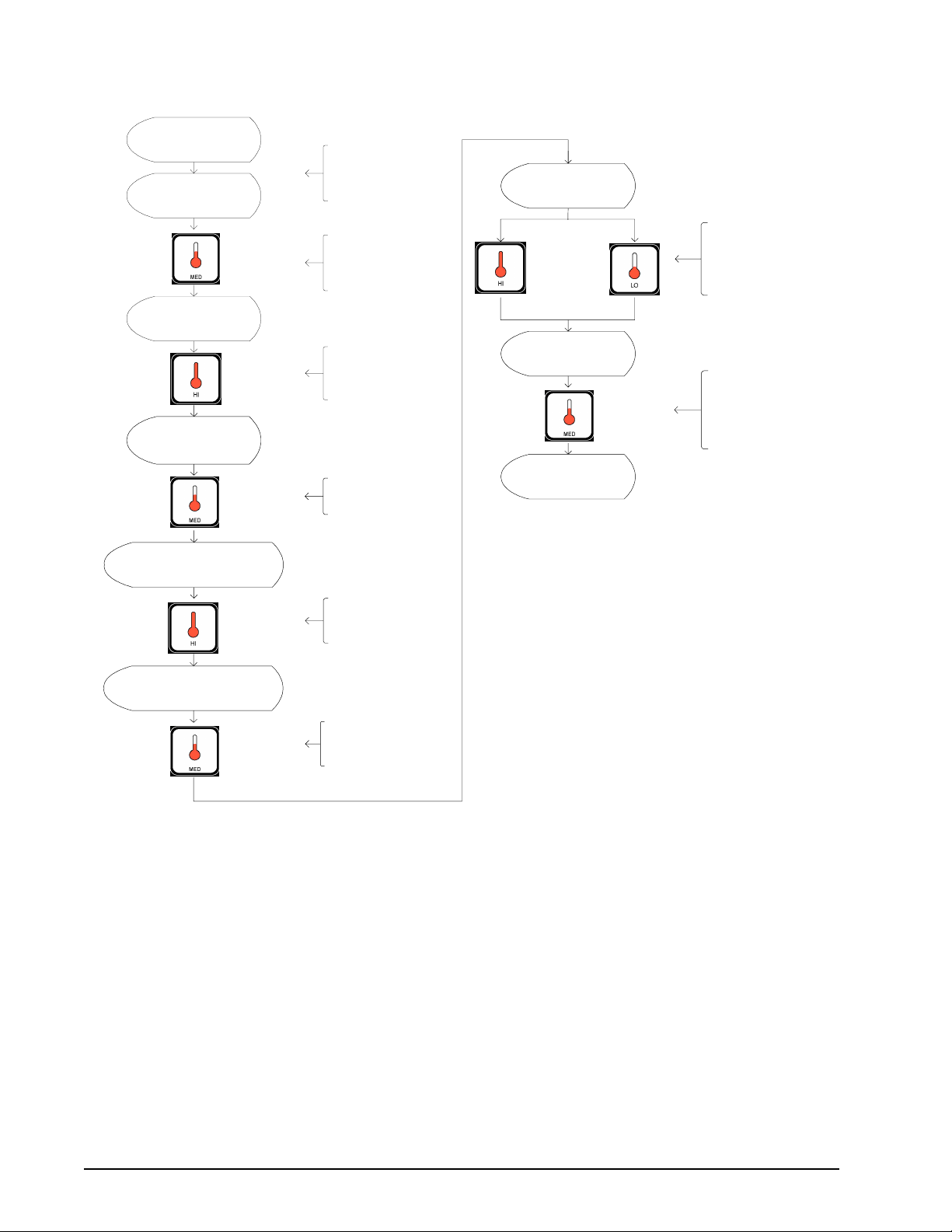

C . Programming Flowcharts ....................................................................................................................................... 26

SECTION VII

FACTORY PRESETS .............................................................................................. 6 2

For All Single Pocket Dryer Models, Except for the SL-20 and SL-30.......................................................................... 62

For SL-20 and SL-30 Dryer Models in Coin Mode ....................................................................................................... 63

For SL-20 and SL-30 Dryer Models in Non-Coin Mode ............................................................................................... 64

For AD-360 Dryer Model.............................................................................................................................................. 65

SECTION VIII
PHASE 7 COIN MICROPROCESSOR CONTROLLER (COMPUTER)

SYSTEM DIAGNOSTICS ....................................................................................... 66

A. Diagnostic L.C.D. Fault Messages ....................................................................................................................... 66

B . S.A.F .E. System Diagnostic Conditions ................................................................................................................ 70

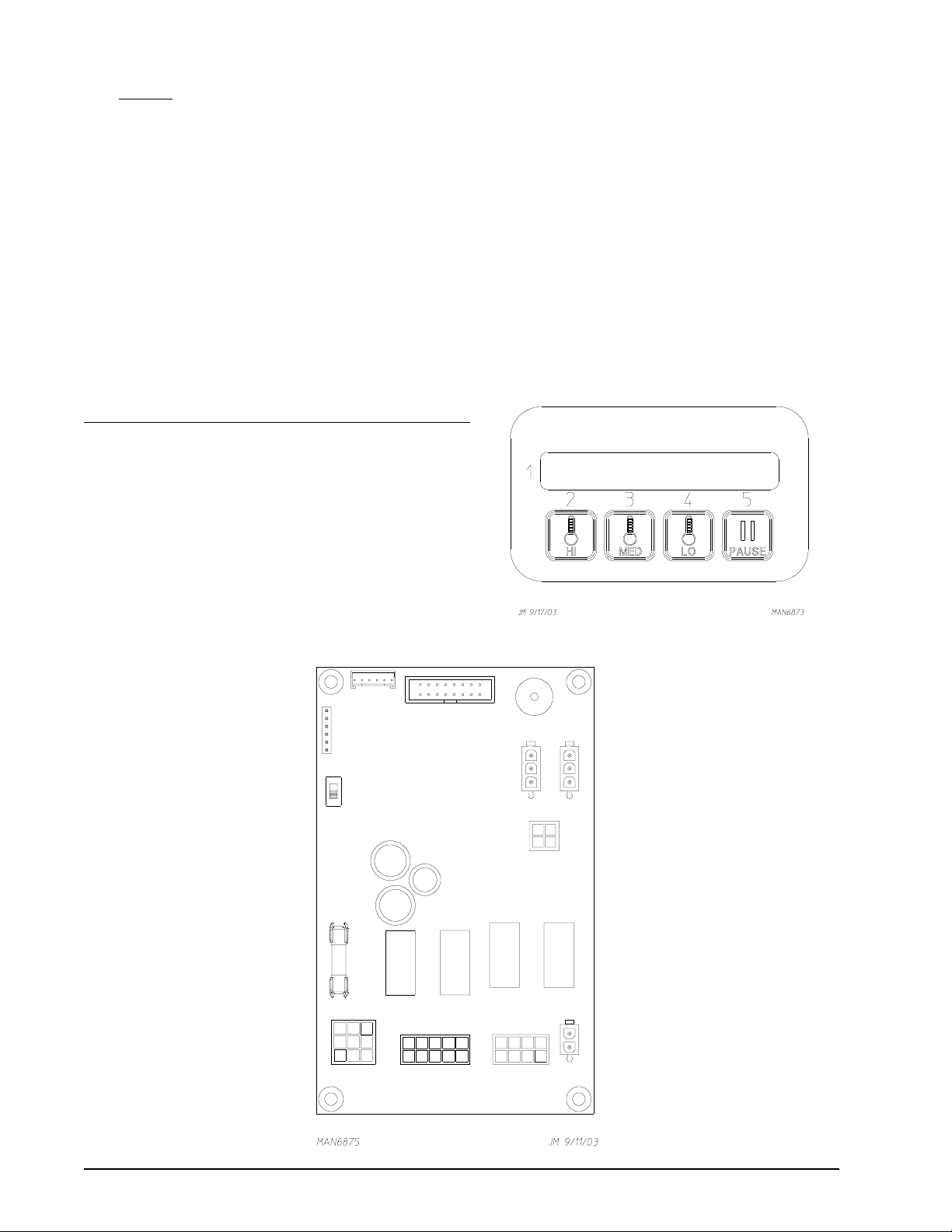

C . Input/Output Board L.E.D. Indicators...................................................................................................................71

D. Keyboard (Touch Pad) Layout ............................................................................................................................. 72

SECTION I

INTRODUCTION

Phase 7 Coin Microprocessor Controller (Computer) Drying System

The Phase 7 coin microprocessor controller (computer) drying system has been designed to provide for better
temperature regulation, efficiency , superior performance, consistency, and faster drying times.

Utilizing this Phase 7 coin microprocessor controller (computer) technology, the user simply has to place the load
in the dryer, insert credit, and push one (1) button to start the drying cycle.

The Phase 7 coin microprocessor controller (computer) provides a very simple user interface, while simultaneously
implementing state-of-the-art technology to ensure safety and performance. The Phase 7 coin microprocessor
controller (computer) constantly monitors the dryer and

ALL guesswork in the maintenance of the dryer.

ALL systems to ensure proper functionality and eliminates

113192-5 Telephone: [phone] / www.amdry.com 3

SECTION II

FEATURES

A. Dependable Phase 7 Coin Microprocessor Controller (Computer) Solid State Integrated Circuitry

– To eliminate as many moving parts as possible.

B.

Sensor Activated Fire Extinguishing (S.A.F.E.) System – A feature which continually monitors the
basket (tumbler) for fires. In the event of a fire, a water supply to the basket (tumbler) will suppress the fire.
The Phase 7 coin microprocessor controller (computer) will also notify the user that a fire has taken place.

C. Program Changes are Easily Made at the Keyboard (Touch Pad) – Actual programs are viewed at the

liquid crystal display (L.C.D.) start-up or verification.

Temperature Selections – Accommodates three (3) temperature settings: “HI” , “MED” , and “LO”

D.

, each programmable to a drying temperature between 100°F (38°C) and 190°F (87°C) for radial airflow

or 100°F (38°C) and 150°F (66°C) for axial airflow.

E. Cool Down – Cool down lowers the temperature in the basket (tumbler) to make the material cool enough

to handle.

F. L.C.D. – Informs user of cycle status and programs; displays important diagnostic and fault codes.

G. Wrinkle Guard Program – Helps keep items wrinkle-free when they are not removed from the dryer

promptly at the end of the drying and cooling cycles.

H. Diagnostics – Major circuits, including the door switch(es), Phase 7 coin microprocessor controller (computer)

temperature sensor, heat output circuits, and more are individually monitored, allowing for precise messages
of your failure.

I. Audio Alert Signal – The tone will sound at the end of a complete drying cycle at a 1-second rate for the

duration programmed. It will also sound for any fault conditions at a quarter-second rate for 4-beeps.
Finally, there is a 3-beep warning at the beginning of every Wrinkle Guard On Cycle, and a continuous rapid
pulse is used for the entire duration of S.A.F.E. system activation.

J. Temperature Conversion Status – Temperature-related programs can be set in either Fahrenheit (°F) or

Celsius (°C). ALL temperatures will automatically convert to the corresponding values (+/- 1°) when
changes are made.

K. High Temperature Protection – If the Phase 7 coin microprocessor controller (computer) senses that the

temperature in the basket (tumbler) has exceeded 180°F (82°C) for axial airflow or 210°F (98°C) for radial
airflow, it will end the drying cycle, and a fault code will be displayed indicating an overheating problem.

L. RPM – The Phase 7 coin microprocessor controller (computer) monitors the speed of the basket (tumbler)

rotation.

M. Clean Lint – This feature notifies the user when the lint access should be cleaned.

4 American Dryer Corp. 11319 2-5

N. Language Selection – The Phase 7 coin microprocessor controller (computer) has the ability to display six

(6) different languages: English, French, Spanish, Italian, Japanese, and Dutch.

O.

Model Selection – The Phase 7 coin microprocessor controller (computer) can be programmed to be used
on six (6) different model dryers, defined by heat type and the quantity of motors.

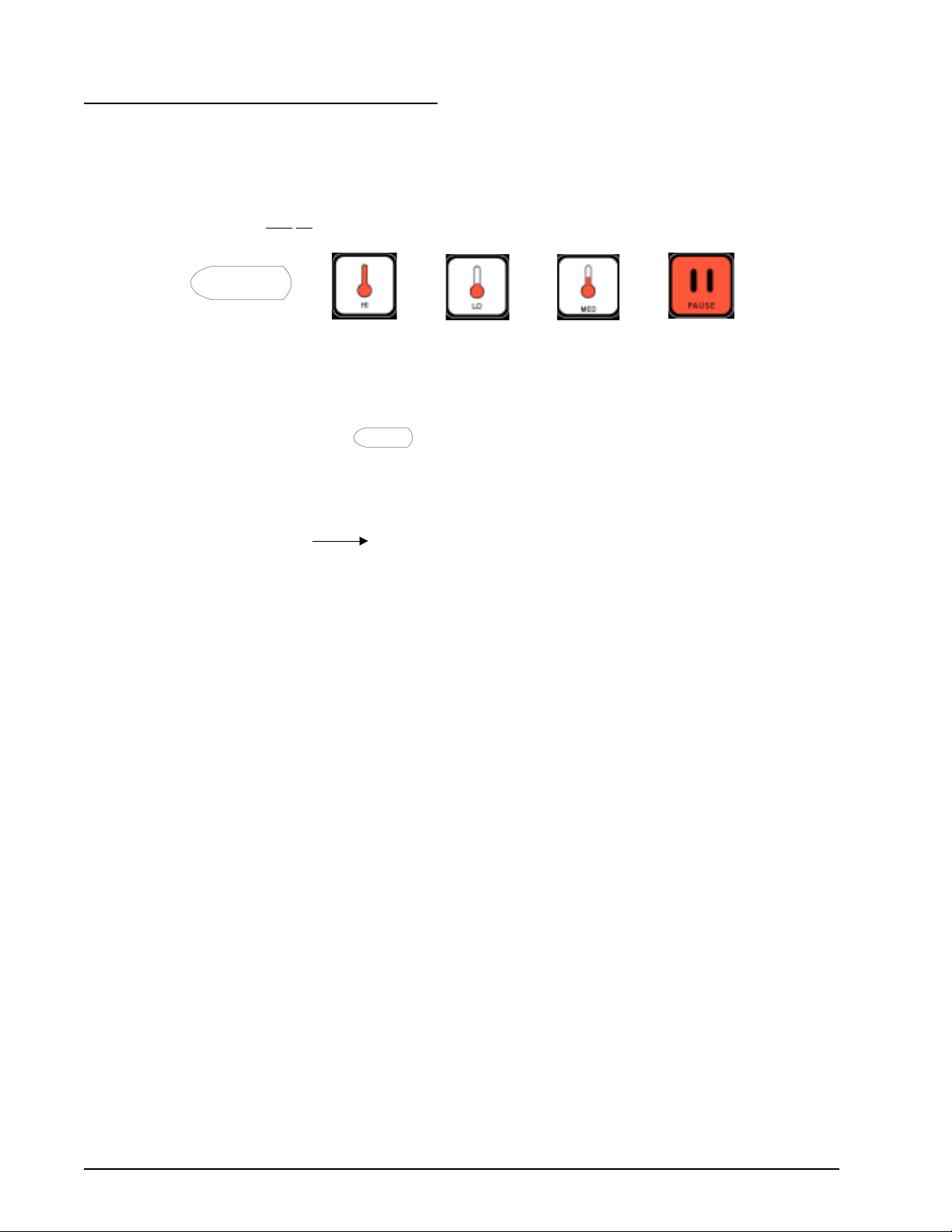

P. Keyboard (Touch Pad) Symbols – = “PAUSE/CLEAR” key

= “MED/ENTER” key

= “HI/UP” key (scroll up)

= “LO/DOWN” key (scroll down)

Currency Symbol – The Phase 7 coin microprocessor controller (computer) can be programmed to display

Q.

ALL currency in one (1) of the following currency symbols, a token mode, none, and no symbol or decimal
point.

USD / UK Pound / EURO / Belgium Franc / French Franc / Yen / Lira / Token / None / No Symbol or
Decimal

R.

Dry Mode – The Phase 7 coin microprocessor controller (computer) can be programmed to operate in
either Coin Mode or Free Dry Mode.

S. Vending Safeguard – This feature provides protection against counterfeit coins.

T. Credit Retention – In the event that the Phase 7 coin microprocessor controller (computer) experiences a

power loss, the Phase 7 coin microprocessor controller (computer) will automatically retain the amount of
remaining credit that a customer had at the time of the power loss. When power is restored, the Phase 7 coin
microprocessor controller (computer) will prompt the user to select a temperature cycle, and will vend the
appropriate amount of time according to the amount of remaining credit that was present at the time of the
power loss.

U. Time for Amount to Start – Allows each temperature setting to vend its own amount of time for the

amount of credit inserted to start a cycle.

V. Time for Top Off – Allows each temperature setting to vend its own amount of additional time for the

amount of credit inserted for additional time.

W. Ready Prompt – This setting allows the user to remove the AMOUNT TO START from the “READY

INSERT $XX.XX TO START” message so that the Phase 7 coin microprocessor controller (computer) will
display “READY”. This feature is useful for dryers that are equipped with debit card readers that display
their own AMOUNT TO START.

X. Scrolling Rate – When in a menu item that has a numeric range, this feature will vary the scrolling rate as

you scroll through the numeric range to help decrease the programming time.

113192-5 Telephone: [phone] / www.amdry.com 5

SECTION III

OPERATING INSTRUCTIONS

A. COIN MODE

1. When the Phase 7 coin microprocessor controller (computer) is in the ready state and no cycle is in
progress, the liquid crystal display (L.C.D.) screen will display a ready prompt depending on the READY
PROMPT option in PL #01. If the option is set to “READY, INSER T AMOUNT TO ST ART” the display
will read, “READY, INSERT $XX.XX TO START”. If the READY PROMPT option in PL #01 is set to
“READY”, the display will read “READY”.

2. Insert coin(s). Once the correct AMOUNT TO ST AR T has been inserted, the L.C.D. will display “ SELECT
TEMPERATURE”.

3. Select temperature by pressing “HI” , “MED” , or “LO” . The cycle will start, and the L.C.D. will
display the Dry Cycle selected and the remaining time.

4. The dryer will continue through the drying and cooling cycles, until the vended time has expired.

5. In Coin Mode, if more time is desired the customer will have to insert more credit. The Phase 7 coin
microprocessor controller (computer) will vend the additional time according to the configured Coin Mode.
If the Phase 7 coin microprocessor controller (computer) is set to Accumulative Time, each coin inserted
will yield some additional drying time. In Accumulative Coin Mode, the Phase 7 coin microprocessor
controller (computer) will only vend additional drying time after the AMOUNT FOR TOP OFF has been
met. In Accumulative Coin Mode, if a coin is inserted into the dryer, which does not meet the AMOUNT
FOR TOP OFF, the Phase 7 coin microprocessor controller (computer) will prompt the user to add more
credit for more time. More information on Accumulative Time and Accumulative Coin can be found on
page 18 through page 21 under PL #06 VENDING PARAMETERS – VENDING MODE.

6. Upon completion of drying and cooling cycles, the buzzer will sound, and the dryer will go into Wrinkle
Guard Mode for 99 minutes or until the door has been opened.

B. FREE MODE

1. When the Phase 7 coin microprocessor controller (computer) is in the READY state and no cycle is in
progress, the L.C.D. screen will display “SELECT TEMPERATURE”.

2. Select temperature by pressing “HI” , “MED” , or “LO” . The cycle will start and the Phase 7 coin
microprocessor controller (computer) will display the Dry Cycle selected and the remaining time.

3. The dryer will continue through the drying and cooling cycles, until the drying time has expired.

6 American Dryer Corp. 11319 2-5

4. In Free Mode, if more or less time is desired in a cycle, press and hold either the “HI” key or “LO”

key for 3-seconds. The Phase 7 coin microprocessor controller (computer) will now display the remaining
time in the cycle. Pressing the “HI” key will increase the number of minutes remaining. Pressing the
“LO” key will decrease the number of minutes remaining. Once the desired amount of time is reached,
press the “MED”
accordingly . In the event, you DO NOT wish to save the new time simply press the “PAUSE” key and
the Phase 7 coin microprocessor controller (computer) will back out to the normal cycle message.

5. Upon completion of the drying and cooling cycles, the buzzer will sound, and the dryer will go into Wrinkle

Guard Mode for 99 minutes or until the door has been opened.

key and the Phase 7 coin microprocessor controller (computer) will save the time

C. HOT KEYS

Hot Keys in Coin Mode – When the Phase 7 coin microprocessor controller (computer) is in Coin Mode, the
HOT KEYS are disabled. The HOT KEYS can be enabled only if the dryer is in a dry cycle. The HOT KEYS
cannot be enabled if the dryer is in “READY, INSERT 25¢ TO START” Mode. To enable the HOT KEYS
when the Phase 7 coin microprocessor controller (computer) is in a dry cycle, toggle the program switch to the
“UP” position. Once the program switch is in the “UP” position, the HOT KEYS are enabled. The HOT
KEYS are as follows:

Pressing and holding the “HI”

Pressing and holding the “MED” key will show the temperature readings from ALL of the probes that are
equipped with the dryer. ALL dryers will have an exhaust probe, the exhaust probe reading is always the first
temperature reading; if the exhaust probe is the only probe the dryer is equipped with, it will be the only temperature
reading shown. If the dryer is also equipped with a thermistor probe, this will be the second reading shown. If
the dryer is of an axial configuration and is equipped with an axial probe and thermistor probe, the temperatures
shown will be exhaust probe on the left, axial probe in the middle and thermistor probe on the right. If the dryer
is equipped with an axial probe but no thermistor probe, the second temperature reading will be that of the axial
probe.

Pressing and holding the “LO” key will show the RPMs of the basket (tumbler).

The “PAUSE” key will pause the dryer. If the dryer is paused, pressing the “HI” , “MED” , or “LO”
key will restart the dryer into the appropriate drying cycle. Once the dry cycle has started again, the HOT
KEYS will be enabled again.

Hot Keys in Free Mode – When the Phase 7 coin microprocessor controller (computer) is in Free Mode, the
HOT KEYS are disabled. The HOT KEYS can be enabled only if the dryer is in a dry cycle. The HOT KEYS
cannot be enabled if the dryer is in “SELECT TEMP TO START” Mode. To enable the HOT KEYS when the
Phase 7 coin microprocessor controller (computer) is in a dry cycle, toggle the program switch to the “UP”
position. Once the program switch is in the “UP” position, the HOT KEYS are enabled. The HOT KEYS are
as follows:

key will show the remaining credit available.

Pressing and holding the “HI” key will show the remaining dry time available.

113192-5 Telephone: [phone] / www.amdry.com 7

Pressing and holding the “MED” key will show the temperature readings from ALL of the probes that are
equipped with the dryer.
temperature reading; if the exhaust probe is the only probe the dryer is equipped with, it will be the only temperature
reading shown. If the dryer is also equipped with a thermistor probe, this will be the second reading shown. If
the dryer is of an axial configuration and is equipped with an axial probe and thermistor probe, the temperatures
shown
is equipped with an axial probe but no thermistor probe, the second temperature reading
probe.

will be exhaust probe on the left, axial probe in the middle and thermistor probe on the right. If the dryer

ALL dryers will have an exhaust probe, the exhaust probe reading is always the first

will be that of the axial

Pressing and holding the “LO”

The “PAUSE”
key will restart the dryer into the appropriate drying cycle. Once the dry cycle has started again, the HOT
KEYS will be enabled again.

Hot Keys Lock On Mode – In addition to the HOT KEY features described in the previous two (2) paragraphs,
the Phase 7 coin microprocessor controller (computer) also has a HOT KEY feature that allows HOT KEY
Mode to be locked on.

In order to Lock On the Hot Key Mode, press and hold the desired HOT KEY, then toggle the program switch
up. This will lock the display onto the desired HOT KEY and the display will not be released until the program
switch is toggled back down. If another HOT KEY is desired simply press the desired HOT KEY and the display
will update to the new HOT KEY item. When in the HOT KEY Lock On Mode the Phase 7 coin microprocessor
controller (computer) will respond as normal, a cycle can be stopped, paused, and started, however the display
will remain displaying the HOT KEY item and not the cycle information. This feature is intended for diagnostics
and is not considered a normal operating mode.

key will pause the dryer. If the dryer is paused, pressing the “HI” , “MED” , or “LO”

key will show the RPMs of the basket (tumbler).

D. SCROLLING RATE

When in a menu item that has a numeric range, this feature will vary the scrolling rate as you scroll through the
numeric range to help decrease the programming time. The “HI” and “LO” keys are used to increase and
decrease the values in a menu item. When increasing or decreasing a value in a menu item, if you hold the “HI”

or “LO” key for more than 3-seconds the scrolling rate will change to a faster rate.

E. PAUSE MODE

If the “PAUSE” key is pressed and the door is not opened, the dryer will restart in 20-seconds. If the
“PAUSE” key is pressed and the dryer door is opened and left open, the dryer will wait for the pause time
defined in PL #01 to expire. Once the pause time expires, the Phase 7 coin microprocessor controller (computer)
will begin to count down the dry time. If the dryer door is opened without first pressing the “P AUSE” key , the
Phase 7 coin microprocessor controller (computer) will continue to count down the dry time.

8 American Dryer Corp. 11319 2-5

F. RPM

The Phase 7 coin microprocessor controller (computer) also displays the basket (tumbler) RPM by pressing and
holding the “LO”
approximately 30-seconds before getting a true RPM reading). In Coin Mode, the program switch must be in
the “UP” position.

key while the basket (tumbler) is rotating (the basket [tumbler] must be rotating for

G. CLEARING CREDIT/CLEARING CYCLE

In Coin Mode, credit can be cleared from the Phase 7 coin microprocessor controller (computer) by pressing
and holding the “P AUSE” key while entering the following key combination: “HI-HI-HI-LO-LO-MED”. The
combination is the “HI”

key one (1) time. Wait 1-second for the Phase 7 coin microprocessor controller (computer) to prompt the

user with “CLEAR CREDIT?” If you want to proceed, simultaneously press the “PAUSE”
of the remaining keys. This will clear the credit. A flowchart of this procedure has been provided in Section VI
of this manual.

A cycle in Free Mode can be cleared by first pausing a cycle and then pressing the “PAUSE” key once again
to clear the cycle.

key three (3) times followed by the “LO” key two (2) times and then the “MED”

key and one (1)

H. ACCESSING COIN VAULT

The coin vault can be accessed by placing the program switch into the “UP” position. Once the program switch
is in the “UP” position, press the “HI” key. The Phase 7 coin microprocessor controller (computer) will now
display the amount of money in the coin vault. Press the “HI” key again and the Phase 7 coin microprocessor
controller (computer) will ask to “CLEAR COIN VAULT TOTAL?” Press “PAUSE” for “NO” or press
“MED” for “YES”.

I. CLEARING FAULT RECORDS AND CREDIT

This feature allows the user to reset the coin vault, clear any credit still available for a cycle and ALL fault
records. In order to activate this feature the Phase 7 coin microprocessor controller (computer) needs to be
powered down and then restarted. Immediately after power has been applied to the Phase 7 coin microprocessor
controller (computer), press and hold the “PAUSE” key and “HI” key simultaneously. The Phase 7 coin
microprocessor controller (computer) will prompt the user with the following message “CLEAR FAULT
RECORDS AND CREDIT?” Pressing “PAUSE” and any other key will indicate a YES, while pressing any
key other than “PAUSE” will indicate a NO. Once the fault records, coin vault and credit are cleared, there
is no way of restoring this information.

113192-5 Telephone: [phone] / www.amdry.com 9

J. WRINKLE GUARD

This program keeps items wrinkle-free when they are not removed from the dryer promptly at the end of the
drying cycle and/or cooling cycle.

When the drying and cooling cycles are completed, the dryer will shut off, the tone will sound, and the liquid
crystal display (L.C.D.) will read “CYCLE DONE”. If the door is not opened, the Phase 7 coin microprocessor
controller (computer) will wait an initial 15 minutes delay time. Once the initial 15 minute delay time has expired,
the fan will start and the basket (tumbler) will rotate (without heat) for an ON time of 15-seconds. When the fan
and basket start, the display will read “WRINKLE GUARD”. Immediately following the 15-second ON time,
the Phase 7 coin microprocessor controller (computer) will go into a 5 minute OFF time at which point it will
display “CYCLE DONE”. The Phase 7 coin microprocessor controller (computer) will repeat this process of
15-seconds “ON” and 5 minutes “OFF” until either the doors are opened or 99 minutes have elapsed, whichever
comes first. Prior to each ON time, there is a 3-beep warning that the fan and basket (tumbler) rotation are
about to start. The beeps at the end of the Wrinkle Guard Cycle can be programmed to be ON/OFF. Refer to

page 14 for PL #01 – SELECT BUZZER MODE.

NOTE: The following information is an explanation of the Sensor Activated Fire Extinguishing

(S.A.F .E.) system functionality . This feature is programmed at the factory and affects dryers
that are equipped with the S.A.F .E. system.

K. S.A.F.E. SYSTEM

While the dryer is in an idle state, or 20-seconds after the heat turns off, the Phase 7 coin microprocessor
controller (computer) monitors the S.A.F .E. temperature probe located in the top of the basket (tumbler) chamber
and records the minimum temperature. If the minimum recorded S.A.F.E. probe temperature is greater than
120°F (48°C) and the Phase 7 coin microprocessor controller (computer) detects a 50° rise in temperature, this
will be the trip point, and the S.A.F.E. routine will activate.

While a drying cycle is in process and the heat has turned on at least once, the Phase 7 coin microprocessor
controller (computer) monitors the exhaust temperature transducer. If the drying cycle temperature set point is
set greater than 160°F (71°C) and the Phase 7 coin microprocessor controller (computer) detects an exhaust
temperature rise 25°F greater than set point, this will be the trip point, and the S.A.F.E. routine will activate. If
set point is below 160°F (71°C), the trip point will be 185°F (85°C).

Once the S.A.F.E. routine is activated, the display will read “S.A.F.E. System Activated”, and water will be
injected into the basket (tumbler) chamber. Anytime water is being injected into the basket (tumbler), the basket
(tumbler) drive will turn the load for 1-second every 15-seconds. This process will continue for a minimum of 2
minutes. After 2 minutes have elapsed, the Phase 7 coin microprocessor controller (computer) will check if the
temperature remained above trip point; if so, water will remain on. The Phase 7 coin microprocessor controller
(computer) will continue to check if temperature is above trip point every 30-seconds. If the water has been on
for a constant 10 minutes, the water will be turned off regardless of the temperature, and the display will read
“S.A.F.E. System Was Activated”. If the temperature has dropped below trip point, the Phase 7 coin
microprocessor controller (computer) will turn off the water prior to 10 minutes.

10 American Dryer Corp. 11319 2-5

SECTION IV

L.C.D. OPERA TING MESSAGES

The liquid crystal display (L.C.D.) informs the operator of cycle status and program verification and displays
important diagnostic messages and fault information.

A. COIN MODE

When the dryer is idle and is in Ready Mode the Phase 7 coin microprocessor controller (computer) will display:

READY, INSERT $XX.XX TO START

XX.XX represents the AMOUNT TO START defined in program memory location PL #06. If the AMOUNT
TO ST ART is less than $1.00, the Phase 7 coin microprocessor controller (computer) will display the necessary
AMOUNT TO START in cents “XX¢”. If the currency setting is changed to another currency symbol, the
correct symbol

If the dryer is equipped with a Sensor Activated Fire Extinguishing (S.A.F.E.) system and there is an issue with the
system, the Phase 7 coin microprocessor controller (computer) will display:

will be used instead of the $ and ¢ symbols.

S.A.F.E. SYSTEM DISABLED...READY, INSERT $XX.XX TO START

The Phase 7 coin microprocessor controller (computer) will continue to display “S.A.F .E. system disabled” with
ALL of the following messages until the temperature cycle is selected.

Once a coin has been inserted, the Phase 7 coin microprocessor controller (computer) will display:

ADD XX¢ TO START

OR

S.A.F.E. SYSTEM DISABLED...ADD XX¢ TO START

The Phase 7 coin microprocessor controller (computer) will continue to display this message until the appropriate
AMOUNT TO START has been met. Then the Phase 7 coin microprocessor controller (computer) will display:

SELECT TEMP TO START

OR

S.A.F.E. SYSTEM DISABLED...SELECT TEMP TO START

In Coin Mode, if the Phase 7 coin microprocessor controller (computer) detects a malfunction, it will display:

OUT OF ORDER

T o see the error fault, press “LO”
of faults and descriptions.

113192-5 Telephone: [phone] / www.amdry.com 11

, and the fault will be displayed. Refer to Section VIII for a complete list

If the dryer is paused, the Phase 7 coin microprocessor controller (computer) will display:

CYCLE PAUSED...

B. FREE MODE

If the Phase 7 coin microprocessor controller (computer) is in Free Mode and is in a READY state, the Phase
7 coin microprocessor controller (computer) will display:

SELECT TEMP TO STAR T

Likewise, if the dryer is equipped with a Sensor Activated Fire Extinguishing (S.A.F.E.) system and there is an
issue with the system, the Phase 7 coin microprocessor controller (computer) will display:

S.A.F .E. SYSTEM DISABLED...SELECT TEMP T O ST ART

If a malfunction is detected in Free Mode, the fault will be displayed. Refer to Section VIII for a complete list of
faults and descriptions.

If the dryer is paused, the

CYCLE P AUSED…SELECT TEMP T O RESTAR T OR PAUSE T O CLEAR CYCLE

Phase 7 coin microprocessor controller (computer) will display:

C. MESSAGES COMMON TO COIN AND FREE MODES

Once a dry cycle has been selected, regardless of Coin or Free Mode, the Phase 7 coin microprocessor controller
(computer) will toggle between the following two (2) messages:

One (1) of the following messages, depending on the cycle selected:

LOW DRY TEMPERA TURE

HIGH DRY TEMPERA TURE

MEDIUM TEMPERA TURE

And one (1) of the following messages, depending on time remaining:

XX:XX MINUTES REMAINING

00:XX SECONDS REMAINING

If the door is opened, the Phase 7 coin microprocessor controller (computer) will display:

MAIN DOOR OPEN

If the main door is open, and a dry cycle is selected, the Phase 7 coin microprocessor controller (computer) will
display:

CLOSE MAIN DOOR

12 American Dryer Corp. 11319 2-5

If the lint access is opened, the Phase 7 coin microprocessor controller (computer) will display:

LINT ACCESS OPEN

If the lint access door is open, and a dry cycle is selected, the Phase 7 coin microprocessor controller
(computer) will display:

CLOSE LINT ACCESS

113192-5 Telephone: [phone] / www.amdry.com 13

SECTION V

PROGRAM SELECTIONS (PL #01-PL #07)

PL #01 – CONTROL SETTINGS

SELECT LANGUAGE

This location determines in what language ALL messages will be displayed. The possible selections are English,
French, Spanish, Italian, Japanese, and Dutch.

SELECT TEMP SCALE

T emperature-related programs are programmable to be operated in either Fahrenheit (°F) or Celsius (°C). The
temperature scale selection is made in “PL #01 TEMP SCALE”. Programs affected are:

1. Temperature Display Mode

2. Drying Temperatures

3. Cool Down Temperatures

IMPORTANT: When changing the temperature conversion status from Fahrenheit to Celsius, or

vice versa, ALL the temperatures will be changed accordingly. The Phase 7 coin
microprocessor controller (computer) automatically calculates and converts the
temperatures in these programs to the previously set value. For example, when
changing from °F to °C, if the drying temperature was set for 150°F , the Phase 7
coin microprocessor controller (computer) will change to 66°C (+/- 1°Celsius).

SELECT BUZZER MODE

This location determines whether the buzzer will sound at the end of each Wrinkle Guard Cycle. This option is
toggled ON/OFF. Refer to the Wrinkle Guard description in Section III for an explanation of Wrinkle Guard
functionality .

BEEP COUNT 1 TO 9 BEEPS

If the Buzzer Mode is set to “ON”, this location determines how many times the buzzer will beep at the end of
a Wrinkle Guard Cycle.

SELECT DR Y MODE

This option determines whether the dryer operates in Free Mode or Coin Mode.

14 American Dryer Corp. 11319 2-5

PAUSE TIME 0 TO 3 MINUTES

If the “PAUSE” key is pressed and the main door is open, the Phase 7 coin microprocessor controller
(computer) will wait for the pause time defined in this setting to expire. Once the time has expired, the Phase 7
coin microprocessor controller (computer) will begin to count down the drying time. If the “PAUSE”
not pressed prior to opening the door, the Phase 7 coin microprocessor controller (computer) will not wait for the
pause time before counting down the drying time.

key is

READY PROMPT

This option controls whether the Phase 7 coin microprocessor controller (computer) displays “READY” or
“READY, INSERT $XX.XX T O START”, when the Phase 7 coin microprocessor controller (computer) is in a
READY state while in Coin Mode. The READY option can be used when the dryer has a debit card system or
central pay system implemented that is displaying its own AMOUNT T O START . When this option is selected
the Phase 7 coin microprocessor controller (computer) will remain displaying “READY” until the AMOUNT
TO START has been met, at this point the Phase 7 coin microprocessor controller (computer) will display
“SELECT TEMP TO START”. The “READY, INSERT AMOUNT TO START” option is used when the
dryer has its own coin acceptor installed and wishes to have the Phase 7 coin microprocessor controller (computer)
board display the AMOUNT TO START. When in this option the Phase 7 coin microprocessor controller
(computer) will display “READY, INSERT $XX.XX TO START”. Once a coin is inserted, the Phase 7 coin
microprocessor controller (computer) will display “ADD XX TO START” until the AMOUNT T O START has
been met, at which time the Phase 7 coin microprocessor controller (computer) will display “SELECT TEMP
TO START”.

PL #02 – MACHINE SETTINGS

SELECT MODEL

This location determines what type of dryer the Phase 7 coin microprocessor controller (computer) will be set up
as. The six (6) possible models are Gas Single Motor, Electric Single Motor, Steam Single Motor, Gas Dual
Motor, Electric Dual Motor and Steam Dual Motor.

NOTE: In the event that the wrong model is selected, the Phase 7 coin microprocessor controller

(computer) will go into a model fault and will default to a Gas Single Motor dryer.

SELECT ROT ATION SENSOR MODE

This option controls whether the Phase 7 coin microprocessor controller (computer) should monitor the rotation
of the basket (tumbler). This program toggles ON/OFF.

ENTER LINT CLEANING FREQUENCY 0 TO 10 HOURS

This feature monitors the hours of drying time and compares it with the Lint Cleaning Frequency setting. Once
the Lint Cleaning Frequency time has been met, the Phase 7 coin microprocessor controller (computer) will
begin prompting the user to clean the lint drawer. The Phase 7 coin microprocessor controller (computer) will
allow two (2) more hours of drying time before locking out the Phase 7 coin microprocessor controller (computer).
The Phase 7 coin microprocessor controller (computer)
cleaned out. When the lint drawer is opened, the display will read “LINT ACCESS OPEN”, and when the lint
drawer is closed, the Phase 7 coin microprocessor controller (computer) will go back to a ready state and will
read “READY, INSERT 25¢ TO START ”.

will not respond until after the lint drawer has been

113192-5 Telephone: [phone] / www.amdry.com 15

AXIAL THERMISTOR INPUT

This location determines whether the Phase 7 coin microprocessor controller (computer) will use the thermistor
probe to monitor the axial temperature in an axial dryer. This menu can be toggled ON and OFF. When the
option is turned on, the Phase 7 coin microprocessor controller (computer)

will be configured to an axial dryer .

NOTE: In an axial configuration, the new exhaust probe temperature range for drying cycles will be

between 100°F and 150°F .

THERMISTOR TEMP SET POINT 100 TO 400°F

This location is only active when the AXIAL THERMISTOR INPUT has been turned ON. If the AXIAL
THERMISTOR INPUT is OFF , this location will display NOT A VAILABLE. When the AXIAL THERMISTOR
INPUT is ON, this location will determine at what temperature the Phase 7 coin microprocessor controller
(computer) will cycle the heat, using the temperature reading from the thermistor probe.

PL #03 – HI KEY, PL #04 – MED KEY, PL #05 – LO KEY SETTINGS

TIME FOR AMOUNT TO ST ART 1 TO 99 MINUTES

This location determines the time that is vended once the AMOUNT TO START is met. It is programmable
from 1 minute to 99 minutes, in 1 minute increments. Each temperature setting has its own TIME FOR AMOUNT
TO START so that each temperature setting can charge at a different rate.

Once the Phase 7 coin microprocessor controller (computer) is in Pause Mode and the Phase 7 coin microprocessor
controller (computer) is displaying “CYCLE P AUSED” for Coin Mode or “CYCLE P AUSED...SELECT TEMP
TO RESTART OR PAUSE TO CLEAR CYCLE” for Free Mode, the user can restart the dryer in HI, MED,
or LO.

COIN MODE

In Coin Mode, when the Phase 7 coin microprocessor controller (computer) is set to Accumulative Time Mode
and a cycle is started, the Phase 7 coin microprocessor controller (computer) will calculate how much time is
available for the temperature selected by using the TIME FOR AMOUNT TO START for the temperature key
selected and the AMOUNT TO START. If the Phase 7 coin microprocessor controller (computer) is paused
and a new temperature key is selected the Phase 7 coin microprocessor controller (computer) will calculate how
much time is left in the cycle for the new temperature selected. These calculations are based on the TIME FOR
AMOUNT TO START for the new temperature key and the amount of credit that was available at the time the
Phase 7 coin microprocessor controller (computer) was placed into Pause Mode.

FREE MODE

In Free Mode the Phase 7 coin microprocessor controller (computer) will use the TIME FOR AMOUNT TO
START for the temperature key selected to determine how much time is available for the cycle started.

16 American Dryer Corp. 11319 2-5

When the Phase 7 coin microprocessor controller (computer) is placed into Pause Mode, the Phase 7 coin
microprocessor controller (computer) will calculate a ratio of how much time was left in the cycle at the time the
Phase 7 coin microprocessor controller (computer) was placed into Pause Mode and the TIME FOR AMOUNT
TO START for the temperature key that was previously selected. Once this ratio is determined, the Phase 7
coin microprocessor controller (computer) will use the same ratio to determine how much time is left in the
cycle, when a new temperature key is selected. The Phase 7 coin microprocessor controller (computer) will
multiply the TIME FOR AMOUNT TO ST AR T for the new temperature key by the ratio and that will determine
how much time is left in the cycle.

TIME FOR TOP OFF 1 TO 99 MINUTES

This location determines the time that is vended once the AMOUNT FOR TOP OFF is met. This is programmable
from 1 minute to 99 minutes, in 1 minute increments. Each temperature setting has its own TIME FOR TOP
OFF so that each temperature setting can charge at a different rate.

TIME FOR TOP OFF is only used when the Phase 7 coin microprocessor controller (computer) is set in
Accumulative Coin Mode. When a cycle is started, the Phase 7 coin microprocessor controller (computer) uses
TIME FOR AMOUNT TO START 1 TO 99 MINUTES to determine the initial amount of time vended for a
temperature key. Once a cycle is started, the Phase 7 coin microprocessor controller (computer) will then
reference this TIME FOR TOP OFF for any additional time needed, before any additional time is vended the
user will first need to meet the AMOUNT FOR TOP OFF. When a cycle is restarted from Pause Mode, the
Phase 7 coin microprocessor controller (computer) will calculate how much time is left in the cycle for the new
temperature selected. These calculations are based on a combination of the TIME FOR AMOUNT TO START
and TIME FOR TOP OFF for the new temperature key selected and the amount of credit that was available at
the time the Phase 7 coin microprocessor controller (computer) was placed into Pause Mode. In Accumulative
Coin Mode, the AMOUNT TO START and AMOUNT FOR TOP OFF can differ, so the rate charged for
TIME FOR AMOUNT TO START and TIME FOR TOP OFF can be different. The Phase 7 coin microprocessor
controller (computer) accounts for the different rates by tracking how much credit is available from AMOUNT
TO ST ART and the credit that is available from TIME FOR TOP OFF. Using these ratios of credit and time, the
Phase 7 coin microprocessor controller (computer) will determine how much time is left in the cycle for the new
temperature key selected.

ENTER HIGH DRY TEMPERATURE 100 TO 190°F

Each temperature cycle “HIGH”, “MEDIUM”, and “LOW” can be programmed to a dry temperature ranging
from 100°F to 190°F (38°C to 87°C) in Radial Mode or 100°F to 150°F (38°C to 66°C) in Axial Mode.

COOL TIME 0 TO 9 MINUTES

Cool down time ranges from 0 to 9 minutes. The cool down time occurs at the end of a dry cycle. If your cool
down time is set to 4 minutes, the last 4 minutes of the dry cycle will be in Cool Down Mode.

113192-5 Telephone: [phone] / www.amdry.com 17

PL #06 – VENDING PARAMETERS

CURRENCY SYMBOL

The Phase 7 coin microprocessor controller (computer) can be programmed to display ALL currency in one (1)
of the following currency symbols, a token mode, none, and no symbol or decimal point.

USD / UK Pound / EURO / Belgium Franc / French Franc / Yen / Lira / Token / None / No Symbol or Decimal

NOTE: When the Phase 7 coin microprocessor controller (computer) is set to TOKEN ALL of the

coin related menu items will change from currency to whole numbers. The LEFT and RIGHT
COIN VALUES will change to a default of one (1) token. The AMOUNT TO ST AR T and
AMOUNT FOR TOP OFF will also default to one (1). If the currency symbol is changed
back to a currency symbol these menu items will change back to factory defaults. The default
setting are LEFT COIN DENOMINA TION – 0.25, RIGHT COIN DENOMINA TION –

0.10, AMOUNT T O START – 0.25, and AMOUNT FOR TOP OFF – 0.25.

NOTE: Any time the Currency Symbol menu is accessed, the Phase 7 coin microprocessor controller

(computer) will clear any credit available on the Phase 7 coin microprocessor controller
(computer) and will also reset the coin vault total.

SELECT VENDING MODE

The Vending Mode determines how the Phase 7 coin microprocessor controller (computer) will vend time to a
customer when a coin is inserted into the dryer. The Phase 7 coin microprocessor controller (computer) uses
this parameter to determine whether the Phase 7 coin microprocessor controller (computer) is in Accumulative
Time or Accumulative Coin Mode. Depending on which mode the Phase 7 coin microprocessor controller
(computer) is in, it will use a combination of the following program locations to determine how much time will be
vended to the customer.

PL #03, PL #04, PL #05 – TIME FOR AMOUNT TO START
PL #06 – LEFT COIN DENOMINATION
PL #06 – RIGHT COIN DENOMINATION
PL #06 – AMOUNT TO START
PL #06 – AMOUNT FOR TOP OFF

ACCUMULA TIVE TIME

In Accumulative Time Mode, after the initial AMOUNT TO START (PL #06) has been met, each additional
coin afterward will have a specific value in time, which is determined by TIME FOR AMOUNT TO START
(PL #03, PL #04, or PL #05) and AMOUNT TO START (PL #06).

18 American Dryer Corp. 11319 2-5

Single Coin Acceptor

Example No. 1: If the dryer is equipped with a 25¢ coin acceptor and the AMOUNT TO START (PL #06) is

25¢, the HI key TIME FOR AMOUNT TO START (PL #03) is 30 minutes. Each coin
entered into the dryer will yield 30 minutes.

Settings: PL #06 (LEFT COIN DENOMINATION) .................. 25

PL #03 (TIME FOR AMOUNT TO START) .............. 3 0

PL #06 (AMOUNT TO START) .................................... 2 5

Formula: (LEFT COIN DENOMINATION [PL #06] / AMOUNT TO START [PL #06])

(TIME FOR AMOUNT TO START [PL #03]) = Vended Time
(25¢/25¢)(30) = 30 minutes

Example No. 2: If the dryer is equipped with a 25¢ coin acceptor and the AMOUNT TO START (PL #06) is

50¢, the MED key TIME FOR AMOUNT TO START (PL #04) is 30 minutes. The insertion
of the first two (2) coins into the dryer will yield 30 minutes; each additional coin entered into
the dryer will yield 15 minutes.

Settings: PL #06 (LEFT COIN DENOMINATION) .................. 25

PL #04 (TIME FOR AMOUNT TO START) .............. 3 0

PL #06 (AMOUNT TO START) .................................... 5 0

Formula: (LEFT COIN DENOMINATION [PL #06] / AMOUNT TO START [PL #06])

(TIME FOR AMOUNT TO START [PL # 04]) = Vended Time
(50¢/50¢)(30) = 30 minutes
(25¢/50¢)(30) = 15 minutes

Dual Coin Acceptor

Example No. 1: If the dryer is equipped with a 10¢/25¢ dual coin acceptor and the AMOUNT TO START

(PL #06) is 25¢, the LO key TIME FOR AMOUNT TO START (PL #05) is 15 minutes.
After the initial AMOUNT T O START (PL #06) has been met, each additional 10¢ will yield
6 minutes and each additional 25¢ will yield 15 minutes.

Settings: PL #06 (LEFT COIN DENOMINATION) .................. 10

PL #06 (RIGHT COIN DENOMINATION) ............... 25

PL #05 (TIME FOR AMOUNT TO START) .............. 1 5

PL #06 (AMOUNT TO START) .................................... 5 0

Formula: (LEFT COIN DENOMINATION [PL #06] / AMOUNT TO START [PL #06])

(TIME FOR AMOUNT TO START [PL #05]) = Vended Time
(10¢/25¢)(15) = 6 minutes

(RIGHT COIN DENOMINATION [PL #06] / AMOUNT TO START [PL #06])
(TIME FOR AMOUNT TO START [PL #05]) = Vended Time
(25¢/25¢)(15) = 15 minutes

113192-5 Telephone: [phone] / www.amdry.com 19

Example No. 2: If the dryer is equipped with a 10¢/25¢ dual coin acceptor and the AMOUNT TO START

(PL #06) is 35¢, the HI key TIME FOR AMOUNT TO START (PL #03) is 14 minutes.
After the initial AMOUNT T O START (PL #06) has been met, each additional 10¢ will yield
4 minutes and each additional 25¢ will yield 10 minutes.

Settings: PL #06 (LEFT COIN DENOMINATION) .................. 10

PL #06 (RIGHT COIN DENOMINATION) ............... 25

PL #03 (TIME FOR AMOUNT TO START) .............. 1 4

PL #06 (AMOUNT TO START) .................................... 3 5

Formula: (LEFT COIN DENOMINATION [PL #06] / AMOUNT TO START [PL #06])

(TIME FOR AMOUNT TO START [PL #03]) = Vended Time
(10¢/35¢)(14) = 4 minutes

(RIGHT COIN DENOMINATION [PL #06] / AMOUNT TO START [PL #06])
(TIME FOR AMOUNT TO START [PL #03]) = Vended Time
(25¢/35¢)(14) = 10 minutes

NOTE: If the vend time cannot be divided evenly by the AMOUNT TO ST A RT , the TIME FOR

AMOUNT TO ST AR T will calculate precisely the amount of time entitled to the purchaser .

ACCUMULA TIVE COIN

In Accumulative Coin Mode, additional time can only be achieved when the AMOUNT FOR TOP OFF
(PL #06) has been inserted.

If a coin is inserted into the dryer, which is less than the AMOUNT FOR TOP OFF the Phase 7 coin
microprocessor controller (computer) will prompt the user to add more credit for more time with the following
message “ADD XX FOR ADDITIONAL TIME”. The Phase 7 coin microprocessor controller (computer) will
scroll this message for 30-seconds and then will return to the normal drying cycle information. The credit that
was just inserted will be kept in escrow until more credit is inserted to meet the AMOUNT FOR TOP OFF, or
the cycle finishes. In the event that the cycle finishes, any credit that was left in escrow will now be applied to
the next cycle. Below are examples of different scenarios in Accumulative Coin Mode.

Single Coin Acceptor

Example No. 1: If the dryer is equipped with a 25¢ coin acceptor and the AMOUNT TO START (PL #06) is

50¢, AMOUNT FOR TOP OFF (PL #06) is 50¢, the HI key TIME FOR AMOUNT TO
START (PL #03) is 24 minutes, and the HI key TIME FOR TOP OFF (PL #03) is 12
minutes. The initial first two (2) coins will yield 24 minutes and each additional two (2) coins
entered into the dryer will yield 12 minutes; no time will be vended if only one (1) coin is
inserted.

Settings: PL #06 (LEFT COIN DENOMINATION) .................. 25

PL #03 (TIME FOR AMOUNT TO START) .............. 2 4

PL #03 (TIME FOR TOP OFF) ..................................... 1 2

PL #06 (AMOUNT TO START) .................................... 5 0

PL #06 (AMOUNT FOR TOP OFF) ............................. 5 0

20 American Dryer Corp. 11319 2-5

Formula: (AMOUNT TO START [PL #06]) = Vended Time is TIME FOR AMOUNT TO START (PL #03)

50¢ = 24 minutes
(AMOUNT FOR TOP OFF [PL #06]) = Vended Time is TIME FOR TOP OFF (PL #03)
50¢ = 12 minutes

Example No. 2: If the dryer is equipped with a 25¢ coin acceptor and the AMOUNT TO START (PL #06) is

50¢, AMOUNT FOR TOP OFF (PL #06) is 25¢, the MED key TIME FOR AMOUNT TO
START (PL #04) is 24 minutes, and the MED key TIME FOR T OP OFF is 12 minutes. The
initial first two (2) coins will yield 24 minutes and each additional coin entered into the dryer
will yield 12 minutes.

After the AMOUNT TO START (PL #06) has been met, each additional coin entered into
the dryer will yield 12 minutes.

Settings: PL #06 (LEFT COIN DENOMINATION) .................. 25

PL #04 (TIME FOR AMOUNT TO START) .............. 2 4

PL #04 (TIME FOR TOP OFF) ..................................... 1 2

PL #06 (AMOUNT TO START) .................................... 5 0

PL #06 (AMOUNT FOR TOP OFF) ............................. 2 5

Formula: (AMOUNT TO START [PL #06]) = Vended Time is TIME FOR AMOUNT TO START (PL #04)

50¢ = 24 minutes
(AMOUNT FOR TOP OFF [PL #06]) = Vended Time is TIME FOR TOP OFF (PL #04)
25¢ = 12 minutes

Dual Coin Acceptor

Example No. 1: If the dryer is equipped with a 10¢/25¢ dual coin acceptor and the AMOUNT TO START

(PL #06) is 50¢, the LO key AMOUNT FOR TOP OFF (PL #06) is 20¢, the LO key TIME
FOR AMOUNT T O START (PL #05) is 20 minutes, and LO key TIME FOR TOP OFF is 10
minutes. After the initial AMOUNT TO ST ART (PL #06) has been met, each additional 20¢
will yield 10 minutes and each additional 25¢ will yield 10 minutes with 5¢ left in escrow.
Each time a 25¢ coin is inserted, the remaining 5¢ will be added to escrow . Once the amount
in escrow reaches 20¢, another 10 minutes will be vended.

Settings: PL #06 (LEFT COIN DENOMINATION) .................. 10

PL #06 (RIGHT COIN DENOMINATION) ............... 25

PL #05 (TIME FOR AMOUNT TO START) .............. 2 0

PL #05 (TIME FOR TOP OFF) ..................................... 1 0

PL #06 (AMOUNT TO START) .................................... 5 0

PL #06 (AMOUNT FOR TOP OFF) ............................. 2 0

Formula: (AMOUNT TO START [PL #06]) = Vended Time is TIME FOR AMOUNT TO START (PL #05)

50¢ = 20 minutes
(AMOUNT FOR TOP OFF [PL #06]) = Vended Time is TIME FOR TOP OFF (PL #05)
20¢ = 10 minutes

113192-5 Telephone: [phone] / www.amdry.com 21
