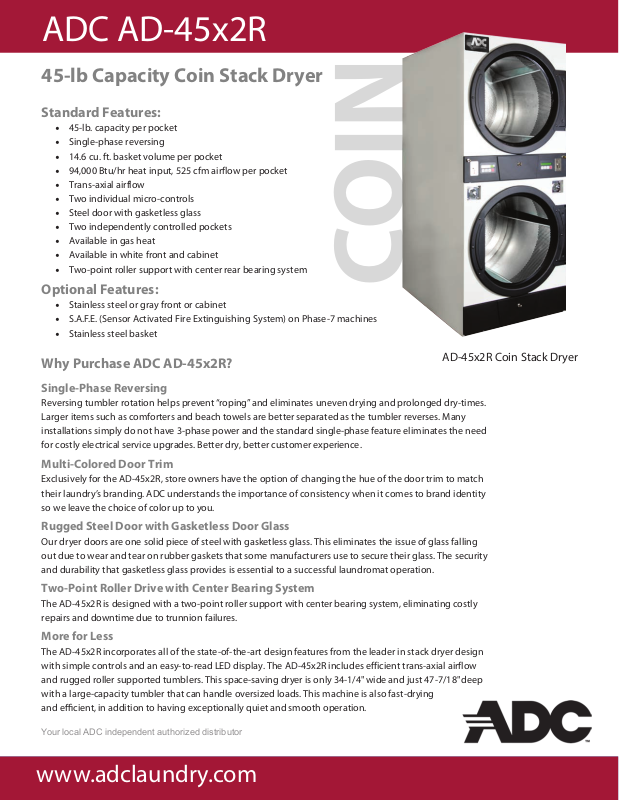

ADC AD-45X2R Spec Sheet

ADC AD-45x2R

45-lb Capacity Coin Stack Dryer

Standard Features:

• 45-lb. capacity per pocket

• Single-phase reversing

• 14.6 cu. ft.

• 94,000 Btu/hr heat input, 525 cfm airflow per pocket

• Trans-axial airflow

• Two individual micro-controls

• Steel door with gasketless glass

• Two independently controlled pockets

• Available in gas heat

• Available in white front and cabinet

• Two-point roller support with center rear bearing system

Optional Features:

• Stainless steel or gray front or cabinet

• S.A.F.E. (Sensor Activated Fire Extinguishing System) on Phase-7 machines

• Stainless steel basket

basket volume per pocket

COIN

Why Purchase ADC AD-45x2R?

Single-Phase Reversing

Reversing tumbler rotation helps prevent “roping” and eliminates uneven drying and prolonged dry-times.
Larger items such as comforters and beach towels are better separated as the tumbler reverses. Many
installations simply do not have 3-phase power and the standard single-phase feature eliminates the need

for costly electrical service upgrades. Better dry, better customer experience.

Multi-Colored Door Trim

Exclusively for the AD-45x2R, store owners have the option of changing the hue of the door trim to match
their laundry’s branding. ADC understands the importance of consistency when it comes to brand identity
so we leave the choice of color up to you.

Rugged Steel Door with Gasketless Door Glass

Our dryer doors are one solid piece of steel with gasketless glass. This eliminates the issue of glass falling
out due to wear and tear on rubber gaskets that some manufacturers use to secure their glass. The security
and durability that gasketless glass provides is essential to a successful laundromat operation.

Two-Point Roller Drive with Center Bearing System

The AD-45x2R is designed with a two-point roller support with center bearing system, eliminating costly
repairs and downtime due to trunnion failures.

More for Less

The AD-45x2R incorporates all of the state-of-the-art design features from the leader in stack dryer design
with simple controls and an easy-to-read LED display. The AD-45x2R includes efficient trans-axial airflow
and rugged roller supported tumblers. This space-saving dryer is only 34-1/4" wide and just 47-7/18" deep
with a large-capacity tumbler that can handle oversized loads. This machine is also fast-drying

and ecient, in addition to having exceptionally quiet and smooth operation.

AD-45x2R Coin Stack Dryer

Your local ADC independent authorized distributor

www.adclaundry.com

ADC AD-45x2R

Tumbler Capacity (dry weight per pocket) 45 lbs. (20.4 kg)

Tumbler Diameter

Tumbler Depth

Tumbler Volume

Tumbler/Drive Motor

Blower/Fan Motor

Door Opening

Door Sill Height

Dryers per 20'/40' Container 10 / 21

Dryers per 48'/53' Truck 25 / 28

Width

Depth

Height

(per pocket) 60 Hz 525 cfm (14.9 cmm)

Exhaust Connection

GAS MODEL: Voltage Available

(per pocket) 14.6 cu ft (413.4 L)

(per pocket)

(per pocket) 1/2 hp (.37 kW)

(Diameter)

top pocket

bottom pocket

Approx. Net Wt.

Approx. Ship Wt.

Inlet Pipe Connection (per dryer)

Heat Input

(per pocket)

32-3/4" (83.2 cm)

30" (76.2 cm)

1/3 hp (0.25 kW)

27" (68.6 cm)

50.4" / 10.3"
(128 cm / 26.2 cm)

34-1/4" (87 cm)

47-7/8" (121.6 cm)

81" (205.7 cm)

10" (25.4 cm)

120v-240v 1ø 2w 50/60 Hz
640 lbs (290 kg)
700 lbs (318 kg)
94,000 btu/hr (23.688 kcal/hr)
1/2" M.N.P.T.

FRONT VIEW

TOP VIEW

Electrical Specs are per pocket.

GAS (Reversing & Non-Reversing)

SERVICE WIRE

VOLTAGE

120 1ø 2 7.6 -- 15

208 1ø 2 5.7 -- 15

220 1ø 2 -- 5.7 15

230 1ø 2 -- 5.7 15

240 1ø 2 5 -- 15

PHASE

SERVICE

APPROX AMP DRAW

60 Hz 50 Hz

CIRCUIT

BREAKER

REV 10/17/14

REAR VIEW

QY160025 1/17

88 Currant Road, Fall River, MA 02720-4781 • 508.678.9000
