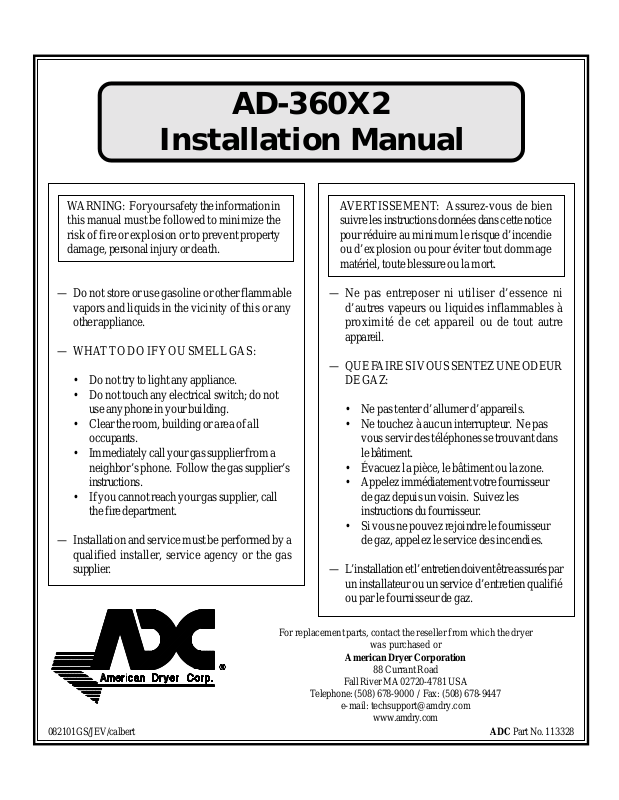

ADC AD-360X2 Installation Instructions

Page 1

AD-360X2

Installation Manual

W ARNING: For your safety the information in this manual must be followed to minimize the risk of fire or explosion or to prevent property damage, personal injury or death.

— Do not store or use gasoline or other flammable

vapors and liquids in the vicinity of this or any other appliance.

— WHA T TO DO IF YOU SMELL GAS:

• Do not try to light any appliance.

• Do not touch any electrical switch; do not use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.

• If you cannot reach your gas supplier, call the fire department.

— Installation and service must be performed by a

qualified installer, service agency or the gas supplier.

AVERTISSEMENT: Assurez-vous de bien suivre les instructions données dans cette notice pour réduire au minimum le risque d’incendie ou d’explosion ou pour éviter tout dommage matériel, toute blessure ou la mort.

— Ne pas entreposer ni utiliser d’essence ni

d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil.

— QUE F AIRE SI VOUS SENTEZ UNE ODEUR

DE GAZ:

• Ne pas tenter d’allumer d’appareils.

• Ne touchez à aucun interrupteur . Ne pas vous servir des téléphones se trouvant dans le bâtiment.

• Évacuez la pièce, le bâtiment ou la zone.

• Appelez immédiatement votre fournisseur de gaz depuis un voisin. Suivez les instructions du fournisseur.

• Si vous ne pouvez rejoindre le fournisseur de gaz, appelez le service des incendies.

— L ’installation et l’entretien doivent être assurés par

un installateur ou un service d’entretien qualifié ou par le fournisseur de gaz.

For replacement parts, contact the reseller from which the dryer

was purchased or

American Dryer Corporation

88 Currant Road

Fall River MA 02720-4781 USA

T elephone: (508) 678-9000 / Fax: (508) 678-9447

e-mail: techsupport@amdry.com

www.amdry.com

082101GS/JEV/calbert ADC Part No. 113328

Page 2

Retain This Manual In A Safe Place For Future Reference

American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is

properly maintained, it will provide many years of safe, efficient, and trouble free operation.

ONLY qualified technicians should service this equipment.

OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with the dryer.

The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.

FOR YOUR SAFETY

Do not store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other appliance.

W e have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or discontinue models. The illustrations included in this manual may not depict your particular dryer exactly.

POUR VOTRE SÉCURITÉ

Ne pas entreposer ni utiliser d’essence ni d’autres vapeurs ou liquides inflammables à proximité de cet appareil ou de tout autre appareil.

Important

For your convenience, log the following information:

DA TE OF PURCHASE________________________________ MODEL NO. __________________________________________

RESELLER’S NAME ________________________________________________________________________________________

Serial Number(s) ________________________________________________________________________________________

AD-360X2

________________________________________________________________________________________

Replacement parts can be obtained from your reseller or the ADC factory . When ordering replacement parts from the factory , you can F AX your order to ADC at (508) 678-9447 or telephone your order directly to the ADC Parts Department at (508) 678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so that your order is processed accurately and promptly.

“IMPORT ANT NOTE TO PURCHASER”

Information must be obtained from your local gas supplier on the instructions to be followed if the user smells gas. These instructions must be posted in a prominent location near the dryer .

Page 3

IMPORTANT

YOU MUST DISCONNECT AND LOCKOUT THE ELECTRIC SUPPL Y AND THE GAS SUPPLY BEFORE ANY COVERS OR GUARDS ARE REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING , ADJUSTING, INST ALLA TION, OR TESTING OF ANY EQUIPMENT PER OSHA (Occupational Safety and Health

Administration) STANDARDS.

«Attention: Au moment de l’entretien des “Caution: Label all wires prior to disconnection when servicing controls. W iring errors can cause improper operation.”

commandes, étiquetez tous les fils avant de

les débrancher. Des erreurs de câblage

peuvent entraîner un fonctionnement

inadéquat et dangereux.»

CAUTION

DR YERS SHOULD NEVER BE LEFT UNA TTENDED WHILE IN OPERA TION.

WARNING

CHILDREN SHOULD NOT BE ALLOWED TO PLA Y ON OR NEAR THE DRYER(S). CHILDREN

SHOULD BE SUPER VISED IF NEAR DRYERS IN OPERA TION.

FOR YOUR SAFETY

DO NOT DR Y MOP HEADS IN THE DRYER. DO NOT USE DR YER IN THE PRESENCE OF DR Y CLEANING FUMES.

WARNING

UNDER NO CIRCUMST ANCES should the dryer door switches, lint drawer switches, or heat safety circuit ever be disabled.

Page 4

WARNING

The dryer must never be operated with any of the back guards, outer tops, or service panels removed. PERSONAL INJURY OR FIRE COULD RESUL T .

WARNING

DRYER MUST NEVER BE OPERA TED WITHOUT THE LINT FIL TER/SCREEN IN PLACE, EVEN IF AN EXTERNAL LINT COLLECTION SYSTEM IS USED.

IMPORTANT

PLEASE OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment and/or specified in the installation manual included with the dryer.

Dryer must not be installed or stored in an area where it

The wiring diagram for the dryer is located in the front electrical control box area.

will be exposed to water or weather.

IMPORTANT

Dryer must be installed in a location/environment, which the ambient temperature remains between 40° F (4.44° C) and 130° F (54.44° C).

Page 5

Table of Contents

SECTION I

IMPORTANT INFORMATION ............................................................................... 3

A. Receiving and Handling ............................................................................................................... 3

B. Safety Precautions ...................................................................................................................... 4

SECTION II

SPECIFICATIONS..................................................................................................... 6

A. Specifications ............................................................................................................................. 6

SECTION III

INSTALLATION PROCEDURES ........................................................................... 8

A. Unpacking/Setting Up ................................................................................................................. 8

B. Location of the Dryer.................................................................................................................. 9

C. Dryer Enclosure Requirements .................................................................................................... 9

D. Fresh Air Supply Requirements ................................................................................................. 10

E. Exhaust Requirements ............................................................................................................... 11

F. Electrical Information ................................................................................................................ 16

G . Gas Information ........................................................................................................................ 19

H. Preparation For Operation........................................................................................................ 22

I. Preoperational T ests ................................................................................................................. 23

J. Shutdown Instructions............................................................................................................... 25

SECTION IV

OPERATING INSTRUCTIONS.............................................................................26

A. Starting The Dryer .................................................................................................................... 26

SECTION V

SERVICE/PARTS INFORMATION ...................................................................... 28

A. Service ..................................................................................................................................... 28

B. Parts ........................................................................................................................................ 28

Page 6

SECTION VI

WARRANTY INFORMATION ............................................................................... 29

A. Returning W arranty Cards......................................................................................................... 29

B. Warranty .................................................................................................................................. 29

C. Returning Warranty Parts .......................................................................................................... 29

SECTION VII

ROUTINE MAINTENANCE .................................................................................. 31

A. Cleaning ................................................................................................................................... 31

B. Adjustments ............................................................................................................................. 32

SECTION VIII

DATA LABEL INFORMATION ............................................................................. 33

A. Data Label ............................................................................................................................... 33

SECTION IX PROCEDURE FOR FUNCTIONAL CHECK OF REPLACEMENT

COMPONENTS........................................................................................................35

Page 7

SECTION I

IMPORTANT INFORMA TION

A. RECEIVING AND HANDLING

The dryer is shipped in a protective stretch wrap cover with protective cardboard corners and top cover (or optional box) as a means of preventing damage in transit. Upon delivery, the dryer and/or packaging, and wooden skid should be visually inspected for shipping damage. If any damage whatsoever is noticed, inspect further before delivering carrier leaves.

Dryers damaged in shipment:

ALL dryers should be inspected upon receipt and before they are signed for.

2. If there is suspected damage or actual damage, the trucker ’s receipt should be so noted.

3. If the dryer is damaged beyond repair, it should be refused. Those dryers which were not damaged in a damaged shipment should be accepted, but the number received and the number refused must be noted on the receipt.

4. If you determine that the dryer was damaged after the trucker has left your location, you should call the delivering carrier’s freight terminal immediately and file a claim. The freight company considers this concealed damage. This type of freight claim is very difficult to get paid and becomes extremely difficult when more than a day or two passes after the freight was delivered. It is your responsibility to file freight claims. Dryer/parts damaged in transit cannot be claimed under warranty.

5. Freight claims are the responsibility of the consignee, and ALL claims must be filed at the receiving end. ADC assumes no responsibility for freight claims or damages.

6. If you need assistance in handling the situation, please contact the ADC Traffic Manager at (508) 678-9000.

IMPORTANT: The dryer must be transported and handled in an upright position at ALL times.

Page 8

B. SAFETY PRECAUTIONS

WARNING: For your safety, the information in this manual must be followed to minimize the risk of

fire or explosion or to prevent property damage, personal injury , or loss of life.

WARNING: The dryer must never be operated with any of the back guards, outer tops, or

service panels removed. PERSONAL INJURY OR FIRE COULD RESUL T .

1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other

appliance.

2. Purchaser/user should consult the local gas supplier for proper instructions to be followed in the event the

user smells gas. The instructions should be posted in a prominent location.

3. WHAT TO DO IF YOU SMELL GAS...

a. DO NOT try to light any appliance.

b. DO NOT touch any electrical switch.

c. DO NOT use any phone in your building.

d. Clear the room, building, or area of ALL occupants.

e. Immediately call your gas supplier from a neighbor’ s phone. Follow the gas supplier’s instructions.

f. If you cannot reach your gas supplier, call the fire department.

4. Installation and service must be performed by a qualified installer, service agency , or gas supplier.

5. Dryer(s) must be exhausted to the outdoors.

6. Although ADC produces a very versatile dryer, there are some articles that, due to fabric composition or cleaning method, should not be dried in it.

WARNING: Dry only water washed fabrics. DO NOT dry articles spotted or washed in dry

cleaning solvents, a combustible detergent, or “all purpose” cleaner .

EXPLOSION COULD RESUL T .

WARNING: DO NOT dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint,

or wax.

EXPLOSION COULD RESUL T .

WARNING: DO NOT dry mop heads. Contamination by wax or flammable solvent will create a fire

hazard.

WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber, or

similarly textured rubber materials. Drying in a heated basket (tumbler) may damage plastics or rubber and may be a fire hazard.

Page 9

7. A program should be established for the inspection and cleaning of lint in the heating unit area, exhaust

ductwork, and inside the dryer. The frequency of inspection and cleaning can best be determined from experience at each location.

WARNING: The collection of lint in the burner area and exhaust ductwork can create a potential fire

hazard.

8. For personal safety, the dryer must be electrically grounded in accordance with local codes and/or the

National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.

NOTE: Failure to do so will VOID THE WARRANTY.

9. UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switches, or heat safety

circuit ever be disabled.

W ARNING: PERSONAL INJURY OR FIRE COULD RESUL T .

10. This dryer is not to be used in the presence of dry cleaning solvents or fumes.

11. Remove articles from the dryer as soon as the drying cycle has been completed.

WARNING: Articles left in the dryer after the drying and cooling cycles have been completed can

create a fire hazard.

12. READ AND FOLLOW ALL CAUTION AND DIRECTION LABELS ATTACHED TO THE

DRYER.

13. For safety, proper operation, and optimum performance, the dryer must not be operated with a load less

than sixty-six percent (66%), 39 lbs (17 kg) of its rated capacity.

W ARNING: YOU MUST DISCONNECT AND LOCKOUT THE ELECTRIC SUPPLY AND

THE GAS SUPPL Y BEFORE ANY COVERS OR GUARDS ARE REMOVED FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING , ADJUSTING , INST ALLATION, OR TESTING OF ANY EQUIPMENT PER OSHA (Occupational Safety and Health Administration) STANDARDS.

IMPORTANT: Dryer must be installed in a location/environment, which the ambient

temperature remains between 40º F (4.44º C) and 130º F (54.44º C).

Page 10

A. SPECIFICATIONS

SECTION II

SPECIFICATIONS

TO T AL DR Y ER CAP ACITY (DR Y WE IGHT ) 60 l b s BASKET (TUMBLER) DIAMETER 30” BASKET (TUMBLER) DEPTH 26-1/8” BASKET (TUMBLER) MOTOR (2 PLACES) 1/4 hp BLOWER MOTOR (2 PLACES) 1/4 hp DOOR OPENING - DIAMETER (2 PLACES) 21-1/2” EXHAUST DUCT OUTLET (SINGLE ) (RECTANGLE) 5-7/8” x 19-3/4” EXHAUST DUCT OUTL ET (SINGLE) (O PT IONAL) 10” Diameter

VOL TAGE AVAILABLE 120-240v 1ø 60 Hz APPRO X. NET WE IGHT 790 lbs APPRO X. SHIPPING WEIGHT 850 lbs

HEAT INPUT (PE R BASKET [TUMBLER]) 90,000 Btu/hr

Gas

AIRFLOW (PER BASKET [TUMBLER ]) 520 cfm

INLE T P IP E CO NNE CTIO N* 3/4 ” F. N.P .T .

Shaded areas are stated in metric equivalents

*Size of piping to dryer varies with installation conditions. Contact factory for assistance.

27.2 kg

76.2 cm

66.4 cm

0.186 kW

54.61 cm

14.93 cm x 50.17 cm

25.4 cm

358.34 kg

385.56 kg

22,680 kcal/hr

15.29 cmm

061703

NOTE: ADC reserves the right to make changes in specifications at any time without notice or

obligation.

Page 11

Specifications

AD-360X2

NOTE: ADC reserves the right to make changes in specifications at any time without notice or

obligation.

Page 12

SECTION III

INSTALLATION PROCEDURES

Installation should be performed by competent technicians in accordance with local and state codes. In the absence of these codes, the installation must conform to applicable American National S tandards: ANSI Z223.1LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA NO. 70-LATEST EDITION (National Electrical Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION (for Electrical Connections).

A. UNPACKING/SETTING UP

Remove protective shipping material (i.e., plastic wrap, and/or optional shipping box) from dryer.

NOTE: The access keys for the service doors are included in the information packet shipped in the

basket (tumbler). These keys should be removed and put in a safe place, yet made accessible because some will be needed throughout various phases in the installation of the dryer .

Dryers are shipped with a coin box and coin box faceplate ONLY. The coin box lock is not included and must be purchased elsewhere or the lock can be ordered as a parts order from the ADC factory.

IMPORTANT: For shipping purposes, the 10-inch (25.40 cm) exhaust adapter is shipped inside one

(1) of the dryer’s baskets (tumblers). This exhaust adapter should either be left inside the basket (tumbler) or removed and put in a safe place, and must be installed once the dryer is in place prior to making any exhaust duct connections.

The dryer can be moved to its final location while still attached to the skid or with the skid removed. With the skid removed, to make it easier to slide the dryer into its final position, slightly lower ALL four (4) leveling legs, so that the dryer will slide on the legs instead of the base frame. The dryer is equipped with four (4) leveling legs, one (1) at each corner of the dryer base. The legs can be adjusted by either tilting...and properly supporting the dryer, and adjusting from underneath with an open end wrench (or adjustable wrench). Or , by removing the rear lower back panel and/or front lower service panel and adjusting the leveling leg with a 1/4” socket.

IMPORTANT: When tilting the dryer to adjust the leveling legs, be sure to properly support the

bottom of the dryer with a block of wood or similar object. Failure to do so can cause personal injury!

Page 13

B. LOCATION OF THE DRYER

Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such codes or ordinances the location must conform with the National Fuel Gas Code ANSI.Z223.1 LATEST EDITION, or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P .] Gas) or LATEST EDITION (for General Installation and Gas Plumbing).

1. The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be

removed from the floor area that the dryer is to rest on.

IMPORTANT: “The dryer must be installed on noncombustible floors only .”

2. Even though a 12-inch (30.48 cm) clearance is acceptable, it is recommended that the rear of the dryer be

positioned approximately 2 feet (0.61 meters) away from the nearest obstruction, i.e., wall, for ease of installation, maintenance, and service.

3. The dryer must be installed with a proper exhaust duct connection to the outside.

4. The dryer must be installed with provisions for adequate combustion and make-up air supply.

CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors. Every 6

months, inspect the exhaust ducting and remove any lint build up.

IMPORTANT: Dryer must be installed in a location/environment, which the ambient

temperature remains between 40º F (4.44º C) and 130º F (54.44º C).

C. DRYER ENCLOSURE REQUIREMENTS

Bulkheads and partitions should be made of noncombustible materials and must be located a minimum of 24-inches (60.96 cm) above the dryer outer top, except along the front of the dryer which may be closed in if desired.

Page 14

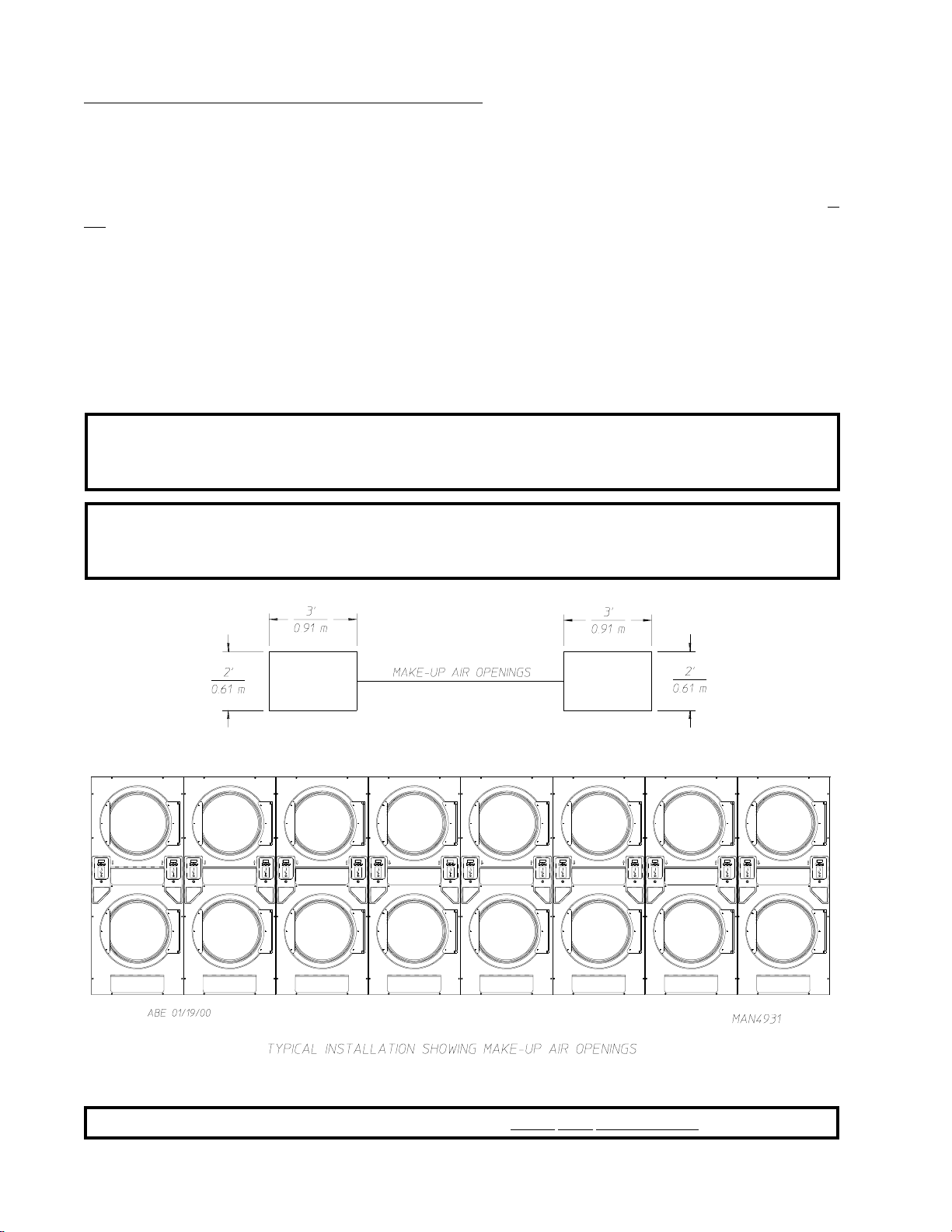

D. FRESH AIR SUPPLY REQUIREMENTS

Air supply (make-up air) must be given careful consideration to assure proper performance of each dryer . An unrestricted source of 1,040 cfm (29.44 cmm) is necessary for each dryer (total for both baskets [tumblers]). An unrestricted air entrance from the outdoors (atmosphere) of a minimum of 1-1/2 square feet (0.14 square meters) is required for each dryer. This area must be enlarged if louvers or registers cover the opening. It is not necessary to have a separate make-up air opening for each dryer. Common make-up air openings are acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to the dryers. For example, for a bank of eight (8) dryers, a total make-up air opening of 12 square feet (1.15 square meters) is required. Two (2) openings measuring 2 feet by 3 feet (0.61 meters by 0.91 meters) (6 square feet [0.58 square meters]) are acceptable. The dryer must be installed with provisions for adequate combustion and make-up air supply.

Allowances must be made for remote or constricting passageways or where dryers are located at excessive altitudes or predominantly low-pressure areas.

IMPORTANT: Make-up air must be provided from a source free of dry cleaning solvent fumes.

Make-up air that is contaminated by dry cleaning solvent fumes will result in irreparable damage to the motors and other dryer components.

IMPORTANT: Make-up air openings should not be located near ductwork exhaust outlets. If

make-up air openings are too close to the exhaust outlet, lint and fumes may be drawn back into the dryer area through these openings.

NOTE: Component failure due to dry cleaning fumes will VOID THE WARRANTY.

Page 15

E. EXHAUST REQUIREMENTS

Exhaust ductwork should be designed and installed by a qualified professional. Improperly sized ductwork will create excessive back pressure which will result in slow drying, increased use of energy, overheating of the dryer, and shutdown of the burner by the airflow (sail) switches, burner hi-limits, or basket (tumbler) hi-limit thermostats. The dryer must be installed with a proper exhaust duct connection to the outside.

CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors.

When possible, it is suggested to provide a separate exhaust duct for each dryer.

CAUTION: IMPROPERL Y SIZED OR INST ALLED EXHAUST DUCTWORK CAN

CREA TE A POTENTIAL FIRE HAZARD.

The exhaust ductwork must be laid out in such a way that the ductwork travels as directly as possible to the outdoors with as few turns as possible. The shape of the ductwork is not critical so long as the minimum cross-sectional area is provided.

When single dryer venting is used, for horizontal or vertical venting the minimum duct size is 10-inches (25.40 cm) in diameter and the ductwork from the dryer to the outside exhaust outlet must not exceed a distance of 35 feet (10.67 meters) and have no more than two (2) elbows (including both connection to dryer and outside protection).

In the case of multiple (common) venting, using the applicable duct size (diameter) noted in this manual, for horizontal venting the distance from the last dryer to the outside outlet must not exceed 15 feet (4.57 meters) and have no more than one (1) elbow (including outside protection). In the case of common vertical venting, the distance from the last dryer to the outside outlet must not exceed 25 feet (7.62 meters) and have no more than three (3) elbows (including outside protection).

IMPORTANT: Exhaust back pressure measured by a manometer at the dryer exhaust duct area must

be no less than 0 and must not exceed 0.3 inches (0.74 mb) of water column

(W.C.).

It is suggested that the use of 90º turns in ducting be avoided; use 30º or 45º angles instead. The ductwork should be smooth inside with no projections from sheet metal screws or other obstructions, which will collect lint. When adding ducts, the duct to be added should overlap the duct to which it is to be connected. ALL ductwork joints must be taped to prevent moisture and lint from escaping into the building. Also, inspection doors should be installed at strategic points in the exhaust ductwork for periodic inspection and cleaning.

When the exhaust ductwork passes through a wall, ceiling, or roof made of combustible materials, the opening must be 2-inches (5.08 cm) larger than the duct (all the way around). The duct must be centered within this opening.

If the ductwork run (distance) or the amount of elbows required exceeds the limits noted in this manual, the size (diameter/cross-sectional area) of the ductwork must be increased in proportion to the length or number of elbows added. When the ductwork approaches the maximum limits as noted in this manual, a professional heating, venting, and air conditioning (HVAC) firm must be consulted for proper venting information.

1. Dryer exhaust connection. The dryer is shipped with a 10-inch (25.40 cm) exhaust adapter, which for

shipping purposes is shipped inside of the dryer’s basket (tumbler). This exhaust adapter must be installed (with screws provided) once the dryer is in place prior to making any exhaust connections.

Page 16

IMPORTANT: Minimum duct size for dryer is 10-inches (25.40 cm) round duct. Duct size must not

be reduced anywhere downstream of dryer .

IMPORTANT: It is recommended that exhaust or booster fans not be used in the exhaust ductwork

system.

NOTE: As per the National Fuel Gas Code, “Exhaust ducts for type 2 clothes dryers shall be

constructed of sheet metal or other noncombustible material. Such ducts shall be equivalent in strength and corrosion resistance to ducts made of galvanized sheet steel not less than

0.0195-inches (26 gauge [0.05 mm]) thick.”

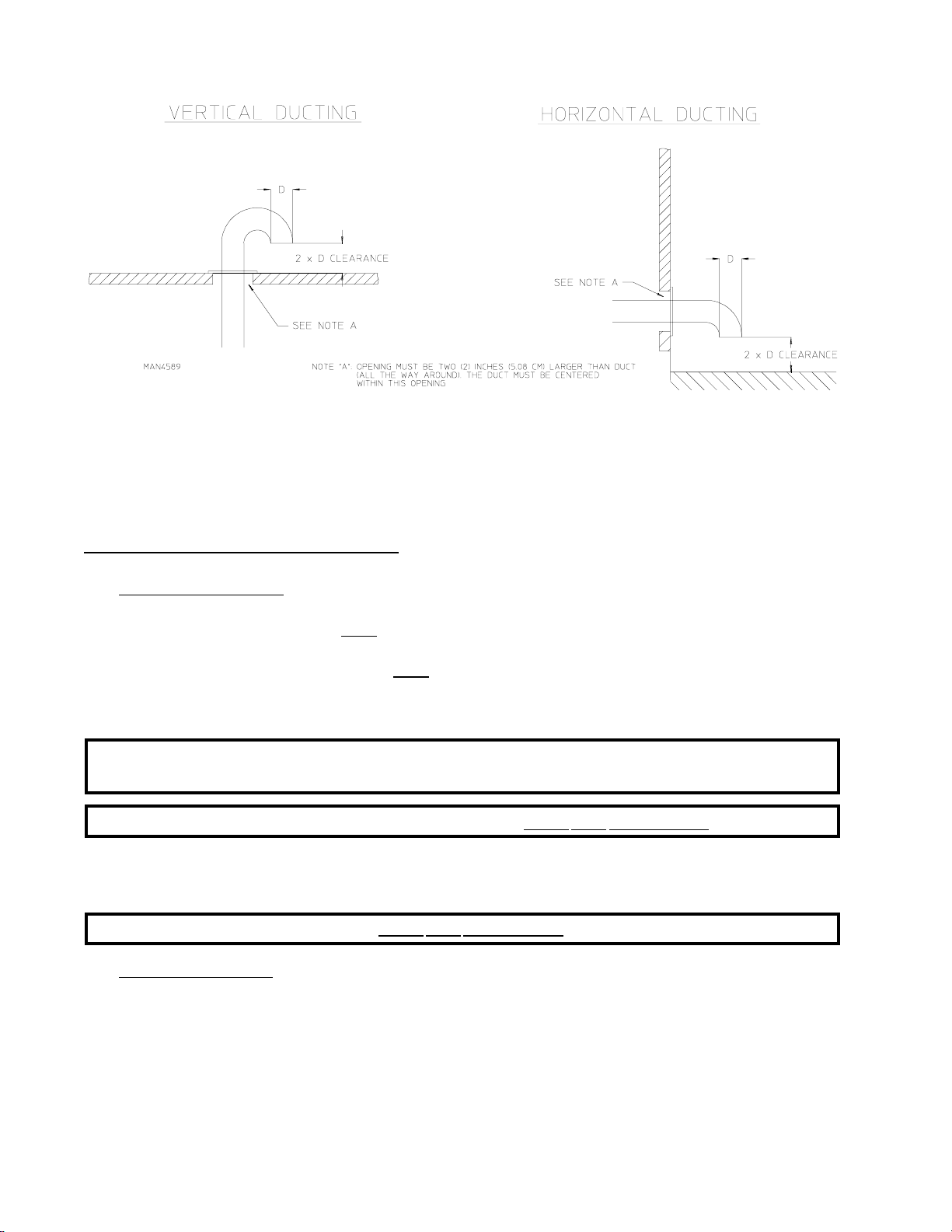

2. Venting Layout

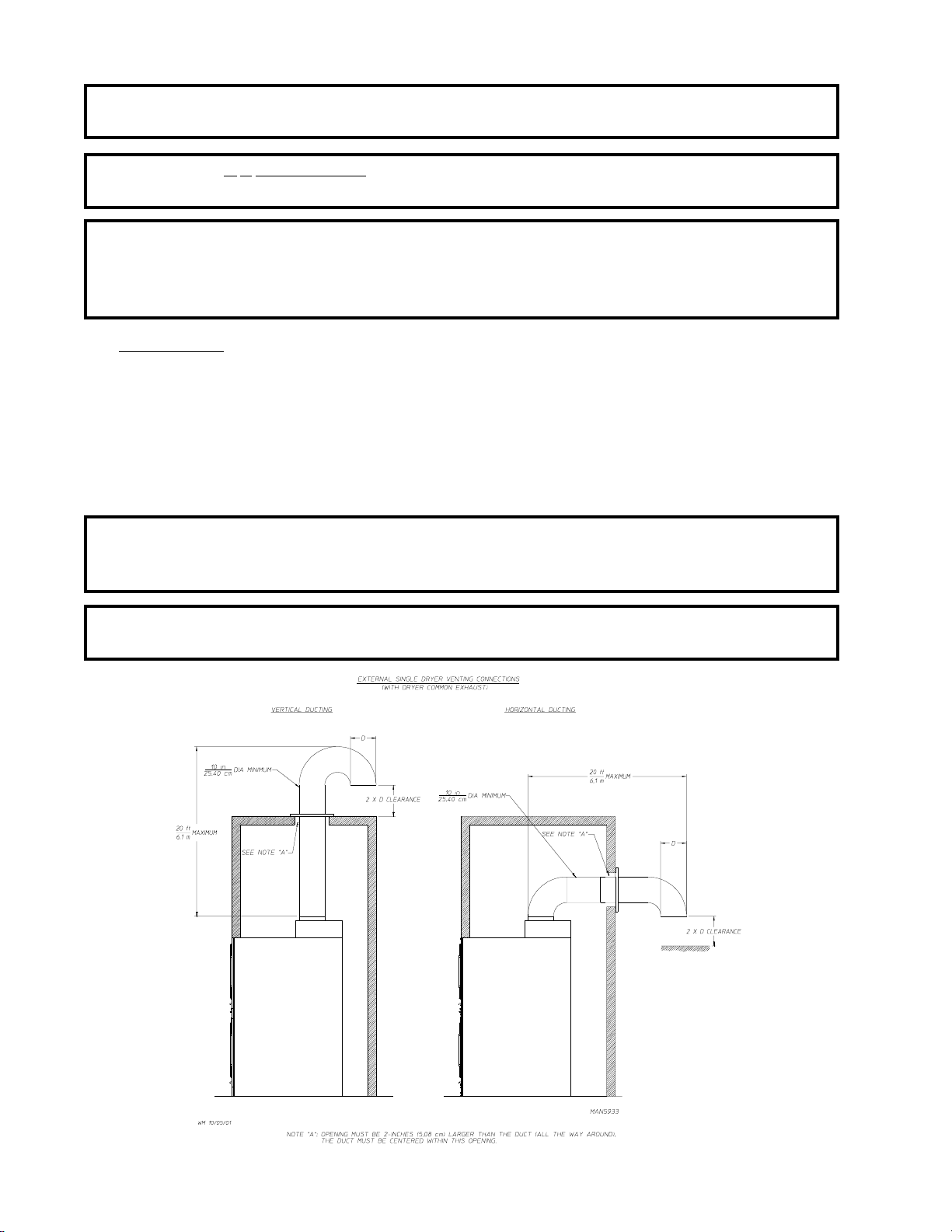

a. Single Dryer V enting

When single dryer venting is used, for horizontal or vertical venting the minimum duct size is 10-inches (25.40 cm) in diameter and the ductwork from the dryer to the outside exhaust outlet must not exceed a distance and the number of elbows (including both connection to dryer and outside protection shown in the illustration below).

IMPORTANT: Exhaust back pressure measured by a manometer at the dryer exhaust duct area must

be no less than 0 and must not exceed 0.3 inches (0.74 mb) of water column

(W.C.).

CAUTION: IMPROPERL Y SIZED OR INST ALLED EXHAUST DUCTWORK CAN

CREA TE A POTENTIAL FIRE HAZARD.

Page 17

It is suggested that the use of 90º turns in ducting ductwork should be smooth inside with no projections from sheet metal screws or other obstructions, which will collect lint. When adding ducts, the duct to be added should overlap the duct to which it is to be connected. building. Also, inspection doors should be installed at strategic points in the exhaust ductwork for periodic inspection and cleaning.

ALL ductwork joints must be taped to prevent moisture and lint from escaping into the

be avoided; use 30º or 45º angles instead. The

IMPORTANT: Minimum duct size for dryer is 10-inches (25.40 cm) round duct. Duct size must not

be reduced anywhere downstream of dryer .

IMPORTANT: If the ductwork run (distance) or the amount of elbows required exceeds the limits

noted in this manual, the size (diameter/cross-sectional area) of the ductwork can only be increased to an extent. When the ductwork approaches the maximum limits as noted in this manual, a professional heating, venting, and air conditioning (HV AC) firm must be consulted for proper venting information.

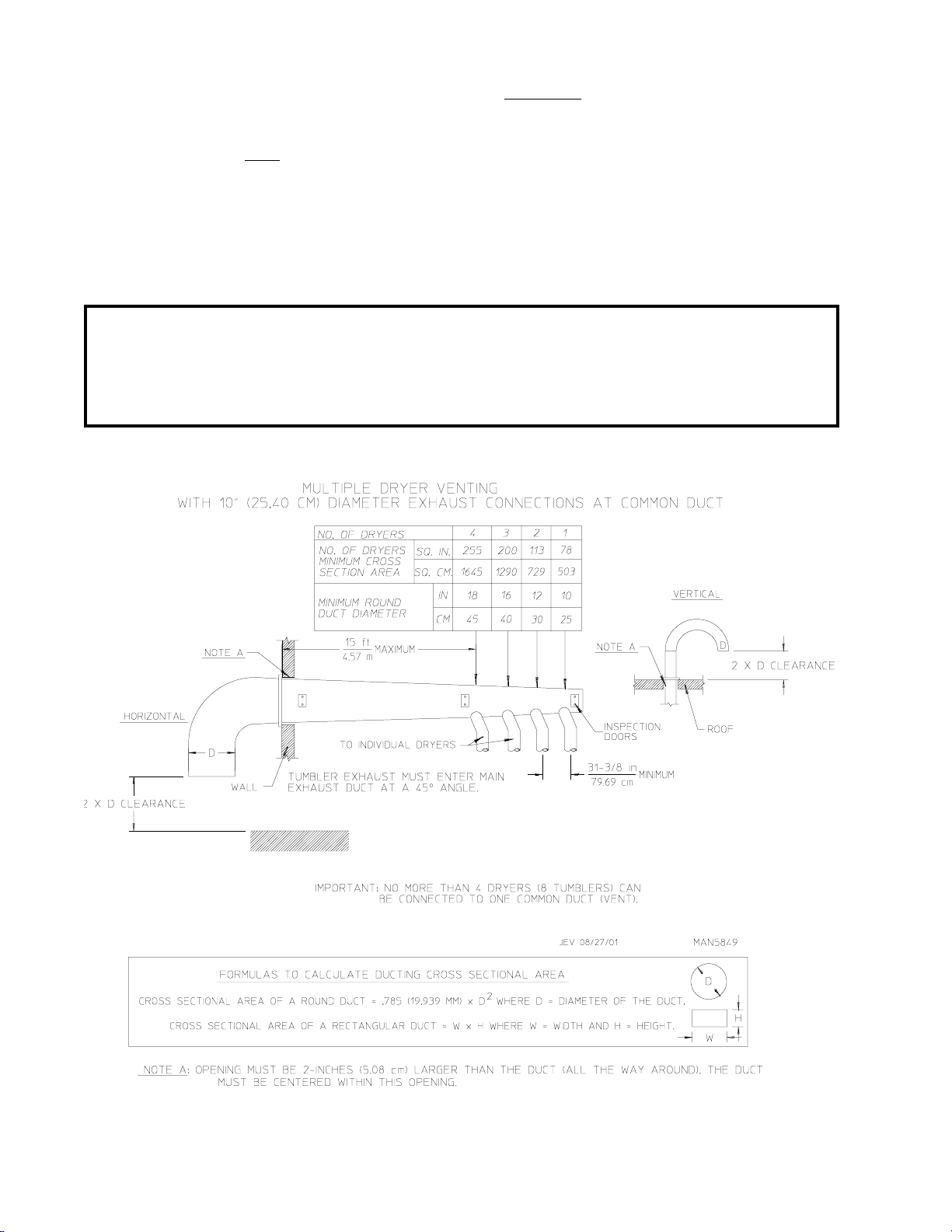

b. Common V enting

If it is not feasible to provide separate exhaust ducts for each dryer , ducts from individual dryers may be channeled into a “common main duct.” The individual ducts should enter the bottom or the side of the main common duct at an angle not more than 45º in the direction of airflow . The main duct should be tapered, with the diameter increasing before each individual duct 10-inches (25.40 cm) is added.

IMPORTANT: No more than four (4) dryers or eight (8) pockets total should be connected to one

(1) common duct.

Minimum duct size between dryer and common duct is 10-inches (25.40 cm) in diameter. This duct must not travel more than 15 feet (4.57 meters) and include no more than three (3) elbows (which includes both dryer and common duct connections).

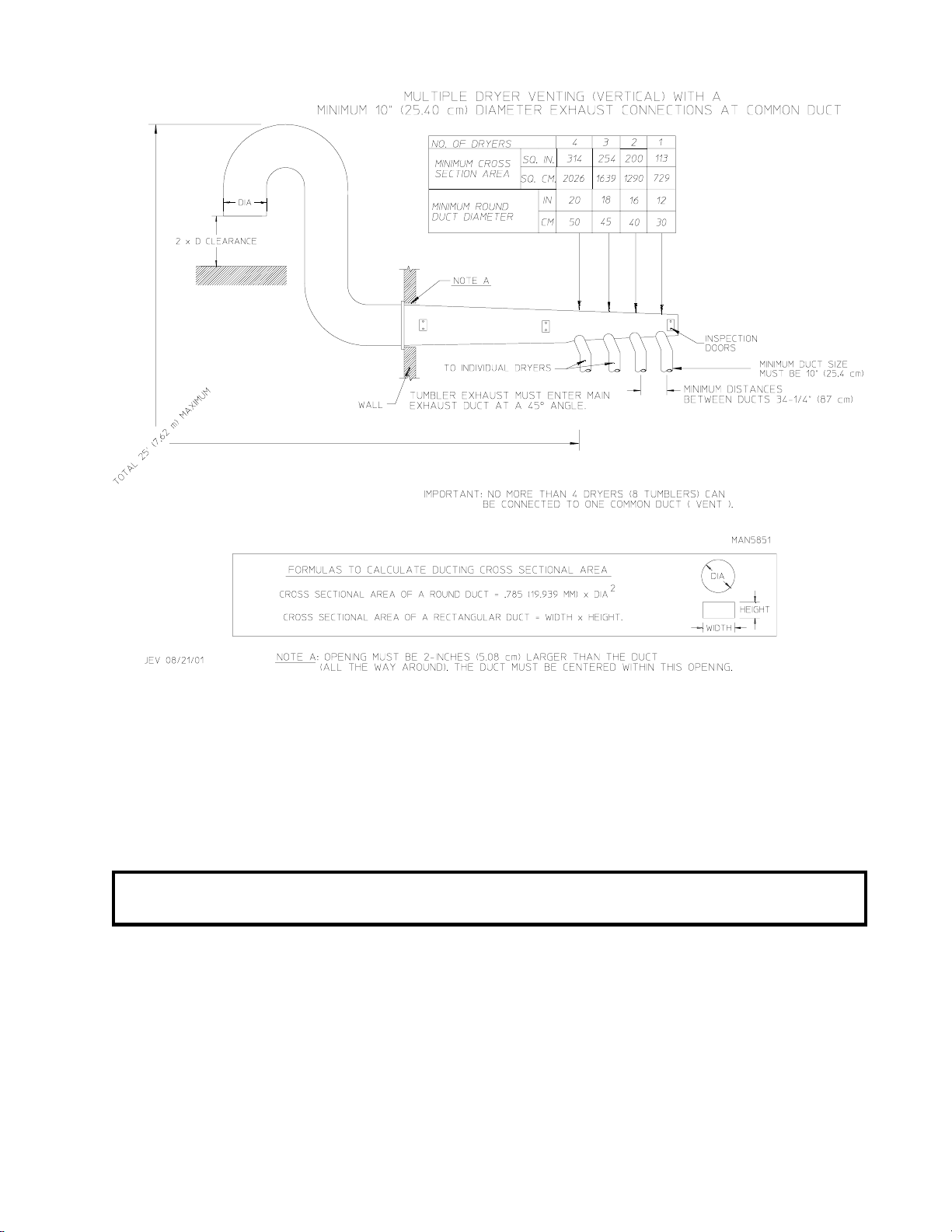

NOTE: Refer to illustrations on page 14 and page 15 for examples of multiple dryer (common)

venting.

IMPORTANT: Exhaust back pressure measured by a manometer at the dryer exhaust duct area must

be no less than 0 and must not exceed 0.3 inches (0.74 mb) of water column

(W.C.).

CAUTION: IMPROPERL Y SIZED OR INST ALLED EXHAUST DUCTWORK CAN

CREA TE A POTENTIAL FIRE HAZARD.

Page 18

It is suggested that the use of 90º turns in ducting be avoided; use 30º or 45º angles instead. The ductwork should be smooth inside with no projections from sheet metal screws or other obstructions, which will collect lint. When adding ducts, the duct to be added should overlap the duct to which it is to be connected. building. Also, inspection doors should be installed at strategic points in the exhaust ductwork for periodic inspection and cleaning.

ALL ductwork joints must be taped to prevent moisture and lint from escaping into the

IMPORTANT: If the ductwork run (distance) or the amount of elbows required exceeds the limits

Page 19

c. Outside Ductwork (Vent) Protection

T o protect the outside end of the horizontal ductwork from the weather, a 90º elbow turned downward should be installed where the exhaust duct exits the building. If the ductwork travels vertically up through a roof, it should be protected from the weather by using a 180º turn (goose neck) to point the opening downward. In either case, allow at least twice the diameter of the duct between the duct opening and the nearest obstruction.

IMPORTANT: DO NOT use screens, louvers, or caps on the outside opening of the exhaust

ductwork.

Page 20

F. ELECTRICAL INFORMATION

1. Electrical Requirements

It is your responsibility to have ALL electrical connections made by a properly licensed and competent electrician to assure that the electrical installation is adequate and conforms to local and state regulations or codes. In the absence of such codes, ALL electrical connections, materials, and workmanship must conform to the applicable requirements of the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION or in Canada, the Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.

IMPORTANT: Failure to comply with these codes or ordinances, and/or the requirements stipulated

in this manual, can result in PERSONAL INJUR Y OR COMPONENT F AILURE.

NOTE: Component failure due to improper installation will VOID THE WARRANTY.

A separate circuit servicing each basket (tumbler) must be provided. The dryer must be connected to copper wire ONLY. DO NOT use aluminum wire, which could cause a fire hazard.

NOTE: The use of aluminum wire will VOID THE WARRANTY .

2. Electrical Connections

A wire diagram is included with each dryer showing the wiring connection sequence. The electrical connections are made in the wiring box located at the rear top area of the dryer.

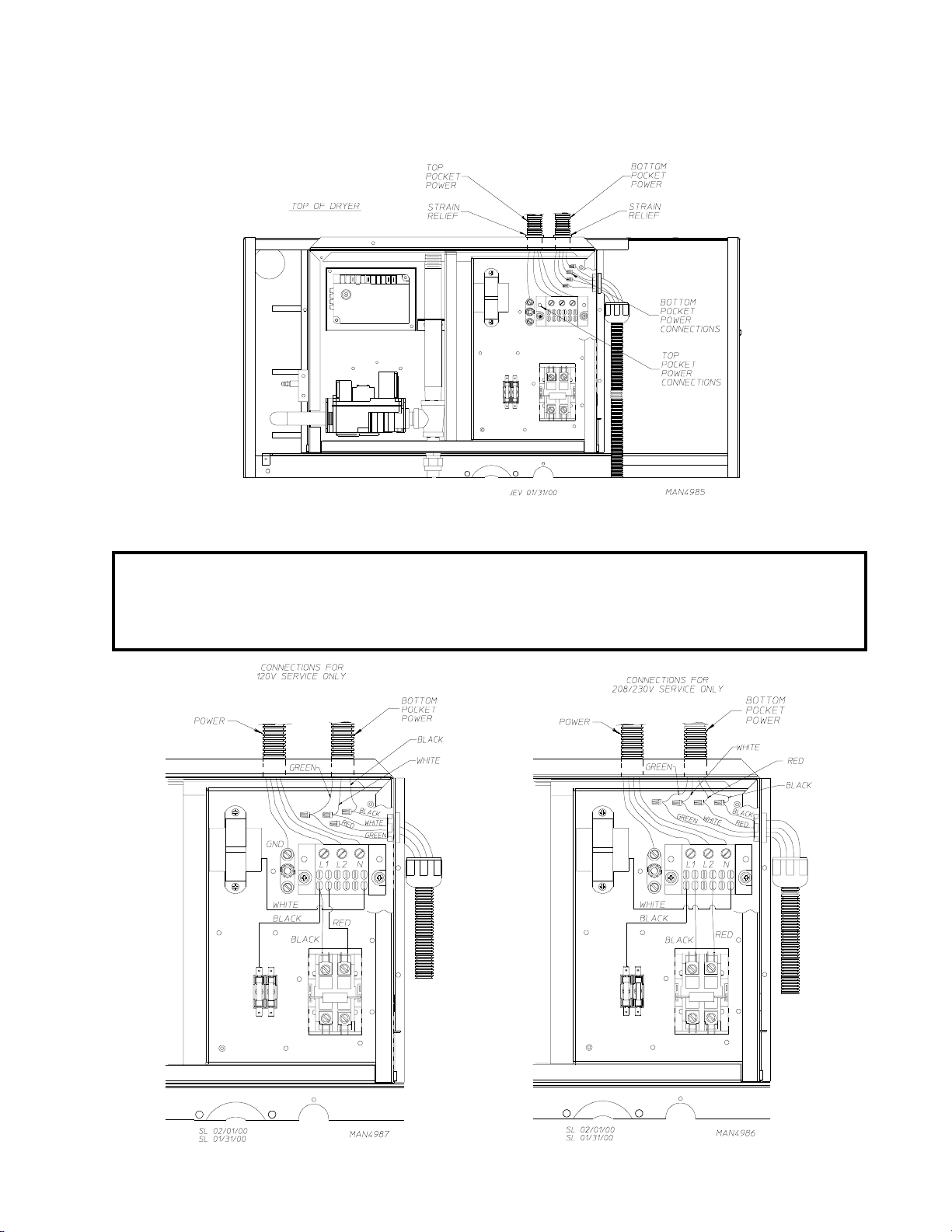

Each pocket must be provided with a separate circuit. The external power connection for the top pocket is made to a terminal block and the lower external power connection is made to a wire harness, both are located in the above mentioned wire box.

Page 21

If local codes permit, power to the dryer can be made by the use of a flexible U.L. listed power cord/pigtail (wire size must conform to rating of dryer), or the dryer can be hard wired directly to the service breaker panel. In both cases, a strain relief must be installed where the wiring enters the dryer.

Electrical power connection examples...

IMPORTANT: For a 120v installation, a 2-wire service (L1 and Neutral) and a ground is required

(*). In the case of a 208v or 240v 1-phase (1ø) service, 3-wires (L1, L2 and Neutral) and a ground is required (*). (*) For each basket (tumbler)/pocket.

Page 22

Grounding

A ground (earth) connection must be provided and installed in accordance with state and local codes. In the absence of these codes, grounding must conform to applicable requirements of the National Electrical Code ANSI/NFPA NO. 70-LATEST EDITION, or in Canada, the installation must conform to applicable Canada Standards: Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION. The ground connection may be to a proven earth ground at the location service panel.

For added personal safety, when possible, it is suggested that a separate ground wire (sized per local codes) be connected from the ground connection of the dryer to a grounded cold water pipe. DO NOT ground to a gas pipe or hot water pipe. The grounded cold water pipe must have metal to metal connections ALL the way to the electrical ground. If there are any nonmetallic interruptions, such as, a meter, pump, plastic, rubber, or other insulating connectors, they must be jumped out with no. 4 wire and securely clamped to bare metal at both ends.

IMPORTANT: For personal safety and proper operation, the dryer must be grounded.

4. Electrical Service Specifications (per pocket)

IMPORTANT: The dryer must be connected to the electrical supply shown on the dryer data label

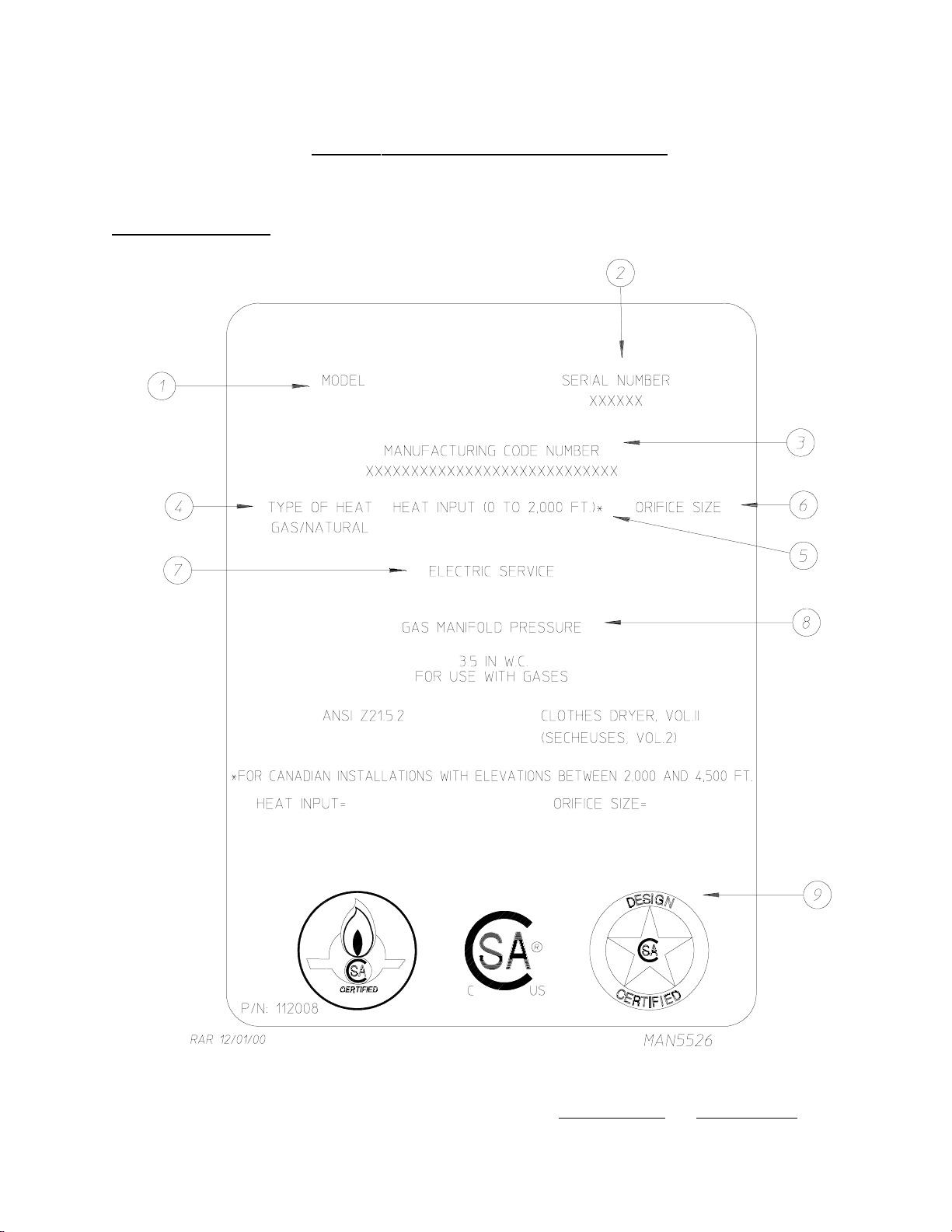

that is affixed to the left side panel area behind the top control (access) door .

WARNING: Any damage done to dryer components due to improper voltage application or

connections will automatically VOID THE WARRANTY.

AD G-360X2, 1Ø MOT OR ( GAS)

SERVIC E

WIRE

PHASE

VOLTAGE

120 1ø 2 9.7 * 15 208 1ø 2 6.1 * 15 230 1ø 2 5.4 * 15

AWG Stranded Wi re Typ e...si ze wire as p er National E lectrical Code o r local cod es.

NOTE: Contact factory for electrical information not listed.

NOTES: 1. Fuse ratings are dual element, time delay, current limiting, class RK1 or RK5 ONLY .

2. Circuit breakers are thermal-magnetic (industrial) motor curve type ONLY. For others,

calculate/verify correct breaker size according to appliance amp draw and type of breaker used.

SERVIC E

APPROX.

AMP DR AW

60 Hz

MINIMUM

WIRE SIZE

CIRCUIT

BREAKER

061703

NOTE: ADC reserves the right to make changes in specifications at any time without notice or

obligation.

Page 23

G. GAS INFORMATION

It is your responsibility to have ALL plumbing connections made by a qualified professional to assure that the gas plumbing installation is adequate and conforms to local and state regulations or codes. In the absence of such codes,

ALL plumbing connections, materials, and workmanship must conform to the applicable requirements of

the National Fuel Gas Code ANSI Z223.1-LATEST EDITION, or in Canada, the Canadian Installation Codes CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION.

IMPORTANT: Failure to comply with these codes or ordinances, and/or the requirements stipulated

in this manual, can result in personal injury and improper operation of the dryer .

The dryer and its individual shutoff valve must be disconnected from the gas supply piping system during any pressure testing of that system at test pressures in excess of 1/2 psig (3.5 kPa).

The dryer must be isolated from the gas supply piping system by closing its individual manual shutoff valve during any pressure test of the gas supply system at test pressures equal to or less than 1/2 psig (3.5 kPa).

IMPORTANT: Failure to isolate or disconnect the dryer from supply as noted can cause irreparable

damage to the gas valve VOIDING THE WARRANTY.

W ARNING: FIRE OR EXPLOSION COULD RESULT .

1. Gas Supply

The gas dryer installation must meet the American National Standard...National Fuel Gas Code ANSI Z223.1-LA TEST EDITION, or in Canada, the Canadian Installation Codes CAN/CGA-B149.1 M91 (Natural Gas) or CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION, as well as local codes and ordinances and must be done by a qualified professional.

NOTE: Undersized gas piping will result in ignition problems, slow drying, increased use of energy , and

can create a safety hazard.

The dryer must be connected to the type of heat/gas indicated on the dryer data label that is affixed to the left side panel area behind the top control (access) door. If this information does not agree with the type of gas available, contact the reseller who sold the dryer or contact the ADC factory.

IMPORTANT: Any burner changes or conversions must be made by a qualified professional.

The input ratings shown on the dryer data label are for elevations up to 2,000 feet (609.6 meters), unless elevation requirements of over 2,000 feet (609.6 meters) were specified at the time the dryer order was placed with the factory . The adjustment or conversion of dryers in the field for elevations over 2,000 feet (609.6 meters) is made by changing each burner orifice. If this conversion is necessary, contact the reseller who sold the dryer or contact the ADC factory.

IMPORTANT: THIS GAS DRYER IS NOT PROVIDED WITH AN INTERNAL GAS SUPPLY

SHUTOFF AND AN EXTERNAL GAS SUPPL Y SHUTOFF MUST BE PROVIDED.

Page 24

Technical Gas Data

a. Gas Specifications

TYPE OF GAS

NATURAL LIQUID PROPANE

Manifold Pressure* 3.5 inches W.C. 8.7 mb 10.5 inches W.C. 26.1 mb In-L ine P ressu re 6.0 - 12 .0 in che s W.C.

Shaded areas are stated in metric equivalents

* Measured at gas valve pressure tap when the gas valve is on.

14.92 - 29.9 mb 11.0 inches W.C. 27.4 mb

ADG-360X2

GAS INLET SIZE (EACH BASKET/TUMBLER) 3/4” N.P.T. INPUT (EACH BASKET/TUMBLER) 90,000 INPUT (TOTAL FOR BOTH B ASKETS/TUMBLERS) 180,000

.P.T. = National Pipe Threa

b. Natural Gas

Regulation is controlled by each dryer’s gas valve’ s internal regulator . Incoming supply pressure must be consistent between a minimum of 6.0 inches (14.92 mb) and a maximum of 12.0 inches (29.9 mb) water column (W.C.) pressure.

c. Liquid Propane (L.P.) Gas

BTU/HR 22,680 kcal/hr

BTU/HR

45,360 kcal/hr

Dryers made for use with L.P. gas have the gas valve’ s internal pressure regulator blocked open so that the gas pressure must be regulated upstream of the dryer. The pressure measured at each gas valve pressure tap must be a consistent 10.5 inches (26.1 mb) water column. There is no regulator or regulation provided in an L.P. dryer . The water column pressure must be regulated at the source (L.P. tank) or an external regulator must be added to each dryer.

3. Piping Connections

ALL components/materials must conform to National Fuel Gas Code Specifications ANSI Z223.1-LA TEST EDITION, or in Canada, CAN/CGA-B149.1-M91 (Natural Gas) or CAN/CGA-B149.2-M91 (L.P. Gas) or LATEST EDITION (for General Installation and Gas Plumbing), as well as local codes and ordinances and must be done by a qualified professional. It is important that gas pressure regulators meet applicable pressure requirements, and that gas meters be rated for the total amount of ALL the appliance Btus being supplied.

Page 25

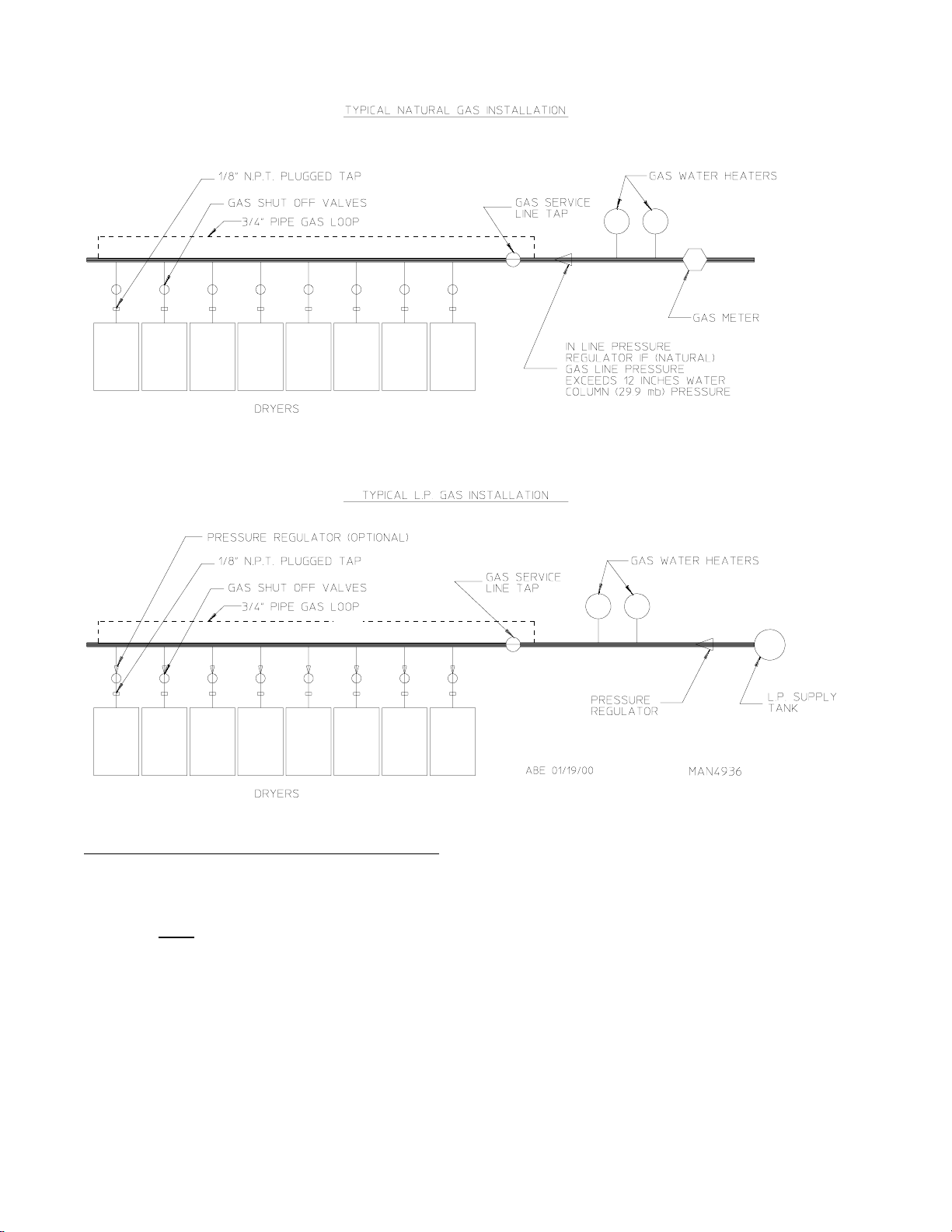

The size of the main gas supply line (header) will vary depending on the distance this line travels from the gas meter (or in the case of liquid propane [L.P.] gas, the supply tank), the number of tees, other gas-operated appliances on the supply line, etc. Specific information regarding supply line size should be determined by the gas supplier.

NOTE: Undersized gas supply piping can create a low or inconsistent pressure which will result in

erratic operation of the burner ignition system.

Consistent gas pressure is essential at ALL gas connections. It is recommended that a 3/4” (19.05 mm) pipe loop be installed in the supply line servicing the bank of dryers. An in-line pressure regulator must be installed in the gas supply line (header) if (natural) gas line pressure exceeds 12.0 inches (29.9 mb) water column (W.C.) pressure. (Refer to the illustrations on page 22 for details.)

IMPORTANT: W ater column pressure of 3.5 inches (8.7 mb) for natural gas dryers and 10.5 inches

(26.1 mb) for L.P . gas is required at the gas valve pressure tap of each dryer for proper and safe operation.

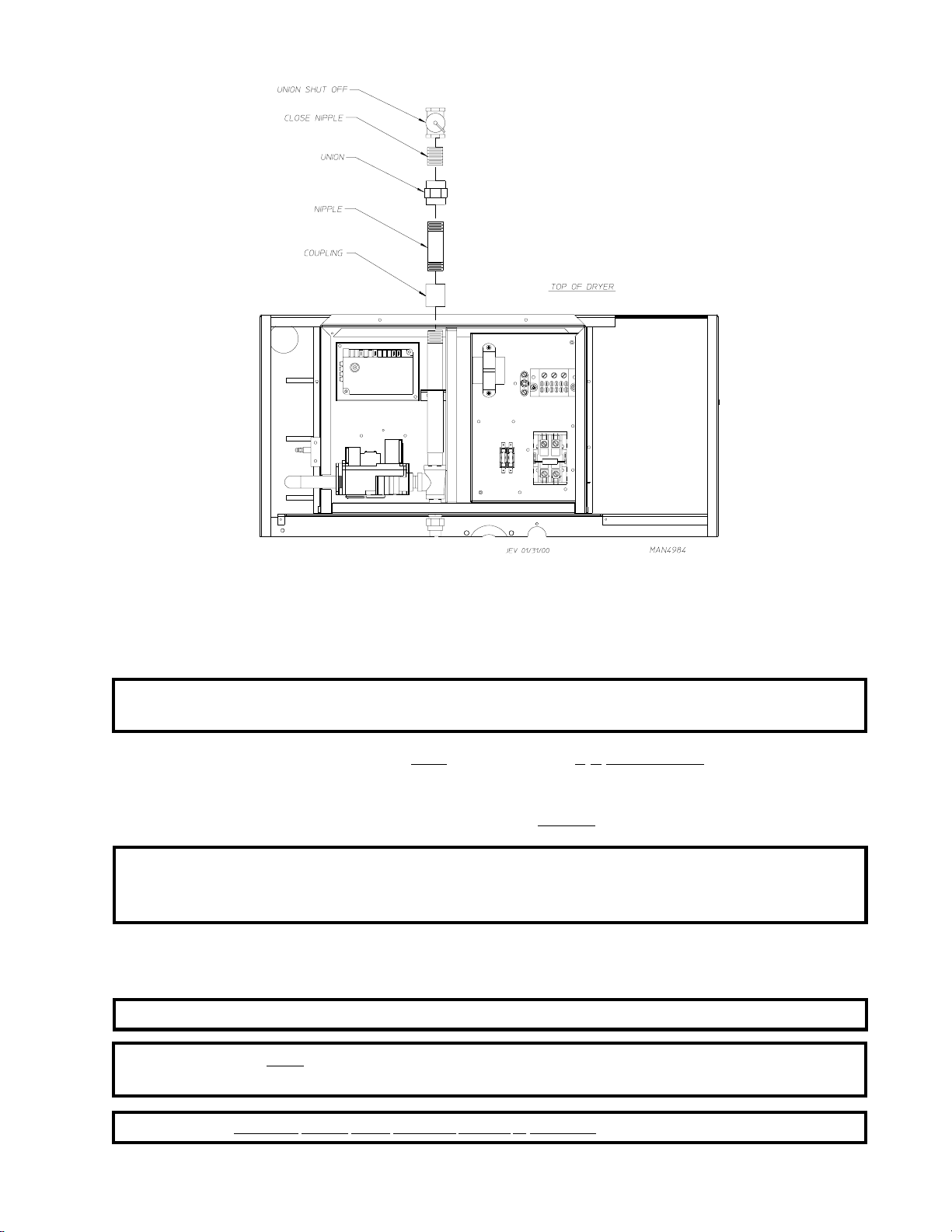

A 1/8” N.P.T. plugged tap, accessible for a test gauge connection, must be installed in the main gas supply line immediately upstream of each dryer.

IMPORTANT: Pipe joint compounds that resist the action of natural gas and L.P . gas must be used.

WARNING: Test ALL connections for leaks by brushing on a soapy water solution (liquid deter gent

also works well).

WARNING: NEVER TEST FOR LEAKS WITH A FLAME!!!

Page 26

H. PREPARATION FOR OPERATION

The following items should be checked before attempting to operate the dryer:

1. Read ALL “CAUTION,” “WARNING,” and “DIRECTION” labels attached to the dryer.

2. Check incoming supply voltage to be sure that it is the same as indicated on the dryer data label that is affixed to the left side panel area behind the top control (access) door.

3. Check to assure that the dryer is connected to the type of heat/gas indicated on the dryer data label.

4. The sail switch damper assembly was installed and adjusted at the factory prior to shipping. However, each sail switch adjustment must be checked to assure that this important safety control is functioning.

5. Check bolts, nuts, screws, terminals, and fittings for tightness.

Page 27

6. Be sure that

ALL gas shutoff valves are in the open position.

7. Be sure

8. Check the lint drawer to assure that it is closed and secured in place.

9. Rotate the basket (tumbler) by hand to be sure they move freely.

ALL back guard panels and service box covers have been replaced.

I. PREOPERATIONAL TESTS

ALL dryers are thoroughly tested and inspected before leaving the factory. However, a preoperational test should be performed before the dryer is publicly used. It is possible that adjustments have changed in transit.

1. Turn on electric power to the dryer.

a. Open ALL gas shutoff valves.

2. Computer System Operational Test

a. Coin Models Only

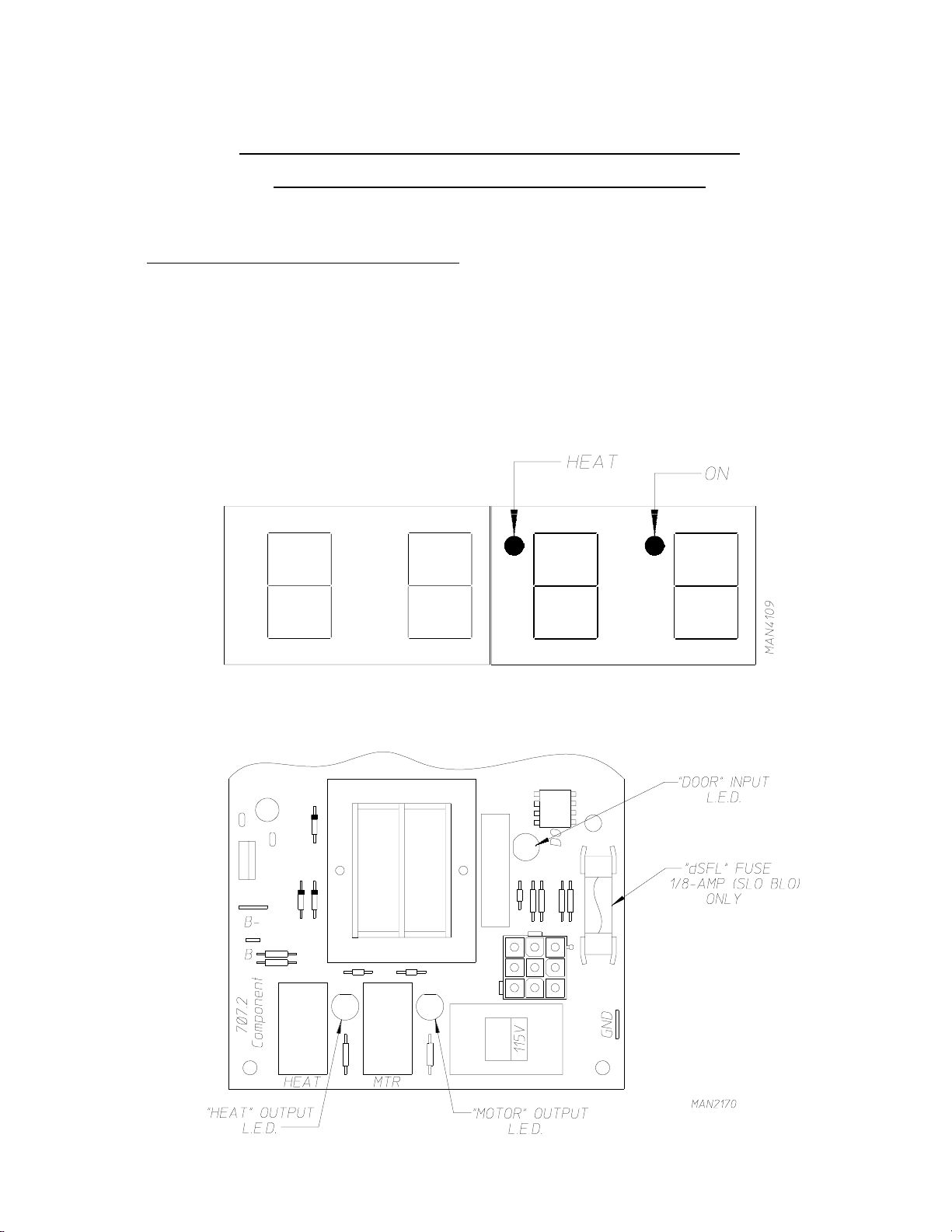

1) The light emitting diode (L.E.D.) display(s) will flash back and forth between “FILL” and the amount needed to start the dryer (i.e., “25”), meaning that the dryer is available and 25¢ is required to start it.

2) Insert the proper number of coins into coin acceptor. Once the correct amount needed to start the dryer has been inserted, the L.E.D. display(s) will read “PUSH”...“tEnP.”

3) Start the dryer by pressing the desired setting for either the upper basket (tumbler) or lower basket (tumbler) (i.e., “LO” selection for the upper basket [tumbler]). The L.E.D. display will now read selection (setting) made and the amount of time vended (i.e., “LO 10”).

NOTE: The dryer can be stopped at any time by opening the main door . T o restart the dryer, shut the

main door and press the desired setting.

4) Open main door to stop the dryer, and change selection to “PERM PRESS” (medium) setting. Repeat this procedure, but change the selection (setting) to “HI” (high). This will confirm that setting key circuits and door switch circuits are functioning properly .

NOTE: Selection (setting) changes can be made at any time during the drying cycle by opening and

closing the main door and then making a new selection.

5) Repeat above procedure for the other basket (tumbler).

3. Heat Circuit Operational Test

a. When a gas dryer is first started (during initial start-up), it has a tendency not to ignite on the first ignition

attempt. This is because the gas supply piping is filled with air , so it may take a few minutes for the air to be purged from the lines.

Page 28

The dryer is equipped with a Direct Spark Ignition (DSI) system, which has internal diagnostics. If ignition DSI system, open and close main door and restart dryer (press desired temperature selection).

is not established, the heat circuit DSI module will lockout until it is manually reset. To reset the

NOTE: During the purging period, check to be sure that ALL gas shutoff valves are open.

b. Once ignition is established, a gas pressure test should be taken at the gas valve pressure tap of each

dryer to assure that the water column (W.C.) pressure is correct and consistent.

NOTE: W ater column pressure requirements (measured at the gas valve pressure tap):

Natural Gas............................3.5 Inches (8.7 mb) W ater Column.

Liquid Propane (L.P .) Gas ......10.5 Inches (26.1 mb) W ater Column.

IMPORTANT: THERE IS NO REGULATOR PROVIDED IN AN L.P. DRYER. The water

column pressure must be regulated at the source (L.P . tank) or an external regulator must be added to each dryer .

4. Make a complete operational check of ALL safety related circuits (i.e., lint basket switches and sail

switches).

5. Each basket (tumbler) should be operated through one (1) complete cycle to assure that no further adjustments are necessary and that ALL components are functioning properly.

NOTE: The sail switch can be checked for proper operation by opening the control door while the

dryer is running and the heating unit (burner) active (on). The heating unit(s) should shut off within a few seconds. If not, make the necessary adjustments.

BASKET (TUMBLER) COA TING

The basket (tumbler) is treated with a protective coating. We suggest dampening old garments or cloth material with a solution of water and nonflammable mild detergent and tumbling them in the basket (tumbler) to remove this coating.

NOTE: When the drying and cooling cycles are complete, the light emitting diode (L.E.D.) display

reads...“donE.”

6. Computer Programs/Selections...

Each microprocessor controller (computer) has been preprogrammed by the factory with the most commonly

used program (parameter) selections. If microprocessor controller (computer) program changes are required, refer to the Microprocessor Controller Programming Manual, which was shipped with the dryer.

Page 29

J. SHUTDOWN INSTRUCTIONS

In the case where the dryer is to be shutdown (taken out of service) for a period of time, the following must be performed:

1. Discontinue power to the dryer (both baskets [tumblers]) either at the external disconnect switch or the circuit breaker.

2. Discontinue the gas supply:

a. SHUT OFF

external gas supply shutoff valve.

Page 30

SECTION IV

OPERATING INSTRUCTIONS

A. STARTING THE DRYER

The dryer is available for use when the light emitting diode (L.E.D.) display reads “FILL” and/or the amount needed to start the dryer (i.e., “25”). Once the load has been put into the dryer and the main door is closed, start the dryer as follows:

1. Insert the proper number of coins into the coin acceptor. Once the correct “Amount To Start” has been inserted, the L.E.D. display will read “PUSH”...“tEnP.”

2. Determine fabric setting (selection). Setting “HI TEMP” is the high temperature range, “PERM PRESS” is the medium temperature range, and “LO TEMP” is the low temperature range.

Once the fabric temperature setting (selection) has been determined, you start the dryer by pressing the fabric setting key for the basket (tumbler) being used (i.e., “LO TEMP” setting for the upper basket [tumbler]).

3. The dryer will now start, and the L.E.D. display for the basket (tumbler) selected will read the setting and the time vended (i.e., “LO 10”).

4. The cycle time will count down until the drying and cooling cycles are completed.

5. Upon completion of the drying cycle and cooling cycle, the dryer will shut off, the tone (buzzer) will sound for 5-seconds, and the L.E.D. display will read “donE.”

NOTE: If the antiwrinkle program is active, the L.E.D. display will remain reading “donE,” and the

microprocessor controller (computer) will proceed through the antiwrinkle program until the maximum “Active Guard Time” has expired or until the main door is opened, whichever comes first.

NOTE: If the antiwrinkle program is not active or in use, the L.E.D. display will read “donE” until the

main door is opened, at which time the L.E.D. display will read “FILL” and/or the “Amount T o Start.”

6. Notes

a. The dryer basket (tumbler) can be stopped at any time by opening the main door. T o restart dryer , shut

the main door and press desired setting.

NOTE: When a cycle is interrupted by opening the main door, cycle time will continue to count

downward, regardless if the door is open or closed until a keyboard (touch pad) selection is made.

b. Selection (setting) changes can be made at any time during the drying cycle by opening and closing the

main door and then making a new selection.

Page 31

c. Additional time can be purchased at any time. If the dryer is in operation (drying mode) and additional

coins are inserted, the light emitting diode (L.E.D.) display(s) will read “PUSH”...“tEnP,” and the selection (setting) key for the appropriate basket (tumbler) must be pressed.

NOTE: If the antiwrinkle program is active, the L.E.D. display will remain reading “donE,” and the

microprocessor controller (computer) will proceed through the antiwrinkle program until the maximum “Active Guard Time” has expired or until the main door is opened, whichever comes first.

NOTE: If the antiwrinkle program is not active or in use, the L.E.D. display will read “donE” until

the main door is opened, at which time the L.E.D. display will read “FILL” and/or “FrEE.”

d. Notes

1) The dryer basket (tumbler) can be stopped at any time by opening the main door. To restart dryer, shut the main door and press desired setting.

NOTE: If the antiwrinkle program is not active or in use, the L.E.D. display will read “donE” until the

main door is opened, at which time the L.E.D. display will read “FILL” and/or “FrEE.”

2) Selection (setting) changes can be made at any time during the drying cycle by opening and closing the main door then making a new selection.

Page 32

SECTION V

SERVICE/P ARTS INFORMA TION

A. SERVICE

1. Service must be performed by a qualified trained technician, service agency, or gas supplier. If service is required, contact the reseller from whom the ADC equipment was purchased. If the reseller contacted or is unknown, contact the ADC Service Department for a reseller in your area.

NOTE: When contacting the ADC Service Department, be sure to give them the correct model

number and serial number so that your inquiry is handled in an expeditious manner .

B. PAR TS

1. Replacement parts should be purchased from the reseller from whom the ADC equipment was purchased. If the reseller cannot be contacted or is unknown, contact the ADC Parts Department for a reseller in your area. Parts may also be purchased directly from the factory by calling the ADC Parts Department at (508) 678-9000 or you may F AX in your order at (508) 678-9447.

cannot be

NOTE: When ordering replacement parts from the ADC reseller or the ADC factory be sure to give

them the correct model number and serial number so that your parts order can be processed in an expeditious manner.

Page 33

SECTION VI

WARRANTY INFORMATION

A. RETURNING WARRANTY CARDS

1. Before any dryer leaves the ADC factory test area, a warranty card is placed on the back side of the main

door glass. These warranty cards are intended to serve the customer where we record the individual installation date and warranty information to better serve you should you file a warranty claim.

a. If a warranty card did not come with your dryer, contact the ADC Warranty Department or the ADC

Service Department at (508) 678-9000.

IMPORTANT: A separate warranty card must be completed and returned for each individual dryer.

NOTE: Be sure to include the installation date when returning the warranty card(s).

B. WARRANTY

For a copy of the ADC commercial warranty covering your particular dryer(s), contact the ADC reseller from whom you purchased the equipment and request a dryer warranty form. If the reseller cannot be contacted or is unknown, warranty information can be obtained from the factory by contacting the ADC W arranty Department at (508) 678-9000.

NOTE: Whenever contacting the ADC factory for warranty information, be sure to have the dryer’s

model number and serial number available so that your inquiry can be handled in an

expeditious manner.

C. RETURNING WARRANTY PARTS

ALL dryer or parts warranty claims or inquires should be addressed to the ADC Warranty Parts Department. T o expedite processing, the following procedures must be followed:

1. No parts are to be returned to ADC without prior written authorization (“Return Material Authorization”

[R.M.A.]) from the factory.

NOTE: An R.M.A. is valid for only thirty (30) days from date of issue.

a. The R.M.A. issued by the factory, as well as any other correspondence pertaining to the returned

part(s), must be included inside the package with the failed merchandise.

Page 34

2. Each part must be tagged with the following information:

Model number and serial number of the dryer from which part was removed.

b. Nature of failure (be specific).

c. Date of dryer installation.

d. Date of part failure.

e. Specify whether the part(s) being returned is for a replacement, a credit, or a refund.

NOTE: If a part is marked for a credit or a refund, the invoice number covering the purchase of the

replacement part must be provided.

NOTE: W arranty tags (ADC Part No. 450064) are available at “no charge” from ADC upon request.

3. The company returning the part(s) must clearly note the complete company name and address on the outside of the package.

4. ALL returns must be properly packaged to insure that they are not damaged in transit. Damage claims

are the responsibility of the shipper.

IMPORTANT: No replacements, credits, or refunds will be issued for merchandise damaged in

transit.

5. ALL returns should be shipped to the ADC factory in such a manner that they are insured and a proof of delivery can be obtained by the sender.

6. Shipping charges are not the responsibility of ADC. ALL returns should be “prepaid” to the

factory. Any “C.O.D.” or “COLLECT” returns will not be accepted.

IMPORTANT: No replacements, credits, or refunds will be issued if the claim cannot be processed

due to insufficient information. The party filing the claim will be notified in writing, either by “F AX” or “CERTIFIED MAIL - Return Receipt Requested,” as to the information necessary to process claim. If reply is not received by the ADC W arranty Department within thirty (30) days from the F AX/letter date, then no replacements, credits, or refunds will be issued, and the merchandise will be discarded.

Page 35

SECTION VII

ROUTINE MAINTENANCE

A. CLEANING

A program and/or schedule should be established for periodic inspection, cleaning, and removal of lint from various areas of the dryer, as well as throughout the ductwork system. The frequency of cleaning can best be determined from experience at each location. Maximum operating efficiency is dependent upon proper air circulation. The accumulation of lint can restrict this airflow . If the guidelines in this section are met, an ADC dryer will provide many years of efficient, trouble free, and most importantly safe operation.

WARNING: LINT FROM MOST FABRICS IS HIGHLY COMBUSTIBLE. THE

ACCUMULA TION OF LINT CAN CREA TE A POTENTIAL FIRE HAZARD.

W ARNING: KEEP DRYER AREA CLEAR AND FREE FROM COMBUSTIBLE

MA TERIALS, GASOLINE, AND OTHER FLAMMABLE VAPORS AND LIQUIDS.

NOTE: Suggested time intervals shown are for average usage, which is considered six (6) to eight (8)

operational (running) hours per day .

IMPORTANT: Dryer produces combustible lint and must be exhausted to the outdoors. Every 6

months, inspect the exhaust ducting and remove any lint build up.

SUGGESTED CLEANING SCHEDULE

DAILY (beginning of each work shift)

Clean lint from lint drawer/screen.

Inspect lint screen and replace if torn.

WEEKLY

Clean lint accumulation from around microprocessor temperature sensor probes and sensor bracket assemblies.

W ARNING: TO AVOID THE HAZARD OF ELECTRICAL SHOCK, DISCONTINUE

ELECTRICAL SUPPLY TO THE DRYER.

90 DAYS

Inspect and remove lint accumulation in customer furnished exhaust ductwork system and from the dryer’s internal exhaust ducting.

Page 36

W ARNING: THE ACCUMULATION OF LINT IN THE EXHAUST DUCTWORK CAN

CREA TE A POTENTIAL FIRE HAZARD.

WARNING: DO NOT OBSTRUCT THE FLOW OF COMBUSTION AND VENTILATION

AIR.

W ARNING: INSPECT AND REMOVE ANY LINT ACCUMULA TION, WHICH CAN

CAUSE THE BACK DRAFT DAMPER TO BIND OR STICK.

NOTE: A back draft damper that is sticking partially closed can result in slow drying and shutdown of

the heat circuit safety switches and/or thermostats.

NOTE: When cleaning dryer cabinet(s), avoid using harsh abrasives. A product intended for the

cleaning of appliances is recommended.

B. ADJUSTMENTS

7 DAYS AFTER INSTALLATION AND EVERY 6 MONTHS THEREAFTER

Inspect bolts, nuts, screws, (bearing setscrews), grounding connections, nonpermanent gas connections, (unions, shutoff valves, and orifices) and examine wheels. Motor and drive belts should be examined. Cracked or seriously frayed belt(s) should be replaced. Tighten loose belts when necessary. Complete operational check of controls and valves. Complete operational check of ALL safety devices (door switches, lint drawer switch, sail switch, burner and hi-limit thermostats).

Page 37

SECTION VIII

DATA LABEL INFORMA TION

A. DATA LABEL

Contact American Dryer Corporation

When contacting American Dryer Corporation, certain information is required to insure proper service/parts information from ADC. This information is on the data label that is affixed to the left side panel area behind the top control (access) door. When contacting ADC, please have the model number and serial number available.

Page 38

THE DATA LABEL

1. MODEL NUMBER The model number is an ADC number, which describes the size of the dryer and the type of heat (gas, electric, or steam).

2. SERIAL NUMBER The serial number allows ADC to gather information on your particular dryer.

3. MANUFACTURING CODE NUMBER The manufacturing code number is a number issued by ADC, which describes ALL possible options on your particular model.

4. TYPE OF HEAT This describes the type of heat for your particular dryer: gas (either natural gas or liquid propane [L.P.] gas), electric, or steam.

5. HEAT INPUT (for GAS DRYERS) This describes the heat input in British Thermal Units per Hour (Btu/hr).

6. ORIFICE SIZE (for GAS DRYERS) Gives the number drill size used.

7. ELECTRIC SERVICE This describes the electric service for your particular model.

8. GAS MANIFOLD PRESSURE (for GAS DRYERS) This describes the manifold pressure taken at the gas valve tap.

9. APPLICABLE APPROVAL SEAL(S) I.E., Canadian Standards Association International.

Page 39

SECTION IX

PROCEDURE FOR FUNCTIONAL CHECK

OF REPLACEMENT COMPONENTS

1. Microprocessor Controller (Computer) Board

a. Upon completing installation of the replacement microprocessor controller (computer) board, reestablish

power to the dryer.

b. Start the drying cycle.

c. Verify that the motor(s) and the heat indicator dots, in the microprocessor controller (computer) light

emitting diode (L.E.D.) display are on. (Refer to the illustration below.)

d. V erify that the motor(s), heat, and door indicator lights on the back side of the microprocessor controller

(computer) board are lit. (Refer to the illustration below.)

Page 40

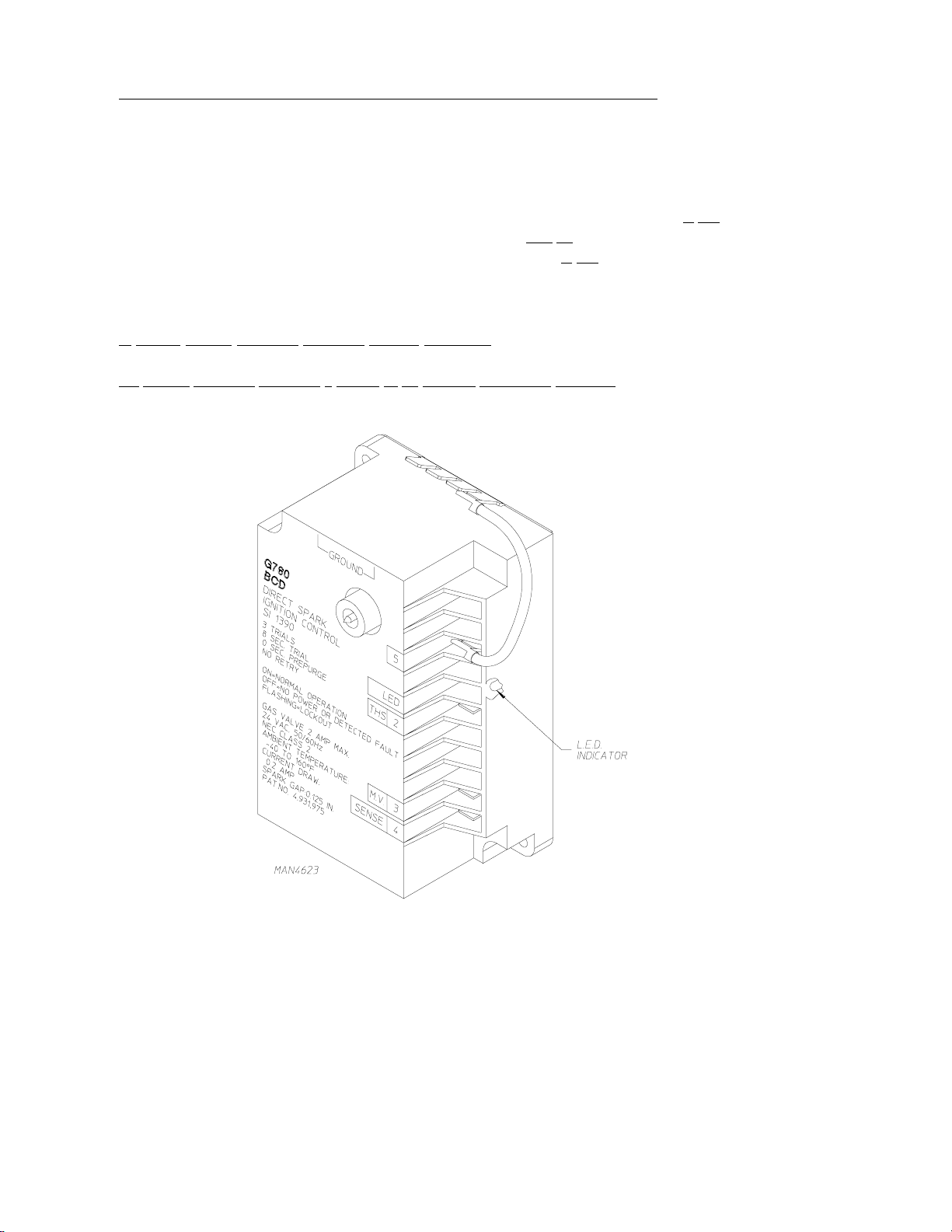

2. For Models With Johnson Controls Direct Spark Ignition (DSI) Module (G760)

Theory Of Operation:

Start the drying cycle. When the gas burner ignites within the chosen trial for ignition time (6-seconds), the flame sensor detects gas burner flame and signals the DSI module to keep the gas valve open...as long as there is a call for heat. The DSI module will “LOCKOUT” if the gas burner flame of the trial for ignition period. The trial for ignition period will be repeated for a total of three (3) retries/ trials (the initial try and two [2] more retries/trials). If the flame is not sensed at the end of the third retry/ trial (inter-purge period of 30-seconds) the DSI module will “LOCKOUT” (light emitting diode [L.E.D.] flashes).

A steady L.E.D. indicator indicates normal operation.

No L.E.D. indicator indicates a power or an internal failure has occurred.

is not sensed at the end

Page 41

ADC 113328 1-09/07/01-25 2 - 09/10/01-200 3*10/09/01-187

4 - 04/03/02-500 5 - 01/31/03-100 6 * 03/18/03-100 7 - 04/18/03-100 8* 06/20/03-150

ADC AD-360X2 Installation Instructions

Specifications and Main Features

Frequently Asked Questions

User Manual
