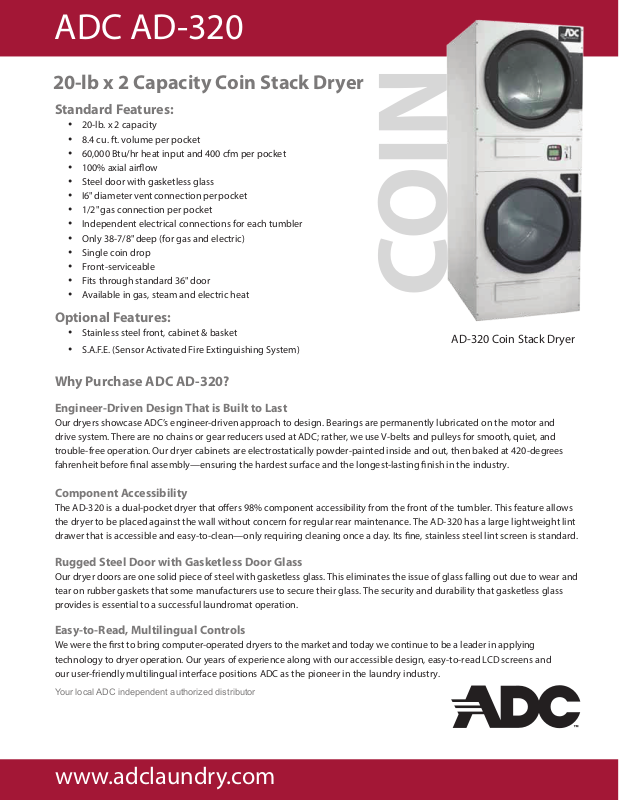

ADC AD-320
20-lb x 2 Capacity Coin Stack Dryer
Standard Features:
• 20-lb. x 2 capacity
• 8.4 cu. ft. volume per pocket
• 60,000 Btu/hr heat input and 400 cfm per pocket
• 100% axial airow
• Steel door with gasketless glass
• I6" diameter vent connection per pocket
• 1/2" cgas onnection per pocket
• Independent electrical connections for each tumbler
• Only 38-7/8" deep (for gas and electric)
• Single coin drop
• Front-serviceable
• Fits through standard 36" door
• Available in gas, steam and electric heat
Optional Features:
• Stainless steel front, cabinet & basket
• S.A.F.E. (Sensor Activated Fire Extinguishing System)
AD-320 Coin Stack Dryer
Why Purchase ADC AD-320?
Engineer-Driven Design That is Built to Last
Our dryers showcase ADC’s engineer-driven approach to design. Bearings are permanently lubricated on the motor and
drive system. There are no chains or gear reducers used at ADC; rather, we use V-belts and pulleys for smooth, quiet, and
trouble-free operation. Our dryer cabinets are electrostatically powder-painted inside and out, then baked at 420-degrees
fahrenheit before nal assembly—ensuring the hardest surface and the longest-lasting nish in the industry.
Component Accessibility
The AD-320 is a dual-pocket dryer that oers 98% component accessibility from the front of the tumbler. This feature allows
the dryer to be placed against the wall without concern for regular rear maintenance. The AD-320 has a large lightweight lint
drawer that is accessible and easy-to-clean—only requiring cleaning once a day. Its ne, stainless steel lint screen is standard.
Rugged Steel Door with Gasketless Door Glass
Our dryer doors are one solid piece of steel with gasketless glass. This eliminates the issue of glass falling out due to wear and
tear on rubber gaskets that some manufacturers use to secure their glass. The security and durability that gasketless glass
provides is essential to a successful laundromat operation.
Easy-to-Read, Multilingual Controls
We were the rst to bring computer-operated dryers to the market and today we continue to be a leader in applying
technology to dryer operation. Our years of experience along with our accessible design, easy-to-read LCD screens and
our user-friendly multilingual interface positions ADC as the pioneer in the laundry industry.
Your local ADC independent authorized distributor
www.adclaundry.com
ADC AD-320
Tumbler Capacity (dry weight) 20 lbs. (9.07 kg) x 2
Tumbler Diameter 27-1/4" (69.22 cm)
Tumbler Depth 25" (63.5 cm)
Tumbler Volume 8.4 cu ft (237.86 L)
Tumbler/Drive Motor 1/3 hp (0.25 kW)
Blower/Fan Motor N/A
Door Opening (diameter) 21-1/2" (54.6 cm)
Door Sill Height
(top pocket/bottom pocket)
S.A.F.E. Water Connection 3/4" (11.5 NH) F.N.P.T.
Dryers per 20’/40’ Container 14 / 28
Dryers per 48’/53’ Truck 34 / 36
Width 29-3/4" (75.57 cm)
Depth
Height 78-1/4" (198.8 cm)
50-15/16" (129.4 cm)
12-3/16" (31 cm)
3/4" B.S.P.T.
(gas and electric/steam) 38-7/8" (98.7 cm) / 43-15/16" (111.6 cm)
(outside North America)
REAR VIEW (GAS & ELECTRIC)
gas/electric/steam 60 Hz
50 Hz
400 cfm (11.33 cmm)
333 cfm (9.44 cmm)
Exhaust Connection 6" (15.24 cm)
GAS MODEL:
Voltage Available
Approx. Net Wt.
Approx. Ship Wt.
Heat Input (per pocket)
Inlet Pipe Connection
100-240v 1ø 2w 50/60 Hz
760 lbs (344.7 kg)
795 lbs (360.6 kg)
60,000 btu/hr (15,120 kcal/hr)
1/2" F.N.P.T.
1/2" B.S.P.T.
ELECTRIC MODEL:
Oven Size per pocket
kW Btu/hr (kcal/hr)
15 51,228 (12,910)
Voltage Available
Approx. Net Wt.
Approx. Ship Wt.
208-416v 1,3ø 2,3,4w 50/60 Hz
760 lbs (344.7 kg)
795 lbs (360.6 kg)
STEAM MODEL: *
Voltage Available
Approx. Net Wt.
Approx. Ship Wt.
Steam Consumption (per pocket)
Operating Steam Pressure
Compressed Air Connection
Compressed Air Volume
Boiler Horsepower (per pocket)
Supply Connection
Return Connection
*Dryer must be provided with clean, dry and regulated
80 psi +/- 10 psi (5.51 bar +/- 0.69 bar) air supply.
GAS & STEAM
SERVICE
VOLTAGE
100 1ø 2 -- 7.8 8.0 15
115 1ø 2 -- 7.8 -- 15
208 1ø 2 -- 4.8 -- 15
220 1ø 2 -- -- 3.6 15
240 1ø 2 -- 4.4 4.3 15
PHASE
WIRE
SERVICE
OVEN
kW
100-240v 1ø 2w 50/60 Hz
873 lbs (396.0 kg)
949 lbs (430.5 kg)
101 lbs/hr (45.8 kg/hr)
125 psi max. (8.6 bar)
1/8" F.N.P.T.
0.5 cfh / 0.014 cmh
2.9 Bhp
1" F.N.P.T
3/4" F.N.P
APPROX AMP DRAW
60 Hz 50 Hz
(CE and Australia Only)
CIRCUIT
BREAKER
4/20/10
FRONT VIEW
ELECTRIC
SERVICE
VOLTAGE
208 1ø 2 15 76.9 -- 110
240 1ø 2 15 66.9 66.8 90
208 3ø 3 15 46.4 -- 70
220 3ø 3 15 -- 43.7 60
240 3ø 3 15 40.5 40.4 60
380-440 3ø 4* 15 -- 27.1 45
416 3ø 4* 15 -- 25.1 45
480 3ø 3 15 23.1 -- 45
PHASE
WIRE
SERVICE
OVEN
kW
APPROX AMP DRAW
60 Hz 50 Hz
CIRCUIT
BREAKER
PLAN VIEW
