ADC AD-30 User Manual

Phase 5
Coin
User’ s Manual
American Dryer Corporation
88 Currant Road
Fall River MA 02720-4781 USA
Telephone: +1 (508) 678-9000 / Fax: +1 (508) 678-9447
www.adclaundry.com
ADC Part No. 112146 -62
Retain This Manual In A Safe
Place For Future Reference
Please read this manual carefully to thoroughly familiarize yourself with the Phase 5 Coin computer system features, operational instructions, and programming characteristics. This manual contains important information on how to use all the features of your new dryer in the safest and fastest way.
This product embodies advanced concepts in engineering, design, and safety. If this product is properly maintained, it will provide many years of safe, efficient, and trouble free operation.
We have tried to make this manual as complete as possible and hope you will find it useful. The manufacturer reserves the right to make changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or discontinue models.
!
WARNING
Proposition 65
Use of this product could expose you to substances from fuel combustion that contain chemicals known to the State of
California to cause cancer, birth defects
and other reproductive harm.
In the State of Massachusetts, the following installation instructions apply:
Installations and repairs must be performed by a qualified or licensed contractor, plumber, or gasfitter qualified or licensed by the State of Massachusetts.
If using a ball valve, it shall be a T-handle type.
A flexible gas connector, when used, must not exceed
3 feet.
“IMPORTANT NOTE T O PURCHASER”
Information must be obtained from your local gas supplier on the instructions to be followed if the user smells gas. These instructions must be posted in a prominent location near the dryer.
List of Acronyms _____________________
L.E.D. Light Emitting Diode PL Program Locations PS Program Switch
Table of Contents _____________________
Introduction ................................................ 3
L.E.D. Display and Codes............................ 4
Operating Instructions ............................... 5
Timed Mode ...................................................................5
Automatic Mode (Patent No. 4,827,627).......................5
Free Dry Mode ...............................................................5
Program Selection ...................................... 6
Programming Instructions ....................... 10
Introduction To Programming ......................................10

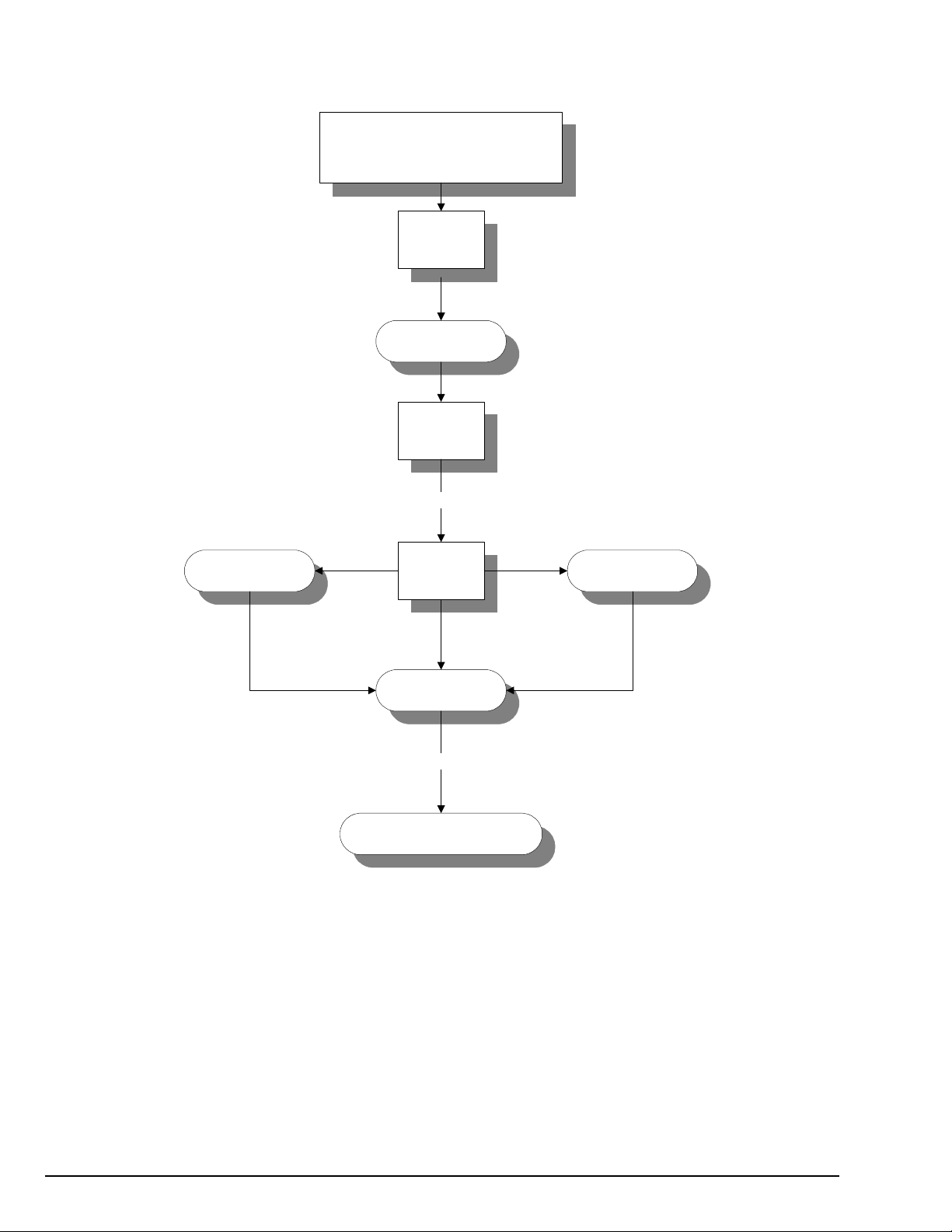

Programming (Flowcharts) ..........................................11
Programming ............................................ 14
Temperature Display Mode .........................................14
Left Coin Count............................................................15
Right Coin Count .........................................................16
Program Location 01 (PL01) .......................................17
Program Location 02 (PL02) .......................................21
Program Location 03 (PL03) .......................................22
Program Location 04 (PL04) .......................................23
Program Location 05 (PL05) .......................................24
Program Location 06 (PL06) .......................................25
Program Location 07 (PL07) .......................................26
Program Location 08 (PL08) .......................................27
Program Location 09 (PL09) .......................................28
Program Location 10 (PL10) .......................................29
Program Location 11 (PL11)........................................30
Program Location 12 (PL12) .......................................31
Program Location 13 (PL13) .......................................32
Program Location 14 (PL14) .......................................33
Program Location 15 (PL15) .......................................34
Program Location 16 (PL16)
and Program Location 17 (PL17) ................................35
Factory Preset Programs/Parameters ..... 36
Phase 5 Coin System Diagnostics ........... 37
Diagnostic (L.E.D.) Failure Codes ..............................37
L.E.D. Display Indicators/Dots ....................................37
Phase 5 Microprocessor Controller (Computer)
Relay Output L.E.D. Indicators....................................37
Phase 5 Auto Cycle (Patent No . 4,827,627)
“ A” and “b” Factor Parameters................. 38
Optional 9 Volt Ba ttery Backup ............... 38
2 American Dryer Corp. 112146-62
Introduction __________________________
The Phase 5 Coin Computer System is a fully programmable, highly sophisticated dryer control system. American Dryer Corporation has designed the Phase 5 coin microprocessor controller (computer) to be the most versatile and reliable coin­operated control system available.
To eliminate as many moving parts as possible, all Phase 5 coin microprocessor controller (computer) programming is done through the membrane switch on the front of the control panel. The program switch that puts microprocessor controller (computer) into the program mode is a single program switch. This program switch eliminates the possibility of switch failure due to an accumulation of lint or moisture.
Phase 5 Coin Microprocessor Controller (Computer) Features
AUTOMA TIC PROGRAM REVIEW
In the program mode, the Phase 5 coin microprocessor controller (computer) will show all settings by one touch of the low temperature keypad selection.
PROGRAMMABLE
Changes in the programs are made at the temperature keypad selection and actual programs are displayed for verification.
ADJUSTABLE TIME
Programmable from a minimum of 1 minute to a maximum of 99 minutes in 1 minute increments.
COIN ACCEPTOR DENOMINATIONS
Values of coin acceptors are programmable from a minimum of 1 to a maximum value of 9999 for any U.S. or foreign coin denomination.
AMOUNT TO START
Programmable from a minimum value of 1 to a maximum value of 9999 in increments of one.
ACCUMULATIVE TIME
This program yields a specific value of time for any coin entry made after the “Amount To Start” has been inserted.
Time For Amount To Start
This program retains the time the owner wishes to vend. The feature allows any additional purchase that is made to be calculated to the second. There is no calculation necessary by the owner. The Phase 5 coin microprocessor controller (computer) calculates the vended time.
ACCUMULATIVE COIN
This program selection requires that a specific value of coin(s) be inserted for additional time, programmable for any minimum amount.
COIN COUNT
The number of coins inserted, including a separate display program for optional dual coin acceptors, can be viewed through the Phase 5 computer’s L.E.D. display.
BAD COIN LOCKOUT
Each coin is monitored. Should someone tamper with the coin acceptor or attempt to insert a foreign object, the microprocessor controller (computer) will “LOCKOUT” and will not accept any entries until the reset time has elapsed (approximately 15-seconds). Once the reset time has expired, the microprocessor controller (computer) will automatically reset itself for the next coin entry.
TEMPERA TURE CONVERSION
When the temperature conversion status is changed (i.e. from °F to °C), the Phase 5 coin microprocessor controller (computer) will automatically convert all temperature related programs/parameters from Fahrenheit to Celsius and vice versa. The Phase 5 coin microprocessor controller (computer) will perform this conversion within 1° F (2° C). The programs affected are:
1. Temperature Display Mode
2. Temperature Selections
3. Cool Down Temperatures
DRYING TEMPERATURES
Any of the three temperature selections (HI/LO/PP) are programmable from a minimum of 100° F to a maximum of 190° F in ten-degree increments or from a minimum of 38° C to a maximum of 88° C in five-degree increments. Actual temperature programs are displayed at time of programming for verification.
For the AD-26 and AD-295 any three of the selections (HI/LO/ PP) are programmable from a minimum of 100° F to a maximum of 170° F in ten-degree increments, or from a minimum of 38° C to a maximum of 77° C in five-degree increments.
For the AD-540 and WDA-540 any three of the selections (HI/ LO/PP) are programmable from a minimum of 100° F to a maximum of 160° F in ten-degree increments or from a minimum of 38° C to a maximum of 71° C in five-degree increments.
COOL DOWN TIME
All three temperature selections are programmable from a minimum of 0 minutes to a maximum of 9 minutes in 1 minute increments.
COOL DOWN TEMPERATURES
In the automatic or free dry modes, the cool down cycle termination is programmable from a minimum of 70° F to a maximum of 190° F in ten-degree increments or from a minimum of 21° C to a maximum of 88° C in five-degree increments.
AUTOMATIC MODE (Patent No. 4,827,627)
This program selection uses ADC’s patented Auto-Dry cycle. The microprocessor controller (computer) will calculate the percent of the dryness and read “donE” when complete. The Phase 5 coin microprocessor controller (computer) can be programmed to have a maximum time for the “Auto Mode.” The Automatic Cycle (mode) can be used in either the “Free Dry” Mode or the “Coin” Mode.
112146-62 www.adclaundry.com 3
ANTI-WRINKLE
This program selection helps keep permanent press items wrinkle free when they are not removed from the dryer promptly at the end of the drying and cooling cycles. The Anti-Wrinkle program settings are:
1. Guard Delay Time ..............1 to 9 minutes
2. Guard On Time...................1 to 99-seconds
3. Active Guard Time..............1 to 99 minutes
FREE DRY MODE
In this program selection, the dryer can be started without the insertion of coins by simply pressing any one of the three temperature selections. When set in the “Free Dry” Mode, the Phase 5 coin microprocessor controller (computer) can also be programmed to run with an Automatic Cycle (percent of dryness) or with a Timed Cycle. If the “Free Dry” program is utilized, the computer’s L.E.D. display will cycle back and forth between “FILL” to “FrEE,” unless otherwise programmed.
L.E.D. FLASH DISPLAY
Programmable to allow the L.E.D. readout to display a choice of “FILL” (no cycle in progress), “Amount To Start” (i.e., 25¢), or, in the case of free dry , “FrEE.” This program selection also allows the L.E.D. display to flash back and forth every 2-seconds from “FILL” to “Amount To Start” or, in the case of free dry, from “FILL” to “FrEE.”
AUDIBLE TONE
In this program selection, a tone (buzzer) will sound for each coin inserted, program entry, or at the drying and cooling cycles for a period of 5-seconds to indicate that the cycle is complete. Additionally, when in the Anti-Wrinkle program, the tone (buzzer) will sound for 5-seconds at the end of the “Guard On Time.”
TEMPERA TURE DISPLAY
This program selection enables the temperature in the dryer to be viewed (°F or °C) either while the dryer is off or running. This service feature shows that the dryer is maintaining the selected temperature.
DIAGNOSTICS
All major circuits, including door, microprocessor temperature sensor, heat, and motor circuits are monitored. There are also indicators installed on the outputs of each relay to easily identify failures, and the door switch has an indicator installed on the Phase 5 microprocessor controller (computer) to help indicate failure.
AUTOMATIC DRY TIME
This program selection allows the dryer to run up to a specific time. During the “AUtO” mode or “FrEE” dry mode this program is only designed to limit the dryer’s operation during the drying cycle.
ROTATIONAL SAFE GUARD (Optional)
This program monitors the rotation of the tumbler. If the tumbler is not rotating, the Phase 5 coin microprocessor controller (computer) will disable all outputs, an audible tone (buzzer) will sound, and an error message will be displayed. This program selection can be programmed to be in the inactive mode.
BATTERY BACKUP (Optional)
This feature allows the Phase 5 coin microprocessor controller (computer) to maintain its operating status should a momentary power interruption occur while the dryer cycle is in progress.
L.E.D. Display and Codes _____________
A Automatic Cycle (Slope Program Factor) ACOn Accumulative Coin Adrt Maximum Auto Dryness Time AFAt Amount for Additional Time AGt Active Anti-Wrinkle Guard Time AtIn Accumulative Time AtSt Amount To Start AUtO Automatic Mode (Patent No. 4,827,627) b Automatic Cycle (Heat Loss [offset] Factor) bCLO Bad Coin Lockout bCrS Bad Coin Reset bUZ Buzzer (Tone) °CEL Degree in Celsius CLCC Clear Left Coin Count Coin Coin Mode CrCC Clear Right Coin Count donE Drying and Cooling Cycles Complete
or
Dryer is in Anti-Wrinkle Cycle
door Door Circuit is Open* dSFL Dryer Sensor Circuit Failure* °FAr Degree in Fahrenheit FILL No Cycle in Progress FLS Flash Display Active FrEE Free Dry Mode GdLY Anti-Wrinkle Delay Time Gont Anti-Wrinkle On Time Grd Anti-Wrinkle Program Active HICd High Cool Down Hot Overheating Condition* LCC Left Coin Count LCdE Left Coin Denomination LOCd Low Cool Down nbUZ No Buzzer (Tone) nFLS No Flash Display nGrd No Anti-Wrinkle nSEn No Rotational Sensor Selected PdrY Percent Dry PL Program Location PLOC Program Location Automation Review PPCd Permanent Press Cool Down PP°F Permanent Press PUSH Amount to start has been Inserted
Make Temperature Selection
rCC Right Coin Count rCdE Right Coin Denomination SEFL Rotational Sensor Circuit Failure* SEn Rotational Sensor Selected tFAS Time For Amount to Start tInE Timed Mode
* Refer to Phase 5 Coin System Diagnostics on page 37 for detailed information.
4 American Dryer Corp. 112146-62
Operating Instructions _______________
NOTE: Unless otherwise specified at the time of ordering, the Phase 5 coin microprocessor controller (computer) has been preprogrammed by the factory with the parameters shown on page 36. Should program changes be found necessary, please read this Phase 5 Coin User’s Manual carefully to thoroughly familiarize yourself with the Phase 5 coin microprocessor controller (computer) programming characteristics.
Timed Mode ___________________________
When turning on power or when no cycle is in progress, the L.E.D. display will read “FILL” and/or “Amount T o S tart” (“AtS t”).
Insert coin(s). Once the correct “Amount To Start” has been inserted, the L.E.D. display will read “PUSH.”
Select temperature by pushing “HI TEMP,” “LO TEMP,” or “PERM PRESS.” The dryer will start and the L.E.D. display will read the temperature cycle selected and the drying time.
The dryer will continue through the drying and cooling cycles, showing time counting downward.
NOTE: If the door is opened during a cycle, both the heat and motor will stop. However, the Phase 5 coin microprocessor controller (computer) will continue to count downwards in time. Continuation of the cycle will resume only after the door has been closed and any one of the three temperature selection buttons is again depressed.
Upon completion of the drying and cooling cycles, the buzzer (tone) will sound, and the L.E.D. display will read “donE” for 5-seconds, at which time the dryer will shut off.
NOTE: If the Anti-Wrinkle Program is active (“Grd”), the L.E.D. display will remain reading “donE,” and the Phase 5 coin microprocessor (computer) will proceed through the Anti-Wrinkle Program until the maximum “Guard On Time” has expired or until the door is opened, whichever comes first. The L.E.D. display will read “FILL” and/or “Amount To Start” (“AtSt”).
If the Anti-Wrinkle Program is not active (“nGrd”) the L.E.D. display will read “donE” until the main door is opened, at which time the L.E.D. display will read “FILL” and/or “Amount To Start.”
Automatic Mode (Patent No. 4,827,627) ________________
When turning on power or when no cycle is in progress, the L.E.D. display will read “Fill” and/or “Amount To Start” (“AtS t”).
Insert coin(s). Once correct “Amount to Start” has been inserted, the L.E.D. display will read “PUSH.”
Select temperature by pushing “HI TEMP,” “LO TEMP,” or “PERM PRESS.” The dryer will start, the L.E.D. display will read the temperature cycle selected, and the drying time portion of the L.E.D. display will read “00” and count upward as time elapses.
NOTE: If the door is opened during a cycle, both the heat and motor will stop. However, the Phase 5 coin microprocessor controller (computer) will continue to count upwards in time. Continuation of the cycle will resume only after the door has been closed and any one of the three temperature selection buttons is again depressed.
Once the preprogrammed dryness level and cool down period have been reached or maximum automatic time has expired, whichever comes first, the buzzer (tone) will sound, and the L.E.D. display will read “donE” for 5-seconds, at which time the dryer will shut off.
NOTE: If the Anti-Wrinkle Program is active (“Grd”), the L.E.D. display will remain reading “donE,” and the Phase 5 coin microprocessor controller (computer) will proceed through the Anti-Wrinkle Program until the maximum “Guard On Time” has expired or door is opened, whichever comes first. The L.E.D. will read “FILL” and/or “Amount To Start” (“AtSt”).
If the Anti-Wrinkle Program is not active (“nGrd”), the L.E.D. display will read “donE” until the main door is opened, at which time the L.E.D. display will read “FILL” and/or “Amount To Start.”
Free Dry Mode ________________________
When turning on power or when no cycle is in progress, the L.E.D. display will read “FILL” and/or “FrEE.”
Select temperature. The dryer will start, the L.E.D. display will read the temperature cycle selected and the drying time portion of the L.E.D. display will read the temperature cycle selected. The drying time portion of the L.E.D. drying will read “00” and count upward as time elapses, or the vended time will count downward, depending on which parameter is programmed.
NOTE: If the door is opened during a cycle, both the heat and motor will stop. However, the Phase 5 coin microprocessor controller (computer) will continue to count the time, either upward or downward, depending on which parameter is programmed. Continuation of the cycle will resume only after the door has been closed and any one of three temperature selection buttons is again depressed.
Once the preprogrammed percent dryness level and cool down period has been reached or maximum automatic time has expired, whichever comes first, the tone (buzzer) will sound, and the L.E.D. display will read “donE” for 5-seconds, at which time the dryer will shut off.
NOTE: If the Anti-Wrinkle Program is active (“Grd”), the L.E.D. display will remain reading “donE,” and the Phase 5 coin microprocessor controller (computer) will proceed through the Anti-Wrinkle Program until the maximum “Guard On Time” has expired or door is opened, whichever comes first. The L.E.D. display will read “FILL” and/or “Amount To Start” (“AtSt”).
If the Anti-Wrinkle Program is not active (“nGrd”), the L.E.D. display will read “donE” until the main door is opened, at which time the L.E.D. display will read “FILL” and/or “Amount To Start.”
112146-62 www.adclaundry.com 5
Program Selection ____________________
NOTE: Programs are stored in the Phase 5 coin microprocessor controller (computer) memory and are cataloged as PL.
Temperature Display Mode
By closing the PS located on the back side of the Phase 5 coin microprocessor controller (computer), the L.E.D. display will read the temperature in the dryer in either Fahrenheit (°F) or Celsius (°C), depending on how the temperature conversion status is in PL01. The temperature display mode can be activated while the dryer is in the operating cycle, or off. While in the operating cycle, the circuit indicators are visible for troubleshooting purposes.
NOTE: The dryer cannot be started while the Phase 5 coin microprocessor controller (computer) PS is closed, unless the cycle was already in progress.
Right Coin Count (rCC)/Left Coin Count (LCC)
The “HI TEMP” key lets the operator review the coin counters. If the operator presses the “HI TEMP” key, the computer displays “_LCC.” The operator could then press either the “PERM PRESS” key to view the “Left Coin Count” or the “HI TEMP” key and the computer would display “_rCC.” Again, the operator could press the “PERM PRESS” key to view the “right coin count.” While displaying the coin count, if the operator presses the “HI TEMP” key the computer then displays “CxCC” (x = “r” or “L”) to indicate “clearing” the coin count. The operator then presses the “PERM PRESS” key to clear the coin count or the “HI TEMP” or “LO TEMP” key to exit without clearing the coin count.
Automatic Re view of Program Location
This selection allows for the AUTOMATIC REVIEW of what the program locations are set (programmed) for, thereby eliminating the need to go into each and every PL manually for verification. By closing the PS with no cycle in progress, the L.E.D. display will read the temperature in the dryer. Then, by pressing the “LO TEMP” key, the L.E.D. display will read “PLOC” for 1-second. Then, the Phase 5 coin microprocessor controller (computer) will go into the Automatic Review Mode, the Program Location numbers (i.e., PL01, PL02, etc.) will not be shown and each parameter (i.e., “°F Ar,” “tInE,” “Grd,” etc.) will be displayed for approximately 1-second each. The Automatic Review can be stopped/exited at any time by simply pressing the “PERM PRESS” key, at which time the L.E.D. display will read “0000” for 1-second and then return to the Temperature display mode.
PL01 – Temperature Conversion Status
This program controls whether the temperature related programs will be operated in Fahrenheit (°F) or Celsius (°C). The programs affected are:
1. Temperature Display Mode
2. Selection Cycling Temperatures
3. Cool Down Temperatures
Automatic Mode (AUtO) Pa tent No. 4,827,627
When this parameter (“AUtO”) is selected, the dryer will run for a preset level of dryness (PL02) or until the programmed automatic maximum time (PL14) has expired.
At the end of the drying cycle, the dryer will go into the cool down cycle for the time period programmed (PL04, PL06, or PL08) or until the temperature has dropped to the programmed cool down temperature (PL04, PL06, or PL08).
NOTE: Due to humidity, atmospheric pressure, percentage of extraction, etc., the desired dryness level may vary. It is suggested that the owner determine which level of dryness (90% to 100%) is best suited for his/her application by experimenting with a few test loads.
When programming, to use the Automatic Mode (“AUtO”) (Patent No. 4,827,627), the following parameter/programs need to be checked and/or changed accordingly:
PL01.......... “AUtO”
“FrEE” or “Coin” (coins required to start)
PL02.......... “PdrY” (percent dry from 90% to 100%)
PL14.......... “Adrt” (maximum auto dry time)
PL17.......... “A” and “b” Factors
6 American Dryer Corp. 112146-62
Timed Mode (tInE)
When this parameter is selected (“tInE”) and the Phase 5 coin microprocessor controller (computer) has been activated, the dryer will continue to run until the preset time, including the cool down period (PL04, PL06, or PL08), has elapsed, at which time the dryer will cycle off or go into the optional Anti-W rinkle Program.
Anti-Wrinkle Program (Grd)
This feature can be used in conjunction with any of the three operating modes (Coin Mode, Auto Mode, or the Free Dry Mode). In this program (“Grd”), when the drying and cooling cycles are completed, the dryer will shut off, the buzzer (tone) will sound, and the L.E.D. display will read “donE.” If the door is not opened, the Phase 5 coin microprocessor controller (computer) will wait until the “Guard Delay Time” (PL15) has expired, at which time the clothes will be tumbled (without heat) for the programmed ”Guard On Time” (PL15). The Phase 5 coin microprocessor controller (computer) will repeat this process until the programmed “Active Guard Time” (PL16) has expired or until the dryer door is opened, at which time the L.E.D. display will read “FILL” and/or “Amount T o S tart” (“AtS t”) or “FILL” and/or “FrEE.”
NOTE: When programming the use of the Anti-Wrinkle Program (“Grd”), the following parameter/programs need to be checked and/or changed accordingly:
PL01........ “Grd” (Anti-Wrinkle Program active)
“bUZ” or “nbUZ” (buzzer [tone] active/not active)
PL15........ “GdLY” (guard delay time)
“Gont” (guard on time)
PL16........ “AGt” (active guard time)
Buzz/Tone (bUZ)
With the Anti-Wrinkle Program active, the option is available to have the buzzer/tone (“bUZ”) sound for a period of 5-seconds at the end of each “Guard On Time” cycle, or, no buzzer (“nbUZ”) sound.
Free Dry Mode (FrEE)
The Phase 5 coin microprocessor controller (computer) can be programmed to run without the insertion of coins. When the Phase 5 coin microprocessor controller (computer) is in the “FrEE” dry mode, it may be programmed to run in the “AUtO” (Automatic) Mode or the “tInE” (Timed) Mode.
NOTE: When programming the use of the Free Dry Mode (“FrEE”), the following parameters/programs need to be checked and/or changed accordingly:
PL01........ “AUtO” (automatic drying cycle) or
“tInE” (timed drying cycle) “FrEE”
PL02* ...... “PdrY” (percent dry)
PL14* ...... “Adrt” (maximum auto dry time)
PL17* ...... “A” and “b” factors
* Needs to be programmed only if PL01 “AUtO” cycle is chosen.
Coin Mode (Coin)
In this program mode (“Coin”), coins are required to start the dryer, even if the Phase 5 coin microprocessor controller (computer) is set in the Automatic Mode (Patent No. 4,827,627).
NOTE: When programming the use of the Coin Mode, (“Coin”), the following parameter/programs need to be checked and/or changed accordingly:
PL01........ “AUtO” (automatic drying cycle) or
“tInE” (timed drying cycle) “FrEE”
PL02* ...... “PdrY” (percent dry)
PL11........ “tFAS” (time for amount to start)
PL12........ “AtSt” (amount to start)
PL14* ...... “Adrt” (maximum auto dry time)
PL17* ...... “A” and “b” factors
* Needs to be programmed only if PL01 “AUtO” cycle is chosen.
Flash Display Status (FLS)
When the Phase 5 coin microprocessor controller (computer) is set in this program status (“FLS”) it allows the L.E.D. readout to display “FILL” and/or “FrEE” (no cycle in progress), and/or “Amount To Start” (PL12) or, in the case of free dry, “FrEE.” The programming allows the L.E.D. readout to flip-flop back and forth every 2-seconds from “FILL” to “Amount to Start,” or in the case of free dry, from “FILL” to “FrEE.” If the L.E.D. display is programmed for “No Flash” (“nFLS”), the microprocessor controller (computer) will then prompt you on whether you would like “FILL” displayed or the “Amount To Start” (“AtSt”).
Bad Coin Lockout Sta tus (bCL O)
In this program status (“bCLO”), each coin entry is monitored. Should someone tamper with the coin acceptor or attempt to insert a foreign object, the Phase 5 coin microprocessor controller (computer) will “LOCKOUT” and not accept any entries until the reset time has elapsed (approximately 15-seconds). Once the reset time has expired, the Phase 5 coin microprocessor controller (computer) will automatically reset itself immediately for the next entry.
Bad Coin Reset (bCrS)
When set in this program (“bCrS”), the Phase 5 coin microprocessor controller (computer) counts in milliseconds the amount of time required for a coin entry signal. If someone should tamper with the coin acceptor or attempt to insert a foreign object, the Phase 5 coin microprocessor controller (computer) will not accept the entry and will automatically reset itself immediately for the next entry.
Accumulative Time (AtIn) (Single Coin)
In this program mode (“AtIn”), each coin inserted has a specific value in time, which is determined by the “Time For Amount to Start” (“tFAS”) program (PL11).
Example No. 1: If the dryer is equipped with a 25¢ coin acceptor and the desired time is 30 minutes, each additional coin inserted would yield 30 minutes.
Settings: PL09 (LCdE) ...................... 25
PL11 (tFAS) ........................ 30
PL12 (AtSt) ........................ 25
Example No. 2: If the dryer is equipped with a 25¢ coin acceptor and the “Amount To Start” (“AtSt”) is 50¢ for 30 minutes, the insertion of each additional coin would yield 15 minutes. In this application the vended time for additional coins is determined by a Phase 5 coin microprocessor controller (computer) calculation. There is no calculation required by the owner.
112146-62 www.adclaundry.com 7
Formula: (LCdE/AtSt) (tFAS) = Vended Time for “ LCdE”
(25¢/50¢) (30) = 15 minutes
Settings: PL09 (LCdE) ...................... 25
PL11 (tFAS) ........................ 30
PL12 (AtSt) ........................ 50
(Dual Coin)
In the Accumulative T ime (AtIn) Mode, when using a dual coin acceptor, once the “Amount T o S tart” (“AtSt”) has been inserted, the addition of a coin(s) yields more time.
The vended time for additional coins is determined by the Phase 5 coin microprocessor controller (computer) calculation. There is no calculation required by the owner.
Formula: (LCdE/AtSt) (tFAS) = Vended Time
Example No. 1: Using a 10¢/25¢ dual coin acceptor with the desired “Amount to Start” (“AtSt”) being 25¢ for 15 minutes, each additional 10¢ would yield the following:
Formula: (LCdE/AtSt) (tFAS) = Vended Time for “LCdE”
(10¢/25¢) (15 minutes) 6 minutes
Settings: PL09 (LCdE) ...................... 10
PL10 (rCdE) ....................... 25
PL11 (tFAS) ........................ 15
PL12 (AtSt) ........................ 25
Example No. 2: If the dryer is equipped with a 10¢/25¢ dual coin acceptor and the desired “Amount To Start” (“AtSt”) is 35¢ for 14 minutes, each additional 10¢ inserted would yield 4 minutes and each additional 25¢ would yield 10 minutes.
Formula: (LCdE/AtSt) (tFAS) = Vended Time for “LCdE”
(10¢/35¢) (14 minutes) 4 minutes
Settings: PL09 (LCdE) ...................... 10
PL10 (rCdE) ....................... 25
PL11 (tFAS) ........................ 14
PL12 (AtSt) ........................ 35
Example No. 3: If the dryer is equipped with a 10¢/25¢ dual coin acceptor and the desired “Amount To Start” (“AtSt”) is 55¢ for 33 minutes, each additional 10¢ inserted would yield 6 minutes, and each additional 25¢ would yield 15 minutes.
Formula: (LCdE/AtSt) (tFAS) = Vended Time for “LCdE”
(10¢/55¢) (33 minutes) 6 minutes
Settings: PL09 (LCdE) ...................... 10
PL10 (rCdE) ....................... 25
PL11 (tFAS) ........................ 33
PL12 (AtSt) ........................ 55
NOTE: If the total Vend Time cannot be divided evenly by the “Amount To Start” (“AtSt”), the “Time For Amount To Start” will calculate precisely the amount of the time entitled to the purchaser.
Formula: (LCdE/AtSt) (tFAS) = Vended Time for “LCdE”
(10¢/35¢) = 2.85 minutes
(2 minutes and 51-seconds)
Settings: PL09 (LCdE) ...................... 10
PL10 (rCdE) ....................... 25
PL11 (tFAS) ........................ 10
PL12 (AtSt) ........................ 35
Accumulative Coin (ACOn)
When this program mode (“ACOn”) is selected, additional time can only be achieved when the “Amount For Additional Time” (“AFAt”) PL13 has been inserted.
NOTE: When programming, to use the Accumulative Coin Mode (“ACOn”), the following parameters/programs need to be checked and/or changed accordingly:
Settings: PL01 ......................... “ACOn”
(“Accumulative Coin”)
PL13 ........................... “AFAt”
(“Amount For Additional Time”)
(Single Coin Acceptor)
Example No. 1: Using a 25¢ coin acceptor with the desired “Amount To Start” (“AtSt”) being 50¢ for 24 minutes, the Phase 5 coin microprocessor controller (computer) would yield more time (24 minutes) only when an additional 50¢ is inserted. For this application, the “Time For Amount To Start” (“tFAS”) program (PL11) is determined as follows:
Formula: (AFAt/AtSt) (tFAS) = Vended Time for “AFAt”
(50¢/50¢) (24 minutes) = 24 minutes
Settings: PL09 (LCdE) ...................... 25
PL11 (tFAS) ........................ 24
PL12 (AtSt) ........................ 50
PL13 (AFAt) ....................... 50
(Dual Coin Acceptor)
With a dual coin acceptor the “Time For Amount To Start” (“tFAS”) is determined as shown below:
Formula: (AFAt/AtSt) (tFAS) = Vended Time for “AFAt”
Example No. 1: Using a 10¢/25¢ dual coin acceptor the desired “Amount To Start” (“AtSt”) is 50¢ for 20 minutes and the “Amount for Additional Time” (“AFAt”) is set for 20¢ each additional 20¢ would yield 8 minutes.
Formula: (AFAt/AtSt) (tFAS) = Additional Vended Time
(20/50) (20 minutes) = 8 minutes
Settings: PL09 (LCdE) ...................... 10
PL10 (rCdE) ....................... 25
PL11 (tFAS) ........................ 20
PL12 (AtSt) ........................ 50
PL13 (AFAt) ....................... 20
Example No. 2: If the dryer is equipped with a 10¢/25¢ dual coin acceptor and the desired “Amount To Start” (“AtSt”) is 35¢ for 14 minutes and the “Amount For Additional Time” (“AFAt”) is set for 25¢, each additional 25¢ inserted would yield 10 minutes.
Formula: (AFAt/AtSt)(tFAS) = Vended Time for “AFAt”
(25¢/35¢) (14 minutes) = 10 minutes
Settings: PL09 (LCdE) ...................... 10
PL10 (rCdE) ....................... 25
PL11 (tFAS) ........................ 14
PL12 (AtSt) ........................ 35
PL13 (AFAt) ....................... 25
8 American Dryer Corp. 112146-62
Rotational Safe Guard – Optional (nSEn)
This program monitors the rotation of the tumbler and works in conjunction with a special sensor (optional) located at the rear tumbler support area of the dryer. If the tumbler is not rotating (i.e., broken belt, failed motor, etc.), the Phase 5 microprocessor controller (computer) will disable all outputs (shut the dryer down), the buzzer (tone) will sound (for time programmed), and the L.E.D. display will read a failure message “SEFL” (Rotational Sensor Circuit Failure). The failure code must be cancelled manually by opening and closing the PS. This program selection (option) can be programmed to be active (“SEn”) or inactive (“nSEn”).
NOTE: This parameter is programmed by the factory to be inactive (“nSEn”) unless the dryer was manufactured with optional “rotational sensor.”
PL02 – Percent Dry (PdrY)
When in the Automatic Mode, the dryer will run until the preset level of dryness has been reached or until the Maximum Auto Dryness Time (Adrt) has been reached or until the Maximum Auto Dryness Time (Adrt) has expired. The dryness level is programmable from a minimum of 90% to a maximum of 100%.
NOTE: Due to humidity, atmospheric pressure, water retention in the garment etc., the desired “Percent Dry” (“PdrY”) may vary. It is suggested that the owner determine which level of dryness (90% to 100%) is best suited for his/her application by experimenting with a few test loads.
PL03 – High Temperature (HI°F)
The high operating temperature is programmable from a minimum of 100° F to a maximum of 190° F in ten-degree increments or from a minimum of 38° C to a maximum of 88° C in five-degree increments.
For the AD-26 and AD-295 any three of the selections (HI/LO/ PP) are programmable from a minimum of 100° F to a maximum of 170° F in ten-degree increments or from a minimum of 38° C to a maximum of 77° C in five-degree increments.
For the AD-540 and WDA-540 any three of the selections (HI/ LO/PP) are programmable from a minimum of 100° F to a maximum of 160° F in ten-degree increments or from a minimum of 38° C to a maximum of 71° C in five-degree increments.
PL04 – High Cool Down T emperature/Time (HICd)
The first part of this program controls the cool down temperature when the Phase 5 microprocessor controller (computer) is used in the automatic mode. The cool down temperature is programmable from a minimum of 70° F to a maximum of 190° F in ten-degree increments or from a minimum of 21° C to a maximum of 88° C in five-degree increments.
For the AD-26 and AD-295 any three of the selections (HI/LO/ PP) are programmable from a minimum of 100° F to a maximum of 170° F in ten-degree increments or from a minimum of 38° C to a maximum of 77° C in five-degree increments.
For the AD-540 and WDA-540 any three of the selections (HI/ LO/PP) are programmable from a minimum of 100° F to a maximum of 160° F in ten-degree increments or from a minimum of 38° C to a maximum of 71° C in five-degree increments.
The second part of this program controls the cool down time for both the automatic and timed modes. The cool down time can be programmed from a minimum of 0 to a maximum of 9 minutes.
NOTE: When the Phase 5 microprocessor controller (computer) is used in the automatic mode, at the end of the drying cycle, the Phase 5 microprocessor controller (computer) will start the cooling cycle for the cool down time programmed or until the temperature has dropped to the programmed cool down temperature, whichever of the two comes first.
PL05 – Low T emperature (LO°F)
Same as PL03 but for Low Temperature program.
PL06 – Low Cool Down Temperature/Time (LOCd)
Same as for PL04 but for low Cool Down Temperature/Time.
PL07 – Permanent Press (PP°F)
Same as PL03 but for Permanent Press.
PL08 – Permanent Press Cool Down Temperature/Time (PPCd)
Same as PL04 but for Permanent Press Cool Down Temperature/Time.
PL09 – Left Coin Slot Denomination (LCdE)
In the case of a single coin acceptor, this program setting is determined by the value of the coin acceptor (i.e., 25¢).
When a dual coin acceptor is used, the program setting is determined by the left coin slot coin acceptor value (lower coin value).
Program settings are from a minimum of 1 to a maximum of
9999.
PL10 – Right Coin Slot Denomination (rCdE)
This program need only be set when a dual coin acceptor is used. The program setting is determined by the value of the right coin acceptor slot (higher value).
Program settings are from a minimum of 1 to a maximum of
9999. When used in conjunction with the left Coin Slot Denomination
program, the Phase 5 microprocessor controller (computer) automatically calculates the ratios necessary for coin insertion time values.
PL11 – Time For Amount To Start (tFAS)
This program is set for the specific value in TIME that will be vended for the programmed “Amount To Start” (“AtSt”) the dryer. For example, if 25¢ is required to st art the dryer for 10 minutes, the settings would be...
PL11 “Time for Amount to Start”.............. “tFAS” = 10
PL12 “Amount To Start”............................ “AtSt” = 25
112146-62 www.adclaundry.com 9
In addition, with the “Time For Amount to Start” (“tFAS”) and the “Amount To Start” (PL12 – “AtS t”) programmed along with the type of coin acceptor (denominations) on the dryer (i.e. 10¢/25¢), the Phase 5 microprocessor controller (computer) will do all calculations and vend the correct amount of time for any coin inserted after the initial “Amount To Start” has been inserted – including both accumulative coin program settings. For example, if a dryer is equipped with a 10¢/25¢ dual coin acceptor and the desired “Amount To Start” (“AtSt”) is 55¢ for 33 minutes (“tFAS”), with the microprocessor controller (computer) set for accumulative time, after initial “Amount To Start” is inserted (55¢), each additional 10¢ inserted would yield 6 minutes, and each additional 25¢ inserted would yield 15 minutes.
PL12 – Amount T o Start (AtSt)
This program sets the “Amount To Start” the dryer and can be programmed from a minimum of 1 to a maximum of 9999.
PL13 – Minimum Amount For Additional Time (AFAt)
This program need only be set when the Phase 5 microprocessor controller (computer) is set in the “Accumulative Coin” (“ACOn”) mode (PL01). The value set for this program is what will have to be inserted for more time after the “Amount To Start” (“AtSt”) has been inserted.
Example No. 1: “Amount to St art” (“AtSt”) is 50¢ for 30 minutes and an additional 50¢ is required for more time. In this example PL13 should be set for 50¢.
PL14 – Maximum Time For Automatic Dry (Adrt)
This program is used only when the Phase 5 microprocessor controller (computer) is set in the Automatic Mode. This program controls the maximum time the dryer will run even if the Dryness Level program (PL02) has not been reached.
PL15 – Anti-Wrinkle Timing
Guard Delay Time (GdLY)
This program controls the dwell (stop) time and activation of anti-wrinkle “Guard On Time” (“Gont”). The dwell (stop) time can be programmed from a minimum of 1 minute to a maximum of 9 minutes in 1 minute increments.
Guard On Time (Gont)
The setting controls the amount of time that the tumbler will turn, without heat, when the Anti-W rinkle is active (“Grd”). The “Guard On Time” (“Gont”) is programmable from a minimum of 1-second to a maximum of 99-seconds in 1-second increments.
PL16 – Active Guard Time (AGt)
This program controls the maximum time that the Anti-Wrinkle Program will be active and is programmable from a minimum of 1 minute to a maximum of 99 minutes in 1 minute increments.
PL17 – “A” and “b” Factors
This location will include the “Auto-Cycle” parameters. These parameters are necessary to allow the Phase 5 microprocessor controller (computer) to calculate the percentage of dryness in the tumbler. The “A” Factor is adjustable from 1 to 99.
These parameters are the factors that the Phase 5 microprocessor controller (computer) utilizes when programmed for an “Automatic Drying Cycle.” The “A” Factor slope program, pertains to the thermal characteristic of each model dryer. The “b” Factor, heat loss (offset) program, also pertains to the thermal characteristics of each model dryer. This factor setting is dependent upon the model dryer and type of heating unit.
The “A” and “b” Factors have not been preprogrammed by the factory and must be programmed if the Phase 5 microprocessor controller (computer) programming is changed to be used in the Automatic Mode. The “A” and “b” Factors must be programmed for the particular dryer model and heating unit as shown in the “A” and “b” Factors (parameter) table on page 38 of this manual.
Programming Instructions ___________

Introduction To Programming

The various program (parameters) dryer selections are stored in the computer memory and are cataloged as “PL” 1 through
17. These programs (parameters) have been preprogrammed by the factory as noted on page 36 of this manual. The various program selections available are outlined in the proceeding section (Program Selection on page 6).
All programming is done through the keypad selection buttons on the front of the control panel. To change programs (parameters) or to put the Phase 5 microprocessor controller (computer) in the temperature display mode or the coin count display mode, the PS located on the back side of the microprocessor controller (computer) must be put into the (down) position (PSC).
First make sure there is no cycle in progress and the L.E.D. display reads “FILL” and/or “Amount To Start,” or “FILL” and/ or “FrEE.” Close the Program Switch (PSC). The L.E.D. display will now read the temperature in the dryer (i.e., 72° F [22° C]). From this point, any of the 17 program locations can be accessed by pressing the “PERM PRESS” key once, at which time the L.E.D. display will read “PL01.”
To alter programming, the operator must first locate the program location or parameter to be changed. To advance to the specific program location press the “HI TEMP” key until the desired program location is displayed (i.e. PL01, PL02, etc.). The “LO TEMP” key will advance the program locations downward (i.e., PL11, PL10, etc.). Once the correct program location is displayed and access to change is desired, press the “PERM PRESS” key. The “PERM PRESS” key provides two functions:
Allows access into a PL. Advances to next bit (part of a program location) or next
location.
NOTE: When in a PL and the “PERM PRESS” key is pressed, whatever parameter is displayed will be stored in the microprocessor controller’s (computer’s) memory and the programming is now advanced to the next step (bit) or program location.
10 American Dryer Corp. 112146-62
The “HI TEMP” or “LO TEMP” key provide the following functions:
Change numeric values...“HI TEMP” increases and “LO TEMP” decreases.
Flip-flop for status changes...by pressing either key, a status will revert back and forth no matter which of the two keys is pressed.
If the change to be made is a numerical one (i.e., time or temperature), the operator must now press the “HI TEMP” key to increase the number value, or press the “LO TEMP” key to lower/increase the number value. Pressing the “PERM PRESS” key will store the change and advance to the next step (bit) or program location.
NOTES _____________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
NOTE: To accelerate increase/upward value, press and hold in “HI TEMP” key. To accelerate decrease/downward value, press and hold in “LO TEMP” key.
When making numerical changes, please keep in mind to stay within the programming limits shown.
If the change to be made is a status change (i.e., to change from °FAr to °CEL) simply press the “HI TEMP” or “LO TEMP” key and the L.E.D. display will revert back and forth between status choices (i.e. “Grd” and “nGrd”). Once the correct status is displayed, pressing the “PERM PRESS” key will store the change and advance to the next step (bit) or program location.
Once the change or changes desired are made, to exit program mode flip up (open) the PS.
NOTE: You can exit the programming mode at any time (even if you are in the middle of a program location) by simply opening the PS. However, if a change was made be sure the “PERM PRESS” key is pressed before opening the PS to ensure the change was stored in the microprocessor controller’s (computer’s) memory.

Programming (Flowcharts)

This section explains the programming through the use of flowcharts. A flowchart is nothing more than a diagram of the programming process.
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
____________________________________________________________
Represents the microprocessor L.E.D. display. For example,
____________________________________________________________
if the flowchart shows the symbol “FILL,” the computer L.E.D. display will read the same.
Represents the key on the label that is to be pressed. For example, if flowchart shows “HI TEMP,” you would press that
____________________________________________________________
____________________________________________________________
____________________________________________________________
key on the label.
Represents the program path.
____________________________________________________________
____________________________________________________________
____________________________________________________________
On the side of each flowchart is an explanation of the chart procedures, in some cases, the programming limits.
____________________________________________________________
____________________________________________________________
112146-62 www.adclaundry.com 11
Dryer Off (Power On)
(No cycle in progress)
Display Reads
To enter temperature display
Display Reads
To enter program locations press the “Perm Press” keypad selection button.
Display Reads
To advance to next program location press the “HI Temp” selection button.
Display Reads
FILL
and/or
(Close Program Switch)
75F
Perm Press
PL01
HI Temp
PL02
25
Amount To start
(Dryer Temperature Display)
To accelerate advance, press and hold in “HI Temp” selection button.
Display Reads Program Location and will advance until “HI Temp” selection button is released.
To revert back to lower program locations push “LO Temp” selection button.
Display Reads
HI Temp
PL03
PL04
PL05
LO Temp
PL04
Continued
12 American Dryer Corp. 112146-62
Loading...
+ 28 hidden pages
