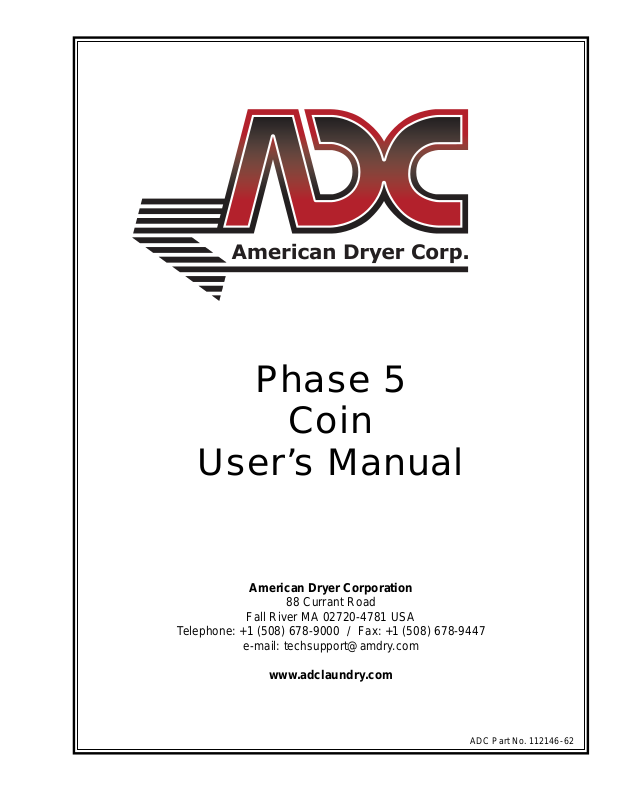

ADC AD-25V User Manual

Phase 5

Coin

User’ s Manual

American Dryer Corporation

88 Currant Road

Fall River MA 02720-4781 USA

Telephone: [phone] / Fax: [phone]

e-mail: [e-mail]

www.adclaundry.com

ADC Part No. 112146 -62

Retain This Manual In A Safe

Place For Future Reference

Please read this manual carefully to thoroughly familiarize
yourself with the Phase 5 Coin computer system features,
operational instructions, and programming characteristics.
This manual contains important information on how to use all
the features of your new dryer in the safest and fastest way.

This product embodies advanced concepts in engineering,
design, and safety. If this product is properly maintained, it
will provide many years of safe, efficient, and trouble free
operation.

We have tried to make this manual as complete as possible
and hope you will find it useful. The manufacturer reserves
the right to make changes from time to time, without notice or
obligation, in prices, specifications, colors, and material, and
to change or discontinue models.

!

WARNING

Proposition 65

Use of this product could expose you
to substances from fuel combustion that
contain chemicals known to the State of

California to cause cancer, birth defects

and other reproductive harm.

In the State of Massachusetts, the following installation
instructions apply:

■ Installations and repairs must be performed by a
qualified or licensed contractor, plumber, or gasfitter
qualified or licensed by the State of Massachusetts.

■ If using a ball valve, it shall be a T-handle type.

■ A flexible gas connector, when used, must not exceed

3 feet.

“IMPORTANT NOTE T O PURCHASER”

Information must be obtained from your local gas
supplier on the instructions to be followed if the user
smells gas. These instructions must be posted in a
prominent location near the dryer.

List of Acronyms _____________________

L.E.D. Light Emitting Diode
PL Program Locations
PS Program Switch

Table of Contents _____________________

Introduction ................................................ 3

L.E.D. Display and Codes............................ 4

Operating Instructions ............................... 5

Timed Mode ...................................................................5

Automatic Mode (Patent No. 4,827,627).......................5

Free Dry Mode ...............................................................5

Program Selection ...................................... 6

Programming Instructions ....................... 10

Introduction To Programming ......................................10

Programming (Flowcharts) ..........................................11

Programming ............................................ 14

Temperature Display Mode .........................................14

Left Coin Count............................................................15

Right Coin Count .........................................................16

Program Location 01 (PL01) .......................................17

Program Location 02 (PL02) .......................................21

Program Location 03 (PL03) .......................................22

Program Location 04 (PL04) .......................................23

Program Location 05 (PL05) .......................................24

Program Location 06 (PL06) .......................................25

Program Location 07 (PL07) .......................................26

Program Location 08 (PL08) .......................................27

Program Location 09 (PL09) .......................................28

Program Location 10 (PL10) .......................................29

Program Location 11 (PL11)........................................30

Program Location 12 (PL12) .......................................31

Program Location 13 (PL13) .......................................32

Program Location 14 (PL14) .......................................33

Program Location 15 (PL15) .......................................34

Program Location 16 (PL16)

and Program Location 17 (PL17) ................................35

Factory Preset Programs/Parameters ..... 36

Phase 5 Coin System Diagnostics ........... 37

Diagnostic (L.E.D.) Failure Codes ..............................37

L.E.D. Display Indicators/Dots ....................................37

Phase 5 Microprocessor Controller (Computer)

Relay Output L.E.D. Indicators....................................37

Phase 5 Auto Cycle (Patent No . 4,827,627)

“ A” and “b” Factor Parameters................. 38

Optional 9 Volt Ba ttery Backup ............... 38

2 American Dryer Corp. 112146-62

Introduction __________________________

The Phase 5 Coin Computer System is a fully programmable,
highly sophisticated dryer control system. American Dryer
Corporation has designed the Phase 5 coin microprocessor
controller (computer) to be the most versatile and reliable coin­operated control system available.

To eliminate as many moving parts as possible, all Phase 5
coin microprocessor controller (computer) programming is
done through the membrane switch on the front of the control
panel. The program switch that puts microprocessor controller
(computer) into the program mode is a single program switch.
This program switch eliminates the possibility of switch failure
due to an accumulation of lint or moisture.

Phase 5 Coin Microprocessor Controller
(Computer) Features

AUTOMA TIC PROGRAM REVIEW

In the program mode, the Phase 5 coin microprocessor
controller (computer) will show all settings by one touch of the
low temperature keypad selection.

PROGRAMMABLE

Changes in the programs are made at the temperature keypad
selection and actual programs are displayed for verification.

ADJUSTABLE TIME

Programmable from a minimum of 1 minute to a maximum of
99 minutes in 1 minute increments.

COIN ACCEPTOR DENOMINATIONS

Values of coin acceptors are programmable from a minimum
of 1 to a maximum value of 9999 for any U.S. or foreign coin
denomination.

AMOUNT TO START

Programmable from a minimum value of 1 to a maximum value
of 9999 in increments of one.

ACCUMULATIVE TIME

This program yields a specific value of time for any coin entry
made after the “Amount To Start” has been inserted.

Time For Amount To Start

This program retains the time the owner wishes to vend. The
feature allows any additional purchase that is made to be
calculated to the second. There is no calculation necessary
by the owner. The Phase 5 coin microprocessor controller
(computer) calculates the vended time.

ACCUMULATIVE COIN

This program selection requires that a specific value of coin(s)
be inserted for additional time, programmable for any minimum
amount.

COIN COUNT

The number of coins inserted, including a separate display
program for optional dual coin acceptors, can be viewed
through the Phase 5 computer’s L.E.D. display.

BAD COIN LOCKOUT

Each coin is monitored. Should someone tamper with the
coin acceptor or attempt to insert a foreign object, the
microprocessor controller (computer) will “LOCKOUT” and will
not accept any entries until the reset time has elapsed
(approximately 15-seconds). Once the reset time has expired,
the microprocessor controller (computer) will automatically
reset itself for the next coin entry.

TEMPERA TURE CONVERSION

When the temperature conversion status is changed (i.e. from
°F to °C), the Phase 5 coin microprocessor controller
(computer) will automatically convert all temperature related
programs/parameters from Fahrenheit to Celsius and vice
versa. The Phase 5 coin microprocessor controller (computer)
will perform this conversion within 1° F (2° C). The programs
affected are:

1. Temperature Display Mode

2. Temperature Selections

3. Cool Down Temperatures

DRYING TEMPERATURES

Any of the three temperature selections (HI/LO/PP) are
programmable from a minimum of 100° F to a maximum of
190° F in ten-degree increments or from a minimum of 38° C
to a maximum of 88° C in five-degree increments. Actual
temperature programs are displayed at time of programming
for verification.

For the AD-26 and AD-295 any three of the selections (HI/LO/
PP) are programmable from a minimum of 100° F to a
maximum of 170° F in ten-degree increments, or from a
minimum of 38° C to a maximum of 77° C in five-degree
increments.

For the AD-540 and WDA-540 any three of the selections (HI/
LO/PP) are programmable from a minimum of 100° F to a
maximum of 160° F in ten-degree increments or from a
minimum of 38° C to a maximum of 71° C in five-degree
increments.

COOL DOWN TIME

All three temperature selections are programmable from a
minimum of 0 minutes to a maximum of 9 minutes in 1 minute
increments.

COOL DOWN TEMPERATURES

In the automatic or free dry modes, the cool down cycle
termination is programmable from a minimum of 70° F to a
maximum of 190° F in ten-degree increments or from a
minimum of 21° C to a maximum of 88° C in five-degree
increments.

AUTOMATIC MODE (Patent No. 4,827,627)

This program selection uses ADC’s patented Auto-Dry cycle.
The microprocessor controller (computer) will calculate the
percent of the dryness and read “donE” when complete. The
Phase 5 coin microprocessor controller (computer) can be
programmed to have a maximum time for the “Auto Mode.”
The Automatic Cycle (mode) can be used in either the “Free
Dry” Mode or the “Coin” Mode.

112146-62 www.adclaundry.com 3

ANTI-WRINKLE

This program selection helps keep permanent press items
wrinkle free when they are not removed from the dryer promptly
at the end of the drying and cooling cycles. The Anti-Wrinkle
program settings are:

1. Guard Delay Time ..............1 to 9 minutes

2. Guard On Time...................1 to 99-seconds

3. Active Guard Time..............1 to 99 minutes

FREE DRY MODE

In this program selection, the dryer can be started without the
insertion of coins by simply pressing any one of the three
temperature selections. When set in the “Free Dry” Mode,
the Phase 5 coin microprocessor controller (computer) can
also be programmed to run with an Automatic Cycle (percent
of dryness) or with a Timed Cycle. If the “Free Dry” program
is utilized, the computer’s L.E.D. display will cycle back and
forth between “FILL” to “FrEE,” unless otherwise programmed.

L.E.D. FLASH DISPLAY

Programmable to allow the L.E.D. readout to display a choice
of “FILL” (no cycle in progress), “Amount To Start” (i.e., 25¢),
or, in the case of free dry , “FrEE.” This program selection also
allows the L.E.D. display to flash back and forth every
2-seconds from “FILL” to “Amount To Start” or, in the case of
free dry, from “FILL” to “FrEE.”

AUDIBLE TONE

In this program selection, a tone (buzzer) will sound for each
coin inserted, program entry, or at the drying and cooling cycles
for a period of 5-seconds to indicate that the cycle is complete.
Additionally, when in the Anti-Wrinkle program, the tone
(buzzer) will sound for 5-seconds at the end of the “Guard On
Time.”

TEMPERA TURE DISPLAY

This program selection enables the temperature in the dryer
to be viewed (°F or °C) either while the dryer is off or running.
This service feature shows that the dryer is maintaining the
selected temperature.

DIAGNOSTICS

All major circuits, including door, microprocessor temperature
sensor, heat, and motor circuits are monitored. There are
also indicators installed on the outputs of each relay to easily
identify failures, and the door switch has an indicator installed
on the Phase 5 microprocessor controller (computer) to help
indicate failure.

AUTOMATIC DRY TIME

This program selection allows the dryer to run up to a specific
time. During the “AUtO” mode or “FrEE” dry mode this program
is only designed to limit the dryer’s operation during the drying
cycle.

ROTATIONAL SAFE GUARD (Optional)

This program monitors the rotation of the tumbler. If the tumbler
is not rotating, the Phase 5 coin microprocessor controller
(computer) will disable all outputs, an audible tone (buzzer)
will sound, and an error message will be displayed. This
program selection can be programmed to be in the inactive
mode.

BATTERY BACKUP (Optional)

This feature allows the Phase 5 coin microprocessor controller
(computer) to maintain its operating status should a momentary
power interruption occur while the dryer cycle is in progress.

L.E.D. Display and Codes _____________

A Automatic Cycle (Slope Program Factor)
ACOn Accumulative Coin
Adrt Maximum Auto Dryness Time
AFAt Amount for Additional Time
AGt Active Anti-Wrinkle Guard Time
AtIn Accumulative Time
AtSt Amount To Start
AUtO Automatic Mode (Patent No. 4,827,627)
b Automatic Cycle (Heat Loss [offset] Factor)
bCLO Bad Coin Lockout
bCrS Bad Coin Reset
bUZ Buzzer (Tone)
°CEL Degree in Celsius
CLCC Clear Left Coin Count
Coin Coin Mode
CrCC Clear Right Coin Count
donE Drying and Cooling Cycles Complete

or

Dryer is in Anti-Wrinkle Cycle

door Door Circuit is Open*
dSFL Dryer Sensor Circuit Failure*
°FAr Degree in Fahrenheit
FILL No Cycle in Progress
FLS Flash Display Active
FrEE Free Dry Mode
GdLY Anti-Wrinkle Delay Time
Gont Anti-Wrinkle On Time
Grd Anti-Wrinkle Program Active
HICd High Cool Down
Hot Overheating Condition*
LCC Left Coin Count
LCdE Left Coin Denomination
LOCd Low Cool Down
nbUZ No Buzzer (Tone)
nFLS No Flash Display
nGrd No Anti-Wrinkle
nSEn No Rotational Sensor Selected
PdrY Percent Dry
PL Program Location
PLOC Program Location Automation Review
PPCd Permanent Press Cool Down
PP°F Permanent Press
PUSH Amount to start has been Inserted

Make Temperature Selection

rCC Right Coin Count
rCdE Right Coin Denomination
SEFL Rotational Sensor Circuit Failure*
SEn Rotational Sensor Selected
tFAS Time For Amount to Start
tInE Timed Mode

* Refer to Phase 5 Coin System Diagnostics on page 37 for detailed information.

4 American Dryer Corp. 112146-62

Operating Instructions _______________

NOTE: Unless otherwise specified at the time of ordering,
the Phase 5 coin microprocessor controller (computer) has
been preprogrammed by the factory with the parameters
shown on page 36. Should program changes be found
necessary, please read this Phase 5 Coin User’s Manual
carefully to thoroughly familiarize yourself with the Phase 5
coin microprocessor controller (computer) programming
characteristics.

Timed Mode ___________________________

When turning on power or when no cycle is in progress, the
L.E.D. display will read “FILL” and/or “Amount T o S tart” (“AtS t”).

Insert coin(s). Once the correct “Amount To Start” has been
inserted, the L.E.D. display will read “PUSH.”

Select temperature by pushing “HI TEMP,” “LO TEMP,” or
“PERM PRESS.” The dryer will start and the L.E.D. display
will read the temperature cycle selected and the drying time.

The dryer will continue through the drying and cooling cycles,
showing time counting downward.

NOTE: If the door is opened during a cycle, both the heat
and motor will stop. However, the Phase 5 coin
microprocessor controller (computer) will continue to count
downwards in time. Continuation of the cycle will resume
only after the door has been closed and any one of the
three temperature selection buttons is again depressed.

Upon completion of the drying and cooling cycles, the buzzer
(tone) will sound, and the L.E.D. display will read “donE” for
5-seconds, at which time the dryer will shut off.

NOTE: If the Anti-Wrinkle Program is active (“Grd”), the
L.E.D. display will remain reading “donE,” and the Phase 5
coin microprocessor (computer) will proceed through the
Anti-Wrinkle Program until the maximum “Guard On Time”
has expired or until the door is opened, whichever comes
first. The L.E.D. display will read “FILL” and/or “Amount To
Start” (“AtSt”).

If the Anti-Wrinkle Program is not active (“nGrd”) the L.E.D.
display will read “donE” until the main door is opened, at
which time the L.E.D. display will read “FILL” and/or
“Amount To Start.”

Automatic Mode
(Patent No. 4,827,627) ________________

When turning on power or when no cycle is in progress, the
L.E.D. display will read “Fill” and/or “Amount To Start” (“AtS t”).

Insert coin(s). Once correct “Amount to Start” has been
inserted, the L.E.D. display will read “PUSH.”

Select temperature by pushing “HI TEMP,” “LO TEMP,” or
“PERM PRESS.” The dryer will start, the L.E.D. display will
read the temperature cycle selected, and the drying time
portion of the L.E.D. display will read “00” and count upward
as time elapses.

NOTE: If the door is opened during a cycle, both the heat
and motor will stop. However, the Phase 5 coin
microprocessor controller (computer) will continue to count
upwards in time. Continuation of the cycle will resume
only after the door has been closed and any one of the
three temperature selection buttons is again depressed.

Once the preprogrammed dryness level and cool down period
have been reached or maximum automatic time has expired,
whichever comes first, the buzzer (tone) will sound, and the
L.E.D. display will read “donE” for 5-seconds, at which time
the dryer will shut off.

NOTE: If the Anti-Wrinkle Program is active (“Grd”), the
L.E.D. display will remain reading “donE,” and the Phase 5
coin microprocessor controller (computer) will proceed
through the Anti-Wrinkle Program until the maximum
“Guard On Time” has expired or door is opened, whichever
comes first. The L.E.D. will read “FILL” and/or “Amount To
Start” (“AtSt”).

If the Anti-Wrinkle Program is not active (“nGrd”), the
L.E.D. display will read “donE” until the main door is
opened, at which time the L.E.D. display will read “FILL”
and/or “Amount To Start.”

Free Dry Mode ________________________

When turning on power or when no cycle is in progress, the
L.E.D. display will read “FILL” and/or “FrEE.”

Select temperature. The dryer will start, the L.E.D. display
will read the temperature cycle selected and the drying time
portion of the L.E.D. display will read the temperature cycle
selected. The drying time portion of the L.E.D. drying will read
“00” and count upward as time elapses, or the vended time
will count downward, depending on which parameter is
programmed.

NOTE: If the door is opened during a cycle, both the heat
and motor will stop. However, the Phase 5 coin
microprocessor controller (computer) will continue to count
the time, either upward or downward, depending on which
parameter is programmed. Continuation of the cycle will
resume only after the door has been closed and any one of
three temperature selection buttons is again depressed.

Once the preprogrammed percent dryness level and cool down
period has been reached or maximum automatic time has
expired, whichever comes first, the tone (buzzer) will sound,
and the L.E.D. display will read “donE” for 5-seconds, at which
time the dryer will shut off.

NOTE: If the Anti-Wrinkle Program is active (“Grd”), the
L.E.D. display will remain reading “donE,” and the Phase 5
coin microprocessor controller (computer) will proceed
through the Anti-Wrinkle Program until the maximum
“Guard On Time” has expired or door is opened, whichever
comes first. The L.E.D. display will read “FILL” and/or
“Amount To Start” (“AtSt”).

If the Anti-Wrinkle Program is not active (“nGrd”), the
L.E.D. display will read “donE” until the main door is
opened, at which time the L.E.D. display will read “FILL”
and/or “Amount To Start.”

112146-62 www.adclaundry.com 5

Program Selection ____________________

NOTE: Programs are stored in the Phase 5 coin
microprocessor controller (computer) memory and are
cataloged as PL.

Temperature Display Mode

By closing the PS located on the back side of the Phase 5
coin microprocessor controller (computer), the L.E.D. display
will read the temperature in the dryer in either Fahrenheit (°F)
or Celsius (°C), depending on how the temperature conversion
status is in PL01. The temperature display mode can be
activated while the dryer is in the operating cycle, or off. While
in the operating cycle, the circuit indicators are visible for
troubleshooting purposes.

NOTE: The dryer cannot be started while the Phase 5 coin
microprocessor controller (computer) PS is closed, unless
the cycle was already in progress.

Right Coin Count (rCC)/Left Coin Count (LCC)

The “HI TEMP” key lets the operator review the coin counters.
If the operator presses the “HI TEMP” key, the computer
displays “_LCC.” The operator could then press either the
“PERM PRESS” key to view the “Left Coin Count” or the “HI
TEMP” key and the computer would display “_rCC.” Again,
the operator could press the “PERM PRESS” key to view the
“right coin count.” While displaying the coin count, if the
operator presses the “HI TEMP” key the computer then
displays “CxCC” (x = “r” or “L”) to indicate “clearing” the coin
count. The operator then presses the “PERM PRESS” key to
clear the coin count or the “HI TEMP” or “LO TEMP” key to
exit without clearing the coin count.

Automatic Re view of Program Location

This selection allows for the AUTOMATIC REVIEW of what
the program locations are set (programmed) for, thereby
eliminating the need to go into each and every PL manually
for verification. By closing the PS with no cycle in progress,
the L.E.D. display will read the temperature in the dryer. Then,
by pressing the “LO TEMP” key, the L.E.D. display will read
“PLOC” for 1-second. Then, the Phase 5 coin microprocessor
controller (computer) will go into the Automatic Review Mode,
the Program Location numbers (i.e., PL01, PL02, etc.) will not
be shown and each parameter (i.e., “°F Ar,” “tInE,” “Grd,” etc.)
will be displayed for approximately 1-second each. The
Automatic Review can be stopped/exited at any time by simply
pressing the “PERM PRESS” key, at which time the L.E.D.
display will read “0000” for 1-second and then return to the
Temperature display mode.

PL01 – Temperature Conversion Status

This program controls whether the temperature related
programs will be operated in Fahrenheit (°F) or Celsius (°C).
The programs affected are:

1. Temperature Display Mode

2. Selection Cycling Temperatures

3. Cool Down Temperatures

Automatic Mode (AUtO) Pa tent No. 4,827,627

When this parameter (“AUtO”) is selected, the dryer will run
for a preset level of dryness (PL02) or until the programmed
automatic maximum time (PL14) has expired.

At the end of the drying cycle, the dryer will go into the cool
down cycle for the time period programmed (PL04, PL06, or
PL08) or until the temperature has dropped to the programmed
cool down temperature (PL04, PL06, or PL08).

NOTE: Due to humidity, atmospheric pressure, percentage
of extraction, etc., the desired dryness level may vary. It is
suggested that the owner determine which level of dryness
(90% to 100%) is best suited for his/her application by
experimenting with a few test loads.

When programming, to use the Automatic Mode (“AUtO”)
(Patent No. 4,827,627), the following parameter/programs
need to be checked and/or changed accordingly:

PL01.......... “AUtO”

“FrEE” or “Coin” (coins required to start)

PL02.......... “PdrY” (percent dry from 90% to 100%)

PL14.......... “Adrt” (maximum auto dry time)

PL17.......... “A” and “b” Factors

6 American Dryer Corp. 112146-62

Timed Mode (tInE)

When this parameter is selected (“tInE”) and the Phase 5 coin
microprocessor controller (computer) has been activated, the
dryer will continue to run until the preset time, including the
cool down period (PL04, PL06, or PL08), has elapsed, at which
time the dryer will cycle off or go into the optional Anti-W rinkle
Program.

Anti-Wrinkle Program (Grd)

This feature can be used in conjunction with any of the three
operating modes (Coin Mode, Auto Mode, or the Free Dry
Mode). In this program (“Grd”), when the drying and cooling
cycles are completed, the dryer will shut off, the buzzer (tone)
will sound, and the L.E.D. display will read “donE.” If the door
is not opened, the Phase 5 coin microprocessor controller
(computer) will wait until the “Guard Delay Time” (PL15) has
expired, at which time the clothes will be tumbled (without
heat) for the programmed ”Guard On Time” (PL15). The Phase
5 coin microprocessor controller (computer) will repeat this
process until the programmed “Active Guard Time” (PL16) has
expired or until the dryer door is opened, at which time the
L.E.D. display will read “FILL” and/or “Amount T o S tart” (“AtS t”)
or “FILL” and/or “FrEE.”

NOTE: When programming the use of the Anti-Wrinkle
Program (“Grd”), the following parameter/programs need to
be checked and/or changed accordingly:

PL01........ “Grd” (Anti-Wrinkle Program active)

“bUZ” or “nbUZ” (buzzer [tone] active/not active)

PL15........ “GdLY” (guard delay time)

“Gont” (guard on time)

PL16........ “AGt” (active guard time)

Buzz/Tone (bUZ)

With the Anti-Wrinkle Program active, the option is available
to have the buzzer/tone (“bUZ”) sound for a period of
5-seconds at the end of each “Guard On Time” cycle, or, no
buzzer (“nbUZ”) sound.

Free Dry Mode (FrEE)

The Phase 5 coin microprocessor controller (computer) can
be programmed to run without the insertion of coins. When
the Phase 5 coin microprocessor controller (computer) is in
the “FrEE” dry mode, it may be programmed to run in the
“AUtO” (Automatic) Mode or the “tInE” (Timed) Mode.

NOTE: When programming the use of the Free Dry Mode
(“FrEE”), the following parameters/programs need to be
checked and/or changed accordingly:

PL01........ “AUtO” (automatic drying cycle) or

“tInE” (timed drying cycle) “FrEE”

PL02* ...... “PdrY” (percent dry)

PL14* ...... “Adrt” (maximum auto dry time)

PL17* ...... “A” and “b” factors

* Needs to be programmed only if PL01 “AUtO” cycle is chosen.

Coin Mode (Coin)

In this program mode (“Coin”), coins are required to start the
dryer, even if the Phase 5 coin microprocessor controller
(computer) is set in the Automatic Mode (Patent No.
4,827,627).

NOTE: When programming the use of the Coin Mode,
(“Coin”), the following parameter/programs need to be
checked and/or changed accordingly:

PL01........ “AUtO” (automatic drying cycle) or

“tInE” (timed drying cycle) “FrEE”

PL02* ...... “PdrY” (percent dry)

PL11........ “tFAS” (time for amount to start)

PL12........ “AtSt” (amount to start)

PL14* ...... “Adrt” (maximum auto dry time)

PL17* ...... “A” and “b” factors

* Needs to be programmed only if PL01 “AUtO” cycle is chosen.

Flash Display Status (FLS)

When the Phase 5 coin microprocessor controller (computer)
is set in this program status (“FLS”) it allows the L.E.D. readout
to display “FILL” and/or “FrEE” (no cycle in progress), and/or
“Amount To Start” (PL12) or, in the case of free dry, “FrEE.”
The programming allows the L.E.D. readout to flip-flop back
and forth every 2-seconds from “FILL” to “Amount to Start,” or
in the case of free dry, from “FILL” to “FrEE.” If the L.E.D.
display is programmed for “No Flash” (“nFLS”), the
microprocessor controller (computer) will then prompt you on
whether you would like “FILL” displayed or the “Amount To
Start” (“AtSt”).

Bad Coin Lockout Sta tus (bCL O)

In this program status (“bCLO”), each coin entry is monitored.
Should someone tamper with the coin acceptor or attempt to
insert a foreign object, the Phase 5 coin microprocessor
controller (computer) will “LOCKOUT” and not accept any
entries until the reset time has elapsed (approximately
15-seconds). Once the reset time has expired, the Phase 5
coin microprocessor controller (computer) will automatically
reset itself immediately for the next entry.

Bad Coin Reset (bCrS)

When set in this program (“bCrS”), the Phase 5 coin
microprocessor controller (computer) counts in milliseconds
the amount of time required for a coin entry signal. If someone
should tamper with the coin acceptor or attempt to insert a
foreign object, the Phase 5 coin microprocessor controller
(computer) will not accept the entry and will automatically reset
itself immediately for the next entry.

Accumulative Time (AtIn)
(Single Coin)

In this program mode (“AtIn”), each coin inserted has a specific
value in time, which is determined by the “Time For Amount to
Start” (“tFAS”) program (PL11).

Example No. 1: If the dryer is equipped with a 25¢ coin acceptor
and the desired time is 30 minutes, each additional coin
inserted would yield 30 minutes.

Settings: PL09 (LCdE) ...................... 25

PL11 (tFAS) ........................ 30

PL12 (AtSt) ........................ 25

Example No. 2: If the dryer is equipped with a 25¢ coin acceptor
and the “Amount To Start” (“AtSt”) is 50¢ for 30 minutes, the
insertion of each additional coin would yield 15 minutes. In
this application the vended time for additional coins is
determined by a Phase 5 coin microprocessor controller
(computer) calculation. There is no calculation required by
the owner.

112146-62 www.adclaundry.com 7

Formula: (LCdE/AtSt) (tFAS) = Vended Time for “ LCdE”

(25¢/50¢) (30) = 15 minutes

Settings: PL09 (LCdE) ...................... 25

PL11 (tFAS) ........................ 30

PL12 (AtSt) ........................ 50

(Dual Coin)

In the Accumulative T ime (AtIn) Mode, when using a dual coin
acceptor, once the “Amount T o S tart” (“AtSt”) has been inserted,
the addition of a coin(s) yields more time.

The vended time for additional coins is determined by the
Phase 5 coin microprocessor controller (computer) calculation.
There is no calculation required by the owner.

Formula: (LCdE/AtSt) (tFAS) = Vended Time

Example No. 1: Using a 10¢/25¢ dual coin acceptor with the
desired “Amount to Start” (“AtSt”) being 25¢ for 15 minutes,
each additional 10¢ would yield the following:

Formula: (LCdE/AtSt) (tFAS) = Vended Time for “LCdE”

(10¢/25¢) (15 minutes) 6 minutes

Settings: PL09 (LCdE) ...................... 10

PL10 (rCdE) ....................... 25

PL11 (tFAS) ........................ 15

PL12 (AtSt) ........................ 25

Example No. 2: If the dryer is equipped with a 10¢/25¢ dual
coin acceptor and the desired “Amount To Start” (“AtSt”) is
35¢ for 14 minutes, each additional 10¢ inserted would yield
4 minutes and each additional 25¢ would yield 10 minutes.

Formula: (LCdE/AtSt) (tFAS) = Vended Time for “LCdE”

(10¢/35¢) (14 minutes) 4 minutes

Settings: PL09 (LCdE) ...................... 10

PL10 (rCdE) ....................... 25

PL11 (tFAS) ........................ 14

PL12 (AtSt) ........................ 35

Example No. 3: If the dryer is equipped with a 10¢/25¢ dual
coin acceptor and the desired “Amount To Start” (“AtSt”) is
55¢ for 33 minutes, each additional 10¢ inserted would yield
6 minutes, and each additional 25¢ would yield 15 minutes.

Formula: (LCdE/AtSt) (tFAS) = Vended Time for “LCdE”

(10¢/55¢) (33 minutes) 6 minutes

Settings: PL09 (LCdE) ...................... 10

PL10 (rCdE) ....................... 25

PL11 (tFAS) ........................ 33

PL12 (AtSt) ........................ 55

NOTE: If the total Vend Time cannot be divided evenly by
the “Amount To Start” (“AtSt”), the “Time For Amount To
Start” will calculate precisely the amount of the time
entitled to the purchaser.

Formula: (LCdE/AtSt) (tFAS) = Vended Time for “LCdE”

(10¢/35¢) = 2.85 minutes

(2 minutes and 51-seconds)

Settings: PL09 (LCdE) ...................... 10

PL10 (rCdE) ....................... 25

PL11 (tFAS) ........................ 10

PL12 (AtSt) ........................ 35

Accumulative Coin (ACOn)

When this program mode (“ACOn”) is selected, additional time
can only be achieved when the “Amount For Additional Time”
(“AFAt”) PL13 has been inserted.

NOTE: When programming, to use the Accumulative Coin
Mode (“ACOn”), the following parameters/programs need
to be checked and/or changed accordingly:

Settings: PL01 ......................... “ACOn”

(“Accumulative Coin”)

PL13 ........................... “AFAt”

(“Amount For Additional Time”)

(Single Coin Acceptor)

Example No. 1: Using a 25¢ coin acceptor with the desired
“Amount To Start” (“AtSt”) being 50¢ for 24 minutes, the Phase
5 coin microprocessor controller (computer) would yield more
time (24 minutes) only when an additional 50¢ is inserted.
For this application, the “Time For Amount To Start” (“tFAS”)
program (PL11) is determined as follows:

Formula: (AFAt/AtSt) (tFAS) = Vended Time for “AFAt”

(50¢/50¢) (24 minutes) = 24 minutes

Settings: PL09 (LCdE) ...................... 25

PL11 (tFAS) ........................ 24

PL12 (AtSt) ........................ 50

PL13 (AFAt) ....................... 50

(Dual Coin Acceptor)

With a dual coin acceptor the “Time For Amount To Start”
(“tFAS”) is determined as shown below:

Formula: (AFAt/AtSt) (tFAS) = Vended Time for “AFAt”

Example No. 1: Using a 10¢/25¢ dual coin acceptor the desired
“Amount To Start” (“AtSt”) is 50¢ for 20 minutes and the
“Amount for Additional Time” (“AFAt”) is set for 20¢ each
additional 20¢ would yield 8 minutes.

Formula: (AFAt/AtSt) (tFAS) = Additional Vended Time

(20/50) (20 minutes) = 8 minutes

Settings: PL09 (LCdE) ...................... 10

PL10 (rCdE) ....................... 25

PL11 (tFAS) ........................ 20

PL12 (AtSt) ........................ 50

PL13 (AFAt) ....................... 20

Example No. 2: If the dryer is equipped with a 10¢/25¢ dual
coin acceptor and the desired “Amount To Start” (“AtSt”) is
35¢ for 14 minutes and the “Amount For Additional Time”
(“AFAt”) is set for 25¢, each additional 25¢ inserted would
yield 10 minutes.

Formula: (AFAt/AtSt)(tFAS) = Vended Time for “AFAt”

(25¢/35¢) (14 minutes) = 10 minutes

Settings: PL09 (LCdE) ...................... 10

PL10 (rCdE) ....................... 25

PL11 (tFAS) ........................ 14

PL12 (AtSt) ........................ 35

PL13 (AFAt) ....................... 25

8 American Dryer Corp. 112146-62

Rotational Safe Guard – Optional (nSEn)

This program monitors the rotation of the tumbler and works
in conjunction with a special sensor (optional) located at the
rear tumbler support area of the dryer. If the tumbler is not
rotating (i.e., broken belt, failed motor, etc.), the Phase 5
microprocessor controller (computer) will disable all outputs
(shut the dryer down), the buzzer (tone) will sound (for time
programmed), and the L.E.D. display will read a failure
message “SEFL” (Rotational Sensor Circuit Failure). The
failure code must be cancelled manually by opening and
closing the PS. This program selection (option) can be
programmed to be active (“SEn”) or inactive (“nSEn”).

NOTE: This parameter is programmed by the factory to be
inactive (“nSEn”) unless the dryer was manufactured with
optional “rotational sensor.”

PL02 – Percent Dry (PdrY)

When in the Automatic Mode, the dryer will run until the preset
level of dryness has been reached or until the Maximum Auto
Dryness Time (Adrt) has been reached or until the Maximum
Auto Dryness Time (Adrt) has expired. The dryness level is
programmable from a minimum of 90% to a maximum of 100%.

NOTE: Due to humidity, atmospheric pressure, water
retention in the garment etc., the desired “Percent Dry”
(“PdrY”) may vary. It is suggested that the owner
determine which level of dryness (90% to 100%) is best
suited for his/her application by experimenting with a few
test loads.

PL03 – High Temperature (HI°F)

The high operating temperature is programmable from a
minimum of 100° F to a maximum of 190° F in ten-degree
increments or from a minimum of 38° C to a maximum of 88°
C in five-degree increments.

For the AD-26 and AD-295 any three of the selections (HI/LO/
PP) are programmable from a minimum of 100° F to a
maximum of 170° F in ten-degree increments or from a
minimum of 38° C to a maximum of 77° C in five-degree
increments.

For the AD-540 and WDA-540 any three of the selections (HI/
LO/PP) are programmable from a minimum of 100° F to a
maximum of 160° F in ten-degree increments or from a
minimum of 38° C to a maximum of 71° C in five-degree
increments.

PL04 – High Cool Down
T emperature/Time (HICd)

The first part of this program controls the cool down
temperature when the Phase 5 microprocessor controller
(computer) is used in the automatic mode. The cool down
temperature is programmable from a minimum of 70° F to a
maximum of 190° F in ten-degree increments or from a
minimum of 21° C to a maximum of 88° C in five-degree
increments.

For the AD-26 and AD-295 any three of the selections (HI/LO/
PP) are programmable from a minimum of 100° F to a
maximum of 170° F in ten-degree increments or from a
minimum of 38° C to a maximum of 77° C in five-degree
increments.

For the AD-540 and WDA-540 any three of the selections (HI/
LO/PP) are programmable from a minimum of 100° F to a
maximum of 160° F in ten-degree increments or from a
minimum of 38° C to a maximum of 71° C in five-degree
increments.

The second part of this program controls the cool down time
for both the automatic and timed modes. The cool down time
can be programmed from a minimum of 0 to a maximum of 9
minutes.

NOTE: When the Phase 5 microprocessor controller
(computer) is used in the automatic mode, at the end of the
drying cycle, the Phase 5 microprocessor controller
(computer) will start the cooling cycle for the cool down
time programmed or until the temperature has dropped to
the programmed cool down temperature, whichever of the
two comes first.

PL05 – Low T emperature (LO°F)

Same as PL03 but for Low Temperature program.

PL06 – Low Cool Down
Temperature/Time (LOCd)

Same as for PL04 but for low Cool Down Temperature/Time.

PL07 – Permanent Press (PP°F)

Same as PL03 but for Permanent Press.

PL08 – Permanent Press Cool Down
Temperature/Time (PPCd)

Same as PL04 but for Permanent Press Cool Down
Temperature/Time.

PL09 – Left Coin Slot Denomination (LCdE)

In the case of a single coin acceptor, this program setting is
determined by the value of the coin acceptor (i.e., 25¢).

When a dual coin acceptor is used, the program setting is
determined by the left coin slot coin acceptor value (lower
coin value).

Program settings are from a minimum of 1 to a maximum of

9999.

PL10 – Right Coin Slot Denomination (rCdE)

This program need only be set when a dual coin acceptor is
used. The program setting is determined by the value of the
right coin acceptor slot (higher value).

Program settings are from a minimum of 1 to a maximum of

9999.
When used in conjunction with the left Coin Slot Denomination

program, the Phase 5 microprocessor controller (computer)
automatically calculates the ratios necessary for coin insertion
time values.

PL11 – Time For Amount To Start (tFAS)

This program is set for the specific value in TIME that will be
vended for the programmed “Amount To Start” (“AtSt”) the
dryer. For example, if 25¢ is required to st art the dryer for 10
minutes, the settings would be...

PL11 “Time for Amount to Start”.............. “tFAS” = 10

PL12 “Amount To Start”............................ “AtSt” = 25

112146-62 www.adclaundry.com 9

In addition, with the “Time For Amount to Start” (“tFAS”) and
the “Amount To Start” (PL12 – “AtS t”) programmed along with
the type of coin acceptor (denominations) on the dryer (i.e.
10¢/25¢), the Phase 5 microprocessor controller (computer)
will do all calculations and vend the correct amount of time for
any coin inserted after the initial “Amount To Start” has been
inserted – including both accumulative coin program settings.
For example, if a dryer is equipped with a 10¢/25¢ dual coin
acceptor and the desired “Amount To Start” (“AtSt”) is 55¢ for
33 minutes (“tFAS”), with the microprocessor controller
(computer) set for accumulative time, after initial “Amount To
Start” is inserted (55¢), each additional 10¢ inserted would
yield 6 minutes, and each additional 25¢ inserted would yield
15 minutes.

PL12 – Amount T o Start (AtSt)

This program sets the “Amount To Start” the dryer and can be
programmed from a minimum of 1 to a maximum of 9999.

PL13 – Minimum Amount
For Additional Time (AFAt)

This program need only be set when the Phase 5
microprocessor controller (computer) is set in the
“Accumulative Coin” (“ACOn”) mode (PL01). The value set
for this program is what will have to be inserted for more time
after the “Amount To Start” (“AtSt”) has been inserted.

Example No. 1: “Amount to St art” (“AtSt”) is 50¢ for 30 minutes
and an additional 50¢ is required for more time. In this example
PL13 should be set for 50¢.

PL14 – Maximum Time
For Automatic Dry (Adrt)

This program is used only when the Phase 5 microprocessor
controller (computer) is set in the Automatic Mode. This
program controls the maximum time the dryer will run even if
the Dryness Level program (PL02) has not been reached.

PL15 – Anti-Wrinkle Timing

Guard Delay Time (GdLY)

This program controls the dwell (stop) time and activation of
anti-wrinkle “Guard On Time” (“Gont”). The dwell (stop) time
can be programmed from a minimum of 1 minute to a maximum
of 9 minutes in 1 minute increments.

Guard On Time (Gont)

The setting controls the amount of time that the tumbler will
turn, without heat, when the Anti-W rinkle is active (“Grd”). The
“Guard On Time” (“Gont”) is programmable from a minimum
of 1-second to a maximum of 99-seconds in 1-second
increments.

PL16 – Active Guard Time (AGt)

This program controls the maximum time that the Anti-Wrinkle
Program will be active and is programmable from a minimum
of 1 minute to a maximum of 99 minutes in 1 minute
increments.

PL17 – “A” and “b” Factors

This location will include the “Auto-Cycle” parameters. These
parameters are necessary to allow the Phase 5 microprocessor
controller (computer) to calculate the percentage of dryness
in the tumbler. The “A” Factor is adjustable from 1 to 99.

These parameters are the factors that the Phase 5
microprocessor controller (computer) utilizes when
programmed for an “Automatic Drying Cycle.” The “A” Factor
slope program, pertains to the thermal characteristic of each
model dryer. The “b” Factor, heat loss (offset) program, also
pertains to the thermal characteristics of each model dryer.
This factor setting is dependent upon the model dryer and
type of heating unit.

The “A” and “b” Factors have not been preprogrammed by
the factory and must be programmed if the Phase 5
microprocessor controller (computer) programming is changed
to be used in the Automatic Mode. The “A” and “b” Factors
must be programmed for the particular dryer model and heating
unit as shown in the “A” and “b” Factors (parameter) table on
page 38 of this manual.

Programming Instructions ___________

Introduction To Programming

The various program (parameters) dryer selections are stored
in the computer memory and are cataloged as “PL” 1 through

17. These programs (parameters) have been preprogrammed
by the factory as noted on page 36 of this manual. The various
program selections available are outlined in the proceeding
section (Program Selection on page 6).

All programming is done through the keypad selection buttons
on the front of the control panel. To change programs
(parameters) or to put the Phase 5 microprocessor controller
(computer) in the temperature display mode or the coin count
display mode, the PS located on the back side of the
microprocessor controller (computer) must be put into the
(down) position (PSC).

First make sure there is no cycle in progress and the L.E.D.
display reads “FILL” and/or “Amount To Start,” or “FILL” and/
or “FrEE.” Close the Program Switch (PSC). The L.E.D.
display will now read the temperature in the dryer (i.e., 72° F
[22° C]). From this point, any of the 17 program locations can
be accessed by pressing the “PERM PRESS” key once, at
which time the L.E.D. display will read “PL01.”

To alter programming, the operator must first locate the
program location or parameter to be changed. To advance to
the specific program location press the “HI TEMP” key until
the desired program location is displayed (i.e. PL01, PL02,
etc.). The “LO TEMP” key will advance the program locations
downward (i.e., PL11, PL10, etc.). Once the correct program
location is displayed and access to change is desired, press
the “PERM PRESS” key. The “PERM PRESS” key provides
two functions:

Allows access into a PL.
Advances to next bit (part of a program location) or next

location.

NOTE: When in a PL and the “PERM PRESS” key is
pressed, whatever parameter is displayed will be stored in
the microprocessor controller’s (computer’s) memory and
the programming is now advanced to the next step (bit) or
program location.

10 American Dryer Corp. 112146-62

The “HI TEMP” or “LO TEMP” key provide the following
functions:

Change numeric values...“HI TEMP” increases and “LO TEMP”
decreases.

Flip-flop for status changes...by pressing either key, a status
will revert back and forth no matter which of the two keys is
pressed.

If the change to be made is a numerical one (i.e., time or
temperature), the operator must now press the “HI TEMP”
key to increase the number value, or press the “LO TEMP”
key to lower/increase the number value. Pressing the “PERM
PRESS” key will store the change and advance to the next
step (bit) or program location.

NOTES _____________________________________________________

____________________________________________________________

____________________________________________________________

____________________________________________________________

____________________________________________________________

NOTE: To accelerate increase/upward value, press and
hold in “HI TEMP” key. To accelerate decrease/downward
value, press and hold in “LO TEMP” key.

When making numerical changes, please keep in mind to
stay within the programming limits shown.

If the change to be made is a status change (i.e., to change
from °FAr to °CEL) simply press the “HI TEMP” or “LO TEMP”
key and the L.E.D. display will revert back and forth between
status choices (i.e. “Grd” and “nGrd”). Once the correct status
is displayed, pressing the “PERM PRESS” key will store the
change and advance to the next step (bit) or program location.

Once the change or changes desired are made, to exit program
mode flip up (open) the PS.

NOTE: You can exit the programming mode at any time
(even if you are in the middle of a program location) by
simply opening the PS. However, if a change was made
be sure the “PERM PRESS” key is pressed before opening
the PS to ensure the change was stored in the
microprocessor controller’s (computer’s) memory.

Programming (Flowcharts)

This section explains the programming through the use of
flowcharts. A flowchart is nothing more than a diagram of the
programming process.

____________________________________________________________

____________________________________________________________

____________________________________________________________

____________________________________________________________

____________________________________________________________

____________________________________________________________

____________________________________________________________

____________________________________________________________

____________________________________________________________

____________________________________________________________

____________________________________________________________

Represents the microprocessor L.E.D. display. For example,

____________________________________________________________

if the flowchart shows the symbol “FILL,” the computer L.E.D.
display will read the same.

Represents the key on the label that is to be pressed. For
example, if flowchart shows “HI TEMP,” you would press that

____________________________________________________________

____________________________________________________________

____________________________________________________________

key on the label.

➞

Represents the program path.

____________________________________________________________

____________________________________________________________

____________________________________________________________

On the side of each flowchart is an explanation of the chart
procedures, in some cases, the programming limits.

____________________________________________________________

____________________________________________________________

112146-62 www.adclaundry.com 11

Dryer Off (Power On)

(No cycle in progress)

Display Reads

To enter temperature display

Display Reads

To enter program locations press the
“Perm Press” keypad selection button.

Display Reads

To advance to next program location
press the “HI Temp” selection button.

Display Reads

FILL

and/or

(Close Program Switch)

75F

Perm Press

PL01

HI Temp

PL02

25

Amount To start

(Dryer Temperature Display)

To accelerate advance, press and hold in
“HI Temp” selection button.

Display Reads Program Location and will
advance until “HI Temp” selection button is
released.

To revert back to lower program
locations push “LO Temp” selection
button.

Display Reads

HI Temp

PL03

PL04

PL05

LO Temp

PL04

Continued

12 American Dryer Corp. 112146-62

Continued

To accelerate press and hold in
“LO Temp” selection button.

Display reads program locations
and will advance downward until
“LO Temp” selection button is released.

To enter a specific program location
(i.e. PL01) push the “Perm Press”
selection button.

Display will read specific program
location called up.

LO Temp

PL03

PL02

PL01

Perm Press

°FAr

(Example)

To exit program mode, open
program switch. Display reads.

112146-62 www.adclaundry.com 13

FILL

and/or

25

Programming ______________________________________________________________________

Temperature Display Mode

FILL

and/or

(Close Program Switch)

75F

Cycle In Progress

HI°2°0

(Close Program Switch)

13°5°F

25

(Amount To Start)

(Dryer Temperature Display)

(Temperature Selection/Time)

HI Temp

(Open Tumbler Door – Dryer Shuts Off)

(Dryer Temperature Display)

135F

(Close Door – O p en P ro gram Switch)

LO Temp Perm Press

LO°2°0

14 American Dryer Corp. 112146-62

Left Coin Count

(No Cycle in Progress)

FILL 25

and/or

(Amount To Start)

To cancel or delete
left coin count, press
“HI T emp” key .

Display will read
“CLCC” (cancel left
coin count).

Press “Perm Press”
key and display
will read “0000”
(coin count cancelled).

Press “Perm Press”
key and display
will read “rCC”
(right coin count).

To cancel coin count

HI Temp

CLCC

Perm Press

0000

Perm Press

(Close Program Switch)

70F

HI Temp

LCC

Perm Press

0126

To retain coin count

Perm Press

rCC

To review

rCC proceed

to flowchart

Right Coin

Count

To Exit

HI Temp

0000

70F

(Dryer Temperature Display)

Press “HI Temp” key.

Display will read “LCC”
(left coin count).

Press “Perm Press” key
to display coin count.

Display will read
actual coin count.
I.E. 0126 = 126 units
or coins.

To retain or save existing
coin count press “Perm
Press.”

Display will read “rCC”
(right coin count). To exit
press “HI Temp.”

Display will read “0000”
for 1-second and then
dryer temperature display.

To exit

program

mode open

program

switch

112146-62 www.adclaundry.com 15

Right Coin Count

(No Cycle In Progress)

HI Temp

HI Temp

To cancel or delete
right coin count,
press “HI Temp” key.

Display will read
“CrCC (cancel right
coin count).

Press “Perm Press”
key and display
will read “0000”
(coin count cancelled).

FILL 25

LCC

To cancel coin count

HI Temp

CrCC

Perm Press

0000

and/or

(Close Program Switch)

70F

rCC

Perm Press

0192

To retain coin count

Perm Press

0000

70F

(Amount To Start)

(Dryer Temperature Display)

Press “HI Temp” key.
Display will read “LCC”
(left coin count).

Press “HI Temp” key.
Display will read “rCC”
(right coin count).

Press “Perm Press” key to
display coin count.

Display will read
actual coin count.
I.E. 0192 = 192 units
or coins.

To retain or save
existing coin count
press “Perm Press.”

Display will read “0000”
for 1-second and then dryer
temperature display.

Press “Perm Press”

Perm Press

key.

To exit

program

mode open

program

switch

16 American Dryer Corp. 112146-62

Program Location 01 (PL01)

(No Cycle In Progress)

LO Temp

°FAr

FILL 25

and/or

(Close Program Switch)

70F

Perm Press

PL01

Perm Press

or

HI Temp

LO Temp

(Amount To Start)

To enter program mode, close program switch.

(Dryer Temperature Display)

Press “Perm Press” key. Display will read
“PL01,” program location 01. Press “Perm Press”
key. Display will read temperature conversion
status, either Fahrenheit or Celsius. If no change,
press “Perm Press” key. Should a change be
necessary, press “HI” or “LO” key and then press
“Perm Press” key.

°CEL

HI Temp

LO Temp

°CEL

tInE

AUtO

HI Temp

or

Perm Press

or

or

Continue

LO Temp

°FAr

Display will read timing status,
(timed or automatic). If no
change, press “Perm Press” key,
otherwise press “HI” or “LO” key
and then “Perm Press” key.

AUtO

HI Temp

tInE

112146-62 www.adclaundry.com 17

Continue

Perm Press

Display will read anti-wrinkle
(guard) program status. If no change,
press “Perm Press” key, otherwise
press “HI” or “LO” key and then
“Perm Press” key.

LO Temp

LO Temp

nGrd

Grd

bUZ

nbUZ

HI Temp

HI Temp

Perm Press

or

or

or

or

LO Temp

nbUZ

bUZ

HI Temp

Grd

HI TempLO Temp

nGrd

If guard (Grd) was
selected, display will
read tone/buzzer status.
If no change, press
“Perm Press” key,
otherwise press “HI”
or “LO” key and then
“Perm Press” key.

FrEE

Perm Press

or

HI TempLO Temp LO Temp HI Temp

or

Perm Press

Continue

FrEECoin

Coin

Display will read vend
status, either “Coin”
(coins required to start)
or “FrEE” (no coins
required). If no change,
press “Perm Press” key,
otherwise press “HI”
or “LO” key and then
“Perm Press” key.

18 American Dryer Corp. 112146-62

Continue

Display will read L.E.D. display status.
Either no flash (nFLS) or flash (FLS).
If no change, press “Perm Press” key,
otherwise press “HI” or “LO” key and
then “Perm Press” key.

If no flash is selected,
display will read “fixed
display” status. I.E. “AtSt”
amount to start dryer or
“Free Dry Mode” or
“FILL.” If no change,
press “Perm Press” key,
otherwise press “HI” or
“LO” key and then press
“Perm Press” key.

nFLS

FLS

or

LO Temp

or

AtSt

FILL

HI Temp

FLS

nFLS

Perm Press

or

or

Perm Press

HI TempLO TempHI TempLO Temp

LO Temp

FILL

HI Temp

AtSt

Display will read coin
monitor status, “bCrS” bad
coin reset, or “bCLO” bad
coin lockout. If no change,
press “Perm Press” key,
otherwise press “HI” or “LO”
key and then “Perm Press” key.

bCLO

or

HI TempLO Temp LO Temp

or

Perm Press

Continue

bCLObCrS

HI Temp

bCrS

112146-62 www.adclaundry.com 19

Continue

LO Temp

AtIn

ACOn

SEn

nSEn

HI Temp

or

or

Perm Press

or

or

LO Temp

ACOn

HI TempLO TempHI TempLO Temp

AtIn

nSEn

HI Temp

SEn

Perm Press

PL02

Proceed

to next

location to

be changed

Display will read coin/time accumulation status. I.E. “AtIn” accumulative time or “ACOn” accumulative coin. If no change, press
“Perm Press” key, otherwise press “HI” or “LO” key and then press “Perm Press” key.

Display will read basket rotational sensor status. “SEn” sensor active or “nSEn” sensor not active. If no change, press “Perm
Press” key, otherwise press “HI” or “LO” key and then press “Perm Press” key.

To exit

program

mode open

program

switch

20 American Dryer Corp. 112146-62

Program Location 02 (PL02)

Percent dry from 90 to 100%

Refer to Programming

Instructions for instructions on

entering program locations.

PL02

Location to be viewed/changed.

Display reads “PdrY” percent of dryness

Perm Press

and the actual numeric value programmed
(90-100%). If no change, press “Perm
Press” key, otherwise press the “HI” or
“LO” key and then “Perm Press” key.

PdrY

(Wait 3-Seconds)

Dryness Level IncreaseDryness Level Decrease

LO Temp

("Hold In" to Accelerate) ("Hold In" to Accelerate)

100 HI Temp

Perm Press

PL03

Proceed

to next

location to

or

be changed

Summary: The percentage of dryness is programmable from a minimum of 90% to a maximum of 100%.

To exit

program

mode open

program

switch

112146-62 www.adclaundry.com 21

Program Location 03 (PL03)

HI Temp

Refer to Programming

Instructions for instructions on

entering program locations.

Location to be viewed/changed.

PL03

Press “Perm Press” key.

Temperature Decrease

LO Temp

Perm Press

HI°F

(Wait 3-Seconds)

180F HI Temp

Perm Press

Automatically goes

into PL04 Program without

PL04 Display Mode

Display will read “HI°F,” “HI Temp”
key status for 3-seconds and then
the actual temperature programmed.
If no changes, press “Perm Press”
key otherwise press “HI” or “LO”
key and then “Perm Press” key.

Temperature Increase

Continued on next page

Summary: HI Temp is programmable from a minimum of 100° F to a maximum of 190° F in ten-degree increments or from a

minimum of 38° C to a maximum of 88° C in five-degree increments.
For the AD-26 and AD-295 any three of the selections (HI/LO/PP) are programmable from a minimum of 100° F to a

maximum of 170° F in ten-degree increments or from a minimum of 38° C to a maximum of 77° C in five-degree
increments.

For the AD-540 and WDA-540 any three of the selections (HI/LO/PP) are programmable from a minimum of 100° F to
a maximum of 160° F in ten-degree increments or from a minimum of 38° C to a maximum of 71° C in five-degree
increments.

22 American Dryer Corp. 112146-62

Program Location 04 (PL04)

HI Temp cool down temperature/time

Refer to Programming

Instructions for instructions on

entering program locations.

PL04

Press “Perm Press” key.

Location to be viewed/changed.

Perm Press

Display will read “HICd,” HI Temp
cool down status for 3-seconds and then
the actual temp and time programmed.

Continued

from PL03.

HICd

If no change press “Perm Press” key
twice, otherwise press “HI” or “LO”
key and then “Perm Press” key.

(Wait 3-Seconds)

Temperature Decrease Temperature Increase

LO Temp

·100·2

Perm Press

HI Temp

Time Decrease Time Increase

LO Temp HI Temp

Proceed to next location

to be changed

Summary: Cool down temperature is programmable from a minimum of 70° F to a maximum of 190° F in ten degree increments

or from a minimum of 21° C to a maximum of 88° C in five-degree increments.
For the AD-26 and AD-295 any three of the selections (HI/LO/PP) are programmable from a minimum of 100° F to a

maximum of 170° F in ten-degree increments or from a minimum of 38° C to a maximum of 77° C in five-degree
increments.

For the AD-540 and WDA-540 any three of the selections (HI/LO/PP) are programmable from a minimum of 100° F to
a maximum of 160° F in ten-degree increments or from a minimum of 38° C to a maximum of 71° C in five-degree
increments.

Cool down is programmable from 0 to 9 minutes.

100·2

Perm Press

PL05

To exit program mode,

open program switch

112146-62 www.adclaundry.com 23

Program Location 05 (PL05)

LO Temp

Refer to Programming

Instructions for instructions on

entering program locations.

PL05

Location to be viewed/changed.

Press “Perm Press” key.

Perm Press

Display will read “LO°F,” LO Temp
status for 3-seconds and then the

LO°F

actual temperature programmed.
If no changes, press “Perm Press”
key otherwise press “HI” or “LO”

(Wait 3-Seconds)

key and then “Perm Press” key.

Temperature Decrease Temperature Increase

LO Temp

120F HI Temp

Perm Press

Automatically goes

into PL06 Program without

PL06 Display Mode

Continued on next page

Summary: LO Temp is programmable from a minimum of 100° F to a maximum of 190° F in ten-degree increments or from a

minimum of 38° C to a maximum of 88° C in five-degree increments.
For the AD-26 and AD-295 any three of the selections (HI/LO/PP) are programmable from a minimum of 100° F to a

maximum of 170° F in ten-degree increments or from a minimum of 38° C to a maximum of 77° C in five-degree
increments.

For the AD-540 and WDA-540 any three of the selections (HI/LO/PP) are programmable from a minimum of 100° F to
a maximum of 160° F in ten-degree increments or from a minimum of 38° C to a maximum of 71° C in five-degree
increments.

24 American Dryer Corp. 112146-62

Program Location 06 (PL06)

LO Temp cool down temperature/time

Refer to Programming

Instructions for instructions on

entering program locations.

PL06

Location to be viewed/changed.

Press “Perm Press” key.

Perm Press

Display will read “LOCd,” LO Temp
cool down status for 3-seconds and then
the actual temperature and time
programmed. If no changes, press “Perm

LOCd

Press” key twice, otherwise press “HI” or
“LO” key and then “Perm Press” key.

(Wait 3-Seconds)

Temperature Decrease Temperature Increase

LO Temp

·100·2

Perm Press

HI Temp

Time Decrease Time Increase

LO Temp HI Temp

Proceed to next location

to be changed

Summary: Cool down temperature is programmable from a minimum of 70° F to a maximum of 190° F in ten degree increments

or from a minimum of 21° C to a maximum of 88° C in five-degree increments.
For the AD-26 and AD-295 any three of the selections (HI/LO/PP) are programmable from a minimum of 100° F to a

maximum of 170° F in ten-degree increments or from a minimum of 38° C to a maximum of 77° C in five-degree
increments.

For the AD-540 and WDA-540 any three of the selections (HI/LO/PP) are programmable from a minimum of 100° F to
a maximum of 160° F in ten-degree increments or from a minimum of 38° C to a maximum of 71° C in five-degree
increments.

Cool down is programmable from 0 to 9 minutes.

100·2

Perm Press

PL07

To exit program mode,

open program switch

112146-62 www.adclaundry.com 25

Program Location 07 (PL07)

Perm Press Temp

Refer to Programming

Instructions f or instructions on

entering program locations.

PL07

Location to be viewed/changed.

Press “Perm Press” key.

Perm Press

Display will read “PP°F,” “Perm Press”
temperature key status for 3-seconds

PP°F

and then actual temperature programmed.
If no change, press “Perm Press” key
otherwise press “HI” or “LO” key

(Wait 3-Seconds)

and then “Perm Press” key.

Temperature Decrease Temperature Increase

LO Temp

150F HI Temp

Perm Press

Automatically goes into PL08 Program without PL08 Display Mode

Continued on next page

Summary: Perm Press Temp is programmable from a minimum of 100° F to a maximum of 190° F in ten-degree increments or

from a minimum of 38° C to a maximum of 88° C in five-degree increments.
For the AD-26 and AD-295 any three of the selections (HI/LO/PP) are programmable from a minimum of 100° F to a

maximum of 170° F in ten-degree increments or from a minimum of 38° C to a maximum of 77° C in five-degree
increments.

For the AD-540 and WDA-540 any three of the selections (HI/LO/PP) are programmable from a minimum of 100° F to
a maximum of 160° F in ten-degree increments or from a minimum of 38° C to a maximum of 71° C in five-degree
increments.

26 American Dryer Corp. 112146-62

Program Location 08 (PL08)

Perm Press Cool Down Temperature/Time

Refer to Programming

Instructions for instructions on

entering program locations.

Location to be viewed/changed.

PL08

Press “Perm Press” key.

Continued

from PL07.

Perm Press

Display will read “PPCd,” “Perm Press”
key cool down status for 3-seconds and
then cool down temperature and time
programmed. If no changes, press “Perm

PPCd

Press” key twice. Otherwise, press “HI”
or “LO” key and then “Perm Press” key.

(Wait 3-Seconds)

Temperature Decrease

LO Temp

·100·3 HI Temp

Perm Press

T emperature Increase

Time Decrease Time Increase

100·3LO Temp HI Temp

Perm Press

PL09

Proceed to next location

to be changed

Summary: Cool down temperature is programmable from a minimum of 70° F to a maximum of 190° F in ten-degree increments

or from a minimum of 21° C to a maximum of 88° C in five-degree increments.
For the AD-26 and AD-295 any three of the selections (HI/LO/PP) are programmable from a minimum of 100° F to a

maximum of 170° F in ten-degree increments or from a minimum of 38° C to a maximum of 77° C in five-degree
increments.

For the AD-540 and WDA-540 any three of the selections (HI/LO/PP) are programmable from a minimum of 100° F to
a maximum of 160° F in ten-degree increments or from a minimum of 38° C to a maximum of 71° C in five-degree
increments.

Cool down is programmable from 0 to 9 minutes.

112146-62 www.adclaundry.com 27

To exit program mode,

open program switch

Program Location 09 (PL09)

Left Coin Denomination

Refer to Programming

Instructions for instructions on

entering program location s.

PL09

Location to be viewed/changed.

Press “Perm Press” key.

Perm Press

Display will read “LCdE,” left coin
denomination for 3-seconds and the
left coin acceptor denomination

LCdE

programmed (I.E. 25¢). If no
change, press “Perm Press” key,
otherwise press “HI” or “LO”

(Wait 3-Seconds)

key and then “Perm Press” key.

Amount Decrease Amount Increase

LO Temp

("Hold In" to Accelerate) ("Hold In" to Accelerate)

10 HI Temp

Perm Press

PL10

Proceed to next location

to be changed

Summary: The left coin denomination is programmable from 1 to 9999.

IMPORTANT: When the dryer is equipped with a dual coin acceptor, the value set here is the lower value denomination,
which is not necessarily the left coin portion of the acceptor.

NOTE: For single coin models this parameter must be set for the value of the acceptor. I.E. 25¢ acceptor = 25.

28 American Dryer Corp. 112146-62

To exit program mode,

open program switch

Program Location 10 (PL10)

Right Coin Denomination

Refer to Programming

Instructions for instructions on

entering program locations.

PL10

Location to be viewed/changed.

Press “Perm Press” key.

Perm Press

Display will read “rCdE,” right coin

rCdE

denomination for 3-seconds and the
right coin acceptor denomination
programmed (I.E. 25¢). If no
change, press “Perm Press” key,
otherwise press “HI” or “LO”

(Wait 3-Seconds)

Amount Decrease

LO Temp

("Hold In" to Accelerate) ("Hold In" to Accelerate)

25 HI Temp

key and then “Perm Press” key.

Amount Increase

Perm Press

PL11

Proceed to next location

to be changed

Summary: The right coin denomination is programmable from 1 to 9999.

IMPORTANT: When the dryer is equipped with a dual coin acceptor, the value set here is the higher value denomination,
which is not necessarily the right coin portion of the acceptor.

NOTE: For single coin models this parameter need not to be set.

To exit progr a m mode,

open program switch

112146-62 www.adclaundry.com 29

Program Location 11 (PL11)

Time For Amount To Start

Refer to Programming

Instructi on s fo r inst ru c ti o ns on

entering program locations.

PL11

Perm Press

Location to be viewed/changed.

Press “Perm Press” key.

Upper display will read “tFAS” (Time

tFAS

For Amount To Start) and the lower
display will read the actual amount
programmed. If no change, press the
“Perm Press” key, otherwise press the

(Wait 3-Seconds)

“HI TEMP” key or the “LO TEMP” key
and then press the “Perm Press” key.

Time Decrease Time Increase

LO Temp

("Hold In" to Accelerate) ("Hold In" to Accelerate)

4 HI Temp

Perm Press

PL12

Proceed to next location

to be changed

Summary: The time for amount to start is programmable from 1 to 99 minutes.

To exit program mode,

open program switch

30 American Dryer Corp. 112146-62

Program Location 12 (PL12)

Amount To Start

Refer to Programming

Instructio ns for instructions on

entering program locations.

PL12

Perm Press

AtSt

Location to be viewed/changed.

Press “Perm Press” key.

Display will read “AtSt,” amount
to start for 3-seconds and then time
programmed. If no change, press
“Perm Press” key, otherwise press
“HI” or “LO” key and then “Perm

(Wait 3-Seconds)

Press” key.

Amount Decrease Amount Increase

LO Temp

("Hold In" to Accelerate) ("Hold In" to Accelerate)

25 HI Temp

Perm Press

PL13

Proceed to next location

to be changed

Summary: The amount to start is programmable from 1 to 9999.

To exit program mode,

open program switch

112146-62 www.adclaundry.com 31

Program Location 13 (PL13)

Coin Accumulation Minimum Amount for More Time

Instructions for instructions on

entering program locations.

Refer to Programming

PL13

Perm Press

Location to be viewed/changed.

Press “Perm Press” key.

Display will read “AFAt,” amount for

AFAt

additional time (ACOn mode only) for
3-seconds and then amount programmed.
If no change, press “Perm Press” key,
otherwise press “HI” or “LO” key and
then “Perm Press” key.

(Wait 3-Seconds)

Amount Decrease

LO Temp

("Hold In" to Accelerate) ("Hold In" to Accelerate)

10 HI Temp

Amount Increase

Perm Press

PL14

Proceed to next location

to be changed

Summary: The amount to start is programmable from 1 to 9999.

To exit program mode,

open program switch

32 American Dryer Corp. 112146-62

Program Location 14 (PL14)

Maximum Time for Auto Dry

Refer to Programming

Instructions for instructions on

entering program l ocations.

PL14

Perm Press

Adrt

Location to be viewed/changed.

Press “Perm Press” key.

Display will read “Adrt,” automatic
maximum drying time for 3-seconds
and then time programmed. If no
change, press “Perm Press” key,
otherwise press “HI” or “LO”

(Wait 3-Seconds)

key and then “Perm Press” key.

Time Decrease Time Increase

LO Temp

("Hold In" to Accelerate) ("Hold In" to Accelerate)

25 HI Temp

Perm Press

PL15

Proceed to next location

to be changed

Summary: The maximum auto dryness time is programmable from 1 to 99 minutes.

To exit program mode,

open program switch

112146-62 www.adclaundry.com 33

Program Location 15 (PL15)

Anti-Wrinkle Timing

Refer to Programming

Instructions for instructions on

entering program locations.

PL15

Location to be viewed/changed.

Press “Perm Press” key.

Perm Press

Display will read “GdLY,” guard delay
time for 3-seconds and then time

GdLY

programmed. If no change, press “Perm
Press” key, otherwise press “HI” or
“LO” key and then “Perm Press” key.

(Wait 3-Seconds)

Time Decrease

LO Temp

("Hold In" to Accelerate) ("Hold In" to Accelerate)

2 HI Temp

Perm Press

Gont

Time Increase

(Wait 3-Seconds)

Time IncreaseTime Decrease

LO Temp HI Temp

("Hold In" to Accelerate) ("Hold In" to Accelerate)

20

Perm Press

Display will read “Gont” anti-

Proceed to next location

to be changed

PL16

wrinkle on time for 3-seconds and
then time programmed. If no
changes, press “Perm Press” key,

To exit program mode,

open program switch

otherwise press “HI” or “LO” key
and then “Perm Press” key.

Summary: Guard delay time is programmable from 1 to 9 minutes. Guard on time is programmable from 1 to 99-seconds.

34 American Dryer Corp. 112146-62

Program Location 16 (PL16) and Program Location 17 (PL17)

Maximum Active Anti-Wrinkle Time

Refer to Programming

Instructions for instructions on

entering program locations.

PL16

Perm Press

Location to be viewed/changed.

Press “Perm Press” key. Display will
read “AGt,” maximum guard time for
3-seconds and then time programmed.
If no change, press “Perm Press” key,

AGt

(Wait 3-Seconds)

otherwise press “HI” or “LO” key and
then “Perm Press” key.

Time Decrease Time Increase

LO Temp

("Hold In" to Accelerate) ("Hold In" to Accelerate)

Refer to Programming

Instructions for instructions on

entering program locations.

10 HI Temp

Perm Press

PL17

Location to be viewed/changed.

Press “Perm Press” key. Display will

Perm Press

read “A,” and factor programmed for
3-seconds. If no change, press “Perm
Press” key, otherwise press “HI” or

Programmable 1 to 9

A 6

“LO” key and then “Perm Press” key.

(Wait 3-Seconds)

Factor Decrease

LO Temp

("Hold In" to Accelerate) ("Hold In" to Accelerate)

A 6

Perm Press

Factor Increase

HI Temp

Programmable 1 to 99

B 65

Factor IncreaseFactor Decrease

LO Temp HI Temp

("Hold In" to Accelerate) ("Hold In" to Accelerate)

Proceed to next location

to be changed

B 65

Perm Press

70F

Display will read “B,” and factor
programmed for 3-seconds. If no
change, press “Perm Press” key,

To exit program mode,

open program switch

otherwise press “HI” or “LO” key
and then “Perm Press” key.

112146-62 www.adclaundry.com 35

Factory Preset Programs/Parameters

Unless otherwise specified at the time of ordering, the Phase
5 microprocessor controller (computer) has been
preprogrammed by the factory with the following programs/
parameters. Should changes be found necessary , please read
this Phase 5 Coin User’s Manual carefully to thoroughly
familiarize yourself with the Phase 5 microprocessor
controller’s (computer’s) programming characteristics.

Single Coin Only

For all dryer models except AD22/AD-26/AD-265/AD-295 and
AD-540/WDA-540. (For single coin models AD22/AD-26/
AD-265/AD-295 and AD-540/WDA-540 refer to right column).

PL01 –°FAr – Temperatures in Fahrenheit

tInE – Timed mode
Grd – Anti-wrinkle guard on
bUZ – Anti-wrinkle guard buzzer (tone) on
Coin – Coin(s) required to start
FLS – Display will flash in intervals between “FILL”

and “Amount To Start”
bCrS – Bad coin reset
AtIn – Accumulative time
nSEn – Rotational sensor not selected

PL02 –PdrY – Percent Dry – 97%
PL03 –HI°F – 180°
PL04 –HICd – Temperature – 100°, Time – 2 minutes
PL05 –LO°F – 120°
PL06 –LOCd – Temperature – 100°, Time – 2 minutes
PL07 –PP°F – 150°
PL08 –PPCd – Temperature – 100°, Time – 3 minutes
PL09 –LCdE – Left coin denomination – 25¢
PL10 –rCdE – Right coin denomination – 25¢
PL11 – tFAS – Time for amount to start – 10 minutes
PL12 –AtSt – Amount to Start – 25¢
PL13 –AFAt – Amount for additional time – 25¢
PL14 –Adrt – Automatic dry maximum time – 30 minutes
PL15 –GdLY – Anti-wrinkle guard off delay time – 2 minutes

Gont – Anti-wrinkle guard on time – 20-seconds

PL16 –AGt – Active anti-wrinkle guard time – 10 minutes
PL17 –A and b – “A” is adjustable from 1 to 99 (example: A = 5)

Factors – “b” is adjustable from 1 to 99 (example: B = 75)

Dual Coin Only

For all dryer models except AD22/AD-26/AD-265/AD-295 and
AD-540/WDA-540. (For dual coin models AD22/AD-26/
AD-265/AD-295 and AD-540/WDA-540 refer to right column).

PL01 –°FAr – Temperatures in Fahrenheit

tInE – Timed mode
Grd – Anti-wrinkle guard on
bUZ – Anti-wrinkle guard buzzer (tone) on
Coin – Coin(s) required to start
FLS – Display will flash in intervals between “FILL”

and “Amount to Start”
bCrS – Bad coin reset
AtIn – Accumulative time
nSEn – Rotational sensor not selected

PL02 – PdrY – Percent Dry – 97%
PL03 – HI°F – 180°
PL04 –HICd – Temperature – 100°, Time – 2 minutes
PL05 –LO°F – 120°
PL06 –LOCd – Temperature – 100°, Time – 2 minutes
PL07 –PP°F – 150°
PL08 –PPCd – Temperature – 100°, Time – 3 minutes
PL09 –LCdE – Left coin denomination – 10¢
PL10 –rCdE – Right coin denomination – 25¢
PL11 – tFAS – Time for amount to start – 10 minutes
PL12 –AtSt – Amount to Start – 25¢
PL13 –AFAt – Amount for additional time – 10¢
PL14 –Adrt – Automatic dry maximum time – 30 minutes
PL15 –GdLY – Anti-wrinkle guard off delay time – 2 minutes

Gont – Anti-wrinkle guard on time – 20-seconds
PL16 –AGt – Active anti-wrinkle guard time – 10 minutes
PL17 –A and b – “A” is adjustable from 1 to 99 (example: A = 5)

Factors – “b” is adjustable from 1 to 99 (example: B = 75)

Single Coin Only

For dryer models AD22/AD-26/AD-265/AD-295 and AD-540/
WDA-540 only.

PL01 –°FAr – Temperatures in Fahrenheit

tInE – Timed mode

Grd – Anti-wrinkle guard on

bUZ – Anti-wrinkle guard buzzer (tone) on

Coin – Coin(s) required to start

FLS – Display will flash in intervals between “FILL”

and “Amount To Start”
bCrS – Bad coin reset
AtIn – Accumulative time
nSEn – Rotational sensor not selected

PL02 –PdrY – Percent Dry – 98%
PL03 –HI°F – 150°
PL04 –HICd – Temperature – 80°, Time – 2 minutes
PL05 –LO°F – 120°
PL06 –LOCd – Temperature – 80°, Time – 2 minutes
PL07 –PP°F – 130°
PL08 –PPCd – Temperature – 80°, Time – 3 minutes
PL09 –LCdE – Left coin denomination – 25¢
PL10 –rCdE – Right coin denomination – 10¢
PL11 – tFAS – Time for amount to start – 10 minutes
PL12 –AtSt – Amount to Start – 25¢
PL13 –AFAt – Amount for additional time – 25¢
PL14 – Adrt – Automatic dry maximum time – 30 minutes
PL15 –GdLY – Anti-wrinkle guard off delay time – 2 minutes

Gont – Anti-wrinkle guard on time – 20-seconds

PL16 –AGt – Active anti-wrinkle guard time – 10 minutes
PL17 –A and b – “A” is adjustable from 1 to 99 (example: A = 5)

Factors – “b” is adjustable from 1 to 99 (example: B = 70)

Dual Coin Only

For dryer models AD22/AD-26/AD-265/AD-295 and AD-540/
WDA-540 only.

PL01 –°FAr – Temperatures in Fahrenheit

tInE – Timed mode
Grd – Anti-wrinkle guard on
bUZ – Anti-wrinkle guard buzzer (tone) on
Coin – Coin(s) required to start
FLS – Display will flash in intervals between “FILL”

and “Amount To Start”
bCrS – Bad coin reset
AtIn – Accumulative time
nSEn – Rotational sensor not selected

PL02 –PdrY – Percent Dry – 98%
PL03 –HI°F – 150°
PL04 –HICd – Temperature – 80°, Time – 2 minutes
PL05 –LO°F – 120°
PL06 –LOCd – Temperature – 80°, Time – 2 minutes
PL07 –PP°F – 130°
PL08 – PPCd – Temperature – 80°, Time – 3 minutes
PL09 –LCdE – Left coin denomination – 25¢
PL10 –rCdE – Right coin denomination – 10¢
PL11 – tFAS – Time for amount to start – 10 minutes
PL12 –AtSt – Amount to Start – 25¢
PL13 – AFAt – Amount for additional time – 25¢
PL14 –Adrt – Automatic dry maximum time – 30 minutes
PL15 –GdLY – Anti-wrinkle guard off delay time – 2 minutes

Gont – Anti-wrinkle guard on time – 20-seconds

PL16 –AGt – Active anti-wrinkle guard time – 10 minutes
PL17 –A and b – “A” is adjustable from 1 to 99 (example: A = 5)

Factors – “b” is adjustable from 1 to 99 (example: B = 70)

36 American Dryer Corp. 112146-62

Phase 5 Coin System Diagnostics ___

All major circuits, including door, microprocessor temperature
sensor, heat and motor circuits are monitored. The Phase 5
coin microprocessor controller (computer) will inform the user
via the L.E.D. display of certain failure codes along with
indicators both in the L.E.D. display and at the outputs of each
relay (and door switch circuit) to easily identify failures.

Diagnostic (L.E.D.) Failure Codes

“door” – Indicates door switch circuit is open.
Keypad entry was made while main door is open or there is a

fault in the door switch circuit (external of the microprocessor
controller [computer]).

“dSFL” – Indicates a fault in the microprocessor temperature
sensor circuit. If a fault is detected in the microprocessor
heat sensor circuit, the L.E.D. display will read “dSFL” and
the buzzer (tone) will sound for approximately 5-seconds every
30-seconds.

The problem is corrected or power to dryer is discontinued…
and the problem is then corrected.

IMPORTANT: The Phase 5 coin microprocessor controller
(computer) has its own internal heat sensing circuit fuse
protection located on the back side of the (computer). If a
“dSFL” condition occurs, check to see if this fuse has
blown. If it has, do not replace the entire microprocessor
controller (computer); replace only the fuse and do so only
with a 1/8-Amp (Slo-Blo) type fuse.

The L.E.D. indicator dots located at the top portion of the
display indicates the various microprocessor controller
(computer) output functions while a cycle is in progress. These
dots do not necessarily mean that the outputs are functioning.
They are only indicating that the function (output) should be
active (on).

Heat Circuit Indicator – indicator dot is on whenever the
microprocessor controller (computer) is calling for the heating
circuit to be active (on).

Motor Circuit Indicator – indicator dot is on whenever a cycle
is in progress.

Phase 5 Microprocessor Controller (Computer) Relay Output L.E.D. Indica tors

NOTE: Once the Phase 5 coin microprocessor controller
(computer) detects a problem in the heat circuit, it updates
every 30-seconds so if a problem was a loose connection
in this circuit, which corrected itself, the “dSFL” condition
would automatically be cancelled.

“SEFL” – Indicates rotational sensor circuit failure meaning
that there is a fault somewhere in the tumbler rotation detection
circuit or the microprocessor controller (computer) program
related to this circuit (PL01) is set incorrectly in the active
mode (“SEn”), where the dryer is not equipped with optional
rotation sensor and should be set in the inactive mode
(“nSEn”).

“Hot” – Indicates a possible overheating condition. The Phase
5 microprocessor controller (computer) monitors the
temperature in the dryer at all times. If the microprocessor
controller (computer) detects that the temperature in the dryer
has exceeded 220° F (104° C) it will disable all outputs (shut
the dryer down), the tone (buzzer) will sound for approximately
5-seconds, and the display will read “Hot.” The L.E.D. display
will continue to read “Hot” until the temperature sensed has
dropped to 220° F (104° C) or lower and the microprocessor
controller (computer) is manually reset by closing and opening
the PS.

L.E.D. Display Indicators/Dots

There are three L.E.D. indicators (“red” lights) located at the
lower back side area of the microprocessor controller
(computer) which are identified/labeled as “DOOR,” “HEAT,”
and “MTR” (motor). These L.E.D.s indicate that the outputs
of the microprocessor controller (computer), or in the case of
the door switch, the inputs are functioning.

“DOOR” – L.E.D. SHOULD BE ON ALL THE TIME (even if the
dryer is not running) unless the main door is open or there is
a problem (open circuit) in the main door switch circuit.

NOTE: If the dryer is started (the display L.E.D. indicator
dots are on) and there are no outputs (“HEAT” and/or
“MTR” output L.E.D. are off) and the “DOOR” input L.E.D.
is on, the fault is in the Phase 5 microprocessor controller
(computer) itself.

If the failure was elsewhere (i.e. dryer’s door switch circuit)
the L.E.D. display would read “door” if a keypad entry was
attempted. If the display L.E.D. indicators are on, and the
door L.E.D. indicators are on, and the door L.E.D. input
and motor/heat output L.E.D.s are on, yet the motor and/or
heat is not active (on); then the problem is not the door
switch on the Phase 5 microprocessor controller
(computer), the problem is elsewhere in the dryer.

112146-62 www.adclaundry.com 37

“HEAT” – Output L.E.D. Indicator – if the dryer is started and
there is no heat, yet the microprocessor controller (computer)
L.E.D. display heat indicator dot is on, but the heat output
L.E.D. indicator is off, then the fault is in the Phase 5
microprocessor controller (computer) itself. If both the display
heat output L.E.D. indicator are on, then the problem is
elsewhere (external of the microprocessor controller
[computer]).

Phase 5 Auto Cycle (Patent No. 4,827,627)

“A ” and “b” Factor Parameters

GAS ELECTRIC STEAM

Model “A” “b” Model Kw “A” “b” Model Type “A” “b”

ADG-15D 3 80
ADG-25D 5 80 15 2 55 ADS -25
ADG-26D N/A* 18 3 63 AD S-320

AD-265 N/A*
ADG-215D 5 67 20 3 80 ADS-30S
ADG-220D 5 65 24 5 80 ADS-50
ADG-230D 5 65 AD E -215 15 5 67 UDS -50
ADG-320D 5 75 AD E -220 15
ADG-330D 5 75 AD E -230 15

ADG-285DH 5 65 ADE-320 15

ADG-295D N/A* ADE-330 15

ADG-30DS (A) 5 70
ADG-30DS (b) N/A* 36 (A) 5 70

ADG-30D 5 70 40 (b)

UDG-50D 5 65 48 (A)
ADG-75D 5 65

ADE-15

ADE-25

ADE-30S

ADE-30

ADE-50

UDE-50

ADE-75

12 2 74 ADS -15

18 2 65 AD S-330

30 (b)

20 3 80
24 3 80
30 5 75
20 2 81
24 3 65
30 5 75
20 2 65
24 4 81
30 5 72
20 2 81
24 2 81
30 3 76
36 3 75

“MTR” (motor) – Output L.E.D. Indicator – if the dryer is started
and the motor is not operating, yet both the microprocessor
controller (computer) L.E.D. display motor indicator dot and
“DOOR” input L.E.D. indicator are on, but the “MTR” output
L.E.D. indicator is off; then the fault is in the Phase 5
microprocessor controller (computer) itself. If the motor is not
operating and the “MTR” output indicator is on, then the
problem is elsewhere (external of the microprocessor controller
[computer]).

High

or

Low

ADS-75

N/A*

N/A*

Contact factory for

models and/or “A” and

N/A*ADG-50D 5 72 42 (A)

“b” Factors not listed.

* “A” and “b” Factors N/A at time of printing.
(A) For 60 Hz models only.
(B) For 50 Hz models only.

IMPORTANT: The “A” and “b” Factors have been
preprogrammed by the factory and should be changed in
the field unless the Phase 5 coin microprocessor controller
(computer) should fail and is replaced. THE
REPLACEMENT PHASE 5 COIN MICROPROCESSOR

Optional 9 Volt Ba ttery Backup ______

Dryers ordered from the factory with the 9 volt battery backup
option (battery is not included) allow the Phase 5
microprocessor controller (computer) to maintain its operating
status should a momentary power interruption occur while the
dryer cycle is in progress.

It is suggested that the battery be replaced at least once a
year or as found necessary. The battery life will depend on
the age of the battery, the amount of power interruptions, and
the backup time used.

CONTROLLER (COMPUTER) MUST BE
REPROGRAMMED FOR THE SPECIFIC MODEL SHOWN
IN THE CHART ABOVE.

IMPORTANT: For proper operation use alkaline batteries
only. Suggest Energizer, Duracell or equivalent. DO NOT
USE CARBON TYPE BATTERIES.

38 American Dryer Corp. 112146-62

NOTES __________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

_________________________________________________________________________________________________________________________________

112146-62 www.adclaundry.com 39

ADC Part No. 112146 62 - 06/17/14
