ADC AD-236 Installation Instructions
AD-236 Installation Manual
Phase 5 / Gas DSI
WARNING: For your safety the information
in this manual must be followed to
minimize the risk of fire or explosion and
to prevent property damage, personal
injury or death.
— Do not store or use gasoline or other
flammable vapors and liquids in the
vicinity of this or any other appliance.
— WHAT TO DO IF YOU SMELL GAS:
●
Do not try to light any appliance.
●
Do not touch any electrical switch;
do not use any phone in your
building.
●
Clear the room, building or area of
all occupants.
●
Immediately call your gas supplier
from a neighbor’s phone. Follow
the gas supplier’s instructions.
●
If you cannot reach your gas
supplier, call the fire department.
— Installation and service must be
performed by a qualified installer, service
agency or the gas supplier.
AVERTISSEMENT: Assurez-vous de bien
suivre les instructions données dans cette
notice pour réduire au minimum le risque
d’incendie ou d’explosion ou pour éviter
tout dommage matériel, toute blessure ou
la mort.
—Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
—QUE FAIRE SI VOUS SENTEZ UNE
ODEUR DE GAZ:
●
Ne pas tenter d’allumer d’appareils.
●
Ne touchez à aucun interrupteur. Ne
pas vous servir des téléphones se
trouvant dans le bâtiment.
●
Évacuez la pièce, le bâtiment ou la
zone.
●
Appelez immédiatement votre
fournisseur de gaz depuis un voisin.
Suivez les instructions du fournisseur.
●
Si vous ne pouvez rejoindre le
fournisseur de gaz, appelez le service
des incendies.
—L’installation et l’entretien doivent être
assurés par un installateur ou un
service d’entretien qualifié ou par le
fournisseur de gaz.
American Dryer Corporation
88 Currant Road
Fall River MA 02720-4781 USA
Telephone: +1 (508) 678-9000 / Fax: +1 (508) 678-9447
e-mail: techsupport@amdry.com
www.adclaundry.com
ADC Part No. 113047-23
Retain This Manual In A Safe Place For Future Reference
American Dryer Corporation products embody advanced concepts in engineering, design, and safety. If this product is
properly maintained, it will provide many years of safe, efficient, and trouble free operation.
ONLY qualified technicians should service this equipment.
OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment or specified in the installation manual included with
the dryer.
The following “FOR YOUR SAFETY” caution must be posted near the dryer in a prominent location.
FOR YOUR SAFETY
Do not store or use gasoline
or other flammable vapors
and liquids in the vicinity of
this or any other appliance.
W e have tried to make this manual as complete as possible and hope you will find it useful. ADC reserves the right to make
changes from time to time, without notice or obligation, in prices, specifications, colors, and material, and to change or
discontinue models. The illustrations included in this manual may not depict your particular dryer exactly.
POUR VOTRE SÉCURITÉ
Ne pas entreposer ni utiliser d’essence
ni d’autres vapeurs ou liquides
inflammables à proximité de cet
appareil ou de tout autre appareil.
Important
For your convenience, log the following information:
DATE OF PURCHASE____________________________________________ MODEL NO. ______________________________
RESELLER’S NAME ________________________________________________________________________________________
Serial Number(s) ________________________________________________________________________________________
________________________________________________________________________________________
________________________________________________________________________________________
AD-236 (Gas DSI)
Replacement parts can be obtained from your reseller or the ADC factory. When ordering replacement parts from the factory ,
you can F AX your order to ADC at (508) 678-9447 or telephone your order directly to the ADC Parts Department at (508)
678-9000. Please specify the dryer model number and serial number in addition to the description and part number, so that
your order is processed accurately and promptly.
These instructions are only valid if the following country code is on the appliance… If this code is not present on the
appliance, it is necessary to refer to the technical instructions which will provide the necessary information concerning the
modification of the appliance to the condition of use for the country.
In accordance with EN ISO 3166-1, the names of countries shall be represented by the following codes:
GB United Kingdom
IE Ireland
“IMPORT ANT NOTE TO PURCHASER”
Information must be obtained from your local gas supplier on
the instructions to be followed if the user smells gas. These
instructions must be posted in a prominent location near the dryer .
!
WARNING
Proposition 65
Use of this product could expose you to substances from fuel combustion
that contain chemicals known to the State of California to cause cancer,
birth defects and other reproductive harm.
In the State of Massachusetts, the following installation instructions apply:
■ Installations and repairs must be performed by a qualified or licensed contractor,
plumber, or gasfitter qualified or licensed by the State of Massachusetts.
■ If using a ball valve, it shall be a T-handle type.
■ A flexible gas connector, when used, must not exceed 3 feet.
IMPORTANT
YOU MUST DISCONNECT AND LOCKOUT THE ELECTRIC SUPPL Y AND THE GAS
SUPPLY BEFORE ANY COVERS OR GUARDS ARE REMOVED FROM THE
MACHINE TO ALLOW ACCESS FOR CLEANING , ADJUSTING, INST ALLA TION, OR
TESTING OF ANY EQUIPMENT PER OSHA (Occupational Safety and Health
Administration) STANDARDS.
“Caution: Label all wires prior to
disconnection when servicing
controls. W iring errors can cause
improper operation.”
«Attention: Au moment de l’entretien des
commandes, étiquetez tous les fils avant de les
débrancher. Des erreurs de câblage peuvent entraîner
un fonctionnement inadéquat et dangereux.»
CAUTION
DR YERS SHOULD NEVER BE LEFT UNA TTENDED WHILE IN OPERA TION.
WARNING
CHILDREN SHOULD NOT BE ALLOWED TO PLA Y ON OR NEAR THE DRYER(S).
CHILDREN
SHOULD BE SUPER VISED IF NEAR DRYERS IN OPERA TION.
FOR YOUR SAFETY
DO NOT DR Y MOP HEADS IN THE DRYER.
DO NOT USE DR YER IN THE PRESENCE OF DR Y CLEANING FUMES.
WARNING
UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switch,
or heat safety circuit ever be disabled.
DO NOT MODIFY THIS APPLIANCE.
The dryer must never be operated with any of the back guards, outer tops, or service
panels removed. PERSONAL INJURY OR FIRE COULD RESUL T .
DRYER MUST NEVER BE OPERATED WITHOUT THE LINT FIL TER/SCREEN IN
PLACE, EVEN IF AN EXTERNAL LINT COLLECTION SYSTEM IS USED.
If the hi-limit switch trips, a service call is required to investigate the reason and
resolve the issue.
IMPORTANT
PLEASE OBSERVE ALL SAFETY PRECAUTIONS displayed on the equipment and/or
specified in the installation manual included with the dryer.
Dryer must not be installed or stored in an area where it
The wiring diagram for the dryer is located in the front electrical control box area.
will be exposed to water or weather .
IMPORTANT
Dryer must be installed in a location/environment, which the ambient temperature
remains between 40° F (4.44° C) and 130° F (54.44° C).
Table of Contents
SECTION I
IMPORTANT INFORMATION...............................................................................3
A. Receiving and Handling ............................................................................................................... 3
B. Safety Precautions ...................................................................................................................... 4
SECTION II
SPECIFICATIONS.....................................................................................................6
A. Specifications ............................................................................................................................. 6
SECTION III
INSTALLATION PROCEDURES ........................................................................... 8
A. Unpacking/Setting Up ................................................................................................................. 8
B. Location Requirements ............................................................................................................... 9
C. Dryer Enclosure Requirements .................................................................................................. 10
D. Fresh Air Supply Requirements ................................................................................................. 10
E. Exhaust Requirements ............................................................................................................... 12
F. Electrical Information ................................................................................................................ 16
G . Gas Information ........................................................................................................................ 19
H. Preparation For Operation/Start-Up ......................................................................................... 23
I. Preoperational T est ................................................................................................................... 23
J. Shutdown Instructions ............................................................................................................... 25
SECTION IV
OPERATING INSTRUCTIONS .............................................................................26
A. Starting The Dryer .................................................................................................................... 26
SECTION V
SERVICE/PARTS INFORMATION ......................................................................28
A. Service ..................................................................................................................................... 28
B. Parts ........................................................................................................................................ 28
SECTION VI
WARRANTY INFORMATION...............................................................................29
A. Returning W arranty Cards......................................................................................................... 29
B. Warranty .................................................................................................................................. 29
C. Returning Warranty Parts .......................................................................................................... 29
SECTION VII
ROUTINE MAINTENANCE ..................................................................................31
A. Cleaning ................................................................................................................................... 31
B. Adjustments ............................................................................................................................. 32
C. Lubrication ............................................................................................................................... 32
SECTION VIII

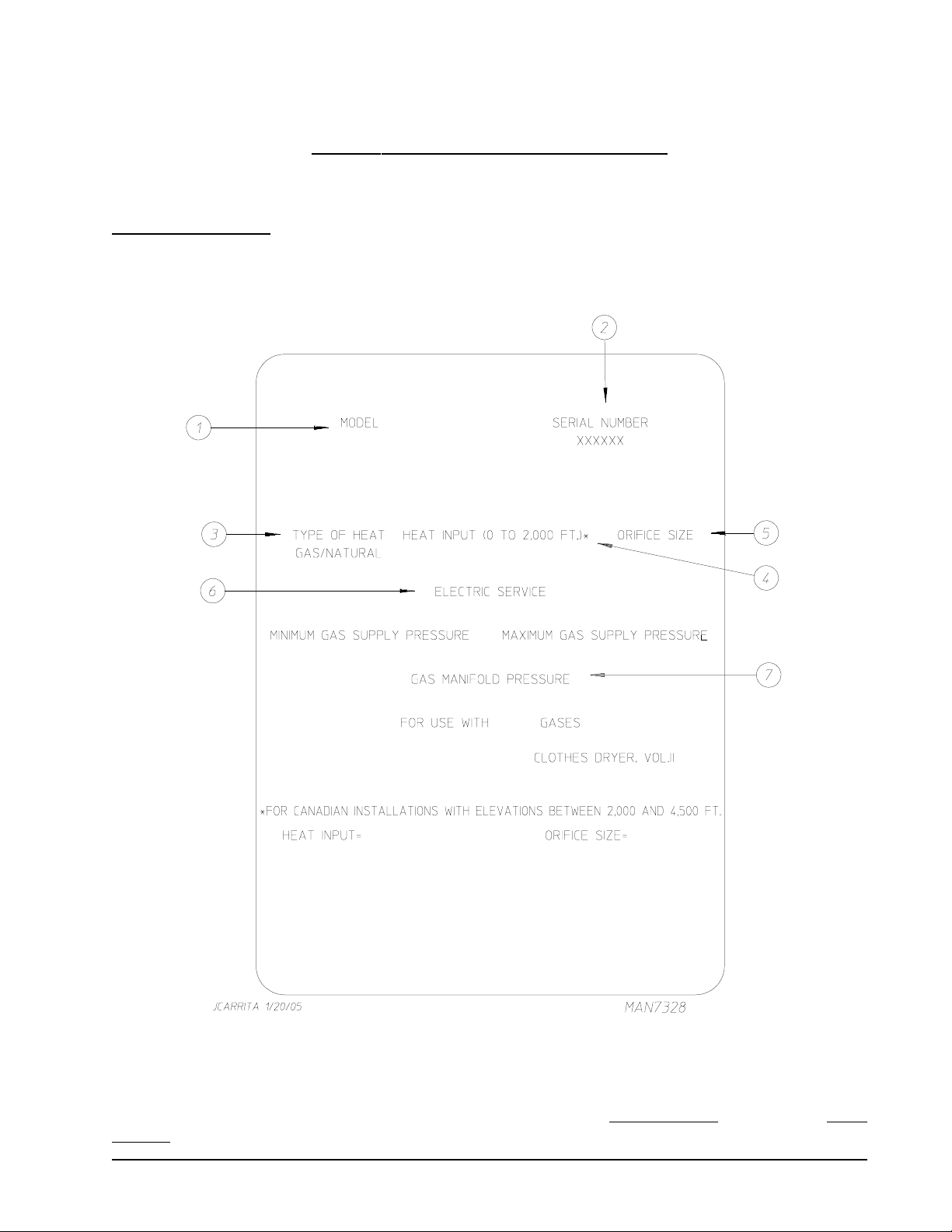

DATA LABEL INFORMATION .............................................................................33
A. Data Label ............................................................................................................................... 33
SECTION IX
TROUBLESHOOTING ...........................................................................................35
SECTION X
PROCEDURE FOR FUNCTIONAL CHECK
OF REPLACEMENT COMPONENTS................................................................40
SECTION XI
BURNER/BASKET (TUMBLER)
HI-LIMIT MANUAL RESET INSTRUCTIONS..................................................43
SECTION I
IMPORTANT INFORMATION
A. RECEIVING AND HANDLING
The dryer is shipped in a protective stretch wrap cover with protective cardboard corners and top cover (or
optional box) as a means of preventing damage in transit. Upon delivery, the dryer and/or packaging, and
wooden skid should be visually inspected for shipping damage. If any damage whatsoever is noticed, inspect
further before delivering carrier leaves.
Dryers damaged in shipment:
1.
ALL dryers should be inspected upon receipt and before they are signed for.
2. If there is suspected damage or actual damage, the trucker ’s receipt should be so noted.
3. If the dryer is damaged beyond repair, it should be refused. Those dryers, which were not damaged in a
damaged shipment should be accepted, but the number received and the number refused must be noted
on the receipt.
4. If you determine that the dryer was damaged after the trucker has left your location, you should call the
delivering carrier’s freight terminal immediately and file a claim. The freight company considers this
concealed damage. This type of freight claim is very difficult to get paid and becomes extremely difficult
when more than a day or two passes after the freight was delivered. It is your responsibility to file freight
claims. Dryer/parts damaged in transit cannot be claimed under warranty.
5. Freight claims are the responsibility of the consignee, and ALL claims must be filed at the receiving end.
ADC assumes no responsibility for freight claims or damages.
6. If you need assistance in handling the situation, please contact the ADC Traffic Manager at (508) 678-9000.
IMPORTANT: The dryer must be transported and handled in an upright position at ALL times.
113047- 23 www.adclaundry.com 3
B. SAFETY PRECAUTIONS
WARNING: For your safety , the information in this manual must be followed to minimize the risk of
fire or explosion or to prevent property damage, personal injury , or loss of life.
WARNING: The dryer must never be operated with any of the back guards, outer tops, or
service panels removed. PERSONAL INJURY OR FIRE COULD RESUL T.
1. DO NOT store or use gasoline or other flammable vapors and liquids in the vicinity of this or any other
appliance.
2. DO NOT spray aerosols in the vicinity of this appliance while it is in operation.
3. Purchaser/user should consult the local gas supplier for proper instructions to be followed in the event the
user smells gas. The instructions should be posted in a prominent location.
4. WHAT TO DO IF YOU SMELL GAS...
a. DO NOT try to light any appliance.
b. DO NOT touch any electrical switch.
c. DO NOT use any phone in your building.
d. Clear the room, building, or area of
e. Immediately call your gas supplier from a neighbor’s phone. Follow the gas supplier’s instructions.
f. If you
5. Installation and service must be performed by a qualified installer, service agency , or gas supplier.
6. Dryer(s) must be exhausted to the outdoors.
7. Although ADC produces a very versatile dryer, there are some articles that, due to fabric composition or
cleaning method, should not be dried in it.
cannot reach your gas supplier, call the fire department.
ALL occupants.
WARNING: Dry only water washed fabrics. DO NOT dry articles spotted or washed in dry cleaning
solvents, a combustible detergent, industrial chemicals, or “all purpose” cleaner .
EXPLOSION COULD RESUL T.
WARNING: DO NOT dry rags or articles coated or contaminated with gasoline, kerosene, oil, paint,
or wax. EXPLOSION COULD RESUL T.
WARNING: DO NOT dry mop heads. Contamination by wax or flammable solvents will create a
fire hazard.
WARNING: DO NOT use heat for drying articles that contain plastic, foam, sponge rubber, or
similarly textured rubberlike materials. Drying in a heated basket (tumbler) may damage
plastics or rubber and may be a fire hazard.
4 American Dryer Corp. 113047-23
8. The possible presence of residual quantities of aggressive or decomposed chemicals in the load may produce
damage to the machine and harmful fumes.
9. A program should be established for the inspection and cleaning of lint in the burner area, exhaust ductwork,
and area around the back of the dryer. The frequency of inspection and cleaning can best be determined
from experience at each location.
WARNING: The collection of lint in the burner area and exhaust ductwork can create a potential fire
hazard.
10. For personal safety, the dryer must be electrically grounded in accordance with local codes or the National
Electrical Code ANSI/NFPA NO. 70-LATEST EDITION, or in Canada, the Canadian Electrical Codes
Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION.
NOTE: Failure to do so will VOID THE WARRANTY.
11. UNDER NO CIRCUMSTANCES should the dryer door switches, lint drawer switch, or heat safety
circuit ever be disabled.
W ARNING: PERSONAL INJURY OR FIRE COULD RESUL T.
12. This dryer is not to be used in the presence of dry cleaning solvents or fumes.
13. Remove articles from the dryer as soon as the drying cycle has been completed.
WARNING: Articles left in the dryer after the drying and cooling cycles have been completed can
create a fire hazard.
14. READ AND FOLLOW ALL CAUTION AND DIRECTION LABELS ATTACHED TO THE
DRYER.
15. For safety, proper operation, and optimum performances, the dryer must not be operated with a load less
than sixty-six percent (66%), 40 lb (18.14 kg) of its rated capacity.
W ARNING: YOU MUST DISCONNECT AND LOCKOUT THE ELECTRIC SUPPLY AND
THE GAS SUPPL Y BEFORE ANY COVERS OR GUARDS ARE REMOVED
FROM THE MACHINE TO ALLOW ACCESS FOR CLEANING ,
ADJUSTING , INST ALLA TION, OR TESTING OF ANY EQUIPMENT PER
OSHA (Occupational Safety and Health Administration) STANDARDS.
IMPORTANT: Dryer must be installed in a location/environment, which the ambient
temperature remains between 40° F (4.44° C) and 130° F (54.44° C).
CE ONLY
IMPORTANT: This appliance must only be installed and operated in the country of destination
indicated on the dryer’s data plate. If the appliance is to be installed and operated in a
country other than the one indicated on the data plate, a data plate amendment must
be obtained from American Dryer Corporation.
IEC335 applies.
113047- 23 www.adclaundry.com 5
A. SPECIFICATIONS
SECTION II
SPECIFICATIONS
MAXIMUM CAPAC ITY (DRY WEIGHT) PE R POCKE T 30 lb
TUMBLER DIAMETER 27-1/4”
TUMBLER DEPTH 3 0”
TUMBLER VOLUME
TUMBLER/DRIVE MOTOR
BLOWER/FAN MOTOR
DOOR OP ENING
DOOR SILL HEIGHT
WATER CONNECTION N / A
DRYERS PER 20’ /40’ CONTAINER 11 / 22
DRYERS PER 48’ /53’ TRUCK 30 / 33
VOLTAGE AVAILABLE 120-240V 1,3ø 2,3w 50/60 Hz
APPROXIMATE NET WEIGHT 850 lb
APPROXIMATE SHIPPING WEIGHT 900 lb
AIRFLOW
HEAT INPUT
GAS
EX HAUST CONNECTION
COMPRESSED AIR CONNECTION N / A
COMPRESSED AIR VOLUME N / A
INLET PIPE CONNECTION 3/4” M.N.P.T.
VOLTAGE AVAILABLE
APPROXIMATE NET WEIGHT
APPROXIMATE SHIPPING WEIGHT
AIRFLOW
EX HAUST CONNECTION (DIAMETER) PER POCKET
COMPRESSED AIR CONNECTION
COMPRESSED AIR VOLUME
ELECTRICSTEAM
kW Bt u/hr
VOLTAGE AVAILABLE
APPROXIMATE NET WEIGHT
APPROXIMATE SHIPPING WEIGHT
AIRFLOW
STEAM CONSUMPTION PER POCKET
OPERATING STEAM PRESSURE
EX HAUST CONNECTION
COMPRESSED AIR CONNECTION
COMPRESSED AIR VOLUME
BOILER HORSEPOWER
SUP PLY CONNECTION PER POCKET
RETURN C ONNECTION PER POCKET
Shaded areas are stated in metric equivalents 1/25/11
PER POCKET 10.1 cu ft
PER POCKET 1/2 hp
PER POCKET 1/2 hp
(DIAMETER) 21-1/2”
TOP POCKET / BOTTOM POCKET 51-1/4” / 13-1/2”
PER POCKET
PER POCKET 80,000 Btu/hr
(DIAME TER) 8”
PER POCKET
OVE N SIZE
PER POCKET
PER POCKET
(DIAMETER) PER POCKET
(NORMAL LOAD) PER POCKET
60 Hz
50 Hz
kcal/hr
400 cfm
333 cfm
N / A
N / A
13.6 kg
69.22 cm
76.2 cm
286 L
0.373 kW
0.373 kW
54.61 cm
130.2 cm / 34.3 cm
385.5 kg
408.2 kg
11.33 cmm
9.44 cmm
20,160 kcal/hr
20.32 cm
NOTE: ADC reserves the right to make changes in specifications at any time without notice or
obligation.
6 American Dryer Corp. 113047-23
SPECIFICATIONS
ADG-236 (GAS)
NOTE: ADC reserves the right to make changes in specifications at any time without notice or
obligation.
113047- 23 www.adclaundry.com 7
SECTION III
INSTALLATION PROCEDURES
Installation should be performed by competent technicians in accordance with local and state codes. In the
absence of these codes, the installation must conform to applicable American National S tandards: ANSI Z223.1LATEST EDITION (National Fuel Gas Code) or ANSI/NFPA NO. 70-LATEST EDITION (National Electrical
Code) or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1-M91
(Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P.] Gas) or LATEST EDITION (for General
Installation and Gas Plumbing) or Canadian Electrical Codes Parts 1 & 2 CSA C22.1-1990 or LATEST EDITION
(for Electrical Connections).
A. UNPACKING/SETTING UP
Remove protective shipping material (i.e., plastic wrap and/or optional shipping box) from dryer.
NOTE: The access keys for the service doors are included in the information packet shipped in the
basket (tumbler). These keys should be removed and put in a safe place, yet made
accessible because they will be needed throughout various phases in the installation of the
dryer .
Dryers are shipped with a coin box and coin box faceplate ONLY. The coin box lock is not included and
must be purchased elsewhere or the lock can be ordered as a parts order from the ADC Parts Department at
(508) 678-9000.
The dryer can be moved to its final location while still attached to the skid or with the skid removed. T o unskid
the dryer, locate and remove the four (4) bolts securing the base of the dryer to the wooden skid. Two (2) are
at the rear of the base and two (2) are located in the front. Once the bolts are removed, slide the dryer off of the
skid.
With the skid removed, to make it easier to slide the dryer into its final position, slightly lower ALL the leveling
legs so that the dryer will slide on the legs instead of the base frame. The dryer is equipped with four (4) leveling
legs, one (1) at each corner of the dryer base. The hex head adjustment bolts for the two (2) front leveling legs
are located directly behind the lower access door and the rear two (2) adjustments are directly behind the lower
rear back (guard) panel.
8 American Dryer Corp. 113047-23
B. LOCATION REQUIREMENTS
Before installing the dryer, be sure the location conforms to local codes and ordinances. In the absence of such
codes or ordinances the location must conform with the National Fuel Gas Code ANSI.Z223.1 LATEST
EDITION, or in Canada, the installation must conform to applicable Canadian Standards: CAN/CGA-B149.1M91 (Natural Gas) or CAN/CGA-B149.2-M91 (Liquid Propane [L.P .] Gas) or LATEST EDITION (for General
Installation and Gas Plumbing).
1. The dryer must be installed on a sound level floor capable of supporting its weight. Carpeting must be
removed from the floor area that the dryer is to rest on.
IMPORTANT: “The dryer must be installed on noncombustible floors only .”
2. The dryer must not be installed or stored in an area where it will be exposed to water and/or weather.
3. The dryer is for use in noncombustible locations.
4. Provisions for adequate air supply must be provided as noted in this manual (refer to Fresh Air Supply
Requirements in
5. Clearance provisions must be made
from combustible construction as noted
in this manual (refer to Dryer
Enclosure Requirements in Section
C). Even though a 12-inch (30.48 cm)
clearance is acceptable, it is
recommended that the rear of the dryer
be positioned approximately 2 feet (0.61
meters) away from the nearest
obstruction (i.e., wall) for ease of
installation, maintenance, and service.
(Refer to the illustration at right.)
Section D).
6. Provisions must be made for adequate
clearances for servicing and for
operation as noted in this manual (refer
to Dryer Enclosure Requirements
in Section C ).
7. Dryer must be exhausted to the
outdoors as noted in this manual (refer
to Exhaust Requirements in Section
E).
8. Dryer must be located in an area where correct exhaust venting can be achieved as noted in this manual
(refer to Exhaust Requirements in Section E).
IMPORTANT: Dryer should be located where a minimum amount of exhaust duct will be necessary .
9. The dryer must be installed with a proper exhaust duct connection to the outside.
113047- 23 www.adclaundry.com 9
10. The dryer must be installed with provisions for adequate combustion and make-up air supply.
CAUTION: This dryer produces combustible lint and must be exhausted to the outdoors. Every 6
months, inspect the exhaust ducting and remove any lint build up.
IMPORTANT: Dryer must be installed in a location/environment, which the ambient
temperature remains between 40° F (4.44° C) and 130° F (54.44° C).
C. DRYER ENCLOSURE REQUIREMENTS
Bulkheads and partitions must be made of noncombustible materials and must be located a minimum of
12-inches (30.48 cm) above the dryer outer top, except along the front of the dryer which may be partially closed
in if desired.
NOTE: Allowances must be made for opening the control door .
Dryers may be positioned sidewall to sidewall. However, a 1/16” (1.5875 mm) minimum allowance must be
made for the opening and closing of the control door and the lint door. It is suggested that the dryer be positioned
about 2 feet (0.61 meters) away from the nearest obstruction, for ease of installation, maintenance, and service
(to be measured from the back guard). Refer to the illustration on the previous page for details.
NOTE: Air considerations are important for proper and efficient operation.
IMPORTANT: Even though a minimum of only 12-inches (30.48 cm) is required, 18-inches (45.72
cm) or more is suggested. The additional clearance is advantageous for ease of
installation and service.
IMPORTANT: When fire sprinkler systems are located above the dryers, a minimum of 18-inches
(45.72 cm) above the dryer console (module) is required. Dryers may be positioned
sidewall to sidewall, however, a 1/16” (1.5875 mm) minimum allowance is required
between dryers (or wall) for ease of installation and maintenance. Allowances must
be made for the opening and closing of the control door and the lint door.
D. FRESH AIR SUPPLY REQUIREMENTS
This appliance may only be installed in a room that meets the appropriate ventilation requirements specified in
the national installation regulations.
When the dryer is operating, it draws in room air, heats it, passes this air through the basket (tumbler), and
exhausts it out of the building. Therefore, the room air must be continually replenished from the outdoors. If the
make-up air is inadequate, drying time and drying efficiency will be adversely affected. Ignition problems and
sail switch “fluttering” problems may result, as well as premature motor failure from overheating.
10 American Dryer Corp. 113047 - 23
Air supply (make-up air) must be given careful consideration to assure proper performance of each dryer . An
unrestricted source of 800 cfm (cubic feet per minute) (22.66 cmm [cubic meters per minute]) is necessary for
each dryer. As a general rule, an unrestricted air entrance from the outdoors (atmosphere) of a minimum of
1-1/2 square feet (0.41 square meters) is required for each dryer. The area must be enlarged if louvers or
registers cover the openings. The dryer must be installed with provisions for adequate combustion and
make-up air supply.
T o compensate for the use of registers or louvers used over the openings, this make-up air must be increased by
approximately thirty-three percent (33%). Make-up air openings should not be located in an area directly near
where exhaust vents exit the building.
It is not necessary to have a separate make-up air opening for each dryer. Common make-up air openings are
acceptable. However, they must be set up in such a manner that the make-up air is distributed equally to ALL
the dryers.
EXAMPLE: For a bank of eight (8) dryers, a total make-up air opening of 12 square feet (1.12 square meters)
is required. Two (2) unrestricted openings measuring 2 feet by 3 feet (6 square feet) (0.61 meters
by 0.92 meters [0.56 square meters]) are acceptable.
Allowances must be made for remote or constricting passageways or where dryers are located at excessive
altitudes or predominantly low pressure areas.
IMPORTANT: Make-up air must be provided from a source free of dry cleaning solvent fumes.
Make-up air that is contaminated by dry cleaning solvent fumes will result in
irreparable damage to the motors and other dryer components.
NOTE: Component failure due to dry cleaning solvent fumes will VOID THE WARRANTY .
113047- 23 www.adclaundry.com 11
Loading...
