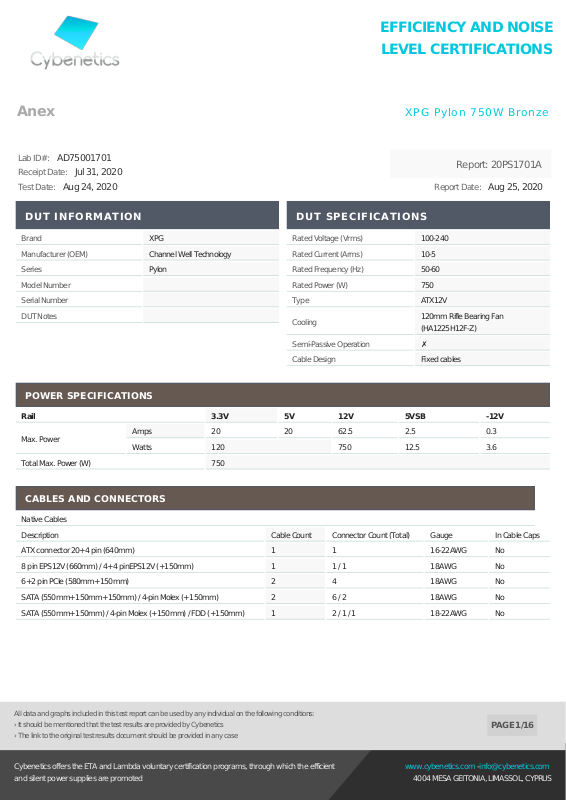

XPG Pylon 750W Bronze
Report: 20PS1701A
Test Date: Aug 24, 2020 Report Date: Aug 25, 2020
DUT INFORMATION
Brand XPG
Manufacturer (OEM) Channel Well Technology
Series Pylon
Model Number
Serial Number
DUT Notes
DUT SPECIFICATIONS
Rated Voltage (Vrms) 100-240
Rated Current (Arms) 10-5
Rated Frequency (Hz) 50-60
Rated Power (W) 750
Type ATX12V
Cooling
Semi-Passive Operation ✗
Cable Design Fixed cables
120mm Rifle Bearing Fan
(HA1225H12F-Z)
POWER SPECIFICATIONS
Rail 3.3V 5V 12V 5VSB -12V
Max. Power
Total Max. Power (W) 750
Amps 20 20 62.5 2.5 0.3
Watts 120 750 12.5 3.6
CABLES AND CONNECTORS
Native Cables
Description Cable Count Connector Count (Total) Gauge In Cable Caps
ATX connector 20+4 pin (640mm) 1 1 16-22AWG No
8 pin EPS12V (660mm) / 4+4 pinEPS12V (+150mm) 1 1 / 1 18AWG No
6+2 pin PCIe (580mm+150mm) 2 4 18AWG No
SATA (550mm+150mm+150mm) / 4-pin Molex (+150mm) 2 6 / 2 18AWG No
SATA (550mm+150mm) / 4-pin Molex (+150mm) / FDD (+150mm) 1 2 / 1 / 1 18-22AWG No
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 1/16
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
General Data -
Manufacturer (OEM) CWT
PCB Type Single Sided
Primary Side -
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x CAP200DG (Discharge IC)
Inrush Protection NTC Thermistor SCK - 2R58
Bridge Rectifier(s) 1x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETs 2x Great Power GP28S506 (500 V, 28 A, Rds (on): 0.125 Ohm)
APFC Boost Diode 1x On Semiconductor FFSP0665A (650V, 6A @ 153°C)
Bulk Cap(s) 1x Nippon Chemi-Con (400V, 470uF, 2,000h @ 105°C, KMW)
Main Switchers 2x GP23S60HX
PFC/PWM Combo Controller Champion CM6800TX & Champion CM03X
Topology
Secondary Side -
+12V
5V & 3.3V MOSFETs
Filtering Capacitors
Supervisor IC INI1S429I - DCG
Fan Model Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, Rifle Bearing Fan)
Primary side: APFC, Double Forward
Secondary side: Semi-Passive Rectification (12V) & DC-DC converters (5V & 3.3V)
2x PFC PFR40V60CT SBR (60V, 40A),
2x Advanced Power Electronics AP6N3R5I FET(60V, 45A @ 100°C, Rds (on): 3.58 mOhm) & 1x Sync Power SP6019 Driver IC
4x Sync Power SPN3006 (30V, 57A @ 100°C, Rds(on): 5.5mOhm)
PWM Controller: ANPEC APW7159C
Electrolytic: 6x Jun Fu (2-5,000h @ 105°C, WL), 4x Jun Fu (2,000h @ 105°C, WG), 3x CapXon (2-5,000h @ 105°C, KF), 4x
CapXon (2,000h @ 105°C, GF)
Polymer: 2x APAQ
XPG Pylon 750W Bronze
5VSB Circuit -
Standby PWM Controller Power Integrations TNY287PG
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 2/16
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
RESULTS
Temperature Range (°C /°F) 30-32 / 86-89.6
ErP Lot 3/6 Ready ✓
(EU) No 617/2013 Compliance ✓
115V
Average Efficiency 85.940%
Efficiency With 10W (≤500W) or 2% (>500W) 66.482
Average Efficiency 5VSB 79.781%
Standby Power Consumption (W) 0.0375167
Average PF 0.986
Avg Noise Output 31.49 dB(A)
Efficiency Rating (ETA) ETA-A-
Noise Rating (LAMBDA) LAMBDA-S++
230V
Average Efficiency 88.172%
Average Efficiency 5VSB 78.305%
Standby Power Consumption (W) 0.0730365
Average PF 0.963
Avg Noise Output 30.98 dB(A)
Efficiency Rating (ETA) ETA-A-
Noise Rating (LAMBDA) LAMBDA-S++
XPG Pylon 750W Bronze
TEST EQUIPMENT
Chroma 63601-5 x4
Electronic Loads
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
HOLD-UP TIME & POWER OK SIGNAL (230V)
Hold-Up Time (ms) 12.3
AC Loss to PWR_OK Hold Up Time (ms) 10
PWR_OK Inactive to DC Loss Delay (ms) 2.3
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 3/16
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
EFFICIENCY UNDER HIGH AMBIENT TEMPERATURE
XPG Pylon 750W Bronze
INFO
The PSU`s efficiency under high ambient
temperatures with 115V and 230V input. For this
graph the results of the 10-110% load regulation
table are used
5VSB EFFICIENCY
INFO
This graph depicts the efficiency levels of the 5VSB
rail with 115V and 230V input
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 4/16
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
XPG Pylon 750W Bronze
5VSB EFFICIENCY -115V (ERP LOT 3/6 & CEC)
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1
2
3
4
5
6
0.045A 0.230
72.785%
5.107V 0.316 115.14V
0.090A 0.460
77.181%
5.107V 0.596 115.14V
0.550A 2.805
81.328%
5.098V 3.449 115.14V
1.000A 5.090
79.668%
5.089V 6.389 115.14V
1.500A 7.618
79.470%
5.078V 9.586 115.14V
2.500A 12.647
77.196%
5.058V 16.383 115.14V
0.034
0.062
0.259
0.341
0.385
0.430
5VSB EFFICIENCY -230V (ERP LOT 3/6 & CEC)
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1
2
3
4
5
6
0.045A 0.230
62.670%
5.083V 0.367 230.28V
0.090A 0.460
69.592%
5.107V 0.661 230.28V
0.550A 2.805
77.209%
5.098V 3.633 230.28V
1.000A 5.090
78.878%
5.089V 6.453 230.28V
1.500A 7.618
79.904%
5.078V 9.534 230.28V
2.501A 12.648
79.184%
5.058V 15.973 230.28V
0.065
0.022
0.112
0.179
0.231
0.299
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 5/16
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex
XPG Pylon 750W Bronze
115V
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted
PAGE 6/16
www.cybenetics.com - info@cybenetics.com
4004 MESA GEITONIA, LIMASSOL, CYPRUS
EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS
Anex

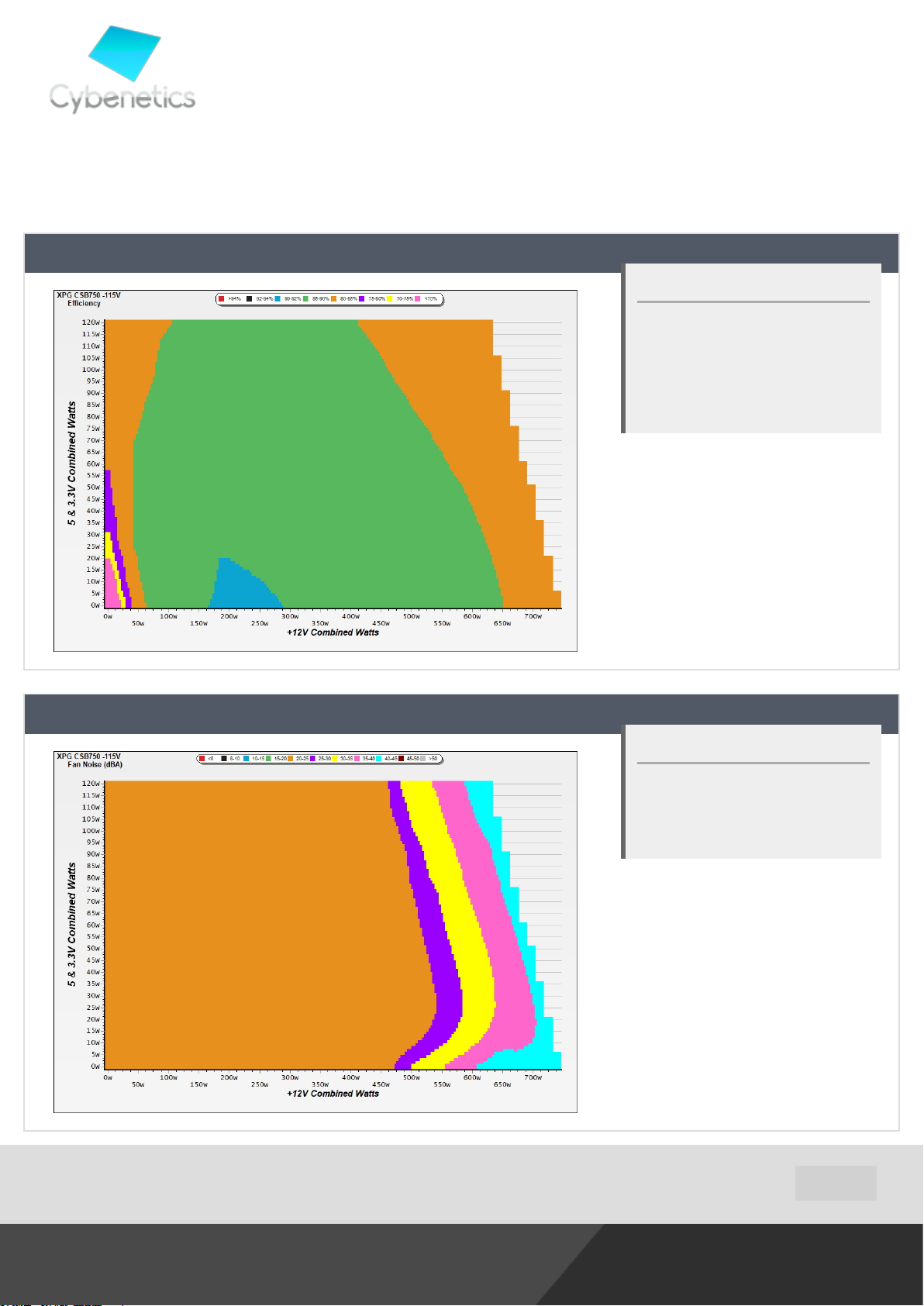

EFFICIENCY GRAPH 115V
