ADATA PYLON450B-BKCEU Technical data

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

Lab ID#: AD45001703
Receipt Date: Jul 31, 2020

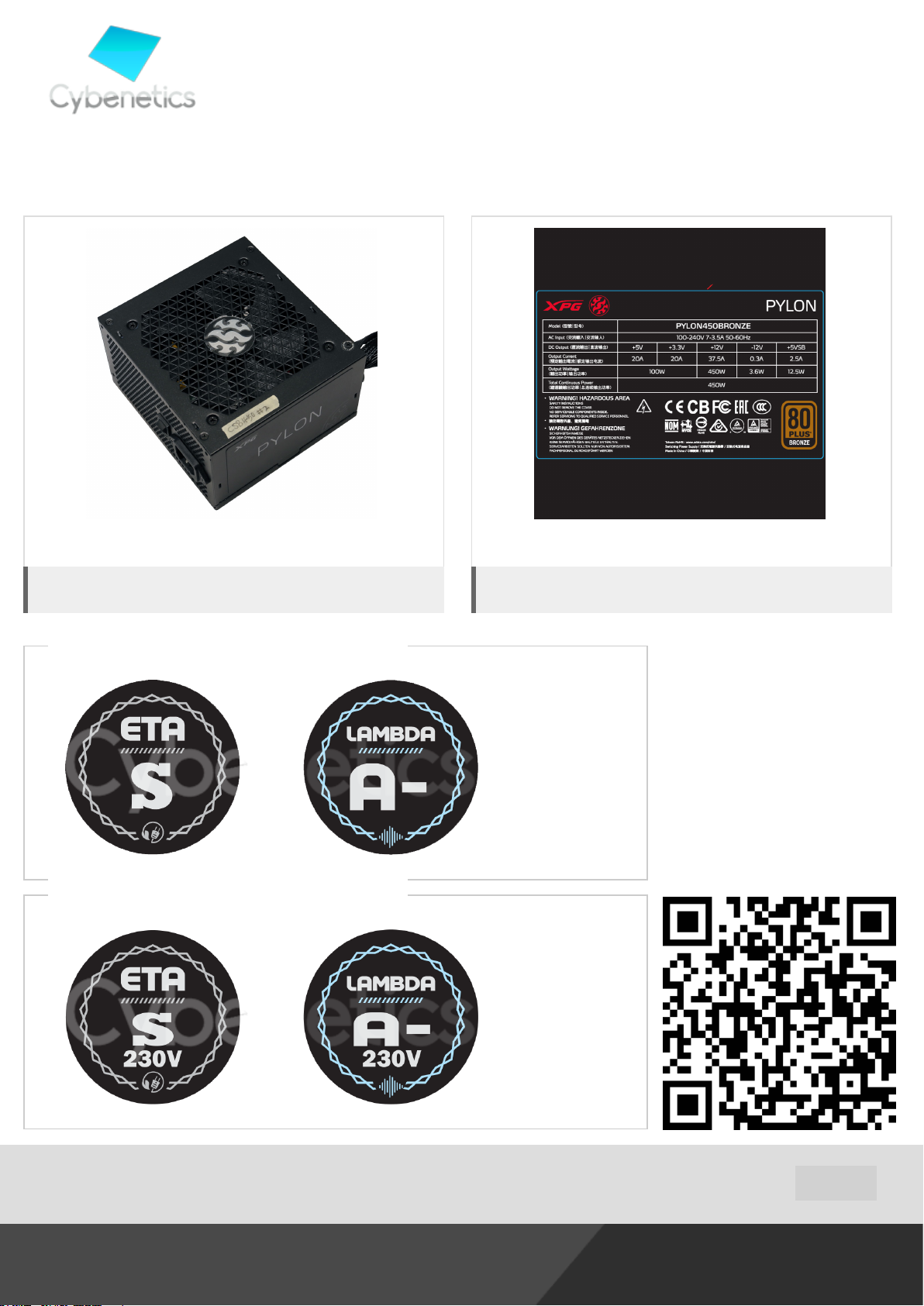

XPG Pylon 450W Bronze

Report: 20PS1703A

Test Date: Aug 27, 2020 Report Date: Aug 27, 2020

DUT INFORMATION

Brand XPG
Manufacturer (OEM) Channel Well Technology
Series Pylon
Model Number
Serial Number
DUT Notes

DUT SPECIFICATIONS

Rated Voltage (Vrms) 100-240
Rated Current (Arms) 7-3.5
Rated Frequency (Hz) 50-60
Rated Power (W) 450
Type ATX12V

Cooling

Semi-Passive Operation ✗
Cable Design Fixed cables

120mm Rifle Bearing Fan
(HA1225H12F-Z)

POWER SPECIFICATIONS

Rail 3.3V 5V 12V 5VSB -12V

Max. Power

Total Max. Power (W) 450

Amps 20 20 37.5 2.5 0.3
Watts 100 450 12.5 3.6

CABLES AND CONNECTORS

Native Cables
Description Cable Count Connector Count (Total) Gauge In Cable Caps
ATX connector 20+4 pin (660mm) 1 1 16-22AWG No
4+4 pinEPS12V (680mm) 1 1 18AWG No
6+2 pin PCIe (580mm+150mm) 1 2 18AWG No
SATA (550mm+150mm+150mm) / 4-pin Molex (+150mm) 1 3 / 1 18AWG No
SATA (550mm+150mm) / 4-pin Molex (+150mm) / FDD (+150mm) 1 2 / 1 / 1 18-22AWG No

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 1/16

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

General Data -

Manufacturer (OEM) CWT
PCB Type Single Sided

Primary Side -

Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x CAP200DG (Discharge IC)
Inrush Protection NTC Thermistor SCK - 2R58
Bridge Rectifier(s) 1x GBU806 (600V, 8A @ 100°C
APFC MOSFETs 2x Silan Microelectronics SVF18N50F (500V, 11A @ 100°C, Rds(on): 0.31Ohm)
APFC Boost Diode 1x STMicroelectronics STTH8S06 (600V, 8A @ 25°C)
Bulk Cap(s) 1x Nippon Chemi-Con (400V, 390uF, 2,000h @ 105°C, KMW)
Main Switchers 2x Silan Microelectronics SVF13N50F (500V, 8.2 @ 100°C, Rds(on): 0.52Ohm)
PFC/PWM Combo Controller Champion CM6800TX & Champion CM03X

Topology

Secondary Side -

+12V SBRs 4x PFC PFR20L60CT (60V, 20A)

5V & 3.3V MOSFETs

Filtering Capacitors

Supervisor IC INI1S429I - DCG
Fan Model Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, Rifle Bearing Fan)

Primary side: APFC, Double Forward
Secondary side: Passive Rectification (12V) & DC-DC converters (5V & 3.3V)

4x Sync Power SPN3006 (30V, 57A @ 100°C, Rds(on): 5.5mOhm)
PWM Controller: ANPEC APW7159C

Electrolytic: 6x Jun Fu (2-5,000h @ 105°C, WL), 4x Jun Fu (2,000h @ 105°C, WG), 3x CapXon (2-5,000h @ 105°C, KF), 4x
CapXon (2,000h @ 105°C, GF)
Polymer: 2x APAQ

XPG Pylon 450W Bronze

5VSB Circuit -

Standby PWM Controller Power Integrations TNY287PG

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 2/16

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

RESULTS

Temperature Range (°C /°F) 30-32 / 86-89.6
ErP Lot 3/6 Ready ✓
(EU) No 617/2013 Compliance ✓

115V

Average Efficiency 83.670%
Efficiency With 10W (≤500W) or 2% (>500W) 56.371
Average Efficiency 5VSB 80.206%
Standby Power Consumption (W) 0.0357554
Average PF 0.986
Avg Noise Output 28.96 dB(A)
Efficiency Rating (ETA) ETA-S
Noise Rating (LAMBDA) LAMBDA-A-

230V

Average Efficiency 85.810%
Average Efficiency 5VSB 79.257%
Standby Power Consumption (W) 0.0695658
Average PF 0.958
Avg Noise Output 28.97 dB(A)
Efficiency Rating (ETA) ETA-S
Noise Rating (LAMBDA) LAMBDA-A-

XPG Pylon 450W Bronze

TEST EQUIPMENT

Chroma 63601-5 x4

Electronic Loads

AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2

Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2

HOLD-UP TIME & POWER OK SIGNAL (230V)

Hold-Up Time (ms) 14.4
AC Loss to PWR_OK Hold Up Time (ms) 12.4
PWR_OK Inactive to DC Loss Delay (ms) 2

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 3/16

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

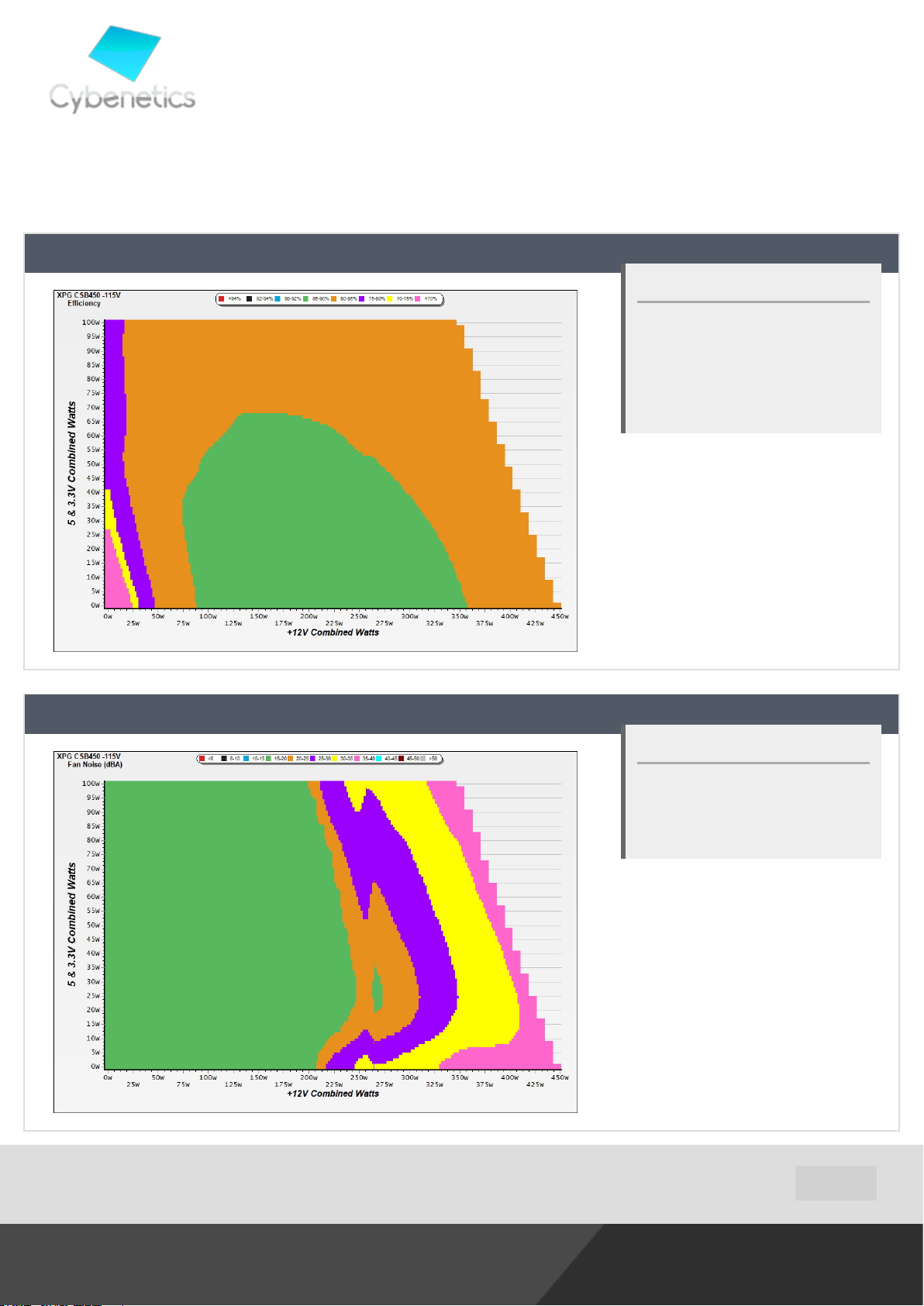

EFFICIENCY UNDER HIGH AMBIENT TEMPERATURE

XPG Pylon 450W Bronze

INFO

The PSU`s efficiency under high ambient
temperatures with 115V and 230V input. For this
graph the results of the 10-110% load regulation
table are used

5VSB EFFICIENCY

INFO

This graph depicts the efficiency levels of the 5VSB
rail with 115V and 230V input

All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case

Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient
and silent power supplies are promoted

PAGE 4/16

www.cybenetics.com - [e-mail]

4004 MESA GEITONIA, LIMASSOL, CYPRUS

EFFICIENCY AND NOISE
LEVEL CERTIFICATIONS

Anex

XPG Pylon 450W Bronze

5VSB EFFICIENCY -115V (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts

1

2

3

4

5

6

0.045A 0.230

73.718%

5.083V 0.312 115.12V

0.090A 0.460

77.966%

5.108V 0.590 115.12V

0.550A 2.805

81.778%

5.098V 3.430 115.12V

1.000A 5.089

79.802%

5.089V 6.377 115.12V

1.500A 7.616

79.599%

5.077V 9.568 115.12V

2.500A 12.642

77.293%

5.056V 16.356 115.12V

0.099

0.077

0.296

0.375

0.416

0.455

5VSB EFFICIENCY -230V (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts

1

2

3

4

5

6

0.045A 0.230

64.789%

5.109V 0.355 230.26V

0.090A 0.460

71.540%

5.108V 0.643 230.26V

0.550A 2.805

78.330%

5.098V 3.581 230.26V

1.000A 5.090

79.906%

5.089V 6.370 230.26V

1.500A 7.618

80.325%

5.078V 9.484 230.26V

2.500A 12.645

80.179%

5.057V 15.771 230.26V

0.015

0.027

0.137

0.211

0.267

0.330
