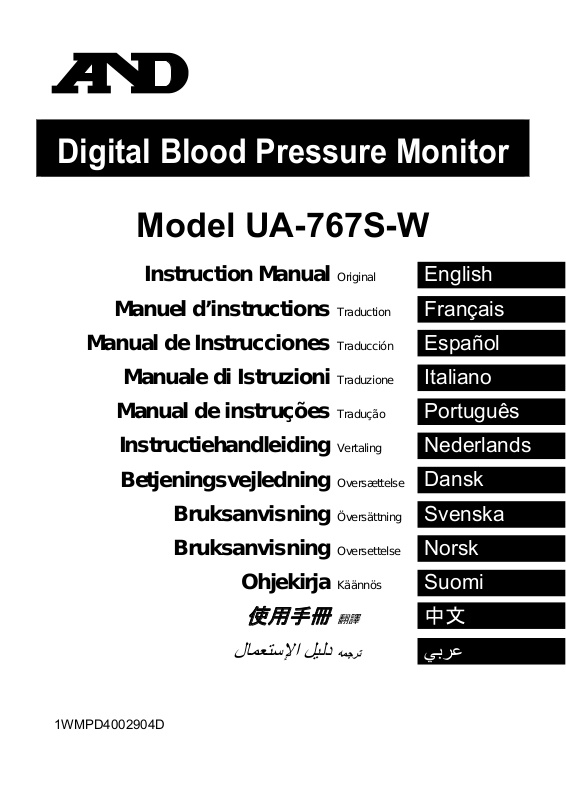

A&D UA-767S-W Datasheet
Digital Blood Pressure Monitor
Model UA-767S-W
Instruction Manual Original
Manuel d’instructions
Traduction
Manual de Instrucciones Traducción
Manuale di Istruzioni
Traduzione
Manual de instruções Tradução
Instructiehandleiding
Betjeningsvejledning
Vertaling
Oversættelse
Bruksanvisning Översättning
Bruksanvisning
Oversettelse
English
Français
Español
Italiano
Português
Nederlands
Dansk
Svenska
Norsk
Ohjekirja
1WMPD4002904D
使用手冊
ﻝﺎﻣﻌﺗﺳﻹﺍ ﻝﻳﻟﺩ
Käännös
翻譯
ﻪﻣﺟﺭﺗ
Suomi
中文
ﻲﺑﺭﻋ
Contents
Dear Customers .................................................................... 2
Preliminary Remarks ............................................................. 2
Precautions ........................................................................... 2
Parts Identification ................................................................ 5
Symbols ................................................................................ 6

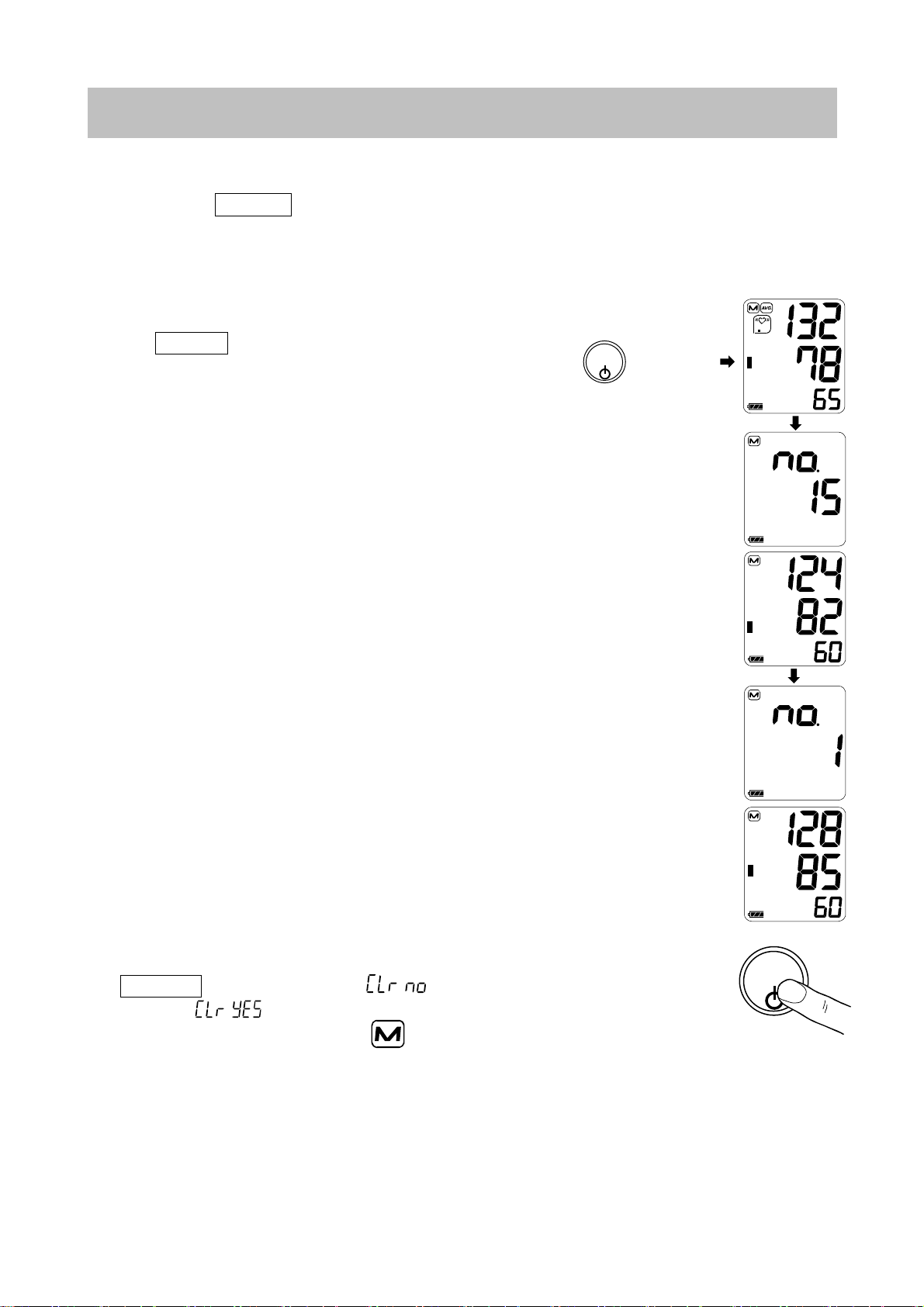

Operation Mode .................................................................... 8
Using the Monitor ................................................................. 9

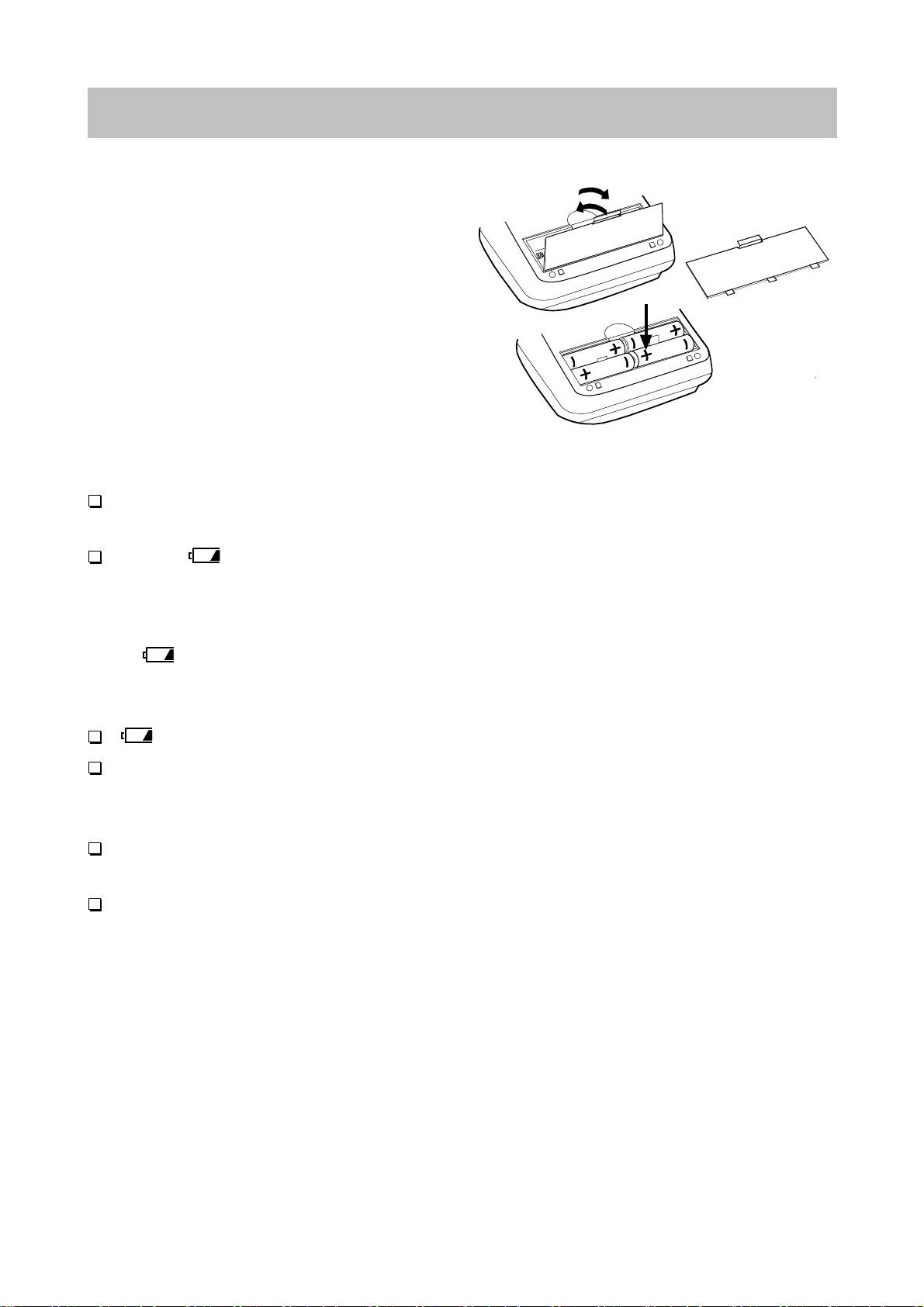

Installing / Changing the Batteries ................................... 9
Connecting the Air Hose ................................................ 10
Connecting the AC Adapter ............................................ 10

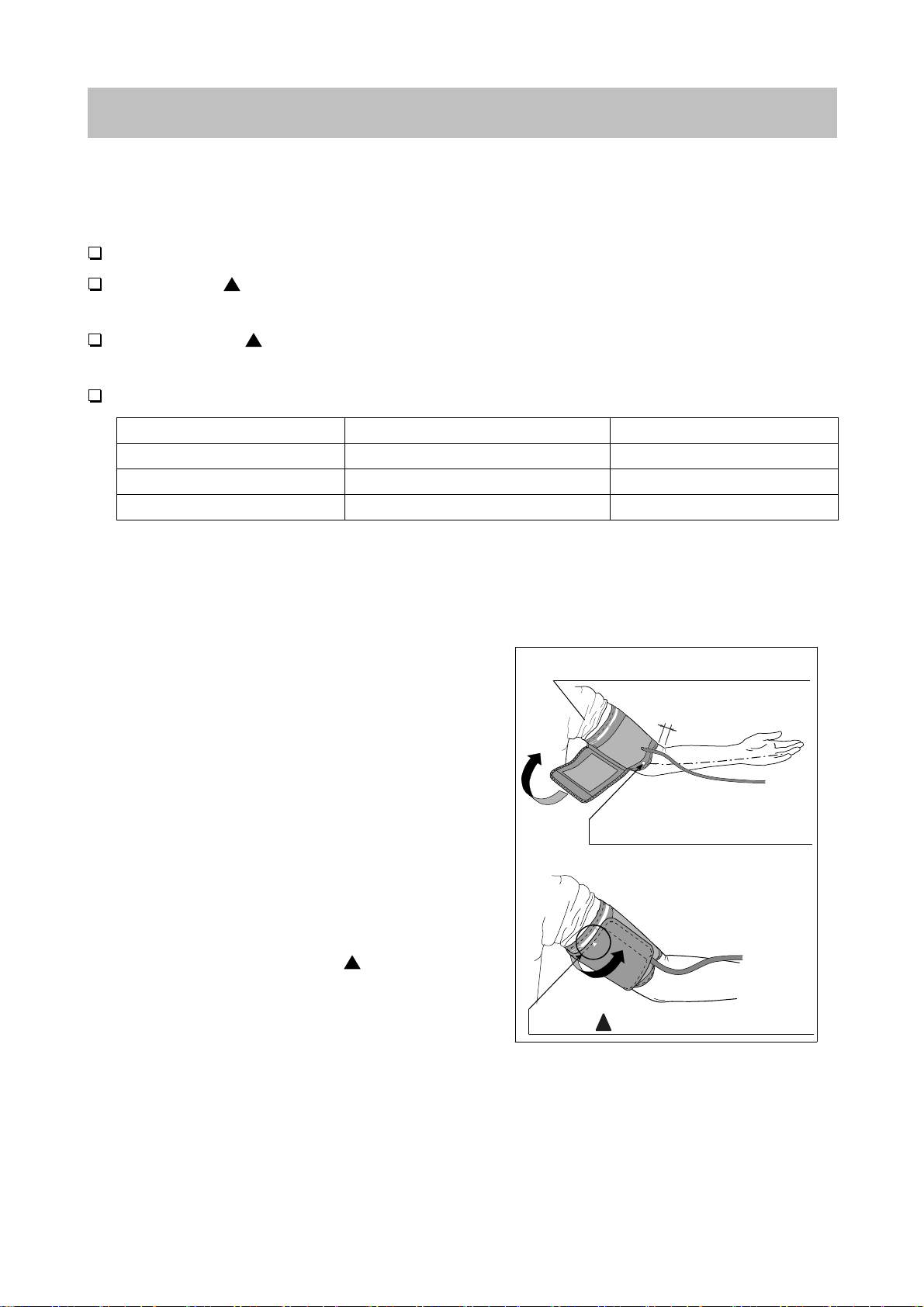

Selecting the Correct Cuff Size ....................................... 11
Applying the Arm Cuff ................................................... 11
How to Take Accurate Measurements ............................. 13
Measurement ................................................................. 13
After Measurement ........................................................ 13
Measurements .................................................................... 14

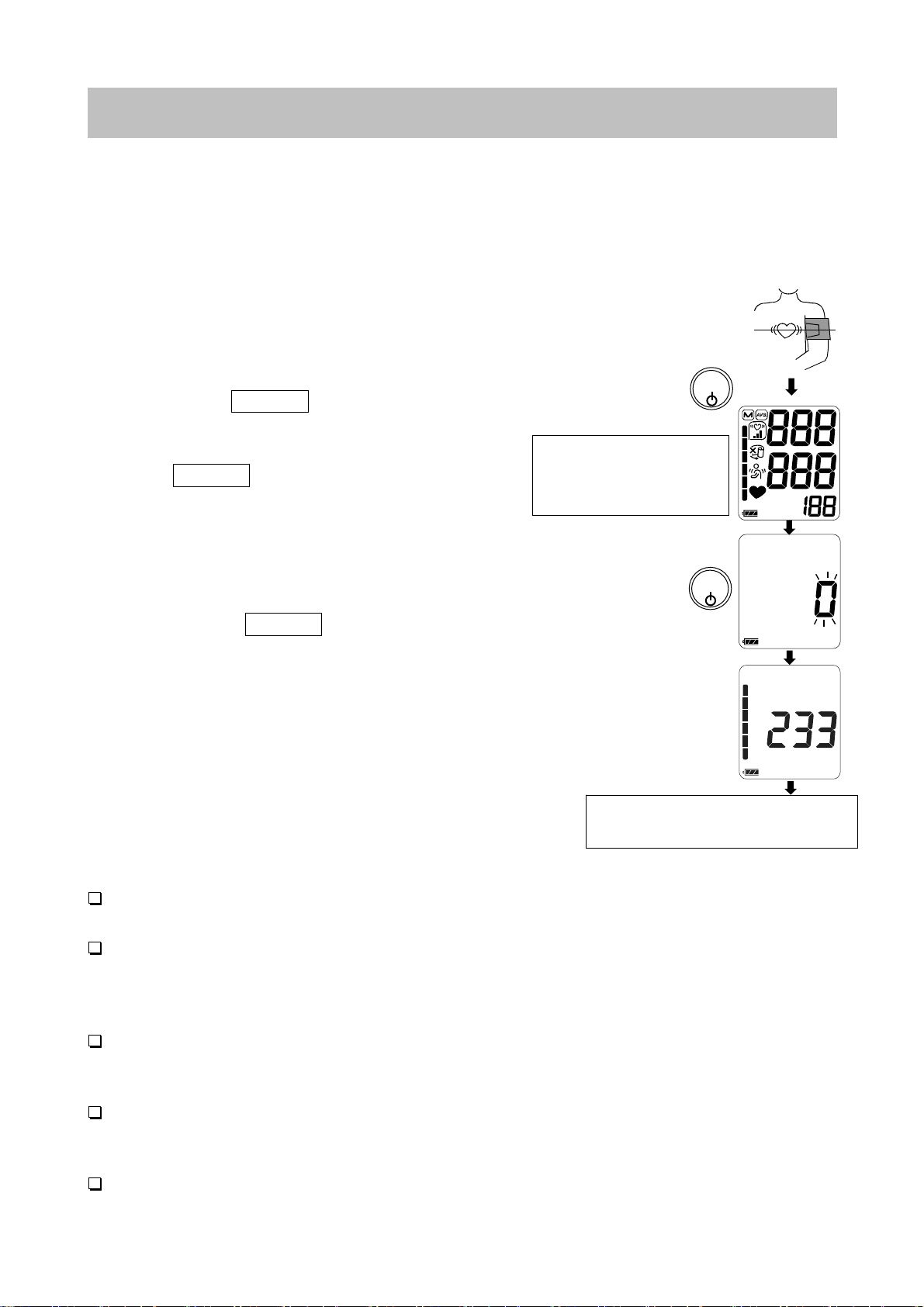

Normal Measurement ..................................................... 14
Measurement with the Desired Systolic Pressure ............ 15
Notes for Accurate Measurement ................................... 15

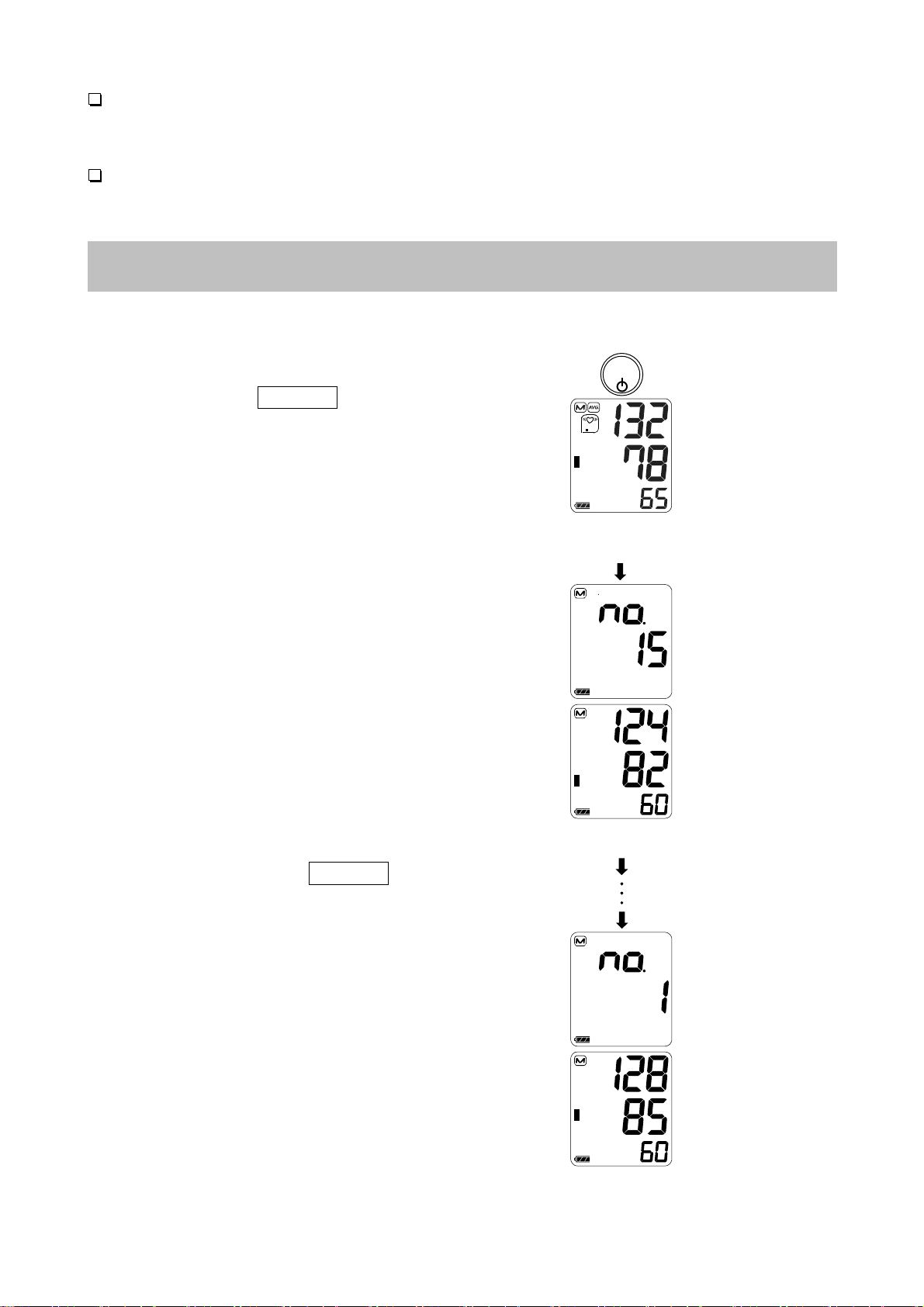

Recalling the Memory Data ................................................. 16

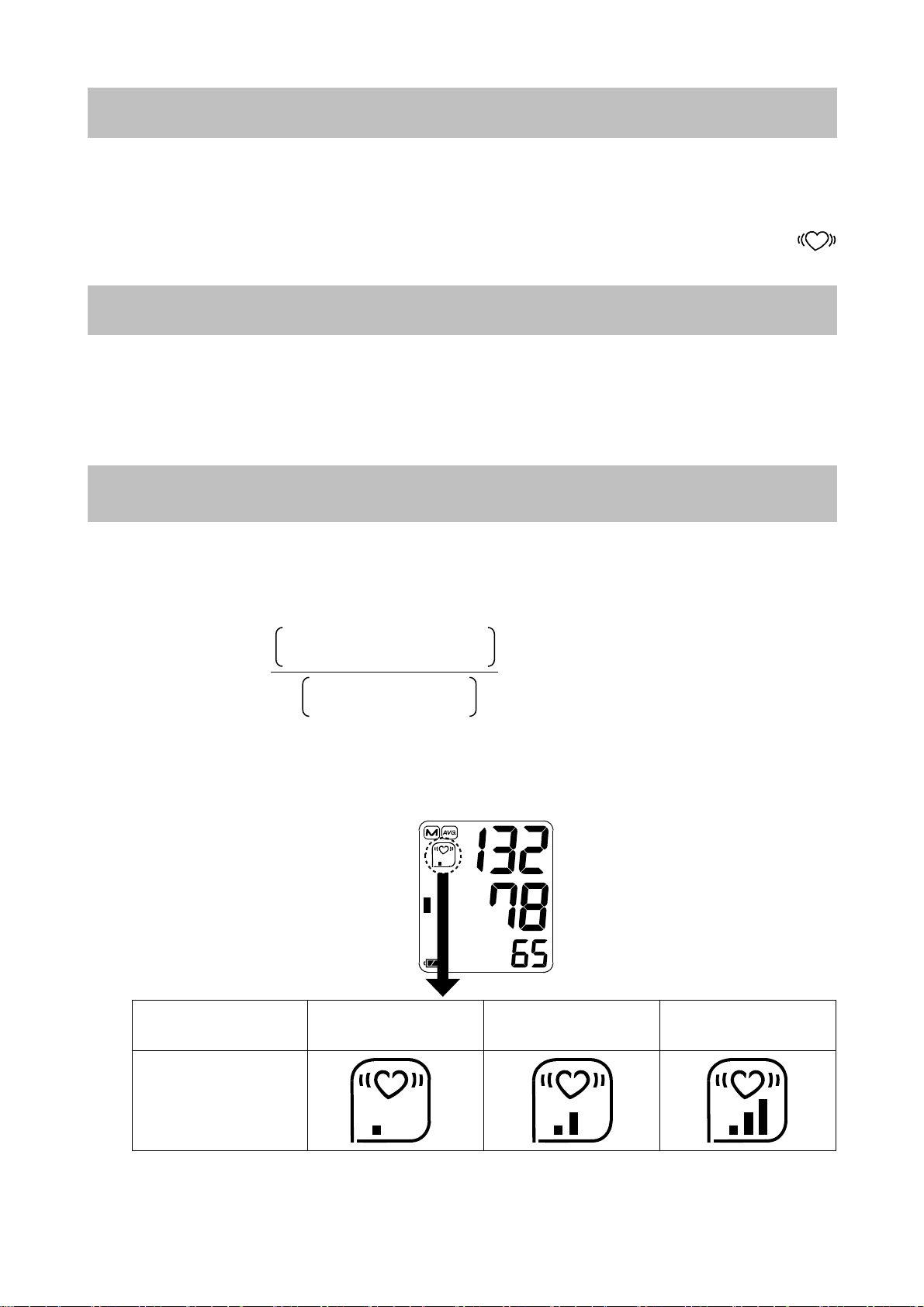

What Is The IHB/AFib Indicator? .......................................... 17
What Is The AFib? ............................................................... 17
％IHB/AFib .......................................................................... 17

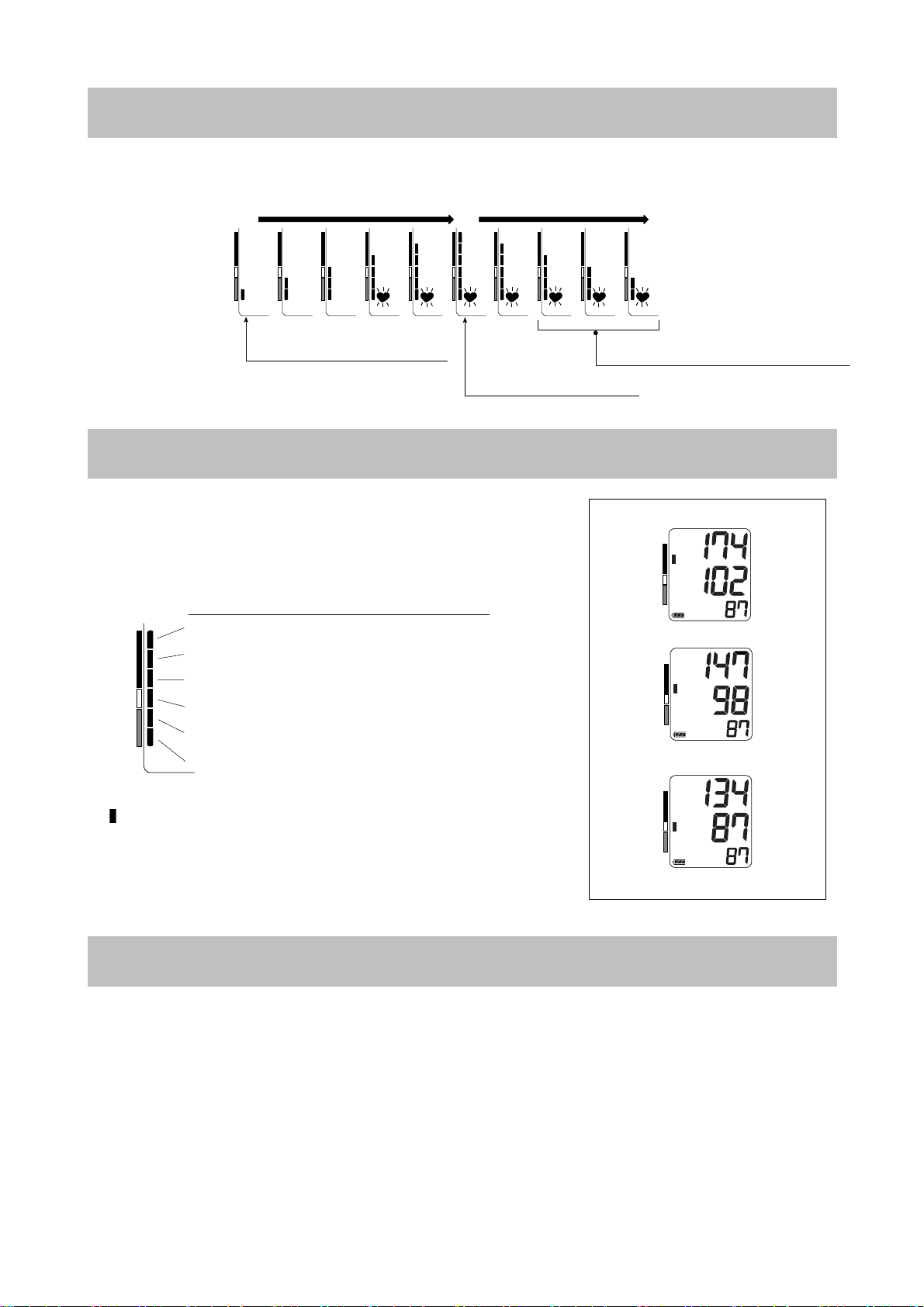

Pressure Bar Indicator ......................................................... 18
WHO Classification Indicator ............................................... 18
About Blood Pressure .......................................................... 18
What is Blood Pressure? ................................................. 18
What is Hypertension and How is it Controlled? .............. 19
Why Measure Blood Pressure at Home? ........................... 19
WHO Blood Pressure Classification ................................. 19
Blood Pressure Variations ............................................... 19
Troubleshooting ................................................................. 20
Maintenance ....................................................................... 21
Technical Data .................................................................... 21
English 1
Dear Customers
Congratulations on purchasing a state-of-the-art A&D blood pressure
monitor, one of the most advanced monitors available today. Designed
for ease of use and accuracy, this device will facilitate your daily blood
pressure regimen.
We recommend that you read through this manual carefully before
using the device for the first time.
Preliminary Remarks
This device conforms to the European Directive 93/42 EEC for Medical
Products. This is made evident by the
The reference number to the involved notified body)
The device is designed for use on adults, not newborns or infants.
Environment for use. The device is for use to operate by yourself in the
home healthcare environment.
This device is designed to measure blood pressure and pulse rate of
people for diagnosis.
mark of conformity. (0123:
Precautions
Precision components are used in the construction of this device. Extremes
in temperature, humidity, direct sunlight, shock or dust should be avoided.
Clean the device and cuff with a dry, soft cloth or a cloth dampened with
water and a neutral detergent. Never use alcohol, benzene, thinner or
other harsh chemicals to clean the device or cuff.
Avoid tightly folding the cuff or storing the hose tightly twisted for long
periods, as such treatment may shorten the life of the components.
Take care to avoid accidental strangulation of babies or infants with the hose.
Do not twist the air hose during measurement. This may cause injury due
to continuous cuff pressure.
The device and cuff are not water resistant. Prevent rain, sweat and water
from soiling the device and cuff.
Measurements may be distorted if the device is used close to televisions,
microwave ovens, cellular telephones, X-ray or other devices with strong
electrical fields.
Wireless communication devices, such as home networking devices, mobile
phones, cordless phones and their base stations, walkie-talkies can affect
this blood pressure monitor.
Therefore, a minimum distance of 30 cm should be kept from such devices.
When reusing the device, confirm that the device is clean.
English 2
Used equipment, parts and batteries are not treated as ordinary
household waste, and must be disposed of according to the applicable
local regulations.
When the AC adapter is used, make sure that the AC adapter can be
readily removed from the electrical outlet when necessary.
Do not modify the device. It may cause accidents or damage to the device.
To measure blood pressure, the arm must be squeezed by the cuff hard
enough to temporarily stop blood flow through the artery. This may cause
pain, numbness or a temporary red mark to the arm. This condition will
appear especially when measurement is repeated successively. Any pain,
numbness, or red marks will disappear with time.
Measuring blood pressure too frequently may cause harm due to blood flow
interference. Check that the operation of the device does not result in
prolonged impairment of blood circulation, when using the device
repeatedly.
If you have had a mastectomy, please consult a doctor before using the device.
Do not let children use the device by themselves and do not use the device
in a place within the reach of infants. It may cause accidents or damage.
There are small parts that may cause a choking hazard if swallowed by
mistake by infants.
Unplug the AC adapter when not in use during the measurement.
Use of accessories not detailed in this manual may compromise safety.
Should the battery short-circuit, it may become hot and potentially cause
burns.
Allow the device to adapt to the surrounding environment before use (about
one hour).
Clinical testing has not been conducted on newborn infants and pregnant
woman. Do not use on newborn infants or pregnant woman.
Do not touch the batteries, the DC jack, and the patient at the same time.
That may result in electrical shock.
Do not inflate without wrapping the cuff around the upper arm.
Contraindications
The following are precautions for proper use of the device.
Do not apply the cuff on an arm with another medical electrical equipment
attached. The equipment may not function properly.
People who have a severe circulatory deficit in the arm must consult a
doctor before using the device, to avoid medical problems.
Do not self-diagnose the measurement results and start treatment by
yourself. Always consult your doctor for evaluation of the results and
treatment.
Do not apply the cuff on an arm with an unhealed wound.
Do not apply the cuff on an arm receiving an intravenous drip or blood
transfusion. It may cause injury or accidents.
English 3
Do not use the device where flammable gases such as anesthetic gases
are present. It may cause an explosion.
Do not use the device in highly concentrated oxygen environments, such
as a high-pressure oxygen chamber or an oxygen tent. It may cause a fire
or explosion.
English 4
y
r
r
r
k
Air Connector Plug
Proper Fit Range
Battery Compartment
Display
Movement Error Symbol
Air Socket
Index Mark
IHB/AFib symbol
Cuff Fit Error Symbol
Heart Mar
Parts Identification
Displa
Arm Cuff
Battery Cover
1.5V Batteries
(R6P, LR6 or AA)
Average
MEMORY
%IHB/AFib
AC adapter Plug
DC Jack
START Button
Air Hose
Artery
Systolic
Pressure
Diastolic
Pressure
WHO Classification Indicato
and Pressure Bar Indicato
Battery Indicato
English 5
Pulse Rate
Symbols
A
A
Symbols that are printed on the device case
Symbols Function / Meaning
SYS
DIA
PUL
IP
SN
Standby and Turn the device on.
Systolic blood pressure in mmHg
Diastolic blood pressure in mmHg
Pulse per minute
Battery installation guide
Direct current
Type BF: Device, cuff and tubing are designed to provide
special protection against electrical shocks.
EC directive medical device label
EU-representative
Manufacturer
Date of manufacture
International protection symbol
WEEE label
Serial number
Refer to instruction manual/booklet
Polarity of DC jack
Keep dry
Symbols that appear on the display
Symbols Function / Meaning Recommended Action
ppears while measurement is in
progress. It blinks when the pulse is
detected.
IHB/AFib symbol
Appears when an irregular heartbeat is
detected.
It may light when a very slight vibration
like shivering or shaking is detected.
ppears when a body or arm movement
is detected.
Measurement is in
progress. Remain as
still as possible.
The reading may yield
an incorrect value. Try
the measurement again.
Remain still during
measurement.
English 6
Symbols
R
Symbols Function / Meaning Recommended Action
The reading may yield an
Appears during measurement when
the cuff is attached loosely
incorrect value. Apply the
cuff correctly, and try the
measurement again.
Detected rate of IHB/AFib in memory
%IHB/AFib =
Previous measurements stored in
MEMORY.
Average data
Number of detected
IHB/AFibs in memory
Total number
x100 [%]
FULL BATTERY
The battery power indicator during
measurement.
Replace all batteries with new
ones when the mark blinks.
Try the measurement again.
Remain very still during
measurement.
LOW BATTERY
The battery is low when it blinks.
Unstable blood pressure due to
movement during measurement.
The systolic and diastolic values
are within 10 mmHg of each other.
The pressure value did not increase
during the inflation.
Apply the cuff correctly,
and try the measurement
The cuff is not applied correctly.
again.
PUL DISPLAY ERRO
The pulse is not detected correctly.
Remove the batteries and
Blood pressure monitor internal
error
press the
and then install the batteries
again. If the error still
appears, contact the dealer.
START button,
English 7
