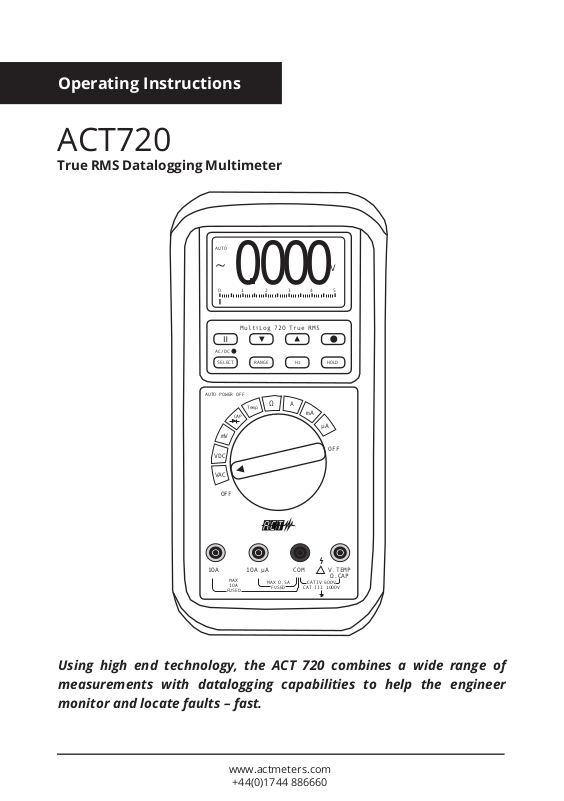

ACT Meters ACT720 Operating Instructions
Operating Instructions
ACT720
True RMS Datalogging Multimeter
AUTO
~
0.000
V
2
1O
3 4 5
MultiLog 72O True RMS
▼
=
AC/DC
SELECT RANGE Hz HOLD
AUTO POWER OFF
Temp
CAP
►
mV
VDC
◄
VAC
OFF
1OA 1OA µA COM V.TEMP
MAX
1OA
FUSED
Ω
MAX O.5A
FUSED
▼
A
CAT III 1OOOV
mA
µA
CATIV 6OOV
OFF
Ω.CAP
Using high end technology, the ACT 720 combines a wide range of
measurements with datalogging capabilities to help the engineer
monitor and locate faults – fast.
www.actmeters.com
+44(0)1744 886660
ACT 720
Important Information
The ACT 720 measures AC/DC voltage and current, resistance,
frequency, capacitance, temperature, diode and continuity. The ACT
720 oers a built-in datalogger and an optical RS-232 interface. The
meter stores 43,000 data points in internal memory.
Safety
International Safety Symbols
This symbol, adjacent to another symbol or terminal,
!
▼
indicates the user must refer to the manual for further
information
This symbol, adjacent to a terminal, indicates that, under
normal use, hazardous voltages may be present
Double insulation
www.actmeters.com
+44(0)1744 886660
ACT 720
Important Information
1. Improper use of this meter can cause damage, shock, injury or death. Read and
understand this user manual before operating the meter.
2. Make sure any covers or battery doors are properly closed and secured.
3. Always remove the test leads before replacing the battery or fuses.
4. Inspect the condition of the test leads and the meter itself for any damage before
operating the meter. Repair or replace any damage before use.
5. Do not exceed the maximum rated input limits.
6. Use great care when making measurements if the voltages are greater than 25VAC
rms or 35VDC. These voltages are considered a shock hazard.
7. Always discharge capacitors and remove power from the device under test before
performing capacitance, diode, resistance or continuity tests.
8. Remove the battery from the meter if the meter is to be stored for long periods.
9. To avoid electric shock, do not measure AC current on any circuit whose voltage
exceeds 500V AC.
10. Voltage checks on electrical outlets can be dicult and misleading because of the
uncertainty of connection to the electrical contacts. Other means should be used to
ensure that the terminals are not ‘live’.
11. The product is intended only for indoor use
12. If the equipment is used in a manner not specied by the manufacturer, the
protection provided by the equipment may be impaired.
13. Pollution degree: 2
www.actmeters.com
+44(0)1744 886660
ACT 720
ACT 720
Important Information
important Information
PER IEC1010 OVERVOLTAGE INSTALLATION CATEGORY
OVERVOLTAGE CATEGORY I
Equipment of OVERVOLTAGE CATEGORY I is equipment for connection to circuits in which
measures are taken to limit the transient overvoltages to an appropriate low level. Note -
examples include protected electronic circuits.
OVERVOLTAGE CATEGORY II
Equipment of OVERVOLTAGE CATEGORY II is energy-consuming equipment to be supplied
from the xed installation. Note - examples include household, oce and laboratory
appliances.
OVERVOLTAGE CATEGORY III
Equipment of OVERVOLTAGE CATEGORY III is equipment in xed installations. Note -
examples include switches in the xed installation and some equipment for industrial use
with permanent connection to the xed installation.
OVERVOLTAGE CATEGORY IV
Equipment of OVERVOLTAGE CATEGORY IV is for use at the origin of the installation. Note
- examples include electricity meters and primary over-current protection equipment
www.actmeters.com
+44(0)1744 886660
ACT 720
Specications
DC VOLTAGE
Range Accuracy
50.00 mV 0.12% + 2d
500.0 mV 0.06% + 2d
5.000V, 50.00V, 500.0V, 1000V 0.08% + 2d
NMRR: >60dB @ 50/60Hz, CMRR: > 120dB @ DC, 50/60Hz, Rs+1kΩ
Input impedance: 10MΩ, 16pF nominal (44pF nominal for 50mV & 500mV ranges)
AC VOLTAGE
Range
50Hz/60Hz
50.00mV, 500.0mV, 5.000V, 50.00V, 500.0V, 1000V 0.5% + 3d
40Hz to 500Hz
50.00mV, 500.0mV 0.8% + 3d
5.000V, 50.00V, 500.0V 1.0% + 4d
1000V 1.2% + 4d
Up to 20kHz
50.00mV, 500.0mV 0.5dB*
5.000V, 50.00V, 500.0V 3db
1000V Unspecied
* Specied from 30% to 100% of range
CMRR: >60dB @ DC to 60Hz, Rs+1kΩ
Input Impedance: 10MΩ, 16pF nominal (44pF nominal for 50mV & 500mV ranges)
DC CURRENT
Range Accuracy Burden Voltage
500.0µA, 5000µA 0.2% + 4d 0.15mV/µA
50.00mA, 500.0mA 0.2% + 4d 3.3mV/mA
5.000A, 10.00A* 0.2% + 4d 0.03V/A
*10A continuous, 20A for 30 seconds max with a 5 minute cool down interval
www.actmeters.com
+44(0)1744 886660
ACT 720
AC CURRENT
Range Accuracy Burden Voltage
50 / 60Hz
500.0µA, 5000µA 0.6% + 3d 0.15mV/µA
50.00mA, 500.0mA 0.6% + 3d 3.3mV/mA
5.000A, 10.00A* 0.6% + 3d 0.03V/A
40Hz to 1kHz
500.0µA, 5000µA 0.8% + 4d 0.15mV/µA
50.00mA 0.8% + 4d 3.3mV/mA
500.0mA 1.0% + 4d 3.3mV/mA
5.000A, 10.00A* 0.8% + 4d 0.03V/A
*10A continuous, 20A for 30-second max with 5 minute cool down interval
TEMPERATURE
Range Accuracy
-50°C to 1000°C 0.3% + 3d
-58°F to 1832°F 0.3% + 6d
RESISTANCE
Range Accuracy
50.00Ω 0.2% + 6d
500.0Ω 0.1% + 3d
5.000kΩ, 50.00kΩ, 500.0kΩ 0.1% + 2d
5.000MΩ 0.4% + 3d
50.00MΩ 1.5% + 5d
Open Circuit Voltage: < 1.3VDC (< 3VDC for 50Ω & 500Ω ranges)
CAPACITANCE
Range Accuracy*
50.00nF, 500.0nF 0.8% + 3d
5.00µF 1.0% + 3d
50.00µF 2.0% + 3d
500.0µF 3.5% + 5d
9999µF 5.0% + 5d
* Accuracies with lm capacitor or better
