Actions Microelectronics EZC-RC-01 User Manual

EZC-RC-01

Length

5.24 in (133mm)

Width

1.37 in (35mm)

Height

0.63 in (16mm)

Channels

3

Band

2405 MHz – 2479 MHz

Power Supply

2 pcs ‘AAA’ dry batteries

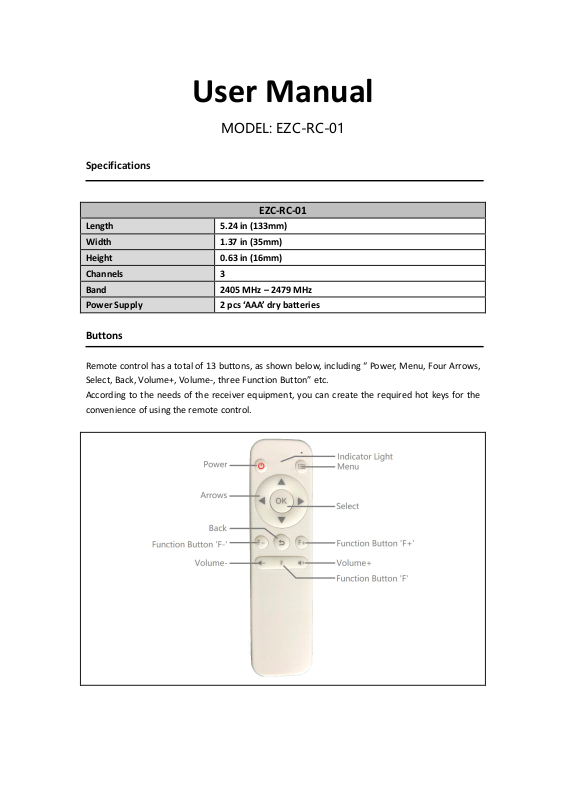

User Manual

MODEL: EZC-RC-01

Specifications

Buttons

Remote control has a total of 13 buttons, as shown below, including “ Power, Menu, Four Arrows,
Select, Back, Volume+, Volume-, three Function Button” etc.
According to the needs of the receiver equipment, you can create the required hot keys for the
convenience of using the remote control.

User Instructions

1. Install 2 pcs dry batteries in the remote control, and then you can use it very easily.

2. The remote control has two situations:
(1) When the remote control is in normal use, short-press the buttons, the LED indicator

light will flash one time, long-press the buttons, the LED indicator light will always on.

(2) When the remote control is loss of communication with the receiver equipment,

long-press the buttons, the LED indicator light will flash, and you cannot use the remote
control.

FCC Information

FCC ID: 2AQJT-J2RC

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses and can
radiate radio frequency energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:

·Reorient or relocate the receiving antenna.

·Increase the separation between the equipment and receiver.

·Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may cause
undesired operation.
NOTICE: Any changes or modifications to this product will void the user’s authority to operate the
equipment.
