4” Indoor Dome
Mounting on the Wall
with Flat Surface
(Face Down / Face Forward)
Installation Guide
For Models:
D6x / E6x
Page 2
www.acti.com
Installation Guide
Table of Contents
Installation Procedures ..................................................... 3
Step 1: Drill the Holes ................................................................................ 3
Step 2: Open the Dome Cover .................................................................. 4
Step 3: Install the Camera to the Surface ................................................ 5
Step 4: Connect the Cable ........................................................................ 6
Step 5: Access the Camera Live View ...................................................... 6
Step 6: Adjust the Viewing Angle and Focus .......................................... 7
Step 7: Close the Dome Cover .................................................................. 7
Appendices ......................................................................... 9
How to Access the Camera Live View ...................................................... 9
How to Adjust the Camera Viewing Angle and Focus .......................... 17
D61, D62, E66, E67 Camera Models .................................................... 17
D64, D65, E61, E62, E63, E64, E65 Camera Models ........................... 19
Safety Information ............................................................ 20
2
Page 3
www.acti.com
Installation Guide
Cable hole
Installation Procedures
This section describes the procedures in installing the camera directly on the wall with flat surface.
Prepare a screwdriver and network cable for this installation; no additional mounting accessories
are required. Before installation, make sure the wall can bear more than the weight of the
camera.
Step 1: Drill the Holes
Before drilling the holes on the wall, note the direction of the connectors side of the camera,
which is also the opposite side of the camera logo. This influences the camera placement and
where you should drill the hole where the cables will pass through or how the cables will go along
the wall.
1. Use the supplied drill template to mark the screw holes on the surface according to the
preferred orientation.
2. Determine how the cables will be routed: pass through the surface or along the surface.
If the cables will pass through the surface, drill the cable hole and the three (3)
screw holes on the surface.
If the cables will be routed along the surface, just drill the three (3) screw holes on
the surface.
3. Insert the plastic plugs into the screw holes.
3
Page 4
www.acti.com
Installation Guide
Step 2: Open the Dome Cover
NOTE: To avoid scratches or leaving fingerprints on the dome cover, it is recommended to retain
the plastic covering the dome cover until the camera is completely installed.
1. With the bundled hex screwdriver, loosen the three (3) screws securing the dome cover.
2. Lift to remove the dome cover.
3. If the cables will be routed along the surface, remove the cable tab from the dome cover.
4. If the cables will pass through the surface, route and pull the cables through the hole on
the surface.
4
Page 5
www.acti.com
Installation Guide
Step 3: Install the Camera to the Surface
1. If necessary, insert a memory card, with the metallic contacts facing down, into the card slot
of the camera.
2. Align the camera screw holes and the cable hole (if necessary) to the holes on the surface
and attach the three (3) supplied screws to secure the camera.
CAUTION: When using electric screwdrivers, be careful not to touch the camera
components while attaching the screws. Since electric screwdrivers vary in sizes, speed, and
force, they may bruise and damage the camera components.
DISCLAIMER: ACTi will not be responsible for camera damage caused by improper
installations or the misuse of equipment for installation.
5
Page 6
www.acti.com
Installation Guide
Network
AC Power
Source
PoE Injector /
PoE Switch
Power Cable
Ethernet Cable
Ethernet Cable
(Data + Power)
Ethernet Cable
(Data)
Camera
Ethernet Port
Step 4: Connect the Cable
1. Connect the network cable to the Ethernet port of the camera.
2. Connect the other end of the network cable to a switch or injector. Then, connect the switch
or injector to a network, PC and a power source. See Power-over-Ethernet (PoE) connection
example below.
Step 5: Access the Camera Live View
See How to Access the Camera Live View on page 9 for more information on how to access
the Live View of the camera.
6
Page 7
www.acti.com
Installation Guide

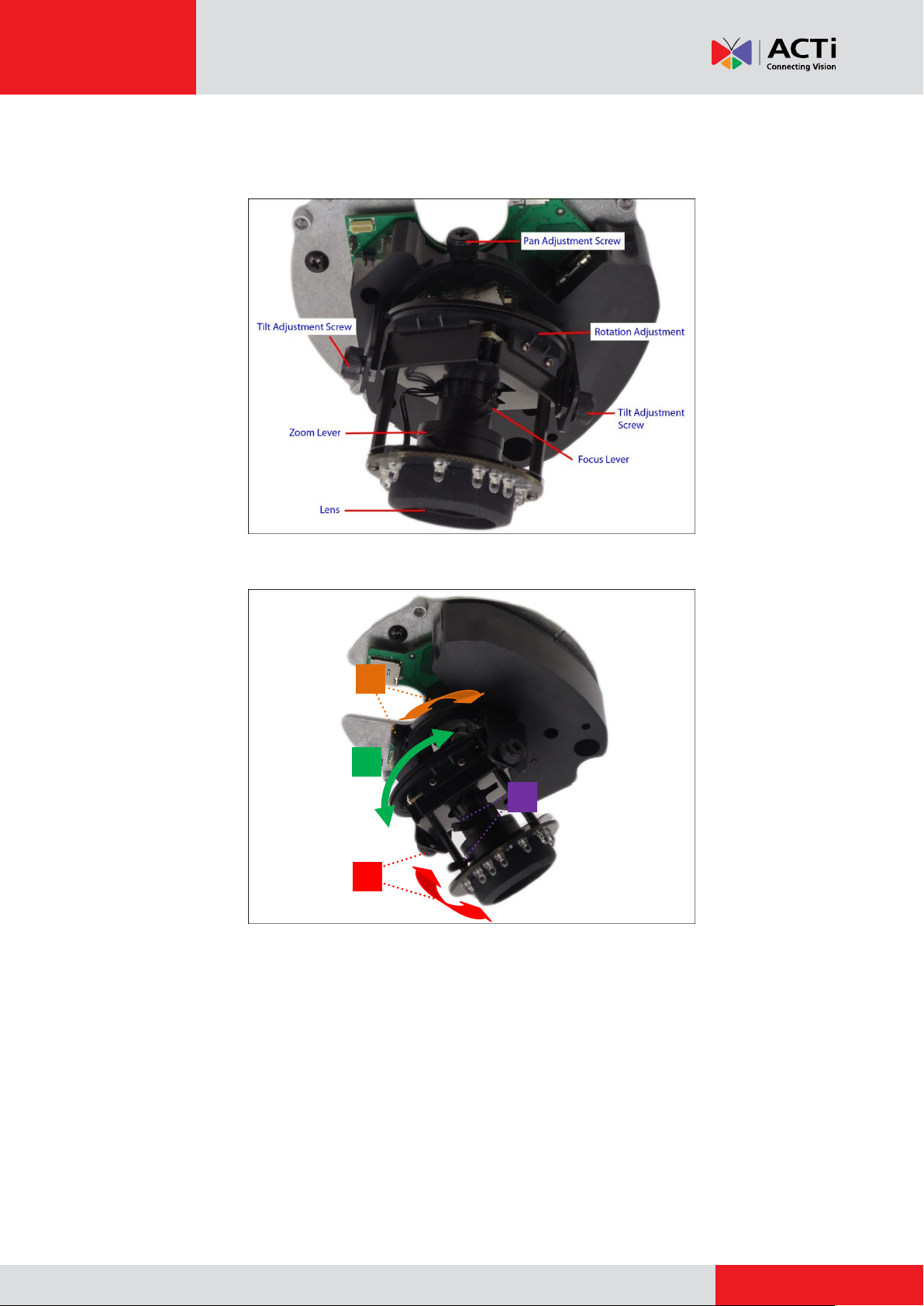

Step 6: Adjust the Viewing Angle and Focus
Based on the camera live view, adjust the viewing angle, orientation and focus of the camera.
Adjustments vary depending on model, see How to Adjust the Camera Viewing Angle and
Focus on page 17 for more information.
Step 7: Close the Dome Cover
1. Turn the dome cover shroud to align to the direction of the lens.
2. Align the screws with the screw holes of the camera. Note that if the cables are routed
along the surface, route the cable to pass through the cable hole on the dome cover.
7
Page 8
www.acti.com
Installation Guide
3. Tighten the three (3) screws to attach the dome cover to the camera body.
4. Remove the plastic covering the dome cover.
Final installation should look similar to the illustration below.
8
Page 9
www.acti.com
Installation Guide
Appendices
How to Access the Camera Live View
Connect the Equipment
To be able to connect to the camera firmware from your PC, both the camera and the PC have to
be connected to each other via Ethernet cable. At the same time, the camera has to have its own
power supply. In case of PoE cameras, you can use a PoE Injector or a PoE Switch between the
camera and the PC. The cameras that have the DC power connectors may be powered on by
using a power adaptor.
Configure the IP Addresses
In order to be able to communicate with the camera from your PC, both the camera and the PC
have to be within the same network segment. In most cases, it means that they both should have
very similar IP addresses, where only the last number of the IP address is different from each
other. There are 2 different approaches to IP Address management in Local Area Networks – by
DHCP Server or Manually.
Using DHCP Server to Assign IP Addresses
If you have connected the computer and the camera into the network that has a DHCP server
running, then you do not need to configure the IP addresses at all – both the camera and the PC
would request a unique IP address from DHCP server automatically. In such case, the camera
will immediately be ready for the access from the PC. The user, however, might not know the IP
address of the camera yet. It is necessary to know the IP address of the camera in other to be
able to access it by using a Web browser.
9
Page 10
www.acti.com
Installation Guide
The quickest way to discover the cameras in the network is to use the simplest network
search, built in the Windows system – just by pressing the “Network” icon, all the cameras of the
local area network will be discovered by Windows thanks to the UPnP function support of our
cameras.
In the example below, we successfully found the camera that we had just connected to the
network.
By double-clicking the mouse button on the camera model, it is possible to automatically launch
the default browser of the PC with the IP address of the target camera filled in the address bar of
the browser already.
If you work with our cameras regularly, then there is even a better way to discover the
cameras in the network – by using IP Utility. The IP Utility is a light software tool that can not
only discover the cameras, but also list lots of valuable information, such as IP and MAC
addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple
devices at the same time.
10
Page 11
www.acti.com
Installation Guide
The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility
With just one click, you can launch the IP Utility and there will be an instant report as follows:
You can quickly see the camera model in the list. Click on the IP address to automatically launch
the default browser of the PC with the IP address of the target camera filled in the address bar of
the browser already.
Using the Default Camera IP Address
If there is no DHCP server in the given network, the user may have to assign the IP addresses to
both PC and camera manually to make sure they are in the same network segment.
When the camera is plugged into network and it does not detect any DHCP services, it will
automatically assign itself a default IP:
192.168.0.100
Whereas the default port number would be 80. In order to access that camera, the IP address of
the PC has to be configured to match the network segment of the camera.
11
Page 12
www.acti.com
Installation Guide
1 2 3
4
Manually adjust the IP address of the PC:
In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99
and set Subnet Mask to 255.255.255.0 by using the steps below:
12
Page 13
www.acti.com
Installation Guide

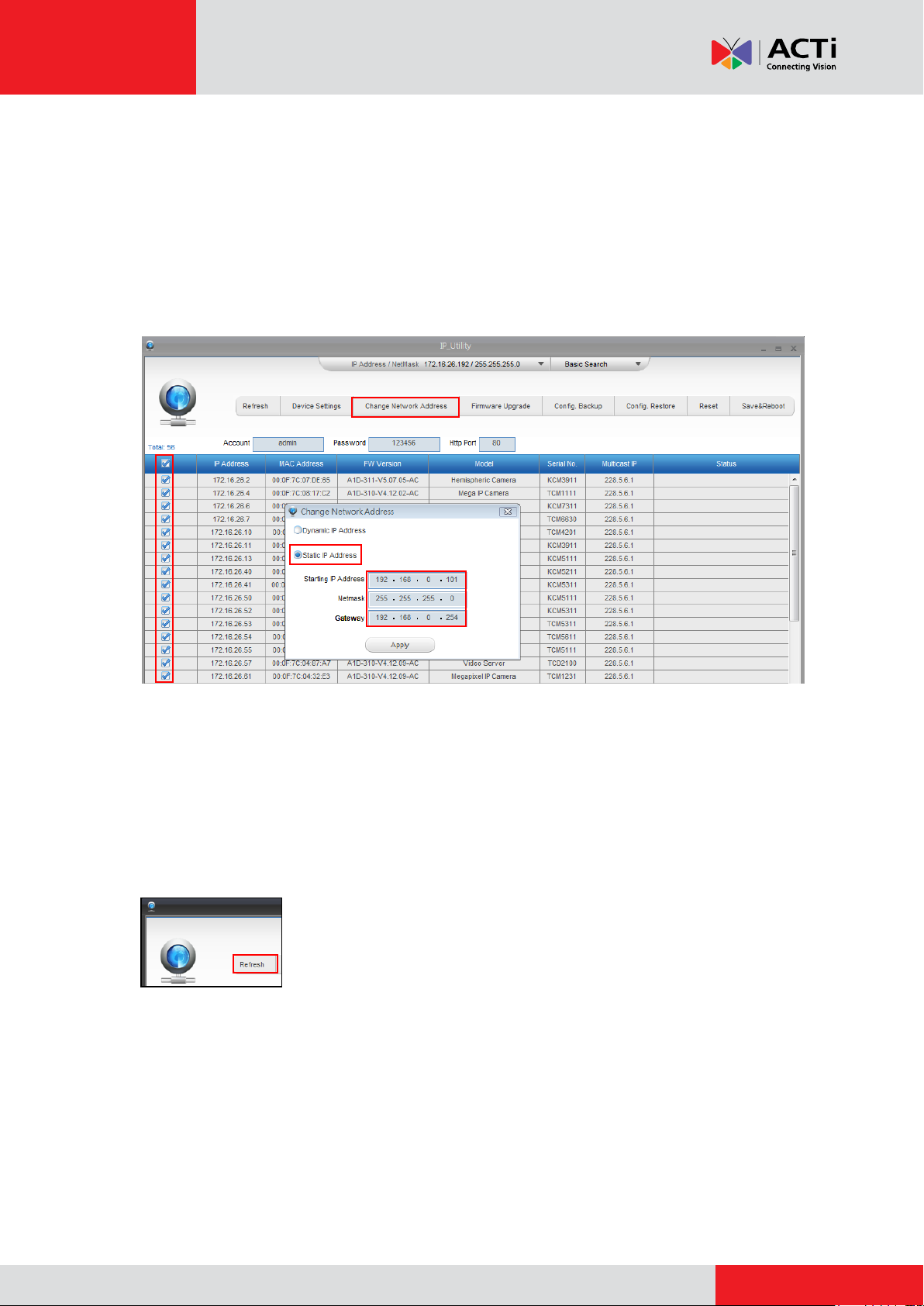

Manually adjust the IP addresses of multiple cameras:
If there are more than 1 camera to be used in the same local area network and there is no DHCP
server to assign unique IP addresses to each of them, all of the cameras would then have the
initial IP address of 192.168.0.100, which is not a proper situation for network devices – all the IP
addresses have to be different from each other. The easiest way to assign cameras the IP
addresses is by using IP Utility:
With the procedure shown above, all the cameras will have unique IP addresses, starting from
192.168.0.101. In case there are 20 cameras selected, the last one of the cameras would have
the IP 192.168.0.120.
Later, by pressing the “Refresh” button of the IP Utility, you will be able to see the list of cameras
with their new IP addresses.
Please note that it is also possible to change the IP addresses manually by using the Web
browser. In such case, please plug in only one camera at a time, and change its IP address by
using the Web browser before plugging in the next one. This way, the Web browser will not be
confused about two devices having the same IP address at the same time.
13
Page 14
www.acti.com
Installation Guide
Functionality
Internet Explorer
Other browsers
Live Video
Yes
Yes*
Live Video Area Resizable
Yes
No
PTZ Control
Yes
Yes
Capture the snapshot
Yes
Yes
Video overlay based configuration (Motion
Detection regions, Privacy Mask regions)
Yes
No
All the other configurations
Yes
Yes
Firmware Version
Required Plug-In
A1D-500-V6.04.xx-AC or older
Basic VLC Media Player (http://www.videolan.org)
A1D-500-V6.05.xx-AC or newer
QuickTime (http://www.apple.com/quicktime/download/)
Access the Camera
Now that the camera and the PC are both having their unique IP addresses and are under the
same network segment, it is possible to use the Web browser of the PC to access the camera.
You can use any of the browsers to access the camera, however, the full functionality is
provided only for Microsoft Internet Explorer.
The browser functionality comparison:
* When using non-Internet Explorer browsers, free third-party software plug-ins must be installed
to the PC first to be able to get the live video feed from the camera. Check the firmware version of
the camera to determine which plug-in is necessary:
The camera firmware version can be found on the FW Version column of the IP utility or access
the Setup page of the Web Configurator (see page 16).
Disclaimer Notice: The camera manufacturer does not guarantee the compatibility of its cameras
with VLC player or QuickTime – since these are third party softwares. The third parties have the
right to modify their utility any time which might affect the compatibility. In such cases, please use
Internet Explorer browser instead.
When using Internet Explorer browser, the ActiveX control for video stream management will be
downloaded from the camera directly – the user just has to accept the use of such control when
prompted so. No other third party utilities are required to be installed in such case.
14
Page 15
www.acti.com
Installation Guide
The following examples in this manual are based on Internet Explorer browser in order to
cover all functions of the camera.
Assuming that the camera’s IP address is 192.168.0.100, you can access it by opening the Web
browser and typing the following address into Web browser’s address bar:
http://192.168.0.100
Upon successful connection to the camera, the user interface called Web Configurator would
appear together with the login page. The HTTP port number was not added behind the IP
address since the default HTTP port of the camera is 80, which can be omitted from the address
for convenience.
Before logging in, you need to know the factory default Account and Password of the camera.
Account: Admin
Password: 123456
15
Page 16
www.acti.com
Installation Guide
3 2 1
To check the firmware version through the Web Configurator, access the Setup page and click
System > System Info.
For further operations, please refer to the Firmware User Manual downloadable from the website
(www.acti.com).
16
Page 17
www.acti.com
Installation Guide
1 2 3
4
How to Adjust the Camera Viewing Angle and Focus
This section describes procedures in adjusting the viewing angle, focus, and pan direction of the
camera.
D61, D62, E66, E67 Camera Models
Camera Parts Overview
Adjustment Procedures
1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix
the tilt position.
2. Turn the rotation adjustment to rotate the viewing orientation.
3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the
17
Page 18
www.acti.com
Installation Guide
screw to fix the pan position.
4. Move the zoom and focus levers left or right to adjust the focus and the viewing angle.
18
Page 19
www.acti.com
Installation Guide
1 2 3
4
D64, D65, E61, E62, E63, E64, E65 Camera Models
Camera Parts Overview
Adjustment Procedures
1. Loosen the tilt adjustment screws, adjust the tilt, and then tighten back the screws to fix
the tilt position.
2. Turn the rotation adjustment to rotate the viewing orientation.
3. Loosen the pan adjustment screw, move the pan direction, and then tighten back the
screw to fix the pan position.
4. Move the zoom and focus levers left or right to adjust the focus and the viewing angle.
19
Page 20
www.acti.com
Installation Guide
Safety Information
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to follow
the safety instruction given may directly endanger people, cause damage to the system or to
other equipment.
Trademarks
All names used in this manual are probably registered trademarks of respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your local
office if you find any inaccuracies or omissions. We cannot be held responsible for any
typographical or technical errors and reserve the right to make changes to the product and
manuals without prior notice.
Cleaning
Disconnect this video product from the power supply before cleaning.
Attachments
Do not use attachments not recommended by the video product manufacturer as they may cause
hazards.
Do not use accessories not recommended by the manufacturer
Only install this device in a dry place protected from weather
Servicing
Do not attempt to service this video product yourself. Refer all servicing to qualified service
personnel.
20
Page 21
www.acti.com
Installation Guide
Damage Requiring service
Disconnect this video product from the power supply immediately and refer servicing to qualified
service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the video product.
3) If the inner parts of video product have been directly exposed to rain or water.
4) If the video product does not operate normally by following the operating Instructions in this
manual. Adjust only those controls that are covered by the instruction manual, as an improper
adjustment of other controls may result in damage, and will often require extensive work by a
qualified technician to restore the video product to its normal operation.
Safety Check
Upon completion of any service or repairs to this video product, ask the service technician to
perform safety checks to determine if the video product is in proper operating condition.
21
Page 22
Copyright © 2014, ACTi Corporation All Rights Reserved
7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C.
TEL : +886-2-2656-2588 FAX : +886-2-2656-2599
Email: sales@acti.com
Loading...
