Page 1
Zoom Box Camera Series
Hardware Manual
E213, E215, E223
2015/05/14
Page 2
www.acti.com
Hardware Manual
Table of Contents
Precautions ............................................................. 4
Safety Instructions .................................................................................... 6
Introduction ............................................................. 7
The List of Models ..................................................................................... 7
Package Contents ...................................................................................... 8
Physical Description ................................................................................. 9
Mounting Options ..................................................................................... 11
Before Installation................................................. 13

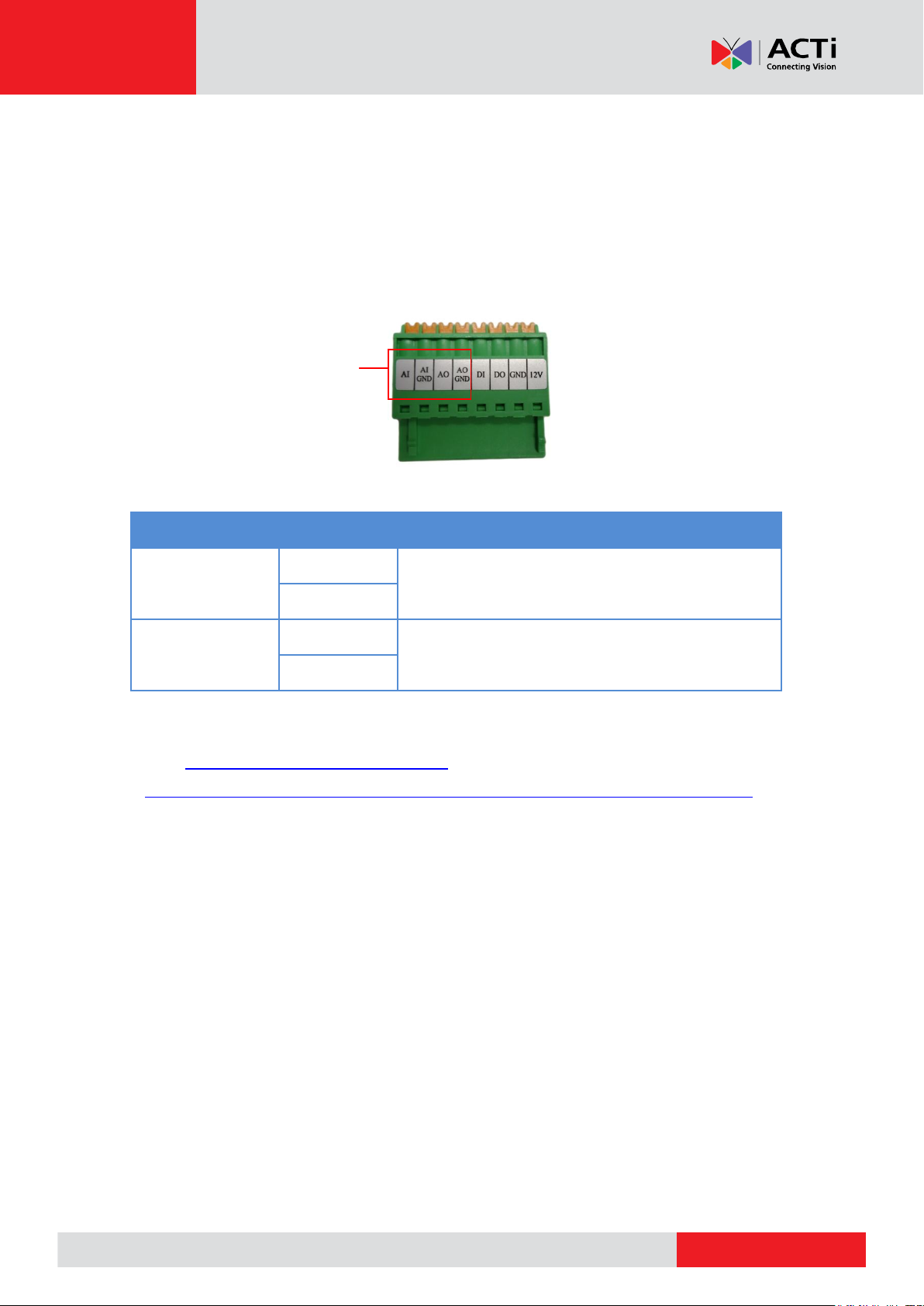

How to Connect DI/DO and Audio Devices (Optional) .......................... 13
How to Connect DI/DO Devices ............................................................ 13
How to Connect Audio Devices ............................................................. 17

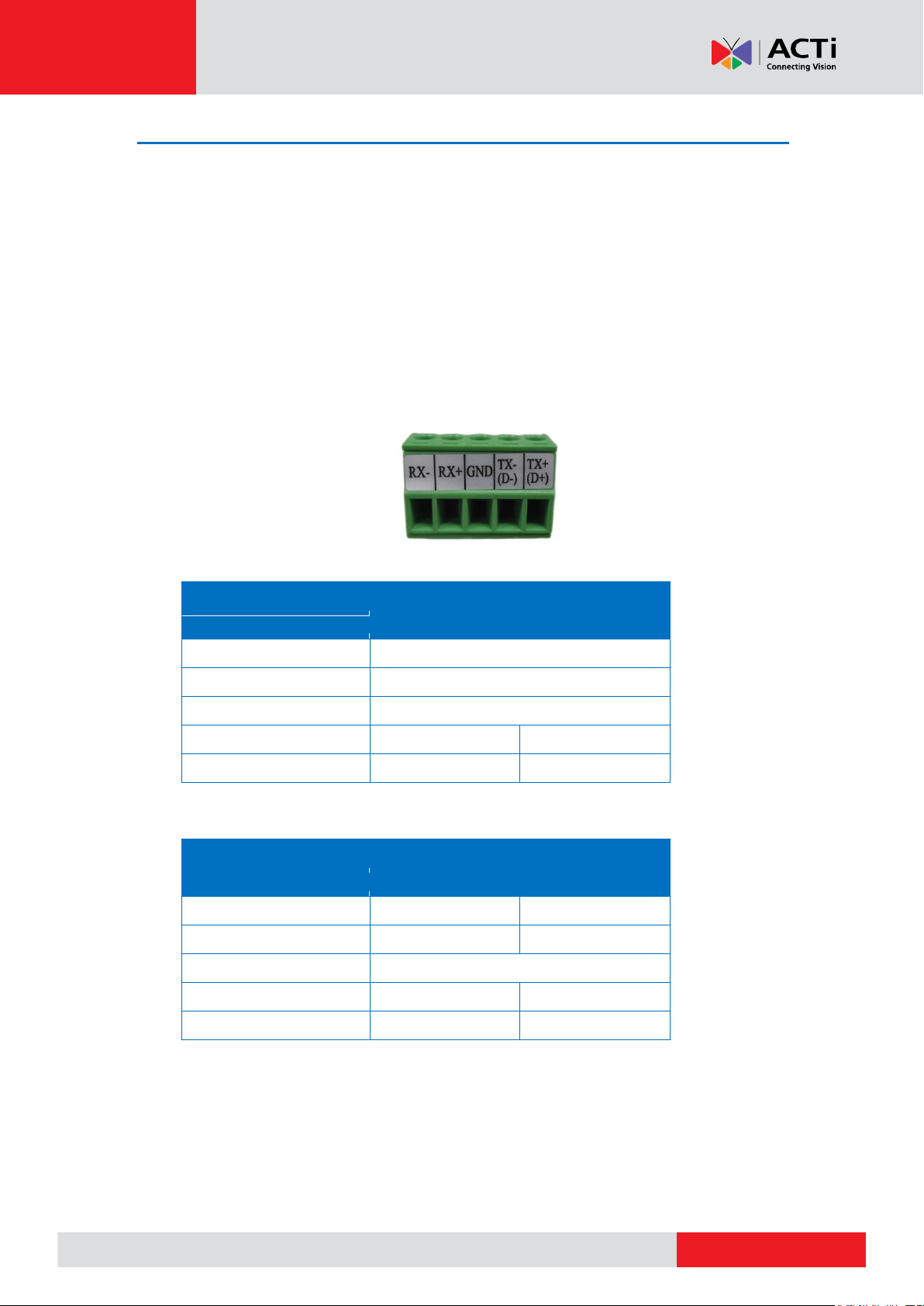

How to Connect a Serial Device ............................................................. 18
Indoor Installation Procedures ............................ 20

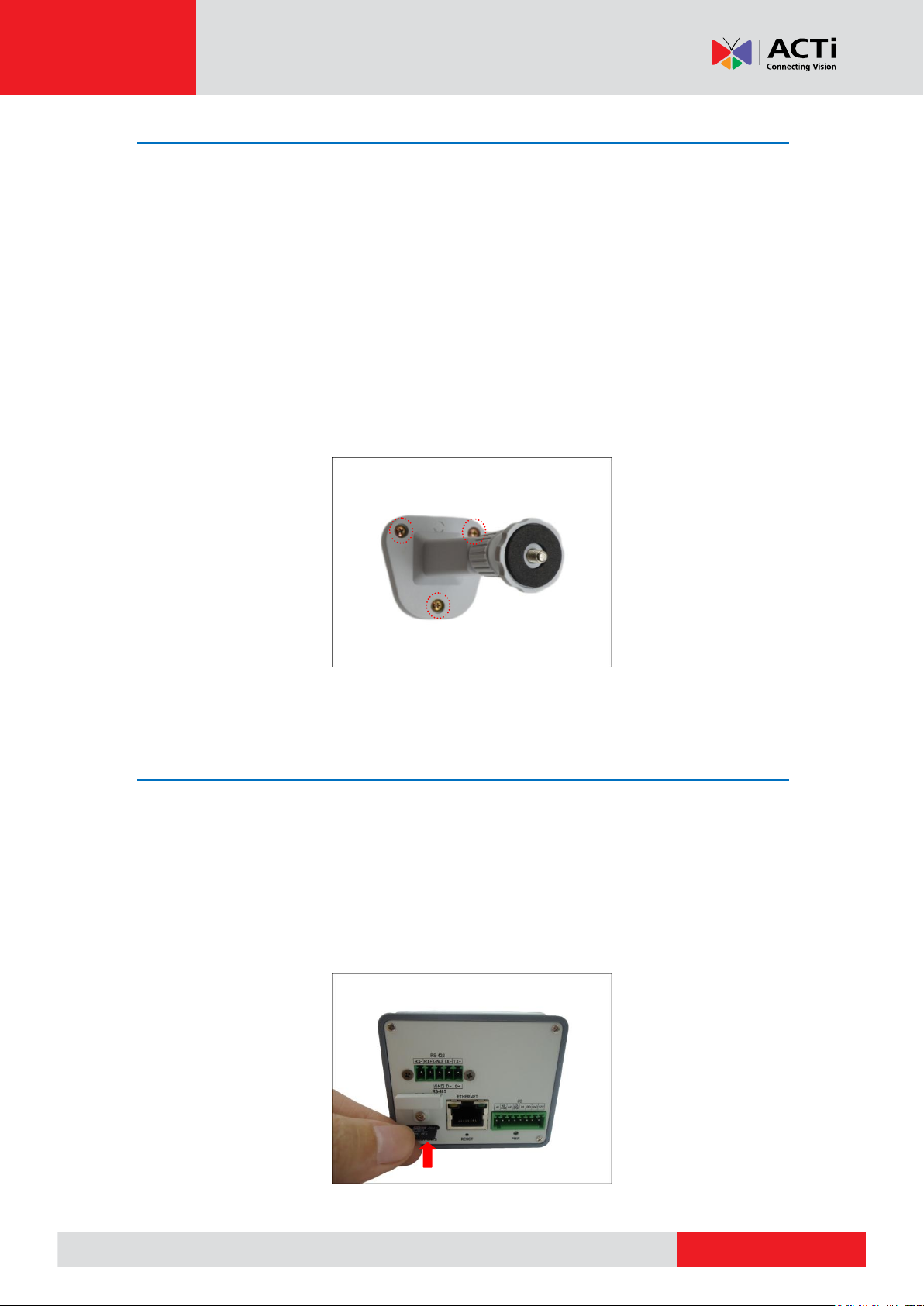

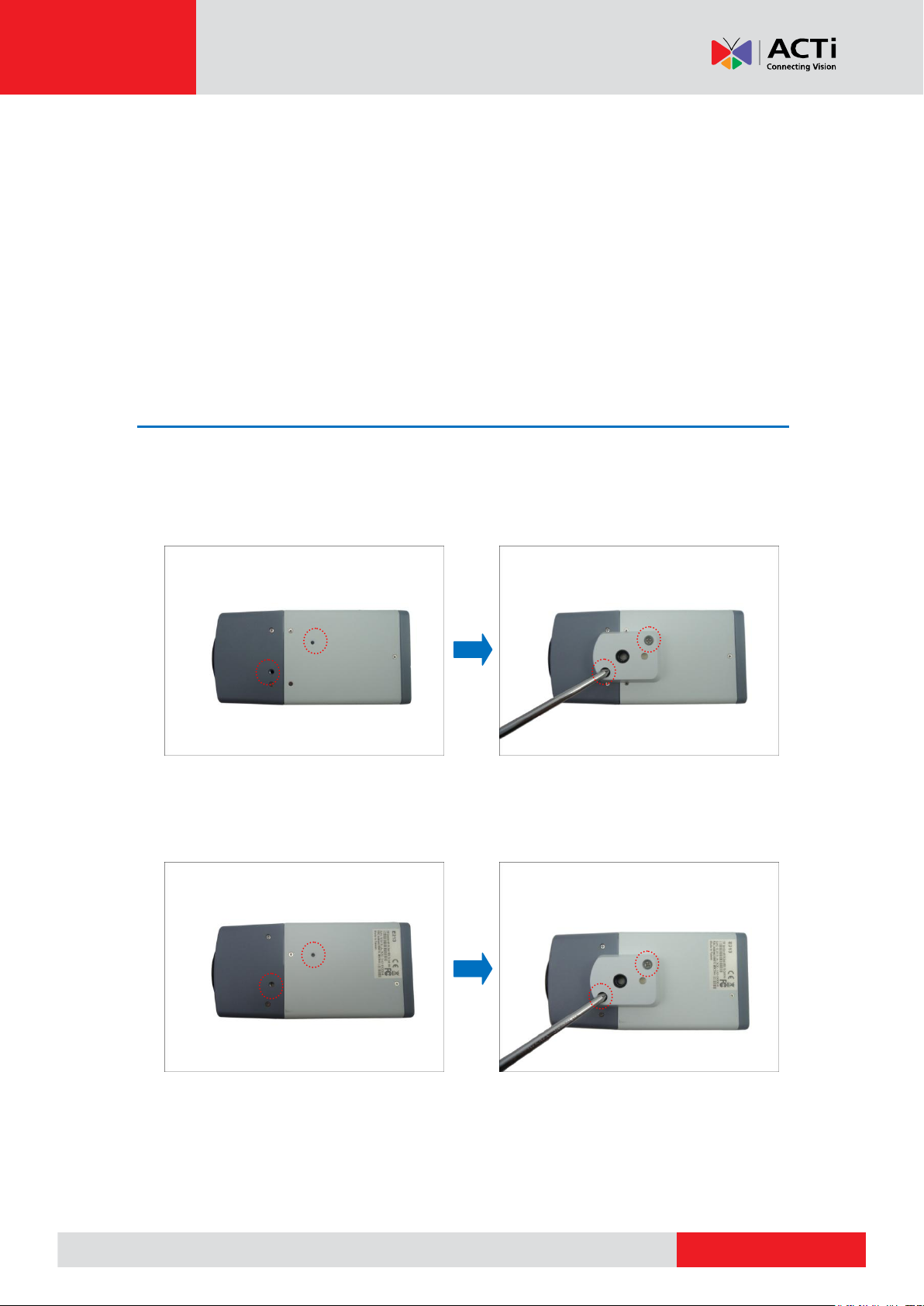

Step 1: Attach the Mounting Block......................................................... 20
Step 2: Mount the Indoor Bracket .......................................................... 21

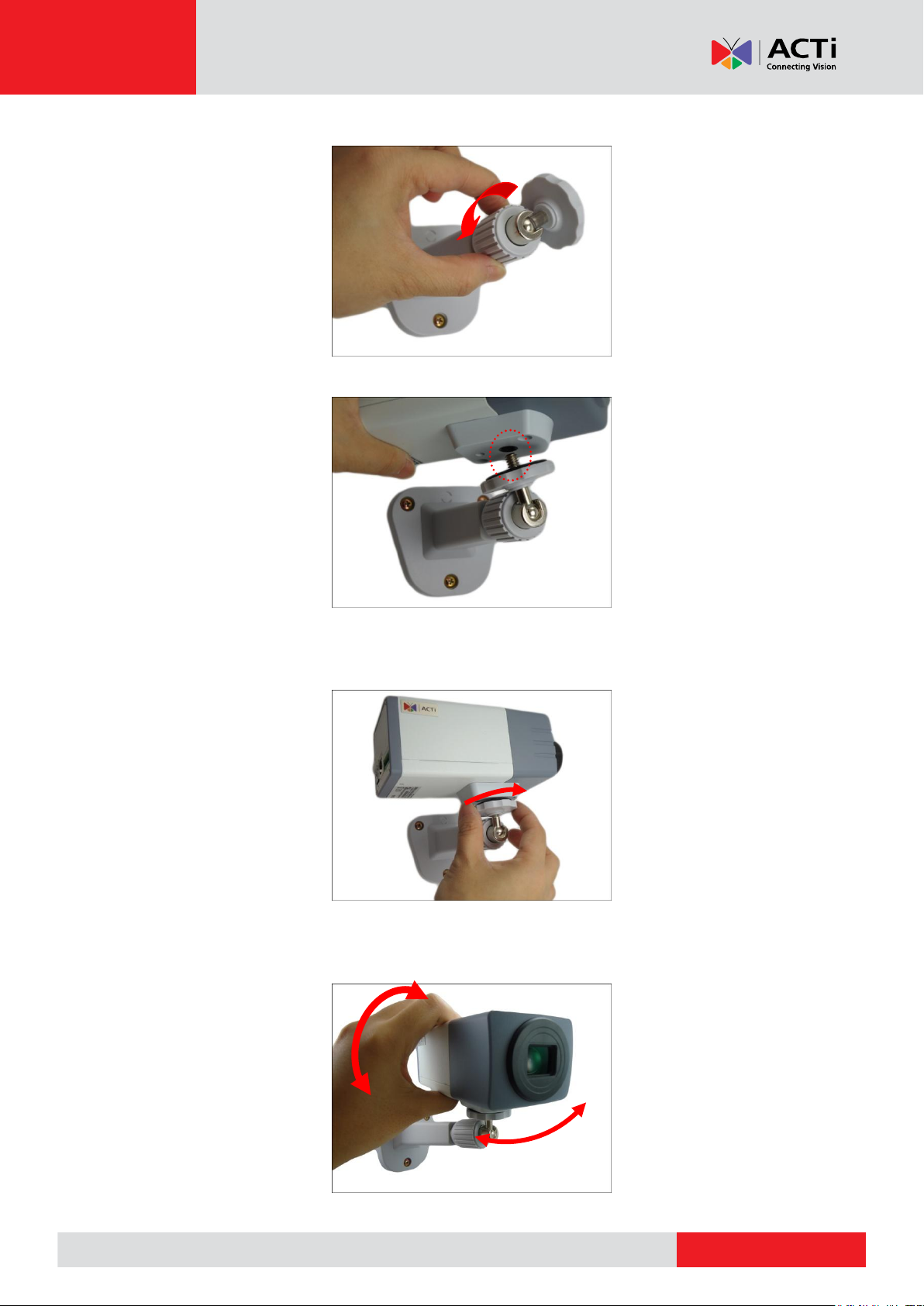

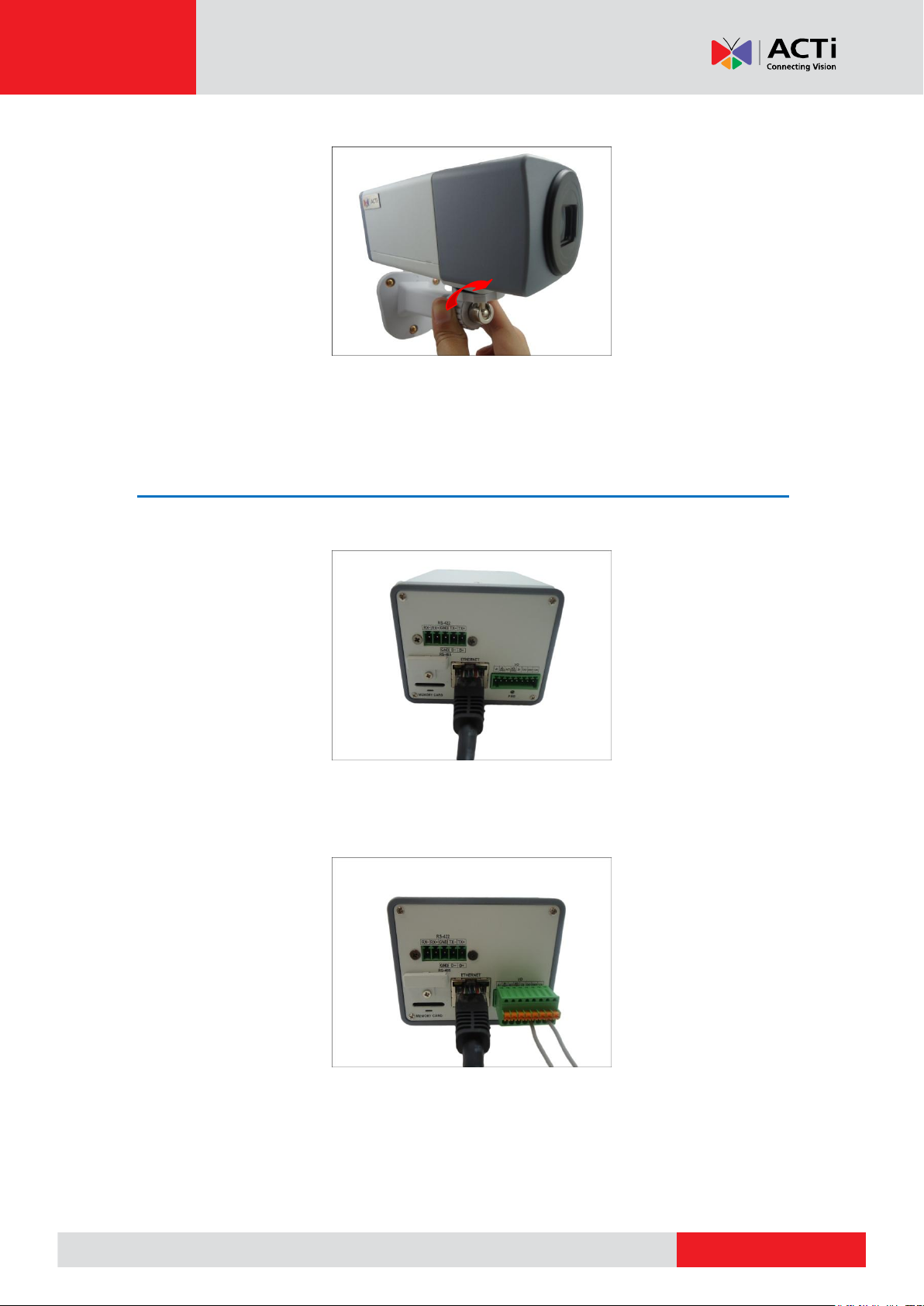

Step 3: Attach the Camera to the Bracket ............................................. 21
Step 4: Connect the Cable(s) .................................................................. 23
Step 5: Access the Camera Live View .................................................... 24
Other Adjustments and Accessories .................. 25

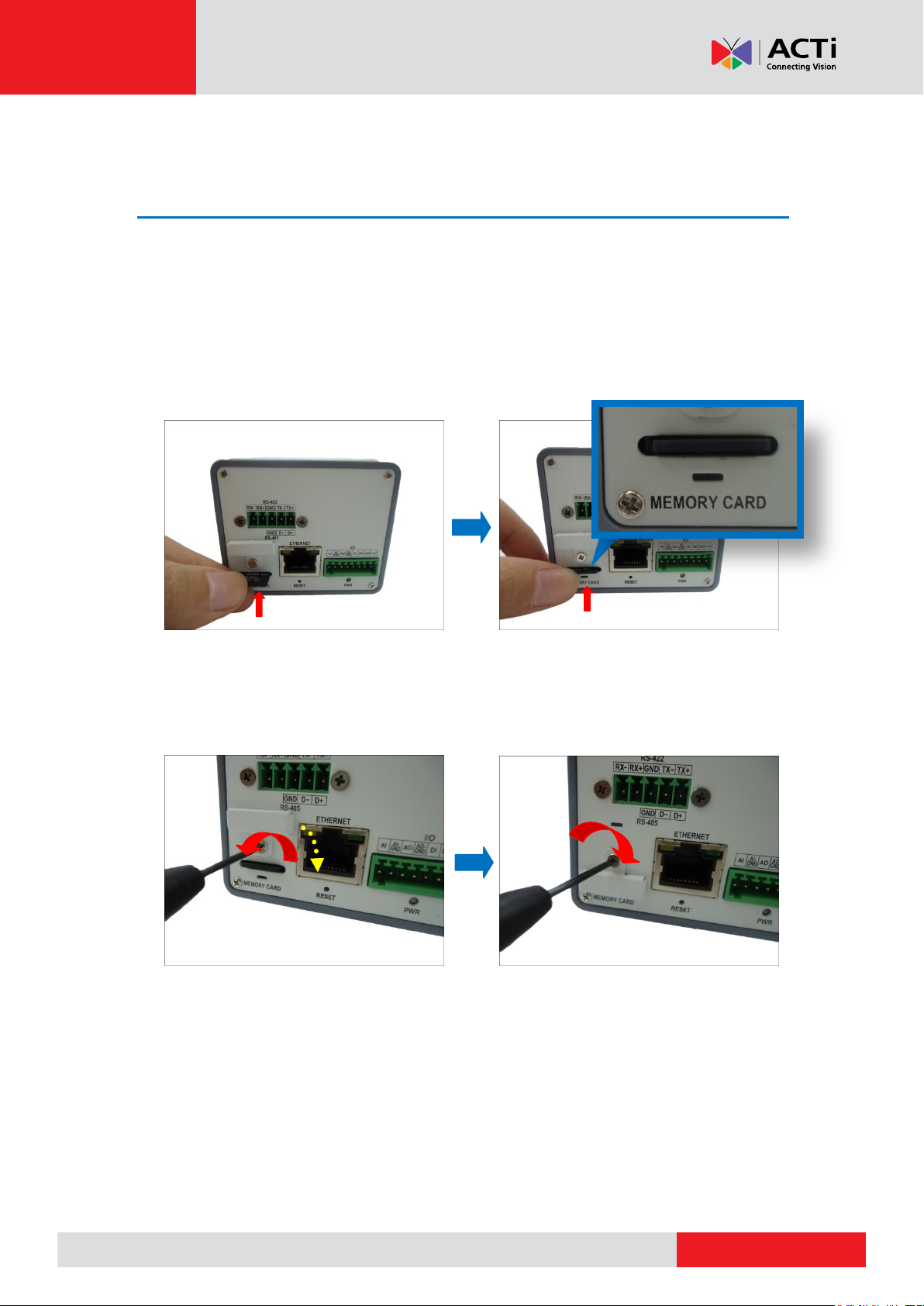

How to Install / Remove the Memory Card ............................................ 25
How to Insert the Memory Card ............................................................ 25
2
Page 3
www.acti.com
Hardware Manual
How to Remove the Memory Card ........................................................ 25
Accessing the Camera ......................................... 26

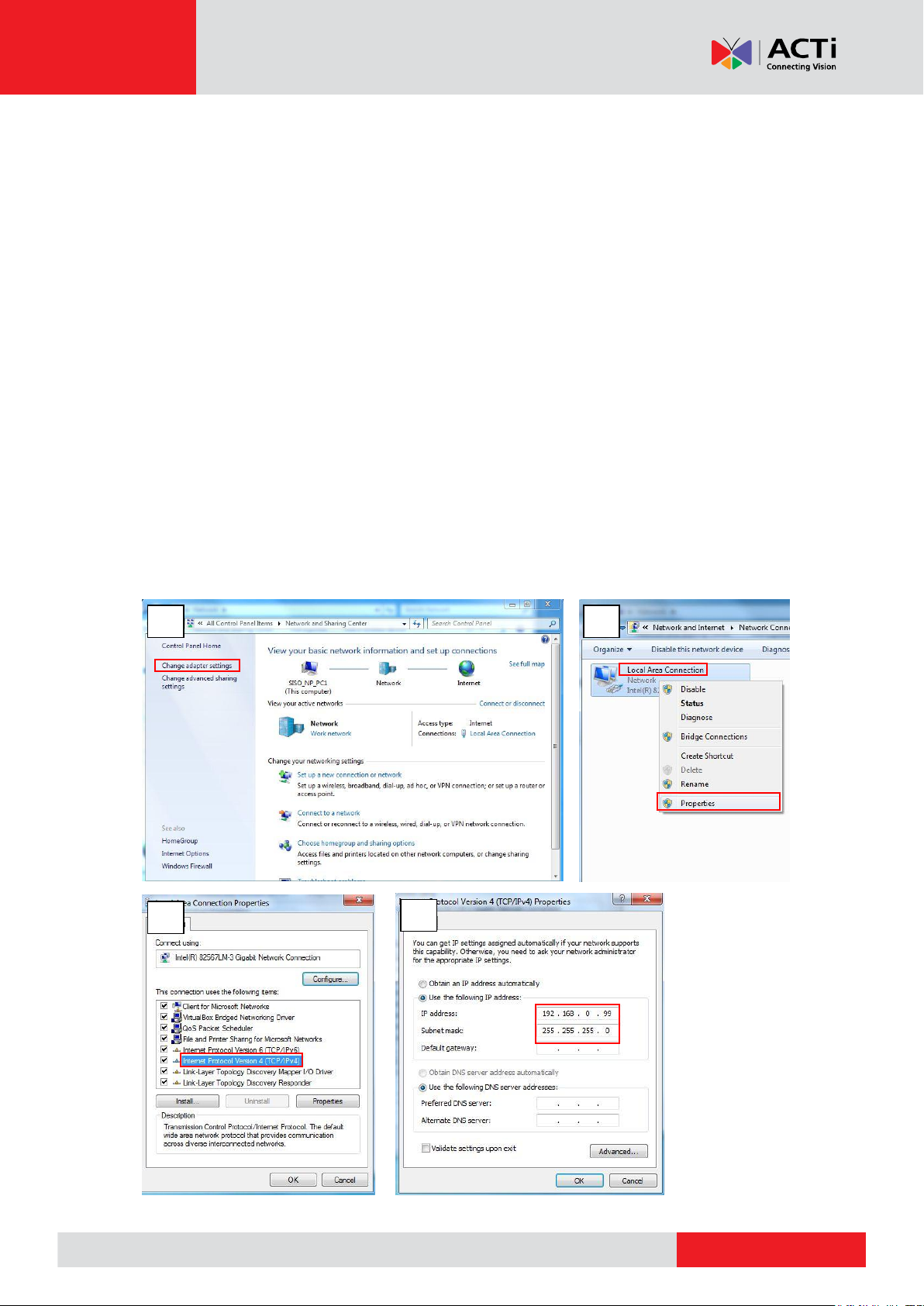

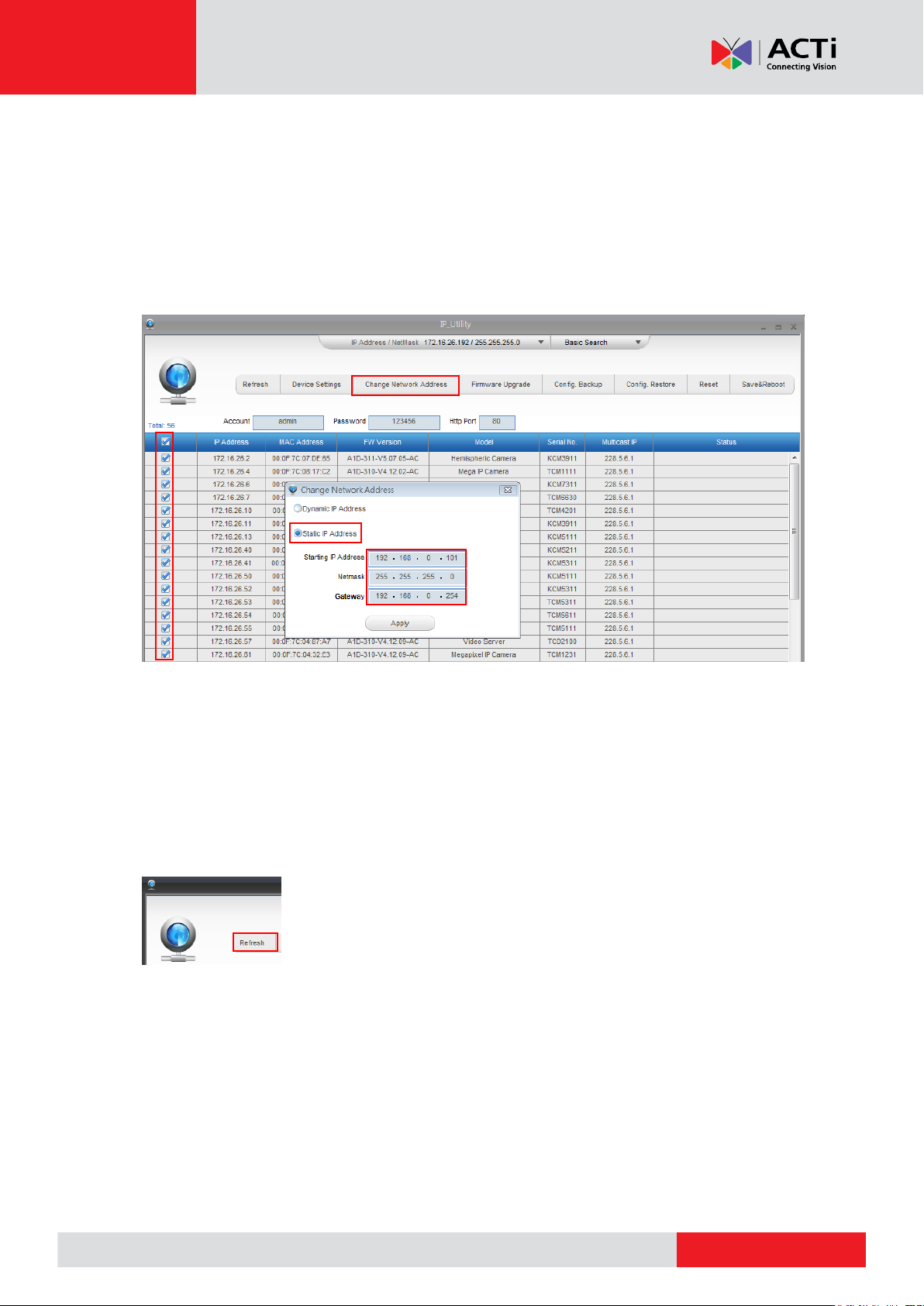

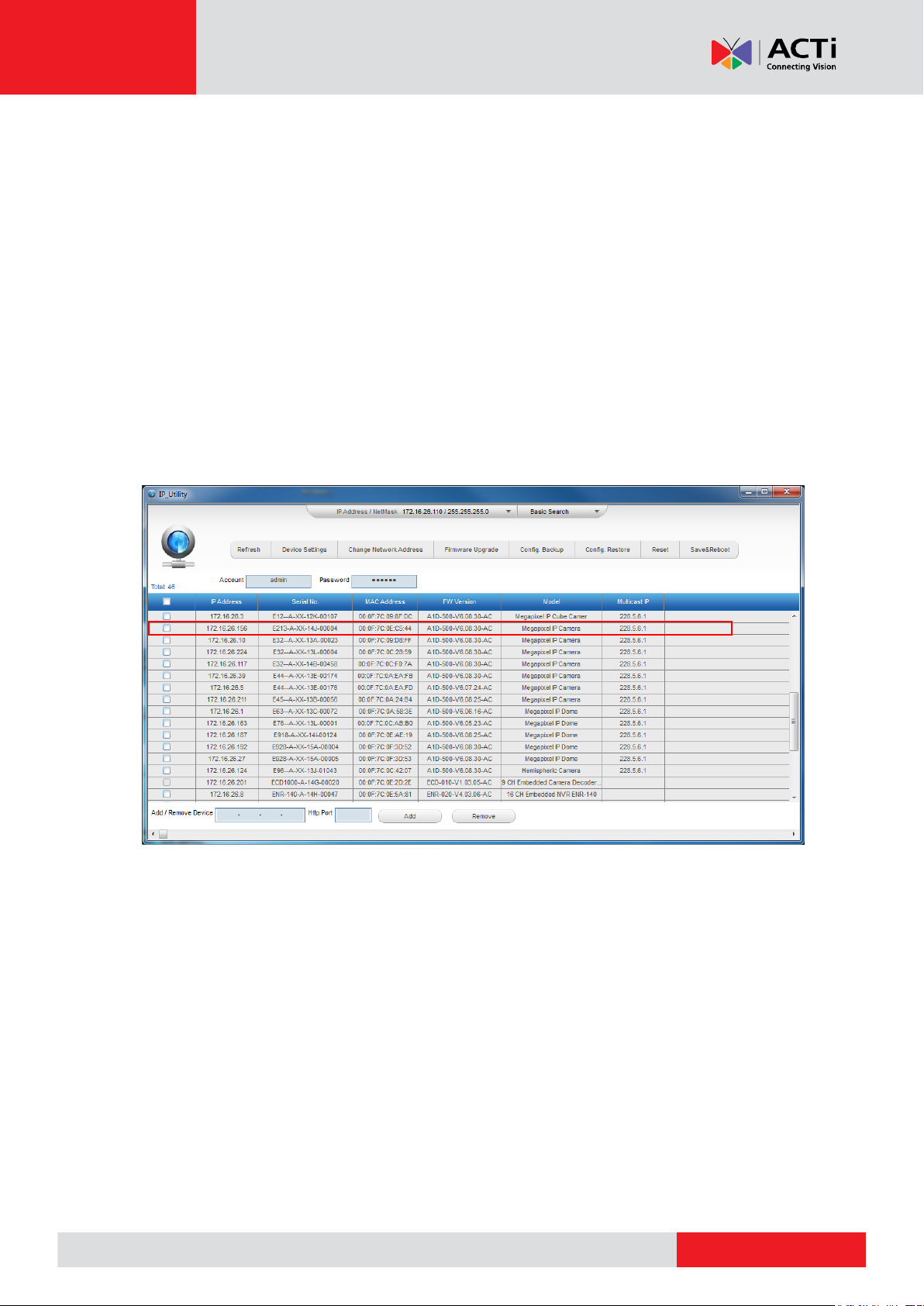

Configure the IP Addresses .................................................................... 26

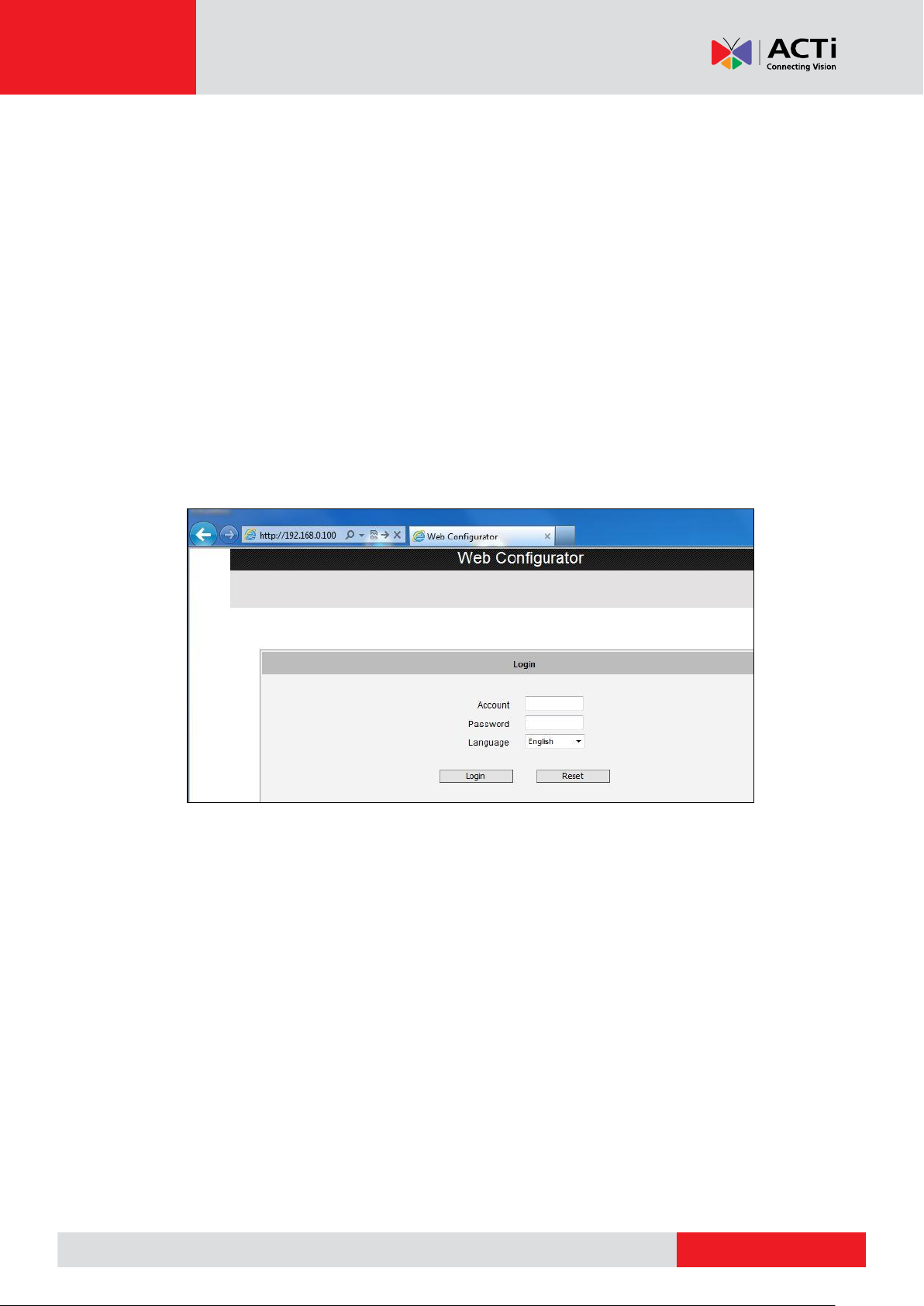

Access the Camera .................................................................................. 30
3
Page 4
www.acti.com
Hardware Manual
Precautions
Read these instructions
You should read all the safety and operating instructions before using this product.
Heed all warnings
You must adhere to all the warnings on the product and in the instruction manual. Failure to follow
the safety instruction given may directly endanger people, cause damage to the system or to
other equipment.
Servicing
Do not attempt to service this product yourself as opening or removing covers may expose you to
dangerous voltage or other hazards. Refer all servicing to qualified service personnel.
Trademarks
ACTi and ACTi logo are registered trademarks of ACTi Corporation. All other names and products
used in this manual are registered trademarks of their respective companies.
Liability
Every reasonable care has been taken during the writing of this manual. Please inform your local
office if you find any inaccuracies or omissions. ACTi will not be held responsible for any
typographical or technical errors and reserves the right to make changes to the product and
manuals without prior notice.
4
Page 5
www.acti.com
Hardware Manual
Federal Communications Commission Statement
This equipment has been tested and found to comply with the limits for a class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception,
which can be determined by turning the equipment off and on, the user is encouraged to try to
correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Warning: Changes or modifications to the equipment that are not expressly approved by the
responsible party for compliance could void the user’s authority to operate the equipment.
European Community Compliance Statement
This product has been tested and found to comply with the limits for Class B
Information Technology Equipment according to European Standard EN 55022
and EN 55024. In a domestic environment, this product may cause radio interference in which
cause the user may be required to take adequate measures.
5
Page 6
www.acti.com
Hardware Manual
Safety Instructions
Cleaning
Disconnect this product from the power supply before cleaning.
Accessories and Repair Parts
Use only the accessories and repair parts recommended by the manufacturer.
Location
Install this device in a dry place protected from weather.
Servicing
Do not attempt to service this product yourself. Refer all servicing to qualified service personnel.
Damage Requiring service
Disconnect this product from the power supply immediately and refer servicing to qualified
service personnel under the following conditions.
1) When the power-supply cord or plug is damaged
2) If liquid has been spilled, or objects have fallen into the product.
3) If the inner parts of product have been directly exposed to rain or water.
4) If the product does not operate normally by following the operating Instructions in this manual.
Adjust only those controls that are covered by the instruction manual, as an improper
adjustment of other controls may result in damage, and will often require extensive work by a
qualified technician to restore the product to its normal operation.
Safety Check
Upon completion of any service or repairs to this product, ask the service technician to perform
safety checks to determine if the product is in proper operating condition.
6
Page 7
www.acti.com
Hardware Manual
E213
5MP Zoom Box with D/N, Basic WDR, 10x Zoom lens
E215
3MP Zoom Box with D/N, Superior WDR, 10x Zoom lens
E223
1.3MP Zoom Box with D/N, Superior WDR, 10x Zoom lens
Introduction
The List of Models
This hardware manual contains the following models:
From the installation perspective, these models are very similar; therefore one manual is used for
all of them.
7
Page 8
www.acti.com
Package Contents
Camera
Audio and DI/DO
Terminal Block
Serial Port Terminal Block
(for E23B only)
Mounting Block
with Screws
Quick Installation Guide
Warranty Card
Hardware Manual
NOTE: The pictures are for reference only, actual items may slightly vary in appearance.
8
Page 9
www.acti.com
Physical Description
Item
Description
1
Serial Port
This port connects to serial devices via RS-485 or
RS-422 protocols. Use the supplied serial port
terminal block to connect the wires from the serial
device to the camera.
See How to Connect a Serial Device on page 18
for connection details.
2
Ethernet Port
Connects to a network using an Ethernet cable.
3
Memory Card Slot
Insert a memory card into this slot for local
recording purposes. See How to Install / Remove
the Memory Card on page 25 for more
information.
NOTE: Supports microSDHC and microSDXC
cards.
4
Reset Button
Restores the factory default settings of the
camera. Resetting the camera must be done while
the power is on. Using a pointed object, such as a
paper clip, press and hold the Reset Button for at
least 5 seconds or until the Power LED goes off .
5
Power LED
The Power LED turns on when the camera is
powered on and the system is running.
6
Digital Input / Output
(DI/DO) and Audio
Input / Output
This connector connects to digital input or output
devices, such as an alarm trigger, panic button,
etc., as well as audio input and output devices,
such as microphones and speakers. Digital Input
Hardware Manual
9
Page 10
www.acti.com
Item
Description
(DI) and Digital Output (DO) devices are used in
applications like motion detection, event
triggering, alarm notifications, etc. See How to
Connect DI/DO and Audio Devices (Optional)
on page 13 for more information.
Hardware Manual
10
Page 11
www.acti.com
Hardware Manual

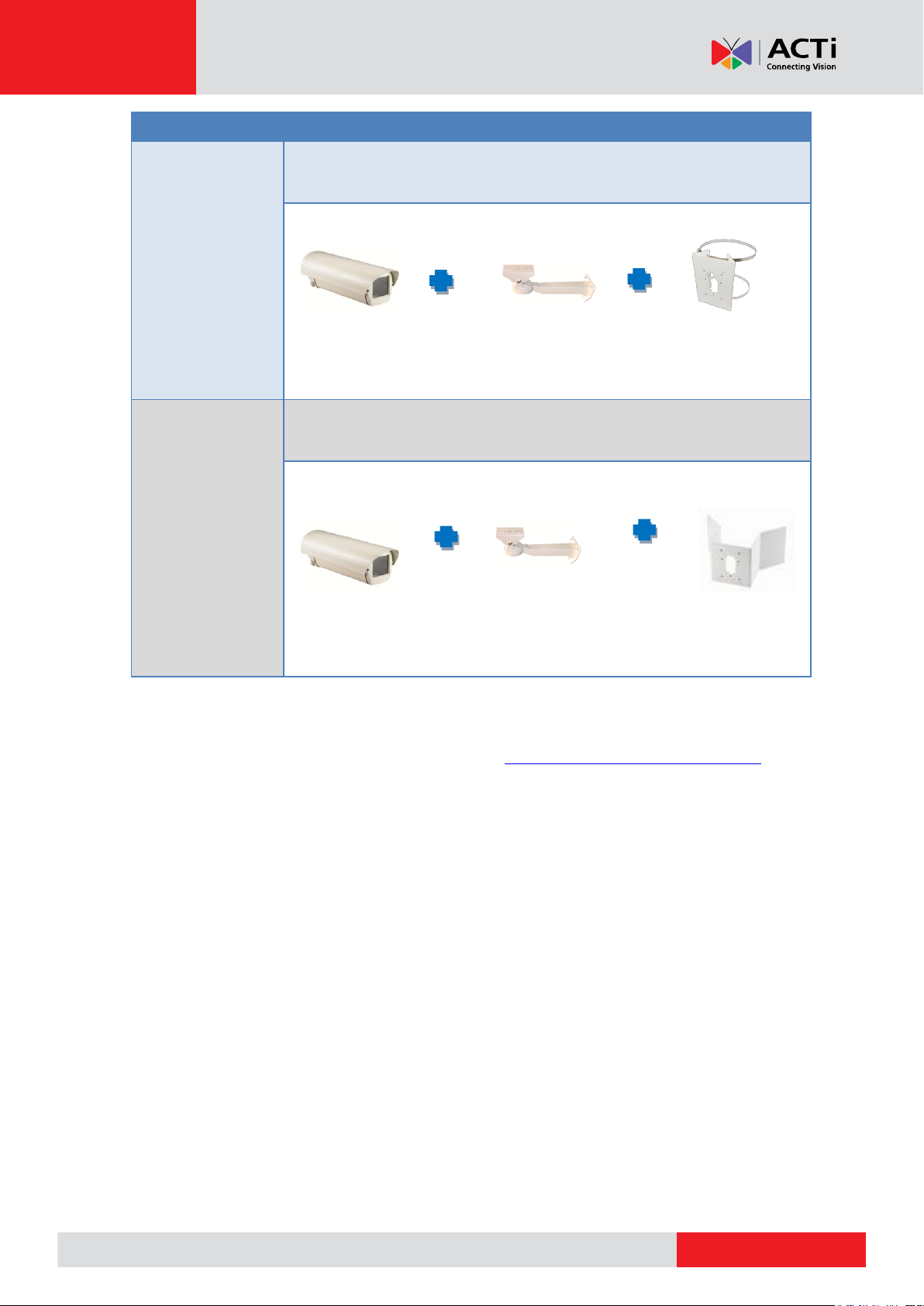

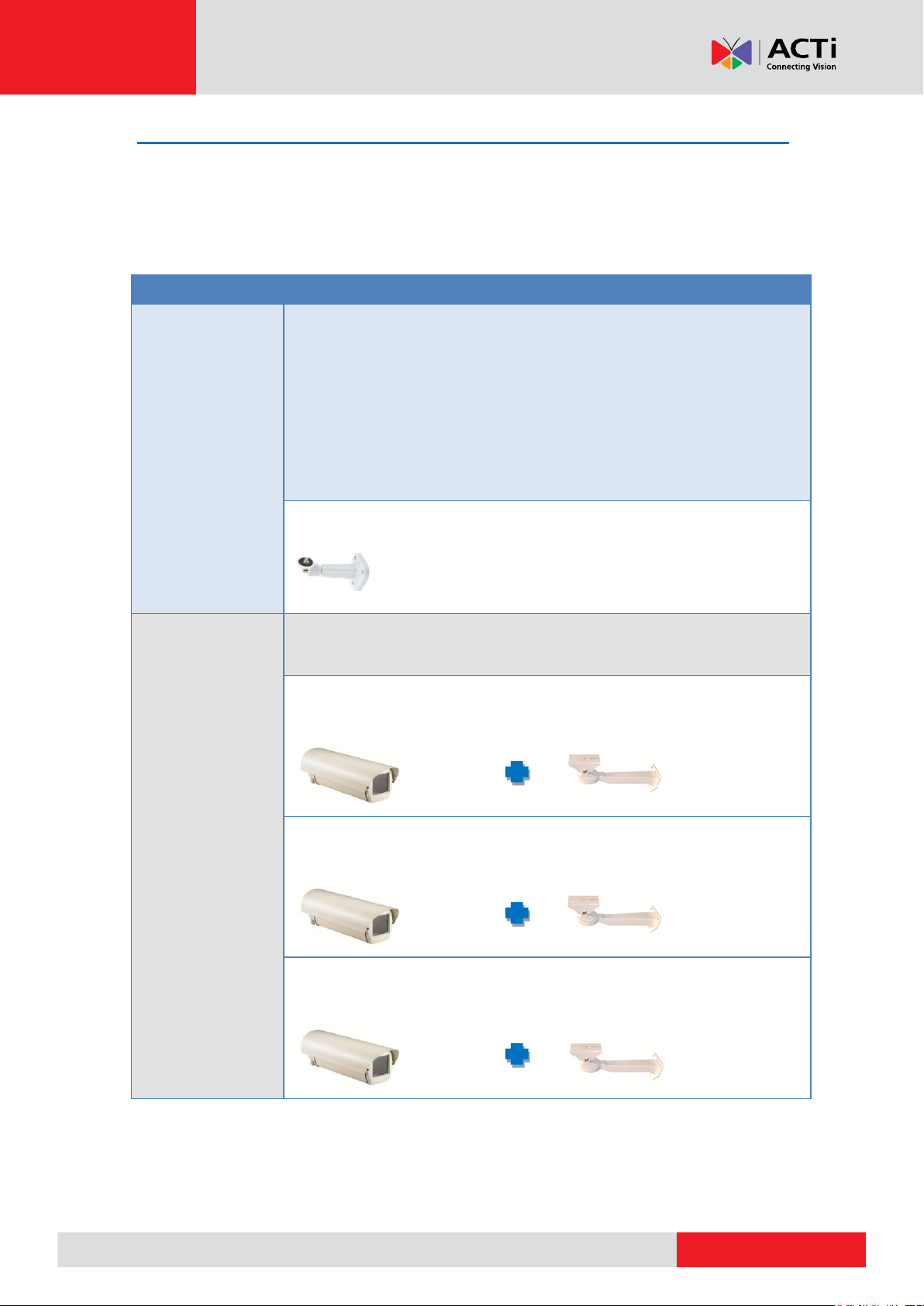

Mount Types
Accessories
Ceiling or Wall
(Indoor)
The camera comes with a mounting block which is used to
mount an additional bracket to complete the installation. The
additional bracket is not included in the camera package. You
may use the bracket from a local supplier or purchase ACTi’s
indoor bracket.
See Indoor Installation Procedures on page 20 for more
information.
PMAX-1104
Wall
(Outdoor)
A waterproof housing is required when installing the camera
outdoors. The following accessories can be used:
PMAX-0200 (AC 110V) PMAX-1101
with heater and fan
PMAX-0201 (AC 220V) PMAX-1101
with heater and fan
PMAX-0202 PMAX-1101
(no heater and no fan)
Mounting Options
The camera can be installed both indoors and outdoors. For outdoor installation, additional
waterproof housing is required. Below are several mounting options that you can use to install the
camera. Select the most suitable solution for your installation environment.
11
Page 12
www.acti.com
Hardware Manual
Mount Types
Accessories
Pole Mount
(SMAX-0093)
Suitable when mounting the camera on vertical poles. The
camera must be enclosed inside the waterproof housing.
Housing PMAX-1101 PMAX-0503
NOTE: The outdoor housing can either be PMAX-0200, PMAX-0201,
PMAX-0200.
Corner Mount
(SMAX-0006)
Suitable when mounting the camera on a corner wall. The
camera must be enclosed inside the waterproof housing.
Housing PMAX-1101 PMAX-0402
NOTE: The outdoor housing can either be PMAX-0200, PMAX-0201,
PMAX-0200.
NOTE:
For more information about the mounting solutions and accessories, please check the
Mounting Accessory Selector in our website (http://www.acti.com/mountingselector).
The above mounting accessories are not included in the package. Contact your sales
agents to purchase.
12
Page 13
www.acti.com
Hardware Manual
Before Installation
This section describes the procedures in preparing the Digital Input and Output (DI/DO) and
Audio Input and Output devices that you can connect to the camera using the bundled terminal
blocks. The use of these devices, however, is optional.
How to Connect DI/DO and Audio Devices (Optional)
Depending on your surveillance needs, you may connect digital input / output or audio input /
output devices to your camera. The camera comes with one (1) terminal block for both digital and
audio input/output devices.
How to Connect DI/DO Devices
Digital Input (DI) devices can be used to notify the camera about an activity in the camera site. DI
can be triggers of events. For example, you can connect a “panic button” to the camera; as such
when the panic button is pressed, the alarm signal will be sent through the camera. Other
common DI device applications are emergency button, smoke detector, passive infrared sensor,
etc.

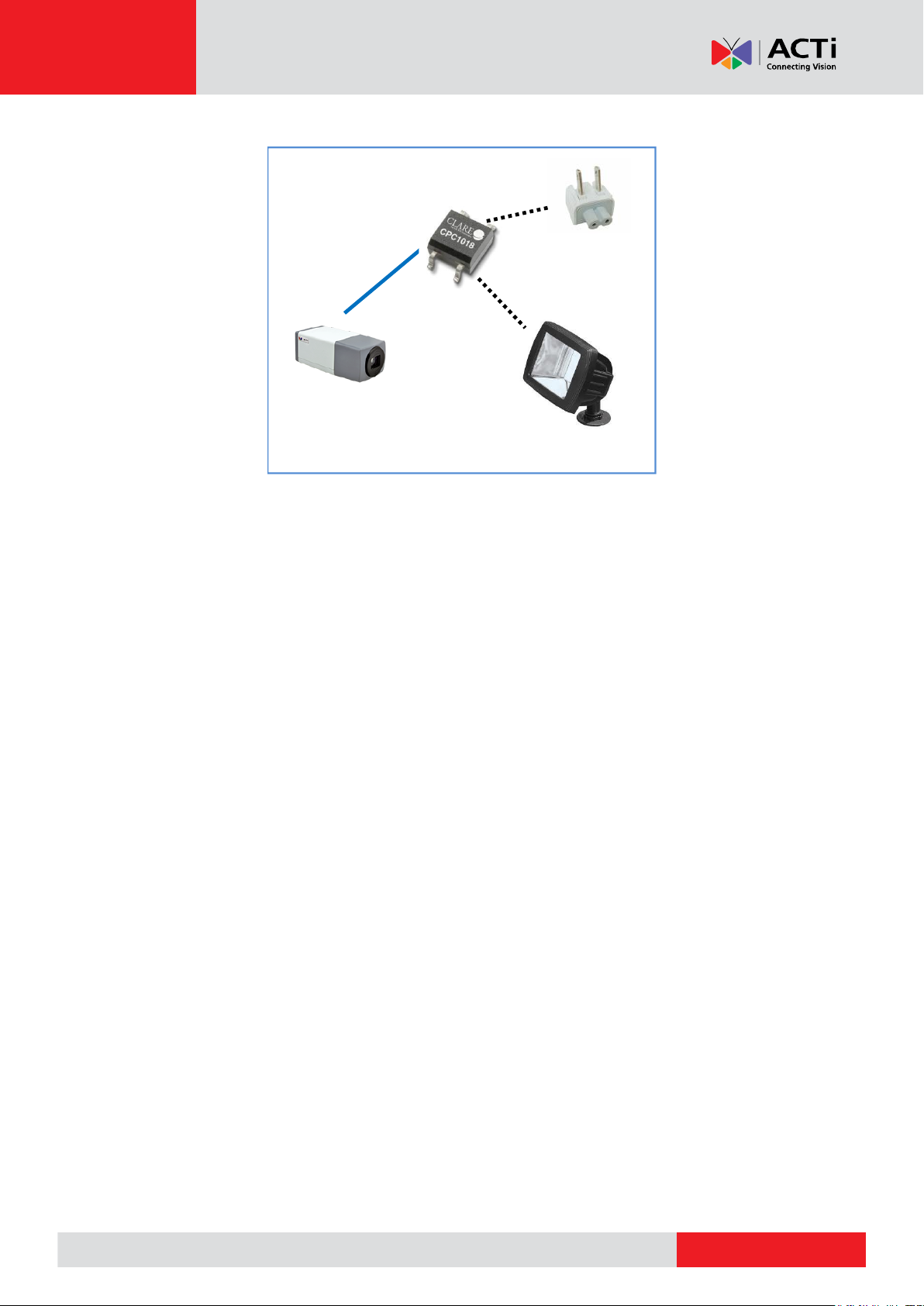

Digital Output (DO) devices are external devices that are activated by the camera upon an event
inside the camera. For example, you can connect an “alarm horn” to the camera; as such when
an event occurs inside the camera (e.g. detected intruder), the alarm horn will sound. Other
common DO device applications are motion-triggered lights, electric fence, magnetic door locks,
etc.
13
Page 14
www.acti.com
Hardware Manual

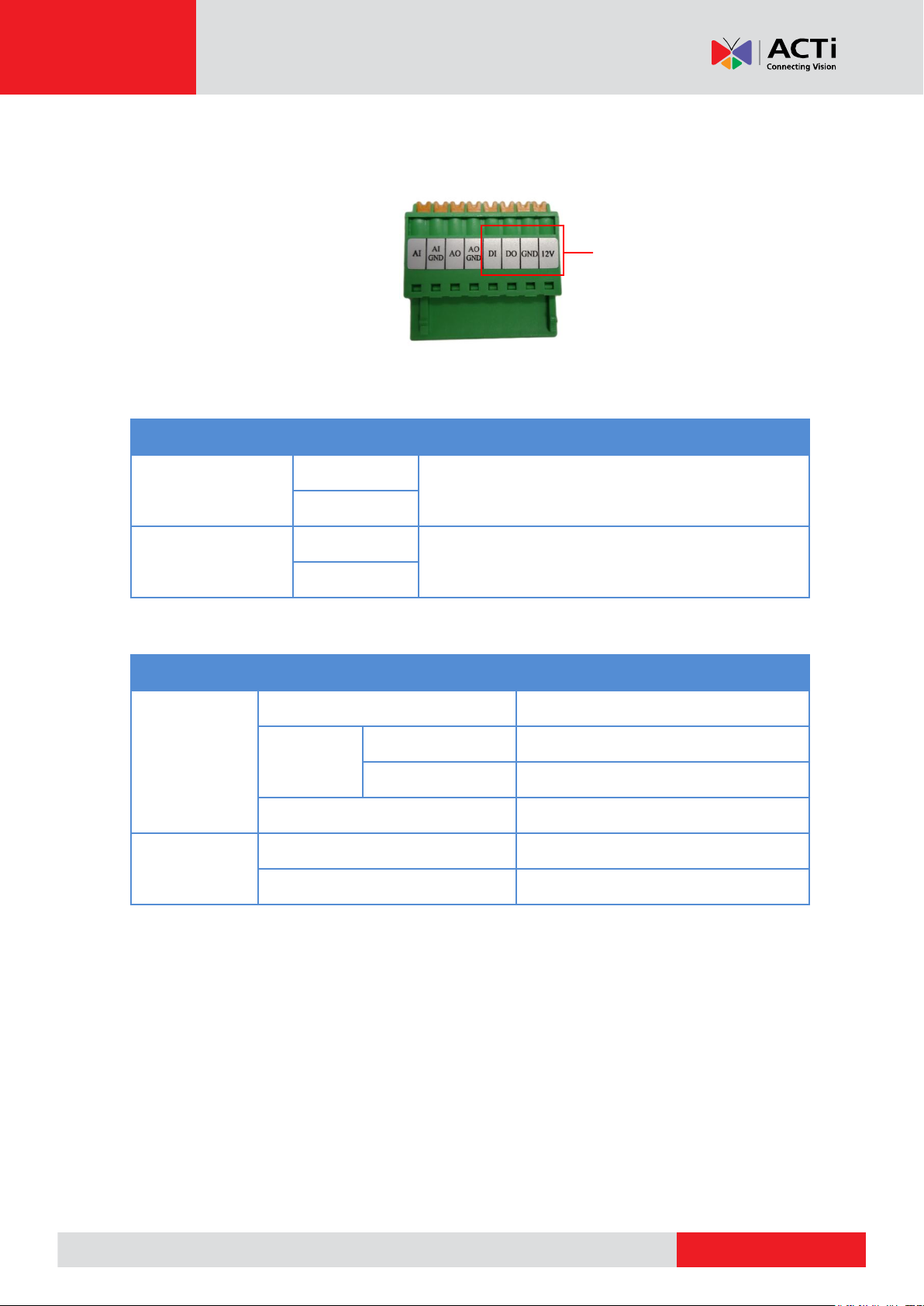

Device
Pin
Mapping Instructions
Digital Output (DO)
12V
Connect the wires of the output device to
12V and DO.
DO
Digital Input (DI)
GND
Connect the wires of the input device to GND and DI.
DI
Device
DI
Connection design
TTL - compatible logic levels
Voltage
To trigger (low)
Logic level 0: 0V ~ 0.4V
Normal (high)
Logic level 1: 3.1V ~ 30V
Current
10mA ~ 100mA
DO
Connection design
Transistor (Open Collector)
Voltage & Current
< 24V DC, < 50mA
For DI/DO Use
Press and hold the orange tab as you insert the wire through the pin slot, then release the orange
tab to secure the wire.
To connect digital input / output devices (DI/DO), map the pins to one of the pin combinations
below:
The table below shows the DI/DO connection specifications:
14
Page 15
www.acti.com
Hardware Manual
Typical Connection
Based on these specifications, if the DI device has a voltage of 0V ~ 30V or the DO device has a
voltage of < 24V (< 50mA), then the camera can supply internal power to these devices and there
is no need to connect the DI/DO device to an external power source.
Use the DIO GND and DI pins to connect a DI device and use the DIO PW and DO pins to
connect a DO device. See wiring scheme below:
High Voltage DO Device Connection
Even though the camera provides 12V power, this may not be enough for some high voltage DO
devices, such as a ceiling light or a motor that opens or closes a gate. In this case, there is a
need to connect an external relay. See wiring scheme below:
Note that when choosing an appropriate relay, please refer to its specifications and make sure
they match the above design. The triggering circuit voltage has to be around 12V DC and the
switch-controlled circuit voltage has to match the external power supply (e.g. 110V AC or 220V
AC).
15
Page 16
www.acti.com
Hardware Manual
Relay
(DO1 Device)
Camera
Illuminator
110V-220V AC
External Power
Source
The illustration below is a graphic example of connecting a relay to a high voltage DO device.
NOTE: For more information on DI/DO connections, please refer to the Knowledge Base
article All about Digital Input and Digital Output downloadable from the link below
(http://www.acti.com/kb/detail.asp?KB_ID=KB20091230001).
16
Page 17
www.acti.com
Hardware Manual
Device
Pin
Mapping Instructions
Audio Output (AO)
AO GND
Connect the wires of the audio output device to AO
GND and AO.
AO
Audio Input (A1)
AI GND
Connect the wires of the audio input device to AI
GND and AI.
AI
For Audio Use
How to Connect Audio Devices
Audio input / output devices, such as an active microphone or speaker can be connected to the
camera using the supplied terminal block.
Press and hold the orange tab as you insert the wire through the pin slot, then release the orange
tab to secure the wire.
To connect audio devices, map the pins to one of the pin combinations below:
NOTE: For more information about AUDIO in connections, please refer to the Knowledge Base
article How to Use Audio-in of ACTi Cameras, downloadable from the link below
(http://www.acti.com/support/KnowledgeBase/outside/detail.asp?KB_ID=KB20100114003).
17
Page 18
www.acti.com
Hardware Manual
Terminal Block
Wire Mapping
Label
Camera Pin
PT Scanner Pin
RX-
-
RX+
-
GND
GROUND PIN
TX- (D-)
TX- (D-)
DATA-
TX+ (D+)
TX+ (D+)
DATA+
Terminal Block
Wire Mapping
Label
Camera Pin
PT Scanner Pin
RX-
RX -
TX -
RX+
RX +
TX +
GND
GROUND PIN
TX- (D-)
TX -
RX -
TX+ (D+)
TX +
RX +
How to Connect a Serial Device
The camera can be connected to a Pan-Tilt (PT) Scanner (Pan-Tilt Head) using the serial port
connector. This allows the zoom camera to do pan and tilt using the Pelco-D protocol. Most PT
scanners accept Pelco-D and Pelco-P protocol commands via RS-485 or RS-422 connection,
which are both supported by your camera.
Check the connection available on the PT scanner and connect it to your camera following the
procedures below.
1. Map the wires from the PT scanner to your camera using the supplied terminal block
according to one of the tables below.
Via RS-485 Connection
Via RS-422 Connection
NOTE: The pins of the PT Scanner may be labeled differently depending on the location or
country where the scanner is purchased. For example, some PT devices may have RS-485
DATA+ pins labeled as “TX+”, “RX+”, "A” or “485+”, etc. Refer to the scanner documentation
or contact the manufacturer to verify the corresponding pin labels and ensure proper wiring
connection.
18
Page 19
www.acti.com
Hardware Manual
CAUTION: Incorrect wiring may cause damage to the connected devices.
DISCLAIMER: ACTi will not be responsible for any damage caused by improper wiring.
2. Connect a ground wire to one of the GND terminal pin to complete the connection.
19
Page 20
www.acti.com
Hardware Manual
Indoor Installation Procedures
This section describes the procedures in installing the camera indoors using PMAX-1104 indoor
bracket (purchased separately).
When using brackets from other manufacturers, check the installation guide included in the
bracket to install the camera. Similar procedures apply when using brackets from other camera
manufacturers.
NOTE: The pictures in this documentation are for reference only. Actual camera may slightly vary.
Step 1: Attach the Mounting Block
Determine where you want to install the camera: on the ceiling or on the wall.
If the camera will be installed on the ceiling, attach the mounting block on the top side
of the camera.
If the camera will be installed on the wall, attach the mounting block on the bottom
side of the camera. Secure the mounting block to the camera using the two (2) screws
included in the mounting block package.
20
Page 21
www.acti.com
Hardware Manual
Step 2: Mount the Indoor Bracket
NOTE:
The indoor bracket is not included in the camera package and must be purchased
separately.
The pictures on the succeeding pages are for reference only, camera labels and
appearance may vary depending on camera model.
Before installing the bracket, make sure the ceiling or wall can bear more than the weight of the
camera and its accessories.
Install the indoor bracket to the ceiling or wall using the three (3) screws included in the bracket
package.
Step 3: Attach the Camera to the Bracket
NOTE: The following images show the mounting bracket attached on the bottom side of the
camera. Same procedures apply when attaching the mounting bracket on the top side.
1. If necessary, insert a memory card into the memory card slot of the camera with the metal
contacts facing down. Push until the card clicks into place. See How to Install / Remove the
Memory Card on page 25 for more information.
21
Page 22
www.acti.com
Hardware Manual
2. Slightly loosen the knurled knob.
3. Screw the camera to the bracket by its mounting block.
4. Tighten the hand knob until the camera is secured to the bracket.
5. Adjust the camera angle.
22
Page 23
www.acti.com
Hardware Manual
6. Tighten the knurled knob to fix the camera position.
Step 4: Connect the Cable(s)
1. Connect the network cable to the Ethernet port of the camera.
2. If necessary, connect audio input/output or DI/DO devices to the camera. See How to
Connect DI/DO and Audio Devices (Optional) on page 13 for more information.
23
Page 24
www.acti.com
Hardware Manual

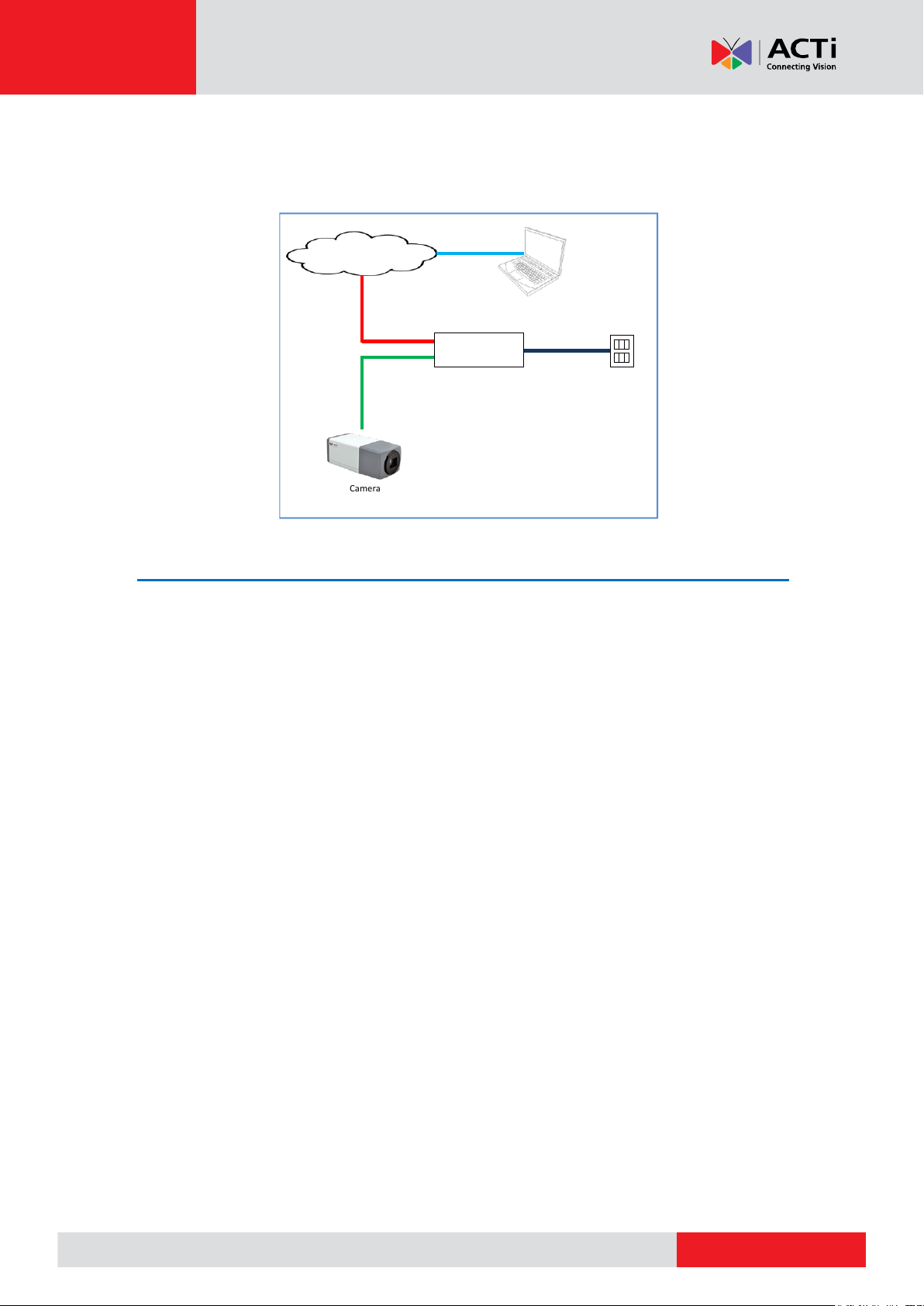

Network
AC Power
Source
PoE Injector /
PoE Switch
Power Cable
Ethernet Cable
Ethernet Cable
(Data + Power)
Ethernet Cable
(Data)
Camera
3. Connect the other end of the network cable to a switch or injector. Then, connect the switch
or injector to a network, PC and a power source. See Power-over-Ethernet (PoE) connection
example below.
Step 5: Access the Camera Live View
See Accessing the Camera on page 26 for more information on how to access the Live View of
the camera.
24
Page 25
www.acti.com
Hardware Manual
Other Adjustments and Accessories
How to Install / Remove the Memory Card
The camera supports local video recording or saving of snapshots to a memory card.
NOTE: Supports microSDHC and microSDXC cards.
How to Insert the Memory Card
1. Insert a memory card into the card slot with the metallic contacts facing down the camera.
Push the card until it clicks into place.
2. To avoid unauthorize removal of the card, cover the memory card slot. To do this, loosen the
screw and turn the tab to cover the memory card slot. Once the tab is in place, tighten the
screw.
How to Remove the Memory Card
In case there is a need to remove the card, make sure to access the camera Web Configurator to
safely “unmount” the card first (see the camera Firmware manual for more information). Once
unmounted from the firmware, push the card to eject it from the slot.
25
Page 26
www.acti.com
Hardware Manual
Accessing the Camera
Configure the IP Addresses
In order to be able to communicate with the camera from your PC, both the camera and the PC
have to be within the same network segment. In most cases, it means that they both should have
very similar IP addresses, where only the last number of the IP address is different from each
other. There are 2 different approaches to IP Address management in Local Area Networks – by
DHCP Server or Manually.
Using DHCP server to assign IP addresses:
If you have connected the computer and the camera into the network that has a DHCP server
running, then you do not need to configure the IP addresses at all – both the camera and the PC
would request a unique IP address from DHCP server automatically. In such case, the camera
will immediately be ready for the access from the PC. The user, however, might not know the IP
address of the camera yet. It is necessary to know the IP address of the camera in other to be
able to access it by using a Web browser.
The quickest way to discover the cameras in the network is to use the simplest network
search, built in the Windows system – just by pressing the “Network” icon, all the cameras of the
local area network will be discovered by Windows thanks to the UPnP function support of our
cameras.

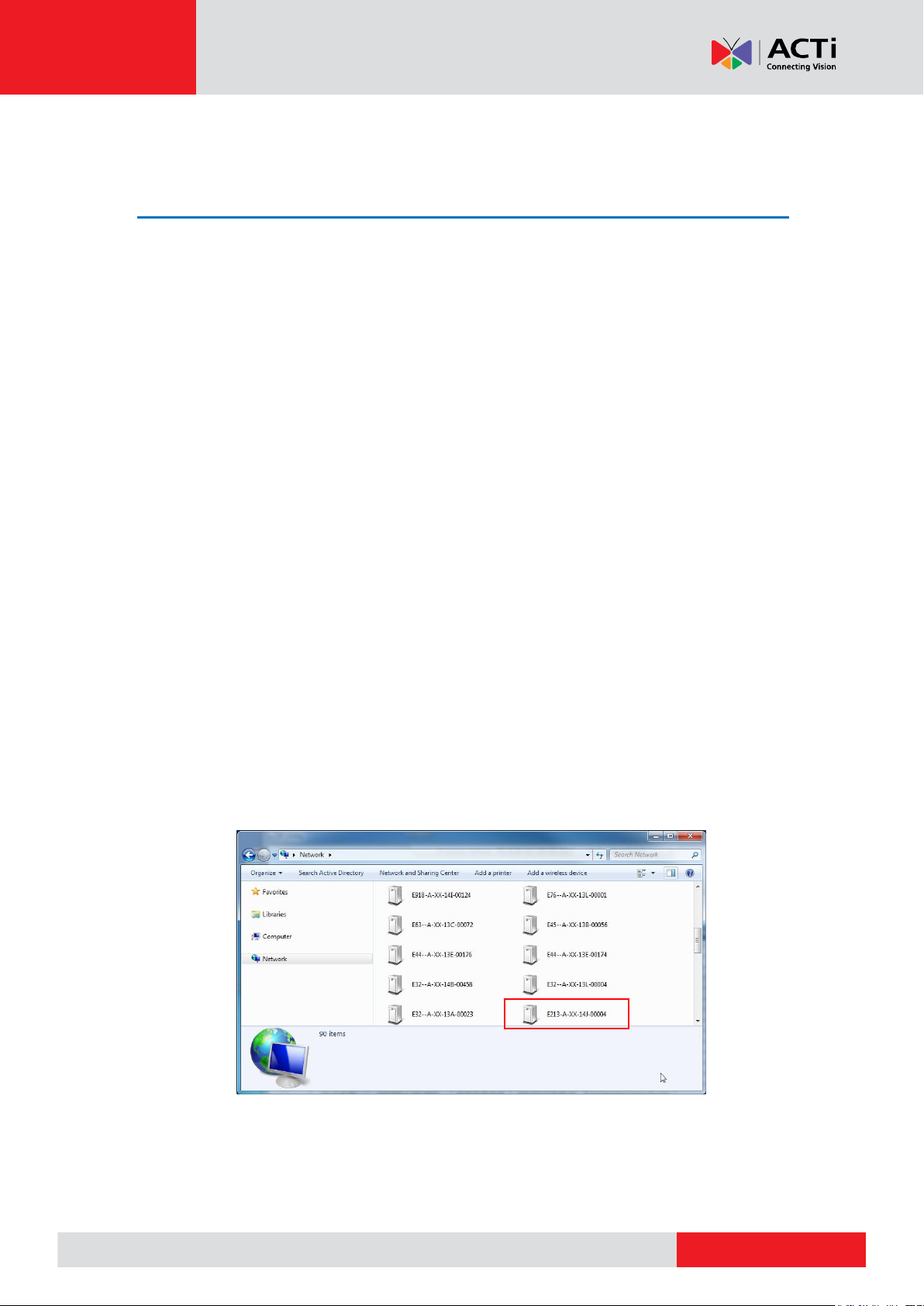

In the example below, we successfully the camera model that we had just connected to the
network.
26
Page 27
www.acti.com
Hardware Manual
Double-click the mouse button on the camera model, the default browser of the PC is
automatically launched and the IP address of the target camera is already filled in the address
bar of the browser.
If you work with our cameras regularly, then there is even a better way to discover the
cameras in the network – by using IP Utility. The IP Utility is a light software tool that can not
only discover the cameras, but also list lots of valuable information, such as IP and MAC
addresses, serial numbers, firmware versions, etc, and allows quick configuration of multiple
devices at the same time.
The IP Utility can be downloaded for free from http://www.acti.com/IP_Utility.
With just one click, you can launch the IP Utility and there will be an instant report as follows:
You can quickly notice the camera model in the list. Click on the IP address to automatically
launch the default browser of the PC with the IP address of the target camera filled in the address
bar of the browser already.
27
Page 28
www.acti.com
Hardware Manual
1
2
3
4
Use the default IP address of a camera:
If there is no DHCP server in the given network, the user may have to assign the IP addresses to
both PC and camera manually to make sure they are in the same network segment.
When the camera is plugged into network and it does not detect any DHCP services, it will
automatically assign itself a default IP:
192.168.0.100
Whereas the default port number would be 80. In order to access that camera, the IP address of
the PC has to be configured to match the network segment of the camera.
Manually adjust the IP address of the PC:
In the following example, based on Windows 7, we will configure the IP address to 192.168.0.99
and set Subnet Mask to 255.255.255.0 by using the steps below:
28
Page 29
www.acti.com
Hardware Manual
Manually adjust the IP addresses of multiple cameras:
If there are more than 1 camera to be used in the same local area network and there is no DHCP
server to assign unique IP addresses to each of them, all of the cameras would then have the
initial IP address of 192.168.0.100, which is not a proper situation for network devices – all the IP
addresses have to be different from each other. The easiest way to assign cameras the IP
addresses is by using IP Utility:
With the procedure shown above, all the cameras will have unique IP addresses, starting from
192.168.0.101. In case there are 20 cameras selected, the last one of the cameras would have
the IP 192.168.0.120.
Later, by pressing the “Refresh” button of the IP Utility, you will be able to see the list of cameras
with their new IP addresses.
Please note that it is also possible to change the IP addresses manually by using the Web
browser. In such case, please plug in only one camera at a time, and change its IP address by
using the Web browser before plugging in the next one. This way, the Web browser will not be
confused about two devices having the same IP address at the same time.
29
Page 30
www.acti.com
Hardware Manual
Functionality
Internet Explorer
Other browsers
Live Video
Yes
Yes*
Live Video Area Resizable
Yes
No
PTZ Control
Yes
Yes
Capture the snapshot
Yes
Yes
Video overlay based configuration (Motion
Detection regions, Privacy Mask regions)
Yes
No
All the other configurations
Yes
Yes
Browser
Required Plug-In
Safari
QuickTime (http://www.apple.com/quicktime/download/)
Other non-Internet Explorer
browsers
Basic VLC Media Player (http://www.videolan.org)
Access the Camera
Now that the camera and the PC are both having their unique IP addresses and are under the
same network segment, it is possible to use the Web browser of the PC to access the camera.
You can use any of the browsers to access the camera, however, the full functionality is
provided only for Microsoft Internet Explorer.
The browser functionality comparison:
* When using non-Internet Explorer browsers, free third-party software plug-ins must be installed
to the PC first to be able to get the live video feed from the camera:
Disclaimer Notice: The camera manufacturer does not guarantee the compatibility of its cameras
with VLC player or QuickTime – since these are third party softwares. The third party has the right
to modify their utility any time which might affect the compatibility. In such cases, please use
Internet Explorer browser instead.
When using Internet Explorer browser, the ActiveX control for video stream management will be
downloaded from the camera directly – the user just has to accept the use of such control when
prompted so. No other third party utilities are required to be installed in such case.
30
Page 31
www.acti.com
Hardware Manual
The following examples in this manual are based on Internet Explorer browser in order to
cover all functions of the camera.
Assuming that the camera’s IP address is 192.168.0.100, you can access it by opening the Web
browser and typing the following address into Web browser’s address bar:
http://192.168.0.100
Upon successful connection to the camera, the user interface called Web Configurator would
appear together with the login page. The HTTP port number was not added behind the IP
address since the default HTTP port of the camera is 80, which can be omitted from the address
for convenience.
Before logging in, you need to know the factory default Account and Password of the camera.
Account: Admin
Password: 123456
For further operations, please refer to the Firmware User Manual.
31
Page 32
Copyright © 2015, ACTi Corporation All Rights Reserved
7F, No. 1, Alley 20, Lane 407, Sec. 2, Ti-Ding Blvd., Neihu District, Taipei, Taiwan 114, R.O.C.
TEL : +886-2-2656-2588 FAX : +886-2-2656-2599
Email: sales@acti.com
Loading...
