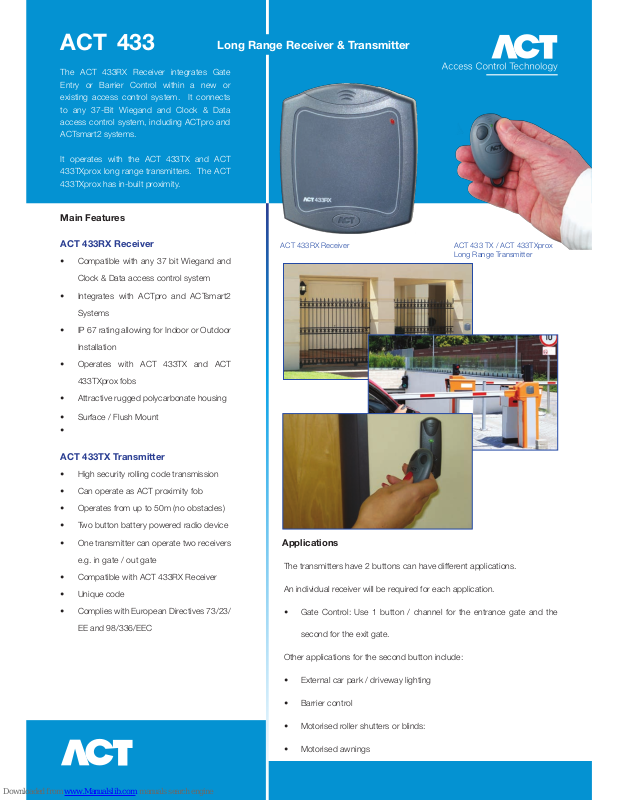

Page 1
Long Range Receiver & Transmitter
The ACT 433RX Receiver integrates Gate
Entry or Barrier Control within a new or
existing access control system. It connects
to any 37-Bit Wiegand and Clock & Data
access control system, including ACTpro and
ACTsmart2 systems.
It operates with the ACT 433TX and ACT
433TXprox long range transmitters. The ACT
433TXprox has in-built proximity.
Main Features
ACT 433RX Receiver
Compatible with any 37 bit Wiegand and •
Clock & Data access control system
Integrates with ACTpro and ACTsmart2 •
Systems
IP 67 rating allowing for Indoor or Outdoor •
Installation
Operates with ACT 433TX and ACT •
433TXprox fobs
Attractive rugged polycarbonate housing•
Surface / Flush Mount•
•
ACT 433TX Transmitter
High security rolling code transmission•
Can operate as ACT proximity fob•
Operates from up to 50m (no obstacles)•
Two button battery powered radio device•
One transmitter can operate two receivers •
e.g. in gate / out gate
Compatible with ACT 433RX Receiver•
Unique code•
Complies with European Directives 73/23/•
EE and 98/336/EEC
ACT 433RX Receiver ACT 433 TX / ACT 433TXprox
Long Range Transmitter
ACT 433
The transmitters have 2 buttons can have different applications.
An individual receiver will be required for each application.
Gate Control: Use 1 button / channel for the entrance gate and the •
second for the exit gate.
Other applications for the second button include:
External car park / driveway lighting •
Barrier control •
Motorised roller shutters or blinds: •
Motorised awnings•
Applications

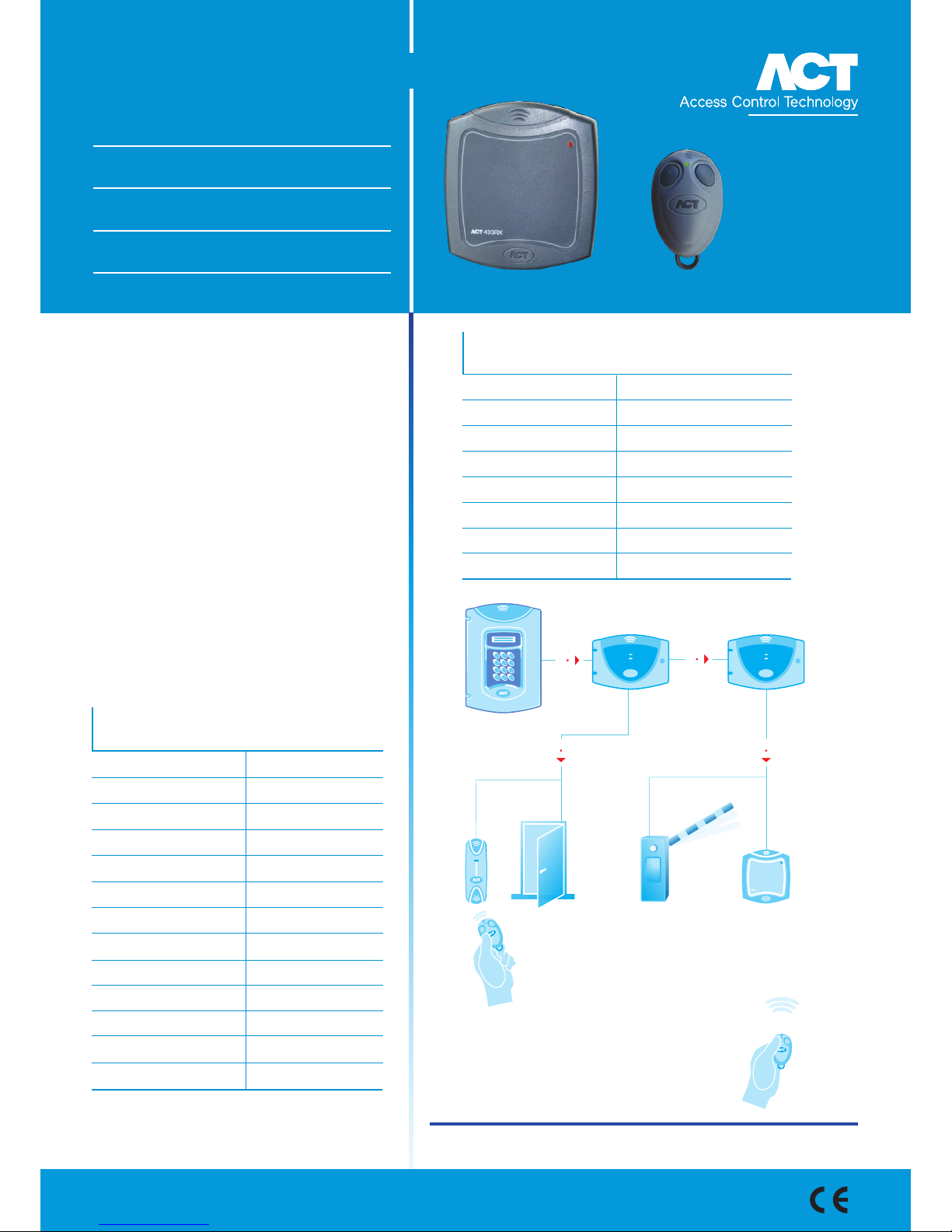

Page 2
ACT 433RX Receiver ACT 433TX / ACT 433TXprox
Transmitter
Long Range Receiver ACT 433RX
Long Range Transmitter ACT 433TX
Long Range Transmitter
with Proximity
ACT 433TXprox
Ordering Information
ACT 433
Long Range Receiver & Transmitter
Product Specification
ACT 433RX Receiver
Operating Frequency 433.92 MHz
Modulation FSK
Supply Voltage 5 Volts or 12 Volts
Current Consumption 60mA
Range in free space (max) 50 metres
Operating Temperature -20 to +70 C
Dimensions 109 x 100 x 24 (h x w x d, mm)
Weight 106 gms
Product Specification
ACT 433TX & 433TXprox Transmitters
Operating Frequency 433.92 MHz
Modulation FSK
Supply Voltage 6 Volts
Current Consumption 4mA
Range in free space (max) 50 metres
Operating Temperature -20 to +70 C
Dimensions (h x w x d, mm) 71.5 x 42.5 x 16
Weight 20 gms
E.R.P 5uW
Batteries Two CR2030
Battery Life 2 years (normal usage)
Transmission period 2.3 sec.
Transmission duration 7 m sec.
Installation
ACT 433RX Receiver
Connects to the ACTpro door controllers (ACTpro •
1000/2000/3000, ACTpro 100/200). Clock &
Data and Wiegand format
Connects to the ACTsmart2 Readers (ACTsmart2 •
1080, ACTsmart2 1090). Clock & Data format
ACT 433TX / 433TXprox Transmitter
The transmitter is powered by 2 batteries. •
Access Control Technology, Unit C1, South City Business Park, Tallaght, Dublin 24, Ireland
t: 353 (0)1 466 2570. f: 353 (0)1 452 0427. e: [email protected]. w: www.accesscontrol.ie
ACT 433 Schematic
Operating distance: 50 m
Using the transmitter as a
long range unit
Operating distance: 10 cm
Using the transmitter as a
standard card / fob
433RX
