RMW 7190
User Manual
19 pgs30.04 Mb0

Acnodes RMW 7190 User Manual

Download
User Manual
RMW7190: 7U 19” 1440x900 Full HD Widescreen Industrial Rackmount Monitor
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All righ ts reserved. Product descripti on and product speci ficat ions are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
RMW 7190
Legal Information
First English printing, October 2002 Information in this document has been carefully checked for accuracy; howeve r, no guarantee is given to the correctness of the contents. The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.
Safety Instructions Please read all of these instructions carefully before you use the device. Save this manual for future reference.
¦ Unplug equipment before cleaning. Don’t use liquid or spray detergent; use a mois t cloth. ¦ Keep equipment away from excessive humidity and heat. Preferabl y, keep it in an air-conditioned environment with
temperatures not exceeding 40º Celsius (104º Fahrenheit).
¦ When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing
damage to other equipment or injury to persons nearby.
¦ When the equipment is in an open position, do not cove r, block or in any way obstruct the gap between it and the
power supply. Proper air convection is necessary to keep it from overheating. ¦ Arrange the equipment’s power cord in such a way that others won’t trip or fall over it. ¦ If you are using a power cord that didn’t ship with the equipment, ensure that it is rated for the voltage and current
labeled on the equipment’s electrical ratings label. The voltage rating on the cord should be higher than the one listed
on the equipment’s ratings label. ¦ Observe all precautions and warnings attached to the equipment. ¦ If you don’t intend on using the equipment for a long time, disconnect it from the power outlet to prevent being
damaged by transient over-voltage. ¦ Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power
supply or on other hardware may cause damage, fire or electrical shock. ¦ Only qualified service personnel should open the chassis. Opening it yourself could damage the equipment and
invalidate its warranty. ¦ If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.
What the warranty does not cover
¦ Any product, on which the serial number has been defaced, modified or removed. ¦ Damage, deterioration or malfunction resulting from:
? Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modification, or
failure to follow instructions supplied with the product. ? Repair or attempted repair by anyone not authorized by us. ? Any damage of the product due to shipment. ? Removal or installation of the product. ? Causes external to the product, such as electric power fluctuation or failure. ? Use of supplies or parts not meeting our specifications. ? Normal wear and tear. ? Any other causes which does not relate to a product defect.
¦ Removal, installation, and set-up service charges.
Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant t o Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. Any changes or modifications made to this equipment may void the user’s authority to operate this equipment. This e quipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, m ay cause harmful interference to radio communications. However, there is no g uarantee th at interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encou raged to try to correct the interference by one or more of the foll owing measures: ¦ Re-position or relocate the receiving antenna. ¦ Increase the separation between the equipment and receive r. ¦ Connect the equipment into an outlet on a circuit di fferent from that to which the receiver is connected.
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All right s reser ved . Produc t descr ipt ion and product speci fi cat io ns are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
Contents
< Part. 1 > RMW7190
1.1 Package Content
1.2 Structure Diagram & Dimension
1.3 Installation
P.1 P.1 - 2 P.3
< Part. 2 > Specifications / OSD / Remote Controller
2.1 Product Specifications
2.2 On-screen Display Operation ( OSD )
P.4 - 5 P.6 - 7
< Part. 3 > Options
3.1 3G / HD / SD-SDI Broadcast-grade input
3.2 MCS Multi-display control solution
3.3 AV2.2D Upgrade : DVI-D + VGA + BNC + S-Video + Audio
3.4 AV2.2H Upgrade : HDMI + VGA + BNC + S-Video + Audio
3.5 W19” Touchscreen : Resistive, Capacitive
3.6 48V, 24V or 12VDC power
3.7 MIL-type or lockable connector
P.8 P.9 P.10 P.10 P.11 P.12 P.13
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All righ ts reserved. Product descripti on and product speci ficat ions are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
RMW 7190
Before Installation
¦ It is very important to mount the equipment in a suitable cabinet or on a stable surface. ¦ Make sure the place has a good ventilation, is out of direct sunlight, away from sources of excessive
dust, dirt, heat, water, moisture and vibration.
Unpacking
The equipment comes with the standard parts shown in package content. Check and make sure they are included and in good condition. If anything is missing, or damaged, contact the supplier immediatel y.
How To Clean Your LCD Monitor
Caution :
¦ To avoid the risk of electric shock, make sure your hands are dry before unplugging your monitor from or
plugging your monitor into an electrical outlet.
¦ When you clean your monito r, do not press down on the LCD screen. Pressing down on the screen can
scratch or damage your display. Pressure damage is not covered under warrant y.
¦ Use only cleansers m ade specifically for cleaning monitors and monitor screens. Cleansers not made to
clean monitors and monitor screens can scratch the LCD display or strip o ff the finish.
¦ Do not spray any kind of liquid directly onto the screen or case of your monito r. Spraying liquids directly
onto the screen or case can cause damage which is not covered under warrant y.
¦ Do not use paper towels or abrasive pads to clean your monito r. Using an abrasive pad or any wood based
paper product such as paper towels can scratch your LCD screen.
Cleaning Your Monitor
To clean your LCD safely, please follow these steps :
1
Disconnect the power cord.
2
Gently wipe the surface using a clean, dry microfiber cloth. Use as little pressure as possible.
Cleaning Tough Marks and Smudges
To remove tough marks and smudges, please follow these steps :
1
Disconnect the power cord.
2
Spray a small amount of non -abrasive cleanser on a microfiber cloth.
Caution : Do not spray or apply any liquids directly onto the monitor. Alw ays apply the solution to your microfiber cloth first, not directly on the parts you are cleaning.
3
Gently wipe the surface. Use as little pressure as possible.
4
Wait until your monitor is completely dry before plugging it in and powering it up.
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All right s reser ved . Produc t descr ipt ion and product speci fi cat io ns are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
< Part 1 >
< 1.1 > Package Content
< 1.2 > Structure Diagram
RMW 7190 unit X 1
- 6ft VGA cabl e X 1
- Powe r adapter X 1
- Powe r cord X 1
Front view
2
1
3
Powe r adapter
Rear view
3
1
LCD panel
2 LCD membrane
3 A udio speaker
4 P ower adapter basket
Powe r cord
DVI-D
Audio
Power BN C S-Video VGA HDMI
Standard
AV 2.2D upgrade
AV 2.2H upgrade
Option
out - in - in
Video PC
: DVI-D + VGA
: DVI-D + VGA + BNC + S-Video + audio
: HDMI + VGA + BNC + S-Video + audio
: SDI, USB for touchscreen & DC power
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All righ ts reserved. Product descripti on and product speci ficat ions are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
RMW 7190
< 1.2 > Dimension
Front View Side View
Bottom View
UNIT : mm
1mm = 0.03937 inch
Model
Product Dimension
(W x D x H)
Packing Dimension
(W x D x H)
Net
Weight
Gross
Weight
RMW 7190
480 x 58 x 310 mm
18.9 x 2.3 x 12.2 inch
529 x 124 x 451 mm
20.8 x 4.9 x 17.8 inch
4.5 kg
9.9 lbs
6 kg
13.2 lbs
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All right s reser ved . Produc t descr ipt ion and product speci fi cat io ns are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
RMW 7190
< 1.3 > Installation
Step
1
¦ Mount the display panel with M6 screw set. ¦ M6 screw x 4 pcs required ( Left & right side ).
M6 screw sets are not provided.
Step 2
¦ Fix the LCD into the rack.
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All righ ts reserved. Product descripti on and product speci ficat ions are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
LCD Panel
Manufacturer
Panel Size ( diagonal )
19-inch Widescreen TFT color LCD
Display pixel ( dots x lines )
1440 x 900
Brightness ( typ. )
250
Contrast Ratio ( typ. )
1000:1
Color
16.7 M
Viewing Angle ( L/R/U/D )
80/80/80/80
Response Time ( ms )
5
Dot pitch ( mm )
0.2835
Display Area ( mm )
408.24H x 255.15V
Surface treatment
Haze 25%, Hard -coating
Surface hardness
3H
Backlight Type
LED
MTBF ( hrs )
30,000
Video Connectivity
Digital
HDMI
HDMI 1.1, CEA -861-D
DVI
DVI-D, TMDS single link
Analog
VGA
Analog 0.7Vp-p
Composite ( BNC )
NTSC & PAL
S-Video ( 4-pin )
NTSC & PAL
Plug & Play
DVI / VGA
VESA EDID structure 1.3
Synchronization
VGA
Separate, Composite & SOG
Audio Connectivity
Audio Input
Connector
3.5mm stereo jack
Impedance / Power level
30kΩ / 750mV
Audio Output
Connector
3.5mm stereo jack
Resistance / Power level
30kΩ / 2.8V
Speaker Output
Power
2 x 2W
< Part 2 >
< 2.1 > Product Specifications
* When the audio output is connected, speaker output is OFF
Power
Power Supply
Range
Auto-sensing 100 to 240 VAC, 50 / 60Hz
Power Consumption
Screen display ON
25W or less
Power saving mode
4W or less
Power button OFF
1W or less
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All right s reser ved . Produc t descr ipt ion and product speci fi cat io ns are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
Regulatory Safety Approval FCC & CE
Environmental Conditions
Operating
Temperature
0 to 50°C degree
Humidity
20~90%, non-condensing
Storage
Temperature
-5 to 60°C degree
Humidity
5~90%, non-condensing
Shock
10G acceleration (11ms duration)
Vibration
5~500Hz 1G RMS random
Physical Specification
Product ( W x D x H )
480 x 58 x 310 mm
18.9 x 2.3 x 12.2 inch
Packing ( W x D x H )
529 x 124 x 451 mm
20.8 x 4.9 x 17.8 inch
Net Weight
4.5 kgs / 9.9 lbs
Gross Weight
6 kgs / 13.2 lbs
Applicable Format
DVI-D / VGA Input
PC Signal
1440 x 900 x 60Hz
1280 x 1024 x 60 / 75Hz
1280 x 960 x 60Hz
1280 x 760 x 60 / 75Hz
1152 x 864 x 75Hz
1024 x 768 x 60 / 70 / 75Hz
848 x 480 x 60Hz
800 x 600 x 60 / 72 / 75Hz
720 x 400 x 70Hz
640 x 480 x 60 / 72 / 75Hz
640 x 400 x 70Hz
640 x 350 x 70Hz
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All righ ts reserved. Product descripti on and product speci ficat ions are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
< 2.2 > On-screen Display Operation ( OSD )
Membrane Switch Function
Turn the monitor on or off
Display the OSD menu
Act as an Enter key to select screen setting options
Scroll through menu options and adjust
the displayed control
Exit the OSD screen Go back to the previous on-screen sub-menu or main menu
Remark : All LED touch buttons in WHITE light.
The LED of Power touch button will flash continuously when there is no signal input.
1 All the LED touch buttons will automatically turn off after 10 minutes of idle status ( except the Power ).
2 Light up all membrane buttons, please press any button for 1 - 2 seconds ( except the Power ).
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All right s reser ved . Produc t descr ipt ion and product speci fi cat io ns are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
< 2.2 > On-screen Display Operation ( OSD )
OSD Configuration Page
Image:
for the brightness, contrast, color temp, red, green, and blue
Geometry:
for the auto adjust, H position, V position, phase and clock
Video:
for the colour, tint, sharpness, noise reduction, DCDi and TV Setup
Audio:
for volume, bass, treble, balance, AVL and mute
Misc:
for the language, OSD position, graphic mode, ratio, reset and timer
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All righ ts reserved. Product descripti on and product speci ficat ions are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
< Part 3 >
< 3.1 > Options : 3G / HD / SD - SDI inp ut
Ac no de s ’ SD I inp ut is an i de a l s olut io n fo r t he b roadcast ­gra d e vide o an d hig h reso lutio n C CT V m a rket.
Design e d for use with Ful l HD 1 0 80 p a nd u ltr a high resolutio n 1920 x 1 20 0 LC D d isp lays , Acnodes p rovide s a S D I input modul e withou t usin g ad d itio na l spa c e o r p ow er an d it com e s sta nd ar d w it h a 2 -yea r warra n t y.

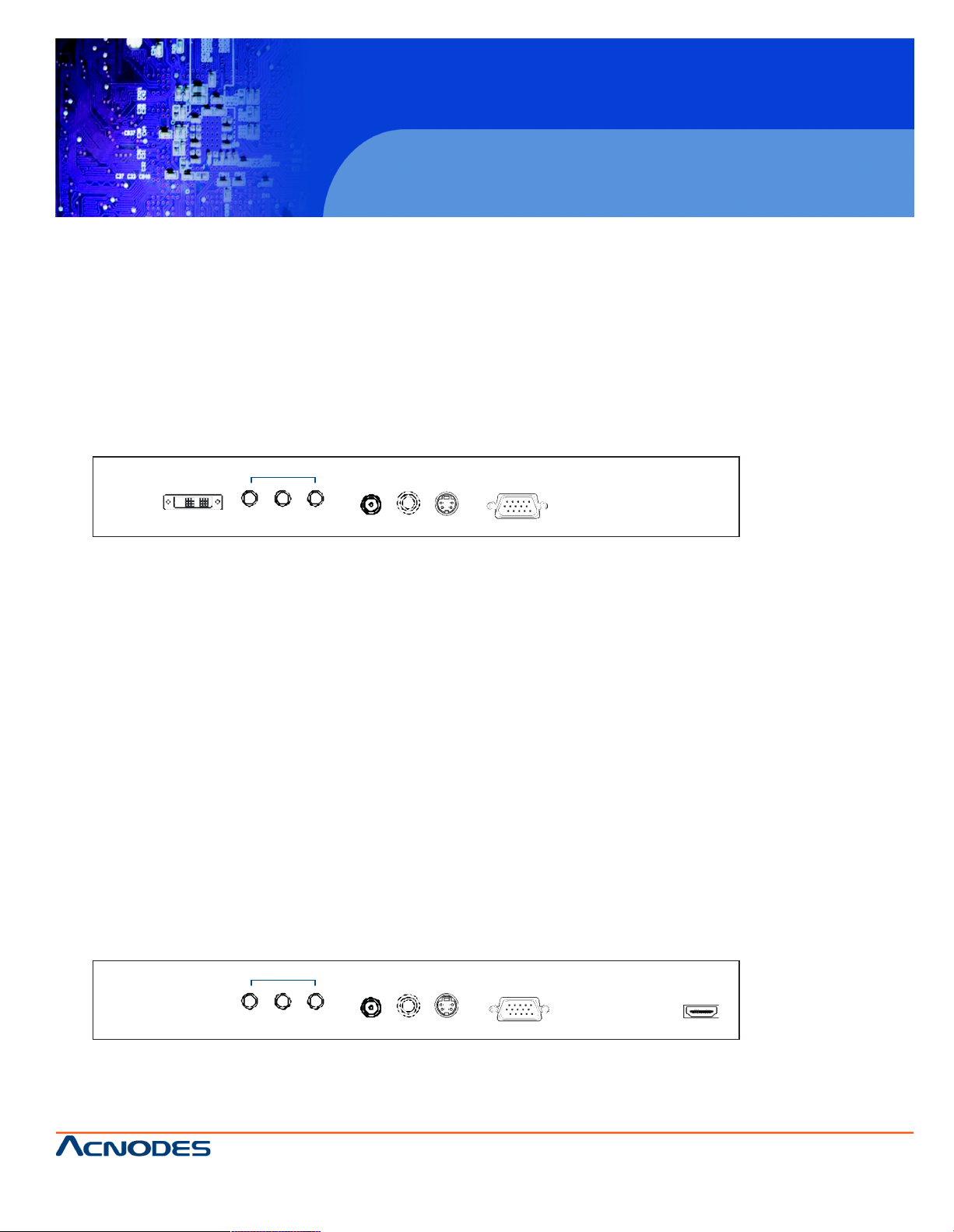

DVI - D
Audio
ou t - in - in
Vi de o PC
Powe r BNC S - Video VG A
SDI
o ut - in
HDMI
*** F or SDI o pti o n, t he AD bo ard will be upgra d ed t o AV3 .0, a n d this com es sta nd ard with H DM I , D VI -D ,
VG A, S -V ide o , BN C a nd a u di o inputs.
INPUT
3G -SDI IN
BNC x 1 / 0.8Vp -p ( 75 ohm )
3G -SDI OUT
BNC x 1 / A ctiv e th rough, equalized & re locke d
Standard C om plianc e
Video
SM PTE 42 5 M / 27 4M / 2 9 6M / 1 2 5M IT U - R B T.656
Au dio
SM PTE 29 9M / 27 2M -C
Com pa tible Vide o F ormat
3G -SDI
1080p @60 / 50 H z, 4:2 : 2 1080p @30 / 25 / 2 4 Hz, 4: 4 :4 1080i @60 / 50 H z, 4:4: 4 720p @60 / 50 H z, 4:4: 4
HD -SDI
1080p @30 / 25 / 2 4 Hz, 4: 2 :2 1080i @60 / 50 H z, 4:2: 2 720p @60 / 50 H z, 4:2: 2
SD -SDI
480i @6 0Hz, 4 :2 :2
ITU -R B T.65 6
576i @5 0Hz, 4 :2 :2
Com pa tible A ud io Format
3G -SDI
48kH z, 16 / 20 / 2 4 b it, 2 C H , Synchron ized V ideo
HD -SDI
48kH z, 16 / 20 / 2 4 b it, 2 C H , Synchron ized V ideo
SD -SDI
48kH z, 16 / 20 / 2 4 b it, 2 C H , Sy n chron ized / As ynch roniz e d Video
Max. Tran sm ission Dista n ce 75 ohm c oa xia l c a ble
3G -SDI
150m at 2.97Gb/s
HD -SDI
250m at 1.485Gb/s
SD -SDI
480m at 270Mb/s
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All right s reser ved . Produc t descr ipt ion and product speci fi cat io ns are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
< 3.2 > Options : MCS ( Multi-display Control )
More control is always good. Especially when it is necessary and easy. Acnodes provides MCS solution to c ontrol the OSD of various LCD display up to 64 units.
The RS-232C is used for the communication between the PC and the first display via a 15 feet serial cable while the CAN bus is used for the various LCD displays cascade together via CAT 5/6 cable, and daisy chain up to 1,000 meters.
Designed for use with various LCD displays, Acnodes provides a MCS input module without using additional space or power and it comes standard with a 2-year warranty.
HDMI
Audio
Power BNC S-Video
out - in - in
Video PC
MCS
VGA DVI-D
set out in Link
*** For MCS option, casing depth will be changed.
RS-232C
Set switch
For the 1st and last display,
push the set switch upward
15 feet serial cable
( over 15 feet, extender required )
For other daisy chain displays,
push the set switch downward
LINK OUT
IN OUT IN O UT IN OUT
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
Cat5 / 6 cable
max. 300 meters
RJ-45 jack
Daisy chain up to 1,000 meters and 64 displays
up to 64 displays
< 3.3 > AV3.0 Upgrade Options :
- AV
- Audio
( S-Video + Composite, BNC )
( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers
DVI-D
Audio
out - in - in
Video PC
Power BNC S-Video VGA HDMI
< 3.4 > Options : Touchscreen & driver
F17" USB Touchscreen Specification
Mod el
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
TRB e-Resistive
5-Wire Resistive
Single
Stylus or Finger
= 50g / Stylus=R0.8
10 million touches
15 ms
80% ± 3%
3H
8% ± 3%
2.2 ±0.2 mm
USB Type A
Windows 7 / XP / Vista, Linux
¦ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc ¦ For detailed information, please refer to the attached CD disc ¦ As the touchscreen unit is not made of toughened glass, please handle it carefully
USB Touchscreen
DVI-D Power VGA HDMI
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All right s reser ved . Produc t descr ipt ion and product speci fi cat io ns are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
< 3.3 > AV2.2D Upgrade Options :
- DVI-D
- AV
- Audio
( DVI-D TMDS sin gle link )
( S-Video + Composi te, BNC )
( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
DVI-D
Audio
out - in - in
Video PC
Power BNC S-Video VGA
< 3.4 > AV2.2H Upgrade Options :
- HDMI ( HDMI 1.1, CEA-861-D )
- AV
- Audio
( S-Video + Composi te, BNC )
( 3.5mm audio jacks for audio in & out, and 2W + 2W speakers )
Audio
out - in - in
Video PC
Power BNC S-Video VGA HDMI
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All righ ts reserved. Product descripti on and product speci ficat ions are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
< 3.3 > Options : Touchscreen & driver
W19" USB Touchscreen Specification
Mod el
Technology
Touch Point
Method
Activation Force
Durability
Response Time
Optical Transmittance
Surface Hardness
Haze
Glass
Connector
Compatibility
TRB e-Resistive
TCB e-Capacitive
5-Wire Resistive
Capacitive
Single
Single
Stylus or Finger
Finger
= 50g / Stylus=R0.8
= 50g
35 million touches
300 million touches
15 ms
20 ms
80% ± 3%
87% ±2%
3H
9H
8% ± 3%
7%
3.2 ±0.2 mm
2.8 mm ±10%
USB Type A
Windows 7 / XP / Vista, Linux
¦ USB touchscreen package includes 1 x 6ft USB cable, quick reference guideline and CD disc ¦ For detailed information, please refer to the attached CD disc ¦ As the touchscreen unit is not made of toughened glass, please handle it carefully
USB Touchscreen
DVI-D Power VGA
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All right s reser ved . Produc t descr ipt ion and product speci fi cat io ns are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
DVI-D Power VGA
Please follow the below steps to s etup the touch screen: -
Step 1. Run the bundled CD disc
Step 2. Double click the Setup.exe
Step 3. Follow the installation instruction to finish the setup
Step 4. After installation, run the TouchKit program & the “4 point calibration”
Please do the initial calibration after the first setup
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All righ ts reserved. Product descripti on and product speci ficat ions are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
RMW 7190
< 3.5 > Options : DC Power
Model
12V
24V
48V
Input rating
Input voltage:
12-Volt
24-Volt
48-Volt
Input range:
9 ~ 18V
18 ~ 36V
36 ~ 75V
Input current
- No load
50 mA
50 mA
50 mA
- Full load
4950 mA
2450 mA
1220 mA
Output rating
Output voltage:
12-Volt
12-Volt
12-Volt
Output current:
4.16A
4.16A
4.16A
Efficiency
84%
85%
85%
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All right s reser ved . Produc t descr ipt ion and product speci fi cat io ns are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
< 3.6 > Options : MIL-type or Lockable Connector
Input
Part no.
MIL Standard
MIL - type Connector
DC Power *** ( Male )
MS3470W8 -33P
MIL - DTL - 26482
VGA *** ( Male )
MS3470W14-15P
MIL - DTL - 26482
*** There are several additional MIL DC and VGA c onnector t ypes with varying design
characteristics to meet cost considerations and to provide users with the most design flexibility possible. For more information, please contact us.
Input
Part no.
Standard
Lockable Connector
DC Power ( Male )
YM-Ext-461CP001
D-type 3W3
USB
LUSB - A111 - 00
-
*** MIL - type or Lockable connectors above can be integrated with our LCD displays.
Sale service just for connectors not provided.
RMW 7190
14628 Ce ntral Ave, Chino , CA 91710 tel:909.597.7 588, fax:909.597.1939
© Copyright 2013 Acnodes, Inc. All righ ts reserved. Product descripti on and product speci ficat ions are subj ect to change w ith out n oti ce. F or lates t product inform ati on, ple ase vis it Acnod es’ we b site at www.ac nodes.c om.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
