Acnodes PC 8719 User Manual

PC 8719

Industrial Panel PC

User Manual

PC8719: 17” Industrial Touch Panel PC with Core i3-2310M 2.1GHz Processor

14628 Central Ave, Chin o, CA 91710 tel: 909.597.7588, fax:909.597.1939

© Copyrigh t 2013 Acnodes, Inc. All rights reserved. Product description and product speci fi cations are subj ect to change w ith out noti ce . For latest produc t informa ti on, please visit Acnodes’ web site at www.acnod es. com .

Warning!_______________________________

This equipment generates, uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions manual, it may cause interference to radio communications. It has been tested and found to comply with the limits for a Class A computing device pursuant to FCC Rules, which are designed to provide reasonable protection against such interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause interference in which case the user at his own expense will be required to take whatever measures may be required to correct the interference.

Electric Shock Hazard – Do not operate the machine with its back cover removed. There are dangerous high voltages inside.

Packing List

Accessories (as ticked) included in this package are:

□

AC power cable

□

Driver & manual CD disc

□

Other._ (please specify)

Safety Precautions

Follow the messages below to avoid your systems from damage:

◆

Avoid your system from static electricity on all occasions.

◆

Prevent electric shock. Don’t touch any components of this card when the card is

power-on. Always disconnect power when the system is not in use.

◆

Disconnect power when you change any hardware devices. For instance, when you

connect a jumper or install any cards, a surge of power may damage the electronic components or the whole system.

Table of Contents

Warning!…………………………………………………………………………….……..….2

Packing List...................................................................................................................3

Safety Precautions........................................................................................................3

Chapter 1 Getting Started

1.1 Specifications………………………………………….………….……...…..7

1.2 Dimensions…………………………………...……………….…………......8

1.3 Brief Description of PC8719…………...………………….………………10

Chapter 2 Hardware Installation

2.1 Mainboard Specifications………………………..…………….…………11

2.2 Jumpers Setting and Connectors………………………….……………14

Chapter 3 BIOS Setup

3.1 Operations after POST Screen.............................................................30

3.2 BIOS SETUP UTILITY........................................................ ........30

3.3 System Overview.......................................................................31

3.4 Advanced Settings................................................................... 32

3.5 Chipset Settings................................................................................... 39

3.6 Boot Settings....................................................................................... 48

3.7 Security Settings.................................................................................. 49

3.8 Save & Exit Settings............................................................................ 50

Chapter 4 Installation of Drivers

4.1 Intel Chipset Driver.…………………………...……………………………54

4.2 Intel (R) VGA Chipset Driver..…................…......……………….......…..57

4.3 Intel(R) Network adapter Driver…........…..................................……….62

4.4 Realtek HD Audio Driver Installation………………….…………………66

Chapter 5 Touch Screen Installation

5.1 Introduction to Touch Screen Controller Board………………………....70

5.2 Windows 2000/XP USB Driver Installation………………….………..….70

4.5 Microsoft .NET Framework 3.5 Service.................................................68

Chapter 1 Getting Started

Model No.

Specs

PC 87 19

System

Processor

Support Core i3-2310M 2.1GHz processor System Chipset

Intel QM67 PCH

System Memory

2 x SO-DIMM(204pins) up to 16GB DDRIII 1066/1333MHz FSB

Storage

2 x 2.5" SATA HDD space

External I/O Port

Onboard 2 x DB9 RS-232 (COM1.2) 1 x DVI-I 1 x HDMI 2 x RJ45 GbE LAN 4 x USB 2.0 1 x Mic-in, Line-Out 1 x DC Power 3 Pin terminal block connector 1 x 2 Pin remote power switch connector 2 x LED indication

-------------------------------------------------------------------------------------------------------By cable 1 x RS-232 COM4 1 x RS-422/485 default RS-485 COM3 1 x CF slot 1 x Rocker switch for power on/off 1 x 8 Pin terminal block 3 in/out/VCC/Ground for option Expansion Slots

1 x PCIe x16 or 1 x PCI slot, default 1 x PCIe x16

OS support

Windows XP embedded, Windows embedded standard 7, Windows 7 Pro for embedded

LCD

Display Type

17”

Max. Resolution

1280X1024

Max. Color

16.7M

Luminance (cd/m2)

350

View Angle

170:160

Backlight Lifetime

50,000 hrs

1.1 Specifications

Touch Screen

Type

Resistive Touch

Light Transmission

80%

Power Supply

Power Input

DC 9~32V

Mechanical

Construction

Steel black

IP Rating

Front Panel IP65

Mounting

Panel mount

Dimensions (WxHxD)

17.28” x 13.7” x 4.69”

Environmental

Operating Temperature

0~50 ﾟ C

Storage Temperature

-20~60 ﾟ C

Storage Humidity

10~90% @40 ﾟ C non-condensing

Certificate

CE/FCC Class A

1.2 Dimensions

Figure 1.1

: Dimensions of PC 8719

1.3 Brief Description of PC 8719

The PC8719

is the fanless and high performance panel

-mount industrial panel PC with 17” TFT

LCD. It powered by QM67 chipset and support Core i3-2310M 2.1GHz Processor. The panel PC has a rich variety of functions and peripherals. It comes with 2 x 2.5-inch hard disk drive and 1 x CF space for data storage , support DDR3 memory up to 16G, support rich i/O, wide range 9~32V DC input, and also provide 1 x PCIe x 16 slot, it can ensure simplified connectivity to a variety of external peripheral devices. The OS supports windows XP embedded, Windows embedded standard 7. The unit deal for a wide range of applications including digital surveillance, data/image acquisition, factory automation and industrial applications.

Figure 1.2: Overview of PC 8719

Chapter 2 Hardware Installation

2.1 Mainboard Specifications

Introduction

Figure 2.1: Mainboard Overview

Figure 2.2: Mainboard Dimensions

IPC -M8671 is a Mini-ITX industrial motherboard developed on the basis of Intel QM67,which provides abundant peripheral interfaces to meet the needs of different customers. Also, it features dual GbE ports, 6-COM ports and one Mini PCIE configuration. To satisfy the special needs of high-end customers, ADOtec designed 120Pin PCIe x16 and 40Pin PCIe x1 expansion interface. The product is widely used in various sectors of industrial control.

2.1 Specifications

Specifications

Board Size 170mm x 170mm CPU Support Support Socket G2,2nd Gen Intel Core i3/i5/i7 Processor Chipset Intel QM67 Memory

2 x SO-DIMM (204pins), up to 8GB DDRIII 800/1066MHz

Support

FSB

Graphics Intel HD Grapics 2000/3000 Super I/O Winbond W83627UHG BIOS AMIBIOS

Storage

4 x SATA Connector

1 x CFAST Slot (option)

Ethernet

2 x PCIe Gbe LAN by Intel 82574L

4 x USB 2.0 stack ports for external 3 x USB 2.0 box Pin header for MIO1 4 x USB 2.0 box Pin header for MIO2 1 x USB 2.0 internal for mini PCIe

USB

Serial

1 x RS232/422/485 port, DB9 connector for external (COM1)

pin 9 w/5V/12V/Ring select

1 x RS232 port, DB9 connector for external (COM2)

pin 9 w/5V/12V/Ring select 1 x RS232 header for internal (COM5) 1 x RS232 header for internal (COM6), pin 9 w/5V/12V select

I/O Card TB-522:

1 x 422/485 select header for internal MIO1 (COM3) 1 x RS232 header for internal MIO1 (COM4)

Digital I/O

8-bit digital I/O by Pin header by MIO2

4-bit digital Input 4-bit digital Output

Battery

Support CR2477 Li battery by 2-pin header Support CR2032 Li battery (option)

Audio

Support Audio via Realtek ALC662 HD audio codec

Support Line-out, MIC by JACK1

Support Line-in, Line-out, MIC by 2x6-pin header

Keyboard /Mouse

PS2 K/B and Mouse by MIO2

1 x PS/2 keyboard 1 x PS/2 mouse

Expansion Bus

1 x PCI-express x16 extend by 4x30 pin socket 2 x PCI-express x1 extend by 4x10 pin socket 1 x mini-PCI-express slot 1 x CRT 2x5 Pin Header

Power Management

1 x 3-pin power input connector (Wide range DC+9V~32V) 1 x ATX Power Input （2x2Pin and 3Pin, option） DC5V/12V output by 1x4 pin Connectors

Switches and LED Indicators

Power on/off switch by TB-522 or TB-523 Reset switch by MIO2

Power LED status by MIO2

External I/O

HDD LED status by MIO2

2 x COM Ports (COM1/COM2)

port

Watchdog

4 x USB 2.0 Ports (stack) 2 x RJ45 GbE LAN Ports 1 x DVI-I Port 1 x HDMI Port 1 x Audio Ports (Mic, Line out)

Software programmable 1 – 255 second by Super I/O

Timer

Temperature

Operating: -20℃ to 70℃

Storage: -40℃ to 85℃

Humidity 10% - 90%, non-condensing, operating Power

Consumption

12V/3.80A (Intel i5-2430M 2.4GHz Processor with 4GB

DDR3)

EMI/EMS Meet CE/FCC class A

2.2 Jumpers Setting and Connectors

Figure 2.3: Jumpers and Connectors Location-TOP

RTC1/SRTC1

CMOS

Open or

（RTC1Pin1-SRTC1 Pin close）

NORMAL (Default)

Close 1-2

Clear CMOS

Figure 2.4: Jumpers and Connectors Location- Bottom

1. RTC1/SRTC1:

(2.0mm Pitch 1X2 Pin Header)CMOS clear jumper, CMOS clear operation will permanently reset old BIOS settings to factory defaults.

Procedures of CMOS clear: a) Turn off the system and unplug the power cord from the power outlet.

b) To clear the CMOS settings, use the jumper cap to close pins1 and 2 for about 3

seconds then reinstall the jumper clip back to pins open.

c) Power on the system again.

d) When entering the POST screen, press the <DEL> key to enter CMOS Setup

Utility to load optimal defaults.

e) After the above operations, save changes and exit BIOS Setup.

2. BAT1 :

(1.25mm Pitch 1X2 box Pin Header) 3.0V Li batt ery is embedded to provide power for CMOS.

Pin#

Signal Name

Pin1

VBAT

Pin2

Ground

PS_SEL

Mode

Close 1-2

ATX Power (Default)

Close 2-3

AT Power

PS_ON

Mode

Close 1-2

Auto Power on

(Default)

Close 2-3

ATX Power

Pin#

Power Input

Pin1

DC+9V~32V

Pin2

Ground

Pin3

3. PS_SEL:

(2.0mm Pitch 1X3 Pin Header),ATX Power and AT Power jumper setting.

4. PS_ON:

(2.0mm Pitch 1X3 Pin Header),ATX Power and Auto Power on jumper setting.

5. DCIN:

(5.08mm Pitch 1x3 Pin Connector),DC9V ~ DC32V System power input connector。

6. ATX12V_IN (ATX Power option):

(2x2 Pin Connector),DC12V System power input connector.

Pin#

Power input

Pin1

Ground

Pin2

Ground

Pin3

DC+12V

Pin4

DC+12V

Pin#

Signal Name

Pin1

ATX PSON

Pin2

ATX Ground

Pin3

ATX 5VSB

Pin#

Power output

Pin1

DC+12V

Pin2

Ground

Pin3

Ground

Pin4

DC+5V

7. ATX (ATX Power option):

(2.0mm Pitch 1X3 box Pin Header), connect PSON and 5VSB and Ground signal,support ATX Power model. Reserved.

8. DC_OUT:

(2x2 Pin Connector),DC12V and DC5V System power output connector.

9. U1:

(Socket G2), installing the 2nd GEN intel Core i3/i5/i7CPU Socket.

10. CPU_FAN1/SYS_FAN1:

(2.54mm Pitch 1x3 Pin Header),Fan connector, cooling fans can be connected directly for use. You may set the rotation condition of cooling fan in menu of BIOS CMOS Setup.

Pin# Signal Name

Ground

VCC

Rotation detection

Signal Name

Pin#

Signal Name

CRT_RED

Ground

CRT_GREEN

Ground

CRT_BLUE

Ground

CRT_H_SYNC

CRT_DDCDAT A

CRT_V_SYNC

CRT_DDCCLK

Pin#

Signal Name

+DC12V

Ground

BKLT_EN

BKLT_CTRL

Note: Output power of cooling fan must be limited under 5W.

11. A-DDR3/B-DDR3:

(SO-DIMM 204Pin socket), DDRIII memory socket, the socket is located at the Top of the board and supports 204Pin 1.5V DDRIII 1066/1333MHz FSB SO-DIMM memory module up to 16GB.

12. VGA1:

13. INVT1:

(CRT 2.0mm Pitch 2X5 Pin Header), Video Graphic Array Port, Provide 2x5Pin cable to VGA Port.

(2.0mm Pitch 1x6 box Pin Header), Backlight control connector for LVDS1.

Note:

Pin6 is backlight control signal, support DC or PWM mode, mode select at BIOS CMOS menu.

14. LVDS1:

Signal Name

Pin#

Signal Name

VDD5 2 1

VDD5

Ground

VDD33

LB_D0_N

LA_D0_N

LB_D0_P

LA_D0_P

Ground

LB_D1_N

LA_D1_N

LA_D1_P

Ground

LB_D2_N

LA_D2_N

LB_D2_P

LA_D2_P

Ground

LB_CLK_N

LA_CLK_N

LB_CLK_P

LA_CLK_P

Ground

LVDS_DOC_CLK

Ground

LB_D3_N

LA_D3_N

LB_D3_P

LA_D3_P

(1.25mm Pitch 2x20 Connector), For 18/24-bit LVDS output connector, Fully supported by Intel QM67 chipset, the interface features dual channel 18/24-bit output.

15. JP_HDMI:

(2.0mm Pitch 1x2 Pin Header), Reserved.

16. HDMI1:

(HDMI 19P Connector), High Definition Multimedia Interface connector.

17. JP_DVI:

(2.0mm Pitch 1x2 Pin Header), Reserved.

18. DVI-I:

(DVI-I Connector), Digital Visual Interface-Integrated connector.

JP1 Pin#

Function

Close 1-2

COM1 RI (Ring Indicator) (default)

Close 3-4

COM1 Pin9=+5V (option)

Close 5-6

COM1 Pin9=+12V (option)

Function

JP1A Pin#

RS232

(Default)

Close: Pin1-3, Pin2-4, Pin7-9, Pin8-10, Pin13-14

RS422

(option)

Close: Pin3-5, Pin6-8, Pin9-11, Pin10-12, Pin17-18

RS485

(option)

Close: Pin3-5, Pin6-8, Pin9-11, Pin10-12, Pin15-16 Pin19-20

19. BT1:

POWER on/off Button, They are used to connect power switch button. The two pins are

disconnected under normal condition. You may short them temporarily to realize system startup & shutdown or awaken the system from sleep state.

20. JP1:

(2.0mm Pitch 2x3 Pin Header),COM1 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM1 port.

21. JP1A:

(2.0mm Pitch 2x10 Pin Header),COM1 jumper setting, it provides selectable RS232 or

RS422 or RS485 serial signal output.

22. COM1:

(Type DB9),Rear serial port, standard DB9 Male serial port is provided to make a direct

connection to serial devices.

RS232 (Default):

Pin#

Signal Name

DCD# (Data Carrier Detect)

RXD (Received Data)

TXD (Transmit Data)

DTR (Data Terminal Ready)

Ground

DSR (Data Set Ready)

RTS (Request To Send)

CTS (Clear To Send)

JP1 select Setting (RI/5V/12V)

RS422 (option):

Pin#

Signal Name

422_R-

422_R+

422_T-

422_T+

Ground

NC 8 NC 9 NC

RS485 (option):

Pin#

Signal Name

NC 2 NC 3 485-

485+

Ground

23. JP2:

(2.0mm Pitch 2x3 Pin Header),COM2 jumper setting, pin 1~6 are used to select signal out of pin 9 of COM2 port.

JP1 Pin#

Function

Close 1-2

COM2 RI (Ring Indicator) (default)

Close 3-4

COM2 Pin9=+5V (option)

Close 5-6

COM2 Pin9=+12V (option)

Pin#

Signal Name

DCD# (Data Carrier Detect)

RXD (Received Data)

TXD (Transmit Data)

DTR (Data Terminal Ready)

Ground

DSR (Data Set Ready)

RTS (Request To Send)

CTS (Clear To Send)

JP2 select Setting (RI/5V/12V)

Signal Name

Pin#

Signal Name

DCD

RXD

TXD

DTR

Ground

DSR

RTS

CTS

24. COM2:

(Type DB9),Rear serial port, standard DB9 Male serial port is provided to make a direct

connection to serial devices.

25. COM5:

(2.0mm Pitch 2X5 Pin Header),COM5 Port, standard RS232 ports are provided. They can be used directly via COM cable connection.

26. JP3:

(2.0mm Pitch 1x3 Pin Header) COM6 setting jumper, pin 1~3 are used to select signal out of pin 9 of COM6 port.

JP3 Pin# Function

Close 1-2

COM6 RI (Ring Indicator) (default)

Close 3-4

COM6 Pin9=+5V (option)

Close 5-6

COM6 Pin9=+12V (option)

Signal Name

Pin#

Signal Name

DCD

RXD

TXD

DTR

Ground

DSR

RTS

CTS

JP3select Setting (RI/5V/12V)

27. COM6:

(2.0mm Pitch 2x5 Pin Header), COM6 Port, standard RS232 ports are provided. They can be used directly via COM cable connection. COM6 port is controlled by pins No.1~3 of JP3,select output

28. USB_LAN1/USB_LAN2:

Signal 5V or 12v, For details, please refer to description of JP3.

USB4/USB5/USB6/USB7：(Double stack USB type A), Rear USB connector, it provides up to 4

USB2.0 ports, speed up to 480Mb/s.

Each USB Type A Receptacle (2 Ports) Current limited value is 1.5A.

If the external USB device current exceeds 1.5A, please separate connectors into different Receptacle.

LAN1/LAN2: (RJ45 Connector), Rear LAN port, Two standard 10/100/1000M RJ-45 Ethernet ports

are provided. Used Realtek RTL8111D chipset, LINK LED (green) and ACTIVE LED (yellow) respectively located at the left-hand and right-hand side of the Ethernet port indicate the activity and transmission state of LAN.

29. JACK1:

Signal Name

Pin#

Signal Name

SPK_OUTL_P

SPK_OUTR_P

SPK_OUTL_N

SPK_OUTR_N

FRONT_JD

LINE1_JD

LINE_IN_L

LINE-IN-R

MIC2_IN_L

MIC2-IN-R

Ground_AUD

MIC2_JD

(Diameter 3.5mm Double stack Jack), HD Audio port, An onboard Realtek ALC662 codec is used to provide high quality audio I/O ports. Line Out can be connected to a headphone or amplifier, MIC is the port for microphone input audio.

30. AUDIO1:

(2.0mm Pitch 2X6 Pin Header), Front Audio, An onboard Realtek ALC662 codec is used to provide high-quality audio I/O ports. Line Out can be connected to a headphone or amplifier. Line In is used for the connection of external audio source via a Line in cable. MIC is the port for microphone input audio.

31. LED3:

LED STATUS. Green LED for Motherboard Standby Power Good status, Yellow LED for HDD

status.

32. LED2:

LED STATUS. Green LED for Motherboard Standby Power Good status.

33. LED1:

LED STATUS. Green LED for Motherboard Power status,

34. PCIE_16X (option):

(4x30 Pin), Riser Card expansion connector. Can expand support one PCIeX16 or two PCIeX8 Signal.

ASB-M8671T：PCIE_16X connector in the top. ASB-M8671B：PCIE_16X connector in the Bottom.

35. PCIE1X (option):

MODEL

PC1E16X / PCIE1X

ASB-M8671T

Top

ASB-M8671B

Bottom

Function

Signal Name

Pin#

Signal Name

Function

COM3

RS422

RS485

485+ / 422TX+

2 1 422RX+

COM3

485- / 422TX-

4 3 422RX-

3P3V_S0

6 5 Ground

WAN_LED

8 7 NC

5V_S5

COM4

RXD4

DCD4-

COM4

DTR4-

TXD4

DSR4-

Ground

CTS4-

RTS4-

5V_S5

RI4-

USB10

5V_USB_1011

5V_S5

USB9

USB10_N

USB9_N

USB10_P

USB9_P

(4x10 Pin),Riser Card expansion connector.Can expand support two PCIe Signal. ASB-M8671T：PCIE1X connector in the top.

ASB-M8671B：PCIE1X connector in the Bott om.

36. M-PCIE1:

(Socket 52Pin),mini PCIe socket, it is located at the top, it supports mini PCIe devices with USB2.0, SMBUS and PCIe signal. MPCIe card size is 30x30mm or 30x50.95mm.

37. H1/H2:

MPCIE1 SCREW HOLES, H1 for mini PCIE card (30mmx30mm) assemble. H2 for mini PCIE card (30mmx50.95mm) assemble.

38. BUZZER1:

Onboard buzzer.

39. MIO1:

(DF13-40P Connector),For expand output connector, It provides two RS232 ports or one RS485 port, three USB ports, one power led, one power button, via a dedicated cable connected to TB-522 MIO1or TB-523 MIO1.

Ground

Power LED

3P3V_S0

5V_USB_1011

USB11

PWR_LED-

USB11_N

Power Button

MIO_PSON

USB11_P

Ground

Function

Signal Name

Pin#

Signal Name

Function

P_LED+

PWR-LED

HDD_LED

H_LED+

P_LED-

Ground

USB01_OC-

PSON+

MIO_PSON-

USB23_OC-

PSON-

Ground

RESET

RESET+

BUZZER-

BUZZER+

GPIO_OUT1

PCH_GPIO68

PCH_GPIO12

GPIO_IN1

GPIO_OUT2

PCH_GPIO69

PCH_GPIO15

GPIO_IN2

GPIO_OUT3

PCH_GPIO70

PCH_GPIO58

GPIO_IN3

GPIO_OUT4

PCH_GPIO71

PCH_GPIO75

GPIO_IN4

PS2_Mouse

5V_S5_USB

Ground

PS2_K/B

PS2_MSDATA

PS2_KBDATA

PS2_MSCLK

PS2_KBCLK

USB3

5V_S5_USB

USB2

USB3_N

USB2_N

USB3_P

USB2_P

Ground

USB1

5V_S5_USB

USB0

USB1_N

USB0_N

USB1_P

USB0_P

Ground

40. MIO2:

(DF13-40P Connector),Front panel connector.

Pin1- Ground: HDD LED, They are used to connect hard disk activity LED. The LED blinks when

the hard disk is reading or writing data.

Pin2- Pin4: POWER LED, They are used to connect power LED. When the system is

powered on or under S0/S1 state, the LED is normally on, when the system is

under S4/S5 state, the LED is off. Pin3: USB01 OC-, “USB01_OC-“ Signal. Pin5: USB23 OC-,“USB23_OC-“ Signal.

Pin7- Ground: RESET Button, They are used to connect reset button. The two pins

Pin#

Signal Name

+DC5V

Ground

are disconnected under normal condition. You may short them temporarily to realize system reset.

Pin6- Pin8: POWER on/off Button, They are used to connect power switch button.

The two pins are disconnected under normal condition. You may short them temporarily to realize system startup & shutdown or awaken the system from sleep state.

Pin9- Pin10: BUZZER, They are used to connect an external buzzer.

Pin11~Pin18: GPIO IN/GPIO OUT, General-purpose input/output port, it provides a group of

self-programming interfaces to customers for flexible use.

Pin19~Pin24: PS2 KB/MS, PS/2 keyboard and mouse port, the port can be connected to PS/2

keyboard and mouse via a dedicated cable for direct used.

Pin25~40: USB0/USB1/USB2/USB3, Front USB connector, it provides 4 USB ports via

a dedicated USB cable, speed up to 480Mb/s.

Note:

When connecting LEDs and buzzer and GPIO and USB, pay special attention to the signal polarity. Make sure that the connector pins have a one-to-one correspondence with chassis wiring, or it may cause boot up failure.

41. SATA_P1/SATA_P3:

(2.5mm Pitch 1x2 box Pin Header), Two onboard 5V output connectors are reserved to provide power for SATA devices.

Note: Output current of the connector must not be above 1A.

42. SATA_P2/SATA_P4:

(2.5mm Pitch 1x4 box Pin Header), Two onboard 5V and 12V output connectors are reserved to provide power for SATA devices.

Pin#

Signal Name

+DC5V

Ground

+DC12V

Note: Output current of the connector must not be above 1A.

43. SATA1/SATA2/SATA3/SATA4:

(SATA 7P), SATA Connectors, Four SATA connectors are provided,SATA1 and SATA2 transfer speed up to 6.0Gb/s, SATA3 and SATA4 transfer speed up to 3.0Gb/s,RAID controller supporting RAID 0/1/5/10.

44. CFAST (option):

(CFAST Card socket), it is located at the bottom of the board and serves as an insert interface for CFAST card.

45. SIM (option):

(SIM Socket 7Pin), Support SIM Card devices.

46. M_SATA1:

(50.95mmx30mm Socket 52Pin), mSATA socket, it is located at the top, it supports mini PCI-e devices with LPC bus, B2 mSATA bus for flash disk signal.

47. H3/H4:

M_SATA1 SCREW HOLES, H3 and H4 for mini MSATA card (50.95mmx30mm Socket 52 Pin) assemble.

48. CPU SCREW HOLES:

CPU FAN SCREW HOLES, Four screw holes for fixed CPU Cooler assemble.

49. TB-525E161:

TB-525E161 connect to ASB-M8671T PCIE_16X connector, PCIE_16X is located at the top,It provides one PCIE X16 slot.

Chapter 3 BIOS Setup

Main

Advanced

Chipset

Boot

Security

Save & Exit

3.1 Operations after POST Screen

After CMOS discharge or BIOS flashing operation, press [Delete] key to enter CMOS Setup.

After optimizing and exiting CMOS Setup, the POST screen displayed for the first time is

as follows and includes basic information on BIOS, CPU, memory, and storage devices.

3.2 BIOS SETUP UTILITY

Press [Delete] key to enter BIOS Setup utility during POST, and then a main menu containing system summary information will appear.

BIOS Information

BIOS Vendor American Megatrends Core Version 4.6.4.0 Compliancy UEFI 2.1 Project Version M8671V01 X64 Build Date and Time 05/21/2012 16:15:28

System Language [English]

System Date [Sun 07/10/2012] System Time [00:00:08]

Access Level Administrator

Choose the system Default language

→←

: Select Screen

↑↓

: Select Item

Enter: Select +/- : Charge Opt. F1 : General Help F2: Previous Values F3:Optimized Defaults F4:Save and Exit ESC Exit

Main

Advanced

Chipset

Boot

Security

Save & Exit

BIOS Information

BIOS Vendor American Megatrends Core Version 4.6.4.0 Compliancy UEFI 2.1 Project Version M8671V01 X64 Build Date and Time 05/21/2012 16:15:28

System Language [English]

Choose the system Default language

3.3 System Overview

Main

Settings

Main

Advanced

Chipset

Boot

Security

Save & Exit

Legacy OpROM Support

Launch Storage OpROM [Disabled]

Launch Storage OpROM [Enabled]

►

PCI Subsystem Settings

►

ACPI Settings

►

CPU Configuration

►

SATA Configuration

►

Thermal Configuration

►

PCH-FW Configuration

Enable or Disable Boot Option for Legacy Network Devices.

System Date [Sun 07/10/2012] System Time [00:00:08]

Access Level Administrator

→←

: Select Screen

↑↓

: Select Item

Enter: Select +/- : Charge Opt. F1 : General Help F2: Previous Values F3:Optimized Defaults F4:Save and Exit ESC Exit

System Time:

Set the system time, the time format is:

Hour : 0 to 23

Minute : 0 to 59

System Date:

Set the system date, the date format is:

Day: Note that the

Month: 01 to 12 Date: 01 to 31 Year: 1998 to 2099

3.4 Advanced Settings

Second : 0 to 59

„Day‟ automatically changes when you set the date.

►

USB Configuration

►

W83627UHG Super IO Configuration

►

HW Monitor

►

Sandybridge PPM Configuration

3.4.1 PCI Subsystem Settings

PCI Bus Driver Versio V2.03.00

→←

: Select Screen

↑↓

: Select Item

Enter: Select +/- : Charge Opt. F1 : General Help F2: Previous Values F3:Optimized Defaults F4:Save and Exit ESC Exit

PCI ROM Priority:

[EFI Compatible ROM]

[Legacy ROM]

PCI Common Settings: PCI Latency Timer:

[32 PCI Bus Clocks]

[64 PCI Bus Clocks] [96 PCI Bus Clocks] [128 PCI Bus Clocks] [160 PCI Bus Clocks] [192 PCI Bus Clocks] [224 PCI Bus Clocks] [248 PCI Bus Clocks]

VGA Palette Snoop:

[Disabled]

[Enabled]

PERR# Generation:

[Disabled]

[Enabled]

SERR# Generation:

[Disabled]

[Enabled]

PCI Express Device Settings:

Relaxed Ordering:

[Disabled]

[Enabled]

Extended Tag:

[Disabled]

[Enabled]

No Snoop:

[Enabled]

[Disabled]

Maximum Payload:

[Auto]

[128 Bytes] [256 Bytes] [512 Bytes] [1024 Bytes] [2048 Bytes] [4096 Bytes]

Maximum Read Request:

[Auto]

[128 Bytes] [256 Bytes] [512 Bytes] [1024 Bytes] [2048 Bytes] [4096 Bytes]

PCI Express Link Settings:

ASPM Support:

WARNING:Ebabling ASPM may cause some

Extended Synch:

3.4.2 ACPI Settings Enable ACPI Auto Configuration:

Enable Hibernation:

[Disabled]

[Enabled]

PCI-E devices to fail

[Disabled] [Enabled]

[Enabled]

[Disabled]

ACPI Sleep State:

[S3 (Suspend to RAM)]

[Suspend Disabled]

Lock Legacy Resources:

3.4.3 CPU Configuration

Socket 0 CPU Information:

Intel(R) Core(TM) i5-2430M CPU @2.40GHz CPU Signature 206a7 Microcode Patch 25 Max CPU Speed 2400 MHz Min CPU Speed Processor Cores 2 Intel HT Technology Supported Intel VT-x Technology Supported L1 Data Cache L1 Code Cache 32 KB x 2

[S3 (Suspend to RAM)]

[Disabled] [Enabled]

800 Mhz

32 KB x 2

L2 Cache 256 KB x 2 L3 Cache 3072 KB

CPU Speed 2400 MHz 64-bit Supported Hyper-Threading:

[Enabled]

[Disabled]

Active Processor Cores

[All]

[1]

Limit CPUID Maximum:

[Disabled]

[Enabled]

Execute Disable Bit:

[Enabled]

Hardware Prefetcher

[Disabled]

[Enabled]

Adjacent Cache Line Prefetch

Intel Virtualization Technology

3.4.4 SATA Configuration

SATA Controller(S):

SATA Mode Selection:

[Disabled]

[Enabled]

[Disabled]

[Enabled]

[Disabled]

[Enabled]

[Disabled]

[IDE] [AHCI]

SATA Test Mode:

[RAID]

[Disabled]

[Enabled]

Serial ATA Port 0 Empty

Software Preserve Unknown

Serial ATA Port 1 Empty

Software Preserve Unknown

Serial ATA Port 2 Empty

Software Preserve Unknown

Serial ATA Port 3 Empty

Software Preserve Unknown

Serial ATA Port 4 Empty

Software Preserve Unknown

[10 sec]

Serial ATA Port 5 Empty

Software Preserve Unknown

3.4.5 Thermal Configuration

Platform Thermal Configuration

3.4.6 PCH-FW Configuration

ME FW Version 0.0.0.0 ME Firmware Mode ME Firmware Type Full Sku Firmware ME Firmware SKU Unidentified ME Firmware Update Configuration

ME FW Image Re-Flash

3.4.7 USB Configuration USB Configuration USB Devices:

1 keyboard, 2 Hubs

Legacy USB Support:

EHCI Hand-off:

Port 60/64 Emulation

[Disabled]

[Enabled]

[Enabled] [Disabled]

[Disabled] [Enabled]

[Enabled]

[Disabled] USB hardware delays and time-outs: USB transfer time-out:

Device reset time-out:

[20 sec]

[10 sec]

[5 sec]

[1 sec]

[20 sec]

PC Health Status System temperature

+48 C

CPU temperature

+52

CPU Fan Speed

6000 RPM

VCORE

+1.145V

+12V

+11.685 V

+3.3V

+3.280 V

+1.5V

+1.520 V

5VSB

+5.010 V

VBAT

+3.136 V

Device power-up delay

[30 sec]

[40 sec]

[Auto]

3.4.8 W83627UHG Super IO Configuration W83627UHG Super IO Configuration Super IO Chip Winbond W83627UHG COM1 Configuration COM2 Configuration COM3 Configuration COM4 Configuration COM5 Configuration COM6 Configuration

3.4.9 HW Monitor

[Manual]

3.4.10 Sandybridge PPM Configuration

Sandybridge PPM Configuration

EIST

[Enabled] [Disabled]

Turbo Mode

[Enabled] [Disabled]

CPU C3 Report

[Enabled] [Disabled]

CPU C6 report

Long duration power limit

Long duration maintained

Short duration power limit

TCC active offset

Main

Advanced

Chipset

Boot

Security

Save & Exit

►

System Agent (SA) Configuration

►

PCH-IO Configuration

System Agent (SA) Parameters

→←

: Select Screen

↑↓

: Select Item

Enter: Select +/- : Charge Opt. F1 : General Help F2: Previous Values F3:Optimized Defaults F4:Save and Exit ESC Exit

CPU C7 report

[Enabled] [Disabled]

[Enabled]

3.5 Chipset Settings

[Disabled]

3.5.1

►

System Agent (SA) Configuration

►

PCH-IO Configuration

System Agent (SA) Configuration

System Agent RC Version 1.2.1.0

[256MB]

VT-d Capability Unsupported CHAP Device (B0:D7:F0)

[Enabled]

[Disabled]

Thermal Device (B0:D4:F0)

[Disabled]

[Enabled]

Enable NB CRID

[Disabled]

[Enabled]

►

Graphics Configuration

IGFX VBIOS Version 2120 IGFX Frequency 650 MHz Graphics Turbo IMON Current 31 Primary Display

Internal Graphics

GTT Size

Aperture Size

DVMT Pre-allocated

[Auto] [IGFX] [PEG] [PCI]

[Auto] [Disabled] [Enabled]

[2MB] [1MB]

[256MB] [128MB] [512MB]

[64MB] [0MB] [32MB] [96MB] [128MB] [160MB] [192MB] [224MB]

Dvmt Total Gfx Mem

GFX Low Power Mode

[288MB] [320MB] [352MB] [384MB] [416MB] [448MB] [480MB] [512MB]

[256MB] [128MB] [MAX]

[Enabled] [Disabled]

LCD Control:

Primary IGFX Boot Display

LCD Panel Type

[VBIOS Default] [CRT] [DVI] [LVDS] HDMI]

[1024 X 768 LVDS1] [640 X 480 LVDS ] [800 X 600 LVDS] [1280 X 1024 LVDS] [1400X1050(RB) LVDS1] [1400X1050 LVDS2] [1600 X 1200 LVDS] [1366 X 768 LVDS] [1680 X 1050 LVDS] [1920 X 1200 LVDS] [1440 X 900 LVDS] [1600 X 900 LVDS] [1024 X 768 LVDS2] [1280 X 800 LVDS] [1920 X 1080 LVDS] [2048 X 1536 LVDS]

[SECAM_L]

SDVD-LFP Panel Type

Panel Scaling

Backlight Control

[VBIOS Default] [1024 x 768 SDVO-LFP ] [1080 x1024 SDVO-LFP ] [1400 x 1050 SDVO-LFP ] [1600 x 1200 SDVO-LFP ]

[Auto ] [Off ] [Force Scaling ]

[PWM Inverted ] [PWM Normal ] [GMBus Inverted ] [GMBus Normal ]

BIA

Spread Spectrum clock chip

TV1 Standard

[Auto ] [Disabled ] [Level 1 ] [Level 2 ] [Level 3 ] [Level 4 ] [Level 5 ]

[Off ] [Hardware ] [Software ]

[VBIOS Default] [NTSC_M] [NTSC_M_J] [NTSC_433] [PAL_B] [PAL_G] [PAL_D] [PAL_H] [PAL_I] [PAL_M] [PAL_N]

]

TV2 Standard

]

[SECAM_B] [SECAM_D] [SECAM_G] [SECAM_H] [SECAM_K] [HDTV_STD_SMPTE_240M_1080i59] [HDTV_STD_SMPTE_240M_1080i60] [HDTV_STD_SMPTE_295M_1080i50] [HDTV_STD_SMPTE_295M_1080p50] [HDTV_STD_SMPTE_296M_720p50] [HDTV_STD_SMPTE_296M_720p60] [HDTV_STD_CEAEIA_7702A_480p60

[HDTV_STD_CEAEIA_7702A_480i60]

[VBIOS Default] [NTSC_M] [NTSC_M_J] [NTSC_433] [PAL_B] [PAL_G] [PAL_D] [PAL_H] [PAL_I] [PAL_M] [PAL_N] [SECAM_L] [SECAM_B] [SECAM_D] [SECAM_G] [SECAM_H] [SECAM_K] [HDTV_STD_SMPTE_240M_1080i59] [HDTV_STD_SMPTE_240M_1080i60] [HDTV_STD_SMPTE_295M_1080i50] [HDTV_STD_SMPTE_295M_1080p50] [HDTV_STD_SMPTE_296M_720p50] [HDTV_STD_SMPTE_296M_720p60] [HDTV_STD_CEAEIA_7702A_480p60

[HDTV_STD_CEAEIA_7702A_480i60]

ALS Support

Active LFP

Panel Color Depth

[Disabled] [Enabled]

[Int-LVDS] [No-LVDS] [SDVO LVDS] [eDP Port-A] [eDP Port-D]

[18 Bit] [24 Bit]

►

DMI Configuration

►

NB PCIe Configuration PEG0 [Not Present]

PEG0 – Gen X

PEG1 [Not Present]

PEG1 – Gen X

PEG2 [Not Present]

PEG2 – Gen X

[Auto] [Gen1] [Gen2]

[Auto] [Gen1]

PEG3 [Not Present]

[Gen2]

PEG3 – Gen X

[Auto] [Gen1] [Gen2]

Always Enable PEG

[Disabled] [Enabled]

PEG ASPM

[Disabled]

[Auto] [ASPM LOs] [ASPM L1] [ASPM LOsL1]

ASPM LOs

[Root Port Only] [Endpoint Port Only] [Both Root and Endpoint Ports]

De-emphasis Control

[-3.5 dB] [-6 dB]

►

Memory Configuration Memory RC Version 1.2.10 Memory Frequency 1333 Mhz Total Memory 2048 MB (DDR3) DIMM#0 DIMM#1

2048 MB (DDR3) Not Present

DIMM#2

Not Present DIMM#3 Not Present

CAS Latency (tCL)

Minimum delay time

CAS to RAS (tRPmin) 9 Row Precharge (tRPmin) 9 Active to Precharge (tRPmin) 24

DIMM profile

[Default DIMM profile] [XMP profile 1] [XMP profile 2]

Memory Frofile

ECC Support

[Auto] [1067] [1333] [1600] [1867] [2133]

[Enabled]

Max TOLUD

NMode Support

Memory Scrambler

RMT Crosser Support Memory Scrambler

[Disabled]

[Dynamic] [1GB] [1.25GB] [1.5GB] [1.75GB] [2GB] [2.25GB] [2.5GB] [2.75GB] [3GB] [3.25GB]

[Auto] [1N Mode] [2N Mode]

[Enabled] [Disabled]

[Disabled] [Enabled]

MRC Fast Boot

[Enabled] [Disabled]

Force Cold Reset

[Enabled] [Disabled]

Scrambler Seed Generation off

Memory Remap

Channel A DIMM Control

[Disabled] [Enabled]

[Enabled] [Disabled]

[Enabled Both DIMMS] [Disabled DIMM0] [Disabled DIMM1] [Disabled Both DIMMS]

►

Memory Thermal Configuration

Memory Thermal Management

PECI Injecred Temperature

EXTTS# via TS-on-Board

EXTTS# via TS-on-DIMM

Virtual Temperature Sensor (VTS)

[Enabled] [Disabled]

[Disabled] [Enabled]

►

GT-Power Management Control

GT Info GT2 (0X116) RC6 (Render Standby)

GT overClocking Support

[Enabled] [Disabled]

[Disabled] [Enabled]

3.6 Boot Settings

Main

Advanced

Chipset

Boot

Security

Save & Exit

Boot Configuration

Setup Prompt Timeout 1

Bootup Numlock State [On]

Quiet Boot

[Disabled]

Fast Boot

[Enabled]

Skip VGA

[Disabled]

Skip USB

[Disabled]

Skip PS2 [Disabled]

CSM16 Module Version 07.68

Gatea20 Active [Upon Request] Option ROM Messages [Force BIOS] Interrupt 19 Capture [Enabled] CSM Support [Enabled]

Boot Option Priorities

Boot Option #1 [SATA PM: Hitachi…] Hard Drive BBS Priorities

Number of seconds to Wait for setup Activation key. 65535(0xFFFF)means Indef inite waiting.

→←

: Select Screen

↑↓

: Select Item

Enter: Select +/- : Charge Opt. F1 : General Help F2: Previous Values F3:Optimized Defaults F4:Save and Exit ESC Exit

Setup Prompt Timeout [1] Bootup Numlock State

Quiet Boot

CSM16 Module Verison 07.64

Gatea20 Active

[On] [off]

[Enabled] [Disabled]

Main

Advanced

Chipset

Boot

Security

Save & Exit

Password Description

If ONLY the Administrator‟s password is set, Then this only limits access to Setup and is Only asked for when entering Setup.

If ONLY the User‟s password is set, then this Is a power on password and must be entered to

Is a power on password and must be entered to Boot or enter Setup. In Setup the User will Have Administrator rights. The password length must be 3 to 20 Characters long.

Administrator Password

User Password

Set Administrator Password

→←

: Select Screen

↑↓

: Select Item

Enter: Select +/- : Charge Opt. F1 : General Help F2: Previous Values F3:Optimized Defaults F4:Save and Exit ESC Exit

Option ROM Messages

Interrupt 19 Capture

[Upon Request] [Always]

[Force BIOS] [Keep Current]

[Disabled]

Boot Override SATA PM: ST9320423AS

……

Launch EFI Shell from filesystem device

3.7 Security Settings

[Enabled]

3.7.1 Administrator Password

Main

Advanced

Chipset

Boot

Security

Save & Exit

Save Changes and Exit

Discard Changes and Exit Save Changes and Reset Discard Changes and Reset

Save Options

Save Changes Discard Changes

Exit system setup after Saving the changes.

3.7.2 User Password

Type the password with up to 20 characters and then press Enter key. This will clear all previously typed CMOS passwords. You will be requested to confirm the password. Type the password again and press Enter key. You may press Esc key to abandon password entry operation. To clear the password, just press Enter key when password input window pops up. A confirmation message will be shown on the screen as to whether the password will be disabled. You will have direct access to BIOS setup without typing any password after system reboot once the password is disabled. Once the password feature is used, you will be requested to type the password each time you enter BIOS setup. This will prevent unauthorized persons from changing your system configurations. Also, the feature is capable of requesting users to enter the password prior to system boot to control unauthorized access to your computer. Users may enable the feature in Security Option of Advanced BIOS Features. If Security Option is set to System, you will be requested to enter the password before system boot and when entering BIOS setup; if Security Option is set to Setup, you will be requested for password for entering BIOS setup.

3.8 Save & Exit Settings

Restore Defaults Save user Defaults Restore user Defaults

Boot Override

SATA PM:*** … Launch EFI Shell from filesystem device

Save Changes and Exit

Save & Exit Setup save Configuration and exit ?

Discard Changes and Ext

→←

: Select Screen

↑↓

: Select Item

Enter: Select +/- : Charge Opt. F1 : General Help F2: Previous Values F3:Optimized Defaults F4:Save and Exit ESC Exit

[Yes] [No]

Exit Without Saving Quit without saving?

Save Changes and Reset

Save & reset Save Configuration and reset?

Discard Changes and Reset

Reset Without Saving Reset without saving?

Save Changes

Save Setup Values Save configuration?

Discard Changes

Load Previous Values Load Previous Values?

[Yes] [No]

Restore Defaults

Load Optimized Defaults Load optimized Defaults?

[Yes] [No]

Save user Defaults

Save Values as User Defaults Save configuration?

Restore user Defaults

Restore User Defaults Restore User Defaults?

Launch EFI Shell from filesystem device

[Yes] [No]

[Yes]

[No]

WARNING Not Found

[ok]

Chapter 4 Installation of Drivers

This chapter describes the installation procedures for software and drivers under the windows XP. The software and drivers are included with the motherboard. The contents include Intel QM67 Chipset

Driver, Intel (R) VGA Chipset Driver, Intel (R) Network Adapter, Realtek ALC662 Audio Codec Driver, Microsoft .NET Framework 3.5 Service, Touch Panel Driver.

Installation instructions are given below.

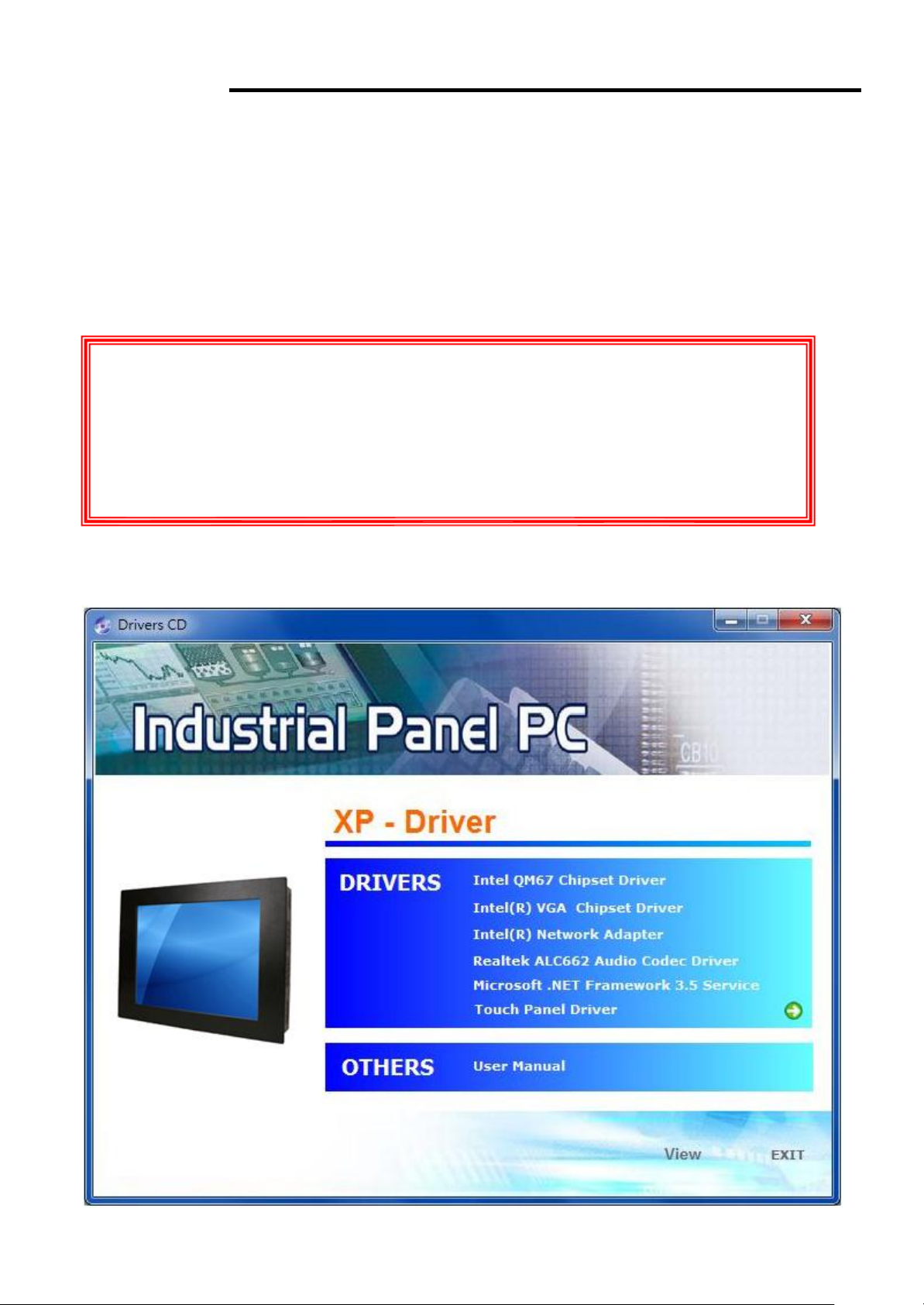

Important Note: After installing your Windows operating system (Windows XP), you must install first the Intel Chipset Software Installation Utility before proceeding with the installation of drivers.

4.1 Intel Chipset Driver

To install the Intel chipset driver, please follow the steps below.

Step 1. Access Industrial Panel PC. Select Intel QM67 Chipset Driver.

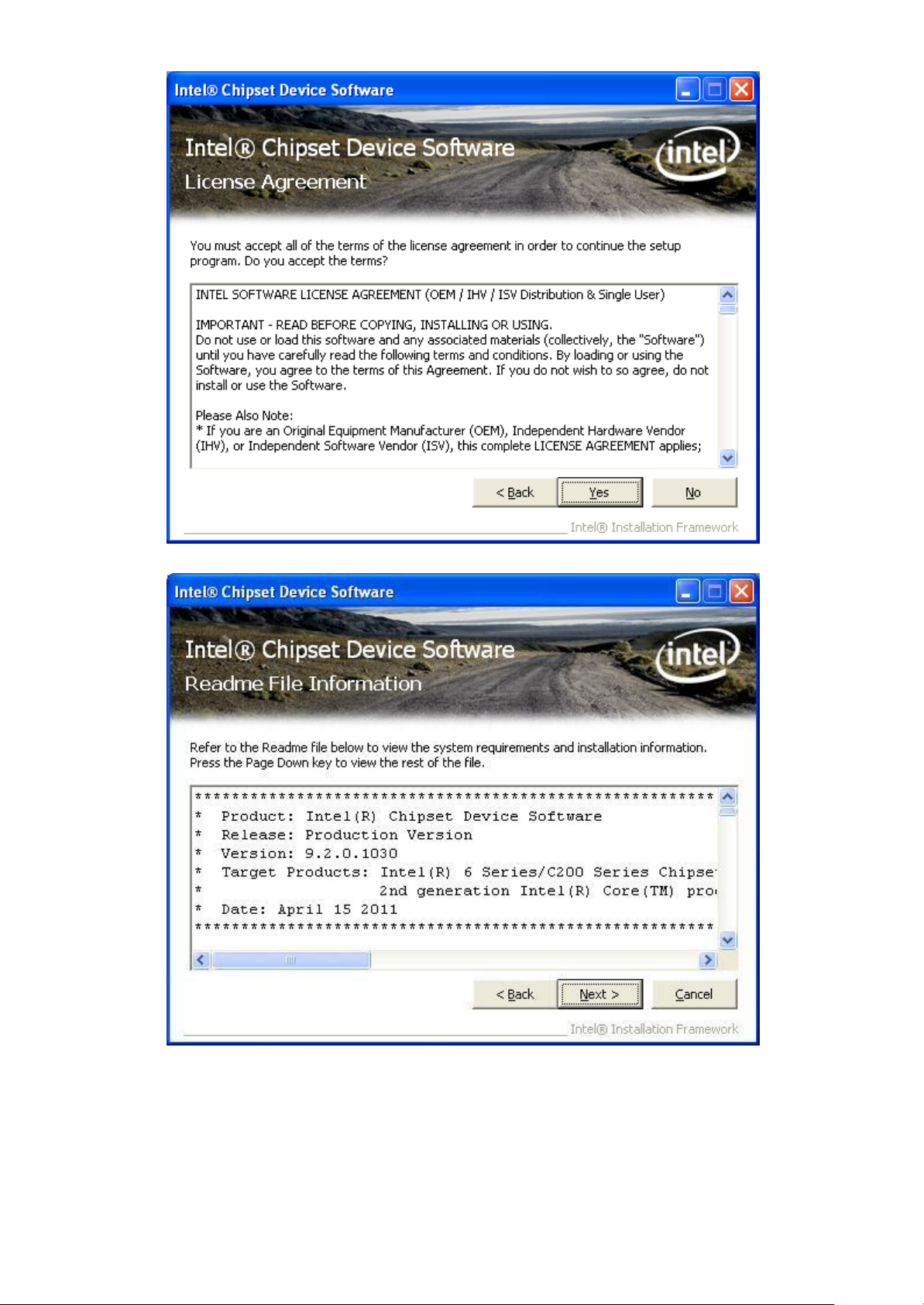

Step 2. Click Next to setup program.

Step 3. Read the license agreement. Click Yes to accept the terms of the license agreement.

Step 4. Click Next to continue.

Step 5. Click Next.

Step 6. Select Yes, I want to restart this computer now. Click Finish then remove any installation

media from the drives.

4.2 Intel (R) VGA Chipset Driver

To install the VGA drivers, follow the steps below to proceed with the installation.

Step 1. Select Intel(R) VGA Chipset Driver.

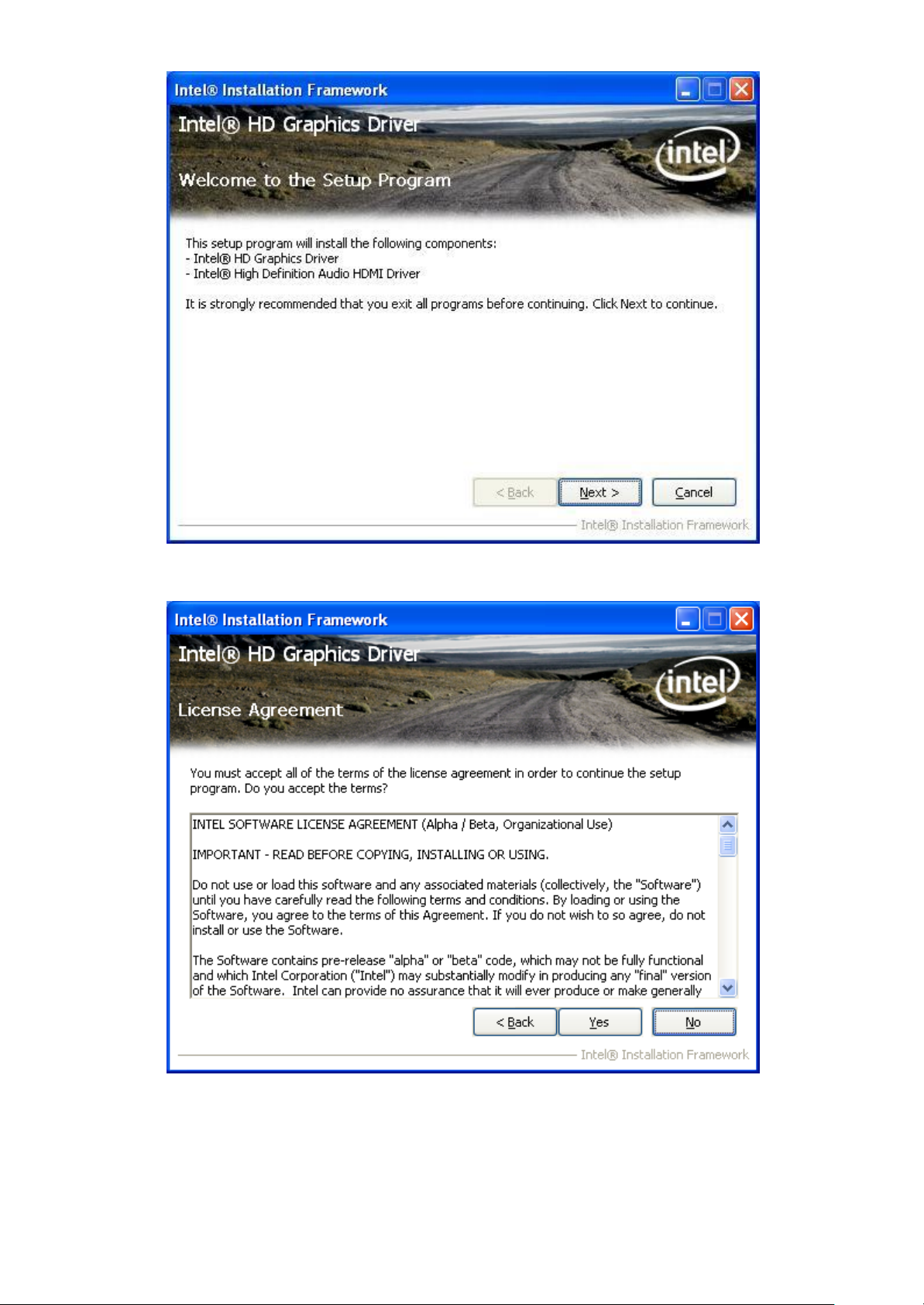

Step 2. Click Yes to continue.

Step 3. Click Next to continue setup program.

Step 4. Read the license agreement. Click Yes to accept the license agreement.

Step 5. Click Next.

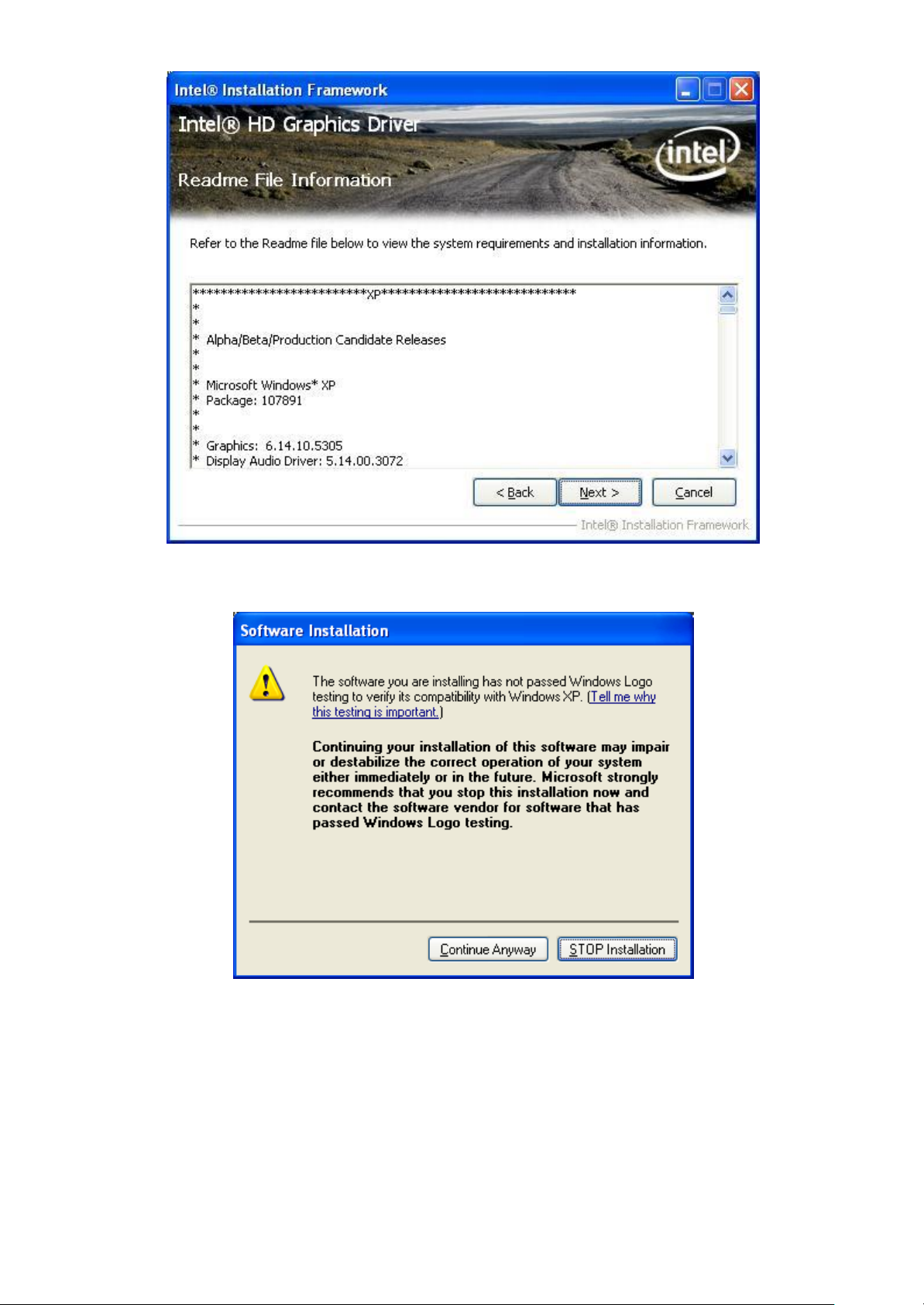

Step 6. Click Continue Anyway.

Step 7. Click Continue Anyway.

Step 8. Click Next.

Step 9. Select Yes, I want to restart this computer now. Click Finish.

4.3 Intel(R) Network Adapter Driver

To install the Intel 82574L Network adapter Driver, please follow the steps below.

Step 1. Select Intel(R) Network Adapter.

Step 1. Wait for extracting the files then click Next to continue.

Step 2. Click Next.

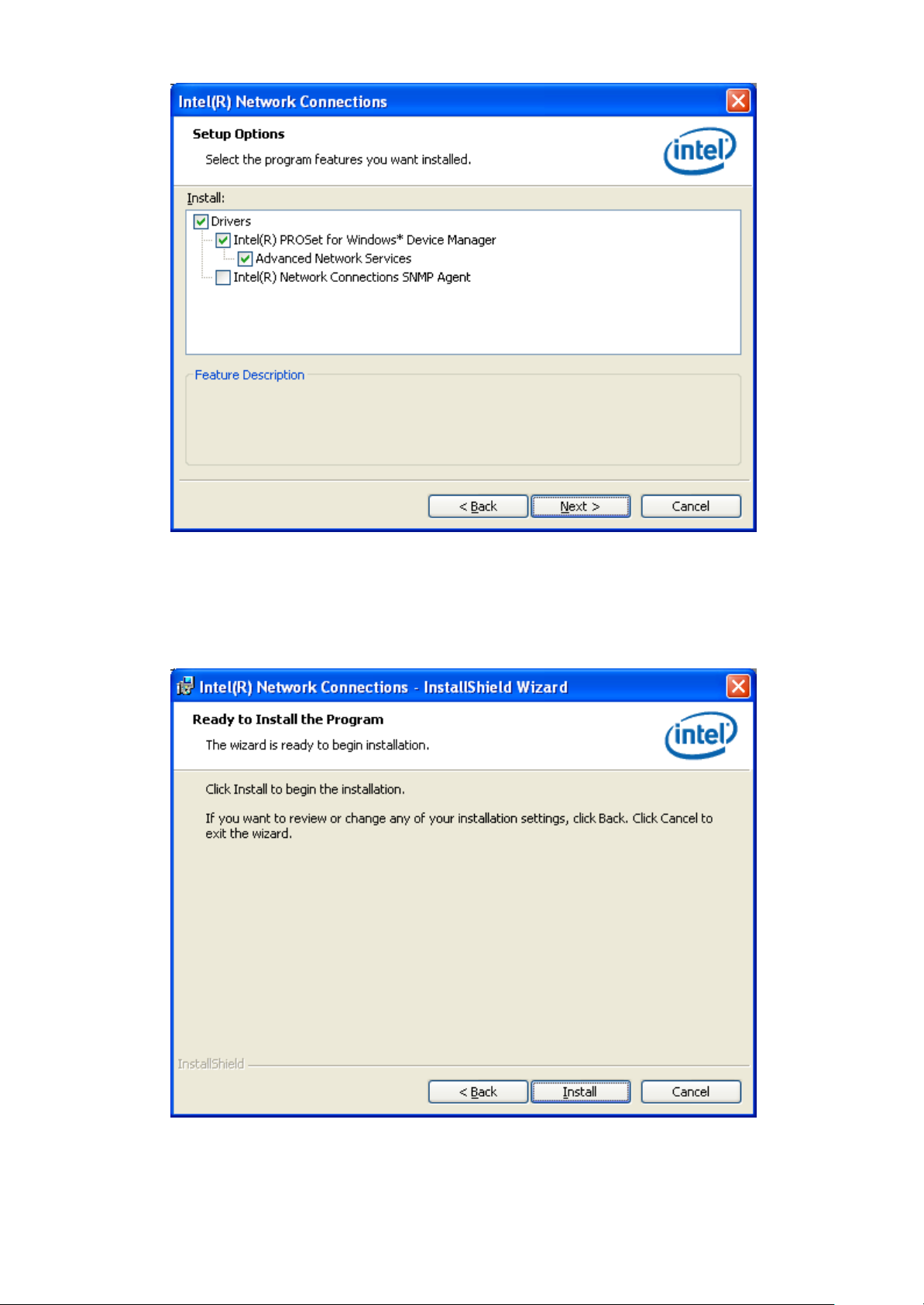

Step 4. Select Drivers, Intel(R) PROSet for Windows* Device Manager, Advanced Network

Step 3. Read the license agreement. Select I accept the terms in the license agreement then click Next to continue.

Services. Click Next to continue.

Step 5. Click Install to begin the installation.

Step 6. Click Finish to compete the installation.

4.4 Realtek HD Audio Driver Installation

To install the Realtek High Definition (HD) Audio driver, please follow the steps below.

Step 1. Select Realtek ALC662 HD Audio Codec Driver from the list.

Step 2. Wait for extracting the files then click Next to continue.

Step 3. Click Next to continue the installation.

Step 4. Select Yes, I want to restart my computer now. then click Finish.

4.5 Microsoft .NET Framework 3.5 Service

To install the Realtek High Definition (HD) Audio driver, please follow the steps below.

Step 1. Select Microsoft .NET Framework 3.5 Service.

Step 2. Select I have read and ACCEPT the terms of the License Agreement. Click Install.

Step 2. Wait for installation.

Step 3. Click Exit to complete the installation.

Chapter 5 Touch Screen Installation

This chapter describes how to install drivers and other software that will allow your PenMount 6000 Controller Board to work with different operating systems.

NOTE: PenMount USB drivers support up to 15 USB controllers.

5.1 Introduction to Touch Screen Controller Board

PenMount 6300 USB control board is a touch screen control board designed for USB interface and specific for 4, 5, 8-wire touch screens. It is designed with USB interface features with multiple devices supporting function. PenMount 6300 control board using PenMount 6000 controller that has been designed for those who may like and all-in-one solution with 10-bit A/D converter built-in to make the total printed circuit board denser, circuit diagram also designed for 12-bit ADC for optional. There are two connectors on this board, one connector is for 4, 5, 8-wire touch screen cable (optional), and another is for 4-pin USB A type cable (optional).

Figure 5.1: Bird’s Eye View of Control Board

5.2 Windows 2000/XP/2003/Vista Universal Driver Installation

for PenMount 6000 Series

Before installing the Windows 2000/XP driver software, you must have the Windows 2000/XP system installed and running on your computer. You must also have one of the following PenMount 6000 series controller or control boards installed: PM6500, PM6300.

5.2.1 Installing Software

If you have an older version of the PenMount Windows 2000/XP driver installed in your system, please remove it first. Follow the steps below to install the PenMount DMC6000 Windows 2000/XP driver.

Step 1. Please make sure your PenMount 6000 device had plugged in advance. If your device uses RS232 interface, please plugged in before the machine is turned on. When the system first detects the controller board, a screen appears that shows “Unknown Device”. Do not use this hardware wizard. Press Cancel.

Step 2. Insert the Aplex product CD install setup.exe. the screen below would appear. Se touch panel driver

Step 3. Click Next to continue.

Step 4. Read the license Agreement. Click I agree to agree the license agreement.

Step 5. Choose the folder in which to install PenMount Windows Universal Driver. Click Install to

start the installation.

Step 6. Wait for installation. Then click Next to continue.

Step 7. Click OK.

Step 8. Click Finish to compete installation.

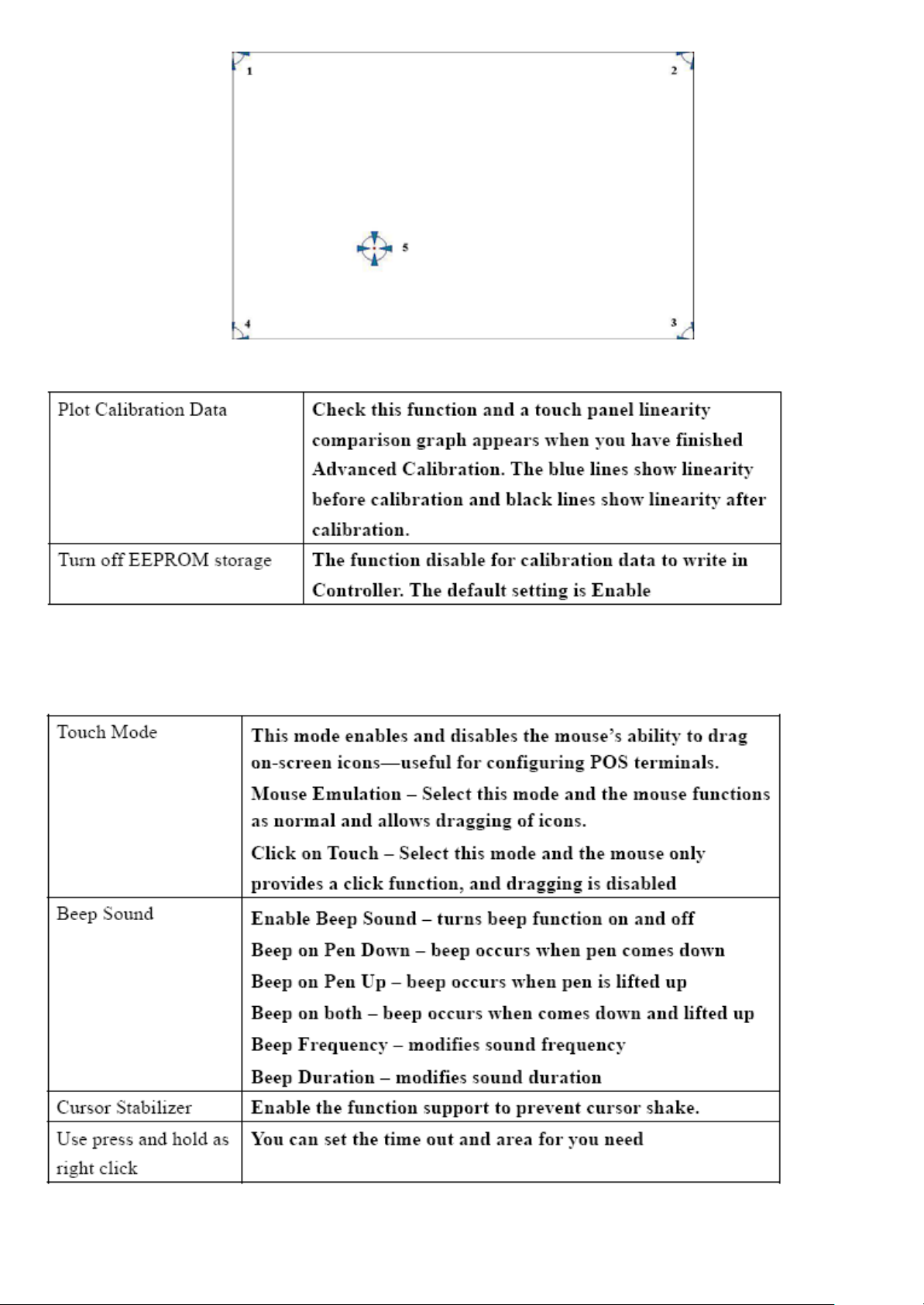

5.2.2 Software Functions

Upon rebooting, the computer automatically finds the new 6000 controller board. The touch screen is connected but not calibrated. Follow the procedures below to carry out calibration.

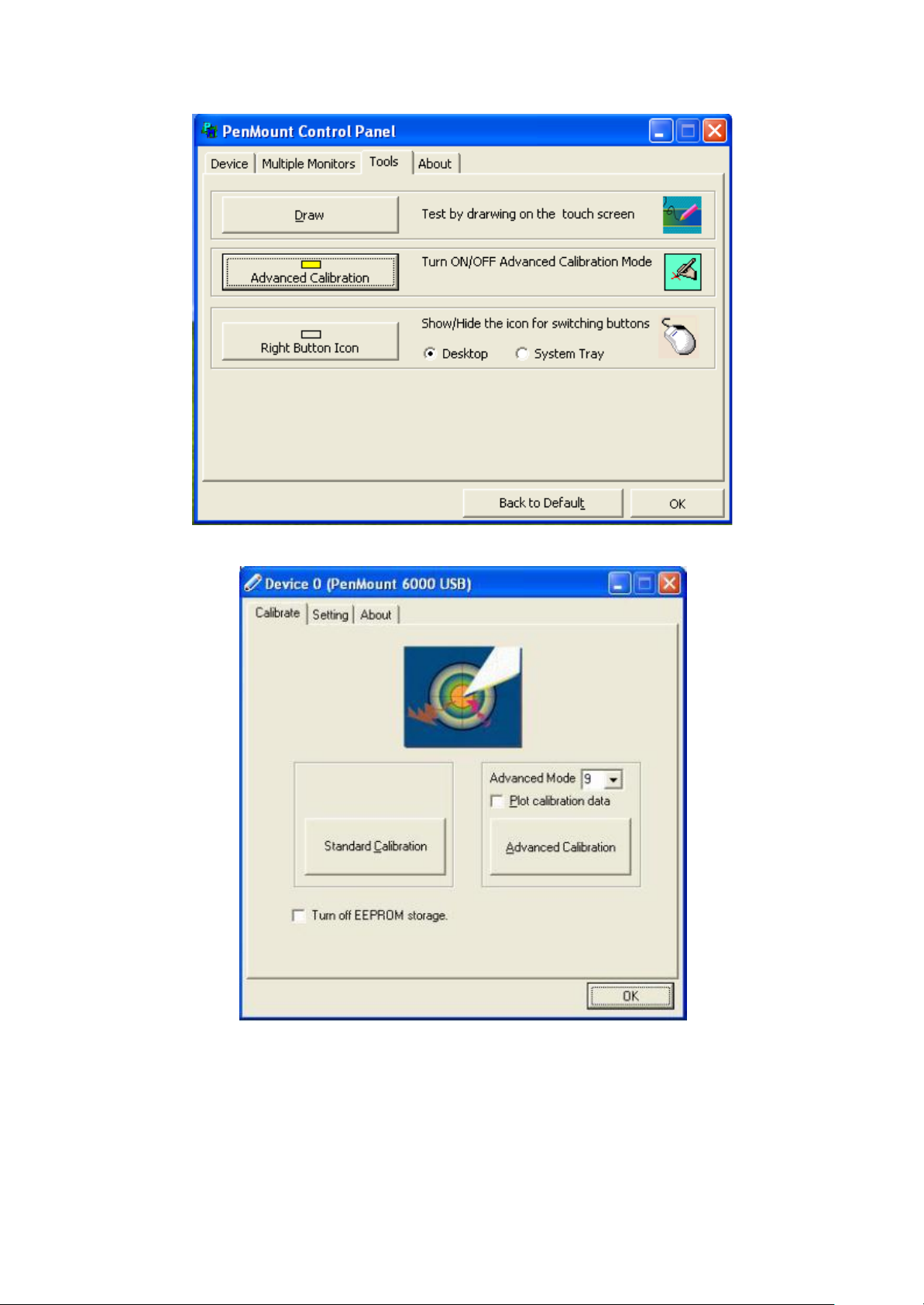

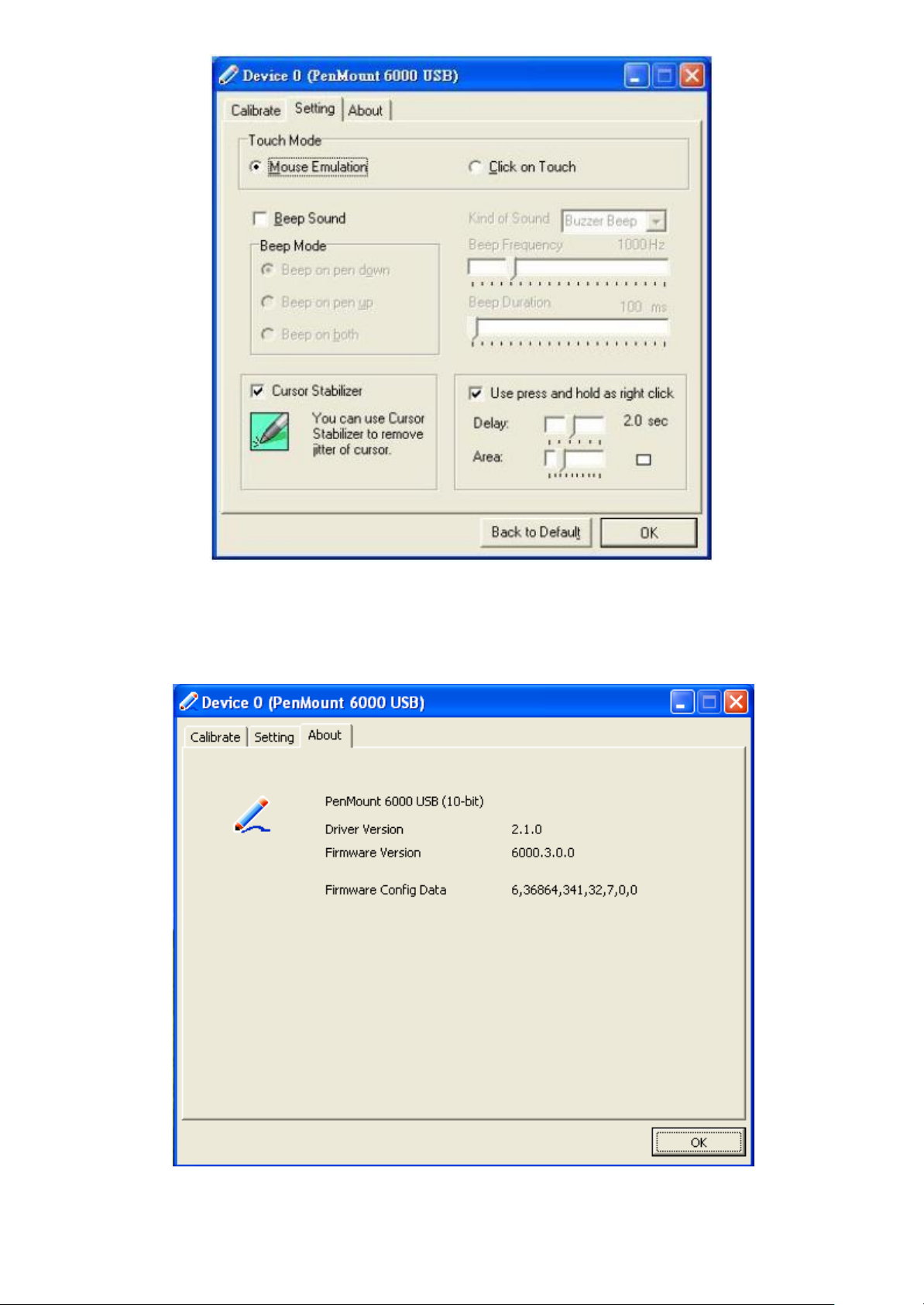

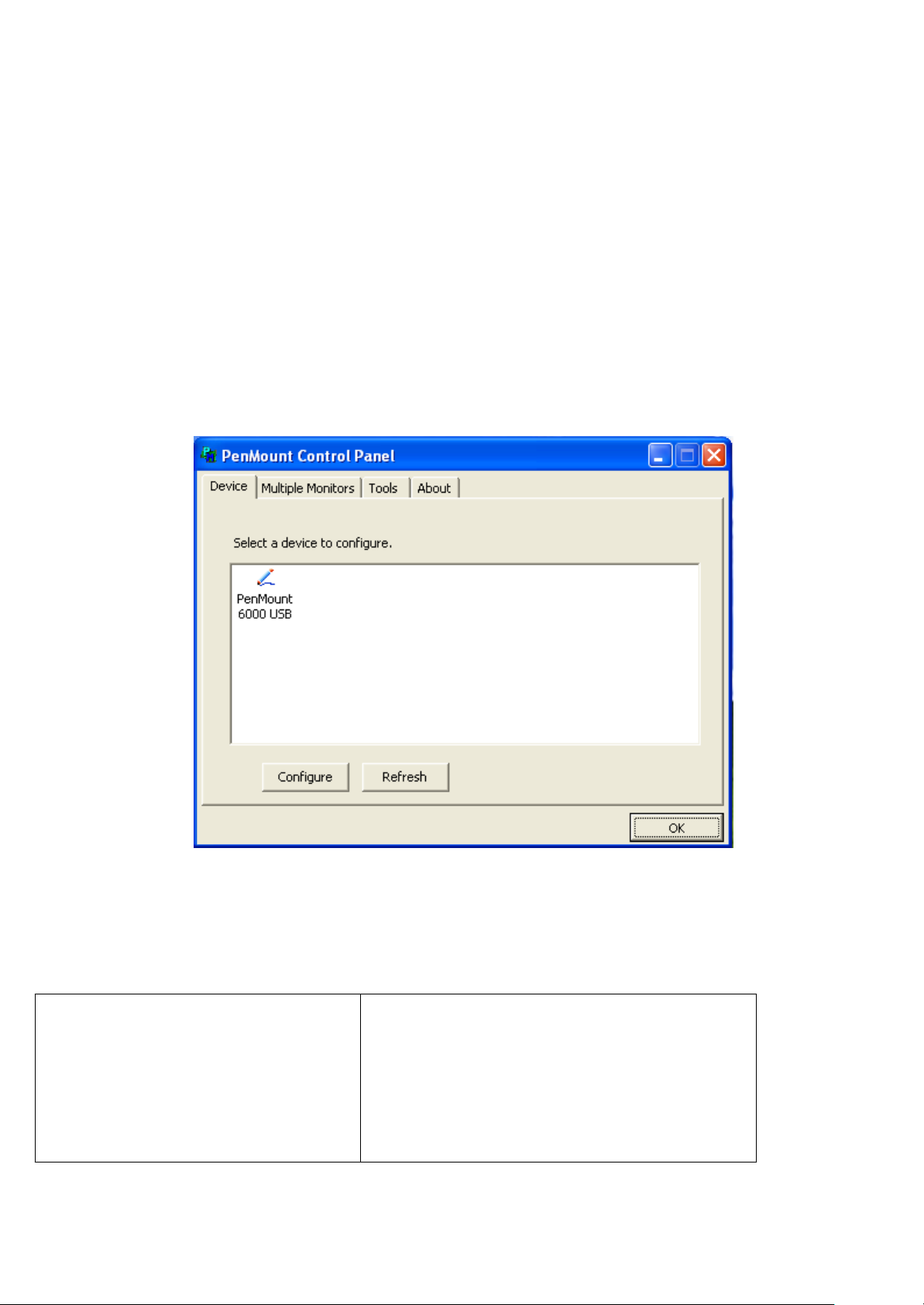

1. After installation, click the PenMount Monitor icon “PM” in the menu bar.

2. When the PenMount Control Panel appears, select a device to “Calibrate.”

PenMount Control Panel

The functions of the PenMount Control Panel are Device, Multiple Monitors, Tools and About, which are explained in the following sections.

Device

In this window, you can find out that how many devices are detected on your system.

Calibrate

This function offers two ways to calibrate your touch screen. „Standard Calibration screens. „Advanced Calibration‟ adjusts aging touch screens.

Standard Calibration Click this button and arrows appear

pointing to red squares. Use your finger or stylus to touch the red squares in sequence. After the fifth red point calibration is complete. To skip, press

‘ESC’.

‟

adjusts most touch

Advanced Calibration

Advanced Calibration uses 4, 9, 16 or 25 points to effectively calibrate touch panel linearity of aged touch screens. Click this button and touch the red squares in sequence with a stylus. To skip, press

ESC’.

Command Calibration

Command call calibration function. Use command mode call calibration function, this can uses Standard, 4, 9, 16 or 25 points to calibrate E.g. Please run ms-dos

prompt or command prompt c:\Program Files\PenMount Universa Driver\Dmcctrl.exe

-calibration 0 ( Standard Calibration) Dmcctrl.exe - calibration ($) 0= Standard Calibration 4=Advanced Calibration 4 9=Advanced Calibration 9 16=Advanced Calibration 16 25=Advanced Calibration 25

Step 1. Please select a device then click Configure. You can also double click the device too.

Step 2. Click Standard Calibration to start calibration procedure

NOTE: The older the touch screen, the more Advanced Mode calibration points you need for an

accurate calibration. Use a stylus during Advanced Calibration for greater accuracy. Please follow the step as below:

Step 3. Come back to PenMount Control Panel and select Tools then Click Advanced Calibration.

Step 4. Select Device to calibrate, then you can start to do “Advanced Calibration”.

NOTE: Recommend to use a stylus during Advanced Calibration for greater accuracy.

Setting

About

This panel displays information about the PenMount controller and driver version.

Multiple Monitors

Multiple Monitors supports two to six touchscreen displays for one system. PenMount

drivers for Windows 2000, XP 32/64bit, and 2003 support Multiple Monitors. This function supports from two to six touchscreen displays for one system. Each monitor requires its own PenMount touchscreen control board, either installed inside the displayor in a central unit. The PenMount control boards must be connected to the computer COM ports via the RS-232 interface. Driver installation procedures are the same as for a single monitor. Multiple Monitors supports the following modes:

Windows Extends Monitor Function Matrox DualHead Multi-Screen Function nVidia nView Function

NOTE: The Multiple Monitor function is for use with multiple displays only. Do not use this

function if you have only one touch screen display. Please note once you turn on this

Requirements

function the rotating function is disabled.

Before using the Multiple Monitors function you need the following:

* A display card that supports multiple monitors such as the Matrox, nVidia, ATI, etc. * (Two or more display cards supported by Windows are also ok.) * Two or more touchscreens * Two or more Serial Ports or USB ports. * Two or more PenMount 6000 control boards such as 6200x, 6202x,6300 or 6500. * The PenMount Windows Universal Driver (for 2000/XP/2003/VISTA/7).

Before using Multiple Monitors you must have two or more monitors that are in extension

mode. For display cards that support multiple monitors, we suggest you consider Matrox,

nVidia, or ATI cards and inquire about operation and usability issues.

Note: Before you can use multiple monitors you need to map each monitor.

Enable the multiple display function as follows:

Step 1.In PenMount Control Panel, under Multiple Monitors tag, check the “Multiple Monitor Support” box. Then click “Map Touchscreens” to assign touch controllers to

displays.

Step 2. When the mapping screen message appears, click OK.

Step 3. Touch each screen as it displays Please touch this monitor. Press ‘S’ to skip

Draw

Tests or demonstrates the PenMount touch screen operation.

Advanced Calibration

Enable Advanced Calibration function

Right Button Icon

Enable right button function. The icon can show on Desktop or System Tray (menu bar).

Following this sequence and touching each screen is called mapping the touch screens.

Step 4. After the setting procedure is finished, maybe you need to calibrate for each panel and

controller.

NOTES:

Tools

1. If you used a single VGA output for multiple monitors, please do not use the Multiple Monitors function. Just follow the regular procedure for calibration on each of your desktop

monitors.

2. The Rotating function is disabled if you use the Multiple Monitors function.

3. If you change the resolution of display or screen address, you have to redo Map Touch Screens so the system understands where the displays are.

4. If you more monitor mapping one touch screen, Please press ‘S’ to skip mapping step.

About

You can see how many devices of PenMount controller that are plugged to your system

PenMount Monitor Menu Icon The PenMount monitor icon (PM) appears in the menu bar of Windows 2000/XP system when you turn on PenMount Monitor in PenMount Utilities.

PenMount Monitor has the following function

PenMount Rotating Functions The PenMount driver for Windows 2000/XP supports several display rotating software packages. Windows Me/2000/XP support display rotating software packages such as:

• Portrait‟s Pivot Screen Rotation Software

• ATI Display Driver Rotate Function

• nVidia Display Driver Rotate Function

• SMI Display Driver Rotate Function

• Intel 845G/GE Display Driver Rotate Function

Configuring the Rotate Function

1. Install the rotation software package.

2. Choose the rotate function (0°, 90°, 180°, 270°) in the 3rd party software. The calibration screen appears automatically. Touch this point and rotation is mapped.

NOTE: The Rotate function is disabled if you use Monitor Mapping

Acnodes PC 8719 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
