Acnodes RMC 7155, PC 5150 User Manual

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone], www.acnodes.com

© Copyright 2009 Acnodes, Inc .
All right s reserved. Product descripti on and product specifi cations
are subjec t to c hange witho ut notic e. For latest produ ct informat ion ,
please visi t Acnodes’ web sit e at www.a cnod es.c om.

RMC 7152

14” short depth serverRMC 7152

14” short depth server

1

RMC 7155

14” short depth server

Installation Guide

RMC 7155: 14” short depth server with two Intel Xeon

processors

© Copyright 2009 Acnodes, Inc .
All right s reserv ed. Prod uct descripti on and produ ct speci fi catio ns
are subjec t to c hange witho ut notic e. For latest produ ct informat ion ,
please visi t Acnodes’ web sit e at www.a cnod es.c om.

PC 5150

15-inch touch panel PC

2

RMC 7155

14” short depth server

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone], www.acnodes.com

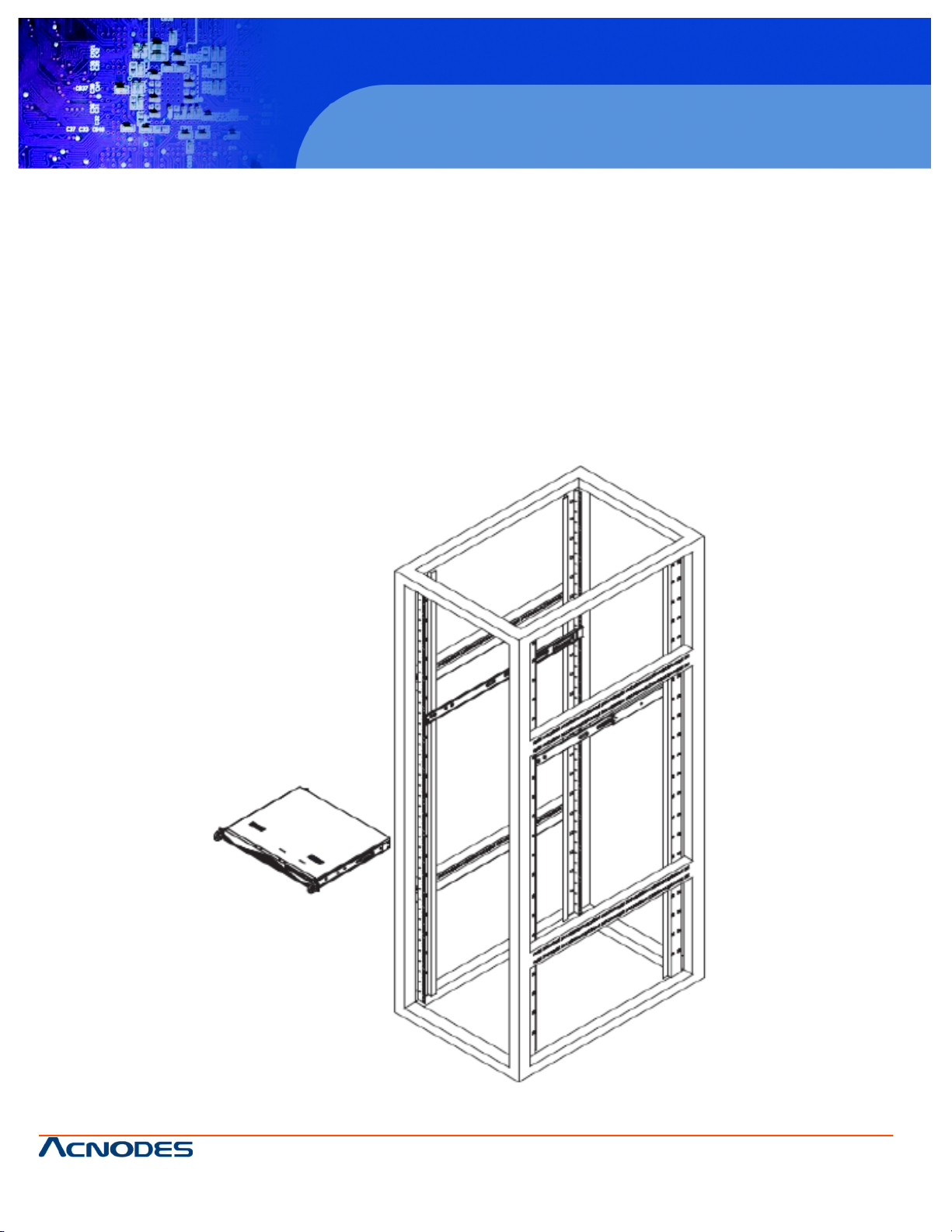

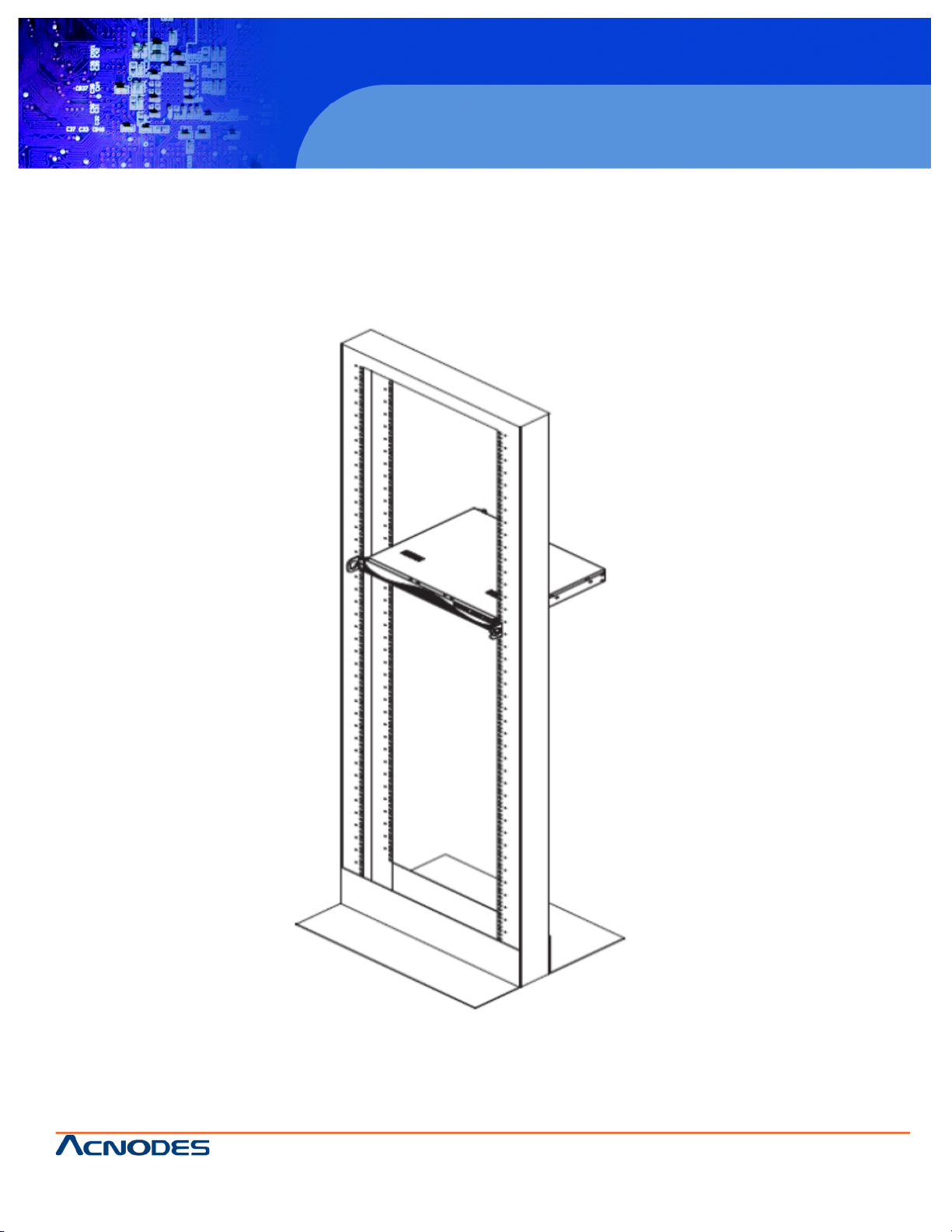

2.4 Installing the System into a Rack

This section provides information on installing the RMC 7152 into a rack. If the system has already been mounted into a
rack, you can skip ahead to Sections 2-5 and 2-6.

There are a variety of rack units on the market, which may mean the assembly procedure will differ slightly. The following is a
guideline for installing the unit into a rack with the rack rails provided with the system. You should also refer to the installation
instructions that came with the rack unit you are using.

Basic Installation Procedure

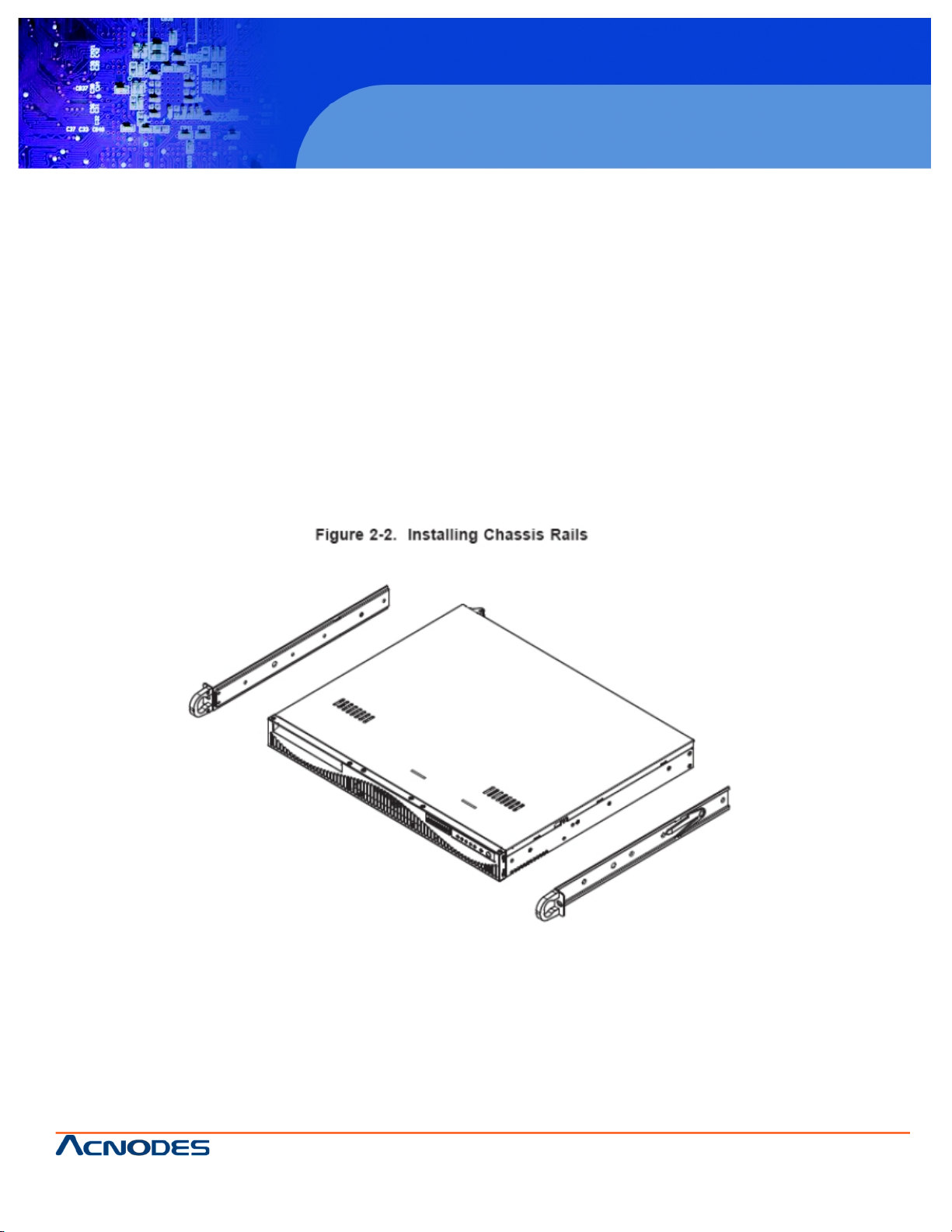

You should have received two rack rail assemblies with the RMC 7152. Each of these assemblies consist of two sections: an
inner fixed chassis rail that secures to the unit (A) and an outer fi xed rack rail (B) that secures to the rail brackets. A sliding
rail guide sandwiched between the two should remain attached to the fixed rack rail (see Figure 2-1). The A and B rails must be
detached from each other to install.

To remove the fixed chassis rail (A), pull it out as far as possible - you should hear a "click" sound as a locking tab emerges
from inside the rail assembly and locks the inner rail. Then depress the locking tab to pull the inner rail completely out. Do this
for both the left and right side rack rail assemblies.

Figure 2-1. Identifying the Sections of the Rack Rails
