Acnodes MPC 6171B, MPC 6171A User Manual

User Manual
MPC 6171
MPC 6171A: 17” Industrial Medical Grade Panel PC with Core 2 Duo 2.20GHz processor MPC6171B: 17” Industrial Medical Grade Panel PC with Core 2 Duo 2.20GHz processor (No T ouch Screen)
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
ACKNOWLEDGEMENTS
Intel® and Core 2 Duo and Core Solo are registered trademarks of Intel® Corporation. IBM, PC/A T, PS/2 are trademarks of International Business Machines Corporation. Microsoft® Windows is a registered trademark of Microsoft Corporation. RTL is a trademark of Realtek Semi-Conductor Co., Ltd. C&T is a trademark of Chips and Technologies, Inc. UMC is a trademark of United Microelectronics Corporation. ITE is a trademark of Integrated Technology Express, Inc. VIA is a trademark of VIA T echnology, Inc. A ward is a registered trademark of Award Software International, Inc. PS/2 is a trademark of International Business Machines Corporation. Intel is a trademark or registered trademark of Intel Corporation. Microsoft Windows is a registered trademark of Microsoft Corporation. Winbond is a registered trademark of Winbond Electronics Corporation.
All other product names or trademarks are properties of their respective owners.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
FCC CLASS B
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 18 of the FCC Rules.
These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential environment. This equipment generates, uses and can radi­ate radio frequency energy . If not installed and used in accordance with this user manual, itmay cause harmful interference to radio communications.
Note that even when this equipment is installed and used in accordance with this user manual, there is still no guarantee that interference will not occur. If this equipment is believed to be causing harmful interference to radio or television reception, this can be determined by turning the equip­ment on and off. If interference is occurring, the user is encouraged to try to correct the interference by one or more of the following measures:
Reorient or relocate the receiving antenna Increase the separation between the equipment and the receiver Connect the equipment to a power outlet on a circuit different from that to which the receiver
is connected Consult the dealer or an experienced radio/TV technician for help
Warning: Any changes or modifications made to the equipment which are not expressly approved by the
relevant standards authority could void your authority to operate the equipment. Caution: Danger of explosion if battery is incorrectly replaced, replace only with the same or equivalent type
recommended by the manufacturer. Dispose of used batteries according the manufacturer's instruc­tions.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
SAFETY INSTRUCTIONS
Greeting & Setup
Thank you for purchasing the MPC6171A/ MPC6171B unit. We wish that this unit will be durable and reliable in providing your medical application needs. Please follow the instructions below to ensure the unit continues to have high performance.
Unpacking
After opening the carton, there will be a Monitor display unit with an accessory box. Examine the contents to see if there are damages to the unit and if all accessories are present.
Setting up
Please read this manual carefully and remember to keep this manual for future reference.
Safety Instructions & Cleaning
The unit has undergone various tests in order to comply with safety standards. Inappropriate use of the open frame unit may be dangerous. Please remember to follow the instructions below to insure your safety during the installation and operating process.
Transporting & Placement of unit
1. When moving the unit on a cart; be very cautious. Quick stops, excessive forces and uneven surfaces may cause the cart to overturn thus risking the unit to fall to the ground.
2. If the Monitor display unit does fall to the ground, immediately turn the power off and disconnect cords. Then contact a service technician for repairs. Continual use of the unit may result cause a fire or electric shock. Also, do not repair the unit on your own.
3. Having two or more people transporting the display unit is recommended. In addition, when installing the unit by suspending it also requires two or more people.
4. Before suspending the unit, make sure the material used for suspension is sturdy and stable. If not properly suspended, the display unit may fall and cause serious injury to people standing nearby as well as to the unit itself.
5. If you wish to mount the display unit, remember to use only the mounting hardware recommended by the manufacturer.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
Electrical and Power Source Related
1. This Monitor display unit must operate on a power source as shown on the specification label. If you are not sure what type of power supply used in the area, consult your dealer or local power supplier.
2. The power cords must not be damaged. Applied pressure, added heat, and tugging may dam­age the power cord.
3. The power cord must be routed properly when setup takes place. We advise that this aspect measure is to prevent people from stepping on the cords or while the unit is suspended to prevent flying objects from getting tangled with the unit.
4. Do not overload the AC outlet s or extension cords. Electrical shocks or fires may occur from overloading.
5. Do not touch the power source during a thunderstorm.
6. If your hands are wet, do not touch the plug.
7. Use your thumb and index finger, grip firmly on the power cord to disconnect from the electrical socket. By pulling the power cord, may result in damaging it.
8. If the unit is not going to be in use for an extended period of time, remember to disconnect the unit.
9. The Monitor display unit uses voltage between 90-264VAC. Connect the unit to a power source with the same numerical value as shown. Please use only the power cord provided by the dealer to ensure safety and EMC compliance.
V arious Factors of Environment
1. Do not insert objects into the openings.
2. Do not have liquids seep into the internal areas of the Monitor display unit.
3. Having liquids seep in or inserting objects into the unit may result in electric shocks from taking and/or short circuiting the internal parts.
4. Do not place the Monitor display unit in the presence of high moisture areas.
5. Do not install the Monitor display unit in a wet environment.
6. Do not place near unit near heat generating sources.
7. Do not place the unit in a location where it will come in contact with fumes or steam.
© Copyright 2011 Acnodes, Inc.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
8. Remember to keep the Monitor display unit away from the presence of dust.
9. If water has flow in or seep in, immediately disconnect the open frame unit. Then contact a ser­vice technician for repairs.
Ventilation Spacing
1. Do not cover or block the openings on the top and back sides of the display unit. Inadequate ventilation may cause overheating thus reducing the lifespan of the unit.
2. Unless proper ventilation is present, do not place unit in an enclosed area; such as a built-in shelf. Keep a minimum distance of 10 cm between the display unit and wall.
Cleaning the unit
1. Remember to turn off the power source and to unplug the cord from the outlet before cleaning the unit.
2. Carefully dismount the unit or bring the unit down from suspension to clean.
3. Please use a dry soft cloth to clean the unit.
4. Take a dry cloth and wipe the unit dry . Remember to avoid having liquids seep into the internal components and areas of the Monitor display unit.
Servicing, Repairing, Maintenance & Safety Checks
1. If the unit is not functioning properly , observe the performance level of the display closely to deter­mine what type of servicing is needed.
2. Do not attempt to repair the Monitor display unit on your own. Disassembling the cover exposes users' to high voltages and other dangerous conditions. Notify and request a qualified service technician for servicing the unit.
3. If any of the following situations occur turn the power source off and unplug the unit. Then contact a qualified service technician
(a) A liquid was spilled on the unit or object s have fallen into the unit. (b) The unit is soaked with liquids. (c) The unit is dropped or damaged.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
(d) If smoke or strange odor is flowing out of the operating unit. (e) If the power cord or plug is damaged. (f) When the functions of the unit are dysfunctional.
4. When replacement parts are needed for the Monitor display unit, make sure service technicians use replacement parts specified by the manufacturer , or those with the same characteristics and performance as the original parts. If unauthorized parts are used it may result in starting a fire, electrical shock and/or other dangers.
Caution:
DO NOT LEA VE THIS EQUIPMENT IN AN UNCONTROLLED ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS BELOW
-20° C (-4° F) OR ABOVE 60° C (140° F). THIS MA Y DAMAGE THE EQUIPMENT. This equipment shall not be used in life support systems. The user is not to touch SIP/SOPs and the patient at the same time. The sound pressure level at the operator's position according to IEC 704-1:1982 is no more than
70dB (A).
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
T able of Contents
CHAPTER 1 INTRODUCTION
1.1 PRODUCT DESCRIPTION.............................................................................................. 1
1.2 P ACKAGE LIST ............................................................................................................... 2
1.3 FEA TURES ...................................................................................................................... 3
1.4 SPECIFICA TIONS ........................................................................................................... 3
1.5 CLEANING/ DISINFECTING ........................................................................................... 6
CHAPTER 2 GETTING STARTED
2.1 SYSTEM SET UP ............................................................................................................ 9
2.2 DIMENSION .................................................................................................................... 10
2.3 SYSTEM VIEW ............................................................................................................... 11
2.4 DISCONNECT DEVICE ................................................................................................. 17
CHAPTER 3 BIOS SETUP APPENDIX

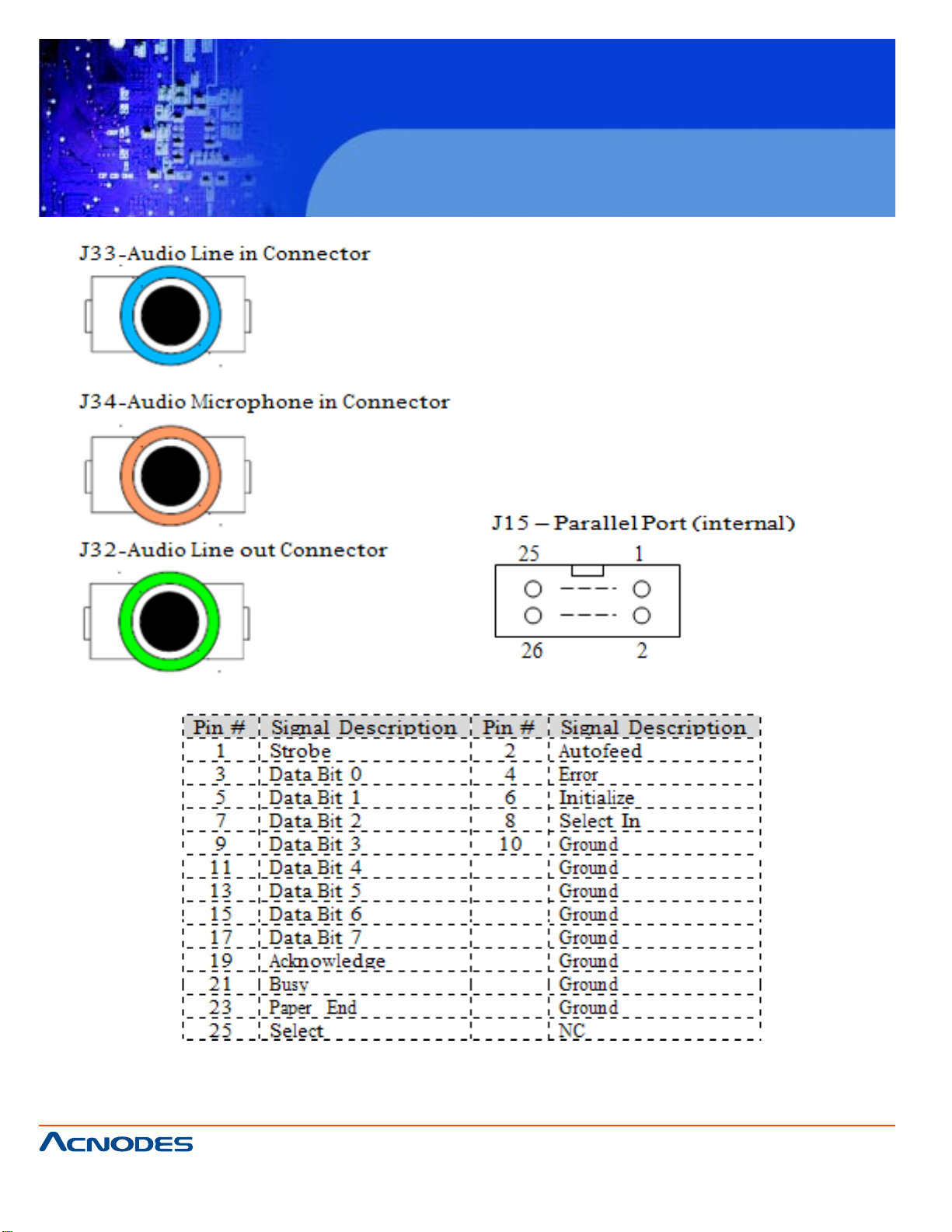

A. JUMPER SETTINGS AND CONNECT ORS.................................................................... 36
B. VESA MOUNTING ........... .................................................................................................45
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
CHAPTER 1 INTRODUCTION
1.1 PRODUCT DESCRIPTION
The MPC 6171A/ MPC 6171B Medical Panel PC are based on Intel Core 2Duo processor which deliver a performance improvement of more than 100 percent compared to systems running tradi­tional single-core processors. With two cores, or computing engines, MPC 6171A/ MPC 6171B can simultaneously execute two computing tasks. It accommodates one 2.5" SA TA hard disk drive and up to 4GB DDR2 SODIMM.
The high brightness LCD, Low Noise solution, integrated multimedia functions and extensive expansion options make them the perfect platform upon which to build comprehensive lifestyle computing applications.
The MPC 6171A/ MPC 6171B includes all the features of a powerful computer into a slim and attractive chassis. The MPC 6171A/ MPC 6171B has a 17" high brightness TFT display with 1280 x 1024 resolutions.
The MPC 6171A/ MPC 6171B are compact, Giga LAN and selectable WLAN network compatible PC with full safety and medical approval and features to control a dedicated system with a wide variety of applications. Combining the MPC 6171A/ MPC 6171B into your system can achieve both cost-saving and efficient improvements.
Common applications include Surgical, Radiology , P ACS (Picture Archiving Communication Systems), LIS (Lab Information Systems) and Electronic Medical Record. The MPC6171A/ MPC6171B are definitely your perfect choices.
1.2 PACKAGE LIST
Before you begin installing your Medical S tation, please make sure that the following items have been shipped:
o The MPC 6171A/ MPC 6171B Medical Panel PC o One CD containing user manual, QIG , chip set drivers o Power Adapter x 1 (Mf:Sinpro, type/model: MPU100-105) o Power cord - Hospital grade used(US type), or other type in UK, EU…etc.
o Touch pen x 1 (By configuration)
o Screw x 8 (VESA 75/100 use)
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
1.3 FEATURES
Intel Core 2 Duo Mobile CPU / Celeron M 550 Solution
17" 380 nits high brightness Highest performance and low power system solution Plastic construction with medical outlook color Resistive touch screen (optional)
802.1 1 b/g wireless LAN Module (optional) Bluetooth v2.1 + EDR module (optional) Integrated Compact Flash card reader (By configuration, optional)
MPC 6171
Integrated webcam solution (By configuration, optional) VESA 75/100 compliance Desktop Stand (optional) VESA 75/100 compliance Wall Mount (optional)
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
1.4 SPECIFICATION
HARDWARE SPECIFICATIONS
Display 17" 380 nits SXGA color TFT LCD CPU Support MPC6171: Intel® Core 2 Duo T7500 2.2GHz
Intel® Celeron M550 2.0GHz Disk Drive Space: 2.5" Hard Disk Drive (SATA-150) Expansion: One Mini PCI slot; One PCI expansion, One CF card slot expansion or one Smart card
slot expansion slot (By configuration, optional) Button: Brightness: "+" / "-"; Sound: "+" / "-"; Power SW I/O: Standard V ersion­2 RS-232 ports + 1 RS-232/422/485 port 4 USB 2.0 ports 1 DC-in w/ lock function 1 PS/2 keyboard and 1 PS/2 mouse 2 Gigabit LAN RJ-45 Connectors Sound: 1 x Line-in 1 x line-out 1 x Mic-in 2 x 2W Speakers on back side 1 x PCI slot
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
LCD SPECIFICATIONS
Model Name: G170EG01 (V0) Display Type: 17" color TFT LCD Max. Resolution: 1280 x 1024 Contrast Ratio: 1000 : 1 (Typ) Pixel Pitch (mm): 0.264 (per one triad) x 0.264 Luminance (cd/m2): 380 (TYP) Viewing Angle: 170°(H)/ 160°(V) Operating Temperature: 0°C~ 40°C (32°F~104°F)
MPC 6171
Brightness Control Y es
POWER ADAPTER SPECIFICATIONS
PowerClose-frame MFR: Sinpro Type: MPU100-105 Input Volt age: 100 ~ 240 V AC, 1.25 max. @ 47 ~ 63 Hz Output Volt age: 12V @ 8.33 A MTBF: 100,000 hrs operation at 25°C
MECHANICAL SPECIFICATION
Architecture Close-frame Front Bezel Plastic bezel with resistive touch screen Color Medical-white Mounting / Holder VESA 75/100mm Construction 3mm ABS + PC TYPE Plastic housing Dimension (WxHxD): 16.5" x 14.2" x 3.2" (420mmx 360mm x 83mm)
© Copyright 2011 Acnodes, Inc.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
Net Weight: 15.62 lb (7.0 kg) Packing Filler: PE
ENVIRONMENTAL SPECIFICATIONS
Operating Temperature: 10°C to 40°C (50°F ~104°F) Storage Temperature: -20°C to 60°C (-4°F ~140°F) Storage Humidity: 5% to 95%@ 40°C, non-condensing Vibration: 0.5G / 5 ~ 500Hz (Random) / operation Shock: Operating: 15g/0.53 oz, 1 1 ms, half sine wave Non-operating: 50g/1.76 oz, 1 1 ms, half sine wave
MPC 6171
Drop: 3 feet (1 Corner , 3 Edge, 6 Surface) EMI / Safety: cUL 60601-1, FCC/VCCI class B, EN 60601-1(MDD)/EN 60601-1-2(EMC) Noise: MPC6171: Under 30 db Altitudes: Operational: 6,000 feet
Shipping: 40,000 feet
Input Power Rating: For Adaptor: AC100~240 V, 47 ~ 63 Hz, 1.25A max.
For Unit: 8.33A (WMP-171); 7.0A (WMP-172)
Power Consumption: MPC6171:79.50W
TOUCH SCREEN (OPTIONAL)
Type: 5-wire, Analog Resistive Interface: USB interface Resolution: 2048 x 2048 Light Transmission:80% ± 3% Life T ime: 35 million activations
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
1.5 CLEANING/ DISINFECTING
Steps:
1. Wipe the MPC6171A/ MPC6171B with a dry clean cloth.
2. Prepare agent per manufacturer's instructions or hospital protocol.
Cautions:
Do not immerse or rinse the MPC6171A/ MPC6171B and its peripherals. If you accidentally spill liquid on the device, disconnect the unit from the power source. Contact your Biomed regard­ing the continued safety of the unit before placing it back in operation.
Do not spray cleaning agent on the chassis.
Do not use disinfectants that contain phenol.
Do not autoclave or clean the MPC6171A/ MPC6171B or its peripherals with strong aro­matic, chlorinated, ketone, ether, or Esther solvent s, sharp tools or abrasives. Never immerse electrical connectors in water or other liquids.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
CHAPTER 2 GETTING ST AR TED
2.1 SYSTEM SET UP
System Set Up The following is a summary of the steps in setting up the system for use. (1). You can fix the system to a mounting fixture using the screw holes on the sides of the system. (2). Make any required external connections such as the display , keyboard, and LAN. (3). Plug the appropriate end of the power cord into the power connector on the rear of the system and
the plug to an electrical outlet. (4). Press the power switch on the front panel of the system once to turn on the system power. (5). If necessary , run the BIOS SETUP programs to configure the system.
Caution: In order to boot up system from USB-CD/DVD drive, please connect USB-CD/DVD drive, turn on
computer power, keep on pressing "F11" key , go into BIOS quick boot menu, select "USB-CD ROM", WAIT FOR 20
SECONDS, then press enter , system OS will boot up from USB-CD/DVD drive directly .
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
2.2 DIMENSION
MPC 6171
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
2.3 SYSTEM VIEW
MPC 6171
From left to right:
1. Brightness down
2. Brightness up
3. Power
4. Vo lume down
5. V olume up MPC6171A /MPC6172 models
do not have webcam hold.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
2.4 DISCONNECT DEVICE
MPC 6171
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171

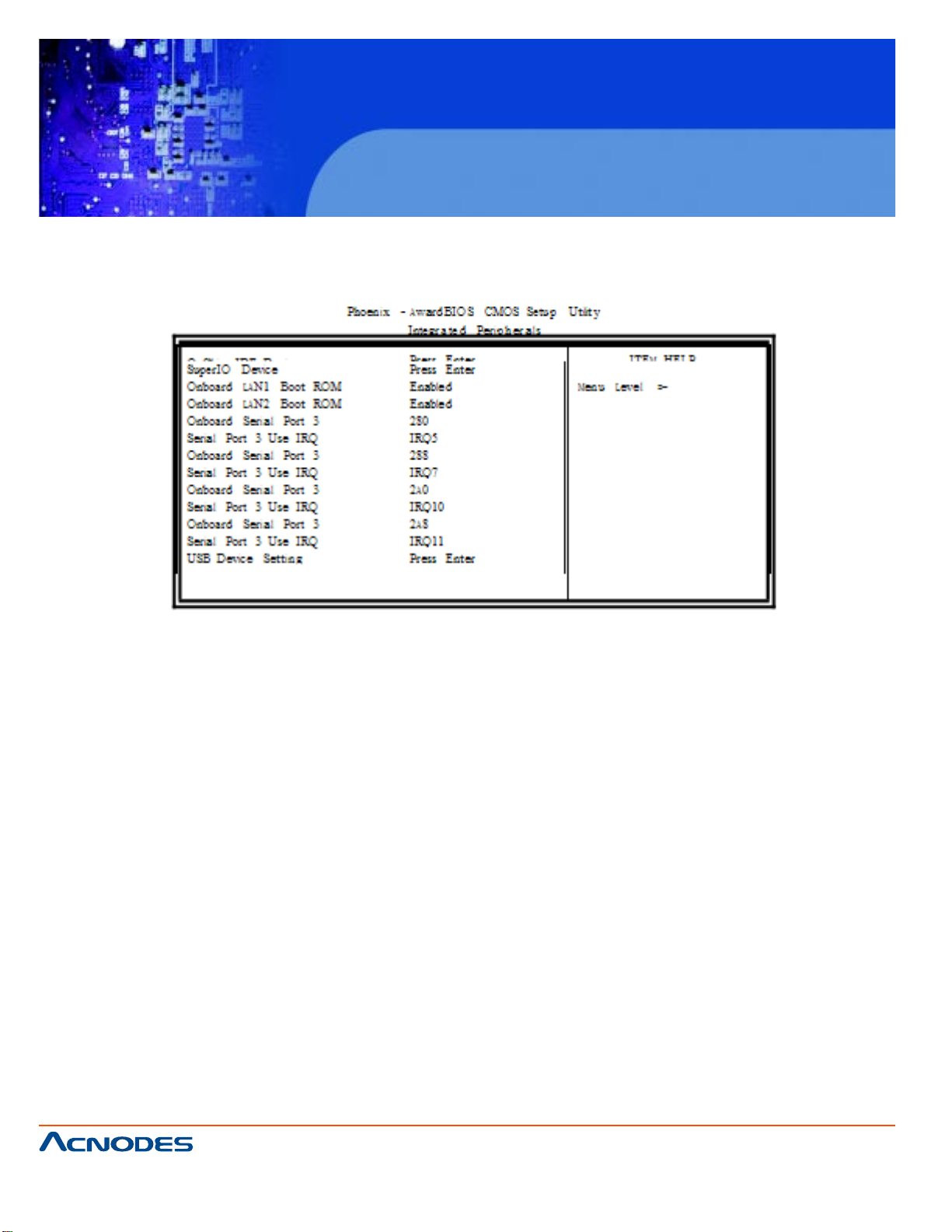

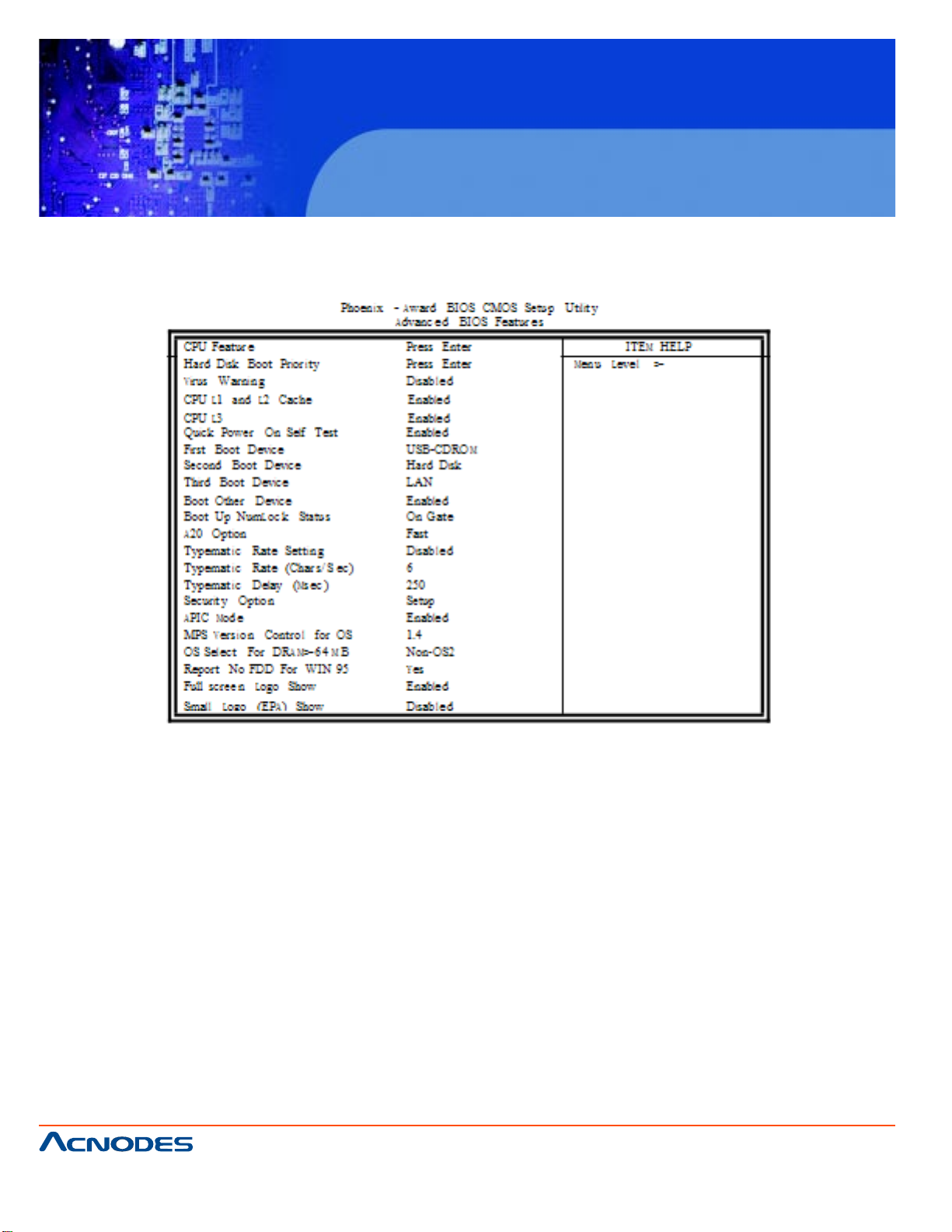

CHAPTER 3 BIOS SETUP
3.1 BIOS Introduction
The Award BIOS (Basic Input/Output System) installed in your computer system's ROM supports Intel processors. The BIOS provides critical low-level support for a standard device such as disk drives, serial ports and parallel ports. It also adds virus and password protection as well as special support for detailed fine-tuning of the chipset controlling the entire system.
MPC6171A/ MPC 6171B
The Award BIOS provides a Setup utility program for specifying the system configu­rations and settings. The BIOS ROM of the system stores the Setup utility. When you turn on the computer, the Award BIOS is immediately activated. Pressing the <Del> key immediately allows you to enter the Setup utility. If you are a little bit late pressing the <Del> key, POST (Power On Self Test) will continue with its test routines, thus pre­venting you from invoking the Setup. If you still wish to enter Setup, restart the system by pressing the "Reset" button or simultaneously pressing the <Ctrl>, <Alt> and <De­lete> keys. You can also restart by turning the system Off and back On again. The following message will appear on the screen:
Press <DEL> to Enter Setup
In general, you press the arrow keys to highlight items, <Enter> to select, the <PgUp> and <PgDn> keys to change entries, <F1> for help and <Esc> to quit.
When you enter the Setup utility, the Main Menu screen will appear on the screen. The Main Menu allows you to select from various setup functions and exit choices.
© Copyright 2011 Acnodes, Inc.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
The section below the setup items of the Main Menu displays the control keys for this menu. At the bottom of the Main Menu just below the control keys section, there is another section, which displays information on the currently highlighted item in the list.
Note:If the system cannot boot after making and saving system changes with Setup, the Award BIOS supports an override to the CMOS settings that resets your system to its default.
Warning: It is strongly recommended that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both Award and your system manufacturer to provide the absolute maximum performance and reliability. Changing the defaults could cause the system to become unstable and crash in some cases.
© Copyright 2011 Acnodes, Inc.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
STANDARD CMOS FEATURES
"St andard CMOS Features" choice allows you to record some basic hardware configurations in your computer system and set the system clock and error handling. If the motherboard is already installed in a working system, you will not need to select this option. Y ou will need to run the S tandard CMOS option, however, if you change your system hardware configurations, the onboard battery fails, or the configura-
tion stored in the CMOS memory was lost or damaged.
At the bottom of the menu are the control keys for use on this menu. If you need any help in each item field, you can press the <F1> key . It will display the relevant information to help you. The memory display at the lower right-hand side of the menu is read-only . It will adjust automatically according to the memory changed. The following describes each item of this menu.
Date The date format is: Day : Sun to Sat Month : 1 to 12 Date : 1 to 31 Y ear : 1999 to 2099
© Copyright 2011 Acnodes, Inc.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
T o set the date, highlight the "Date" field and use the PageUp/ PageDown or +/- keys to set the current time.
Time The time format is: Hour : 00 to 23 Minute : 00 to 59 Second : 00 to 59 T o set the time, highlight the "T ime" field and use the <PgUp>/ <PgDn> or +/- keys to set the current time.
IDE Channel Master/Slave The onboard Serial A T A connectors provide Primary and Secondary channels for connecting up to four Serial A T A hard disks. Each channel can support up to two hard disks; the first is the "Master" and the second is the "Slave".
Press <Enter> to configure the hard disk. The selections include Auto, Manual, and None. Select 'Manual' to define the drive information manually . Y ou will be asked to enter the following items.
Capacity : Capacity/size of the hard disk drive Cylinder : Number of cylinders Head :Number of read/write heads Precomp : Write precompensation Landing Zone : Landing zone Sector : Number of sectors
The Access Mode selections are as follows: CHS (HD < 528MB) LBA (HD > 528MB and supports Logical Block Addressing) Large (for MS-DOS only) Auto Remarks: The main board supports one serial A T A ports and are represented in this setting as IDE Chan­nel 2.
Video This field selects the type of video display card installed in your system. You can choose the following video display cards: EGA/VGA For EGA, VGA, SEGA, SVGA or PGA monitor adapters. (default) CGA 40 Power up in 40 column mode. CGA 80 Power up in 80 column mode. MONO For Hercules or MDA adapters.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
Halt On This field determines whether or not the system will halt if an error is detected during power up. All errors Whenever theBIOS detects a non-fatal error, the system will stop and you will be
prompted. No errors The system boot will not be halted for any error that may be detected. All, But Keyboard The system boot will not be halted for a keyboard error; it will stop for all other
errors
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
ADVANCED BIOS FEATURES
This section allows you to configure and improve your system and allows you to set up some system features according to your preference.
CPU Feature Press Enter to configure the settings relevant to CPU Feature.
Hard Disk Boot Priority With the field, there is the option to choose, aside from the hard disks connected, "Bootable add-in Cards" which refers to other external devices.
Virus Warning If this option is enabled, an alarm message will be displayed when trying to write on the boot sector or on the partition table on the disk, which is typical of the virus.
CPU L1 and L2 Cache Cache memory is additional memory that is much faster than conventional DRAM (system memory). CPUs from 486-type on up contain internal cache memory , and most, but not all, modern PCs have additional (external) cache memory . When the CPU requests data, the system transfers the requested data from the main DRAM into cache memory , for even faster access by the CPU. These items allow you to enable (speed up memory access) or disable the cache function. By default, these items are Enabled.
© Copyright 2011 Acnodes, Inc.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
CPU L3 Cache Enabled or Disabled
Quick Power On Self T est When enabled, this field speeds up the Power On Self T est (POST) af ter the system is turned on. If it is set to Enabled, BIOS will skip some items.
First/Second/Third Boot Device These fields determine the drive that the system searches first for an operating system. The options available include LS120, Hard Disk, CDROM, ZIP100, USB-Floppy , USB-ZIP, USB-CDROM, LAN and Disable.
Boot Other Device These fields allow the system to search for an OS from other devices other than the ones selected in the First/Second/Third Boot Device.
Boot Up NumLock Status This allows you to activate the NumLock function after you power up the system.
Gate A20 Option This field allows you to select how Gate A20 is worked. Gate A20 is a device used to address memory above 1 MB.
Typematic Rate Setting When disabled, continually holding down a key on your keyboard will generate only one instance. When enabled, you can set the two typematic controls listed next. By default, this field is set to Disabled.
Typematic Rate (Chars/Sec) When the typematic rate is enabled, the system registers repeated keystrokes speeds. Settings are from 6 to 30 characters per second.
Typematic Delay (Msec) When the typematic rate is enabled, this item allows you to set the time interval for displaying the first and second characters. By default, this item is set to 250msec.
Security Option This field allows you to limit access to the System and Setup. The default value is Setup. When you select System, the system prompts for the User Password every time you boot up. When you select Setup, the system always boots up and prompts for the Supervisor Password only when the Setup utility is called up.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
APIC Mode APIC stands for Advanced Programmable Interrupt Controller. The default setting is Enabled.
MPS Version Control for OS This option is specifies the MPS (Multiprocessor Specification) version for your operating system. MPS version 1.4 added extended configuration tables to improve support for multiple PCI bus configurations and improve future expandability . The default setting is 1.4.
OS Select for DRAM > 64MB This option allows the system to access greater than 64MB of DRAM memory when used with OS/2 that depends on certain BIOS calls to access memory . The default setting is Non-OS/2.
Report No FDD For WIN 95 If you are using Windows 95/98 without a floppy disk drive, select Enabled to release IRQ6. This is required to pass Windows 95/98's SCT test. Y ou should also disable the Onboard FDC Controller in the Integrated Peripherals screen when there's no floppy drive in the system. If you set this feature to Disabled, the BIOS will not report the missing floppy drive to Win95/98.
Full screen Logo Show The screen logo appears full of the monitor screen when the system is boot up. The default setting is Enabled.
Small Logo (EP A) Show The EP A logo appears at the right side of the monitor screen when the system is boot up. The default setting is Disabled.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
ADVANCED CHIPSET FEATURES
This Setup menu controls the configuration of the chipset.
MPC 6171
System BIOS Cacheable The setting of Enabled allows caching of the system BIOS ROM at F000h-FFFFFh, resulting in better system performance. However , if any program writes to this memory area, a system error may result.
Memory Hole At 15M-16M In order to improve performance, certain space in memory can be reserved for ISA cards. This memory must be mapped into the memory space below 16 MB. The choices are Enabled and Disabled.
PCI Express Root Port Func By default.
VGA Setting The fields under the VGA Setting and their default settings are: PEG/On Chip VGA Control: Onchip VGA On-Chip Frame Buffer Size: 8MB DVMT Mode: DVMT DVMT/Fixed Memory Size: 128MB Boot Display: Auto Panel Scaling: Auto Panel Number: 4
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
INTEGRATED PERIPHERALS
This section sets configurations for your hard disk and other integrated peripherals.
OnChip IDE Device
IDE HDD Block Mode This field allows your hard disk controller to use the fast block mode to transfer data to and from your hard disk drive.
IDE DMA transfer access This field allows your hard disk controller to use the fast block mode to transfer data to and from your hard disk drive.
On-Chip Serial A T A Setting The fields under the SA T A setting includes On-Chip Serial A T A (Auto), P A T A IDE Mode (Secondary) and SA TA Port (PO, P2 is Primary).
OnChip Primary/Secondary PCI IDE The integrated peripheral controller contains an IDE interface with support for two IDE channels. Select Enabled to activate each channel separately .
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
ONCHIP SUPER IO DEVICE
Power ON Function This field is related to how the system is powered on - such as with the use of conventional power button, keyboard or hot keys. The default is BUTTON ONL Y.
Onboard Serial Port These fields allow you to select the onboard serial ports and their addresses. The default values for these ports are: Serial Port 1 3F8/IRQ4 Serial Port 2 2F8/IRQ3
UART Mode Select This field determines the UART 2 mode in your computer . The default value is Normal. Other options include IrDA and ASKIR.
PWRON After PWR-Fail This field sets the system power status whether on or off when power returns to the system from a power failure situation.
USB Device Setting USB 1.0 Controller
The options for this field are Enabled and Disabled. By default, this field is set to Enabled. USB 2.0 Controller
The options for this field are Enabled and Disabled. By default, this field is set to Enabled. In order to use USB 2.0, necessary OS drivers must be installed first. Please update your system to Windows 2000 SP4 or Windows XP SP2.
USB Operation Mode The options for this field are Full/Low speed and High speed. By default, this field is set to High speed.
USB Keyboard Function The options for this field are Enabled and Disabled. By default, this field is set to Enabled.
USB Mouse Function The options for this field are Enabled and Disabled. By default, this field is set to Enabled.
USB Storage Function The options for this field are Enabled and Disabled. By default, this field is set to Enabled.
© Copyright 2011 Acnodes, Inc.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
POWER MANAGEMENT SETUP
MPC 6171
ACPI Function Enable this function to support ACPI (Advance Configuration and Power Interface).
ACPI Suspend The default setting of the ACPI Suspend mode is S3(STR).
RUN VGABIOS if S3 Resume The default setting of this field is Auto.
Power Management This field allows you to select the type of power saving management modes. There are three selections for Power Management.
© Copyright 2011 Acnodes, Inc.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
User Define Each of the ranges is from 1 min. to 1hr . Except for HDD Power Down which ranges
from 1 min. to 15 min. Min. Power Saving Minimum power management Max. Power Saving Maximum power management.
Video Off Method This field defines the Video Off features. There are three options. Blank Screen Writes blanks to the video buffer . V/H SYNC + Blank Blank the screen and turn off vertical and horizontal scanning. DPMS Default setting, allows BIOS to control the video display .
Video Off In Suspend When enabled, the video is off in suspend mode. The default setting is Yes.
Suspend Type The default setting for the Suspend T ype field is Stop Grant.
Modem Use IRQ This field sets the IRQ used by the Modem. By default, the setting is 3.
Suspend Mode When enabled, and after the set time of system inactivity , all devices except the CPU will be shut off. By default, the setting is Disabled.
HDD Power Down When enabled, and after the set time of system inactivity , the hard disk drive will be powered down while all other devices remain active.
Soft-Off by PWR-BTTN This field defines the power-off mode when using an A TX power supply . The Instant Off mode allows powering off immediately upon pressing the power button. In the Delay 4 Sec mode, the system powers off when the power button is pressed for more than four seconds or enters the suspend mode when pressed for less than 4 seconds.
Wake up by PCI Card By default, this field is Enabled.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
Power On by Ring This field enables or disables the power on of the system through the modem connected to the serial port or LAN.
USB KB Wake-Up From S3 By default, this field is Disabled.
Resume by Alarm This field enables or disables the resumption of the system operation. When enabled, the user is allowed to set the Date and Time.
Reload Global Timer Events The HDD, FDD, COM, LPT Ports, and PCI PIRQ are I/O events that can prevent the system from entering a power saving mode or can awaken the system from such a mode. When an I/O de­vice wants to gain the attention of the operating system, it signals this by causing an IRQ to occur. When the operating system is ready to respond to the request, it interrupts itself and performs the service.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
PNP/ PCI CONFIGURATIONS
This option configures the PCI bus system. All PCI bus systems on the system use INT#, thus all in­stalled PCI cards must be set to this value.
Init Display First The default setting is Onboard.
Reset Configuration Data This field allows you to determine whether to reset the configuration data or not. The default value is Disabled.
Resources Controlled by This PnP BIOS can configure all of the boot and compatible devices with the use of a PnP operat­ing system such as Windows 95.
PCI/VGA Palette Snoop Some non-standard VGA display cards may not show colors properly . This field allows you to set whether or not MPEG ISA/VESA VGA cards can work with PCI/VGA. When this field is en­abled, a PCI/VGA can work with an MPEG ISA/VESA VGA card. When this field is disabled, a PCI/ VGA cannot work with an MPEG ISA/VESA card.
Maximum Payload Size The default setting of the PCI Express Maximum Payload Size is 128.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
PC HEALTH STATUS
This section shows the parameters in determining the PC Health Status. These parameters include temperatures, fan speeds and voltages.
CPU Warning Temperature This field allows the user to set the temperature so that when the temperature is reached, the system sounds a warning. This function can help prevent damage to the system that is caused by overheating.
CPU Smart Fan Temperature This field allows the user to set the temperature so that when the temperature is reached, the smart fan will speed up to cool the CPU temperature.
© Copyright 2011 Acnodes, Inc.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
Load Fail-Safe Defaults This option allows you to load the troubleshooting default values permanently stored in the BIOS ROM. These default settings are non-optimal and disable all high-perfor­mance features.
Load Optimized Defaults This option allows you to load the default values to your system configuration. These default settings are optimal and enable all high performance features.
Set Supervisor Password These two options set the system password. Supervisor Password sets a password that will be used to protect the system and Setup utility. User Password sets a password that will be used exclusively on the system. To specify a password, high­light the type you want and press <Enter>. The Enter Password: message prompts on the screen. Type the password, up to eight characters in length, and press <Enter>. The system confirms your password by asking you to type it again. After setting a password, the screen automatically returns to the main screen.
To disable a password, just press the <Enter> key when you are prompted to enter the password. A message will confirm the password to be disabled. Once the password is disabled, the system will boot and you can enter Setup freely.
Save & Exit Setup This option allows you to determine whether or not to accept the modifications. If you type "Y", you will quit the setup utility and save all changes into the CMOS memory. If you type "N", you will return to Setup utility.
Exit Without Saving Select this option to exit the Setup utility without saving the changes you have made in this session. Typing "Y" will quit the Setup utility without saving the modifications. T yping "N" will return you to Setup utility.
© Copyright 2011 Acnodes, Inc.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
APPENDIX
A. JUMPER SETTINGS AND CONNECTIONS
This appendix gives the definitions and shows the positions of jumpers, headers and connectors. All of the configuration jumpers on MPC6171A/ MPC6171B are in the proper position.
Note: Some of jumpers or connectors will be removed base on system configuration.
A-1 Jumper location and list
In general, jumpers on the single board computer are used to select options for certain features. To select any option, cover the jumper cap over (SHORT) or remove (NC) it from the jumper pins accord­ing to the following instructions.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
A-2 Connectors location and list
The connectors on the PCBA of MPC6171A/ MPC6171B are used to connect external devices such as hard disk drives, printers, keyboard, serial ports, etc. S pecifically, the PCBA of MPC6171A/ MPC6171B has the following connectors:
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
B. VESA MOUNTING
The MPC6171A/ MPC6171B also provides standard VESA mounting to help system integrators conveniently integrate the panel PC into their system.
Never use any other mounting brackets except those provided by Wincomm to prevent the unreliable fixing of MPC6171A/ MPC6171. VESA mount installation should be carried out by a professional technician. Please contact the service technician or your retailer if you need this service.
Installation instructions follow:
1. The wall-mounting attachment is comprised of two parts: one back bracket, and one mounting bracket.
2. First attach the back bracket to the rear cover of the MPC6171A/ MPC6171, securing it in place with four of the Phillips-head screws provided.
3. Attach the mounting bracket to the wall or another flat surface. The back bracket slides vertically from the top into the mounting bracket. It can be secured to the mounting bracket by screwing four of the Phillips-head screws provided through the corresponding holes at the tops of the mounting bracket.
Warning: Be sure to secure the screws of the mounting bracket tightly . Injuries could result if the MPC6171A/
MPC6171 isn't properly secured to the mounting bracket.
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
MPC 6171
661 Brea Canyon Rd., Suite 3 Walnut, CA 91789 tel: 909.598.7388, fax: 909.598.0218
© Copyright 2011 Acnodes, Inc. All rights reserved. Product description and product specifications are subject to change without notice. For latest product information, please visit Acnodes’ web site at www.acnodes.com.
Loading...
