M2716

1U rack mount LCD keyboard drawer

User Manual

M2716 1U 17" rack mount monitor keyboard drawer

© Copyright 2009 Acnodes, Inc .
All right s reserv ed. Prod uct descripti on and produ ct speci fi catio ns
are subjec t to c hange witho ut notic e. For latest produ ct informat ion ,
please visi t Acnodes’ web sit e at www.a cnod es.c om.

M2716

1U rack mount LCD keyboard drawer

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone], www.acnodes.com

Index

Chapter 1 Getting Started

1.1 Important safeguards......................................................................1

1.2 Regulatory notice............................................................................2

1.3 Specifications..................................................................................3

1.4 Diagram..........................................................................................4

1.5 How to install “One-Man” installation slides into rack....................5

1.6 How to install “One Man” installation slides...................................6

1.7 How to use rails...............................................................................7

1.8 Keyboard and Mouse........................................................................8

1.9 Optional accessories..........................................................................9

Chapter 2 Operation

2.1 On-screen display operation.........................................................10

2.2 On-screen menu...........................................................................11

Chapter 3 Optional Specification

3.1 DC power options.........................................................................12

Chapter 4 KVM

4.1 KVM Specifications......................................................................13

4.2 Connections.................................................................................14

4.3 Connections KVM Module...........................................................15

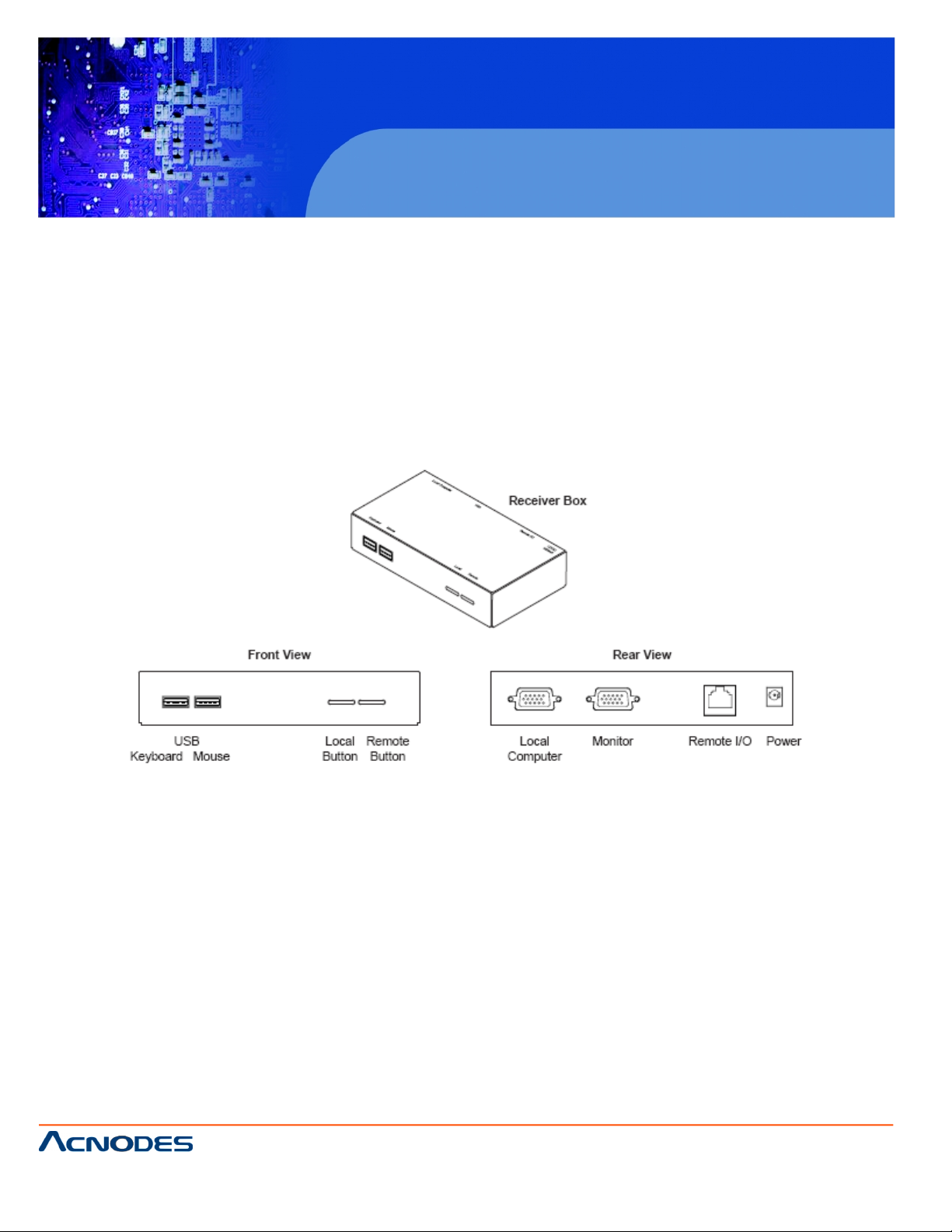

4.4 Receiver Box...............................................................................16

4.5 Receiver Connection...................................................................17

4.6 Cascade KVM Modules................................................................18

4.7 Front Panel Port LED Indicators................................................19

4.8 Password.....................................................................................20

4.9 OSD Menu..................................................................................21

4.10 Main Menu.................................................................................22

4.11 Local Console Key......................................................................23

4.12 Remote Console Key...................................................................23

4.13 KVM Cables................................................................................24

4.14 Optional Items............................................................................25

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone], www.acnodes.com

© Copyright 2009 Acnodes, Inc .
All right s reserved. Product descripti on and product specifi cations
are subjec t to c hange witho ut notic e. For latest produ ct informat ion ,
please visi t Acnodes’ web sit e at www.a cnod es.c om.

M2716

1U rack mount LCD keyboard drawer

CHAPTER 1

1.1 Important Safeguards

Please read all of these instructions carefully before you use the device. Save this manual for future reference.

What the warranty does not cover

- Any product, on which the serial number has been defaced, modified or removed.

- Damage, deterioration or malfunction resulting from:

- Accident, misuse, neglect, fire, water, lightning, or other acts of nature, unauthorized product modifi- cation, or failure to follow instruc­tions supplied with the product.

- Repair or attempted repair by anyone not authorized by us.

- Any damage of the product due to shipment.

- Removal or installation of the product.

- Causes external to the product, such as electric power fluctuation or failure.

- Use of supplies or parts not meeting our specifications.

- Normal wear and tear.

- Any other causes which does not relate to a product defect.

- Removal, installation, and set-up service charges.

1

© Copyright 2009 Acnodes, Inc .
All right s reserv ed. Prod uct descripti on and produ ct speci fi catio ns
are subjec t to c hange witho ut notic e. For latest produ ct informat ion ,
please visi t Acnodes’ web sit e at www.a cnod es.c om.

M2716

1U rack mount LCD keyboard drawer

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone], www.acnodes.com

1.2 Regulatory Notice

Legal Information

First English printing, October 2010
Information in this document has been carefully checked for accuracy; however, no guarantee is given to the correctness of the contents.

The information in this document is subject to change without notice. We are not liable for any injury or loss that results from the use of this equipment.

Safety Instructions

1 Unplug equipment before cleaning. Don't use liquid or spray detergent; use a moist cloth.
2 Keep equipment away from excessive humidity and heat. Preferably, keep it in an air-conditioned
environment with temperatures not exceeding 40º Celsius (104º Fahrenheit).
3 When installing, place the equipment on a sturdy, level surface to prevent it from accidentally falling and causing damage to other equipment or injury

to persons nearby.
4 When the drawer is in an open position, do not cover, block or in any way obstruct the gap between it and the power supply. Proper air convection

is necessary to keep it from overheating.
5 Arrange the equipment's power cord in such a way that others won't trip or fall over it.
6 If you are using a power cord that didn't ship with the equipment, ensure that it is rated for the voltage and current labeled on the equipment's

electrical ratings label. The voltage rating on the cord should be higher than the one listed on the equipment's ratings label.
7 Observe all precautions and warnings attached to the equipment.
8 If you don't intend on using the equipment for a long time, disconnect it from the power outlet to prevent being damaged by transient over-voltage.
9 Keep all liquids away from the equipment to minimize the risk of accidental spillage. Liquid spilled on to the power supply or on other hardware

may cause damage, fire or electrical shock.
10 Only qualified service personnel should open the chassis. Opening it yourself could damage the equip- ment and invalidate its warranty.
11 If any part of the equipment becomes damaged or stops functioning, have it checked by qualified service personnel.

Regulatory Notices Federal Communications Commission (FCC)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are

designed to provide reasonable protection against harmful
interference in a residential installation.

Any changes or modifications made to this equipment may void the user's authority to operate this
equipment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may

cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or

television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

2

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone], www.acnodes.com

© Copyright 2009 Acnodes, Inc .
All right s reserved. Product descripti on and product specifi cations
are subjec t to c hange witho ut notic e. For latest produ ct informat ion ,
please visi t Acnodes’ web sit e at www.a cnod es.c om.

M2716

1U rack mount LCD keyboard drawer

1.3 Specifications

Display size:

17 inches
Panel type:

Active Matrix TFT LCD
Resolution capabilities:

Maximum Resolution up to 1280 x 1024 (SXGA)

Brightness:

White 300 cd/m2
Contrast ratio:

1000:1
Supported colors:

16.2M Colors (6-bit with FRC)

Viewing angle:

Right-Left view 60° ~ 70°(Typ)
Up-Down View 45° ~ 60°(Typ)

Display Area:

338 mm x 270 mm
Response Time: Response time:

Rising Time 1.3ms

LCD MTBF:

50,000 hours

Keyboard & Mouse:
104-keys keyboard with touch pad / track-ball (optional) PS/2
or USB

Package Dimension:
442 x 650 x 44 mm / 17.4 x 25.6 x 1.73 inches

Gross Weight:
35lbs

Certification:
CE / FCC

Operation temperature:
0 ~ 50°C / 32 ~ 122°F

Storage temperature:

-5 ~ 60°C / -4 ~ 140°F

Humidity:

5~90%, non-condensing

Shock:

10G acceleration (11ms duration)

VGA Signal Input:

Analog H/V, Co1.3Diagrammposite, SOG

Resolution:

64x400 / 720x400: 70Hz
640x480 / 800x600 / 1280x1024: 60/70/72/75Hz
1024x768 / 1152x864 / 1280x720: 60/70/75Hz

Plus & Play DCC:

EDID 1.3

Power Input:

Auto-sensing 100 to 240VAC, 50/60Hz power
LCD power consumption:

Max. 48Watts, standby 5 Watts

Vibration:

5~500Hz 1G RMS random vibration

Touch screen:

Resistive / Capacitive touch screen, USB or RS-232

DC power input:

12 / 24 / 48VDC power input

3

© Copyright 2009 Acnodes, Inc .
All right s reserv ed. Prod uct descripti on and produ ct speci fi catio ns
are subjec t to c hange witho ut notic e. For latest produ ct informat ion ,
please visi t Acnodes’ web sit e at www.a cnod es.c om.

M2716

1U rack mount LCD keyboard drawer

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone], www.acnodes.com

1.3 Diagram

1.4 Diagram

1. Carry handle to release the 2-pt lock

2. LCD interchangeable module kit

3. “One Man” Installation Slides

4. LCD membr ane

5. Membrane switch (KVM option)

6. Micro switch for screen auto power off

7. Keyboard interchangeable module kit

8. Mouse interchangeable module kit

4

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone], www.acnodes.com

© Copyright 2009 Acnodes, Inc .
All right s reserved. Product descripti on and product specifi cations
are subjec t to c hange witho ut notic e. For latest produ ct informat ion ,
please visi t Acnodes’ web sit e at www.a cnod es.c om.

M2716

1U rack mount LCD keyboard drawer

1.5 How to Install “One Man” Installation Slides into rack

Attach the left and right mounting bracket to rack 19"
mounting rails.
Adjust the rear mounting bracket to fit your rack.
M6 screw and cup washer x 6 piece included.
Caution : Leaving the screws slightly loose, until
you complete the installation in step 4

Pick up the LCD keyboard drawer.
Insert the LCD keyboard drawer into the mounting bracket.
Pull and hold the left & right black arrow buttons on the rails.

Return the LCD keyboard drawer to park position

5

© Copyright 2009 Acnodes, Inc .
All right s reserv ed. Prod uct descripti on and produ ct speci fi catio ns
are subjec t to c hange witho ut notic e. For latest produ ct informat ion ,
please visi t Acnodes’ web sit e at www.a cnod es.c om.

M2716

1U rack mount LCD keyboard drawer

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone], www.acnodes.com

1.6 How to Install “One Man” Installation Slides

Attach front left and right mounting ears of the LCD
keyboard drawer to vertical mounting rails.
? M6 screw and cup washer x 2 pcs included.

Complete the installation
? Tighten all 8 piece of M6 screw to complete the installation

6

661 Brea Canyon Rd., Suite 3
Walnut, CA 91789
tel: [phone], fax: [phone], www.acnodes.com

© Copyright 2009 Acnodes, Inc .
All right s reserved. Product descripti on and product specifi cations
are subjec t to c hange witho ut notic e. For latest produ ct informat ion ,
please visi t Acnodes’ web sit e at www.a cnod es.c om.

M2716

1U rack mount LCD keyboard drawer

1.7 How to Use the Slides

? A black arrow release button is
located on the outside of each
slide. (shown in Figure 1).

Pull and hold the black arrow button on
either side of the LCD keyboard drawer to
unlock. (shown in Figure 2).

? Push the LCD keyboard drawer into
the rack. (shown in Figure 3).

Caution : Keep your fingers away from
the slide stop
