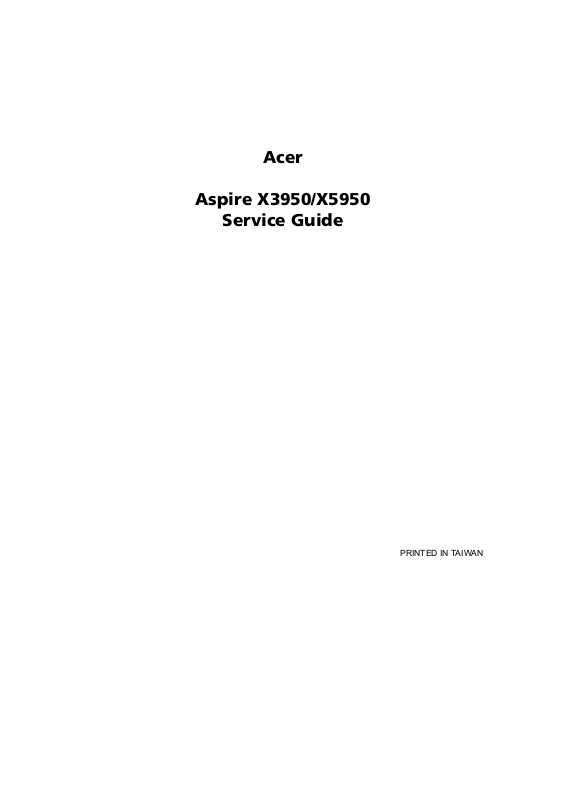

Aspire X3950/X5950

Service Guide

PRINTED IN TAIWAN

Revision History

Please refer to the table below for the updates made on this service guide.

Date Chapter Updates

Copyright © 2010 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

iii

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation. Intel is a registered trademark of Intel Corporation. Pentium Dual-Core, Celeron Dual-Core, Core 2 Duo, Core 2 Quad, Celeron, and combinations thereof, are trademarks of Intel Corporation. Other brand and product names are trademarks and/or registered trademarks of their respective holders.

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES

NOTE Gives additional information related to the current topic.

WARNING Alerts you to any physical risk or system damage that might result from doing

CAUTION Gives precautionary measures to avoid possible hardware or software

IMPORTANT Reminds you to do specific actions relevant to the accomplishment of

Denotes actual messages that appear on screen.

or not doing specific actions.

problems.

procedures.

Service Guide Coverage

This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

FRU Information

Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

System Tour 1

Features 1 System Components 3

Front Panel 3 Rear Panel 5 Internal Components 6 System LED Indicators 7

System Utilities 9

CMOS Setup Utility 9

Entering CMOS setup 10 Navigating Through the Setup Utility 10 Setup Utility Menus 11

System Disassembly 25

Disassembly Requirements 25 Pre-disassembly Procedure 26 Main Unit Disassembly 27

Removing the Side Panel 29 Removing the Front Bezel 30 Removing the Heatsink Fan Assembly 32 Removing the Processor 34 Removing the Optical Drive 36 Removing the Hard Disk Drive 39 Removing the Power Supply 40 Removing the Memory Modules 42 Removing an Expansion Card 43 Removing the Front I/O and Card Reader Boards 46 Removing the Mainboard 49 Removing the Top Bezel 51

System Troubleshooting 53

Hardware Diagnostic Procedure 53 System Check Procedures 54

Power System Check 54 System External Inspection 54 System Internal Inspection 54

Checkpoints 55

Viewing BIOS checkpoints 55 Bootblock Initialization Code Checkpoints 55 Bootblock Recovery Code Checkpoints 56 POST Code Checkpoints 57 DIM Code Checkpoints 59 ACPI Runtime Checkpoints 59

Error Messages 60

Memory 60 Boot 60 Storage Device 61 Virus Related 62 System Configuration 63 CMOS 64 Miscellaneous 64

vii

USB eModule Error Messages 65 SMBIOS eModule Error Messages 65 CPU eModule Error Messages 65

MPS Table (Multi-processor) eModule Error Messages 65 Beep Codes 66 Index of Symptom-to-FRU Error Message 67 BIOS Recovery 72 Undetermined Problems 74

System Block Diagram and Board Layout 75

System Block Diagram 75 Mainboard Layout 76

FRU (Field Replaceable Unit) List 79

Exploded Diagram 80 X3950 FRU List 82 X5950 FRU List 90

Technical Specifications 93

viii

Chapter 1

System Tour

Features

Below is a brief summary of the computer’s many features:

NOTE: The features listed in this section is for your reference only. The exact configuration of the system

depends on the model purchased.

Processor

 One LGA 1156 socket

 Intel® Core™ i3-530/540 processor

 Intel Core i5-650/660/661/670/750 processor

 Intel Core i7-860/870 processor

 Intel Pentium G6950 processor

Chipset

 Intel P55 Express chipset

Memory subsystem

 Four DDR3-800/1066/1333 MHz DIMM sockets

 Supports single channel or dual-channel memory mode

 Maximum of 8GB supported

Media storage

 Super-Multi DVD drive

 BD Combo, BD-ROM, BD-RW drive

 SATA hard disk drive

Serial ATA controller

 Embedded SATA controllers

 Two SATA ports

Audio

 Realtek ALC888S-VC HD Audio Codec 7.1

 Three audio jacks

Networking

 Intel PCI-E Gbe LAN controller PHY

 One Gigabit Ethernet LAN port (RJ-45)

PCI I/O

 PCI Express x16 bus slot

 PCI Express x1 bus slot

Chapter 1 1

I/O ports

 Front

 Five USB 2.0 ports

 Headphone/speaker-out/line-out jack

 Microphone-in jack

 9-in-1 media card reader — CompactFlash® (Type I and II), CF+™ Microdrive, MultiMediaCard

(MMC), Reduced-Size MultiMediaCard (RS-MMC), Secure Digital™ (SD) Card, xD-Picture Card™, Memory Stick™, Memory Stick PRO™

 Rear

 PS/2 keyboard port

 PS/2 mouse port

 Three audio jacks

 HDMI port

 Six USB 2.0 ports

 Gigabit LAN port

 VGA/monitor port

Operating system and software

 Operating system

 Windows 7 Home Premium x64

 Windows 7 Home Premium X86

 Windows 7 Home Basic X86,

 FreeDOS

 Linux LL95

 Applications

 Acer eRecovery Management

 Acrobat Reader

 Acrobat Flash Player

 Arcade Deluxe

 Cyberlink Power Director

 McAfee Internet Security

 MyWinLocker

 Microsoft Works

 Nero 9 Essentials

Power supply

 220-watts (115/230V AC) PFC or non-PFC power supply

Dimension and weight

 Dimension (DxWxH)

 X3950: 367.8 x 100 x 281.5 mm (with bezel)

 X5950: 367.8 x 100 x 281.5 mm (with bezel)

 Weight (estimate)

 X3950:  8 kg

 X5950:  8 kg

2 Chapter 1

System Components

This section is a virtual tour of the system’s interior and exterior components.

Front Panel

X3950

No. Icon Component

3 Front I/O cover

4 Microphone-in jack

5 Headphone/Speaker-out/line-out jack

6 CF I/II (CompactFlash Type I/II) slot

7 Media card reader

8 Drive bay door eject button

9 Optical drive bay door

10 HDD activity indicator

11 Power button/power indicator

USB 2.0 ports

Press to open drive bay door and access the optical drive.

Chapter 1 3

X5950

No. Icon Component

3 Front I/O cover

4 Microphone-in jack

USB 2.0 ports

5 Headphone/Speaker-out/line-out jack

6 CF I/II (CompactFlash Type I/II) slot

7 Media card reader

8 Drive bay door eject button

Press to open drive bay door and access the optical drive.

9 Optical drive bay door

10 HDD activity indicator

11 Power button/power indicator

4 Chapter 1

Rear Panel

No. Icon Component

1 Audio in or side speaker jack

2 Gigabit LAN port (10/100/1000 Mbps)

3 Key hole

4 Lock slot

5 Power connector

6 Power supply (Photo shows PFC power supply)

7 PS2 keyboard port

8 PS2 mouse port

10 VGA/monitor port

11 USB 2.0 ports

12 Microphone/speaker-out/line-in jack

13 Line-out jack

14 Expansion slot (Photo shows graphics card and network card)

HDMI

HDMI port

Chapter 1 5

Internal Components

No. Component

1 Optical drive

2 Memory

3 Expansion cards

4 Mainboard

5 Heatsink fan assembly

6 Power supply

6 Chapter 1

System LED Indicators

This section describes the different system LED indicators.

LED indicator Color LED status Description

Power Blue On S0/S1 state

Blue Blinking S3 state

— Off S4/S5 state

HDD activity Blue Blinking S0/S1 state

LAN activity Blue Blinking S0/S1 state

LAN port network speed LED (left)

LAN port network connection LED (right)

Amber On 1000 Mbps link network access

Green On 100 Mbps link network access

— Off 10 Mbps link network access

Green On Active network link

Blinking Ongoing network data activity

Off Off-line network

Chapter 1 7

8 Chapter 1

Chapter 2

System Utilities

CMOS Setup Utility

CMOS setup is a hardware configuration program built into the system ROM, called the complementary metaloxide semiconductor (CMOS) Setup Utility. Since most systems are already properly configured and optimized, there is no need to run this utility. You will need to run this utility under the following conditions.

 When changing the system configuration settings

 When redefining the communication ports to prevent any conflicts

 When modifying the power management configuration

 When changing the password or making other changes to the security setup

 When a configuration error is detected by the system and you are prompted ("Run Setup"

message) to make changes to the CMOS setup

NOTE: If you repeatedly receive Run Setup messages, the battery may be bad. In this case, the system

cannot retain configuration values in CMOS. Ask a qualified technician for assistance.

CMOS setup loads the configuration values in a battery-backed nonvolatile memory called CMOS RAM. This memory area is not part of the system RAM which allows configuration data to be retained when power is turned off.

Before you run the CMOS Setup Utility, make sure that you have saved all open files. The system reboots immediately after you close the Setup.

NOTE: CMOS Setup Utility will be simply referred to as “BIOS”, "Setup", or "Setup utility" in this guide.

The screenshots used in this guide display default system values. These values may not be the same those found in your system.

Chapter 2 9

Entering CMOS setup

1. Turn on the computer and the monitor.

If the computer is already turned on, close all open applications, then restart the computer.

2. During POST, press Delete.

If you fail to press Delete before POST is completed, you will need to restart the computer.

The Setup Main menu will be displayed showing the Setup’s menu bar. Use the left and right arrow keys to move between selections on the menu bar.

Navigating Through the Setup Utility

Use the following keys to move around the Setup utility.

 Left and Right arrow keys – Move between selections on the menu bar.

 Up and Down arrow keys – Move the cursor to the field you want.

 PgUp and PgDn keys – Move the cursor to the previous and next page of a multiple page menu.

 Home – Move the cursor to the first page of a multiple page menu.

 End – Move the cursor to the last page of a multiple page menu.

 + and - keys – Select a value for the currently selected field (only if it is user-configurable). Press

these keys repeatedly to display each possible entry, or the Enter key to choose from a pop-up menu.

NOTE: Grayed-out fields are not user-configurable.

 Enter key – Display a submenu screen.

NOTE: Availability of submenu screen is indicated by a (>).

 Esc – If you press this key:

 On one of the primary menu screens, the Exit menu displays.

 On a submenu screen, the previous screen displays.

 When you are making selections from a pop-up menu, closes the pop-up without making a

selection.

 F1 – Display the General Help panel.

 F9 – Press to load optimized default system values.

 F10 – Save changes made the Setup and close the utility.

10 Chapter 2

Setup Utility Menus

►

► Standard CMOS Features

► Advanced BIOS Features

► Advanced Chipset Features

► Integrated Peripherals

► Power Management Setup

Product Information ► PC Health Status

► Frequency/Voltage Control

► BIOS Security Features

Load Default Settings

Save & Exit Setup

Exit Without Saving

:Move Enter:Select

F1:General Help F9:Optimized Defaults

+ :Value//

- ESC:Exit

F10:Save

.-, ,.

The Setup Main menu includes the following main setup categories.

 Product Information

 Standard CMOS Features

 Advanced BIOS Features

 Advanced Chipset Features

 Integrated Peripherals

 Power Management Setup

 PC Health Status

 Frequency/Voltage Control

 BIOS Security Features

 Load Default Settings

 Save & Exit Setup

 Exit Without Saving

In the descriptive table following each of the menu screenshots, settings in boldface are the default and suggested settings.

Chapter 2 11

Product Information

Processor Type Intel (R) Core(TM) i5 CPU 650 3.20GHz Processor Speed System Memory Product Name System Serial Number System BIOS Version BIOS Release Date Asset Tag Number

:Move Enter:Select

F1:General Help F9:Optimized Defaults

+ :Value//- ESC:ExitF10:Save

Help Item

3.20GHz 2048MB xxxxxxx xxxxxxxxxxxxxxxxxxxxxx xxx-xx 03/22/2010

Product Information

The Product Information menu displays basic information about the system. These entries are for your reference only and are not user-configurable.

Parameter Description

Processor Type Type of CPU installed on the system.

Processor Speed Speed of the CPU installed on the system.

System Memory Total size of system memory installed on the system.

Product Name Product name of the system.

System Serial Number Serial number of the system.

System BIOS Version Version number of the BIOS setup utility.

BIOS Release Date Date when the BIOS setup utility was released

Asset Tag Number Asset tag number of this system.

12 Chapter 2

Standard CMOS Features

System Date System Time

► AHCI Port 1 ► AHCI Port 2

Halt On

:Move Enter:Select

F1:General Help F9:Optimized Defaults

+ :Value//- ESC:Exit

F10:Save

Help Item

[Fri 01/01/2010] [21:14:49]

[All, But Keyboard]

[Hard Disk] [Not Detected]

Standard CMOS Features

Use [ENTER] , [TAB] or [SHIFT-TAB] to select a field.

Use [+] or [-] to configure system Date.

Standard CMOS Features

Parameter Description Option

System Date Set the date following the weekday-month-day-year format.

System Time (hh:mm:ss)

AHCI Port 1/2 Displays the status of auto detection of the AHCI device.

Halt On Determines whether the system will stop for an error during the POST. All, But Keyboard

Set the system time following the hour-minute-second format.

No Errors

All Errors

Chapter 2 13

Advanced BIOS Features

Quick Boot Quiet Boot 1st Boot Device

► Hard Disk Drive Priority

2nd Boot Device 3rd Boot Device 4th Boot Device

► Optical Disk Drive Priority ► Removable Device Priority ► Network Device Priority Bootup Num-Lock USB Beep Message

:Move Enter:Select

F1:General Help F9:Optimized Defaults

+ :Value//- ESC:Exit

F10:Save

Help Item

[Enabled]

[CD/DVD] [USB: PEN] [LAN] [Press Enter]

[Enabled] [HDD:P0-Hitachi HDT]

[Press Enter] [Press Enter] [Press Enter] [On] [Disabled]

Advanced BIOS Features

Allows BIOS to skip certain tests while booting. This will decrease the time needed to boot the system.

Advanced BIOS Features

Parameter Description Option

Quick Boot Allows you to decrease the time it takes to boot the computer by shortening

Quiet Boot When enabled, the BIOS splash screen displays during startup.

1st/2nd/3rd/4th Boot Device Specifies the boot order from the available devices. Hard Disk

Hard Disk Drive Priority Press Enter to access the Hard Disk Drive Priority submenu and specify the boot device

Optical Disk Drive Priority Press Enter to access the Optical Disk Drive Priority submenu and specify the boot device

Removable Device Priority Press Enter to access the Removable Device Priority submenu and specify the boot device

Network Device Priority Press Enter to access the Network Device Priority submenu and specify the boot sequence

Bootup Num-Lock Selects power on state for Num Lock. On

USB Beep Message Enables or disables BIOS to display error beeps or messages during USB

or skipping certain standard booting process.

When disabled, the diagnostic screen displays during startup.

priority sequence from available hard drives.

priority sequence from available CD/DVD drives.

priority sequence from available removable drives.

from available network devices.

device enumeration.

Enabled

Disabled

Enabled

Disabled

CD/DVD

Removable Device

LAN

Off

Enabled

Disabled

14 Chapter 2

Advanced Chipset Features

Intel EIST Intel Turbo Boost Intel AES-NI Intel XD Bit Intel VT Memory Hole Remapping Primary Video Video Memory Size DVMT Mode DVMT/Fixed Memory Size

:Move Enter:Select

F1:General Help F9:Optimized Defaults

+ :Value//- ESC:Exit

F10:Save

Help Item

[Enabled] [Enabled] [Disabled] [Enabled] [Enabled] [Enabled] [Auto] [32MB] [DVMT] [256MB]

Advanced Chipset Features

Disable: Disable Enhanced Intel SpeedStep Technology

Enable: Enable Enhanced Intel SpeedStep Technology

Advanced Chipset Features

Parameter Description Option

Intel EIST When enabled, this feature allows the OS to reduce power consumption.

When disabled, the system operates at maximum CPU speed.

Intel Turbo Boost Enables or disables Intel Turbo Boost Technology. Enabled

Intel AES-NI Enables or disables Advanced Encryption Standard New Instructions

(AES-NI).

Intel XD Bit When enabled, the processor disables code execution when a worm attempts

Intel VT Enables or disables the Virtualization Technology (VT) availability. If enabled, a

Memory Hole Remapping Enables or disables remapping of overlapped PCI memory above the total

Primary Video Select a graphic controller as a primary boot device.

Video Memory Size Select the amout of system memory used by the Intel graphics device. 32MB

DVMT Mode Select a video memory mode. DVMT

DVMT/Fixed Memory Size

to insert a code in the buffer preventing damage and worm propagation.

When disabled, the processor forces the Execute Disable (XD) Bit feature flag to always return to 0.

virtual machine manager (VMM) can utilize the additional hardware virtualization capabilities provided by this technology.

Note: A full reset is required to change the setting.

physical memory.

Select a video memory size. 256MB

Enabled

Disabled

Enabled

Disabled

Enabled

Disabled

Enabled

Disabled

Enabled

Disabled

Auto

PCIE

Onboard VGA

64 MB

128 MB

Disabled

Fixed

128 MB

Maximum

Chapter 2 15

Integrated Peripherals

Onboard SATA Controller

Onboard USB Controller Legacy USB Support Onboard Graphics Controller Onboard Audio Controller Onboard LAN Controller Onboard LAN Option ROM

Onboard SATA Mode

:Move Enter:Select

F1:General Help F9:Optimized Defaults

+ :Value//- ESC:Exit

F10:Save

Help Item

[Enabled]

[Enabled] [Enabled] [Auto] [Enabled] [Enabled] [Disabled]

[AHCI]

Integrated Peripherals

Disabled Enabled

Options

Integrated Peripherals

Parameter Description Option

Onboard SATA Controller Select an operating mode for the onboard SATA. Enabled

Disabled

Onboard SATA Mode Select an operating mode for the onboard SATA. AHCI

Native IDE

Onboard USB Controller Enables or disables support for legacy USB devices Enabled

Disabled

Legacy USB Support Enables or disables support for legacy USB devices. Enabled

Disabled

Onboard Graphics Controller

Onboard Audio Controller Enables or disables the onboard audio controller. Enabled

Onboard LAN Controller Enables or disables the onboard LAN controller. Enabled

Onboard LAN Option ROM Enables or disables the load of embedded option ROM for onboard

Enables or disables the onboard graphics controller. Auto

Onboard

Disabled

Enabled

network controller.

Disabled

16 Chapter 2

Power Management Setup

ACPI Suspend Mode Deep Power Off Mode Power On by RTC Alarm Power On by PCIE Devices Wake Up by PS/2 KB/Mouse Wake Up by USB KB/Mouse Restore On AC Power Loss

:Move Enter:Select

F1:General Help F9:Optimized Defaults

+ :Value//- ESC:Exit

F10:Save

Help Item

[S3 (STR)] [Enabled] [Disabled] [Disabled] [Enabled] [Enabled] [Last State]

Power Management Setup

Select the ACPI state used for System Suspend.

Power Management Setup

Parameter Description Option

ACPI Suspend Mode Select an ACPI state. S3 (STR)

S1 (POS)

Deep Power Off Mode Enables or disables the deep power off mode. Enabled

Disabled

Power On by RTC Alarm Enables or disables real time clock (RTC) to generate a wake event. Enabled

Disabled

Power On by PCIE Devices Enables or disables to wake up the system from a power saving mode

through an event on PCI Express device.

Wake Up by PS/2 KB/Mouse Enables or disables to wake up the system from a power saving mode

using a PS2 keyboard or mouse.

Wake Up by USB KB/Mouse Enables or disables to wake up the system from a power saving mode

using a USB keyboard or mouse.

Restore On AC Power Loss Enables or disables the system to reboot after a power failure or

interrupt occurs.

Enabled

Disabled

Enabled

Disabled

Enabled

Disabled

Power Off

Power On

Last State

Chapter 2 17

PC Health Status

CPU Temperature (PECI Mode) System Temperature CPU Fan Speed System Fan Speed

CPU Core +1.1V +3.30V +5.00V +12.0V 5VSB VBAT

Smart Fan

:Move Enter:Select

F1:General Help F9:Optimized Defaults

+ :Value//- ESC:Exit

F10:Save

Help Item

:23 :44 C/111 F :1015 RPM :N/A

:1.176 V :1.116 V :3.346 V :5.040 V :11.808 V :5.040 V :3.336 V

[Enabled]

PC Health Status

Disabled Enabled

PC Health Status

Parameter Description Option

Smart Fan Enables or disables the smart system fan control function. Enabled

Disabled

18 Chapter 2

Frequency/Voltage Control

:Move Enter:Select

F1:General Help F9:Optimized Defaults

+ :Value//- ESC:Exit

F10:Save

Help Item

[Enabled] [Enabled]

Frequency/Voltage Control

Enable Clock to All DIMM/PCI/PCIE.

Frequency/Voltage Control

Clock to All DIMM/PCI/PCIE Spread Spectrum

Parameter Description Option

Clock to All DIMM/PCI/PCIE Enables or disables the system to detect the DIMM/PCI/PCIE clock

automatically during bootup.

Spread Spectrum Enables or disables the reduction of the mainboard’s EMI.

Note: Remember to disable the Spread Spectrum feature if you are overclocking. A slight jitter can introduce a temporary boost in clock speed causing the overclocked processor to lock up.

Enabled

Disabled

Enabled

Disabled

Chapter 2 19

BIOS Security Features

:Move Enter:Select

F1:General Help F9:Optimized Defaults

+ :Value//- ESC:ExitF10:Save

Help Item

BIOS Security Features

Install or Change the password.

BIOS Security Features

Supervisor Password :Not Installed

Change Supervisor Password [Press Enter]

User Password :Not Installed

Parameter Description

Supervisor Password Indicates the status of the supervisor password.

User Password Indicates the status of the user password.

Change Supervisor Password

Supervisor password prevents unauthorized access to the BIOS Setup Utility.

Press Enter to change the Supervisor password.

Setting a system password

1. Use the up/down arrow keys to select a password parameter (Change Supervisor Password) menu then press Enter.

A password box will appear.

2. Type a password then press Enter.

The password may consist up to six alphanumeric characters (A-Z, a-z, 0-9)

3. Retype the password to verify the first entry then press Enter again.

4. Press F10.

5. Select Yes to save the new password and close the Setup Utility.

Changing the system password

1. Use the up/down arrow keys to select password parameter (Change Supervisor Password) menu then press Enter.

2. Type the original password then press Enter.

3. Type a new password then press Enter.

4. Retype the password to verify the first entry then press Enter again.

5. Press F10.

6. Select Yes to save the new password and close the Setup Utility.

20 Chapter 2

Removing a system password

1. Use the up/down arrow keys to select password parameter (Change Supervisor Password) menu then press Enter.

2. Enter the current password then press Enter.

3. Press Enter twice without entering anything in the password fields.

Chapter 2 21

Load Default Settings

►

► Standard CMOS Features

► Advanced BIOS Features

► Advanced Chipset Features

► Integrated Peripherals

► Power Management Setup

Product Information ► PC Health Status

► Frequency/Voltage Control

► BIOS Security Features

Save & Exit Setup

Exit Without Saving

Load Default Settings

:Move Enter:Select

F1:General Help F9:Optimized Defaults

+ :Value//

- ESC:ExitF10:Save

.-, ,.

Load Optimal Default values for all the setup questions.

Load Optimal Defaults?

[OK] [Cancel]

The Load Default Settings menu allows you to load the default settings for all BIOS setup parameters. Setup defaults are quite demanding in terms of resources consumption. If you are using low-speed memory chips or other kinds of low-performance components and you choose to load these settings, the system might not function properly.

22 Chapter 2

+ 78 hidden pages

Acer X5950 User Manual

Table of Contents

System Tour

Features

System Components

Front Panel

Rear Panel

Internal Components

System LED Indicators

System Utilities

CMOS Setup Utility

Entering CMOS setup

Navigating Through the Setup Utility

Setup Utility Menus
