Acer X118H, X118, D616D, D616, D626D Quick Start Manual

...

Download

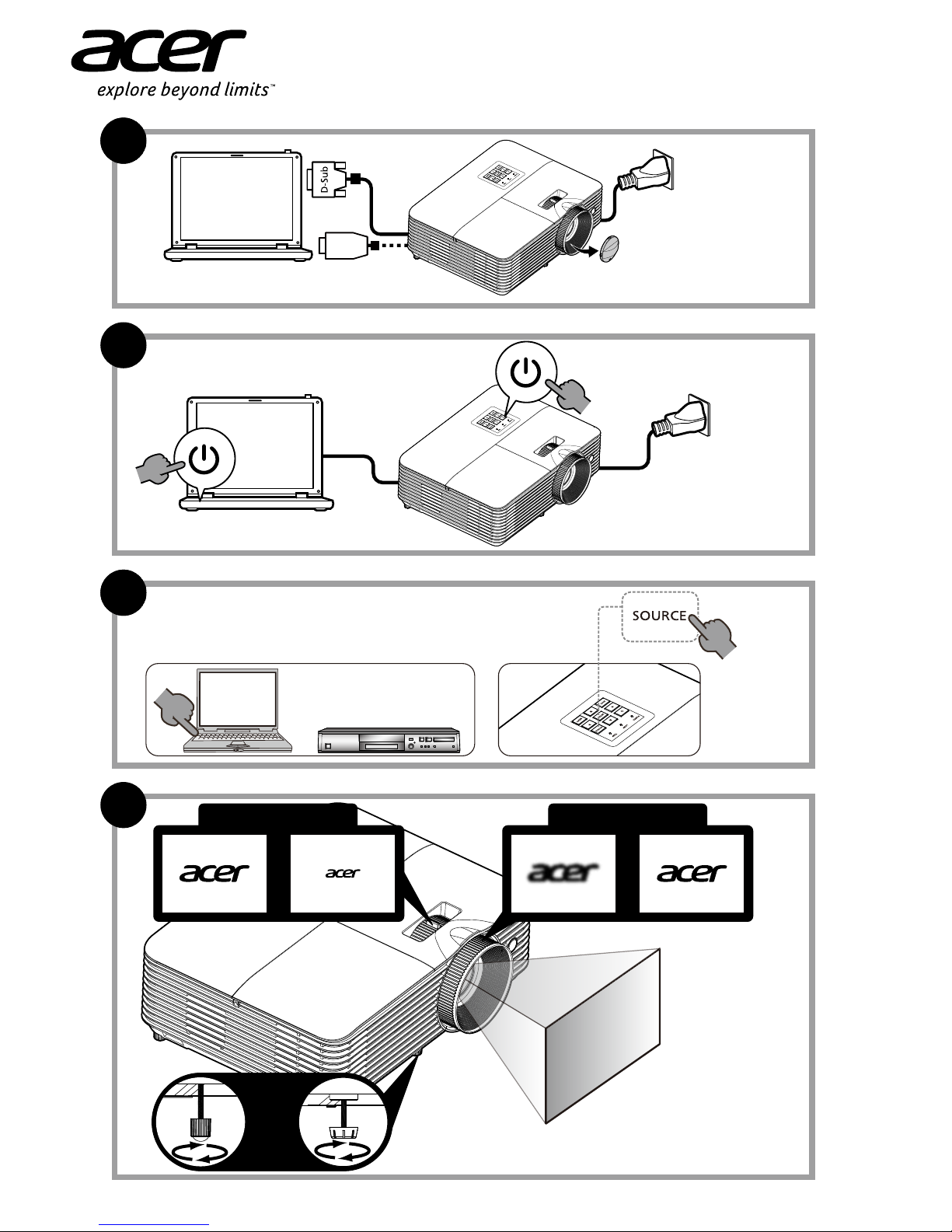

Page 1

HDMI

or HDMI

Input Source

ZOOM FOCUS

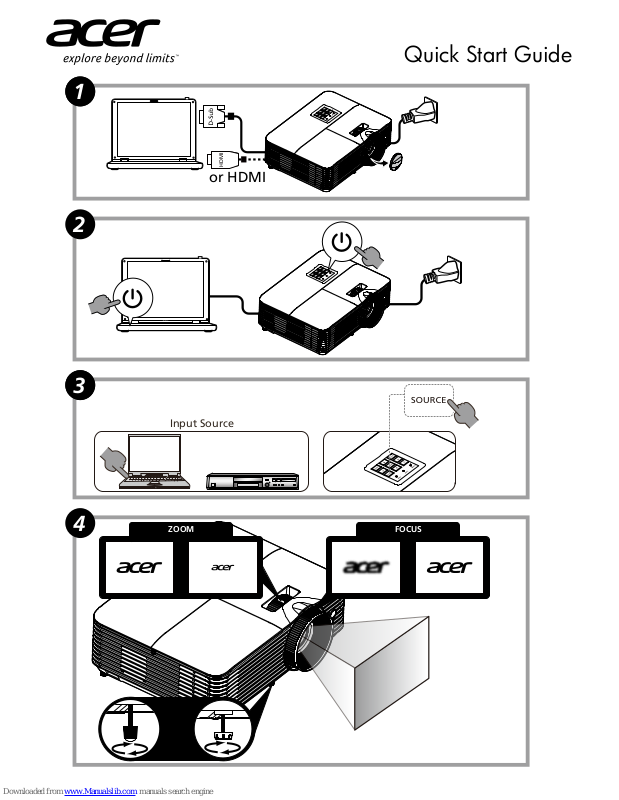

Quick Start Guide

Page 2

*36.7AR02H002-B*

36.7AR02H002-B P/N:MC.JPV11.007

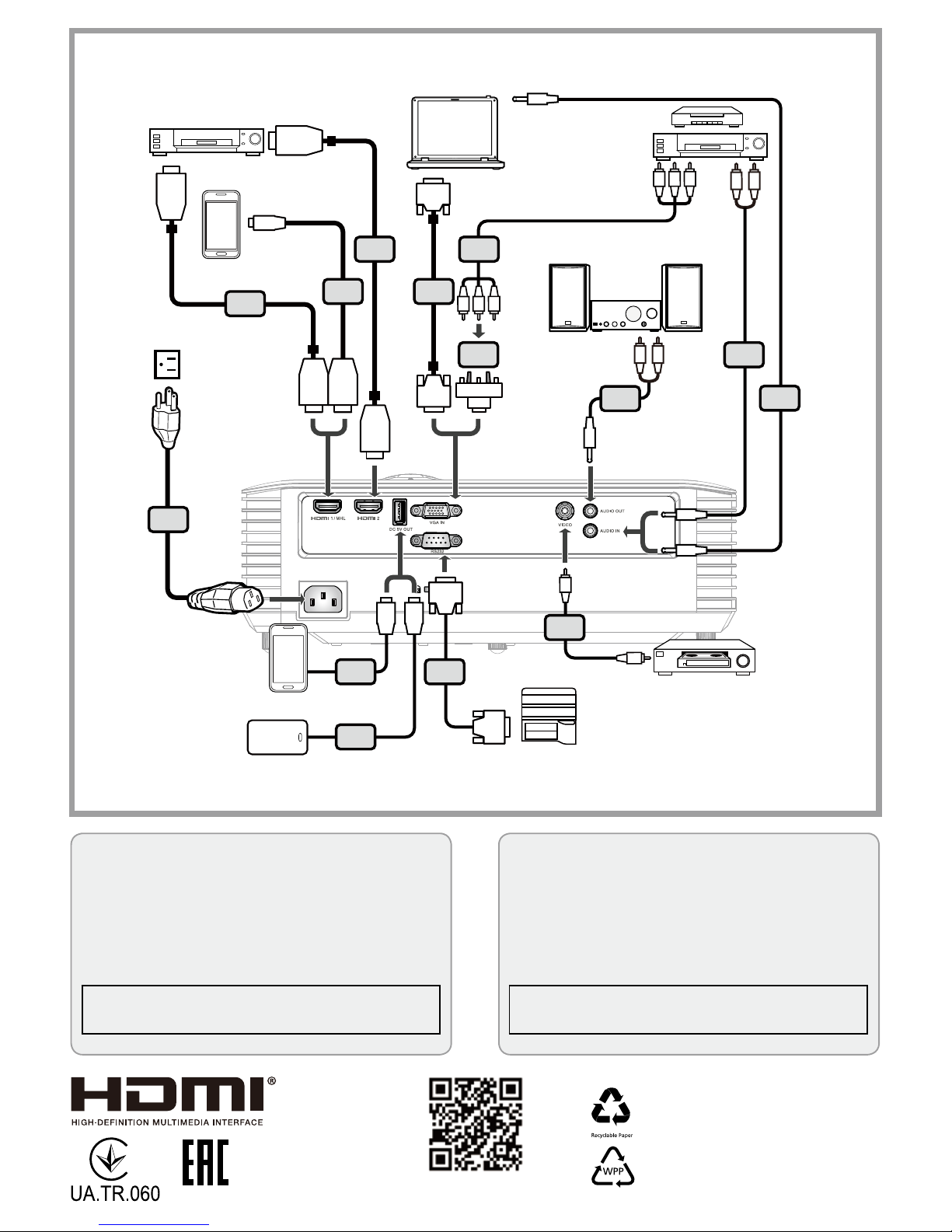

RS232

DVD player,

Set-top Box,

HDTV receiver

HDTV adapter

R B G

B G

D-Sub

DVD player

HDMI

USB

MHL

Audio Output

Video Output

Smart Phone

Power Bank

Scan to get user’s manual

INSTALLATION

Note: Functions vary depending on model definition.

Consumo de Energia

En Operaction: 244.46 Wh (244,46Wh)

En modo de espera: 0.41 Wh (0,41 Wh)

X138WH/X128H/X128/X118H/X118AH/X118/D626D/D616D/ D616/D606D/D606B/D606/EV-W65H/EV-X65H/EV-X65/ EV-S65H/EV-S65A/EV-S65/V36W/V36X/V36XC/V36S/V36SB/ V36SC/V16S/AW319/AX319/AX319D/AS319/AS319E/AS319D/ AS309/DX412/DX212/DX212G/DX112/DX112C/DX112G/ BS-312/BS-112/BS-112E/BS-012/BS-012K/BS-012E/KW316/ KX316/KX316B/KS316/KS316A/KS316B/X1286G/X1186G/ DWX1722/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727

H6540BD/H6521BD/X1623HX168H/E156D/E155F/D860D/ D666D/HE-806J/HE-802K/EV-WU80H/EV-WU65H/GM532/ GM512/V50U/V36U/VH-432/VH-412/AU540/AU319/DX620/ DX612/BS-520/BS-512/KU330/KU316/D1P1719/D1P1720/ DWU1729/DWU1721

Consumo de Energia

En Operaction: 310.56 Wh (310,56Wh)

En modo de espera: 0.43 Wh (0,43 Wh)

Page 3

SPECIFICATIONS

Projection system DLP®

Resolution

• X118/X118AH/X118H/X1186G/D606/D606B/D606D/EV-S65/EV-S65A/EV-S65H/V36S/V36SB/V36SC/

V16S/AS319/AS319D/AS309/AS319E/DX112/DX112C/DX112G/BS-012/BS-012E/BS-012K/KS316/ KS316AK/KS316B/DSV1725/DSV1726/DSV1727 series: 800x600 SVGA resolution

• X128H/X128/D616D/D616/EV-X65H/EV-X65/V36X/V36XC/AX319/AX319D/DX212/DX212G/BS-112/BS-

112E/KX316/KX316B/X1286G/DNX1723/DNX1724 series: 1024x768 XGA resolution

• X138WH/D626D/EV-W65H/V36W/AW319/DX412/BS-312/KW316/DWX1722 series: 1280x800 WXGA

resolution

• H6540BD/H6521BD/X168H/X1623H/E156D/E155F/D666D/D860D/HE-806J/HE-802K/EV-WU65H/EV-

WU80H/GM532/GM512/V36U/V50U/VH-432/VH-412/AU319/AU540/DX612/DX620/BS-512/BS-520/ KU316/KU330/D1P1719/D1P1720/DWU1721/DWU1729 series: WUXGA resolution

•

Maximum: UXGA (1600 x 1200), WSXGA+ (1680x1050), 1080p(1920x1080), WUXGA-RB (1920 x 1200)

Computer compatibility

IBM PC and compatibles, Apple Macintosh, iMac and VESA standards: SXGA, XGA, VGA, SVGA, SXGA+, WXGA, WXGA+, WSXGA +

Video compatibility

NTSC (3.58/4.43), PAL (B/D/G/H/I/M/N), SECAM (B/D/G/K/K1/L), HDTV (720p, 1080i, 1080p), EDTV (480p,

576p), SDTV (480i, 576i) Aspect ratio Auto, Full, 4:3, 16:9, L.Box Displayable colors 1.07 billion colors

Optical zoom ratio

• H6521BD/X168H/X138WH/X128H/X128/X118H/X118AH/X118/E155F/D666D/D626D/D616D/D616/

D606D/D606B/D606/HE-802K/EV-WU65H/EV-W65H/EV-X65H/EV-X65/EV-S65H/EV-S65A/EV-S65/ GM512/V36U/V36W/V36X/V36XC/V36S/V36SB/V36SC/V16S/VH-412/AU319/AW319/AX319/AX319D/ AS319/AS319E/AS319D/AS309/DX612/DX412/DX212/DX212G/DX112/DX112C/DX112G/BS-512/BS312/BS-112/BS-112E/BS-012/BS-012K/BS-012E/KU316/KW316/KX316/KX316B/KS316/KS316A/KS316B/ X1286G/X1186G/D1P1720/DWU1721/DWX1722/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727 series: 1.1X

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series: 1.3X

Throw ratio

• X128H/X128/X118/X118AH/X118H/D616D/D616/D606/D606B/D606D/EV-X65H/EV-X65/EV-S65/EV-

S65A/EV-S65H/V36X/V36XC/V36S/V36SB/V36SC/V16S/AX319/AX319D/AS319/AS319D/AS309/AS319E/ DX212/DX212G/DX112/DX112C/DX112G/BS-112/BS-112E/BS-012/BS-012E/BS-012K/KX316/KX316B/ KS316/KS316AK/KS316B/X1286G/X1186G/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727 series:

1.94 ~2.16 (51”@2m)

•

X138WH/D626D/EV-W65H/V36W/AW319/DX412/BS-312/KW316/DWX1722 series: 1.54 ~ 1.72 (60”@2m)

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series: 1.58 ~ 2.06 (59”@2m)

• X168H/D666D/EV-WU65H/V36U/AU319/DX612/BS-512/KU316/DWU1721/H6521BD/E155F/HE-802K/

GM512/VH-412/D1P1720 series: 1.47~1.62 (63”@2m)

Projection lens

• X128H/X128/X118/X118AH/X118H/D616D/D616/D606/D606B/D606D/EV-X65H/EV-X65/EV-S65/EV-

F = 2.41 ~ 2.53, f = 21.85mm ~ 24.01mm, Manual Zoom & Focus

• X138WH/D626D/EV-W65H/V36W/AW319/DX412/BS-312/KW316/DWX1722 series:

F = 2.41 ~ 2.53, f = 21.85mm ~ 24.00mm, Manual Zoom & Focus

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series:

F = 2.37 ~ 2.78, f = 16.91mm ~ 21.60mm, Manual Zoom & Focus

• X168H/D666D/EV-WU65H/V36U/AU319/DX612/BS-512/KU316/DWU1721/H6521BD/E155F/HE-802K/

GM512/VH-412/D1P1720 series:

F = 2.1~2.31, f = 15.59 ~ 17.14mm, Manual Zoom & Focus

Projection screen size (diagonal)

• X128H/X128/X118/X118AH/X118H/D616D/D616/D606/D606B/D606D/EV-X65H/EV-X65/EV-S65/EV-

• X138WH/D626D/EV-W65H/V36W/AW319/DX412/BS-312/KW316/DWX1722 series: 30” ~ 300” (75cm

~ 762cm)

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series: 27” ~ 300” (69cm ~ 762cm)

• X168H/D666D/EV-WU65H/V36U/AU319/DX612/BS-512/KU316/DWU1721/H6521BD/E155F/HE-802K/

GM512/VH-412/D1P1720 series: 29’’ ~ 300’’ (73cm ~ 762cm)

Projection distance

• X128H/X128/X118/X118AH/X118H/D616D/D616/D606/D606B/D606D/EV-X65H/EV-X65/EV-S65/EV-

1.0m ~ 11.8m (3.3’ ~ 38.8’)

• X138WH/D626D/EV-W65H/V36W/AW319/DX412/BS-312/KW316/DWX1722 series: 1.1m ~ 10m (3.6’

~ 32.7’)

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series: 1.0m ~ 10.2m (3.3’ ~33.6’)

• X168H/D666D/EV-WU65H/V36U/AU319/DX612/BS-512/KU316/DWU1721/H6521BD/E155F/HE-802K/

GM512/VH-412/D1P1720 series: 1.0m~9.5m (3.3’ ~31.2’) Horizontal scan rate 15 - 100 kHz Vertical refresh scan rate 24 - 120 Hz Digital Zoom 2x Power supply AC input 100 - 240 V auto-switching power supply Operating temperature 0ºC to 40ºC / 32ºF to 104ºF

Page 4

Lamp type

• X138WH/X128H/X128/X118H/X118AH/X118/D626D/D616D/D616/D606D/D606B/D606/EV-W65H/

EV-X65H/EV-X65/EV-S65H/EV-S65A/EV-S65/V36W/V36X/V36XC/V36S/V36SB/V36SC/V16S/AW319/ AX319/AX319D/AS319/AS319E/AS319D/AS309/DX412/DX212/DX212G/DX112/DX112C/DX112G/BS312/BS-112/BS-112E/BS-012/BS-012K/BS-012E/KW316/KX316/KX316B/KS316/KS316A/KS316B/X1286G/ X1186G/DWX1722/DNX1723/DNX1724/DSV1725/DSV1726/DSV1727 series: 203 W user-replaceable lamp

• H6540BD/H6521BD/X1623HX168H/E156D/E155F/D860D/D666D/HE-806J/HE-802K/EV-WU80H/EV-

WU65H/GM532/GM512/V50U/V36U/VH-432/VH-412/AU540/AU319/DX620/DX612/BS-520/BS-512/ KU330/KU316/D1P1719/D1P1720/DWU1729/DWU1721 series: 250 W user-replaceable lamp

Audio

• H6521BD/X168H/X138WH/X128H/X128/X118H/X118AH/X118/E155F/D666D/D626D/D616D/D616/

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series: Internal speaker with 10W x 1 output

Weight

• X138WH/X128H/X128/X118H/X118AH/X118/D626D/D616D/D616/D606D/D606B/D606/EV-W65H/

• X1623H/D860D/EV-WU80H/V50U/AU540/DX620/BS-520/KU330/DWU1729/H6540BD/E156D/HE-806J/

GM532/VH-432/D1P1719 series: 3.1 Kg (6.83 lbs)

• X168H/D666D/EV-WU65H/V36U/AU319/DX612/BS-512/KU316/DWU1721/H6521BD/E155F/HE-802K/

GM512/VH-412/D1P1720 series: 2.8Kg (6.17 lbs)

Dimensions (W x D x H) (with feet)

• X138WH/X128H/X128/X118H/X118AH/X118/D626D/D616D/D616/D606D/D606B/D606/EV-W65H/

113.7mm (12.3” x 9.4” x 4.5”)

• H6540BD/H6521BD/X1623HX168H/E156D/E155F/D860D/D666D/HE-806J/HE-802K/EV-WU80H/EV-

WU65H/GM532/GM512/V50U/V36U/VH-432/VH-412/AU540/AU319/DX620/DX612/BS-520/BS-512/ KU330/KU316/D1P1719/D1P1720/DWU1729/DWU1721 series: 313mm x 240mm x 110.7mm (12.3” x

9.4” x 4.3”)

Power consumption

• X138WH/X128H/X128/X118H/X118AH/X118/D626D/D616D/D616/D606D/D606B/D606/EV-W65H/

• H6540BD/H6521BD/X1623HX168H/E156D/E155F/D860D/D666D/HE-806J/HE-802K/EV-WU80H/EV-

WU65H/GM532/GM512/V50U/V36U/VH-432/VH-412/AU540/AU319/DX620/DX612/BS-520/BS-512/ KU330/KU316/D1P1719/D1P1720/DWU1729/DWU1721 series: Normal mode: 300W ± 10% @ 110VAC ECO mode: 210W ± 10% @ 110VAC Standby mode < 0.5W

Standard package contents

• AC power cord x1 • VGA cable x1 (option) • AAA battery x2 (for remote control) (option)

• Remote control x1 • HDMI cable x1 (option) • User’s guide (Projector)(CD-ROM) x1 (option)

•

Security card x1 (option)

•

Carrying case x1 (option)

• Quick start guide (Projector) x1

I/O connectors

X128/X118/D616/D606/ EV-X65/EV-S65/V36XC/ V36SC/V16S/AX319D/ AS319D/AS309/DX212G/ DX112G/BS-112E/ BS-012E/KX316B/ KS316B/X1286G/ X1186G/DNX1724/ DSV1727

X128H/ D616D/ EV-X65H/ V36X/ AX319/ DX212/ BS-112/ KX316/ DNX1723

X118AH/ D606B/ EV-S65A/ V36SB/ AS319E/ DX112C/ BS-012K/ KS316A/ DSV1726

H6521BD/X168H/X138WH/X118H/ E155F/D666D/D626D/D606D/ HE-802K/EV-WU65H/EV-W65H/ EV-S65H/GM512/V36U/V36W/V36S/ VH-412/AU319/AW319/AS319/ DX612/DX412/DX112/BS-512/ BS-312/BS-012/KU316/KW316/ KS316/D1P1720/WU1721/ DWX1722/SV1725

H6540BD/E156D/ HE-806J/GM532/ VH-432/D1P1719/ X1623H/D860D/ EV-WU80H/V50U/ AU540/DX620/ BS-520/KU330/ DWU1729

• Power socket V V V V V

• VGA IN V V X V V

• HDMI X V V V X

• HDMI 2 X X X X V

• HDMI 1/MHL X X X X V

• Composite video X V X V V

• RS232 X X

(*)

X X V

• 3.5 mm audio jack input X V X V V

• 3.5 mm audio jack

output

X X X X V

• 5V DC output V V V V V

Note:

• The specifications listed above are subject to change without notice.

• Find manuals and other documents for your Acer product on the official Acer support website.

•

(*)

Functions vary depending on model definition.
