Acer V193W Service manual

Acer V193W

Service Guide

(for NT68167)

1

Service Guide Acer V193W

Service Guide Version and Revision

Version Release Date Revision History TPV model

A00 Apr-28-2010 Initial Release

T99SNFDYW7AFNCJ
T99ANFDYW7ZYNCJ

2

Service Guide Acer V193W

yright

Cop

Copyright © 2003 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
Transmitted, transcribed, stored in a retrieval system, or translated into any language or comput er language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice. Acer Incorporated makes no representations
or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any
warranties
of merchantability or fitness for any particular purpose. Any Acer Incorporated sof tware described in this manual
is
sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer
Incorporated, its distributor, or its dealer) assumes the entire co st of all necessary servicing, repair, and any
incidental or consequential damages resulting from any defect in the software.

Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their re spective holders.

Trademarks

Acer is a registered trademark of Acer Incorporated.
All other trademarks are property of their respective owners.

Conventions

The following conventions are used in this manual:

Screen messages Denotes actual messages that appear on screen.
Note Gives bits and pieces of additional information related to the current topic.
Warning Alerts you to any damage that might result from doing or not doing specific actions.
Caution Gives precautionary measures to avoid possible hardware or software problems.
Important Remind you to do specific actions relevant to the accomplishment of procedures.

3

Service Guide Acer V193W

e

Prefac

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

Warning: (For FCC Certified Models )

Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant

to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy, and if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a p articular i nst allation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:

1. Reorient or relocate the receiving antenn a.

2. Increase the sep aration between the equipment and receiver.

3. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

4. Consult the dealer or an ex perienced radio/TV technician for help.

Notice:

Before using this information and the product it supports, please read the following general information.

decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office may have decided to extend the functionality of a machine (e.g. add-on
card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this
generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.

available on your regional web or channel. If, for whatever reason, a part number change is made, it will not
be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office
may have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You
MUST use the list provided by your regional Acer office to order FRU parts for repair and se rvice of custom er
machines.

1. The changes or modifications not expressly approved by the party responsible for compliance could void the
user's authority to operate the equipment.

2. Shielded interface cables and AC power cord, if any, must be used in order to comply with the emission limits.

3. The manufacturer is not responsible for any radio or TV interference caused by unauthorized modification to

this equipment. It is the responsibility of the user to correct such interference.
As ENERGY STAR



Partner our company has determined that this product meets the ENERGY STAR



guidelines for energy efficiency.

Warning:

To prevent fire or shock hazard, do not expose the monitor to rain or moisture. Dangerous high voltages are
present inside the monitor. Do not open the cabinet. Refer servicing to qualified personnel only.

4

Service Guide Acer V193W

Precau

tions

 Do not use the monitor near water, e.g. near a bathtub, washbowl, kitchen sink, laundry tub, swimming po ol

or in a wet basement.

 Do not place the monitor on an unstable trolley , stand, or table. If the monitor falls, it can injure a person an d

cause serious damage to the appliance. Use only a trolley or stand recommended by the manufacturer or
sold with the monitor. If you mount the monitor on a wall or shelf, uses a mounting kit approved by the
manufacturer and follow the kit instructions.

 Slots and openings in the back and bottom of the cabinet are provided for ventilation. To ensure reliable

operation of the monitor and to protect it from overheating, be sure these openings are not blocked or
covered. Do not place the monitor on a bed, sofa, rug, or similar surface. Do not place the monitor near or
over a radiator or heat register. Do not place the monitor in a bookcase or cabinet unless proper ventilation
is provided.

 The monitor should be operated only from the type of power source indicated on the label. If you are not

sure of the type of power supplied to your home, consult your dealer or local power company.

 The monitor is equipped with a three-pronged grounded plug, a plug with a third (grounding) pin. This plug

will fit only into a grounded power outlet as a safety feature. If your outlet does not accommodate the
three-wire plug, have an electrician install the corre ct outlet, or use an adapter to ground the a ppliance safely.
Do not defeat the safety purpose of the grounded plug.

 Unplug the unit during a lightning storm or when it will not be used for long periods of time. This will protect

the monitor from damage due to power surges.

 Do not overload power strips and extension cords. Overloading can result in fire or electric shock.
 Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric

shock. Never spill liquids on the monitor.

 Do not attempt to service the monitor yourself; opening or removing covers can expose you to dangerous

voltages and other hazards. Please refer all servicing to qualified service personnel

 To ensure satisfactory operation, use the monitor only with UL listed computers which have appropriate

configured receptacles marked between 100 - 240V AC, Min. 5A.

 The wall socket shall be installed near the equipment and shall be easily accessible.

Special Notes On LCD Monitors

The following symptoms are normal with LCD monitor and do not indicate a problem.

Notes

 Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch

and then turn it on again to make sure the flicker disappears.

 You may find slightly uneven brightness on the screen depending on the desktop pattern you use.
 The LCD screen has effective pixels of 99.99% or more. It may include blemishes of 0.01% or less such as a

missing pixel or a pixel lit all of the time.

 Due to the nature of the LCD screen, an afterimage of the previous screen may remain after switching the

image, when the same image is displayed for hours. In this case, the screen is recovered slo wly by changing
the image or turning off the Power Switch for hours.

5

Service Guide Acer V193W

Table Of Contents

ter 1 Monitor Features ………………………………………… 7

Chap

Chapter 2 LCD Panel Features ……………………………………… 12

Chapter 3 Operating Instructions ………………………………………

Introduction ……………………………………… 7
Monitor Block Diagram ……………………………………… 7
LCD Monitor General Spec ification ……………………………………… 8
Factory preset modes ……………………………………… 9
Connector Information ……………………………………… 9
Main Board Diagram ……………………………………… 10
Power Board Diagram ……………………………………… 10
Software Flow chart ……………………………………… 11

General Features ……………………………………… 12
Electrical Characteristics ……………………………………… 12
BackLight Unit ……………………………………… 13
Panel Block Diagram ……………………………………… 13
Optical Characteristics ……………………………………… 14
LVDS pin assignment ……………………………………… 15

16

Chapter 4 Machine Disassembly

Chapter 5 Troubleshooting ……………………………………… 29

Chapter 6 FRU (Field Replacement Unit) List ……………………………………… 34

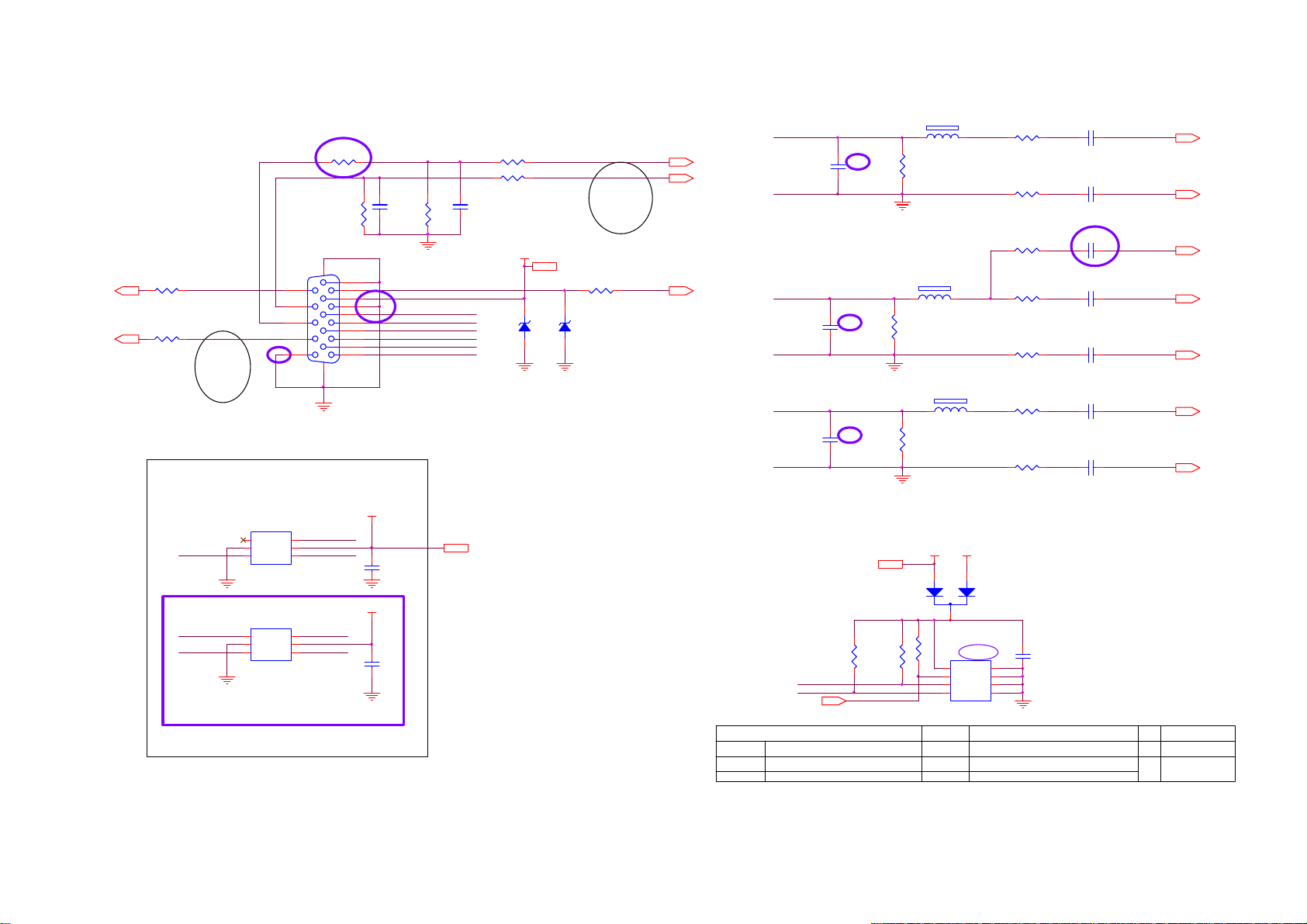

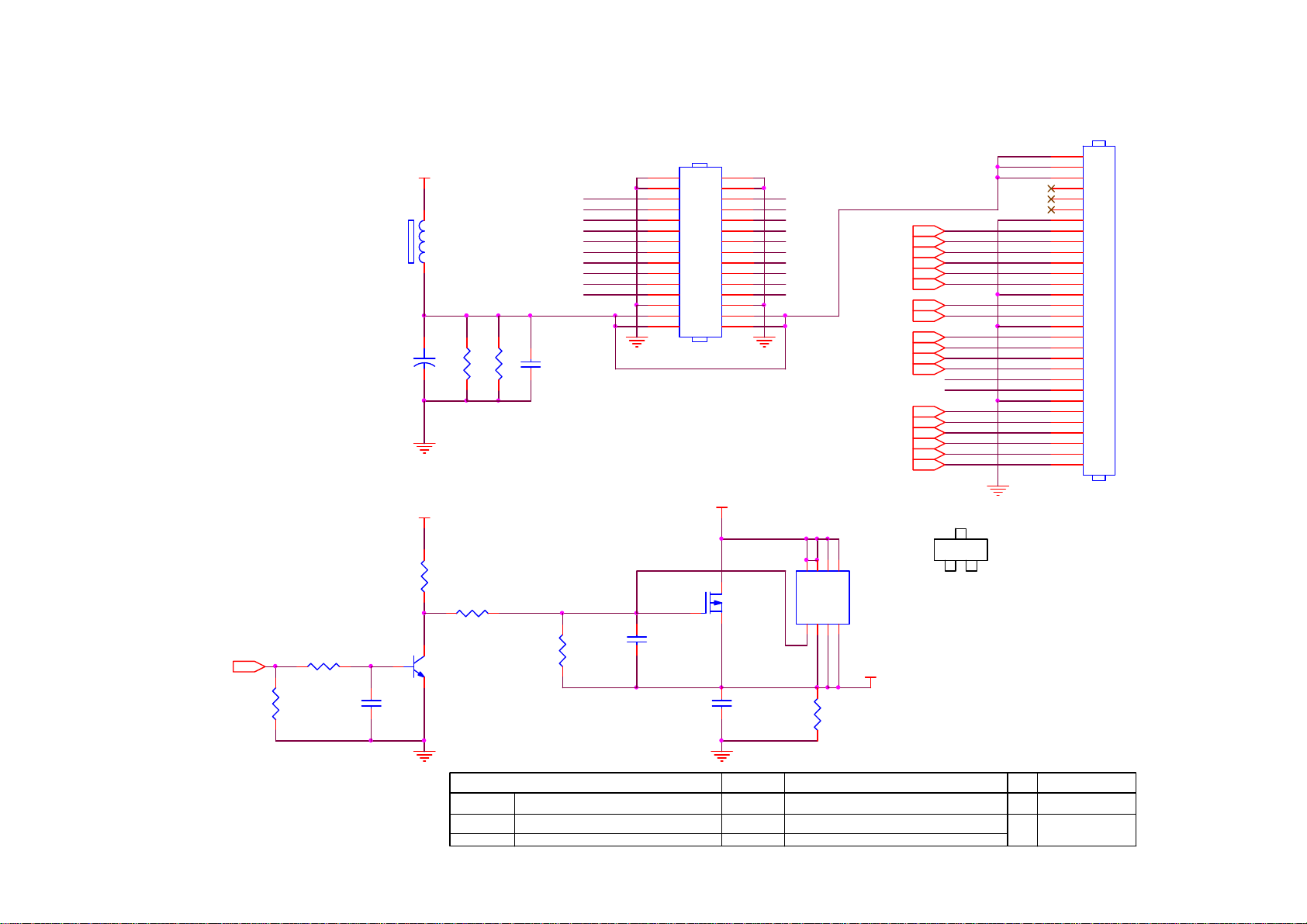

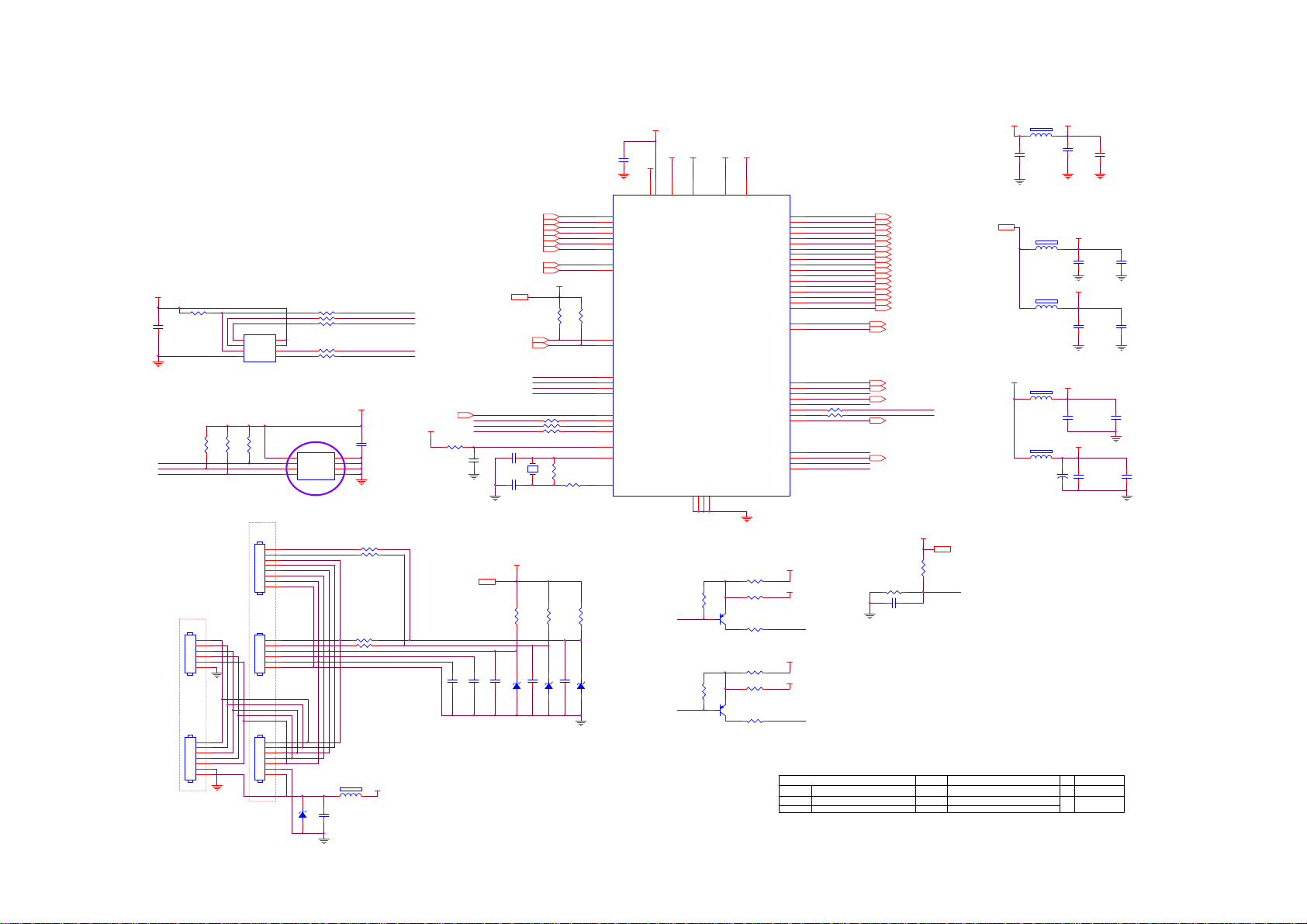

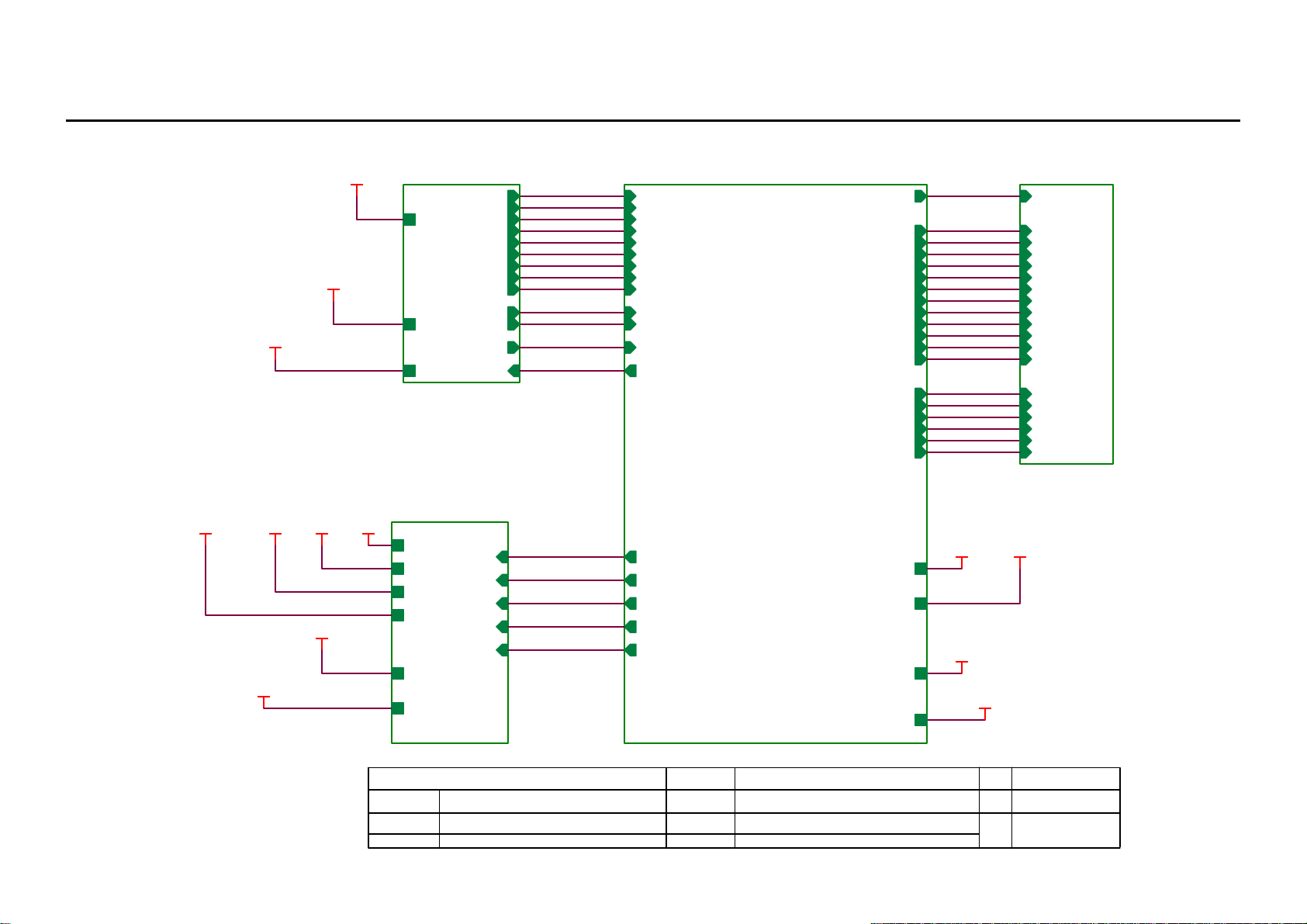

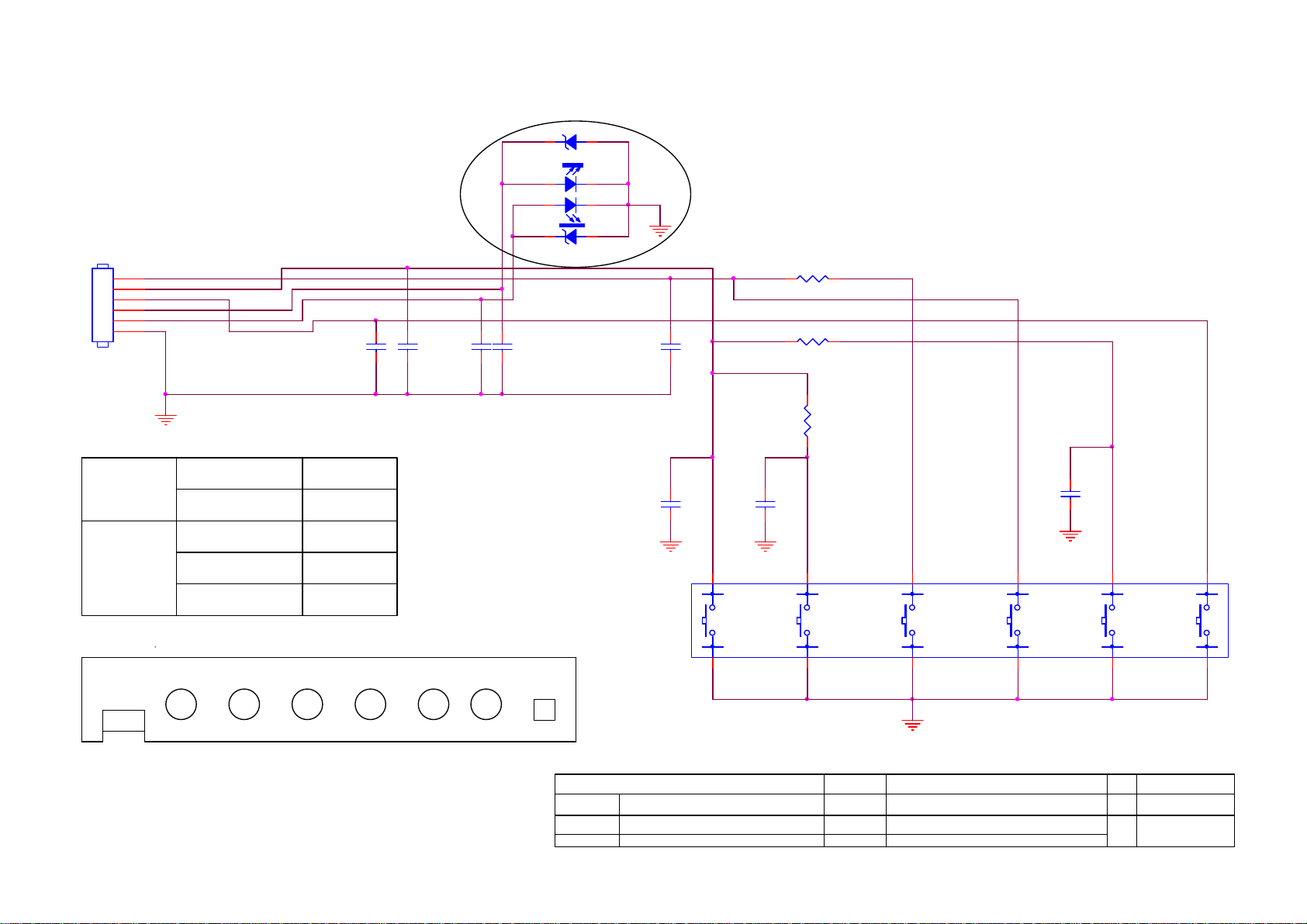

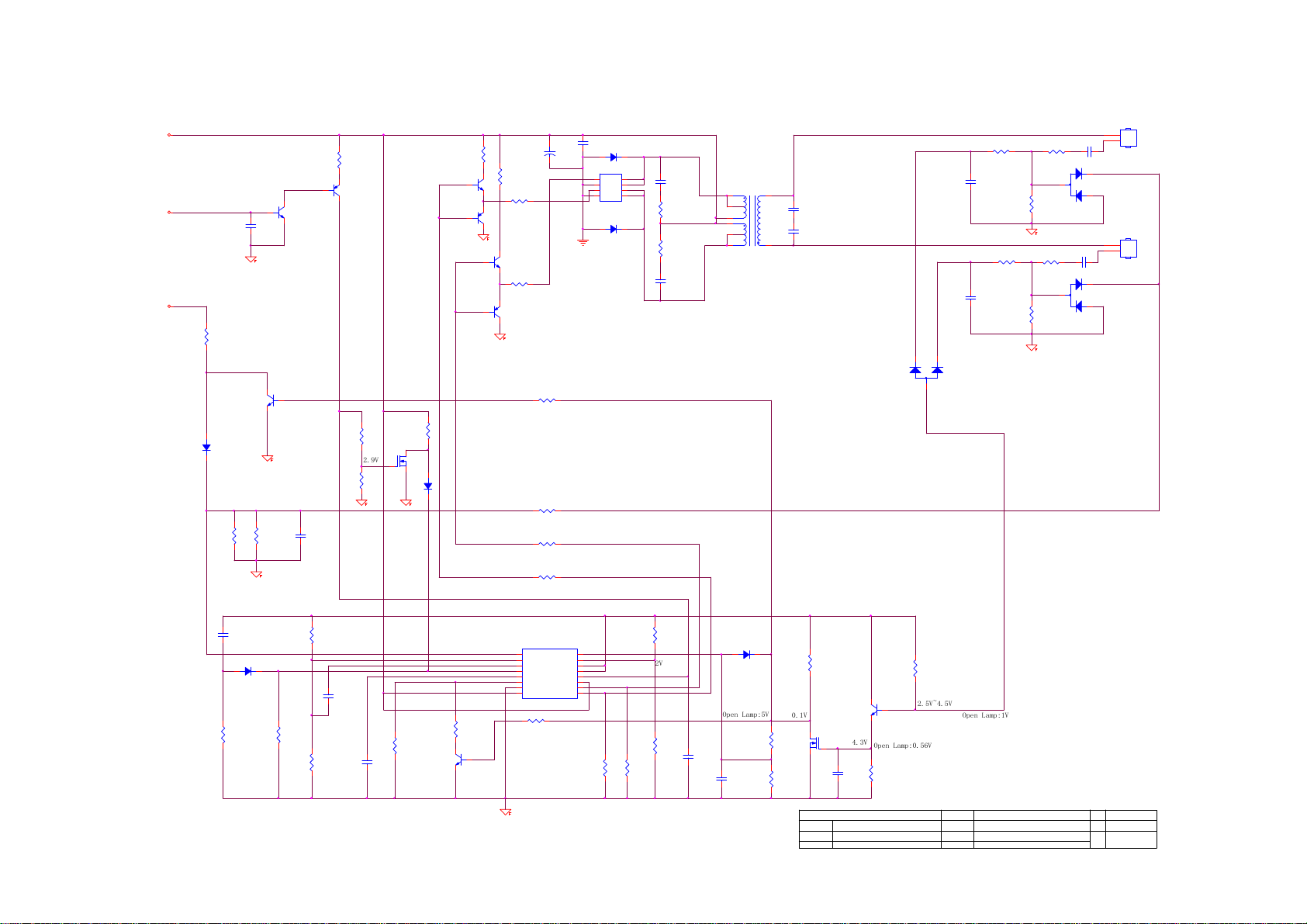

Chapter 7 Schematic Diagram ……………………………………… 37

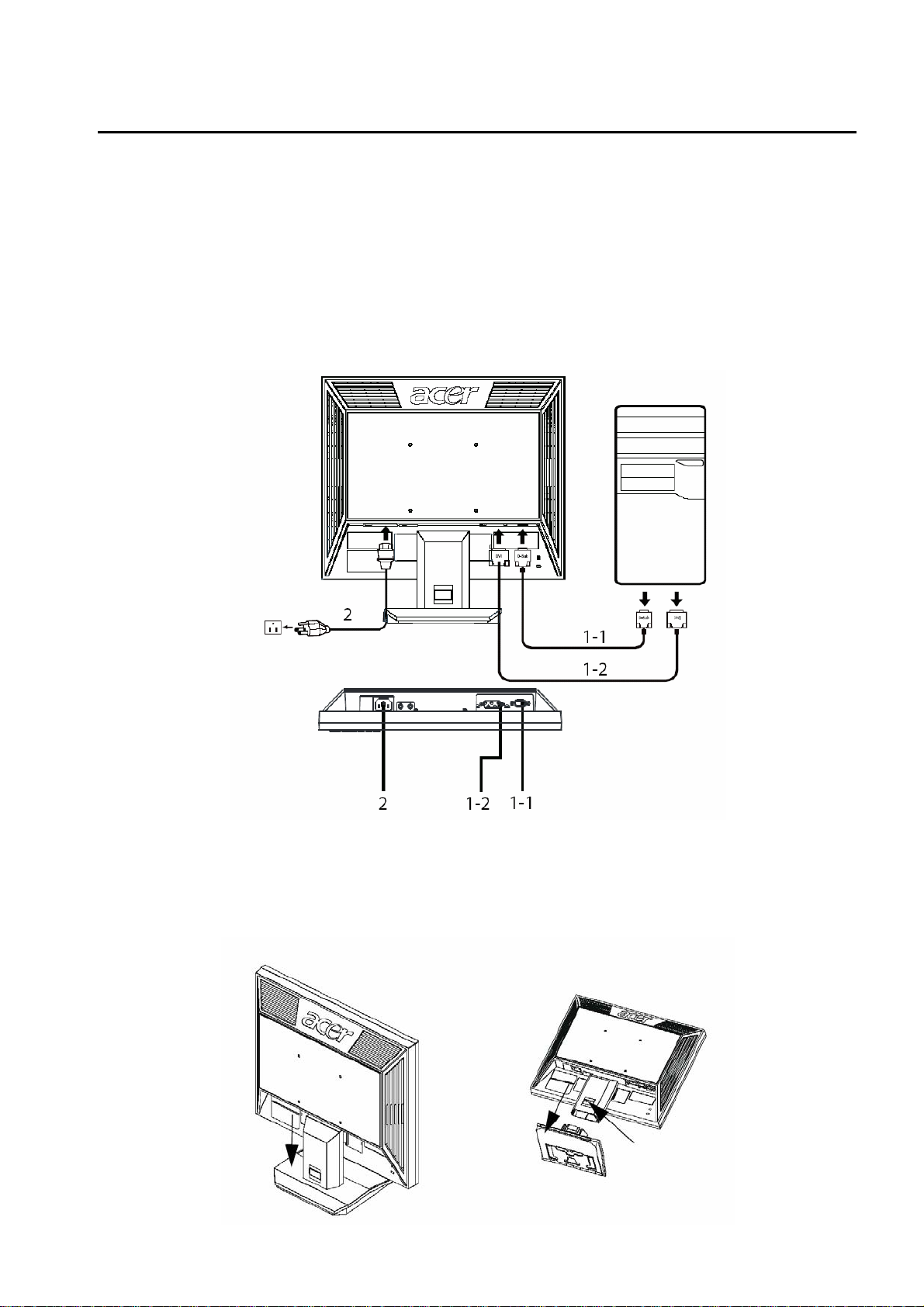

Installation ………………………………………

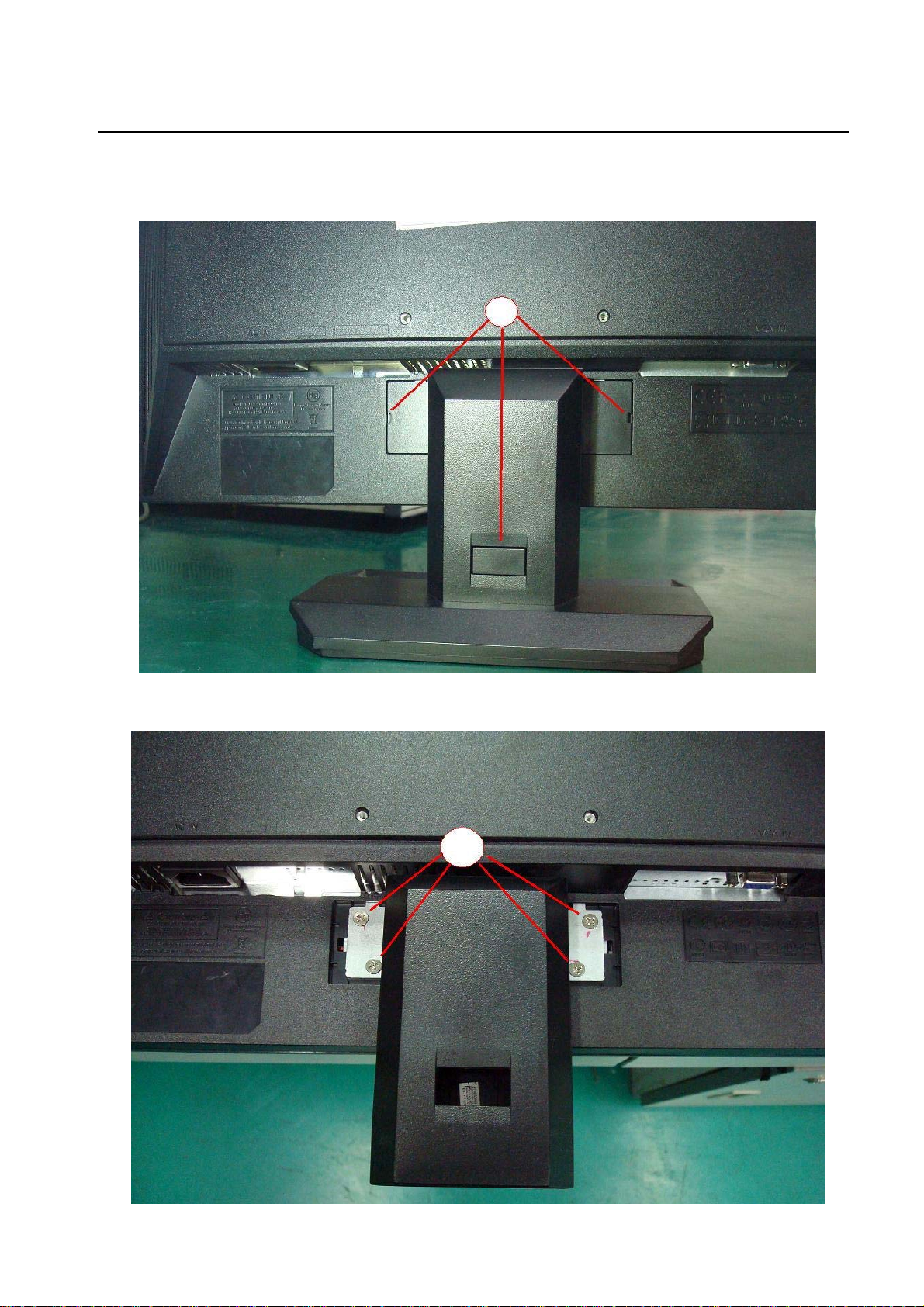

Attaching/Removing the Base ………………………………………

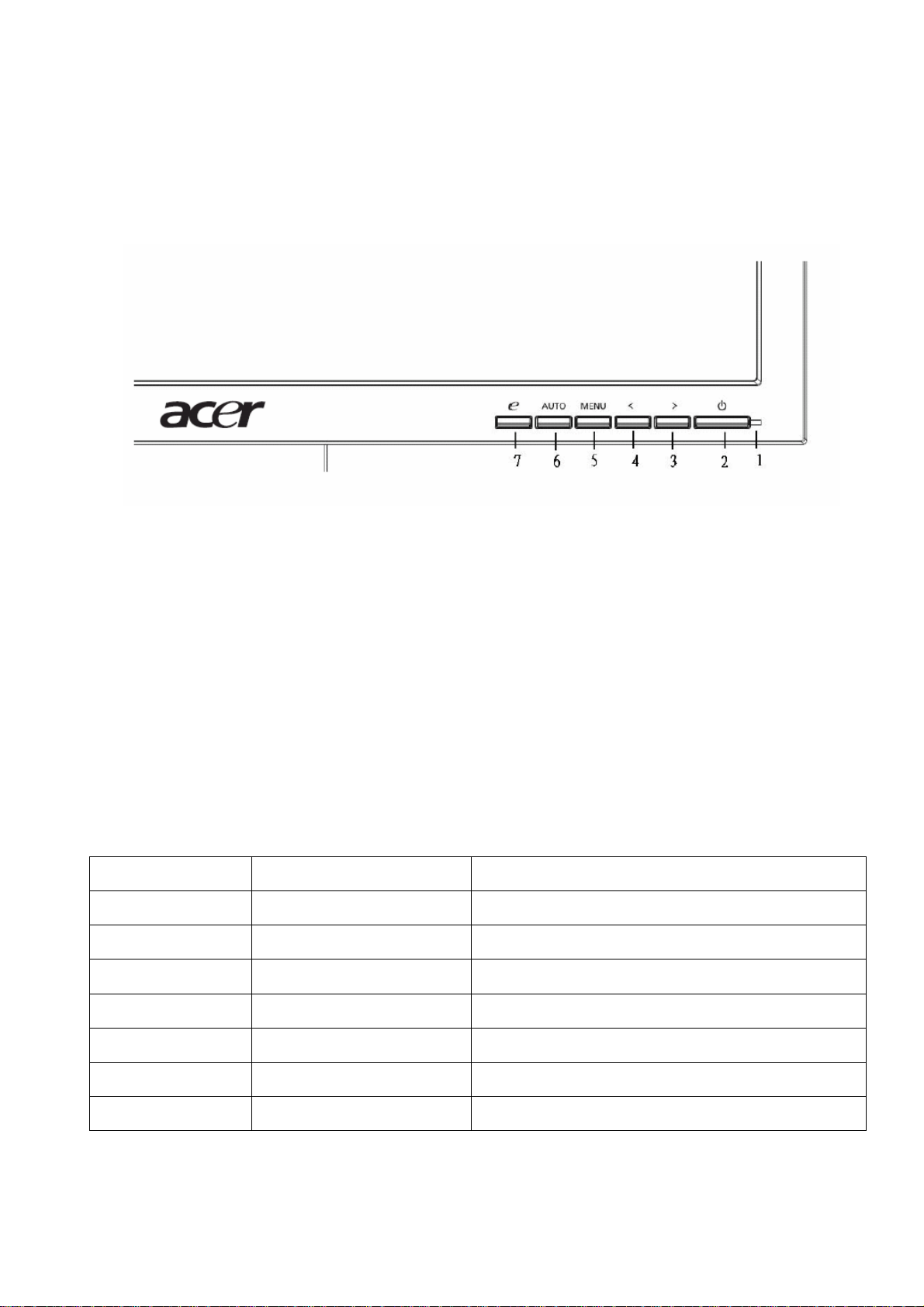

Front Button Controls ………………………………………

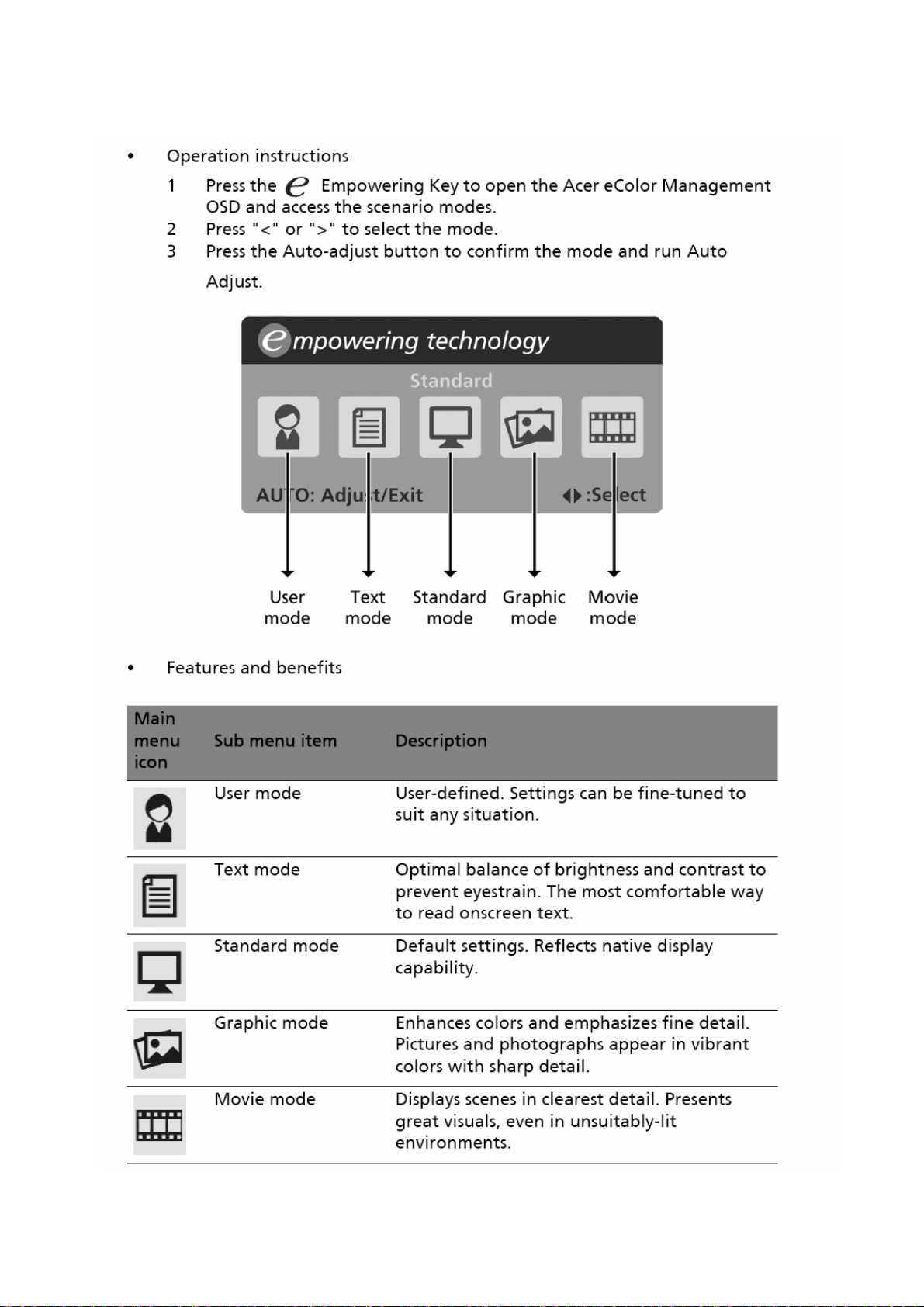

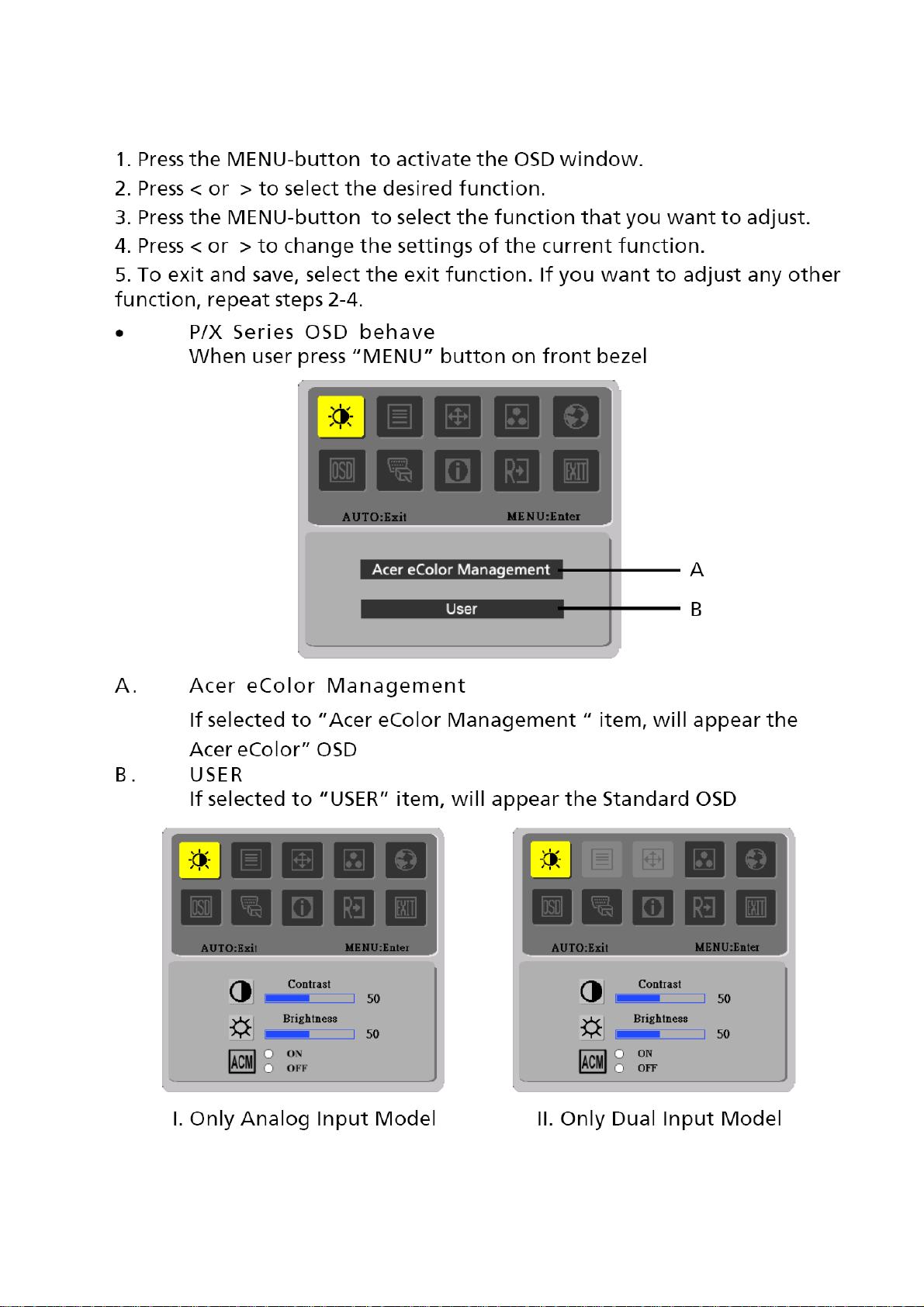

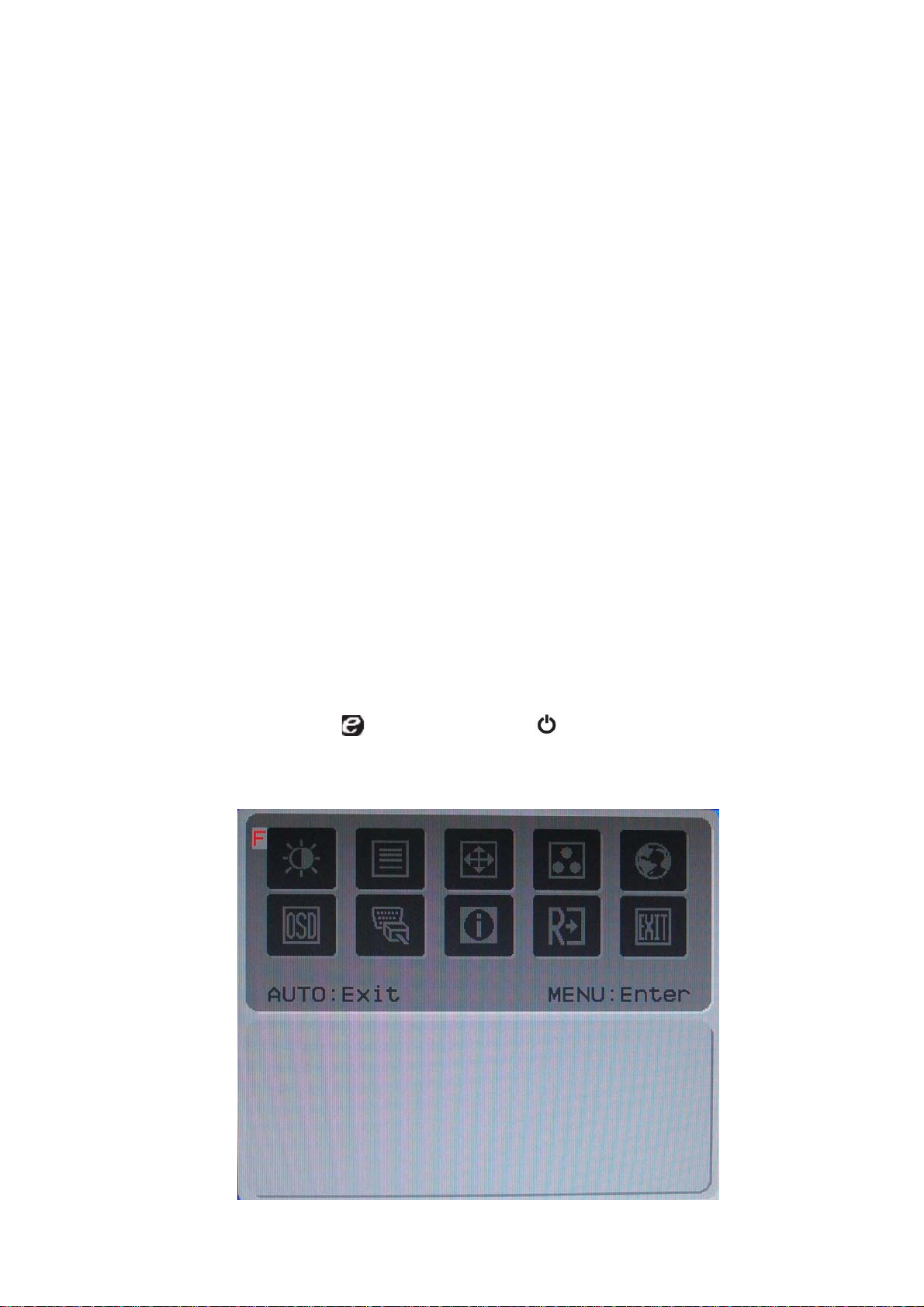

eColor Management (OSD) ………………………………………

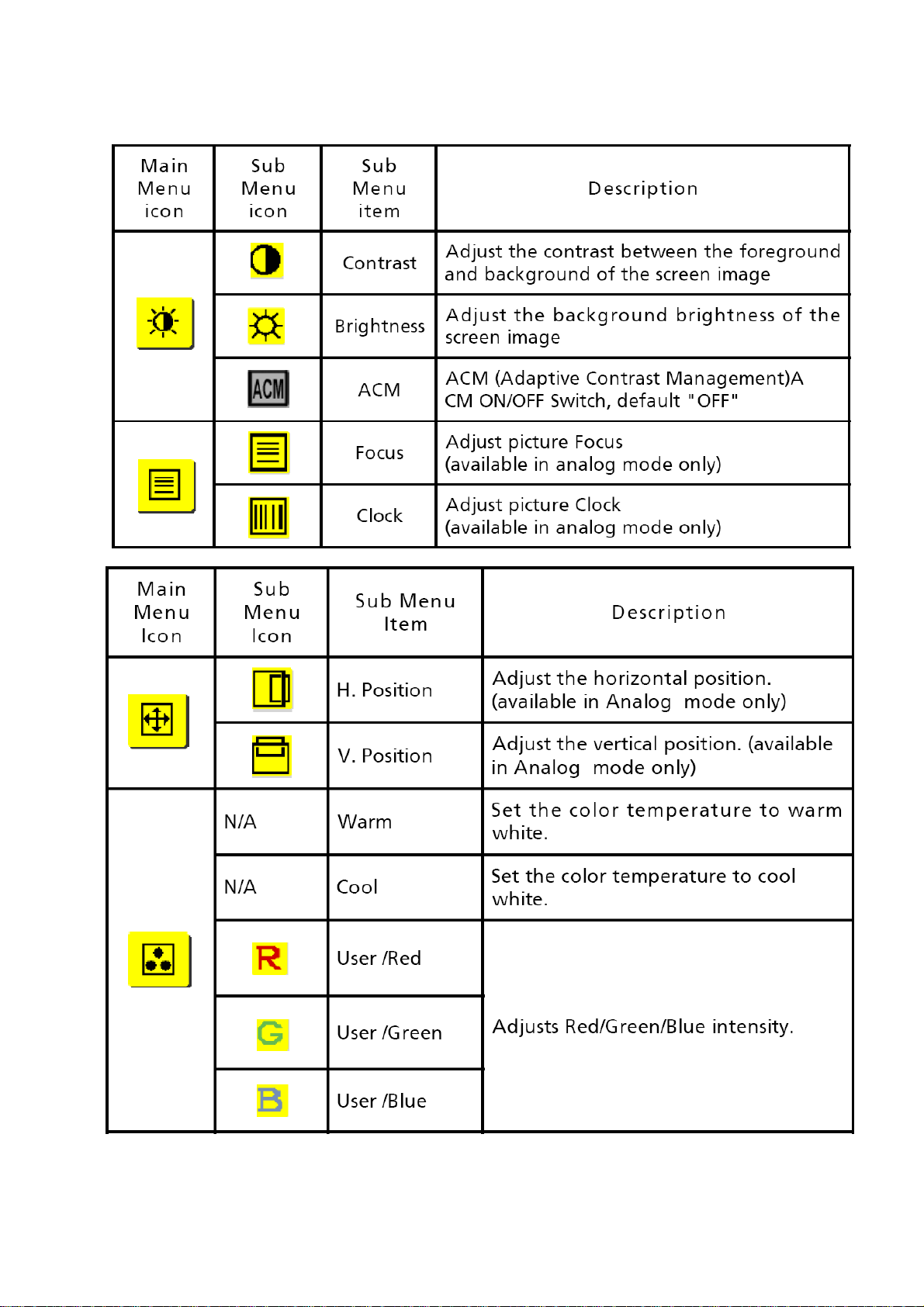

How to Adjust a Setting ………………………………………
OSD Message ………………………………………

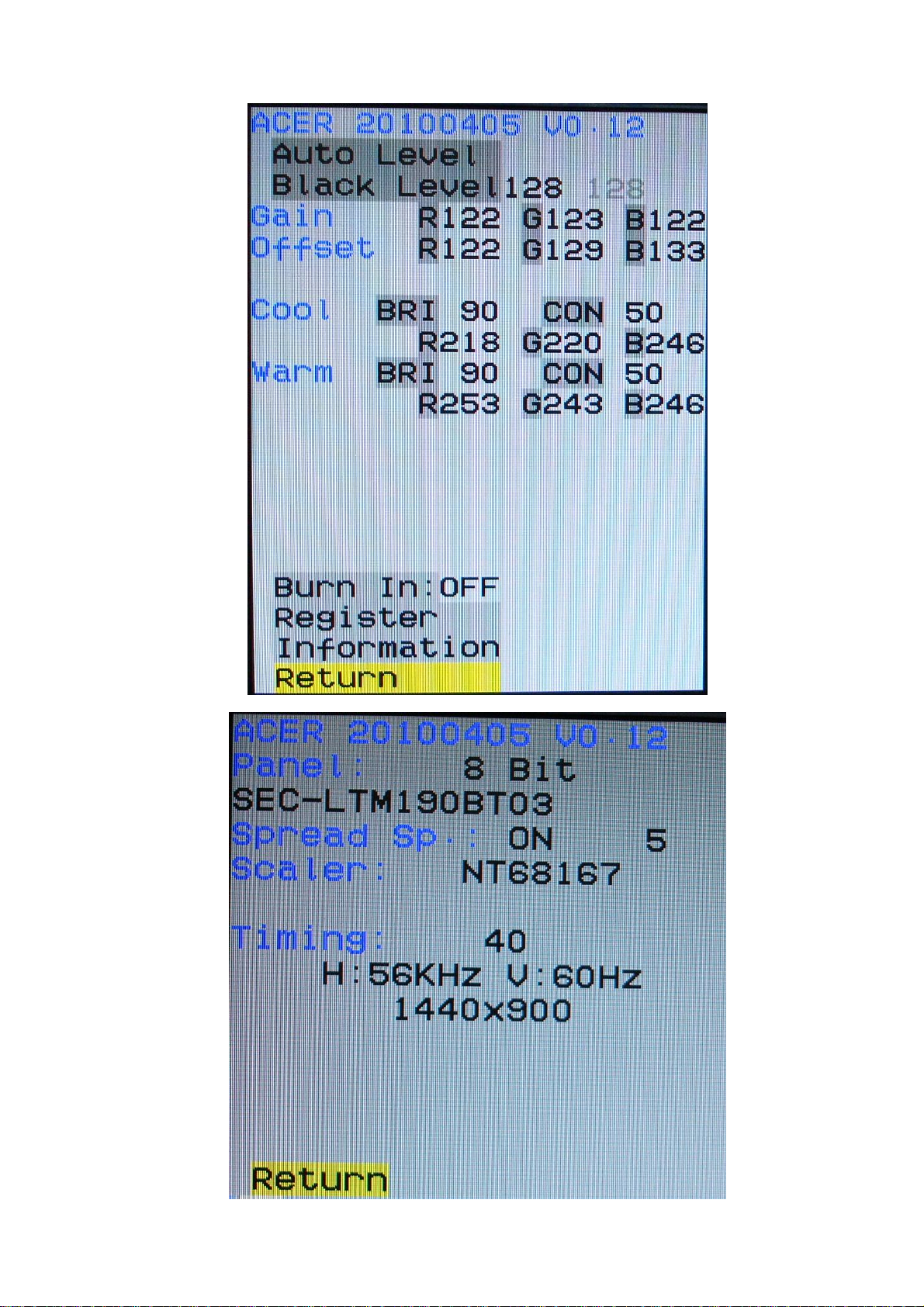

Factory Mode OSD ………………………………………

……………………………………… 25

Disassembly Procedure

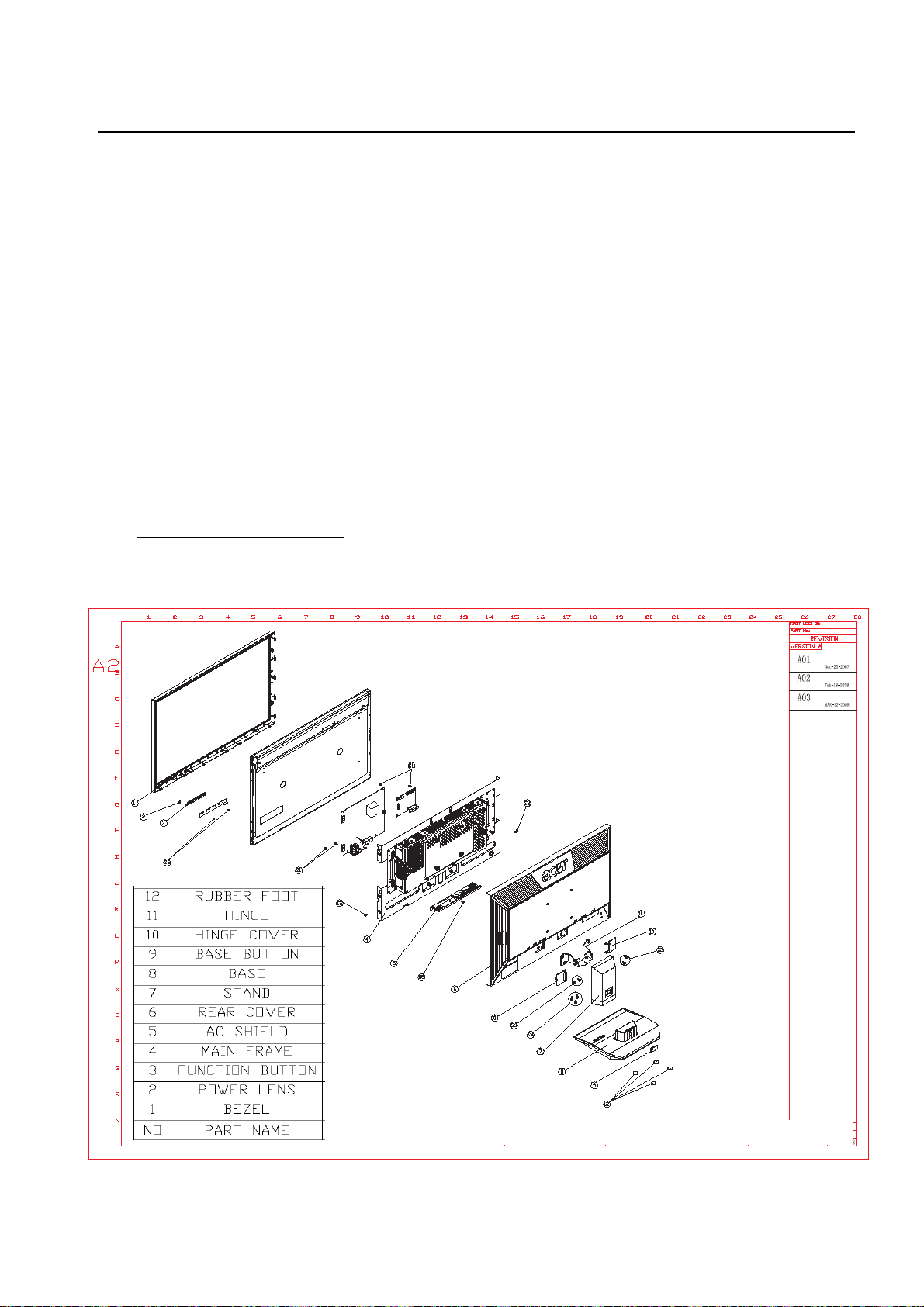

Exploded Diagram ……………………………………… 34

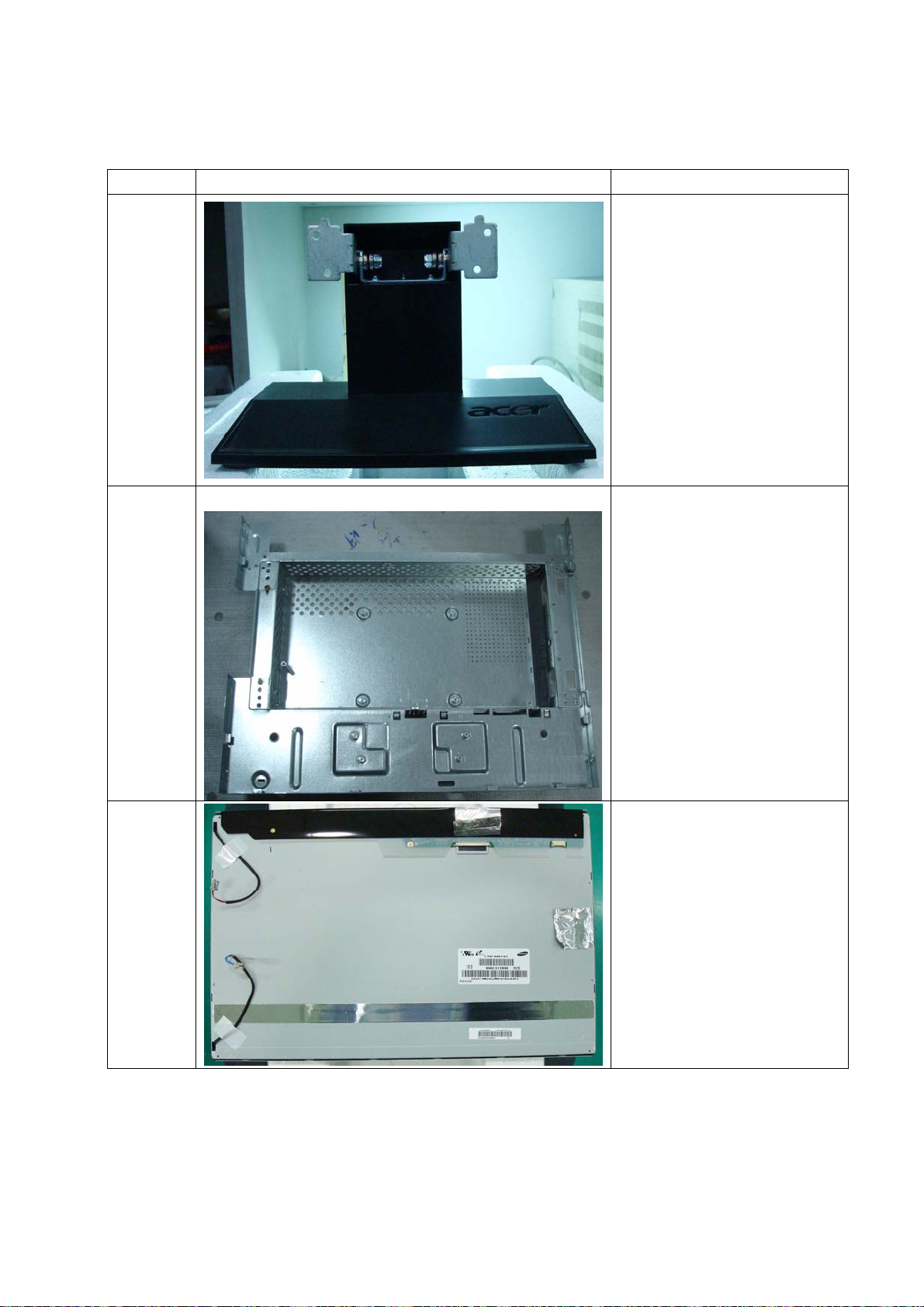

Key components list

………………………………………

……………………………………… 35

16
16
17
18
19
22
23

25

Chapter 8

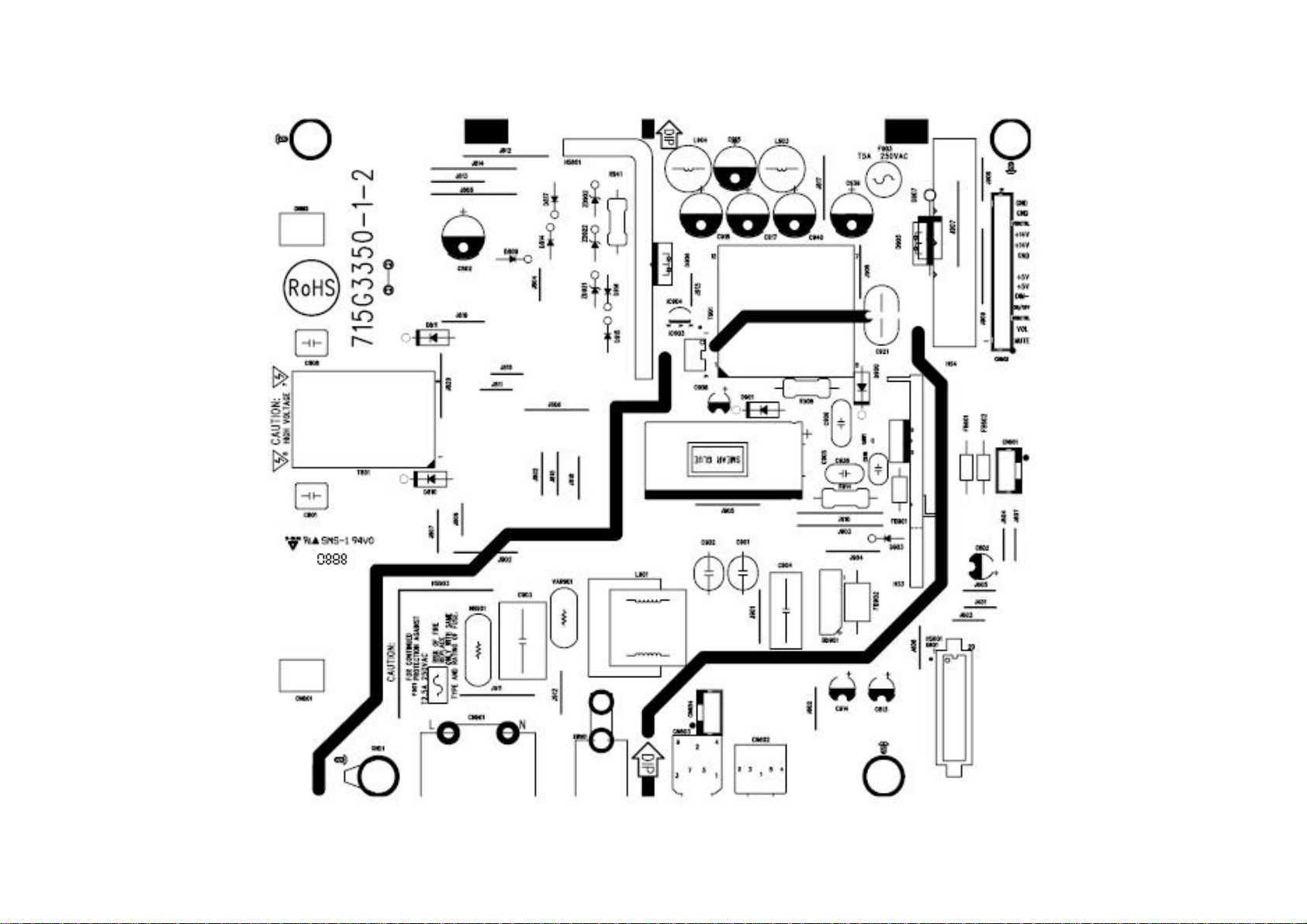

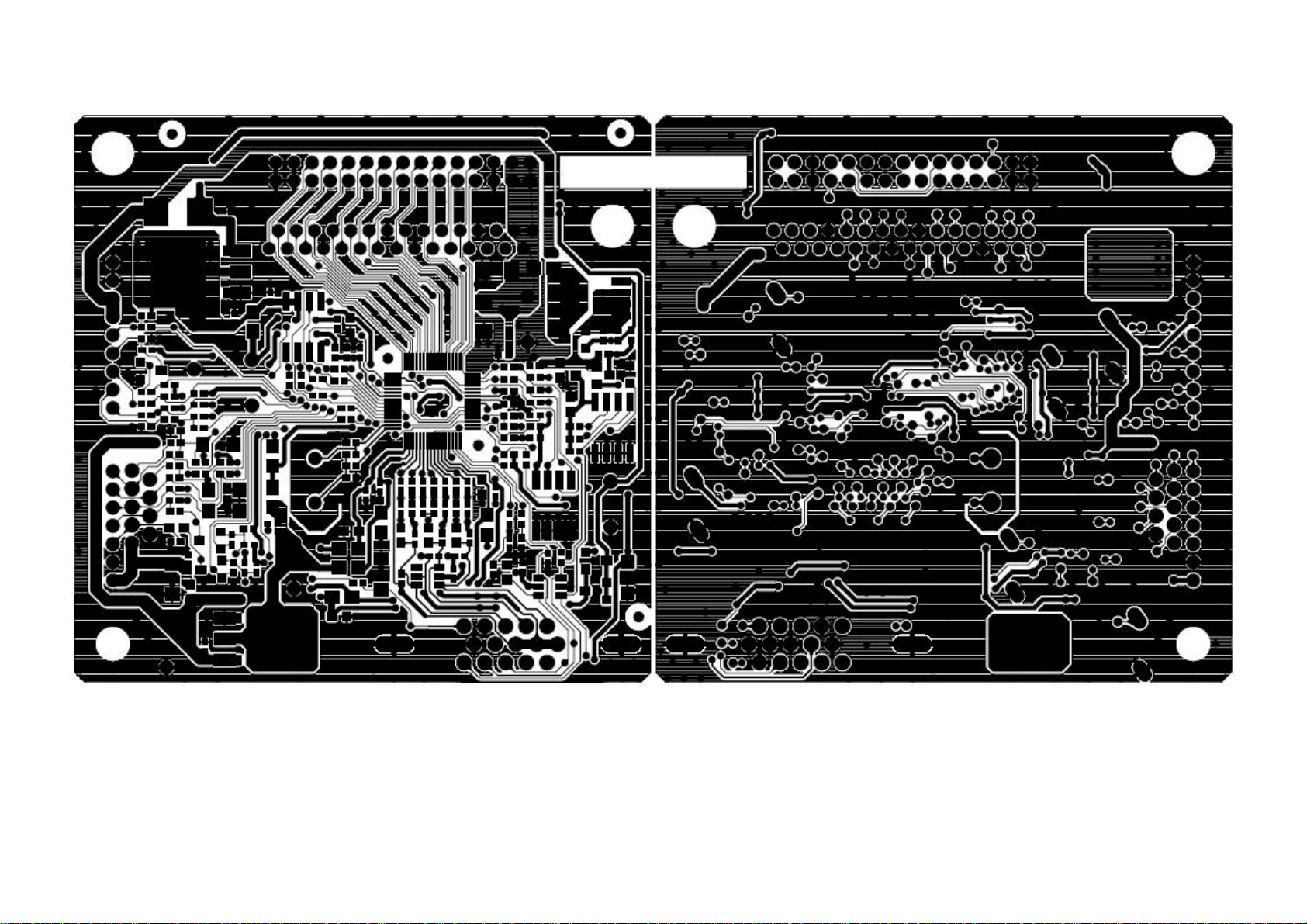

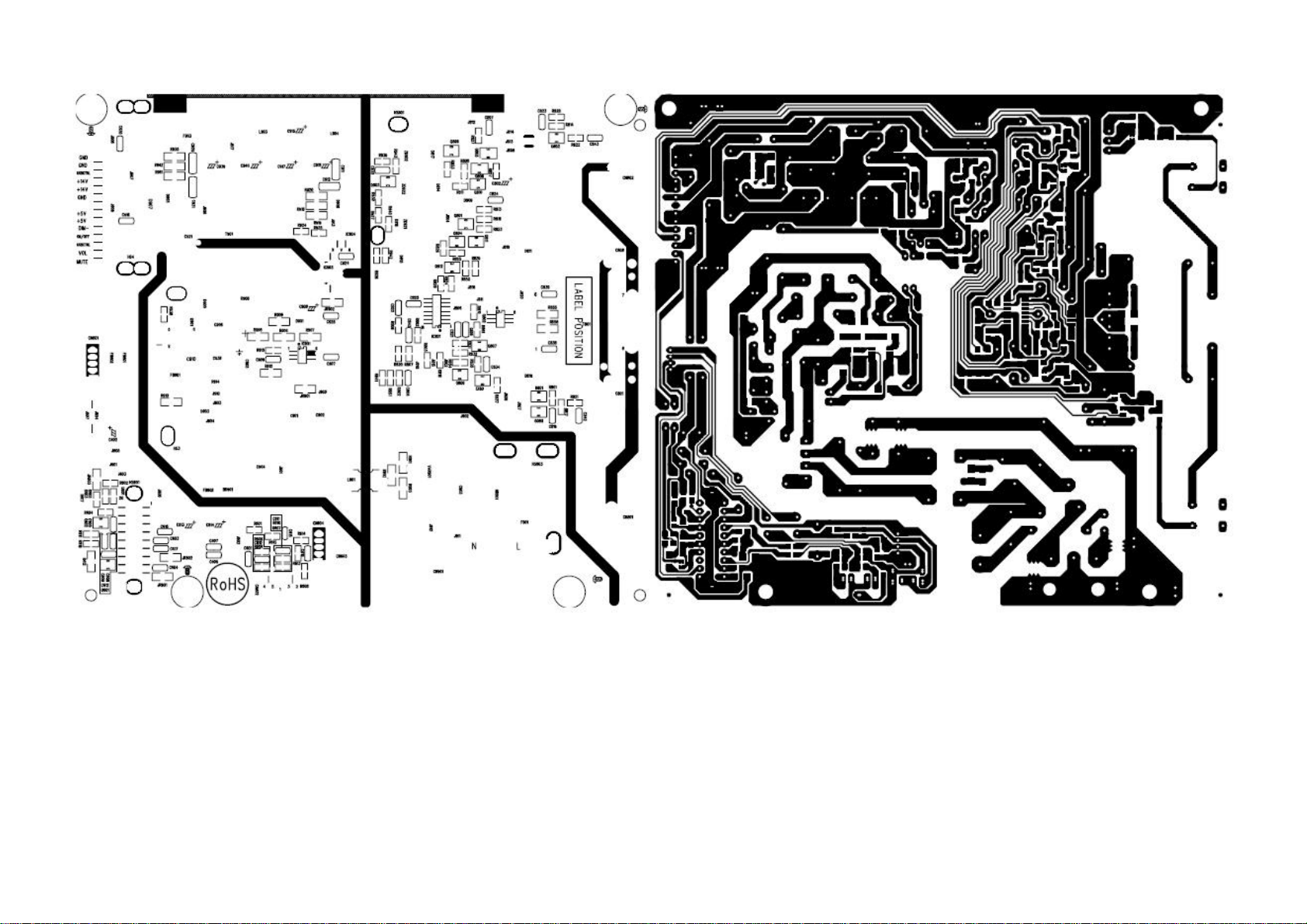

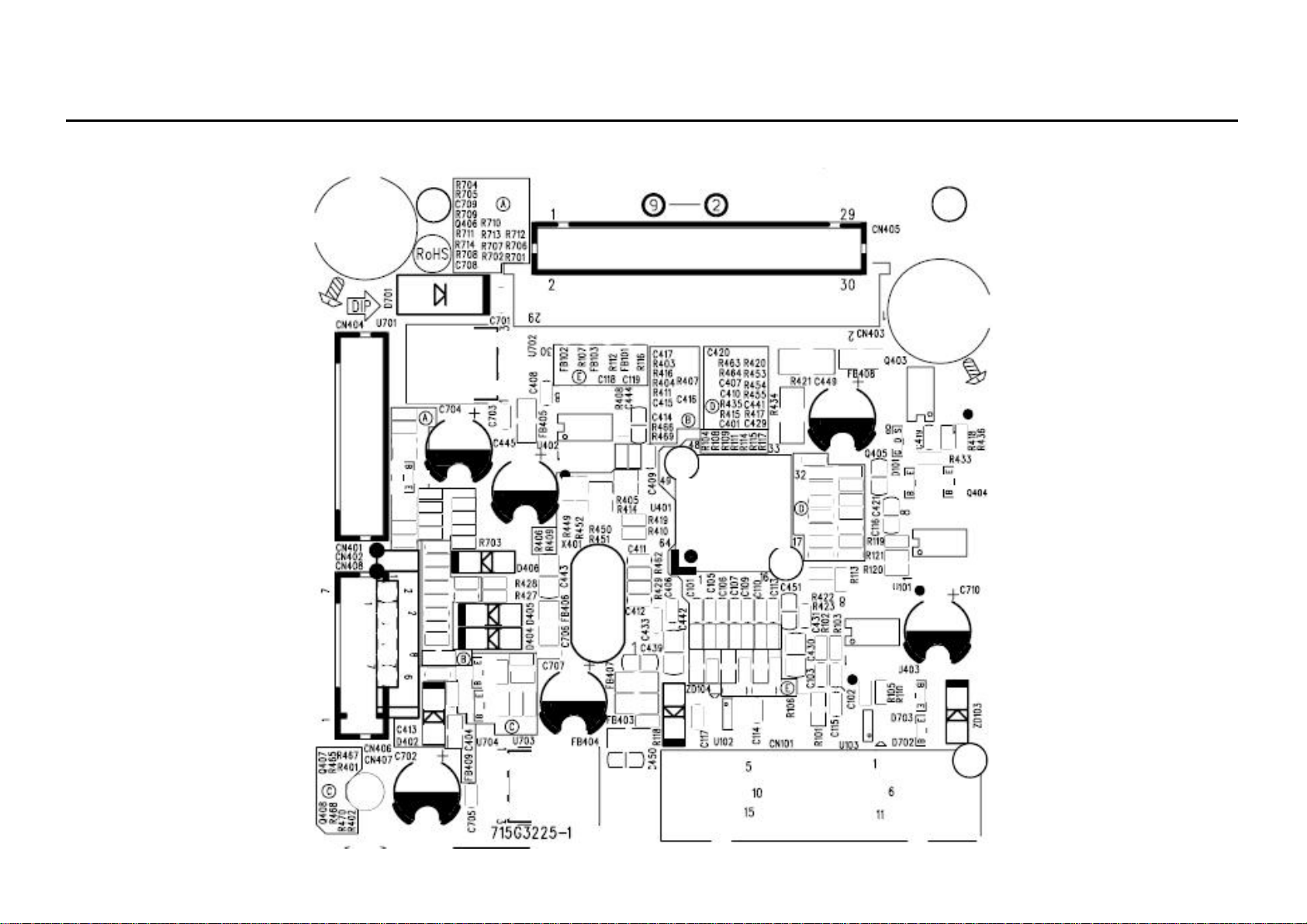

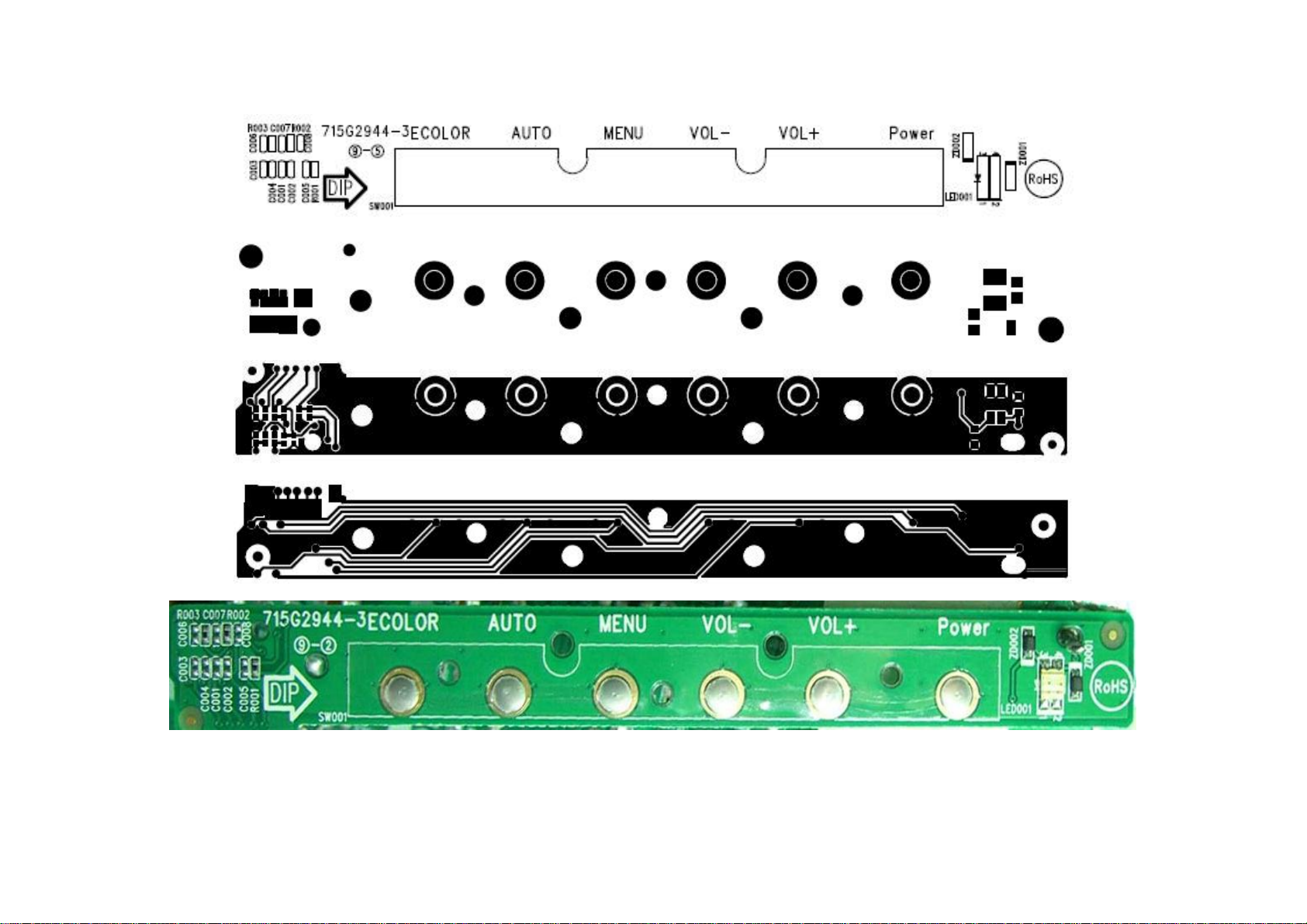

PCB Layout

……………………………………… 45

6

Service Guide Acer V193W

Monitor Features Chapter 1

Introduction

This specification defines the requirements for the 19” MICROPROCESSOR based Multi-mode supported high
resolution color LCD monitor. This monitor can be directly conn ected to general 15-pin D-sub VGA connector,
also supports VESA DPMS power management and plug & play function.

The LCD monitor is designed with the latest LCD technology to provide a performance orient ed produ ct with no
radiation. This will alleviate the growing health concerns. It is also a space saving design, allowing more
desktop space, and comparing to the traditional CRT monitor, it consumes less power and gets less weight in
addition MTBF target is 50k hours or more.

Monitor Block Diagram

The LCD MONITOR will contain a main board, a power board, an d key board which hou se the flat p anel control
logic, brightness control logic and DDC.
The power board will provide AC to DC Inverter volt age to drive the backlight of panel and the main board chi ps
each voltage.

Monitor Function Block Diagram

Backlight 2-CCFL

Panel
LVDS

DC-AC inverter

AC-DC(5V/12V)

Power Board

AC supply

Key board

Main Board

PC- VGA

/DDC

90V-264V

Input signal

7

Service Guide Acer V193W

LCD Monitor General Specification

Model ACER B/V193W

Driving system TFT Color LCD

Active Display Area 408.24 (H) x 255.15 (V)

Pixel pitch 0.2835(H) x 0.2835(W)

LCD Panel

Contrast Ratio 800 : 1

Response time 5ms

Luminance of White
Video signal
Separate Sync. H/V TTL

Input

H-Frequency 30kHz – 80kHz

V-Frequency 55-75Hz

Dot Clock

Viewing angle (H)160 (V) 160(Type)

Display Colors 16.7M

Display mode 1440 x 900 @75Hz

ON Mode < 22.7W

EPA ENERGY STAR®

Saving/OFF Mode < 1W

Power Source

90 V ~ 240 V，50  3Hz, 60  3Hz

300(Typ.) cd/㎡
R, G, B Analog D-Sub 15pin interface，

140MHz(max)

Operating Temp: 0° to 40°C
Environmental
Considerations

Peak surge current < 55A peak at 240 VAC and cold starting

Power line surge

Storage Temp: -30° to 65°C

Operating Humidity: 0% to 90%

Storage Humidity: 0% to 90%

No advance effects (no loss of information or defect) with a maximum of 1

half-wave missing p

er second

8

Service Guide Acer V193W

Factory preset modes

Mode Resolution

640 x 480@60Hz

VGA

SVGA

XGA

VESA

SXGA

WXGA

640 x 480@72Hz
640 x 480@75Hz
800 x 600@56Hz
800 x 600@60Hz
800 x 600@72Hz

800 x 600@75Hz
1024 x 768@60Hz
1024 x 768@70Hz
1024 x 768@75Hz
1152 x 864@75Hz
1280 x 960@60HZ
1280 x 720@60HZ
1280 x 768@60HZ
1280 x 768@75HZ

1280 x 1024@60Hz
1280 x 1024@75Hz

1360 x 768@60HZ
1440 x 900@60Hz
1440 x 900@75Hz

Connector Information

Input Signal Connector---- D-Sub 15pin Connector

Pin No. Description Pin No. Description

1. Red Input 9. +5VDC

2. Green Input 10. GND

3. Blue Input 11. RS232/GND

4. RS232/GND 12. SDA- DDC-Serial Data

5. Connection detect 13. H Sync

6. Red GND 14. V Sync

7. Green GND 15. SCL- DDC-Serial Clock

8. Blue GND

15

VGA Connector layout

6

11 15

10

9

Service Guide Acer V193W

A

MainBoard Block Diagram

Main Board Block Diagram

FLASH ROM

SST25VF010A

(

U402)

5V 3.3V 1.8V

Volt age conv erter

（CN404）

5V

SPI

(CN401/406)

Key Board

Control

M24C04-WMN6TP

Crystal12MHz

(X401

)

Scalar IC NT68167 Novatak

(Include ADC, OSD, MCU)

DDC

EEPROM

(U403)NC

LCD PANEL

(CN403/405)

LVDS

(U401)

H sync
V sync

RGB

D-Sub

Connector

(CN101)

Video input

PowerBoard Block Diagram

Fuse EMI

AC input
100-240V

Power part

14V DC

Vcc

Switching MOS
Q802-

Rectifier

BD901

IC-PWM

IC901

M9948

Smoothing

Capacitor

C905

DC-AC
Transformer
T801

Transformer

T901

MOS

Q901

Sense
resistor

PhotoCoupler

Resonance NET

14V
Rectifier

5V
Rectifier

Vcc
Rectifier

14V

5V

regulating
Sampling

High Voltage
Output

DIM control

Inverter part

PWM Control IC

IC801-TL494

Open Lamp Protection

2- CCFL

Current Sampling

10

Service Guide Acer V193W

g

C

Software Flow Chart

Brightness

Contrast

Language

InputType

Start

Initial_MCU

Check if DataBuffer Is blank

Check if Sum is chan

Read parameter_from Buffer

ed ?

Init_GlobalVariables

Initial_MCU Device

while

Software Flow Chart

Y

To Write default values

InputTimingStableCounter

OsdCounter

PowerDown

ounter

No signal message

UnsupportModeFlag

OSD Menu

PowerHandler

InputTiming

ModeHandler

MenuHandler

if factory mode?

DebugHandler

if standby mode?

LED turn-on

Show power on logo

InputTiming

Phaes/F

Image setup

Y

Enter factory mode OSD

N

requency

Color

END

11

Service Guide Acer V193W

LCD Panel Features Chapter 2

General Features

LTM190BT03 is a 19” wide TFT Liquid Crystal Display module with 2ch-LVDS interface. This module supports

1440 x 900 WXGA+ mode and can display 16.7M colors. High speed response(Typ 5m s).The inverter module
for Backlight is not built in. 2 CCFLs(Cold Cathode Fluorescent Lamp).

Electrical Characteristics

12

Service Guide Acer V193W

BackLight Unit

Panel Block Diagram for 2 CCFL

13

Service Guide Acer V193W

Optical Characteristics

14

Service Guide Acer V193W

LVDS pin assignment

15

Service Guide Acer V193W

Operating Instructions Chapter 3

Installation

To install the monitor on your host system, please follow the steps below:
1 Connect the video cable
A：Make sure both the monitor and computer are switched off.
B：Connect the VGA video cable to the computer.
2 Connect the power cord
Connect the power cord to the monitor, then to a properly grounded AC outlet.
3 Turn on the monitor and computer
Turn on the monitor first, then the computer. This sequence is very important.
4 If the monitor does not function properly, please refer to the troubleshooting section to diagnose the problem.

Attaching/Removing the Base

Attaching:

Align the release button on the bottom of the monitor with the corresponding slots on the bottom of the base.

Removing:

Press the release button as indicated, then pull in the direction of the arrow to remove the base.

16

Service Guide Acer V193W

Front Button Controls

Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the
monitor. By changing thes e settings, the picture can be adjusted to your personal preferences.

 The power cord should be connected.
 Connect the video cable from the monitor to the video card.

Press the power button to turn on the monitor position. The power indicator will light up.



1 Power LED: Lights up to indicate the power is turned on.
2 Power Switch: Turn the power on or off.

3.4 < / > : Press < or > to navigate to the desired function, press Enter to select the function. Press < or > to
change the settings of the current function.
5 Menu/Enter: Activate the OSD menu when the OSD is off or activate deactivate the adjustment function when
the OSD is on.
6 Auto adjust button/Exit:
a. When the OSD menu is active, this button will act as the exit key exit OSD menu).
b. When the OSD menu is inactive, press this button for two seconds to activate the Auto Adjustment function.
The Auto Adjustment function s used to set the HPos, VPos, Clock and Focus.
7 Empowering Key/Exit:
a. When the OSD menu is active, this button will act as the exit key exit OSD menu).
b. When the OSD menu is inactive, press this button to select scenario mode.

NO Name Function

1 LED
2 Power Switch
3 >

Power indicator
Turn on / turn off.
Right

4 <
5 Menu
6 Auto
7 e

Left
Menu/Enter
Auto Adjustment /Exit
Empowering Key/Exit

17

Service Guide Acer V193W

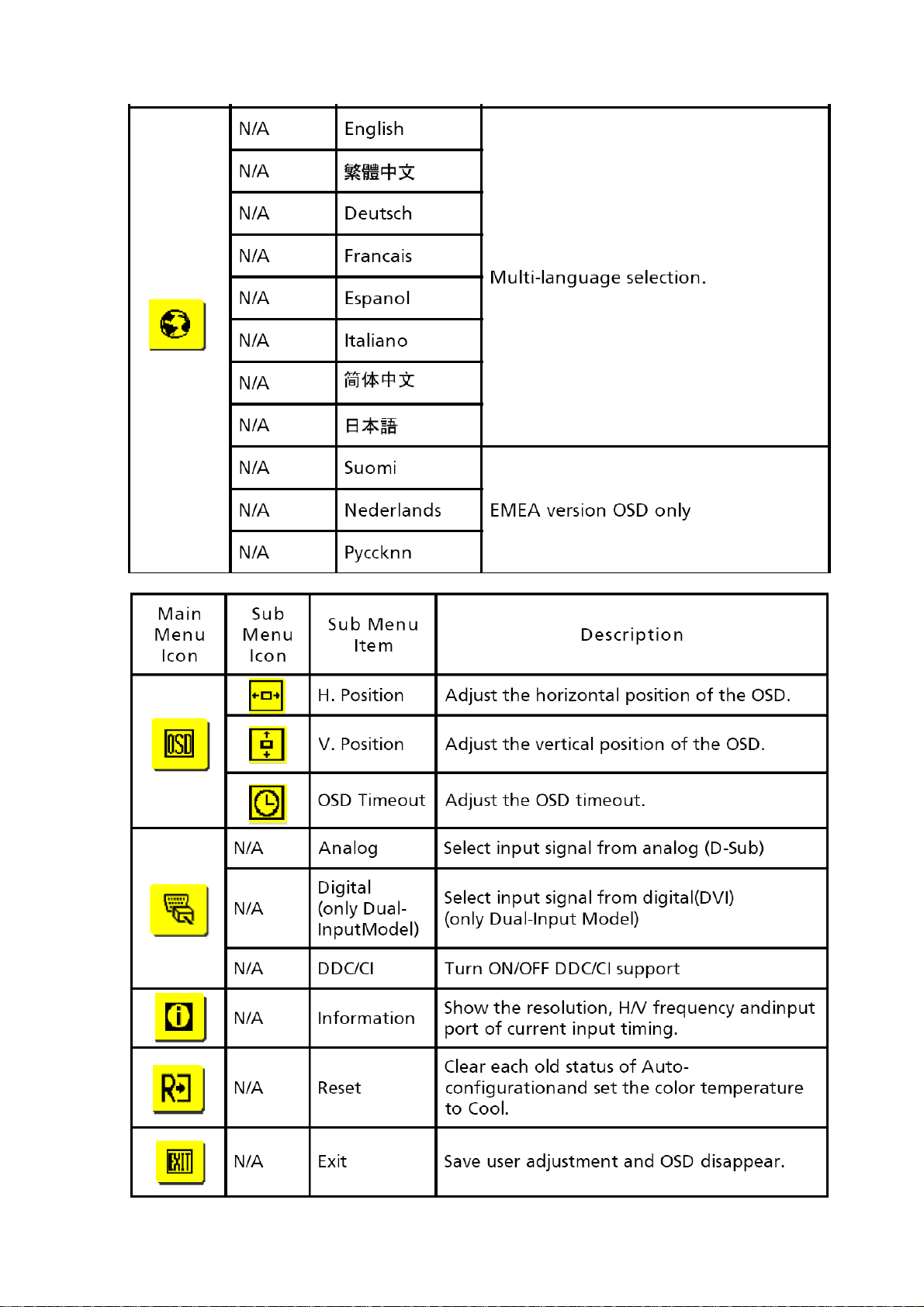

eColor Management (OSD)

18

Service Guide Acer V193W

How to Adjust a Setting

19

Service Guide Acer V193W

Adjusting the picture

20

Service Guide Acer V193W

21

Service Guide Acer V193W

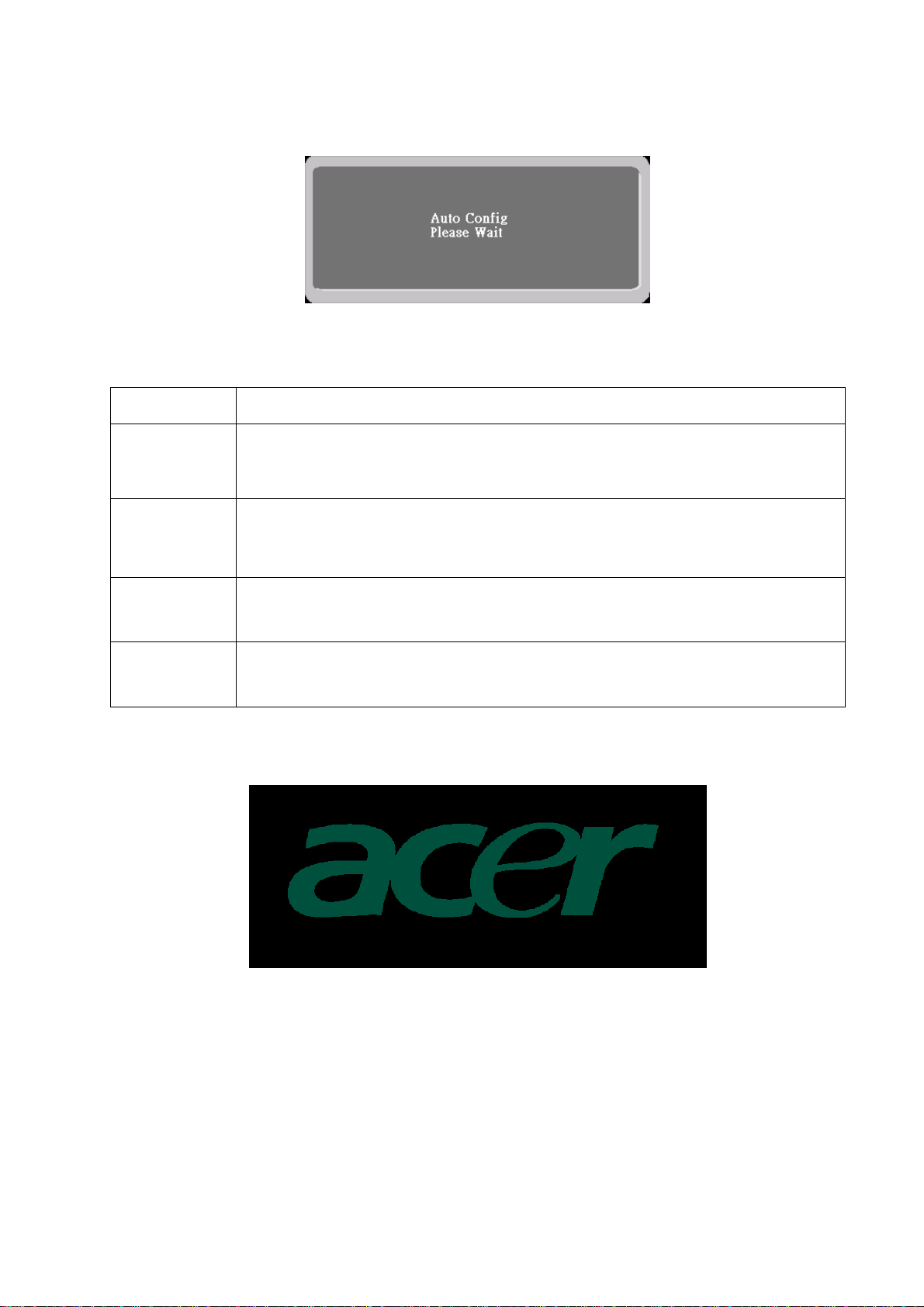

OSD Message

a. Outline

b. The Description For OSD Message

Item Description

Auto Config
Please Wait

Input Not

Supported

Cable Not

Connected

No Signal

When Analog signal input, if User Press Hot-Key “Auto”, will show this messa ge, and the
monitor do the auto config function.

When the Hsync Frequency, Vsync Frequency or Resolution is out of the monitor
support range, will show this message. This message will be flying.

Analog-Only Model: When the video cable is not connected, will show this message.
This message will be flying.

Analog-Only Model: When the video cable is connected, but there is no active signal
input, will show this message, then enter power saving.

Logo

When the monitor is power on, the LOGO will be showed in the center, and disappear slowly.

How To Optimize The DOS-Mode
Plug And Play
Plug & Play DDC2B Feature

This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the
monitor to inform the host system of its identity and, depending on the level of DDC used, communicate
additional information about its display capabilities.

The DDC2B is a bi-directional data channel based on the I²C protocol. The host can request EDID information
over the DDC2B channel.

This monitor will appear to be non-functional if there is no video input signal. In order for this monitor

22

Service Guide Acer V193W

to oper

This monitor meets the Green monitor standards as set by the V ideo Electro nics Standards Association (VESA)
and/or the United States Environmental Protection Agency (EPA) and The Swedish Confederation Employees
(NUTEK). This feature is designed to conserve electrical energy by reducing power consumption when there is
no video-input signal present. When there is no video input signals this monitor, following a time-out period, will
automatically switch to an OFF mode. This reduces the monitor's internal power supply consumption. After the
video input signal is restored, full power is restored and the display is automatica lly redrawn. The app earance is
similar to a "Screen Saver" feature except the display is completely off. Pressing a key on the keyboard, or
clicking the mouse restores the display.

Using The Right Power Cord

The accessory power cord for the Northern American region is the wallet plug with NEMA 5-15 style and is UL
listed and CSA labeled. The voltage rating for the power cord shall be 125 volts AC.
Supplied with units intended for connection to power outlet of personal computer: Please use a cord set
consisting of a minimum No. 18 AWG, type SJT or SVT three conductors flexible cord. One end terminates with
a grounding type attachment plug, rated 10A, 250V, and CEE-22 male configuration. The other end terminates
with a molded-on type connector body, rated 10A, 250V, having standard CEE-22 female configuration.
Please note that power supply cord needs to use VDE 0602, 0625, 0821 approval power cord in European
counties.

ate properly, there must be a video input signal.

Factory mode OSD

It is necessary that Factory mode is emerged for check the Panel and soft information .
for enter the Factory mode:

Conditions in the power-off, Press
the monitor will may enter Factory OSD Menu. Then Press MENU

screen.

button and hold, press ,power on the monitor, then ,press MENU ,

, Factory OSD Menu will appear in the

23

Service Guide Acer V193W

24

Service Guide Acer V193W

Machine Disassembly Chapter 4

This chapter contains step-by-step procedures on how to disassemble the monitor for maintenance.

Disassembly Procedure

1. Remove the cover hinge as the following indicator. (Fig 1)

Fig 1

2. Remove the screws as following indicate to release base stand. (Fig 2)

Fig 2

25

Service Guide Acer V193W

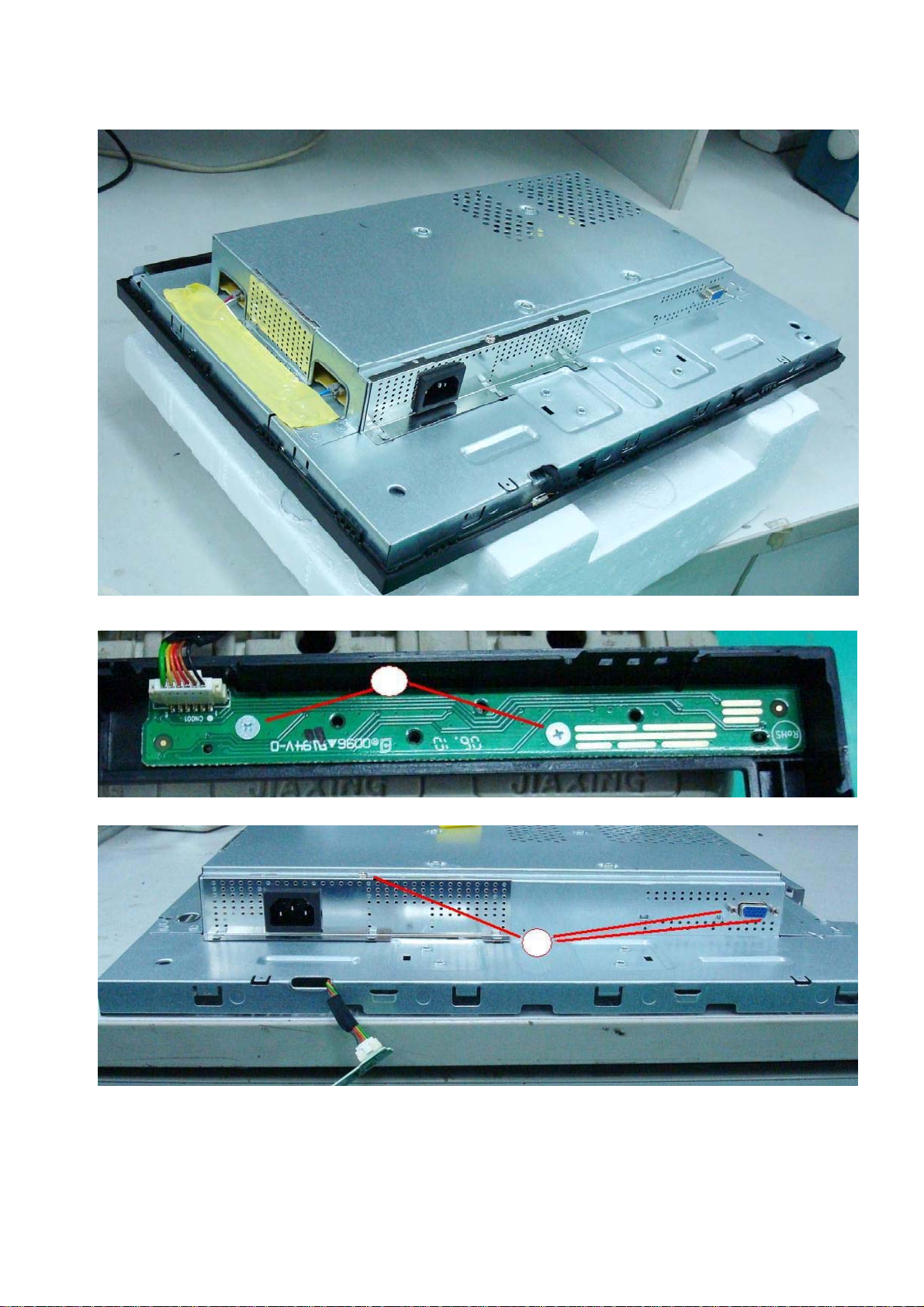

3. Remove the back cover and bezel.key board (Fig 3)

Fig 3

Fig 4

Fig 5

26

Service Guide Acer V193W

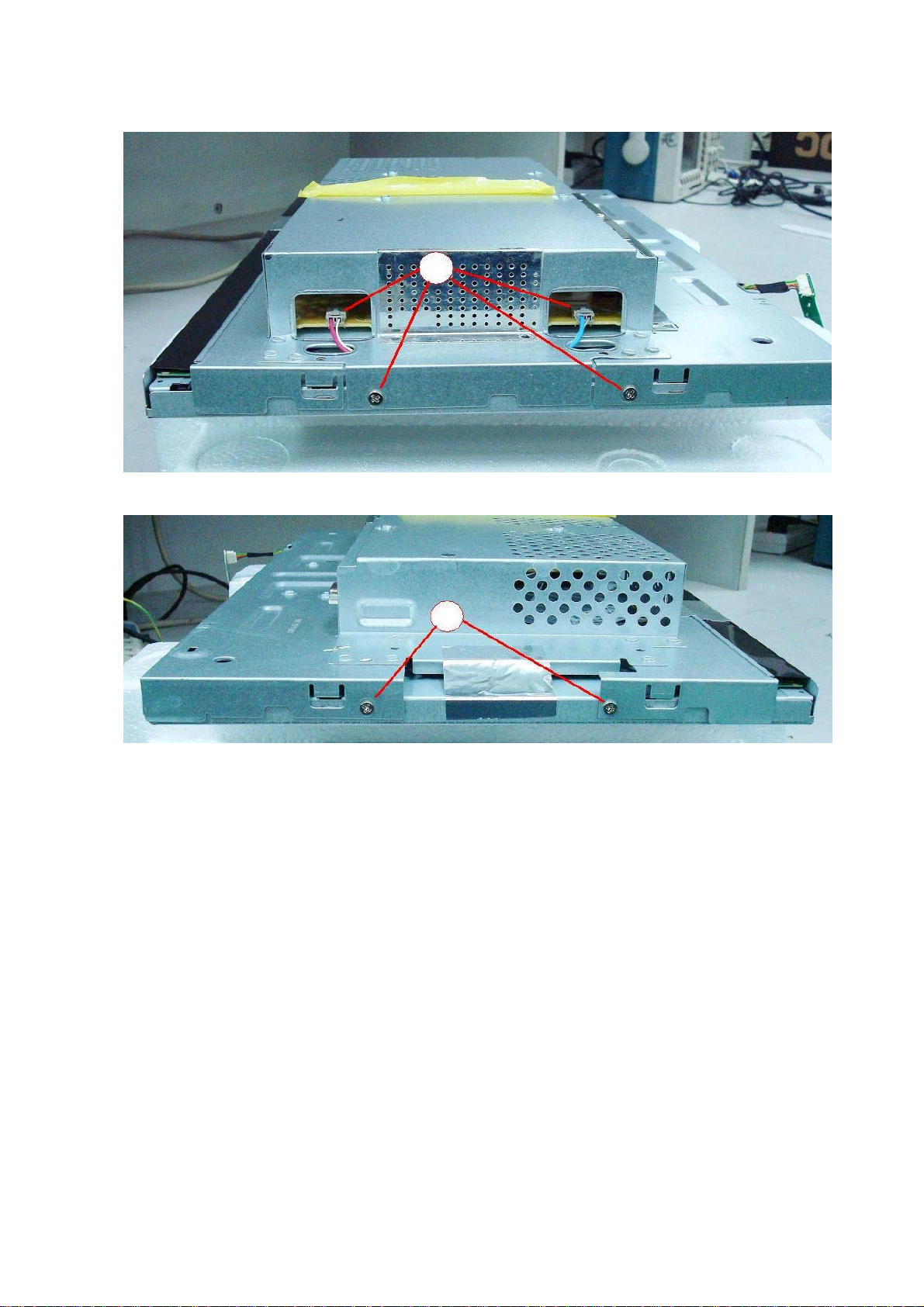

Remove the lamp connectors and the screw. (Fig 6-7)

4.

Fig 6

Fig 7

27

Service Guide Acer V193W

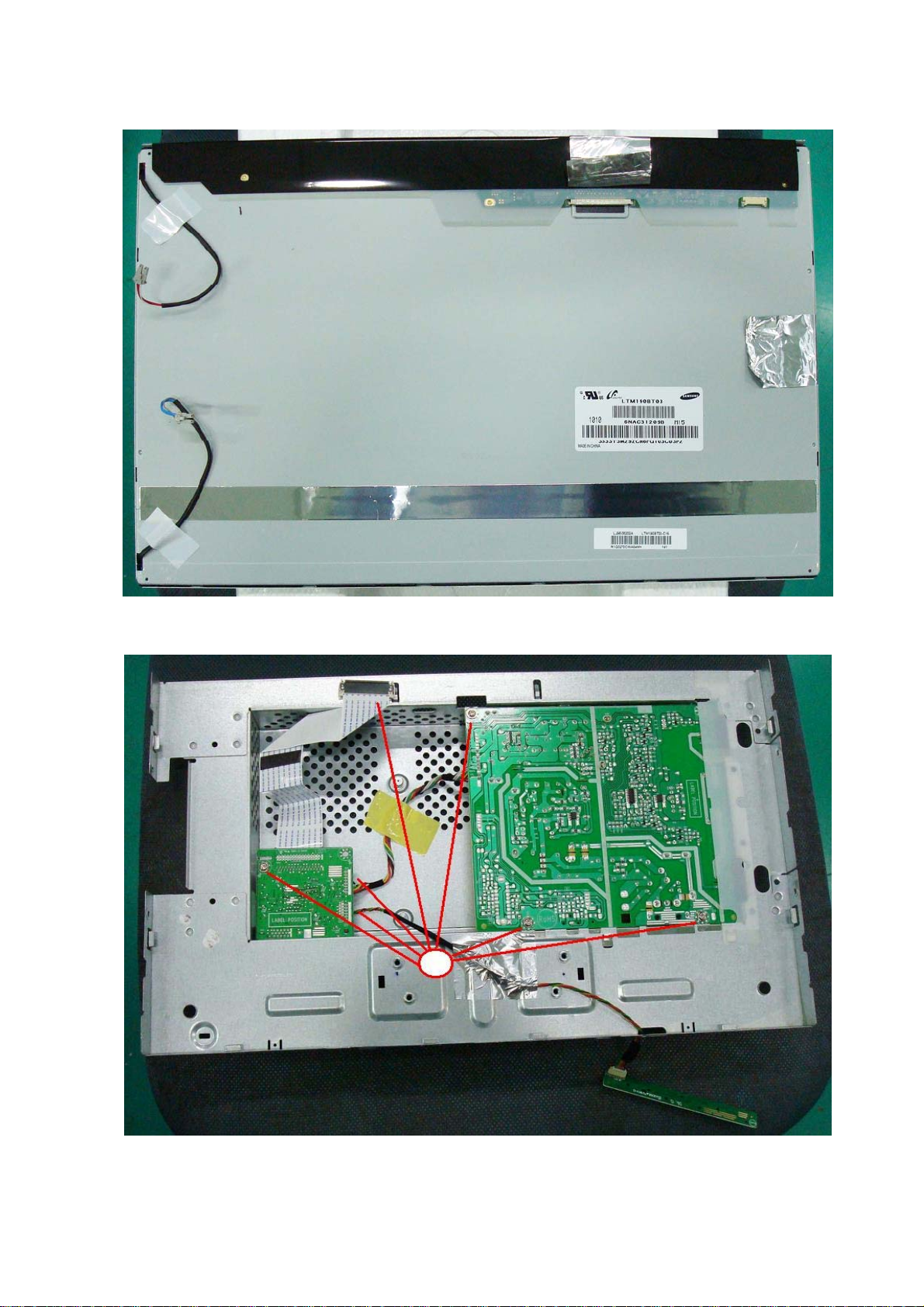

Remove the screws to remove the panel. Put attention to the LVDS cable.(Fig8)

5.

Fig 8

6. Remove the screws to remove the main board and power board.( Fig 9)

Fig 9

28

Service Guide Acer V193W

Troubleshooting Chapter 5

This chapter provides troubleshooting information for the V193W:
Main Board

1. No Power

No power

Press power key and look if
the picture is normal

NG

Please reinsert and make sure the AC
100-240V is normal

OK

Check 5V-CN701, 3.3V-U701-2;

OK

Check X401 waveform

?

NG

NG

Check flow chart
For the no power

Reinsert or check the power section

Check&replace
CN701,

U701,Q702,Q703,Q302,Q301

NG

OK

Replace soft U402/U401

Replace X401

29

Service Guide Acer V193W

2. No Picture (LED is orange)

No picture

Check signal wire /button

OK

Check U701 Vout=3.3V;

Q703-out=1.8V

OK

check X401 waveform

OK

Check CN101-HS/VS

OK

NG

NG

NG

NG

Check flow chart

for the no signal

Replace signal wire

replaceU701,Q703,Q702,Q406
&around device

replace X401

Check Correspondent
component

3.White screen

White screen

Measure Q302-base
is low level?

OK

Check Q301=5V
Or CN301

OK

Check U402 out

OK

Replace U401

solder?

NG

NG

Check around
device

NG

Updata soft data

Check X401 waveform

OK

Check U403/U402

OK

Check flow chart
For the white screen

NG

Replace X401

NG

Check around
device

Check connector

Replace Panel

Updata soft

ace U402/U403/U401

Repl

30

Service Guide Acer V193W

4. Power Circuit No 14V/5V

NoPower

Check CN901

100-240V？

OK

Check rectified voltage-C905

OK

Check voltage of IC901-8pin

OK

Check T901(1-3)out-Vcc

OK

NG

NG

NG

NG

Check flow chart
For the no power

Check AC supply

Check FuseF901/ BD901

L902/C901/C902

check component R905/R920

Check D901/R910/C911

Check IC901-drive out

OK

Check MOS-Q900pin(G/D)

OK

Check T901sub rectified out

5V/12V,

NG

NG

NG

Check/replace IC901

Check D910/R912/R915/Q901

Around component

Check rectified diode

D920/D921

&fiter capacitor

Chech opto-couple

IC902&IC903

Check-- open load

31

Service Guide Acer V193W

5. No Backlight of panel

Check voltage of J801-12V？

OK

Check ON/OFFsignal

NG

OK

Check IC801—11pin=5V？

OK

Check IC801-3pin waveform?

NG

Check main board

NG

Check flow chart for the
Inverter No Backlight

Open J801 voltage-12V

NG

Return check Power

OK

After Power off,check
C804/C811/Q805/Q806

After Power off,check

R802\C806\C809？

OK

Check IC801-pin6-8-9-10-PWM?

OK

Check Q805,Q806-Gate/Drain

OK

Check PT801-out waveform

OK

Check the lamps of panel

&conn

ector,feedba ck circuit

NG

Check aroud C809\Q802

Replace IC801

NG

replaceIC801

NG

NG

Check ZD802/ZD803

Replace device

Replace PT801

R803/R804

32

Service Guide Acer V193W

y

6. Key Board
OSD no working

OSD is unstable or not

working

Is Key Pad Board connecting

normally?

OK

Is Button Switch normally?

OK

Is Key Pad Board normally?

OK

Check Main Board

NG

NG

NG

Check flow chart

For the ke

Connect Key Pad Board

Replace Button Switch

Replace Key Pad Board

board

33

Service Guide Acer V193W

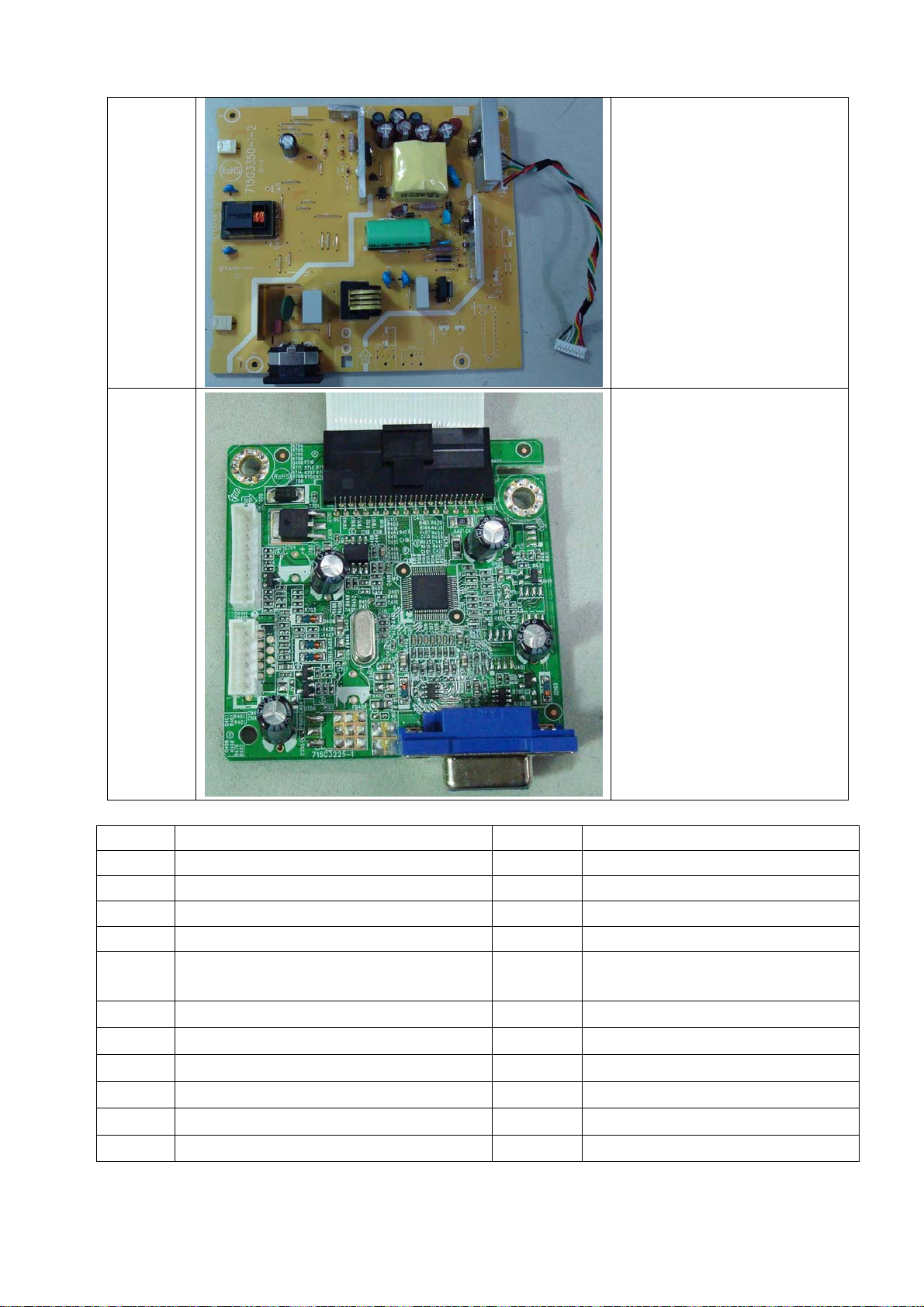

FRU (Field Replaceable Unit) List Chapter 6

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of V193W.Refer to this
chapter whenever ordering for parts to repair or for RMA (Return Merchandise Authorization).

NOTE: Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information

available on your regional web or channel (http://aicsl.acer.com.tw/spl/). For whatever reasons a part
number change is made, it will not be noted in the printed Service Guide. For ACER AUTHORIZED
SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code from those given in
the FRU list of this printed Service Guide. You MUST use the local FRU list provided by your regional
Acer office to order FRU parts for repair and service of customer machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or

regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to

return it.
Note: The parts information listed below are for reference only, and are subject to change without notice. Please
go to http://cs.tpv.com.cn/hello1.asp

Exploded Diagram (Model: V193W)

for the latest information.

34

Service Guide Acer V193W

Key components List

Exploded Diagram show the description of the following component.

Item Picture Description

1 Base

2

4 Panel

Main Frame

35

Service Guide Acer V193W

5

6 Main Board

Power Board

Symbol Description Symbol Description

U401 IC NT68167FG/D QFP64 CN101 D-SUB 15PIN
U402 SST25VF010A-33-4C-SAE CN403 FFC/FPC CONNECTOR
U102 IC AZC099-04S SOT23-6L CN404 WAFER 9P RIGHT ANELE PITCH
U103 IC AZC099-04S SOT23-6L CN406 WAFER 6PIN
X401

U701
IC801
IC901 LD7575PS SOP-8 E750 750GLS190BT3DCN0AC

main 715G3225 1 CBPCRNFABQAJ

power 715G3350 1 2 PW8921EQIXSMTJ

key 715G2944 3 KEPC8QK4J

CRYSTAL 12MHz
NXS12.000AC30F-KAB10
IC AZ11 17D-3.3TRG1 1A/3.3V TO-252

IC TL494IDR SOIC-16

CN902 WIRE HARNESS 9P(SCN)-9P(PH)

CN901 AC socket

Q901 2SK2645

E750 750GLS190BT3ECN0AC
E750 750GLU190W1512N0AC
E750 750GLU190W1513N0AC

36

Service Guide Acer V193W

Schematic Diagram Chapter 7

Main Board ---715G3225-1

T7P
T7M
TCLK1P
TCLK1M
T6P
T6M
T5P
T5M
T4

P
T4M
T3P
T3M

T2P
T2M
T1P
T1M
T0P
T0M

4.PAN EL I N TERF ACE

PANEL_EN

T7P

T7M
TCLK1P

TCLK1M

T6P
T6M

T5P

T5M

T4P

T4M
T3P
T3M

T2P

T2M
T1P

T1M

T0P
T0M

PANEL I N TERF AC E

+5V

DSUB_5V

ESD_5V

2.INPUT

ESD_5V

INPUT

BIN+

BIN-

SOGIDSUB_5V

GIN+

GIN-

RIN+

RIN­HSIN

VSIN

DDC_SDA
DDC_SCL

VGA_DET

DDC_WP+5V

BIN+
BIN­SOGI
GIN+
GIN­RIN+
RIN­HSIN
VSIN

DDC_SDA
DDC_SCL

VGA_DET

3.SCALER

BIN+

BIN­SOGI
GIN+

GIN-

RIN+
RIN-

HSIN
VSIN

DDC_SDA
DDC_SCL

VGA_DET

DDC_WP

PANEL_EN

T7P
T7M

TCLK1P

TCLK1M

T6P
T6M

T5P

T5M
T4P
T4M
T3P
T3M

T2P
T2M

T1P

T1M
T0P

T0M

PANEL_EN

DSUB_5V

5VCC

VCC1.8

+5V

ESD_5V

5.POWER

VCC3.3

VCC3.3

Panel_ID#

+5V
5VCC
DSUB_5V

ESD_5V

VCC1.8

POWER

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

BL_ADJ

BL_ON

Volume#

Mute#

G3225-1-X-X-3-090220

Panel_ID#
BL_ADJ
BL_ON
Volume#
Mute#

Panel_ID#
BL_ADJ

BL_ON

Volume#
Mute#

SCALER

37

VCC3.3

VCC3.3

+5V

VCC1.8

VCC1.8

5VCC

5VCC

OEM MO DE L Si ze
TPV MOD EL

PCB N AME

Sheet

715G3225-11.0.COVER

of

37Wednes day , April 21, 2010

ACER
B/V173,B/V193

Rev

称爹

+5V

A

E

Service Guide Acer V193W

Input part---CN101

R101 0402->0603

R101 0R05 1/10W 5%

H_Sync
V_Sync

R106

C102

R105

2K2 1/16W 5%

DDC_SCL5

DDC_SDA5

R110 100R 1/16W 5%

R113 100R 1/16W 5%

DSUB_SCL

DSUB_SDA

15
14
13
12
11

CN101
DB15

17 16

22pF

2K2 1/16W 5%

10
5
9
4
8
3
7
2
6
1

VGA_PLUG
DSUB_5V

VGA_B­VGA_B+
VGA_G­VGA_G+
VGA_R­VGA_R+

R102 470R 1/16W 5% R107
R103 100R 1/16W 5%

C103
33pF

ZD103

RLZ5.6B

DSUB_5V

DSUB_5V 7

R118 10K 1/16W 5%

ZD104
RLZ5.6B

1 2

1 2

HSIN 5
VSIN 5

VGA_DET 5

D-SUB NC pin connect to GND

GA_B+

V

VGA_B-

VGA_G+

VGA_G-

VGA_R+

VGA_R-

C117

NC/5PF50V

C118

NC/5PF50V

C119

NC/5PF50V

FB102

1 2

BEAD

75R 1/16W 5%

FB103

1 2

BEAD

R112
75R 1/16W 5%

1 2

R116
75R 1/16W 5%

FB101

BEAD

R104
100R 1/16W 5%

R108
100R 1/16W 5%

R109
390 OHM 1/16W

R111
100R 1/16W 5%

R114
100R 1/16W 5%

R115
100R 1/16W 5%

R117
100R 1/16W 5%

C101

0.047uF

C105

0.047uF

C106
1000pF

C107

0.047uF

C109

0.047uF

C110

0.047uF

C113

0.047uF

BIN+ 5

BIN- 5

SOGI 5

GIN+ 5

GIN- 5

RIN+ 5

RIN- 5

VGA_G+
VGA_R+

H_Sync
V_Sync

ESD_5V

ESD_5V

C114
NC

C115
NC

ESD_5V 7

+5V5,6,7

R120
NC

DSUB_SCL
DSUB_SDA

DD5 C_WP

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

G3225-1-X-X-3-090220

Date

R121
NC

+5V DSUB_5V

2

1

D101
NC/BAV70

3

R119
NC

U101

8

A0

VCC

7

A1

WP

6

A2

SCL

VSSSDA

NC/M24C02-RMN6TP

OEM MODEL Size
TPV MODEL
PCB N AME

Sheet

715G3225-11.0.COVER

47Thursday , February 19, 2009

1
2
3
45

ACER

B/V173,B/V193

of

C116
NC

Rev

称爹

B

E

VGA_B+

DSUB_SDA
DSUB_SCL

U102

1

I/O1

I/O4

2

GND

VDD

3 4

I/O2 I/O3

AZC099-04S

U103

1

I/O1

I/O4

2

GND

VDD

3 4

I/O2 I/O3

AZC099-04S

6
5

6
5

38

Service Guide Acer V193W

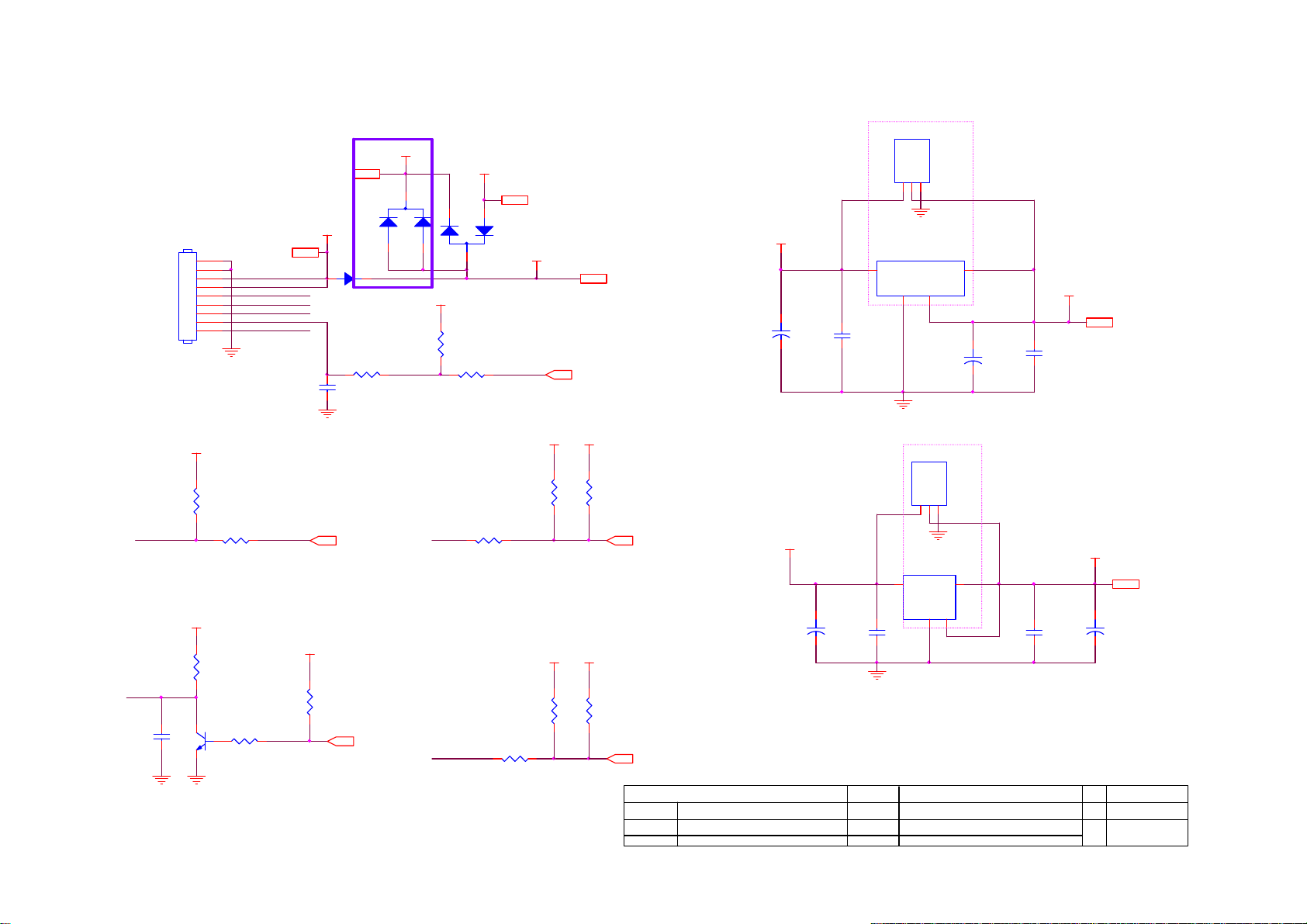

Power p

art---5V/3.3V/1.8V

CN404

9
8
7
6
5
4
3
2
1

CONN

VCC3.3

R704
1K 1/16W 5%

BKLT-VBRI

R705 100R 1/16W 5%

+5V4,5,6

BKLT-VBRI
BKLT-EN
C_PANEL_INDEX
Volume
Mute

ESD_5V4

D702

NC

+5V

D701 SM240A

R702 0R05 1/16W
C708

NC/ 1uF 10V

BL_ADJ 5

ESD_5V

DSUB_5V

1

2

3

+5V

R701
10K 1/16W 5%

R703 100R 1/16W 5%

4K7 1/16W 5%

Mute

R708 100R 1/16W 5%

D703
BAV99

DSUB_5V 4

5VCC

+5V

R706

Volume# 5

VCC3.3

R707
NC

5VCC 5

Mute# 5

5VCC

+

C710
100UF25V

VCC3.3

U701
AP1117D33L-13

J(GND)
AD

VOUT

VIN

123

TO252

U70

2

NC/ AME8810-AEGTZ 0.6A/ 3. 3V

VOUT(heat sink )VIN

GND

1234

C701

0.1UF 16V

SOT223

U703
NC/AP1117D18LA

VIN

TO252

U704

3 2

VI VO

4

C702

+

100UF25V

ADJ(GND)

VOUT

123

VCC3.3

C703

0.1UF 16V

VCC3.3 5

VCC1.8

VCC1.8 5

BKLT-EN

C709

0.1UF 16V

+5V

R709
10K 1/16W 5%

R711 22K 1/16W 5%

Q406
2N3904S-RTK/PS

VCC3.3

R710
10K 1/16W 5%

BL_ON 5

C_PANEL_INDEX

R714
NC

R712

GND

+5V

VCC3.3

+

C704
NC/100UF25V

C705

1

NC/0.1UF 16V

4

4

C706
NC/0.1UF 16V

+

C707
NC/100UF25V

SOT223

NC

R713
NC

Panel_ID# 5

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G3225-1-X-X-3-090220

1.0.COVER

OEM MODEL Size
TPV MODEL

PCB NAME

Sheet

ACER
B/V173,B/V193

715G3225-1

of

77Thursday , F ebruary 19, 2009

Rev

称爹

B

E

39

Service Guide Acer V193W

Scala

r part ----U401/U402

FB404
120 OHM

C450
NC

FB407
300OHM

FB405
300OHM

100UF25V

FB403
NC/300OHM

FB406
NC/300OHM

C445

DVDD

ADC_3.3

+

C451
10UF6.3V

ADC_1.8

CVDD_1.8

C439

2.2uF/16V

C0603

CVDD_3.3

C442

4.7uF/16V

C0805

C443

4.7uF/16V

C0805

C444

0.1uF/16V

C430

4.7uF/16V

C406

0.1UF 16V

C407

0.1UF 16V

C433

0.1UF 16V

C410

0.1UF 16V

VCC3. 3

EE_WP
MSCL
MSDA

R408 10K 1/16W 5%

C408

0.22uF16V

R453

NC/4K7 1/16W 5%

U402

1
2
3
4

SST25VF010A-33-4C-SAE

R454

NC/10K 1/16W 5%

NC/4K7 1/16W 5%

VCC3.3

ADC_1.8

12312

ADC_2.3

ADC_1.8AGND

NT68167FG/D

NT68167

MGND

DGND

13

24

50

CVDD_3.3

DGND

CVDD_1.8

25

26

49

T0M

CVDD_1.8

TCLK 1M

TCLK1 P

PWMB*
PWMA*

PA7*/PW M9*
PA6*/PW M8*
PA5*/PW M7*
PA4*/PW M6*

PA3/PWM5
PA2/PWM4
PA1/PWM3

PB3/ADC3
PB2/ADC2
PB1/ADC1
PB0/ADC0

T0P
T1M
T1P
T2M
T2P

T3M
T3P
T4M
T4P
T5M
T5P
T6M
T6P
T7M
T7P

48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32

52
29

53
54
28
27
57

R414 2 16W 5%2K 1/

58

R410 22K 1/16W 5%

21

55
56
23
22

5V_DET
KEY1

KEY2

CVDD_2.3

EE_WP
WP

T0M 6
T0P 6
T1M 6
T1P 6
T2M 6
T2P 6
TCLK 1M 6
TCLK 1P 6
T3M 6
T3P 6
T4M 6
T4P 6
T5M 6
T5P 6
T6M 6
T6P 6
T7M 6
T7P 6

DDC_WP 4
BL_ADJ 7

Volume# 7
Mute # 7

Panel_ID# 7

LEDB
LEDO

PANEL_EN 6

BL_ON 7

ADC_3.3

C431

0.1UF 16 V

DVDD

11

U401

BIN+4
BIN-4
SOGI4
GIN+4
GIN-4
RIN+4
RIN-4

HSIN4
VSIN4

DDC_SDA4
DDC_SCL4

SPI_CE
SPI_SI
SPI_SO
SPI_CK

R419 1K 1/16W 5%
R463 NC/100R 1/16W 5%
R464 NC/100R 1/16W 5%

X40 1

12MHz

1 2

5VCC

4K7 1/16W 5%

R462
1M 1/16W 5%

R429 0R05 1/16W

VGA_DET4

R417
10K 1/16W 5%

C401

0.1UF 16V

5VCC7

POWER_KEY#
MSCL
MSDA

C411 47pF

C412 47pF

R405 100R 1/16W 5%
R452 100R 1/16W 5%
R449 100R 1/16W 5%

8

VDD

CE#

7

HOLD#

SO
WP#
GND

R455

6

SCK

5

SI

R450 100R 1/16W 5%
R451 100R 1/16W 5%

U403

VCC
WP
SCL

GNDSDA

NC/M24C 16

1

A0

2

A1

3

A2

45

8
7
6

VCC3.3

WP
SPI_SO
SPI_CE

SPI_CK
SPI_SI

C429
NC/0.22uF 16V

VCC3. 3

For LG A only model;, USE 24C04

4
5
6
7
8
9

10

14
15

R422

R423

4K7 1/16W 5%

17
16

62
61
60
59

51
19 20
31
30

18
63

64

DVDD
BIN1+
BIN1-

DVDD_BIAS

SOG1I
GIN1+
GIN1­RIN1+
RIN1-

HSYNCI1
VSYNC I1

PB5*/D DC_SDA */TX
PB4*/DDC_SCL*/RX

SPI_CE
SPI_SI
SPI_SO

Novatak

SPI_CLK

P35
P34 PA0/PWM2
P31/TXD
P30/RXD

RSTB
OSCI

OSCO

VCC3. 3

VCC1.87

VCC3. 3

CN406

CONN

CN407

NC/CONN

CN401

1
2
3
4
5
6
7
8

NC/CONN

CN402

NC/CONN

CN408

NC/CONN

1
2
3
4
5
6

1
2
3
4
5
6
7

6
5
4
3
2
1

7
6
5
4
3
2
1

key1
key2
POWER_KEY#
LED_GRN/BLUE
LED_ORAN GE
GND

GND

TOUCH_PANEL

D402 NC /RLZ5.6B

key3

R403 NC/2K2 1/16W 5%
R404 NC/2K2 1/16W 5%

key4

R416 100R 1/16W 5%
R411 100R 1/16W 5%

FB409

1 2

NC/BE AD

C404 NC/0.1UF 16V

VCC3. 3

VCC3. 3

VCC3.37

R465

4K3 OHM 1/16W 5%

LEDB

R427 3.9K OHM 1/16W

R428 3.9K OH M 1/ 16W

R407 3.9K OH M 1/ 16W

D404 RLZ5.6B

C414 0. 1U F 16V

C413 0. 1U F 16V

C416 0. 1U F 16V

C415 0. 1U F 16V

D406 RLZ5.6B

D405 RLZ5.6B

C417 0. 1U F 16V

R468

4K3 1/16W 5%

LEDO

R401 NC/0R05 1/ 16W

R467 0R05 1/16W

Q407
2N3906S-RTK/PS

R466 470R 1/16W 5%

R402 NC/0R05 1/ 16W

R470 0R05 1/16W

Q408
2N3906S-RTK/PS

R469 100R 1/10W 5%

DVDD

+5V

LED_GRN/BLUE

DVDD

+5V

LED_ORANGE

T P V ( Top Victory Electronics Co . , Ltd. )

G3225-1-X-X-3-090220

絬 隔 瓜 絪 腹

Key Component

Date

+5V

+5V 4,6,7

R406
10K 1/16W 5%

R409

20K OHM 1/16W

C409 0. 1UF 16V

5V_DET

Sheet

ACER

B/V173,B/V193

715G3225-11.0.COVER

57Thursday , Februa ry 19, 20 09

of

OEM MODEL Si ze
TPV MOD EL
PCB NAME

C

E

Rev

称爹

40

Service Guide Acer V193W

L

VDS out part---CN403

CN403

PANEL_VCC

FB408120 OHM

C449100UF25V

+

CN405

1

T0M
T1M
T2M
TCLK1M
T3M
T4M
T5M
T6M
TCLK1M
T7M

R421220 OHM 1/ 4WR1206

R434220 OHM 1/ 4WR1206

C4200.1U F 16V

3
5
7

9
11
13
15
17
19
21
23
25
27
29

NC/CONN

2
4

T0P

6
8

T1P 6

10

T2P

12

TCLK1P
T3P

14

T4P

16
18

T5P

20

T6P

22

TCLK1P
T7P

24
26
28
30

T7P5
T7M5
TCLK1P5
TCLK1M5
T6P5
T6M5

T5P5
T5M5

T4P5
T4M5
T3P5
T3M5

T2P5
T2M5
T1P5
T1M5
T0P5
T0M5

T7P
T7M
TCLK1P
TCLK1M
T6P
T6M

T5P
T5M

T4P
T4M
T3P
T3M
TCLK1P
TCLK1M

T2P
T2M
T1P
T1M
T0P
T0M

1
2
3
4
5

7
8

9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30

+5V

R433
10K 1/16W 5%

R436 56K 1/16W 5%

R418
NC

G3225-1-X-X-3-090220

C441

0.1UF 16V

Q404
2N3904S-RTK/PS

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

PANEL_EN5

R435 22K 1/16W 5%

R415
4K7 1/16W 5%

C419

0.22uF16V

PANEL_VCC

3

876

5

Q403

DDD

D

Q405

AO3401

C421
1uF/16V

OEM MOD E L Si ze
TPV MO DEL

PCB NAME

Sheet

715G3225-11.0.COVER

67Thursday, F e bruary 19, 2 009

NC/AO4411

SSS

G

123

4

+5V

R420
10K 1/16W 5%

ACER

B/V173,B/V193

of

1

G

AO3401L

D

2

S

Rev

称爹

CONN

A

E

41

Service Guide Acer V193W

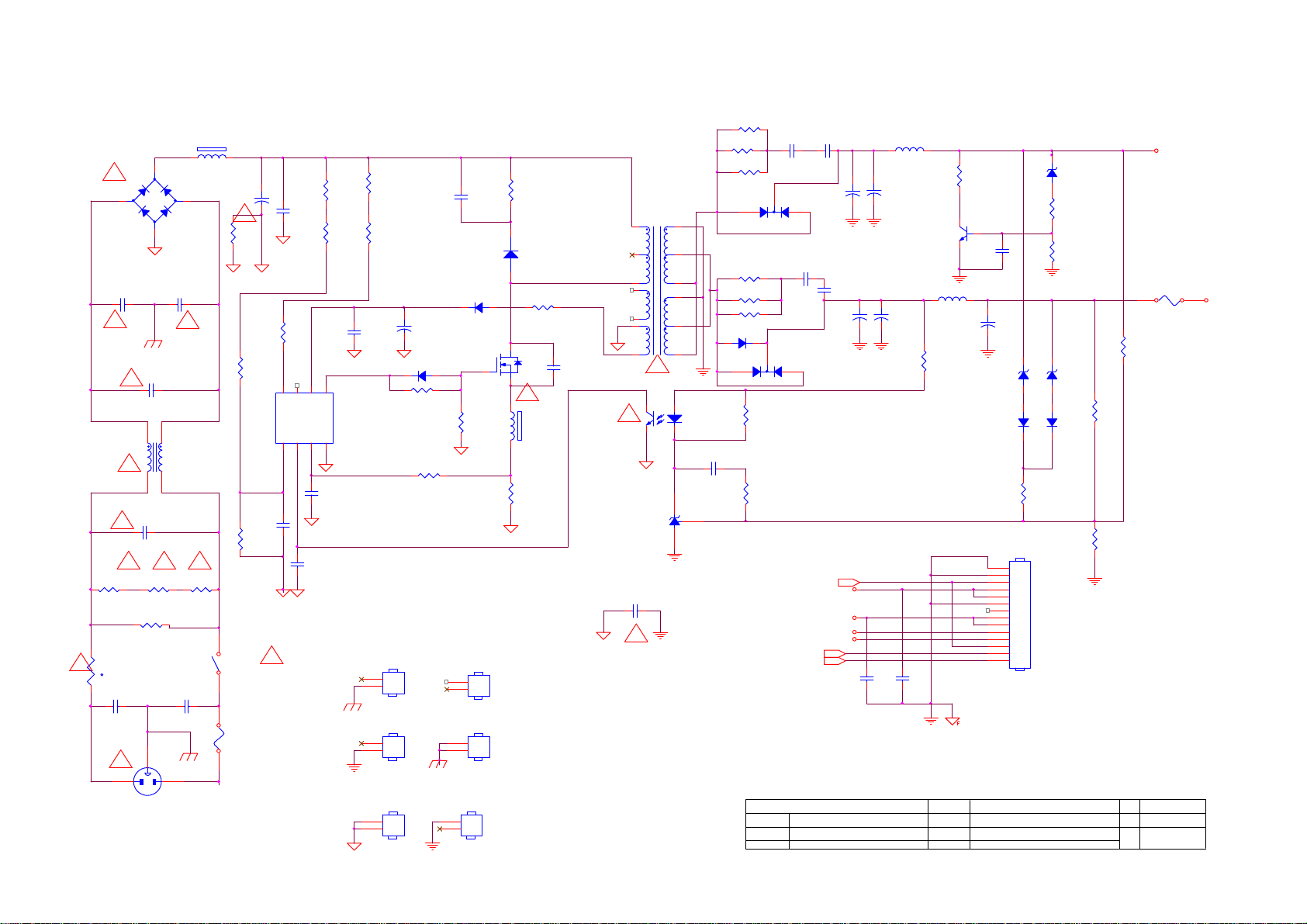

Po

wer board---715G3350-1-2

R918

R919

C912

C911

0.0022uF

2

3

C929

0.0022uF

2

SP1060

3

G3350-2B-2-X-12-091028

01.COVER

0.0022uF

680uF/25V

D905

USB_CTRL

VOL
MUTE

C917

C931

0.0022uF

1000uF/16V

+14V

DIM

ON/OFF

R920

D906

1

YG868C 15R

R935

100 OHM 1/4W

R961

100 OHM 1/4W
R962

100 OHM 1/4W
D907

NC

1

R925

4.7K 1/8W

C924

0.1uF
R926

1K +-1% 1/8W

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

C939

+5V

C916

0.1uF

+

+

+

150R 1/8W 5%

L904

1.1uH

C918
680uF/25V

+

C940

1000uF/16V

R924

C930

0.1uF

R941
470 OHM 2W

Q903
PMBS3904

C932

0.001uF

L903

1.1uH

TPV MODEL
PCB NAME

Sheet

+

C915

470UF M 16V

ZD921

NC

D915

NC

R942

1K +-1% 1/8W

CN902

14
13
12
11
10

9
8
7
6
5
4
3
2
1

HARNESS

ACER 22'' W 2 Lam pOEM MOD E L Size

PWPC9C21EQNN C
715G3350-2B-2

of

14Monday, F ebruar y 01, 2 010

1 2

ZD902

MTZJ T-72 18B

1 2

R943
470OHM 1/8W

R939
1K OHM

ZD922

GDZJ5.1B

1 2

D916
1N4148

R940

NC(56K)

R927
10K 1% 1/8W

R930

9.1K +-1% 1/8W

Rev

称爹

+14V

F903

FUSE 5A 250V

A3

称爹

<

+5V

>

T901

080GL17T 39N1P

4

5

6
4

6
1

3

!

43

!

C921

0.0047UF/400V

!

42

100 OHM 1/4W

100 OHM 1/4W

100 OHM 1/4W

9

7

11
10

8

12

12

IC903
PC123X2YFZOF

IC904
KIA431A-AT/P

FB902

1 2

1

+

-

4

C904

!

KBP208G

4

3

680pF

12

2

BD901

C901

0.001uF/250V

!

L901
30mH

!

R903

1M 1/4W

C914

BEAD

220KOHM

NC

100uF/450V

R954

SW901

1 2

F901

2.5A 250V

C905

+

!

R9
0 O44HM +-5% 1/8W

R953

6.8MOHM 1% 1/4W

8

IC901

FAN6752MY

123

C941
1UF K 25V X7R

!

C938

1500pF/1KV

R907
100KOHM 1/4W

6

7

HV

NC

VCC

RT

COMPCSGND OUT

C909
100pF

C928
1NF J 50V X7R

R951

6.8MOHM 1% 1/4W

R952

6.8MOHM 1% 1/4W

C907

1UF K 50V

4 5

Q90G6263 3(Q901)

R905
0R05 1/4W

1.5NF / 2KV Y 5P +-10%

R906

100KOHM 1/4W

+

D903

R910

10R 1/4W

820 OHM 1/4W

GND1
NC

1
2

HS801

Q90G6274 2(D906)

1
2

HS3

1
2

C906

C908
22uF/50V

1N4148

R938

10K 1/8W

R912

Q90G6241 1 GP(D905)

1
2

D901

PS102R

1

0.33 OHM +-5%

HS601
Q90G6258 2(U601)

1
2

HS903
Q85G0002 1

1
2

HS4

R914

1 2

2

3
12

R908
100K 2W

D900

FR107

!

R909

5.1 OHM 1/4W

Q901FMA09N65GX

FB901
BEAD

C910
100 PF

!

C902

0.001uF/250V

R901

1M 1/4W

12

t

680pF

!

!

NR901
10/5A

!

3

!

!

!

!

C913

NC

1

2

C903

0.33UF +-10%

R902

1 M 1/4W

NC
VAR901

3

CN901
SOCKET

Service Guide Acer V193W

verter part

In

CN801

C842

1uF/25V

2

1

C843
1uF/25V

2

1

1
2

CONN

CN802

1
2

CONN

ON/OF F

+14V

R857

33R 1/8W 5%

Q808

C806

0.0033uF/16V

PDTA144WK

R808

10K+-1% 1/8W

2.9

V

R811
2K7 1/8W 1%

R813

10K+-1% 1/8W

Q810
RK7002

D809

1N4148

Q805

PDTC144WK

C807

0.1uF

DIM

R827
1K 1/8W 5%

Q806
PMBS3904

D817

1N4148

R802

75K 1/8W 1%

R851

9K1 1/8W 1%

3.6K 1/8W

PMBS3904

Q804

PMBS3906

R819

Q801

1

PMBS3904

PMBS3906

23

Q811

Q812

1

470UF +-20% 25V

R823

3.6K 1/8W

R839

33R 1/8W 5%

R850

33R 1/8W 5%

23

C802

68K 1/8W 5%

R841

68K 1/8W 5%

R829

33R 1/8W 5%

R825

33R 1/8W 5%

C824

0.1uF

+

R853

Q802

4 5

G2 D2

3

S2

D2

2

G1

D1

1

S1

D1

APM9948K

D811
NC

D810

NC

6

C838
1500PF50V

7
8

R856
15 OHM 1/4W

R855
15 OHM 1/4W

C839
1500PF50V

2
4

3
5
6

T801

81

080GL24T 21 DN

7

C801
18pF/6KV

C808
18pF/6KV

1

2

D805

B

E

C

3

BAW56

R817
10K 1/8W 5%

C819
2200pF50V

1.5K +-1% 1/8W

R828
10K 1/8W 5%

C823
2200pF50V

1.5K 1% 1/8W

R814

R801

R821
1K 1/8W 5%

3

D801

BAV99

R822
1K 1/8W 5%

3

D802

BAV99

47K 1/8W 5%

R820

C822
1uF/25V

D812

LL4148WP

R833
10K +-1% 1/8W

R832
10K +-1% 1/8W

C821
33NF50V

R831

2.4K +-1% 1/8W

C820
220pF

510K 1/8W

R810
47K +-1% 1/8W

R861

Q807
PMBS3904

TL494IDR

IC801

1

1IN+
1IN­FEEDBACK
DTC

OUTPUT CTRL
CT
RT
GND
C1 E1

R854
68K 1/8W 5%

2IN+

2IN­REF

VCC

C2
E2

2
3
4
5
6
7
8 9

16
15
14
13
12
11
10

1K 1/8W

R826

R824
1K 1/8W

R806
68K 1/8W

2

V

R807
47K 1/8W

43

C825

0.1uF

D814

1N4148

Open Lamp:5

C845

2.2uF/25V

R818
1K 1/8W 5%

V

0.1

V

Q809
RK7002

R803
1M 1/8W 5%

R862
1M 1/8W 5%

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

Q813
PMBS3904

4.3

V

Open Lamp:0.56V

C834

R835

0.01uF

NC

G3350-2B-2-X-12-091028

01.COVER

R837

47K 1/8W 5%

2.5V~4.5V
Open Lamp:1

V

ACER 22'' W 2 Lam pOEM MODEL Size

TPV MOD E L

PWPC9C21EQNN C
715G3350-2B-2

PCB NAME

14Wednesday , April 21, 2010

of

Sheet

Custom

Rev

<

称爹

>

称爹

Service Guide Acer V193W

Ke

y board--- 715G2944-3

CN001

1
2
3
4
5
6

CONN

LBADC1

LBADC2

LBADC1
LBADC2
POWER_Key LED_RED#
LED_BLUE#
LED_RED#

C001
NC

MENU
VOL­VOL+
AUTO
ECOLOR

(GND)

1.1 V
0 V(GND)

1.1 V

0.65 V
0 V

LED_BLUE#

C002
NC

C003
NC

ZD001 UDZSNP5.6B

4
3

ZD002 UDZSNP5.6B

C004
NC

LED001

12

LED

2
1

12

C005
NC

SW001

JB41-03521

add ZD001 and ZD002 for ESD solu tion

R001 2K OHM 1/16W

R002 2K OHM 1/16W

R003

1K 1/16W 5%

C008NC

ECOLOR

1

C006NC

AUTO

3

MENU

C007NC

VOL-

5

7

VOL+

9

POWER_Key

11

CN001

CONNECTOR

ECOLOR

AUTO

MENU

VOL- POWER

VOL+

LED

T P V ( Top Victory Electronics Co . , Ltd. )

絬 隔 瓜 絪 腹

Key Component

Date

G2944-E-X-X-1-080218

02.KEY

44

2

4

OE M MO DEL Si ze
TPV MODEL

PCB NAME

Sheet

6

acer B and V k ey pad
acer E
715G2944-E

of

22Wednesday , Sept em ber 10, 2008

8

10

Rev

称爹

<

A4

称爹

12

>

Service Guide Acer V193W

PCB Layout Chapter 8

Main Board Layout

45

Service Guide Acer V193W

46

Service Guide Acer V193W

Power board Layout

47

Service Guide Acer V193W

48

Service Guide Acer V193W

Key board Layout

49
