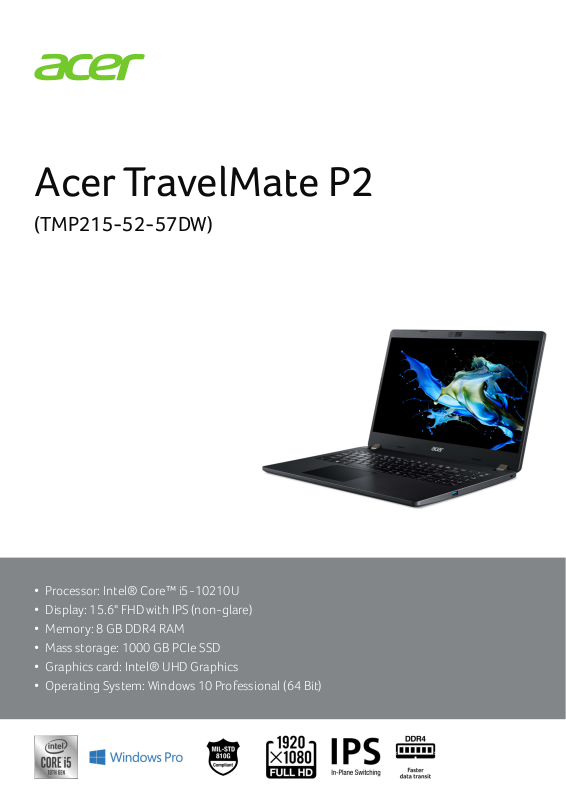

Acer TMP215-52-57DW User Manual

Acer TravelMate P2

(TMP215-52-57DW)

• Processor: Intel® Core™ i5-10210U

• Display: 15.6" FHD with IPS (non-glare)

• Memory: 8 GB DDR4 RAM

• Mass storage: 1000 GB PCIe SSD

• Graphics card: Intel® UHD Graphics

• Operating System: Windows 10 Professional (64 Bit)

Acer TMP215-52-57DW SPECIFICATIONS

Ordering Informations

Series Acer T ravelMate P2
Model name TMP215-52-57DW
Part number NX. VLLEG.00F
EAN 4710180863963
Short description 15.6" FHD with IPS (non-glare) / Intel®

Core™ i5-10210U / 8 GB DDR4 RAM /
1000 GB PCIe SSD / Intel® UHD Graphics /
Win 10 Pro (64 Bit) / Black

Operating System

Operating System Windows 10 Professional (64 Bit)

Housing

Housing / Color Black
Component door ­Dimensions 363 x 255 x 19.9 mm (W x D x H)
Weight 1.8 kg
Passively cooled (fanless) -

Display

Display size 15.6 inches (39.62 cm)
Display type Acer ComfyView™ Full-HD IPS Display with

LED-Backlight (non-glare)
Display resolution in pixel 1920 x 1080
Aspect ratio 16:9

Processor and chipset

Processor Intel® Core™ i5-10210U Pr ocessor
Clock frequency 1.60 GHz (Up to 4.20 GHz T urbo-Boost)
Cache 6 MB
Processing cor es / threads 4 / 8
Chipset Integrated SOC

Storage and drives

Memory 8 GB DDR4 RAM
Memory configuration 1x 8 GB DDR4 RAM
Maximum RAM 32 GB DDR4 (2x 16 GB DDR4)
Mass storage 1000 GB PCIe Solid-State-Drive (SSD)
Optical drive -

Graphics card

Graphics card Intel® UHD Graphics

Connections

LAN 10/100/1000 LAN. Wake-on-LAN ready
Wireless LAN Intel® Dual Band Wireless-Gigabit-AX,

802.11 ax/ac/ a/b/g/n
Wireless W AN / SIM-Card - / ­Wireless Gigabit ­Bluetooth Bluetooth® 5.0
NFC ­WoL (W ake on LAN) Y es

IO ports

HDMI 1x (HDCP)
VGA 1x
Displayport Yes (via USB T ype-C port)
Thunderbolt ­USB 3.1 1x (T ype-C Gen. 1)
USB 3.0 3x (1x supports power-off USB charging)
USB 2.0 ­Ethernet (RJ-45) 1x
Cardreader SD cardreader
Audio port 1x headphone/speaker jack
Docking port Y es (Acer USB- Type-C-Dock c ompatible)

Input

Keyboard Acer FineTip k eyboard with numpad

(103-/104-/107-keys)
Keyboard layout German (QWER TZ)
Backlit keyboard Y es
T ouchpad Multi-Gesture T ouchpad (Microsoft

Precision T ouchpad Certification)

Acer TMP215-52-57DW - NX.VLLEG.00F - 2020.02.14 - 10:48 Page 2 of 3
