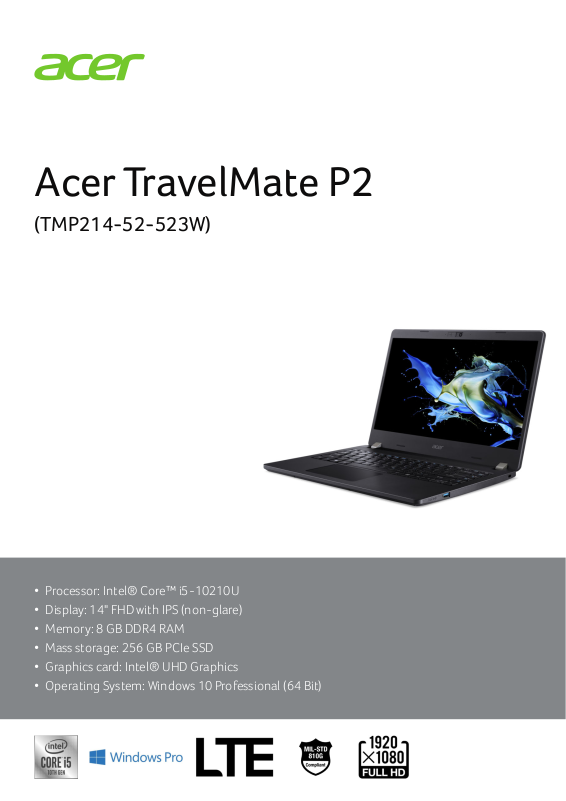

Acer TMP214-52-523W User Manual

Acer TravelMate P2

(TMP214-52-523W)

• Processor: Intel® Core™ i5-10210U

• Display: 14" FHD with IPS (non-glare)

• Memory: 8 GB DDR4 RAM

• Mass storage: 256 GB PCIe SSD

• Graphics card: Intel® UHD Graphics

• Operating System: Windows 10 Professional (64 Bit)

Acer TMP214-52-523W SPECIFICATIONS

Ordering Informations

Series Acer T ravelMate P2
Model name TMP214-52-523W
Part number NX. VMKEG.001
EAN 4710180773583
Short description 14" FHD with IPS (non-glare) / Intel®

Core™ i5-10210U / 8 GB DDR4 RAM / 256
GB PCIe SSD / Intel® UHD Graphics / Win
10 Pro (64 Bit) / Black

Operating System

Operating System Windows 10 Professional (64 Bit)

Housing

Housing / Color Black
Component door ­Dimensions 328 x 235.9 x 19.9 mm (W x D x H)
Weight 1.625 kg
Passively cooled (fanless) -

Display

Display size 14 inches (35.56 cm)
Display type Acer ComfyView™ Full HD IPS Display with

LED-Backlight (non-glare)
Display resolution in pixel 1920 x 1080
Aspect ratio 16:9

Processor and chipset

Processor Intel® Core™ i5-10210U Pr ocessor
Clock frequency 1.60 GHz (Up to 4.20 GHz T urbo-Boost)
Cache 6 MB
Processing cor es / threads 4 / 8
Chipset Integrated SOC

Storage and drives

Memory 8 GB DDR4 RAM
Memory configuration 1x 8 GB DDR4 RAM
Maximum RAM 32 GB DDR4 (2x 16 GB DDR4)
Mass storage 256 GB M.2 PCIe Solid-State-Drive (SSD)
Optical drive -

Graphics card

Graphics card Intel® UHD Graphics

Connections

LAN 10/100/1000 LAN. Wake-on-LAN ready
Wireless LAN Intel® Dual Band Wireless-Gigabit-AX,

802.11 ax/ac/ a/b/g/n
Wireless W AN / SIM-Card L TE / Nano SIM Slot
Wireless Gigabit ­Bluetooth Bluetooth® 5.0
NFC ­WoL (W ake on LAN) Y es

IO ports

HDMI 1x (HDCP)
VGA 1x
Displayport Yes (via USB T ype-C port)
Thunderbolt ­USB 3.1 ­USB 3.1 1x (T ype-C Gen. 1)
USB 3.0 3x (1x supports power-off USB charging)
USB 2.0 ­Ethernet (RJ-45) 1x
Cardreader SD cardreader
Audio port 1x headphone/speaker jack
Docking port Y es (Acer USB- Type-C-Dock c ompatible)

Input

Keyboard Acer FineTip k eyboard (87-/88-/91-keys)
Keyboard layout German (QWER TZ)
Backlit keyboard Y es
T ouchpad Multi-Gesture T ouchpad (Microsoft

Precision T ouchpad Certification)

Acer TMP214-52-523W - NX. VMKEG.001 - 2020.04.06 - 13:55 Page 2 of 3
