Acer TM6000, TM 8000 SERVICE GUIDE

Acer TravelMate 6000/TravelMate 8000 Series

Service Guide

Service guide files and updates are available

on the ACER/CSD web; for more information,

please refer to http://csd.acer.com.tw

Project Code: T41 for TravelMate 6000

Project Code: T42 for TravelMate 8000
PRINTED IN TAIWAN

Revision History

Please refer to the table below for the updates made on TravelMate6000/TravelMate 8000 service guide.

Date Chapter Updates

II

Copyright

Copyright © 2004 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced,
transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in
any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without
the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice.

Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the
contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular
purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the
programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its
dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential
damages resulting from any defect in the software.

Acer is a registered trademark of Acer Corporation.
Intel is a registered trademark of Intel Corporation.
Pentium and Pentium II/III are trademarks of Intel Corporation.
Other brand and product names are trademarks and/or registered trademarks of their respective holders.

III

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES Denotes actual messages that appear

on screen.

NOTE Gives bits and pieces of additional

information related to the current
topic.

WARNING Alerts you to any damage that might

result from doing or not doing specific
actions.

CAUTION Gives precautionary measures to

avoid possible hardware or software
problems.

IMPORTANT Reminds you to do specific actions

relevant to the accomplishment of
procedures.

IV

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION
decided for Acer's "global" product offering. To better fit local market requirements and enhance product
competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g.
add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered
in this generic service guide. In such cases, please contact your regional offices or the responsible
personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information
available on your regional web or channel. If, for whatever reason, a part number change is made, it will
not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer
office may have a DIFFERENT part number code to those given in the FRU list of this printed Service
Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and
service of customer machines.

V

VI

Table of Contents

Chapter 1 System Specifications 1

Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1

System Block Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Board Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Outlook View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Front Open View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Left Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8

Right Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Bottom Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

Lock Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

Embedded Numeric Keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

Windows Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Hot Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

The Euro Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

Launch Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .19

Touchpad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Touchpad Basics . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

Hardware Specifications and Configurations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Chapter 2 System Utilities 31

BIOS Setup Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .31

Navigating the BIOS Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Main . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Advanced . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

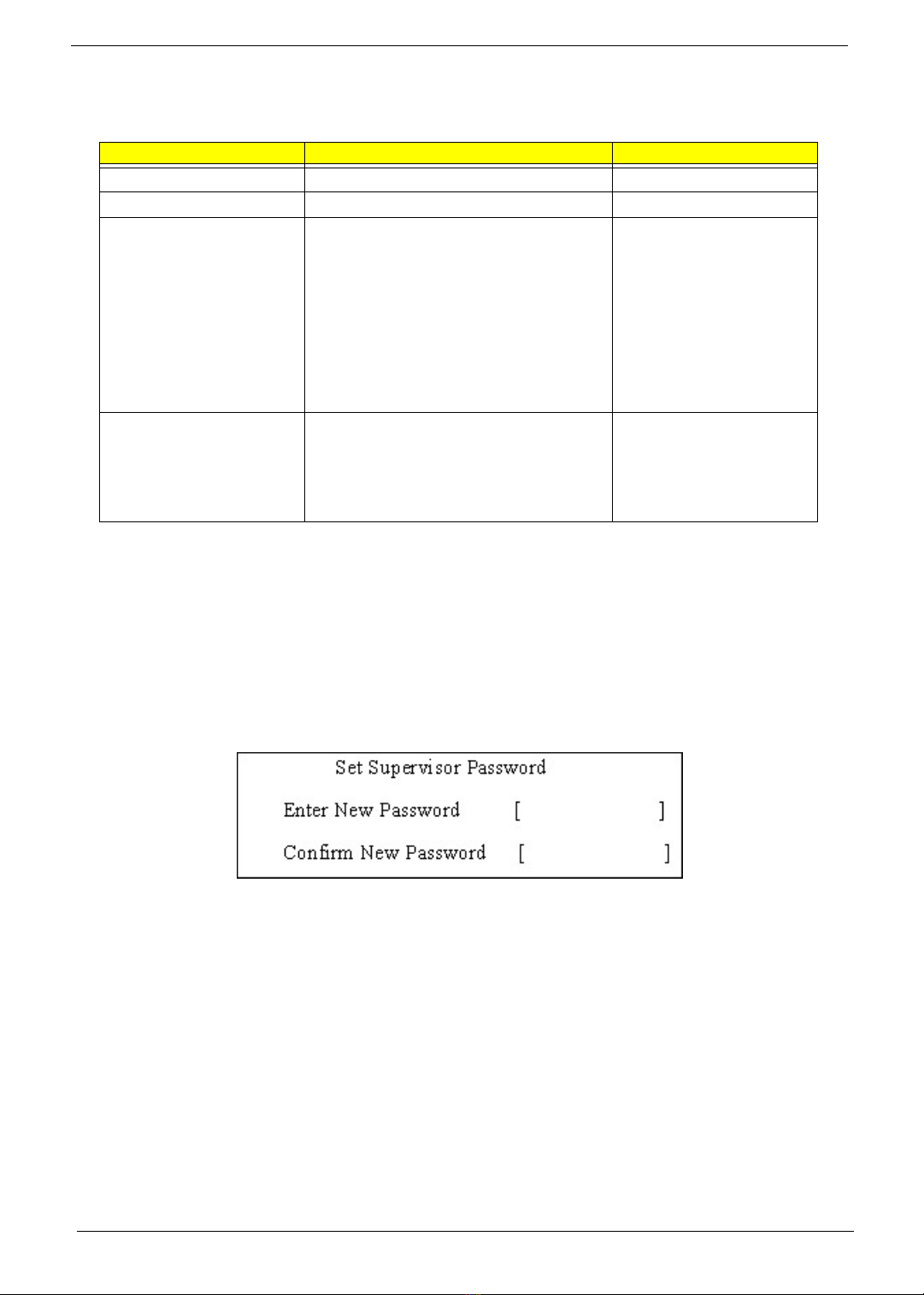

Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Boot . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Exit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42

BIOS Flash Utility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

Chapter 3 Machine Disassembly and Replacement 45

General Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Before You Begin . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Disassembly Procedure Flowchart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

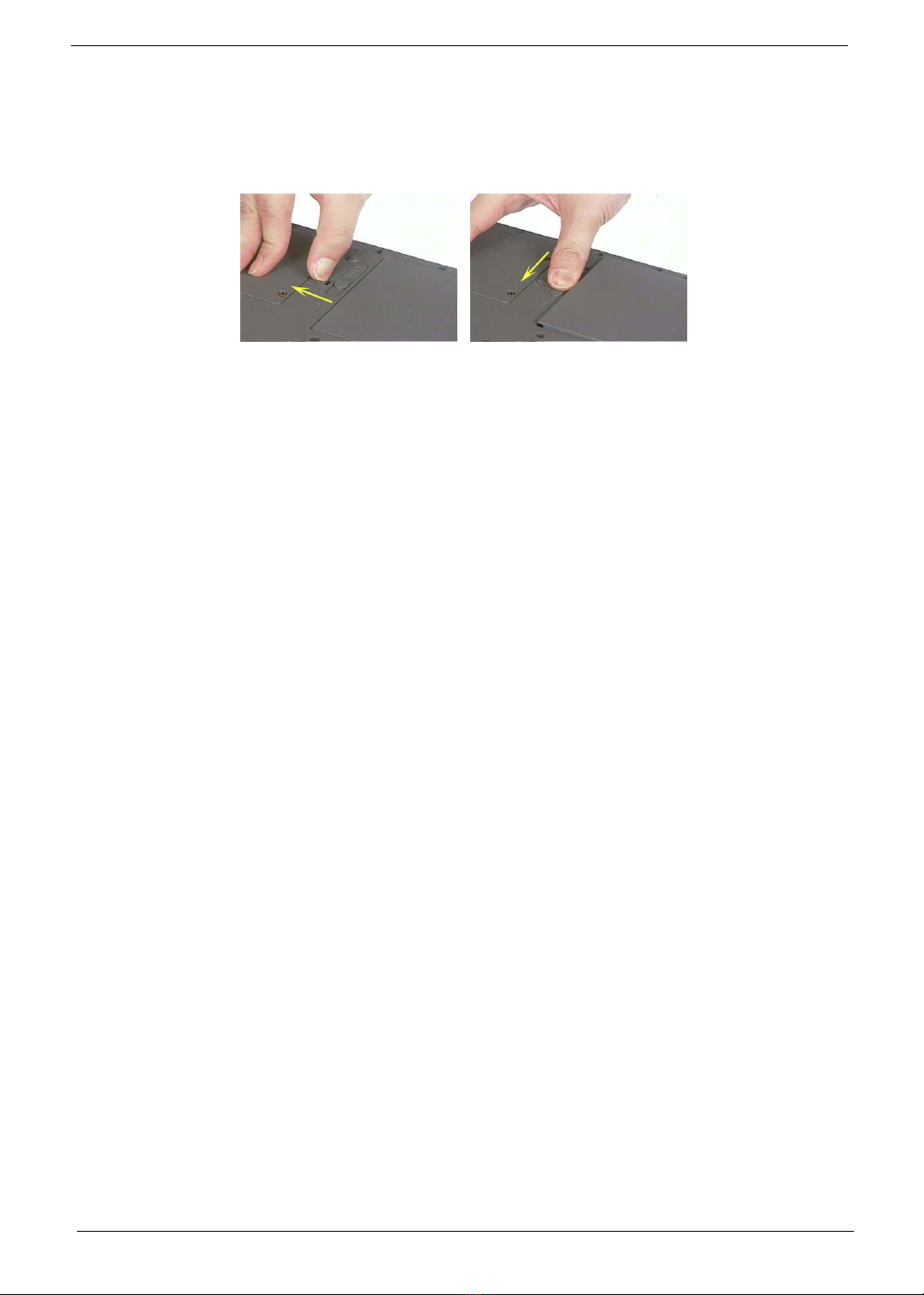

Removing the Battery Pack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50

Removing the Optical Module/HDD Module/Wireless Lan Card and LCD module . .51

Removing the Optical Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Removing the HDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Removing the Wireless LAN Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51

Removing the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .52

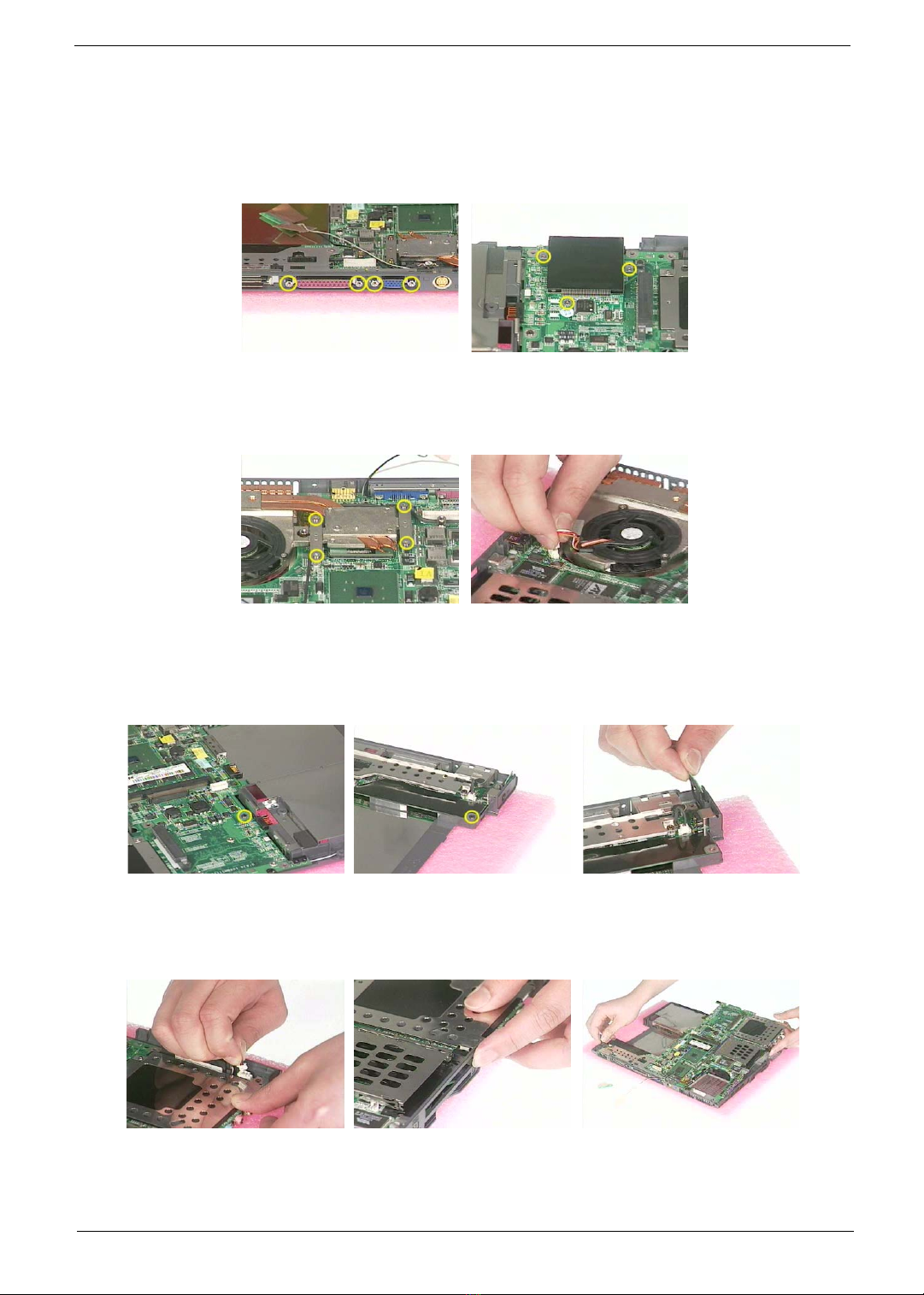

Disassembling the Main Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .53

Remove the function key board and the keyboard . . . . . . . . . . . . . . . . . . . . . . .53

Separate the main unit into the logic upper and the logic lower assembly . . . . .53

Disassembling the logic upper assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .54

Disassembling the logic lower assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55

Disassembling the LCD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .57

Disassembling the External Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

VII

Table of Contents

Disassembling the HDD Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Disassembling the Optical Drive Module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .59

Chapter 4 Troubleshooting 61

System Check Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

External Diskette Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

External CD-ROM Drive Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Keyboard or Auxiliary Input Device Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Memory check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62

Power System Check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .63

Touchpad check . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .64

Power-On Self-Test (POST) Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .65

Index of Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66

Phoenix BIOS Beep Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .68

Index of Symptom-to-FRU Error Message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .72

Intermittent Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

Undetermined Problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77

Chapter 5 Jumper and Connector Locations 79

Top View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79

Bottom View . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Clear BIOS Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81

Chapter 6 FRU (Field Replaceable Unit) List 83

Exploded Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84

TravelMate 6000 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .100

TravelMate 8000 Series . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .101

Appendix A Model Definition and Configuration 100

Appendix B Test Compatible Components 103

Microsoft® Windows® XP Pro Environment Test . . . . . . . . . . . . . . . . . . . . . . . . . . .104

Appendix C Online Support Information 109

Index 110

VIII

System Specifications

Features

This computer was designed with the user in mind. Here are just a few of its many features:

Performance

T Intel

T Intel

T Memory expandable up to 2GB with 2 slots

T Internal removable optical drive (AcerMedia bay)

T High-capacity, Enhanced-IDE hard disk

T Li-Ion main battery pack

T Power management system with ACPI (Advanced Configuration Power Interface)

T Smart Card interface with pre-boot authentication system for added security

Display

T Thin-Film Transistor (TFT) liquid-crystal display (LCD) displaying 32-bit high colour up to

T 3D graphics engine

T TravelMate 8000 series employs ATI Mobility RADEON

T Simultaneous display on LCD and CRT

T S-video for output to a television or display device that supports S-video input

T “Automatic LCD dim” feature that automatically decides the best settings for your display and

T Dual indenpendent display

®

Pentium® M processor at 1.4~1.7GHz with 1MB L2 Cache or 1.5~2.0GHz with 2MB L2

Cache

®

855GME chipset

1024X768 eXtended Graphics Array (XGA) resolution for 14.1” and 1400X1050 Super eXtended
Graphics Array+ (SXGA+) resolution for 15.0” (specification varies depending on the model)

TM

9700 chipset with VGA RAM of 64MB/

128MB (manufacturing option) delivering ground breaking 3D graphics performance

conserves pwer

Chapter 1

Multimedia

T 16-bit high-fidelity AC’97 stereo audio with 3D sound and wavetable synthesizer

T Built-in dual speakers

T Built-in microphone

T High-speed optical drive (AcerMedia bay)

Connectivity

T High-speed fax/data modem port

T Ethernet/Fast Ethernet port

T Fast infrared wireless communication

T Four (4) USB 2.0 (Universal Serial Bus) ports

T IEEE 1394 port

T Invilink 802.11a/b combo or 802.11g or 802.11a/g wireless LAN (manufacturing optional)

T Bluetooth ready (manufacturing optional)

Chapter 1 1

T SD/MMC/SM/MS memory slot (manufacturing optional)

Keyboard and Pointing Device

T 84-/85-/86-key Windows keyboard

T Internet 4-way scroll button

T Sleek, smooth and stylish design

T Acer FinTouch full-sized curved keyboard

T Ergonomically-centered touchpad pointing device

Expansion

T One type II CardBus PC Card slot

T Upgradeable memory

I/O Ports

T One Card bus type II slot

T One RJ-11 phone jack (V.90/92)

T One RJ-45 jack for LAN (Ethernet 10/100/1000)

T One DC-in jack for AC adapter

T One VGA port for external monitor

T One DVI-digital port

T One speaker/headphone/line-out jack (3.5mm mini jack)

T One audio line-in jack (3.5mm mini jack)

T One microphone/line-in jack

T One IEEE 1394 port

T One S-video TV-out port

T One 100-pin port replicator

T Four USB 2.0 ports (Disable middle port when docked with SPR)

T One FIR (IrDA) port

T One smart slot

T 4-in-1 Card Reader

T EasyPort III support

2 Chapter 1

System Block Diagram

C

IDSEL

X

22

23

REQ#/GNT#

20

X

3

2

1

8

PIRQ#XC, (B)BE, FDX

7

VGA

CARDBUS

IEEE 1394

MINI-PCI

6

@:ZI66 Internal Gra.

#:ZI68 External Gra.

5

4

18

0

LAN

CLOCKS

X

X

USB 2.0

PG 30

Por t Rep lic ator

PS2 X2

1S1P

LINE-IN

LINE-OUT

MICROPHONE-IN

USB 1.1 X2

CRT

S-VIDEO

LAN

IEEE-1394

PG 20

PG 20

TSB43AB21

1394 CONN.

of

143Monday, January 12, 2004

8

Acer Inc.

TravelMate6000/8000

PG 18

PG 18

R

CARD BUS

OZ711EC1

SCR SLOT

MINI-PCI

LAN

AC LINK

PG 21

SOCKET

PG 22

BCM5705M

MD C

USB 1.1

CARDBUS SL OT

PG 21

CALE XICO

PG 16

RJ45

RJ11

PG 21

CONNECTOR

AC LINK

HEAD PHONE

Panel C onne ct or

DVI

CR T p or t

TV o ut

R

R.G,B

R

R.G,B

R

LVDS

PG 12

Vid eo

Control le r

+1.5V

+2.5V

LVDS

ATI M11CSP64

+1.8V

VGA_CORE(+1.2V)

AGP 1.5V, 66MHz

DVI

R

Chrontel 70 09

TV EN-CON DE

TV o ut

DVOB

33MHZ, 3.3V PCI

Schematic Block Diagram1

7

Date: Sheet

Title

Size Document Number Rev

6

LINE IN

EXT. /INT.

MIC

PG 24, 25

TPA0312

AUDI O

AM P

PG 25

5

PG 24

CODEC

AUDIO

4

FAN 1,2

4X100MHZ

3

PG 3,4

(Micro-FCPGA)

Banias/D othan

Montara-G M+

CENTRINO

PG 5,6,7

732 Micro-FCBGA

421 BGA

ICH4-M

PG 8,9

PC 87 59 1

66(266)MHZ, 1.8V

HUB I/F

3

PG 29

Touchpa d

2

PG 37

266/200 MHZ DDR

ATA 66/100

USB 2.0

PG 33

PG 36

3.3V LPC, 33MHz

2

PG 26 PG 27 PG 29

ParallelFIR Keyboard FLASH

PG 26

PG 17

SIO PC8 73 91

BATT SELECT OR

CONNECTOR

AC/BATT

CPU CORE

BATT CHARGER

100 Pins TQFP 176 Pins LQFP

PG 26 PG 19

PG 17

1

PG 31

PG 32

PG 34

PG 10

PG 10

MAX1632

2.5VDDR

1.25VDD R

DC/DC

System Power

1.5V/1.8V

A A

DDR-SODI MM1

DDR-SODI MM2

B B

PG 11

HDD

DDR-Te rmiation

Primary IDE

Secon dary IDE - S wap Bay

4-IN-1 SLOT

(Opt ica l Dr ive, 2ND HDD )

C C

PG 28

PG 19

USB connec*4

PG 19

LED/B

Connector

D D

1

Chapter 1 3

Board Layout

Top View

2 3 4 5 6 7

22 23 2425 26

M28

D46:

3

4

68

E2:

E31

J

P

J

PH

H

M27

D481

D483

XVWSUOQNMLKHIFGDEBC

U6:U69

ZBBBCBDBEBFBG

VWX

OQ

N

SU

D

D

D

D

D

R45

R44

D457

D449

D469

D468

S479

SO9

SO8

S478

D466

D456

D458

D473

D474D459

52

2

DO23

S472
S473

DO22
S474
S475

QD22

QS8

QS9

QD211

QD23

H

QS274

QS:

P

J

QR78

D275

D276

S223

S244

D242

D267

D248

D262

S376

S366

S385

D342

S35:

S311

S321

S329

S341

S386

D336

D354

D362

S32:

S377

S349

S2:1
S2:2
S2:3
S2:4

S342

D344

S318

S359

D333

D369

S375

S365

S2:5

NNNNN

S26:

S276

D268

D323

D315

S298

S282

S291

S25:

S254

S247

S24:

S328

S292

S2:9

D278

S319

S297

S277

S283

S271

S261

EB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;E

7

DO25

345

9

8

E32

S488 S492

E59

J

S494

S484

D:53

PH

P

J

J

J

H

H

S482

R4:R48

I38

V29

BET2

2
3

S499

4

QD28

5
6
7
8

9
C

C

C

C

C

:

21

22

23

24
25
26
27
28
29

QD31

2:

I39

31
32
33

34

35

36

37

U71

B

U72

CDEF

GH

K

LM

I

U76

U75

S485

V31

S486

D485

D519

D516

BK

BI

BH

QD35

BG

BF

BE

BD

BC

BB

Z

X

W
V
U
S
Q
O

N

M
L

K

I
H

G

F

E
D
C
B

D514

V2:

23456789:2122232425262728292:3132333435363738393:

SO:

D4:9

D511

S491

D4:4

D4:5

S493

D4:2

D482

D499

D495

D472

D4::

D4:3

D4:6

S481

D496

D49:

D486

D4:7

S48:

D497

D487

S487

D4:1

D498

D4:8

S497

P

J

H

P

36

J

H

R47

QR7

H

P

QR5

5

J

QR4

QR38

QM2

QM3

QS23

QS21

QS22

QD::

QS24

QS:7

QD25

QR41

P

QR3:

P

QV6

J

H

J
H

S327

QD26

D327

S353

S373

S278

S293

S312

D311

D279

D286

D361

D353

D294

D2:5

S344

S383

G

G

G

G

G

H

H

H

H

H

H

D383

D379

R41

S423S424

R42

D391 D38:

S3:6S3:7

S396

I

I

I

I

I

M22

D392

S397

D39:

I56

5

3

2

N

QQQQQQ

E2

4

3

2

D48

D59

D9:4

E3

3

2

1

S798

S7:1

S869

S49

D5:

G

F

E

M

D65

S831

S799

S829

D64

S79:

L

K

J

O

N

E

T

S38:

S3:3

S384

S371

S362

S348

S357

S33:

DQBE5

DQBE3

DQBE2

DQBE4

57

I31

DO21

I:

DO2

21

:

22

23

24

D32

D33

S28

S33

DO3

D34

D35

S29

S34

DO4

D37

D38

S37

S31

V2

S43

D42

D49

S53

DO5

4

S3:

DO9

S41

2

D26

S231

D225

Z2

D27

S242

D226

S213

S219

S215

S226

4

S245

S248

5

M79

M7:

Z4

I2

2

3

76213

75

214

DO6

4:

239

S:2

S95

S:3

S96

D217

D21:

S88

S93

D5

D7

D8

D21
S21
S22
S23
S24

I7

Y2

QBE58

S894

D:43

D:6:

S878
D:44
D:45

D:56

S827

S825

D:48

S879

D:47
D:46

S881

D:49

D39

S87:

D:51
D:4:

49

E

E

E

E

E

E

V5

E

E

E

E

E

S:5

S8

S42

D23

D28

S4:

S51

D55

S38

S35

2

2

5

5

QS3
QS2

V3

S3

4

S2

SQ2

D4

D22

S:

D9

D:

S6

S7

D6

D579

M2

D25

E61

S8:1

D2

S26

I8

D:9

S25

QD2

QD3

QS4

3

3

4

S27

QD5

D54

S9

S4

QR2

QV2

S54

QD4

D66

S39

D81

D223

D45

D58

D227
D237

S9:

S32

D94

V:

:7

76

:8

75

2

S97

D95

B
C
D

D211

E
F

D96

G

H

D212

I

K
L

D97

M

S98

N
O

S87

239

D213

44

43

V4

D98

S99

D36

D6:

D56

D86

S47

J

J

J

J

J

D99

S48

D57

S36

M3

D263

S5

D215

D264

D29

D9:

V8

J

Z3

D2:

H

D41

P

S72
S74

S71

S81

R:

D92

S82
D83

D77

D:7

D222

D236

S44

D644

M4

S45

D93

D53

S46

S:6

D82

D221

S:7

S:1

D31

D234

D235

D::

D:2

S553

D79

D24

D63

D52

S2:

D8:

S771

L

L

L

L

L

L

D51

D7:

R25

D75

D3:

S895

S:8

D:3

D43

D76

S:9

D44

D:59

D4:

D78

S::

D:4

S896

D85

D46

D218

J

D229

S59

R93

D:1

D:8

S:4

H

+++++

S5:

D47

P

S773

S813

M5

V6

R94

S899

S65

D61

D22:

S828

E5:

D216

S826

S66

M

M

M

M

M

D71

QQQQQQ

R8

+++++

S891

S75

R4

S63

S893

D:58

D233

S898

V7

S55

QBE5:

S94

S871

S874

D67

R5

D:54

D3

R21

D68

D:64

D89

S56

S57

E3

S92

R6

E5

S83

D72

P

R9

J

D:57

E4

H

R22

R7

S872

S873

S823

D69

S61

R2R3

S91

S81:

D62

S821

D:12

E2

S67

S78

S68
S69

S79
D87

D73
D74

D88

QBE2

DO7

9

D282

D297

S253

3635343332

38

37

413:39

D243

D261

:

987

654

3

23

22

21

24

S229

D26:

S224

P

H

J

E8

D271

S255

S256

D272

S228

S251

D239

D246

D259

S792

D258

D247

S252

D274

D249

D25:

D23:

S232

S233

S235

S236

S237

U6
S238

S239

S23:

S241

D266

SQ3

2

21

D251

SQ4

2

U26

U5

21

D255

21

2

D231

SQ6

SQ5

D232

D256
D257

JPH

S222

R26

E6

E7

S889

D:55

S88:

D9::

R:7

E9

S888

S227

D245

D273

S21:

U3

QBE5

D:11

D:13

2:292827262524232221:

31

D289

D292

R27

D27:

S257

S258

U:

D298
D299

D29:

D2:1

D2:2

U25

E21

E:

S262

S263

D288

S264

D284

D285

S3:9

S3:5

S3:4

BL
BK
BI
BH

BG
BF

S393

D381

BE

S394
S395

BD

D377

BC

D378

BB

Z
X
W
V
U
S

V22

Q
O
N
M
L
K
I

D398

H
G
F
E

F

F

F

F

F

F

D
C
B

98765432

G

G

G

G

G

G

D382

D338

D281

S267

D277

D269

S249

D283

H

H

H

H

H

S28:

D28:

I

I

I

I

I

I

V25

D291

M6

D319

M21

D293

M7

D399

S315

S268

Z5

D326

D387

D357

D367

S425

D345

D31:

S274

K

K

K

K

K

V23

D316

V24

P

J

R35

D384

H

S272

S279

S265

D328

R9:

S398

D356

S326

S36:

S37:

S76:

S221

S273

S266

L

L

L

L

L

S27:

V9

D252
D253
S217
S218
D254

V26

S216

D322

D314

D2::

D2:6

D295

D331

D346

D337

U57

U59

D358

U4:

D359

E47

D318

D33:

D317

S777

D347

S337

D312

D348

D2:8

S367

E4:

D2:7
D296

D349

U34

D34:

U39

U31

D397

U38

S338

D324

S421

U28

U46

U35

U42

R38

U33

U36

D373

U2:

D364

D352

D329

D368

D341

D335

D35:

NNNNNN

D332

D388

P

H

P

H

P

H

J

J

J

R33

R29

R31

S391

S381

S782

H

H

E22

E23

P

P

J

J

R2:

S374

E24

E25

S364

S851

R28

H2

D287

S333

S34:

J

R37

S287

S31:

H

E48

S351

R34

S331

P

S774

D32:
S332

D343

J

M9

S783

P

H

D371

S354

R32

S411

R36

S313

D365

S323

S281

S288

S299

S334

M8

S355

S345

S275

D389

QBE62

D447

M26

BG

BE BCBBZ

BF BD

QD:

D432

7

QV5

S455

4

5

QD9

S456

2

QS7

U63

D433

3
4

5

QBE7

6
7
8

M25

I32

9
:

M24

21
22
23
24

S476

S467

S46:

S477

D448

S469

D445

D484

S47:

D467

D471

25
D

D

D

D

D

D

26

SQ:

I28

27

28

S453

29

S454

2:

S442

31

D421

32
33

D422

U5:

34

35

U61

36

U62

D41:

37

D42:

S443
S444

S459
D427
S445

S45:

S446

S464
S447
S448
S449

6

I33

E

R43

D412

QB

SQ21

E28

E29

D414

DO52

2

4

S2:7

S296

S289

S3:1

S389

S358

S372

S343

S314

S382

S352

S363

S335

S324

U45

U48

U51

U49

U47

U52

D423

26

QV4

S44:

S451

QD7

I24

S452

D428

QD8

D424

I22

D429

D3:9

D411

QR75

QS268

D446

S458

S468

F

F

F

F

F

SO3

SO2

SO5

SO4

D374
S392

S466

S461

S463

D436

D375

M:

D376

D425

D434

D438

D43:

D437

D431

SO6

SO7

S471

DPO2

D3:1

D435

D426

D439

D441

D442

D44:

D451

D443

JPH

JPH

D3:2

D372

S39:

QS5

P

D9:7

51

3

DO24

4:

QD276

QD275

QR6:

QBE49

K

K

K

K

K

K

M23

R39

85

S325

S336

S346

S2:6

S379

S399

S3:8

S316

S388

S356

S369

S361

S412

S294

D321

S429

D313

D37:

D366

D385

D36:

D393

D339

D325

D351

D334

D363

D2:9

D355

S269

S225

S246

S259

S22:

S243

SQ7

D228

D238

D244

D24:

J

J

J

J

J

J

D214

D219

QD21

V28

D386

D3::

I2:

I34

QR3

D3:4

QS272

S42:

QS26:

E26

R91

P

QR74

D3:5

D3:6

S433

D418

DO:

S434

S431

D419

D3:3

S432

D394
S413
D395

D3:7

S414
S415
S416
S417

S435

D396

QR71

D3:8
S418
S419

S436

S438

S41:

S437

S439

S284

U245

S285

QS276

V27

S286
D2:3
D2:4

S43:

S422

S3:2

S426

S3::

S769

S441

S824

QD6

D415

D416

QS6

D417

QV3

S76

D:5

R23

S427

D91

D241

S428

S89

D84

R24

S84

H

55

R3:

S212 S211

S214

J

S7:

D:6

S86

H

E27

S8:

M

M

M

M

M

M

J

3

I54

D413

I23

TX2

2

45

I29

I35

QBE3

25 24

54

3

2

76

28

2726

D544

S522

M2:

M31

M32

M33

M34

S884

SQ22

DO27

514:3

I41

QM8

QM9

QS26

QS28

QS29 QS27

QS2:

QS25

QS31

QD48

QS37

QD277

QR76

QD46

QS269

QD3:

SO2:

SO31

S4:5

QS44
QD63

S857

QD64

S859
QS45
QD65
QD66
QS46

D531

S4:9

QR27

D529
D52:

31153

2::

R55

J

P

S517

3

H

H

DO26

QR24

QR26

J

H

QS33

QR25

I42

QS34

QD53

QD54

QS35

QS36

QE7

QD55

QD47

QD52

D535

P

S4:8

H

R58

J

4

2

D533

DO28

S512

S513

E33

S4::

S779

E34

S511

S514

D537

S515

D53:

S7:3

I55

I43

29

M35

DO32

S531

2

M36

M37

21

E35

I46

2

21

D549

SQ23

R62

D543

H

S882

D546

J

D545

S523

S524

R5:

P

S526

S527

S528

P

DB2

H

DB3

J

V36

S883

D547

S529

P

R59

P

H

JPH

H

J

R61

J

J

H

P

S52:

R63

R64

D548

S784

B

B

B

B

B

S525

QD68

QS49

QR7:

QV22

QD75

QS57

QS38

QV21

QR29

2

QS4:

4

QS288

QS58

4

QS291

QD58

2

QS67

QD73

QS64

QD74

D:62

D:61

QD69
QS53

QR2:

QR81

QD67

QV:

I44

QS47

QE21

QS285

QS32
QD49
QD4:

QD61

QS3:

QD56

QD51

QS48

TQ2

5:

61

QV8

36

QE:

QD62

QS42

QS281

QD57

QS41

DO31

S864
S865

38

37

D:35

R:5

JPH

R:6

D:36

QS43

DO2:

QD59

QS39

QR28

QM:

QM21

QV9

S51:

31

I45

2:

S4:4

S4:6

S4:7

R54

R56

R49

R53

R51

S498

S49:

P

DO29

D542

S518

D:52

S519

V35

U78

21

6

:

R46

D541

M29

S785

S786

D534

V34

V33

V32

P

P

E55

H

H

J

E58

S885

G2

R52

D526

S4:2S495

QD41

QD29

QD2:

QS292

QE8

QE9

QS293

QD32

QD33

D521

D524

QM4

QD27

QM5

D513

QD39

SO25

SO24

SO27

SO26

SO28

SO29

SO22

SO23

SO21

S4:1

S489

S496

D517 D522 D527

D523D518D512

D528

D515

D525

D51:

S4:3

P

P

J

H

J

JPH

JPH

QE4

QR9

QR6

QR:

QD44

QR8

QD45

QR21

QE3

QV7

QR22

QE2

QD36

QD37

QR23

QD38

QD34

QE5

QE6

QD42

QM6

QM7

QD43

R57

D532

9

9

5

I

H
M

D536

36

35343332312:

232221:98

D:38

D:39

D:3:

312:3

DO33

QS73

QS74

QS75

QS68
QS69
QS6:

QS71

QD76

QS72

63

62

3

M3:

M41

M42

M43

M44

M45

M46

M38

M39

V38

S853

I47

D552

S862

DB5

D:37

OOOOOOO

S852

S8:2

E36

D54:

V37

QD79
QS78

QE22

D551

QS76

QS77

QE23

QR32

S848

QR31

QS59

QS54 QS61

QM22

QS62

QS55

QS51

B

B

B

B

B

B

QS63

QS52

QS66

QD6:

QD71

QD72

QS65

QS56

QBE8

QD77

QD78

32

211

::

S538

J

QE24

R:8

H
P

QS89

QS88

D:41

QS83

QV23

QS84

R98

S536

QS85

QS79

QD81

S537

QS7:

QS86

QD7:

D:21

QD82

QS82

D:27

D:25

QD83

D:19

D9:8

QS87QS81

D9:9

S483
D488

D45: D475

D452

D489

D461

D476

D48:

D477

D462

D453

D491

D478

D463

D454

D492

D464

D479

D455

D493

D465 D47:

D494

C

C

C

C

C

C

OOOOO

S854

S855

S856

S858

S85:

S861

27

26 :

D566

J

S876

E53

D565

23

V39

E52

V3:

D562

S816

S815

M47

D561

D563

D558

D557

D556

D555

S897

D564

S539

R65

QS8:
QS91
QD84

QS93

QS92

QD86

QS94

QD85

I4:

DO34

61

36

24

35

P

H

E51

33

I53

21

2524

9

DO36

S53:

D567

7

543

D568

D569

S541

DO37

2

I51

DO4:

S892

QBE9

8

6

S887

I52

34

2:

29

31

26

28

27

25

1 S-Video 13 HDD connector

2 CRT 14 Keyboard connector

3 DVI Connector 15 Touchpad board connector

4 Docking 16 IR

5 RJ45 17 Main battery connector

6 RJ11 18 Second battery connector

7 Power jack 19 Swap bay connector

8 CPU socket 20 DDR Dimm 0

9 Fan connector 21 LCD cable connector

10 USB connector 22 LED board connector

11 1394 connector 23 Internal microphone connector

12 PCMCIA

4 Chapter 1

Bottom View

D93:

D934

D911

D8:6

D8:3

D895

D86:

D867

E46

S666

QBE56

QBE32

D752

D857

S6:7

S83:

QBE38

S658

S632

S635

S642

S643

D6:8

S631

S633

V56

S647

S656

S654

QBE54

D583

D577

M48

D574

D581

5

2

V41

M49

3

4

S547
S546

QBE55

S551

S54:

S544

D584

D582

D575

5

2

D571

M4:

3

4

QBE21

S552

S548

D578

D585

5

D573

2

3

M51

4

S542

S549

D576

S554

S545

QBE24

M52

5

4

D572

3

D627

S57:

S577

2

D57:

QBE48

S564

S558

S578

D631

S575

QBE63

S543

D587

D593

S556

D56:

QBE22

I3

8

9

DO38

:

D:33

D647

S593

S597

S592

D61:

S565

D622

D5:1

D592

D586

S555

D5:9

D616

S5:2

S599

S5:4

D676

S5:6

D67:

D626

D629

D637

S579

D654

U85

U93

U8:

U99

D652

U:1

U94

D662

S594

M58

D646

U81

D666

U83

U82

D618

D658

D649

D619

U7:

D594

S573

S576

J

D663

D64:

S562

H

S566

S557

D588

S574

D595

D611

D661

D655

D632

D664

P

D596

I9

D623

D612

D633

D651

R69

S584

D58:

D589

S563

9

9

5

I

H
M

D:16
S559
M57
S55:
S561

D591

QBE23

R71

D:17

Q

DO49

O

M55

M56

HHHHH

S82:

D597

D598

S567
S568

S569

S56:

S822

DO39

D:34

M54

M53

S818

S794

S817

R67

D634

D669

D665

D639

D656

D653

S5:3

D63:

D668

S585
S586
S587
S588
S589
S58:
S591

N

5

3

2

E2

4

3

2

E3

3

2

1

G

F

E

M

L

K

J

O

N

E

T

D5:3
D5:4
D5:5

D638

D617

D636

D62:

D635

D628

D624

D621

D5:2
D5:6

E

E

E

E

E

E

D5:7

HHHHHHH

D5:8

S52
S58
S62
S64

DO3:

S6:

S776

S73

S582

R72

S581

S77
S85

R92

DO41

S875

D66:

E54

25
24

3

23

2

4

22

S877

21

BD

:

BC

9

BB

8

7

PH

Z

6

X

E56

5

E39

J

R6:

W

4

3

V

D645

2

U

E3:

M

FGHIK

B

S

CDE

L

Q

N

D613

S571

O

V42

Z6

S793

N

D614

E57

S814

M

S772

L

S572

K

R97

D:69

D:15

I

48

V45

S596

59

H

G
F

S598

D641

E
D

D642

C

QBE59

24

36

E

E

E

E

E

D659

P

D643

V47

S7:2

D59:

541

V48

3:

6

V43

S797

D599

S796

32

24

V44

31

25

D657

E38

5

2

D265 D224

R68

D5::

3

4

D625

QBE25

Z7

S583

S795

D:18

D:14

D615

QD91

U98

QBE27

U9:

U84

U86

U:3

U96

D673

U91

D691

QD87

M61

D685

S5:7

D684

D672

M5:

U88

D688

D667

D692

U95

D693

D682

M59

D68:

S618

D689

D686

QBE26

QR33

D687

D683

D677

D674

D681

S5:9

S611

D679

D671

D675

S624
D699
S625

D6:5D6:1

R77

S761

F

F

F

F

F

F

V53
S75:
S622

S621

S623

S788

S789

S78:

S791

S61:

S619

S617

S616

S614

S615

R75

R74

R73

S5:8

S612

S5::

S613

D698

D6:2

Z8

4

5

V52

D678

V4:

D694

2

3

S5:5

:

9

876

5

34

33

22

23

282726

32312:

29

25

21

24

V49

S778

E49

P

P

J

J

H

J

J

H

H

F

F

F

F

F

U243

55

287

56

S59:

99

244

243

9:

S838

D65:

S5:1

S651

S644

D712

M64

U64

D713

U65

U66

U67

U:9

S63:

S636

S634

U:5

D736

D737

D738

D714

D739

QBE31

D73:

D741

D735

D742

QBE2:

D744

D759

DDDDD

D

S649

D725

D763

D775

D754

D734

D723

S638

D718

D724

S653

PH

R79

U211

D726

S628

S64:

J

D6:6

U:6

S629

S639

U:7

D6:7

R78

S62:

D727

D719

QD8:

QS96

QS95

DDDDD

D

QD24

QD96

S646

QD94

D733

QD92

QD93

QS97

D728

QV24

QS98

U::

QD95

U:8

QBE29

4:

DO43

51

3

D711

D71:

D731

D721

D715

D746

D732

2

2

21

S662

S641

S65:

S691

S699

SO37

SO32

SO33

SO34

SO35

SO39

SO38

SQ26

SQ28

SO36

S6:4

S637

21221

2

21

D6:9

D716

D729

D722

D6::

D717

QD99

D444

QD98

D7:1

D811

QD97

QR34

D792

D784

D829

D864

D79:

D848

D859

D81:

D7::

D855

D835

D815

C

C

C

C

C

C

D82:

D821
D816

D856

D85:

D865
D849

D836

QD:2

S868

QS9:

QD:1

QS99

QBE34

S867

GGGGGGG

QD:5
QM23

QD:8

QS:1

QD:4

QD:7

QD:6

QBE28

QBE4

D696

M62

I25

D697

GGGGG

P

J

H

R76

P

H

D6:3
D6:4

QD89

M63

H3

D695

H4

QD88

V51

I27

V55

S839

S762

D69:

V54

S626

S627

QBE:

D887

D782

S652

S657

S659

S648

S645

S655

S667

S663

S66:

S665

SQ24

D758

D787

D788

D7:4
D7:5

U68

U213

U215

U214

U216

D748

D75:

D7:8

D772

D797

D786

D749

D796

D783

D7:7

D761

D769

D791

D756

D747

D74:

D762

D768

S671

D774

D753

D779

S669

D7:2

S664

D773

D757

M65M66

U212

U218

U217

U77

D837

S686

S673

S67:

S676

S677

S681

S674

D825

D817

D826

D818

S678

D833

QBE33

S661

D743

D755

D834

D819

M76

S712

S685

S683

D847

D777

D76:
D764

D778

D771

D765

D83:

S682

U219

J

S787

S688

S684

S841

M72

M71

S842

M67

M68

M69

S69:

S6:8

S722

D8:7

S6:5

S695

R85

H

J

D927

S6:9

R81

U73

S716

R82

V57

R7:

S717

S713

H

U74

P

J

S6:1

P

H

S6:2

J

R83

D897

D922

QBE37

D925

D917

D92:

D898

D931

D841

D935

D842

S723

S721

D843

S725

D539

M77

D933

D844

QD222

D845

D846

D:66

QBE39

D8:8

QBE4:

D923

D:67

D924

D8:4

QD22:

D861

D866

D854

QBE35

QD232

D799

D812D7:9

D789

S675

D822

D84:
D831

S672

S679

D832

QE27

D798

D858

D851

D78:

D838

QR47

QD231

S68:

QD23:

QS233

QD218

D896

QR48

S694

QS218

D839

QS219

P

J

H

QS21:

52

53

D852

D868

D766

D745

D77:

D781

D7:6

D767

2

21

D794

D751

D72:

D776

D795

D785

D793

QD9:

QD:3

QE25

QR37

P

QR36

QS:2

KQ24

R95

R96

P

S77:

J

H

J

H

P

D912

D7:3

D823

D899

S687

D918

D919

D853

D913

D869

D884

S689

D89:

D824

D885

2

2

2

2

2212

S71:

SO41

2

21

21

21

21

21

21

S711

SO3:

S668

D813

23

DO42

2

J

H

J

H

D91:

D814

D891

D871

D914

D862

D8:1

D828

D915

D921

D8:2

D863D872D892

D827

SQ27

SQ25

21

2

QS:5

QS279

QD:9

QR35

QE26

P

QS:3

V21

D928

S866

QS275

M75

C

C

C

C

C

M74

D916

M73

D8:9

QS226

QR79

QD225

QS::

QS213

2

D8::

21

QS:4

QS214 QS211

QS:9

QS215

QS27:

JPH

QS225

QS212

QR82

QS216

QD212

QD227

QD21:

QR43

P

QS:6

QR49

QD216

QD214

QS217

QD215

QS:8

QR44

J

QD217

H

QS278

P

H

QM24

J

D878

QD213

QD221

QS221

QR42

QR72

QS277

QR39

H

H
J

J

QD228

QR4:

S692

P

P

E41

QR45

S696

QS222

QD229

D875

QS223
S697
D876
D877

QD226

QS224

7

7

QD223

2

2

QR46

D894

QD224

QV25

QD219

S693

D886

S698

S6::

S714

D893

DO44

S886

QBE36

R84

S719

D888

D873

S715

M6:

D8:5

S6:6

S6:3

E43

S718

E42

D874

D889

D88:

D87:
D881

D879

D882
D883

37

R86

S724

P

H

36

D94:

D948

D945

D951

D942

D929

2

S731

D956

R87

P

D958

D943

D957

E45

D944

211

M78

S726
S727

QD248

S732

E44

D949

QD249

R89

S733

S728

S734

H

QS247

JP
H

D938

J

D939

QR62

QD279

D:65

QD244

QD238

D:68

QD239

QD278

QD241

QS232

TQ3

QS237

QM25

QR56

R88

QD233

QR51

QS228

QS227

QR52QR54

2::

311

D926

QS236

QR55

QR58

P

P

H

H

QR57

QD234

QD242

QS229

QV26

QS22:

D95:

D959

P

QS5:

QS289

R8:

QS246

QS248

S781

QS264

QM27

QS263

TX3

QD251

D:63

QD247

QM26

QBE43

QD252

QD253

QS244

QD27:

QR59

QS245

QS28:

QD254

QS235

QS286

QS283

QBE41

QD246

QBE42

D952

D953

D954

D947

D955
S729

QD237

QD236

QD243

QS239

QS234

QD5:

QS282

D932

D936

D937

D941

S72:

S766

D9:6

D946

QS284

QS287

R:4

QD235

QS231

QR53

D:42

QBE3:

QE28

QE29

QE2:

7

2

QD245

QR61

P

H

QS243

J

J

J

QR5:

QS241

QD24:

QS242

QS238

QS23:

QBE61

CU2

U79

D:28

QBE44

B

B

B

B

B

B

S744

61

62

D:23

D96:

S735

S736

S743

S737

S767

D971

D972

I48

S84:

S835

JPH

86

R:3

S836

H

87

3

J

V58

R:1

S775

S738

S739

QR63

QS249

D973

D962

D964

D963

D969

D968

D967

D966

D961

D965

S73:

S863

B

B

B

B

B

QD255

7

2

S741

41

S742

D974
D975

QE31

QS24:

QS251

QM28

QS252

QD256

QBE53

QD257

QD258

QD259

3

4

5

6

7

D:2:

D:26

D:29

S746

R99

S752

S751

S754

S753

S747

S748

S749

S74:

S7:8

D994

S7:9

S7::

S7:7

D992

S745

D993

QBE45

D:32

D:31

D98:

D991

S89:
D987

D978

D996

S843

D979

D976

D:22

D986

D985

DO45

S844

D988

D97:

D981

D:1:

D989

D982

D:24

D983

D977

D984

3:

QS267

QR64

D997

QS271

QR77

QS273

D995

S846

S845

I49

S819

QV27

QD262

JPH

QR65

72

QD261

QD25:

QR73

QBE52

S755

QBE57

D99:

D998

QBE46

DO46

D999

D:5:

J

J

H

H

QR66

P

P

S759

D9:3

QD273

DO48

S756

QD274

3

QM29

QM2:

QD269

D9:2

S758

D9:1

S757

QD26:

QBE51

DO51

QE34

QD271

QR69

QD265
QD266

QE37

QE36

P

P
H

H

QE32

QS262

7

7
2

2

QS259

P

P

J

J

H

H

QD272

QS25:

QS258

QD267

J

J

QR68

QD263

QS256

QS261

QD268

QS254

QD264

QS253

QS255

QE35

J

J

H

H

QBE47

QV28

P

P

QE33

QS257

QR67

2

H4

1 Modem Cable Connector 6 RTC battery connector

2 MDC connector 7 Line-in connector

3 DDR Dimm 1 8 Microphone-in connector

4 Smart card connector 9 Headphone out connector

5 Mini PCI connector

Chapter 1 5

Outlook View

A general introduction of ports allow you to connect peripheral devices, as you would with a desktop PC.

Front Open View

# Icon Item Description

1 Display screen Also called LCD (liquid-crystal display),

2 Power button Turns on the computer.

3 Touchpad Touch-sensitive pointing device which

4 Click buttons (left,

center and right)

5 Palmrest Comfortable support area for your hands

6 Keyboard Inputs data into your computer.

7 Status indicators LEDs (light-emitting diode) that turn on and

8 Microphone Internal microphone for sound recording.

9 Launch keys Special keys for launching Internet

displays computer output.

functions like a computer mouse.

Turns on the computer power.

The left and right buttons function like the
left and right mouse buttons; the center
button serves as a 4-way scroll button.

when you use the computer.

off to show the status of the computer, its
functions and components.

browser, E-mail program and frequently
used programs. Located at the top of the
keyboard are five buttons. They are
designated as E-mail button, Web browser
button and two programmable buttons.

6 Chapter 1

Front Panel

# Icon Item Description

1 Left Speaker Outputs sound for the left stereo speaker.

2

3

4 Infrared port

4-in-1 memory reader

4-in-1 status indicator

1

Reads cards from Smart Media, Memory
Stick, MultiMedia, and Secure Digital cards.

1

Displays activity of 4-in-1 memory reader.

Interfaces with infrared devices (e.g., infra-

red printer, IR-aware computer).

5

6

Bluetooth button

Bluetooth indicator

2

Enables or disables Bluetooth functionality.

2

Indicates that (optional) Bluetooth is

enabled.

7

8

InviLink button

InviLink indicator

3

Enables or disables wireless LAN feature.

3

Indicates status of wireless LAN communi-

cation.

9 Latch

Latch for opening and closing the laptop.

NOTE: 1. Four-in-one card reader is a manufacturing option, subject to configuration. Only one card can

operate at any given time.

NOTE: 2. Bluetooth button and indicator work on models with Bluetooth only.

NOTE: 3. InviLink button and indicator work on models with wireless LAN only.

Chapter 1 7

Left Panel

# Icon Item Description

1 Four (4) USB ports Connect to Universal Serial Bus devices

2 IEEE 1394 port Connects to IEEE 1394 devices.

(e.g., USB mouse, USB camera).

3 Smart Card slot Slot for Smart Card interface with pre-boot

4 Line-in jack

5 Microphone Jack

6 Headphone Jack

7 Hard disk bay

8 PC Card eject button

9PC Card slot

authentication system.

Accepts audio line-in devices (e.g., audio

CD player, stereo walkman).

Accepts input from external microphones.

Connect to headphones for other line-out

audio devices (speakers).

Houses the computer’s hard disk (secured

by a screw).

Ejects the PC Card from the slot.

Accepts one Type II 16-bit PC Card or 32-bit

CardBus PC Card.

8 Chapter 1

Right Panel

# Icon Item Description

1 AcerMedia drive Houses a removable media drive module.

2 AcerMedia indicator Lights up when the AcerMedia drive is

3 Eject button Ejects the drive tray.

4 Emergency eject slot Ejects the drive tray when the computer is

5 Power jack Connects to an AC adapter.

active.

turned off.

Chapter 1 9

Rear Panel

# Icon Item Description

1 Modem jack Connects to a phone line.

2 Network jack Connect to an Ethernet 10/100-based

3 Expansion port Connects to I/O port replicator or EasyPort

4 Digital visual interface

port

5 Connects to a display device (e.g., external

6 S-video Connects t a television or display device

7 Cooling fan Helps keep the computer cool

8 Security keylock Connects to a Kensington-compatible

network.

expansion devices.

Provide a better quality digital connection
between a PC and a display device.

monitor, LCD projector) and display up to

16.7 million colors and upt 1400X1050
resolution.

with S-video input.

computer security lock.

10 Chapter 1

Bottom Panel

# Icon Item Description

1 AcerMedia bay release

2 AcerMedia bay Houses an AcerMedia drive module.

3 Battery bay Houses the computer’s battery pack.

4 Battery release latches Unlatches the battery to remove the battery

5 Battery lock Locks the battery in place.

6 Mini-PCI slot Slot for adding mini-PCI cards.

7 Hard disk protector Protects the hard disk from accidental

8 Hard disk bay Houses the computer’s hard disk (secured

9 Memory slot Slot for adding memory (DRAM).

10 Cooling fan Helps keep the computer cool.

11 Personal identification

latch

slot

Unlatches the AcerMedia drive for removal
or swapping.

pack.

bumps and vibration.

by a screw).

Note: Don’t cover or obstruct the opening
of the fan.

Insert a business card or similar-sized
identification card to personalize your
computer.

Chapter 1 11

Indicators

The computer has seven easy-to-read status icons below the display screen.

The status LCD displays icons that show the status of the computer and its components.

Icon Function Description

Caps lock Lights when Caps Lock is activated.

Num lock Lights when Num Lock is activated.

Media Activity Lights when the disc or AcerMedia is

Power Lights green when the power is on and

Battery Lights orange when the battery is charging.

activated.

orange when the computer is in standby
mode.

12 Chapter 1

Lock Keys

The keyboard has three lock keys which you can toggle on and off.

Lock Key Description

Caps Lock When Caps Lock is on, all alphabetic characters typed

are in uppercase.

Num lock

(Fn-F11)

Scroll lock

(Fn-F12)

When Num Lock is on, the embedded keypad is in
numeric mode. The keys function as a calculator
(complete with the arithmetic operators +, -, *, and /).
Use this mode when you need to do a lot of numeric
data entry. A better solution would be to connect an
external keypad.

When Scroll Lock is on, the screen moves one line up
or down when you press w and y respectively.
Scroll Lock does not work with some applications.

Chapter 1 13

Embedded Numeric Keypad

The embedded numeric keypad functions like a desktop numeric keypad. It is indicated by small characters
located on the upper right corner of the keycaps. To simplify the keyboard legend, cursor-control key symbols
are not printed on the keys.

Desired Access Num Lock On Num Lock Off

Number keys on embedded

keypad

Cursor-control keys on

embedded keypad

Main keyboard keys Hold Fn while typing letters

Type numbers in a normal
manner.

Hold j while using
cursor-control keys.

on embedded keypad.

Hold Fn while using cursor­control keys.

Type the letters in a normal
manner.

14 Chapter 1

Windows Keys

The keyboard has two keys that perform Windows-specific functions.

Key Icon Description

Windows logo

key

Application

key

Start button. Combinations with this key perform
special functions. Below are a few examples:
+ Tab (Activates next taskbar button)

+ E (Explores My Computer)

+ F (Finds Document)

+ M (Minimizes All)
j + Windows logo key + M (Undoes Minimize All)

+ R (Displays the Run... dialog box)

Opens a context menu (same as a right-click).

Chapter 1 15

Hot Keys

The computer uses hotkey or key combinations to access most of the computer’s controls like sreen
brightness, volume output.

To activate hot keys, press and hold the Fn key before pressing the other key in the hot key combination.

Hot Key Icon Function Description

Fn-F1 Hot key help Displays help on hot keys.

Fn-F2 System Property Displays the System Property.

Fn-F3 Power Options Display the Power Options Properties used by the

Fn-F4 Sleep Puts the computer in Sleep mode.

Fn-F5 Display toggle Switches display output between the display screen,

Fn-F6 Screen blank Turns the display screen backlight off to save power.

Fn-F7 Touchpad toggle Turns the internal touchpad on and off.

Fn-F8 Speaker toggle Turns the speakers on and off.

Fn-w Volume up Increases the speaker volume.

computer (function available if supported by operating
system).

external monitor (if connected) and both the display
screen and external monitor.

Press any key to return.

16 Chapter 1

Hot Key Icon Function Description

Fn-y Volume down Decreases the speaker volume.

Fn-x Brightness up Increases the screen brightness.

Fn-z Brightness down Decreases the screen brightness

Chapter 1 17

The Euro Symbol

If your keyboard layout is set to United States-International or United Kingdom or if you have a keyboard with a
European layout, you can type the Euro symbol on your keyboard.

NOTE: For US keyboard users: The keyboard layout is set when you first set up Windows. For the Euro

symbol to work, the keyboard layout has to be set to United States-International.

To verify the keyboard type in Windows 2000, follow the steps below:

1. Click on Start, Settings, Control Panel.

2. Double-click on Keyboard.

3. Click on the Language tab.

4. Verify that keyboard layout used for En English (United States)” is set to United States-International. If not,
select and click on Properties; then select United States-International and click on OK.

5. Click on OK.

To verify the keyboard type in Windows XP, follow the steps below:

1. Click on Start, Control Panel.

2. Double-click on Regional and Language Options.

3. Click on the Language tab and click on Details.

4. Verify that the keyboard layout used for "En English (United States)" is set to United States-International.
If not, select and click on ADD; then select United States-International and click on OK.

5. Click on OK.

To type the Euro symbol:

1. Locate the Euro symbol on your keyboard.

2. Open a text editor or word processor.

3. Hold Alt Gr and press the Euro symbol.

NOTE: Some fonts and software do not support the Euro symbol. Please refer to www.microsoft.com/

typography/faq/faq12.htm for more information.

18 Chapter 1

Launch Keys

Located at the top of keyboard are five buttons. The left-most button is power button. To the right of the pwoer
button are four launch keys. They are designated as the mail button, the web browser button and two
programmable buttons (P1 and P2).

Launch Key Default application

Email Email application

Web browser Internet browser application

P1 User-programmable

P2 User-programmable

Chapter 1 19

Touchpad

The built-in touchpad is a pointing device that senses movement on its surface. This means the cursor
responds as you move your finger on the surface of the touchpad. The central location on the palmrest
provides optimal comfort and support.

NOTE: If you are using an external USB mouse, you can press Fn-F7 to disable the touchpad.

Touchpad Basics

The following teaches you how to use the touchpad:

T Move your finger across the touchpad to move the cursor.

T Press the left (1) and right (3) buttons located on the edge of the touchpad to do selection and

execution functions. These two buttons are similar to the left and right buttons on a mouse.
Tapping on the touchpad produces similar results.

T Use the 4-way scroll (2) button (top/bottom/left/and right) to scroll.

Function Left Button Right Button Scroll Button Tap

Execute Click twice

quickly

Select Click once Tap once

Drag Click and hold,

Access context
menu

then use finger
to drag the
cursor on the
touchpad

Click once

Tap twice (at the same
speed as double-clicking
the mouse button)

Tap twice (at the same
speed as double-clicking
a mouse button) then hold
finger to the touchpad on
the second tap to drag the
cursor

20 Chapter 1

Function Left Button Right Button Scroll Button Tap

Scroll Click and hold

the button in the
desired
direction (up/
down/left/right)

NOTE: Keep your fingers dry and clean when using the touchpad. Also keep the touchpad dry and clean. The

touchpad is sensitive to finger movements. Hence, the lighter the touch, the better the response.
Tapping too hard will not increase the touchpad’s responsiveness.

Chapter 1 21

Hardware Specifications and Configurations

Processor

Item Specification

CPU type Intel Pentium M processor at 1.4~1.7GHz

Intel Pentium M processor at 1.5~2.0GHz

Core logic Intel 855GME+ICH4

CPU package

CPU core voltage core voltage subjects to various CPU type

BIOS

Item Specification

BIOS vendor Phneoix

BIOS Version 3A01

BIOS ROM type Flash ROM

BIOS ROM size 512KB

BIOS package PLCC32-Lead

Supported protocols ACPI 1.0b, PC Card 95, SM BIOS 2.3, IEEE1284-ECP/EPP, PCI 2.2, PnP

BIOS password control Set by setup manual

µ

/ -FCPGA package

1.0a, DMI 2.0, PS/2 keyboard and mouse, USB 2.0, VGA BIOS, CD-ROM
bootable, IEEE 1394

Second Level Cache

Item Specification

Cache controller Built-in CPU

Cache size 1MB for Intel Pentium M processor at 1.4~1.7GHz (Banias)

2MB for Intel Pentium M processor at 1.5~2.0GHz (Dothan)

1st level cache control Always enabled

2st level cache control Always enabled

Cache scheme control Fixed in write-back

System Memory

Item Specification

Memory controller Intel 855GME built-in

Memory size 0MB (no on-board memory)

DIMM socket number 2 sockets

Supports memory size per socket 1024MB

Supports maximum memory size 2G (by two 1024MB SO-DIMM module)

Supports DIMM type DDR Synchronous DRAM

Supports DIMM Speed 333 MHz/266 MHz

Supports DIMM voltage 2.5V and 1.25V

Supports DIMM package 200-pin soDIMM, 1.27” height (Max)

Memory module combinations You can install memory modules in any combinations as long as they

match the above specifications.

22 Chapter 1

Memory Combinations

Slot 1 Slot 2 Total Memory

0MB 128MB 128MB

0MB 256MB 256MB

0MB 512MB 512MB

0MB 1024MB 1024MB

128MB 128MB 256MB

128MB 256MB 384MB

128MB 512MB 640MB

128MB 1024MB 1152MB

256MB 128MB 384MB

256MB 256MB 512MB

256MB 512MB 768MB

256MB 1024MB 1280MB

512MB 128MB 640MB

512MB 256MB 768MB

512MB 512MB 1024MB

512MB 1024MB 1536MB

1024MB 0MB 1024MB

1024MB 128MB 1125MB

1024MB 256MB 1280MB

1024MB 512MB 1536MB

1024MB 1024MB 2048MB

NOTE: Above table lists some system memory configurations. You may combine DIMMs with various

capacities to form other combinations. On above table, the configuration of slot 1 and slot 2 could be
reversed.

LAN Interface

Item Specification

Chipset BroadCom BCM5705M

Supports LAN protocol 10/100 Mbps

LAN connector type RJ45

LAN connector location Rear panel

IR Interface

Item Specification

Part name VISHAY TFDU6102

Package 8-pin SMT type

Performance 4Mbit/s

Compliant IrDA 1.1

Modem Interface

Item Specification

Data modem data baud rate (bps) 56K

Supports modem protocol V.90/V.92

Modem connector type RJ11

Modem connector location Rear panel

Chapter 1 23

Bluetooth-MODEM Interface

Item Specification

Chipset CSR BC02 (Blue-tooth)/Agere Scorpio I (MODEM)

Data throughput 200k bps (Blue-tooth)/56K bps (MODEM)

Protocol Blue-tooth 1.1

Interface USB 1.1+MDC

Connector type RJ11 (MODEM)

Wireless Module 802.11b (optional device)

Item Specification

Chipset Intel

Data throughput 11M bps

Protocol 802.11b

Interface Mini-PCI type II

Wireless Module 802.11a/b (optional device)

Item Specification

Chipset Intel

Data throughput 11M~54M bps

Protocol 802.11 a+b

Interface Mini-PCI type II

Wireless Module 802.11b/g (optional device)

Item Specification

Chipset Intel

Data throughput 11M~54M bps

Protocol 802.11 b+g

Interface Mini-PCI type II

Four-in-One Card Reader

Item Specification

Chipset OZ711M3

Protocol SMC, MS, MMC, and SD

Hard Disk Drive Interface

Item Specification

Vendor &
Model Name

Capacity (MB) 30000 40000 60000 40000 60000

Bytes per
sector

Data heads 2 2 3 2 4

Drive Format

HGST 30G
MORAGA
IC25N030ATM
R04

512 512 512 512 512

HGST 40G
MORAGA
IC25N040ATM
R04

HGST 60G
MORAGA
IC25N060ATM
R04

Toshiba 40G
PLUTO
MK4025GAS

Toshiba 60G
Neptune
MK6021GAS

24 Chapter 1

Hard Disk Drive Interface

Item Specification

Disks12212

Spindle speed
(RPM)

Performance Specifications

Buffer size 2048KB 2048KB 8192KB 8192KB 2048KB

Interface ATA/ATAPI-6 ATA/ATAPI-6 ATA/ATAPI-6 ATA-6 ATA-5

Max. media
transfer rate
(disk-buffer,
Mbytes/s)

Data transfer
rate
(host~buffer,
Mbytes/s)

DC Power Requirements

Voltage
tolerance

4200 RPM 4200 RPM 4200 RPM 4200 RPM 4200 RPM

350 350 350 342 317

100 MB/Sec.
Ultra DMA
mode-5

5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5% 5V(DC) +/- 5%

100 MB/Sec.
Ultra DMA
mode-5

100 MB/Sec.
Ultra DMA
mode-5

100 MB/Sec.
Ultra DMA
mode-5

100 MB/Sec.
Ultra DMA
mode-5

Combo Drive Interface

Item Specification

Vendor & model name DVD/CDRW KME UJDA750 (24x24x8x24x)

DVD/CDRW QSI SBW-242C (24x24x8x24x)

Performance Specification With CD Diskette With DVD Diskette

Transfer rate (KB/sec) Sustained:

Max 3.6Mbytes/sec

Buffer Memory 2MB

Interface Enhanced IDE(ATAPI) compatible

Applicable disc format DVD: DVD-ROM, (DVD-5, DVD-9, DVD-10, DVD-18),DVD-R (read, single

border), DVD-RW, DVD-RAM (2.6GB, 4.7GB)
CD: CD-DA, CD-ROM, CD-ROM XA, CD-R, CD-RW Photo (Multisession)
Video CD, CD-Extra, (CD+), CD-test

Loading mechanism Load: Manual

Release: (a) Electrical Release (Release Button)
(b) Release by ATAPI command
(c) Emergency Release

Power Requirement

Input Voltage 5 V +/- 5 % (Operating)

Sustained:
Max 10.8Mbytes/sec

DVD-Dual Interface

Item Specification

Vendor & model name DVD Dual HLDS GWA-4040N

Performance Specification With CD Diskette With DVD Diskette

Transfer rate (KB/sec) Sustained:

Max 3.6Mbytes/sec

Buffer Memory 2MB

Interface Enhanced IDE(ATAPI) compatible

Sustained:
Max 10.8Mbytes/sec

Chapter 1 25

DVD-Dual Interface

Item Specification

Applicable disc format Support disc formats

1. Reads data in each CD-ROM, CD-ROM XA, CD-1, Video CD, CD-Extra and
CD-Text

2. Reads data in Photo CD (single and Multi-session)

3. Reads standard CD-DA

4. Reads and writes CD-R discs

5. Reads and writes CD-RW discs

6. Reads and writes in each dVD+R/RW (Ver. 1.1)

7. Reads data in each DVD-ROM and DVD-R (Ver. 2.0 for Authoring)

8. Reads and writes in each DVD-R (Ver. 2.0 for general), DVD-RW and
DVD+R/RW (Ver1.1)

Loading mechanism Load: Manual

Release: (a) Electrical Release (Release Button)
(b) Release by ATAPI command
(c) Emergency Release

Power Requirement

Input Voltage 5 V +/- 5 % (Operating)

Audio Interface

Item Specification

Audio Controller RealTek ALC202

Audio onboard or optional Built-in

Mono or Stereo Stereo

Resolution 20 bit stereo Digital to analog converter

18 bit stereo Analog to Ditial converter

Compatibility AC97

Mixed sound source Line-in, CD

Voice channel 8/16-bit, mono/stereo

Sampling rate 44,1 KHz (48K byte for AC97 interface)

Internal microphone Yes

Internal speaker / Quantity Yes/2

Audio Jack

Item Specification

Number of audio jack 3

Rated input 1W

Connector type Headphone out, microphone in and line-in

Video Interface

Item Specification

Chipset Intel 855GME built-in for TravelMate 6000 series

ATI Mobility RADEON 9700 for TravelMate 8000 series

Interface AGP 4X

Supports ZV (Zoomed Video) port No

26 Chapter 1

Video Memory

Item Specification

Chipset ATI Mobility RADEON 9700 for TravelMate 8000 series

Memory size 64MB/128MB

Interface DDR

USB Port

Item Specification

Chipset ICH4M

USB Compliancy Level 2.0

OHCI USB 2.0

Number of USB port 4

Location Left side

Serial port function control Enable/Disable by BIOS Setup

IEEE 1394 Port

Item Specification

Chipset TI 43AB21

InterfaceUSB Compliancy Level IEEE 1394 1.0

Number of IEEE 1394 port 1

Location Left side

Connector type IEEE 1394

PCMCIA Port

Item Specification

PCMCIA controller OZ7111M3

Supports card type Type-II

Number of slots One type-II

Access location Right panel

Supports ZV (Zoomed Video) port No ZV support

Supports 32 bit CardBus Yes

Smart Card Reader

Item Specification

Chipset PCMCIA chip built-in

Number of slot 1

Location Left side

System Board Major Chips

Item Controller

Core logic Intel 855GME+ICH4

Chapter 1 27

System Board Major Chips

Item Controller

VGA ATI Mobility RADEON 9700 for TravelMate 8000 series

Intel 855GME built-in for TravelMate 6000 series

LAN BroadCom BCM5705

IEEE 1394 TI 43AB21

USB 2.0 CY7C65640

Super I/O controller NS 87391

MODEM Agre Scorpio II

Blue tooth CSR B002

Wireless 802.11 b Intel

Wireless 802.11 a+b Intel

Wireless 802.11 b+g Intel

PCMCIA OZ711M3

Smart card reader PCMCIA chip built-in

Audio RealTek ALC202

Four-in-one card reader OZ711M3

Keyboard

Item Specification

Keyboard controller NS 87591

Keyboard vendor & model name Darfon

Total number of keypads 84-/85-/86-key

Windows logo key Yes

Internal & external keyboard work
simultaneously

No

Note: Internal and external keyboard can not work
simultaneously by software specification.

Battery

Item Specification

Vendor & model name Sanyo

Panasonic

Battery Type Li-ion

Pack capacity 4400 Ah

Number of battery cell 8

Package configuration 4 cells in series, 2 series in parallel

Normal voltage 14.4V

Charge voltage 16.4+-0.2v

LCD

Item Specification

Vendor & model
name

Mechanical Specifications

LCD display area
(diagonal, inch)

Displaye area 285.7(H)x214.3(V)mm 304.5(H)x228.375(V)mm 304.5(H)x228.375(V)mm

QDI QD141X1LH12 IDT N15P0P2-L04(200nit) Hanstar HSD150PK14-A

(180nit)

14.1 15.0 15.0

28 Chapter 1

LCD

Item Specification

Pixel pitch Not show 0.215(H)x0.2175(V)mm 0.215(H)x0.2175(V)mm

Pixel arrange Not show RGB vertical stripe RGB vertical stripe

Display technology TFT TFT TFT

Resolution XGA (1024x768) SXGA+ (1400x1050) SXGA+ (1400x1050)

Supports colors 262K(6bit) 262K(6bit) 262K(6bit)

Optical Specification

Brightness control keyboard hotkey keyboard hotkey keyboard hotkey

Contrast ratio 300 250 250

2

150 200(center)

Brightness (Cd/M

Response time Not show 45 35

Contrast control No No No

Electrical Specification

Supply voltage for
LCD display (V)

)

180(5 point average)

3.3 3.3 3.3

180

LCD Inverter

Item Specification

Vendor & model name QCI: 34KT1IV0001

Brightness conditions Vadj=3.3V

Input voltage (V) 14.4

Input current (mA) 410 (max)

Output voltage (V, rms) 1400 (no load)

Output current (mA, rms) 5.6~5.4

Output voltage frequency (k Hz) 55~58K Hz

AC Adaptor

Item Specification

Model number

Input rating 90VAC to 264VAC, 47Hz to 63Hz

Maximum input AC current 3.16A

Inrush current 50A@115VAC

100A@230VAC

Efficiency 83% min. @115VAC input full load

System Power Management

ACPI mode Power Management

Mech. Off (G3) All devices in the system are turned off completely.

Soft Off (G2/S5) OS initiated shutdown. All devices in the system are turned off

completely.

Working (G0/S0) Individual devices such as the CPU and hard disk may be power

managed in this state.

Chapter 1 29

System Power Management

ACPI mode Power Management

Suspend to RAM (S3) CPU set power down

VGA Suspend
PCMCIA Suspend
Audio Power Down
Hard Disk Power Down
CD-ROM Power Down
Super I/O Low Power mode

Save to Disk (S4) Also called Hibernate state. System saves all system states and

data onto the disk prior to power off the whole system.

30 Chapter 1

System Utilities

BIOS Setup Utility

The BIOS Setup Utility is a hardware configuration program built into your computer’s BIOS (Basic Input/
Output System).

Your computer is already properly configured and optimized, and you do not need to run this utility. However, if
you encounter configuration problems, you may need to run Setup. Please also refer to Chapter 4
Troubleshooting when problem arises.

Chapter 2

To activate the BIOS Utility, press
on the bottom of screen).

Press m to enter setup. Press <F12> during POST to enter multi-boot menu. In this menu, user can change
boot device without entering BIOS SETUP Utility.

m during POST (when “Press <F2> to enter Setup” message is prompted

Chapter 2 31

Navigating the BIOS Utility

There are six menu options: Info., Main, System Devices, Security, Boot, and Exit.

Follow these instructions:

T To choose a menu, use the cursor left/right keys (zx).

T To choose a parameter, use the cursor up/down keys ( wy).

T To change the value of a parameter, press por q.

T A plus sign (+) indicates the item has sub-items. Press e to expand this item.

T Press ^ while you are in any of the menu options to go to the Exit menu.

T In any menu, you can load default settings by pressing t. You can also press u to save any

changes made and exit the BIOS Setup Utility.

NOTE: You can change the value of a parameter if it is enclosed in square brackets. Navigation keys for a

particular menu are shown on the bottom of the screen. Help for parameters are found in the Item
Specific Help part of the screen. Read this carefully when making changes to parameter values.

This menu provides you the information of the system.

32 Chapter 2

Information

Parameter Description

IDE1 Model Name This field displays the model name of HDD installed on Primary IDE master. The system

can automatically detect the hard disc model name. If there is no hard disc drive or
unknown type, this field would display “None”.

IDE1 Serial Number This field shows the serial number of HDD installed on Primary IDE master. If no hard disc

drive or other devices are installed, this field would display a blank line.

IDE2 Model Name This field displays the model name of HDD installed on Secondary IDE master. The

system can automatically detect the hard disc model name. If there is no hard disc drive or
unknown type, this field would display “None”.

Serial Number This field shows the serial number of HDD installed on Secondary IDE master. If no hard

disc drive or other devices are installed, this field would display a blank line.

UUID This will be visible only when there is an internal LAN device present.

Chapter 2 33

Main

The Main screen displays a summary of your computer hardware information, and also includes basic setup
parameters. It allows the user to specify standard IBM PC AT system parameters.

NOTE: The screen above is for reference only. Actual values may differ.

34 Chapter 2

The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.

Parameter Description Format/Option

System Time Sets the system time. Format: HH:MM:SS

(hour:minute:second) System Time

System Date Sets the system date. Format MM/DD/YYYY (month/day/

year)

System Date

System Memory This field reports the memory size of the system.

Memory size is fixed to 640MB

Extended Memory This field reports the memory size of the

extended memory in the system.

Extended Memory size=Total memory size-2MB

Video Memory Shows the VGA memory size. The default value

is set to 16MB

Quiet Boot Determines if Customer Logo will be displayed or

not; shows Summary Screen is disabled or
enabled.

Enabled: Customer Logo is displayed, and
Summary Screen is disabled.

Disabled: Customer Logo is not displayed, and
Summary Screen is enabled.

Power on display Auto: During power process, the system will

detect if any display device is connected on
external video port. If any external display device
is connected, the power on display will be in CRT
(or projector) only mode. Otherwise it will be in
LCD only mode.

Both: Simultaneously enable both the integrated
LCD screen and the system’s external video port
(for an external CRT or projector).

LCD Auto Dim Determines if the system will automatically dim

the LCD brightness in order to save power when
AC is not present.

16/32MB

Option:

Note: VGA memory size for
TravelMate 8000 series 128MB

Enabled or Disabled

Option:

Option:

Auto or Both

Option:

Enabled or Disabled

NOTE: The sub-items under each device will not be shown if the device control is set to disable or auto. This is

because the user is not allowed to control the settings in these cases.

Chapter 2 35

Advanced

The Advanced menu screen contains parameters involving your hardware devices. It also provides advanced
settings of the system.

The table below describes the parameters in the screen. Settings in boldface are the default and suggested
parameter settings.

Parameter Description Options

Parallel Port Enables, disables or auto detects the parallel port.

Mode Sets the operation mode of the parallel port.

Base I/O address Sets the I/O address of the parallel port. This

parameter is enabled only if Mode is set to ECP or
Bi-directional. This parameter is enabled only if
Mode is set to ECP.

Interrupt Sets the interrupt request of the parallel port.

DMA channel Sets a DMA channel for the printer to operate in

ECP mode. This parameter is enabled only if Mode
is set to ECP.

Internal Touchpad Determines whether or not to disable the internal

pointing device as the PS/2 mouse is connected.

Infrared Port (FIR) Enables, disables or auto detects the infrared port.

Enabled/Disabled/Auto

ECP, EPP, Normal or Bi-directional

378h/278h/3BCH

IRQ7/IRQ5

DMA3/DMA1

Both or Auto

Disabled/EnabledDisabled/Auto

36 Chapter 2

Security

The Security screen contains parameters that help safeguard and protect your computer from unauthorized
use.

Chapter 2 37

The table below describes the parameters in this screen. Settings in boldface are the default and suggested
parameter settings.

Parameter Description Option

Supervisor Password is Shows the setting of the supervisor password.

User Password is Shows the setting of the uer password.

Primary Harddisk Security This feature is available to user when

Supervisor password is set. Password can be
written on HDD only when Supervisor
password or user password is set and
password on HDD is set to enabled.
Supervisor Password is written to HDD only
when Supervisor password is being set. User
password is written to HDD when both
passwords are set. When both Supervisor and
user password are present, both passwords
can unlock the HDD.

Password on Boot Defines whether a password is required or not

while the events defined in this group
happened. The following sub-options are all
requires the Supervisor password for changes
and should be grayed out if the user password
was used to enter setup.

Clear or Set

Clear or Set

Disabled or Enabled

NOTE: When you are prompted to enter a password, you have three tries before the system halts. Don’t forget

your password. If you forget your password, you may have to return your notebook computer to your
dealer to reset it.

Setting a Password

Follow these steps as you set the user or the supervisor password:

1. Use the w andy keys to highlight the Set Supervisor Password parameter and press the e key. The
Set Supervisor Password box appears:

2. Type a password in the “Enter New Password” field. The password length can not exceeds 8
alphanumeric characters (A-Z, a-z, 0-9, not case sensitive). Retype the password in the “Confirm New
Password” field.

IMPORTANT:Be very careful when typing your password because the characters do not appear on the screen.

3. Press e.

After setting the password, the computer sets the User Password parameter to “Set”.

4. If desired, you can opt to enable the Password on boot parameter.

5. When you are done, press u to save the changes and exit the BIOS Setup Utility.

Removing a Password

Follow these steps:

1. Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The
Set Password box appears:

38 Chapter 2

2. Type the current password in the Enter Current Password field and press e.

3. Press e twice without typing anything in the Enter New Password and Confirm New Password fields.

The computer then sets the Supervisor Password parameter to “Clear”.

4. When you have changed the settings, press u to save the changes and exit the BIOS Setup Utility.

Changing a Password

1. Use the w and y keys to highlight the Set Supervisor Password parameter and press the e key. The

Set Password box appears:

2. Type the current password in the Enter Current Password field and press e.

3. Type a password in the Enter New Password field. Retype the password in the Confirm New Password

field.

4. Press e. After setting the password, the computer sets the User Password parameter to “Set”.

5. If desired, you can enable the Password on boot parameter.

6. When you are done, press u to save the changes and exit the BIOS Setup Utility.

If the verification is OK, the screen will display as following.

The password setting is complete after the user presses u.

If the current password entered does not match the actual current password, the screen will show you the
Setup Warning.

Chapter 2 39

If the new password and confirm new password strings do not match, the screen will display the following
message.

40 Chapter 2

Boot

This menu allows the user to decide the order of boot devices to load the operating system. Bootable devices
includes the distette drive in module bay, the onboard hard disk drive and the CD-ROM in module bay.

Chapter 2 41

Exit

The Exit screen contains parameters that help safeguard and protect your computer from unauthorized use.

The table below describes the parameters in this screen.

Parameter Description

Exit Saving Changes Exit System Setup and save your changes to CMOS.

Exit Discarding Changes Exit utility without saving setup data to CMOS.

Load Setup Default Load default values for all SETUP item.

Discard Changes Load previous values from CMOS for all SETUP items.

Save Changes Save Setup Data to CMOS.

42 Chapter 2

BIOS Flash Utility

The BIOS flash memory update is required for the following conditions:

T New versions of system programs

T New features or options

T Restore a BIOS when it becomes corrupted.

Use the Phlash utility to update the system BIOS flash ROM.

NOTE: If you do not have a crisis recovery diskette at hand, then you should create a Crisis Recovery

Diskette before you use the Phlash utility.

NOTE: Do not install memory-related drivers (XMS, EMS, DPMI) when you use the Phlash.

NOTE: Please use the AC adaptor power supply when you run the Phlash utility. If the battery pack does not

contain enough power to finish BIOS flash, you may not boot the system because the BIOS is not
completely loaded.

Fellow the steps below to run the Phlash.

1. Prepare a bootable diskette.

2. Copy the Phlash utilities to the bootable diskette.

3. Then boot the system from the bootable diskette. The Phlash utility has auto-execution function.

Chapter 2 43

44 Chapter 2

Machine Disassembly and Replacement

This chapter contains step-by-step procedures on how to disassemble the notebook computer for
maintenance and troubleshooting.

To disassemble the computer, you need the following tools:

T Wrist grounding strap and conductive mat for preventing electrostatic discharge

T Small Philips screw driver

T Philips screw driver

T Flat head screwdriver

T Plastic flat head screw driver

T Hex screw driver

T Tweezers

NOTE: The screws for the different components vary in size. During the disassembly process, group the

screws with the corresponding components to avoid mismatch when putting back the components.
When you remove the stripe cover, please be careful not to scrape the cover.

Chapter 3

Chapter 3 45

General Information

Before You Begin

Before proceeding with the disassembly procedure, make sure that you do the following:

1. Turn off the power to the system and all peripherals.

2. Unplug the AC adapter and all power and signal cables from the system.

3. Remove the battery pack.

NOTE: TravelMate 6000/ TravelMate 8000 series product uses mylar or tape to fasten the FFC/FPC/

connectors/cable, you may need to tear the tape or mylar before you disconnect different FFC/FPC/
connectors.,

46 Chapter 3

Disassembly Procedure Flowchart

The flowchart on the succeeding page gives you a graphic representation on the entire disassembly sequence
and instructs you on the components that need to be removed during servicing. For example, if you want to
remove the system board, you must first remove the keyboard, then disassemble the inside assembly frame in
that order.

Start

Battery

Hx2

HDD Door Middle Cover ODD Module

HDD Module

Touchpad

Hx2

Dimm Door

Memory

Cable (FFC)

Logic Upper

Assembly

Touchpad

Shielding

Touchpad

Board

Touchpad

Holder

Touchpad

Qx4

Hx4

Keyboard

Hx2
Mx3

CPU

Dimm

Ox4

Sx4

LCD Module

Main Unit
Assembly

Front Bezel

Sx19

Hx2
Ux3

HDD

Bracket

Logic Lower

Assembly

Ax4
Hx1
Hx1

Main Board

4-in-1 Card

Rearder

Hx3

Function Key

Board

Dx3

Modem/

Bluetooth

Combo Card

Cx4

Hx2

Smart Card

Reader

Hx2

PCI Door

Wireless LAN

Card

Fx2

ODD BoardODD Bracket

Fx2

Thermal

Module

Ex4Tx2

ODD

Hx1

Top Cover

Shielding

Antenna Line Modem Cable

Chapter 3 47

LCD Module

6 LCD

Cushions

Jx6

LCD Bezel

LCD Inverter

Hx4

Hx4

LCD

LCD Coaxial

Cable

Screw List

Item Description

A NUT-I/O

B SCREW M1.6X4.0-I-NI-NYLOK

C SCREW M2.0X2.5-I-NI-NYLOK

D SCREW M2.0X3.0-I-NI-NYLOK

E SCREW M2.0X3.5-I-NI-NYLOK

F SCREW M2.0X5-I-NI-NYLOK

G SCREW M2.5X3-I-NI-NYLOK

H SCREW M2.5X4.0-B-NI-NYLOK

I SCREW M2.5X4-I-NYLOK

J SCREW M2.5X5.0-I-NI-NYLOK

K SCREW M2.5X5.5-P-NI-NYLOK

LCD

Assembly

Dx4

LCD Brackets

Wireless
Antenna

LCD Panel

Hx2

LCD Latch Kit

Bracket

Dx1

LCD Latch Kit

48 Chapter 3

Item Description

L SCREW M2.5X0.45+7I-NYLOK

M SCREW M1.7X3.5-I-BZN

N SCREW M2X3-I-BNI-NYLOK

O SCREW M2.0X5.0-I-BNI-NYLOK

P SCREW M2.0X6.0-I-NI-NYLOK

Q SCREW M2.5X2-I-NI-NYLOK

R SCREW M2.5X4-I-BNI

S SCREW M2.5X7

T SCREW M3.0X3.5

U SCREW M2.5X5 (BLACK)

Chapter 3 49

Removing the Battery Pack

1. Release the battery lock.

2. Slide the battery latch then remove the battery.

50 Chapter 3

Removing the Optical Module/HDD Module/Wireless Lan Card and LCD module

Removing the Optical Module

1. Slide the optical disk drive latch.

2. Remove the ODD module.

Removing the HDD Module

1. Remove the two screws holding the HDD cover.

2. Remove the HDD cover.

3. Remove the HDD module.

Removing the Wireless LAN Card

1. Remove the screw that secures the PCI door then remove the PCI door.

2. Disconnect the right and the left wireless antenna.

3. Pop out the wireless LAN card then remove it.

Chapter 3 51

Removing the LCD Module

1. Remove the four screws that secures the middle cover; two one each side.

2. Detach middle cover with the assistance of a plastic flat head screw driver.

3. Disconnect the LCD cable then take out the cable from the upper case.

4. Disconnect the left wireless LAN antenna line. Then take out the antenna from the upper case with a

tweezers.

5. Unscrew the four screws holding the LCD hinges; two on each side.

6. Then remove the entire LCD module.

52 Chapter 3

Disassembling the Main Unit

Remove the function key board and the keyboard

1. Take the wireless antenna out of the hook on the function key board.

2. Disconnect function key board connector

3. Unscrew the three screws holding the function key board.

4. Remove the three screws that secure the keyboard.

5. Turn over the unit and remove the two screws as the picture shows.

6. Turn over the keyboard. Disconnect the keyboard FFC then remove the keyboard.

Separate the main unit into the logic upper and the logic lower assembly

1. Remove the three screws on the rear panel.

2. Unscrew the 19 screws on the bottom panel.

3. Detach the front bezel from the main unit.

4. Remove the two screws. Then take the right and the left antenna off the main unit.

5. Disconnect the touchpad cable.

6. Pull out the right and the left wireless LAN antenna, then detach the logic upper assembly from the logic

lower assembly.

Chapter 3 53

Disassembling the logic upper assembly

1. Take out the touchpad cable from the small hook on touchpad holder.

2. Remove the four screws holding the touchpad shielding and the touchpad board.

3. Disconnect the touchpad FFC from the touchpad board.

4. Remove the touchpad board.

5. Remove the wireless and bluetooth button off the touchpad board.

6. Remove the four screws that fasten the touchpad holder.

7. Remove the touchpad off the logic upper assembly.

8. Disconnect touchpad FFC.

54 Chapter 3

Disassembling the logic lower assembly

1. In order to take out the main board from the upper case, first remove the four screws that fasten the top
cover shielding.

2. Remove the three screws holding the 4-in-1 card reader, then remove it.

3. Unscrew the four screws that secure the thermal module.

4. Disconnect the fan connector then remove the thermal module.

5. Remove one screw that secures the main board as picture shows.

6. Remove another screw that fastens the main board.

7. Take out the bluetooth antenna.

8. Disconnect the speaker set cable.

9. To remove the main board from the lower case assembly, first press the PCMCIA card button.

10. Then take the main board off the lower case assembly.

11. Unscrew the two screws that fasten the HDD bracket.

12. Remove one screw holding the top cover shielding.

Chapter 3 55

13. Disconnect the microphone cable. Then remove the top cover shielding.

14. Turn the CPU lock counter clock-wise with a flat head screw driver. Then remove the CPU.

15. Pop out the memory then remove it.

16. Unscrew the two screws that secure the modem/bluetooth combo card. Remove the modem/bluetooth

combo card then disconnect the connector.

17. Disconnect the bluetooth antenna and the modem cable.

18. Disconnect the smart card reader FPC.

19. Unscrew the two screws holding the smart card reader then remove it.

56 Chapter 3

Disassembling the LCD Module

1. Remove the six screw pad and the six screws.

2. Detach the LCD bezel carefully.

3. Disconnect LCD inverter.

4. Remove the two screws holding the LCD to LCD panel.

5. Then remove the LCD.

6. Remove the four screws that fasten the right and the left LCD brackets. Then remove the right and the left

LCD brackets.

7. Tear off the electric conductive tape that fastens the LCD coaxial cable.

8. Tear off another electric conductive tape that fastens the LCD coaxial cable.

9. Disconnect the LCD coaxial cable.

.

10. Detach the wireless antenna from the LCD panel.

11. Remove the two screws holding the LCD latch kit.

12. Remove the LCD latch kit bracket.

Chapter 3 57

13. Unhook the spring.

14. Remove the screw that fastens the LCD latch kit.

15. Then remove the LCD latch kit.

58 Chapter 3

Disassembling the External Modules

Disassembling the HDD Module

1. Remove the four screws holding the HDD bracket; two on each side.

2. Take out the HDD from the HDD bracket.

Disassembling the Optical Drive Module

1. Remove the two screws holding the ODD bracket.

2. Remove another screw as the picture shows.

3. Then remove the last two screws on the back side of the ODD module.

4. Slide the ODD from the ODD bracket.

5. Then remove the optical bracket.

6. In order to open the ODD, use an uncurved pin to press the emergency eject hole.

7. Remove the three screws that fasten the ODD door.

8. Then detach the ODD door.

Chapter 3 59

60 Chapter 3

Chapter 4

Troubleshooting

Use the following procedure as a guide for computer problems.

NOTE: The diagnostic tests are intended to test this model. Non-Acer products, prototype cards, or modified

options can give false errors and invalid system responses.

1. Duplicate symptom and obtain the failing symptoms in as much detail as possible.

2. Distinguish symptom. Verify the symptoms by attempting to re-create the failure by running the diagnostic

test or by repeating the same operation.

3. Disassemble and assemble the unit without any power sources.

4. If any problem occurs, you can perform visual inspection before you fellow this chapter’s instructions. You

can check the following:

power cords are properly connected and secured;

there are no obvious shorts or opens;

there are no obviously burned or heated components;

all components appear normal.

5. Use the following table with the verified symptom to determine which page to go to.

Symptoms (Verified) Go To

Power failure. (The power indicator does not go
on or stay on.)

POST does not complete. No beep or error
codes are indicated.

POST detects an error and displayed messages
on screen.

Other symptoms (i.e. LCD display problems or
others).

Symptoms cannot be re-created (intermittent
problems).

“Power System Check” on page 63.

“Power-On Self-Test (POST) Error Message” on
page 65

“Undetermined Problems” on page 77

“Error Message List” on page 66

“Power-On Self-Test (POST) Error Message” on
page 65

Use the customer-reported symptoms and go to
“Power-On Self-Test (POST) Error Message” on
page 65

“Intermittent Problems” on page 76

“Undetermined Problems” on page 77

Chapter 4 61

System Check Procedures

External Diskette Drive Check

If an error occurs with the internal diskette drive, reconnect the diskette connector on the system board.

If the error still remains:

1. Reconnect the external diskette drive/DVD-ROM module.

2. Replace the external diskette drive/CD-ROM module.

3. Replace the main board.

External CD-ROM Drive Check

Do the following to isolate the problem to a controller, drive, or CD-ROM. Make sure that the CD-ROM does
not have any label attached to it. The label can cause damage to the drive or can cause the drive to fail.

Do the following to select the test device:

1. Boot from the diagnostics diskette and start the diagnostics program.

2. See if CD-ROM Test is passed when the program runs to CD-ROM Test.

3. Follow the instructions in the message window.

If an error occurs, reconnect the connector on the System board. If the error still remains:

1. Reconnect the external diskette drive/CD-ROM module.

2. Replace the external diskette drive/CD-ROM module.

3. Replace the main board.

Keyboard or Auxiliary Input Device Check

Remove the external keyboard if the internal keyboard is to be tested.

If the internal keyboard does not work or an unexpected character appears, make sure that the flexible cable
extending from the keyboard is correctly seated in the connector on the system board.

If the keyboard cable connection is correct, run the Keyboard Test.

If the tests detect a keyboard problem, do the following one at a time to correct the problem. Do not replace a
non-defective FRU:

1. Reconnect the keyboard cables.

2. Replace the keyboard.

3. Replace the main board.

The following auxiliary input devices are supported by this computer:

T Numeric keypad

T External keyboard

If any of these devices do not work, reconnect the cable connector and repeat the failing operation.

Memory check

Memory errors might stop system operations, show error messages on the screen, or hang the system.

1. Boot from the diagnostics diskette and start the doagmpstotics program (please refer to main board.

2. Go to the diagnostic memory in the test items.

3. Press F2 in the test items.

4. Follow the instructions in the message window.

NOTE: Make sure that the DIMM is fully installed into the connector. A loose connection can cause an error.

62 Chapter 4

Power System Check

To verify the symptom of the problem, power on the computer using each of the following power sources:

1. Remove the battery pack.

2. Connect the power adapter and check that power is supplied.

3. Disconnect the power adapter and install the charged battery pack; then check that power is supplied by

the battery pack.

If you suspect a power problem, see the appropriate power supply check in the following list:

T “Check the Battery Pack” on page 64

Chapter 4 63

Check the Battery Pack

To check the battery pack, do the following:

From Software:

1. Check out the Power Management in control Panel

2. In Power Meter, confirm that if the parameters shown in the screen for Current Power Source and Total

Battery Power Remaining are correct.

3. Repeat the steps 1 and 2, for both battery and adapter.

4. This helps you identify first the problem is on recharging or discharging.

From Hardware:

1. Power off the computer.

2. Remove the battery pack and measure the voltage between battery terminals 1(+) and 6(ground). See the

following figure

3. If the voltage is still less than 7.5 Vdc after recharging, replace the battery.

To check the battery charge operation, use a discharged battery pack or a battery pack that has less than 50%
of the total power remaining when installed in the computer.

If the battery status indicator does not light up, remove the battery pack and let it return to room temperature.
Re-install the battery pack.

If the charge indicator still does not light up, replace the battery pack. If the charge indicator still does not light
up, replace the DC/DC charger board.

Touchpad check

If the touchpad doesn’t work, do the following actions one at a time to correct the problem. Do not replace a
non-defective FRU:

1. After rebooting, run Tracking Pad PS2 Mode Driver. For example, run Syn touch driver.

2. Run utility with the PS/2 mouse function and check if the mouse is working.

3. If the the PS/2 mouse does not work, then check if the main board to switch board FPC is connected O.K.

4. If the main board to switch board FPC is connected well, then check if the FCC on touch pad PCB

connects properly.

5. If the FFC on touch pad PCB connects properly, then check if LS851 JP1 Pin6=5V are pulese. If yes, then
replace switch board. If no, then go to next step.

6. Replace touch pad PCB.

7. If the touch pad still does not work, then replace FPC on Track Pad PCB.

After you use the touchpad, the pointer drifts on the screen for a short time. This self-acting pointer movement
can occur when a slight, steady pressure is applied to the touchpad pointer. This symptom is not a hardware
problem. No service actions are necessary if the pointer movement stops in a short period of time.

64 Chapter 4

Power-On Self-Test (POST) Error Message

The POST error message index lists the error message and their possible causes. The most likely cause is
listed first.

NOTE: Perform the FRU replacement or actions in the sequence shown in FRU/Action column, if the FRU

replacement does not solve the problem, put the original part back in the computer. Do not replace a
non-defective FRU.

This index can also help you determine the next possible FRU to be replaced when servicing a computer.

If the symptom is not listed, see “Undetermined Problems” on page 77.

The following lists the error messages that the BIOS displays on the screen and the error symptoms classified
by function.

NOTE: Most of the error messages occur during POST. Some of them display information about a hardware

device, e.g., the amount of memory installed. Others may indicate a problem with a device, such as the
way it has been configured.

NOTE: If the system fails after you make changes in the BIOS Setup Utility menus, reset the computer, enter

Setup and install Setup defaults or correct the error.

Chapter 4 65

Index of Error Messages

Error Message List

Error Messages FRU/Action in Sequence

Struck Key See “Keyboard or Auxiliary Input Device Check” on page 62

System CMOS checksum bad - Default
configuration used

Real time clock error RTC battery

Previous boot incomplete - Default configuration
used

Invalid System Configuration Data “Load Default Settings” in BIOS Setup Utility.

Operating system not found Enter Setup and see if fixed disk and drive A are properly identified.

RTC battery

Run BIOS Setup Utility to reconfigure system, then reboot system.

Run BIOS Setup Utility to reconfigure system time, then reboot
system.

Main board

“Load Default Settings” in BIOS Setup Utility.

RTC battery

Main baord

Main board

Dikette drive

Hard disk drive

Main board

66 Chapter 4

Error Message List

No beep Error Messages FRU/Action in Sequence

Power-on indicator turns off and LCD is blank. Power source (battery pack and power adapter.) See “Power

System Check” on page 63

Ensure every connector is connected tightly and correctly.

Reconnect the DIMM.

Main board.

Power-on indicator turns on and LCD is blank. Power source (battery pack and power adapter.) See “Power

System Check” on page 63

Reconnect the LCD connector

Hard disk drive

LCD cable

LCD inverter

LCD

Main board

Power-on indicator turns on and LCD is blank.
But you can see POST on an external CRT.

Power-on indicator turns on and a blinking cursor
shown on LCD during POST.

Reconnect the LCD connectors.

LCD cable

LCD inverter

LCD

Main board

Ensure every connector is connected tightly and correctly.

Main board

Chapter 4 67

Phoenix BIOS Beep Codes

Code Beeps POST Routine Description

02h Verify Real Mode

03h Disable Non-Maskable Interrupt (NMI)

04h Get CPU type

06h Initialize system hardware

08h Initialize chipset with initial POST values

09h Set IN POST flag

0Ah Initialize CPU registers

0Bh Enable CPU cache

0Ch Initialize caches to initial POST values

0Eh Initialize I/O component

0Fh Initialize the local bus IDE

10h Initialize Power Management

11h Load alternate registers with initial POST

values

12h Restore CPU control word during warm boot

13h Initialize PCI Bus Mastering devices

14h Initialize keyboard controller

16h 1-2-2-3 BIOS ROM checksum

17h Initialize cache before memory autosize

18h 8254 timer initialization

1Ah 8237 DMA controller initialization

1Ch Reset Programmable Interrupt Controller

20h 1-3-1-1 Test DRAM refresh

22h 1-3-1-3 Test 8742 Keyboard Controller

24h Set ES segment register to 4 GB

26h Enable A20 line

28h Autosize DRAM

29h Initialize POST Memory Manager

2Ah Clear 215 KB base RAM

2Ch 1-3-4-1 RAM failure on address line xxxx

2Eh 1-3-4-3 RAM failure on data bits xxxx of low byte of

memory bus

2Fh Enable cache before system BIOS shadow

30h 1-4-1-1 RAM failure on data bits xxxx of high byte of

32h Test CPU bus-clock frequency

33h Initialize Phoenix Dispatch Manager

36h Warm start shut down

38h Shadow system BIOS ROM

3Ah Autosize cache

3Ch Advanced configuration of chipset registers

3Dh Load alternate registers with CMOS values

42h Initialize interrupt vectors

45h POST device initialization

46h 2-1-2-3 Check ROM copyright notice

memory bus

68 Chapter 4

Code Beeps POST Routine Description

48h Check video configuration against CMOS

49h Initialize PCI bus and devices

4Ah Initialize all video adapters in system

4Bh QuietBoot start (optional)

4Ch Shadow video BIOS ROM

4Eh Display BIOS copyright notice

50h Display CPU type and speed

51h Initialize EISA board

52h Test keyboard

54h Set key click if enabled

58h 2-2-3-1 Test for unexpected interrupts

59h Initialize POST display service

5Ah Display prompt “Press F2 to enter SETUP”

5Bh Disable CPU cache

5Ch Test RAM between 512 and 640 KB

60h Test extended memory

62h Test extended memory address lines

64h Jump to User Patch1

66h Configure advanced cache registers

67h Initialize Multi Processor APIC

68h Enable external and CPU caches

69h Setup System Management Mode (SMM) area

6Ah Display external L2 cache size

6Bh Load custom defaults (optional)

6Ch Display shadow-area message

6Eh Display possible high address for UMB

70h Display error messages

72h Check for configuration errors

76h Check for keyboard errors

7Ch Set up hardware interrupt vectors

7Eh Initialize coprocessor if present

80h Disable onboard Super I/O ports and IRQs

81h Late POST device initialization

82h Detect and install external RS232 ports

83h Configure non-MCD IDE controllers

84h Detect and install external parallel ports

85h Initialize PC-compatible PnP ISA devices

86h Re-initialize onboard I/O ports

87h Configure Motherboard Configurable Devices

88h Initialize BIOS Area

89h Enable Non-Maskable Interrupts (NMIs)

8Ah Initialize Extended BIOS Data Area

8Bh Test and initialize PS/2 mouse

8Ch Initialize floppy controller

recovery

(optional)

Chapter 4 69

Code Beeps POST Routine Description

8Fh Determine number of ATA drives (optional)

90h Initialize hard-disk controllers

91h Initialize local-bus hard-disk controllers

92h Jump to UserPatch2

93h Build MPTABLE for multi-processor boards

95h Install CD ROM for boot

96h Clear huge ES segment register

97h Fixup Multi Processor table

98h 1-2 Search for option ROMs. One long, two short

beeps on checksum failure.

99h Check for SMART drive (optional)

9Ah Shadow option ROMs

9Ch Set up Power Management

9Dh Initialize security engine (optional)

9Eh Enable hardware interrupts

9Fh Determine number of ATA and SCSI drives

A0h Set time of day

A2h Check key lock

A4h Initialize Typematic rate

A8h Erase F2 prompt

AAh Scan for F2 key stroke

ACh Enter SETUP

AEh Clear Boot flag

B0h Check for errors

B2h POST done- prepare to boot operating system

B4h 1 One short beep before boot

B5h Terminate QuietBoot (optional)

B6h Check password (optional)

B9h Prepare Boot

BAh Initialize DMI parameters

BBh Initialize PnP Option ROMs

BCh Clear parity checkers

BDh Display MultiBoot menu

BEh Clear screen (optional)

BFh Check virus and backup reminders

C0h Try to boot with INT 19

C1h Initialize POST Error Manager (PEM)

C2h Initialize error logging

C3h Initialize error display function

C4h Initialize system error handler

C5h PnPnd dual CMOS (optional)

C6h Initialize notebook docking (optional)

C7h Initialize notebook docking late

C8h Force check (optional)

C9h Extended checksum (optional)

D2h Unknown interrupt

70 Chapter 4

Code Beeps POST Routine Description

E0h Initialize the chipset

E1h Initialize the bridge

E2h Initialize the CPU

E3h Initialize the system timer

E4h Initialize system I/O

E5h Check force recovery boot

E6h Checksum BIOS ROM

E7h Go to BIOS

E8h Set Huge Segment

E9h Initialize Multi Processor

EAh Initialize OEM special code

EBh Initialize PIC and DMA

ECh Initialize Memory type

EDh Initialize Memory size

EEh Shadow Boot Block

EFh System memory test

F0h Initialize interrupt vectors

F1h Initialize Run Time Clock

F2h Initialize video

F3h Initialize System Management Mode

F4h 1 Output one beep before boot

F5h Boot to Mini DOS

F6h Clear Huge Segment

F7h Boot to Full DOS

Chapter 4 71

Index of Symptom-to-FRU Error Message

LCD-Related Symptoms

Symptom / Error Action in Sequence

LCD backlight doesn't work First, plug a monitor to CRT port. Next, enter BIOS utility to running

“Load Default Settings” then reboot the system.

Reconnect the LCD connectors.

Keyboard (if the brightness function key doesn't work).

LCD cable

LCD inverter

LCD

Main board

LCD is too dark

LCD brightness cannot be adjusted

Unreadable LCD screen

Missing pels in characters

Abnormal screen

Wrong color displayed

LCD has extra horizontal or vertical lines
displayed.

Enter BIOS Utility to execute “Load Setup Default Settings”, then
reboot system.

Reconnect the LCD connectors.

Keyboard (if the brightness function key doesn't work).

LCD cable

LCD inverter

LCD

Main board

Reconnect the LCD cable

LCD cable

LCD

Main board

Indicator-Related Symptoms

Symptom / Error Action in Sequence

Indicator incorrectly remains off or on, but system
runs correctly

HDD/CD-ROM active indicators cannot work HDD/CD-ROM drive

Main board

Device driver

Main board

Power-Related Symptoms

Symptom / Error Action in Sequence

Power shuts down during operation Power source (battery pack and power adapter). See “Power

System Check” on page 63.

Battery pack

AC adapter

See if the thermal module is overheat (Heat sink or fan).

Main board

The system cannot power-on. Power source (battery pack and power adapter). See “Power

The system cannot power-off. In Windows XP operating system, hold and press the power switch

System Check” on page 63.

Battery pack

Power adapter

CPU

Main board

for more than 4 seconds. If the system can power off, then the main
board is OK. Verify OS in the HDD.

Main board

72 Chapter 4

Power-Related Symptoms

Symptom / Error Action in Sequence

Battery can’t be charged or discharged See “Check the Battery Pack” on page 64.

Battery pack

Main board

System hang during POST ODD/HDD/FDD/RAM module

Main board

PCMCIA-Related Symptoms

Symptom / Error Action in Sequence

System cannot detect the PC Card (PCMCIA) PCMCIA slot assembly

Main board

PCMCIA slot pin is damaged. PCMCIA slot assembly

PC Card cannot be inserted or ejected Check if the PCMCIA slot is blocked

Main board

Memory-Related Symptoms

Symptom / Error Action in Sequence

Memory count (size) appears different from
actual size.

System can power on, but you hear two long
beeps: “B--, B--” and the LCD is blank.

Enter BIOS Setup Utility to execute “Load Default Settings” then
reboot system.

RAM module

Main board

Check BIOS revision

Reinsert DIMM

DIMM

Main board

Speaker-Related Symptoms

Symptom / Error Action in Sequence

In Windows, multimedia programs, no sound
comes from the computer.

Internal speakers make noise or emit no sound. Speaker

Microphone cannot work Audio driver

OS volume control

Audio driver

Speaker

Main board

Main board

Volume control in Windows XP

Main board

Power Management-Related Symptoms

Symptom / Error Action in Sequence

The system will not enter hibernation mode Power option in Windows XP

Hard disk drive

Main board

The system doesn’t enter standby mode after
closing the lid of the portable computer.

Driver of Power Option Properties

Lid close switch in upper case

Main board

Chapter 4 73

Power Management-Related Symptoms

Symptom / Error Action in Sequence

The system doesn't resume from hibernation/
standby mode.

The system doesn't resume from standby mode
after opening the lid of the portable computer.

Battery fuel gauge in Windows doesn’t go higher
than 90%.

System hangs intermittently. Reconnect hard disk/CD-ROM drives.

Connect AC adapter then check if the system resumes from
Standby/Hibernation mode.

Check if the battery is low.

Hard disk drive

Main board

LCD cover switch

Main board

Refresh battery (continue use battery until power off, then charge
battery).

Battery pack

Main board

Main board

Peripheral-Related Symptoms

Symptom / Error Action in Sequence

System configuration does not match the
installed devices.

External display does not work correctly. Press Fn+F5, LCD/CRT/Both display switching

USB does not work correctly Main board

Print problems. Enter BIOS Setup Utility to execute “Load Default Settings” then

Parallel port device problems Enter BIOS Setup Utility to execute “Load Default Settings” then

Enter BIOS Setup Utility to execute “Load Setup defaults”, then
reboot system.

Reconnect hard disk/CD-ROM drives/FDD or other peripherals.

Main board

Keyboard

Main board

reboot the system.

Run printer self-test.

Printer driver

Printer cable

Printer

Main board

reboot the system.

Device driver

Device cable

Device

Main board

Keyboard/Touchpad-Related Symptoms

Symptom / Error Action in Sequence

Keyboard (one or more keys) does not work. Reconnect the keyboard cable.

Keyboard

Main board

Touchpad does not work. Reconnect touchpad cable.

Touchpad board

Main board

74 Chapter 4

Modem/LAN-Related Symptoms

Symptom / Error Action in Sequence

Internal modem does not work correctly. Phone cable

Driver

Reconnect the Internal modem cable to the main board tightly.

Main board

Internal LAN does not work correctly Lan cable

Driver

Main board

NOTE: If you cannot find a symptom or an error in this list and the problem remains, see “Undetermined

Problems” on page 77.

Chapter 4 75

Intermittent Problems

Intermittent system hang problems can be caused by a variety of reasons that have nothing to do with a
hardware defect, such as: cosmic radiation, electrostatic discharge, or software errors. FRU replacement
should be considered only when a recurring problem exists.

When analyzing an intermittent problem, do the following:

1. Run the diagnostic test for the system board in loop mode at least 10 times.

2. If no error is detected, do not replace any FRU.

3. If any error is detected, replace the FRU. Rerun the test to verify that there are no more errors.

76 Chapter 4

Undetermined Problems

The diagnostic problems does not identify which adapter or device failed, which installed devices are incorrect,
whether a short circuit is suspected, or whether the system is inoperative.

Follow these procedures to isolate the failing FRU (do not isolate non-defective FRU).

NOTE: Verify that all attached devices are supported by the computer.

NOTE: Verify that the power supply being used at the time of the failure is operating correctly. (See “Power

System Check” on page 63):

1. Power-off the computer.

2. Visually check them for damage. If any problems are found, replace the FRU.

3. Remove or disconnect all of the following devices:

T Non-Acer devices

T Printer, mouse, and other external devices

T Battery pack

T Hard disk drive

T DIMM

T PC Cards

4. Power-on the computer.

5. Determine if the problem has changed.

6. If the problem does not recur, reconnect the removed devices one at a time until you find the failing FRU.

7. If the problem remains, replace the following FRU one at a time. Do not replace a non-defective FRU:

T System board

T LCD assembly

Chapter 4 77

78 Chapter 4

Jumper and Connector Locations

Top View

2 3 4 5 6 7

Chapter 5

22 23 2425 26

M28

D46:

3

4

68

E2:

E31

J

P

J

PH

H

M27

D481

D483

XVWSUOQNMLKHIFGDEBC

U6:U69

ZBBBCBDBEBFBG

VWX

OQ

N

SU

D

D

D

D

D

R45

R44

D457

D449

D469

D468

S479

SO9

SO8

S478

D466

D456

D458

D473

D474D459

52

2

DO23

S472
S473

DO22
S474
S475

QD22

QS8

QS9

QD211

QD23

H

QS274

QS:

P

J

QR78

D275

D276

S223

S244

D242

D267

D248

D262

S376

S366

S385

D342

S35:

S311

S321

S329

S341

S386

D336

D354

D362

S32:

S377

S349

S2:1
S2:2
S2:3
S2:4

S342

D344

S318

S359

D333

D369

S375

S365

S2:5

NNNNN

S276

S26:

D268

D323

D315

S298

S282

S291

S25:

S254

S247

S24:

S328

S292

S2:9

D278

S319

S297

S277

S283

S271

S261

EB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;EEB[J2TNC7E2!SFW;E

7

DO25

:

345

9

8

E32

S488 S492

E59

J

S494

S484

D:53

PH

P

J

J

J

H

H

S482

R4:R48

I38

V29

BET2

2
3

S499

4

QD28

5
6
7
8

9
C

C

C

C

C

:

21

22

23

24
25
26
27
28
29

QD31

2:

I39

31
32
33

34

35

36

37

U71

B

U72

CDEF

GH

K

LM

I

U76

U75

S485

V31

S486

D485

D519

D516

BK

BI

BH

QD35

BG

BF

BE

BD

BC

BB

Z

X

W
V
U
S
Q
O

N

M
L

K

I
H

G

F

E
D
C
B

D514

V2:

23456789:2122232425262728292:3132333435363738393:

SO:

D4:9

D511

S491

D4:4

D4:5

S493

D4:2

D482

D499

D495

D472

D4::

D4:3

D4:6

S481

D496

D49:

D486

D4:7

S48:

D497

D487

S487

D4:1

D498

D4:8

S497

P

J

H

P

36

J

H

R47

QR7

H

P

QR5

5

J

QR4

QR38

QM2

QM3

QS23

QS21

QS22

QD::

QS24

QS:7

QD25

QR41

P

QR3:

P

QV6

J

H

J

H

S327

QD26

D327

S353

S373

S278

S293

S312

D279

D286

D311

D361

D353

D294

D2:5

S344

S383

G

G

G

G

G

H

H

H

H

H

H

D383

D379

R41

S423S424

R42

D391 D38:

S3:6S3:7

S396

I

I

I

I

I

M22

D392

S397

D39:

I56

5

3

2

N

QQQQQQ

E2

4

3

2

D48

D59

D9:4

E3

3

2

1

S798

S7:1

S869

S49

D5:

H

G

F

E

M

D65

S831

S799

S829

D64

S79:

L

K

J

O

N

E

T

S38:

S3:3

S384

S371

S362

S348

S357

S33:

DQBE5

DQBE3

DQBE2

DQBE4

57

I31

DO21

I:

DO2

21

:

22

23

24

D32

D33

S28

S33

DO3

D34

D35

S29

S34

DO4

D37

D38

S37

S31

V2

S43

D42

D49

S53

DO5

4

S3:

DO9

S41

2

D26

S231

D225

Z2

D27

S242

D226

4

S213

S219

S215

S226

S245

S248

5

M79

M7:

Z4

I2

2

3

76213

75

214

DO6

4:

239

S:2

S95

S:3

S96

D217

D21:

S88

S93

D5

D7

D8

D21
S21
S22
S23
S24

I7

Y2

QBE58

S894

D:43

D:6:

S878
D:44
D:45

D:56

S827

S825

D:48

S879

D:47
D:46

S881

D:49

D39

S87:

D:51
D:4:

49

E

E

E

E

E

E

V5

E

E

E

E

E

S:5

S8

S42

D28

D23

S4:

S51

D55

S38

S35

2

2

5

5

QS3
QS2

V3

S3

4

S2

SQ2

D4

D22

S:

D9

D:

S6

S7

D6

S5

D579

M2

D3:

D25

E61

S8:1

D2

S874

S26

I8

D:9

S25

QD2

QD3

QS4

3

3

4

S27

QD5

D54

S9

S4

QR2

QV2

S54

QD4

D66

S39

D81

D223

D45

D58

D227
D237

S9:

S32

D94

V:

:7

76

:8

75

2

S97

D95

B
C
D

D211

E
F

D96

G

H

D212

I

K
L

D97

M

S98

N
O

S87

239

D213

44

43

V4

D98

S99

D36

D6:

D56

D86

S47

J

J

J

J

J

D99

S48

D57

S36

M3

D263

D215

D264

D29

D9:

V8

J

Z3

D2:

H

D41

P

S72
S74

S71

S81

R:

D92

S82
D83

D77

D:7

D222

D236

S44

D644

M4

S45

D93

D53

S46

S:6

D82

D221

S:7

S:1

D31

D234

D235

D::

D:2

S553

D79

D24

D63

D52

S2:

D8:

S771

L

L

L

L

L

L

D51

D7:

R25

D75

S895

S:8

D:3

D43

D76

S:9

D44

D:59

D4:

D78

S::

D:4

S896

D85

D46

D218

J

D229

S59

R93

D:1

D:8

S:4

H

+++++

S5:

D47

P

S773

S813

M5

V6

R94

S899

S65

D61

D22:

S828

E5:

D216

S826

S66

M

M

M

M

M

D71

QQQQQQ

R8

+++++

S891

S75

R4

S63

S893

D:58

D233

S898

V7

S55

QBE5:

S94

S871

D67

R5

D:54

D3

R21

D68

D:64

D89

S56

S57

E3

S92

R6

E5

S83

D72

R9

P

J

D:57

E4

H

R22

R7

S872

S873

S823

D69

S61

R2R3

S91

S81:

D62

S821

D:12

E2

S67
S68

S78

S69

S79

D73

D87

D74

D88

QBE2

DO7

9

D282

D297

S253

3635343332

38

37

413:39

D243

D261

:

987

654

3

23

22

21

24

S229

D26:

S224

P

H

J

E8

D271

S255

D272

S256

S228

S251

D239

D246

D259

S792

D258

D247

S252

D274

D249

D25:

D23:

S232

S233

S235

S236

S237

U6
S238

S239

S23:

S241

D266

SQ3

2

21

D251

SQ4

2

U26

U5

21

D255

21

2

D231

SQ6

SQ5

D232

D256
D257

JPH

S222

R26

E6

E7

S889

D:55

S88:

D9::

R:7

E9

S888

S227

D245

D273

S21:

U3

QBE5

D:11

D:13

2:292827262524232221:

31

D289

D292

R27

D27:

S257

S258

U:

D298
D299

D29:

D2:1

D2:2

D2:7

U25

U28

U2:

E21

E:

S262

S263

D288

S264

D284

D285

S3:9

S3:5

S3:4

BL
BK
BI
BH

BG
BF

S393

D381

BE

S394
S395

BD

D377

BC

D378

BB

Z
X
W
V
U
S

V22

Q
O
N
M
L
K
I

D398

H
G
F
E

F

F

F

F

F

F

D
C
B

98765432

G

G

G

G

G

G

D382

D338

D281

S267

D277

D269

S249

D283

H

H

H

H

H

S28:

D28:

I

I

I

I

I

I

V25

D291

M6

D319

M21

D293

M7

D399

S315

S268

Z5

D326

D387

D357

D367

S425

D345

D31:

S274

K

K

K

K

K

V23

D316

V24

P

J

R35

D384

H

S272

S279

S265

D328

R9:

S398

D356

S326

S36:

S37:

S76:

S221

S273

S266

L

L

L

L

L

S27:

V9
D252
D253
S217
S218
D254

V26

S216

D322

D314

D2::

D2:6

D295

D331

D346

D337

U57

U59

D358

U4:

D359

E47

D318

D33:

D317

S777

D347

S337

D312

D348

D2:8

S367

E4:

D296

D349

U34

D34:

U39

U31

D397

U38

S338

D324

S421

U46

U35

U42

R38

U33

U36

D373

D364

D352

D329

D368

D341

D335

D35:

NNNNNN

D332

D388

P

H

P

H

P

H

J

J

J

R33

R29

R31

S391

S381

S782

H

H

E22

E23

P

P

J

J

R2:

S374

E24

E25

S364

S851

R28

H2

D287

S333

S34:

J

R37

S287

S31:

H

E48

S351

R34

S331

P

S774

D32:
S332

D343

J

M9

S783

P

H

D371

S354

R32

S411

R36

S313

D365

S323

S281

S288

S299

S334

M8

S355
S345

S275

D389

QBE62

D447

M26

BG

BE BCBBZ

BF BD

QD:

D432

7

QV5

S455

4

5

QD9

S456

2

QS7

U63

D433

3
4

5

QBE7

6
7
8

M25

I32

9
:

M24

21
22
23
24

S476

S467

S46:

S477

D448

S469

D445

D484

S47:

D467

D471

25
D

D

D

D

D

D

26

SQ:

I28

27

28

S453

29

S454

2:

S442

31

D421

32
33

D422

U5:

34

35

U61

36

U62

D41:

37

D42:

S443
S444

S459
D427
S445

S45:

S446

S464
S447
S448
S449

6

I33

E

R43

D412

QB

SQ21

E28

E29

D414

DO52

2

4

S2:7

S296

S289

S3:1

S389

S358

S372

S343

S314

S382

S352

S363

S335

S324

U45

U48

U51

U49

U47

U52

D423

26

QV4

S44:

S451

QD7

I24

S452

D428

QD8

D424

I22

D429

D3:9

D411

QR75

QS268

D446

S458

S468

F

F

F

F

F

SO3

SO2

SO5

SO4

D374
S392

S466

S461

S463

D436

D375

M:

D376

D425

D434

D438

D43:

D437

D431

SO6

SO7

S471

DPO2

D3:1

D435

D426

D439

D441

D442

D44:

D451

D443

JPH

JPH

D3:2

D372

S39:

QS5

P

D9:7

51

3

DO24

4:

QD276

QD275

QR6:

QBE49

K

K

K

K

K

K

M23

R39

85

S325

S336

S346

S2:6

S379

S316

S388

S399

S3:8

S356

S369

S361

S412

S294

D321

S429

D313

D37:

D366

D385

D36:

D393

D339

D325

D351

D334

D363

D2:9

D355

S269

S225

S246

S259

S22:

S243

SQ7

D228

D238

D244

D24:

J

J

J

J

J

J

D214

D219

QD21

V28

D386

D3::

I2:

I34

QR3

D3:4

QS272

S42:

QS26:

E26

R91

P

QR74

D3:5

D3:6

S433

D418

DO:

S434

S431

D419

D3:3

S432

D394
S413
D395

D3:7

S414
S415
S416
S417

S435

D396

QR71

D3:8
S418
S419

S436

S438

S41:

S437

S439

S284

U245

S285

QS276

V27

S286
D2:3
D2:4

S43:

S422

S3:2

S426

S3::

S769

S441

S824

QD6

D415

D416

QS6

D417

QV3

S76

D:5

R23

S427

D91

D241

S428

S89

D84

R24

S84

H

55

R3:

S212 S211

S214

J

S7:

D:6

S86

H

E27

S8:

M

M

M

M

M

M

J

3

I54

D413

I23

TX2

2

45

I29

I35

QBE3

25 24

54

76

3

2

28

2726

D544

S522

M2:

M31

M32

M33

M34

S884

SQ22

DO27

514:3

I41

QM8

QM9

QS26

QS28

QS29 QS27

QS2:

QE:

QS25

QS31

QD48

QS37

QD277

QR76

QD46

QS269

QD3:

SO2:

SO31

S4:5

D:35
QS44
QD63

S857
QD64

S859
QS45
QD65
QD66
QS46

D531

S4:9

QR27

D529
D52:

31153

2::

R55

P

S517

3

H

H

DO26

QR24

QR26

J

P

H

QS33

QR25

I42

QS34

QD53

QD54

QS35

QS36

QE7

QD55

QD47

QD52

D535

P

S4:8

H

R58

J

4

2

D533

DO28

S512

S513

E33

S4::

S779

E34

S511

S514

D537

S515

D53:

S7:3

I43

29

M35

DO32

S531

2

M36

M37

21

E35

I46

2

21

D549

SQ23

R62

D543

H

S882

D546

J

D545

S523

S524

R5:

P

S526

S527

S528

P

DB2

H

DB3

J

V36

S883

D547

S529

P

R59

P

H

JPH

H

J

R61

J

J

H

P

S52:

R63

R64

D548

S784

B

B

B

B

B

S525

QD68

QS49

QR7:

QV22

QD75

QS57

QS38

QV21

QR29

2

QS4:

4

QS288

QS58

4

QS291

QD58

2

QS67

QD73

QS64

QD74

D:62

D:61

QD69
QS53

QR2:

QR81

QD67

QV:

I44

QS47

QE21

QS285

QS32
QD49
QD4:

QD61

QS3:

QD56

QD51

QS48

TQ2

5:

61

QV8

36

QD62

QS42

QS281

QD57

QS41

DO31

S864

S865

38

37

R:5

JPH

R:6

D:36

QS43

DO2:

QD59

QS39

QR28

QM:

QM21

QV9

S51:

31

I45

2:

S4:4

S4:6

S4:7

R54

R56

R49

R53

R51

S498

S49:

DO29

D542

S518

D:52

S519

V35

U78

6

21

R46

D541

M29

S785

S786

D534

V34

V33

V32

P

P

E55

H

H

J

E58

S885

G2

R52

D526

S4:2S495

QD41

QD29

QD2:

QS292

QE8

QE9

QS293

QD32

QD33

D521

D524

QM4

QD27

QM5

D513

QD39

SO25

SO24

SO27

SO26

SO28

SO29

SO22

SO23

SO21

S4:1

S489

S496

D517 D522 D527

D523D518D512

D528

D515

D525

D51:

J

S4:3

P

P

J

H

J

JPH

JPH

QE4

QR9

QR6

QR:

QD44

QR8

QD45

QR21

QE3

QV7

QR22

QE2

QD36

QD37

QR23

QD38

QD34

QE5

QE6

QD42

QM6

QM7

QD43

R57

D532

9

9

5

I

M

D536

I55

36

35343332312:

232221:98

D:38

D:39

D:3:

312:3

DO33

QS73

QS74

QS75

QS68
QS69
QS6:

QS71

QD76

QS72

63

62

3

M3:

M41

M42

M43

M44

M45

M46

M38

M39

V38

S853

I47

D552

S862

DB5

D:37

OOOOOOO

S852

S8:2

E36

D54:

V37

QD79
QS78

QE22

D551

QS76

QS77

QE23

QR32

S848

QR31

QS59

QS54 QS61

QM22

QS62

QS55

QS51

B

B

B

B

B

B

QS63

QS52

QS66

QD6:

QD71

QD72

QS65

QS56

QBE8

QD77

QD78

32

211

::

S538

J

QE24

R:8

H
P

QS89

QS88

D:41

QS83

QV23

QS84

R98

S536

QS85

QS79

QD81

S537

QS7:

QS86

QD7:

D:21

QD82

QS82

D:27

D:25

QD83

D:19

D9:8

QS87QS81

D9:9

S483
D488

D45: D475

D452

D489

D461

D476

D48:

D477

D462

D453

D491

D478

D463

D454

D492

D464

D479

D455

D493

D465 D47:

D494

C

C

C

C

C

C

OOOOO

S854

S855

S856

S858

S85:

S861

27

26 :

D566

J

S876

E53

D565

23

V39

E52

V3:

D562

S816

S815

M47

D561

D563

D558

D557

D556

D555

S897

D564

S539

R65

QS8:
QS91
QD84

QS93

QS92

QD86

QS94

QD85

I4:

DO34

61

36

24

35

P

H

E51

33

I53

21

2524

9

DO36

S53:

D567

7

543

D568

D569

S541

DO37

2

I51

DO4:

S892

QBE9

8

6

S887

I52

34

2:

29

31

26

28

27

25

1 S-Video 13 HDD connector

2 CRT 14 Keyboard connector

3 DVI Connector 15 Touchpad board connector

4 Docking 16 IR

5 RJ45 17 Main battery connector

6 RJ11 18 Second battery connector

7 Power jack 19 Swap bay connector

8 CPU socket 20 DDR Dimm 0

Chapter 5 79

9 Fan connector 21 LCD cable connector

10 USB connector 22 LED board connector

11 1394 connector 23 Internal microphone connector

12 PCMCIA

80 Chapter 5

Bottom View

D93:

D934

D911

D8:6

D8:3

D895

D86:

D867

E46

S666

QBE56

QBE32

D752

D857

S6:7

S83:

QBE38

S658

S632

S635

S642

S643

D6:8

S631

S633

V56

S647

S656

S654

QBE54

D583

D577

M48

D574

D581

5

2

V41

M49

3

4

S547
S546

QBE55

S551

S54:

S544

D584

D582

D575

5

2

D571

M4:

3

4

QBE21

S552

S548

D578

D585

5

D573

2

3

M51

4

S542

S549

D576

S554

S545

QBE24

M52

5

4

D572

3

D627

S57:

S577

2

D57:

QBE48

S564

S558

S578

D631

S575

QBE63

S543

D587

D593

S556

D56:

QBE22

I3

8

9

DO38

:

D:33

D647

S593

S597

S592

D61:

S565

D622

D5:1

D592

D586

S555

D5:9

D616

S5:2

S599

S5:4

D676

S5:6

D67:

D626

D629

D637

S579

D654

U85

U93

U8:

U99

D652

U:1

U94

D662

S594

M58

D646

U81

D666

U83

U82

D618

D658

D649

D619

U7:

D594

S573

S576

J

D663

D64:

S562

H

S566

S557

D588

S574

D595

D611

D661

D655

D632

D664

P

D596

I9

D623

D612

D633

D651

R69

S584

D58:

D589

S563

9

9

5

I

H
M

D:16
S559
M57
S55:
S561

D591

QBE23

R71

D:17

Q

DO49

O

M55

M56

HHHHH

S82:

D597

D598

S567
S568

S569

S56:

S822

DO39

D:34

M54

M53

S818

S794

S817

R67

D634

D669

D665

D639

D656

D653

S5:3

D63:

D668

S585
S586
S587
S588
S589
S58:
S591

N

5

3

2

E2

4

3

2

E3

3

2

1

G

F

E

M

L

K

J

O

N

E

T

D5:3
D5:4
D5:5

D638

D617

D636

D62:

D635

D628

D624

D621

D5:2
D5:6

E

E

E

E

E

E

D5:7

HHHHHHH

D5:8

S52
S58
S62
S64

DO3:

S6:

S776

S73

S582

R72

S581

S77
S85

R92

DO41

S875

D66:

E54

25
24

3

23

2

4

22

S877

21

BD

:

BC

9

BB

8

7

PH

Z

6

X

E56

5

E39

J

R6:

W

4

3

V

D645

2

U

E3:

M

FGHIK

B

S

CDE

L

Q

N

D613

S571

O

V42

Z6

S793

N

D614

E57

S814

M

S772

L

S572

K

R97

D:69

D:15

I

48

V45

S596

59

H

G
F

S598

D641

E
D

D642

C

QBE59

24

36

E

E

E

E

E

D659

P

D643

V47

S7:2

D59:

541

V48

3:

6

V43

S797

D599

S796

32

24

V44

31

25

D657

E38

5

2

D265 D224

R68

D5::

3

4

D625

QBE25

Z7

S583

S795

D:18

D:14

D615

QD91

U98

QBE27

U9:

U84

U86

U:3

U96

D673

U91

D691

QD87

M61

D685

S5:7

D684

D672

M5:

U88

D688

D667

D692

U95

D693

D682

M59

D68:

S618

D689

D686

QBE26

QR33

D687

D683

D677

D674

D681

S5:9

S611

D679

D671

D675

S624
D699
S625

D6:5D6:1

R77

S761

F

F

F

F

F

F

V53
S75:
S622

S621

S623

S788

S789

S78:

S791

S61:

S619

S617

S616

S614

S615

R75

R74

R73

S5:8

S612

S5::

S613

D698

D6:2

Z8

4

5

V52

D678

V4:

D694

2

3

S5:5

:

9

876

5

34

33

22

23

282726

32312:

29

25

21

24

V49

S778

E49

P

P

J

J

H

J

J

H

H

F

F

F

F

F

U243

55

287

56

S59:

99

244

243

9:

S838

D65:

S5:1

S651

S644

D712

M64

U64

D713

U65

U66

U67

U:9

S63:

S636

S634

U:5

D736

D737

D738

D714

D739

QBE31

D73:

D741

D735

D742

QBE2:

D744

D759

DDDDD

D

S649

D725

D763

D775

D754

D734

D723

S638

D718

D724

S653

PH

R79

U211

D726

S628

S64:

J

D6:6

U:6

S629

S639

U:7

D6:7

R78

S62:

D727

D719

QD8:

QS96

QS95

DDDDD

D

QD24

QD96

S646

QD94

D733

QD92

QD93

QS97

D728

QV24

QS98

U::

QD95

U:8

QBE29

4:

DO43

51

3

D711

D71:

D731

D721

D715

D746

D732

2

2

21

S662

S641

S65:

S691

S699

SO37

SO32

SO33

SO34

SO35

SO39

SO38

SQ26

SQ28

SO36

S6:4

S637

21221

2

21

D6:9

D716

D729

D722

D6::

D717

QD99

D444

QD98

D7:1

D811

QD97

QR34

D792

D784

D829

D864

D79:

D848

D859

D81:

D7::

D855

D835

D815

C

C

C

C

C

C

D82:

D821
D816

D856

D85:

D865
D849

D836

QD:2

S868

QS9:

QD:1

QS99

QBE34

S867

GGGGGGG

QD:5
QM23

QD:8

QS:1

QD:4

QD:7

QD:6

QBE28

QBE4

D696

M62

I25

D697

GGGGG

P

J

H

R76

P

H

D6:3
D6:4

QD89

M63

H3

D695

H4

QD88

V51

I27

V55

S839

S762

D69:

V54

S626

S627

QBE:

D887

D782

S652

S657

S659

S648

S645

S655

S667

S663

S66:

S665

SQ24

D758

D787

D788

D7:4
D7:5

U68

U213

U215

U214

U216

D748

D75:

D7:8

D772

D797

D786

D749

D796

D783

D7:7

D761

D769

D791

D756

D747

D74:

D762

D768

S671

D774

D753

D779

S669

D7:2

S664

D773

D757

M65M66

U212

U218

U217

U77

D837

S686

S673

S67:

S676

S677

S681

S674

D825

D817

D826

D818

S678

D833

QBE33

S661

D743

D755

D834

D819

M76

S712

S685

S683

D847

D777

D76:
D764

D778

D771

D765

D83:

S682

U219

J

S787

S688

S684

S841

M72

M71

S842

M67

M68

M69

S69:

S6:8

S722

D8:7

S6:5

S695

R85

H

J

D927

S6:9

R81

U73

S716

R82

V57

R7:

S717

S713

H

U74

P

J

S6:1

P

H

S6:2

J

R83

D897

D922

QBE37

D925

D917

D92:

D898

D931

D841

D935

D842

S723

S721

D843

S725

D539

M77

D933

D844

QD222

D845

D846

D:66

QBE39

D8:8

QBE4:

D923

D:67

D924

D8:4

QD22:

D861

D866

D854

QBE35

QD232

D799

D812D7:9

D789

S675

D822

D84:
D831

S672

S679

D832

QE27

D798

D858

D851

D78:

D838

QR47

QD231

S68:

QD23:

QS233

QD218

D896

QR48

S694

QS218

D839

QS219

P

J

H

QS21:

52

53

D852

D868

D766

D745

D77:

D781

D7:6

D767

2

21

D794

D751

D72:

D776

D795

D785

D793

QD9:

QD:3

QE25

QR37

P

QR36

QS:2

KQ24

R95

R96

P

S77:

J

H

J

H

P

D912

D7:3

D823

D899

S687

D918

D919

D853

D913

D869

D884

S689

D89:

D824

D885

2

2

2

2

2212

S71:

SO41

2

21

21

21

21

21

21

S711

SO3:

S668

D813

23

DO42

2

J

H

J

H

D91:

D814

D891

D871

D914

D862

D8:1

D828

D915

D921

D8:2

D863D872D892

D827

SQ27

SQ25

21

2

QS:5

QS279

QD:9

QR35

QE26

P

QS:3

V21

D928

S866

QS275

M75

C

C

C

C

C

M74

D916

M73

D8:9

QS226

QR79

QD225

QS::

QS213

2

D8::

21

QS:4

QS214 QS211

QS:9

QS215

QS27:

JPH

QS225

QS212

QR82

QS216

QD212

QD227

QD21:

QR43

P

QS:6

QR49

QD216

QD214

QS217

QD215

QS:8

QR44

J

QD217

H

QS278

P

H

QM24

J

D878

QD213

QD221

QS221

QR42

QR72

QS277

QR39

H

H
J

J

QD228

QR4:

S692

P

P

E41

QR45

S696

QS222

QD229

D875

QS223
S697
D876
D877

QD226

QS224

7

7

QD223

2

2

QR46

D894

QD224

QV25

QD219

S693

D886

S698

S6::

S714

D893

DO44

S886

QBE36

R84

S719

D888

D873

S715

M6:

D8:5

S6:6

S6:3

E43

S718

E42

D874

D889

D88:

D87:
D881

D879

D882
D883

37

R86

S724

P

H

36

D94:

D948

D945

D951

D942

D929

2

S731

D956

R87

P

D958

D943

D957

E45

D944

211

M78

S726
S727

QD248

S732

E44

D949

QD249

R89

S733

S728

S734

H

QS247

JP
H

D938

J

D939

QR62

QD279

D:65

QD244

QD238

D:68

QD239

QD278

QD241

QS232

TQ3

QS237

QM25

QR56

R88

QD233

QR51

QS228

QS227

QR52QR54

2::

311

D926

QS236

QR55

QR58

P

P

H

H

QR57

QD234

QD242

QS229

QV26

QS22:

D95:

D959

P

QS5:

QS289

R8:

QS246

QS248

S781

QS264

QM27

QS263

TX3

QD251

D:63

QD247

QM26

QBE43

QD252

QD253

QS244

QD27:

QR59

QS245

QS28:

QD254

QS235

QS286

QS283

QBE41

QD246

QBE42

D952

D953

D954

D947

D955
S729

QD237

QD236

QD243

QS239

QS234

QD5:

QS282

D932

D936

D937

D941

S72:

S766

D9:6

D946

QS284

QS287

R:4

QD235

QS231

QR53

D:42

QBE3:

QE28

QE29

QE2:

7

2

QD245

QR61

P

H

QS243

J

J

J

QR5:

QS241

QD24:

QS242

QS238

QS23:

QBE61

CU2

U79

D:28

QBE44

B

B

B

B

B

B

S744

61

62

D:23

D96:

S735

S736

S743

S737

S767

D971

D972

I48

S84:

S835

JPH

86

R:3

S836

H

87

3

J

V58

R:1

S775

S738

S739

QR63

QS249

D973

D962

D964

D963

D969

D968

D967

D966

D961

D965

S73:

S863

B

B

B

B

B

QD255

7

2

S741

41

S742

D974
D975

QE31

QS24:

QS251

QM28

QS252

QD256

QBE53

QD257

QD258

QD259

3

4

5

6

7

D:2:

D:26

D:29

S746

R99

S752

S751

S754

S753

S747

S748

S749

S74:

S7:8

D994

S7:9

S7::

S7:7

D992

S745

D993

QBE45

D:32

D:31

D98:

D991

S89:
D987

D978

D996

S843

D979

D976

D:22

D986

D985

DO45

S844

D988

D97:

D981

D:1:

D989

D982

D:24

D983

D977

D984

3:

QS267

QR64

D997

QS271

QR77

QS273

D995

S846

S845

I49

S819

QV27

QD262

JPH

QR65

72

QD261

QD25:

QR73

QBE52

S755

QBE57

D99:

D998

QBE46

DO46

D999

D:5:

J

J

H

H

QR66

P

P

S759

D9:3

QD273

DO48

S756

QD274

3

QM29

QM2:

QD269

D9:2

S758

D9:1

S757

QD26:

QBE51

DO51

QE34

QD271

QR69

QD265
QD266

QE37

QE36

P

P
H

H

QE32

QS262

7

7
2

2

QS259

P

P

J

J

H

H

QD272

QS25:

QS258

QD267

J

J

QR68

QD263

QS256

QS261

QD268

QS254

QD264

QS253

QS255

QE35

J

J

H

H

QBE47

QV28

P

P

QE33

QS257

QR67

2

H4

1 Modem Cable Connector 6 RTC battery connector

2 MDC connector 7 Line-in connector

3 DDR Dimm 1 8 Microphone-in connector

4 Smart card connector 9 Headphone out connector

5 Mini PCI connector

Clear BIOS Password

If you need to clear BIOS password, please have G3 a short-circuit.

Chapter 5 81

82 Chapter 5

Chapter 6

FRU (Field Replaceable Unit) List

This chapter gives you the FRU (Field Replaceable Unit) listing in global configurations of TravelMate 6000
and TravelMate 8000 series products. Refer to this chapter whenever ordering for parts to repair or for RMA
(Return Merchandise Authorization).

Please note that WHEN ORDERING FRU PARTS, you should check the most up-to-date information available
on your regional web or channel. For whatever reasons a part number change is made, it will not be noted on
the printed Service Guide. For ACER AUTHORIZED SERVICE PROVIDERS, your Acer office may have a
DIFFERENT part number code from those given in the FRU list of this printed Service Guide. You MUST use
the local FRU list provided by your regional Acer office to order FRU parts for repair and service of customer
machines.

NOTE: To scrap or to return the defective parts, you should follow the local government ordinance or

regulations on how to dispose it properly, or follow the rules set by your regional Acer office on how to
return it.

NOTE: Exploded diagram is not ready as service guide released. We will update the service guide to CSD

website, please download the exploded diagram from the website if you need the file.

Chapter 6 83

Exploded Diagram

TravelMate 6000 FRU List

Picture No. Partname And Description Part Number

Adapter

Battery

Boards

NS ADAPTER 65W -- TBD TBD

ADAPTER 65W -- TBD TBD

NS BATTERY SANYO LI-ION 8CELL 4400mAH SI-

QT83

BATTERY SIMPLO LI-ION 8CELL (BATTERY
PACK ZG14S2P, 4400mAH)

BATTERY SANYO LI-ION 6CELL (MODEL
NAME:3UF103450P-2-QC-20,3600 Mah)

MODEM CARD , AMBIT T60M283.15 54.A10V7.001

BT.T2303.001

BT.T2905.001

BT.T2303.002

84 Chapter 6

TravelMate 6000 FRU List

Picture No. Partname And Description Part Number

Cables

MODEM /BLUETOOTH COMBO BOARD AMBIT
T60M665.00

WIRELESS LAN BOARD (802.11b+g) INTEL 54.T25V7.003

NS LAUNCH BOARD 55.T41V7.001

NS TOUCH PAD BOARD W/CABLE 55.T41V7.002

SWITCH BOARD 55.T41V7.003

TOUCHPAD CABLE 50.T23V7.001

54.T23V7.002

Case/Cover/Bracket Assembly

COVER SWITCH CABLE 50.T23V7.003

MODEM CABLE 50.T23V7.002

POWER CORD US (3 pin) 27.A03V7.001

POWER CORD PRC ( 3 Pin) 27.A03V7.003

ZI1S POWER CORD SPARE PART-KOERA 27.T23V7.006

ET2S POWER CORD S/P-EU 27.A03V7.002

ET2S POWER CORD S/P-UK 27.A03V7.004

ET2S POWER CORD S/P-ITALIAN 27.A03V7.005

ET2S POWER CORD SPARE PART-SWISS 27.A03V7.007

ET2S POWER CORD S/P-AU 27.A03V7.008

ET2S POWER CORD S/P-DANISH 27.A03V7.006

Chapter 6 85

TravelMate 6000 FRU List

Picture No. Partname And Description Part Number

MIDDLE COVER W/ NAME PLATE TM6000 42.T41V7.001

DIMM DOOR W/SCREW 42.T23V7.002

WIRELESS BOARD COVER 42.T23V7.011

FRONT BEZEL FOR 4 IN 1 MODEL 42.T23V7.003

UPPER CASE ASSY W/ TOUCHPAD 60.T41V7.001

LOWER CASE ASSY W/SPEAKER 60.T41V7.002

I/O BRACKET W/MICROPHONE 6K.T41V7.001

TOUCH PAD SHIELDING FOR TOUCH PAD
BOARD

33.T23V7.001

TOUCHPAD BOARD BUTTON 33.T41V7.001

LOWER CASE W/O SPEAKER 60.T23V7.001

UPPER CASE W/TOUCHPAD HOLDER 60.T23V7.002

I/O BRACKET W/MICROPHONE 6K.T23V7.001

Communication Module

WIRELESS LAN ANTENNA - BASE 50.T41V7.001

86 Chapter 6

TravelMate 6000 FRU List

Picture No. Partname And Description Part Number

CPU

HDD/ Hard Disk Drive

WIRELESS LAN ANTENNA - LCD 50.T41V7.002

BLUETOOTH ANTENNA 50.T23V7.004

NS INTEL PENTIUM 4-M (NORTHWOOD) 1.8GHZ/

512K/400FSB/1.3V/478PIN/ C-1 STEPPING

INTEL PENTIUM 4-M (NORTHWOOD) 1.9GHZ/
512K/400FSB/1.3V/478PIN/ C-1 STEPPING

INTEL PENTIUM 4-M (NORTHWOOD) 2.0GHZ/
512K/400FSB/1.3V/478PIN/ C-1 STEPPING

INTEL PENTIUM 4-M (NORTHWOOD) 2.2GHZ/
512K/400FSB/1.3V/478PIN/ C-1 STEPPING

INTEL PENTIUM 4-M (NORTHWOOD) 2.2GHZ/
512K/400FSB/1.3V/478PIN/ C-1 STEPPING

NS HDD 20GB/2.5 IN./4200RPM/TOSHIBA TITAN

MK2018GAP

HDD 30GB/2.5 IN./4200RPM/HITACHI
EUCALYPTUS DK23EA/30

HDD 30GB/2.5 IN./4200RPM/FUJITSU
HORNET 16L MHS2030AT

HDD 30GB/2.5 IN./4200RPM/TOSHIBA
NEPTUNE MK3021GAS

HDD 40GB/2.5 IN./4200RPM/HITACHI
EUCALYPTUS DK23EA-40

HDD COVER 42.T23V7.010

01.P4MNW.1G8

01.P4MNW.1G9

01.P4MNW.2G0

01.NORTH.22B

01.P4MNW.2G4

KH.25204.001

KH.33005.002

KH.03006.001

KH.33004.001

KH.34005.002

HDD CASE 33.T23V7.004

Keyboard

NS KEYBOARD DARFON US INTERNATIONAL KB.T4107.001

KEYBOARD DARFON CHINESE KB.T4107.002

KEYBOARD DARFON SPANISH KB.T4107.003

KEYBOARD DARFON THAI KB.T4107.004

KEYBOARD DARFON BRAZILIAN
PROTUGESE

KEYBOARD DARFON UK KB.T4107.007

KEYBOARD DARFON GERMAN KB.T4107.008

KB.T4107.005

Chapter 6 87

TravelMate 6000 FRU List

Picture No. Partname And Description Part Number

LCD

KEYBOARD DARFON ITALIAN KB.T4107.009

KEYBOARD DARFON FRENCH KB.T4107.010

KEYBOARD DARFON SWISS/G KB.T4107.011

KEYBOARD DARFON PORTUGUESE KB.T4107.012

KEYBOARD DARFON ARABIC KB.T4107.013

KEYBOARD DARFON BELGIUM KB.T4107.014

KEYBOARD DARFON SWEDEN KB.T4107.015

KEYBOARD DARFON CZECH KB.T4107.016

KEYBOARD DARFON HUNGAIAN KB.T4107.017

KEYBOARD DARFON NORWAY KB.T4107.018

KEYBOARD DARFON DANISH KB.T4107.019

KEYBOARD DARFON TURKISH KB.T4107.020

KEYBOARD DARFON CANADIAN FRENCH KB.T4107.021

KEYBOARD DARFON GREEK KB.T4107.023

KEYBOARD DARFON RUSSIAN KB.T4107.024

LCD MODULE 14.1" TFT XGA QDI
QD141X1LH12

TBD

LCD MODULE 15" TFT SXGA+ AU B150PG01 TBD

LCD MODULE 15 IN. SXGA+ HANNSTAR
HSD150PK14-A

LCD MODULE 15 IN. SXGA CPT
CLAA150PB01

LCD MODULE 15 IN. SXGA+ SAMSUNG
LTN150P4-L03 (150nit)

LCD 14.1 IN. TFT XGA QDI QD14.11XLH12 TBD

LCD 15 IN. TFT SXGA+ AU B150PG01 (spwg-B) TBD

LCD 15 IN. TFT SXGA+ HANNSTAR
HSD150PK14-A

LCD 15 IN. SXGA CPT CLAA150PB01 TBD

LCD 15 IN. TFT SXGA+ SAMSUNG LTN150P4­L03 (150nit)

LCD INVERTER W/MAYLAR (SUMIDA­IV12129/T)

TBD

TBD

TBD

TBD

TBD

19.T23V7.011

88 Chapter 6

TravelMate 6000 FRU List

Picture No. Partname And Description Part Number

LCD BRACKET 14.1" RIGHT W/HINGE 33.T23V7.005

LCD BRACKET 15" RIGHT W/HINGE 33.T23V7.007

LCD BRACKET 14.1” LEFT W/HINGE 33.T23V7.006

LCD BRACKET 14.1” LEFT W/HINGE 33.T23V7.008

LCD PANEL WITH LOGO 14.1 IN 60.T41V7.003

LCD PANEL WITH LOGO 15.0 IN 60.T41V7.004

LCD BEZEL 14.1 IN 60.T23V7.004

LCD BEZEL 15 IN. W/RUBBER 60.T29V7.004

Main Board

Memory

LCD COAXIAL CABLE 14.1" FOR QDI 50.T23V7.011

LCD COAXIAL CABLE FOR 15 IN. SXGA 50.T41V7.003

LCD COAXIAL CABLE FOR 15 IN. SXGA 50.T41V7.004

251-The
System

NS PCMCIA SLOT 22.T41V7.001

MAINBOARD W/SMART CARD
READER,PCMCI SLOT,W/O CPU MEMORY

LB.T4106.001

Chapter 6 89

TravelMate 6000 FRU List

Picture No. Partname And Description Part Number

Optical Drive

NS MEMORY SO-DIMM DDR266/128MB /

INFINEON HYS64D16000GDL-7-B

MEMORY SO-DIMM DDR266/256MB/0.14U /
INFINEON HYS64D32020 GDL-7-B

MEMORY SO-DIMM DDR266/256MB/0.15U /
MICRON MT8VDDT3264HDG-265C3

MEMORY SO-DIMM DDR266/256MB/0.14U /
NANYA NT256D64SH8B0GM-75B

MEMORY SO-DIMM DDR266/256MB/ ELPIDA
W30256A6EP1652A

MEMORY SO-DIMM DDR266/512MB/0.14U /
INFINEON HYS64D64020GBDL-7-B

MEMORY SO-DIMM DDR266/512MB/ MICRON
MT16VDDS6464HG-265B4

DVD-RW COMBO MODULE 24X KME UJDA750 TBD

DVD-RW COMBO MODULE 24X QSI SBW­242C

DVD DUAL MODULE 4X PIONEER DVR­K12RA

DVD DUAL MODULE 4X QSI SDW-042 TBD

DVD-RW COMBO DRIVE 24X KME UJDA750 TBD

DVD-RW COMBO DRIVE 24X QSI SBW-242C TBD

DVD DUAL DRIVE 4X PIONEER DVR-K12RA TBD

DVD DUAL DRIVE 4X QSI SDW-042 TBD

DVD-RW COMBO BEZEL FOR MKE 42.T23V7.009

KN.12802.004

KN.25602.001

KN.25604.004

KN.25603.004

KN.25609.001

KN.51202.003

KN.51204.002

TBD

TBD

DVD/CDRW COMBO BEZEL FOR QSI 42.T23V7.008

DVD SUPER MULTI BEZEL FOR HLDS TBD

DVD SUPER MULTI BEZEL FOR KME TBD

OPTICAL DEVICE HOLDER 33.T23V7.003

NS OPTICAL DEVICE BOARD 55.T41V7.004

Pointing Device

90 Chapter 6

TravelMate 6000 FRU List

Picture No. Partname And Description Part Number

Speaker

Heatsink

Reader

TOUCHPAD 56.T23V7.001

SPEAKER SET 6K.T23V7.002

THERMAL MODULE W/FAN 6K.T41V7.005

SMART CARD READER 60.T23V7.007

Screws

4 IN 1 READER 6K.T41V7.002

SCREW M2.5X4-I-NYLOK 86.T23V7.009

SCREW M2.0X3.5-I-NI-NYLOK 86.T23V7.005

SCREW M2X3-I-BNI-NYLOK 86.T23V7.014

SCREW M2.0X5-I-NI-NYLOK 86.T23V7.006

SCREW M2.0X6.0-I-NI-NYLOK 86.T23V7.017

SCREW M2.5X2-I-NI-NYLOK 86.T23V7.018

SCREW M2.5X3-I-NI-NYLOK 86.A03V7.010

SCREW, MM25050IL64 86.A03V7.003

SCREW M2.5*7.0 FOR NEW ANTENNA 86.T25V7.021

SCREW I2*3M-NIHY (M2L3) 86.T25V7.008

SCREW M2.5X0.45+7I-NYLOK 86.T23V7.012

SCREW M2.0X5.0-I-BNI-NYLOK 86.T23V7.015

SCREW M2.0X2.5-I-NI-NYLOK 86.A03V7.007

SCREW I3*3.5M-NIH(M3L3.5) 86.A03V7.011

Chapter 6 91

TravelMate 8000 FRU List

Picture No. Partname And Description Part Number

Adapter

Battery

Boards

NS ADAPTER 65W -- TBD TBD

ADAPTER 65W -- TBD TBD

NS BATTERY SANYO LI-ION 8CELL 4400mAH SI-

QT83

BATTERY SIMPLO LI-ION 8CELL (BATTERY
PACK ZG14S2P, 4400mAH)

BATTERY SANYO LI-ION 6CELL (MODEL
NAME:3UF103450P-2-QC-20,3600 Mah)

MODEM CARD , AMBIT T60M283.15 54.A10V7.001

BT.T2303.001

BT.T2905.001

BT.T2303.002

Cables

MODEM /BLUETOOTH COMBO BOARD AMBIT
T60M665.00

WIRELESS LAN BOARD (802.11b+g) INTEL 54.T25V7.003

NS LAUNCH BOARD 55.T41V7.001

NS TOUCH PAD BOARD W/CABLE 55.T41V7.002

SWITCH BOARD 55.T41V7.003

TOUCHPAD CABLE 50.T23V7.001

54.T23V7.002

92 Chapter 6
