Alienware 17 R2
Service Manual
Computer Model: Alienware 17 R2
Regulatory Model: P43F
Regulatory Type: P43F001
Page 2
Notes, Cautions, and Warnings
NOTE: A NOTE indicates important information that helps you make better use
of your computer.
CAUTION: A CAUTION indicates either potential damage to
hardware or loss of data and tells you how to avoid the problem.
WARNING: A WARNING indicates a potential for property damage,
personal injury, or death.
Copyright © 2015 Dell Inc. All rights reserved. This product is protected by U.S. and
international copyright and intellectual property laws. Dell™ and the Dell logo are trademarks of
Dell Inc. in the United States and/or other jurisdictions. All other marks and names mentioned
herein may be trademarks of their respective companies.
2014 - 12
Rev. A00
Page 3
Contents
Before working inside your computer........................ 12
Before you begin ............................................................................................... 12
Safety instructions............................................................................................ 12
Recommended tools..........................................................................................14
After working inside your computer........................... 15
Removing the base panel................................................. 16
Procedure...........................................................................................................16
Replacing the base panel..................................................19
Procedure...........................................................................................................19
Removing the memory modules..................................20
Prerequisites.....................................................................................................20
Procedure..........................................................................................................20
Replacing the memory modules...................................22
Procedure.......................................................................................................... 22
Post-requisites..................................................................................................23
Removing the solid-state drives..................................24
Prerequisites.....................................................................................................24
Procedure..........................................................................................................24
Replacing the solid-state drives...................................26
Procedure.......................................................................................................... 26
Post-requisites..................................................................................................26
Page 4
Removing the hard drive.................................................. 27
Prerequisites..................................................................................................... 27
Procedure.......................................................................................................... 27
Replacing the hard drive..................................................30
Procedure..........................................................................................................30
Post-requisites................................................................................................. 30
Removing the wireless card............................................ 31
Prerequisites......................................................................................................31
Procedure...........................................................................................................31
Replacing the wireless card............................................33
Procedure..........................................................................................................33
Post-requisites..................................................................................................33
Removing the palm rest................................................... 34
Prerequisites.....................................................................................................34
Procedure..........................................................................................................35
Replacing the palm rest.....................................................41
Procedure...........................................................................................................41
Post-requisites.................................................................................................. 41
Removing the power-button board............................ 42
Prerequisites.....................................................................................................42
Procedure..........................................................................................................42
Replacing the power-button board............................ 44
Procedure..........................................................................................................44
Post-requisites..................................................................................................44
Page 5
Removing the status-light board.................................45
Prerequisites.....................................................................................................45
Procedure..........................................................................................................45
Replacing the status-light board................................. 47
Procedure.......................................................................................................... 47
Post-requisites.................................................................................................. 47
Removing the keyboard...................................................48
Prerequisites.....................................................................................................48
Procedure..........................................................................................................48
Replacing the keyboard....................................................52
Procedure..........................................................................................................52
Post-requisites..................................................................................................52
Removing the touch pad..................................................53
Prerequisites.....................................................................................................53
Procedure..........................................................................................................54
Replacing the touch pad.................................................. 56
Procedure..........................................................................................................56
Post-requisites..................................................................................................56
Removing the display assembly...................................57
Prerequisites..................................................................................................... 57
Procedure.......................................................................................................... 57
Replacing the display assembly....................................61
Procedure...........................................................................................................61
Post-requisites.................................................................................................. 61
Page 6
Removing the battery....................................................... 62
Prerequisites.....................................................................................................62
Procedure..........................................................................................................62
Replacing the battery........................................................65
Procedure..........................................................................................................65
Post-requisites..................................................................................................65
Removing the I/O board....................................................66
Prerequisites.....................................................................................................66
Procedure..........................................................................................................66
Replacing the I/O board.................................................... 68
Procedure..........................................................................................................68
Post-requisites................................................................................................. 68
Removing the speakers....................................................69
Prerequisites.....................................................................................................69
Procedure..........................................................................................................69
Replacing the speakers.....................................................72
Procedure.......................................................................................................... 72
Post-requisites.................................................................................................. 72
Removing the front AlienFX LED boards.................. 73
Prerequisites..................................................................................................... 73
Procedure.......................................................................................................... 73
Replacing the front AlienFX LED board..................... 75
Procedure.......................................................................................................... 75
Post-requisites.................................................................................................. 75
Page 7
Removing the processor fan.......................................... 76
Prerequisites..................................................................................................... 76
Procedure.......................................................................................................... 76
Replacing the processor fan...........................................78
Procedure.......................................................................................................... 78
Post-requisites..................................................................................................78
Removing the system board.......................................... 79
Prerequisites..................................................................................................... 79
Procedure.......................................................................................................... 79
Replacing the system board.......................................... 83
Procedure..........................................................................................................83
Post-requisites................................................................................................. 83
Removing the heat sink....................................................84
Prerequisites.....................................................................................................84
Procedure..........................................................................................................84
Replacing the heat sink.................................................... 86
Procedure..........................................................................................................86
Post-requisites................................................................................................. 86
Removing the coin-cell battery.....................................87
Prerequisites..................................................................................................... 87
Procedure.......................................................................................................... 87
Replacing the coin-cell battery.....................................89
Procedure..........................................................................................................89
Post-requisites................................................................................................. 89
Page 8
Removing the video-card fan........................................ 90
Prerequisites.....................................................................................................90
Procedure..........................................................................................................90
Replacing the video-card fan......................................... 92
Procedure..........................................................................................................92
Post-requisites..................................................................................................92
Removing the power-adapter port............................. 93
Prerequisites.....................................................................................................93
Procedure..........................................................................................................93
Replacing the power-adapter port..............................95
Procedure..........................................................................................................95
Post-requisites..................................................................................................95
Removing the subwoofer.................................................96
Prerequisites.....................................................................................................96
Procedure..........................................................................................................96
Replacing the subwoofer................................................. 98
Procedure..........................................................................................................98
Post-requisites................................................................................................. 98
Removing the display bezel........................................... 99
Prerequisites.....................................................................................................99
Procedure..........................................................................................................99
Replacing the display bezel.......................................... 104
Procedure........................................................................................................ 104
Post-requisites................................................................................................104
Page 9
Removing the display panel......................................... 105
Prerequisites................................................................................................... 105
Procedure........................................................................................................ 105
Replacing the display panel..........................................108
Procedure........................................................................................................ 108
Post-requisites................................................................................................108
Removing the display hinges.......................................109
Prerequisites................................................................................................... 109
Procedure........................................................................................................ 109
Replacing the display hinges.........................................112
Procedure......................................................................................................... 112
Post-requisites................................................................................................. 112
Removing the computer base...................................... 113
Prerequisites.................................................................................................... 113
Procedure......................................................................................................... 113
Replacing the computer base.......................................115
Procedure......................................................................................................... 115
Post-requisites.................................................................................................115
Removing the logo board................................................116
Prerequisites.................................................................................................... 116
Procedure..........................................................................................................117
Replacing the logo board................................................ 119
Procedure......................................................................................................... 119
Post-requisites.................................................................................................119
Page 10
Removing the camera......................................................120
Prerequisites................................................................................................... 120
Procedure........................................................................................................ 120
Replacing the camera...................................................... 122
Procedure.........................................................................................................122
Post-requisites................................................................................................ 122
Removing the display-panel AlienFX LEDs............ 123
Prerequisites................................................................................................... 123
Procedure........................................................................................................ 124
Replacing the display-panel AlienFX LEDs.............126
Procedure........................................................................................................ 126
Post-requisites................................................................................................ 126
Removing the Alienware AlienHead LED board...127
Prerequisites....................................................................................................127
Procedure.........................................................................................................127
Replacing the Alienware AlienHead LED board...130
Procedure........................................................................................................ 130
Post-requisites................................................................................................130
Removing the display back-cover.............................. 131
Prerequisites.................................................................................................... 131
Procedure......................................................................................................... 131
Replacing the display back-cover..............................134
Procedure........................................................................................................ 134
Post-requisites................................................................................................ 134
Page 11
BIOS setup program..........................................................135
Overview..........................................................................................................135
Entering BIOS setup program ........................................................................ 135
BIOS setup program options...........................................................................135
Boot sequence..................................................................................................141
Boot options............................................................................................... 141
Changing boot sequence for the current boot..........................................142
Changing boot sequence for future boots................................................ 142
Flashing the BIOS............................................................... 143
Getting help and contacting Alienware.................. 144
Self-help resources..........................................................................................144
Contacting Alienware......................................................................................144
Page 12
Before working inside your computer
CAUTION: To avoid damaging the components and cards,
handle them by their edges and avoid touching pins and
contacts.
NOTE: The images in this document may differ from your computer
depending on the configuration you ordered.
Before you begin
1 Save and close all open files and exit all open applications.
2 Shut down your computer.
– Windows 8.1: On the Start screen, click or tap the power icon →
Shut down.
– Windows 7: Click or tap Start → Shut down.
NOTE: If you are using a different operating system, see the
documentation of your operating system for shut-down instructions.
3 Disconnect your computer and all attached devices from their electrical
outlets.
4 Disconnect all cables such as telephone cables, network cables and so on,
from your computer.
5 Disconnect all attached devices and peripherals, such as keyboard, mouse,
monitor, and so on, from your computer.
6 Remove any media card and optical disc from your computer, if applicable.
Safety instructions
Use the following safety guidelines to protect your computer from potential
damage and ensure your personal safety.
WARNING: Before working inside your computer, read the
safety information that shipped with your computer. For
more safety best practices, see the Regulatory Compliance
home page at dell.com/regulatory_compliance.
12
Page 13
WARNING: Disconnect all power sources before opening the
computer cover or panels. After you finish working inside
the computer, replace all covers, panels, and screws before
connecting to the power source.
CAUTION: To avoid damaging the computer, make sure that
the work surface is flat and clean.
CAUTION: To avoid damaging the components and cards,
handle them by their edges and avoid touching pins and
contacts.
CAUTION: You should only perform troubleshooting and
repairs as authorized or directed by the Dell technical
assistance team. Damage due to servicing that is not
authorized by Dell is not covered by your warranty. See the
safety instructions that shipped with the product or at
dell.com/regulatory_compliance.
CAUTION: Before touching anything inside your computer,
ground yourself by touching an unpainted metal surface,
such as the metal at the back of the computer. While you
work, periodically touch an unpainted metal surface to
dissipate static electricity, which could harm internal
components.
CAUTION: When you disconnect a cable, pull on its connector
or on its pull-tab, not on the cable itself. Some cables have
connectors with locking tabs or thumb-screws that you
must disengage before disconnecting the cable. When
disconnecting cables, keep them evenly aligned to avoid
bending any connector pins. When connecting cables, make
sure that the ports and connectors are correctly oriented
and aligned.
CAUTION: To disconnect a network cable, first unplug the
cable from your computer and then unplug the cable from
the network device.
CAUTION: Press and eject any installed card from the mediacard reader.
13
Page 14
Recommended tools
The procedures in this document may require the following tools:
• Philips screwdriver
• Plastic scribe
14
Page 15
After working inside your computer
CAUTION: Leaving stray or loose screws inside your
computer may severely damage your computer.
1 Replace all screws and make sure that no stray screws remain inside your
computer.
2 Connect any external devices, peripherals, and cables you removed before
working on your computer.
3 Replace any media cards, discs, and any other parts that you removed
before working on your computer.
4 Connect your computer and all attached devices to their electrical outlets.
5 Turn on your computer.
15
Page 16
Removing the base panel
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Close the display and turn the computer over.
2 Loosen the captive screws that secure the base panel to the computer
base.
3 Using a plastic scribe, gently release the tabs that secure the base panel to
the computer base.
Before working inside your computer.
16
Page 17
4 Slide and remove the base panel from the computer base.
1 computer base 2 captive screws (2)
3 base panel 4 plastic scribe
17
Page 18
5 Disconnect the battery cable from the system board.
1 battery cable
6 Turn the computer over.
7 Press and hold the power button for 5 seconds to ground the system
board.
18
Page 19
Replacing the base panel
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Connect the battery cable to the system board.
2 Slide the tabs on the base panel into the slots on the computer base and
snap the base panel into place.
3 Tighten the captive screws that secure the base panel to the computer
base.
Before working inside your computer.
19
Page 20
Removing the memory modules
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
Remove the base panel.
Procedure
1 Using your fingertips, carefully spread apart the securing clips on each end
of the memory-module slot until the memory module pops up.
Before working inside your computer.
20
Page 21
2 Slide and remove the memory module from the memory-module slot.
1 securing clips (2) 2 memory modules (2)
3 memory-module slot
21
Page 22
Replacing the memory modules
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Align the notch on the memory module with the tab on the memory-
module slot.
Before working inside your computer.
22
Page 23
2 Slide the memory module firmly into the slot at an angle and press the
memory module down until it clicks into place.
NOTE: If you do not hear the click, remove the memory module and
reinstall it.
1 securing clips (2) 2 memory module
3 memory-module slot 4 notch
5 tab
Post-requisites
Replace the base panel.
23
Page 24
Removing the solid-state drives
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
CAUTION: Solid-state drives are fragile. Exercise care when
handling the hard drive.
CAUTION: To avoid data loss, do not remove the solid-state
drive while the computer is in sleep or on state.
Prerequisites
Remove the base panel.
Procedure
NOTE: Your computer can accommodate either one 2.5-inch hard drive or
four solid-state drives.
Before working inside your computer.
1 Remove the screw that secures the solid-state drive to the computer base.
24
Page 25
2 Slide and remove the solid-state drive from the solid-state drive slot.
1 solid-state drive slot 2 solid-state drive
3 screw
25
Page 26
Replacing the solid-state drives
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
CAUTION: Solid-state drives are fragile. Exercise care when
handling the hard drive.
Procedure
1 Slide the solid-state drive into the solid-state drive slot.
2 Replace the screw that secures the solid-state drive to the computer base.
Post-requisites
Replace the base panel.
Before working inside your computer.
26
Page 27
Removing the hard drive
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
CAUTION: Hard drives are fragile. Exercise care when
handling the hard drive.
CAUTION: To avoid data loss, do not remove the hard drive
while the computer is in sleep or on state.
Prerequisites
Remove the base panel.
Procedure
NOTE: Your computer can accommodate either one 2.5-inch hard drive or
four solid-state drives.
Before working inside your computer.
1 Using the pull tab, disconnect the hard-drive cable from the system board.
2 Note the hard-drive cable routing and remove the cable from the routing
guides on the computer base.
3 Remove the screws that secure the hard-drive assembly to the computer
base.
27
Page 28
4 Lift the hard-drive assembly off the computer base.
1 pull tab 2 hard-drive cable
3 screws (4) 4 hard-drive assembly
5 Remove the screws that secure the hard-drive bracket to the hard drive.
6 Lift the hard-drive bracket off the hard-drive assembly.
28
1 hard drive 2 hard-drive bracket
3 screws (4)
Page 29
7 Disconnect the interposer from the hard drive.
1 interposer 2 hard drive
29
Page 30
Replacing the hard drive
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
CAUTION: Hard drives are fragile. Exercise care when
handling the hard drive.
Procedure
1 Connect the interposer to the hard drive.
2 Align the screw holes on the hard-drive bracket with the screw holes on
the hard-drive assembly.
3 Replace the screws that secure the hard-drive bracket to the hard-drive
assembly.
4 Align the screw holes on the hard-drive assembly with the screw holes on
the computer base.
5 Replace the screws that secure the hard-drive assembly to the computer
base.
6 Route the hard-drive cable through the routing guides on the computer
base.
7 Connect the hard-drive cable to the system board.
Before working inside your computer.
Post-requisites
Replace the base panel.
30
Page 31
Removing the wireless card
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
Remove the base panel.
Procedure
1 Remove the screw that secures the wireless-card bracket and the wireless
card to the system board.
2 Lift the wireless-card bracket off the wireless card.
3 Disconnect the antenna cables from the wireless card.
Before working inside your computer.
31
Page 32
4 Lift and slide the wireless card from the wireless-card slot.
1 antenna cables 2 wireless-card bracket
3 screw 4 wireless card
5 wireless-card slot
32
Page 33
Replacing the wireless card
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
CAUTION: To avoid damaging the wireless card, do not place
any cables under it.
1 Align the notch on the wireless card with the tab on the wireless-card slot.
2 Slide the wireless card at an angle into the wireless-card slot.
3 Connect the antenna cables to the wireless card.
The following table provides the antenna-cable color scheme for the
wireless card supported by your computer.
Connectors on the wireless card Antenna-cable color
Main (white triangle) White
Before working inside your computer.
Auxiliary (black triangle) Black
4 Align the screw hole on the wireless-card bracket with the screw hole on
the wireless card.
5 Replace the screw that secures the wireless-card bracket and the wireless
card to the system board.
Post-requisites
Replace the base panel.
33
Page 34
Removing the palm rest
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
Remove the base panel.
Before working inside your computer.
34
Page 35
Procedure
1 Lift the latches and disconnect the keyboard cable, keyboard-backlight
cable, macro-keys cable and macro-keys backlight cable from the system
board.
1 keyboard-backlight cable 2 keyboard cable
3 macro-keys cable 4 macro-keys backlight cable
35
Page 36
2 Remove the screws that secure the palm-rest assembly to the computer
base.
1 computer base 2 screws (16)
36
Page 37
3 Lift the computer base slightly and push the palm-rest assembly through
the slot on the computer base to release the tabs on the palm-rest
assembly.
1 slot 2 palm-rest assembly
4 Turn the computer over and open the display as far as possible.
5 Using a plastic scribe, pry up along the edges of the palm-rest assembly.
37
Page 38
6 Gently lift the palm-rest assembly and turn it over.
1 plastic scribe 2 palm-rest assembly
7 Peel the tape that secures the power-button board cable to the system
board.
8 Disconnect the power-button board cable from the system board.
38
Page 39
9 Lift the palm-rest assembly off the computer base.
1 palm-rest assembly 2 power-button board cable
3 latch
10 Remove the power-button board.
11 Remove the status-light board.
12 Remove the keyboard.
39
Page 40
13 Remove the touch pad.
1 palm rest
40
Page 41
Replacing the palm rest
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Replace the touch pad.
2 Replace the keyboard.
3 Replace the status-light board.
4 Replace the power-button board.
5 Connect the power-button board cable to the system board.
6 Adhere the tape that secures the power-button board cable to the system
board.
7 Slide the keyboard cable, keyboard-backlight cable, macro-keys cable, and
macro-keys backlight cable through the slot on the computer base.
8 Align the palm-rest assembly on the computer base and snap it into place.
9 Close the display and turn the computer over.
10 Replace the screws that secure the palm-rest assembly to the computer
base.
11 Slide the keyboard cable, keyboard-backlight cable, macro-keys cable and
macro-keys backlight cable into their respective connectors and press
down the latches to secure the cables to the system board.
Before working inside your computer.
Post-requisites
Replace the base panel.
41
Page 42
Removing the power-button board
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
Procedure
1 Lift the latches and disconnect the touch-pad cable and the status-light
cable from the power-button board.
2 Disconnect the power-button board cable from the power-button board.
3 Remove the screws that secure the power-button board to the palm-rest
assembly.
Before working inside your computer.
42
Page 43
4 Lift the power-button board off the palm-rest assembly.
1 power-button board cable 2 latches (2)
3 touch-pad cable 4 status-light cable
5 screws (2) 6 power-button board
43
Page 44
Replacing the power-button board
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the power-button board with the screw holes on
the palm-rest assembly.
2 Replace the screws that secure the power-button board to the palm-rest
assembly.
3 Connect the power-button board cable to the power-button board.
4 Slide the touch-pad cable and the status-light cable into their respective
connectors on the power-button board and press down the latches to
secure the cables.
Before working inside your computer.
Post-requisites
1 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
2 Replace the base panel.
44
Page 45
Removing the status-light board
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
Procedure
1 Lift the latch and disconnect the status-light board cable from the status-
light board.
2 Remove the screws that secure the status-light board to the palm-rest
assembly.
Before working inside your computer.
45
Page 46

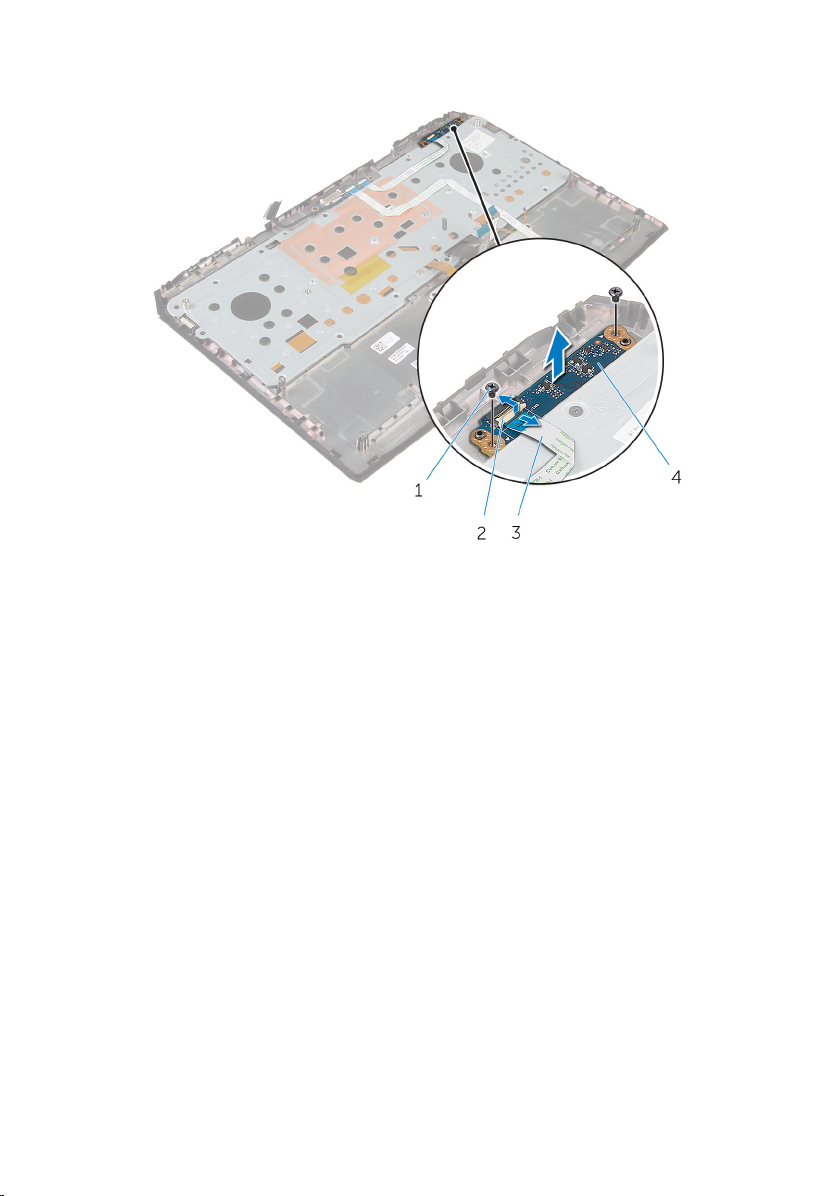

3 Lift the status-light board off the palm-rest assembly.
1 screws (2) 2 latch
3 status-light board cable 4 status-light board
46
Page 47
Replacing the status-light board
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the status-light board with the screw holes on the
palm-rest assembly.
2 Replace the screws that secure the status-light board to the palm-rest
assembly.
3 Slide the status-light board cable into the connector on the status-light
board and press down the latch to secure the cable.
Post-requisites
Before working inside your computer.
1 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
2 Replace the base panel.
47
Page 48
Removing the keyboard
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
Procedure
1 Lift the latches and disconnect the touch-pad cable and the status-light
cable from the power-button board.
Before working inside your computer.
48
Page 49
2 Note the touch-pad cable and status-light cable routing and peel off the
cables from the keyboard bracket.
1 latches (2) 2 touch-pad cable
3 status-light cable
3 Remove the screws that secure the keyboard bracket to the palm-rest
assembly.
4 Slide the keyboard cable, keyboard-backlight cable, macro-keys cable and
macro-keys backlight cable through the slot on the keyboard bracket.
49
Page 50
5 Lift the keyboard bracket off the palm-rest assembly.
1 screws (14) 2 keyboard bracket
3 palm-rest assembly
6 Remove the screws that secure the keyboard to the palm-rest assembly.
7 Release the tabs that secure the keyboard to the palm-rest assembly.
50
Page 51
8 Slide and lift the keyboard along with the cables off the palm-rest
assembly.
1 tabs (5) 2 keyboard
3 screws (2)
51
Page 52
Replacing the keyboard
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Slide the keyboard under the tabs on the palm-rest assembly.
2 Align the screw holes on the keyboard with the screw holes on the palm-
rest assembly.
3 Replace the screws that secure the keyboard to the palm-rest assembly.
4 Route the keyboard cable, keyboard-backlight cable, macro-keys cable and
macro-keys backlight cable through the slots on the keyboard bracket.
5 Align the screw holes on the keyboard bracket with the screw holes on the
palm-rest assembly.
6 Replace the screws that secure the keyboard bracket to the palm-rest
assembly.
7 Adhere the touch-pad cable and status-light cable to the keyboard bracket.
8 Slide the touch-pad cable and the status-light cable into their respective
connectors on the power-button board and press down the latches to
secure the cables.
Before working inside your computer.
Post-requisites
1 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
2 Replace the base panel.
52
Page 53
Removing the touch pad
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
Before working inside your computer.
53
Page 54
Procedure
1 Lift the latches and disconnect the touch-pad cable and touch-pad button
cable from the touch pad.
1 touch-pad cable 2 latches (2)
3 touch-pad button cable
2 Remove the screws that secure the touch-pad button bracket to the palm-
rest assembly.
54
Page 55
3 Lift the touch-pad button bracket off the palm-rest assembly.
1 touch-pad button bracket 2 screws (5)
4 Lift the touch pad off the palm-rest assembly.
1 touch pad
55
Page 56
Replacing the touch pad
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Using the alignment posts on the palm-rest assembly, place the touch pad
on the palm-rest assembly.
2 Slide the touch-pad button cable into the touch-pad button connector and
press down the latch to secure the cable.
3 Align the screw holes on the touch-pad button bracket with the screw
holes on the palm-rest assembly.
4 Replace the screws that secure the touch-pad button bracket to the palm-
rest assembly.
5 Slide the touch-pad cable into the touch-pad connector and press down
the latch to secure the cable.
Before working inside your computer.
Post-requisites
1 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
2 Replace the base panel.
56
Page 57
Removing the display assembly
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Remove the wireless card.
3 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
Procedure
1 Close the display and turn the computer over.
2 Remove the screws that secure the display assembly to the computer
base.
3 Make note of the antenna-cables routing and remove the antenna cables
from the routing guides on the computer base.
Before working inside your computer.
57
Page 58
4 Slide the antenna cables through the slot on the computer base.
1 antenna cables 2 slot
3 screws (2)
5 Turn the computer over and open the display.
6 Peel off the adhesive tape that secures the antenna cables to the system
board.
7 Carefully remove the antenna cables up from the computer base and
remove it from the routing guides on the display hinges.
8 Lift the latch and disconnect the display cable from the system board.
9 Remove the display cable from the routing guide on the display hinge.
58
Page 59
10 Disconnect the logo-board cable from the system board and remove it
from the routing guide on the display hinge.
1 display cable 2 latch
3 connector 4 logo-board cable
5 antenna cables 6 tape
11 Remove the screws that secure the display assembly to the computer
base.
59
Page 60
12 Lift the display assembly off the computer base.
60
1 display assembly 2 screws (4)
3 computer base 4 display hinges (2)
Page 61
Replacing the display assembly
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the display hinges with the screw holes on the
computer base.
2 Replace the screws that secure the display assembly to the computer
base.
3 Route the logo-board cable through the routing guide on the display hinge
and connect the logo-board cable to the system board.
4 Route the display cable through the routing guide on the display hinge.
5 Slide the display cable into the connector on the system board and press
down on the latch to secure the cable.
6 Route the antenna cables through the routing guide on the display hinge
and on the computer base.
7 Adhere the adhesive tapes that secure the antenna cables to the system
board.
8 Close the display and turn the computer over.
9 Replace the screws that secure the display assembly to the computer
base.
Before working inside your computer.
Post-requisites
1 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
2 Replace the wireless card.
3 Replace the base panel.
61
Page 62
Removing the battery
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
Procedure
1 Disconnect the speaker cable and front AlienFX LED cable from the system
board.
2 Remove the speaker cable from the routing guides on the battery.
Before working inside your computer.
62
Page 63
3 Note the front AlienFX LED cable routing and peel off the cable from the
battery.
1 system board 2 speaker cable
3 front AlienFX LED cable
4 Remove the battery cable from the slot on the computer base.
5 Remove the screws that secure the battery to the computer base.
63
Page 64
6 Lift the battery off the computer base.
64
1 battery cable 2 battery
3 screws (6)
Page 65
Replacing the battery
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the battery with the screw holes on the computer
base.
2 Replace the screws that secure the battery to the computer base.
3 Slide the battery cable through the slot on the computer base.
4 Adhere the front AlienFX LED cable to the battery.
5 Route the speaker cable through the routing guides on the battery.
6 Connect the speaker cable and front AlienFX LED cable to the system
board.
Post-requisites
Before working inside your computer.
1 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
2 Replace the base panel.
65
Page 66
Removing the I/O board
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
Procedure
1 Disconnect the subwoofer cable from the I/O board.
2 Lift the latch and disconnect the I/O-board cable from the I/O board.
3 Remove the screws that secure the I/O board to the computer base.
4 Gently tilt and lift to release the I/O ports from the computer base.
Before working inside your computer.
66
Page 67
5 Lift the I/O board off the computer base.
1 subwoofer cable 2 latch
3 I/O-board cable 4 screws (2)
5 I/O board
67
Page 68
Replacing the I/O board
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Align the ports on the I/O board with the slots on the computer base.
2 Align the screw holes on the I/O board with the screw holes on the
computer base.
3 Replace the screws that secure the I/O board to the computer base.
4 Connect the I/O-board cable to the I/O board.
5 Connect the subwoofer cable to the I/O board.
Post-requisites
1 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
2 Replace the base panel.
Before working inside your computer.
68
Page 69
Removing the speakers
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
Procedure
1 Disconnect the front AlienFX LED cable from the system board.
Before working inside your computer.
69
Page 70
2 Note the front AlienFX LED cable routing and peel off the cable from the
battery.
1 connector 2 front AlienFX LED cable
3 Disconnect the speaker cable from the system board.
4 Remove the speaker cable from the routing guides on the battery and
computer base.
70
Page 71
5 Lift the speakers along with its cable off the computer base.
1 speaker cable 2 system board
3 alignment posts (4) 4 computer base
5 speakers (2) 6 routing guides
71
Page 72
Replacing the speakers
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Using the alignment posts, place the speakers on the computer base.
2 Route the speaker cable through the routing guides on the computer base
and battery.
3 Route the front AlienFX LED cable through the routing guides on the
battery.
4 Connect the speaker cable and front AlienFX LED cable to the system
board.
Post-requisites
1 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
2 Replace the base panel.
Before working inside your computer.
72
Page 73
Removing the front AlienFX LED boards
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
Procedure
1 Disconnect the front AlienFX LED board cables from the front AlienFX LED
boards.
2 Remove the screws that secure the front AlienFX LED boards to the
computer base.
Before working inside your computer.
73
Page 74
3 Lift the front AlienFX LED boards off the computer base.
74
1 front AlienFX LED boards (2) 2 front AlienFX LED board
cables (2)
3 screws (2)
Page 75
Replacing the front AlienFX LED board
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Using the alignment posts on the computer base, place the front AlienFX
LED boards on the computer base.
2 Align the screw holes on the front AlienFX LED boards with the screw holes
on the computer base.
3 Replace the screws that secure the front AlienFX LED boards to the
computer base.
4 Connect the front AlienFX LED board cables to the front AlienFX LED
boards.
Before working inside your computer.
Post-requisites
1 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
2 Replace the base panel.
75
Page 76
Removing the processor fan
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
Procedure
1 Close the display and turn the computer over.
2 Disconnect the processor-fan cable from the system board.
Before working inside your computer.
76
1 processor-fan cable
Page 77
3 Turn the computer over and open the display.
4 Remove the screws that secure the processor fan to the computer base.
5 Peel off the Mylar from the processor heat-sink and processor fan.
6 Slide and lift the processor fan off the computer base.
1 mylar 2 processor fan
3 screws (2)
77
Page 78
Replacing the processor fan
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Using the alignment posts on the computer base, slide and place the
processor fan on the computer base.
2 Align the screw holes on the processor fan with the screw holes on the
computer base.
3 Adhere the Mylar on the processor fan and processor heat-sink.
4 Replace the screws that secure the processor fan to the computer base.
5 Close the display and turn the computer over.
6 Connect the processor-fan cable to the system board.
Post-requisites
Before working inside your computer.
1 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
2 Replace the base panel.
78
Page 79
Removing the system board
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
NOTE: Your computer’s Service Tag is stored in the system board. You
must enter the Service Tag in the BIOS setup program after you replace
the system board.
NOTE: Replacing the system board removes any changes you have made
to the BIOS using the BIOS setup program. You must make the desired
changes again after you replace the system board.
NOTE: Before disconnecting the cables from the system board, note the
location of the connectors so that you can reconnect them correctly after
you replace the system board.
Prerequisites
1 Remove the base panel.
2 Remove the wireless card.
3 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
4 Remove the display assembly.
Before working inside your computer.
Procedure
1 Turn the computer over.
79
Page 80
2 Disconnect the processor-fan cable, video-card fan cable, hard-drive cable
and power-adapter port cable from the system board.
1 processor-fan cable 2 power-adapter port cable
3 video-card fan cable 4 system board
5 hard-drive cable
3 Turn the computer over.
4 Disconnect the speaker and front AlienFX LED cables from the system
board.
80
Page 81
5 Lift the latch and disconnect the I/O-board cable from the system board.
1 I/O-board cable 2 latch
3 system board 4 speaker cable
5 front AlienFX LED cable
6 Remove the screws that secure the system board to the computer base.
81
Page 82
7 Lift the system board off the computer base.
1 screws (6) 2 system board
82
Page 83
Replacing the system board
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
NOTE: Your computer’s Service Tag is stored in the system board. You
must enter the Service Tag in the BIOS setup program after you replace
the system board.
NOTE: Replacing the system board removes any changes you have made
to the BIOS using the BIOS setup program. You must make the desired
changes again after you replace the system board.
Procedure
1 Insert the ports on the system board into the slots on the computer base
and gently place the system board on the computer base.
2 Align the screw holes on the system board with the screw holes on the
computer base.
3 Replace the screws that secure the system board to the computer base.
4 Slide the I/O-board cable into the connector on the I/O board and press
down the latch to secure the cable.
5 Connect the speaker and front AlienFX LED cables to the system board.
6 Turn the computer over.
7 Connect the processor-fan cable, video-card fan cable, hard-drive cable,
and power-adapter port cable to the system board.
Before working inside your computer.
Post-requisites
1 Replace the display assembly.
2 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
3 Replace the wireless card.
4 Replace the base panel.
83
Page 84
Removing the heat sink
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
WARNING: The heat sink may become hot during normal
operation. Allow sufficient time for the heat sink to cool
before you touch it.
CAUTION: For maximum cooling of the processor, do not
touch the heat transfer areas on the heat sink. The oils in
your skin can reduce the heat transfer capability of the
thermal grease.
Prerequisites
1 Remove the base panel.
2 Remove the wireless card.
3 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
4 Remove the display assembly.
5 Remove the system board.
Before working inside your computer.
Procedure
1 In sequential order (as indicated on the heat sink), loosen the captive
screws that secure the heat sink to the system board.
84
Page 85
2 Lift the heat sink off the system board.
1 system board 2 captive screws (8)
3 heat sink
85
Page 86
Replacing the heat sink
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
CAUTION: Incorrect alignment of the heat sink can cause
damage to the system board and processor.
NOTE: The original thermal grease can be reused if the original system
board and heat sink are reinstalled together. If either the system board or
the heat sink is replaced, use the thermal pad provided in the kit to make
sure that thermal conductivity is achieved.
Procedure
1 Align the screw holes on the heat sink with the screw holes on the system
board.
2 In sequential order (as indicated on the heat sink), tighten the captive
screws that secure the heat sink to the system board.
3 Turn the system board over.
Before working inside your computer.
Post-requisites
1 Replace the system board.
2 Replace the display assembly.
3 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
4 Replace the wireless card.
5 Replace the base panel.
86
Page 87
Removing the coin-cell battery
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
CAUTION: Removing the coin-cell battery resets the BIOS
settings to default. It is recommended that you note the
BIOS settings before removing the coin-cell battery.
Prerequisites
1 Remove the base panel.
2 Remove the wireless card.
3 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
4 Remove the display assembly.
5 Remove the system board.
Before working inside your computer.
Procedure
1 Disconnect the coin-cell battery cable from the system board.
87
Page 88
2 Peel the coin-cell battery off the system board.
1 coin-cell battery cable 2 coin-cell battery
88
Page 89
Replacing the coin-cell battery
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Adhere the coin-cell battery to the system board.
2 Connect the coin-cell battery cable to the connector on the system board.
Post-requisites
1 Replace the system board.
2 Replace the display assembly.
3 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
4 Replace the wireless card.
5 Replace the base panel.
Before working inside your computer.
89
Page 90
Removing the video-card fan
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Remove the wireless card.
3 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
4 Remove the display assembly.
5 Remove the system board.
Procedure
1 Remove the screws that secure the video-card fan to the computer base.
Before working inside your computer.
90
Page 91
2 Lift the video-card fan off the computer base.
1 screws (2) 2 video-card fan
91
Page 92
Replacing the video-card fan
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the video-card fan with the screw holes on the
computer base.
2 Replace the screws that secure the video-card fan to the computer base.
Post-requisites
1 Replace the system board.
2 Replace the display assembly.
3 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
4 Replace the wireless card.
5 Replace the base panel.
Before working inside your computer.
92
Page 93
Removing the poweradapter port
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Remove the wireless card.
3 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
4 Remove the display assembly.
5 Remove the system board.
Procedure
1 Remove the screws that secure the power-adapter port bracket to the
power-adapter port.
2 Lift the power-adapter port bracket off the power-adapter port.
3 Note the power-adapter port cable routing and remove the cable from the
routing guides on the computer base.
Before working inside your computer.
93
Page 94
4 Lift the power-adapter port along with its cable off the computer base.
94
1 screws (2) 2 power-adapter port
bracket
3 power-adapter port
Page 95
Replacing the power-adapter port
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Slide the power-adapter port into the slot on the computer base.
2 Align the screw holes on the power-adapter port bracket with the screw
holes on the power-adapter port.
3 Replace the screws that secure the power-adapter port bracket to the
power-adapter port.
4 Route the power-adapter port cable through the routing guides on the
computer base.
Post-requisites
Before working inside your computer.
1 Replace the system board.
2 Replace the display assembly.
3 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
4 Replace the wireless card.
5 Replace the base panel.
95
Page 96
Removing the subwoofer
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
1 Remove the base panel.
2 Remove the wireless card.
3 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
4 Remove the display assembly.
5 Remove the system board.
6 Remove the I/O board.
Procedure
1 Remove the screws that secure the subwoofer to the computer base.
Before working inside your computer.
96
Page 97
2 Lift the subwoofer off the computer base.
1 screws (2) 2 subwoofer
97
Page 98
Replacing the subwoofer
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Procedure
1 Align the screw holes on the subwoofer with the screw holes on the
computer base.
2 Replace the screws that secure the subwoofer to the computer base.
Post-requisites
1 Replace the I/O board.
2 Replace the system board.
3 Replace the display assembly.
4 Follow the procedure from step 5 to step 11 in “Replacing the palm rest”.
5 Replace the wireless card.
6 Replace the base panel.
Before working inside your computer.
98
Page 99
Removing the display bezel
WARNING: Before working inside your computer, read the
safety information that shipped with your computer and
follow the steps in
After working inside your computer, follow the instructions
in After working inside your computer. For more safety best
practices, see the Regulatory Compliance home page at
dell.com/regulatory_compliance.
Prerequisites
NOTE: This chapter is applicable only if you have purchased a laptop with
non-touchscreen display.
1 Remove the base panel.
2 Remove the wireless card.
3 Follow the procedure from step 1 to step 9 in “Removing the palm rest”.
4 Remove the display assembly.
Procedure
1 Using your fingertips, carefully pry up the inside edges of the display bezel.
Before working inside your computer.
99
Page 100
2 Carefully lift the display bezel and turn it over.
1 display bezel
3 Lift the latches and disconnect the display-board cables from the logo
board.
100
