Acer TC-886-i5-9400F Service Manual

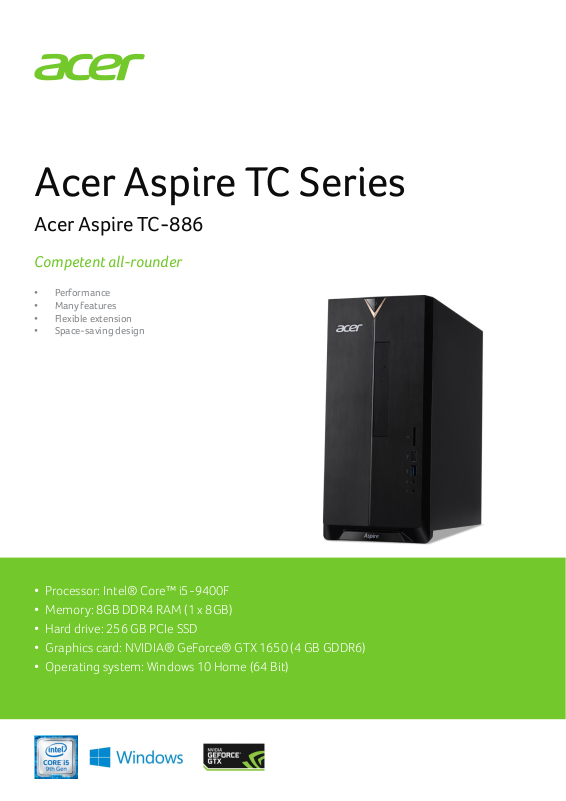

Acer Aspire TC Series

Acer Aspire TC-886

Competent all-rounder

•Performance

•Many features

•Flexible extension

•Space-saving design

•Processor: Intel® Core™ i5-9400F

•Memory: 8GB DDR4 RAM (1 x 8GB)

•Hard drive: 256 GB PCIe SSD

•Graphics card: NVIDIA® GeForce® GTX 1650 (4 GB GDDR6)

•Operating system: Windows 10 Home (64 Bit)

Acer Aspire TC-886

Ordering Informations

Model	Aspire TC-886
Temp P/N	DTACG_DG.E1QEG.00F
Acer P/N	DG.E1QEG.00F
EAN	4710180779943
Factory Location	China
Form factor	20 Liter Desktop
Country	Germany
Short description	Intel® Core™ i5-9400F / 8 GB DDR4 RAM /
	256 GB PCIe SSD / NVIDIA® GeForce® GTX
	1650 (4 GB GDDR6) / Windows 10 Home
	(64 Bit) / Black

Processor and chipset

Processor	Intel® Core™ i5-9400F Processor
Chipset	Intel® B365 Express Chipset
Cache	9 MB
Clock frequency	2.9 GHz (Up to 4.1 GHz Turbo-Boost)
Processing cores / threads	6 / 6

Graphics card

Graphics card	NVIDIA® GeForce® GTX 1650 (4 GB
	GDDR6)

Storage and drives

Memory	8GB DDR4 RAM (1 x 8GB)
Maximum RAM	Up to 32 GB Dual-Channel DDR4 2666
	MHz
Hard drive	256 GB M.2 PCIe SSD
Optical drive	DVD-Drive (8x SuperMulti Double Layer)

SPECIFICATIONS

IO ports

VGA ports	-
DVI ports	1x
HDMI ports	1x
Displayports	-
PS/2 ports	-
Audio ports back	3x
Audio Anschlüsse front	2x
Rear USB ports	2x USB 3.1, 4x USB 2.0
Front USB ports	1x USB 3.1, 1x USB 3.1 Type-C Gen. 2
Cardreader	SD Card Reader

Connections

WLAN	Intel® Dual Band Wireless-AC. 802.11 ac/
	a/b/g/n + Bluetooth® 4.2

Software

Operating system	Windows 10 Home (64 Bit)
Office software	Microsoft Office 2019 Trial

Power supply and consumption

Power adapter	300 watts power supply
Power efficiency	EuP 82+

Scope of delivery

Keyboard	USB-keyboard
Mouse	USB mouse
Guarantee booklet	Yes

Norms and Standards

Audio standard	High-Definition Sound
PC2001	Yes
ENERGY STAR®	Yes
CB	Yes
BSMI	Yes
CE	Yes

Due to our ongoing commitment to the continuous improvement of the quality of our products, this data sheet is subject to change without notice. Availability may vary from region to region. Acer is not responsible for any errors or omissions in the product descriptions. Copyright 2019 Acer Computer GmbH, Germany. All rights reserved. Acer and the Acer logo are registered trademarks of Acer Incorporated. Microsoft and Windows are registered trademarks of Microsoft Corporation. Intel and Pentium are registered trademarks of Intel Corporation. All other mentioned or otherwise recognizable trademarks, registered trademarks and/or service marks are the property of their respective owners. All prices quoted are recommended retail prices of the manufacturer.

Page 2 of 2

Acer Aspire TC-886 - DG.E1QEG.00F - 2020.01.09 - 15:07
