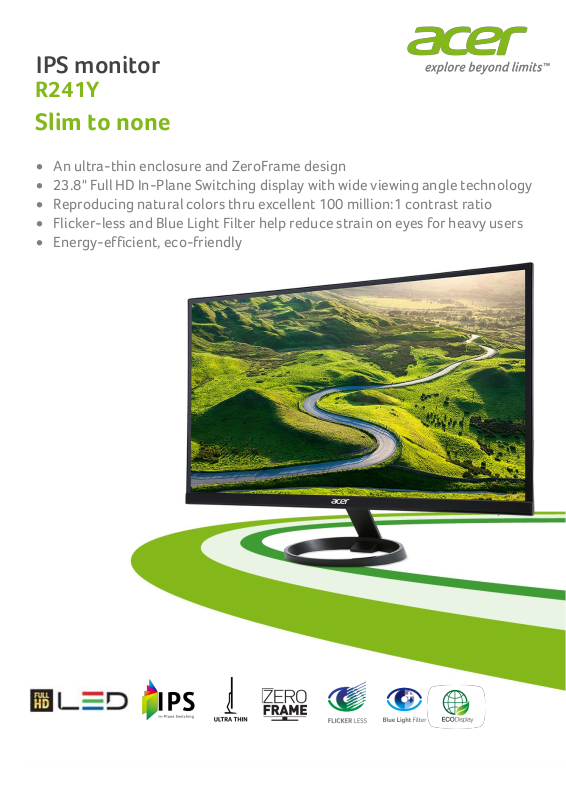

Acer R241YBbmix User Manual

An ultra-thin enclosure and ZeroFrame design 23.8" Full HD In-Plane Switching display with wide viewing angle technology Reproducing natural colors thru excellent 100 million:1 contrast ratio Flicker-less and Blue Light Filter help reduce strain on eyes for heavy users Energy-efficient, eco-friendly
Slim to none
R241Y
IPS monitor
Specifications
Model number
R241Y
Color
Black
Display
23.8" (16:9)
Active display area
527x296mm
Maximum resolution and refresh rate
1,920 x1,080 @ 60Hz
Glare
No
Panel type
In-Plane Switching
Response time
4 ms (G to G)
Contrast ratio (ACM)
100 million:1 max
Brightness
250 cd/m2
Viewing angle (CR=10)
178° (H), 178° (V)
Colors
16.7 million
Bits
6Bit+Hi-FRC
Color Gamut
72%NTSC
Input signal
1.VGA+DVI (w/ HDCP)
2.VGA+DVI (w/ HDCP)+SPK
3.VGA+DVI (w/ HDCP)+HDMI (v1.4)
4.VGA+DVI (w/ HDCP)+HDMI (v1.4)+SPK
Speaker
2 W x 2 (optional)
Tilt
-5°~ 15°
Power supply (100V-240V)
External adapter
Power consumption (ENERGY STAR®)
Off
0.4W
Sleep
0.45W
On
30W
In-Plane Switching technology
IPS (In-Plane Switching) technology, which is a ccurate
across 178° presents a splendid quality in wide angles.
rough the screen, everything is crisp and clear from any angle.
Ultra-thin enclosure
R1 displays have ultra-thin enclosure with only 6.6mm thick, thinner than many smartphones and most of the displays.
Zero Frame Deisgn
Acer Zero Frame design saves space on your desk and lets you place multiple monitors side by side to build a seamless big-screen display.
Flciker-less teachnology
Acer Flicker-less monitors can eliminate annoying screen flicker, and provide comfortable viewing experience
About Acer
Feature Highlights
Visually outstanding
23.8 full HD1920x1080 display 100 million:1 contrast ratio (ACM) In-Plane Switching display with wide viewing
angle technology
Protective comfort
Flicker-less, Blue-light filter and
Acer ComfyView display
Usability enhancements
Ultra thin enclosure Tilt: -5°~ 15°
Earth-friendly:
Acer EcoDisplay with ENERGY STAR
Established in 1976, Acer is an information and communication technology company dedicat ed to the research, design, marketing, sale and support of innovative products that enhance people's lives. Acer's green supply chain delivers environmentally friendly PCs, displays, projectors, servers, tablets and smartphones tools our customers need to explore beyond limits a nd experience more. Ranked No. 3 for notebooks globally (IDC 2012), Acer employs 8,000 people, and 2011 revenues reached US$15.7 billion. Please visit www.acer.com for more information.
