Acer PL6520 User guide

Download

Page 1

Acer Projector

PL6820/FL281/LU-P501K/PF-L501K/

LR861/ML-861/

PL6620/FL261/LU-P501U/PF-L501U/

LR661/ML-561/

PL6520/FL251/LU-P501F/PF-L501F/

LR561/ML-461/

D4K2404/DWU2414/D1P2403/

User’s Guide

Page 2

Changes may be made periodically to the information in this publication without obligation to notify any person of such revisions or changes. Such changes will be incorporated in new editions of this manual or supplementary documents and publications. This company makes no representations or warranties, either expressed or implied,

with respect to the contents hereof and speci�cally disclaims the implied warranties of merchantability or �tness for

a particular purpose.

Record the model number, serial number, purchase date and place of purchase information in the space provided

below. The serial number and model number are recorded on the label af�xed to your projector. All correspondence

concerning your unit should include the serial number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronically, mechanically, by photocopy, recording or otherwise, without the prior written permission of Acer Incorporated.

Model number:

Serial number:

Date of purchase:

Place of purchase:

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies’ product names or

trademarks are used herein for identi�cation purposes only and belong to their respective companies. HDMI™, the HDMI logo and High-De�nition Multimedia Interface are trademarks or registered trademarks of HDMI

Licensing Administrator.Inc.

English

Page 3

Information for your safety and comfort

Read these instructions carefully. Keep this document for future reference. Follow all warnings and instructions marked on the product.

Turning the product o� before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Caution for plug as disconnecting device

Observe the following guidelines when connecting and disconnecting power to the external power supply unit:

y Install the power supply unit before connecting the power cord to the AC power outlet.

y Unplug the power cord before removing the power supply unit from the projector.

y If the system has multiple sources of power, disconnect power from the system by unplugging all power cords

from the power supplies.

Caution for Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible and located as close to the equipment operator as possible. When you need to disconnect power to the equipment, be sure to unplug the power cord from the electrical outlet.

Warning!

y Do not use this product near water.

y Do not place this product on an unstable cart, stand or table. If the product falls, it could be seriously damaged.

y Slots and openings are provided for ventilation to ensure reliable operation of the product and to protect it from

overheating. These openings must not be blocked or covered. The openings should never be blocked by placing the product on a bed, sofa, rug or other similar surface.

y This product should never be placed near or over a radiator or heat register, or in a built-in installation unless

proper ventilation is provided.

y Never push objects of any kind into this product through cabinet slots as they may touch dangerous voltage points

or short-out parts that could result in a �re or electric shock. Never spill liquid of any kind onto or into the product.

y To avoid damage of internal components and to prevent battery leakage, do not place the product on a vibrating

surface.

y Never use it under sporting, exercising, or any vibrating environment which will probably cause unexpected

short current or damage rotor devices.

Using electrical power

y This product should be operated from the type of power indicated on the marking label. If you are not sure of the

type of power available, consult your dealer or local power company.

y Do not allow anything to rest on the power cord. Do not locate this product where people will walk on the cord.

y If an extension cord is used with this product, make sure that the total ampere rating of the equipment plugged

into the extension cord does not exceed the extension cord ampere rating. Also, make sure that the total rating of all products plugged into the wall outlet does not exceed the fuse rating.

y Do not overload a power outlet, strip or receptacle by plugging in too many devices. The overall system load

must not exceed 80% of the branch circuit rating. If power strips are used, the load should not exceed 80% of the power strip’s input rating.

y This product’s AC adapter is equipped with a three-wire grounded plug. The plug only �ts in a grounded power

outlet. Make sure the power outlet is properly grounded before inserting the AC adapter plug. Do not insert the plug into a non-grounded power outlet. Contact your electrician for details.

Warning! The grounding pin is a safety feature. Using a power outlet that is not properly grounded may

result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected noise produced by other nearby electrical devices

that may interfere with the performance of this product.

y Use the product only with the supplied power supply cord set. If you need to replace the power cord set, make

sure that the new power cord meets the following requirements: detachable type, UL listed/CSA certi�ed, VDE

approved or its equivalent, 4.5 meters (15 feet) maximum length.

English

Page 4

Product servicing

Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous

voltage points or other risks. Refer all servicing to quali�ed service personnel. Unplug this product from the wall outlet and refer servicing to quali�ed service personnel when:

y the power cord or plug is damaged, cut or frayed y liquid was spilled into the product y the product was exposed to rain or water y the product has been dropped or the case has been damaged y the product exhibits a distinct change in performance, indicating a need for service y the product does not operate normally after following the operating instructions

Note: Adjust only those controls that are covered by the operating instructions, since improper adjustment of

other controls may result in damage and will often require extensive work by a quali�ed technician to

restore the product to normal condition.

Warning! For safety reasons, do not use non-compliant parts when adding or changing components.

Consult your reseller for purchase options.

Your device and its enhancements may contain small parts. Keep them out of the reach of small children.

Additional safety information

y Do not look into the projector’s lens when the light is on. The bright may hurt your eyes. y Turn on the projector �rst and then signal sources y Do not place the product in following environments:

y Space that is poorly ventilated or con�ned. At least 50cm clearance from walls and free ῿ow of air around the

projector is necessary. y Locations where temperatures may become excessively high, such as inside of a car with all windows rolled up. y Locations where excessive humidity, dust, or cigarette smoke may contaminate optical components,

shortening the life span and darkening the image. y Locations near �re alarms. y Locations with an ambient temperature above 40ºC / 104ºF. y Locations where the altitudes are higher than 10000 feet.

y Unplug immediately if there is something wrong with your projector. Do not operate if smoke, strange noise

or odor comes out of your projector. It might cause �re or electric shock. In this case, unplug immediately and

contact your dealer.

y Do not keep using this product to break or drop it. In this case contact your dealer for inspection. y Do not face the projector lens to the sun. It can lead to �re. y When switching the projector off, suggest to ensure the projector completes its cooling cycle before

disconnecting power.

y Do not frequently turn off the main power abruptly or unplug the projector during operation. The best way is to

wait for the fan to turn off before turning main power off.

y Do not touch air outlet grille and bottom plate which becomes hot. y Do not look into the air outlet grille when projector is operating. It may hurt your eyes. y Always open the lens shutter or remove the lens cap when the projector is on. y Do not block the projector lens with any object when the projector is under operation as this could cause the

object to become heated and deformed or even cause a �re.

y Do not attempt to disassemble this projector. There are dangerous high voltages inside which may hurt you.

Refer servicing only to suitable quali�ed professional service personnel.

y Do not stand the projector on end vertically. It may cause the projector to fall over, causing injury or damage. y 360° projection capability

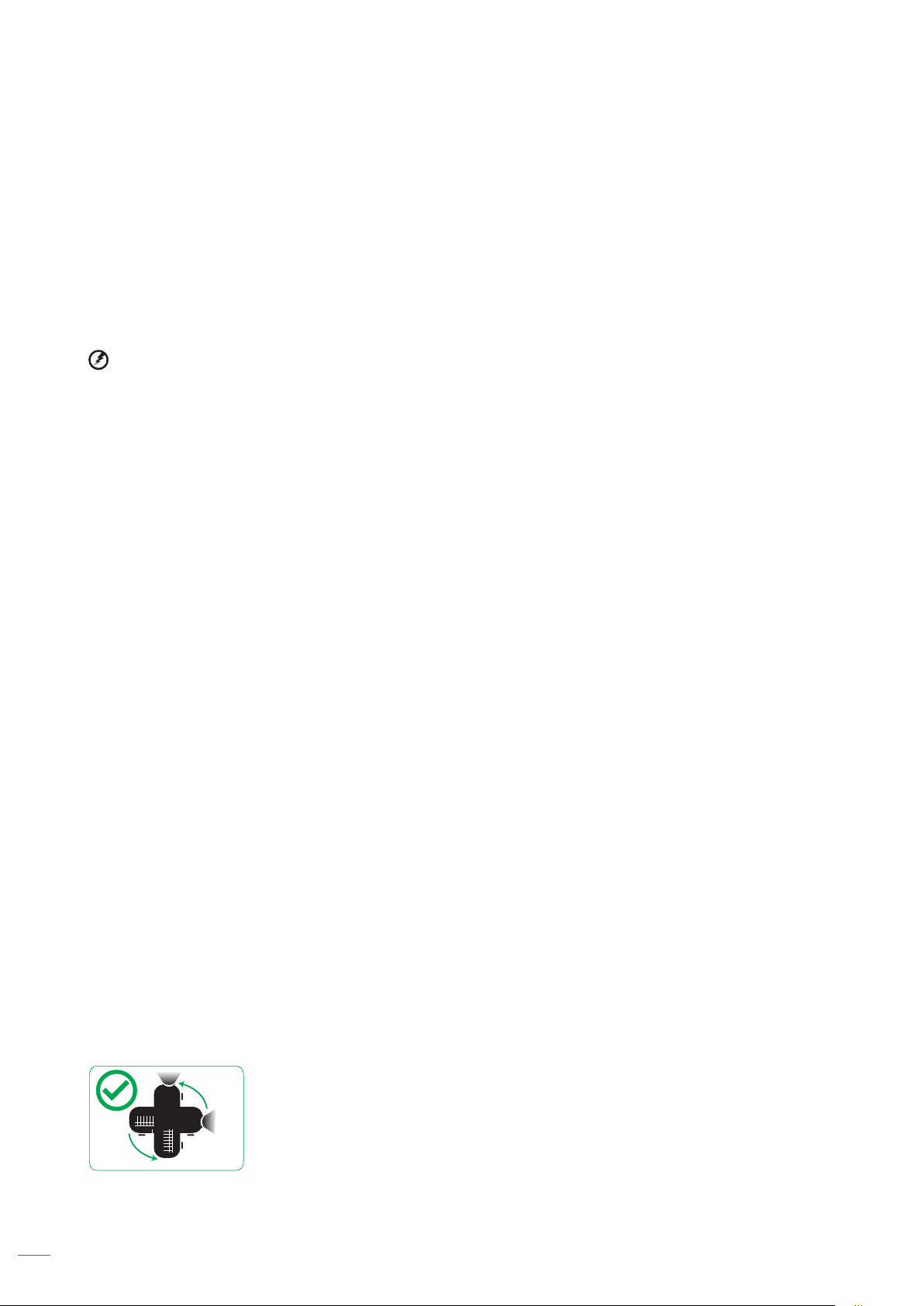

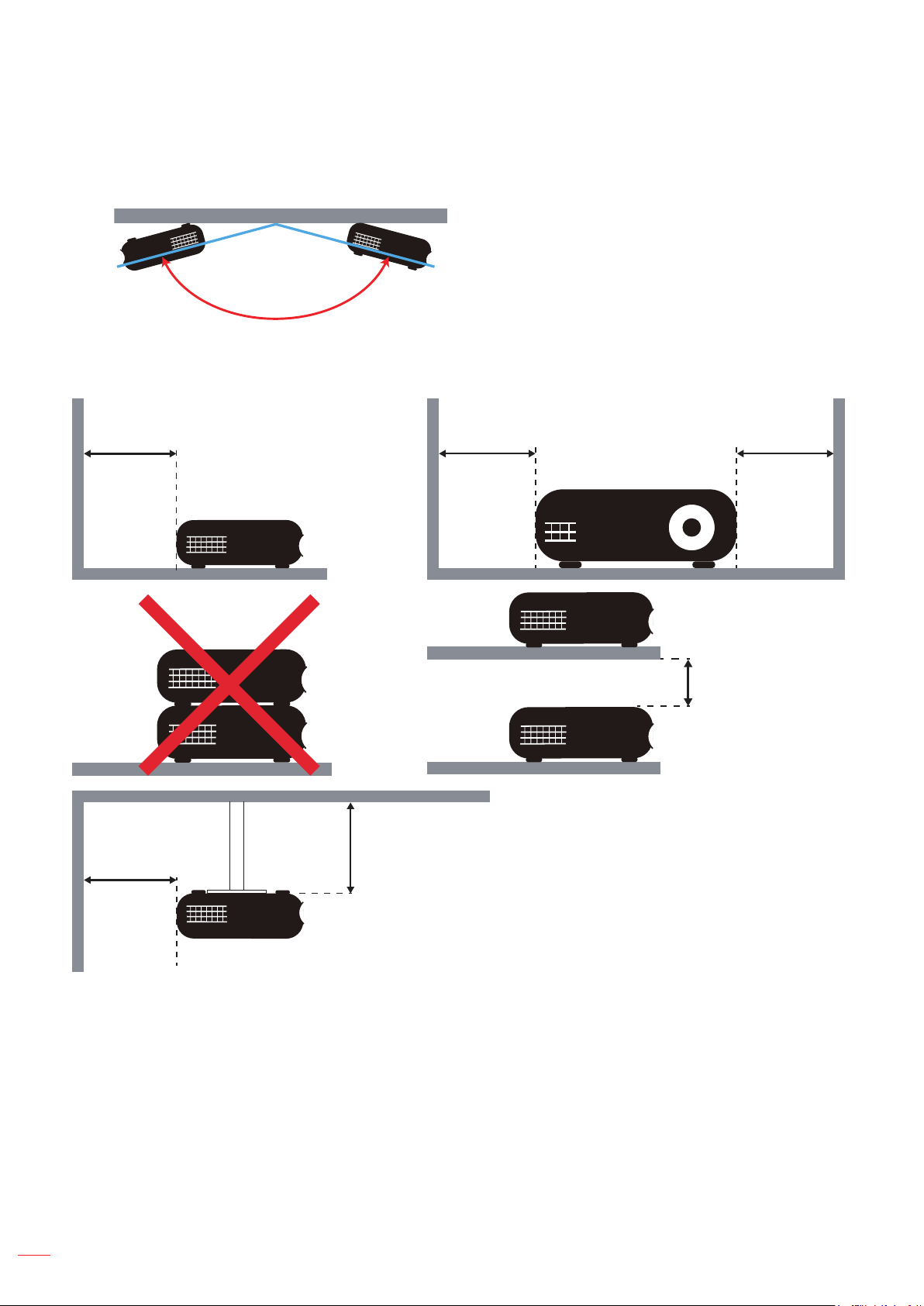

Images can be projected over a full 360° range along the vertical axis, including reproduction on a ceiling or ῿oor.

360º

English

Page 5

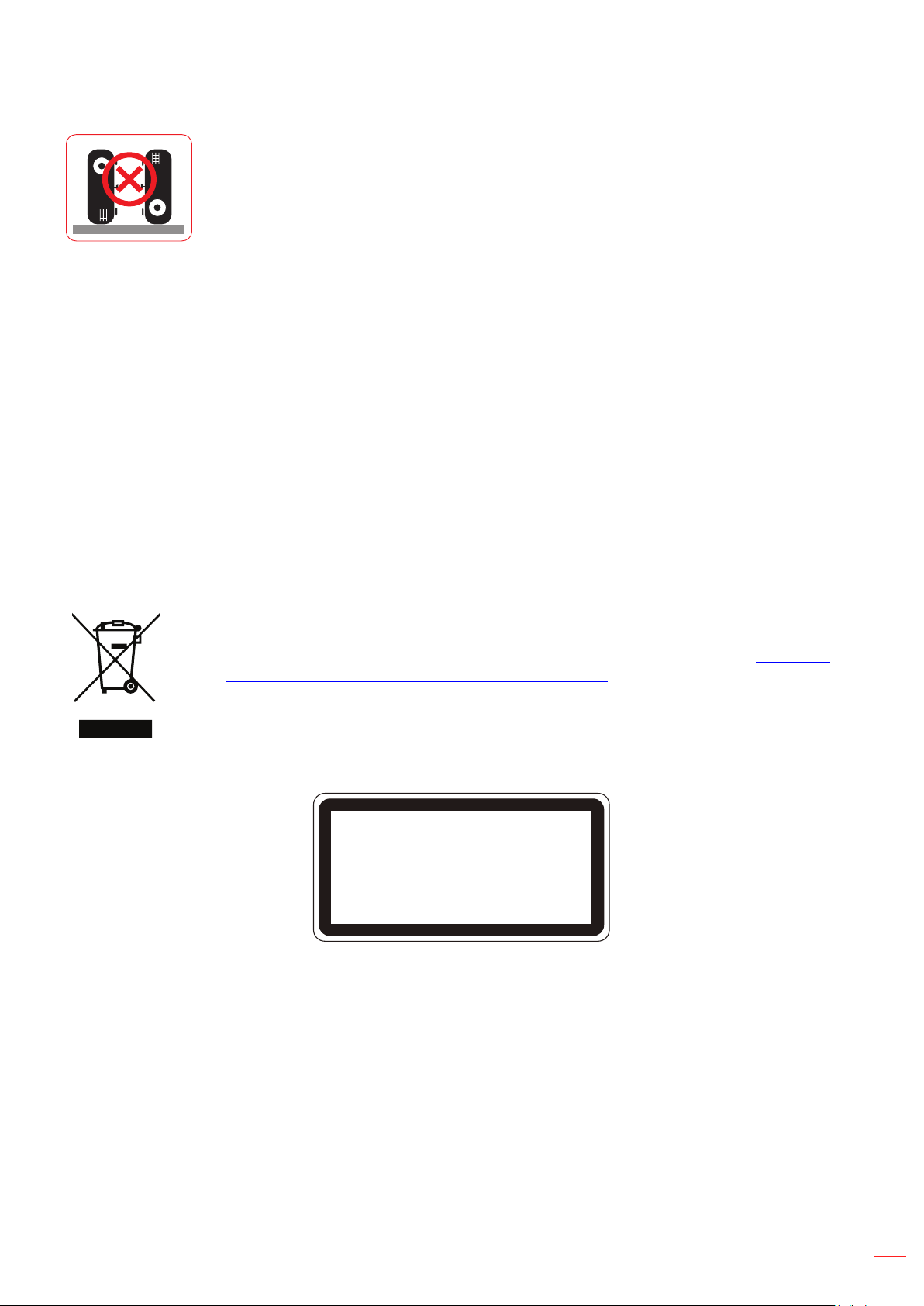

Portrait projection

Do not use the projector with it leaning to the left and right. This may result in a malfunction, however, portrait installation is possible.

Note:

• Please do not install the projector in a vertical orientation on the top of the ῿oor or table on its own.

The intake vent may be obstructed, resulting in the projector getting warm and the possibility of �re

and malfunction occurring.

• When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents.

Caution for Listening

To protect your hearing, follow these instructions.

y Increase the volume gradually until you can hear clearly and comfortably.

y Do not increase the volume level after your ears have adjusted.

y Do not listen to music at high volumes for extended periods.

y Do not increase the volume to block out noisy surroundings.

y Decrease the volume if you can’t hear people speaking near you.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize pollution and ensure utmost protection of the global environment, please recycle. For more information on

the Waste from Electrical and Electronics Equipment (WEEE) regulations, visit http://www.

acer-group.com/public/Sustainability/sustainability01.htm

Do not stare into the beam

IEC60825-1:2014, EN 6082512014A112021, EN 50689:2021 CLASS 1 CONSUMERLASER PRODUCT RISK GROUP 2.

IEC60825-1:2014䬰䴁1曞⯫䔉⒨RG2⍘暑䬰䴁

IEC60825-1:20141䱢㾧ℰẎ⒨RG2⍘晐䬰于

Laser Notice

IEC 60825-1:2014, EN 60825-1:2014 + A11:2021: CLASS 1 LASER PRODUCT - RISK GROUP 2. The product’s intended use as a consumer laser product and compliant with EN 50689:2021. CLASS 1 CONSUMER LASER PRODUCT EN 50689:2021

English

Page 6

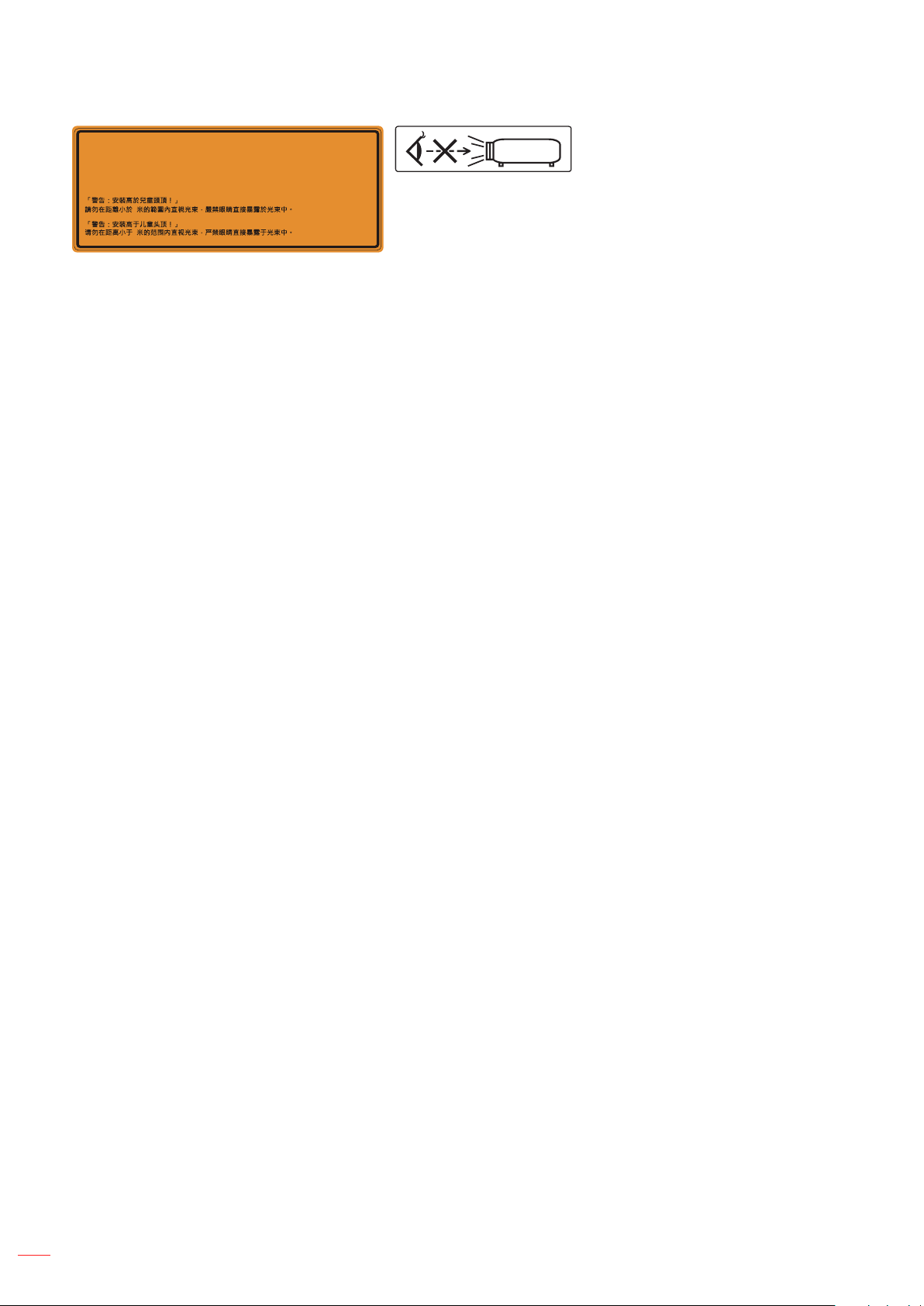

Do not stare into beam, RG2

As with any bright source, do not stare into the direct beam, RG2 IEC 62471-5:2015.

WARNING:MOUNT ABOVE THE HEADS OF CHILDREN! Do not lookintothe beam less than 1m. No directeye exposuretothe beam is permitted.

“AVERTISSEMENT:INSTALLERAU-DESSUS DE LA TETE DESENFANTS.“ Avertissement supplémentaire contre l‘e xpositionoculairepourdes expositionsàunedistancedemoins de 1m.

RG 2

• Notice is given to supervise children and to never allow them to stare into the projector beam at any distance from the projector.

• Notice is given to use caution when using the remote control for starting the projector while in front of the projection lens

• Notice is given to the user to avoid the use of optical aids such as binoculars or telescopes inside the beam.

English

Page 7

First things ῿rst

Usage Notes

Do:

y Turn off the product before cleaning.

y Use a soft cloth moistened with mild detergent to clean the displayhousing.

y Disconnect the power plug from AC outlet if the product is not being used for a long period of time.

Don’t:

y Block the slots and openings on the unit provided for ventilation.

y Use abrasive cleaners, waxes or solvents to clean the unit.

y Use under the following conditions:

y In extremely hot, cold or humid environments.

y In areas susceptible to excessive dust and dirt. y Near any appliance that generates a strong magnetic �eld.

y Place In direct sunlight.

Precautions

Follow all warnings, precautions and maintenance as recommended in this user’s guide to maximize the life of your unit.

Warning!

y Do not look into the projector’s lens when the light is on. The bright may hurt your eyes. y To reduce the risk of �re or electric shock, do not expose this product to rain or moisture.

y Please do not open or disassemble the product as this may cause electric shock.

y When switching the projector off, please ensure the projector completes its cooling cycle before disconnecting

power.

y Turn on the projector �rst and then the signal sources.

y Do not use lens cap when projector is in operation.

Cleaning the lens

y Before cleaning the lens, be sure to turn off the projector and unplug the power cord to allow it to completely

cool down.

y Use a compressed air tank to remove the dust. y Use a special cloth for cleaning lens and gently wipe the lens. Do not touch the lens with your �ngers.

y Do not use alkaline/acid detergents or volatile solvents such as alcohol for cleaning lens. If the lens is damaged

due to the cleaning process, it is not covered by the warranty.

Warning! Do not use a spray containing ῿ammable gases to remove dust or dirt from the lens. This may

cause a �re due to excessive heat inside the projector.

Warning! Do not clean the lens if the projector is warming up as this may cause the lens’ surface �lm to

peel off.

Warning! Do not wipe or tap the lens with a hard object.

English

Page 8

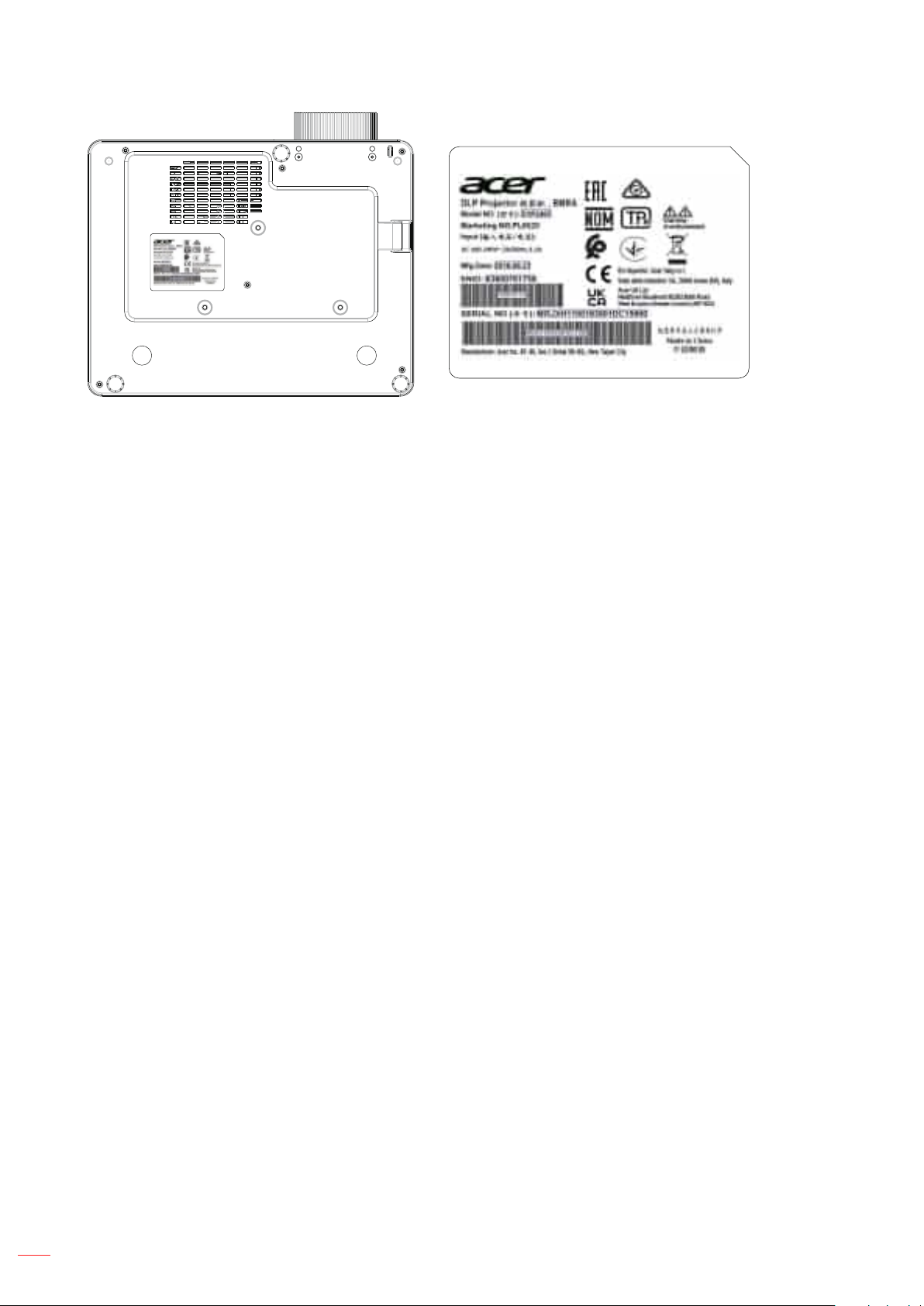

Spec label location

y Spec label location are placed the following locations:

English

Page 9

TABLE OF CONTENTS

INTRODUCTION ............................................................................... 11

Package Overview.................................................................................................................... 11

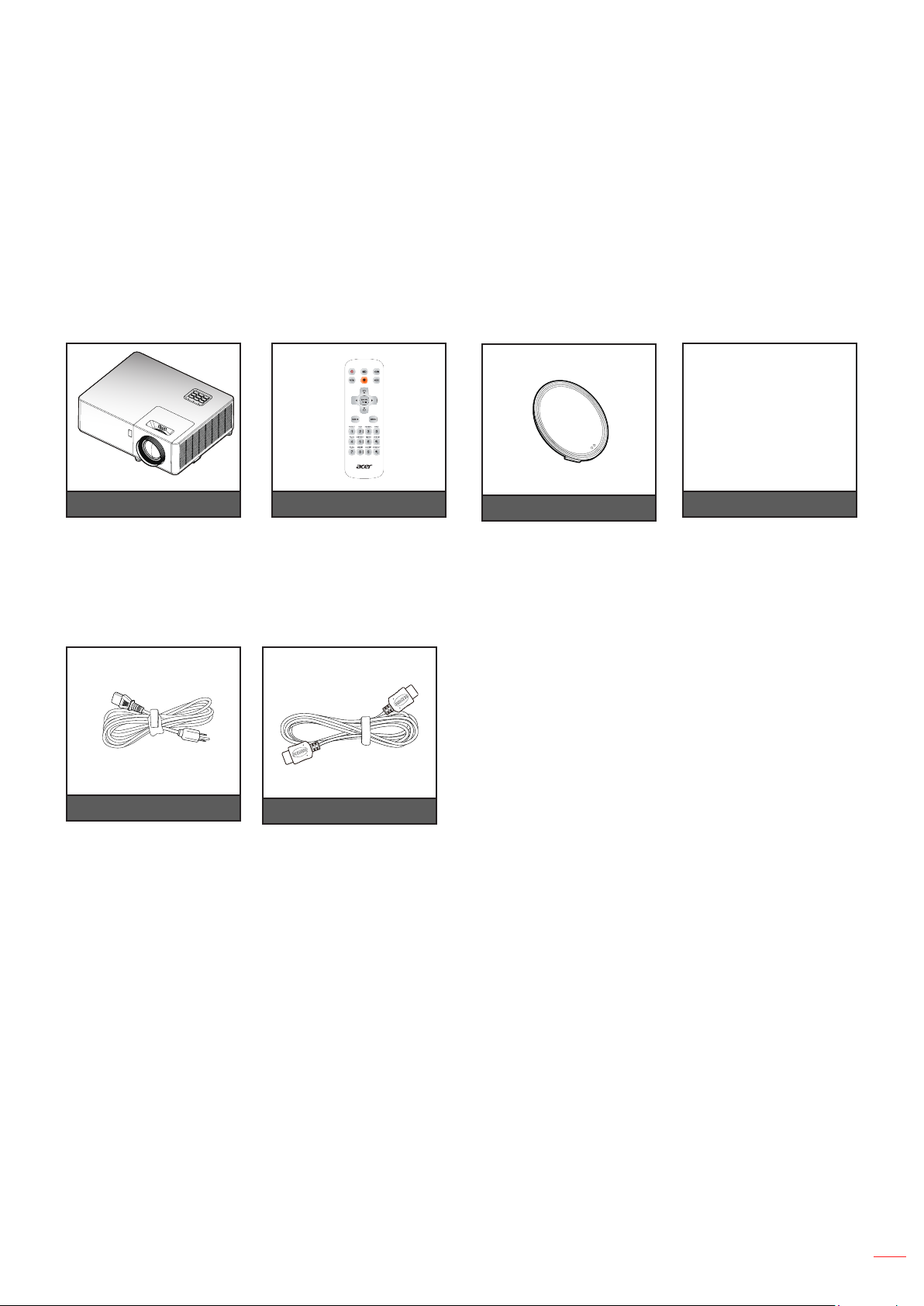

Standard accessories ............................................................................................................... 11

Optional accessories ................................................................................................................ 11

Product Overview ..................................................................................................................... 12

Connections.............................................................................................................................. 13

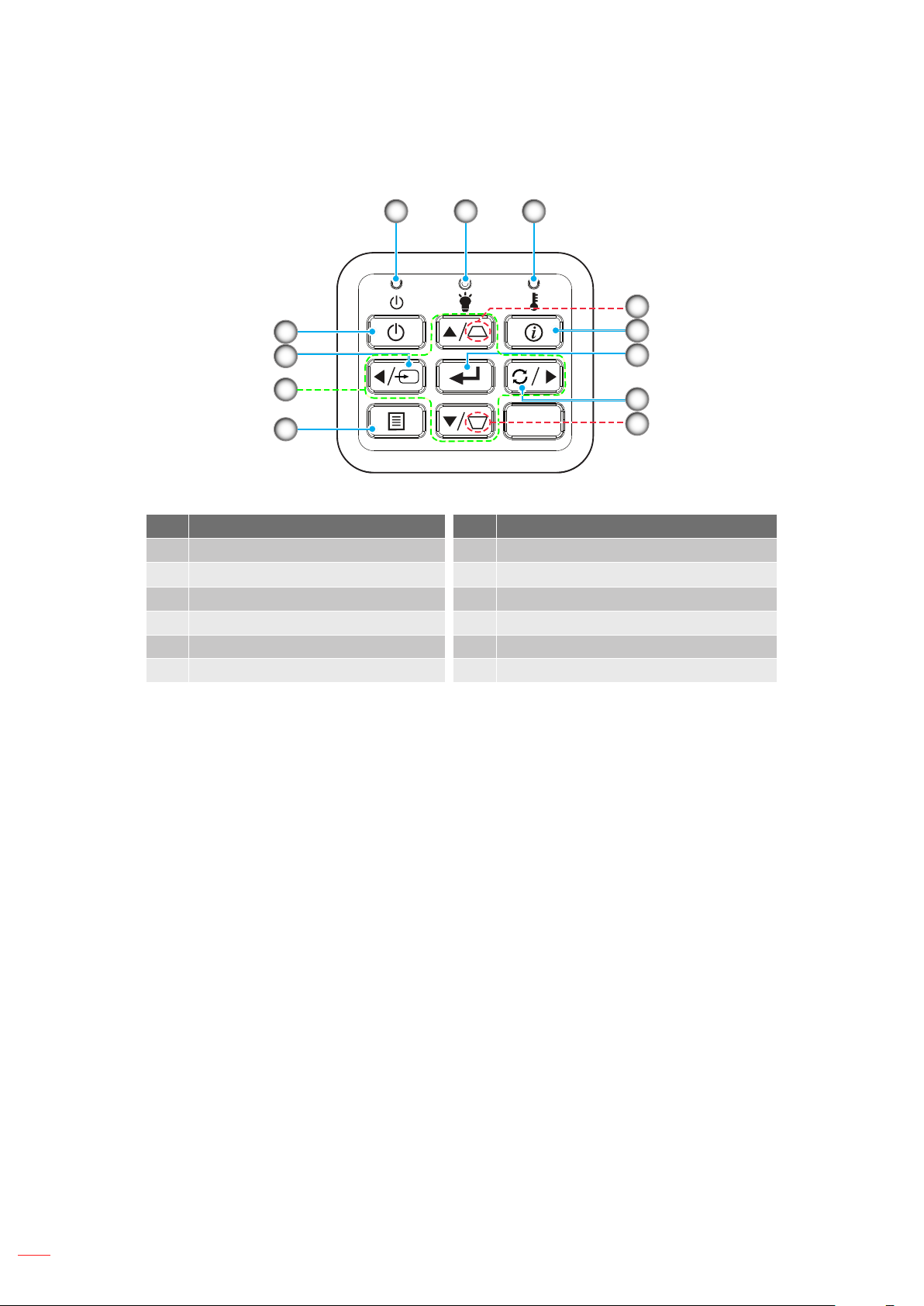

Keypad ..................................................................................................................................... 14

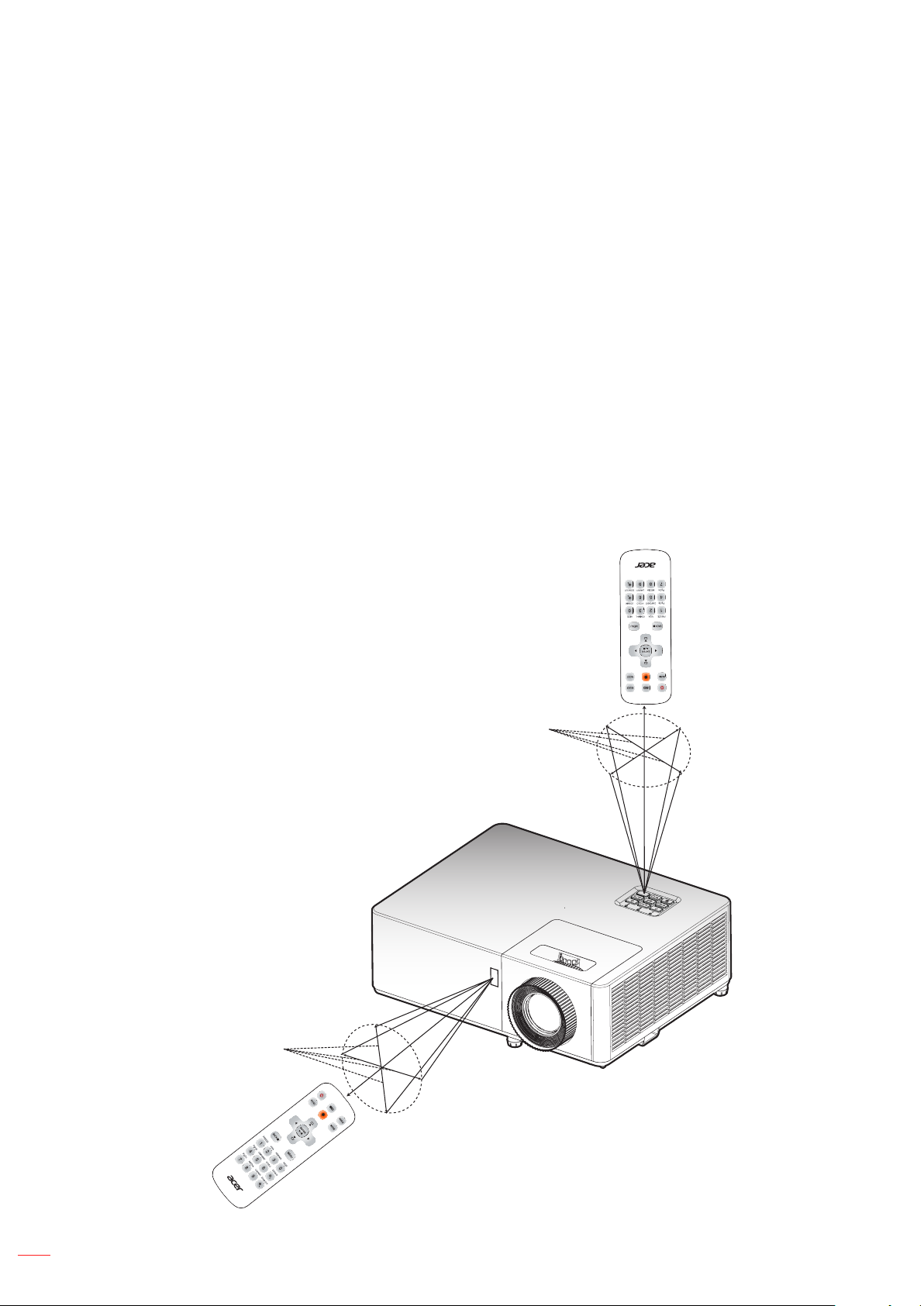

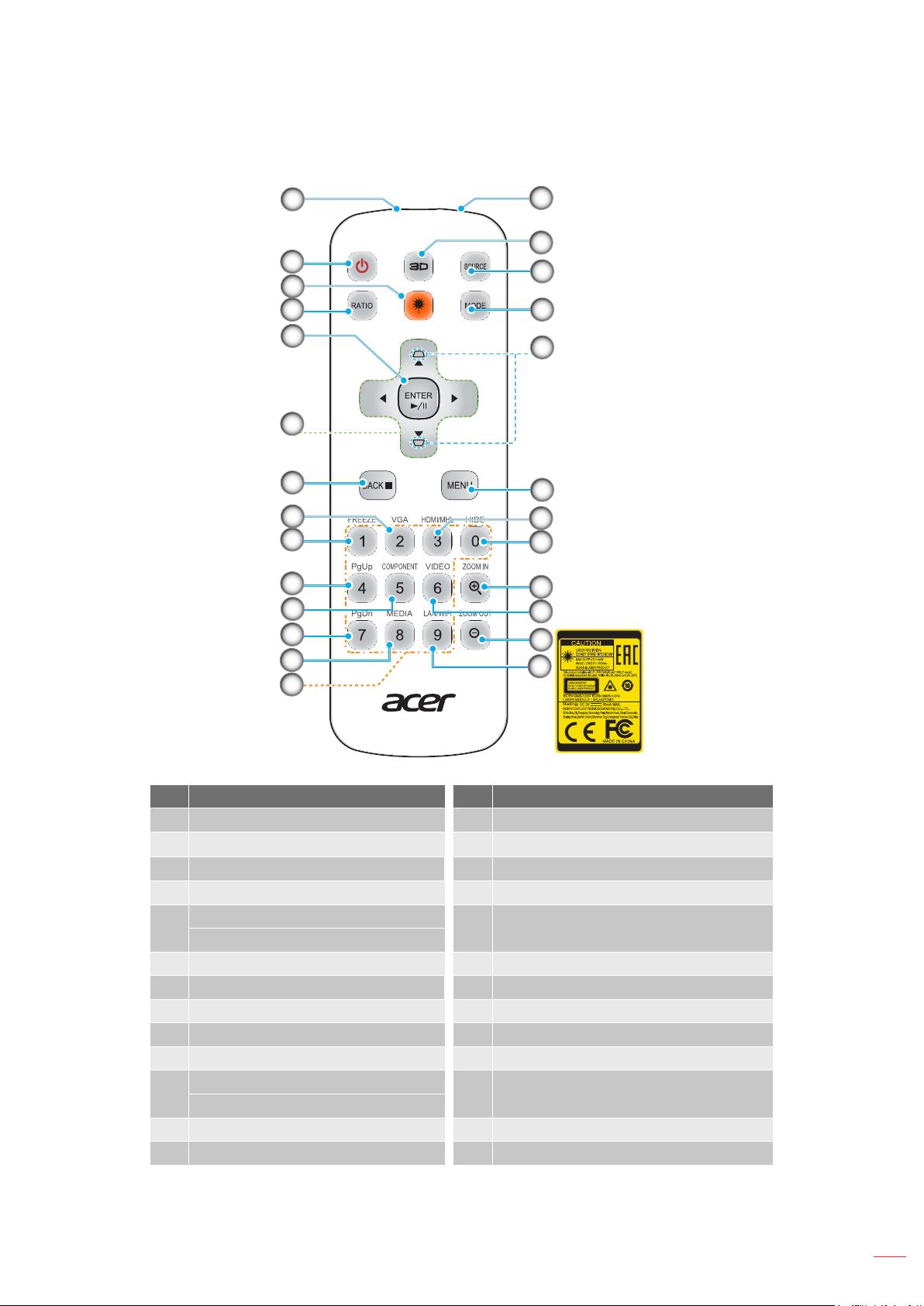

Remote control ......................................................................................................................... 15

Safety precautions and maintenance ....................................................................................... 16

SETUP AND INSTALLATION ........................................................... 17

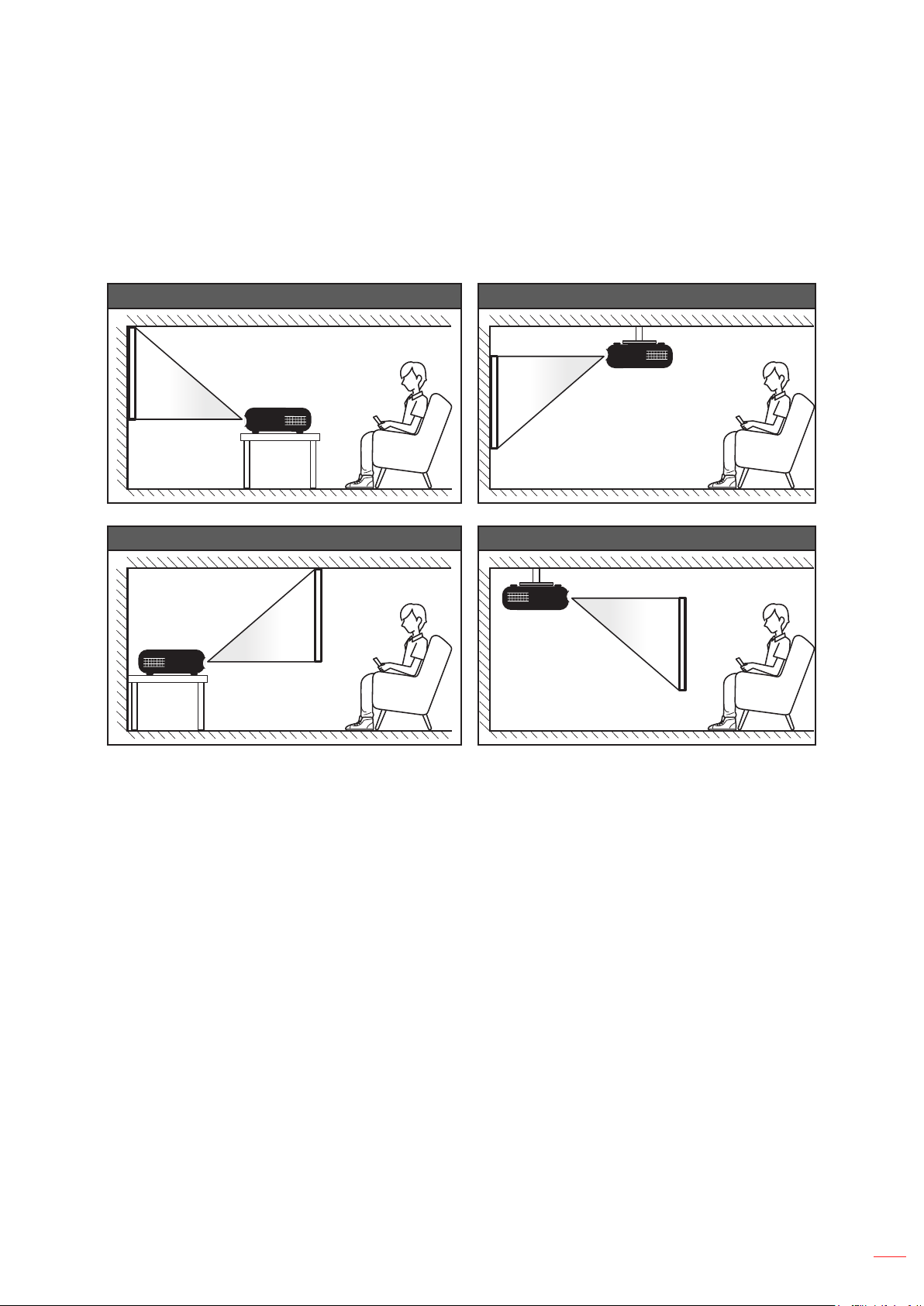

Installing the projector .............................................................................................................. 17

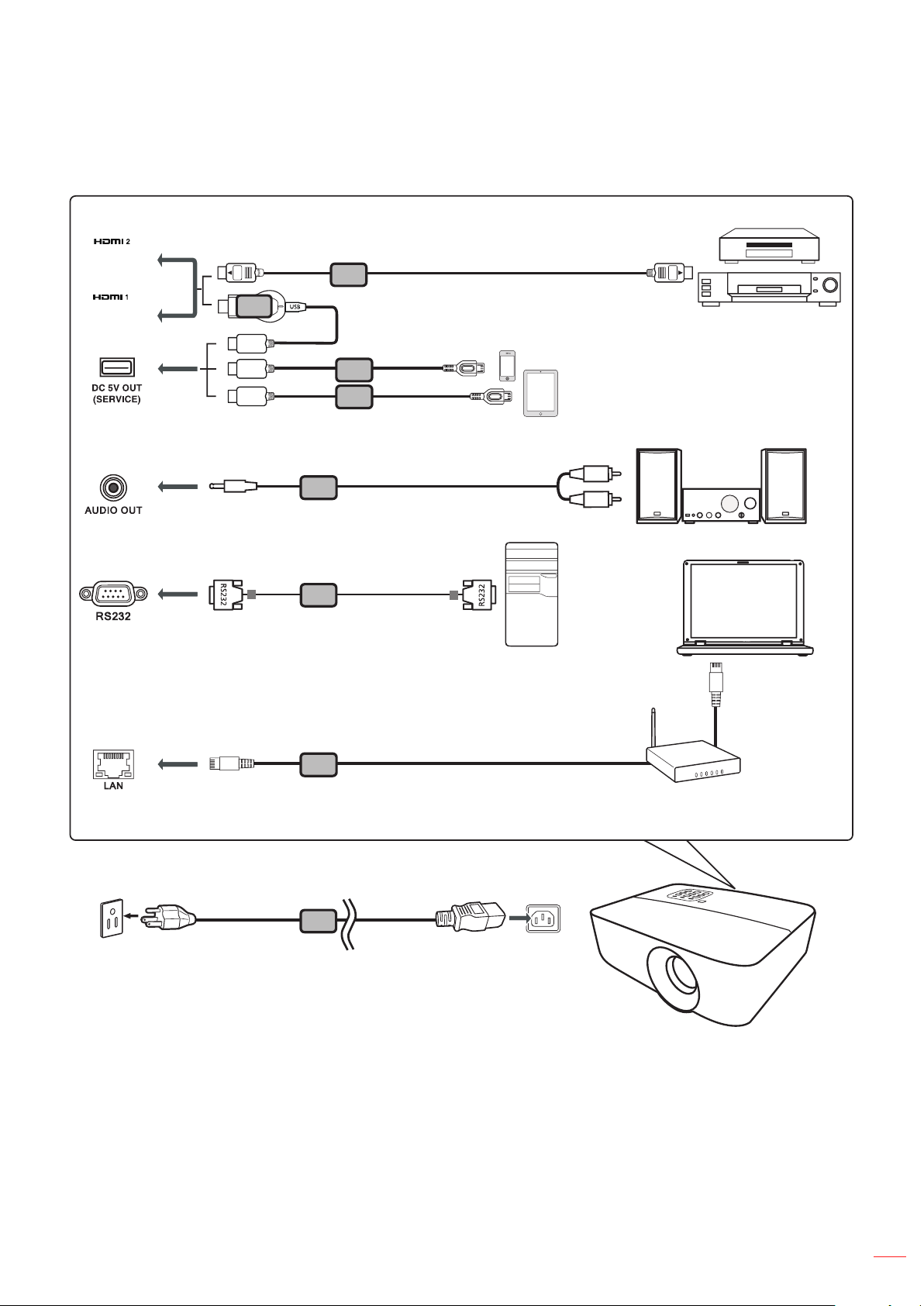

Connecting sources to the projector ......................................................................................... 20

Adjusting the projector image ................................................................................................... 22

E⿿ective range .......................................................................................................................... 23

USING THE PROJECTOR ............................................................... 24

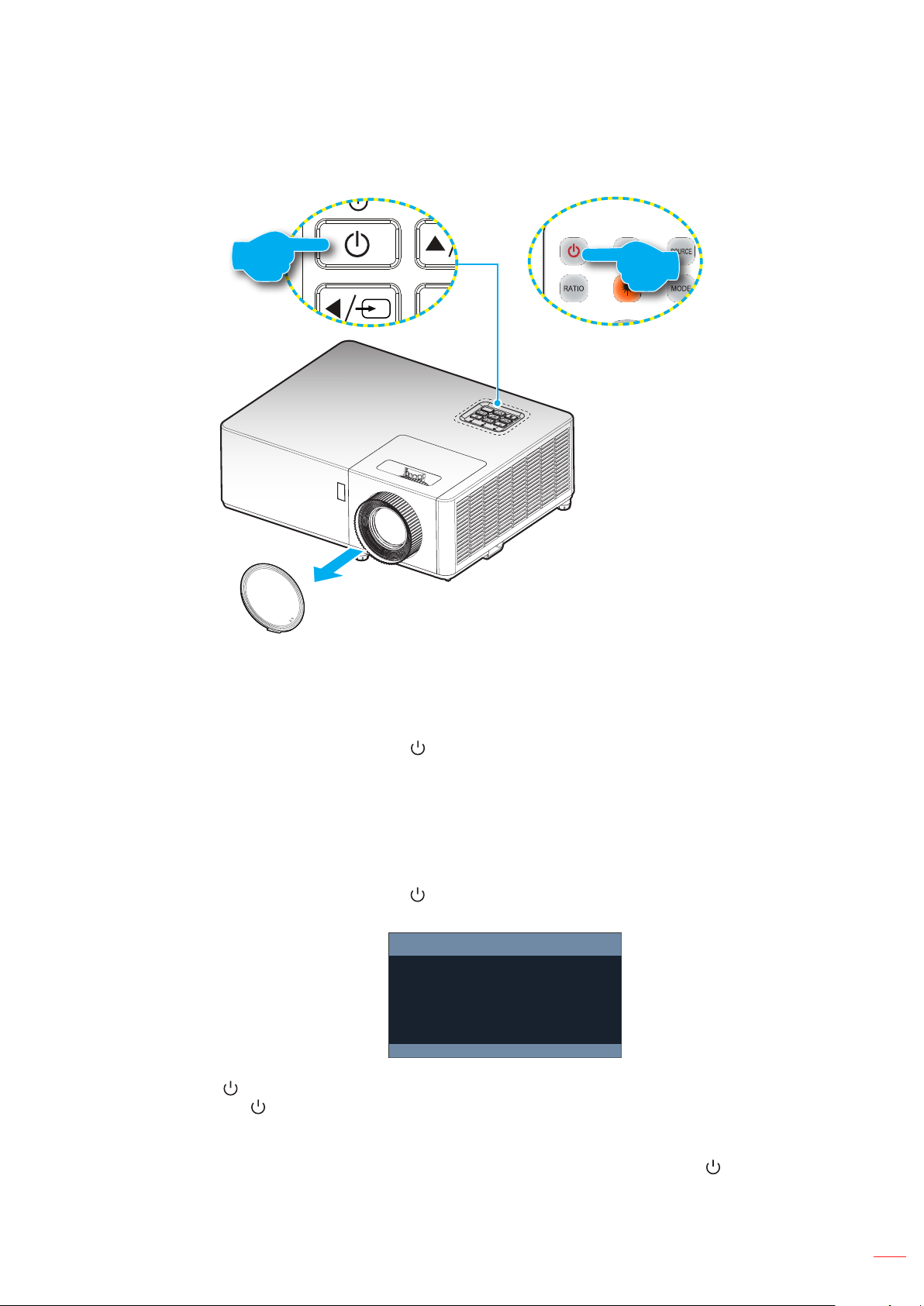

Powering on / o⿿ the projector .................................................................................................. 24

Selecting an input source ......................................................................................................... 25

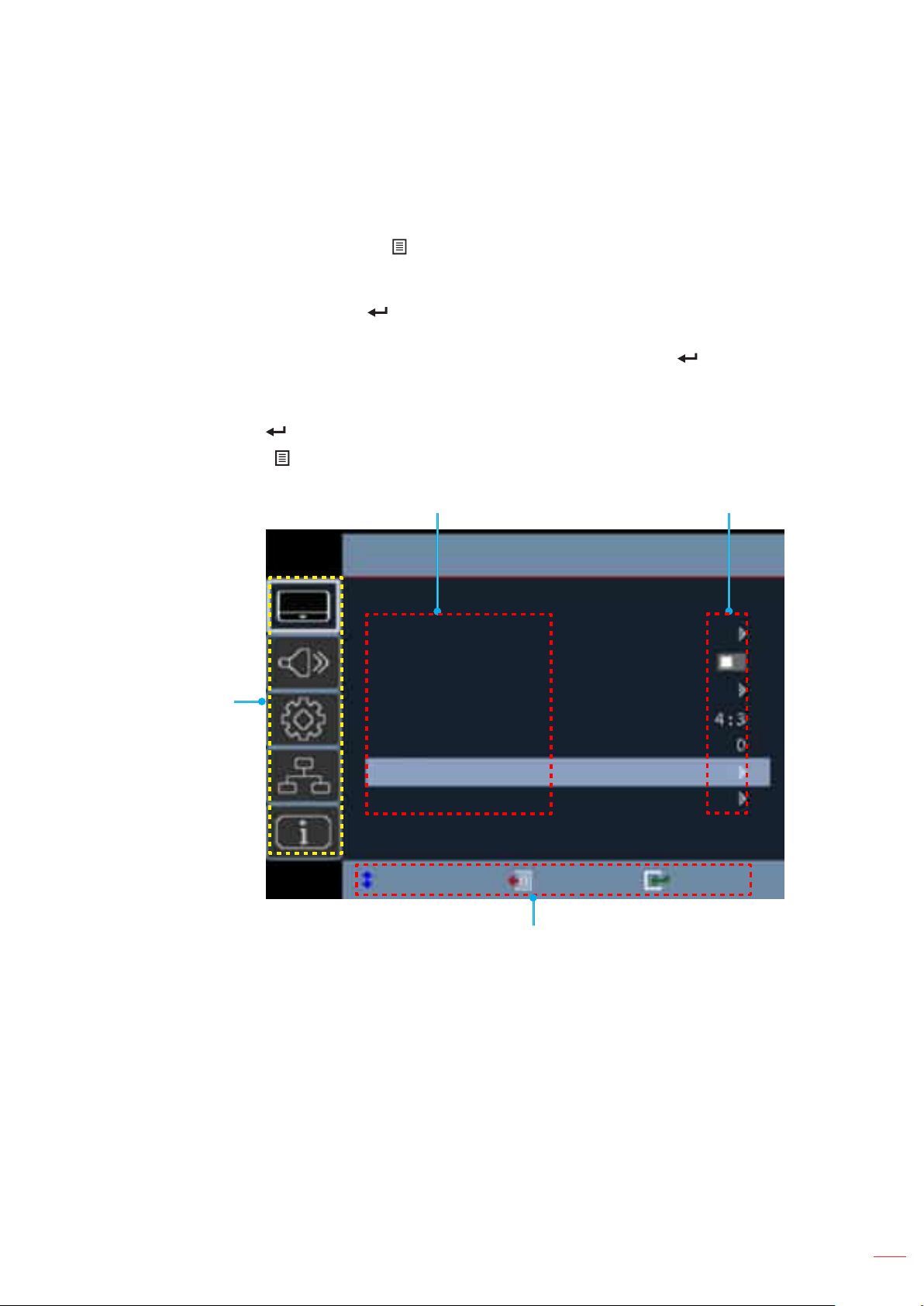

Menu navigation and features .................................................................................................. 26

OSD Menu tree......................................................................................................................... 27

Display image settings menu.................................................................................................... 32

Display 3D menu ...................................................................................................................... 34

Display aspect ratio menu ........................................................................................................ 35

4K scaling table: ....................................................................................................................... 36

Display zoom menu .................................................................................................................. 37

Display image shift menu ......................................................................................................... 37

Display keystone menu ............................................................................................................ 37

Audio mute menu ..................................................................................................................... 38

Audio volume menu .................................................................................................................. 38

Setup projection menu.............................................................................................................. 39

Setup power settings menu ...................................................................................................... 39

Setup security menu ................................................................................................................. 39

Setup HDMI Link settings menu ............................................................................................... 40

Setup test pattern menu ........................................................................................................... 40

Setup options menu.................................................................................................................. 40

Setup reset OSD menu ............................................................................................................ 40

Network LAN menu .................................................................................................................. 41

Network control menu............................................................................................................... 41

Info menu.................................................................................................................................. 42

English

Page 10

ADDITIONAL INFORMATION .......................................................... 43

Compatible resolutions ............................................................................................................. 43

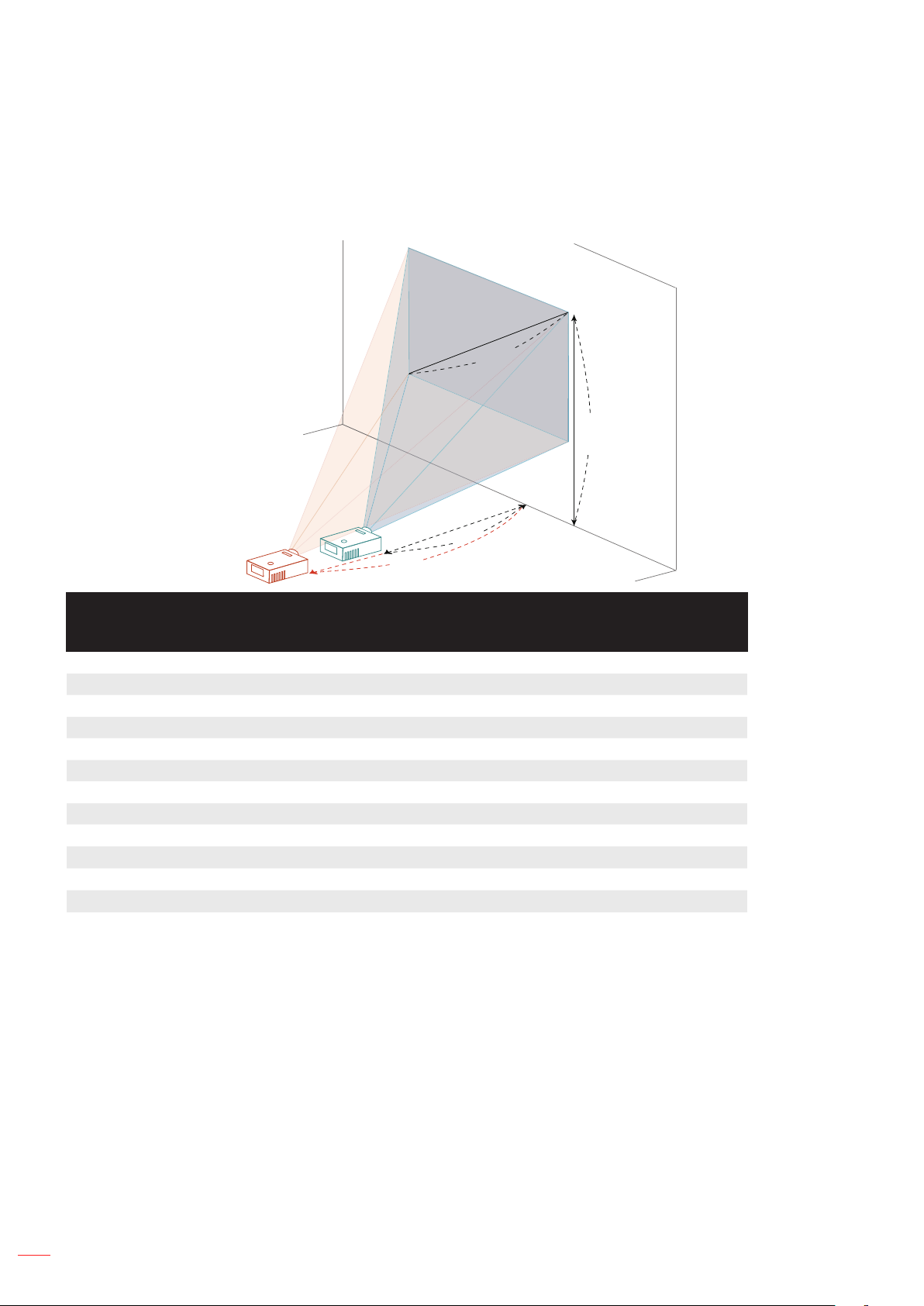

Image size and projection distance .......................................................................................... 49

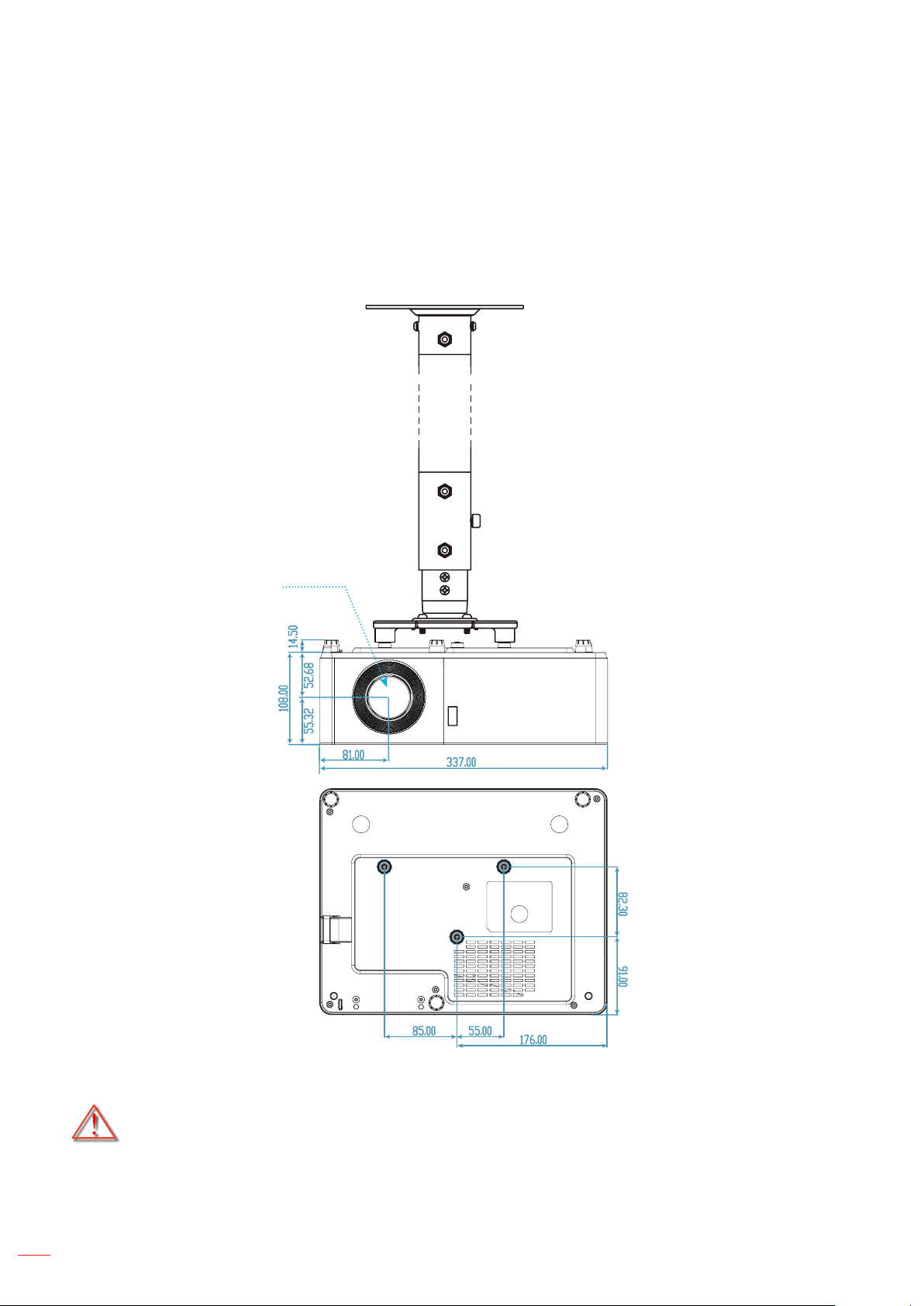

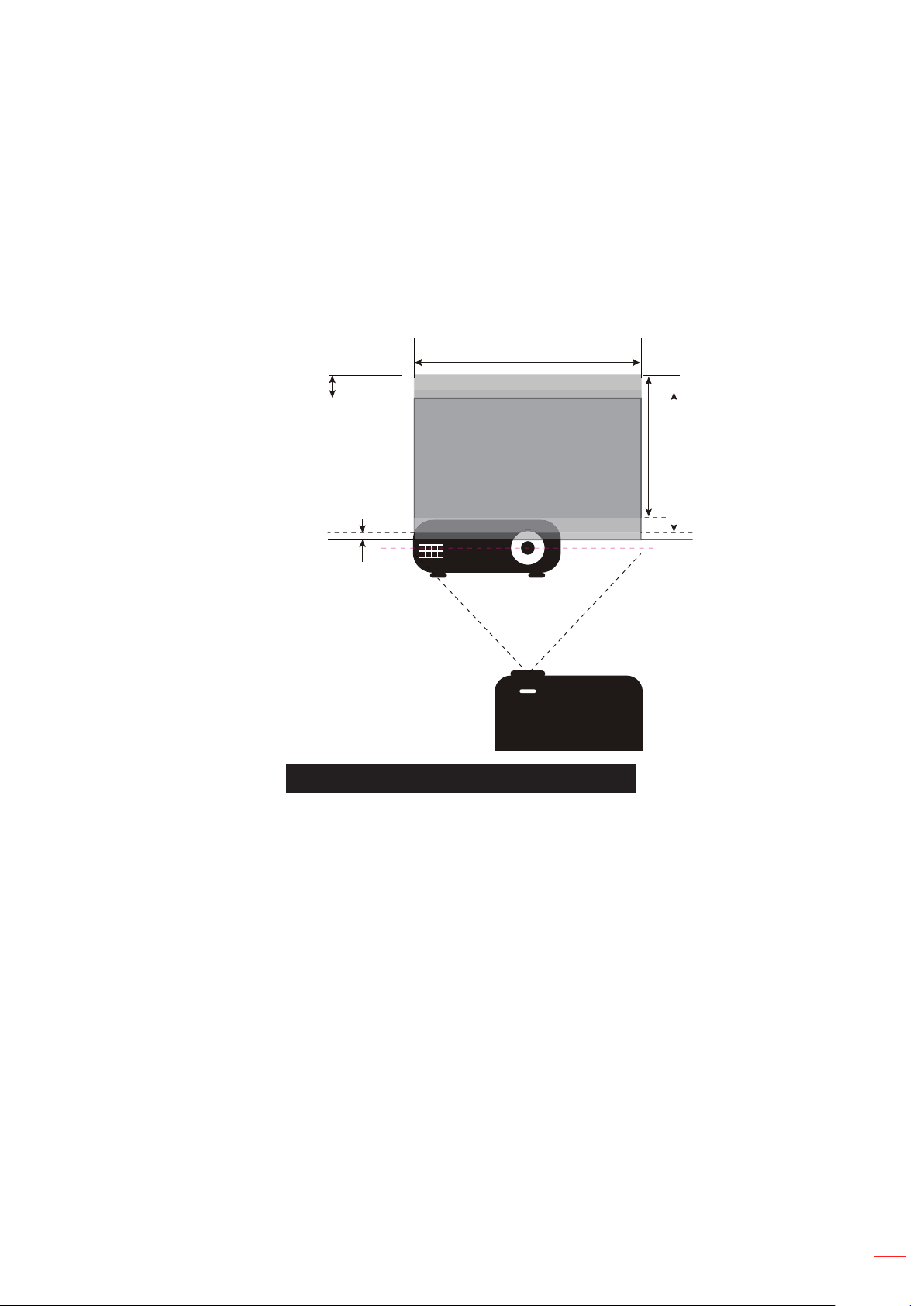

Projector dimensions and ceiling mount installation ................................................................. 53

Troubleshooting ........................................................................................................................ 54

Warning indicators .................................................................................................................... 56

Speci�cations ........................................................................................................................... 57

English

Page 11

INTRODUCTION

Package Overview

Carefully unpack and verify that you have the items listed below under standard accessories. Some of the items

under optional accessories may not be available depending on the model, speci�cation and your region of

purchase. Please check with your place of purchase. Some accessories may vary from region to region.

The warranty card is only supplied in some speci�c regions. Please consult your dealer for detailed information.

Standard accessories

Warranty Card



Quick Start Guide



Projector Remote control

Optional accessories

Power lead

Note:

• Optional accessories vary depending on model, speci�cation and region.

HDMI cable

Lens cap

Documentation

English

Page 12

INTRODUCTION

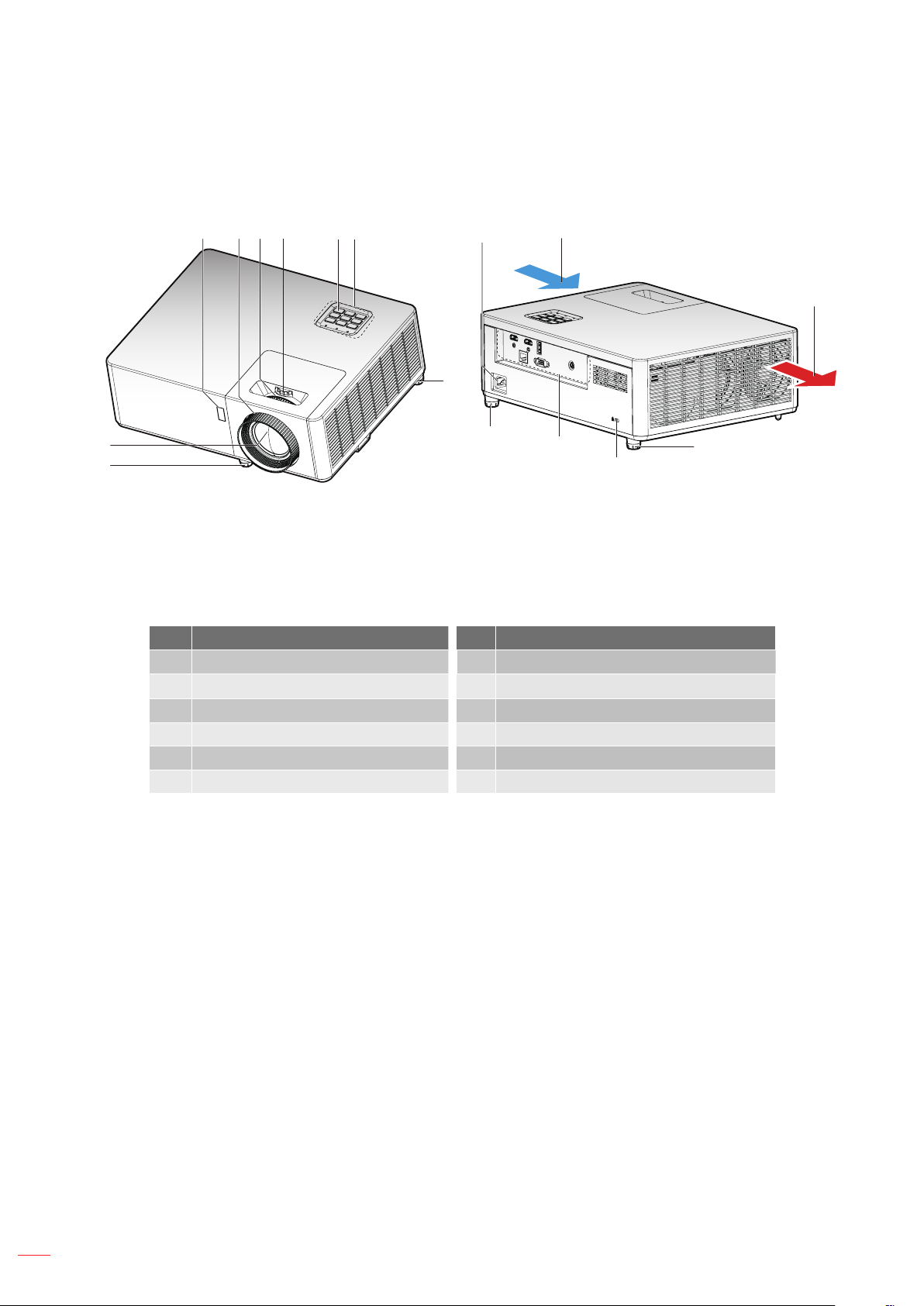

Product Overview

31 56

Note:

• Do not block projector intake and exhaust vents.

• When operating the projector in an enclosed space, allow at least 30 cm clearance around the intake and exhaust vents.

• Functions vary depending on model de�nition.

No. Item No. Item

1. IR Receivers 7. Ventilation (outlet)

Keypad

3. Lens Shift Dial 9. Kensington™ Lock Port

4. Ventilation (inlet) 10. Input / Output

5. Zoom Lever 11. Power Socket

6. Focus Ring 12. Lens

Tilt-Adjustment Feet

English

Page 13

INTRODUCTION

5 7

3 4

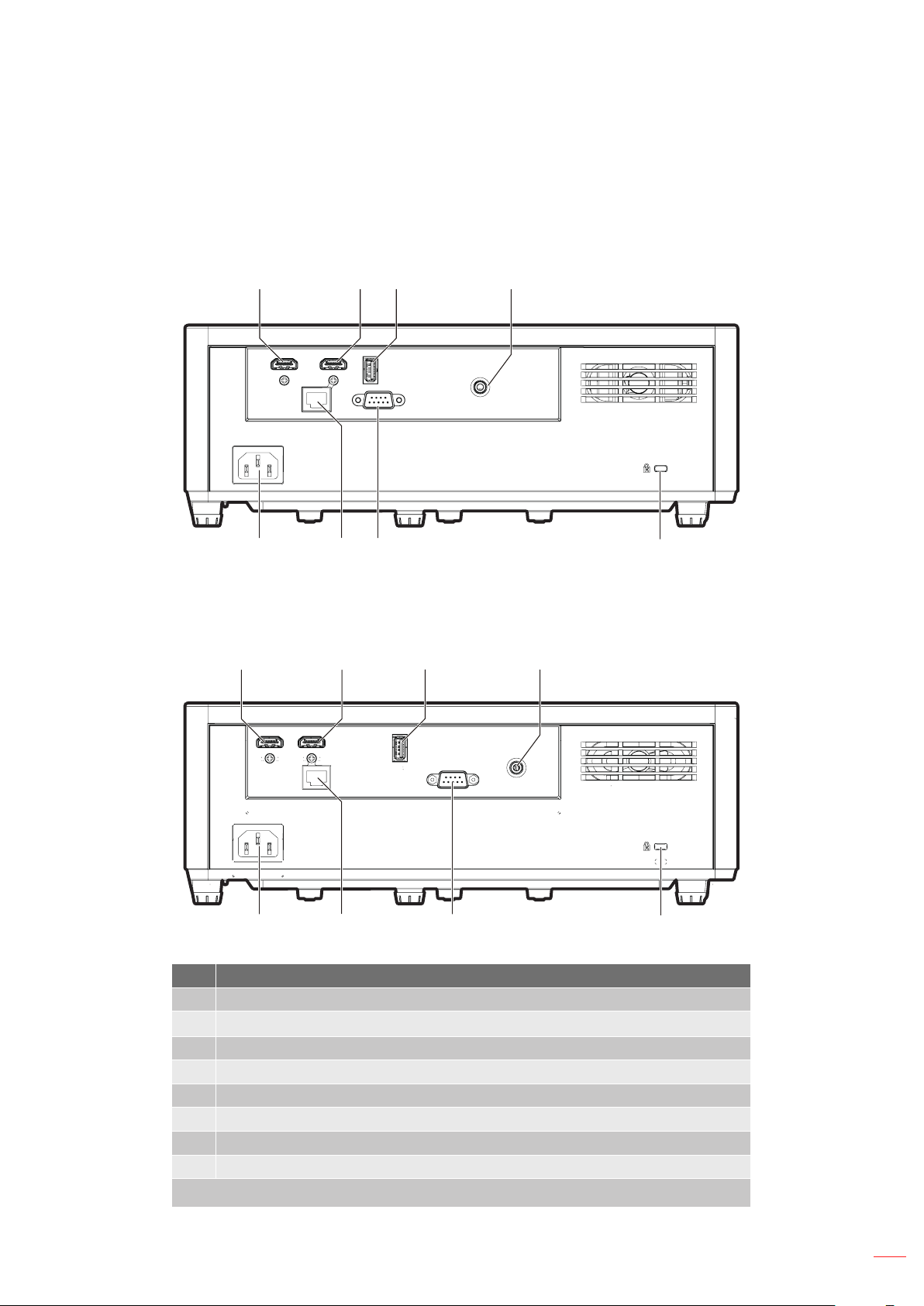

Connections

1080P/WUXGA

1 2

5 7

3 4

No. Item

1. HDMI 2 Connector

3. DC 5V out (service) Connector

4. Audio out Connector

5. Power Socket

6. LAN (RJ45) Connector

7. RS232 Connector

8. KensingtonTM Lock Port

Note: Functions vary depending on model de�nition.

5 7

HDMI 1 Connector

English

Page 14

INTRODUCTION

Keypad

1 2 3

No. Item No. Item

Power LED Lamp LED

Keystone Correction

3. Temp LED 9. Information

4. Power 10. Enter

5. Source 11. Re-Sync

6. Four directional select keys

English

Page 15

INTRODUCTION

Remote control

Model No:J-25030

MC.JMV11.007

No. Item No. Item

1. Infrared transmitter 14. PgUp (not supported)

POWER

COMPONENT (not supported)

15.

3. Laser button 16. PgDn (not supported)

4. RATIO 17. MEDIA (not supported)

Select/Enter

5. Play/Pause

18. KeyPad 0~9

6. Four directional select keys 19. MENU

7. 3D 20. HDMI™/MHL

8. SOURCE 21. HIDE

9. MODE 22. ZOOM IN

10. KEYSTONE 23. VIDEO

BACK

11. STOP

24. ZOOM OUT

12. VGA 25. LAN/WiFi

13. FREEZE 26. Laser pointer

Note: Some keys may have no function for models that do not support these features.

English

Page 16

INTRODUCTION

Safety precautions and maintenance

Caution (Applicable models with battery)

• Replacement of a battery with an incorrect type that can defeat a safeguard;

• Disposal of a battery into �re or a hot oven, or mechanically crushing or cutting of a battery, that can

result in an explosion;

• Leaving a battery in an extremely high temperature surrounding environment that can result in an

explosion or the leakage of ῿ammable liquid or gas;

• A battery subjected to extremely low air pressure that may result in an explosion or the leakage of

῿ammable liquid or gas.

• Risk of �re or explosion if the battery is replaced by an incorrect type

• Do not ingest battery, Chemical Burn Hazard.

• Keep new and used batteries away from children.

• If the battery compartment does not close securely, stop using the product and keep it away from children.

• If you think batteries might have been swallowed or placed inside any part of the body, seek immediate medical attention.

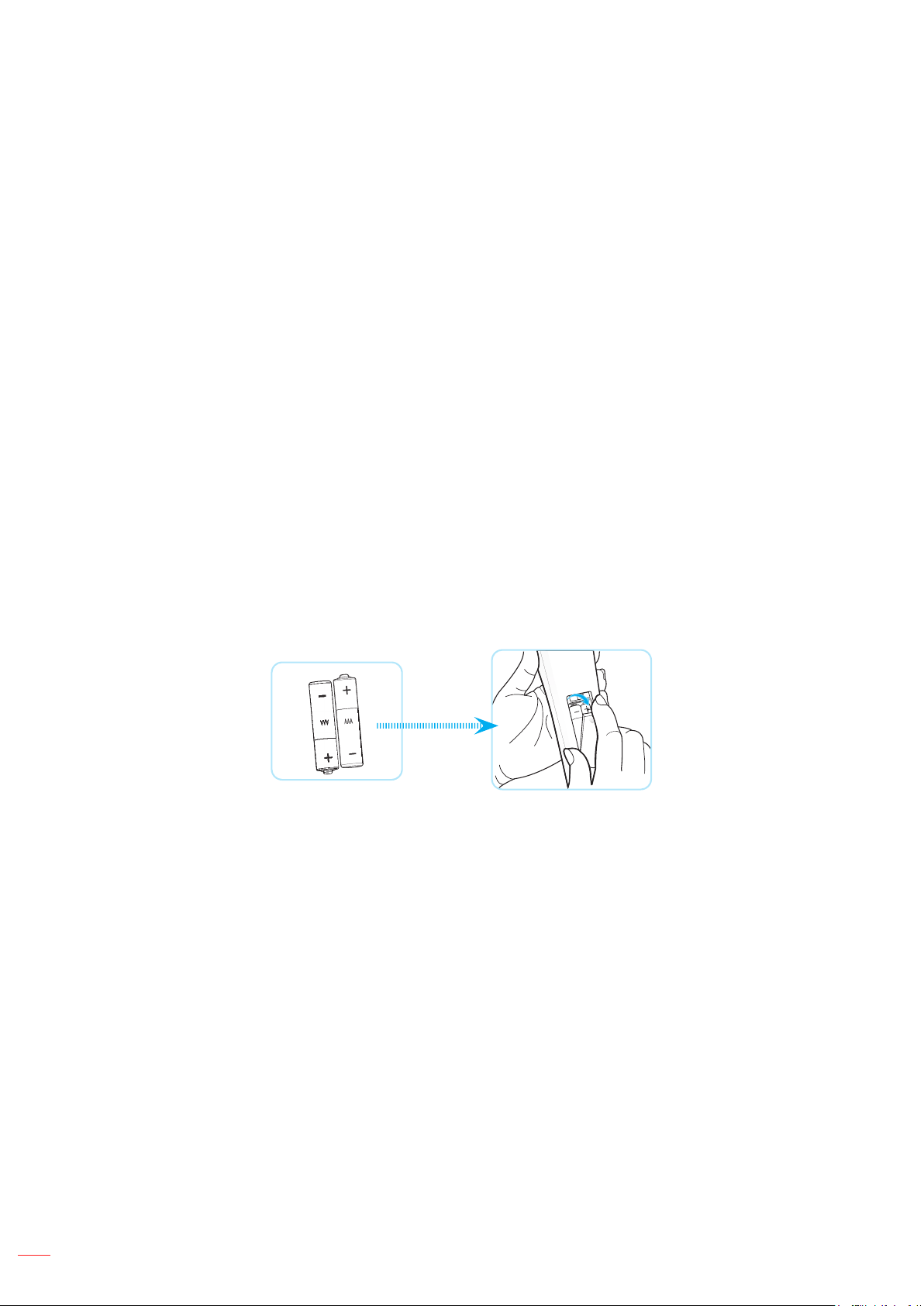

To install or replace batteries:

1. Press and then slide the cover to open it.

2. Align the batteries according to the (+) and (–) indications inside the battery compartment.

3. Replace the cover.

Note: The incorrect use of batteries can result in leaks or bursting. Be sure to follow these instructions:

• Place “AAA” batteries matching the (+) and (–) signs on each battery to the (+) and (–) signs of the battery compartment.

• Do not mix battery types.

• Do not combine new batteries with used ones. It causes shorter life or leakage of batteries.

• Remove the dead batteries immediately to prevent them from liquid leaking in the battery compartment. Don’t touch exposed battery acid, as it can damage your skin.

• If you do not intend to use the remote control for a long period, remove the batteries.

English

Page 17

SETUP AND INSTALLATION

Installing the projector

Your projector is designed to be installed in one of four possible positions.

Your room layout or personal preference will dictate which installation location you select. Take into consideration the size and position of your screen, the location of a suitable power outlet, as well as the location and distance between the projector and the rest of your equipment.

Table mount front Ceiling mount front

Table mount rear Ceiling mount rear

Projector should be placed ῿at on a surface and 90 degrees / perpendicular to the screen.

• How to determine projector location for a given screen size, please refer to distance table on pages

48-50.

• How to determine screen size for a given distance, please refer to distance table on pages 48-51.

Note: The further away the projector is placed from the screen the projected image size increases and vertical

o⿿set also increases proportionally.

IMPORTANT!

Do not operate the projector in any orientation other that table top or ceiling mount. The projector should be horizontal and not tilted either forwards/backwards or left/right. Any other orientation will invalidate the warranty and may shorten the lifetime of the projector light source or the projector itself. For none standard installation advise please contact Acer.

English

Page 18

SETUP AND INSTALLATION

Projector installation notice

Note: The brightness will be reduced 80% when the projection direction is downward.

225°~315° ±5°

• Allow at least 30 cm clearance around the exhaust vent.

Minimum 100mm

(3.94 inches)

Minimum 100mm

(3.94 inches)

Minimum 300mm (11.81 inches)

Minimum 100mm

(3.94 inches)

Minimum 300mm

(11.81 inches)

Minimum 100mm

(3.94 inches)

• Ensure that the intake vents do not recycle hot air from the exhaust vent.

• When operating the projector in an enclosed space, ensure that the surrounding air temperature within the enclosure does not exceed operation temperature while the projector is running, and the air intake and exhaust vents are unobstructed.

• All enclosures should pass a certi�ed thermal evaluation to ensure that the projector does not recycle exhaust air, as this may cause the device to shutdown even if the enclosure temperature is with the acceptable operation temperature range.

English

Page 19

SETUP AND INSTALLATION

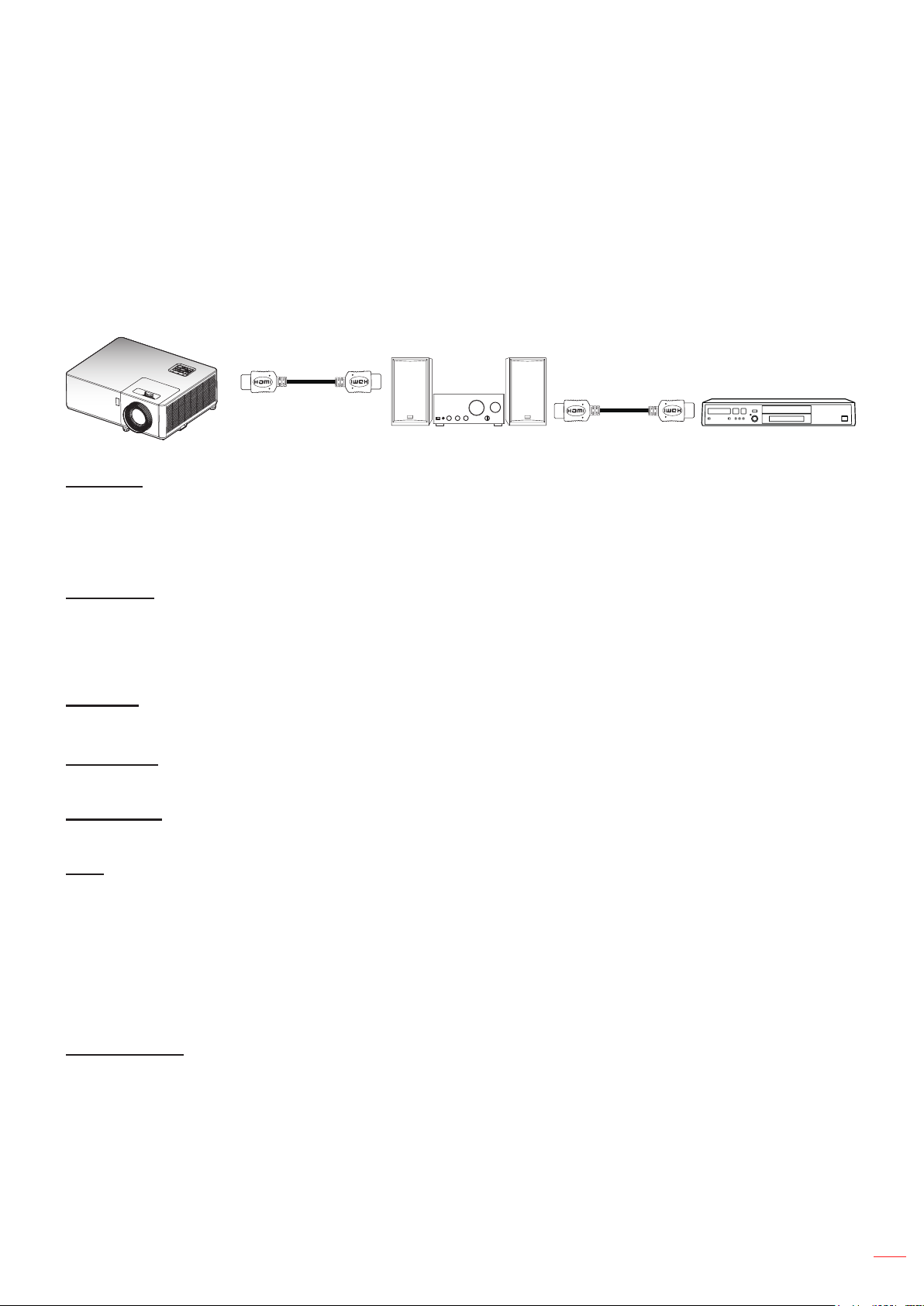

Connecting sources to the projector

Smart devices

Video Output

Audio Output

English

Page 20

SETUP AND INSTALLATION

# Description

1 Power cord

2 HDMI cable

3 WirelessHD dongle

4 USB cable

5 USB cable

6 Audio cable 7 RS232 cable

8 LAN cable

Note:

• To ensure the projector works well with your computer, please make sure the timing of the display mode is compatible with the projector.

• Functions vary depending on model de�nition.

• USB cable needs powered extender if the length is over 5 m.

• USB DC 5V out connector support 5V power output for HDMI dongle charging.

English

Page 21

SETUP AND INSTALLATION

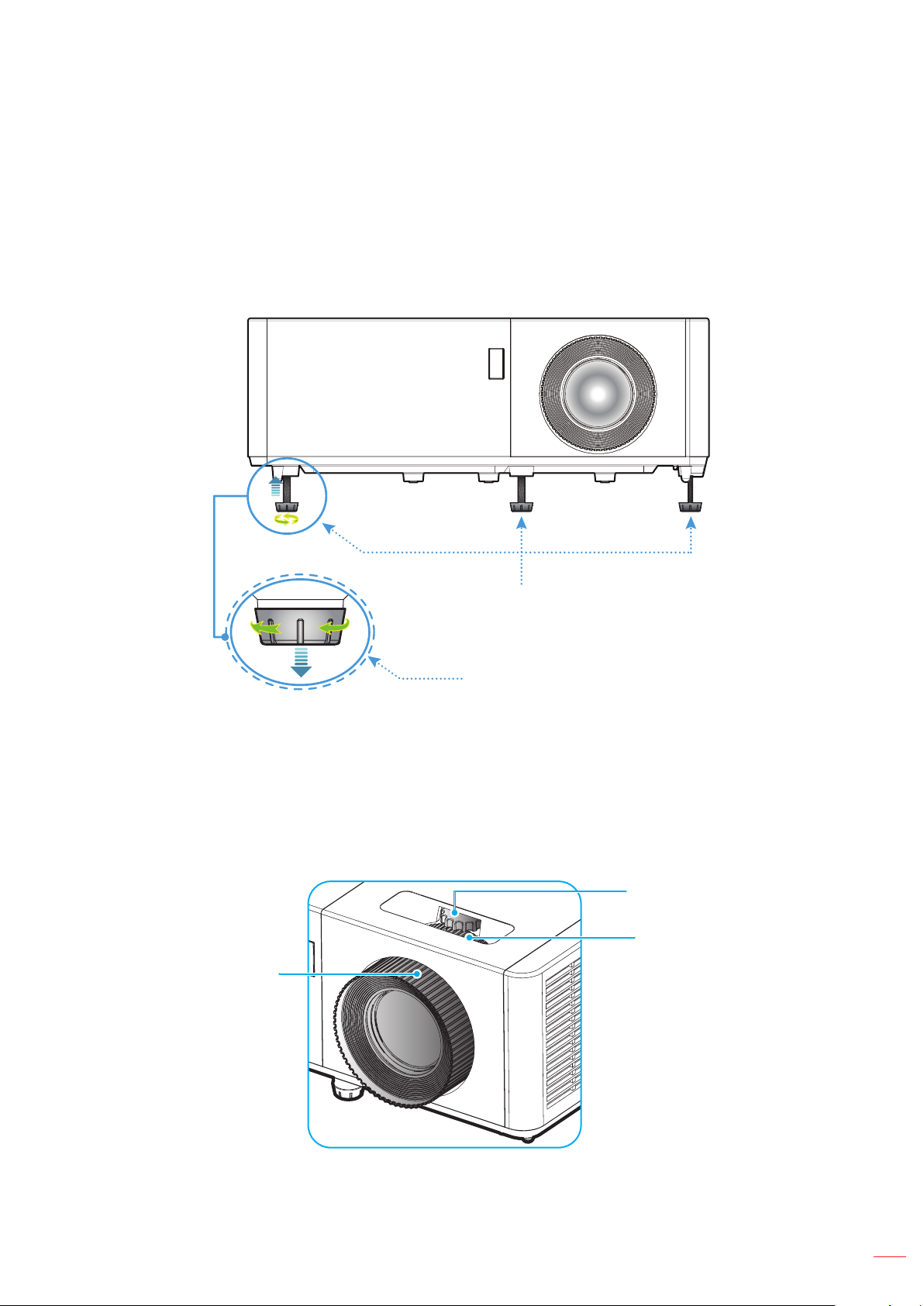

Adjusting the projector image

Image height

The projector is equipped with elevator feet for adjusting the image height.

1. Locate the adjustable foot you wish to adjust on the underside of the projector.

2. Rotate the adjustable foot clockwise or counterclockwise to raise or lower the projector.

Zoom, lens shift, and focus

• To adjust the image size, turn the zoom lever clockwise or counterclockwise to increase or decrease the projected image size.

• To adjust the image position, turn the lens shift dial clockwise or counterclockwise to adjust the position of the projected image vertically.

• To adjust the focus, turn the focus ring clockwise or counterclockwise until the image is sharp and legible.

Focus Ring

Tilt-Adjustment Feet

Tilt-Adjustment Ring

Lens Shift Dial

Zoom Lever

Note: Ensure that the projection screen is within the required distance from the projector. Please refer

to “Image size and projection distance” for more information.

English

Page 22

SETUP AND INSTALLATION

E�ective range

Infra-Red (IR) remote control sensor is located on the top and front sides of the projector. Ensure to hold the

remote control at an angle within 40 degrees perpendicular to the projector’s IR remote control sensor to function correctly. The distance between the remote control and the sensor should not be longer than 5 meters (16.4 feet).

• Make sure that there are no obstacles between the remote control and the IR sensor on the projector that might obstruct the infra-red beam.

• Make sure the IR transmitter of the remote control is not being shined by sunlight or ῿uorescent lamps directly.

• Please keep the remote controller away from ῿uorescent lamps for over 2 m or the remote controller might become malfunction.

• If the remote control is close to Inverter-Type ῿uorescent lamps, it might become ineffective from time to time.

• If the remote control and the projector are within a very short distance, the remote control might become ineffective.

• When you aim at the screen, the effective distance is less than 5 m from the remote control to the

screen and re῿ecting the IR beams back to the projector. However, the effective range might change

according to screens.

Approx. ±20°

English

Page 23

USING THE PROJECTOR

Powering on / o� the projector

Lens cap

Powering on

1. Remove the lens cap.

2. Securely connect the power lead and signal/source cable. When connected, the Power LED will turn

red.

3. Turn on the projector by pressing the button on the projector keypad or remote control.

4. A start up screen will display in approximately 10 seconds and the Power LED will turn blue.

Note: The �rst time the projector is turned on, you will be prompted to select the preferred language, projection

orientation, and other settings.

Powering o�

1. Turn off the projector by pressing the button on the projector keypad or remote control.

2. The following message will be displayed:

Power Off

Power Off?

Press power key again.

3. Press the button again to con�rm, otherwise the message will disappear after 10 seconds. When

you press the button for the second time, the projector will shut down.

4. When the Power turns solid red, this indicates the projector has entered standby mode. If you wish

to turn the projector back on, you must wait until the cooling cycle has �nished and the projector has

entered standby mode. When the projector is in standby mode, simply press the button again to turn on the projector.

5. Disconnect the power lead from the electrical outlet and the projector.

Note: It is not recommended that the projector is turned on immediately, right after a power o⿿ procedure.

English

Page 24

USING THE PROJECTOR

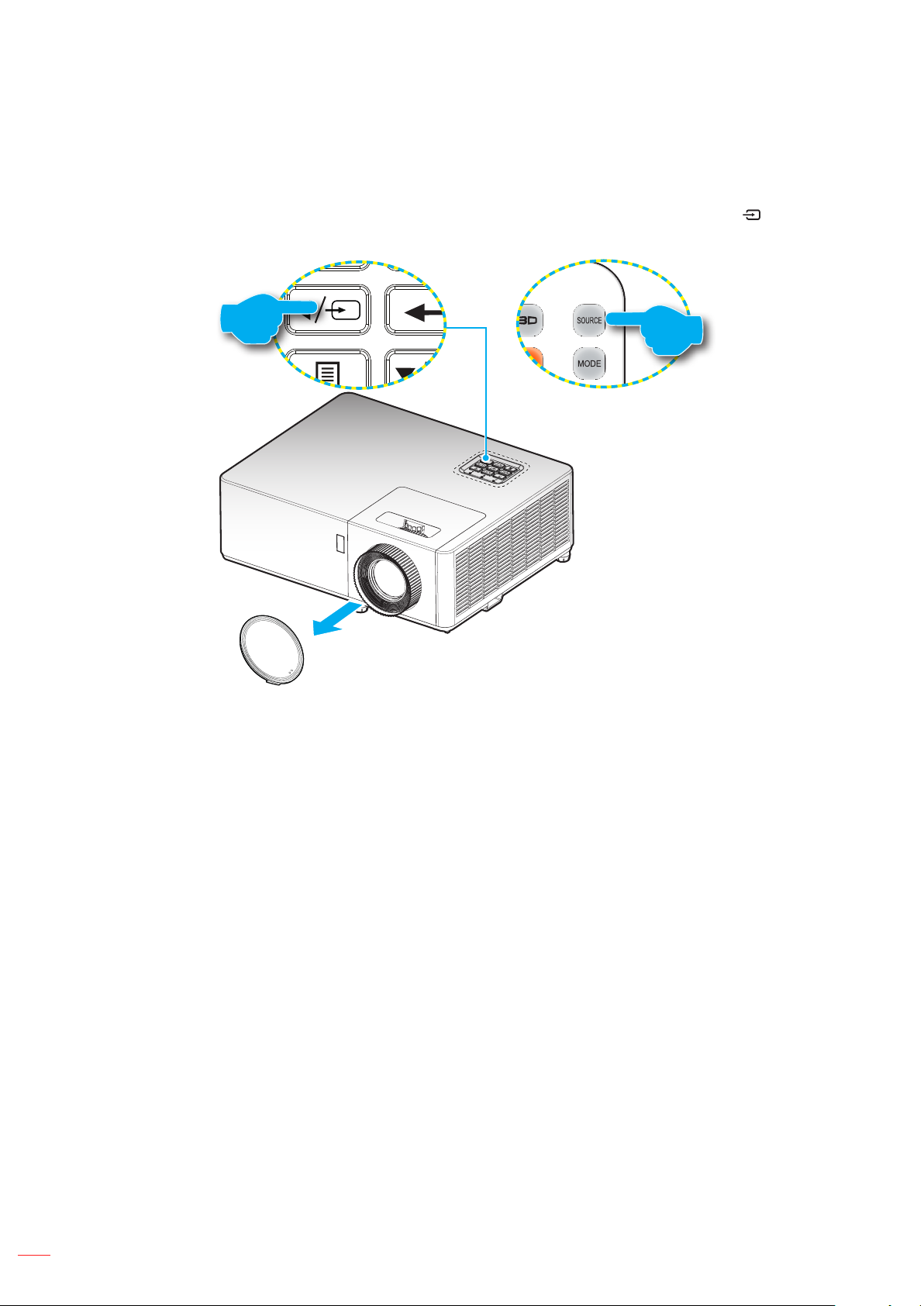

Selecting an input source

Turn on the connected source that you want to display on the screen, such as computer, notebook, video player, etc. The projector will automatically detect the source. If multiple sources are connected, press the button on the projector keypad or the Source button on the remote control to select the desired input.

Lens cap

English

Page 25

USING THE PROJECTOR

Menu navigation and features

The projector has multilingual on-screen display menus that allow you to make image adjustments and change a variety of settings. The projector will automatically detect the source.

1. To open the OSD menu, press the button on the projector keypad or the Menu button on the remote control.

2. When OSD is displayed, use pq keys to select any item in the main menu. While making a selection on a particular page, press the button on the projector keypad or the Enter button on the remote control to enter sub menu.

3. Use tu keys to select the desired item in the sub menu and then press the or Enter button to view further settings. Adjust the settings by using tu keys.

4. Select the next item to be adjusted in the sub menu and adjust as described above.

5. Press press the or Enter button to con�rm, and the screen will return to the main menu.

6. To exit, press the or Menu button again. The OSD menu will close and the projector will automatically save the new settings.

Sub Menu

Settings

Main Menu

Image Settings

Low Input Lag

Aspect Ratio

Zoom

Image Shift

Keystone

Select

Navigation guide

Display

Exit Enter

English

Page 26

USING THE PROJECTOR

OSD Menu tree

Main

Display Image Settings

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

Presentation

Bright

HDR SIM.

HLG

HDR

Display Mode

Brightness -50 ~ 50

Contrast -50 ~ 50

Sharpness 1 ~ 15

Color -50 ~ 50

Tint -50 ~ 50

Film

Video

Graphics

Gamma

Color Settings

Standard(2.2)

1.8

2.0

2.4

2.6

BrilliantColor

Color Temperature

Color Matching

Color

Hue / R(*) -50 ~ 50 [Default: 0]

Saturation / G(*) -50 ~ 50 [Default: 0]

Gain / B(*) -50 ~ 50 [Default: 0]

Reset

Exit

Cinema

Game

sRGB

DICOM SIM.

User

1 ~ 10

Warm

Standard

Cool

Cold

Red [Default]

Green

Blue

Cyan

Yellow

Magenta

White(*)

Cancel [Default]

Yes

English

Page 27

USING THE PROJECTOR

Main

Display

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

Red Gain -50 ~ 50

Green Gain -50 ~ 50

Blue Gain -50 ~ 50

Red Bias -50 ~ 50

RGB Gain/Bias

Color Settings

Image Settings

Color Space [HDMI Input]

Brightness Mode

Reset

Low Input Lag

3D Mode

Aspect Ratio

Zoom -5 ~ 25

Image Shift

3D Format

3D Sync Invert

H -100 ~ 100 [Default: 0]

V -100 ~ 100 [Default: 0]

Green Bias -50 ~ 50

Blue Bias -50 ~ 50

Reset

Exit

Cancel [Default]

Yes

Auto [Default]

RGB(0~255)

RGB(16~235)

YUV

DynamicBlack

Eco.

Power

(Power = 100%/ 95%/ 90%/ 85%/ 80%/ 75%/ 70%/ 65%/ 60%/ 55%/

50%)

Off [Default]

Auto [Default]

SBS

Top and Bottom

Frame Sequential

Off [Default]

4:3

16:9

21:9

16:10

Native

Auto [Default]

English

Page 28

USING THE PROJECTOR

Main

Display Keystone

Audio

Setup

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

Mute

Volume 0 ~ 10 [Default: 5]

Projection

Power Settings

Security

HDMI CEC

Test Pattern

[Default]

Four Corners

H Keystone -30 ~30 [Default: 0]

V Keystone -30 ~30 [Default: 0]

3x3 Warp [Default: 0]

Reset

Off [Default]

Front [Default]

Rear

Ceiling-top

Rear-top

Direct Power On

Signal Power On

Auto Power Off (min.)

Power Mode (Standby)

Security

Change Password

Off [Default]

0 ~ 180 (5 min increments) [Default: 20]

Active

Eco [Default]

ErP Off

Off [Default]

[Default: 1234]

Off [Default]

Green Grid

Magenta Grid

White Grid

White

Test Card

Off [Default]

English

Page 29

USING THE PROJECTOR

Main

Setup

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

English [Default]

Deutsch

Français

Italiano

Español

Português

Polski

Nederlands

Svenska

Norsk

Suomi

ελληνικά

繁體中文

Language

Options

简体中文

日本語

한국어

Русский

Magyar

Čeština

Auto Source

High Altitude

Logo

Reset Reset to Default

ไทย

Türkçe

Tiếng Việt

Bahasa Indonesia

Română Slovenčina

Off [Default]

Default [Default]

Neutral

Cancel [Default]

Yes

English

Page 30

USING THE PROJECTOR

Main

Network

Info

Sub Menu Sub Menu 2 Sub Menu 3 Sub Menu 4 Values

Network Status (read only)

MAC Address (read only)

DHCP

LAN

Control

Serial Number

Source

Resolution 00x00

Refresh Rate 0.00Hz

Display Mode

Power Mode (Standby)

Light Source Hours

Network Status

IP Address

Brightness Mode

Firmware

Version

IP Address

Subnet Mask

Gateway

DNS

Reset

Crestron

Extron

PJ Link

AMX Device Discovery

Telnet

HTTP

System

LAN

MCU

Off

On [Default]

Off

On [Default]

Note: Port 41794

Off

On [Default]

Note: Port 2023

Off

On [Default]

Note: Port 4352

Off

On [Default]

Note: Port 9131

Off

On [Default]

Note: Port 23

Off

On [Default]

Note: Port 80

0 hr

Note:

• Functions vary depending on model de�nition.

• Adjusting power-related functions may increase energy consumption.

English

Page 31

USING THE PROJECTOR

Display menu

Display image settings menu

Note: Functions vary depending on model de�nition.

Display Mode

There are many factory presets optimized for various types of images.

• Presentation: This mode is suitable for showing in front of public in connection to the PC.

• Bright: Maximum brightness from PC input.

• HDR SIM.: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks,

brightest whites, and vivid cinematic color using REC.2020 color gamut. This mode can be selected to

enhances non-HDR content with simulated High Dynamic Range (HDR).

• HLG: Decodes and displays Hybrid Log Gamma(HLG) content for the deepest blacks, brightest

whites, and vivid cinematic color using REC.2100 color gamut. This mode can be selected to

enhances non-HLG content.

• HDR: Decodes and displays High Dynamic Range (HDR) content for the deepest blacks, brightest

whites, and vivid cinematic color using REC.2020 color gamut.

• Cinema: Provides the best colors for watching movies.

• Game: Select this mode to increase the brightness and response time level for enjoying video games.

• sRGB: Standardized accurate color.

• DICOM SIM.: This mode can project a monochrome medical image such as an X ray radiography,

MRI, etc.

• User: Memorize user’s settings.

• 3D: To experience the 3D effect, you need to have 3D glasses, make sure your PC/portable device

has a 120 Hz signal output quad buffered graphics card and have a 3D Player installed.

Brightness

Adjust the brightness of the image.

Contrast

The contrast controls the degree of difference between the lightest and darkest parts of the picture.

Sharpness

Adjust the sharpness of the image.

Color

Adjust a video image from black and white to fully saturated color.

Note: This menu option is only available if the input source is other than RGB.

Tint

Adjust the color balance of red and green.

Note: This menu option is only available if the input source is other than RGB.

Gamma

Set up gamma curve type. After the initial setup and �ne tuning is completed, utilize the Gamma Adjustment steps

to optimize your image output.

• Film: For home theater.

• Video: For video or TV source.

• Graphics: For PC / Photo source.

English

Page 32

USING THE PROJECTOR

• Standard(2.2): For standardized setting.

• 1.8 / 2.0 / 2.4 / 2.6: For speci�c PC / Photo source.

Note:

• These options are only available if the 3D mode function is disabled, the Display Mode setting is not set to DICOM SIM., HDR SIM. or HLG.

• In 3D mode, user can only select 3D for Gamma setting.

• If the Display Mode setting is set to DICOM SIM., user can only select DICOM SIM. for Gamma setting.

• If the Display Mode setting is set to HDR SIM. or HLG, user can only select HDR SIM. or HLG for Gamma setting.

Color Settings

Con�gure the color settings.

• BrilliantColorTM: This adjustable item utilizes a new color-processing algorithm and enhancements to enable higher brightness while providing true, more vibrant colors in picture.

• Color Temperature: Select a color temperature from Warm, Standard, Cool, or Cold.

• Color Matching: Select the following options:

– Color: Adjust the red, green, black, cyan, yellow, magenta, and white level of the image. – Hue / R(red)*: Adjust the color balance of red and green.

Note: *If the Color setting is set to White, you can adjust the red color setting.

– Saturation / G(green)*: Adjust a video image from black and white to fully saturated color.

Note: *If the Color setting is set to White, you can adjust the green color setting.

– Gain / B(blue)*: Adjust the image brightness.

Note: *If the Color setting is set to White, you can adjust the blue color setting.

– Reset: Return the factory default settings for color matching. – Exit: Exit the “Color Matching” menu.

• RGB Gain/Bias: This settings allows to con�gure the brightness (gain) and contrast (bias) of an image.

– Reset: Return the factory default settings for RGB gain/bias. – Exit: Exit the “RGB Gain/Bias” menu.

• Color Space (HDMI input only): select an appropriate color matrix type from the following: Auto,

RGB(0-255), RGB(16-235), and YUV.

Brightness Mode

Adjust the brightness mode settings.

• DynamicBlack: Use to automatically adjust the picture brightness in order to give optimum contrast performance.

• Eco.: Choose “Eco.” to dim the projector lamp which will lower power consumption and extend the lamp life.

• Power: Choose the power percentage for brightness mode.

Reset

Return the factory default settings for color settings.

Low input lag

Use this function to make the projected screen smoothly without any lag. Only support 1920 * 1080 60Hz.

English

Page 33

USING THE PROJECTOR

Display 3D menu

Note:

• This projector is a 3D ready projector with DLP-Link 3D solution.

• Please make sure your 3D glasses are use for DLP-Link 3D before enjoy your video.

• This projector supports frame sequential (page-῿ip) 3D via HDMI/VGA ports.

• To enable 3D mode, the input frame rate should be set to 60Hz only, lower or higher frame rate is not supported.

• To reach the best performance, resolution 1920x1080 is recommended, please be noted that 4K (3840x2160) resolution is not supported in 3D mode.

3D Mode

Use this option to disable the 3D function or select the appropriate the 3D function.

• O�: Select “Off” to turn off 3D mode.

• On: Select “On” to turn on 3D mode.

Note: If the 2D and 3D sources enter projector at the same time, if the ghosting image appears in the 2D source,

make sure to manually turn o⿿ the 3D function.

3D Format

Use this option to select the appropriate 3D format content.

• Auto: When a 3D identi�cation signal is detected, the 3D format is selected automatically.

• SBS: Display 3D signal in “Side-by-Side” format.

• Top and Bottom: Display 3D signal in “Top and Bottom” format.

• Frame Sequential: Display 3D signal in “Frame Sequential” format.

3D Sync Invert

Use this option to enable/disable the 3D sync invert function.

English

Page 34

USING THE PROJECTOR

Display aspect ratio menu

Aspect Ratio

Select the aspect ratio of the displayed image between the following options:

• 4:3: This format is for 4:3 input sources.

• 16:9: This format is for 16:9 input sources, like HDTV and DVD enhanced for Wide screen TV.

• 16:10 (for WUXGA model only): This format is for 16:10 input sources, like widescreen laptops.

• 21:9 (for 4K model only): This format is for 21:9 input sources.

• Native: This format displays the original image without any scaling.

• Auto: Automatically selects the appropriate display format.

1080p scaling table:

4x3 Scale to 1440x1080.

16x9 Scale to 1920x1080.

Native mode - 1:1 mapping centered.

- No scaling will be made; the image is displayed with the resolution based on input source.

Auto - If source is 4:3, the screen type will be scaled to 1440 x1080.

- If source is 16:9, the screen type will be scaled to 1920x1080.

- If source is 16:10, the screen type will be scaled to 1920x1200 and cut 1920x1080 area to

display.

1080p auto mapping rule:

Auto

4:3

Wide Laptop

SDTV

HDTV

H-resolution V-resolution 1920 1080

Input resolution Auto/Scale

640 480 1440 1080

800 600 1440 1080

1024 768 1440 1080

1280 1024 1440 1080

1400 1050 1440 1080

1600 1200 1440 1080 1280 720 1920 1080 1280 768 1800 1080 1280 800 1728 1080

720 576 1350 1080

720 480 1620 1080 1280 720 1920 1080 1920 1080 1920 1080

English

Page 35

USING THE PROJECTOR

WUXGA scaling table:

4x3 Scale to 1600x1200.

16x9 Scale to 1920x1080.

16x10 Scale to 1920x1200.

Native mode - 1:1 mapping centered.

- No scaling will be made; the image is displayed with the resolution based on input source.

Auto - If source is 4:3, the screen type will be scaled to 1600 x1200.

- If source is 16:9, the screen type will be scaled to 1920x1080.

- If source is 16:10, the screen type will be scaled to 1920x1200.

WUXGA auto mapping rule:

Auto

4:3

Wide Laptop

SDTV

HDTV

4K scaling table:

4x3 Scale to 2880x2160.

16x9 Scale to 3840x2160 21x9 Scale to 3840x1620

Native mode - 1:1 mapping centered.

H-resolution V-resolution 1920 1200

Input resolution Auto/Scale

640 480 1600 1200

800 600 1600 1200 1024 768 1600 1200

1280 1024 1600 1200

1400 1050 1600 1200

1600 1200 1600 1200 1280 720 1920 1080 1280 768 1920 1200 1280 800 1920 1200

720 576 1500 1200

720 480 1800 1200 1280 720 1920 1080 1920 1080 1920 1080

- No scaling will be made; the image is displayed with the resolution based on input source.

Auto - If source is 4:3, the screen type will be scaled to 2880x2160.

- If source is 16:9, the screen type will be scaled to 3840x2160.

- If source is 21:9, the screen type will be scaled to 3840x1620.

English

Page 36

USING THE PROJECTOR

4K auto mapping rule:

Auto

4:3

Wide Laptop

SDTV

HDTV

H-resolution V-resolution 3840 2160

Input resolution Auto/Scale

640 480 2880 2160

800 600 2880 2160 1024 768 2880 2160

1280 1024 2880 2160

1400 1050 2880 2160

1600 1200 2880 2160 1280 720 3840 2160 1280 768 3600 2160

1280 800 3456 2160

720 576 2880 2160

720 480 2880 2160 1280 720 3840 2160 1920 1080 3840 2160

Display zoom menu

Zoom

Use to reduce or magnify an image on the projection screen.

Display image shift menu

Image Shift

Adjust the projected image position horizontally (H) or vertically (V).

Display keystone menu

Four Corners

Allow the image to be squeezed to �t an area de�ned by moving each of the four corners’ x and y position.

H Keystone

Adjust image distortion horizontally and make a squarer image. Horizontal keystone is used to correct a keystoned image shape in which the left and right borders of the image are unequal in length. This is intended for use with horizontally on-axis applications.

V Keystone

Adjust image distortion vertically and make a squarer image. Vertical keystone is used to correct a keystoned

image shape in which the top and bottom are slanted to one of the sides. This is intended when for use with vertically on-axis applications.

3x3 Warp

The function is to con�gure the geometric distortion of the projector’s images when the images are projected onto

screens which have an uneven surface such as a cylinder, a spherical shape, etc.

Note:

• The image size will reduce slightly when adjusting the horizontal and vertical keystone.

Reset

Return the factory default settings for keystone settings.

English

Page 37

USING THE PROJECTOR

Audio menu

Note: Functions vary depending on model de�nition.

Audio mute menu

Mute

Use this option to temporarily turn off the sound.

• On: Choose “On” to turn mute on.

• O�: Choose “Off” to turn mute off.

Note: “Mute” function a⿿ects both internal and external speaker volume.

Audio volume menu

Volume

Adjust the volume level.

English

Page 38

USING THE PROJECTOR

Setup menu

Note: Functions vary depending on model de�nition.

Setup projection menu

Projection

Select the preferred projection between front, rear, ceiling-top, and rear-top.

Setup power settings menu

Direct Power On

Choose “On” to activate Direct Power mode. The projector will automatically power on when AC power is supplied, without pressing the “Power” key on the projector keypad or on the remote control.

Signal Power On

Choose “On” to activate Signal Power mode. The projector will automatically power on when a signal is detected, without pressing the “Power” key on the projector Keypad or on the remote control.

Note: Only supported on HDMI 1, HDMI 2.

Auto Power O� (min.)

Sets the countdown timer interval. The countdown timer will start, when there is no signal being sent to the

projector. The projector will automatically power off when the countdown has �nished (in minutes).

Note: When the countdown timer set on 0(disable auto power o⿿)or >20mins will show the warning message as

below.

Power Mode (Standby)

Set the power mode setting.

• Eco: Choose “Eco.” to save power dissipation further < 0.5W.

• Active: Choose “Active” to return to normal standby.

• ErP o�: Choose “ErP off” to return to normal standby.

Setup security menu

Security

Enable this function to prompt for a password before using the projector.

• On: Choose “On” to use security veri�cation when the turning on the projector.

• O�: Choose “Off” to be able to switch on the projector without password veri�cation.

Change Password

Use to set or modify the password that is prompted when turning the projector on.

Note: Password default value is “1234” (�rst time).

English

Page 39

USING THE PROJECTOR

Setup HDMI Link settings menu

Note:

• When you connect HDMI CEC-compatible devices to the projector with HDMI cables, you can control

them on the same power on or power o⿿ status using the HDMI Link control feature in the projector’s OSD. This lets one device or multiple devices in a group power on or power o⿿ via HDMI Link Feature in a typical con�guration, your DVD player may be connected to the projector through an ampli�er or

home theater system.

HDMI

Ampli�er

HDMI CEC

Default is Off. Select “On” to enable HDMI CEC function.

HDMI

DVD Player

Setup test pattern menu

Test Pattern

Select the test pattern from green grid, magenta grid, white grid, white or disable this function (off).

Setup options menu

Language

Select the multilingual OSD menu.

Auto Source

Choose this option to let the projector automatically �nd an available input source.

High Altitude

When “On” is selected, the fans will spin faster. This feature is useful in high altitude areas where the air is thin.

Logo

Use this function to set the desired startup screen. If changes are made, they will take effect the next time the projector is powered on.

• Default: The default startup screen.

• Neutral: Logo is not displayed on startup screen.

Setup reset OSD menu

Reset to Default

Return the factory default settings for all settings except network setting.

English

Page 40

USING THE PROJECTOR

Network menu

Note: Functions vary depending on model de�nition.

Network LAN menu

Network Status

Display the network connection status (read-only).

MAC Address

Display the MAC address (read-only).

DHCP

Use this option to enable or disable the DHCP function.

• O�: To assign IP, subnet mask, gateway, and DNS con�guration manually.

• On: Projector will obtain an IP address automatically from your network.

Note: Exiting OSD will automatically apply the entered values.

IP Address

Display the IP address.

Subnet Mask

Display subnet mask number.

Gateway

Display the default gateway of the network connected to the projector.

DNS

Display the DNS number.

Reset

Reset all values for LAN parameters.

Network control menu

Crestron

Use this function to select the network function (port: 41794).

For more information, please visit http://www.crestron.com and www.crestron.com/getroomview.

Extron

Use this function to select the network function (port: 2023).

PJ Link

Use this function to select the network function (port: 4352).

AMX Device Discovery

Use this function to select the network function (port: 9131).

Telnet

Use this function to select the network function (port: 23).

HTTP

Use this function to select the network function (port: 80).

English

Page 41

USING THE PROJECTOR

Info menu

Note: Functions vary depending on model de�nition.

Info menu

View the projector information as listed below:

• Serial Number

• Source

• Resolution

• Refresh Rate

• Display Mode

• Power Mode (Standby)

• Light Source Hours

• Network Status

• IP Address

• Brightness Mode

• Firmware Version

English

Page 42

ADDITIONAL INFORMATION

Compatible resolutions

Digital compatibility

Digital (HDMI 1.4)

Native resolution 1920x1080@60Hz

B0 / Established

Timing

720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920x1080@60Hz 640 x 480p @ 60Hz 4:3 1920 x 1080p @ 60Hz 640 x 480 @ 60Hz 1280 x 800 @ 60Hz 720 x 480i @ 60Hz 16:9 1366x768@60Hz 640 x 480 @ 67Hz 1280x1024 @ 60Hz 720 x 480p @ 60Hz 4:3 1920x1080@120Hz(*) 640 x 480 @ 72Hz 1600X1200@60Hz 720 x 480p @ 60Hz 16:9 640 x 480 @ 75Hz 640x480@120Hz 720 x 576i @ 50Hz 16:9 800 x 600 @ 56Hz 800x600@120Hz 720 x 576p @ 50Hz 4:3 800 x 600 @ 60Hz 1024x768@120Hz 720 x 576p @ 50Hz 16:9 800 x 600 @ 72Hz 1280x800@120Hz 1280 x 720p @ 60Hz 16:9 800 x 600 @ 75Hz 1280 x 720p @ 50Hz 16:9 832 x 624 @ 75Hz 1920 x 1080i @ 60Hz 16:9 1024 x 768 @ 60Hz 1920 x 1080i @ 50Hz 16:9 1024 x 768 @ 70Hz 1920 x 1080p @ 60Hz 16:9

1024 x 768 @ 75Hz 1920 x 1080p @ 50Hz 16:9 1280 x 1024 @ 75Hz 1920 x 1080p @ 24Hz 16:9 Manufacturer's Timings: 720(1440)x480i @60Hz 4:3 1152 x 870@ 75Hz 720(1440)x576i @50 Hz 4:3

B0 / Standard Timing B0 / Detail Timing B1 / Video Mode B1 / Detail Timing

1920x1200@60Hz(RB)

Vendor Speci�c HDMI 1.4b 3840 x 2160 @ 24Hz 3840 x 2160 @ 25Hz 3840 x 2160 @ 30Hz

Digital (HDMI 2.0)

Native resolution 1920x1080@60Hz

B0 / Established

Timing

720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920x1080@60Hz 720 x 480p @ 60Hz 16:9 640 x 480 @ 60Hz 1280 x 800 @ 60Hz 720 x 576p @ 50Hz 4:3 1366x768@60Hz 640 x 480 @ 67Hz 1280x1024 @ 60Hz 720 x 576p @ 50Hz 16:9 1920x1200 @ 60Hz(RB) 640 x 480 @ 72Hz 640 x 480 @ 75Hz 640x480@120Hz 1280 x 720p @ 50Hz 16:9 800 x 600 @ 56Hz 800x600@120Hz 1920 x 1080i @ 60Hz 16:9 800 x 600 @ 60Hz 1024x768@120Hz 1920 x 1080i @ 50Hz 16:9 800 x 600 @ 72Hz 1280x800@120Hz 1920 x 1080p @ 60Hz 16:9 800 x 600 @ 75Hz 1920 x 1080p @ 50Hz 16:9 832 x 624 @ 75Hz 1920 x 1080p @ 24Hz 16:9 1024 x 768 @ 60Hz 3840 x 2160 @ 24Hz 1024 x 768 @ 70Hz 3840 x 2160 @ 25Hz 1024 x 768 @ 75Hz 3840 x 2160 @ 30Hz 1280 x 1024 @ 75Hz 3840 x 2160 @ 50Hz Manufacturer's Timings: 3840 x 2160 @ 60Hz 1152 x 870@ 75Hz

B0 / Standard Timing B0 / Detail Timing B1 / Video Mode B1 / Detail Timing

1920x1080@120Hz(*)

1600X1200@60Hz

1280 x 720p @ 60Hz 16:9

English

Page 43

ADDITIONAL INFORMATION

Note: (*) 1920x1080p@120Hz is over DDP442X-HV bandwidth, so TI won’t guarantee the image quality for this

timing.

True 3D video compatibility

Input timing

1280 x 720P @ 50Hz Top-and-Bottom 1280 x 720P @ 60Hz Top-and-Bottom

HDMI 3D Input

Input resolutions

(with 3D InfoFrame information)

Note:

• If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode.

• 1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz except WUXGA model is 96Hz; other 3D timing will run in 120Hz.

1280 x 720P @ 50Hz Frame packing 1280 x 720P @ 60Hz Frame packing 1920 x 1080i @ 50Hz Side-by-Side 1920 x 1080i @ 60Hz Side-by-Side 1920 x 1080P @ 24Hz Top-and-Bottom 1920 x 1080P @ 24Hz Frame packing

English

Page 44

ADDITIONAL INFORMATION

Digital (HDMI 1.4)

Native resolution 1920x1200@60Hz(RB)

B0 / Established

Timing

720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920x1200@60Hz

640 x 480 @ 60Hz 1280 x 800 @ 60Hz 720 x 480i @ 60Hz 16:9 1366x768@60Hz 640 x 480 @ 67Hz 1280x1024 @ 60Hz 720 x 480p @ 60Hz 4:3 1920x1080@120Hz(*) 640 x 480 @ 72Hz 1600X1200@60Hz 720 x 480p @ 60Hz 16:9 640 x 480 @ 75Hz 640x480@120Hz 720 x 576i @ 50Hz 16:9 800 x 600 @ 56Hz 800x600@120Hz 720 x 576p @ 50Hz 4:3 800 x 600 @ 60Hz 1024x768@120Hz 720 x 576p @ 50Hz 16:9 800 x 600 @ 72Hz 1280x800@120Hz 1280 x 720p @ 60Hz 16:9 800 x 600 @ 75Hz 1280 x 720p @ 50Hz 16:9 832 x 624 @ 75Hz 1920 x 1080i @ 60Hz 16:9 1024 x 768 @ 60Hz 1920 x 1080i @ 50Hz 16:9 1024 x 768 @ 70Hz 1920 x 1080p @ 60Hz 16:9

1024 x 768 @ 75Hz 1920 x 1080p @ 50Hz 16:9 1280 x 1024 @ 75Hz 1920 x 1080p @ 24Hz 16:9

Manufacturer's Timings:

1152 x 870@ 75Hz 720(1440)x576i @50 Hz 4:3

B0 / Standard Timing B0 / Detail Timing B1 / Video Mode B1 / Detail Timing

640 x 480p @ 60Hz 4:3 1920 x 1080p @ 60Hz

(RB)

720(1440)x480i @60Hz 4:3

Vendor Speci�c HDMI 1.4b 3840 x 2160 @ 24Hz 3840 x 2160 @ 25Hz 3840 x 2160 @ 30Hz

Digital (HDMI 2.0)

Native resolution 1920x1200@60Hz(RB)

B0 / Established

Timing

720 x 400 @ 70Hz 1280 x 720 @ 60Hz 1920x1200@60Hz

640 x 480 @ 60Hz 1280 x 800 @ 60Hz 720 x 576p @ 50Hz 4:3 1366x768@60Hz 640 x 480 @ 67Hz 1280x1024 @ 60Hz 720 x 576p @ 50Hz 16:9 640 x 480 @ 72Hz 640 x 480 @ 75Hz 640x480@120Hz 1280 x 720p @ 50Hz 16:9 800 x 600 @ 56Hz 800x600@120Hz 1920 x 1080i @ 60Hz 16:9 800 x 600 @ 60Hz 1024x768@120Hz 1920 x 1080i @ 50Hz 16:9 800 x 600 @ 72Hz 1280x800@120Hz 1920 x 1080p @ 60Hz 16:9 800 x 600 @ 75Hz 1920 x 1080p @ 50Hz 16:9 832 x 624 @ 75Hz 1920 x 1080p @ 24Hz 16:9 1024 x 768 @ 60Hz 3840 x 2160 @ 24Hz 1024 x 768 @ 70Hz 3840 x 2160 @ 25Hz 1024 x 768 @ 75Hz 3840 x 2160 @ 30Hz 1280 x 1024 @ 75Hz 3840 x 2160 @ 50Hz

Manufacturer's Timings:

1152 x 870@ 75Hz

B0 / Standard Timing B0 / Detail Timing B1 / Video Mode B1 / Detail Timing

1600X1200@60Hz

720 x 480p @ 60Hz 16:9

(RB)

1280 x 720p @ 60Hz 16:9

3840 x 2160 @ 60Hz

1920x1080@120Hz(*)

English

Page 45

ADDITIONAL INFORMATION

Note: (*) 1920x1080p@120Hz is over DDP442X-HV bandwidth, so TI won’t guarantee the image quality for this

timing.

True 3D video compatibility

Input timing

1280 x 720P @ 50Hz Top-and-Bottom 1280 x 720P @ 60Hz Top-and-Bottom

HDMI 3D Input

Input resolutions

(with 3D InfoFrame information)

Note:

• If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode.

• 1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz except WUXGA model is 96Hz; other 3D timing will run in 120Hz.

B0 / Established

Timing

720 x 400 @ 70Hz 1920 x 1200 @ 60 Hz

640 x 480 @ 60Hz 1920 x 1080 @ 60 Hz

640 x 480 @ 67Hz 1680 x 1050 @ 60 Hz

640 x 480 @ 72Hz 1440 x 900 @ 60 Hz

640 x 480 @ 75Hz 1280 x 1024 @ 60 Hz

800 x 600 @ 56Hz 1280 x 960 @ 60 Hz (4:3) 720(1440)x480i @ 60 Hz

800 x 600 @ 60Hz 1280 x 720 @ 120 Hz

800 x 600 @ 72Hz 1152 x 864 @ 75 Hz (4:3) 1280x720p @ 50 Hz 16:9 800 x 600 @ 75Hz 1920x1080p @ 50 Hz 16:9 832 x 624 @ 75Hz 1920x1080p @ 24 Hz 16:9 1024 x 768 @ 60Hz 1920x1080i @ 50 Hz 16:9 1024 x 768 @ 70Hz 720x576p @ 50 Hz 16:9

1024 x 768 @ 75Hz 2560x1080p @ 60 Hz

1280 x 1024 @ 75Hz 3840x2160p @ 50 Hz 16:9

Manufacturer's Timings:

1152 x 870@ 75Hz 640x480p @ 60 Hz 4:3

B0 / Standard Timing B0 / Detail Timing B1 / Video Mode B1 / Detail Timing

(16:10)

(16:9)

(16:10)

(5:4)

(16:9)

Digital-HDMI 1 (2.0)

Native resolution 3840x2160@60Hz

3840 x 2160 @60 Hz 1920x1080p @ 60 Hz 16:9 2560x1440 @120Hz

1920x1080i @ 60 Hz 16:9 1920x1080 @240Hz

1280x720p @ 60 Hz 16:9

720x480p @ 60 Hz 16:9

720x480p @ 60 Hz 4:3

16:9 720(1440)x480i @ 60 Hz

4:3

64:27

3840x2160p @ 60 Hz 16:9

1920x1080i (1250 total) @ 50 Hz 16:9

1920x1080p @ 25 Hz 16:9 1920x1080p @ 30 Hz 16:9

English

Page 46

ADDITIONAL INFORMATION

Digital-HDMI 1 (2.0)

Native resolution 3840x2160@60Hz

B0 / Established

Timing

B0 / Established

Timing

720 x 400 @ 70Hz 1920 x 1200 @ 60 Hz

640 x 480 @ 60Hz 1920 x 1080 @ 60 Hz

640 x 480 @ 67Hz 1680 x 1050 @ 60 Hz

640 x 480 @ 72Hz

640 x 480 @ 75Hz 1280 x 1024 @ 60 Hz

800 x 600 @ 56Hz 1280 x 960 @ 60 Hz

800 x 600 @ 60Hz 1280 x 720 @ 120 Hz

800 x 600 @ 72Hz 1152 x 864 @ 75 Hz

800 x 600 @ 75Hz 1920x1080p @ 50 Hz 16:9 832 x 624 @ 75Hz 1920x1080p @ 24 Hz 16:9 1024 x 768 @ 60Hz 1920x1080i @ 50 Hz 16:9 1024 x 768 @ 70Hz 720x576p @ 50 Hz 16:9 1024 x 768 @ 75Hz 2560x1080p @ 60 Hz 64:27 1280 x 1024 @ 75Hz 3840x2160p @ 50 Hz 16:9

Manufacturer's Timings:

1152 x 870@ 75Hz 640x480p @ 60 Hz 4:3

B0 / Standard Timing B0 / Detail Timing B1 / Video Mode B1 / Detail Timing

3840x2160p @ 24 Hz 16:9

3840x2160p @ 25 Hz 16:9

3840x2160p @ 30 Hz 16:9

720(1440)x576i @ 50 Hz 16:9

720(1440)x576i @ 50

Hz 4:3

1920x1080p @ 120 Hz 16:9

Digital-HDMI 2 (2.0)

Native resolution 3840x2160@60Hz

B0 / Standard Timing B0 / Detail Timing B1 / Video Mode B1 / Detail Timing

3840 x 2160 @60 Hz 1920x1080p @ 60 Hz 16:9

(16:10)

1920x1080i @ 60 Hz 16:9 1920x1080 @240Hz

(16:9)

1280x720p @ 60 Hz 16:9

(16:10)

1440 x 900 @ 60 Hz

(16:10)

(5:4)

(4:3)

(16:9)

(4:3)

720x480p @ 60 Hz 16:9

720x480p @ 60 Hz 4:3

720(1440)x480i @ 60 Hz 16:9

720(1440)x480i @ 60 Hz

4:3

1280x720p @ 50 Hz 16:9

3840x2160p @ 60 Hz 16:9

1920x1080i (1250 total) @ 50 Hz 16:9

1920x1080p @ 25 Hz 16:9 1920x1080p @ 30 Hz 16:9 3840x2160p @ 24 Hz 16:9 3840x2160p @ 25 Hz 16:9

2560x1440 @120Hz

English

Page 47

ADDITIONAL INFORMATION

Digital-HDMI 2 (2.0)

Native resolution 3840x2160@60Hz

B0 / Established

Timing

True 3D video compatibility

Input resolutions

Note:

B0 / Standard Timing B0 / Detail Timing B1 / Video Mode B1 / Detail Timing

Input timing

1280 x 720P @ 50Hz Top-and-Bottom 1280 x 720P @ 60Hz Top-and-Bottom

HDMI 3D Input (with 3D InfoFrame information)

3840x2160p @ 30 Hz 16:9 720(1440)x576i @ 50 Hz

16:9 720(1440)x576i @ 50 Hz

4:3

1920x1080p @ 120 Hz 16:9

• If 3D input is 1080p@24Hz, the DMD should replay with integral multiple with 3D mode.

• 1080i@25Hz and 720p@50Hz will run in 100Hz; 1080p@24Hz will run in 144Hz except WUXGA model is 96Hz; other 3D timing will run in 120Hz.

English

Page 48

ADDITIONAL INFORMATION

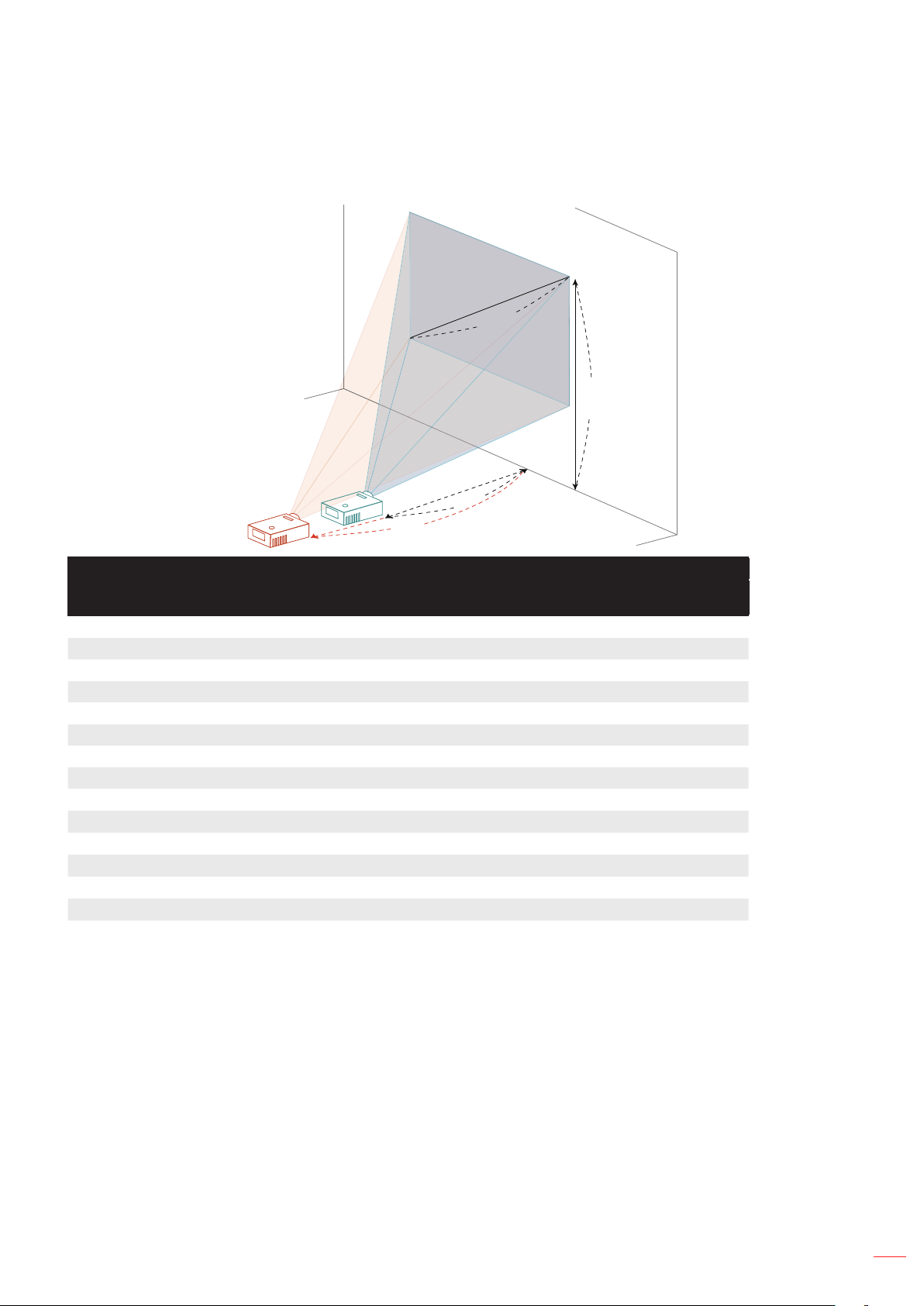

Image size and projection distance

1080P Series for 1.7x zoom

To obtain an image size of 80” set the projector at a distance 2.1 m and 3.6 m from the screen.

80”

Desired image size

Height: 127 cm

from base to top of image

2.1 m

3.6 m

Desired Distance

Desired image size Distance (m) Top (cm)

Diagonal (inch)

<A>

30 66 x 37 0.8 1.4 47 40 89 x 50 1.1 1.8 63 50 111 x 62 1.3 2.3 79 60 133 x 75 1.6 2.7 95 70 155 x 87 1.9 3.2 111 80 177 x 100 2.1 3.6 127

90 199 x 112 2.4 4.1 142 100 221 x 125 2.7 4.5 158 150 332 x 187 4.0 6.8 237 180 398 x 224 4.8 8.1 285 200 443 x 249 5.3 9.0 316 250 553 x 311 6.6 11.3 395 300 664 x 374 8.0 13.5 474

W (cm) x H (cm) Max zoom

<B>

Min zoom

<C>

Zoom Ratio: 1.7x

From base to top of image

<D>

English

Page 49

ADDITIONAL INFORMATION

WUXGA Series for 1.7x zoom

To obtain an image size of 82” set the projector at a distance 2.1 m and 3.6 m from the screen.

82”

Desired image size

Height: 132 cm

from base to top of image

2.1 m

3.6 m

Desired Distance

Desired image size Distance (m) Top (cm)

Diagonal (inch)

<A>

31.5 68 x 42 0.8 1.4 51

40 86 x 54 1.0 1.8 65 50 108 x 67 1.3 2.2 81 60 129 x 81 1.6 2.6 97 70 151 x 94 1.8 3.1 113 82 177 x 110 2.1 3.6 132 90 194 x 121 2.3 4.0 145

100 215 x 135 2.6 4.4 162 120 258 x 162 3.1 5.3 194 150 323 x 202 3.9 6.6 242 180 388 x 242 4.7 7.9 291 200 431 x 269 5.2 8.8 323 250 538 x 337 6.5 11.0 404 301 648 x 405 7.8 13.2 486

W (cm) x H (cm) Max zoom

<B>

Min zoom

<C>

Zoom Ratio: 1.7x

From base to top of image

<D>

English

Page 50

ADDITIONAL INFORMATION

4K series

To obtain an image size of 80” set the projector at a distance 2.1 m and 3.6 m from the screen.

80”

Desired image size

Height: 127 cm

from base to top of image

2.1 m

3.6 m

Desired Distance

Desired image size Distance (m) Top (cm)

Diagonal (inch)

<A>

30 66 x 37 0.8 1.4 47

40 89 x 50 1.1 1.8 63

50 111 x 62 1.3 2.3 79

60 133 x 75 1.6 2.7 95

70 155 x 87 1.9 3.2 111

80 177 x 100 2.1 3.6 127

90 199 x 112 2.4 4.1 142 100 221 x 125 2.7 4.5 158 150 332 x 187 4.0 6.8 237 180 398 x 224 4.8 8.1 285 200 443 x 249 5.3 9.0 316 250 553 x 311 6.6 11.3 395 300 664 x 374 8.0 13.5 474

W (cm) x H (cm) Max zoom

<B>

Min zoom

<C>

Zoom Ratio: 1.7x

From base to top of image

<D>

English

Page 51

ADDITIONAL INFORMATION

The projector is equipped with lens shift for adjusting the position of projected image up and down without requiring you to physically move the projector.

Note: The �gures shown in this section are for reference only not approximate value. The �gures between units

can be di⿿erent due to assembly tolerance.

The vertical height can be adjusted between 5% and 15% of the image height. (The typical vertical image offset is

�xed at 15% of the image height above the center of the projector lens.)

Offset max=V x [A]

Offset min=V x [B]

O�set

V(max)

V(min)

max [A] min [B]

15% 5%

English

Page 52

ADDITIONAL INFORMATION

Projector dimensions and ceiling mount installation

1. To prevent damage to your projector, please use the Acer ceiling mount.
