Page 1
BenQ PB8220
User’s Guide
Page 2
Copyright
Copyright © 2003 by BENQ Corporation (formerly Acer Communications & Multimedia
Inc.). All rights reserved. No part of this publication may be reproduced, transmitted,
transcribed, stored in a retrieval system or translated into any language or computer
language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical,
manual or otherwise, without the prior written permission of BENQ Corporation.
Disclaimer
BENQ Corporation makes no representations or warranties, either expressed or implied,
with respect to the contents hereof and specifically disclaims any warranties,
merchantability or fitness for any particular purpose. Furthermore, BENQ Corporation
reserves the right to revise this publication and to make changes from time to time in the
contents hereof without obligation of BENQ Corporation to notify any person of such
revision or changes.
Fill this in!!
In case service is needed in the future, record the information described below. The
serial number is on the back of the product.
Projector Information
Product Name: PB8220
Serial Number:
Date of Purchase:
Dealer Information
Dealer:
Telephone
Number:
Address:
Page 3
BenQ PB8220 User’s Guide
Table of Contents
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety Regulations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
EEC Statement. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Shipping Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Optional Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Projector Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Projector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
External Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
Adjuster . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Projector Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7

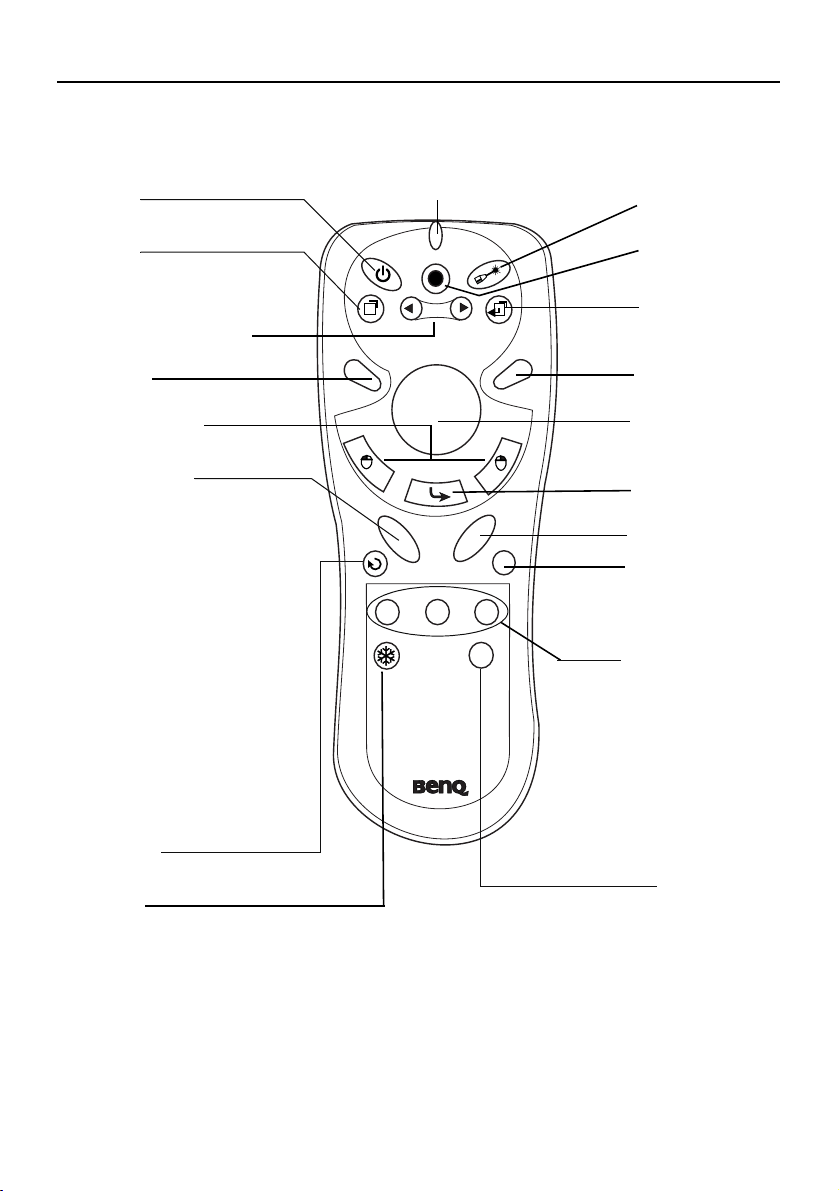

Remote Control Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Remote control effective range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

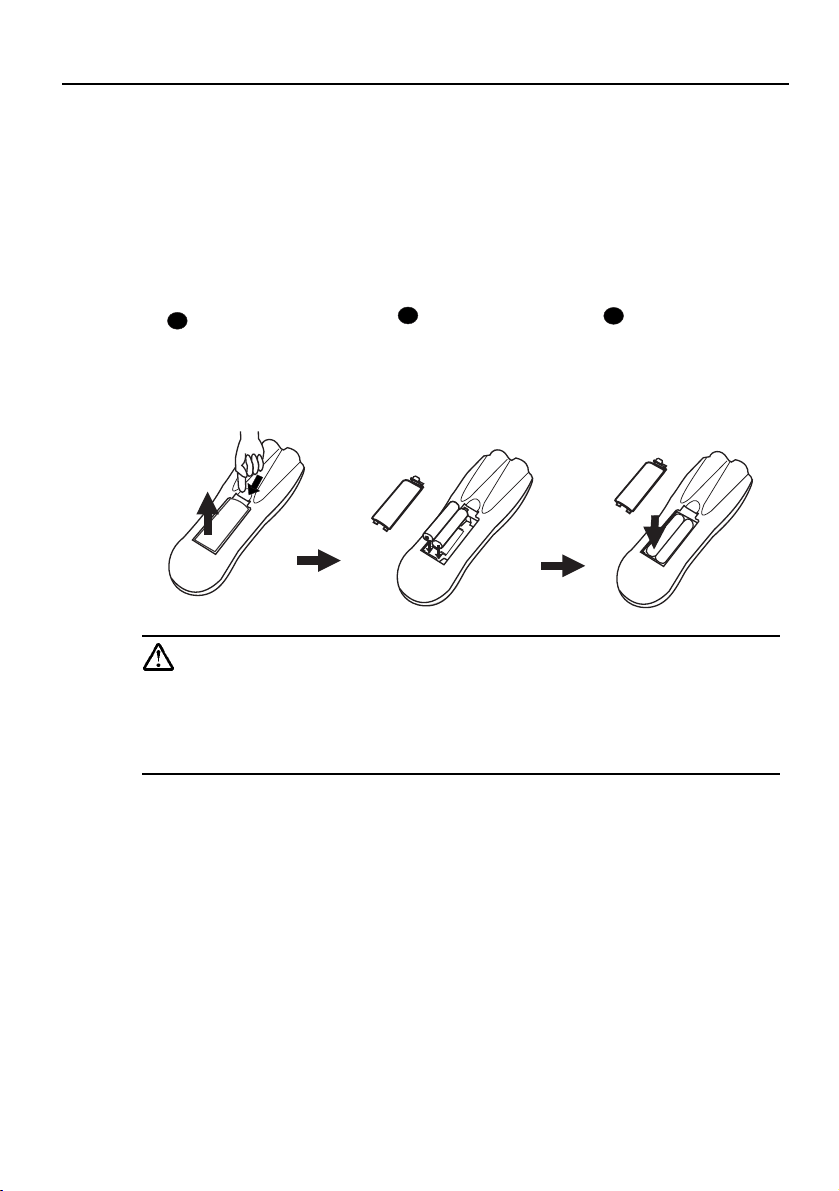

Installing or Replacing Batteries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Screen Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Connecting to Various Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

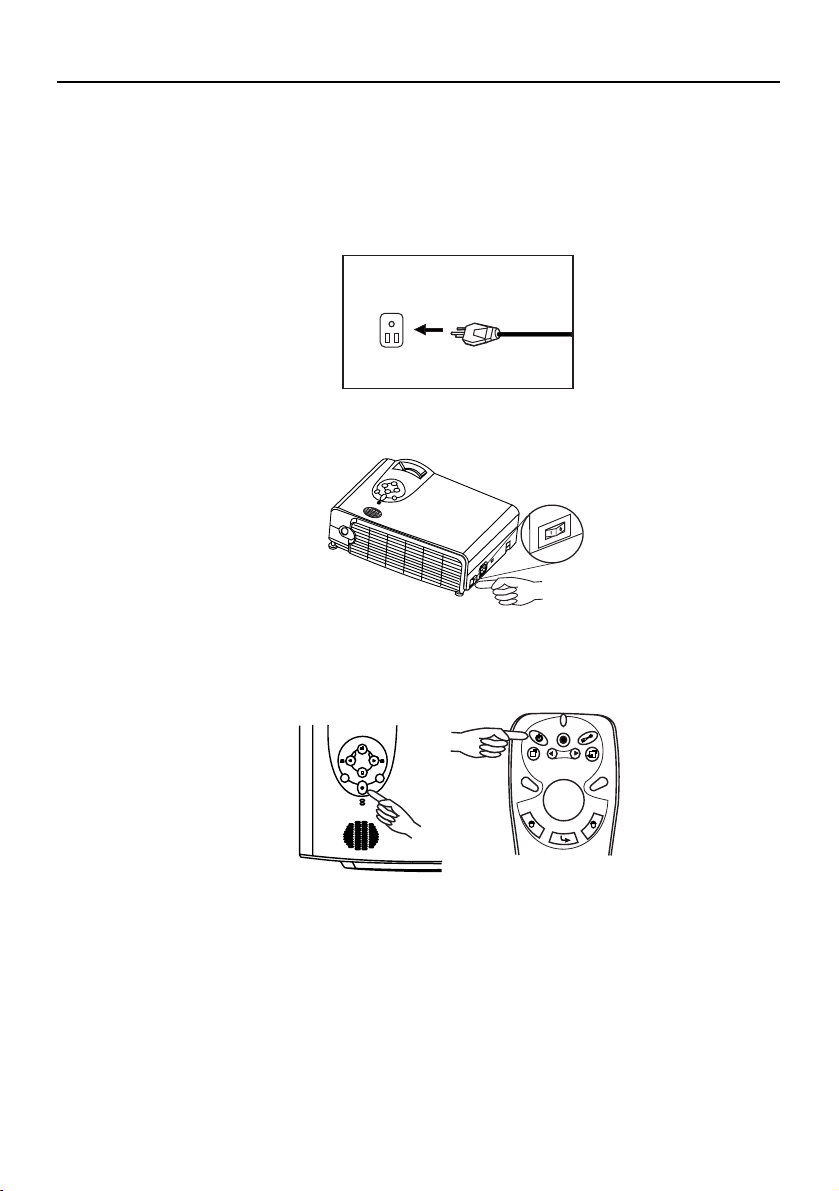

Start Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

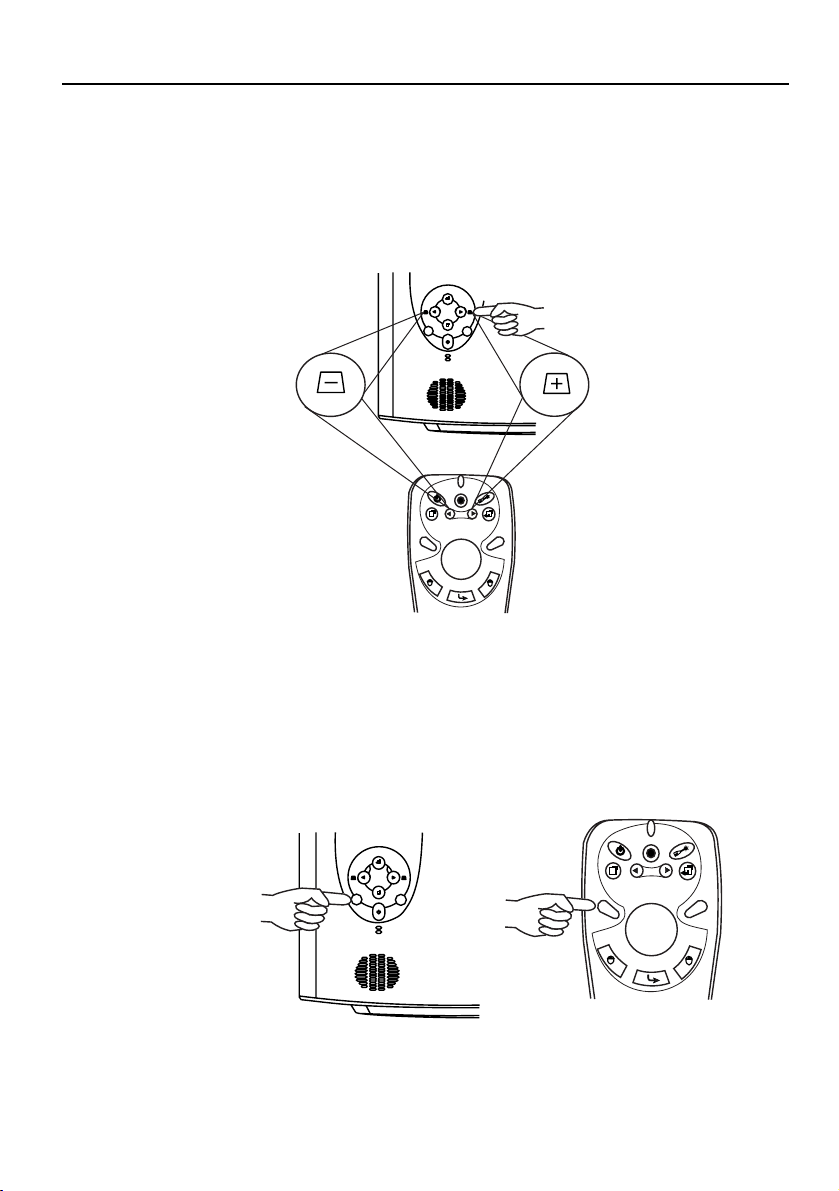

Digital Keystone Correction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Auto Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Source Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

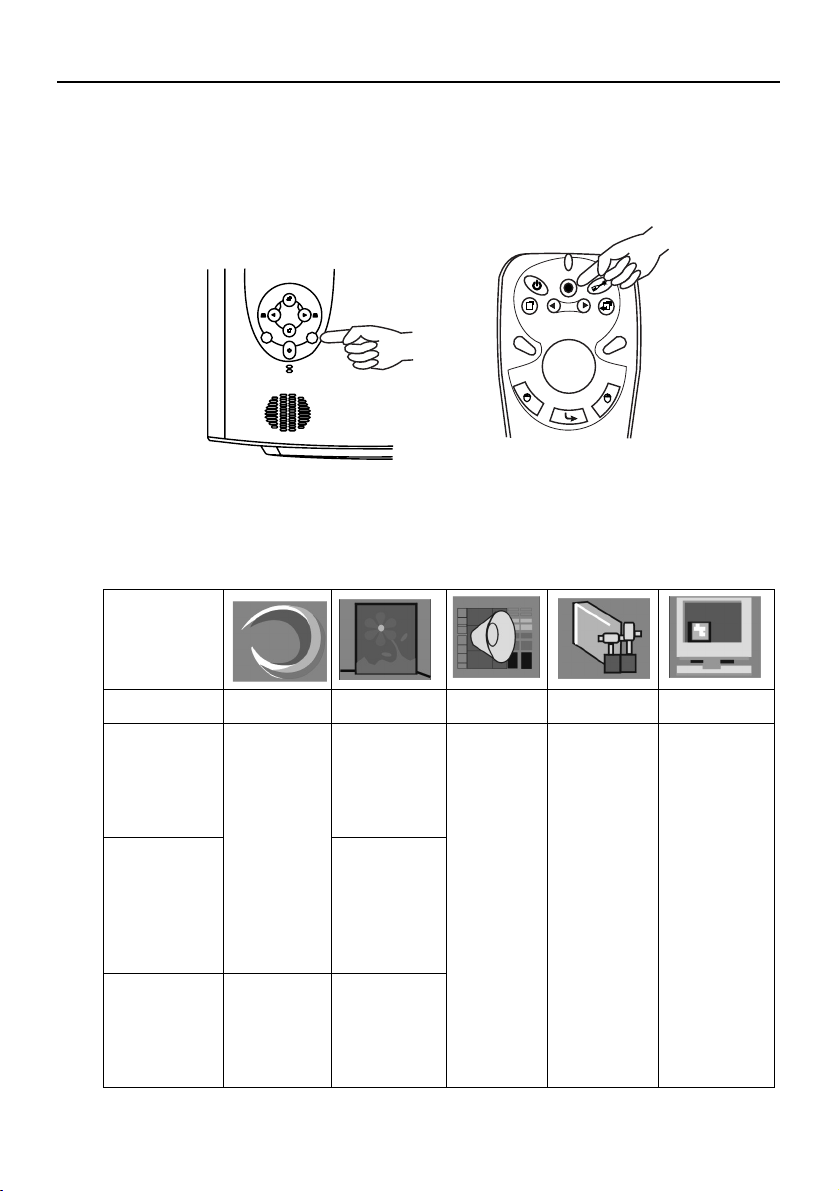

Menu System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

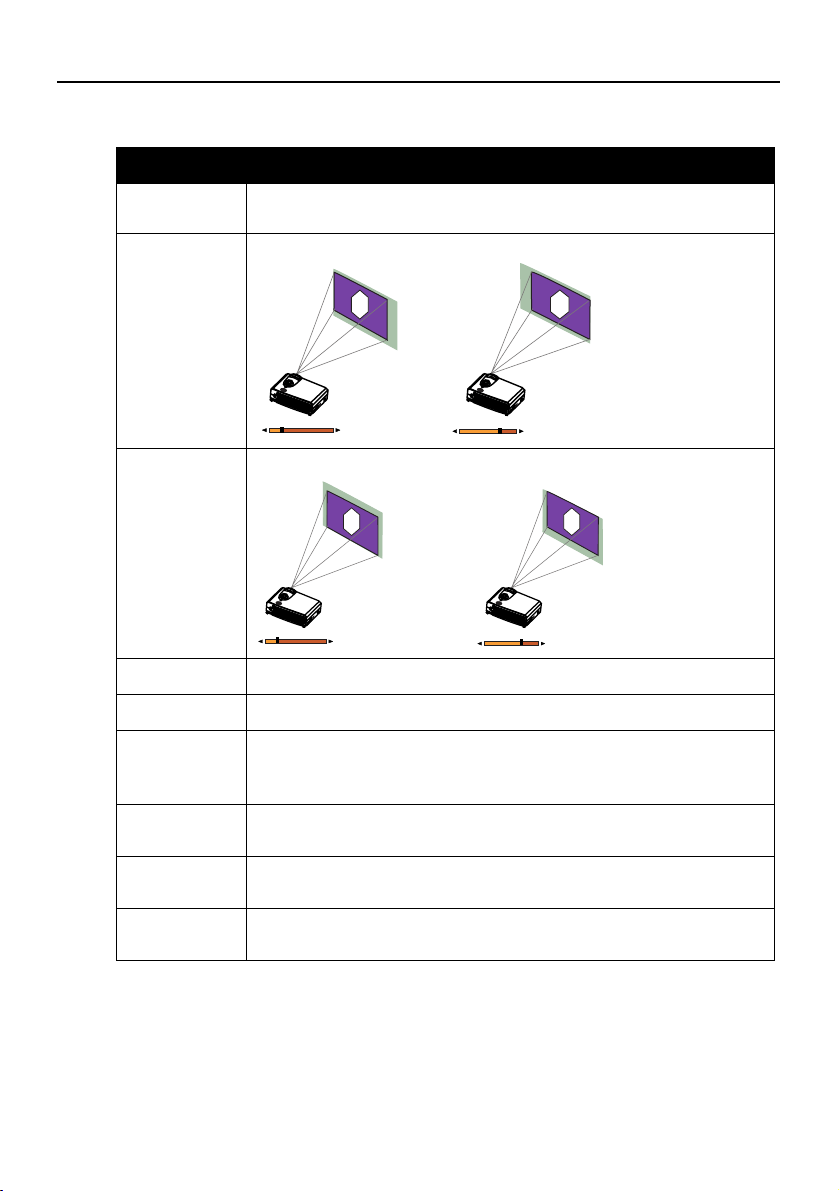

1. Display Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2. Image Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
3. Source Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
4. Control Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
5. PIP Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

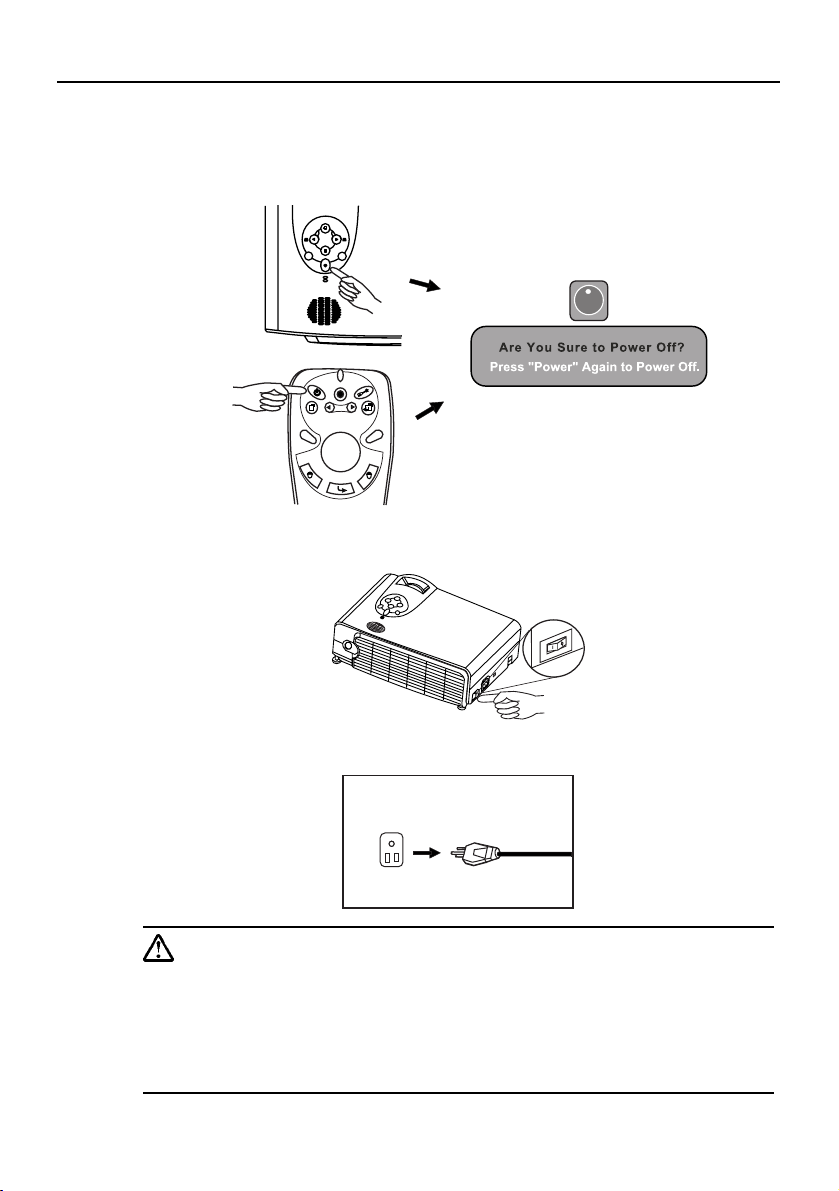

Shutdown . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Lamp Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21
Use and Replacement of the Lamp. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Table of Contents
iii
Page 4
BenQ PB8220 User’s Guide
Lamp LED Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

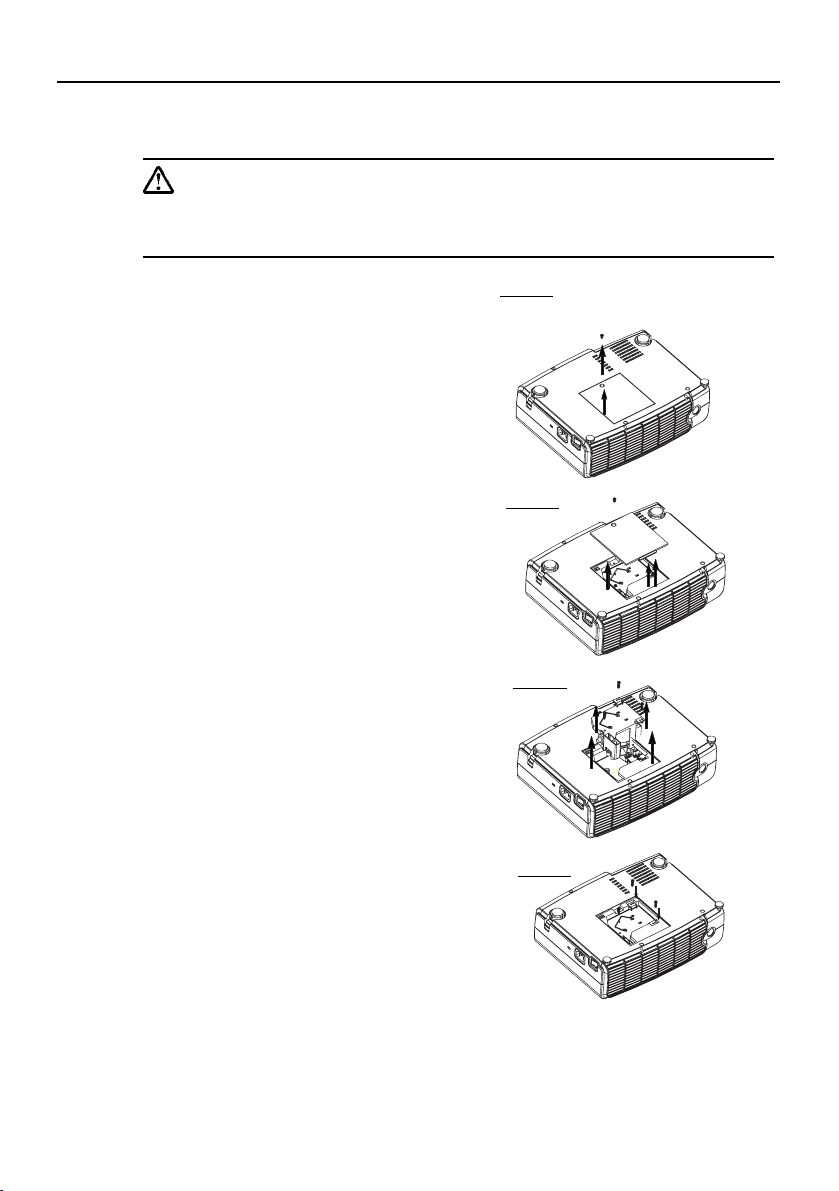

Lamp Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

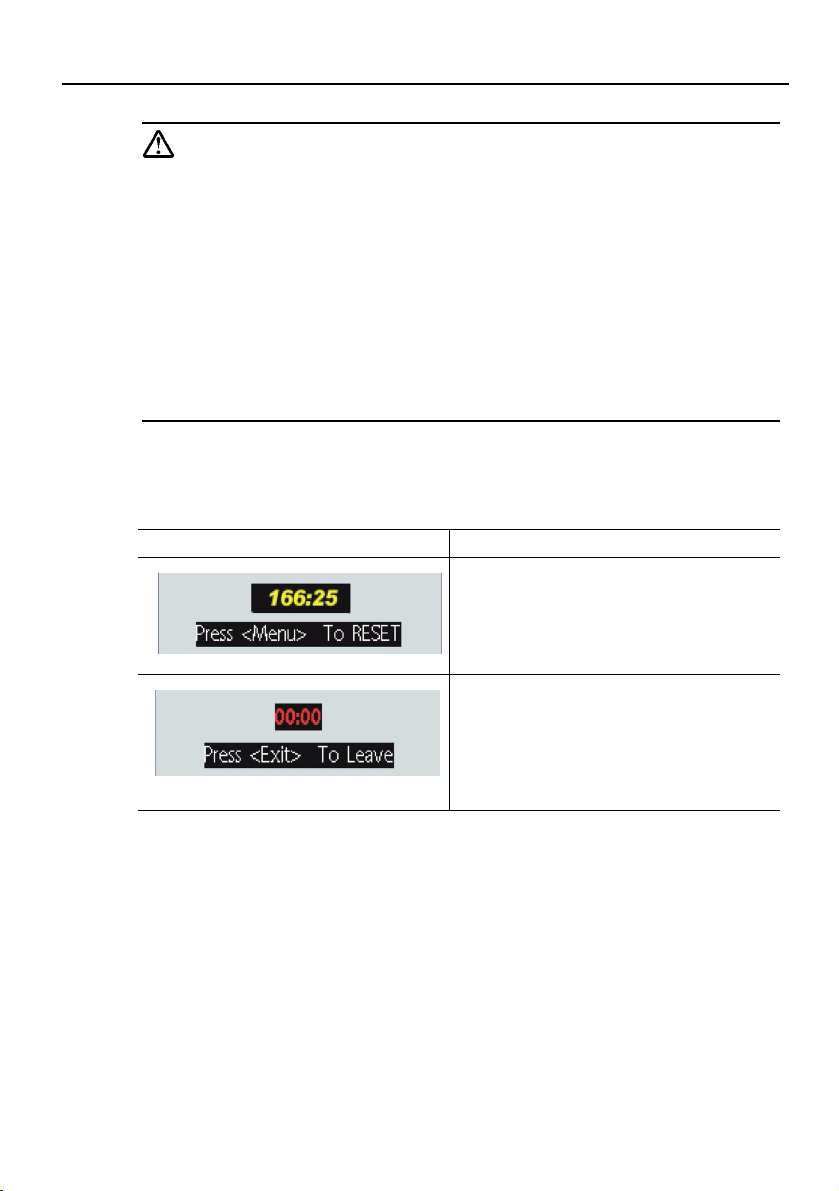

Resetting Lamp Hours . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Temp Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Service Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Accessories (included in the standard package) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Optional Accessories (not included in the standard package) . . . . . . . . . . . . . . . . 24
Ordering Parts or Getting Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Common Problems & Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Status Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Projector Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Timing Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28

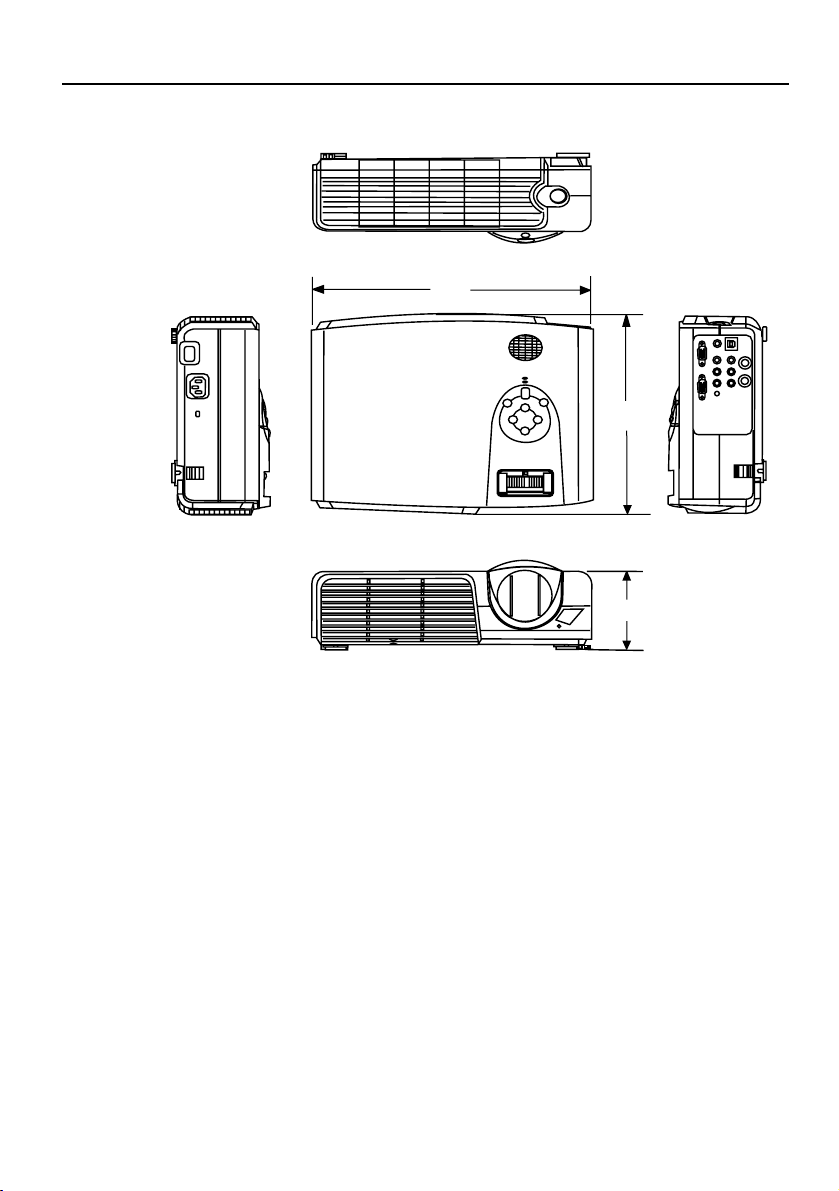

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
iv
Table of Contents
Page 5
INTRODUCTION
Caution
TO PREVENT SHOCK, DO NOT OPEN THE CABINET. NO USER –SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE
PERSONNEL. PLEASE READ THIS USER’S GUIDE BEFORE YOU OPERATE YOUR PROJECTOR. SAVE THIS USER’S GUIDE FOR FUTURE REFERENCE .
Safety Instructions
1. Read this user’s guide before you operate your projector and save it for future reference.
2. The lamp becomes extremely hot during operation. Allow the projector to cool
for approximately 45 minutes prior to removing the lamp assembly for
replacement. Do not operate lamps beyond the rated lamp life. Excessive
operation of lamps beyond the rated life could cause them to explode on rare
occasions.
3. Never replace the lamp assembly or any electronic components unless the projector is unplugged.
4. To reduce the risk of electric shock, do not disassemble this appliance. Take it to a
qualified technician when service or repair is required. Incorrect reassembly can
cause electric shock when the appliance is subsequently used.
5. Do not place this product on an unstable cart, stand, or table. The product may
fall, sustaining serious damage.

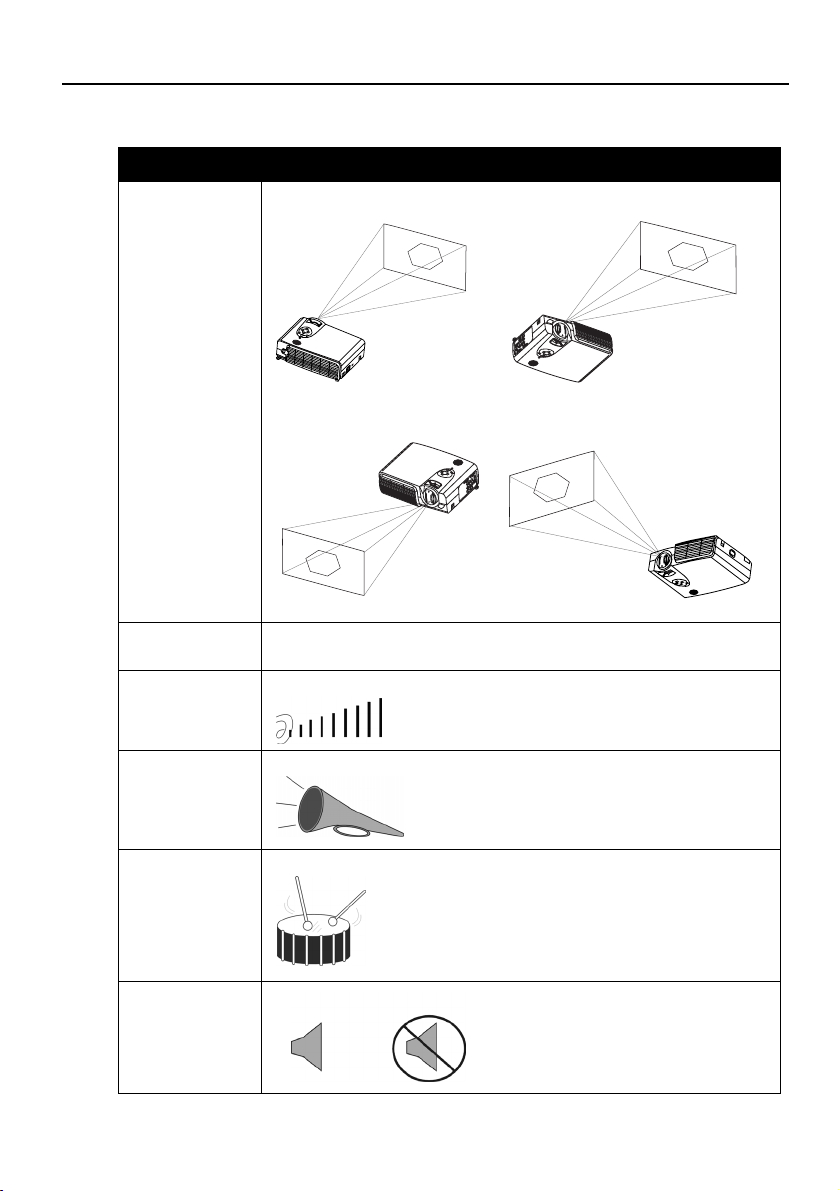

6. This product is capable of displaying inverted images for ceiling mount installation.
Please use suitable equipment for mounting the unit and ensure it is securely
installed.
BenQ PB8220 User’s Guide
Caution
• Always open the lens shutter or remove the lens cap when the projector
lamp is on.
• Do not look straight at the projector lens during operation. The intense
light beam may damage your eyes.
• In some countries, the line voltage is NOT stable. This projector is
designed to operate safely within a bandwidth of 110 to 230 volts, but
could fail if power cuts or surges of more than10 volts occur. In these
high-risk areas, it is recommended that a power stabilizer unit be used in
conjuction with this projector.
Introduction
1
Page 6
BenQ PB8220 User’s Guide
Save this user’s guide: The information contained in this manual will assist you in
operating and maintaining your personal projector.
Warranty
Limited Warranty
BENQ warrants this product against any defects in material and workmanship, under
normal usage and storage.
Exclusion to Warranty: The lamps are considered a consumable item and are warranted for 90 days or 500 hours, whichever occurs first. Proof of purchase date will be
required with any warranty claim. In the event this product is found to be defective
within the warranty period, BENQ’s only obligation and your exclusive remedy shall be
replacement of any defective parts (labor included). To obtain warranty service, immediately notify the dealer from which you purchased the product of any defects.
Important: The above warranty shall be void if the customer fails to operate the product in accordance with BENQ’s written instructions. This warranty gives you specific
legal rights, and you may have other rights which vary from country to country.
2
Introduction
Page 7
BenQ PB8220 User’s Guide
Safety Regulations
FCC Statement
CLASS A: This equipment generates, uses and can radiate radio frequency energy, and
if not installed and used in accordance with the instruction manual, may cause interference to radio communications. It has been tested and found to comply with the limits
for a Class “A” computing device pursuant to Subpart B of Part 15 of the FCC Rules,
which are designed to provide reasonable protection against such interference when
operated in a commercial environment. Operation of this equipment in a residential
area is likely to cause interference, in which case the user at his/her own expense will be
required to take whatever measures may be required to correct the interference.
CLASS B: This equipment generates, uses and can radiate radio frequency energy and,
if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will
not occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
— Reorient or relocate the receiving antenna.
— Increase the distance between the equipment and receiver.
— Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
— Consult the dealer or an experienced radio/TV technician for help.
EEC Statement
This machine was tested against the 89/336/EEC (European Economic Community) for
EMC (Electro Magnetic Compatibility) and fulfills these requirements.
Introduction
3
Page 8
BenQ PB8220 User’s Guide
Shipping Contents
The Projector is shipped with the cables required for connection to standard PC or
laptop computers. Carefully unpack and verify that you have all the items shown below.
If any of these items are missing, please contact personnel at the place of purchase.
Projector
User's
Guide
User's Guide
Quick
Start
Guide
Quick StartGuide
User's
CD Manual
Remote Control
Audio Cable
VGA Cable
Optional Accessories
1. Macintosh adapter
2. 250W Lamp module
4
Introduction
USB Cable
3-2 Converter
220V
240V
Power Cord
AV Cable
Battery
110V
Deluxe SoftCarry Case
HDTV Cable
S-Video Cable
Page 9
Projector Description
Projector
BenQ PB8220 User’s Guide
7
6
8
1
5
2
3
External control panel
1
4
11
10 11 14 15
Audio/ Video connector
(see next page)
Projection lens Audio jack
2
Front adjuster USB mouse connector
3
IR remote sensor S-Video jack
4
Ventilation grill RS 232 control port
5
Speaker Rear adjuster feet
6
Projection lens adjuster Kensington lock
7
RGB signal input
8
RGB signal output Main power switch
9
BPR connector Lamp door
YP
10
12
13
14
15
16
17
AC power cord inlet
18
19
20
9
12
13
20
4
3
17
18
16
19
Introduction
5
Page 10
BenQ PB8220 User’s Guide
External Control Panel
4
53
6
2
1
LAMP
TEMP
7
8
9
Power
1
Presses and holds the Powe r key
to turn the projector on or off.
Auto
2
Automatically determines the best
picture settings for current received
signals.
Left/ Keystone -
3
Right/ Keystone +
5
4
6
Exit
Menu
Menu will display the menu system
on screen. Press Menu again to
access the sub-menus. Left and
Right help you navigate among
choices and settings in the menus
and sub-menus. However, when the
on-screen menu is not activated, the
Left and Right buttons will function
as Keyston e +/- hot keys.
Press the Exit button to go back to
the main menu. Press Exit again to
leave the menu system.
Source
7
Selects signal sources from among
PC, Video, S-Video and YP
Lamp Indicator
8
The Lamp Indicator will light up
when the lamp needs service,
cooling or replacement. See “Lamp
Information” on page 21 for more
detailed information.
Temp indicator
9
The Temp indicator will flash when
the system temperature is too high,
which may occur if the projector is
operated improperly. See "Temp
Information" on page 23 for more
detailed information.
BPR.
6
Introduction
Page 11
BenQ PB8220 User’s Guide

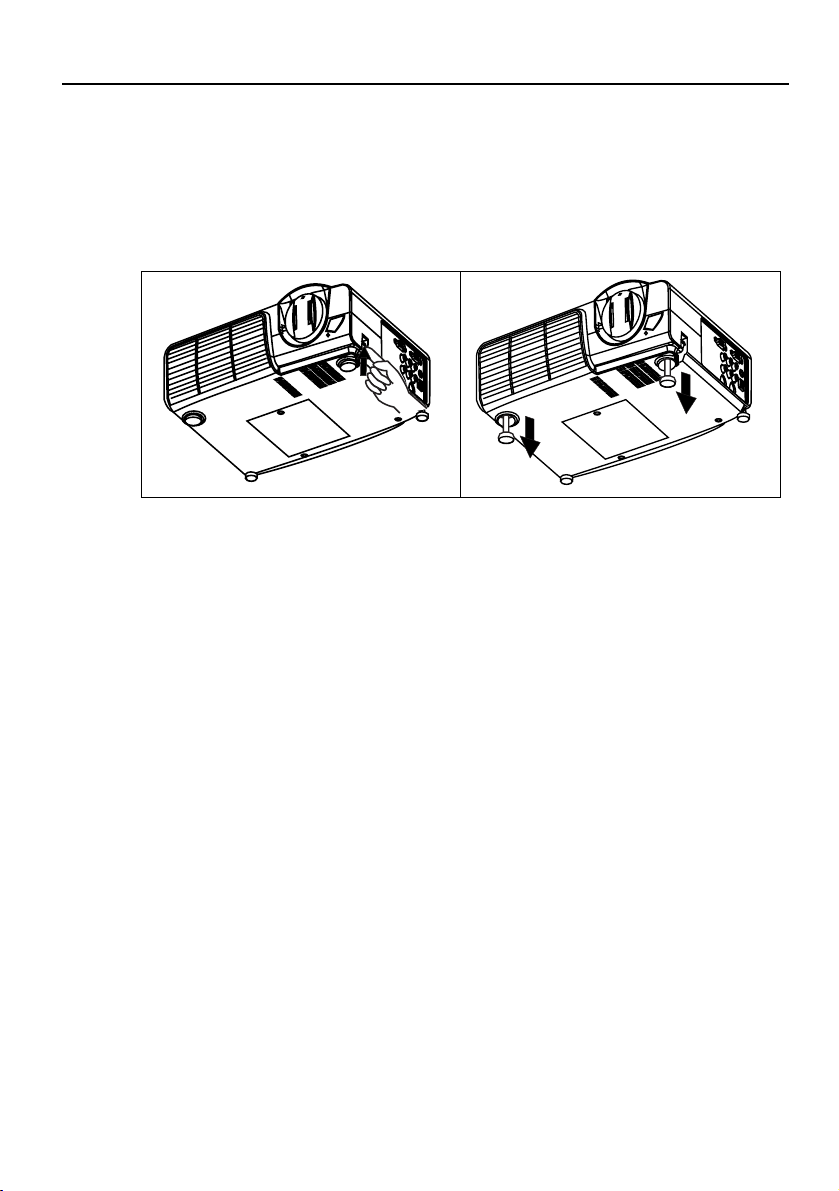

Adjuster
The projector is equipped with 2 quick-release adjuster feet. Push the buttons to adjust
its tilt angle.
1. Lift the projector up and press the adjuster button to release the adjuster.
2. The adjuster will drop into position and be locked.
Projector Features
The projector integrates high-performance optical engine projection and a user-friendly
design to deliver high reliability and ease of use.
The projector offers the following features:
• Small and light for portability
• Full-function remote control with laser pointer/ remote mouse function
• Hight quality manual zoom lens
• One-key auto-adjustment to display the best picture quality
• Easy digital keystone correction through hot keys to correct distorted images
• Adjustable color balance control for data/video display
• Ultra-high brightness projection lamp
• Ability to display 16.7 million colors
• On-screen menus in 8 languages: English, French, German, Italian, Spanish, Korean,
Simplified Chinese, and Traditional Chinese.
• Switchable Normal/ Video mode for data/ video display
• Powerful AV function to provide high quality AV picture
• HDTV compatibility (YP
Note: The brightness of the projected image will vary depending on the
ambient lighting conditions and contrast/brightness settings.
BPR)
Introduction
7
Page 12
BenQ PB8220 User’s Guide
Remote Control Description
Power
LED
Laser Pointer
Menu
3 Left/ Keystone -
4 Right/ Keystone +
Auto
L-Click/ R-click
Zoom in/ out
By pressing ZOOM IN +, the center
of the picture will be magnified.
When the + button is pressed again,
the picture is further magnified, up
to four times the original size. By
pressing ZOOM OUT -, the size of
the image is reduced. When the button is pressed again, the picture
is further reduced until it is restored
to its original size. To return to the
normal display mode, press the
RETURN button. (This function can
be used in combination with
FREEZE. )
Source
Exit
Blank
Mouse Pad
Drag
Volume +/-
Mute
PIP Source
PIP Pos.
PIP Size
By pressing the PIP-Source,
PIP-Pos and PIP-Size hotkeys,
you can enable the PIP
(Picture In Picture) function
and choose the position and
size of the PIP image.
Return
Freeze
The image is frozen when FREEZE is pressed. A “Pause” icon
will appear in the lower right corner of the screen for three
seconds. To stop the freeze function, press the FREEZE
button, RETURN button or SOURCE button (when the input
source is switched over during display) again. A “Play” icon will
appear in the lower right corner of the screen for three
seconds when the freeze function is stopped.
8
Introduction
Ratio
By pressing the Ratio hotkey,
you can select the screen
aspect ratio you prefer:
4:3,16:9
Page 13
BenQ PB8220 User’s Guide
Remote control effective range
The remote sensors are located on the front and the back of the projector. It can
function in a range of 30 degrees horizontally and 30 degrees vertically relative to a line
that is a right angle to the remote sensors. The distance between the remote control
and the remote sensors must be shorter than 6 meters (19.5 feet).
Installing or Replacing Batteries
Push and slide the
1
battery
compartment lid in
the direction shown.
Install batteries as
2
indicated by the
diagram inside the
compartment.
Position the lid
3
over the
compartment and
snap it back into
place.
Caution
Avoid excessive heat and humidity. There may be danger of an explosion if
batteries are incorrectly replaced. Replace only with the same or equivalent
type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s instructions.
Introduction
9
Page 14
BenQ PB8220 User’s Guide
INSTALLATION
Screen Size
Place the projector at the required distance from the screen according to the desired
picture size (see the table below).
L Projection Distance
Screen Size (Max.)
Diagonal
(in)
30.4 61.8 46.3 100 24.9 50.7 38.0
60.8 123.65 92.7 200 49.9 101.3 76.0
91.2 185.3 138.9 300 74.7 151.9 113.9
121.5 247.0 185.2 400 99.7 202.5 151.9
151.9 308.7 231.6 500 124.6 253.2 189.9
182.3 370.5 277.9 600 149.5 303.8 227.9
213.1 432.2 324.18 700 174.6 354.4 266.2
243.1 494.0 370.5 800 199.4 405.1 303.8
273.5 555.7 416.7 900 224.3 455.7 341.8
303.9 617.5 463.11 1000 249.2 506.3 379.8
A. Width
(cm)
C. Height
(cm)
L. Projection
distance (cm)
Diagonal
Screen Size (Min.)
(in)
B. Width
(cm)
Connecting to Various Equipment
HDTV description
The projector is capable of displaying various High Definition TV display modes. Some
of these sources are:
• Digital-VHS (D-VHS) player • DVD player
• Satellite Dish HDTV receiver • DTV tuners
Most of these sources will provide an analog component video output, a standard VGA
output, or a YPBPR (default) format.
The projector is capable of accepting HDTV data through a YP
HDTV cable that came with your projector to display HDTV images.
BPR connector. Use a
D. H ei gh t
(cm)
10
Installation
Page 15
BenQ PB8220 User’s Guide
The following standards are supported in the HDTV function:
• 480i • 480p
• 720p • 1080i
Please refer to "Menu System" on page 14 for information on the HDTV OSD
selections.
Connecting to Various Equipment
It only takes a few seconds to connect your projector to your desktop or notebook
computer, VCR, or other systems. However, a Mac adapter (an optional accessory) is
needed for connection to Macintosh computers.
Monitor
RGB
PC Audio
PC/Notebook
DVD Player
AUDIO S-VIDEO
VIDEO L R
USB
YPbPr
Video /Audio
S-Video
ToRGB Input
RGBIN RGB OUT
Pr Pb Y
VIDEO L R
S-VIDEO CONTROL
Control
ToRGB output
AUDIOIN
USB
Installation
PC Audio
USB
11
Page 16
BenQ PB8220 User’s Guide
OPERATION
Start Up
1. Plug the power cord into a wall socket.
2. Turn on the main power switch.
3. Press and hold POWER to start the unit. The back-lit POWER key flashes green
and stays green when the power is turned on.
12
Projector
(When the power is turned off, there is a 120-second cooling period before the
projector can be re-started.)
4. Switch on all connected equipment.
Operation
Remote Control
Page 17
BenQ PB8220 User’s Guide
Digital Keystone Correction
Keystoning refers to the situation where the projected image is noticeably wider at
either the top or bottom. To correct this, press KEYSTONE +/- (hot key) on the
control panel of the projector or on the remote control, and then adjust the sliding bar
labeled Keystone, as needed. Press + to correct keystoning at the top of the image.
Press - to correct keystoning at the bottom of the image.
Projector
Remote control
Auto Adjustment
In some cases, you may need to optimize the picture quality. To do this, press the AUTO
key on the control panel of the projector or on the remote control. Within 3 seconds,
the built-in Intelligent Auto Adjustment function will re-adjust settings to provide the
best picture quality.
Projector
Auto Source
Remote control
Auto
Operation
13
Page 18
BenQ PB8220 User’s Guide
Source Selection
When several input sources are available, press the SOURCE key to make a selection
from the control panel of the projector or the remote control.
Projector
Menu System
Press Menu for the main menu, and then press 3or 4 to select a sub-menu. Press
Menu again to select items in the sub-menu.
Menu Bar
Remote control
Source
Auto Source
14
Sub-menu Display Image Source Control PIP
PC
Y/Pb/Pr
Video
Keyston e
Brightness
Contrast
Phase
H. Size
Keyston e
Brightness
Contrast
Color
Tint
Ratio
H-position
V- po si ti on
Color Temp
Information
Ratio
H-position
V- po si ti on
Color
Tint
Color Temp
Ratio
System
Sharpness
Color Temp
Information
Mirror
Source
Vo lu me
Tr eb l e
Bass
Mute
Langauge
OSD
Setup
Default
Video Mode
Lamp Hour
Main page:
PIP Source
PIP Size
PIP Pos.
H. Position
V. P o s i t i o n
More Options
Sub Page:
Brightness
Contrast
Color
Tint
Sharpness
System
Operation
Page 19
1. Display Menu
FUNCTION DESCRIPTION
Corrects any keystoning of the image.
Keysto ne
Adjusts the brightness of the image.
Brightness
Adjusts the degree of difference between dark and light in the
image.
Contrast
BenQ PB8220 User’s Guide
-
Phase
H. Size
Color
Tint
Adjusts to avoid the occurrence of flicker.
*This function is not available when the input mode is Video or SVideo.
Adjusts to fit in the desired image size.
*This function is not available when the input mode is Video or SVideo.
Increases or decreases the color range (R, G, B) of the image.
*This function is not available when the input mode is PC.
Adjusts the image to make it appear more red or blue.
*This function is not available when the input mode is PC.
Operation
15
Page 20
BenQ PB8220 User’s Guide
2. Image Menu
FUNCTION DESCRIPTION
Ratio
H-position
V- po si ti on
Users have 2 options for the image ratio.
1. 4:3 2. 16:9
Adjusts the horizontal position of the projected image.
Adjusts the vertical positon of the projected image.
16
Color Temp.
Information
System
Sharpness
Operation
Color
Tint
Adjusts the color temperature to fit your preference.
Shows the current resolution.
System information will be shown:
1. Auto 2.NTSC 3. PAL 4.SECAM
*The default setting for System is Auto.
Adjusts the image to make it look sharper or softer.
*This function is not available when the input mode is PC or YPBPR.
Increases or decreases the color range (R, G, B) of the image.
*This function is not available when the input mode is PC.
Adjusts the image to make it appear more red or blue.
*This function is not available when the input mode is PC.
Page 21
3. Source Menu
FUNCTION DESCRIPTION
1. Default
2. Ceiling
BenQ PB8220 User’s Guide
mounted
projection
Mirror
Source
Vol um e
Tr e bl e
Bass
3. Rear screen projection
Selects the input source from among PC, Video, S-Video, and YPBPR,
when several sources are available.
Adjusts the volume level.
Adjusts the treble level.
Adjusts the bass level.
4. Ceiling
screen
mounted
projection
and rear-
Mute
Off
On
Operation
17
Page 22
BenQ PB8220 User’s Guide
4. Control Menu
FUNCTION DESCRIPTION
Language
OSD
Setup
Default
Video Mode
Lamp Hour
Language sets the language for the OSD control menus.
Use the 3 / 4 key to select the desired language from
among English, French, German, Italian, Spanish, Korean,
Simplified Chinese and Traditional Chinese.
OSD Pos.
Selects a desired OSD position.
OSD Time
Sets the length of time the OSD will remain active after the
last time you pressed the button. The range is from 5 to 60
seconds in 5-second increments.
Source Scan
When selected, activates the Source scan function.
Keysto ne Ho ld
When selected, preserves the last keystone correction value
even when the projector is restarted.
Mirror Hold
When selected, preserves the last mirror correction value
even when the projector is restarted.
Blank Time
Determines the length of time before the projector is shut
off when Blank is activated.
Auto Off
Sets the length of time before the system is shut off when no
input is detected.
User Logo
Enables the user to define his/her own logo screen that will
display during strat-up. Three modes are available: Default
(BENQ logo), black screen and blue screen.
Returns all settings to their factory preset values.
Selects video mode.
Shows lamp usage time.
18
Operation
Page 23
BenQ PB8220 User’s Guide

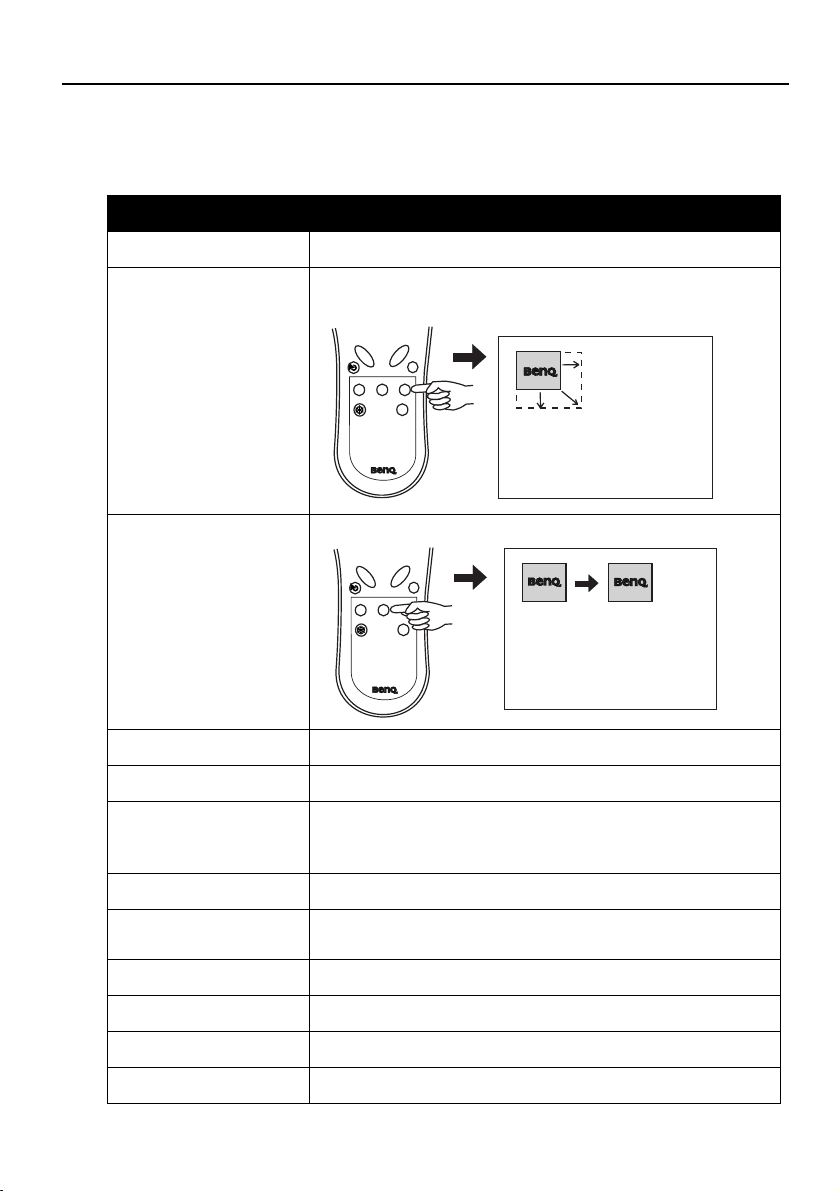

5. PIP Menu
These functions are available only when the input mode is PC and the PIP source is
Video or S-Video.
FUNCTION DESCRIPTION
PIP Source
Selects the source for the PIP.
Enables use of the 3 / 4 key to scroll through the four alternatives: Off, Small, Medium, Large.
PIP Size
PIP Position
H. Position
V. Po s i t i o n
More Options
Brightness
Contrast
Color
Tint
Sharpness
System
PIP-Source PIP-Pos PIP-Size
Selects a desired position for the PIP.
PIP-Source PIP-Pos PIP-Size
Adjusts the horizontal position of the PIP image.
Adjusts the vertical position of the PIP image.
Enables use of the 3 / 4 key to select more PIP functions
including Brightness, Contrast, Color, Tint, Sharpness and
System.
Adjusts the brightness of the PIP image.
Adjusts the degree of difference between dark and light for
the PIP image.
Increases or decreases the color range (R, G, B) of the image.
Adjusts the image to make it appear more red or blue.
Adjusts the image to make it appear sharper or softer
Selects PIP image systems: Auto, NTSC, PAL, SECAM
Operation
19
Page 24
BenQ PB8220 User’s Guide
Shutdown
1. Press and hold POWER and a warning message will appear. To turn off the
projector, press POWER again.
2. The fan will continue to run for approximately two minutes.
3. Turn off the main power switch.
Projector
I
Remote Control
20
4. Disconnect the power cord from the wall socket.
Caution
Please do not unplug the power cord before POWER is shut down or
during the two-minute cooling process.
If the projector is not properly shut down, to protect the lamp, the system will detect this and cool the lamp for two minutes automatically
before turning on again.
Operation
Page 25
MAINTENANCE
Lamp Information
Use and Replacement of the Lamp
When the Lamp Indicator lights up red or a message appears suggesting the time of
lamp replacement, please install a new lamp or consult your dealer. An old lamp could
cause a malfunction in the projector and in rare instances may even explode.
Lamp LED Indicators
Lamp Life Indicators When the LED lights up red, it is warning you that lamp
The Lamp is not
properly attached
The temperature is too
high
BenQ PB8220 User’s Guide
uage has exceeded 2000 hours. Replace the projection
lamp with a new one immediately.
LED lights up red.
When the projector’s internal temperature is too high
for the projector to operate safely, the LED blinks
orange and the lamp turns off automatically. The LED
keeps blinking while the unit is off.
If the LED light is off, the operation and temperature of
the projector’s lamp are normal.
Caution
The LAMP indicator will light up if the lamp becomes too hot. Turn off the
power and let the projector cool for 45 minutes. If the LAMP indicator is still
red when turning the power on, please contact your dealer.
Maintenance
21
Page 26
BenQ PB8220 User’s Guide
Lamp Replacement
Caution
To reduce the risk of electrical shock, always turn off the projector and disconnect the power cord before changing the lamp.
1. Turn off the projector. Disconnect the power cord from the outlet and the projector.
2. Loosen the screw and remove the
lamp cover. If the lamp is hot, avoid
burns by waiting 45 minutes until the
lamp has cooled.
3. Loosen the 3 screws. (It is strongly
recommended that you use a
magnetic-head screwdriver.) Pull the
handle to remove the lamp housing. If
the screws are not loosened
completely, they could injure your
fingers. Do not insert your hand into
the box after the lamp is removed. If
you touch the optical components
inside, this could cause color
unevenness in projected images.
4. Replace the lamp with a new one.
Insert it into the projector, and
tighten the screws firmly. Loose
screws may cause a bad connection,
which may result in malfunction.
5. Re-install the lamp cover and tighten
the screw. Do not turn on the
power with the lamp cover
removed. Whenever the lamp is
replaced, reset the total lamp
operation time. Do not reset if the
lamp is not replaced as this
could cause damage.
Step 1
Step 2
Step 3
Step 4
22
Maintenance
Page 27
BenQ PB8220 User’s Guide
Caution
To reduce the risk of severe burns, allow the projector to cool for at least 45
minutes before replacing the lamp.
To reduce the risk of injuries to fingers and damage to internal components,
use caution when removing lamp glass that has shattered into sharp pieces.
To reduce the risk of injuries to fingers and/or compromising image quality
by touching the lens, do not touch the empty lamp compartment when the
lamp is removed.
This lamp contains mercury. Consult your local hazardous waste regulations
to dispose of this lamp in a proper manner.
Resetting Lamp Hours
If you replace the lamp after 2000 hours of operation, please follow the instructions
below within 10 minutes of powering on.
OSD FUNCTION
Press the Exit button on the projector for
3 seconds to display the total used lamp
time.
• Press the MENU button on the
projector during the lamp hour
message. An adjustment message will
appear.
•Press W or X to reset lamp hours or
press EXIT to leave.
Temp Information
When the LED lights up, it is warning you of the following possible problems:
1. The internal temperature is too high.
2. The fans are not working. Turn off the projector and contact qualified service personnel for further help.
Maintenance
23
Page 28
BenQ PB8220 User’s Guide
Service Information
Accessories (included in the standard package)
Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Part Number
Power cord (EU) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27.82718.281
Power cord (US) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27.01818.000
Power cord (UK) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27.01018.000
Signal cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50.J0508.502
Video cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50.72918.001
S-Video cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50.72920.011
PC - PC audio cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50.74405.501
Soft carry case. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98.J3402.B11
HDTV cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50.J7111.501
USB mouse cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50.73213.501
Remote control. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98.J3401.011
3-2 converter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22.91007.001
Optional Accessories (not included in the standard package)
Description of parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Part number
Mac adapter (switchable) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20.20118.A15
250W lamp module . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 65.J4002.001
Ordering Parts or Getting Information
For product information, product assistance, service information, or to order
accessories, please visit the BENQ Corporation website at http://www.BenQ.com
24
Maintenance
.
Page 29
TROUBLESHOOTING
Common Problems & Solutions
PROBLEMS TRY THESE SOLUTIONS
• Make sure the power cord is inserted snuged into the AC adapter
socket.
• Make sure the power cord is inserted snuged into the power
NO POWER
NO PICTURE
TRAPEZOID
IMAGE ON
THE SCREEN
POOR COLOR
BLURRED
REMOTE
CONTROL
DOES NOT
WOR K
outlet.
• Toggle the power switch to the position “1”.
• Wait two minutes after the projector is turned off before turning
the projector back on.
• Check for the proper input source.
• Ensure all cables are connected properly.
• Adjust the brightness and contrast.
• Remove the lens cap.
• Reposition the unit to improve its angle on the screen.
•Use the Keystone correction key on the control panel of the
projector or the remote control unit.
• Select the correct video system.
• Adjust brightness, contrast, or saturation.
•Press Auto on the control panel of the projector or the remote
control unit to get better picture quality.
• Adjust the focus.
• Reposition the unit to improve its projection angle.
• Ensure the distance between the unit and screen is within the
adjustment range of the lens.
• Replace the batteries with new ones.
• Make sure there is no obstacle between the remote control and
the projector.
• Stand within 6 meters (19.5 feet) of the projector.
• Make sure nothing is blocking the front and rear receivers.
BenQ PB8220 User’s Guide
Troubleshooting
25
Page 30
BenQ PB8220 User’s Guide
Status Messages
On-Screen Messages Description
SEARCHING
ACQUIRING SIGNAL
OUT OF RANGE
LAMP WARNING -
CHANGE LAMP AND
RESET LAMP TIMER!
OUT OF LAMP USAGE
TIME. YOU HAVE TO
CHANGE THE LAMP!
OUT OF LAMP USAGE
TIME. CHANGE THE
LAMP!
Projector is searching for input.
Projector has identified the input signal and is running
the auto image adjustment function.
Input signal frequency exceeds the projector’s range.
The lamp has been in operation for 1900 hours. Install a
new lamp for optimal performance.
The lamp has been in operation for 1980 hours, and the
power will turn off after 20 hours.
The lamp has been in operation for over 2000 hours.
The warning message will display for 30 seconds every 5
minutes after you turn on the projector and the power
will turn off automatically after 10 minutes.
26
Troubleshooting
Page 31
SPECIFICATIONS
Projector Specifications
Technical Specifications
Note: All specifications are subject to change without notice.
General
Product name Personal Projector
Model name PB8220 1024X768 XGA
Optical
Display system 1-CHIP DMD
Lens F/Number F/2.6
Lamp 250W UHP lamp
Electrical
Power supply AC100 ~ 240V, 4.0A, 50/60 Hz (Automatic)
Power consumption 360W (Max)
Mechanical
Dimensions 308 mm (W) x 95 mm (H) x 238 mm (D)
Operating temperature
range
Weight 6.9 lbs (3.1 Kg)
Input terminal
Computer input
RGB input D-sub 15-pin (female)
Video signal input
S-VIDEO Mini DIN 4-pin port x1
VIDEO RCA jack x1
HDTV signal input YP
Audio signal input
Audio 1 Mini jack stero port
Audio 2 RCA jack L, R x2
Output
USB mouse connector A/B series x1
Speaker 2 watt x 1
Control
RS-232C 9-pin x1
BenQ PB8220 User’s Guide
10°C ~ 40°C
BPR RCA jack x3
Specifications
27
Page 32
BenQ PB8220 User’s Guide
Timing Chart
Resolution H Sync (kHz) V Sync (Hz) Remark
640x350 31.5 70.1
640x400 37.9 85.1 VESA
720x400 31.5 70.0
720x400 37.9 85.1 VESA
640x480 31.5 60.0 VESA
640x480 37.9 72.8 VESA
640x480 35 66.7 Macintosh
640x480 43.3 85.0 VESA
800x600 35.2 56.3 VESA
800x600 37.9 60.3 VESA
800x600 46.9 75.0 VESA
800x600 48.1 72.2 VESA
800x600 53.7 85.1 VESA
832x624 49.7 74.5 Macintosh
1024x768 48.4 60.0 VESA
1024x768 56.5 70.1 VESA
1024x768 60.0 75.0 VESA
1024x768 68.7 85.0 VESA
1280x1024 64.0 60.0 VESA
28
Specifications
Page 33
DIMENSIONS
BenQ PB8220 User’s Guide
308
238
95
Unit: mm
Dimensions
29
Loading...
