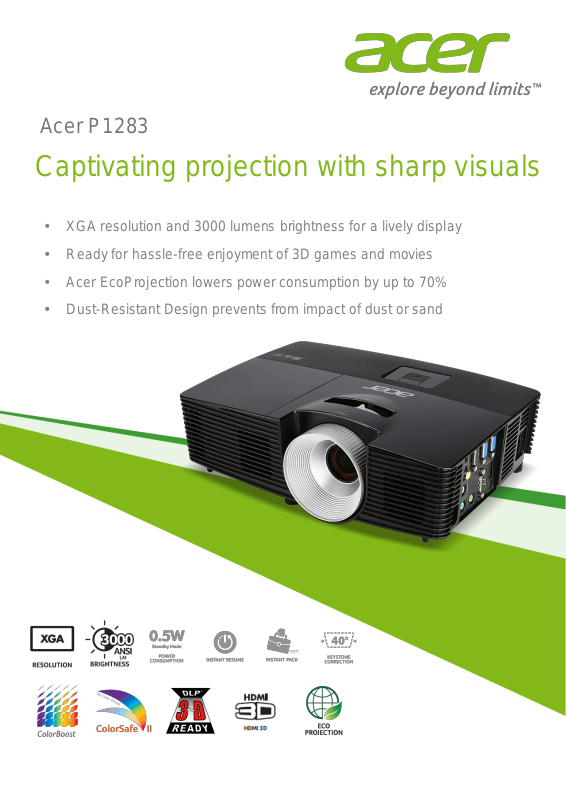

Acer P1283 Product Sheet

 XGA resolution and 3000 lumens brightness for a lively display
 Ready for hassle-free enjoyment of 3D games and movies
 Acer EcoProjection lowers power consumption by up to 70%
 Dust-Resistant Design prevents from impact of dust or sand

Acer P1283

Captivating projection with sharp visuals

Feature Highlights

Expressive display

 Acer ColorBoost II
 Acer ColorSafe II
 DLP

®

3D Ready

 HDMI 3D Ready

Enhanced usability

 Acer Dust-Resistant Design
 Wireless Projection

1

 Built-in Speaker
 Acer SmartFormat
 Closed captioning

Installation flexibility

 Keystone correction up to 40 degrees

Eco-friendly functionality

 Acer EcoProjection
 Lamp life up to 10000 hours in

ExtremeEco mode

1

Wireless projection is enabled through

Acer Wireless Adapter

Model name

Acer P1283

Projection system

DLP®

Resolution

Native XGA (1,024 x 768)
Maximum UXGA (1,600 x 1,200), WUXGA (1,920 x 1,200)

Aspect ratio

4:3 (Native), 16:9

Contrast ratio

17,000:1

Brightness

3,000 ANSI Lumens (Standard), 2,400 ANSI Lumens (ECO)

Lamp life

5000 hours (standard); 6000 hours (ECO)
10000 hours (ExtremeEco)

Projection lens

F = 2.41 ~ 2.55, f = 21.79mm ~ 23.99mm
1:1.1 Manual Zoom and Manual Focus

Keystone correction

+/-40 degrees (vertical), manual

Noise level

31 dBA (standard); 28 dBA (ECO)

Input interface

2x Analog RGB/Component video (D-Sub)
1x Composite video (RCA)
1x S-video (Mini DIN)
1x HDMI/MHL
2x PC audio

Control interface

USB (type B)
RS-232

Dimensions

314 x 223 x 93 mm (12.4" x 8.8" x 3.7")

Weight

2.5 Kg. (5.5 lbs.)

Acer ColorBoost II

Acer projectors featuring ColorSafe are virtually
immune to color decay, such as the yellow or green tint
on images displayed by some projectors that have
been used for extended periods of time. Acer

projectors take advantage of DLP® technology and

also Acer unique color compensation technology on the
optical components to guarantee picture integrity
despite prolonged use. The extended lifespan and
consistent image quality lower the total cost of

Acer ColorSafe II

Acer projectors featuring ColorSafe II are virtually immune to
color decay, such as the yellow or green tint on images
displayed by some projectors that have been used for
extended periods of time. Acer projectors take advantage of
DLP® technology to guarantee picture integrity even with
prolonged use. Extended lifespan and consistent image quality
lower the total cost of ownership and translate to big savings.

Acer EcoProjection

Acer EcoProjection is a complete environment-friendly power
management solution that reduces standby power
consumption by up to 90%, from 5 W to 0.5 W. Also featured in
the Acer EcoProjection suite is Acer ePower Management for
customized power-saving configurations.

About Acer

Since its founding in 1976, Acer has broken barriers between people and technology, enabling people to explore beyond limits. Acer ranks No. 2 for notebook PCs globally
(Gartner data 2011). The Acer Group employs 8,000 people across the globe, and revenues for 2011 reached US$15.7 billion.

Acer's channel business model is instrumental to the company's success, while its multi-brand approach integrates Acer, Gateway, and Packard Bell brands in worldwide
markets. Acer designs environmentally friendly products and, with its vendors, has established a green supply chain.

Acer is proud to be a Worldwide Partner of the Olympic Movement. That includes supporting the Vancouver 2010 Olympic Winter Games and London 2012 Olympic Games.
More information is at www.acer.com.

Sealed Engine

With the Sealed Optical Engine design, the projector
can be prevented from the accumulation of dust or
even smoke, which may seriously impact the optical
performance, resulting the reduced brightness and
faded color of the displayed image

Product Specifications
