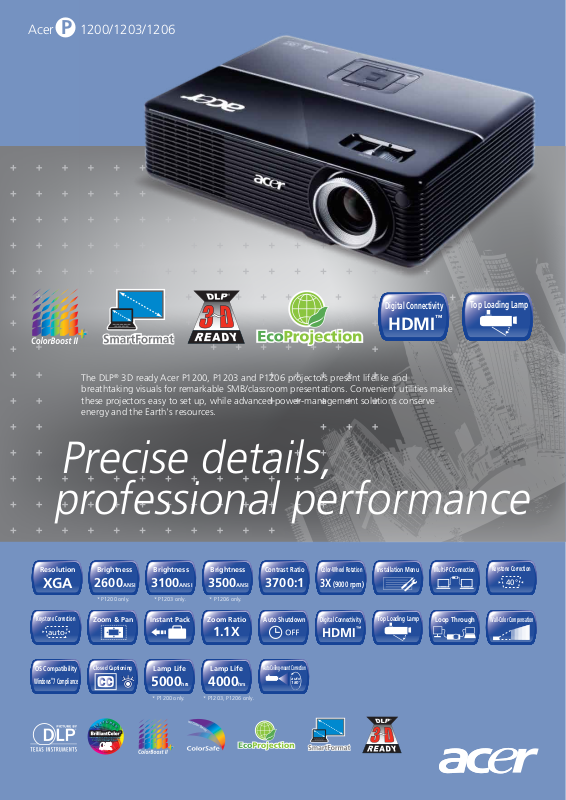

Acer P1200 Product Sheet

Acer P 1200/1203/1206

Digital Connectivity

™

Top Loading Lamp

HDMI

The DLP® 3D ready Acer P1200, P1203 and P1206 projectors present lifelike and
breathtaking visuals for remarkable SMB/classroom presentations. Convenient utilities make
these projectors easy to set up, while advanced power-management solutions conserve
energy and the Earth's resources.

Precise details,

professional performance

Resolution

XGA

Brightness

2600ANSI

* P1200 only. * P1203 only. * P1206 only.

Brightness

3100ANSI

Brightness

3500ANSI

Contrast Ratio

3700:1

Color-Wheel Rotation

3X

(9000 rpm)

Installation Menu

Multi-PC Connection

Keystone Correction

40°

Keystone Correction

auto

OS Compatibility

®

Windows 7 Compliance

Zoom & Pan

Closed Captioning

Instant Pack

Zoom Ratio

1.1X

Lamp Life

5000hrs

* P1200 only. * P1203, P1206 only.

Lamp Life

4000hrs

Auto Shutdown

Digital Connectivity

HDMI

Auto Ceiling-mount Correction

auto

o

180

Top Loading Lamp

™

Loop Through

Wall-Color Compensation

Specifications

Model Name

Projection System

Display Panel

Resolution

Aspect Ratio

Contrast Ratio

Displayable colors

Brightness

Lamp Life

Projection Lens

Keystone

Noise Level

Input Interface

Output Interface

Correction

Acer P1200

Maximum UXGA (1,600 x 1,200), 1080p (1,920 x 1,080)

2600 ANSI Lumens (Standard)
2080 ANSI Lumens (ECO)

4000 Hours (Standard)
5000 Hours (ECO)

28 dBA (Standard mode)
25 dBA (ECO mode)

Analog RGB/Component Video (D-sub),
Composite Video (RCA), S-Video
(Mini DIN), HDMI (Video, Audio,
HDCP), PC Audio (Stereo mini jack)

Analog RGB (D-sub)

Acer P1203

®

DLP

0.55" DarkChip™ 3 DMD

Native XGA (1,024 x 768)

4:3 (native), 16:9

3700:1

1.07 Billion Colors

3100 ANSI Lumens (Standard)
2480 ANSI Lumens (ECO)

2500 Hours (Standard)
4000 Hours (ECO)

F = 2.41 ~ 2.55, f = 21.79mm ~ 23.99mm
1:1.1 Manual Zoom and Manual Focus

+/-40 Degrees (Vertical ), Manual & Auto

34 dBA (Standard mode)
31 dBA (ECO mode)

Two Analog RGB/Component Video (D-sub),
Composite Video (RCA), S-Video (Mini DIN),
HDMI (Video, Audio, HDCP),
PC Audio (Stereo mini jack)

Analog RGB (D-sub), PC Audio (Stereo mini jack)

Acer P1206

3500 ANSI Lumens (Standard)
2800 ANSI Lumens (ECO)

2500 Hours (Standard)
4000 Hours (ECO)

Feature highlights

Prolific imagery

• Acer ColorBoost II +

• XGA (1024 x 768) resolution

1

/31002/35003 Lumens and 3700:1 contrast ratio

• 2600

• DLP® system design and 3D ready technology

• 3X color-wheel rotation speed

Convenient installation

• Installation menu

• Digital connectivity via an HDMI™ port

• Multi-PC connectivity

• Acer Top-Loading lamp design

• Auto ceiling-mount correction

• Keystone correction (40° vertical)

• Auto keystone correction

Empowering usability

• Acer Empowering Technology

• Acer SmartFormat

• Wall color compensation

• Quick start

• Instant resume

• Acer Instant pack

• Closed captioning

• Quick signal detection

• Windows® 7 Compliant

Eco-friendly functionality

• Acer EcoProjection

• Longer lamp life (5000

• ECO mode

• Automatic safety shutdown

• Low noise level

1

/40004 hours)

1

P1200 only.

2

P1203 only.

3

P1206 only.

4

P1203, P1206 only.

USB connector for remote
computer control

19-pin HDMI™ port

AC-in jack

15-pin D-Sub for PC analog signal/
HDTV/ component video input

300”

200”

11.9 7.9 4.0 3.2 1.2

Composite video RCA jack

S-video mini DIN

3.5 mm audio mini-jacks

15-pin D-Sub for monitor loop-through

* Specifications vary depending on model

100”

80”

RS-232 port

Kensington lock slot

30”

Acer ColorBoost II + Technology

ColorBoost II+ is a advanced which refines the
waveform to improve optical color performance
based on lamp spectrum and color wheel properties.
ColorBoost II+ brings (1) Natural color temperature:
Improving natural color temperature from a refined
waveform to achieve optical color balance. (2)
Content-based color brightness improvement:
Combining Acer eView Management which offers
varied scenario modes with color-specific refined
waveform to improve color brightness according to
content.

About Acer
Since its founding in 1976, Acer has constantly pursued the go al of breaking the barriers between people and technology. Focu sed on marketing its
brand-name IT products around the globe, Acer ranks as the world's No. 3 vendor for total PCs and No. 2 for notebooks, with the fastest growth among
the top-five players. A profitable and sustainable Channel Business Model is instrumental to Acer' s continued growth, while the successful mergers of
Gateway and Packard Bell complete the company's global footprint by strengthening its presence in the U.S., and enhancing its strong position in Europe.
Acer Inc. employs 5,000 people worldwide. 2007 revenues reached US$14.07 billion. See www.acer.com for more information.

DLP 3D ready

With DLP 3D ready, user can view any 120 Hz 3D frame sequential
content from a PC with appropriate 120 Hz graphic card and 3D
stereoscopic player by wearing a DLP 3D glasses.

Acer EcoProjection Technology

Acer EcoProjection is a complete environment-friendly power
management solution that reduces standby power consumption by up
to 50%, from 10 W to 5 W. Also featured in the Acer EcoProjection
suite is Acer ePower Management for customized power-saving
configurations.
