Acer M5150 User Manual

ixtreme M5150

Service Guide

PRINTED IN TAIWAN

Revision History

Please refer to the table below for the updates made on ixtreme M5150 series guide.

Date Chapter Updated

III

Copyright © 2010 by Acer Incorporated. All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in a retrieval system, or translated into any language or computer language, in any form or by any means, electronic, mechanical, magnetic, optical, chemical, manual or otherwise, without the prior written permission of Acer Incorporated.

Disclaimer

The information in this guide is subject to change without notice. Acer Incorporated makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties of merchantability or fitness for any particular purpose. Any Acer Incorporated software described in this manual is sold or licensed "as is". Should the programs prove defective following their purchase, the buyer (and not Acer Incorporated, its distributor, or its dealer) assumes the entire cost of all necessary servicing, repair, and any incidental or consequential damages resulting from any defect in the software.

Conventions

The following conventions are used in this manual:

SCREEN MESSAGES

NOTE Gives bits and pieces of additional

WARNING Alerts your to any damage that might

CAUTION Gives precautionary measures to

IMPORTANT Reminds you to do specific actions

Denotes actual messages that appear on screen.

information related to the current topic.

result from doing or not doing specific actions.

avoid possible hardware or software problem.

relevant to the accomplishment of procedures.

Preface

Before using this information and the product it supports, please read the following general information.

1. This Service Guide provides you with all technical information relating to the BASIC CONFIGURATION decided for Acer's "global" product offering. To better fit local market requirements and enhance product competitiveness, your regional office MAY have decided to extend the functionality of a machine (e.g. add-on card, modem, or extra memory capability). These LOCALIZED FEATURES will NOT be covered in this generic service guide. In such cases, please contact your regional offices or the responsible personnel/channel to provide you with further technical details.

2. Please note WHEN ORDERING FRU PARTS, that you should check the most up-to-date information available on your regional web or channel. If, for whatever reason, a part number change is made, it will not be noted in the printed Service Guide. For ACER-AUTHORIZED SERVICE PROVIDERS, your Acer office may have a DIFFERENT part number code to those given in the FRU list of this printed Service Guide. You MUST use the list provided by your regional Acer office to order FRU parts for repair and service of customer machines.

Introducing the Motherboard.................................................................................1

Features...................................................................................................2

Mainboard Components........................................................................4

Block Diagram.........................................................................................5

ixtreme M5150 ......................................................................................6

I/O Port Introduction..............................................................................9

Hardware Specifications and Configurations......................................12

Using BIOS...............................................................................................................16

Setup Utility Menus..............................................................................17

Product Information.............................................................................19

Standard CMOS Features......................................................................20

Advanced BIOS Features.......................................................................21

Advanced Chipset Features..................................................................24

Integrated Peripherals..........................................................................25

Power Management Setup..................................................................26

PC Health Status....................................................................................28

Frequency/Voltage Control..................................................................29

BIOS Security Features..........................................................................30

Load Default Settings...........................................................................31

Machine Disassembly and Replacement................................................................32

General Information.............................................................................33

Standard Assembly Process..................................................................34

Standard Disassembly Process..............................................................50

Troubleshooting.....................................................................................................65

Power-On Self-Test (POST)...................................................................66

POST Error Messages List......................................................................70

Error Symptoms List..............................................................................72

Undetermined Problems......................................................................76

Jumper and Connector Information......................................................................77

FRU (Field Replaceable Unit) List.........................................................................91

Exploded Diagram................................................................................91

FRU List..................................................................................................97

Introducing the Motherboard

Introduction

Thank you for choosing the RS880M05P8-6KSMH motherboard. This motherboard is a high performance, enhanced function motherboard designed to support the AM3 socket for AMD Athlon II x2 / AMD Athlon II x3 / AMD Phemon II processors for high-end business or personal desktop markets.

This motherboard is based on AMD RS880P for best desktop platform solution. RS880P is a highly integrated, high performance HyperTransport peripheral controller, unmatched by any other single chip-device controller. This motherboard supports up to 8 GB of system memory with Dual channel DDR3 1333 MHz. 16 USB 2.0 ports (6 USB ports and 2 USB 2.0 headers support additional 8 USB ports) and SATA support.

There is an advanced full set of I/O ports in the rear panel, including PS/2 mouse and keyboard connectors, one VGA port, four USB ports, one LAN port and audio jacks for microphone, line-in and 6-channel line-out. This motherboard is designed in a Micro ATX form factor using a four-layer printed circuit board and measures 244 mm x 244 mm.

Chapter1

Features

Operating system

Windows®7 Home Premium x64, Windows®7 Home Premium x86, Windows® 7 Home Basic x86

Processor

The motherboard uses an AM3 type of AMD Athlon II x2 / AMD Athlon II x3 / AMD Phemon II that carries the following features:

l AMD Athlon II x2 215/240/245/260u/B22 processor l AMD Athlon II x3 400e/405e processor

l AMD Phenom II 700e/705e processor

Chipset

The AMD RS880P+AMD SB810 is with proven reliability and performance.

l AMD RS880P+AMD SB810

Memory

l Supports up to four DDR3-1333 MHz UNB modules

Audio

The onboard Audio provides the following features:

l All DACs support 192K/96K/48K/44.1KHz DAC sample rate l Software selectable 2.5V/3.75V VREFOUT l Meets Microsoft WLP 3.08 audio requirements l Direct Sound 3DTM compatible

Onboard LAN

The onboard LAN provides the following features:

l Supports PCI ExpressTM 1.1 l Integrated 10/100 /1000 transceiver l Wake-on-LAN and remote wake-up support

Expansion Options

The motherboard comes with the following expansion options:

l One PCI Express x1 slot l One PCI Express x16 slot l Six 7-pin SATA connectors

Integrated I/O

The motherboard has a full set of I/O ports and connectors:

l PS/2 keyboard port l PS/2 mouse port l Microphone jack l Headphone/analog speakers jack or front speakers jack l Line-in jack l Speaker-out jack l Six USB 2.0 ports l 1000/100/10 LAN port l VGA/monitor port/HDMI

BIOS Firmware

The motherboard uses AMI BIOS that enables users to configure many system features including the following:

l Power management l Wake-up alarms

The firmware can also be used to set parameters for different processor clock speeds.

1. Some hardware specifications and software items are subject to change without prior notice.

2. Due to chipset limitation, we recommend that motherboard be operated in the ambiance

between 0 and 50 °C.

Dimensions and weight

l 355 (H) x 382.5(D) x 180(W) mm (without bezel) l 11.4Kg

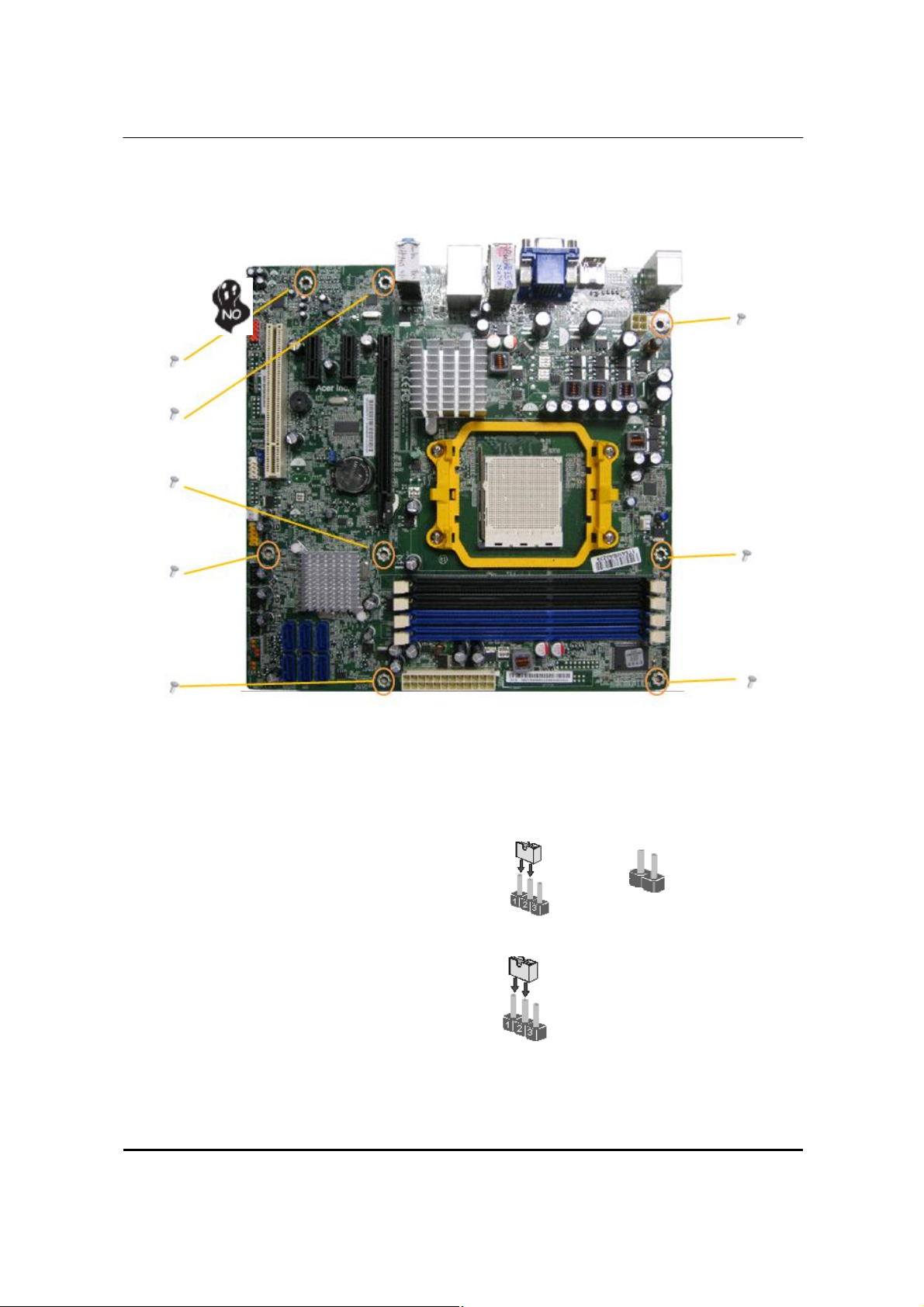

Mainboard Components

No Label Component

ATX_12V Auxiliary 4-pin power connector 2 CPU Socket AMD socket 3 CPU_FAN CPU cooling fan connector

4 DIMM1~4 240-pin DDR3 SDRAM slots 5

ATX1 Standard 24-pin ATX power connector 6

SATA1~6 Serial ATA connectors 7

F_USB1~4 Front panel USB headers 8

CLR_CMOS Clear CMOS jumper 9

PCIE16Х PCI Express x16 slot

10 11

PCIE1Х-1~2 PCI Express x1 slot

F_AUDIO1 Front panel audio header

This concludes Chapter 1. The next chapter explains how to install the motherboard.

Block Diagram

ixtreme M5150

The computer’ s front panel consists of the following：

Front view

No Icon Component Description

2 xD 3 CF Compact flash.

4 MS/MS Pro

5 Micro SD Micro Secure Digital.

6 SD/MMC

USB ports.

MS: Memory Stick MS Pro: Memory Stick PRO

SD Plus: Ultra II SD PLUS Memory Card MMC Plus: MultiMediaCard PLUS

Headphone/Speaker-out/line-out port.

Microphone-in jack. Accepts input from external microphones.

Connects to USB 2.0 devices (e.g.,USB mouse, USB camera).

Connects to audio line-in devices (e.g.,speakers,headphones).

USB ports.

Connects to USB 2.0 devices (e.g.,USB mouse, USB camera).

Rear view

No Icon Component Description

HDMI HDMI Port

PS/2 keyboard connector

High Definition Multimedia Interface

USB 2.0 ports

Microphone jack

PS/2 mouse connector

Network port

Line-out jack

Line-in jack

Connects to USB 2.0 devices (e.g., USB mouse, USB camera).

Accepts input from external microphones.

Lights to indicate the status of wireless LAN communications.

Accepts audio line-in devices (e.g.,audio CD player,)

Accepts audio line-out devices (e.g.,audio CD player,)

Audio Jack Function Table

Color/Use Headphone 2CH 4CH 5.1CH

Blue Line-in Line-in Rear Speaker Rear Speaker

Green Headphone Front speaker Front speaker Front speaker

Pink Mic-in Mic-in Mic-in Center & bass

I/O Port Introduction

The backplane of the motherboard has the following I/O ports:

No Component Description

Use the upper PS/2 port to connect a PS/2 pointing

1 PS2 Mouse

device.

2 PS2Keyboard Use the lower PS/2 port to connect a PS/2 keyboard.

3 VGA Port Connect your monitor to the VGA port.

4 LAN Port

5 USB Ports Use the USB ports to connect USB devices.

6 Line-in / Line-out / Microphone

7 HDMI Port Connect the HDMI port to the HDMI devices.

Connect an RJ-45 jack to the LAN port to connect your computer to the Network.

Use the three audio ports to connect audio devices. The first jack is for stereo line-in signal. The second jack is for stereo line-out signal. The third jack is for microphone.

System Peripherals

The IXTREME M5150 series computer consist of the system itself, and system peripherals, like a mouse, keyboard, card reader and a set of speakers (optional). This section provides a brief description of the basic system peripherals.

Mouse (PS/2 or USB, manufacturing option)

The included mouse is a standard two-button wheel mouse. Connect the mouse to the PS/2 mouse port or USB port on the back panel of the system.

Keyboard (PS/2 or USB, manufacturing option)

Connect the keyboard to the PS/2 keyboard port or USB port on the back panel of the system.

Speakers

For systems bundled with speakers, before powering on the system, connect the speaker cable to the audio out (external speaker) port on the back panel of the system. For more detailed information about the speakers, please refer to the included operating instructions. NOTE: speakers are optional and the appearance might be different depending on the actual product.

Card Reader (Option)

Memory cards are used in a wide selection of digital cameras, PDAs, MP3 players and mobile phones. Selected computers include an “ all-in-one”memory card reader that allows you read and write the most common types, such as SD (Secure Digital)™/ MMC (Multi Media Card™), CF (Compact Flash®), xD (XD-PICTURE CARD), Micro SD and MS/MS Pro (Memory Stick®). NOTE: Card reader are optional and the appearance might be different depending on the actual product.

Hardware Specifications and Configurations

Processor

Item Specification

Type Socket

Speed FSB

BIOS

Item Specification

BIOS code programmer AMI BIOS version P01-A0(or newer version) BIOS ROM type Flash ROM BIOS ROM size 8MB BIOS ROM package SPI DIP8P Support protocol ACPI 2.0, APM 1.2, SMBIOS 2.4, WFM support Boot from CD-ROM feature Yes

AMD Athlon II x2 / AMD Athlon II x3 / AMD Phemon II processors

AM3 Depends on CPU which is configured

3600/4000 MT/s

Support to LS-120 FDD drive No

NOTE: The BIOS can be overwritten/upgraded by using the flash utility.

BIOS Hotkey List

Item Specification Specification

DEL Enter BIOS Setup Utility F12 Enter Boot Menu

Press while the system is booting to enter BIOS setup Utility. Press while the system is booting to enter Boot Menu.

Main Board Major Chips

Item Specification

Chipset AMD RS880P+AMD SB810 AGP controller AMD RS880P Super I/O controller ITE8721 Audio controller Realtek ALC662-VC LAN controller Realtek RTL8111E Giga LAN HDD controller AMD SB810 Keyboard controller ITE8721

System Memory

Item Specification

Memory slot number Support memory size per socket 1GB to 8GB Support maximum memory size 8 GB Support memory type DDR3 DRAM

Support memory interface DDR3 1066/1333 Support memory module package 240-pin DIMM

Support parity check feature Yes Support to Error Correction Code (ECC) feature

Memory module combinations

NOTE: Dual channel should be enabled always when plug-in 2 same memory size DDRII memory module.

4 slots

ECC checking with double-bit detect and single-bit correct You can install memory modules in any combination as long as they match the specifications.

Cache Memory

Item Specification

First-Level Cache Configurations

Cache function control Always enabled

Second-Level Cache Configurations

L2 Cache RAM size Up to 2MB per core (exclusive) L2 Cache RAM speed One-half the processor core clock frequency L2 Cache function control Enable/Disable by BIOS Setup

Video Interface

Item Specification

Video controller AMD RS880P Video controller resident bus PCIE Video Interface X16

Audio Interface

Item Specification

Audio controller Realtek Audio controller Type Realtek ALC662-VC Audio Channel 5.1ch Audio function control Enable/disable by BIOS Setup Mono or stereo 5.1 channel

Sampling rate DACs: 44.1k/48k/96k/192k Hz MPU-401 UART support Yes Microphone jack Supported Headphone jack Supported

IDE Interface

Item Specification

IDE controller AMD RS880P Number of SATA connector 6

Support bootable CD-ROM Yes

USB Port

Item Specification

Universal HCI USB 2.0 USB Class Support legacy keyboard for legacy mode USB Number support up to 12 ports

Power Management

Devices

Power Button Enabled Enabled Enabled Disabled USB Keyboard Enabled Enabled Enabled N/A LAN Disabled Disabled Disabled Disabled RTC Disabled Enabled Disabled Disabled

Modem (Ring) Disabled Disabled Disabled N/A

(Idle)

(Suspend to

RAM)

(Suspend to

DIsk)

(Shut Down)

Power Management Function (ACPI support function)

Device Standby Mode

l Independent power management timer for hard disk drive devices

(0-15 minutes, time step=1 minute).

l Hard disk drive goes into Standby mode (for ATA standard interface). l Disable V-sync to control the VESA DPMS monitor. l Resume method: device activated (Keyboard for DOS, keyboard & mouse for Windows). l Resume recovery time: 3-5 sec.

Global Standby Mode

l Global power management timer (2-120 minutes, time step=10 minute). l Hard disk drive goes into Standby mode (for ATA standard interface). l Disable H-sync and V-sync signals to control the VESA DPMS monitor. l Resume method: Return to original state by pushing external switch button, modem ring in,

keyboard and mouse for APM mode.

l Resume recovery time: 7-10 sec.

Suspend Mode

l Independent power management timer (2-120 minutes, time step=10 minutes) or pushing

external

l switch button. l CPU goes into SMM. l CPU asserts STPCLK# and goes into the Stop Grant State. l LED on the panel turns amber colour. l Hard disk drive goes into SLEEP mode (for ATA standard interface). l Disable H-sync and V-sync signals to control the VESA DPMS monitor. l Ultra I/O and VGA chip go into power saving mode. l Resume method: Return to original state by pushing external switch button, modem ring in,

keyboard and mouse for APM mode.

l Return to original state by pushing external switch button, modem ring in and USB keyboard for

ACPI mode.

ACPI

l ACPI specification 1.0b. l S0, S1, S3 and S5 sleep state support. l On board device power management support. l On board device configuration support.

Chapter2

Using BIOS

About the Setup Utility

The computer uses the latest “American Megatrends Inc.” BIOS will support for Windows Plug and Play. The CMOS chip on the motherboard contains the ROM setup instructions for configuring the motherboard BIOS.

The BIOS (Basic Input and Output System) Setup Utility displays the system’s configuration status and provides you with options to set system parameters. The parameters are stored in battery-backed-up CMOS RAM that saves this information when the power is turned off. When the system is turned back on, the system is configured with the values you stored in CMOS.

The BIOS Setup Utility enables you to configure:

l Hard drives, diskette drives and peripherals l Video display type and display options l Password protection from unauthorized use l Power Management features

The settings made in the Setup Utility affect how the computer performs. Before using the Setup Utility, ensure that you understand the Setup Utility options.

This chapter provides explanations for Setup Utility options.

The Standard Configuration

A standard configuration has already been set in the Setup Utility. However, we recommend that you read this chapter in case you need to make any changes in the future.

This Setup Utility should be used:

l when changing the system configuration

l when a configuration error is detected and you are prompted to make changes to the Setup

Utility

l when trying to resolve IRQ conflicts l When making changes to the Power Management configuration

l when changing the password or making other changes to the Security Setup

Entering the Setup Utility

When you power on the system, BIOS enters the Power-On Self Test (POST) routines. POST is a series of built-in diagnostics performed by the BIOS. After the POST routines are completed, the following message appears:

Press DEL to enter SETUP

Setup Utility Menus

Pressing the DEL key accesses the BIOS Setup Utility:

CMOS Setup Utility

Product Information

Standard CMOS Features Frequency/Voltage Control

Advanced BIOS Features BIOS Security Features

Advanced Chipset Features Load Default Settings

Integrated Peripherals Save & Exit Setup

Power Management Setup Exit Without Saving

↑↓：Move Enter：Select +/-/：Value F10：Save ECS：Exit

F1：General Help F9：Load Default Settings

PC Health Status

The default BIOS setting for this motherboard applies for most conditions with optimum performance. It is not suggested to change the default values in the BIOS setup and the manufacture takes no responsibility to any damage caused by changing the BIOS settings.

BIOS Navigation Keys

The BIOS navigation keys are listed below:

Key Function

‘••’ Move

Enter Select

+/-+PU/PD Value

ESC Exit

F1 General Help F9 Load Default Settings

F10 Save

Updating the BIOS

You can download and install updated BIOS for this motherboard from the manufacturer’s Web site. New BIOS provides support for new peripherals, improvements in performance, or fixes for known bugs. Install new BIOS as follows:

1 If your motherboard has a BIOS protection jumper, change the setting to allow BIOS flashing. 2 If your motherboard has an item called Firmware Write Protect in Advanced BIOS features,

disable it. (Firmware Write Protect prevents BIOS from being overwritten.

3 Create a bootable system disk. (Refer to Windows online help for information on creating a

bootable system disk.)

4 Download the Flash Utility and new BIOS file from the manufacturer’s Website. Copy these files

to the system diskette you created in Step 3.

5 Turn off your computer and insert the system diskette in your computer’s diskette drive. (You

might need to run the Setup Utility and change the boot priority items on the Advanced BIOS

Features Setup page, to force your computer to boot from the floppy diskette drive first.) 6 At the A:\ prompt, type the Flash Utility program name and press <Enter>. 7 Type the filename of the new BIOS in the “File Name to Program” text box. Follow the onscreen

directions to update the motherboard BIOS. 8 When the installation is complete, remove the floppy diskette from the diskette drive and restart

your computer. If your motherboard has a Flash BIOS jumper, reset the jumper to protect the

newly installed BIOS from being overwritten.

Using BIOS

When you start the Setup Utility, the main menu appears. The main menu of the Setup Utility displays a list of the options that are available. A highlight indicates which option is currently selected. Use the cursor arrow keys to move the highlight to other options. When an option is highlighted, execute the option by pressing <Enter>.

Some options lead to pop-up dialog boxes that prompt you to verify that you wish to execute that option. Other options lead to dialog boxes that prompt you for information.

Some options (marked with a triangle u ) lead to submenus that enable you to change the values for the option. Use the cursor arrow keys to scroll through the items in the submenu.

In this manual, default values are enclosed in parenthesis. Submenu items are denoted by a triangle u

Product Information

This option displays basic information about your system.

CMOS Setup Utility

Product Information

Processor Type AMD Athlon(tm) II X2 250 Processor Speed 3.00GHz System Memory 2048 MB Product Name ixtreme M5150 System Serial Number System BIOS Version P01-A3 BIOS Release Date 08/10/2010 Asset Tag Number

↑↓：Move Enter：Select +/-/：Value F10：Save ECS：Exit

F1：General Help F9：Load Default Settings

Processor

Item Help

Press <ESC> to return to the main menu setting page

For the purpose of better product maintenance, the manufacture reserves the right to change the BIOS items presented in this manual. The BIOS setup screens shown in this chapter are for reference only and may differ from the actual BIOS. Please visit the manufacture’s website for updated manual.

Standard CMOS Features

]to configure

This option displays basic information about your system.

CMOS Setup Utility

Standard CMOS Features

System Date

[Wed 01/ 01 / 2009]

System Time [0 : 54 : 28]

Use [ENTER], [TAB] or [SHIFT-TAB] to select a field.

Halt On [All ,But Keyboard] Use[+]or[ system Date

↑↓：Move Enter：Select +/-/：Value F10：Save ECS：Exit

F1：General Help F9：Load Default Settings

Date and Time

The Date and Time items show the current date and time on the computer. If you are running a Windows OS, these items are automatically updated whenever you make changes to the Windows Date and Time Properties utility.

Item Help

Halt On (All, But Keyboard)

This item defines the operation of the system POST (Power On Self Test) routine. You can use this item to select which types of errors in the POST are sufficient to halt the system.

Press <Esc> to return to the main menu setting page.

Advanced BIOS Features

This page sets up more advanced information about your system.

CMOS Setup Utility

Advanced BIOS Features

Advanced BIOS Features Quick Boot Enabled Quiet Boot Enabled 1st Boot Device ST3320418AS

2nd Boot Device ATAPI DVD A DH16A6S Allows BIOS to skip 3rd Boot Device USB:Generic Compac Certain tests while 4th Boot Device LAN Booting. This will u Hard Disk Drive Priority u Optical Disk Drive Priority u Removable Device Priority

Press Enter Decrease the time Press Enter Needed to boot the Press Enter System.

Bootup Num-Lock On USB Beep Message Disable

↑↓：Move Enter：Select +/-/：Value F10：Save ECS：Exit

F1：General Help F9：Load Default Settings

Quick Boot (Enabled)

Item Help

If you enable this item, the system starts up more quickly be elimination some of the power on test routines.

Quiet Boot (Enabled)

This item is used to enable/disable the quiet boot. [Disabled]: Displays the normal POST messages. [Enabled]: Displays OEM customer logo instead of POST messages.

1st/2nd/3rd/4th Boot Device (Hard Drive/CD/DVD/Kingston DataTravel/Network)

Use this item to determine the device order the computer used to look for an operating system to load at start-up time. The devices showed here will be different depending on the exact devices installed on your motherboard.

uHard Disk Drive Priority (Press Enter)

Press <Esc> to return to the Advanced BIOS Features screen.

Scroll to this item and press <Enter> to view the following screen:

CMOS Setup Utility

Hard Disk Drive Priority

-------------------------------------------------------------------

Specifies the boot

Item Help

1st Drive ST3320418AS sequence from the available devices.

↑↓：Move Enter：Select +/-/：Value F10：Save ECS：Exit

F1：General Help F9：Load Default Settings

uOptical Disk Drive Priority D/DVD Drives (Press Enter)

Scroll to this item and press <Enter> to view the following screen:

CMOS Setup Utility

Optical Disk Drive Priority

------------------------------------------------------------------

Specifies the boot

Item Help

1st Drive ATAPI DVD A DH16A6S sequence from the available devices.

↑↓：Move Enter：Select +/-/：Value F10：Save ECS：Exit

F1：General Help F9：Load Default Settings

Press <Esc> to return to the Advanced BIOS Features screen.

u Removable Device Priority (Press Enter)

Press <Esc> to return to the Advanced BIOS Features screen.

Scroll to this item and press <Enter> to view the following screen:

CMOS Setup Utility

Removable Device Priority

------------------------------------------------------------------

Specifies the boot

Item Help

1st Drive USB:Generic Compac sequence from the 2nd Drive USB:Generic xD-Pic available devices.

3rd Drive USB:Generic SDXC/M 4th Drive USB:Generic MS/MS- 5th Drive USB:Generic SD/MMC

↑↓：Move Enter：Select +/-/：Value F10：Save ECS：Exit

F1：General Help F9：Load Default Settings

Advanced Chipset Features

Press <Esc> to return to the main menu setting page.

These items define critical timing parameters of the motherboard. You should leave the items on this page at their default values unless you are very familiar with the technical specifications of your system hardware. If you change the values incorrectly, you may introduce fatal errors or recurring instability into your system.

CMOS Setup Utility

Advanced Chipset Features

Advanced Chipset Settings

AMD Cool ’ n ‘ Quiet Enabled AMD-V Enabled Intel EIST (Enhanced

Primary Video Auto Intel Speedstep

UMA Frame Buffer Size Auto Techbology) Automatically adjusts Intel processor

Voltage and core Frequency according To system performance

Demand.

↑↓：Move Enter：Select +/-/：Value F10：Save ECS：Exit

F1：General Help F9：Load Default Settings

AMD Cool ‘n’ Quiet (Enabled)

This item helps the system lower the frequency when CPU idles. When the frequency decreases, the temperature will drop automatically as well.

AMD-V (Enabled)

Hardware Virtualization Technology enables processor feature for running multiple simultaneous Virtual Machines allowing specialized software applications to run in full isolation of each other.

Primary Video (Auto)

This item allows users to manually select the video display device.

UMA Frame Buffer Size (Auto)

This item allows users to manually adjust the UMA frame buffer size.

Item Help

+ 73 hidden pages
