Acer PD1330W, LK-W300, EW330, K731, FD-230 User manual

Acer DLP Projector

PD1330W/LK-W300/EW330/

K731/FD-230/VD5310/

AWX2002/PD1530i/LK-

F300i/EF330i/K751i/FD-430i/

VD6510i/A1P2001 Series

User's Guide

Copyright © 2020. Acer Incorporated.

All Rights Reserved.

Acer Projector User's Guide

Original Issue: 09/2020

Changes may be made periodically to the information in this publication without obligation
to notify any person of such revisions or changes. Such changes will be incorporated in new
editions of this manual or supplementary documents and publications. This company makes
no representations or warranties, either expressed or implied, with respect to the contents
hereof and specifically disclaims the implied warranties of merchantability or fitness for a
particular purpose.

Record the model number, serial number, purchase date and place of purchase information in
the space provided below. The serial number and model number are recorded on the label
affixed to your projector. All correspondence concerning your unit should include the serial
number, model number and purchase information.

No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in
any form or by any means, electronically, mechanically, by photocopy, recording or otherwise,
without the prior written permission of Acer Incorporated.

Acer Projector

Model number: __________________________________

Serial number: ___________________________________

Date of purchase: ________________________________

Place of purchase: ________________________________

Acer and the Acer logo are registered trademarks of Acer Incorporated. Other companies'
product names or trademarks are used herein for identification purposes only and belong to
their respective companies.

TM

"HDMI
registered trademarks of HDMI Licensing LLC."

, the HDMI logo and High-Definition Multimedia Interface are trademarks or

Information for Your Safety and Comfort

Read these instructions carefully. Keep this document for future reference.
Follow all warnings and instructions marked on the product.

Turning the product off before cleaning

Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.

Caution for plug as disconnecting device

Observe the following guidelines when connecting and disconnecting power to
the external power supply unit:

• Install the power supply unit before connecting the power cord to the AC

power outlet.

• Unplug the power cord before removing the power supply unit from the

projector.

• If the system has multiple sources of power, disconnect power from the

system by unplugging all power cords from the power supplies.

Caution for Accessibility

Be sure that the power outlet you plug the power cord into is easily accessible
and located as close to the equipment operator as possible. When you need to

disconnect power to the equipment, be sure to unplug the power cord from the
electrical outlet.

iii

Warnings!

• Do not use this product near water.

• Do not place this product on an unstable cart, stand or table. If the product

falls, it could be seriously damaged.

• Slots and openings are provided for ventilation to ensure reliable

operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be
blocked by placing the product on a bed, sofa, rug or other similar surface.

This product should never be placed near or over a radiator or heat register, or
in a built-in installation unless proper ventilation is provided.

• Never push objects of any kind into this product through cabinet slots as

they may touch dangerous voltage points or short-out parts that could
result in a fire or electric shock. Never spill liquid of any kind onto or into
the product.

iv

• To avoid damage of internal components and to prevent battery leakage,

do not place the product on a vibrating surface.

• Never use it under sporting, exercising, or any vibrating environment

which will probably cause unexpected short current or damage rotor
devices.

Using electrical power

• This product should be operated from the type of power indicated on the

marking label. If you are not sure of the type of power available, consult
your dealer or local power company.

• Do not allow anything to rest on the power cord. Do not locate this

product where people will walk on the cord.

• If an extension cord is used with this product, make sure that the total

ampere rating of the equipment plugged into the extension cord does not
exceed the extension cord ampere rating. Also, make sure that the total
rating of all products plugged into the wall outlet does not exceed the fuse
rating.

• Do not overload a power outlet, strip or receptacle by plugging in too

many devices. The overall system load must not exceed 80% of the branch
circuit rating. If power strips are used, the load should not exceed 80% of
the power strip's input rating.

• This product's AC adapter is equipped with a three-wire grounded plug.

The plug only fits in a grounded power outlet. Make sure the power outlet
is properly grounded before inserting the AC adapter plug. Do not insert
the plug into a non-grounded power outlet. Contact your electrician for
details.

Warning! The grounding pin is a safety feature. Using a power outlet that is
not properly grounded may result in electric shock and/or injury.

Note: The grounding pin also provides good protection from unexpected
noise produced by other nearby electrical devices that may interfere with
the performance of this product.

• Use the product only with the supplied power supply cord set. If you need

to replace the power cord set, make sure that the new power cord meets
the following requirements: detachable type, UL listed/CSA certified, VDE
approved or its equivalent, 4.5 meters (14.76 feet) maximum length.

Product servicing

RG2 IEC/EN 62471-5:2015

Do not attempt to service this product yourself, as opening or removing covers
may expose you to dangerous voltage points or other risks. Refer all servicing to
qualified service personnel.

Unplug this product from the wall outlet and refer servicing to qualified service
personnel when:

• the power cord or plug is damaged, cut or frayed

• liquid was spilled into the product

• the product was exposed to rain or water

• the product has been dropped or the case has been damaged

• the product exhibits a distinct change in performance, indicating a need

for service

• the product does not operate normally after following the operating

instructions

Note: Adjust only those controls that are covered by the operating
instructions, since improper adjustment of other controls may result in
damage and will often require extensive work by a qualified technician to
restore the product to normal condition.

Warning! For safety reasons, do not use non-compliant parts when adding
or changing components. Consult your reseller for purchase options.

v

Your device and its enhancements may contain small parts. Keep them out of
the reach of small children.

Additional safety information

• Do not look into the projector's lens when the light source is on. The bright

• Turn on the projector first and then signal sources.

• Do not place the product in the following environments:

light may hurt your eyes.

• Space that is poorly ventilated or confined. At least 50cm clearance from walls
and free flow of air around the projector are necessary.

• Locations where temperatures may become excessively high, such as inside of a
car with all windows rolled up.

• Locations where excessive humidity, dust, or cigarette smoke may contaminate
optical components, shorten the life span and darken the image.

• Locations near fire alarms.

• Locations with an ambient temperature above 40 ºC/104 ºF. Such environment

vi

may cause the fan(s) to operate in standby mode.

• Locations where the altitudes are higher than 10000 feet.

• Unplug immediately if there is something wrong with your projector. Do

t operate if smoke, strange noise or odor comes out of your proj

no
mig

ht cause fire or electric shock. In this case, unplug immediately and

contact your dealer.

ector. It

• Do not keep using this product to break or drop it. In this case contact your

dealer for inspection.

• Do not face the projector lens to the sun. It can lead to fire.

• When switching the projector off, please ensure the projector completes

ling cycle before disconnecting power.

its coo

• Do not frequently turn off the main power abruptly or unplug the

ector during operation. The best way is to wait for the fan to st

proj

e turning main power off.

befor

op

• Do not touch the air outlet grille and bottom plate which become hot.

• Clean the air filter frequently. The temperature inside may rise and cause

age when the filter/ventilation slots are clogged with dirt or dust.

dam

• Do not look into the air outlet grille when projector is operating. It may

rt your eyes.

hu

• Always open the lens shutter or remove the lens cap when the projector is

.

on

• Do not block the projector lens with any object when the projector is

der operation as this could cause the object to become heated and

un
deformed or even cause a fire. To temporarily
press HIDE

on the remote control.

turn off the light source,

• Do not attempt to disassemble this projector. There are dangerous high

voltages inside which may hurt you.

• Do not stand the projector on end vertically. It may cause the projector to

fall over, causing injury or damage.

• This product is capable of displaying inverted images for ceiling mount

installation. Only use acer ceiling mount kit for mounting the projecto
and

ensure it is securely installed.

r

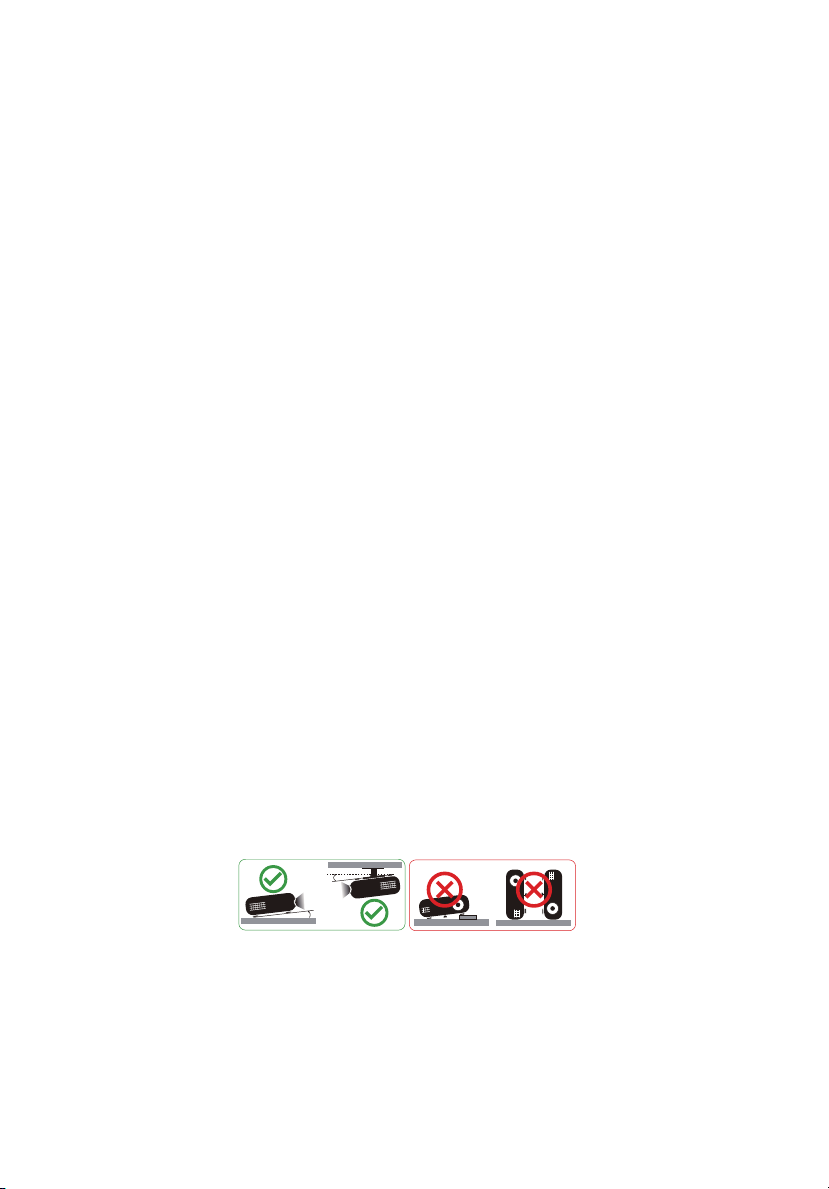

• The projector should be placed in a horizontal way by means of desktop or

g mount mode only, and its tilt angles should not exceed 6 de

ceilin
othe

rwise it would cause dramatical decrease of lamp life or severe safety

concern of system malfunction.

6°

grees,

6°

vii

Caution for Listening

To protect your hearing, follow these instructions.

• Increase the volume gradually until you can hear clearly and comfortably.

• Do not increase the volume level after your ears have adjusted.

• Do not listen to music at high volumes for extended periods.

• Do not increase the volume to block out noisy surroundings.

• Decrease the volume if you can't hear people speaking near you.

Disposal instructions

Do not throw this electronic device into the trash when discarding. To minimize
pollution and ensure utmost protection of the global environment, please
recycle. For more information on the Waste from Electrical and Electronics
Equipment (WEEE) regulations, visit http://www.acer-group.com/public/
Sustainability/index.htm

viii

First Thing First

Usage Notes

Do:

• Turn off the product before cleaning.

• Use a soft cloth moistened with mild detergent to clean the display

housing.

• Disconnect the power plug from AC outlet if the product is not being used

for a long period of time.

Don't:

• Block the slots and openings on the projector provided for ventilation.

• Use abrasive cleaners, waxes or solvents to clean the unit.

• Use under the following conditions:

• In extremely hot, cold or humid environments.

• In areas susceptible to excessive dust and dirt.

• Near any appliance that generates a strong magnetic field.

• Place in direct sunlight.

Precautions

Follow all warnings, precautions and maintenance as recommended in this
user's guide to maximize the life of your unit.

Warning:

• Do not look into the projector's lens when the projector is on. The bright light may

hurt your eyes.

• To reduce the risk of fire or electric shock, do not expose this product to rain or

moisture.

• Please do not open or disassemble the product as this may cause electric shock.

• When switching the projector off, please ensure the projector completes its cooling

cycle before disconnecting power.

• Turn on the projector first and then the signal sources.

• Do not use lens cap when projector is in operation.

Information for Your Safety and Comfort iii

First Thing First viii

Usage Notes viii

Precautions viii

Introduction 1

Product Features 1

Package Overview 2

Projector Overview 3

Projector Outlook 3

Control Panel 4

Remote Control Layout 5

Getting Started 7

Connecting the Projector 7

Turning the Projector On/Off 9

Turning On the Projector 9

Turning Off the Projector 10

Adjusting the Projected Image 11

Adjusting the Height of the Projected Image 11

How to Get a Preferred Image Size by Adjusting
Distance and Zoom 12

Contents

User Controls 14

Installation Menu 14

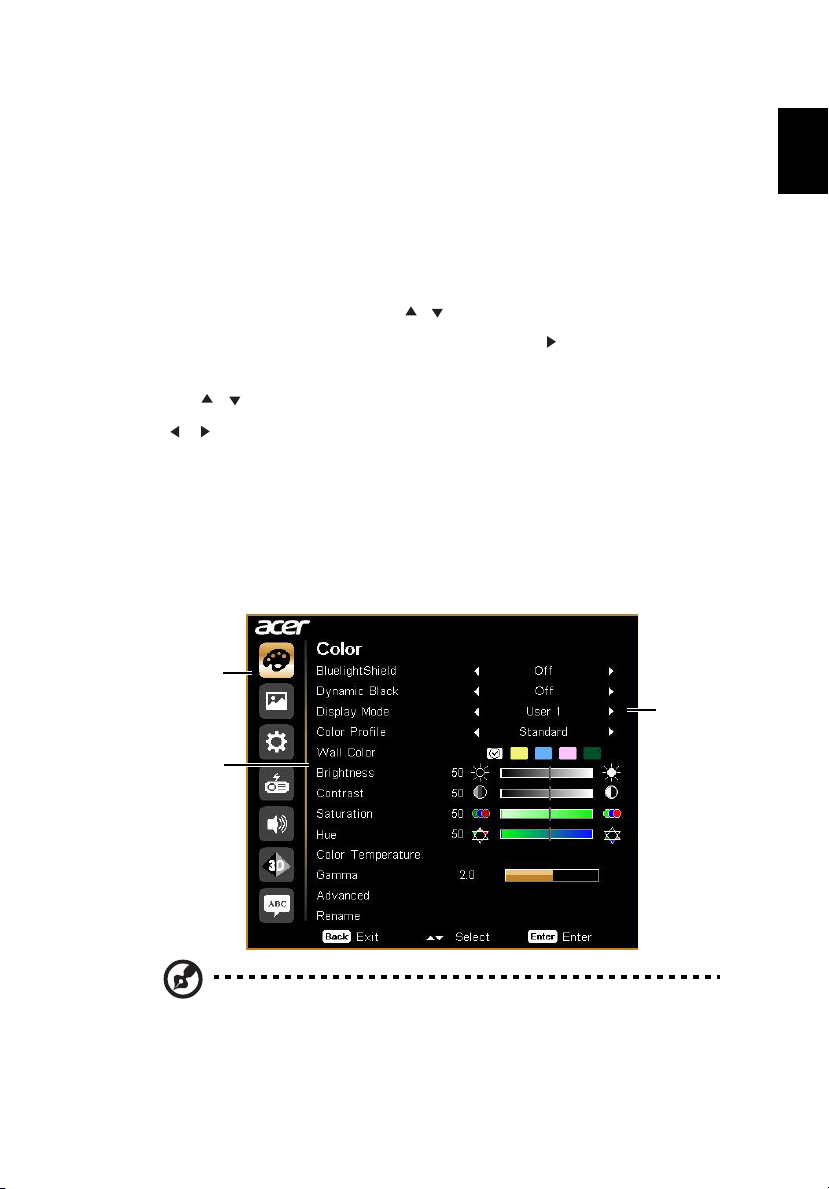

Onscreen Display (OSD) Menus 15

Color 16

Image 20

Setting 23

Management 28

Audio 29

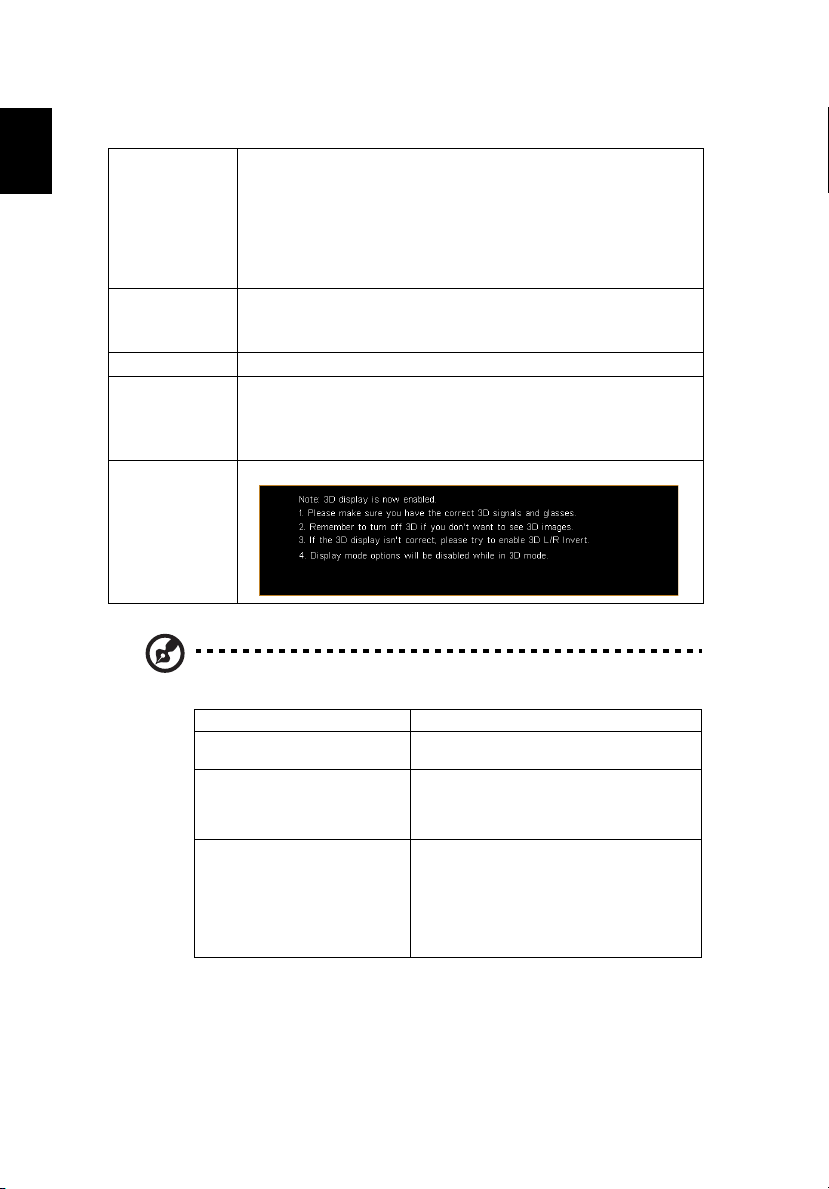

3D 30

Language 31

Acer Splash Downloader 32

Introduction 32

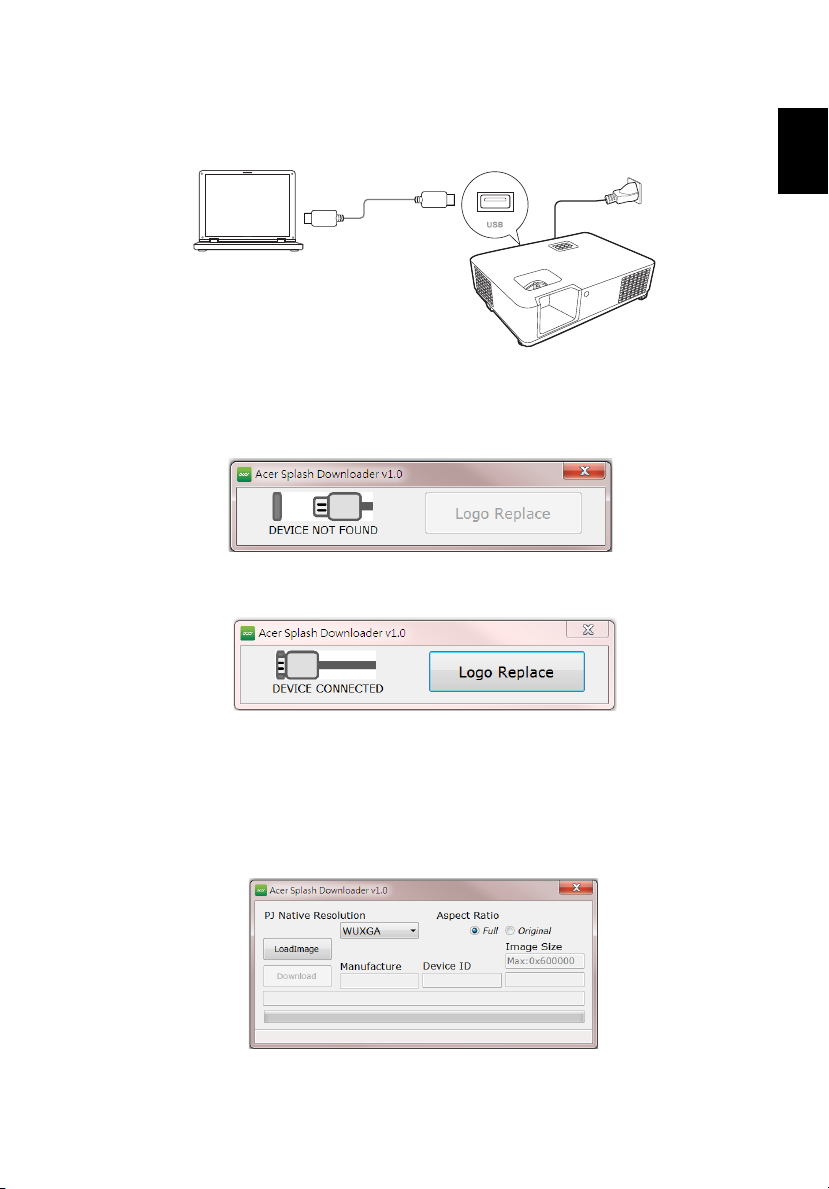

Using the Acer Splash Downloader 32

Appendices 35

Troubleshooting 35

LED & Alarm Definition Listing 39

Ceiling Mount Installation 40

Specifications 41

Compatibility Modes 44

Regulations and safety notices 48

English

Introduction

Product Features

This product is a single-chip DLP® projector, including the following
outstanding features:

• DLP

• Enables projecting 3D content via DLP Link Technology: Blu-Ray 3D

• One-touch "3D" button on remote control allows quick and easy access to

• Acer ColorBoost technology delivers vivid, life-like images

• High brightness and contrast ratio

• Versatile display modes enable optimum performance in any situation

• NTSC/PAL/SECAM compatible and HDTV (720p, 1080i, 1080p) supported

• Lower power consumption and economy (ECO) mode extends projector life

• Acer EcoProjection Technology delivers Intelligent power management

• Advanced keystone correction delivers optimum presentations

• Multi-language Onscreen Display (OSD) menus

• Manual focus/zoom projection lens

• 0.8 ~ 2X digital zoom and pan move function

• Microsoft

• LAN settings enable remote management of projectors via a web browser

• Crestron compliant

• CEC (Consumer Electronics Control) function supported

• LumiSense supported

• BluelightShield function supported

• Adjustable light source power

®

technology

supported

the 3D functions

approach and physical efficiency improvement

®

OS compliant

Windows® 2000, XP, 7, 8, 8.1, 10, Vista®, Macintosh OS, Chrome

1

2

English

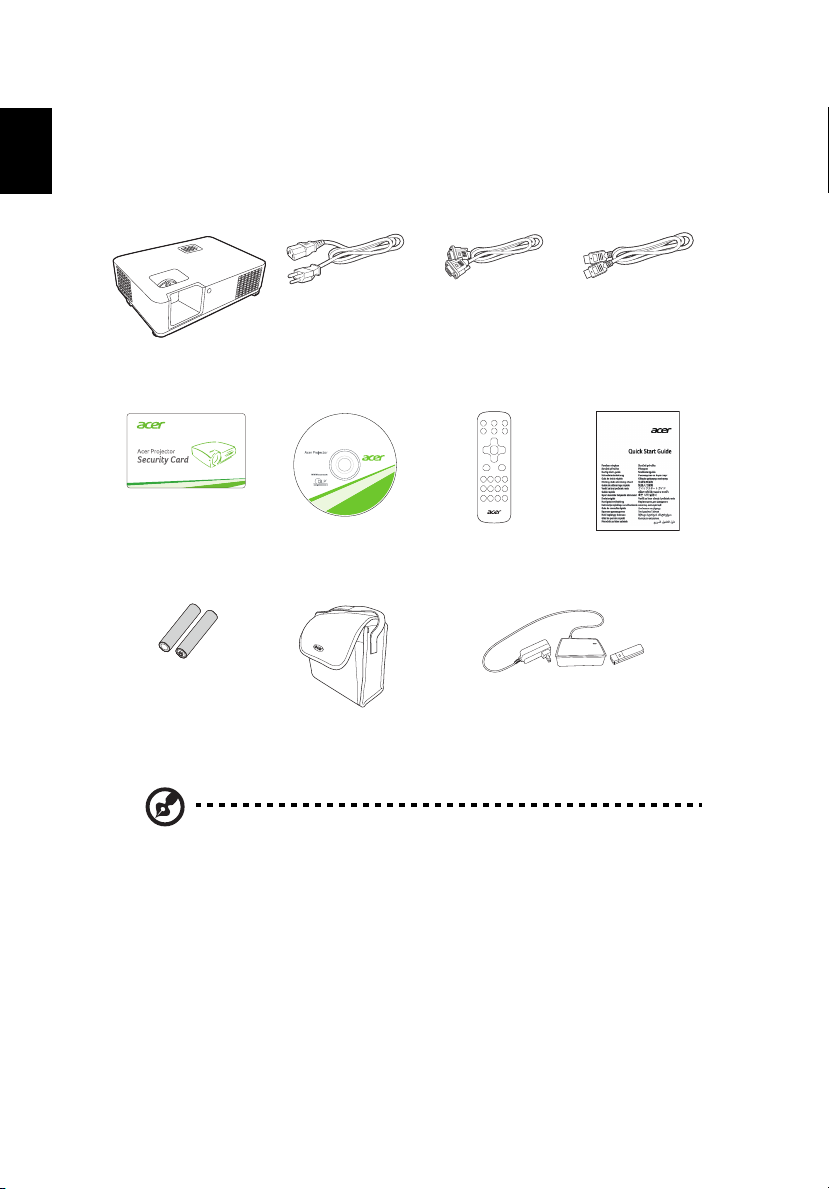

Package Overview

This projector comes with all the items shown below. Check to make sure you
have them all. Contact your dealer immediately if any thing is missing.

Projector Power cord VGA cable

Security card

(Optional)

AAA Battery x 2 Carrying case

Note: The package content may differ by regions and models.

User’s guide (CD-

ROM) (Optional)

(Optional)

(Optional)

Remote control Quick start guide

WirelessHD dongle kit (MWIHD1)

HDMI cable

(Optional)

(Optional)

English

Projector Overview

1

3

2

6

7

5

1

4

10 10

9

8

1 2 3 6754

Note: Connector interface is subject to model's specifications.

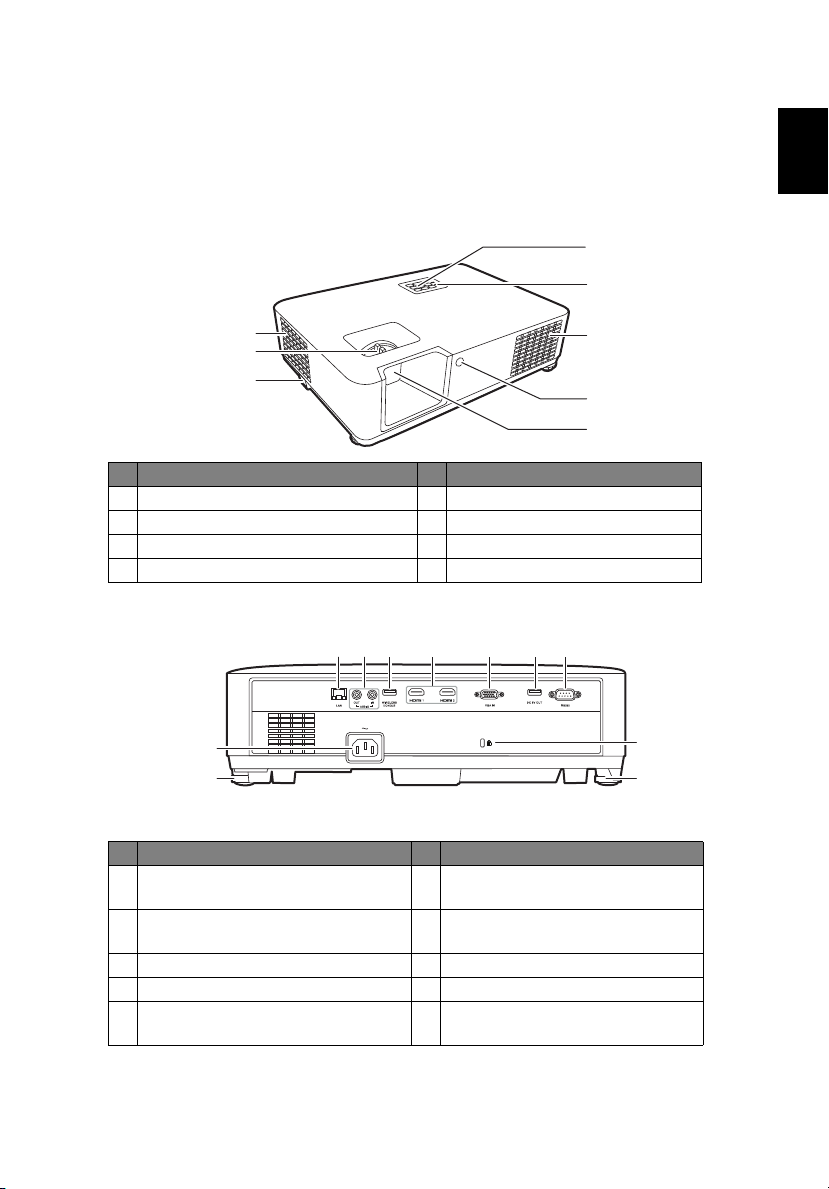

Projector Outlook

Front/upper side

# Description # Description
1Vents 5Indicator LED
2 Zoom ring and Focus ring 6 Remote control receiver
3 Security slot 7 Projection lens
4 Control panel

Rear side

3

# Description # Description
1 LAN (RJ45 port for 10/100M

Ethernet)

2 Audio input connector

Audio output connector
3 USB connector (Type A) 8 Power socket
4 HDMI connector 9 Kensington™ lock port
5 Analog RGB signal/HDTV/

component video input connector

6 DC 5V output (service)

7 RS232 connector

10 Tilt adjusting wheel

4

English

145.6

176.6

282.9

305.9

Unit: mm

10

6

5

7

8

9

1
2

3

4

1

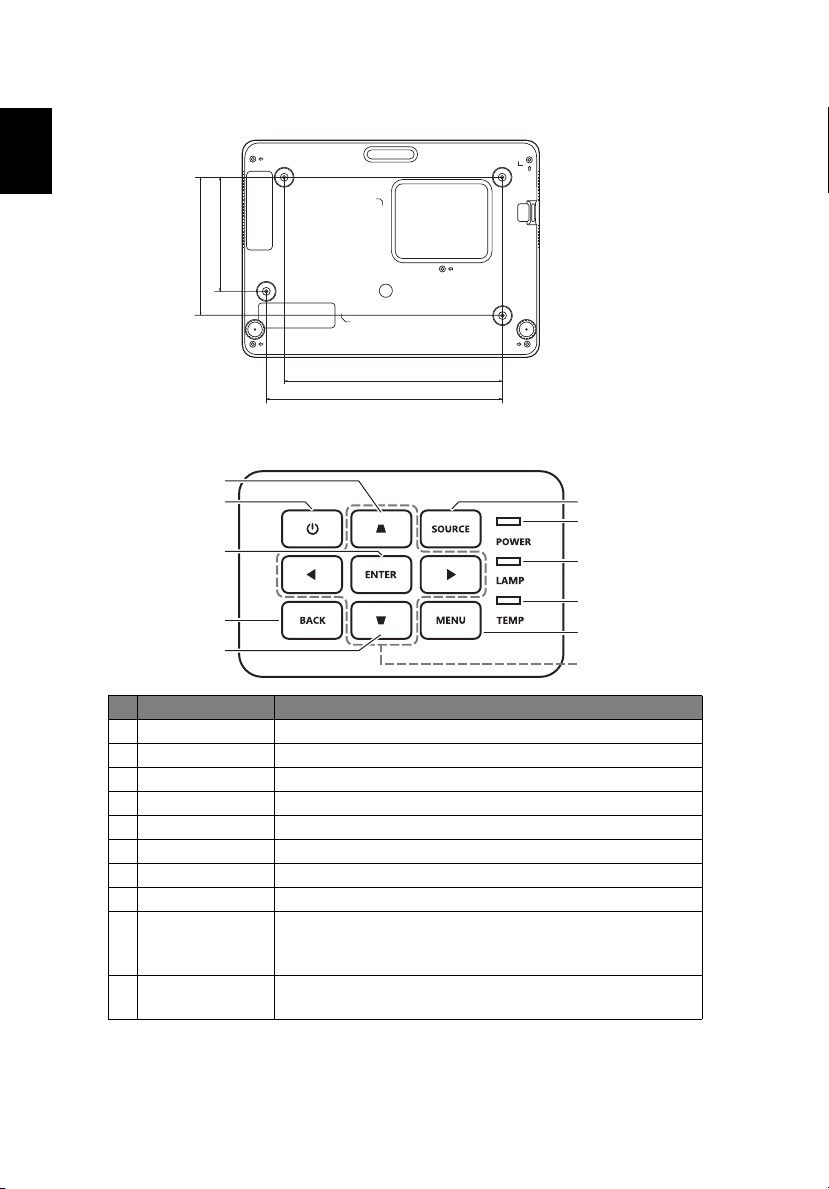

Bottom side

Control Panel

# Function Description
1 Keystone Adjusts image distortion caused by tilting projection.
2 Power key Refer to the "Turning the Projector On/Off" section.
3 ENTER Confirms your selection of items.
4 BACK Cancels your selection, or goes back to previous page.
5 SOURCE Changes the active source.
6 POWER Power indicator LED
7 LAMP Light source indicator LED.
8 TEMP Temperature indicator LED.
9 MENU Launches the Onscreen Display (OSD) menu, returns to

the previous step for the OSD menu operation or exits
the OSD menu.

10 Four directional

selection keys

Selects items or makes adjustments to your selection

English

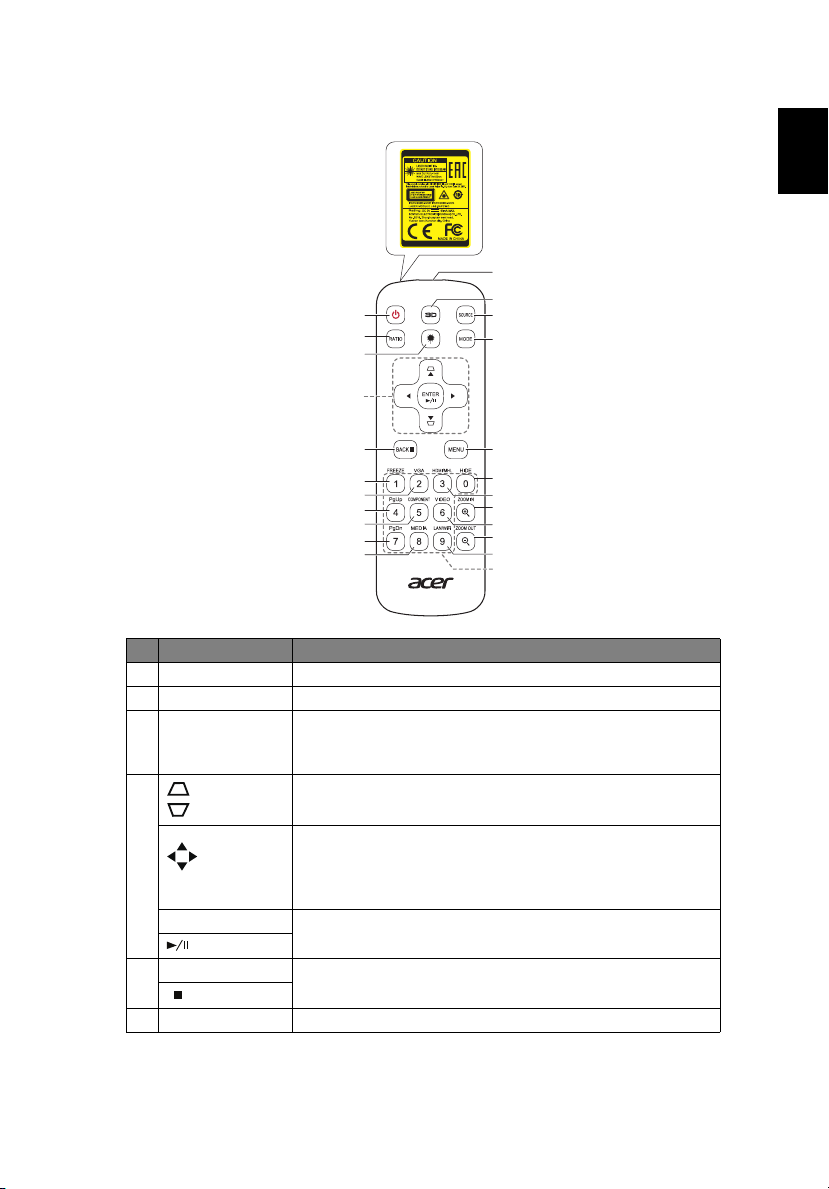

Remote Control Layout

1

5

2

6

3

4

7
8

9
8

10

11

12
13

17

16

19

18

20
21

18

14

15

Model No:J-25030

MC.JMV11.007

5

# Function Description
1 POWER Refer to the "Turning the Projector On/Off" section.
2 RATIO Chooses an aspect ratio.
3 Laser Emits visible laser pointer light for presentation

purposes. This function is not available for the
projectors sold in Japan/China.

4

Keystone

Four
directional
selection
keys

ENTER Confirms your selection of items.

Adjusts image distortion caused by tilting projection.

Selects items or makes adjustments to your selection.

Play/Pause

5 BACK Cancels your selection, or goes back to previous page.

Stop

6 FREEZE To pause the screen image.

6

English

# Function Description

7 VGA To change source to VGA. This connection supports

analog RGB, and YPbPr (480i/480p/576i/576p/720p/1080i/
1080p).

8 PgUp/PgDn For computer mode only. Use this button to select the

next or previous page. This function is only available

when connected to a computer via a mini USB cable.
9 COMPONENT (No function)
10 MEDIA Opens MEDIA SETUP page. (for LAN/wireless

11 Infrared

transmitter
12 3D Press to open the 3D menu for adjusting 3D settings.
13 SOURCE Changes the active source.
14 MODE Chooses a display mode.
15 MENU Launches the Onscreen Display (OSD) menu or exits the

16 HIDE Press "HIDE" to hide screen image; press again to

17 HDMI/MHL To change source to HDMI™ (or MHL). (for the model

18 ZOOM IN/ZOOM

OUT
19 VIDEO To change source to composite video.
20 LAN/WiFi To change source to LAN/WiFi. (for LAN/wireless

21 Keypad 0~9 Press "0~9" to input a password in the "Setting" >

compatible models)
Sends signals to the projector.

OSD menu.

display the image.

with HDMI™ or MHL connector)
Zooms the projector display in or out.

compatible models)

"Security" OSD.

English

Getting Started

1

HDTV adapter

RCA

4

6

2

2

10

3

3

3

9

12

13

5

5

11

7

8

2

15

14

R

L

Video Output

Display

Speakers

Smart devices

Note: Connector interface is subject to model's
specifications.

Screen

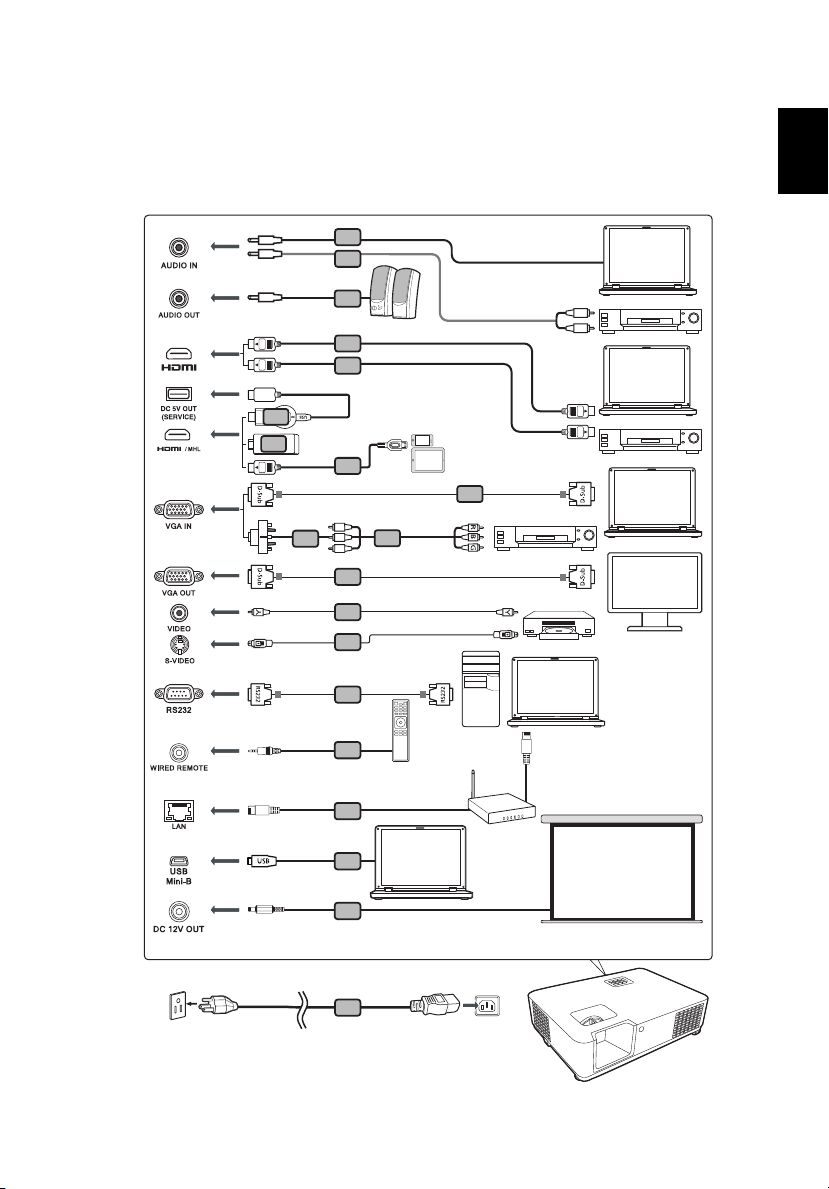

Connecting the Projector

7

8

English

# Description # Description

1 Power cord 9 RS232 cable

2 Audio cable 10 WirelessHD dongle

3 HDMI (MHL) cable 11 Wireless dongle

4 VGA to component video/HDTV adapter 12 Wired remote control

5 VGA cable 13 RJ45 cable

6 3 RCA component cable 14 USB cable

7 Composite video cable 15 12V DC cable

8S-Video cable

Note: To ensure the projector works well with your computer,
please make sure the timing of the display mode is compatible
with the projector.
Note: Some smart devices require a converter (supplied by the
smart device maker) to enable the MHL function.
Note: Compatible HDMI/MHL dongles: WirelessHD (MWIHD1),
MWA3, HWA1, Chromecast

TM

.

English

Turning the Projector On/Off

Turning On the Projector

1 Ensure that the power cord and signal cable are securely connected.

The Power LED will light red.

2 Turn on the projector by pressing (POWER) on the control panel or

remote control, and the Power indicator LED will turn blue.

3 Turn on your source (computer, notebook, video player, etc.). The

projector will detect your source automatically (when it is the first
time you turn on the projector or the Source Selection function is
"Auto").

• If the screen displays "No Signal", please make sure the signal cables
are securely connected.

• If you connect to multiple sources at the same time, use "SOURCE" on
the control panel or remote control, or the direct source key on the
remote control to switch between inputs.

9

10

English

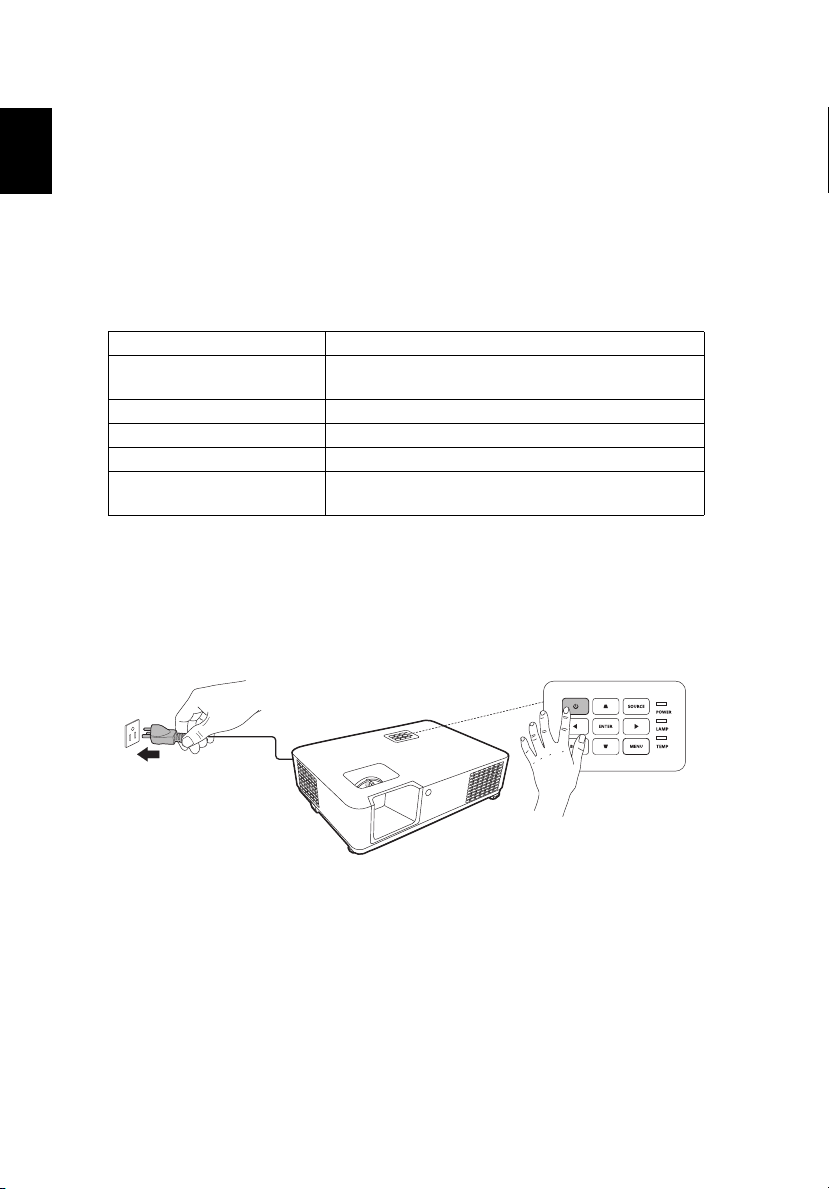

Turning Off the Projector

1 To turn the projector off, press the power button. This message

appears:

"Please press power button again to complete the shutdown process"

Press the power button again.

2 The LED Power indicator will turn solid red to indicate standby mode.

3 It is now safe to unplug the power cord.

Warning indicators:

• "Projector Overheated. Light source will automatically turn off soon."
This onscreen message indicates that the projector has overheated.
The lamp will automatically turn off, the projector will automatically
shut down, and the LED Temp indicator will turn solid red. Contact
your local dealer or service center.

• "Fan failed. Light source will automatically turn off soon."
This onscreen message indicates that the fan has failed. The lamp will
automatically turn off, the projector will automatically shut down,
and the LED Temp indicator will blink. Contact your local dealer or
service center.

Note: Whenever the projector automatically shuts down and the
LED Temp indicator turns solid red, contact your local reseller or
service center.

English

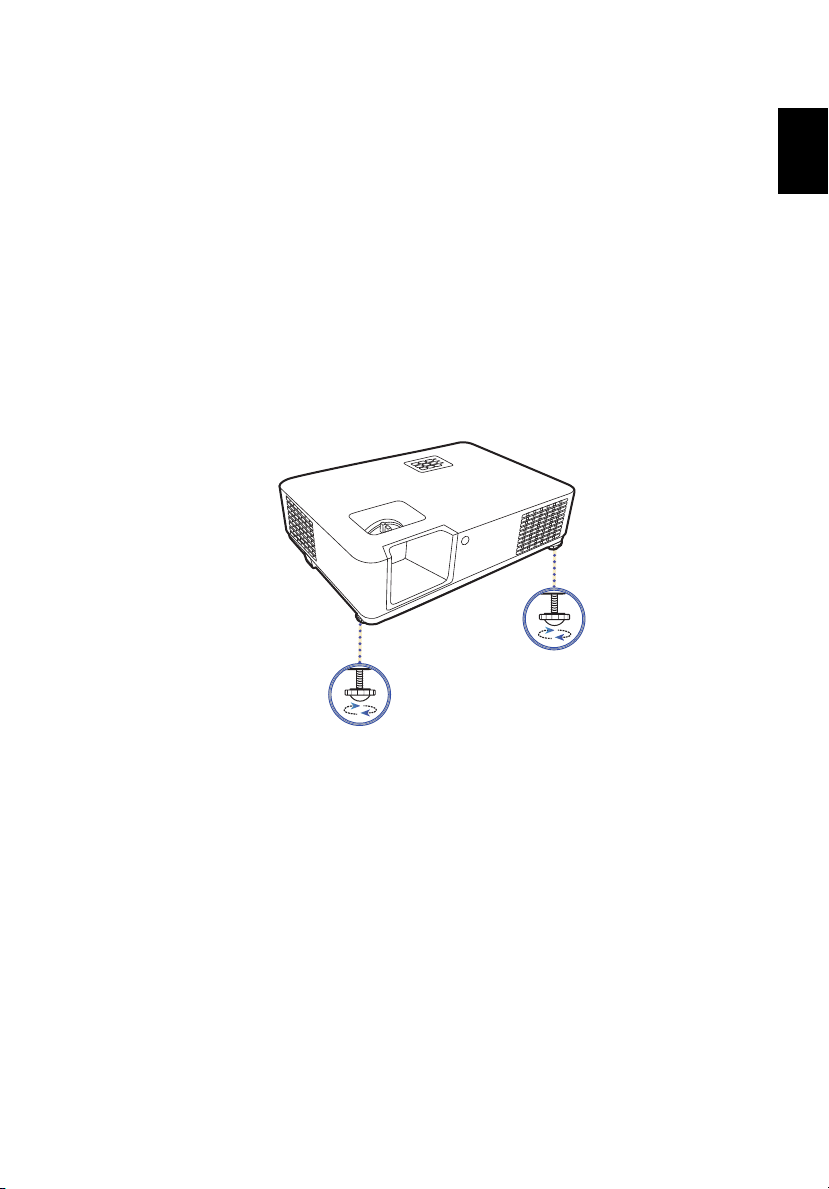

Adjusting the Projected Image

Tilt adjusting wheel

Tilt adjusting wheel

Adjusting the Height of the Projected Image

The projector is equipped with elevator feet for adjusting the image height.

To raise the image:

1 Use the front Tilt adjusting wheel to raise the image to the desired

height and angle.

To lower the image:

1 Use the front Tilt adjusting wheel to lower the image to the desired

height and angle.

11

12

English

Desired distance

Height:
84 cm
From
base to
top of

70"
Desired

image size

2.1 m

2.5 m

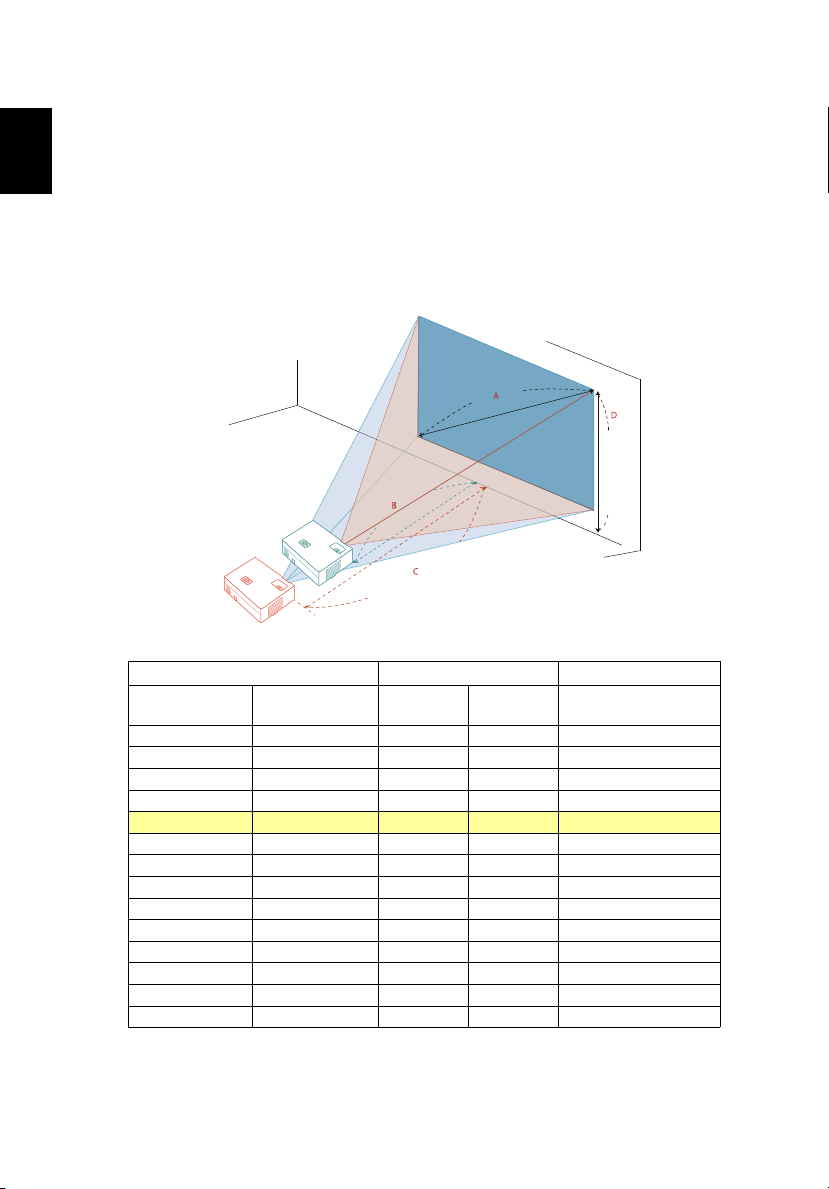

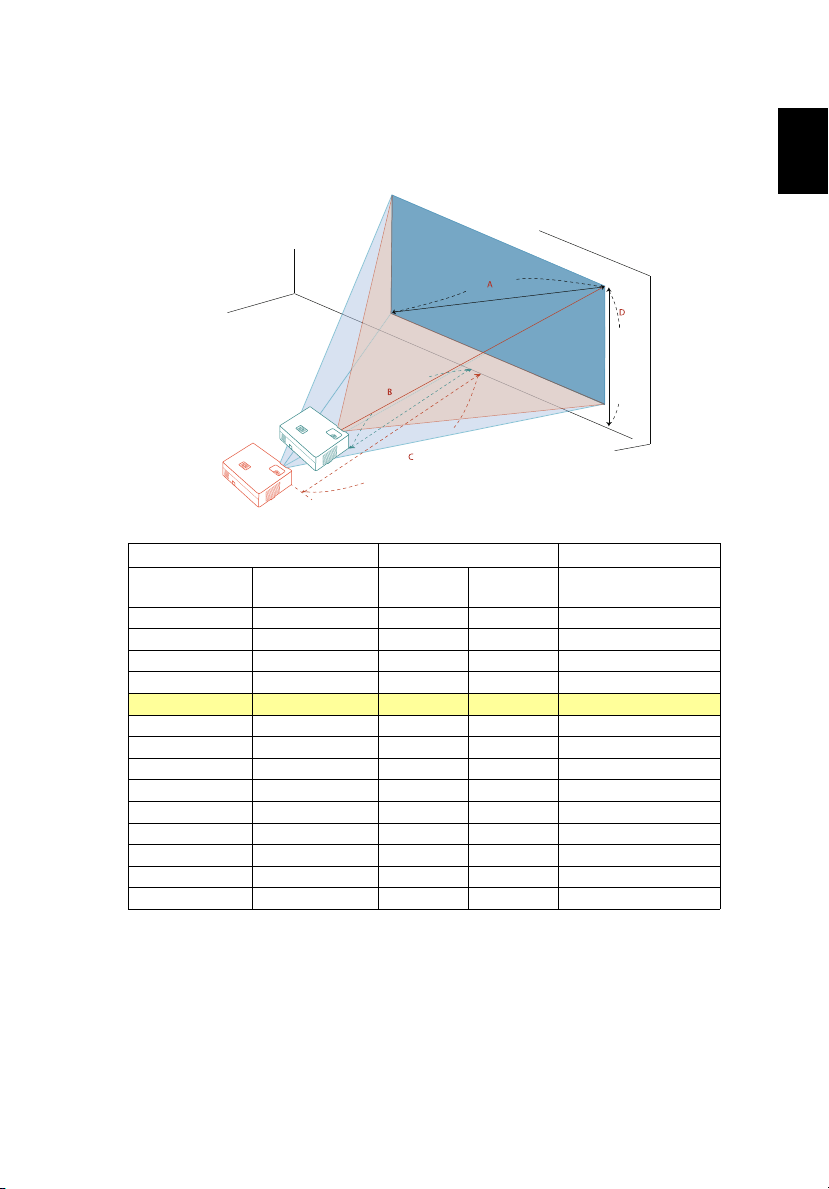

How to Get a Preferred Image Size by Adjusting
Distance and Zoom

The table below shows how to achieve a desired image size by adjusting either
the position or the zoom ring.

• PD1330W/LK-W300/EW330/K731/FD-230/VD5310

To obtain an image size of 70", set the projector at a distance between 2.1 m
and 2.5 m from the screen and adjust the zoom level accordingly.

Desired Image Size Distance (m) Top (cm)

Diagonal (inch)

< A >

W (cm) x H (cm)

Max zoom

< B >

Min zoom

< C >

30 65 x 40 1.1 36

40 86 x 54 1.2 1.4 48

50 108 x 67 1.5 1.8 60

60 129 x 81 1.8 2.1 72

70 151 x 94 2.1 2.5 84

80 172 x 108 2.4 2.8 96

90 194 x 121 2.7 3.2 108

100 215 x 135 3.0 3.5 120

120 258 x 162 3.5 4.2 145

150 323 x 202 4.4 5.3 181

180 388 x 242 5.3 6.4 217

200 431 x 269 5.9 7.1 241

250 538 x 337 7.4 8.8 301

300 646 x 404 8.9 361

Zoom Ratio: 1.2 x

From base to top of

image < D >

English

• PD1530i/LK-F300i/EF330i/K751i/FD-430i/VD6510i

Desired distance

Height:
80 cm
From
base to
top of

70"
Desired

image size

2.0 m

2.4 m

To obtain an image size of 70", set the projector at a distance between 2.0 m
and 2.4 m from the screen and adjust the zoom level accordingly.

Desired Image Size Distance (m) Top (cm)

Diagonal (inch)

< A >

W (cm) x H (cm)

30 66 x 37 1.0 34

40 89 x 50 1.2 1.4 46

50 111 x 62 1.4 1.7 57

60 133 x 75 1.7 2.1 68

70 155 x 87 2.0 2.4 80

80 177 x 100 2.3 2.8 91

90 199 x 112 2.6 3.1 103

100 221 x 125 2.9 3.5 114

120 266 x 149 3.5 4.1 137

150 332 x 187 4.3 5.2 171

180 398 x 224 5.2 6.2 205

200 443 x 249 5.8 6.9 228

250 553 x 311 7.2 8.6 285

300 664 x 374 8.6 342

Zoom Ratio: 1.2 x

Max zoom

< B >

Min zoom

< C >

From base to top of

image < D >

13

14

English

User Controls

Installation Menu

The Installation menu provides an Onscreen Display (OSD) for projector
installation and maintenance. Use the OSD only when the message "No
signal" is displayed on the screen or when the projector searches for input
signal.

1 Turn on the projector by pressing (POWER) on the control panel or

remote control.

2 Press "MENU" on the control panel or remote control to launch the

OSD for projector installation and maintenance.

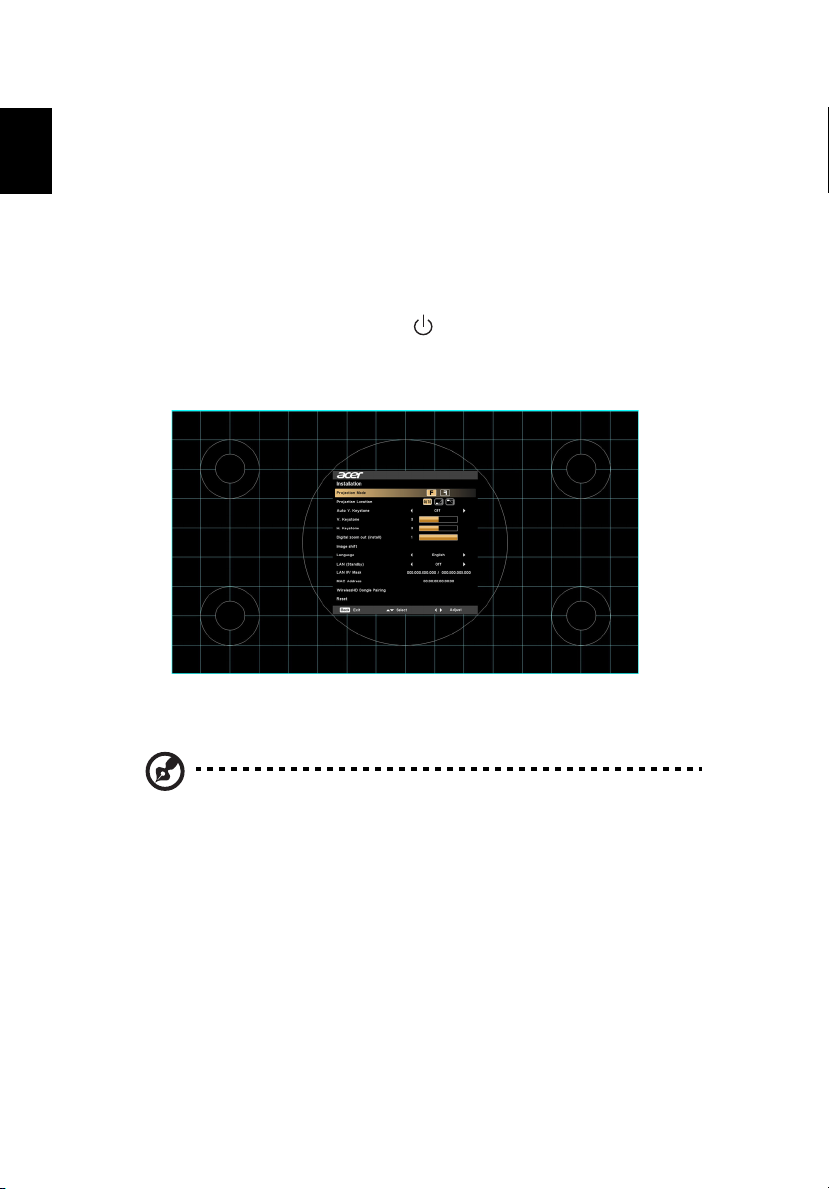

3 The background pattern acts as a guide to adjusting the calibration

and alignment settings, such as screen size and distance, focus and
more.

Note: The OSD screenshot is for reference only and may differ from the
actual design.

4 The Installation menu includes several options.

Use the up and down arrow keys to select an option, the left and right arrow keys to
adjust selected option settings, and the right arrow key to enter a submenu for
feature setting. The new settings will be saved automatically upon exiting the menu.

5 Press "MENU" anytime to exit the menu and return to the Acer

welcome screen.

15

English

Main menu

Submenu

Setting

Onscreen Display (OSD) Menus

The projector has multilingual Onscreen Display (OSD) menus that allow
you to make image adjustments and change a variety of settings.

Using the OSD menus

• To open the OSD menu, press "MENU" on the control panel or remote

control.

• When the OSD is displayed, use to select an item in the main menu.

After selecting the desired main menu item, press to enter a submenu
for feature setting.

• Use to select the desired item and adjust the settings by using

.

• Select the next item to be adjusted in the submenu and adjust as described

above.

• Press "MENU" on the control panel or remote control, the screen will

return to the main menu.

• To exit the OSD menu, press "MENU" on the control panel or remote

control again. It will close and the projector will automatically save the
new settings.

Note: Some of the following OSD settings may not be available. Please refer
to the actual OSD of your projector.

16

English

Color

Display Mode

Color Profile

BluelightShield

There are many factory presets optimized for various types
of images.

• Bright: For brightness optimization.

• Presentation: For meeting presentation with higher

brightness.

• Standard: For common environment.

• Rec.709: For Rec. 709 standard.

• Movie: For brighter and general movie/video/photo

playing.

• Dark Cinema: For dark movie content.

• Game: For game content.

• Football: For football game.

• Video: For playing video in a bright environment.

• Education: For education environment.

• DICOM SIM: For DICOM format files in simulation

mode, and not for actual diagnosis.

• ISF Day/ISF Night: Only available when ISF is enabled.

• User 1/User 2/User 3: Memorize user’s settings.

Available when User 1/User 2/User 3 is selected in the
Display Mode menu. You can use one of the display modes
as a starting point and customize the settings. The below
OSD items can be adjusted and saved.

This function protects your eyes from over-exposure to
blue light. The options are Off, Low, Medium, and High.
Choose a preferred setting to reduce the level of blue light
and get a comfortable viewing experience.

When this function is enabled, LumiSense will be
automatically set to "Off".

English

LumiSense

Wall Color

The projector can intelligently optimizes the brightness
and color saturation of projected image. The feature
greatly enhances dark detail visibility and color saturation.

• Off: For normal mode.

• Normal: For enhancing the details in the dark area.

• Boost: For boosting brightness of the projected image.

• Dynamic Black: automatically optimizes the display of

dark movie scenes enabling them to be shown in
incredible detail.

When this function is enabled, BluelightShield will
be automatically set to "Off".

LumiSense function is unavailable when 3D is set to
"On"

Use this function to choose a proper color according to the
wall. There are several choices, including White, Light
Yellow, Light Blue, Pink and Dark Green. It will compensate
for the color deviation due to the wall color to show the
correct image tone.

Adjusts the brightness of the image.

17

Brightness

• Press to darken the image.

• Press to lighten the image.

Controls the degree of difference between the lightest and
darkest parts of the picture. Adjusting the contrast changes

Contrast

the amount of black and white in the image.

• Press to decrease the contrast.

• Press to increase the contrast.

Adjusts a video image from black and white to fully
saturated colors.

Saturation

• Press to decrease the amount of color in the

image.

• Press to increase the amount of color in the

image.

18

English

Adjusts the color balance of red and green.

Hue

Color
Temperature

Gamma

Advanced

• Press to increase the amount of green in the

image.

• Press to increase the amount of red in the image.

Adjusts the color temperature. At higher color
temperatures, the screen looks colder; at lower color
temperatures, the screen looks warmer.

Effects the representation of dark scenery. With greater
gamma value, dark scenery will look brighter.

• Ind. Color Management: Adjusts the red, green, blue,

cyan, yellow and magenta colors.

• - Ind. Hue: Changes the hue of the color selected.

• - Ind. Saturation: Adjusts a video image from black

and white to fully saturated color.

• - Ind. Gain: Adjusts the contrast levels.

• Brilliant Color: Produces an expanded on-screen color

spectrum that delivers enhanced color saturation for
bright, true-to-life images. This feature is "On" by
default.

• White Peaking: Increases the brightness of whites that

are near 100%. (Video sources only)

• Film Mode: Sets the image optimized to 24-frame True

Film mode for more realistic cadence of film playback
during motion sequences.

• Noise Reduction: Adjusts the level of noise reduction

that helps to eliminate unwanted noise in the picture.

• Black Extension: Analyzes the current input image and

calculates an offset value which is then added to the
analog to digital converter black level value. This
ensures optimum black level for each analog source.

• ISF: This menu is password protected and only

accessible by authorized calibrators. The ISF (Imaging
Science Foundation) has developed carefully crafted,
industry-recognized standards for optimal video
performance and has implemented a training
program for technicians and installers to use these
standards to obtain optimal picture quality ISF
certified display devices. Accordingly, we recommend
that setup and calibration be performed by an ISF
certified installation technician. For more information,
go to www.imagingscience.com or contact the dealer
or retailer from whom you purchased the projector.

English

Rename

19

Available when User 1/User 2/User 3 is selected in the
Display Mode menu. You can change User 1/User 2/User 3
to your preferred mode name in English letters.

Note: "Saturation" function is not supported under computer mode.

20

English


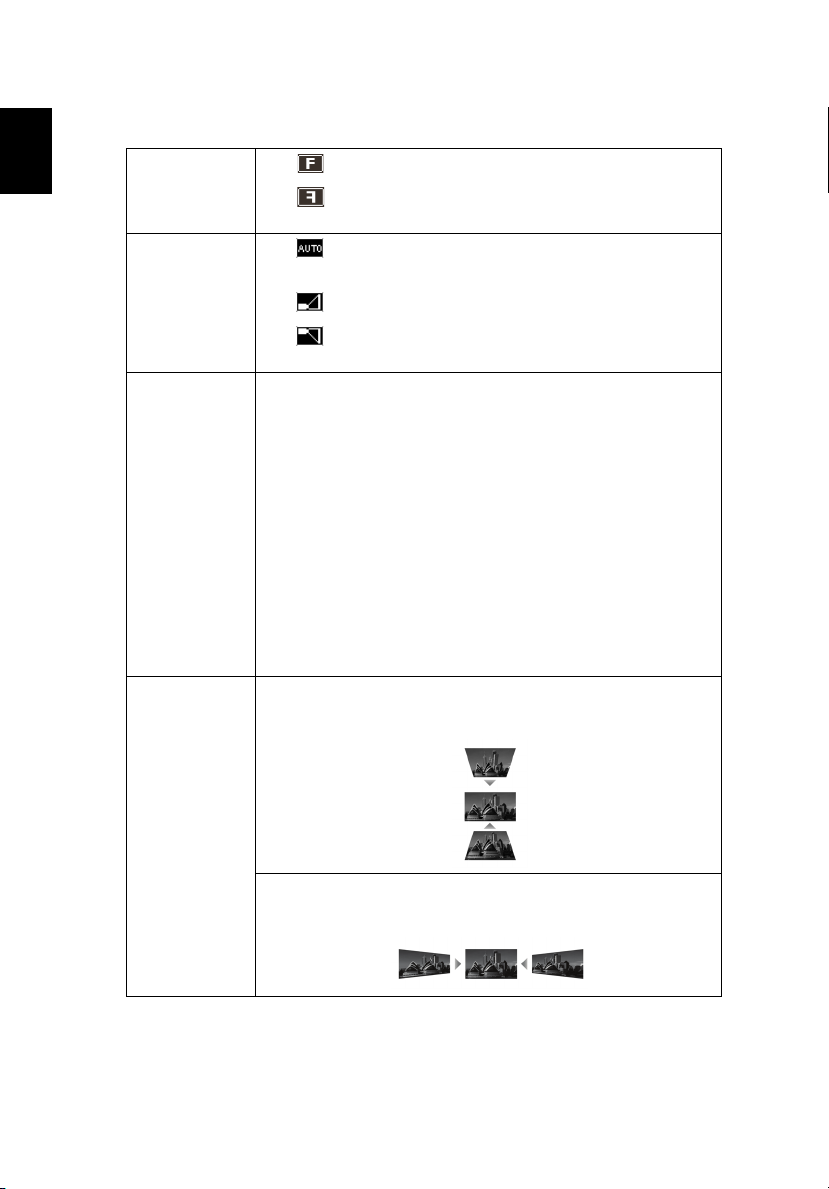

Projection
Mode

Projection
Location

Aspect Ratio

• Front: The factory default setting.

• Rear: Reverses the image so you can project from

behind a translucent screen.

• Auto: Automatically adjusts projection location of

image.

• Desktop

• Ceiling: Turns the image upside down for ceiling-

mounted projection.

Use this function to choose your desired aspect ratio.

• Auto: Keeps the image with original width-height ratio

and maximizes the image to fit native horizontal or
vertical pixels.

• Full (for WXGA/1080p models): The image will be

displayed making full use of the horizontal and vertical
pixels.

• 4:3: The image will be scaled to fit the screen and

displayed using a 4:3 ratio.

• 16:9: The image will be scaled to fit the screen and

displayed using a 16:9 ratio.

• L.Box (for WXGA/1080p models): Keeps the original

signal aspect ratio and zooms in by 1.333 times.

V. Keystone
Manually adjusts image distortion caused by tilting
projection (±30 degrees).

H/V Keystone

H. Keystone
Manually adjusts image distortion caused by tilting
projection (±30 degrees).

English

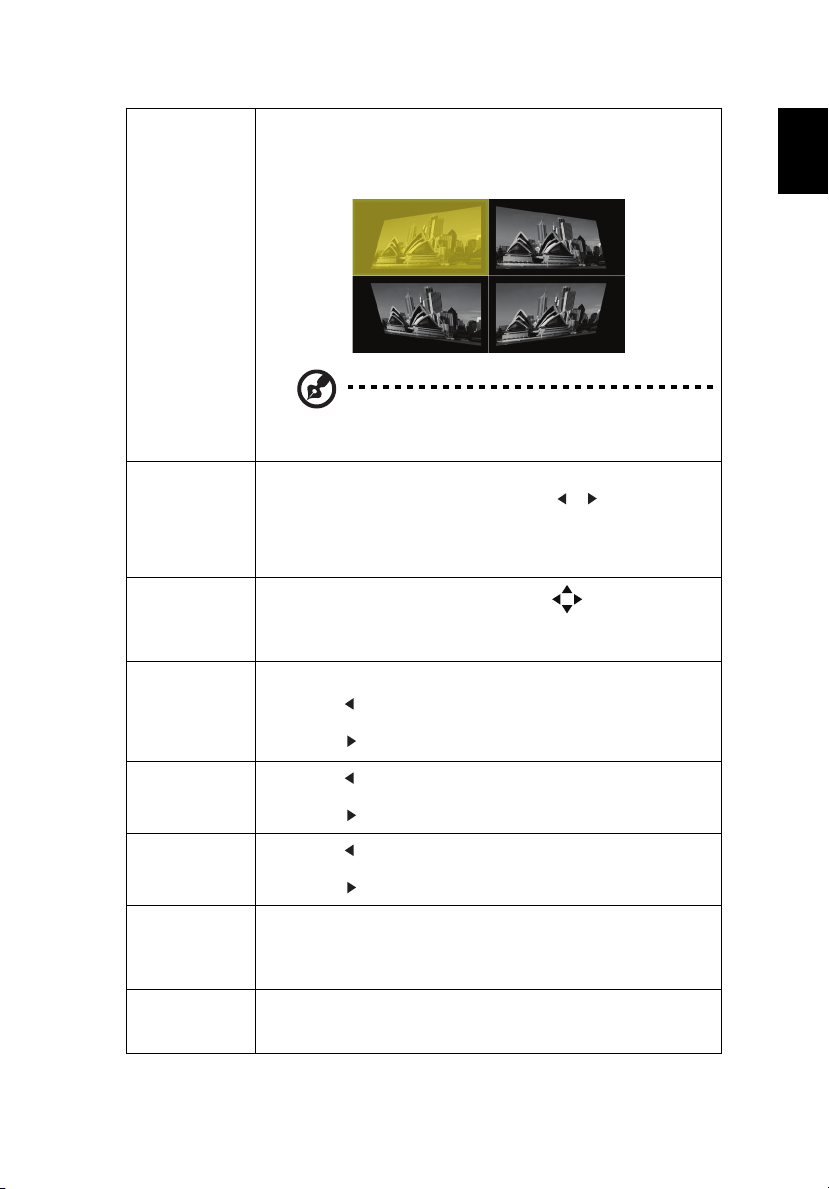

4 Corner
Correction

Digital Zoom
Out (Install)

Manually adjusts the shape and size of an image that is
unevenly rectangular on all sides. Press "MODE" repeatedly
to select the corner that you wish to adjust. Press four
directional selection keys to adjust the image shape.

Please adjust 4-corner correction separately for each
aspect ratio, and its memory is allowed to save 4 sets of
settings only.

Sets the default size of the projected image. You can further

zooms in or out the image by pressing . Using the
functions of Digital Zoom Out and Image Shift together helps

you fit the projected image full screen without adjusting the
existing ceiling mount settings.

21

Image Shift

Sharpness

Shifts the projected image by pressing . When Native

Resolution is WUXGA, this functions is only available when
the setting of Digital Zoom Out (Install) is less than 1.0.

Adjusts the sharpness of the image.

• Press to decrease the sharpness.

• Press to increase the sharpness.

H. Position
(Horizontal
Position)

V. Position
(Vertical
Position)

Frequency

Tracking

• Press to move the image left.

• Press to move the image right.

• Press to move the image down.

• Press to move the image up.

Changes the projector’s refresh rate to match the frequency
of your computer’s graphics card. If you experience a vertical
flickering bar in the projected image, use this function to
correct it.

Synchronizes the signal timing of the display with the
graphics card. If you experience an unstable or flickering
image, use this function to correct it.

22

English

HDMI Color
Range

HDMI Scan Info

Note: "H. Position", "V. Position", "Frequency" and "Tracking" functions
are not supported under video or HDMI mode.

Note: "HDMI Color Range" and "HDMI Scan Info" are only available when
the input signal is HDMI.

Adjusts the color range of the HDMI image data to prevent
color display error.

• Auto: Automatically adjusts the color range by

information from the player.

• Limited Range: Processes the input image as limited

color range data.

• Full Range: Processes the input image as full color range

data.

Adjusts the overscan ratio of the HDMI image on screen.

• Auto: Automatically adjusts the overscan ratio by

information from the player.

• Underscan: Always no overscan on the HDMI image.

• Overscan: Always keep overscan on the HDMI image.

English

Setting

HDR

Startup Screen

Source Selection

Closed Caption

USB 5V
(Standby)

23

• HDR: The projector supports HDR imaging sources. It can

automatically detect the dynamic range of the source,
and optimize settings to reproduce contents under wide
range of light conditions. If the input source is not
defined with dynamic range, you can also manually
select HDR 10 or HLG for it.

• EOTF: This function helps provide better image quality

with options from low, middle to high.

Use this function to select your desired startup screen. If you
change the setting, it will take effect when you exit the OSD
menu.

• Acer: The default startup screen of your Acer projector.

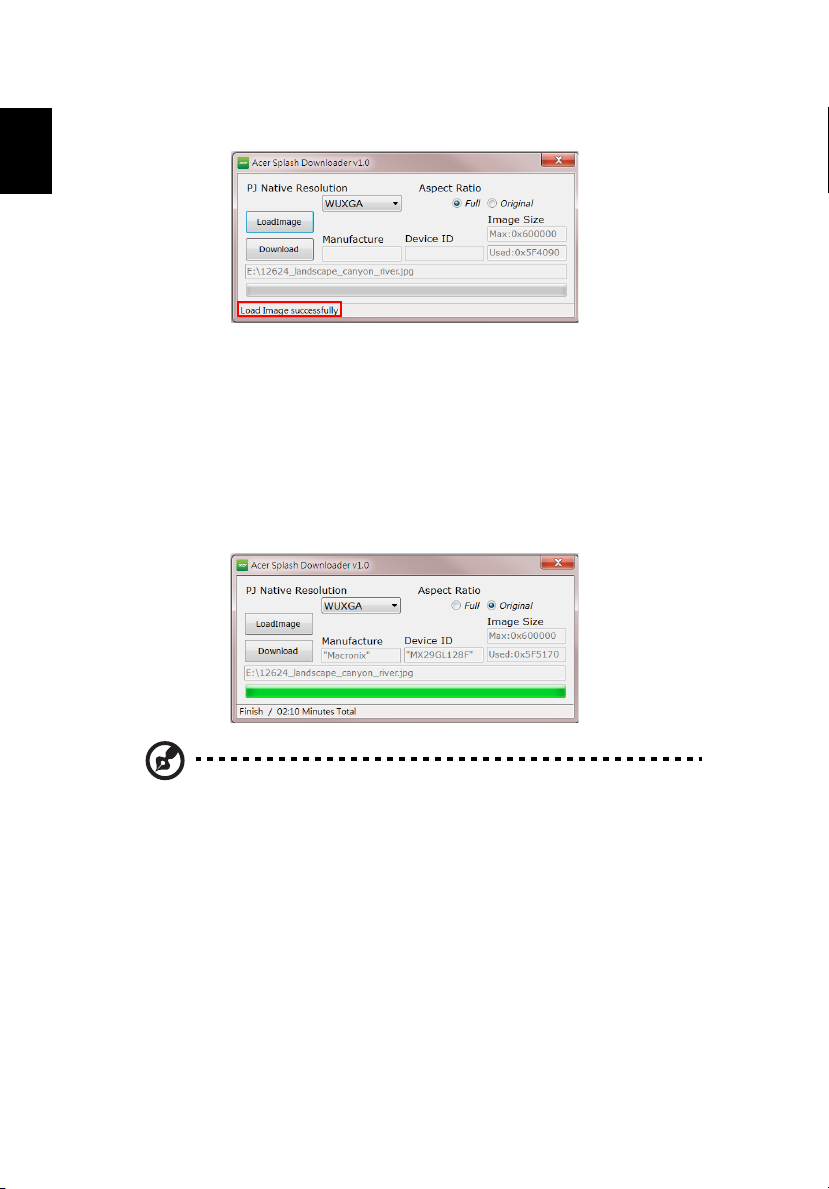

• User: Use the picture you transfer to the projector. See

"Acer Splash Downloader" for how to transfer the
picture.

• Manual: When switching input signals, you need to press

"SOURCE" on the control panel or remote control, or
the direct source key on the remote control.

• Auto: The projector will detect your source

automatically.

Selects a preferred closed captioning mode from CC1, CC2,
CC3, CC4 (CC1 displays captions in the primary language in
your area). Select "Off" to turn off the captioning feature.
This function is only available when a composite video or S­Video input signal is selected and its system format is NTSC.

Selecting "On" enables the function. The MHL port(s) and the
DC 5V out port/USB A port (if available) on the projector can
output 5V power when the projector is turned on or in
standby mode.

Only MHL port(s) will provide power output when
MHL port(s) and USB A port are both plugged.

Selecting "On" allows synchronized power ON/OFF operation
between the projector and a CEC-compatible device

HDMI CEC

connected to the HDMI/MHL port of the projector.

This function is only available for the HDMI/MHL port.

24

English

This function is especially suitable for gaming environment. It
reduces input to output latency and helps create a seamless
experience.

Low Input Lag

Security

This function is only available for certain input timings.
After turned on, performing Auto Keystone or
adjusting the following settings will deactivate this
function: Aspect ratio, Keystone, H. Position, V.
Position, Frequency, HDMI Scan Info, Digital Zoom.
When Display Mode is Game Dark or Game Bright, this
function will be automatically turned on.

Security
This projector provides a useful security function for the
administrator to manage the projector.

Press to change the "Security" setting. If the security

function is enabled, your must enter "Administrator
Password" first before changing the security setting.

The factory default of "Administrator Password" is
"1234".

• Select "On" to enable the security function. You have to

enter password depending on the "Security Mode".
Please refer to "User Password" section for details.

• If "Off" is selected, you can switch on the projector

without password.

Timeout (Min.)
Once "Security" is set to "On", you can set timeout function.

• Press to select timeout duration.

• The range is from 10 to 990 minutes.

• When time is up, the projector will request you to enter

the password again.

• The factory default setting of "Timeout (Min.)" is "Off".

• Once the security function is enabled, the projector will

request you to enter password when switching on the
projector. Both "User Password" and "Administrator
Password" can be accepted for this dialogue.

English

Security

25

User Password

• Press to set up or change "User Password".

• Use the numerical keys on the remote control to set the

password and press "ENTER" to confirm.

• To delete the digits, Press .

• Enter the password again when you see "Confirm

Password" displayed.

• The password should be 4~8 digits in length.

• If you select "Request password only after plugging

power cord", you are requested to input the password
every time the power cord is plugged. If you fail to enter
the correct password within 20 minutes upon request,
the projector will shut down automatically.

• If you select "Always request password while projector

turns on", you are requested to input the password
every time the projector is turned on. If you fail to enter
the correct password within 20 minutes upon request,
the projector will shut down automatically.

Administrator Password
You can enter "Administrator Password" when the "Enter
Administrator Password" or "Enter Password" dialogue box
displays.

• Press to change "Administrator Password".

• The factory default of "Administrator Password" is

"1234".
If you forget your administrator password, do the following
to retrieve the administrator password:

• Enter the unique 6-digit "Universal Password" which is

printed on the Security Card that came with your

projector. This unique password will be accepted by the

projector no matter what the administrator password is.

• If the Security Card is lost, please contact your local Acer

service center.
Lock User Startup Screen

This function is set to "OFF" by default. If set to "ON", the
startup screen is locked and cannot be changed by the
"Startup Screen" and "Screen Capture" functions.

26

English

To switch input
signals, click your
desired signal.

These buttons
function the
same as those
on the OSD
menus,
projector
control panel,
or remote
control.

See Note 2 and
Note 3.

You can enter
the projector
information.

DHCP can be
disabled and
these settings
have to be
configured
manually.

You can set the
user password/
administrator
password to
prevent
unauthorized use
of the remote
network
operation/Tools
page.

LAN

Reset

LAN
The default value is "Off". Choose "On" to enable the LAN
connection.
LAN IP/ Mask
Identify IP and Mask address.
LAN Reset
Press "ENTER" after choosing "Yes" to return all items on the
Tools page to the default settings.

Press "ENTER" after choosing "Yes" to return the display
parameters on all menus to the factory default settings.

Using a web browser to control your projector

1. Make sure that your PC and the projector are connected to the same local
area network.

2. Open the web browser on your PC and type in the LAN IP of the projector.
(See the LAN IP in the Setting > LAN > LAN IP/ Mask menu.)

3. The remote network operation page displays and you can control the
projector. If not, perform LAN Reset in the Setting > LAN menu of the
projector’s OSD menu and then try again.

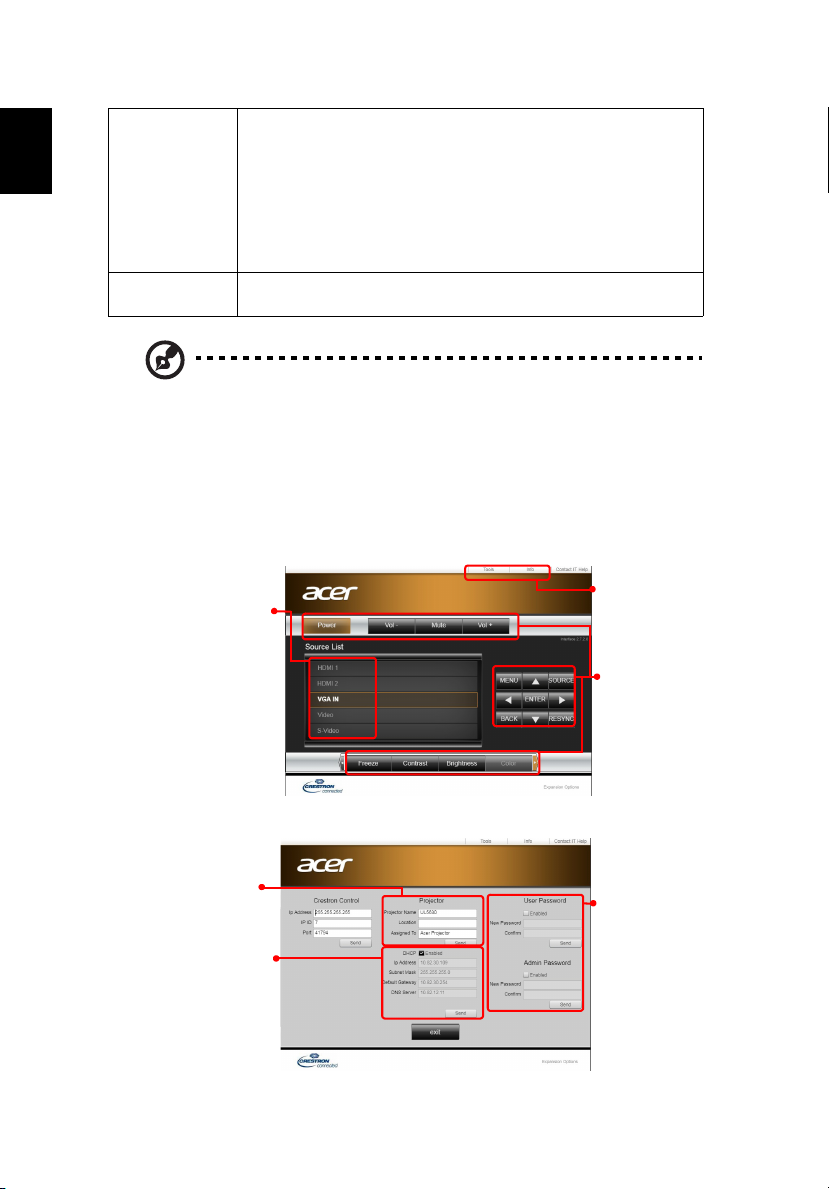

Note 1 : An overview of the remote network operation page

Note 2 : An overview of the Tools page

English

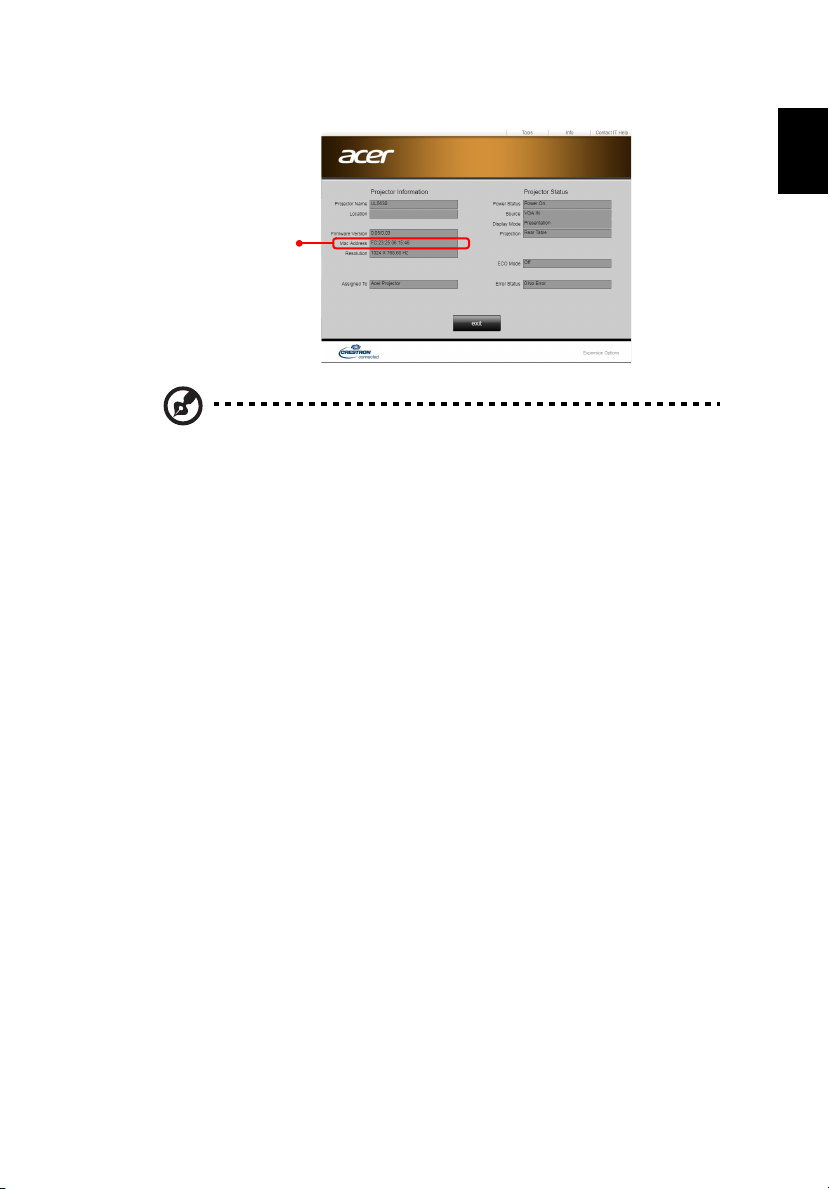

Note 3: The Info page shows the projector information and status.

Mac Address
can be
obtained
from here.

This projector can be controlled by using a PC (laptop) or other external
device via LAN / RJ45 port and compatible with Crestron / AMX (Device ­Discovery) / PJLink.

• Crestron is a registered trademark of Crestron Electronics, Inc. of the
United States.

• AMX is a registered trademark of AMX LLC of the United States.

• PJLink applied for trademark and logo registration in Japan, the United
States of America, and other countries by JBMIA.

The projector is supported by the specified commands of the Crestron
Electronics controller and related software,
for example RoomView®.
For more information, visit http://www.crestron.com/

This projector is supported by AMX (Device Discovery).
For more information, visit http://www.amx.com/

This projector supports most commands of PJLink Class1 (Version 1.00).
For more information, visit http://pjlink.jbmia.or.jp/english/

27

28

English

Management

Choose "ECO" to dim the projector lamp, which will also

ECO Mode

Light Source
Power

High Altitude

Auto Shutdown
(Minutes)

Menu Display
Time (Seconds)

Auto Power On

lower the power consumption, reduce noise, and extend
the lamp life. Choose "User" allows you to adjust the light
source power. Choose "Off" to return to the normal mode.

This function is only available when "Custom" is selected
in the ECO Mode menu. You can adjust the light source
power to extend the light source life and decreases the fan
noise.

Choose "On" to turn on the High Altitude mode. When
this function is turned on, the projector fans operate at full
speed continuously to cool down the projector’s
temperature.

The projector will automatically shut down while there is
no signal input detected after the time you set.

• 5/15/30: Chooses the length of time the OSD menu

• Manual: The OSD menu remains active. The only way

AC Power On
Selecting "On" enables the function. The projector will
automatically turn on when power is supplied via the
power cord.

HDMI Power On
Selecting "On" enables the function. The projector will
automatically turn on when power is supplied via the
power cord and the HDMI signal is supplied via the HDMI
cable.

VGA Power On
Selecting "On" enables the function. The projector will
automatically turn on when power is supplied via the
power cord and the VGA signal is supplied via the VGA
cable.

will remain active after your last key press.

to launch or exit the OSD menu is by pressing
"BACK".

English

• Off: Allows all keys on the control panel to operate

normally.

• Child Lock: Disables the Power key on the control

panel when the projector is in standby mode to
prevent it from being accidentally turned on. To turn
the projector on, press and hold the Power key for 3
seconds.

Control Panel
Lock

Information Displays current status of this projector.

• Full Lock: Disables all keys on the control panel. If you

turn off the projector without disabling the Full Lock
function, the projector will still be in locked status the
next time it is turned on. To disable Full Lock function,
press and hold "POWER" on the control panel for 7
seconds and the Control Panel Lock will be set to
"Off". When the projector is in standby mode, press
and hold "POWER" on the control panel for 7 seconds
to turn the projector on and the Control Panel Lock
will be set to "Off".

Audio

29

Volume

• Press to decrease the volume.

• Press to increase the volume.

Mute

Power On/Off
Volume

Alarm Volume

• Choose "On" to turn mute on.

• Choose "Off" to turn mute off.

Select this function to adjust the notification volume
when turning the projector on/off.

Select this function to adjust the volume of any
warning notifications.

30

English

3D

Selects "On" to enable the 3D function supported by DLP 3D
technology.

3D

3D Format

24P 3D Choose 96Hz or 144Hz for 24p 3D.

3D L/R Invert

3D Warning
Message

• On: Select this item while using DLP 3D glasses, quad

buffer (NVIDIA/ATI...) graphics card and HQFS format file
or DVD with corresponding SW player.

• Off: Turns off the 3D mode.

If the 3D content is not displayed correctly, you can select a
3D format that suits the 3D content you are viewing and
obtain the best result.

If you see a discrete or overlapping image while wearing DLP
3D glasses, you may need to execute "Invert" to get best
match of left/right image sequence to get the correct image
(for DLP 3D).

Choose "On" to display the 3D warning message.

Note: Supported 3D signal timings:

Signal source type Supported timing

Video/S-Video/Component
video

VGA/HDMI (PC mode) 00 x 600@50/60/100/120Hz

HDMI (Video mode) HQFS 3D (480i@60Hz), 576i@50Hz,

It needs correct settings on graphics card 3D application program for correct
3D display.

Note: "3D L/R Invert" and "3D Format" are only available when "3D" is
enabled.

HQFS 3D (480i@60Hz), 576i@50Hz

1024 x 768@50/60/100/120Hz
1280 x 800@50/60/100/120Hz (RB)
1920 x 1080@50/60/100/120Hz

Frame Packing ([email protected]/24Hz,
720p@50/60Hz)
Side-by-Side Horizontal (1080i@50/60Hz,
1080p@50/60Hz)
Top-and-Bottom (720p@50/60Hz,
[email protected]/24Hz, 1080p@50/60Hz)

English

Language

31

Language

Sets a language for the OSD menus. Use to
select your preferred language.

32

English

Acer Splash Downloader

Introduction

Acer Splash Downloader allows you to upload your desired picture onto an Acer
projector. You can select the picture as the startup screen via the projector’s
OSD menu.

System Requirements

Maximum image size 6 Mbytes
Maximum image resolution 1920 x 1200

Minimum image resolution 800 x 600
Maximum color bits 24 bits
Image format BMP, JPG, PNG
Supported operation

system

Using the Acer Splash Downloader

1. Entering download mode

Long press the POWER and MENU buttons on the control panel simultaneously
while plugging in the power cord until the LED indicator lights up red.

Recommended: Native resolution

Windows 7, 8, 8.1, 10 (32 / 64 Bit)

33

English

2. Connecting the computer to the projector

Use an USB cable to connect the computer and the projector.

3. Executing the Acer Splash Downloader tool on the computer

If the projector is not properly connecting to the computer, below message will
be displayed.

If the projector successfully connects the computer, below message will be
displayed. Press "Logo Replace" to proceed.

4. Loading the image

First, select the native resolution for the projector by adjusting "PJ Native
Resolution" and decide if you want the image to be displayed full screen or in
its original aspect ratio.

Press "LoadImage" and choose an image from your computer.

34

English

If the image is loaded successfully, the tool status will display "Load Image
successfully".

"Setting changed!! Please load image again." will be displayed in the tool
status when PJ Native Resolution or aspect ratio is adjusted after the image is
loaded successfully.

"Image size is over defined range" will be displayed in the tool status when the
image is too large, and "Load Image fail" will be displayed when the image
format is not supported.

5. Downloading the image to the projector

Press "Download" to start downloading the image to the projector.

Note: If "Unknown" is shown in the Manufacture or Device ID
field, the projector is not in a status suitable for download. Go
back to step 1 and try again.

After the image is downloaded successfully, the projector will
automatically shut down (enter standby mode), and the Startup Screen
function in the OSD menu will be set to "User".

35

English

Appendices

Troubleshooting

If you experience a problem with your Acer projector, refer to the following
troubleshooting guide. If the problem persists, please contact your local reseller
or service center.

Image Problems and Solutions

# Problem Solution

1 No image appears

onscreen

2 Partial, scrolling

or incorrectly
displayed image
(For PC)

• Make sure all the cables are correctly connected as

described in the "Getting Started" section.

• Ensure none of the connector pins are bent or

broken.

• Make sure the projector is switched on.

• For an incorrectly displayed image:

• Open "My Computer > Control Panel," and

then double-click the "Display" icon.

• Select the "Settings" tab.

• Verify that your display resolution setting is

lower than or equal to 1600 x 1200 or 1920 x

1080.

• Click the "Advanced Properties" button.

If the problem still appears, change the monitor display
you are using and follow the steps below:

• Verify that the resolution setting is lower than

or equal to 1600 x 1200 or 1920 x 1080.

• Click the "Change" button under the

"Monitor" tab.

• Click "Show all devices > Standard monitor

types" under the SP box, and choose the
resolution mode you need under the "Models"
box.

• Verify that the resolution setting of the

monitor display is lower than or equal to 1600 x
1200 or 1920 x 1080.

36

English

3 Partial, scrolling

or incorrectly
displayed image
(For notebooks)

4 The screen of the

notebook
computer is not
displaying your
presentation

5 Image is unstable

or flickering

6 Image has vertical

flickering bar

7 Image is out of

focus

• For an incorrectly displayed image:

• Follow the steps for item 2 (above) to adjust

the resolution of your computer.

• Press the toggle output settings. Example:

[Fn]+[F4], Compaq [Fn]+[F4], Dell [Fn]+[F8],
Gateway [Fn]+[F4], IBM [Fn]+[F7], HP
[Fn]+[F4], NEC [Fn]+[F3], Toshiba [Fn]+[F5]

• If you experience difficulty changing resolutions or

your monitor freezes, restart all equipment
including the projector.

• If you are using a Microsoft

notebook: Some notebook PCs may deactivate their
own screens when a second display device is in use.
Each has a different way to be reactivated. Refer to
your computer's manual for detailed information.

• If you are using an Apple

notebook: In System Preferences, open Display and
select Video Mirroring "On."

®

Windows® based

®

Mac® OS based

• Use "Tracking" to correct it. Refer to the "Image"

section for more information.

• Change the display color setting on your computer.

• Use "Frequency" to make an adjustment. Refer to

the "Image" section for more information.

• Check and reconfigure the display mode of your

graphics card to make it compatible with the
projector.

• Adjust the focus settings.

• Make sure the projection screen is within the

required distance. (Refer to "Projection distance
with clear focus" section for more information.)

Refer to the "How to Get a Preferred Image Size by
Adjusting Distance and Zoom" section for more
information.

8 Image is stretched

when displaying a
"widescreen"
DVD title

When you play a DVD encoded in anamorphic or 16:9
aspect ratio you may need to adjust the following
settings:

• If you play a 4:3 format DVD title, please change the

format to 4:3 with the projector OSD.

• If the image is still stretched, you will also need to

adjust the aspect ratio. Set up the display format to
16:9 (wide) aspect ratio on your DVD player.

37

English

9 Image is too small

or too large

• Adjust the zoom lever on the top of the projector.

• Move the projector closer to or further from the

screen.

• Press "MENU" on the control panel or remote

control. Go to "Image" > "Aspect Ratio" and try
different settings.

10 Image has slanted

sides

• If possible, reposition the projector so that it is

centered on the screen and below the bottom of the
screen.

• Press the Keystone correction keys on the control

panel or remote control until the image becomes
square.

• Press "MENU" on the control panel or remote

control to open the OSD menu. Go to "Image" > "H/
V Keystone" or "Image" > "4 Corner Correction" to
make adjustments.

11 Image is reversed

• Select "Image" > "Projection Mode", "Image" >

"Projection Location" on the OSD and adjust the
projection direction.

Problems with the Projector

# Condition Solution

1 The projector stops responding

to all controls

• If possible, turn off the projector, then

unplug the power cord and wait at
least 30 seconds before reconnecting
power.

• Make sure that the control panel lock

function is disabled.

2 Lamp burns out or makes a

popping sound

When the lamp reaches the end of its useful
life, it will burn out and may make a loud
popping sound. If this happens, the projector
will not turn on until the lamp module has
been replaced. To replace the lamp, contact
your local dealer or Acer service center.

38

English

Fan Fail.

Light source will automatically turn off soon.

Projector Overheated.

Light source will automatically turn off soon.

OSD Messages

# Condition Message Reminder

1 Message Fan Fail - the system fan is not working.

Projector Overheated - the projector has exceeded its
recommended operating temperature and must be allowed to
cool down before it is used.

English

LED & Alarm Definition Listing

LED Messages

Message Power LED LAMP LED TEMP LED

Red Blue Red Red

39

Standby
(Power cord plugged in)

Power on -- V -- --

Lamp retry -- Quick

Turning off (Cooling
state)

Turning off (Cooling
completed)

Firmware download V -- V V

Acer splash download V -- V V

Error (Thermal failure) -- V -- V

Error (Fan lock failure) -- V -- Quick

Error (Lamp breakdown) -- V V --

Error (Color wheel
failure)

V-- -- --

flashing

Quick

flashing

V-- -- --

-- V Quick

-- -- --

-- --

flashing

flashing

--

40

English

145.6

176.6

282.9

305.9

Unit: mm

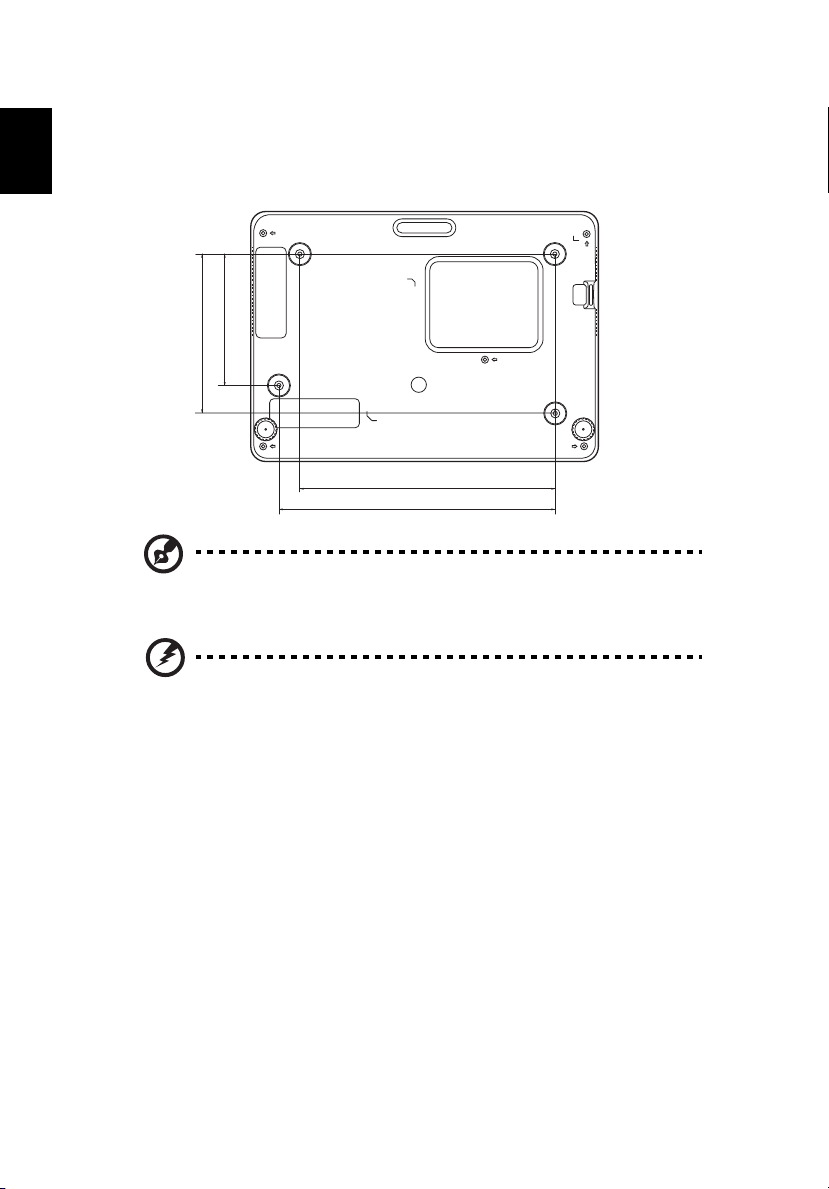

Ceiling Mount Installation

If you wish to use a third party ceiling mount kit, please ensure the screws used
to attach a mount to the projector meet the following specifications:

• Screw type: M4 x 10L

Note: Please note that damage resulting from incorrect
installation will void the warranty.

Warning:

• If you buy a ceiling mount from another company, please be sure to use
the correct screw size. Screw size will vary depending on the thickness of
the mounting plate.

• Be sure to keep at least 10 cm gap between the ceiling and the bottom of
the projector.

• Avoid installing the projector near a heat source.

English

Specifications

The specifications below are subject to change without notice. For final specs,
please refer to Acer's marketing documentation.

41

Projection system

Computer compatibility Refer to the "Compatibility Modes" section for more

Video compatibility NTSC/NTSC4.43/PAL (M/N)/ SECAM/ PAL60/ NTSC (480i)/

Displayable colors 1.07 billion colors

Digital zoom 0.8 – 2 X

Weight Approximate 6 kg (13.23 lbs.)

Dimensions (W x D x H) 386 x 276 x 101 mm (16.9" x 15.3"x 5.6")

Power supply Universal AC input 100 - 240 V, input frequency 50/60

Operating temperature 0ºC to 40ºC / 32ºF to 104ºF

Standard package contents

™

DLP

information.

480p/ PAL (576i)/ 576p, HDTV (720p/1080i/1080p)

386 x 276 x 117 mm (16.9" x 15.3"x 6.2") (with tilt
adjusting wheels)

Hz

• AC power cord x 1

• Remote control x 1

• Battery x 2 (for the remote control)

• Quick start guide x 1

Accessory (optional)

• User's guide (CD-ROM) x 1

• VGA cable x 1

• HDMI cable x 1

• Security card x 1

• Carrying case x 1

• WirelessHD dongle kit (MWIHD1) x 1

42

English

PD1330W/LK-W300/EW330/K731/FD-230/VD5310

Resolution Native: WXGA (1280 x 800)

Aspect ratio Auto, 4:3, 16:9, Full, L.Box

Projection lens F = 1.6 ~ 1.76, f = 19.16 ~ 23.02 mm,

Projection screen size (diagonal) 60" – 150" (1.52 m – 3.81 m)

Projection distance with clear
focus

Throw ratio 1.37 ~ 1.64 (68”±3%@2m)

Horizontal scan rate 15 – 100 KHz

Vertical refresh scan rate 24 – 120 Hz

Keystone correction +/-30 Degrees (Vertical & Horizontal), Manual

Audio 10W speaker x 1

Power consumption Standard mode: 320 W @100 VAC

Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080),
WUXGA (1920 x 1200) (supports reduce blanking only)

1:1.2 Manual Zoom and Manual Focus

1.8 m – 8.9 m (5.9" – 29")

ECO mode: 235 W @ 100 VAC
Standby mode: < 0.5 W

PD1530i/LK-F300i/EF330i/K751i/FD-430i/VD6510i

Resolution Native: 1080p (1920 x 1080)

Aspect ratio Auto, 4:3, 16:9, Full, L.Box

Projection lens F = 1.6 ~ 1.76, f = 19.16 ~ 23.02 mm,

Projection screen size (diagonal) 60" – 150" (1.52 m – 3.81 m)

Projection distance with clear
focus

Throw ratio 1.3 ~ 1.56 (69”±3%@2m)

Horizontal scan rate 15 – 100 KHz

Vertical refresh scan rate 24 – 120 Hz

Keystone correction +/-30 Degrees (Vertical & Horizontal), Manual

Audio 10W speaker x 1

Power consumption Standard mode: 320 W @100 VAC

Maximum: UXGA (1600 x 1200), 1080p (1920 x 1080),
WUXGA (1920 x 1200) (supports reduce blanking only)

1:1.2 Manual Zoom and Manual Focus

1.7 m – 8.6 m (5.6" – 28.39")

ECO mode: 235 W @ 100 VAC
Standby mode: < 0.5 W

English

Power socket V V

I/O connectors

PD1330W/LK-W300/EW330/
K731/FD-230/VD5310

PD1530i/LK-F300i/EF330i/
K751i/FD-430i/VD6510i

DC 5V OUT V V

VGA IN V V

RS232 V V

AUDIO IN V V

AUDIO OUT V V

HDMI 1 V V

HDMI 2 V V

LAN V X

WIRELESS DONGLE X V

* Design and specifications are subject to change without notice.

43

44

English

Compatibility Modes

1 VGA Analog - PC Signal

Mode Resolution V.Frequency [Hz]

60 31.47

72 37.86

VGA 640 x 480

SVGA 800 x 600

XGA 1024 x 768

1152 x 864

SXGA

1280 x 1024

QuadVGA

SXGA+ 1400 x 1050 60 65.32

UXGA 1600 x 1200 60 75.00

PowerBook G4

1280 x 960 60 60.00

1280 x 960 75 75.00

640 x 480 60 31.50

640 x 480 66.6 (67) 35.00

800 x 600 60 37.88

1024 x 768 60 48.36

1024 x 768 75 60.241

1152 x 870 75 68.681

75 37.50

85 43.27

120 61.91

56 35.20

60 37.88

72 48.08

75 46.88

85 53.67

120 77.43

60 48.36

70 56.48

75 60.02

85 68.68

120 98.96

70 63.85

75 67.50

85 77.10

60 63.98

72 76.97

75 79.98

85 91.15

H.Frequency

[KHz]

English

1280 x 768 60 47.78

1280 x 768 75 60.29

1280 x 768 85 68.63

WXGA

WSXGA+

acer_16:9

HD 1080

acer_timing

WUXGA

1280 x 720 60 45.00

1280 x 800 60 49.70

1280 x 800 - RB 120 101.6

1440 x 900 60 55.94

1680 x 1050 60 65.29

1366 x 768 60 47.71

1920 x 1080-RB 60 66.60

1920 x 1080-EIA 60 67.50

1024 x 600 60 37.50

1920 x 1200-RB 59.95 74.04

2 HDMI - PC Signal

Mode Resolution V.Frequency [Hz]

VGA_60

VGA_72 72.809 37.861

VGA_75 75 37.5

VGA_85 85.008 43.269

VGA_120 119.518 61.91

SVGA_56

SVGA_60 60.317 37.879

SVGA_72 72.188 48.077

SVGA_75 75 46.875

SVGA_85 85.061 53.674

SVGA_120 119.854 77.425

XGA_60

XGA_70 70.069 56.476

XGA_75 75.029 60.023

XGA_120 119.804 98.958

SXGA_75

SXGA_85 84.99 77.094

SXGA_60

SXGA_72 72 76.97

SXGA_75 75.025 79.976

SXGA_85 85.024 91.146

QuadVGA_75 1280 x 960 75 75

640 x 480

800 x 600

1024 x 768

1152 x 864

1280 x 1024

59.94 31.469

56.25 35.156

60.004 48.363

75 67.5

60.02 63.981

45

H.Frequency

[KHz]

46

English

SXGA+_60 1400 x 1050 59.978 65.317

UXGA_60 1600 x 1200 60 75

Mac G4 640 x 480@60Hz 59.94 31.469

MAC13 640 x 480@67Hz 66.667 35

Mac G4 800 x 600@60Hz 60.317 37.879

Mac G4 1024 x 768@60Hz 60.004 48.363

MAC19 1024 x 768@75Hz 75.02 60.241

MAC21 1152 x 870@75Hz 75.061 68.681

WXGA_60

WXGA_75 74.893 60.289

WXGA_85 84.837 68.633

WXGA_60 1280 x 720 60 45

WXGA_60 1280 x 800 59.81 49.702

WXGA_120-RB 1280 x 800 119.909 101.563

WXGA+_60 1440 x 900 59.887 55.935

1680 x 1050_60 1680 x 1050 59.954 65.29

acer_16:9 1366 x 768 59.79 47.712

1920 x 1080_RB 1920 x1080 60 66.587

1920 x 1080_EIA 1920 x1080 60 67.5

1920 x 1080_120 1920 x1080 119.982 137.26

acer_timing 1024 x 600 60 37.5

1920 x 1200-RB 1920 x 1200 59.95 74.038

3840 x 2160_30 3840 x 2160 30 67.5

3840 x 2160_60 3840 x 2160 60 135

1280 x 768

59.87 47.776

3 HDMI - Video Signal

Mode Resolution V.Frequency [Hz] H.Frequency [KHz]

480i

480p 720 x 480 60 31.47

576i

576p 720 x 576 50 31.25
720p 1280 x 720 60 45.00

720p 1280 x 720 50 37.50
1080i 1920 x 1080 60 33.75
1080i 1920 x 1080 50 28.13

1080p 1920 x 1080 60 67.50
1080p 1920 x 1080 50 56.26

720 x 480

(1440 x 480)

720 x 576

(1440 x 576)

60 15.73

50 15.63

English

1080p 1920 x 1080 24 27.00
1080p 1920 x 1080 23.98 26.97

1080p 1920 x 1080 30 33.75
2160/24P 3840 × 2160 24 54
2160/25P 3840 × 2160 25 56.25
2160/30P 3840 × 2160 30 67.5
2160/50P 3840 × 2160 50 112.5
2160/60P 3840 × 2160 60 135

47

48

English

Regulations and safety notices

FCC notice

This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the
user is encouraged to try to correct the interference by one or more of the
following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the device and receiver.

• Connect the device into an outlet on a circuit different from that to which

the receiver is connected.

• Consult the dealer or an experienced radio/television technician for help.

Notice: Shielded cables

All connections to other computing devices must be made using shielded cables
to maintain compliance with FCC regulations.

Notice: Peripheral devices

Only peripherals (input/output devices, terminals, printers, etc.) certified to
comply with the Class B limits may be attached to this equipment. Operation
with non-certified peripherals is likely to result in interference to radio and TV
reception.

Caution

Changes or modifications not expressly approved by the manufacturer could
void the user's authority, which is granted by the Federal Communications
Commission, to operate this device.

Operation conditions

This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference,
and (2) this device must accept any interference received, including interference
that may cause undesired operation.

Notice: Canadian users

This Class B digital apparatus complies with Canadian ICES-003.

49

English

Remarque à l'intention des utilisateurs canadiens

Cet appareil numérique de la classe B est conforme a la norme NMB-003 du
Canada.

Compliant with Russian/Ukraine/Belarus/Morocco regulatory certification

Radio device regulatory notice

Note: The regulatory information below is for models with
wireless LAN and/or Bluetooth only.

General

This product complies with the radio frequency and safety standards of any
country or region in which it has been approved for wireless use. Depending on
configurations, this product may or may not contain wireless radio devices (such
as wireless LAN and/or Bluetooth modules).

Canada — Low-power license-exempt radio
communication devices (RSS-247)

a Common information

Operation is subject to the following two conditions:

1. This device may not cause interference, and

2. This device must accept any interference, including interference
that may cause undesired operation of the device.

b Operation in 2.4 GHz band

To prevent radio interference to the licensed service, this device is
intended to be operated indoors and installation outdoors is subject
to licensing.

English

List of applicable countries

This device must be used in strict accordance with the regulations and constraints in the
country of use. For further information, please contact a local office in the country of use.
Please see http://ec.europa.eu/enterprise/rtte/implem.htm for the latest country list.

50

English

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi

New Taipei City 221, Taiwan

EU Declaration of Conformity

We,

Acer Incorporated

8F, 88, Sec. 1, Xintai 5th Rd., Xizhi, New Taipei City 221, Taiwan

And,

Acer Italy s.r.l

Viale delle Industrie 1/A, 20020 Arese (MI), Italy
Tel: [phone], Fax: [phone]
www.acer.it

Product:

DLP Projector

Trade Name:

Acer

Model Number:

RU Jan/Sr. Manager
Acer Incorporated (Taipei, Taiwan)

Date

Sep. 1, 2020

Year to begin affixin g CE marking 2020.

PD1330W/LK-W300/EW330/K731/FD-230/
VD5310/AWX2002/PD1530i/LK-F300i/EF330i/
K751i/FD-430i/VD6510i/A1P2001

EMC Directive: 2014/30/EU

EN 55032:2015+AC:2016-07, Class B
EN 55024:2010+A1:2015

EN 61000-3-2:2014
EN 61000-3-3:2013

LVD Directive: 2014/35/EU

EN 60950-1:2006/A11:2009/A1:2010/A12:2011/A2:2013

RoHS Directive: 2011/65/EU

EN 50581:2012

ErP Directive: 2009/125/EC

Regulation (EU) No. 617/ 2013
Regulation (EC) No. 1275/2008; EN 50564:2011

Regulation (EU) No. 2019/1782; EN 50563:2011

We, Acer Incorporated, hereby declare under our sole responsibility that the product described
above is in conformity with the relevant Union harmonization legislations as below Directive
and following harmonized standards and/or other relevant standards have been applied:

EN 62368-1:2014+A11

51

English

Product: DLP Projector

Model Number: PD1330W/LK-W300/EW330/K731/FD-

230/VD5310/AWX2002/PD1530i/LK­F300i/EF330i/K751i/FD-430i/VD6510i/
A1P2001

Name of Responsible Party: Acer America Corporation

Address of Responsible Party: 333 West San Carlos St.

Suite 1500
San Jose, CA 95110
U. S. A.

Contact Person: Acer Representative

Phone No.: 254-298-4000

Fax No.: 254-298-4147

Acer America Corporation

333 West San Carlos St.,

Suite 1500

San Jose, CA 95110

U. S. A.

Tel: [phone]

Fax: [phone]

www.acer.com

Federal Communications Commission

Declaration of Conformity

This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) this device may not cause harmful interference, and (2) this device must
accept any interference received, including interference that may cause undesired operation.

The following local Manufacturer /Importer is responsible for this declaration:

English
